Page 1
12” PLATE AXIAL EXHAUST FAN
MODEL NO: CAF12
PART NO: 3230490
OPERATION & MAINTENANCE
INSTRUCTIONS
DL1025ORIGINAL INSTRUCTIONS
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Plate Axial Exhaust Fan.
Before attempting to use this product, please read this manual thoroughly and follow
the instructions carefully. In doing so you will ensure the safety of yourself and that of
others around you, and you can look forward to your purchase giving you long and
satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the obligation
to deal with the WEEE in accordance with the WEEE regulations in relation
to the treatment, recycling & recovery and environmentally sound disposal
of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing Waste
Electrical and Electronic Equipment (WEEE) at a recognized disposal facility.
At the end of its working life, do not dispose of this product or its components with
general household waste. Any tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of appropriately.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY WARNINGS
NOTE: This product DOES NOT come with a plug, for electrical connectivity
please consult pages 4-5 of this manual.
1. Please keep these instructions in a safe place for future reference.
2. NEVER carry out any alterations or modifications to this product.
3. NEVER carry out any maintenance on this product unless the power has been
isolated.
4. Inspect the power cable and plug (if used) for damage and ensure that no
connections are loose. DO NOT use this unit if it has a damaged supply cable.
Any damage should be properly repaired or the part replaced.
5. DO NOT use an adaptor plug with earthed (grounded) appliances. Correct plugs
and outlets will reduce the risk of electric shock.
6. Position the power cable so that it cannot be inadvertently pulled or pinched and
where it does not cause a trip hazard.
7. NEVER abuse the mains cable or wrench the cable to disconnect it from the
socket. Keep the cable away from sharp edges or hot surfaces.
8. NEVER insert anything into the fan grille, unless the power has been isolated.
9. Store or install this product in a dry and secure place out of reach of children.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
ELECTRICAL CONNECTIONS

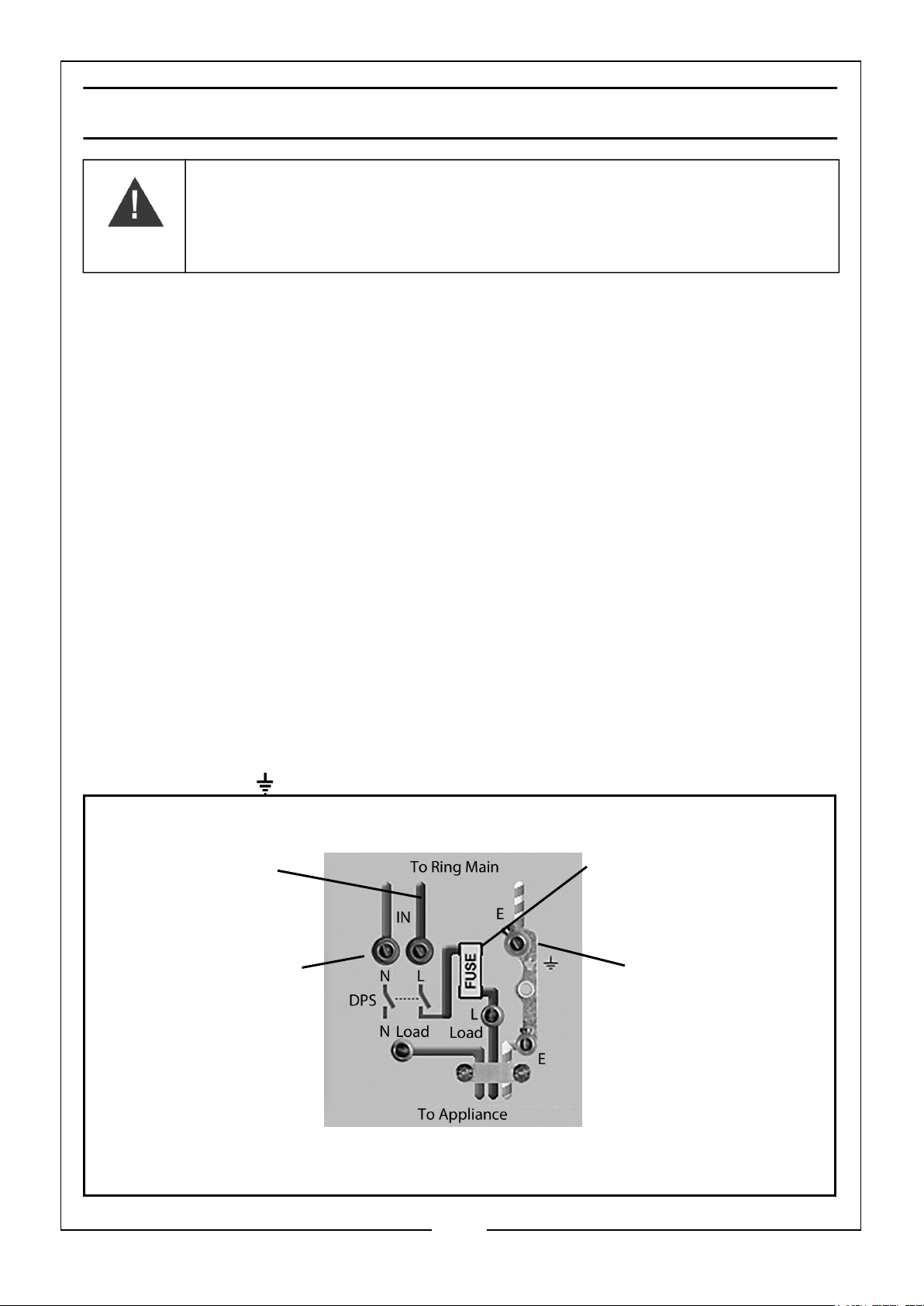

Fused Connection Unit (FCU) must be
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.
Before switching the product on, make sure that the voltage of your electricity supply
is the same as that indicated on the rating plate. This product is designed to operate
on 230VAC 50Hz. Connecting it to any other power source may cause damage.
This product can be used with either a standard plug or a fused connection unit
(FCU). If it is necessary to change the fuse in the plug or FCU, the fuse cover must be
refitted. If the fuse cover becomes lost or damaged, the plug or FCU must not be
used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to
damage, a replacement should be fitted, following the wiring instructions shown on
page 5. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond with
the markings on the terminals of your plug or spur, proceed as follows.
• The Blue wire must be connected to the terminal which is marked N or
coloured Black.
• The Brown wire must be connected to the terminal which is marked L or
coloured Red.
• The Yellow and Green wire must be connected to the terminal which is
marked E, or coloured Green.
BS1363/4 approved.
Live
(Brown)
Neutral
(Blue)
Always fit a
13 Amp fuse.
Earth
(Green and Yellow)
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
4
Page 5

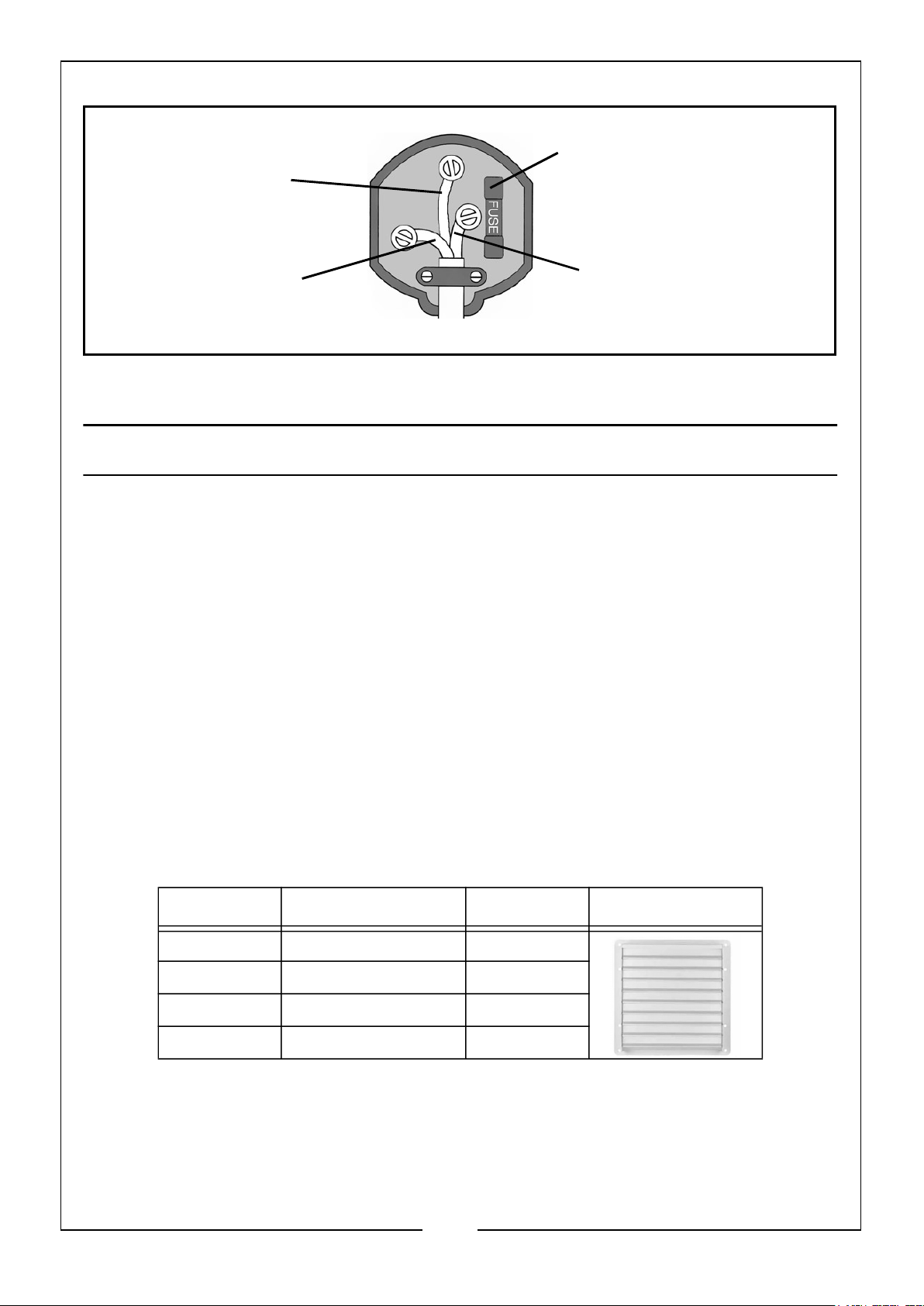

Plug must be BS1363/A approved.
Earth
(Green and Yellow)
Always fit a 13 Amp fuse.
Neutral
(Blue)
If in any doubt, consult a qualified electrician.
Live
(Brown)
INSTALLATION
1. Before installation, ensure that the impeller has not been damaged or distorted
during transit.
2. Check that the impeller rotates freely and is secured tightly to the shaft. If the tip
clearance of the blades is not sufficient slacken the motor bolts and re-align.
3. Mount the fan securely using 4 bolt/screw holes provided in the outer casing.
Using the other 4 bolt holes and appropriate length bolts, the fan can be aligned
and secured with the corresponding sized external louvre vent (see below).
4. Ensure that the installation is free from any vibration which could damage the
impeller or motor bearings.
5. Ensure that when installed the impeller side of the fan cannot be touched.
6. For safety and security a Louvre shutter/vent should be installed on the external
wall. These can be purchased from your local CLARKE retailer.
MODEL NO. DESCRIPTION PART NO.
CL12 12” Louvre Vent 3230494
CL16 16” Louvre Vent 3230495
CL20 20” Louvre Vent 3230496
CL24 24” Louvre Vent 3230497
7. Refer to the section on electrical connection on pages 4-5 for guidance on wiring.
If in any doubt, consult a qualified electrician.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
5
Page 6
MAINTENANCE
Before carrying out any maintenance, always make sure that the power has been
isolated.
1. Check that the impeller and motor bolts and nuts are fully tightened within the
first 100 hours of use and periodically after this.
2. Ensure that the impeller, motor and fan housing are kept clean. This is important
for the ongoing safe use of this fan.
3. Periodically check that the fan installation is free from corrosion.
4. If not installed, store in a dry place protected from the weather.
5. DO NOT attempt any repairs yourself, always consult a qualified electrician or
contact the CLARKE service department.
Your CLARKE fan has been designed to give long and trouble free service. If, however,
having followed the instructions in this booklet carefully, you encounter problems,
take the unit to your local CLARKE dealer.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

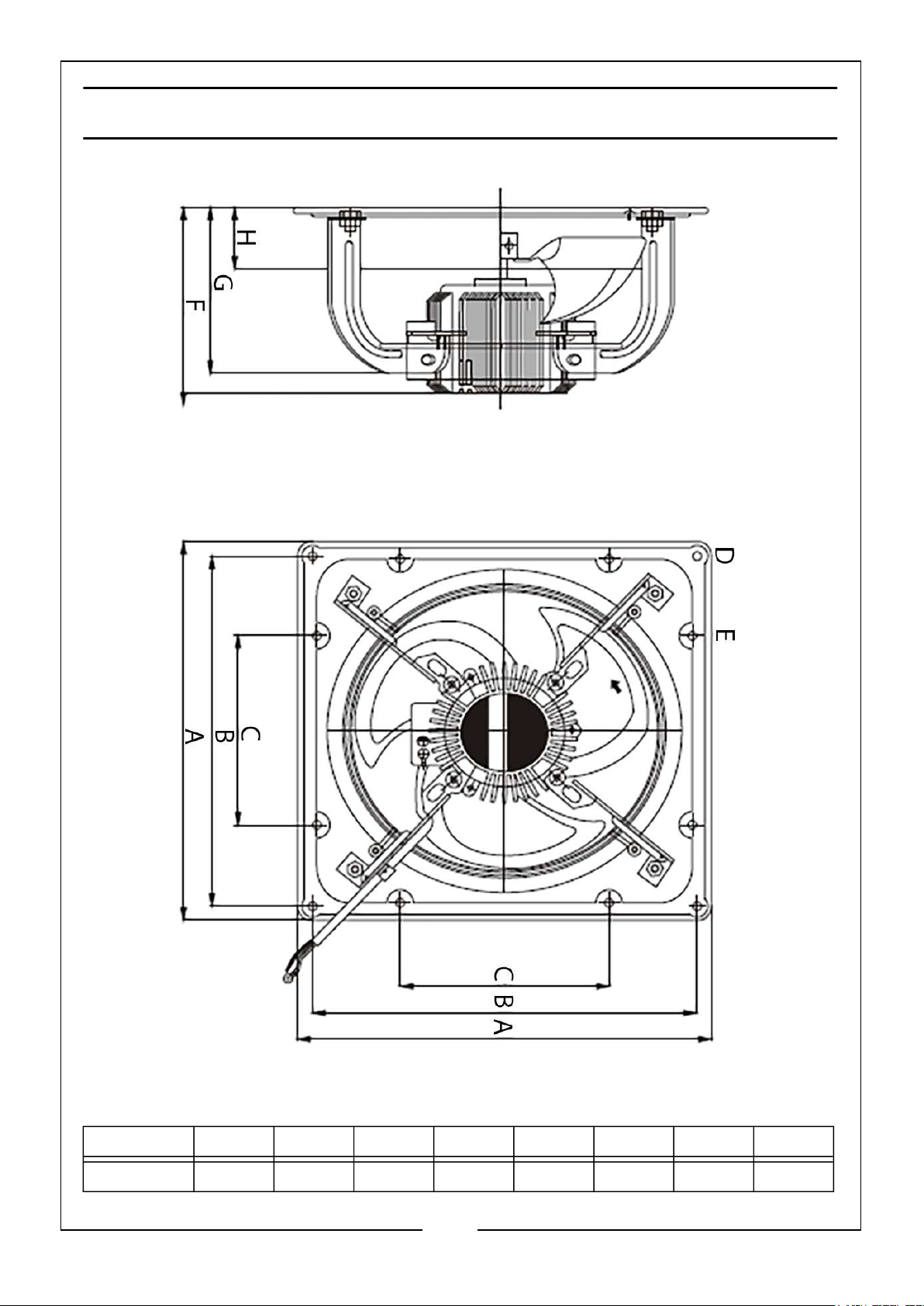

TECHNICAL DATA
Model A B C D E F G
CAF12 400mm 350mm 130mm 10mm 10mm 177mm 150mm 60mm
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
H
Page 8

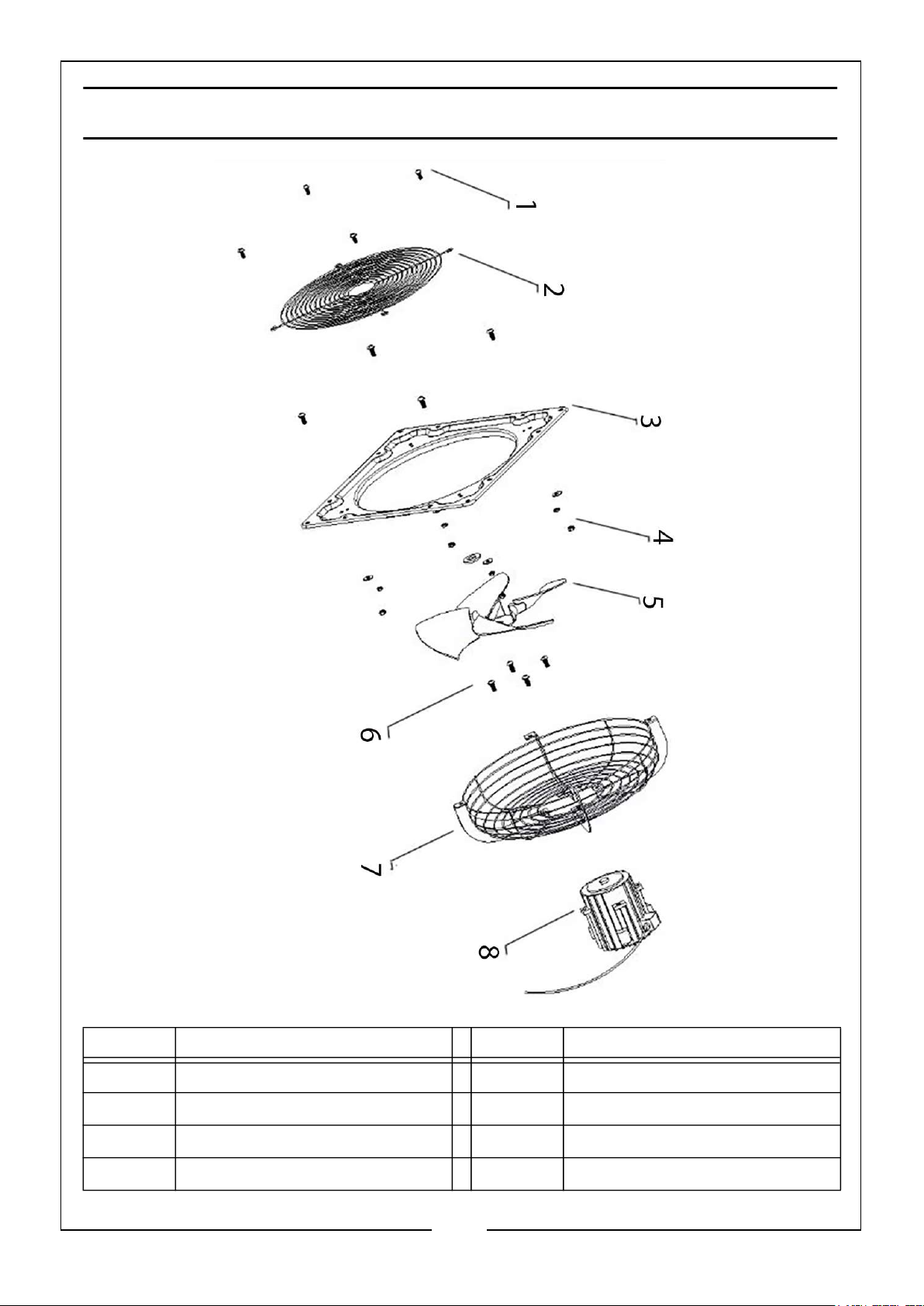

DIAGRAM
No Part No Part
1 Screw 5 Impeller
2 Safety Grille 6 Motor Screw
3 Frame 7 Safety Grille
4 Impeller Screw 8 Motor
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
TECHNICAL SPECIFICATION
Model CAF12
Impeller Size 300mm (12”)
Voltage/Frequency 230 Volts/50 Hz
Power Cable
Electrical Insulation Class Class I
Speed 1400 rpm
Power Input 80 Watts
Rated Input Ampage 0.35A
Service Value
Standby Power Consumption N/A
Fan Sound Power Level 54dB (A)
Maximum Air Velocity 2m
Airflow at Optimum Energy Efficiency
Static Pressure at Optimum Efficiency 45pa
Operating Temperature -15°C ~ 40°C (5°F ~ 104°F)
Weight 5.85 kg
IP Rating IP54
3 Core x 1.0mm2 x 1.5m
0.4m3/min/W
30m3/min
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10

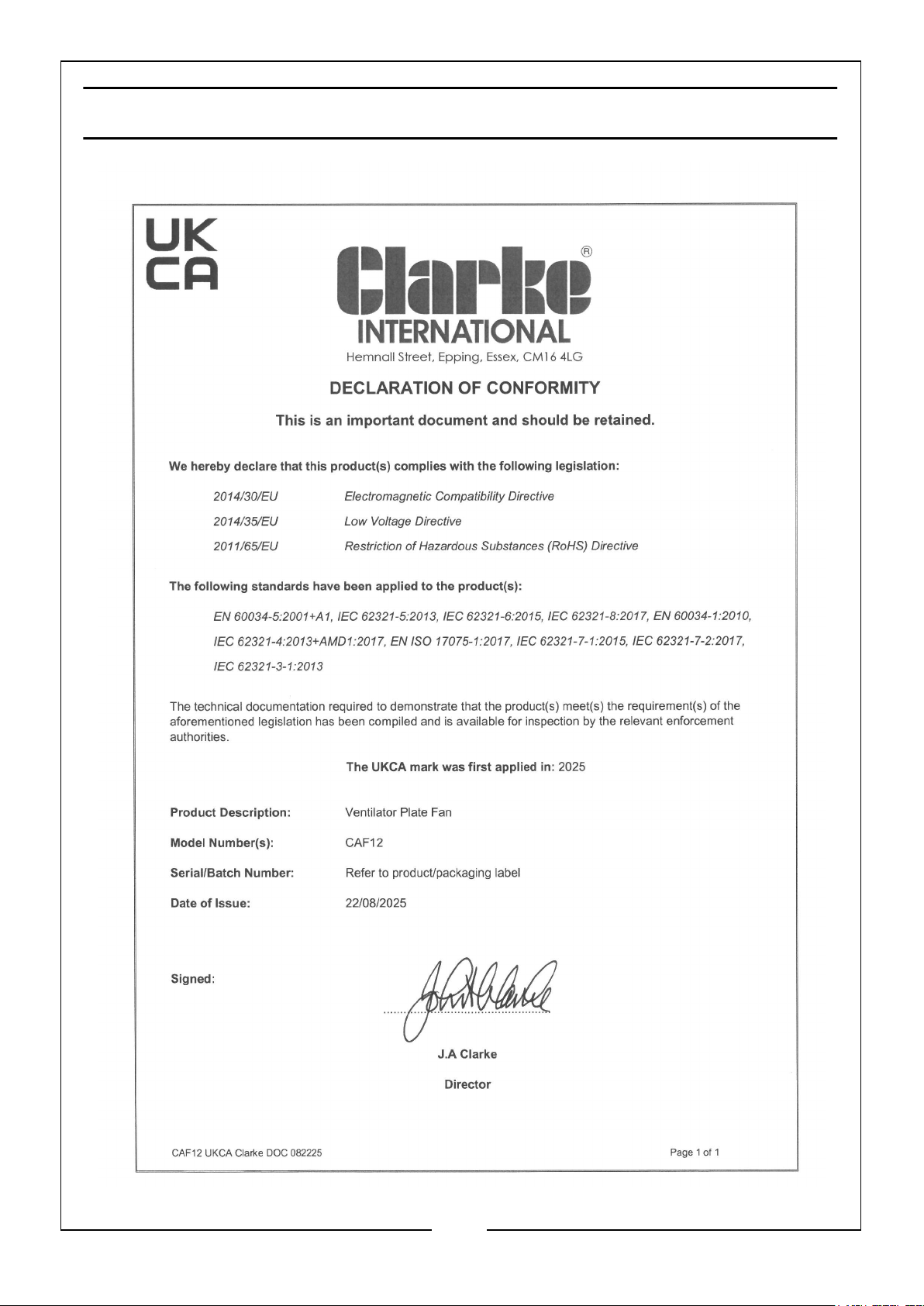

DECLARATION OF CONFORMITY - UKCA
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

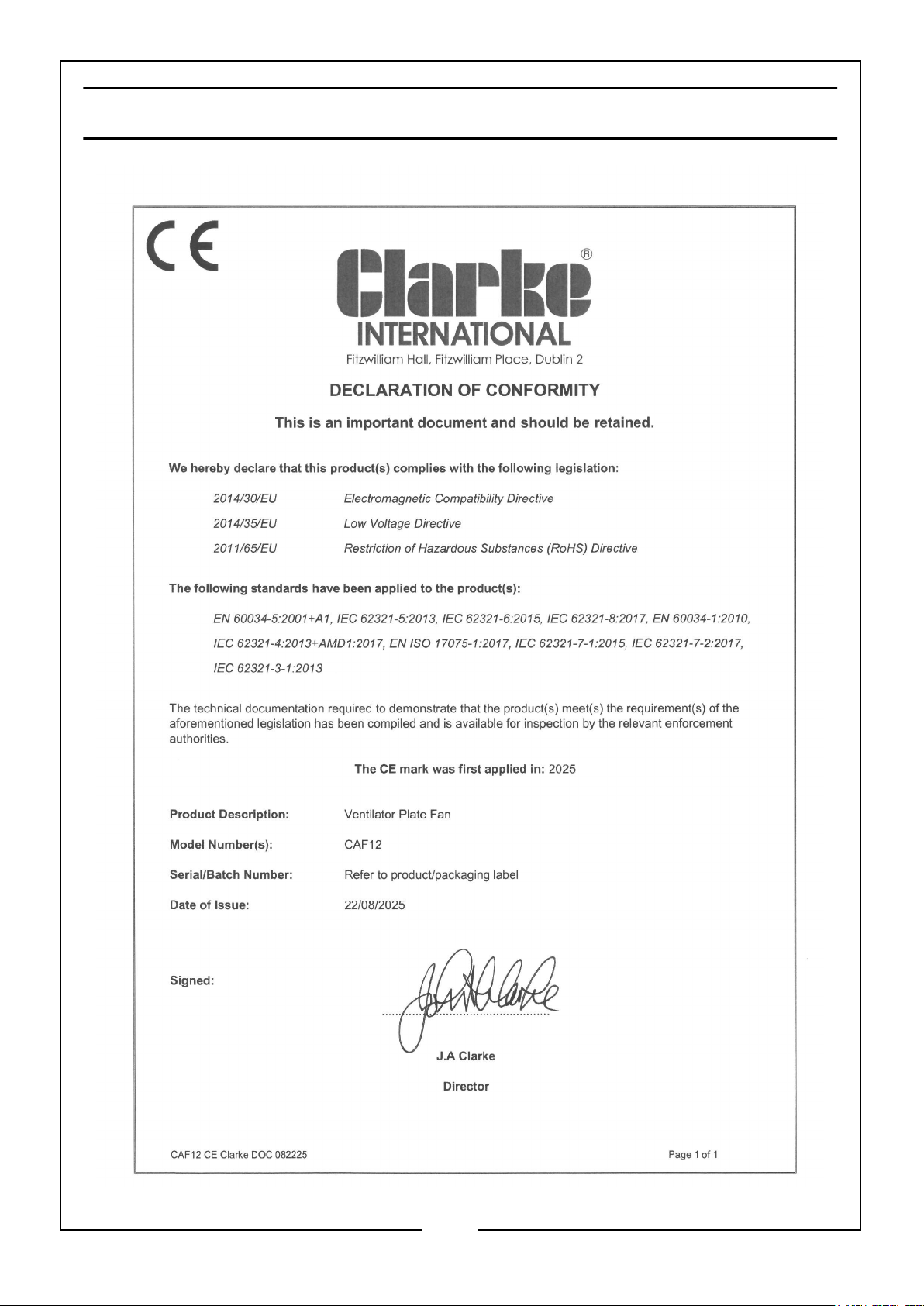

DECLARATION OF CONFORMITY - CE
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
