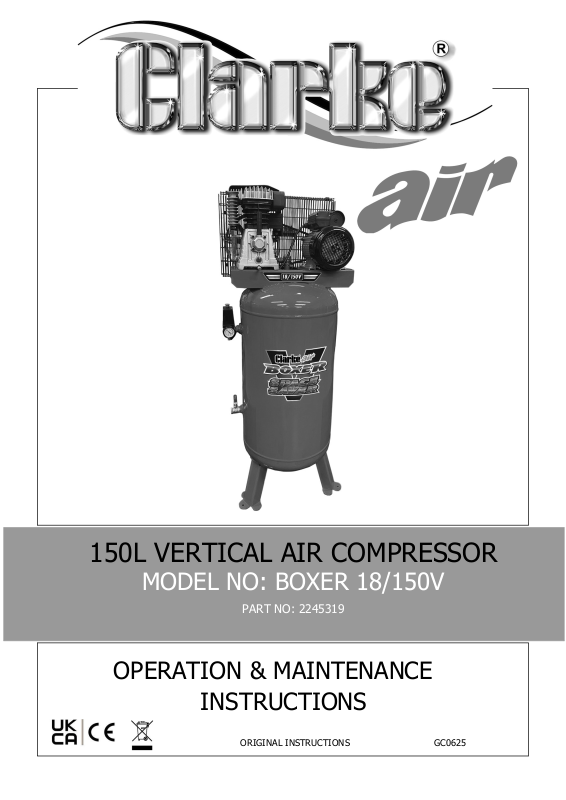

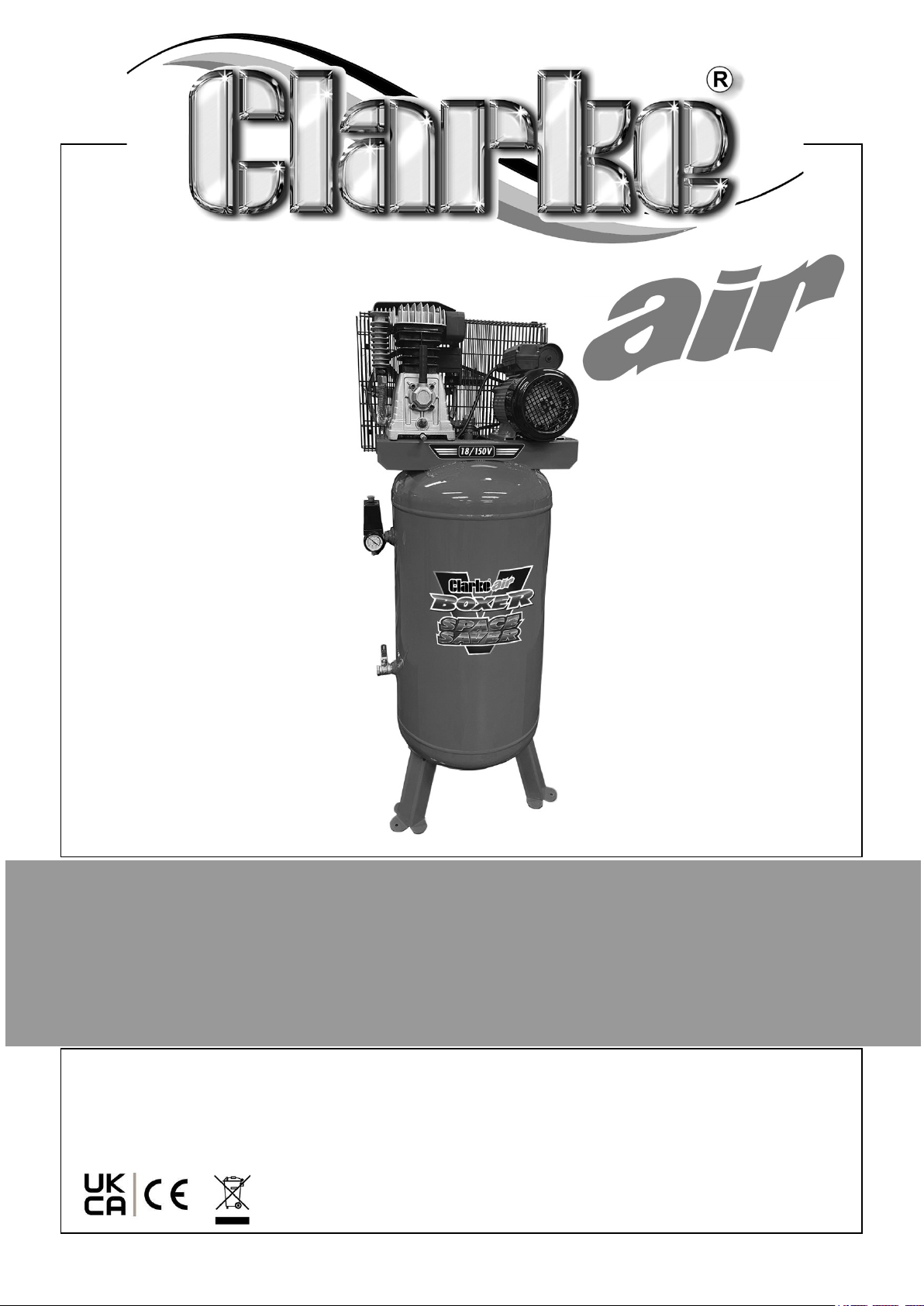

150L VERTICAL AIR COMPRESSOR
MODEL NO: BOXER 18/150V
PART NO: 2245319
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0625
Page 2
Thank you for purchasing this CLARKE Air Compressor.
Before attempting to operate the machine, it is essential that you read this manual thoroughly and follow all instructions given. This will ensure the safety of yourself and others and you can look forward to the product giving you long and satisfactory service.
Before using your compressor it is in your own interest to read and pay attention to the following safety rules on the following page.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
By purchasing this product, the customer is taking on the obligation to deal with its safe disposal in accordance with the Waste Electrical and Electronic Equipment (WEEE) regulations.
In effect, this means that this product must not be disposed of with general household waste but according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
If disposing of this product or any damaged components, do not dispose of with general waste. This product contains valuable raw materials. Metal products should be taken to your local civic amenity site for recycling of metal products.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
1. Compressed air is dangerous. DO NOT point a jet of air at persons or animals or discharge compressed air against the skin.
2. DO NOT operate your compressor with the guard removed.
3. Repairs must only be carried out by a qualified engineer. If problems occur, contact your CLARKE dealer.
4. Before carrying out any maintenance make sure that the pressure is released from the air reservoir and that the compressor is disconnected from the power supply.
5. DO NOT leave pressure in the receiver overnight or when transporting.
6. DO NOT adjust or tamper with the safety valves. The maximum pressure is factory set, and clearly marked on the compressor.
7. DO NOT operate in wet or damp conditions. Keep the compressor dry at all times. Similarly, clean air will allow the compressor to work efficiently. DO NOT use in dusty or otherwise dirty locations.
8. Some of the metal parts can become quite hot during operation. DO NOT touch/ remove these until the compressor has cooled down.
9. When spraying flammable materials e.g. cellulose paint, ensure that there is sufficient airflow and keep clear of any source of ignition.
10. Before spraying any material always consult paint manufacturers instructions for safety and use.
11. Protect yourself. Goggles will protect your eyes from flying particles. Face masks will protect you against paint spray and fumes.
12. DO NOT apply strain to electrical cables and make sure that air hoses are not kinked or wrapped around the compressor.
13. When disconnecting air hoses or other equipment from your compressor, make sure that the air supply is turned off at the outlet and vent all pressurised air from within the reservoir and other equipment attached to it.
14. Make sure that children and animals are kept well away from the compressor and any equipment attached to it.
15. Make sure that all individuals using the compressor have had any necessary training and have read and fully understand these operating instructions.
16. Make sure that any equipment or tool used in conjunction with your compressor, has a safe working pressure exceeding that of the compressor.
17. Be careful when transporting the compressor to prevent tipping over.
18. Permanently installed systems must be installed by a competent engineer.
19. These compressors produce noise levels in excess of 70dB(A). Persons working near the compressor must be supplied with ear protection.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

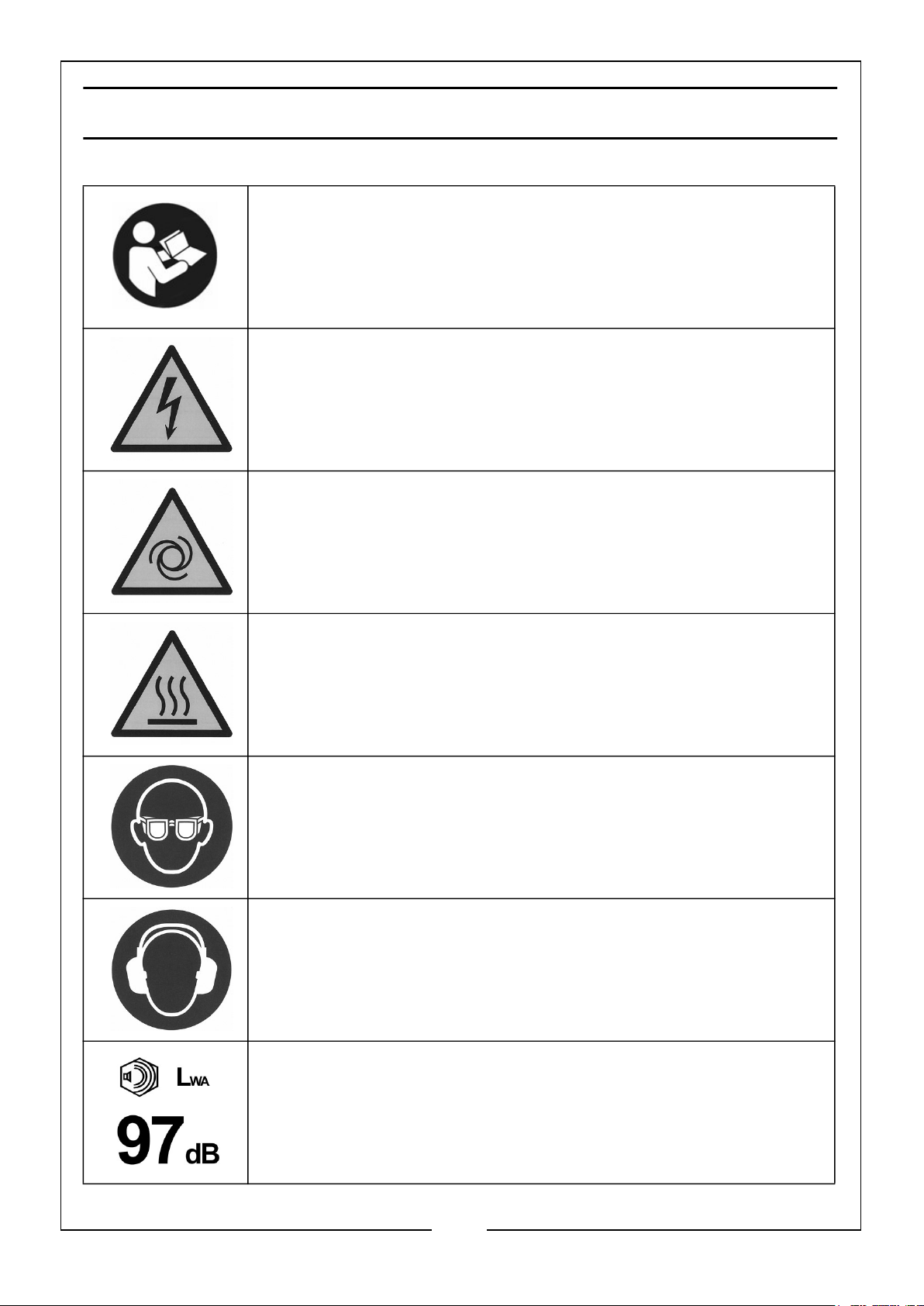

SAFETY SYMBOLS
Read this instruction booklet carefully before positioning, operating or adjusting the compressor.
Risk of electric shock. The compressor must be disconnected from the mains supply before removing any covers. DO NOT use in a damp environment.
Risk of accidental start-up. The compressor could start automatically in the event of a power cut and subsequent reset.
This compressor contains surfaces which may reach a high temperature during operation. NEVER operate with the motor housing removed.
Wear safety goggles when using this compressor
Wear ear protectors when using this compressor
This compressor produces a high sound level during operation.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
INSTALLATION
Before installing your compressor, confirm that its output will be sufficient for the airline equipment to be used. We recommend the following:
1. A firm, level site and the use of floor mountings with anti-vibration pads. (Do not bolt the machine directly to the floor).
2. A dust and damp free environment.
3. Adequate ventilation for:
• Air intake to the compressor
• Cooling for the compressor and its electric motor.
4. Sufficient access for servicing. (A minimum clearance of 500mm must be allowed around the machine).
5. The power cable must be adequate to carry the starting and running load of the electric motor. This is particularly relevant if the compressor is some distance from the source of supply.
6. Electrical installations should be completed by a qualified electrician.
ELECTRICAL CONNECTIONS
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.
This compressor requires a 32A plug and connection to a MCB Type C meeting the requirements of BS EN 60309 and having a rated capacity of greater than 32 Amps.
A standard 13 Amp (BS1363) plug must NOT be used.
WARNING: THIS APPLIANCE MUST BE EARTHED.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:
GREEN AND YELLOW - EARTH (E)
BLUE - NEUTRAL (N)
BROWN - LIVE (L)
As the colours of the flexible cable of this appliance may not correspond with the coloured markings identifying terminals, proceed as follows:
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
• Connect GREEN AND YELLOW coloured cable to terminal marked “E” or Earth Symbol or coloured Green and Yellow.
• Connect BROWN cable to terminal marked ‘L’ or coloured Red.
• Connect BLUE cable to terminal marked “N’ or coloured Black.
BEFORE USE
CAUTION: TO PREVENT INJURY, GET ASSISTANCE WHEN LIFTING OR MOVING THIS COMPRESSOR.
Before connecting your compressor to the power supply, check that the supply voltage matches the voltage shown on the data label.
• Set the ON/OFF switch to the OFF
position (pushed down).
CHECKING THE OIL LEVEL

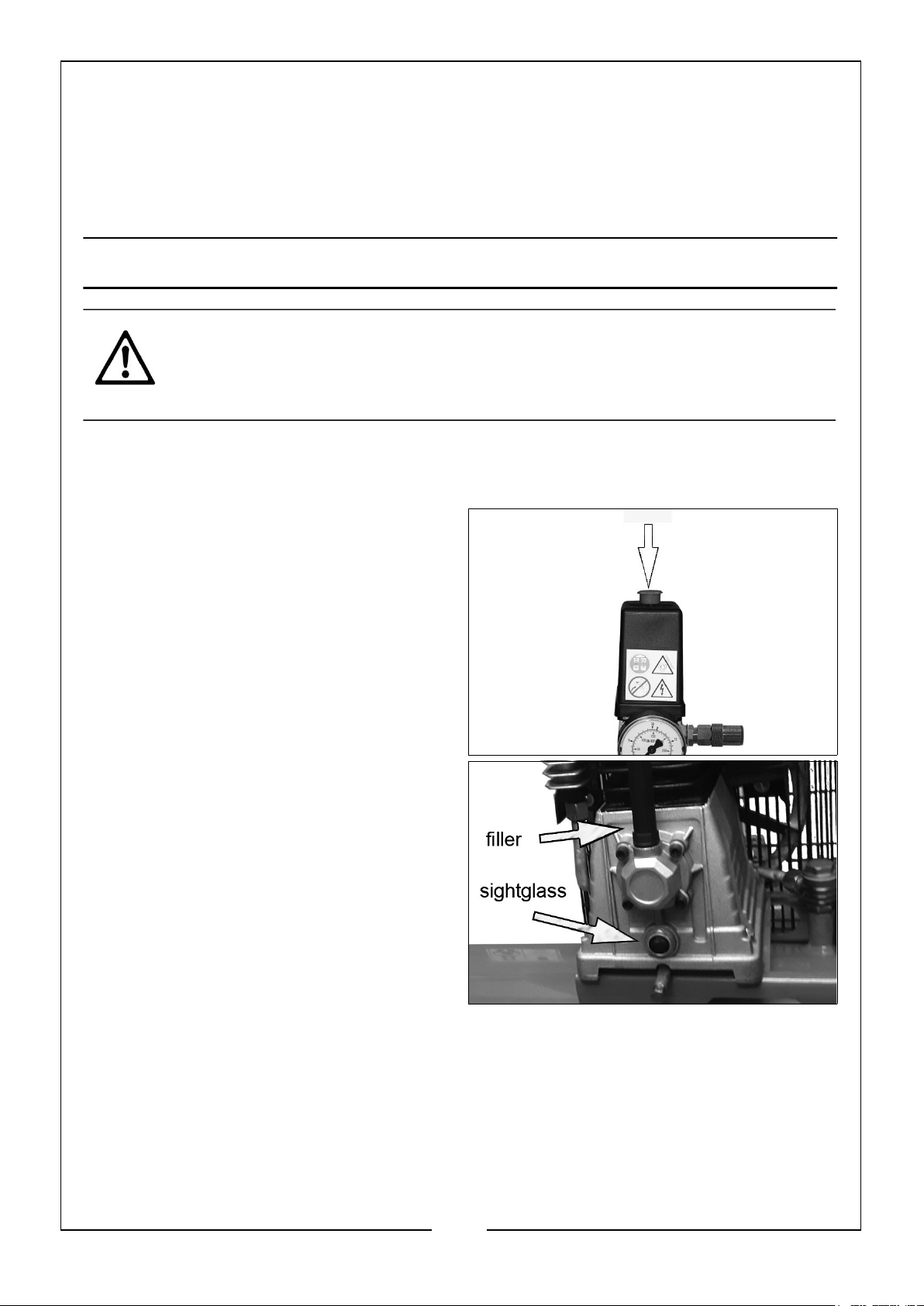

1. Ensure the oil level is showing at the correct level through the sight-glass.
2. If not top up after unscrewing the filler plug.
• Only use ISO100 (SAE30)
compressor oil, available from your CLARKE dealer Part No.
3050796.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
OPERATION
If the compressor has not been used for more then 24 hours, open the drain valve (on the bottom of the reservoir) and drain any condensate which has collected. See page 10.
ATTACHING AIR TOOLS
WARNING: BEFORE CONNECTING AIR TOOLS, MAKE SURE THAT YOU READ THE INSTRUCTIONS SUPPLIED WITH THE TOOL. ALSO ENSURE THAT THE TOOL IS SUITABLE FOR USE WITH THE COMPRESSOR AND HOSE SPECIFICATIONS.
1. Fit the supplied adaptor to the compressor and attach the air hose to the tap.
2. Attach the air tool to the other end of the air hose.

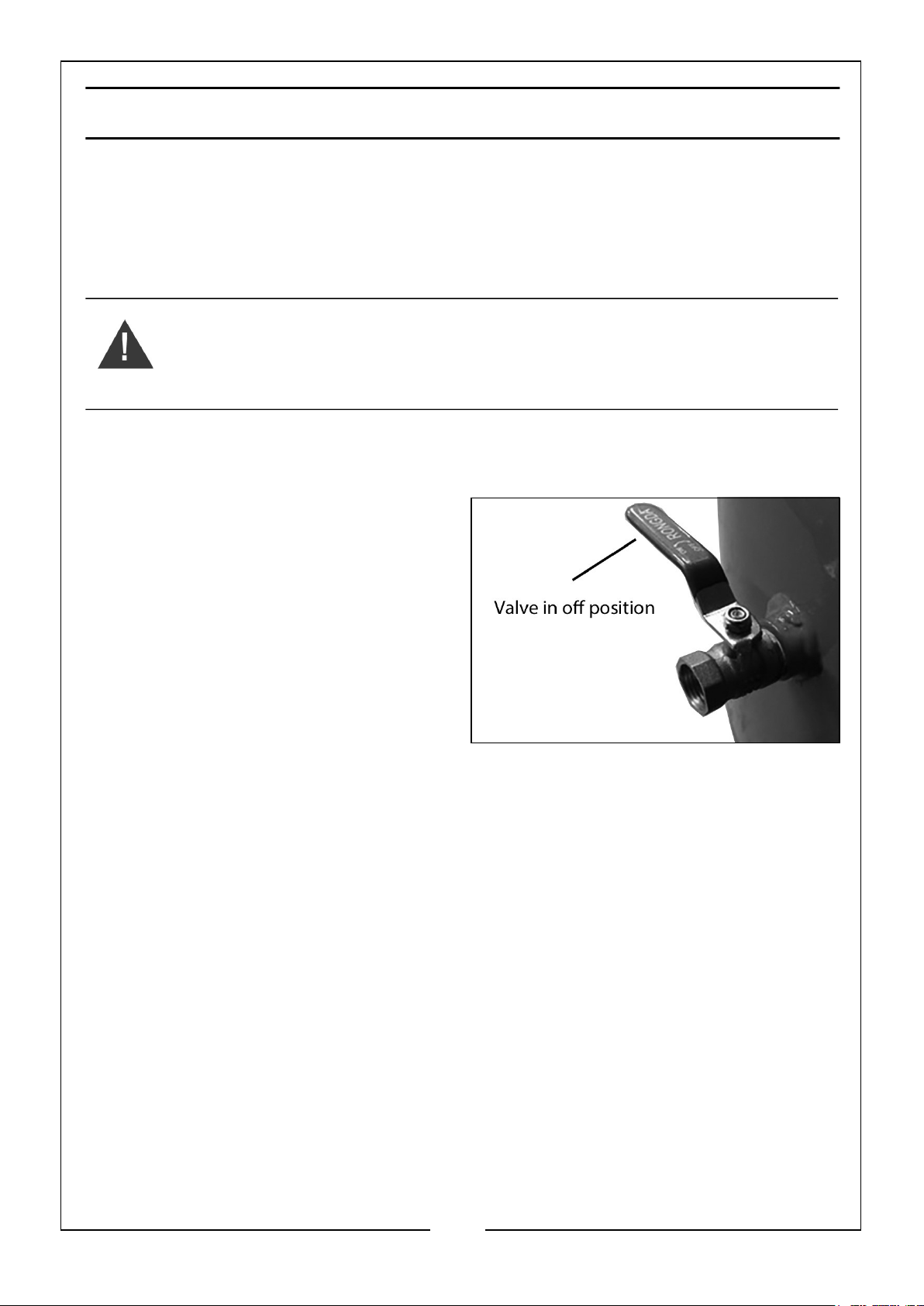

3. Turn the tap handle to the open position.
NOTE: The tap is shown without the
air hose fitted for clarity.
TURNING THE COMPRESSOR ON
1. Plug the compressor into the power supply.
2. Lift the On/Off button.
• The compressor will operate until the reservoir is fully pressurised. It will
then shut down.
• The compressor will start up again when the pressure in the reservoir
decreases.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
CHECKING THE SAFETY VALVE
WARNING: DO NOT REMOVE OR TRY TO ADJUST THE SAFETY VALVE.
To make sure that the safety valve works correctly.

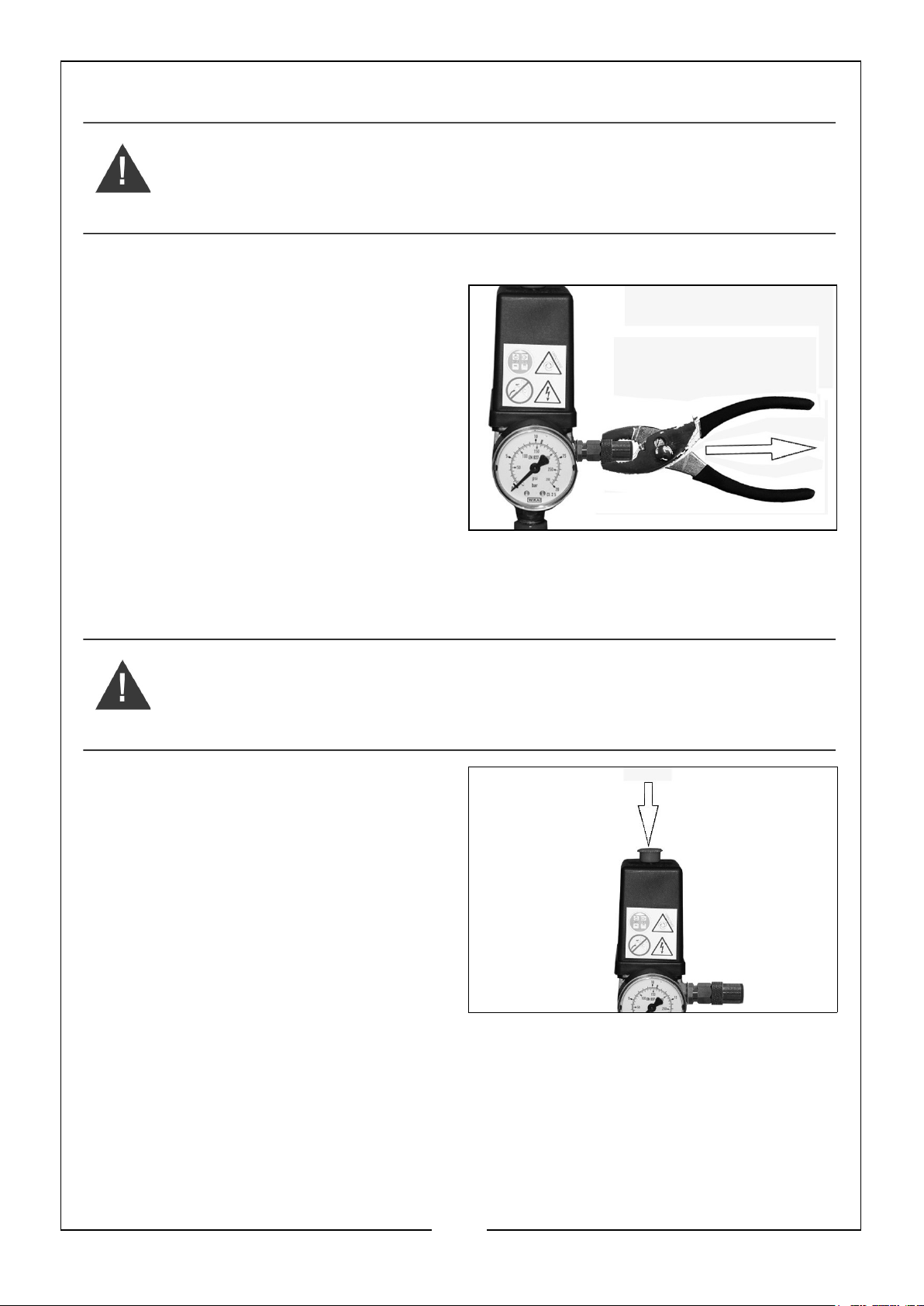

1. Unscrew and pull the knurled part of the safety valve.
• Air will be released when you pull
hard on the valve and stop when released.
2. If the valve does not operate in this way, do not use the compressor. The compressor must be repaired by a qualified service agent.
3. Once tested, screw the knurled part back in.
REMOVING TOOLS FROM THE AIR HOSE
WARNING: ALWAYS SET THE PRESSURE REGULATOR TO ZERO BEFORE YOU REMOVE OR REPLACE A TOOL.
1. Push down on the On/Off button to stop the compressor.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
2. Turn the tap handle to the closed position.
3. Operate the tool to depressurize the air hose.
4. Disconnect the tool from the hose.
TURNING THE COMPRESSOR OFF
1. Follow steps 1-3 in “Removing Tools From The Air Hose” above.
2. Disconnect the compressor from the power supply.
3. Slowly open the tap to de-pressurize the reservoir.
• You will hear a hissing sound as the reservoir de-pressurizes.
4. Do not leave the compressor unattended if the reservoir is pressurised.
DRAINING THE RESERVOIR
CAUTION: YOU MUST DRAIN THE RESERVOIR AFTER EACH DAYS USE AND BEFORE YOU PUT YOUR COMPRESSOR INTO STORAGE.
1. Turn the compressor off and disconnect from the power supply.
2. Put a container below the drain valve to collect the condensate.

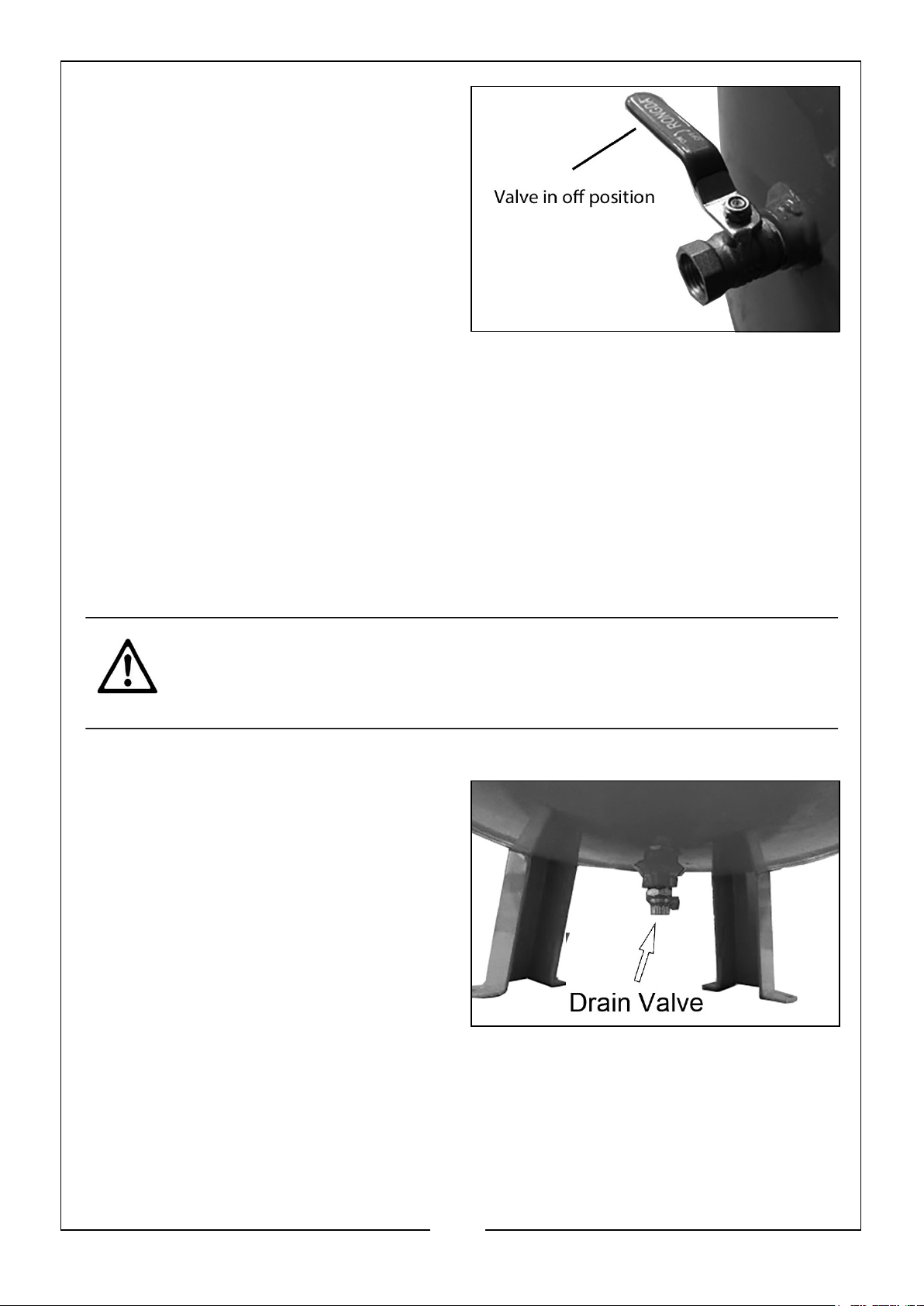

• The drain valve is located on the
bottom of the reservoir
3. Open the drain valve slowly.
• Condensation will drain from the
reservoir.
4. Close the drain valve when the reservoir has fully drained.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
USING THE OVERLOAD RESET BUTTON
The electric motor is fitted with an automatic overload detector which will stop the motor if an overload is detected.
If this happens;
1. SWITCH OFF THE MACHINE (Push the knob down or turn the pressure switch).
2. Allow the compressor to cool down for 5-10 minutes.

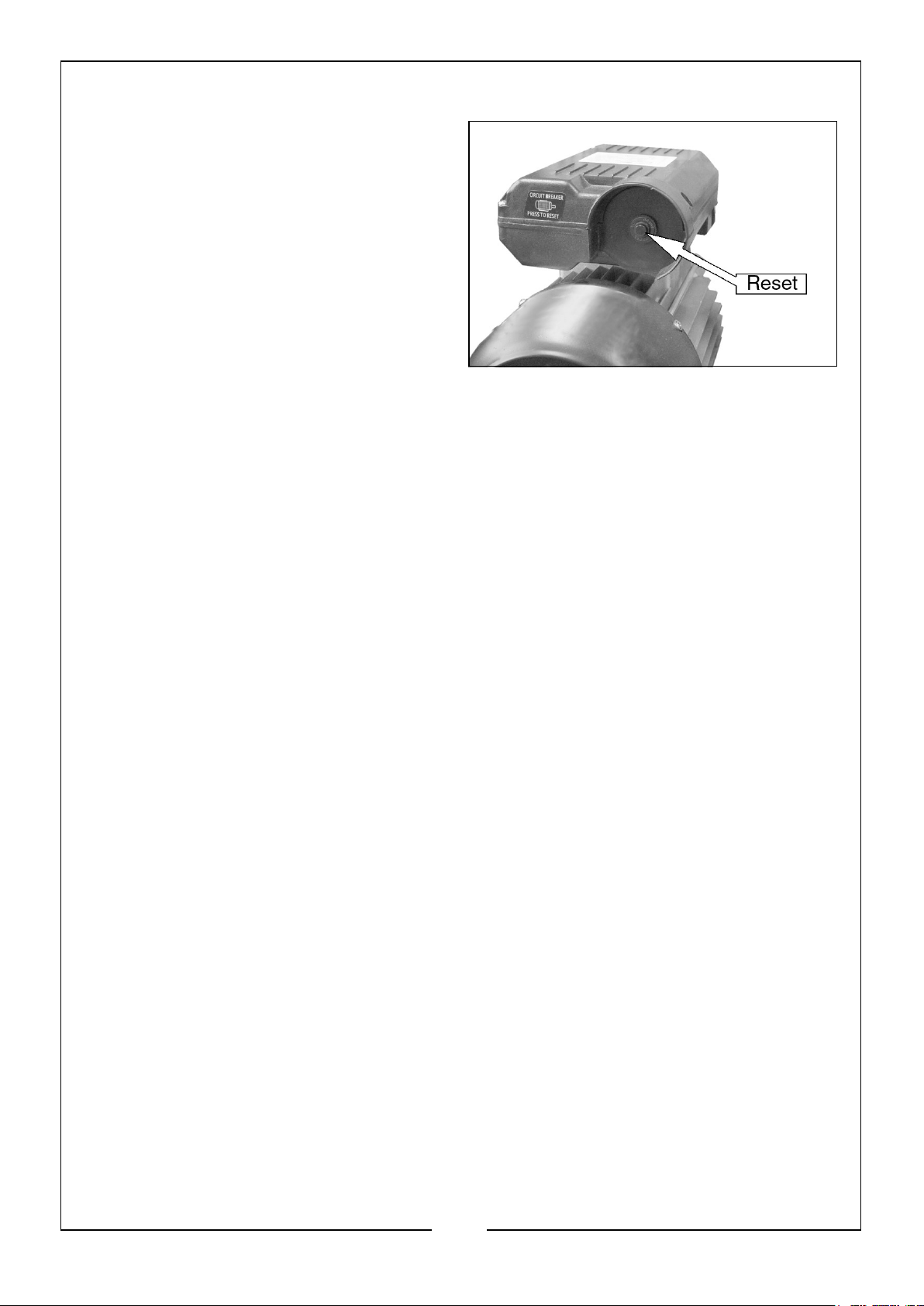

3. Press the Reset button shown on the right.
4. Switch on the pressure switch (lift the knob or twist switch).
If the overload trips repeatedly it may indicate a fault with the compressor. In this case you should contact the Clarke service department.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
MAINTENANCE
WARNING: MAKE SURE THAT THE COMPRESSOR IS DISCONNECTED FROM THE ELECTRICAL SUPPLY BEFORE CARRYING OUT ANY MAINTENANCE
DRAIN THE RESERVOIR
After use, always open the drain valve to make sure that any condensate is drained off.
CHECK OIL
Ensure the oil level is between the min and max marks on the dipstick. See “Checking the Oil level” on page 6 and top-up if necessary - (use CLARKE ISO100 (SAE30) compressor oil, available from your local CLARKE dealer).
CLEANING THE AIR FILTER
The air filter must be examined monthly or more often in dusty conditions.

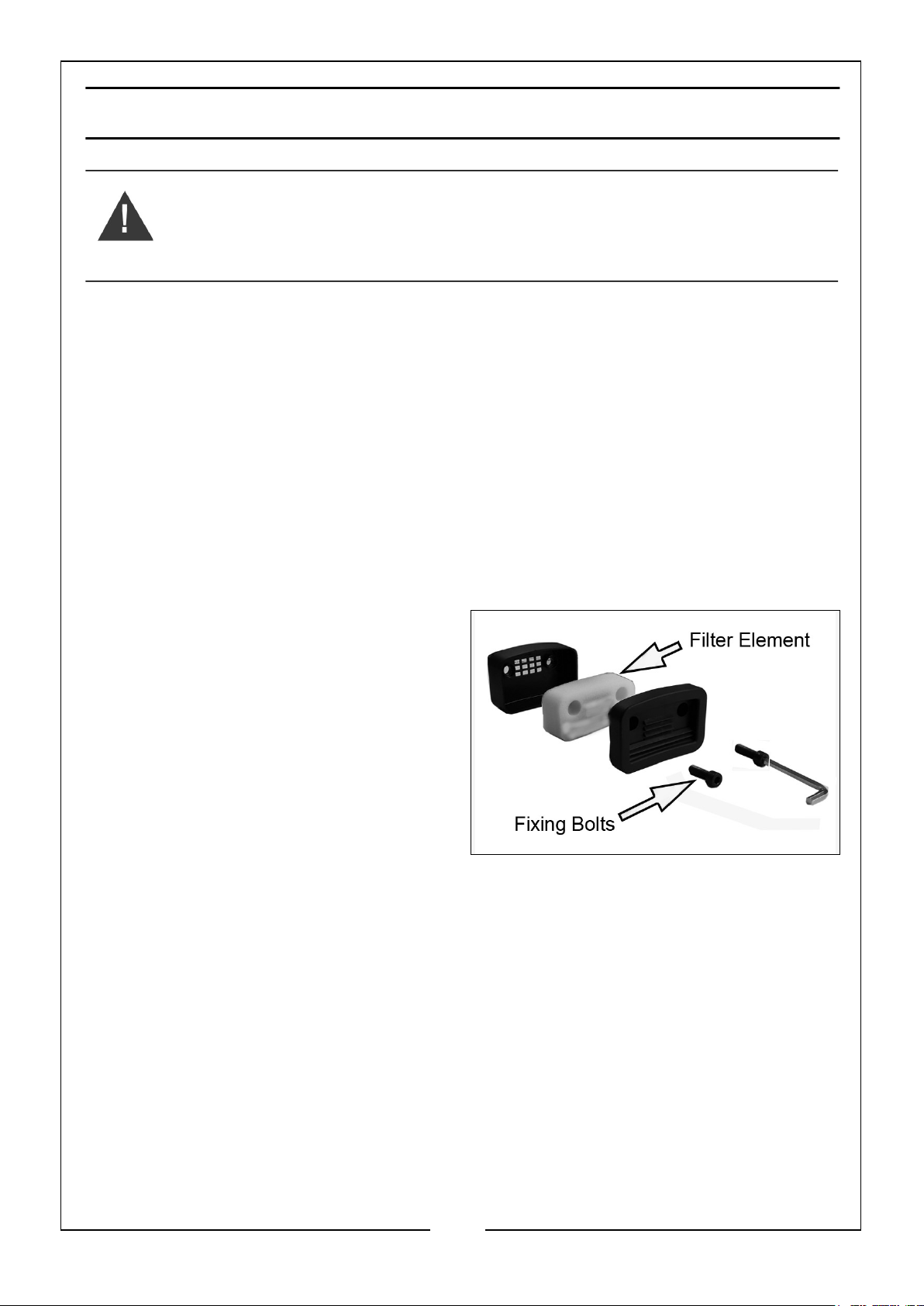

1. Remove the securing bolt with a 7/ 32” hex key and pull the filter from
the engine.
2. Remove the filter element and clean the filter using a soft brush.
• If necessary, the filter can be
carefully cleaned in warm soapy water.
• Rinse and let the filter dry
completely before refitting.
• If the filter or filter element is damaged you must replace it.
3. Reassemble the filter and refit it to the compressor.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
REPLACING THE OIL
After the first 100 hours use, replace the oil using CLARKE ISO100 (SAE30) compressor oil. Thereafter, replace the oil after every 500 hours of operation or every 6 months.
To empty the oil from the machine remove the oil drain plug from the crankcase.
One of the most damaging sources of environmental pollution is oil products. Never throw away used hydraulic oil with domestic refuse or flush it down a sink or drain. Collect any hydraulic oil in a leak proof container and take it to your local waste disposal site.

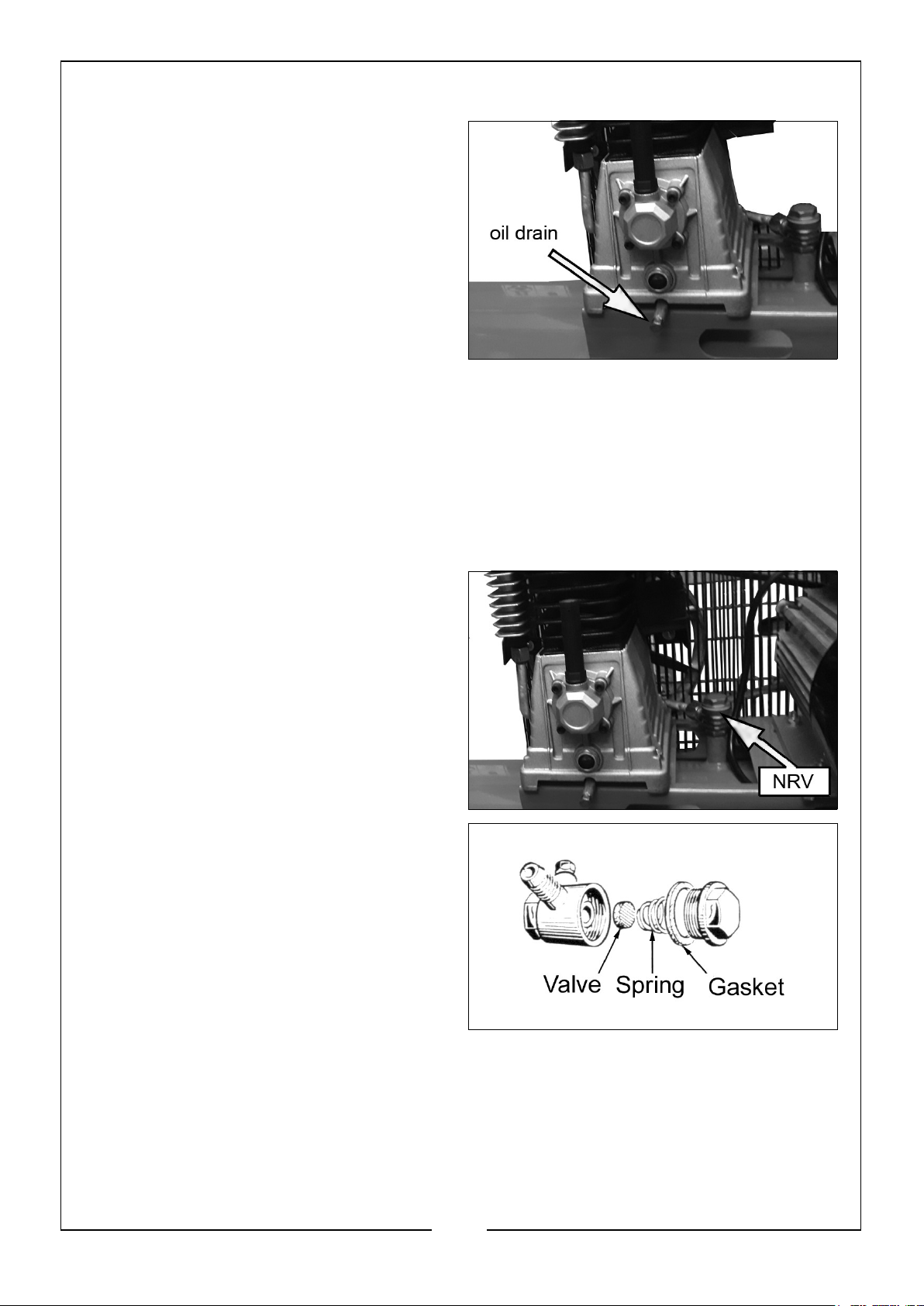

CHECKING THE NON-RETURN VALVE
If the reservoir pressure decreases for no apparent reason it is possible that the non­return valve is leaking. To check this:
1. Make sure that the reservoir is not under pressure and the compressor is switched OFF.
2. Examine the non-return valve, and replace the gasket and valve if necessary.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13

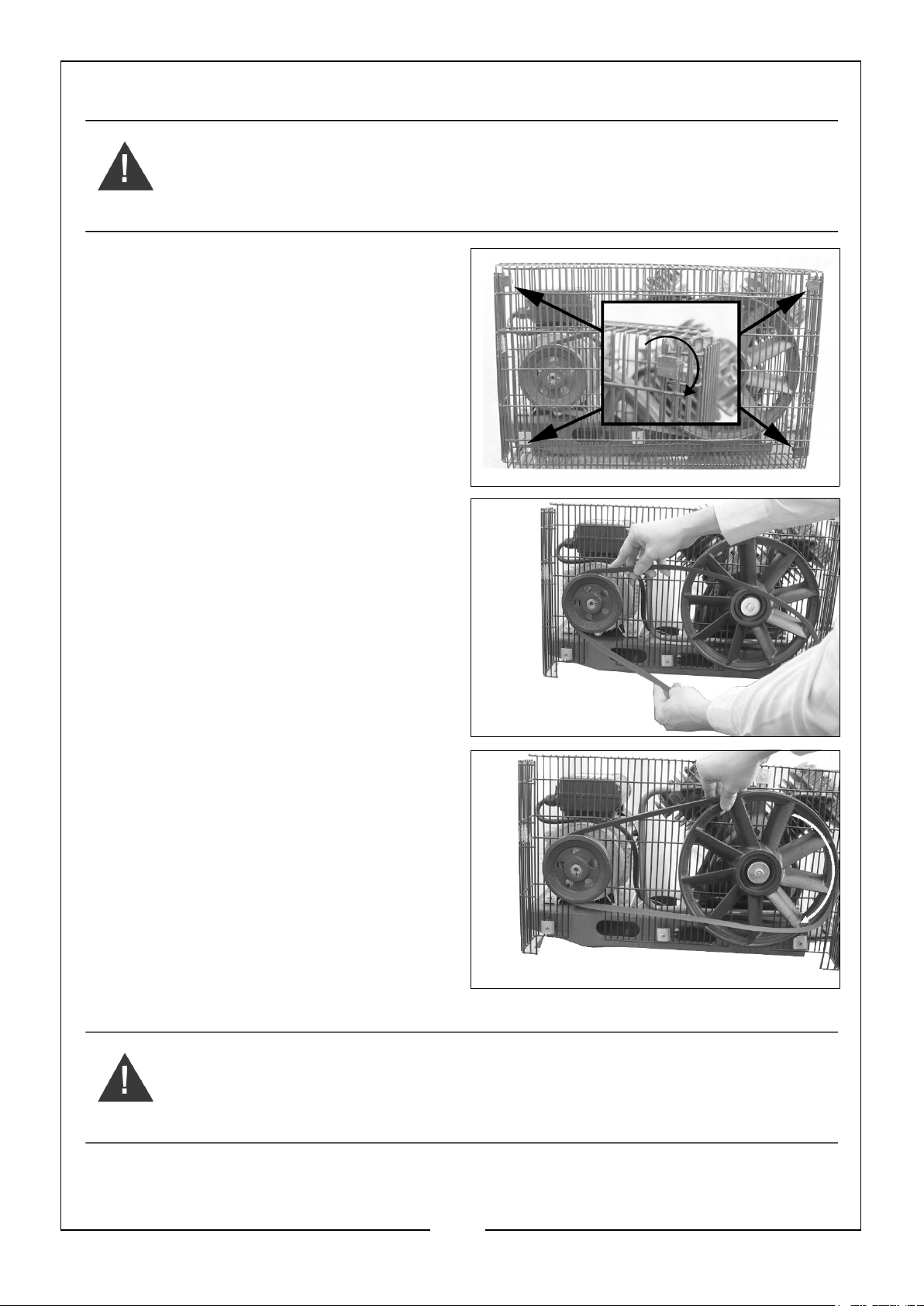

REPLACING THE DRIVE BELT
WARNING: MAKE SURE THAT THE COMPRESSOR IS DISCONNECTED FROM THE ELECTRICAL SUPPLY BEFORE REPLACING THE DRIVE BELT.
1. Rotate the clips on the front of the safety cage.
2. Remove the front of the cage and take out the worn or broken drive belt.
3. Place the new drive belt over the small wheel.
4. Position part of the drive belt over the large belt wheel as shown.
5. Rotate the large belt wheel by hand in a clockwise direction whilst guiding the belt on to it.
• Take care to avoid trapping your
fingers between the wheel and belt.
6. Replace the cage and secure before use.
WARNING: NEVER USE THE COMPRESSOR WITH THE GUARD REMOVED.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
TROUBLESHOOTING
CAUTION: DO NOT TRY TO REPAIR OR ADJUST IF YOU ARE UNCERTAIN. IF YOU HAVE ANY QUERIES CONTACT YOUR CLARKE DEALER.
PROBLEM PROBABLE CAUSE REMEDY
The compressor has stopped and does not start.
The compressor does not reach the set pressure and overheats easily.
Compressor does not start.
Bad electrical connections. 1. Check electrical connections.
2. Clean and tighten if necessary.
Overload cutout switch has tripped.
Motor windings burnt out. 1. Contact your CLARKE dealer for
Compressor head gasket blown or valve broken.
The reservoir has already fully pressurised.
1. Switch off and wait approx 5 minutes.
2. Press the reset button and
switch on again.
a replacement motor.
1. Return the machine to your nearest service agent.
1. Open the drain valve to expel air. The compressor should start again when the pressure reduces.
Air leaking from the non-return valve when the compressor is not running.
Air pressure from the regulator will not adjust.
The compressor is very noisy and makes metallic knocking sound
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Faulty non-return valve. 1. Fully drain the receiver of air.
2. Remove the valve end plug.
3. Carefully clean the valve seat and the gasket.
4. Reassemble.
The diaphragm within the regulator body is broken.
Compressor damaged and needs overhaul.
14
1. Replace the regulator
1. Return the machine to your nearest CLARKE dealer.
Page 15

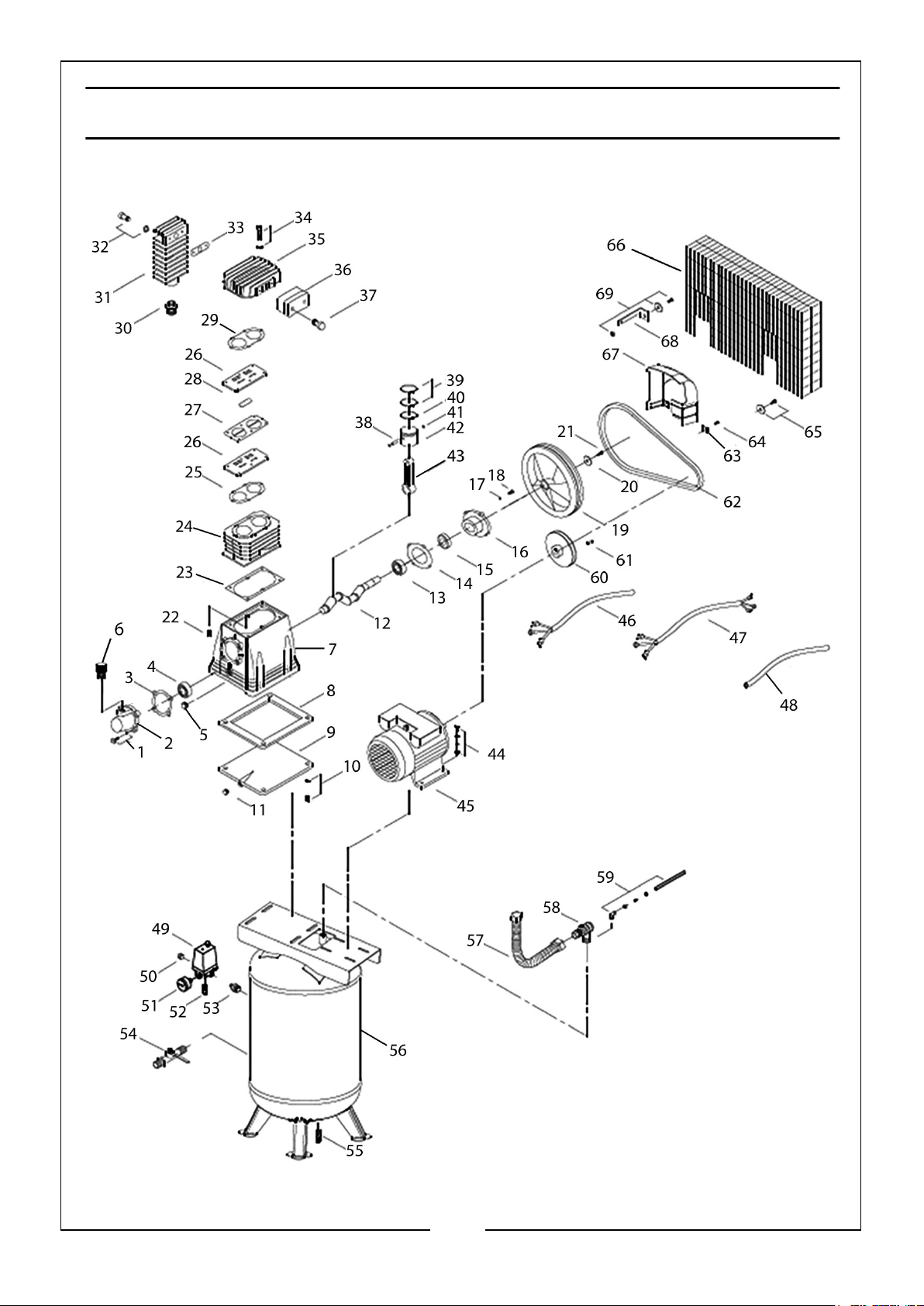

COMPONENT PARTS
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
COMPONENT PARTS LIST
NO DESCRIPTION NO DESCRIPTION
1 Screw & Spring Washer 31 Aftercooler
2 Front Cover 32 Screw & Spring Washer
3 Front Cover Gasket 33 Aftercooler Gasket
4 Ball Bearing 34 Screw & Spring Washer
5 Oil Sight-glass 35 Head Cover
6 Breather (M16 x 1.5) 36 Air Filter
8 Crankcase 37 Hex Screw
7 Baseplate Seal 38 Gudgeon Pin
9 Baseplate 39 Compression Ring
10 Screw & Spring Washer 40 Oil Ring
11 Oil Plug (G1/8”) 41 Circlip
12 Crankshaft 42 Piston
13 Ball Bearing 43 Connecting Rod
14 Bearing Seat Gasket 44 Motor Fixing Set
15 Oil Seal 45 Motor
16 Bearing Seat 46 Motor Cable
17 Spring Washer 47 Power Cable
18 Hex Screw 48 Insulating sleeve
19 Flywheel 49 Pressure Control Switch
20 Flat Washer 50 Plug
21 Screw 51 Pressure Gauge
22 Hex Screw 52 Safety Valve
23 Cylinder Gasket 53 Connector
24 Cylinder 54 Ball Valve
25 Valve Plate Gasket 55 Drain Valve
26 Valve Plate 56 Reservoir
27 Copper Gasket 57 Exhaust pipe
28 Valve Reed 58 Check Valve
29 Head Cover Gasket 59 Discharge pipe
30 Connector Nut 60 Motor pulley
16
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 17
NO DESCRIPTION NO DESCRIPTION
61 Key 66 Safety guard
62 V-belt 67 Plastic Cowling
63 Flat washer 68 Bracket
64 Screw 69 Bracket Fixing Parts
65 Screw & flat washer
SPECIFICATIONS
MODEL Boxer 18/150V
Part Number 2245319
Motor Size 4 HP
Voltage 230 VAC (50Hz)
Total Wattage 3000W
Rated Current 17A
Air Displacement 500L/min (18 cfm)
Max Pressure 10 Bar (145 psi)
Receiver Capacity 150 L
Ingress Protection IP20
Duty cycle S3/50%
Oil Requirements ISO100 (SAE46) compressor oil
Oil Capacity 0.75L
Dimensions (L x W x H) 520 x 580 x 1500 mm
Guaranteed Sound Power Level 97 dB(A)
Weight 89 kg
17
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 18

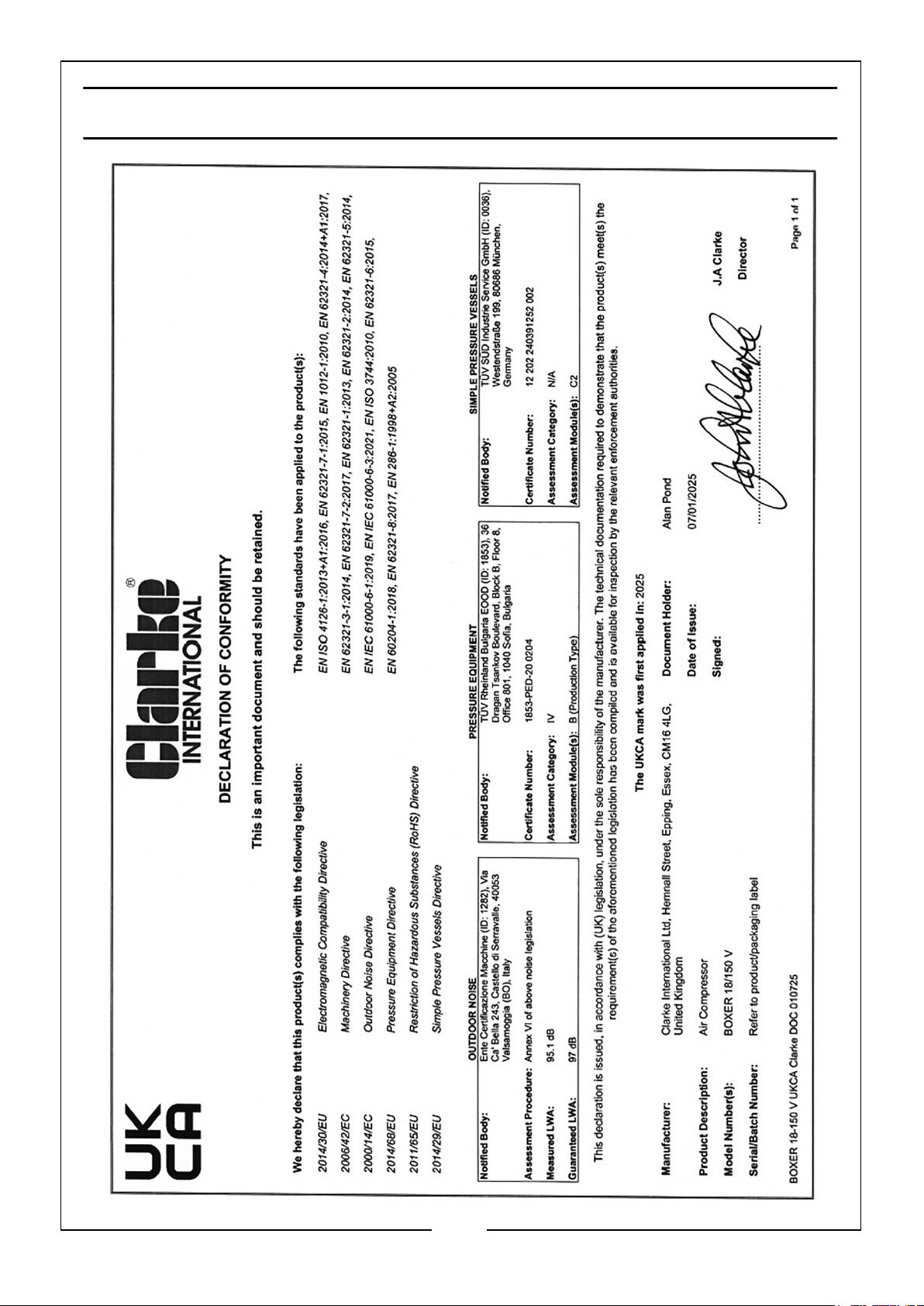

DECLARATION OF CONFORMITY - UK
18
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 19

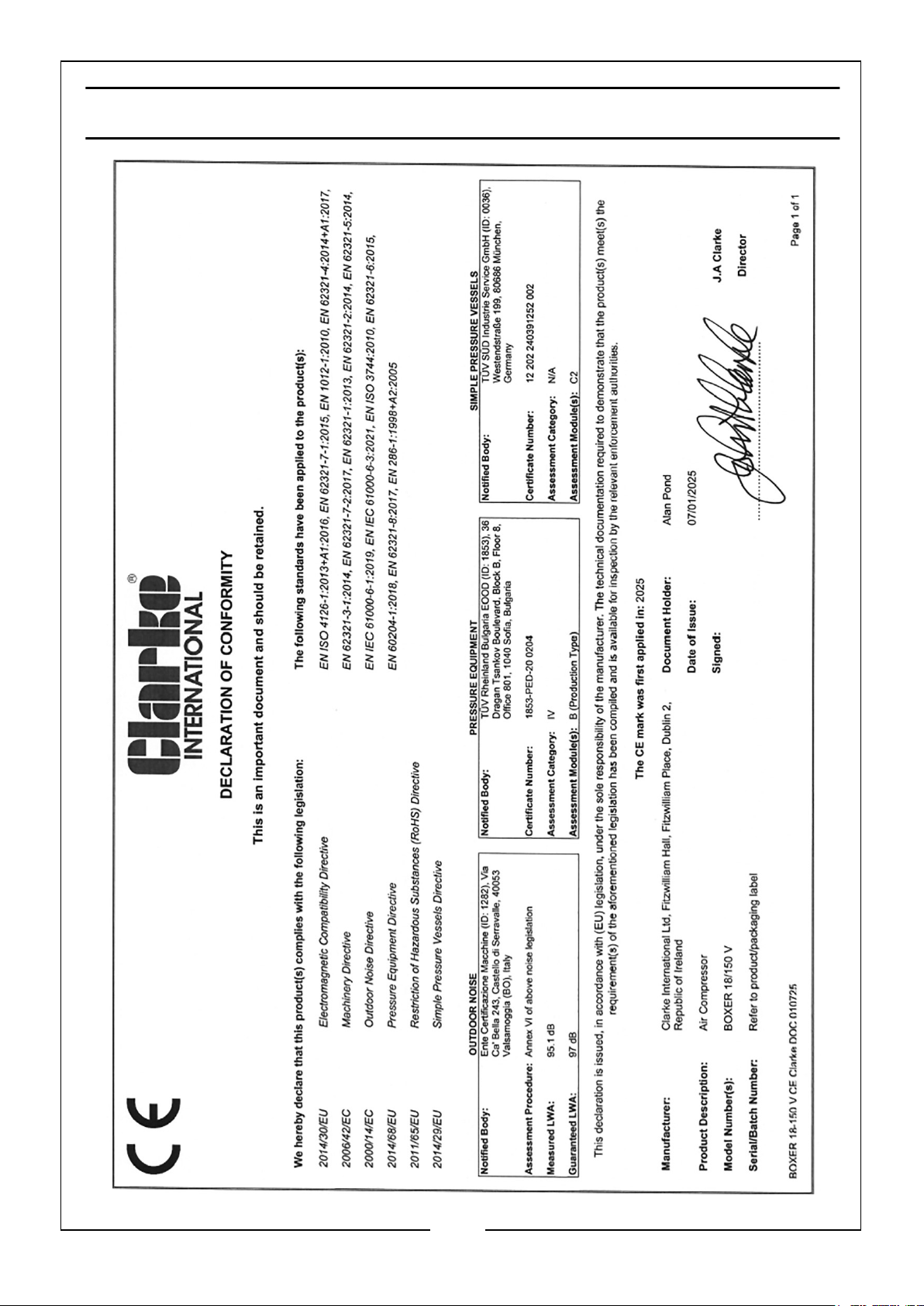

DECLARATION OF CONFORMITY - CE
19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20
Loading...
