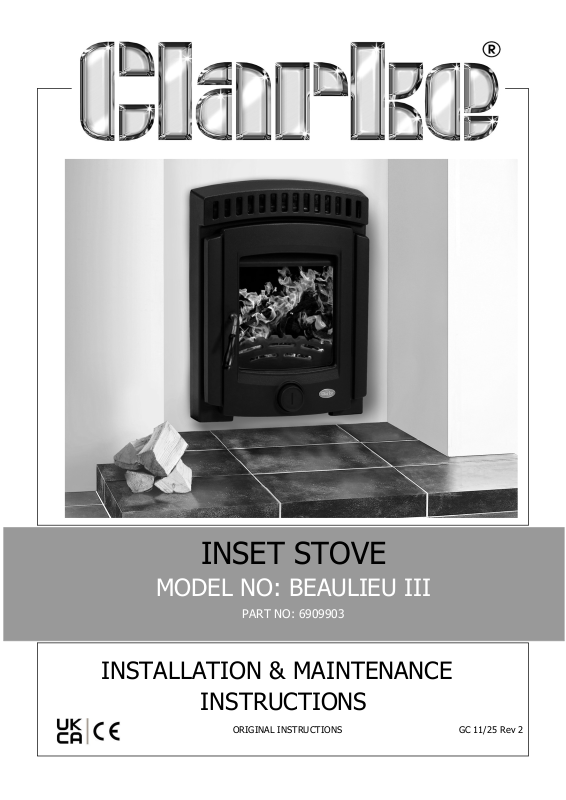

Page 1
WARNING: Do not install the stove without reading this manual
INSET STOVE
MODEL NO: BEAULIEU III
PART NO: 6909903
INSTALLATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC 11/25 Rev 2
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Stove. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you and you can look forward to your purchase giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission. This guarantee does not effect your statutory rights.
CLEAN AIR ACT & SMOKE CONTROL AREAS
Under the Clean Air Act (1993) local authorities may declare the whole part of the district of the authority to be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke control area. It is also an offence to acquire an “unauthorised fuel” for use within a smoke control area unless it is used in an “exempt” appliance (“exempted” from the controls which generally apply in the smoke control area.
In England, appliances are exempted by publication on a list by the Secretary of State in accordance with changes made to Sections 20 and 21 of the Clean Air Act 1993 by section 15 of the De-regulation Act 2015. Similarly, in Scotland, appliances are exempted by publication on a list by Scottish Ministers under section 50 of the Regulatory Reform (Scotland) Act 2014.
In Wales and Northern Ireland these are authorised by regulations made by Welsh Ministers and by the Department of the Environment respectively.
Further information on the requirements of the Clean Air Act can be found at https:/ www.gov.uk/smoke-control-area-rules.
Your local authority is responsible for implementing the Clean Air Act 1993 including designation and supervision of smoke control areas and you can contact them for details of Clean Air requirements.
This Beaulieu III stove has been recommended as suitable for use in smoke control areas when burning wood logs.
2
Page 3
INSTALLATION OF THIS PRODUCT
READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
WARNING: AN ACCREDITED HEATING ENGINEER MUST CARRY OUT THE INSTALLATION OF THIS STOVE. ALTERNATIVELY, SHOULD A NON-ACCREDITED ENGINEER UNDERTAKE THE INSTALLATION, YOUR LOCAL BUILDING CONTROL OFFICER WILL BE REQUIRED TO APPROVE THE COMPLETED INSTALLATION UNDER BUILDING REGULATION “J”. IT IS AN OFFENCE UNDER UK LAW, NOT TO COMPLY WITH THIS MANDATORY REQUIREMENT.IF THE STOVE IS NOT FITTED CORRECTLY BY AN APPROVED PERSON, IT COULD RESULT IN A HOUSE FIRE OR CARBON MONOXIDE POISONING.
CAUTION: The instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular site conditions. In all cases the installation must comply with current Building Regulation ‘J’, Local Authority Bye-laws, European and National standards and any other specifications or regulations as they affect the installation of the stove.
CAUTION: The information contained in this manual includes extracts from the Building Regulations 2000 “Approved Document J” (Combustion Appliances and Fuel Storage Systems), updated October 2010. This guidance information in no way replaces your responsibility as an installer or end user to comply with the appropriate standards.
CAUTION: THIS STOVE MUST BE CONNECTED TO A SUITABLE FLUE OUTLET. Due to high temperature this stove should be located well away from furniture and curtains. Children and adults should be alerted to the hazards of hot surfaces. Young children should be carefully supervised when they are in the same room as the stove. Do not place clothing or other flammable material on or near the stove. Keep the stove area clear of combustible materials, flammable liquids or vapours.
CAUTION: DO NOT OVERFIRE - it is possible to fire the stove beyond its design capacity. This could damage the stove, so watch for signs of overfiring
- if any part of the stove starts to glow red, the stove is in an overfire situation and the controls should be adjusted accordingly. Never leave the stove unattended for long periods without first adjusting the controls to a safe setting. Careful air supply control should be exercised at all times.
CAUTION: FIRES CAN BE DANGEROUS - Always use a fireguard in the presence of children, the elderly or the infirm. The fireguard should be manufactured in accordance with B.S. 6539 - Fireguards for use with solid fuel appliances.
3
Page 4
WARNING: THIS STOVE WILL BE HOT WHEN IN OPERATION AND DUE CARE SHOULD BE TAKEN. THICK GLOVES SHOULD BE USED TO OPERATE THE PRIMARY/SECONDARY CONTROLS OR REACHING INSIDE THE STOVE TO POSITION FUEL OR REMOVE ASH.
CAUTION: CARBON MONOXIDE POISONING CAN BE FATAL. CARBON MONOXIDE DETECTORS TO BS EN 50291 ARE AVAILABLE FOR USE IN DOMESTIC PREMISES AND DETAILS ARE AVAILABLE IN THE OFFICIAL HETAS GUIDE THAT CAN BE VIEWED ON THEIR WEBSITE AT WWW.HETAS.CO.UK. DUE CONSIDERATION SHOULD BE GIVEN TO THE DANGERS OF CARBON MONOXIDE POISONING FOLLOWING INCOMPLETE COMBUSTION OF SOLID FUELS IN AN ENCLOSED SPACE. SEE PAGE 17 OF THIS BOOKLET.
GENERAL SAFETY RULES
1. ALWAYS read and understand the manual before installing and commissioning the stove.
2. ALWAYS ensure the stove is installed in accordance with local regulations.
3. ALWAYS ensure that the stove is correctly installed and positioned as described under POSITIONING AND INSTALLATION on page 6, and that the immediate area is kept clear.
4. ALWAYS check for damage before using the stove. Check for breakage of parts and any other condition that may affect the stoves performance. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use the stove. Consult your local dealer.
5. ALWAYS keep children and visitors at a safe distance from the stove.
6. NEVER direct any kind of liquid on to the stove, particularly when it is hot.
7. NEVER use petrol or other flammable liquids for fire starting.
8. NEVER use the stove to incinerate materials other than recommended fuel.
9. NEVER carry out any modifications to this product. If experiencing difficulty of any kind consult your local dealer.
10. The installation of the stove and chimney MUST comply with all National, European and local building regulations. It is the responsibility of the owner and the installer to ensure that the installation complies.
11. All rooms where a stove is situated must have a non-motorised air vent. Refer to details contained in the Building Regulations.
12. ALWAYS keep the door closed except when re-fuelling.
4
Page 5
DETERMINING A SUITABLE CHIMNEY
NOTE: THE STOVE IS DESIGNED TO BE INSTALLED IN A SUITABLY
PREPARED FIREPLACE RECESS AND CONNECTED TO A SIMILARLY PREPARED CHIMNEY. SEE INSTALLATION AND POSITIONING.
This stove is a radiant room heater and must be connected to a chimney of the proper size and type. The chimney must have a cross sectional area of at least 124 cm2 or a
diameter of at least 150mm.
NEVER connect to a smaller size chimney. DO NOT connect to a chimney serving another appliance. Minimum chimney height 4.5 meters from floor on which stove is installed.
It is recommended that a flue liner of diameter 150mm be used to line the chimney and the liner should be approved for use with solid fuel. See Fig.1.

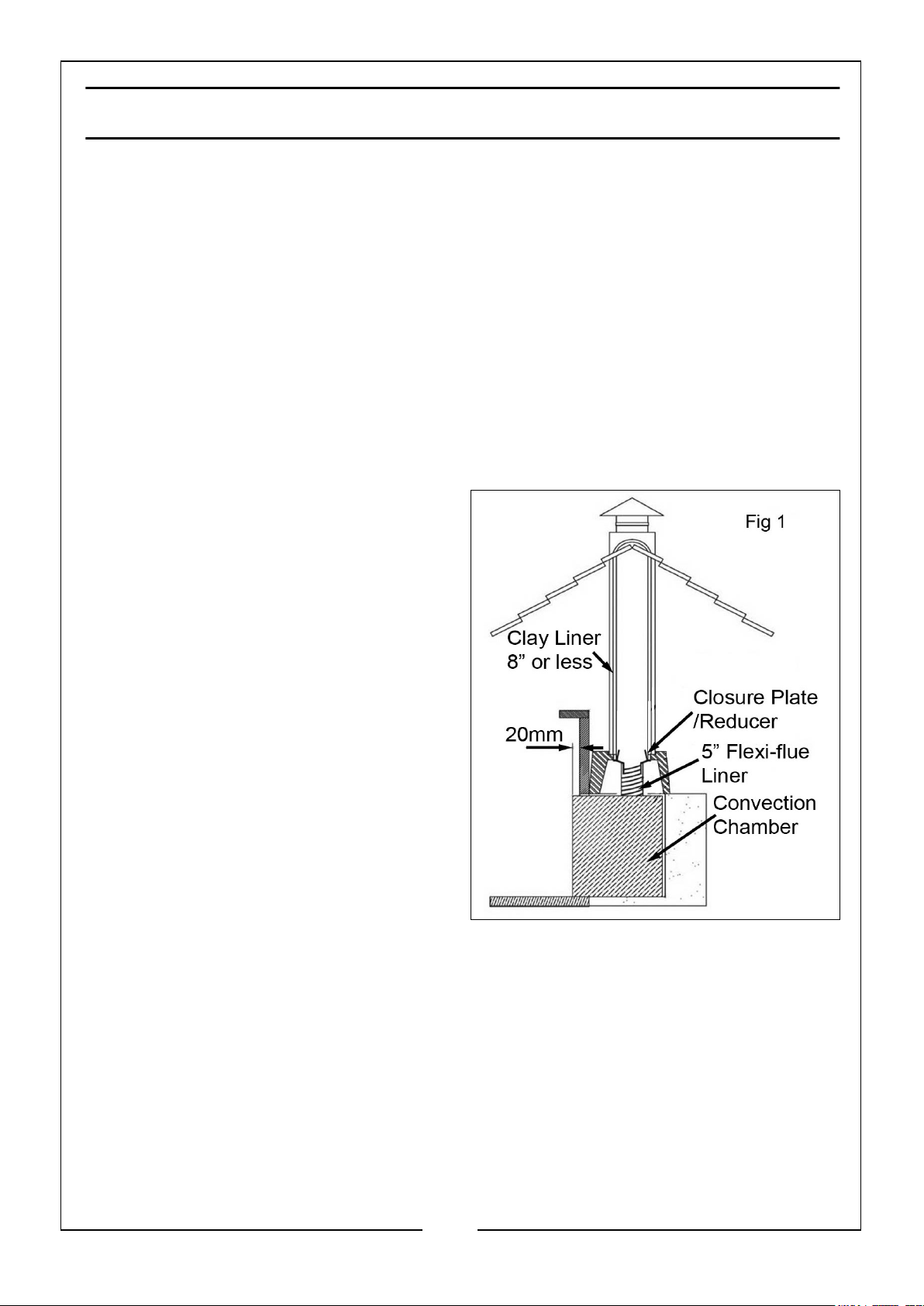

It is permitted to connect using a closure plate and a connection piece from the stove to the closure plate (see Fig 1), provided that the chimney is of sound construction with no leaks or cracks, a clay flue liner has been used that can
withstand up to 1000oC, the clay liner has a diameter no greater than 200mm.
IMPORTANT: ALL FLUE INSTALLATIONS ARE THE RESPONSIBILITY OF THE CUSTOMER.
The stove must be connected to a chimney with a minimum continuous draft of 12 Pascal’s (.05” WG). Poor draft conditions will result in poor performance.
5
Page 6
POSITIONING AND INSTALLATION
IMPORTANT: Building Regulation “J” is the Government approved document covering the installation of solid fuel stoves.
In England and Wales there are only two routes to legally install a domestic solid fuel or wood burning appliance. In other parts of the UK there are variations in legislation and processes.
You can either:
• Use a registered installer who can self certify that the work he does complies with the relevant Building Regulations; or
• The consumer applies to their local authority building control department for a building notice, and pays the appropriate fee.
It is generally worthwhile to use a HETAS registered installer who will supply a Certificate of Compliance as a record of the job and that it complies with Building Regulations. A copy of the certificate is forwarded to HETAS who notify the local authority on your behalf.
Failure to notify the work through the registration scheme (in this case HETAS) or directly to the local authority can lead to enforcement. It can also cause problems for future house sales if there is no official record of a compliant installation. All local regulations, including those referring to National and European Standards need to be complied with when installing this appliance.
For specific guidance when stoves are being installed in homes with thatched roofs, please refer to the SOLIFTEC website at:
www.soliftec.com/installation.htm
SUPPORTING HEARTH
The hearth should be able to accommodate the weight of the stove and flue components. The stove should stand on a hearth made of non-combustible board/ sheet material or tiles at least 12mm thick, if the stove has been tested to an applicable standard to verify that it cannot cause the temperature of the upper
surface of the hearth to exceed 100oC.
Constructional hearths should be made of solid, non-combustible material such as concrete or masonry, at least 125mm thick, including the thickness of any non­combustible floor and/or decorative surface.
Specific guidance for surfaces on which the stove may be allowed to stand is given in Approved Document ‘J’ and must be followed.
6
Page 7
MATERIAL CLEARANCES
This stove must be installed in a recess which should not contain any combustible materials. Wooden battens and plaster board should not be used within the clearance given for combustibles. The minimum clearance to combustibles required is 450mm to the top, 250mm to the sides, 550mm directly to the front and 350mm to any combustible flooring.
If the mantelpiece protrudes further than 100mm from the fireplace, then it will be necessary to have further clearance to the top of the stove. The distance the mantle protrudes past the 100mm should be added to the clearance.
For example, if the mantle protrudes 200mm, the clearance to the mantle should be 650mm. (See Fig 2).

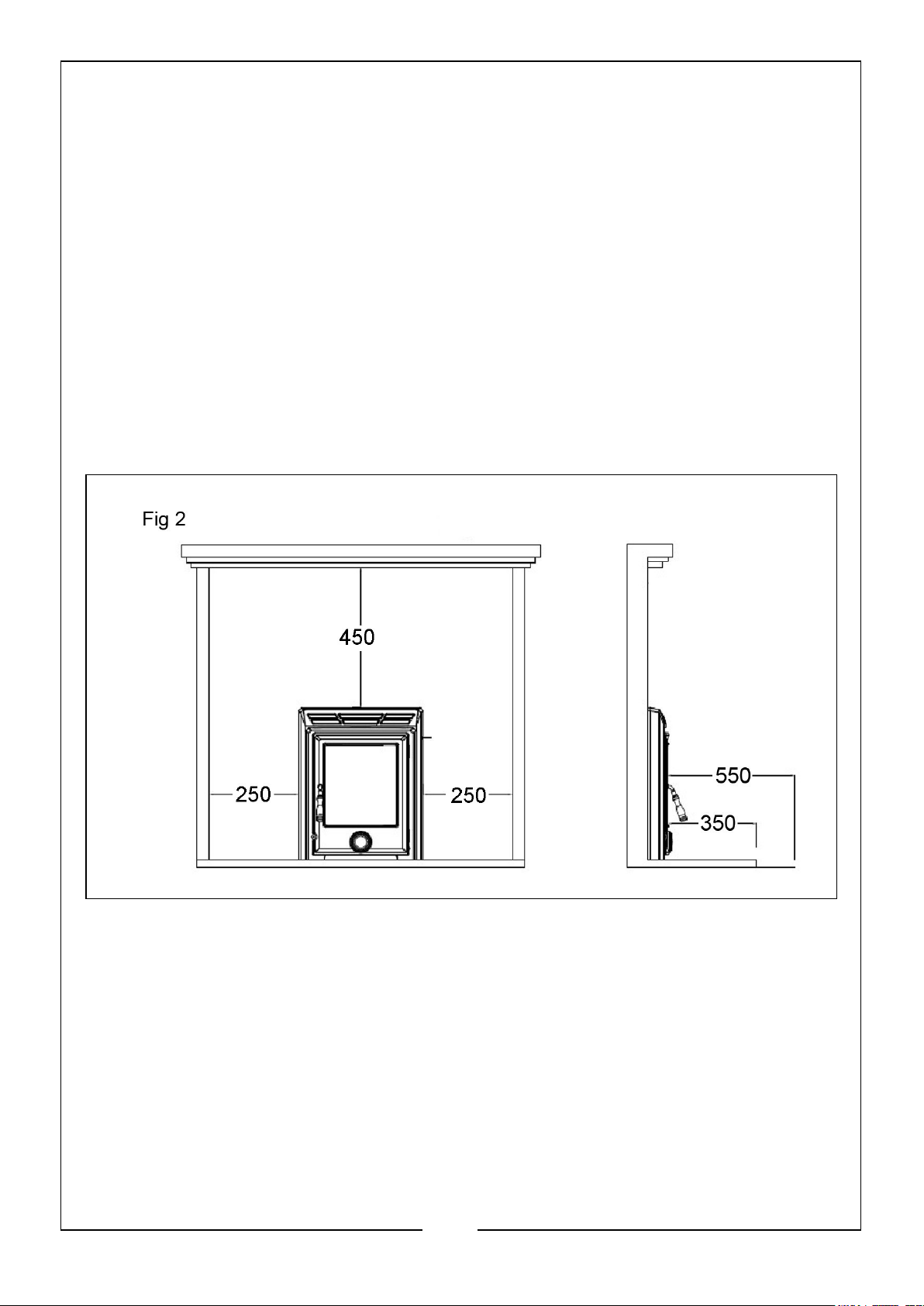

If there is a studded wall surrounding the fireplace as in Fig 2, ensure the clearances in this Fig are adhered to.
.
MINIMUM DISTANCE TO COMBUSTIBLE MATERIALS
NOTE: Combustible material refers to any material that will degrade when subjected
to heat e.g. plaster.
Due to the heat of a hot stove, a suitable fire guard should always be used to provide additional protection. Never allow young children to be left unsupervised in a room containing a hot stove.
Note; If in doubt, refer to the Building Regulations 2000 Approved Document ‘J’.
7
Page 8
THE CHIMNEY
The stove is supplied with a flue pipe connector complete with fixing screws. The stove SHOULD NEVER be connected to a shared chimney/flue system.
Flue pipes with a smaller cross-sectional area than that of the stove outlet should never be used. Flue pipes must not project into the chimney connector, such as to cause a restriction to the gas flow.
Sizes of flues in chimneys are stipulated in Table 2 of the Building Regulations 2000 Approved Document “J” as follows:
• Stoves under 20kW rated output which burn smokeless or low volatile fuel
require a minimum flue size of 125mm diameter (or rectangular flues having the same cross-sectional area and a minimum dimension not less than 100mm for straight flues or 125mm for flues with bends or offsets.
Liners should be installed in accordance with their manufacturer’s instructions. Appropriate components should be selected to form the flue without cutting and to keep joints to a minimum. Bends and offsets should be formed only with the matching factory-made components. Liners need to be placed with the sockets or rebate ends uppermost to contain moisture and other condensates in the flue. Joints should be sealed with fire cement, refractory mortar or installed in accordance with their manufacturers instructions. Ensure the joints are completely sealed as air leakage will lead to poor performance. Avoid having more than two bends in the flue system. Any offset between bends should be minimised and the flue should be equipped with suitable access doors for inspection & cleaning. For further detail refer to Building Regulations document “J”.
A range of suitable flue pipes, cowls and fire cement are available from your CLARKE dealer.
Special methods are required when passing through a wall or ceiling. Please refer to your local building regulations and/or fire department. Refer to Building Regulations Document “J”.
CAUTION: THIS STOVE MUST NOT BE INSTALLED INTO A CHIMNEY THAT SERVES ANY OTHER HEATING APPLIANCE. THERE MUST NOT BE AN EXTRACTOR FAN FITTED IN THE SAME ROOM AS THE STOVE, AS THIS CAN CAUSE THE STOVE TO EMIT FUMES INTO THE ROOM.
FLUE HEIGHT
The chimney height and the position of the chimney should conform to the Building Regulations document ‘J’. Flues should be high enough to clear the products of combustion. The height necessary for this will depend on the type of the appliance, the height of the building, the type of flue and the number of bends in it, and an assessment of local wind patterns. However, a minimum flue height of 4.5m could be
8
Page 9
satisfactory if the guidance in paragraphs 2.10 to 2.12 of the Approved Document “J” is adopted.
FIG 3
As an alternative approach, the calculation procedure within BS EN 13384-1 (2005) can be used as the basis for deciding whether a chimney design will provide sufficient draught. If in doubt, consult the Building Regulations.
The outlet from a flue should be above the roof of the building in a position where the products of combustion can discharge freely and will not present a fire hazard, whatever the wind conditions.

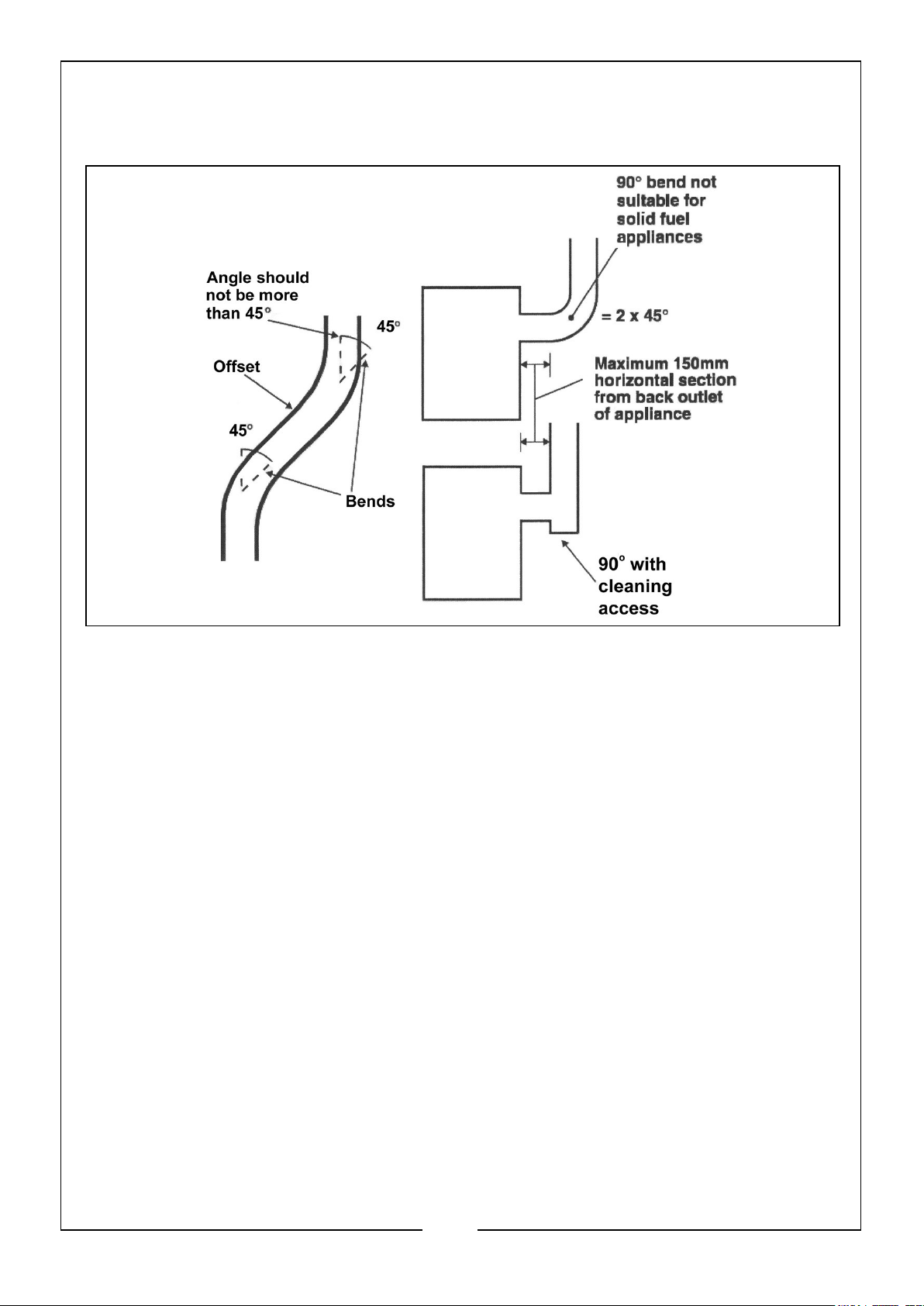

BENDS IN FLUES
Openings for inspection & cleaning should be formed using purpose factory-made components compatible with the flue system, having an access cover that has the same level of gas-tightness as the flue system and an equal level of thermal insulation.
Offsets in flues are only acceptable if the following rules are respected:
• The chimney system shall have no more than 4 bends in total; - 2 bends in the chimney and 2 bends in the flue pipe connection.
• The offset shall provide a change of direction no more than 45 degrees from the vertical.
• The run of the chimney between bends shall not exceed 20% of the total chimney length.
Maximum length of horizontal flue must not exceed 150mm (6”).
9
Page 10
INSPECTION & CLEANING
Check that the chimney is in good condition, dry and free from cracks and obstructions. The diameter of the chimney should not be less than 150mm and not more than 230mm. If any of these requirements are not met, the chimney should be lined by a suitable method.
The chimney must be swept before connection to the stove. Where the chimney is believed to have previously used; it is possible that the higher flue gas temperature from the stove may loosen deposits that were previously firmly adhered, with the consequent risk of flue blockage. It is therefore recommended that the chimney be swept a second time within a month of regular use after installation.
Assuming that when the stove is first installed, the chimney is clean, and sound, then the chimney flue should be inspected part way through the burning season to establish the regularity of sweeping required. If you have any doubts about the suitability of your chimney, consult your local dealer/stockist.
If there is no existing chimney, then a prefabricated block chimney in accordance with Building Regulations Approved Document J, or a twin-walled insulated stainless steel flue to B.S.4543 can be used. These chimneys must be fitted in accordance with the manufacturer’s instructions and Building Regulations.
FLUE DRAUGHT
A flue draught of minimum 1.2mm to a maximum 2.5mm water gauge is required for satisfactory stove performance. The flue draught should be checked under fire at high output. If it exceeds the recommended maximum, a draught stabiliser must be fitted so that the rate of burning can be controlled to prevent over-firing. If the reading is less than the recommended minimum, then the performance of the stove will be compromised.
AIR FOR COMBUSTION
Any room or space containing a stove should have a permanent air vent opening of at least the sizes shown in the table below. For stoves designed to burn a range of different solid fuels, the air supply should be designed to accommodate burning the fuel that produces the highest heating output.
There must always be a permanent means of providing air for combustion into the room in which the fire is installed. A permanent vent with a total free area of at least
2
550mm or an adjacent room which itself has a permanent vent of the same size direct to the outside air. The fitting of an extractor fan to either of these rooms is not permitted.
for every kW rated above 5kW should be connected directly to the outside air
10
Page 11
CONNECTION TO THE CHIMNEY
Stove Air Supplies
Stove with flue draft stabiliser Permanently open vents as below:
If design air permeability>5.0m3/(h.m2) then 300mm2/kW for first 5kW of appliance rated output 850mm2/kW for balance of appliance rated output.
If design air permeability<5.0m3/(h.m2) then 850 mm2/kW for balance of appliance rated output.
Stove with no flue draft stabiliser
This MUST be carried out by an accredited/competent person and/or approved by your local Building Control Officer before using the stove.
Any existing flue must be in good condition with suitable access for collection and removal of debris. Details of suitable linings for use with solid fuel are given in the official HETAS guide that can be viewed on their website at www.hetas.co.uk.
It is also important that suitable flue pipe complying with Building Regulations is used to connect the stove to the chimney flue and that suitable access is provided into the flue for regular inspection and sweeping of the flueways.
Chimneys should be as straight as possible and horizontal runs should be avoided. Refer to the typical installation diagrams. Flue connections must be well sealed.
Permanently open vents as below:
If design air permeability>5.0m3/(h.m2) then 550 mm2/kW of appliance rated output above 5kW.
If design air permeability<5.0m3/(h.m2) then 550 mm2/kW for balance of appliance rated output.
The chimney may be swept through the door opening, but if it is not possible to pass the sweeps brush through the stove, a soot door will be necessary. This may be either in the actual brickwork of the chimney or fitted in the register plate. Suitable positions of soot doors are shown in Figure 4.
Important! Never fit an extractor fan in the same room as this stove.
11
Page 12

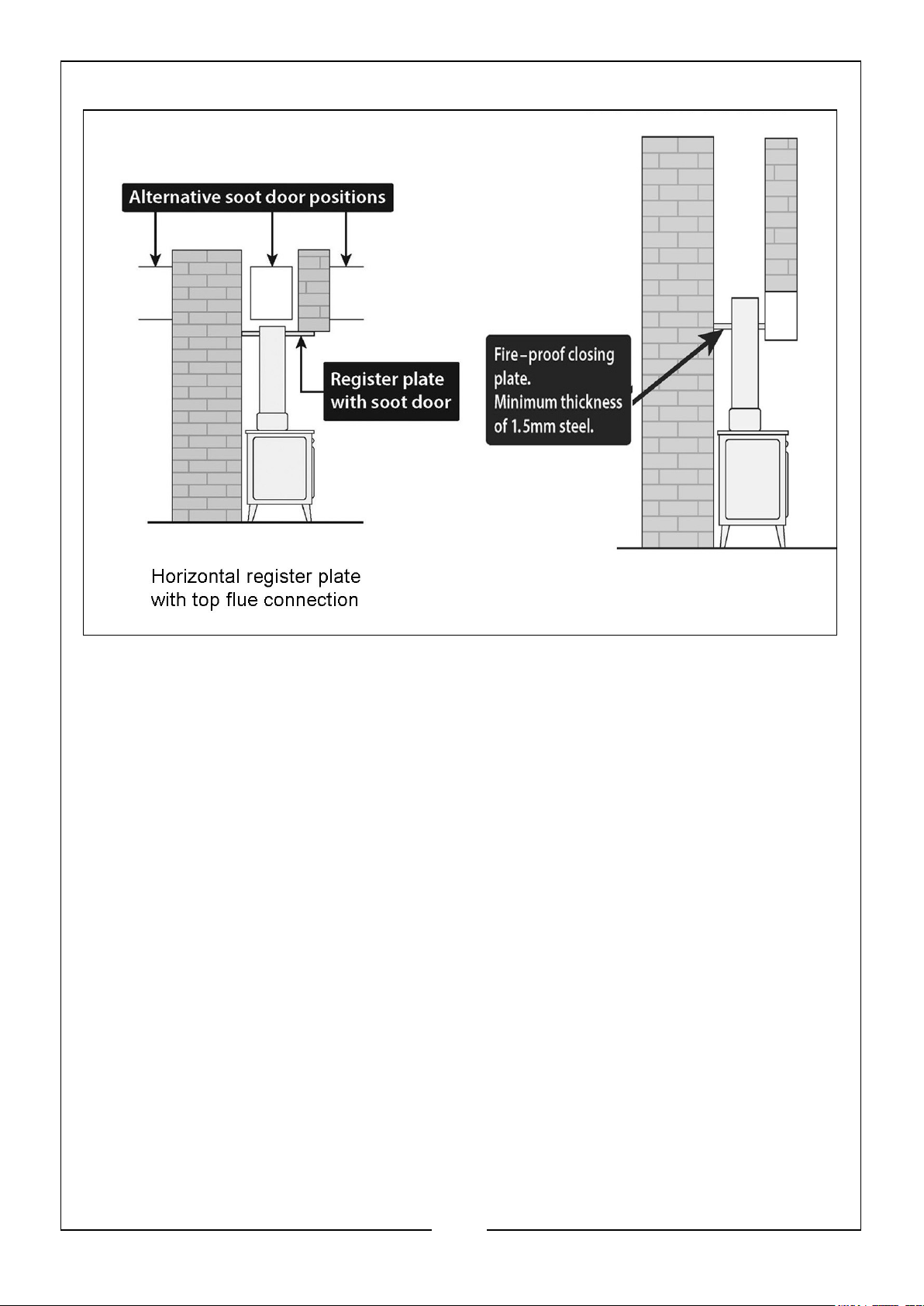

FIG 4
A non-combustible register plate minimum 1.5 mm thick should be fitted to all installations between the flue and the building structure. It’s suitability and fit should be checked by a qualified stove installation engineer against the current Building Regulations App”J”.
CLEANING THE FLUE
Access for cleaning the flue should be incorporated in the system other than through the appliance (e.g. a soot door or access through a register plate). Purpose-made soot doors and inspection lengths are available from the CLARKE range. Ensure that the whole length of the flue can be reached from the soot door.
If necessary, seek professional advice.
12
Page 13
UNPACKING
WARNING: DUE TO THE WEIGHT OF THE STOVE IT IS RECOMMENDED THAT TWO PEOPLE PERFORM THE UNPACKING.
Unpack the stove and remove packing materials. Open the door and remove all loose items from inside the stove.
Before assembling, please check contents against the following list and advise your dealer immediately if any parts are missing. Refer also to parts list & diagram on pages 28 & 29.
Stove components Parts Packs containing
• Flue Collar • Door Handle
• Log Retainer • Grate Shaker (riddling) Handle
• Ash Pan • Self-tapping screws
• Ash Pan Handle • Allen wrench x 2
• Glove • Collar fixing screws c/w wrench
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
PROTECTIVE GLOVES
The stove is supplied with a heat resistant glove; (model number 9052), size XL/11 to protect the user’s hand when using the stove.
Before using the glove always check that the glove does not contain any holes, cracks, tears or display a colour change suggesting deterioration. Discard any glove presenting such defects.
On the symbol above, * the 6 digit code indicates the performance level of the glove. When present, ‘X’ indicates the glove was not submitted for a particular test, or the
test method is unsuitable for the glove design or material. When present,’0’ indicates the glove falls below the minimum performance level for a particular hazard.
CARE INSTRUCTIONS
Wash like colours, air dry only.
13
Page 14

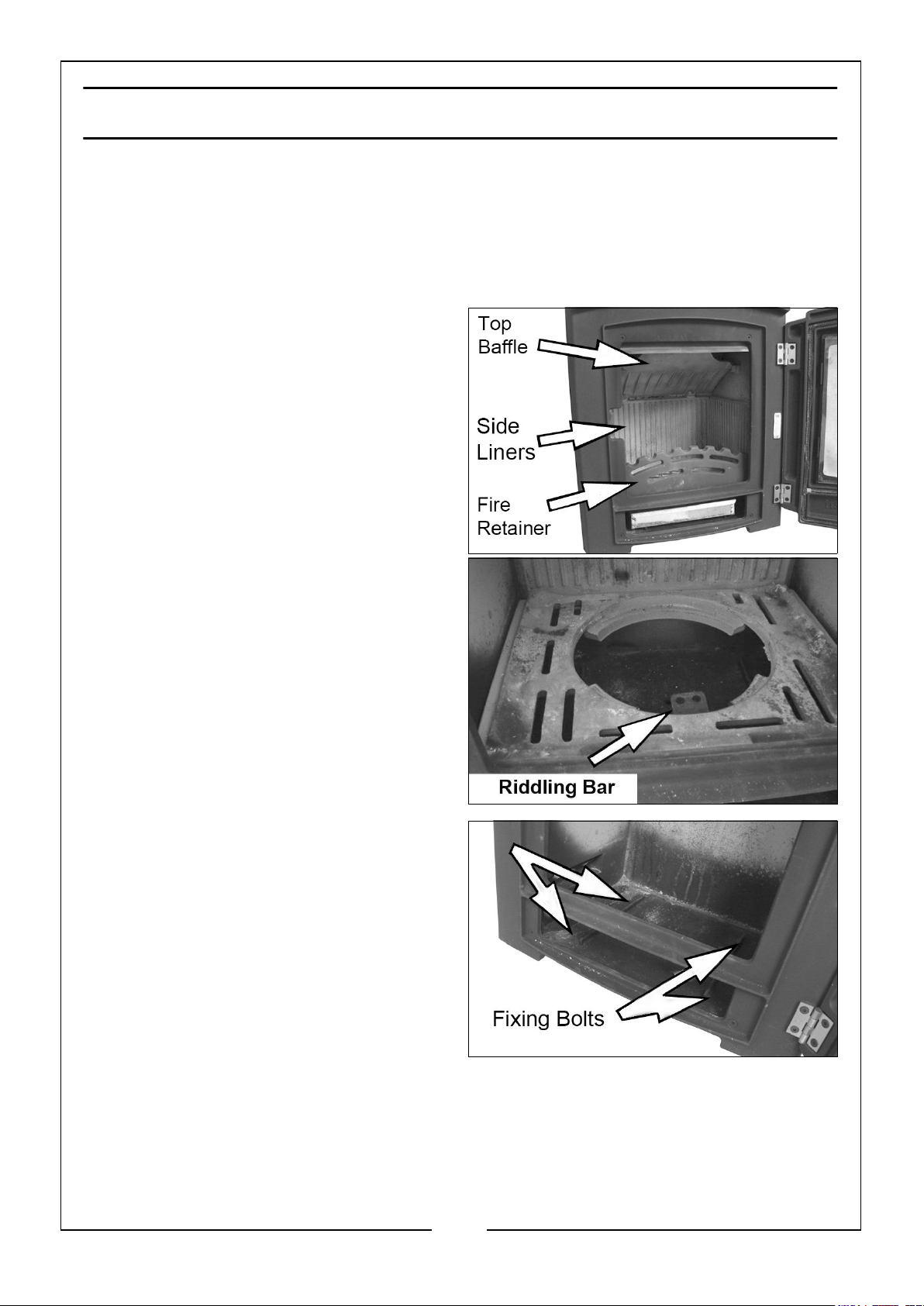

PREPARATION BEFORE FITTING
After removing the stove from the crate, open the door and remove the loose items and packing.
• Prior to installation, removal of the internal components is required in order to access the fixings connecting the base of the stove to the outer casing and to reduce the weight during installation.
1. Remove the left/right side liners which are loose and just need to be lifted clear of the grate support plate.
2. Remove the loose baffle by lifting the front edge until it hits the top of the stove and then slide it forward. Drop the rear edge and the baffle will slide down.
3. Next, remove the riddling grate by pushing it from underneath. The riddling bar is fixed to the grate with two bolts which need to be undone.
4. Remove the flue connector with its gasket, by removing the two bolts, nuts and washers.
5. Remove the grate support plate by lifting it from underneath.
• This will allow access to four fixing
bolts which attach the stove to the outer steel casing.
6. Lift away the rear liner and tilt it so that it will pass through the door opening.
Finally, remove the four bolts, allowing the insert stove to be removed from the external casing.
A full range of flue pipes and fire cement is available from your CLARKE dealer.
14
Page 15
FITTING AND ASSEMBLY

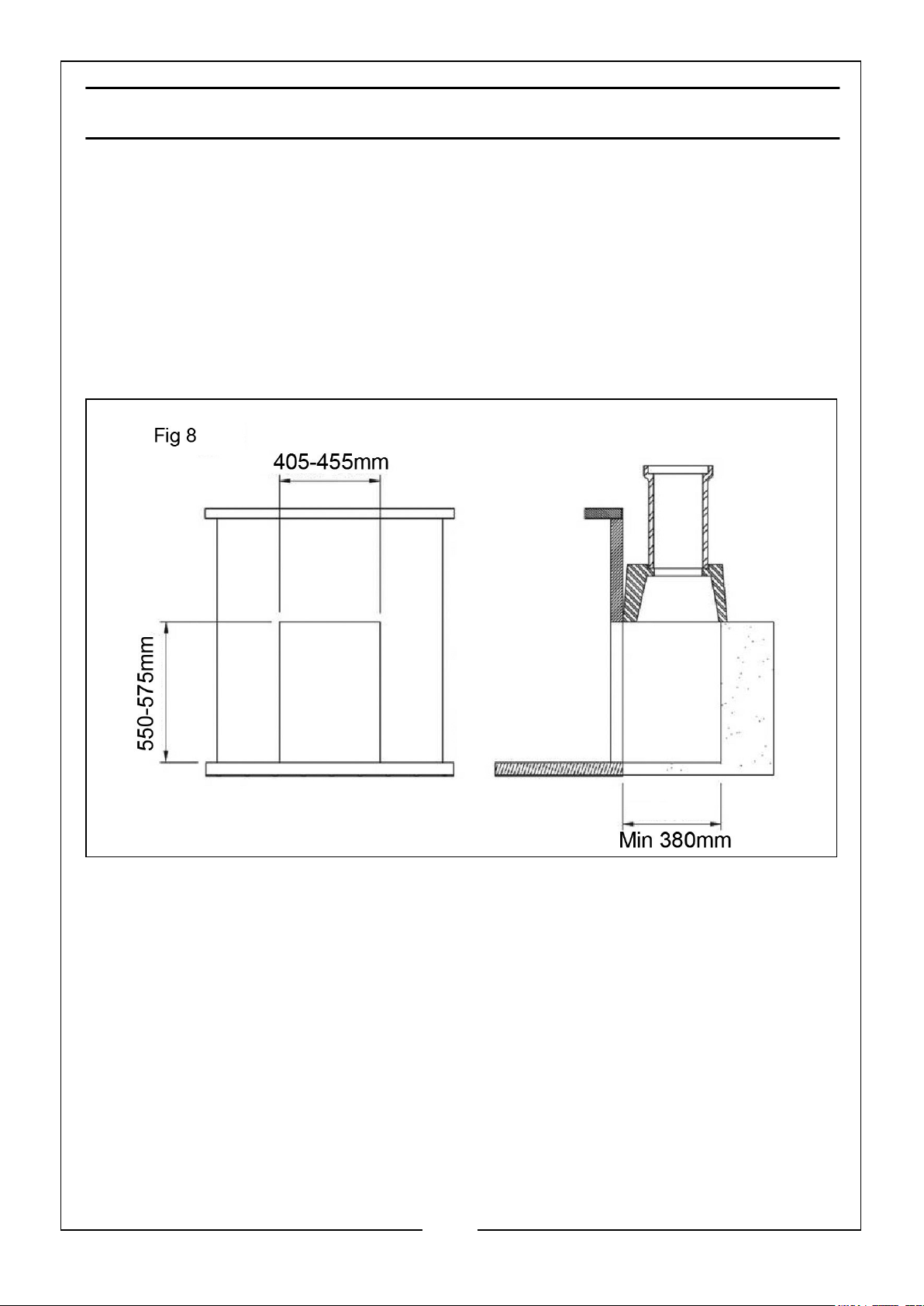

1. Prepare the fireplace area with fireback or millner brick removal. Ensure the opening is suitable for fitting of the insert stove, i.e. remove the fire surround trim if fitted. See Fig 8.
2. Ensure the floor area is level with the hearth. This area needs to be level as the insert fire is screw fixed to the floor.
3. Lay the external casing into the opening and position it so that the front edge protrudes 20mm past the front edge of the opening.
.
4. Mark the fixing location and drill the holes using a 5.5mm drill bit. Fix the casing to the floor using the self tapping screws provided.
5. With the flue liner installed in the chimney, line it up with the flue connector and drill appropriate holes for a self tapping screw.
6. Secure the flue to the connector using chosen fixings (not supplied).
7. Ensure a good seal is achieved with the flue connector by using fire cement.
Lift the stove into the external casing with all internal parts removed. The stove can be lifted into the casing and then pushed into the final position while taking care to lift the front edge not to damage the hearth. Fix it in position using the fixing bolts in the base of the stove.
15
Page 16

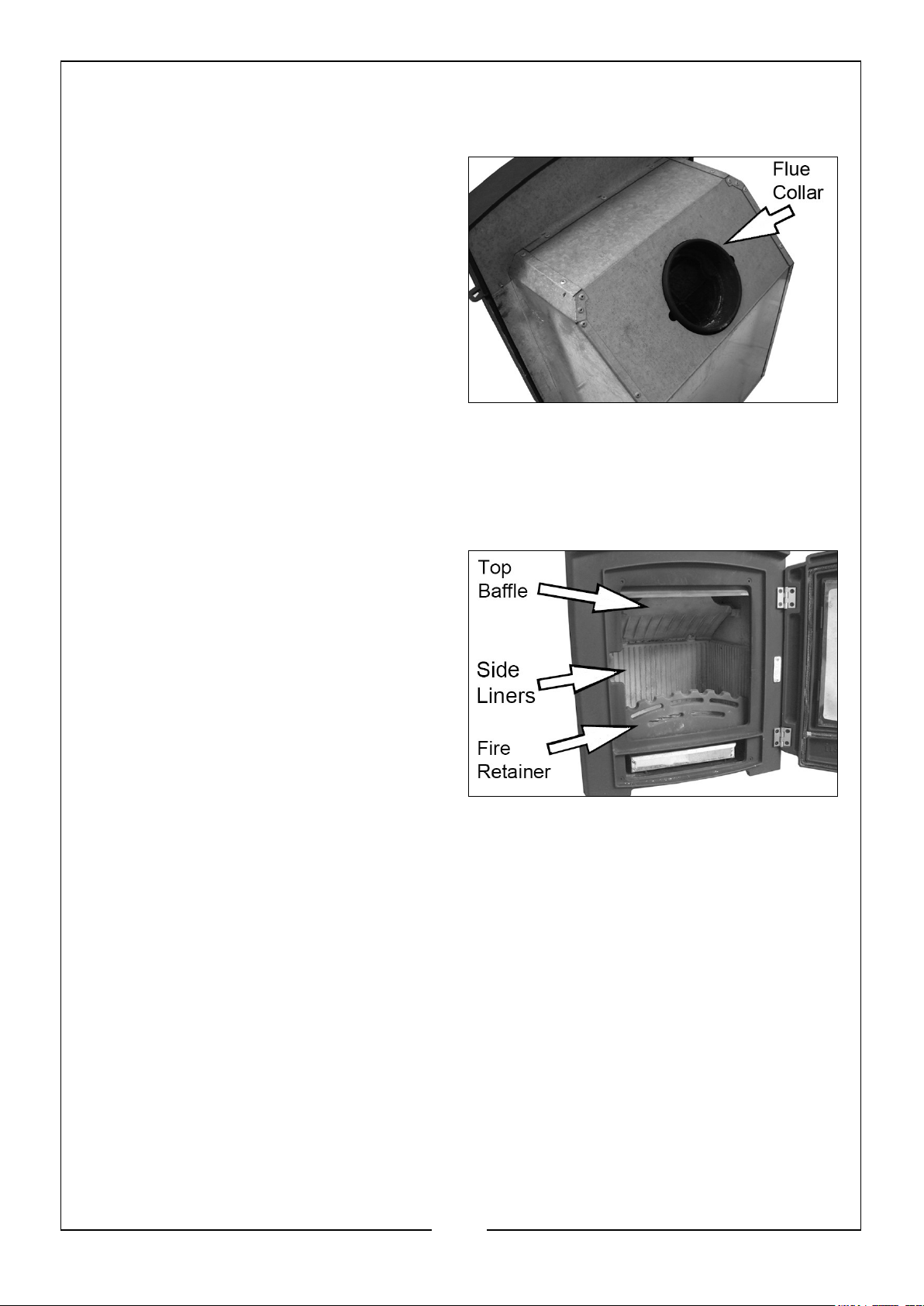

RE-ASSEMBLY
Fit the individual components back into the stove in the following order:
1. Fit the flue connecting collar to the stove box using the screws, washer and nuts provided.
2. Stand the rear firebrick in position.
3. Tilt the grate support up on one side and pass it through the door opening, it should then rest on the supports above the floor of the stove.
4. The grate lays into the grate support after reconnecting the riddling control tongue with the two bolts.
5. Hold the top baffle by the ‘L’ shaped end with the fold turned up. Manoeuvre it diagonally through the door opening and then drop the rear edge to the rear of the stove. Lift the ‘L’ shaped edge up over the ‘L’ shape on the side castings.
6. Move the baffle as far as possible to the front and top. Then lift the back edge up and allow the baffle to rest on the top rib on the back and in the ‘L’ shape on the side castings.
• Note: The row of secondary air
holes must be visible underneath the baffle.
7. Stand the side firebricks in position
8. Set the fire retainer into the slots provided.
Attach the handle to the door using the screwed centre spigot.
COMMISSIONING THE STOVE
1. Check the soundness of seals, castings and joints.

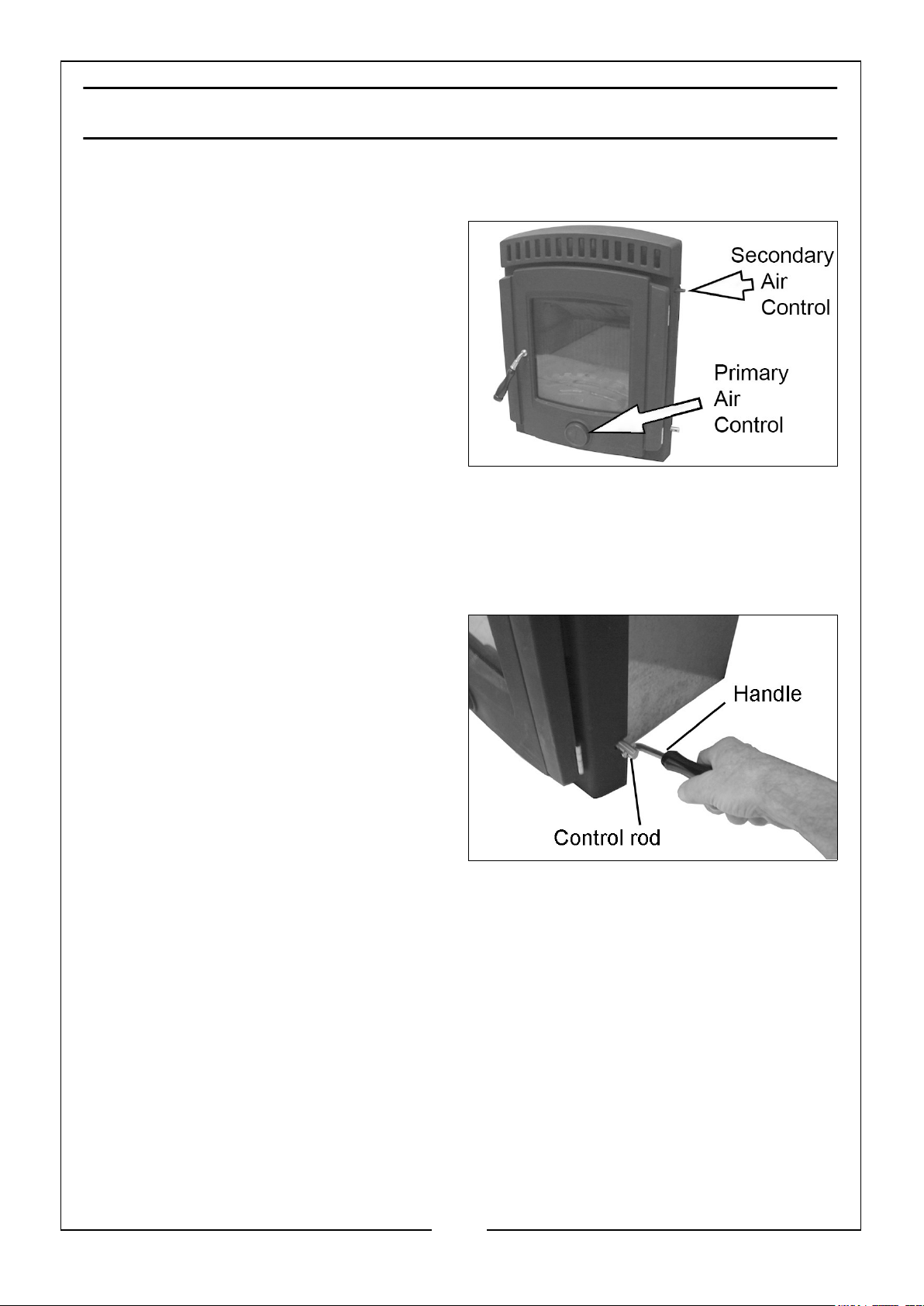

2. Check the operation of the air controls.
3. Carry out a smoke draw test by warming the flue with a blow-lamp, or similar, for about 10 minutes. Place a smoke pellet on the centre of the firebox, with the air controls open. Smoke should now be drawn up the flue and be seen to exit from the flue terminal.
• Complete the test with all doors and windows closed in the room where the
appliance is fitted.
16
Page 17
If there are any extractor fans in adjacent rooms, the test must be repeated with the fans running on maximum and interconnecting doors open.
4. Check the effect of any ceiling fans during the test.
5. If the test fails, re-check the suitability of the flue system and ventilation. An inadequate air supply to the room is potentially dangerous.
6. Light the stove and slowly increase the temperature to operating levels.
7. Ensure no combustion products enter the room.
8. When the appliance reaches operating condition carry out a smoke spillage test with a smoke match or pellet around the opening.
9. If excessive smoke spillage occurs allow the appliance to cool and re-check the flue system and ventilation.
CARBON MONOXIDE ALARMS
Due consideration should be given to the dangers of carbon monoxide poisoning following incomplete combustion of solid fuels in an enclosed space. Carbon monoxide detectors to BS EN 50291 are available for use in domestic premises and details are available in the official HETAS guide that can be viewed on their website at www.hetas.co.uk.
Where a new or replacement fixed solid fuel appliance is installed in a dwelling, a carbon monoxide alarm should be provided in the room where the appliance is located.
Carbon monoxide alarms should comply with BS EN 50291:2001 and be powered by a battery, designed to operate for the working life of the alarm. The alarm should incorporate a warning device to alert users when the working life of the alarm is due to pass. Mains-powered BS EN 50291 Type A carbon monoxide alarms with fixed wiring (not plug-in types) may be used as alternative applications, provided they are fitted with a sensor failure warning device.
The carbon monoxide alarm should be located in the same room as the stove:
• on the ceiling at least 300mm from any wall or, if located on a wall, as high up as possible (above any doors and windows) but not within 150mm of the ceiling and:
• between 1m and 3m horizontally from the stove.
Further guidance on the installation of carbon monoxide alarms is available in BS EN 50292:2002 and from manufacturers instructions. Provision of an alarm should not be regarded as a substitute for correct installation and regular servicing.
17
Page 18
USING YOUR STOVE
THE CONTROLS
The amount of heat emitted by the stove is regulated using the primary air control at the bottom of the door.
• When screwed in, this reduces the airflow through the stove and dampens the combustion.
• When screwed out the airflow is increased which increases the combustion rate.
Secondary air is also inducted via an upper air control at the top of the stove. This control can also be used as an “air wash” facility and should help keep the door glass clear of combustion deposits.
• The control can be moved to the side and corresponds to a series of holes in the stove front.
A further control is provided for riddling (moving) the grate panel to dislodge any accumulation of loose ash into the ash pan. This is operated using the Shake Handle (supplied loose), which is engaged with the control rod when required.
• Moving the control rod to and fro will rotate the grate while twisting the control raises/lowers the grate.
WOOD BURNING
When first igniting or after re-fueling, both the lower (primary) and upper (secondary) controls should be fully opened. When the fire is burning vigorously, more fuel should be added as required. When the stove body becomes hot, the be closed. The combustion rate can then be controlled by adjusting the position of the
upper
control.
lower
control should
SOLID FUEL
When first igniting or after re-fueling, both the lower (primary) and upper (secondary) controls should be fully opened. When the fire is burning vigorously, more fuel should be added as required. When the stove body becomes hot, the
18
upper
control should
Page 19
be closed. The combustion rate can then be controlled by adjusting the position of the
lower
control.
WARNING: THE TEMPERATURE OF THESE ITEMS DURING OPERATION COULD CAUSE AN INJURY TO THE END-USER. AS THESE ARE INTENDED TO BE ADJUSTED DURING OPERATION, IT IS RECOMMENDED THAT PROTECTIVE GLOVES ARE WORN WHEN HANDLING THESE PARTS.
TYPES OF FUEL
This stove will function with wood or solid fuel, but in general all fuel should be dry and timber should be well seasoned so as to have a moisture content below 20%. The use of damp wood will result in more soot and tar deposits being left in the chimney, flu and stove, and will not release heat if thermal energy is being used to drive out moisture from the fuel.
Other fuels can be used together with wood, provided the base of the fire remains as wood or compressed block fuels. Coal products can be added to this provided the volume of coal products is less than that of other fuels
With solid fuels, there is less need to burn the stove hard after refuelling. The rate of refuelling will also be less often than with wood.
Avoid using the stove to incinerate other materials including household waste. Avoid using ‘green’ unseasoned wood, treated wood such as telegraph poles, or plywood / chipboard containing glues and resins which pollute the environment and cause the fire to burn too quickly.
Such materials can produce excessive tar or creosote which can be damaging and in extreme cases cause a fire inside the chimney.
The dryness of wood can be assessed by looking at the end of the log. Radial cracks, deep enough to be considered as splits should be present in dry, seasoned logs.
The maximum length of fuel suitable for this stove is approx 30 cm so as to lay flat over the embers, and logs of greater than 10 cm diameter should be split.
Confirm with your fuel provider as to which type will suit best. Larger fuels will allow a greater draught in the firebox which will speed up combustion. Household coal produces more ash & chimney deposits than smokeless fuels.
For further information on type and availability of fuel, the Solid Fuel Association (http:/www.solidfuel.co.uk) serves as an advice centre to domestic consumers including all aspects of fuel types.
The UK Smoke Control Areas website (http:/www.uksmokecontrolareas.co.uk) defines the location of smoke controlled areas throughout England, Scotland, Wales and Northern Ireland and lists all fuels which are authorised for use in Smoke Control Areas. However, you should check with your local council to confirm that you can use a stove in a smoke controlled area.
19
Page 20
INITIAL SEASONING
Following installation, and before regular use, the stove must be seasoned to prevent cracking of the metal casting. This procedure should also be followed if the stove has not been used for prolonged periods (during the summer months for example), and is carried out as follows:
1. Light a small fire in the middle of the stove, well away from the sides.
2. Allow the stove to warm up slowly and evenly with the air controls almost closed, avoiding intense flames.
3. Keep the fire burning for three hours or so, gradually increasing the size of the fire using larger logs which will burn naturally but slowly, keeping the stove on a low setting.
4. After a couple of days burning at this level, increase the brightness & intensity of the fire gradually over the next 10 days.
Full strength fires should not be used until completion of approx 20 days of mild use. Only from this time will the stove have been properly seasoned
It should be remembered that this procedure should be carried out at the beginning of each season of use in order to remove the moisture retained by the metal during the period of non-use.
When used for the first time the fireplace may smell a little, due to gas being given off. The gas is not toxic but the room should be thoroughly ventilated. Let the fire burn with a high draught until no smells can be detected.
Take care not to open the stove door too vigorously in case of causing smoke spillage. If smoke spillage occurs after the fire door has been opened this could be due to poor chimney draft. SEE TROUBLESHOOTING.
FIRE-LIGHTING WITH WOOD
1. Open the air controls.
2. Lay firelighters or rolled up newspapers on the grate with a reasonable quantity of dry kindling wood. Place 2 or 3 small logs on top.
3. Light the newspaper or firelighters using a long taper and close the door.
4. When the fire is burning strongly, add further logs up to 10mm diameter.
5. When the stove is really hot, close the air controls as required. Ensure there are lasting flames until the wood becomes charcoal.
FIRE-LIGHTING WITH SOLID FUEL
1. Open the air controls.
2. Lay firelighters or rolled up newspapers in the stove with a reasonable quantity of dry kindling wood. Place a small quantity of solid fuel on top.
20
Page 21
3. Light the newspaper or firelighters using a long taper and close the door.
4. When the fire is burning strongly add further fuel.
5. When the stove is hot, reduce the opening of the air control.
6. The burn rate can be reduced by partially closing the air control.
REFUELLING
1. Always keep the door closed unless refuelling and open the door slowly to avoid a sudden rush of intake air and smoke escaping into the room and add fuel.
2. Open the air controls and leave open for a few minutes to allow the gasses in the wood to burn before closing the air controls.
• The rate of refuelling and heat available are dependant upon individual
requirements based upon the user’s experience. When re-loading, it is normally necessary to burn the stove fast initially, to drive off any gasses and moisture, before closing the air vents to control the burn rate.
3. Ensure the door is kept closed to contain fumes except when lighting up, re­fuelling or removing ash.
• It is not recommended to leave the stove alight at night or to continue using
the stove in mild weather which gives poor combustion leading to a greater buildup of soot.
• If overnight burning is required, it can best be achieved by first driving off any
gasses or moisture as usual, following a full charge of fuel and then closing the air vents fully. Experience will indicate the optimum setting. However, by reducing the burn rate to such a level that the fire is still burning the following day, the burning process creates heavy, tarry chemicals which will become deposited on the inside of the flue or chimney. This is an inefficient process which greatly increases the risk of a chimney fire and makes it necessary to sweep the chimney more often.
4. The amount of fuel specified in this manual should not be exceeded as overloading can cause excess smoke.
5. Take care when re-fueling on a low fire-bed. If there is insufficient burning material in the firebed to light a new fuel charge, excessive smoke emission can occur. Re-fuelling must therefore be carried out onto a sufficient quantity of glowing embers and ash that the new fuel charge will ignite in a reasonable period of time. If there are too few embers in the fire bed, add suitable kindling to prevent excess smoke.
USE OF DAMPERS AND DOORS
1. Operation with the air control or appliance dampers open can cause excess smoke. The stove must not be operated with air controls, dampers or the door left open except as directed in these instructions.
21
Page 22
2. Operation with the door open can cause excess smoke. The stove must not be operated with the door left open except as directed in these instructions.
FUME EMISSIONS
To avoid chimney problems, your fire should not be burnt slowly for longer than 12 hours without a period of fast burning.
Properly installed and operated, this stove will not emit fumes. Occasional fumes from de-ashing and refuelling may occur. Persistent fume emission must not be tolerated. If fume emission persists, the following immediate action should be taken:-
1. Open doors and windows to ventilate the room.
• Let the fire out, or eject and safely dispose of fuel from the stove.
2. Check for any flue chimney blockage and clean if required.
• Do not attempt to re-light the fire until the cause has been identified and
corrected.
ASH REMOVAL
Keep the stove free from a heavy buildup of ash. The frequency of this is dependant upon the type and quality of fuel being used. Ash should be removed before it builds up to the underside of the grate, at which point, the grate would be burning hot on both sides, shortening its life expectancy.
When disposing of ashes, ensure they have cooled and always place in a metal container. Be sure to remove the ash when the fire is at its lowest point, such as first thing in the morning.
The CLARKE Ashvac Can Filter is ideal for use in conjunction with the CLARKE range of vacuum cleaners, for collecting hot ash and debris from stoves.
22
Page 23
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Fire difficult to start.
Fire goes out.
Fire burns too quickly.
Stove smokes when lighting up.
Wood green, too damp or
Use recommended fuel.
poor quality.
Logs are too large. When lighting, use small, dry
kindling. To maintain the fire use split logs.
Air starvation Open air control.
Insufficient draft. Check that flue is not obstructed,
sweep flue if necessary.
Too much draft. Ensure the air control is closed.
Install a draft stabiliser. Consult your dealer.
Do not continuously burn small wood, sticks, carpentry offcuts, plywood etc
Flue duct is cold. Burn paper and kindling wood to
increase heat.
Room is at negative air pressure to the outside.
In houses equipped with mechanical ventilation, open a window until the fire is well established.
Low heat output. Incorrect fuels. Use recommended fuels.
Smokes while burning
Smoke spillage when opening door.
Draft is insufficient
Downdraught present.
Room is at negative pressure to outside.
Chimney not tall enough to be clear of roof line.
Poor sealing of flue-pipe joints.
Flue is partially blocked
Consult a chimney specialist. Check that flue is not obstructed. Sweep if necessary.
Install an anti-downdraught cowl. Consult your dealer.
In houses equipped with mechanical ventilation, an outside air intake must be installed in the chimney.
Increase height of chimney.
Re-connect flue or replace jointing material
Arrange to have chimney swept.
with soot.
House too tightly sealed. Ensure a fresh air supply is reaching
the stove.
23
Page 24
MAINTENANCE
CLEANING
The inside of the stove may require regular cleaning, especially during periods of peak use, the frequency of this being indicated by experience. It is advisable to wear a dust mask, protective gloves and safety glasses when cleaning.
Use a stiff brush and industrial type vacuum cleaner to dislodge and remove as much material as possible, starting at the top of the stove and working down to the bottom. Particular attention should be given to the air inlet controls which can become obstructed. A CVAC Ash Can Filter and vacuum cleaner is ideal for this process.
GENERAL MAINTENANCE
Take this opportunity to check for any damaged parts inside the stove. In the event of damage or broken components, replacements can be obtained from CLARKE Parts & Service. On no account should unauthorised spare parts be used.
The stove and flueway should be inspected and maintained when in a cold condition. No unauthorised modification of this product should be carried out. This stove requires regular maintenance by a competent engineer.
STOVE BODY
The stove is finished with a heat-resistant paint which can be cleaned with a soft brush. Wait until the stove has cooled down before doing this. This finish can be renovated with stove paint, although the paint may not be an exact match and it may be necessary to repaint the complete stove.
If the stove is purely ornamental, painting will provide a durable, attractive finish. If the stove is used for heating, a high temperature heat resistant paint (available from your CLARKE dealer) must be used, in either aerosol or brush applied form. Should rust become apparent, clean thoroughly with a wire brush and apply a suitable anti­rust treatment.
During prolonged periods out of use, the air inlet should be left open and the door left slightly ajar in order to circulate fresh air and discourage condensation from forming which could encourage corrosion.
24
Page 25

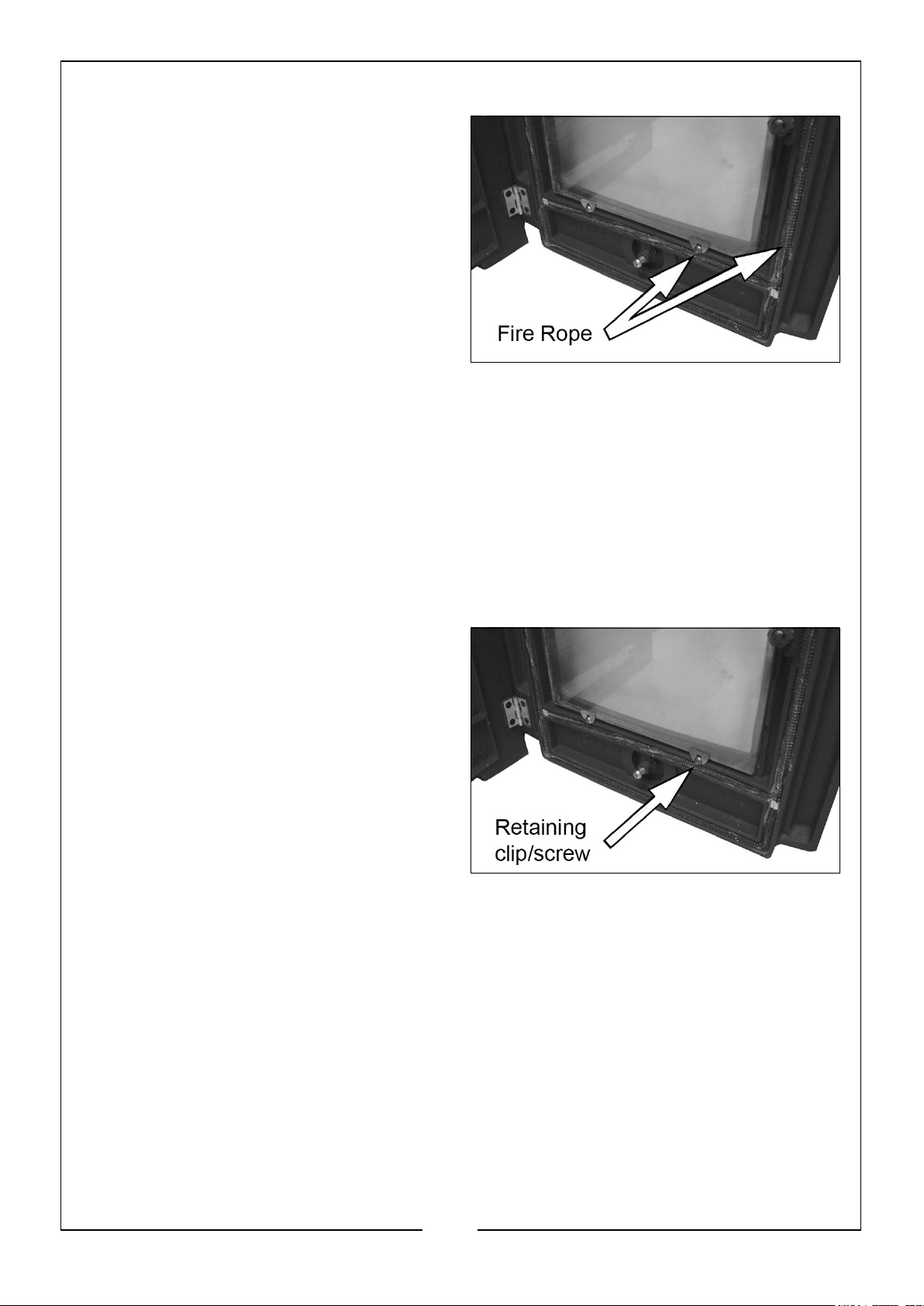

FIRE ROPE
Check the rope around the door and glass. If rope is becoming detached, replace with rope approved for this purpose.
Inspect the fireproof door seals where fitted, to ensure there is an effective seal around the door and re-fix it if loose using stove rope adhesive. If in poor condition it should be replaced.
GLASS PANELS
Clean any glass panels when cool, avoiding abrasive substances which could scratch the glass and make subsequent cleaning more difficult. Wet logs against a heated glass, a badly aimed poker or heavy slamming of the doors could crack the glass panels. The glass will not fracture with heat. Never replace any broken glass with glass NOT approved for use with stoves.
The window glass should remain clean during normal use but it can become blackened if the stove is being operated with either damp fuels or at a slow burn rate. The blackening may be dispersed by burning briefly at a much higher temperature, or it may be cleaned off using specialist glass cleaner.
In the event of the glass being broken, it can be removed by unscrewing the retaining clips, taking care not to damage the fireproof seal. The replacement glass should be carefully placed against the seal and the retaining clips re-tensioned. Take care to tension these evenly or there is a risk of breaking the new glass pane.
CHIMNEYS AND FLU-WAYS
It is important that the chimney, flu-ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels.
Only wire-centred sweep’s brushes fitted with a guide wheel should be used. If it is not possible to sweep all parts of the chimney through the stove, ensure there is adequate access to cleaning doors.
If the stove is fitted in place of an open fire, then the chimney should be swept one month after installation to clear any soot falls which may have occurred, due to the difference in combustion performance between the stove and the open fire.
The flue and chimney should be inspected for a buildup of deposits especially following prolonged periods without use. The entire chimney/flue should be swept frequently from top to bottom by a registered chimney sweep to remove any buildup
25
Page 26
of soot etc, the frequency being dependant upon the usage and the fuels being burnt. If the chimney is swept after a few weeks of regular use, the condition found will give an indication of the frequency of sweeping required. On an annual basis, the chimney is best swept just before the main winter burning season.
HETAS recommends that chimney sweeping is best carried out by an approved chimney sweep who will normally be a member of the National Association of Chimney Sweeps or the Guild of Master Sweeps, details of which can be found on the HETAS website, www.hetas.co.uk.
SPECIFICATIONS
Wood Smokeless Fir Wood
Compatible Fuel Yes Yes Yes
Weight (kg) 73.2
Dimensions (mm) W x H x D# 514 x 625 x 390
Door aperture (mm) W x H 350 x 450
Compatible Flue Diameter (“) 5
Maximum Fuel Size (mm) 200 x 70
Energy Efficiency (%) 79.2 76.8 NPD
Nominal Heat Output (kW) 4.6 4.8 NPD
Space Heating Output as above
Carbon Monoxide (vol%) 0.08 0.03 NPD
Nitrogen Oxide (mg/Nm3) 102 132 NPD
Organic Gas Compounds (mg/ Nm3)
Particulate Matter (mg/Nm3) 35 12 NPD
Hearth Temperature NPD NPD 126+
Flue Mass Flow (g/s) 4.7
Recommended chimney draft 12
52 12 NPD
NPD = no performance determined
# = excludes handles, controls & levers
26
Page 27

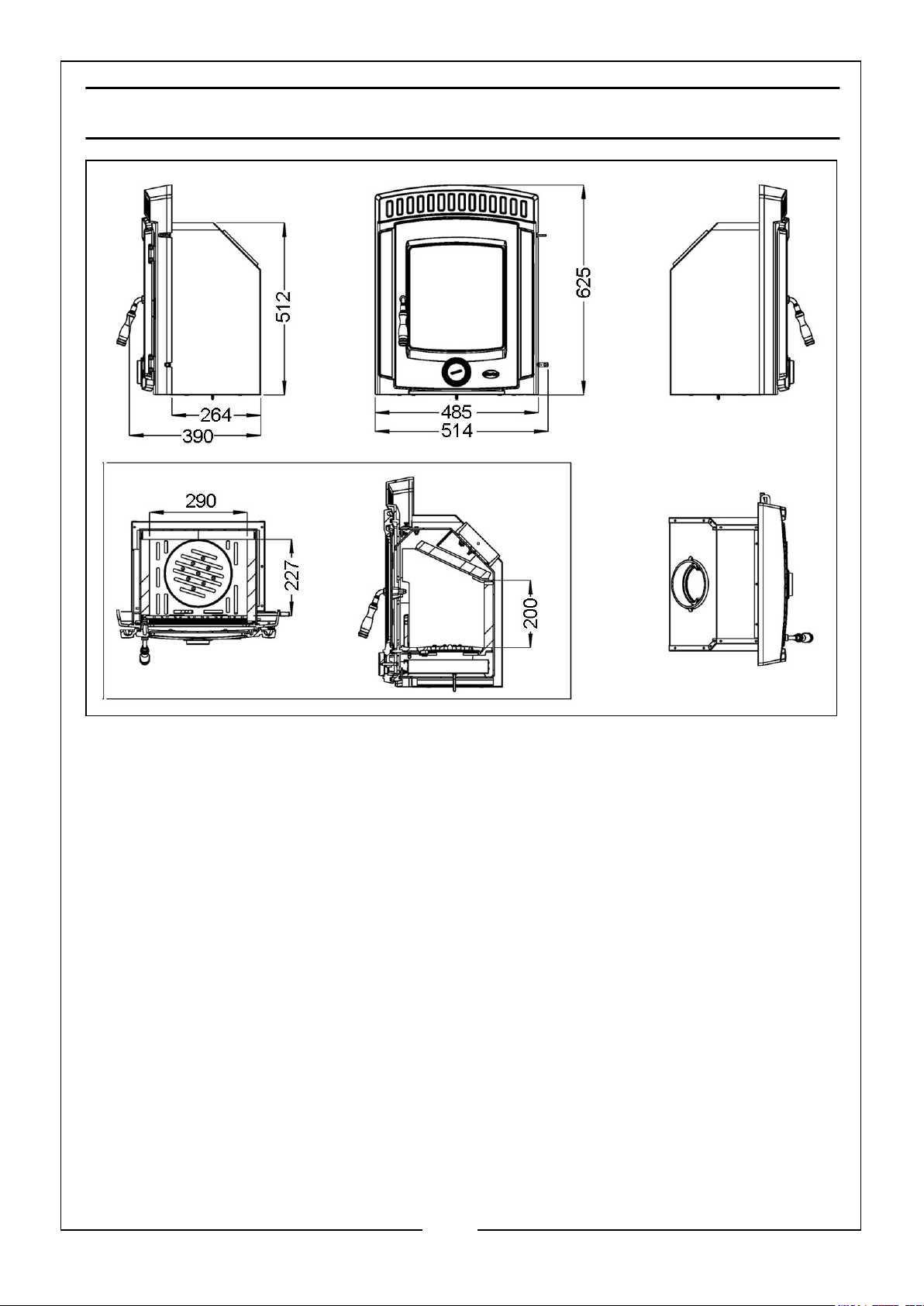

STOVE DIMENSIONS
ACCESSORIES
Refer to the CLARKE website www.clarkeinternational.com for a full range of Flue Pipes & Cowls for use with this classic cast iron stove. See also the following accessories;
Black Heat Resistant Paint Part No: 6910200
Black High Temperature Spray Paint Part No: 6910206
Fire Cement (1Kg tubs) Part No: 6910000
Ash Can Filter Ashvac 1200B Part No: 6471134
Paper Briquette Maker Part No:1801617
Companion set for stoves Part No: 6912112
Electric Log Splitter
Logbuster H5 Part No 3402032
Stand also available Part No 3402049
See also Logbusters H4 and V6
27
Page 28

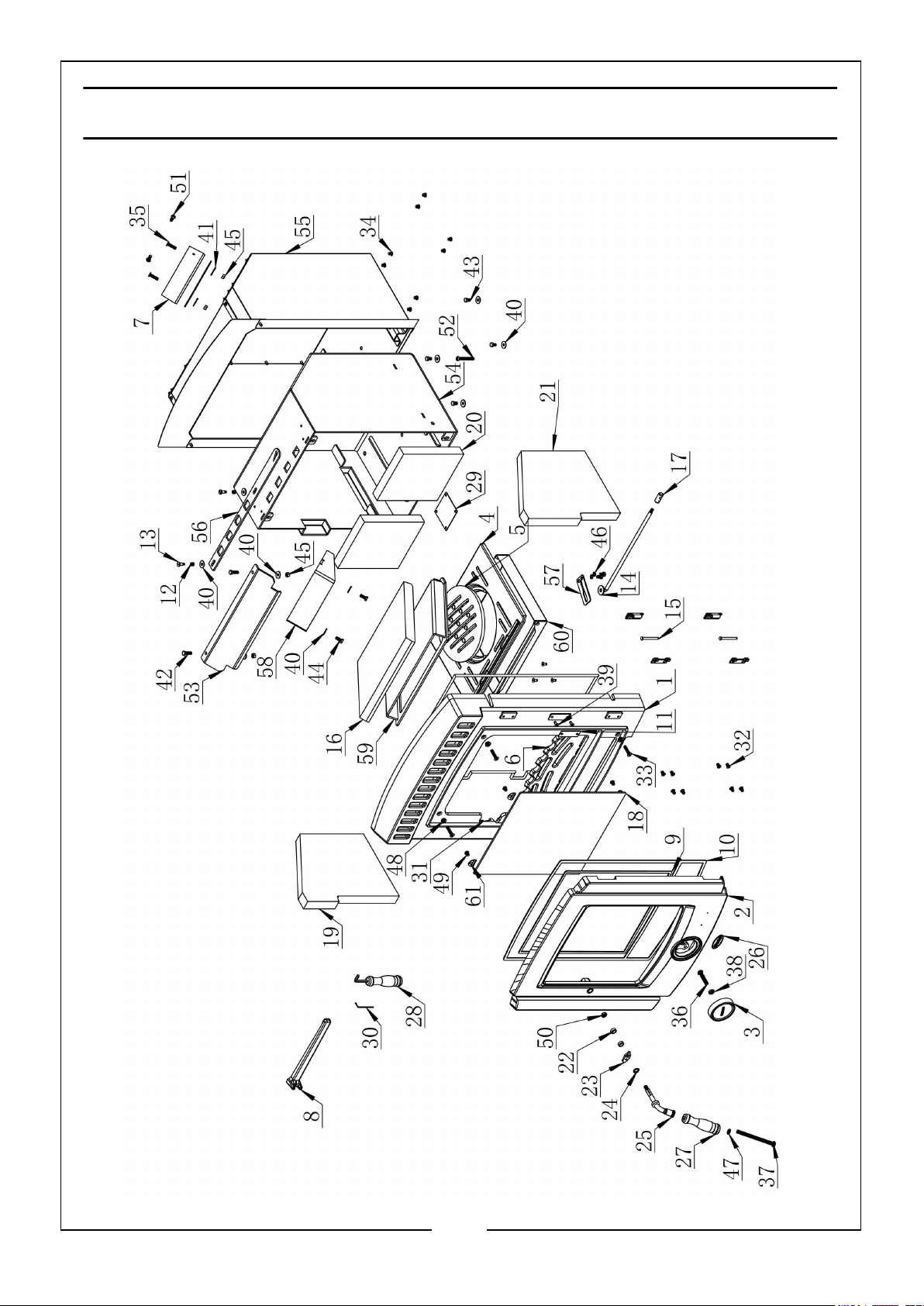

COMPONENT PARTS
28
Page 29
COMPONENT PARTS
POS DESCRIPTION POS DESCRIPTION
1 Frame 32 Screw
2 Door 33 Screw
3 Rotating Vent 34 Screw
4 Grate 35 Screw
5 Moving Grate 36 Screw
6 Fire Retainer 37 Screw
7 Collar 38 Nut
8 Ashpan Handle 39 Screw
9 Fibre Rope 40 Washer
10 Fibre Rope 41 Washer
11 Serial Number Plate 42 Screw
12 Spring 43 Screw
13 Screw 44 Screw
14 Ridding Rod 45 Nut
15 Hinge 46 Washer
16 Vermiculite Baffle 47 Washer
17 Handle 48 Nut
18 Door Glass 49 Screw
19 Left Brick 50 Nut
20 Back Brick 51 Screw
21 Right Brick 52 Screw
22 Roller 53 Airwash Damper
23 Door Catch 54 Inside Frame
24 Washer 55 Outside Frame
25 Handle Elbow 56 Airwash Plate
26 Logo 57 Connecting Plate
27 Handle 58 Collar Damper
28 Riddling Rod Handle 59 Baffle Frame
29 Data Plate 60 Ashpan
30 Spanner 61 Glass Clips
31 Spanner
29
Page 30

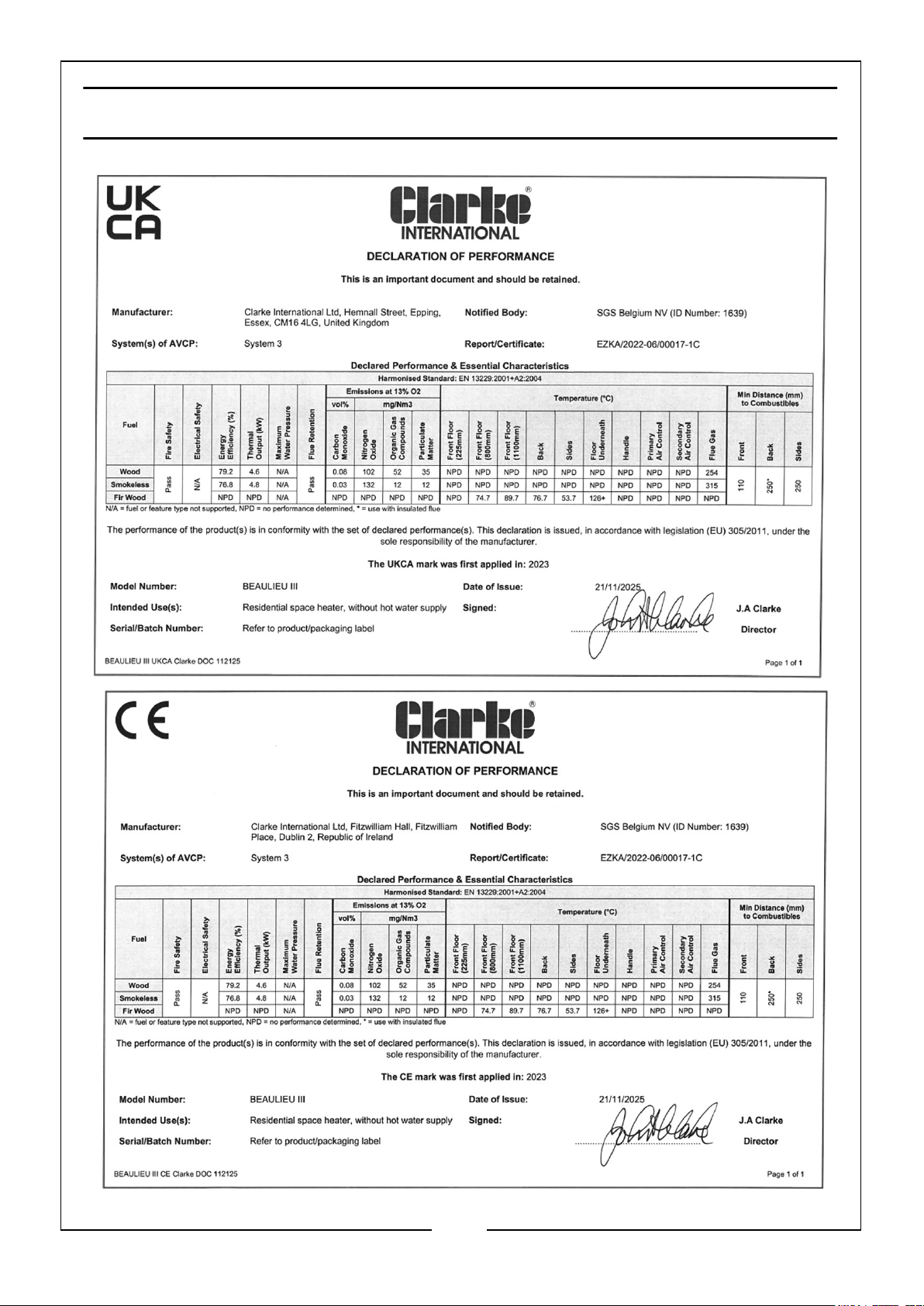

DECLARATIONS OF PERFORMANCE
30
Page 31

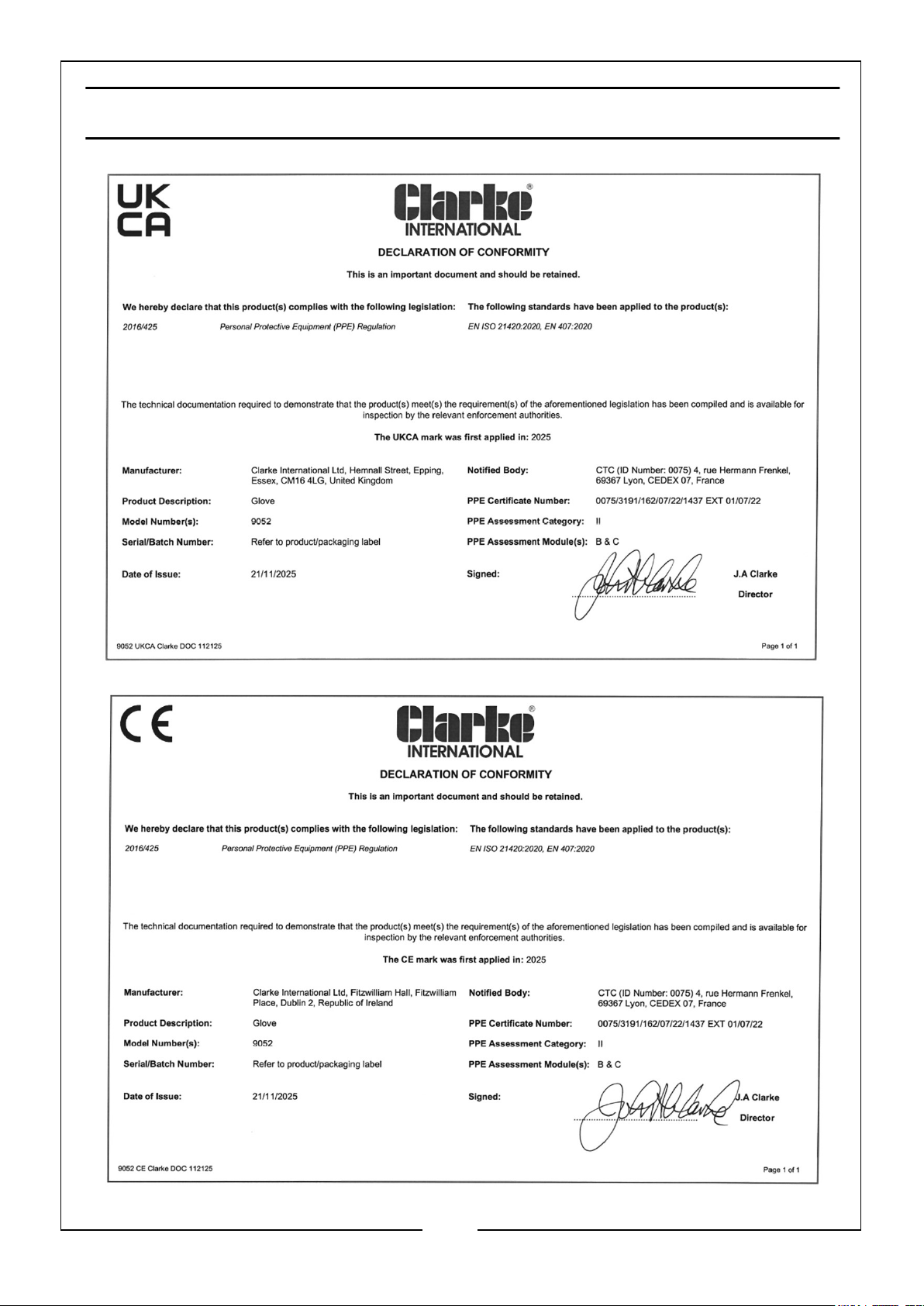

DECLARATIONS OF CONFORMITY - GLOVE
31
Page 32
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
