Clarke ASHVAC1200B User guide

ELECTRIC ASH-VAC

MODEL NO: ASHVAC1200B

PART NO: 6471134

OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL10/23

INTRODUCTION

Thank you for purchasing this CLARKE product which is designed for fast, easy
removal of cold ash from stoves and fireplaces.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

PARTS & SERVICE

This product has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, refer to your local CLARKE dealer.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATIONS

Model Number ASHVAC1200B

Dimensions (W x D x H) 310 x 310 x 365 mm

Weight 3.4 kg (empty)

Drum Capacity 18 Litres

Dust Capacity 12 Litres

Airflow 38l/s

Duty Cycle S1 (continuous)

Fuse Rating 13A

Power Supply 230V @50Hz 1ph

Motor power rating 1200W

IP Rating IP20

Power Cable Length 4.15m

Please note that the details and specifications contained herein are correct
at the time of going to print. However CLARKE International reserve the right to
change specifications at any time without prior notice.

GENERAL SAFETY PRECAUTIONS

Prior to use, all users should become familiar with these instructions.

WORK AREA

1. AV OI D operating in the presence of flammable liquids or gases. The motor
may produce sparks during operation. DO NOT use in enclosed areas
where flammable, explosive or toxic vapours are given off.

PERSONAL SAFETY

1. ALWAYS stay alert, watch what you are doing and use common sense
when operating this product. DO NOT use the ash-vac while you are tired

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

or under the influence of medication, drugs or alcohol. Lack of attention
can result in personal injury.

2. NEVER over-reach. Keep your proper footing and balance at all times to
enable better control of the ash-vac in unexpected situations.

3. This product must not be used by children.

Wear a dust mask when disturbing fine dust particles.

Wear eye protection when blowing fine dust particles.

GENERAL PRODUCT USE AND CARE

WARNING: DO NOT USE THIS ASH-VAC TO COLLECT HOT ASHES, COALS
OR WOOD EMBERS. ALWAYS ALLOW THE RESIDUE FROM STOVES AND
FIREPLACES TO COOL FULLY BEFORE COLLECTING WITH THIS ASH-VAC.

1. ALWAYS maintain this product with care and keep it clean for best/safest
performance.

2. NEVER use this product if any part is damaged. Have it inspected and
repaired by your CLARKE dealer. DO NOT use if the power cable, plug, or
the machine itself, is in poor condition.

3. NEVER abuse the power cable. NEVER pull on the cable when removing
the plug from the socket or lift the ash-vac by the power cable. Take care
not to close doors on the cable or allow it to become snagged under
furniture/objects with sharp edges. Keep away from heat or oil.

4. Only use extension leads that are of an appropriate power rating and
suitable for the work environment. Inspect the extension lead regularly and
replace if damaged.

5. ALWAYS take care when a long hose is required in the work area as it
presents a trip hazard. Tidy the hose away when the job is finished.

6. NEVER pick up flammable or readily combustible material or use in the
presence of explosive liquids or vapours.

7. NEVER pick up burning cigarettes or other smoking substances.

8. NEVER abuse this product by standing on it.

9. ALWAYS carry this product using the handle.

10. Only use the suction hose provided. A normal plastic vacuum cleaner hose
is not suitable and may be damaged.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

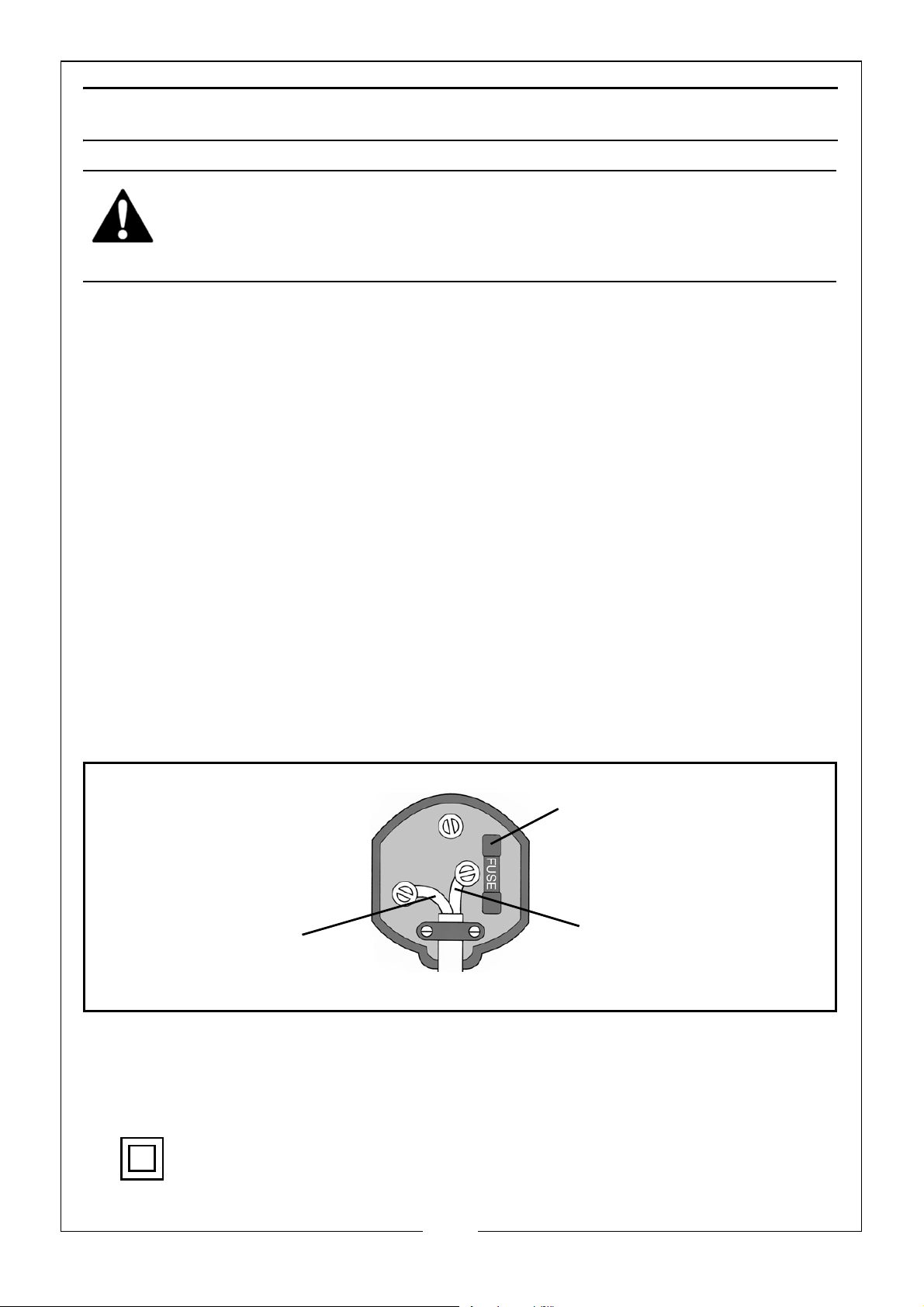

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY
BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.

Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. This product is
designed to operate on 230VAC 50Hz. Connecting it to any other power
source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due
to damage, it should be cut off and a replacement fitted, following the wiring
instructions shown below. The old plug must be disposed of safely, as insertion
into a mains socket could cause an electrical hazard.

If the colours of the wires in the power cable of this product do
with the markings on the terminals of your plug, proceed as follows.

•The wire which is coloured Blue must be connected to the terminal

which is marked N or coloured black.

• The wire which is coloured Brown must be connected to the terminal

which is marked

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.

L. or coloured red

not correspond

This symbol indicates that this is a Class II product, and does not
require an earth connection.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5

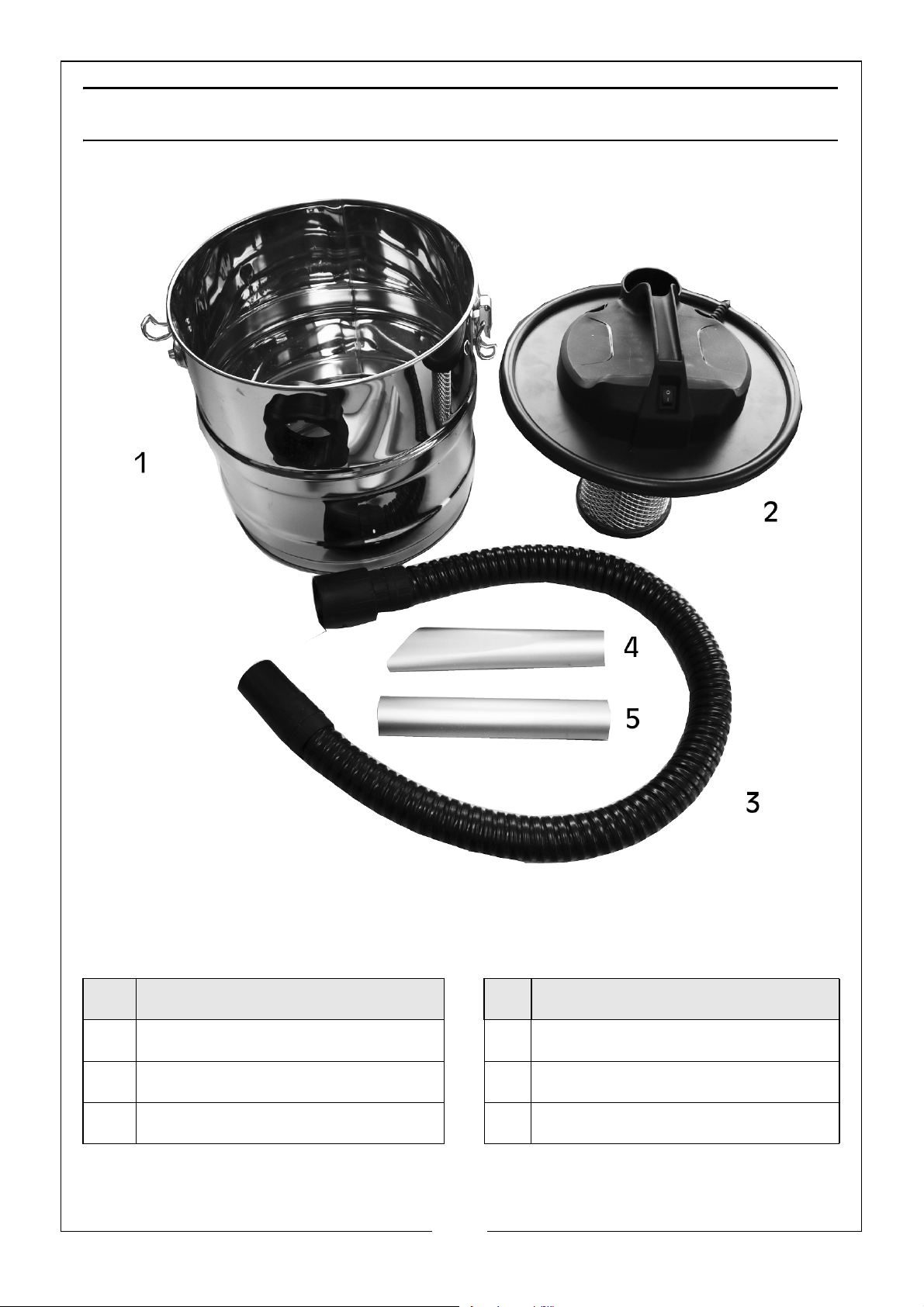

COMPONENTS

When unpacking please check contents and advise your dealer immediately if
any parts are missing. The essential components are as follows.

NO DESCRIPTION NO DESCRIPTION

1Tank

2 Motor/Lid Assembly

3Suction Hose

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

4 Suction Tube with Crevice End

5 Suction Tube with Straight End

6

PREPARATION FOR USE

1. With the ash-vac removed from
the packaging, undo the securing
clips securing the lid assembly and
remove the components from
within the tank. Check for
shortages and that no damage
was suffered in transit.

2. Replace the lid assembly on top of
the tank and close the clips

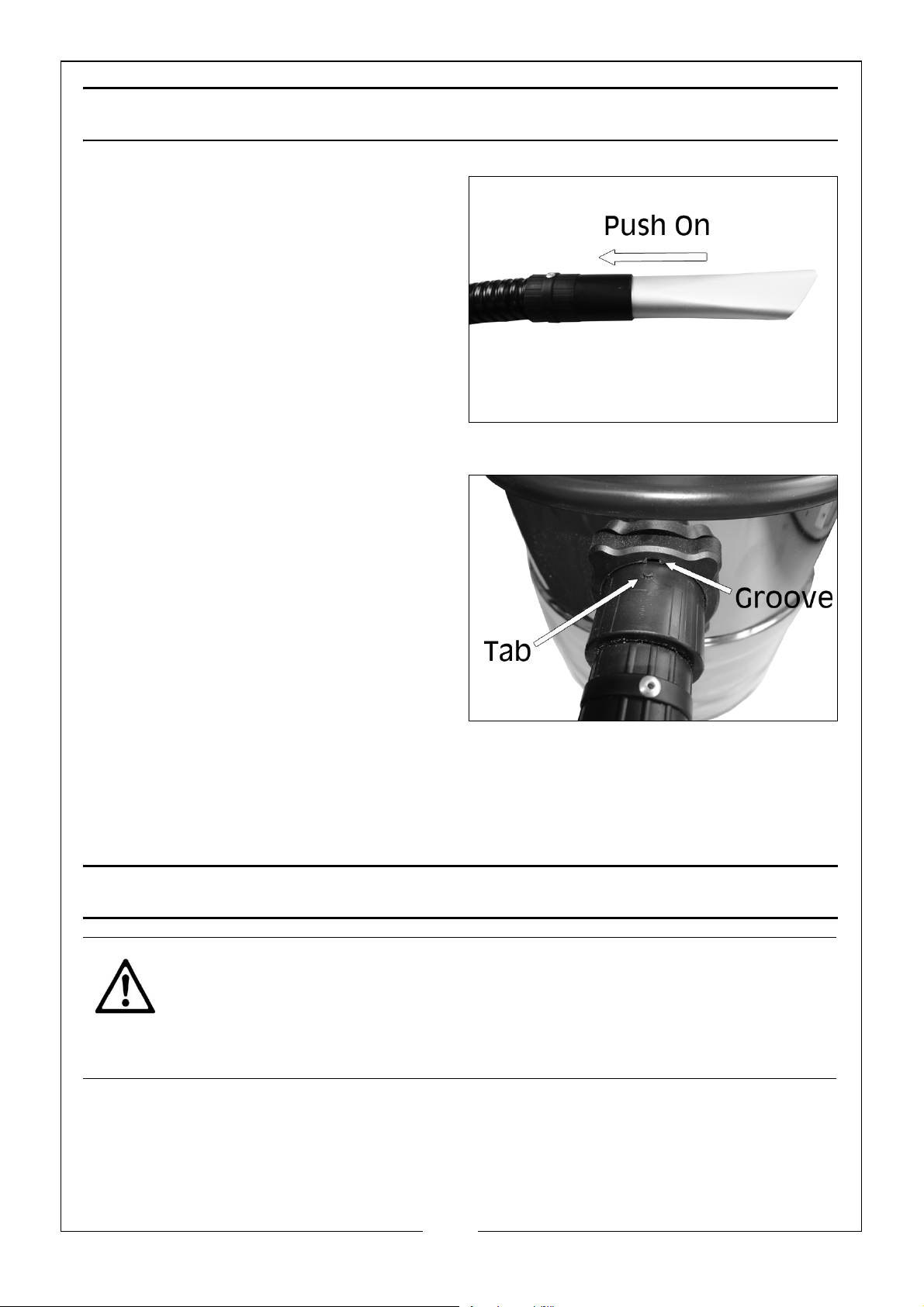

3. Fit the required suction tube on the
pickup end of the suction hose, as shown.

4. Insert the suction hose into the air
intake on the side of the tank,
lining up the tab on the tube with
the groove on the top of the
intake and turn it clockwise to lock
in place.

NOTE: The two ends of the suction

hose are different. The end
with the collar and swivel fits
into the tank.

5. Before plugging into the power supply, the ash-vac should be positioned
on a firm, level surface. DO NOT cover the ash-vac and always position it
with good all-round air ventilation. The ash-vac must always remain
upright.

OPERATING INSTRUCTIONS

CAUTION: MAKE SURE THAT FIREPLACES AND STOVES ARE COLD BEFORE
YOU ATTEMPT TO VACUUM THEM CLEAN. WAIT UNTIL THE ASH HAS
COOLED DOWN COMPLETELY BEFORE YOU BEGIN TO COLLECT IT.

CAUTION: EXCESSIVE TEMPERATURES CAN LEAD TO DAMAGE TO THE
SUCTION HOSE AND THE ASH CAN AND CAUSE A RISK OF FIRE.

1. Take care not to collect material which appears to have cooled down on
the outside but which may still be hot on the inside. Hot ash particles may
ignite again in the air flow.

• Ash with a temperature exceeding 40°C may damage the ash-vac.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

2. Switch on the ash-vac and use the suction tube to collect the ash.

3. When moving the ash-vac:

• ALWAYS use the handle.

• DO NOT lift it by (or place a strain on) the hose or power cable.

• ALWAYS switch it off and disconnect it from the mains power supply.

4. DO NOT attempt to quickly extinguish fires in fireplaces or stoves with water
in order to achieve cool ash. The construction material in the fireplace or
stove may not withstand any sudden change in temperature and suffer
permanent damage.

5. Regularly check the tube and ash-vac for excess temperature during use.
If you notice a significant temperature rise, switch off immediately. Let the
ash-vac cool down before emptying the collected material.

6. ALWAYS empty the ash-vac after use and clean it when required.

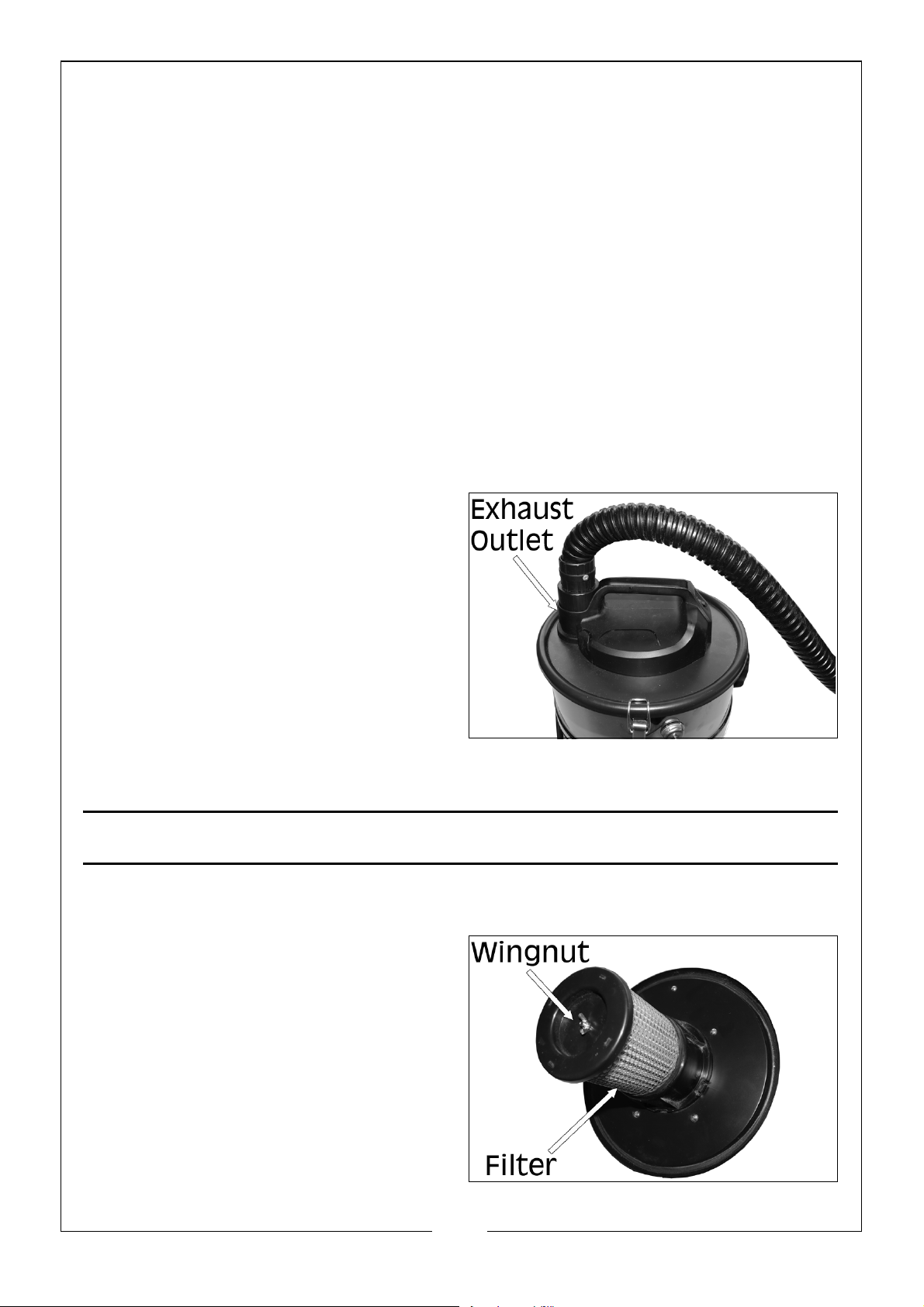

7. If required, the ash-vac may be
used to blow a jet of air from the
exhaust outlet to clear obstructions
within the pipe, as shown. ALWAYS
make sure the ash-vac is emptied
before blowing.

8. If, after a few seconds the hose is
still blocked, turn the unit off and
clear any blockages manually.

9. The user should empty the ash-vac
at regular intervals to prevent it from overheating.

FILTER MAINTENANCE

1. Inspect the cartridge filter regularly and clean it when necessary.

2. Remove the lid assembly and
unscrew the wingnut on the top of
the filter housing.

3. Remove the wingnut and filter lid.

4. Take off the filter and rinse in warm
water.

5. Let the filter dry before reinstalling
it.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

6. Replace the filter, lid and wingnut back in place.

• Contact your CLARKE dealer for replacement filter if required.

CARE & STORAGE

1. When not in use, turn off using the switch on top of the ash-vac, then
unplug from the power supply.

2. When finished work, ensure the electric cable is stowed away by winding it
around the handle and that it is not left as a hazard for others to trip over.

3. DO NOT change filters or carry out any cleaning of the ash-vac without first
disconnecting the ash-vac from the power supply.

4. Keep the external surfaces clean. Avoid impact damage & DO NOT allow
this product to come into contact with abrasive or corrosive materials.

5. NEVER use solvents for cleaning any components.

6. DO NOT use solvents, thinners or alcohol to clean the ash-vac, as these
chemicals will damage the finish. With the ash-vac unplugged from the
power supply, use a dry cloth to wipe over the casing.

7. When not in use this product should be stored in a secure, dry place, out of
the reach of children. DO NOT leave it exposed to the elements and avoid
direct sunlight, direct heat, rain/moisture etc.

8. Only use parts and accessories recommended in this manual. NEVER use
unauthorised accessories or attachments which may result in personal
injury or damage to the product.

9. DO NOT attempt to repair or modify this product or attempt any electrical
repair yourself. Consult a qualified electrician or the CLARKE Service
Department on 020 8988 7400.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

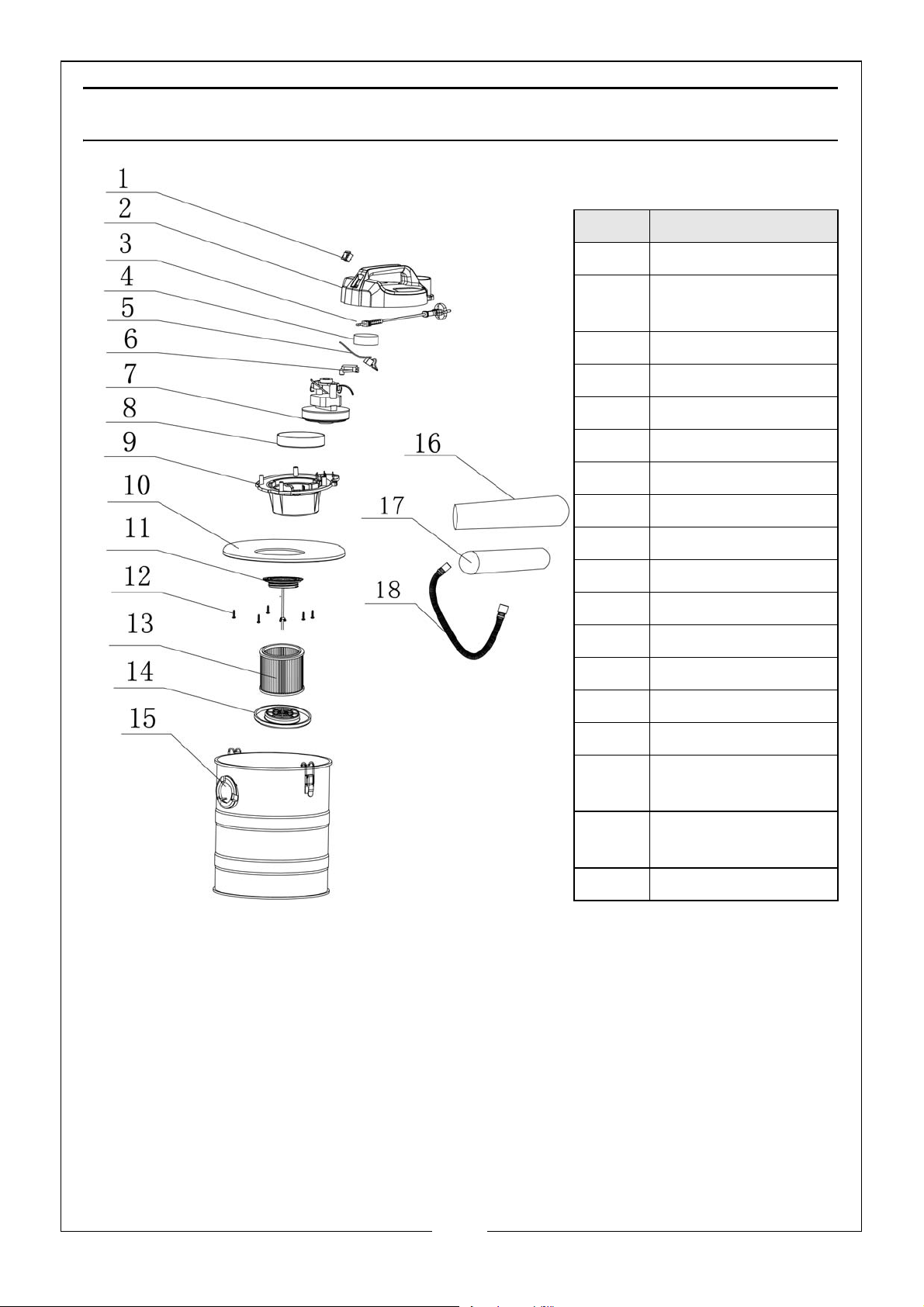

PARTS D IA GR AM

Ref No Description

1On/Off Switch

2Top Cover

Housing

3 Power Cord

4 Sponge Filter

5 Capacitor

6 Seal cap

7Motor

8 Rubber seal

9 Motor Housing

10 Top Cover

11 Air Inlet Board

12 Screws

13 HEPA Filter

14 HEPA Cover

15 Tank

16 Crevice Suction

Tube

17 Straight Suction

Tube

18 Suction Hose

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DECLARATIONS OF CONFORMITY

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
