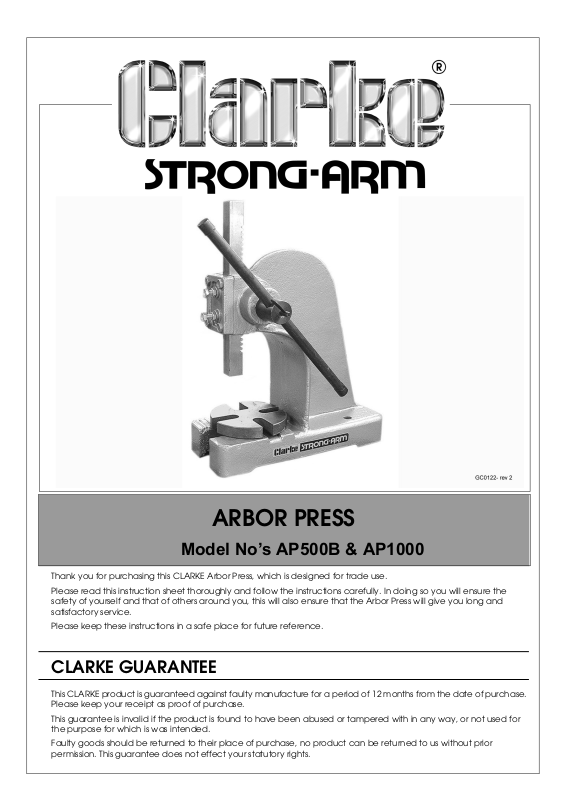

ARBOR PRESS
Model No’s AP500B & AP1000
Thank you for purchasing this CLARKE Arbor Press, which is designed for trade use.
Please read this instruction sheet thoroughly and follow the instructions carefully. In doing so you will ensure the
safety of yourself and that of others around you, this will also ensure that the Arbor Press will give you long and
satisfactory service.
Please keep these instructions in a safe place for future reference.
CLARKE GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase.
Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for
the purpose for which is was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior
permission. This guarantee does not effect your statutory rights.
SAFETY PRECAUTIONS
As with all machinery, there are certain hazards involved with its operation and use. Exercising respect and caution
will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked or ignored,
personal injury to the operator or damage to property may result.
• BEFORE use, secure the press to a suitable work bench.
• ALWAYS keep fingers clear of moving parts.
• ALWAYS wear safety goggles, manufactured to the latest European Safety Standards. Everyday glasses do not
have impact resistant lenses, they are NOT safety glasses.
• ALWAYS keep work area clean. Cluttered areas and benches invite accidents.
• ALWAYS ensure that adequate lighting is available. A minimum intensity of 300 lux should be provided. Ensure
the lighting is positioned where you will not be working in your own shadow.
• ALWAYS concentrate on the job at hand, no matter how trivial it may seem. Be aware that accidents are
caused by carelessness due to familiarity.
• ALWAYS wear proper apparel. Loose clothing or jewellery may get caught in moving parts. Wear protective
hair covering to contain long hair.
• NEVER operate the press when under the influence of drugs, alcohol or any medication.
• NEVER force the press; it will do a better and safer job at the rate for which it was designed. Do not attempt to
apply more leverage by extending the length of the handle.
TECHNICAL SPECIFICATIONS
Model No AP500B AP1000
Part No 7615172 7615175
Rated Force* 0.5 ton 1.0 ton
Dimensions (L x W x H) 255 x 120 x 280 mm 270 x 129 x 439 mm
‘A’
‘B’
‘C’
‘D’
‘E’
‘F’
Weight 9.3 kg 15.0 kg
75 mm
112 mm
117 mm
17 mm x 17 mm
95 mm
295 mm
* Rated force dependant on exerted load.
WARNING: The use of spare parts or accessories, other than those
supplied by CLARKE international or one of its recognised dealers,
may be hazardous and could invalidate the guarantee.
PARTS AND SERVICE
90 mm
138 mm
140 mm
23.6 mm x 23.6 mm
118 mm
349 mm
For spare parts and servicing, please contact your nearest dealer, or
CLARKE International on:
020 8988 7400
or email:
Parts@clarkeinternational.com
CLARKE International, Hemnall Street, Epping, Essex, CM16 4LG
