Clarke AHP 15, AHP 25, AHP 50, 7615100, 7615110 User guide

15, 25 & 50 TON

15, 25 & 50 TON

HYDRAULIC PRESS

HYDRAULIC PRESS

Model Nos:

AHP15 • AHP25 • AHP50

OPERATING & MAINTENANCE

INSTRUCTIONS

1207

PARTS LIST

Thank you for purchasing this CLARKE Hydraulic Press.

Please read this manual thoroughly and follow the instructions carefully, in doing
so you will ensure the safety of yourself and that of others around you, and you can
look forward to the press giving you long and satisfactory service.

Please note that this manual is an integral part of the Hydraulic Press and must
always accompany it, even in the event of sale.

The press owner and/or user must read and fully understand the operating
instructions and recommendations before using this press.

CLARKE International shall not be held liable to any damage to persons or
equipment due to improper or non-permitted use of the press.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

No. Description Part No.

1 Nut M10 A0231

2 Nut M12 A0315

3 Washer12x24 A0346

4 Screw M12x30 R0666

5 Washer M10x20 C0062

6 Frame R0045

7 Nut M12 R0046

8 Pressure Gauge 100mm R0059

9 Cylinder Complete R0065

10 “V” Support R0073

11 Bed R0080

12 Pump Complete R0083

13 Winch Complete R1210

14 Bed Support Pin 35x380mm R0095

15 Handwheel R0120

16 Cap w/Al. Washer R0121

17 Washer 3/8” R0132

18 Screw M12x90 R0140

19 Winch Pulley R0141

20 Wire Rope R0142

21 Connector Straight M12 R0248

PARTS & SERVICE CONTACTS

For Spare Parts and Service, please contact your nearest dealer,

or CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

No. Description Part No.

22 Connector Straight 3/8” R0255

23 Oil Delivery Hose R0257

24 Piston Spring R0187

25 Gasket Kit R0190

26 Cylinder Barrel R0225

27 Piston R0226

28 Cylindert Guide Bush R0227

29 Piston Head R0228

30 Cap w/Grub Screw R0229

31 Pump Body R0466

32 Hand Pump Lever R0188

33 Speed Variator Kit R0467

34 Exhaust Valve Kit R0468

35 High Pressure Valve Kit R0469

36 Max. Pressure Valve Kit R0470

37 Low Pressure Valve Kit R0471

38 Pump Element R0473

39 Flange w/Conn. Rod Kit R0474

40 Bush R0275

41 Handle R0274

42 Cable Guide Assy R0276

Please note that the details and specifications contained herein, are correct at the time of going to print. However,

CLARKE International reserve the right to change specifications at any time without prior notice.

2

11

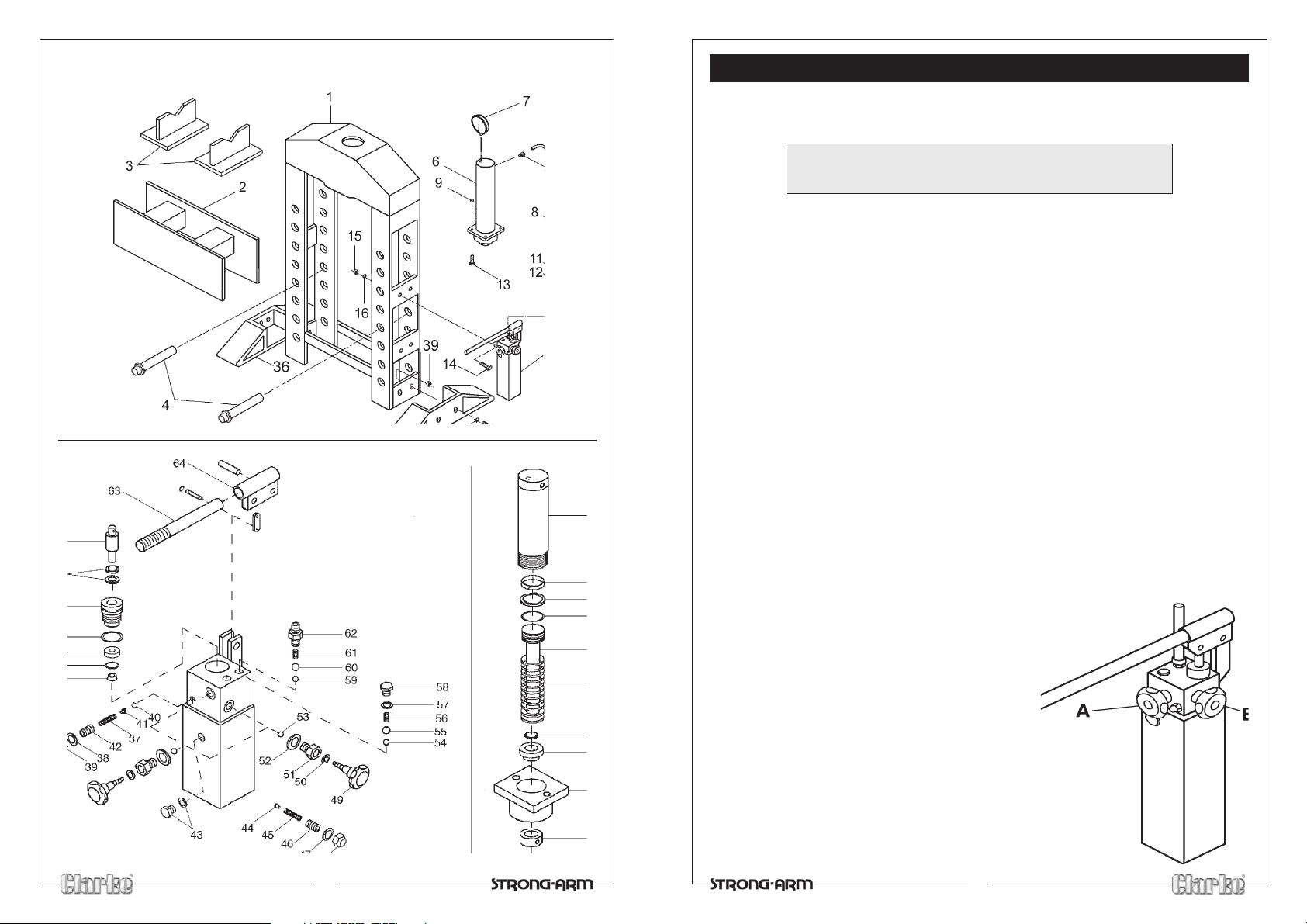

PARTS DIAGRAM 50 TON

SAFETY PRECAUTIONS

• During assembly or if the press is moved, ALWAYS use a lifting appliance ­crane or hoist etc., do not man handle.

• Ensure the press is located on firm level ground with adequate light.

• Before applying a load, be certain that all press bed support pins are fully
engaged, and the hydraulic ram is fully located into the ram mount. Ensure
also that hydraulic hoses and couplings are completely sound.

• Before use always ensure the workpiece is firmly secure and stable.

• Always clean spills of hydraulic oil immediately as this can be extremely
dangerous in a workshop environment.

• Do not exceed the rated capacity.

• Do not allow any person, who is inexperienced in the use of hydraulic presses,
to use the machine unless they are under direct supervision.

• Do not allow anyone to work directly in front of the machine when it is in use.

• Never tamper with the machine. The safety valve is calibrated and sealed at
the factory, do not attempt to change these settings.

• Use ONLY the recommended hydraulic oil.

• Components of this press are specially designed to withstand the rated
capacity. Do not substitute bolts, pins, or any other components.

• Always apply the load on the centre of ram plunger. Offset loads can
damagethe ram or ram mount and may cause work piece to eject.

• Before operating, check for signs of cracked welds, bent bed pins, loose or
missing bolts, or any other structural damage. Do not operate if any of these
conditions exist. Have repairs made only by authorised service centres.

• Remove all loads from press bed before attempting to adjust bed height.
Beware of possible falling bed.

• Press only on a work piece supported by the press bed.

• When using accessories such as arbor plates, be certain they are centered
on press bed, and are in full contact with the bed.

• Parts being pressed may splinter, shatter, or be ejected from the press. Due to
varied applications, it is your responsibility to always use adequate guards,
wear eye protection and heavy protective clothing when operating this press.

• Keep hands and fingers out of the press and away from the parts that may
pinch and shift.

• It is the owners responsibility to keep warning decals legible and intact.
Replacements may be obtained from Clarke International Spare Parts Dep’t.

• Failure to heed these warnings may result in damage to the equipment, or
failure resulting in property damage, personal, or even fatal injury.

• DO NOT use extension tubes on the pump handle. Excessive effort can cause
damage and/or accidents.

10

3

ASSEMBLY

PARTS LIST - 15 & 25 TON

Ensure the press and its components suffered no damage during transit. Should
any damage be apparent, please contact your CLARKE dealer immediately.

1. With the main frame upright and adequately supported, considering its
weight, bolt on the two feet using the nuts and bolts supplied.

We strongly recommend that the press be firmly secured to a firm and level floor

2. Remove the plug on the front of the pump body - parts list item 43 (15/25 ton)
or 16 (50ton), and replace it with the vent plug supplied.

3. Remove the cap on top of the ram. Seal the thread with PTFE tape and screw
in the pressure gauge, ensuring it is tight.

4. Fit the pump handle into the actuating lever.

NOTE: Do not locate your press where it will be open to the elements, as it is
designed to operate at temperatures of between -10OC to 40OC. Severe weather
conditions will damage the hydraulic system.

Your Hydraulic Press is now ready for use.

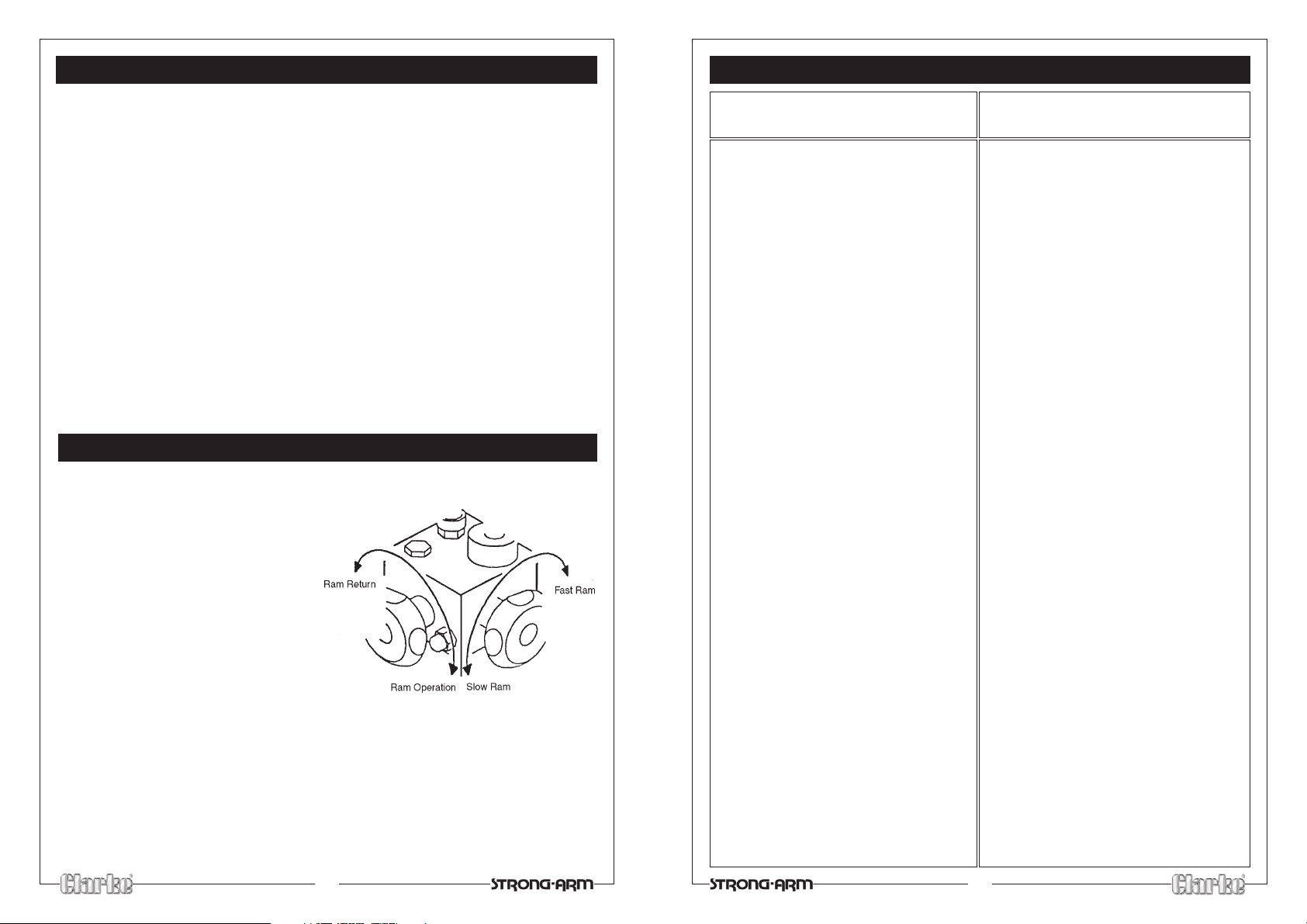

HYDRAULIC PUMP/RAM OPERATION

The pump is provided with two valves, operated by turning the respective
handwheel as shown in Fig. 1.

Valve A is used for raising or lowering
the ram.

Turn the handwheel clockwise and
pump the handle to operate (or
lower) the ram. Turning the handwheel
anticlockwise releases the pressure
and the ram will rise.

Valve B is used to move the ram in fast
or slow mode.

Turn the handwheel clockwise and pump the handle to move the ram quickly to
the workpiece. Turning the handwheel anticlockwise and pumping the handle,
moves the ram at a slower rate.

Fig.1

No. Description Part No.

15TON 25TON

1 Bed CMM1537 CMM2514

2 ‘V’ Support CMM1535 CMM1535

3 Plate CMM1534 CMM2534

4 Frame CMM1513 CMM2513

5 Pressure Gauge CMM1538 CMM2515

6 Coupling CMM1515 CMM1515

7 Oil Pipe CMM1527 CMM2527

8 Cylinder CMM1532 CMM2512

9 Screw CMM504 CMM504

10 Pump CMM1528 CMM1528

11 Screw CMM1544 CMM1544

12 Foot CMM1531 CMM2511

13 Screw CMM1545 CMM1545

14 Bed Support Pin CMM1536 CMM2536

20 Cylinder Barrel CMM1506 CMM2506

21 Gasket CMM1501 CMM2501

22 Gasket CMM1502 CMM2502

23 OR Gasket CMM1503 CMM2503

24 Shaft CMM1505 CMM2505

25 Spring CMM1504 CMM2504

26 OR Gasket CMM1508 CMM2508

27 Plug Guide CMM1509 CMM2509

28 Flange Compl. CMM1507 CMM2507

29 Cap w/Grub Scr. CMM1510 CMM2510

30 Pump Element CMM1512 CMM1512

31 ‘O’ Ring CMM632 CMM632

32 Bush CMM1513 CMM1513

33 ‘O’ Ring CMM636 CMM636

34 Bush CMM1514 CMM1514

35 ‘O’ Ring CMM1525 CMM1525

36 Gasket CMM1526 CMM1526

No. Description Part No.

15TON 25TON

37 Spring CMM562 CMM562

38 Washer CMM560 CMM560

39 Blind Plug CMM559 CMM559

40 Ball CMM554 CMM554

41 Capsule CMM563 CMM563

42 Screw CMM561 CMM561

43 Plug CMM1517 CMM1517

44 Capsule CMM1546 CMM1546

45 Spring CMM1547 CMM1547

46 Screw CMM561 CMM561

47 Washer CMM560 CMM560

48 Plug Lock CMM559 CMM559

49 Handwheel CMM558 CMM558

50 ‘O’ Ring CMM557 CMM557

51 Housing CMM556 CMM556

52 Washer CMM555 CMM555

53 Ball CMM553 CMM553

54 Ball CMM1520 CMM1520

55 Ball CMM553 CMM553

56 Spring CMM1548 CMM1548

57 Washer CMM552 CMM552

58 Plug CMM588 CMM588

59 Ball CMM553 CMM553

60 Ball CMM554 CMM554

61 Spring CMM1549 CMM1549

62 Coupling CMM1515 CMM1515

63 Pump Lever CMM1524 CMM1524

64 Lever CMM1522 CMM1522

Repair Kit Ram CMM1550 CMM2518

Repair Kit Pump CMM1500 CMM1500

4

9

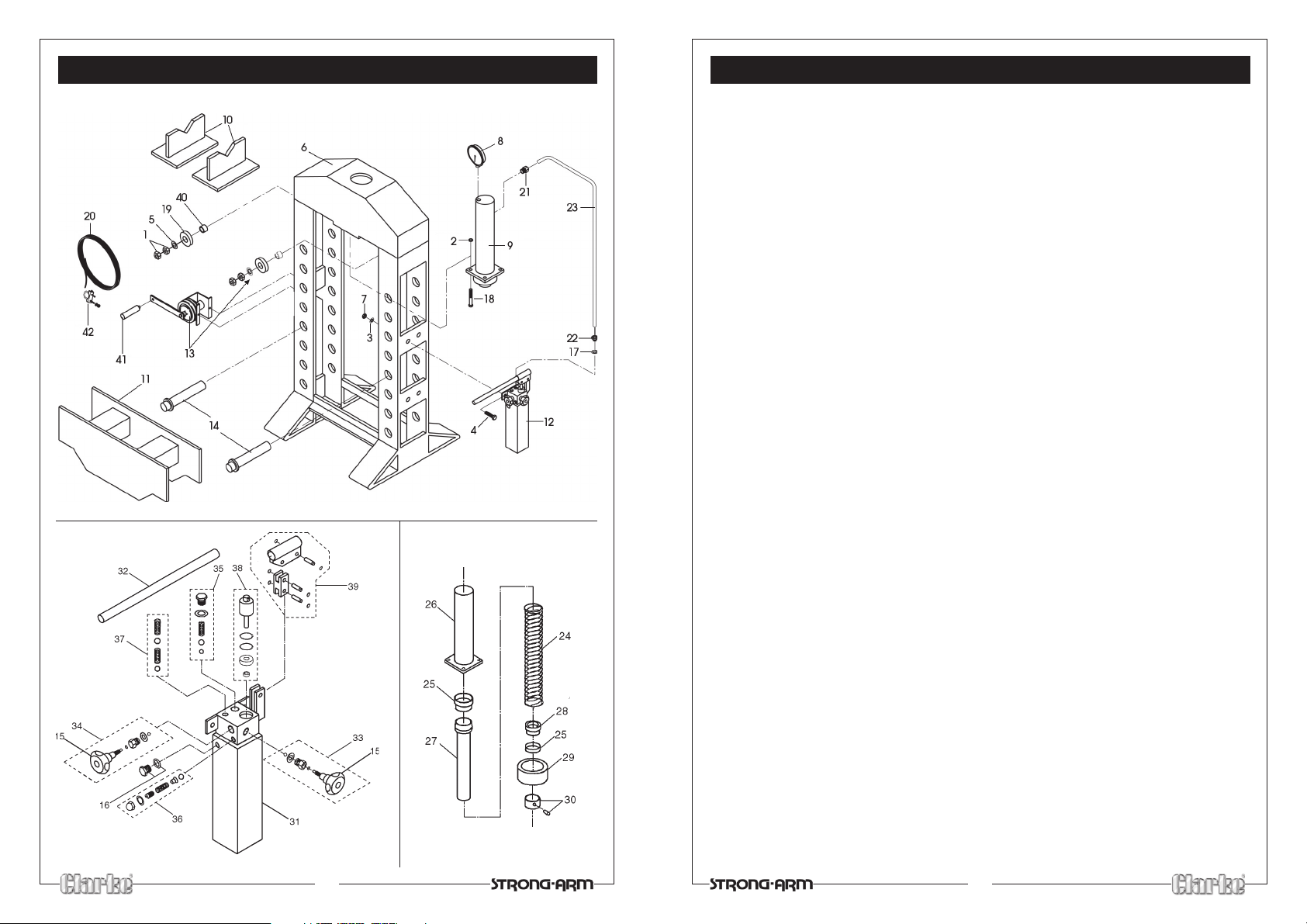

PARTS DIAGRAM 15 & 25 TON

OPERATION

1. Position the bed to the desired height, so as it will be as close as possible to the
ram when the workpiece is mounted.

WARNING:

NEVER use extensions to the ram pumping handle

Raise one side of the bed, and insert a pin into a locating hole directly
beneath the bed. Repeat the process at the other side, until the bed is level
and at the desired height, with the pins fully ‘home’.

The 50Ton version is provided with a winch with which to raise the bed. Simply turn the
handleto raise the bed to the appropriate height in order to insert the support pins.
Turn the handle to lower on to the pins, so they take the full weight.

2. The workpiece is placed on top of the bed, and must be completely stable.
to achieve this you must use packing or shims where required.

‘Vee’ blocks (and a special Plate with the 15 & 25ton) are supplied, which
locate on top of thebed. Either, or a combination of these, may be used and
on to which the workpiece may be placed, to give it stability. DO NOT ‘point
load’ these accessories as they are not designed to take the full force of the
ram in one spot. Ensure they are adequately supported.

NOTE: Any packing pieces or shims used, MUST be capable of withstanding the
extreme pressure that will be brought to bear, and MUST be of sufficient size with
sufficient surface contact, so as to avoid the possibility of slipping or springing
taking place. Mating surfaces MUST be horizontal so that the force being exerted
will be vertical and NOT at an angle.

3. Turn the Handwheel B, Fig 3, clockwise to move the ram quickly, and
Handwheel A, Fig 3, clockwise to lower the ram. Pump the handle to bring the
ram very lightly into contact with the workpiece.

Manoeuvre the workpiece so that the desired point of
contact is directly beneath the centre of the ram.

4. When satisfied that the workpiece is correctly lined
up and is completely stable in that position,
ensure the handwheel B, Fig. 3 is turned
ANTICLOCKWISE, and slowly pump the
handle so that the ram begins to exert
pressure on the workpiece.

Continue to pump the handle, whilst standing to the side of
NOT stand directly in front of the work), and constantly
monitor the process, ensuring the ram and work remain
completely in line, and there is no risk of slipping.

5. When the process is complete, turn the handwheel A, Fig 3,
anticlockwise to release ram pressure

Fig. 3

8

5

MAINTENANCE

A Visual inspection must be made before each use of the press, checking for
leaking hydraulic fluid, and damaged, loose or missing parts.

Owners and/or users should be aware that repair of this equipment may require
specialised knowledge and facilities. It is recommended that a thorough annual
inspection of the press be made and that any defective parts, decals or warning
labels be replaced with genuine Clarke parts.

Any press which appears to be damaged in any way, is found to be badly worn,
or operates abnormally SHOULD BE REMOVED FROM SERVICE until necessary repairs
are made.

• Periodically check the press frame to make sure all bolts are tight and inspect
for cracked welds, bent, loose or missing parts.

• Periodically check the hydraulic connections for possible leaks. Replace or
properly repair damaged or leaking hydraulic components before using.

• Periodically apply a light smear of oil to the moving parts and the bed support
pins.

• At 6 monthly intervals, check the hydraulic pump oil level, by removing the
plug from the front of the unit. Oil should be level with the bottom of the hole.
If necessary top up with CLARKE Hydraulic Oil, Part No. 3050830 only.

This operation is carried out with the ram fully retracted.

• Replace the Hydraulic oil every TWO years. This operation requires the
dismantling of the hydraulic system, for which you should consult your CLARKE
dealer.

• The 50 Ton model requires the winch cable to be inspected every 6 months
for wear. Always wear a good pair of industrial gloves when handling wire
rope as damaged strands could cause severe injury.
If any rust is apparent it must be removed completely and reinspected. Renew
the rope if strands are broken or rusted through.

Apply grease to the rope and oil the moving parts of the winch.

SPECIFICATIONS

15 TON

Capacity ................................... 15tons

Pressure ..................................... 395bar

Ram Stroke - G ......................... 125mm

Ram Dia ......................................40mm

Net Weight ................................. 120kg

Part No. ................................... 7615015

25 TON

Capacity ................................... 25tons

Pressure ..................................... 395bar

Ram Stroke - H ......................... 150mm

Ram Dia ......................................50mm

Net Weight ................................. 180kg

Part No. ................................... 7615025

A ................................... 175

B .................................... 550

C ................................... 970

D .................................... 80

E .................................... 155

F .................................... 870

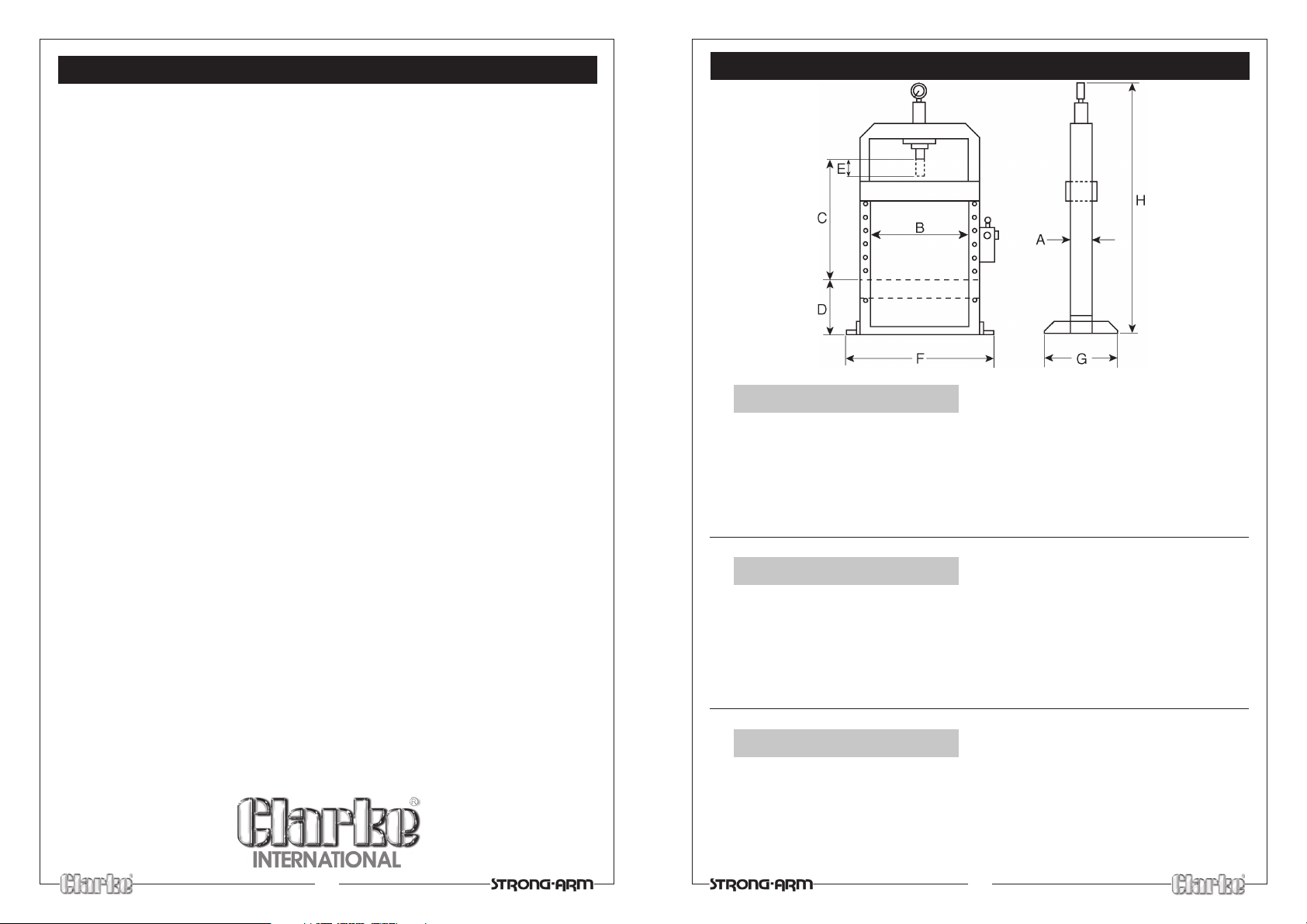

Dimensions (mm)

G ................................... 655

A ................................... 175

B .................................... 630

C ................................. 1030

D ..................................... 80

E .................................... 160

F .................................... 970

Dimensions (mm)

G ................................... 655

50 TON

Capacity ................................... 50tons

Pressure ..................................... 450bar

Ram Stroke - G ......................... 145mm

Net Weight ................................. 370kg

Part No. ................................... 7615050

6

7

A ................................... 210

B .................................... 780

C ................................. 1070

D ................................... 100

E .................................... 150

F .................................. 1200

Dimensions (mm)

G ................................... 655
