Clarke CPSB 200B, 7640134 User guide

PRESSURISED SANDBLASTER

MODEL NO: CPSB200B

PART NO: 7640134

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL0822 REV 1

INTRODUCTION

Thank you for purchasing this CLARKE Pressurised Sandblaster.

Before attempting to use this product, please read this manual thoroughly and follow
the instructions carefully. In doing so you will ensure the safety of yourself and that of
others around you, and you can look forward to your purchase giving you long and
satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or tampered with
in any way, or not used for the purpose for which it was intended. Faulty goods should
be returned to their place of purchase, no product can be returned to us without prior
permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools,
accessories and packaging should be sorted, taken to a recycling centre and
disposed of in a manner which is compatible with the environment.

CARTON CONTENTS

The following items should be supplied in the carton.

If any parts are missing or damaged, please see your Clarke dealer.

• 1 x Tank Assembly • 1 x Front Leg

• 2 x Handlebars • 1 x Gun Assembly

• 2 x Wheels • 2 x Wheel Covers

• 1 x Fixings Kit • 1 x Axle

• 1 x Media Hose • 1 x Funnel

• 1 x Sand Sieve • 1 x Roll Teflon Tape

• 1 x Protective Mask/Hood • 1 x Spare Gun Closing Block

• 4 x Nozzles - nominal diameters: 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY RULES

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE
USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY.

1. Read this instruction manual before connecting the sandblaster to your compressor.

2. DO NOT use any silica based abrasives with this tool. Silica based abrasives have
been linked to severe respiratory disease. ALWAYS use recommended abrasives.
Abrasives used in this sandblaster may be covered by COSHH Regulations.

3. Read this manual carefully, Learn the sandblaster applications and limitations, as
well as potential hazards specific to it.

4. DO NOT expose to moisture. Don't use this product in damp or wet locations, Keep
out of rain.

5. Keep work area clean and well lit. Cluttered or dark work areas invite accidents.

6. Keep children away. All children should be kept away from the work area. Never let
a child handle tools without strict adult supervision.

7. DO NOT operate this product if under the influence of alcohol or drugs. Read
warning labels on prescriptions to determine if your judgment or reflexes are
impaired while taking medication. If there is any doubt, do not attempt to operate.

8. Use safety equipment. Dust mask, non-skid safety shoes, hard hat, or hearing
protection should be used in appropriate conditions.

9. DO NOT overreach, Keep proper footing and balance at all times when operating
this product.

10. ALWAYS disconnect the sandblaster from the air supply and release pressure from the
tank before storing, servicing, or changing accessories.

11. Use clamps or other practical means to secure and support the work piece to a
stable platform. DO NOT hold the work by hand or against your body.

12. DO NOT point the sandblaster at anyone or at any objects other than the intended
work object.

13. Check your sandblaster regularly for damage, If any part is damaged it should be
carefully inspected to make sure that it can perform its intended function correctly.
If in doubt, the part should be repaired. Refer all servicing to a qualified technician.
Consult your dealer for advice.

14. DO NOT attempt to operate this product near flammable materials or combustibles.
Failure to comply may cause serious injury.

15. ALWAYS make sure that the trigger is not on before connecting the sandblaster to
the air supply.

16. Store idle equipment out of the reach of children and untrained persons. Tools may
be dangerous in the hands of untrained users.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

17. Drain the water trap periodically during use, Do not allow moisture to fill more than

Fig 1

Fig 2

1/2 of the water trap bowl. Do not leave water standing in the water trap when
storing the sandblaster.

18. DO NOT allow the sandblaster to sit pressurized while unattended or not in use.

19. Periodically check the abrasive medium delivery components. Valves, hoses and
nozzles that carry the abrasive medium after it leaves the pressure tank are
subjected to the abrasive blasting action so will wear out more quickly than other
components.

20. Release the air pressure in the tank before opening. See “Releasing Pressure from the
Tank” section, Make sure pressure gauge reads “0” before opening the tank. DO
NOT attempt any maintenance on the sandblaster until the pressure gauge reads
“0” and it has been disconnected from the air supply.

21. Maintain the correct air pressure whenever working. DO NOT allow working pressure
to exceed 125 psi. If the safety valve does not release excess air pressure, stop all
work and release pressure from the tank (see “Releasing Pressure from the Tank”
section).

22. ALWAYS make sure there is adequate ventilation. DO NOT work in confined areas.

23. In the case of injury seek expert medical advice immediately.

24. Use clamps or a vice to hold the work if it is small or of light weight rather than using
your hands. This frees both hands to operate the nozzle.

ASSEMBLY

FIT THE PRESSURE GAUGE TO THE TANK

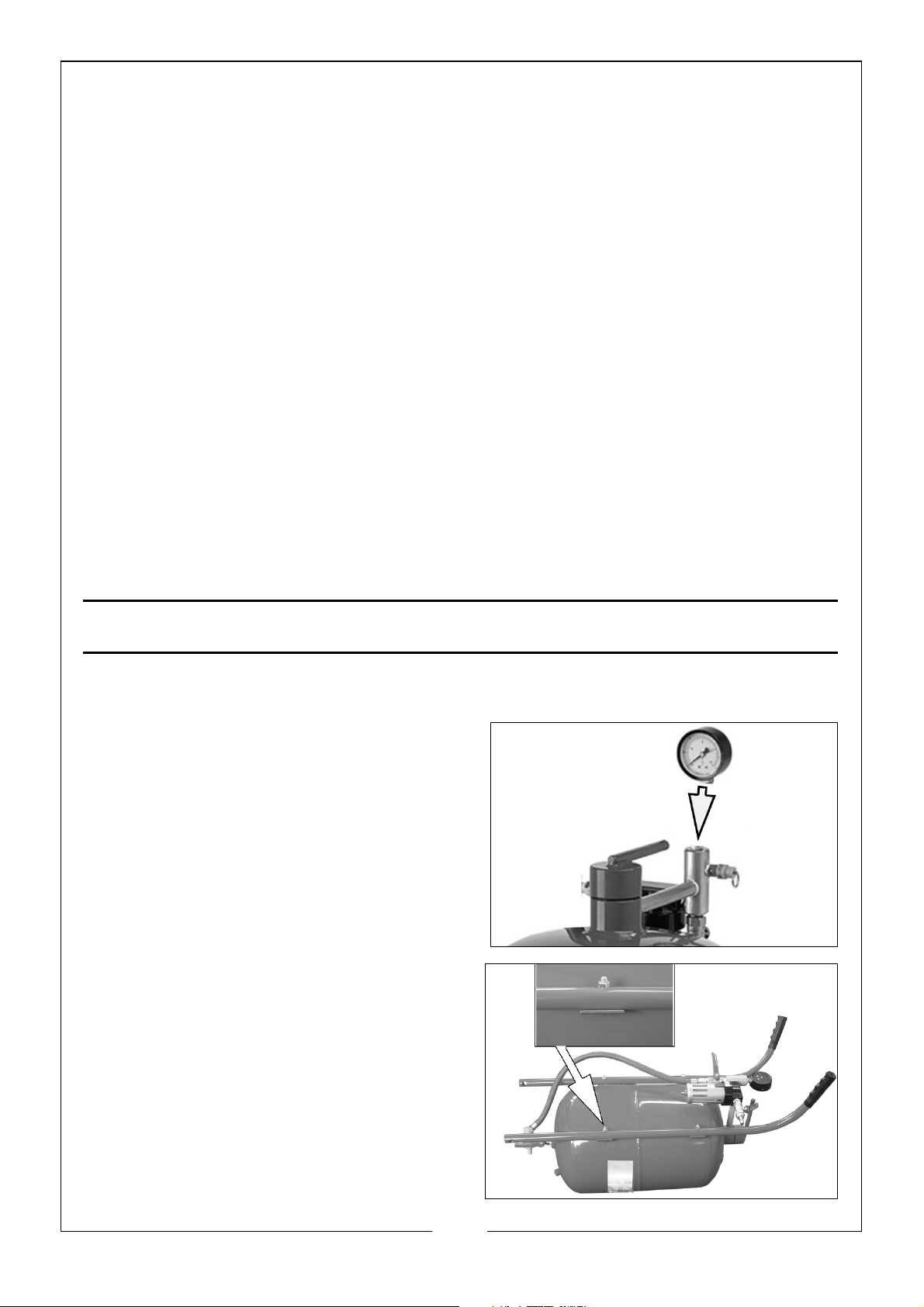

1. Screw the pressure gauge onto the
sandblaster as shown in Fig 1.

FIT THE HANDLE BARS TO THE TANK

1. Lay the tank on a flat level surface such
as a workbench, with the handlebar
mounting brackets facing up, as shown
in Fig 2.

2. Align the holes in the left handlebar with
the handlebar mounting brackets on the
left side of the tank.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

3. Fit a washer to each of the handlebar mounting screws. Insert a screw through each

Fig 3

Fig 4

Fig 5

hole in the handlebar and mounting brackets.

4. Fit a nut onto each of the screws and firmly tighten with a wrench.

5. Repeat steps 2-4 for the right handlebar.

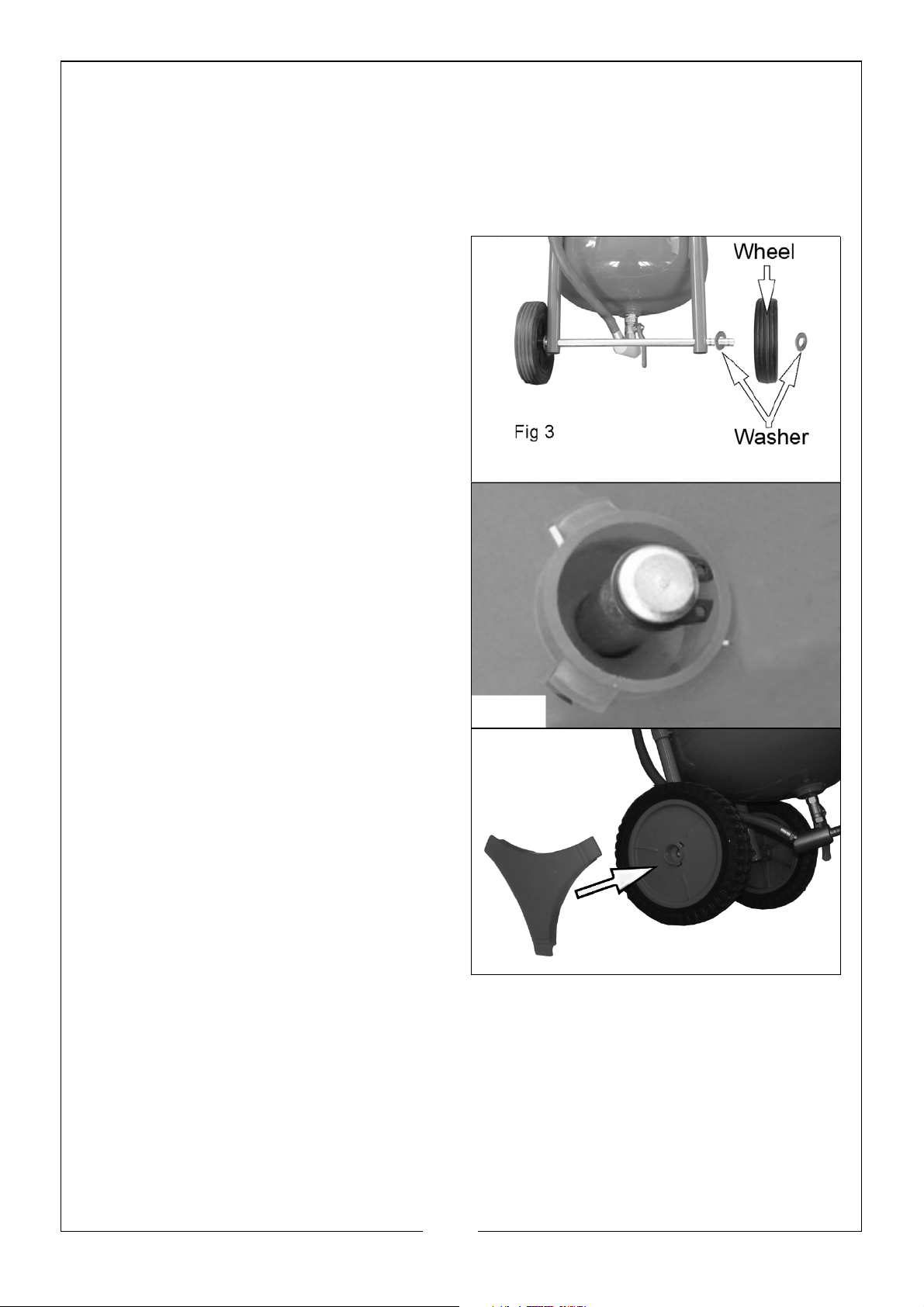

ASSEMBLE THE AXLE

1. Slide the axle through the holes at the
bottom of the handlebars, see Fig 3.

2. Slide a washer onto each end of the
axle.

3. Slide a wheel onto each end of the
axle followed by another washer.

4. Use the circlip provided to secure the
wheel, see Fig 4.

5. Press the wheel cover onto the wheel
as shown in Fig 5.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ATTACH THE FRONT LEG

Fig 6

Fig 7

Fig 8

1. Roll the tank over so that handlebars are
now facing down.

2. Align the holes of the front leg with the
holes in the leg mounting on the front
side of the tank, see Fig 6.

3. Insert a split pin through the holes and
bend it so the front leg cannot slide off
the leg mount.

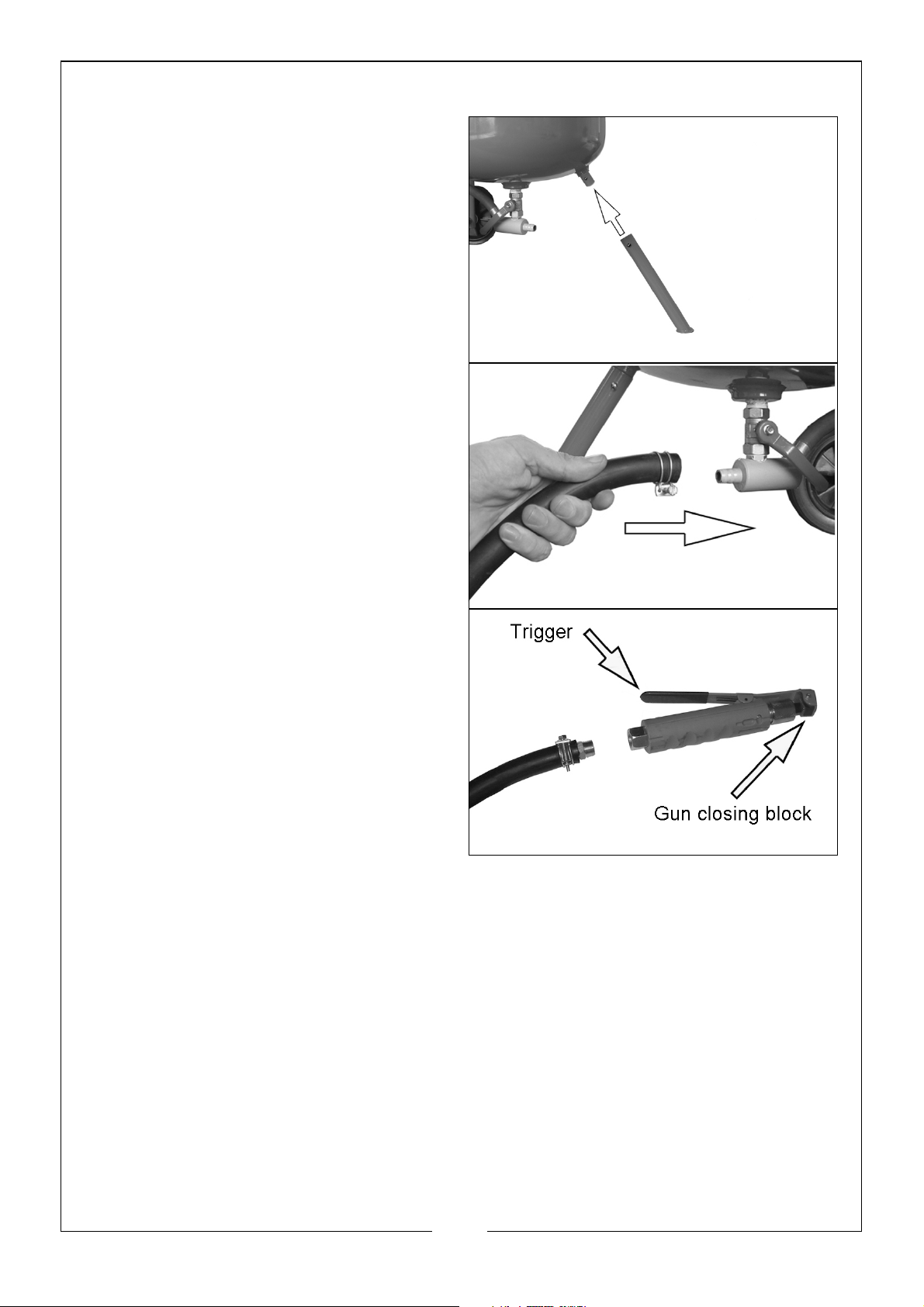

ATTACH THE MEDIA HOSE

1. Slide the hose onto the outlet at the
bottom of the sandblaster as shown in
Fig 7.

2. Tighten the clip shown to secure the
hose.

3. Connect the sandblasting gun to the
other end of the hose in a similar
manner. Ensure the inlet connector is
tightly fitted to the gun.

• A spare gun closing block is

supplied for future use.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATION

WARNING: ALWAYS WEAR YOUR HOOD, DUST MASK AND HEAVY DUTY
CANVAS GLOVES WHEN OPERATING THE SANDBLASTER.

WARNING: BEFORE OPERATING YOUR SANDBLASTER, INSPECT EACH
CONNECTION, DOUBLE CHECKING TO MAKE SURE THAT ALL ARE TIGHT
AND PROPERLY SEALED.

WARNING: THIS SANDBLASTER IS NOT INTENDED FOR USE WITH SILICA
BASED ABRASIVES. WHICH HAVE BEEN LINKED TO SEVERE RESPIRATORY
DISEASE. ALWAYS USE SILICA SUBSTITUTES (SUCH AS CLARKE GLASS BEAD
ABRASIVE.

SAFETY AND HEALTH CONSIDERATIONS

• Before opening tank make sure that it is not pressurized. Ensure the gauge
reads “0”. If it does not, release pressure from the tank (See page 10).

• Disconnect the compressor before opening the tank. Protect yourself and
those around you from “over-spray”. Remember that your sandblaster is
shooting a powerful spray of abrasive material. Do not point it at yourself or
anyone around you.

• Wear protective clothing including hood (30), and heavy gloves when using
this sandblaster.

• Wear a dust mask over your mouth and nose when using this sandblaster. You
will create a cloud of abrasive material and debris which is dangerous to
inhale.

• Protect anything around you that may be damaged from the spray of
abrasive particles. Nothing subject to contamination damage or with a fine
surface should be near your sandblaster work area.

ABRASIVE SELECTION

The type of abrasive you choose will greatly influence the amount of time needed to
clean a given surface area.

Suitable Abrasives available from your clarke stockist

Aluminium Oxide
Powder

60 60-80 60-80 80 80-120 120

22kg 20kg 7.5kg 22kg 7.5kg 22kg

3052070 3052110 3052100 3052075 3052105 3052080

Glass Bead Abrasive 3052095 20kg

Soda Blast Abrasive 3052805 7.5kg 3052800 22kg

Garnett Abrasive 3052090 22kg

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

LOADING THE ABRASIVE

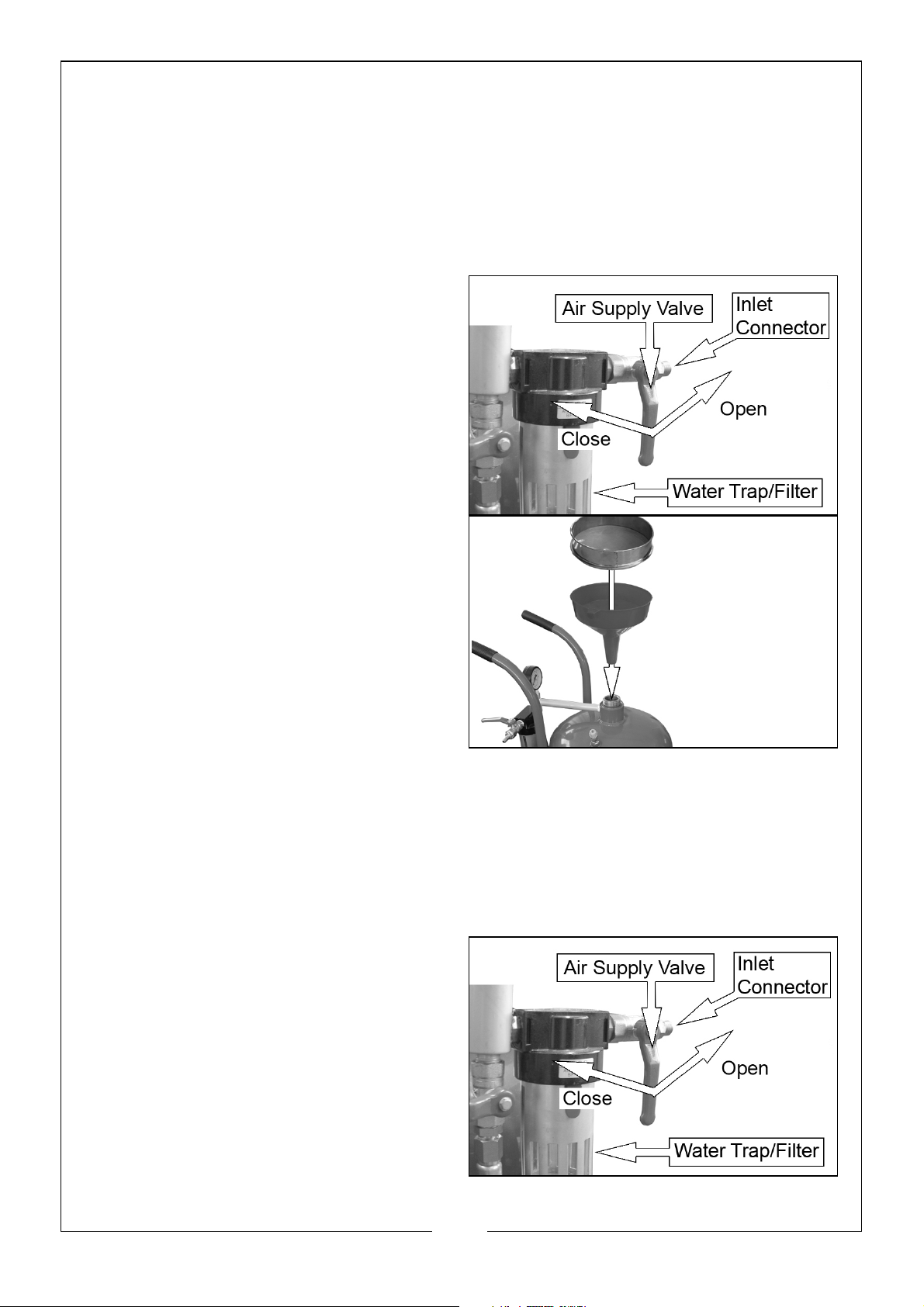

Fig 9

Fig 10

Fig 11

• To prevent clogging, ensure that the abrasive you use is dry.

• While you may re-use abrasive but remember that abrasive grit/material
does wear out. After use, abrasive becomes smoother and rounder, thus
reducing its effectiveness.

NOTE: Re-using abrasive may also cause clogging due to fine debris contained

in the mixture from prior use.

1. Close the air supply valve by turning it
to the closed position, see Fig 9.

2. Squeeze the trigger to release any
pressure from the tank.

• Make sure the pressure gauge

reads “0”.

3. Remove the filler cap.

4. Using the sieve and funnel supplied,
pour the selected abrasive material
into the tank, see Fig 10.

• Do not fill the tank more than ¾ full.

• If humidity in your region is 90% or

more, only fill the tank ½ full and
check the water trap more
frequently.

5. Replace the filler cap ensuring the O­ring is in place.

NOTE: Place your air compressor in another room to prevent damage from the

intake of abrasive dust laden air.

TO START BLASTING

NOTE: Start with all valves in the closed position. Following the instructions below

will help prevent clogging in the delivery hose, outlet manifold and in the
gun.

1. Connect the compressor to the inlet
connector.

2. Start the compressor and open the air
supply valve, see Fig 11.

• The tank will start to pressurise.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

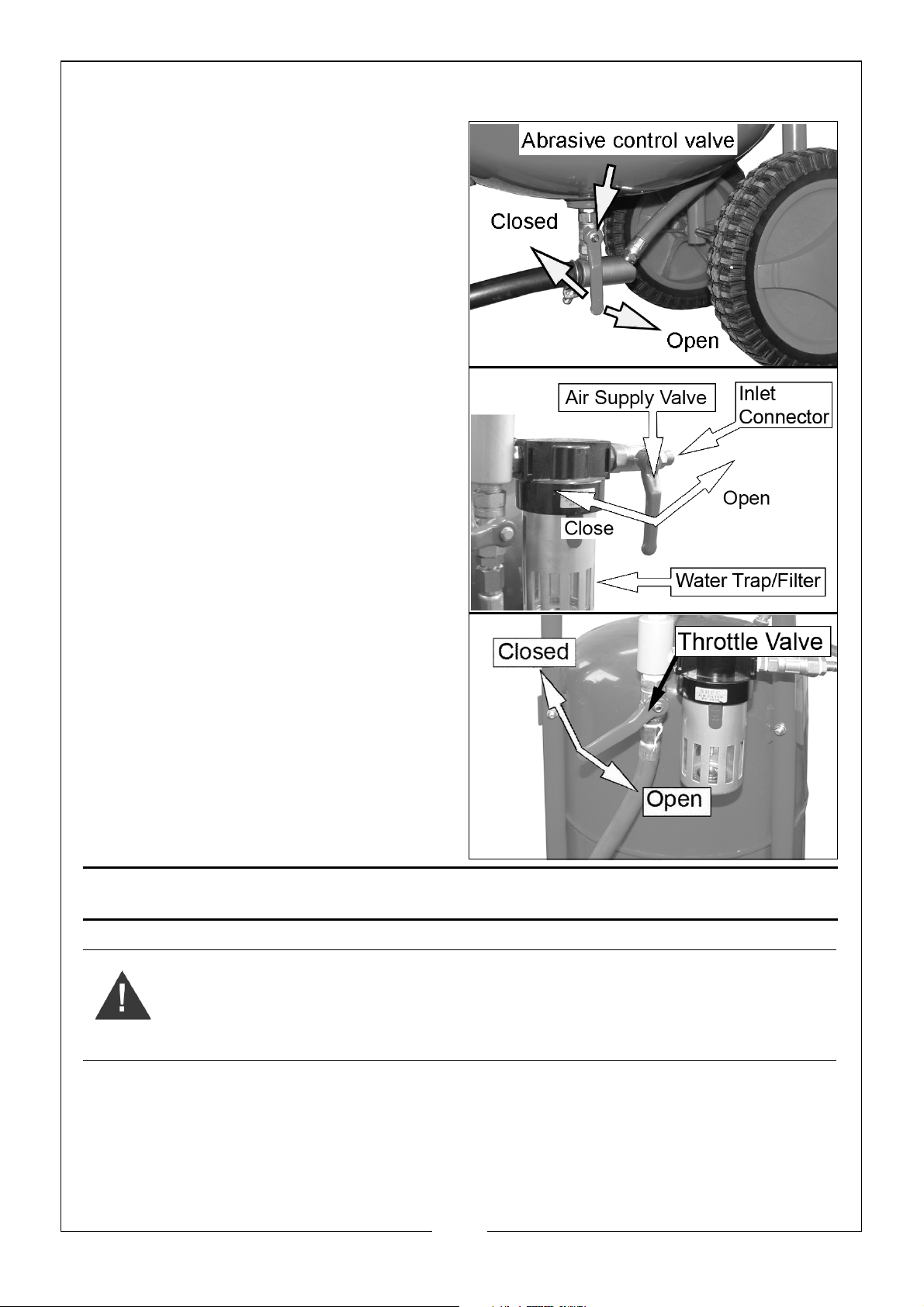

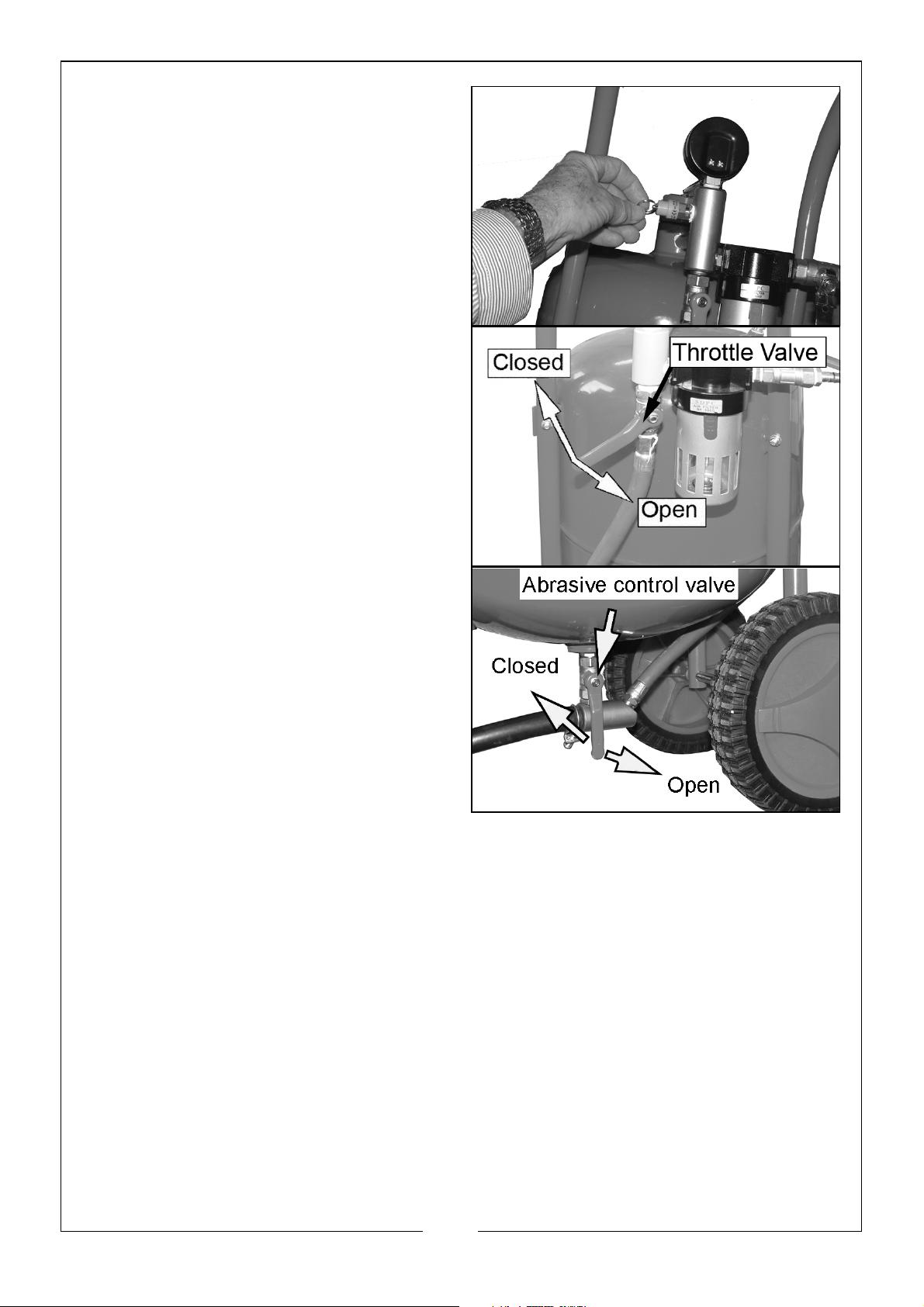

3. Test the safety valve by pulling up on

Fig 12

Fig 13

Fig 14

the valve as shown in Fig 12.

• Air will hiss out when the valve is
pulled.

•

•

•

•

4. Open the throttle valve, Fig 13.

5. Check for leaks at the filler cap and
along all hoses and fittings as the
system pressurises. If leaks are
observed, release the pressure from
the tank and repair any leaks
immediately.

6. Press and hold the trigger until air is
flowing through the gun.

7. With the trigger open, slowly open the
abrasive control valve as shown in Fig
14 until abrasive material begins to
flow out of the gun.

8. Adjust the abrasive control valve until
the desired amount of abrasive
material is flowing through the gun.

9. Begin blasting.

ABRASIVE FLOW ADJUSTMENT

• Choose a larger nozzle for a broader spray pattern. Choose a smaller nozzle

for more focused spray.

• Adjust air pressure with the throttle valve. Adjust abrasive flow with the

abrasive control valve.

• Watch for abrasive clogging. Release pressure from the tank if necessary and

replace the abrasive with drier or cleaner abrasive.

TO STOP BLASTING

1. While continuing to press and hold the trigger, turn the abrasive control valve to the
closed position, see Fig 14.

2. When you notice only air (no abrasive) is coming out of the nozzle, you can stop the
air flow by releasing the trigger. By doing this you are ensuring a clean manifold,
hose and gun.

3. ALWAYS clean the gun thoroughly after use.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

RELEASING PRESSURE FROM THE TANK

Fig 15

Fig 16

Fig 17

1. When finished blasting, close the
abrasive control valve, see Fig 15.

2. Press and hold the trigger to expel any
remaining abrasive material from the
abrasive hose and gun.

3. When you notice only air (no abrasive
material) is coming out of the gun,
release the trigger and close the Air
Supply Valve, see Fig 16.

4. Ensure the throttle valve is open, see
Fig 17.

5. Point the gun in a safe direction.

6. Press the trigger until air stops flowing
and pressure gauge reads “0”.

7. Disconnect air supply hose from the
supply valve.

MAINTENANCE

WARNING: DISCONNECT THE SANDBLASTER FROM THE AIR SUPPLY AND
RELEASE ANY PRESSURE IN THE TANK AND HOSE BEFORE CHANGING
ACCESSORIES, ATTEMPTING TO MOVE THE SANDBLASTER OR
PERFORMING ANY MAINTENANCE.

1. Keep your sandblaster clean and protect it from damage.

2. When initially pressurising, check for leaks at the top of the tank and at all hoses and
fittings.

3. Leaking joints maybe repaired by replacing worn or damaged parts or using teflon
tape.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

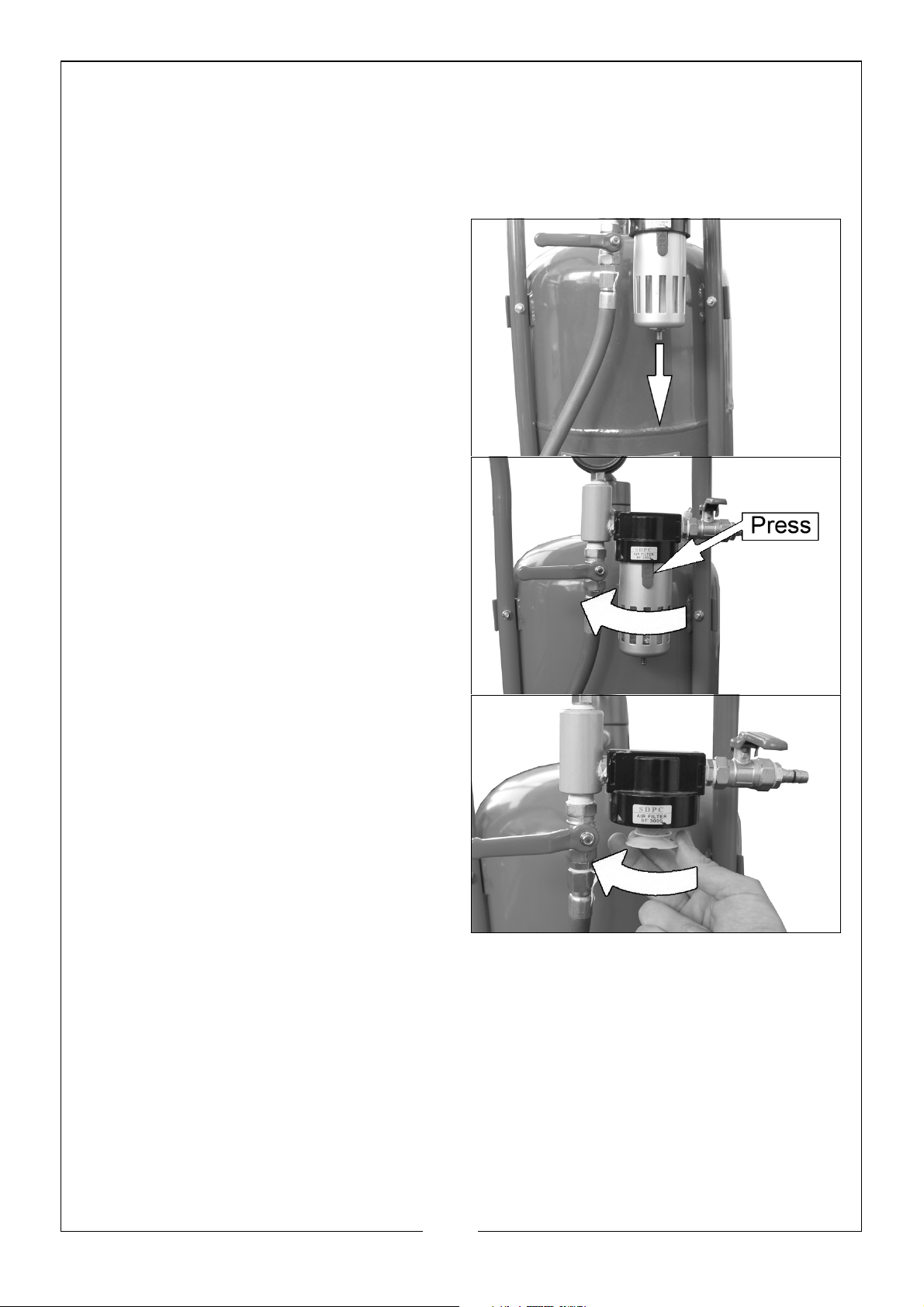

4. Check for worn abrasive hose and fittings.

Fig 18

Fig 19

Fig 20

5. Watch for leaks, blistering, bulging or thinning of the hose.

6. Replace any parts which appear worn.

AIR FILTER

DRAINING

Condensation will collect in the air filter
which must be drained manually.

1. Drain the air filter by pulling down on
the drain plug until all the water comes
out, see Fig 18.

CLEANING/REPLACING

1. Press the release catch and unscrew
the condensation chamber, see Fig 19.

2. Unscrew the filter as shown in Fig 20
and wipe clean.

NOTE: Do not use harsh or abrasive

chemicals when cleaning the
condensation chamber.

3. Refit the condensation chamber.

REPLACING THE NOZZLE

After l0-l2 hours of blasting time the nozzle
should be checked for wear. The nozzle
will wear out over time and should be replaced when the hole is no longer round or the
abrasive media does not flow smoothly through. To replace the nozzle:

NOTE: Refer to page 14 for the following replacement parts.

1. Disconnect the sandblasting gun from the air hose.

2. Unscrew the nozzle adapter (38), located at the front of the gun.

3. Remove the old nozzle (37) and insert the new one.

• A pack of 4 replacement nozzles are available from your Clarke dealer Part

number 7640132.

Replace the nozzle adapter (38) and firmly screw it onto sandblasting gun.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATIONS

Sand Grade Type Recommended 80-100 grit

Abrasive Material Aluminium Oxide, Sand,

Garnet, Glass Beads

Tank Capacity (working) 63 Litres (13.86 Gallons)

Operating Pressure 65 - 125 PSI (4.4 - 8.6 Bar)

Flow Rate Required 169-707 l/min (6-25 cfm)

Min Compressor Size Required 2-10 HP (dependant on setting)

Nozzle Sizes 2, 2.5, 3, 3.5 mm

Dimensions (L x W x H) 445 x 780 x 920 mm

Product Weight (empty) 28.1 kg

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

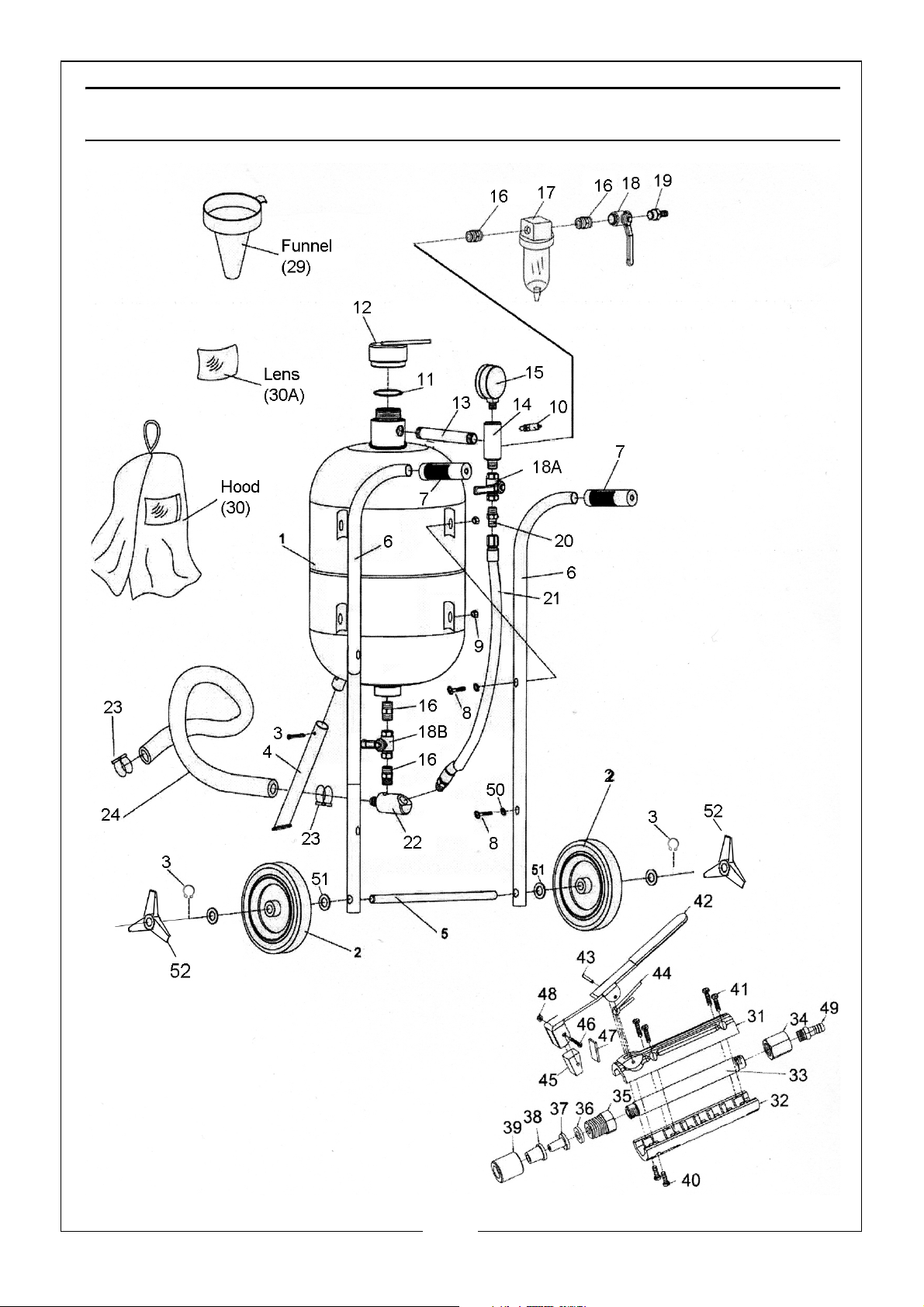

EXPLODED DIAGRAM

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

NO DESCRIPTION NO DESCRIPTION

1 Tank 29 Funnel

2 Wheel 30 Hood

3 Circlip 30A Lens for Hood

4 Front Foot 31 Upper Gun Body

5Axle 32Lower Gun Body

6 Handle Bar 33 Metal Pipe

7 Handle Grip 34 Inlet Connector

8 Pan Head Screw 35 Adapter

9Hex Nut 36O-Ring

10 Safety Valve 37 Ceramic Nozzle

11 0-Ring 38 Rubber Adapter

12 Tank Filler Cap 39 Nozzle Cap Nut

13 Connecting Pipe 40 Screw ST 4.2 x 16

14 Intake Manifold 41 Screw ST 4.2 x 12

15 Pressure Gauge 42 On/Off Control Lever

16 3/8” Connector 43 Spring Pin

17 Water Trap Filter 44 Spring

18 3/8” Brass Air Supply Valve 45 Rubber Pad

18A 3/8” Brass Throttle Valve 46 Screw M3 x 25

18B 3/8” Steel Abrasive Control Valve 47 Hard Alloy Pad

19 Inlet Connector 48 Nut M3

20 Connector 49 Hose Adapter

21 Air Hose 50 Washer

22 Abrasive Outlet Manifold 51 Washer

23 Hose Clamps 52 Wheel Cover

24 Abrasive Hose

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

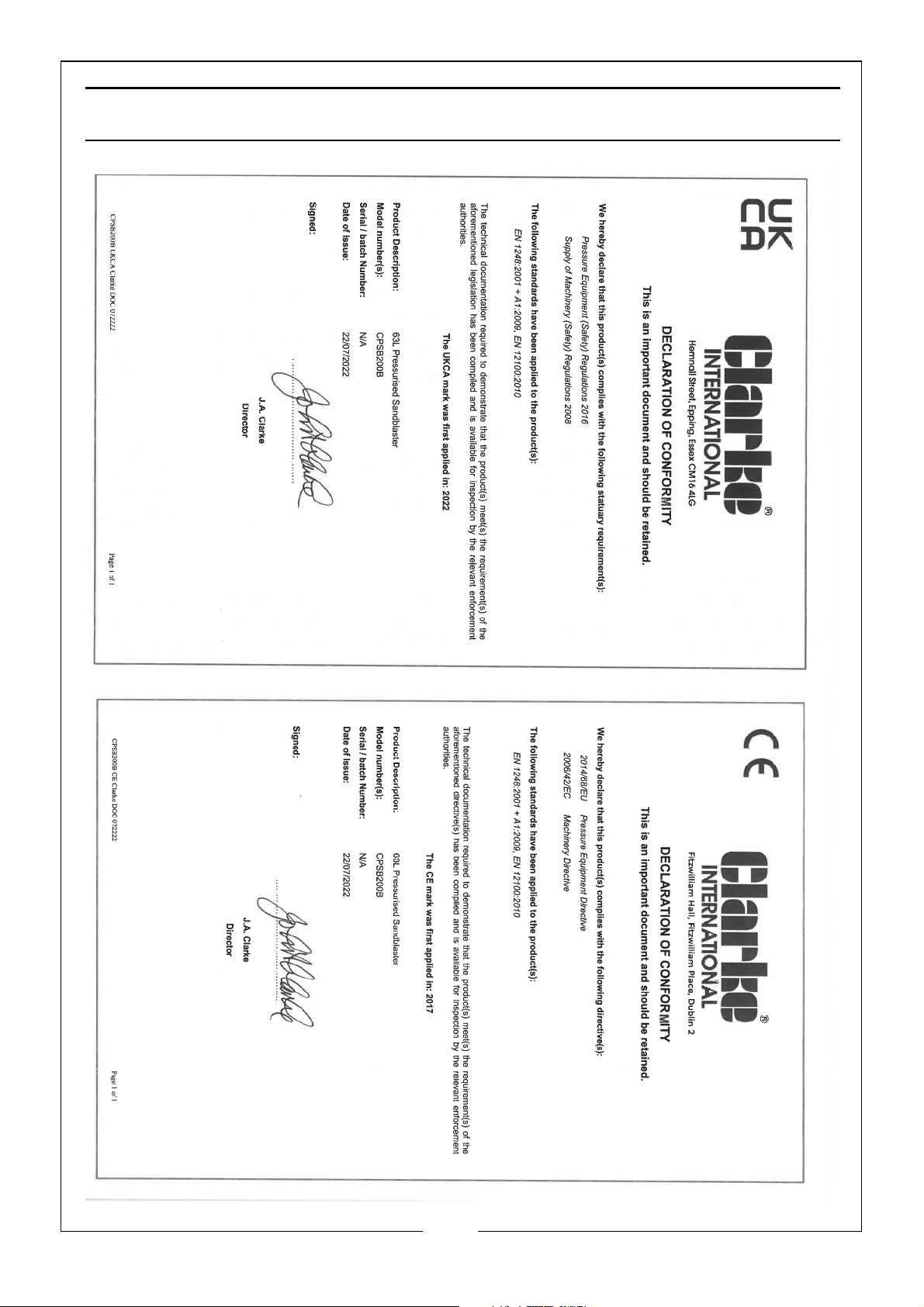

DECLARATION OF CONFORMITY

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
