Clarke CPSB 100B, 7640133 User guide

PRESSURISED SANDBLASTER

MODEL NO: CPSB100B

PART NO: 7640133

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL0822 REV 1

INTRODUCTION

Thank you for purchasing this CLARKE Pressurised Sandblaster.

Before attempting to use this product, please read this manual thoroughly and follow
the instructions carefully. In doing so you will ensure the safety of yourself and that of
others around you, and you can look forward to your purchase giving you long and
satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or tampered with
in any way, or not used for the purpose for which it was intended. Faulty goods should
be returned to their place of purchase, no product can be returned to us without prior
permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools,
accessories and packaging should be sorted, taken to a recycling centre
and disposed of in a manner which is compatible with the environment.

CARTON CONTENTS

The following items should be supplied in the carton. If any parts are missing or
damaged, please see your Clarke dealer.

• 1 x Tank Assembly • 1 x Front Leg

• 2 x Handlebars • 1 x Gun Assembly

•2 x Wheels •1 x Axle

• 1 x Fixings Kit • 1 x Funnel

• 1 x Media Hose • 1 x Roll Teflon Tape

• 1 x Sand Sieve • 1 x Spare Gun Closing Block

• 1 x Protective Mask/Hood

• 4 x Nozzles - nominal diameters: 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY RULES

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE
USE OF COMPRESSORS AND COMPRESSED AIR SUPPLIES.

1. Read this instruction manual before connecting the sandblaster to your compressor.

2. DO NOT use any silica based abrasives with this tool. Silica based abrasives have
been linked to severe respiratory disease. Always use recommended abrasives.
Abrasives used in this sandblaster may be covered by COSHH Regulations.

3. Read this manual carefully, Learn the sandblaster applications and limitations, as
well as potential hazards specific to it.

4. DO NOT expose to moisture. Don't use this product in damp or wet locations, Keep
out of rain.

5. Keep work area clean and well lit. Cluttered or dark work areas invite accidents.

6. Keep children away. All children should be kept away from the work area. Never let
a child handle tools without strict adult supervision.

7. DO NOT operate this product if under the influence of alcohol or drugs. Read
warning labels on prescriptions to determine if your judgment or reflexes are
impaired while taking medication. If there is any doubt, do not attempt to operate.

8. ALWAYS use safety equipment. Dust mask, non-skid safety shoes, hard hat, or hearing
protection should be used in appropriate conditions.

9. Don't overreach, Keep proper footing and balance at all times when operating this
product.

10. ALWAYS disconnect the sandblaster from the air supply and release pressure from the
tank before storing, servicing, or changing accessories.

11. Use clamps or other practical means to secure and support the work piece to a
stable platform. DO NOT hold the work by hand or against your body.

12. DO NOT point the sandblaster at anyone or at any objects other than the intended
work object.

13. Check your sandblaster regularly for damage, If any part is damaged it should be
carefully inspected to make sure that it can perform its intended function correctly.
If in doubt, the part should be repaired. Refer all servicing to a qualified technician.
Consult your dealer for advice.

14. DO NOT attempt to operate this product near flammable materials or combustibles.
Failure to comply may cause serious injury.

15. ALWAYS make sure that the trigger is not on before connecting the sandblaster to
the air supply.

16. Store idle equipment out of the reach of children and untrained persons. Tools may
be dangerous in the hands of untrained users.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

17. Drain the water trap periodically during use, DO NOT allow moisture to fill more than

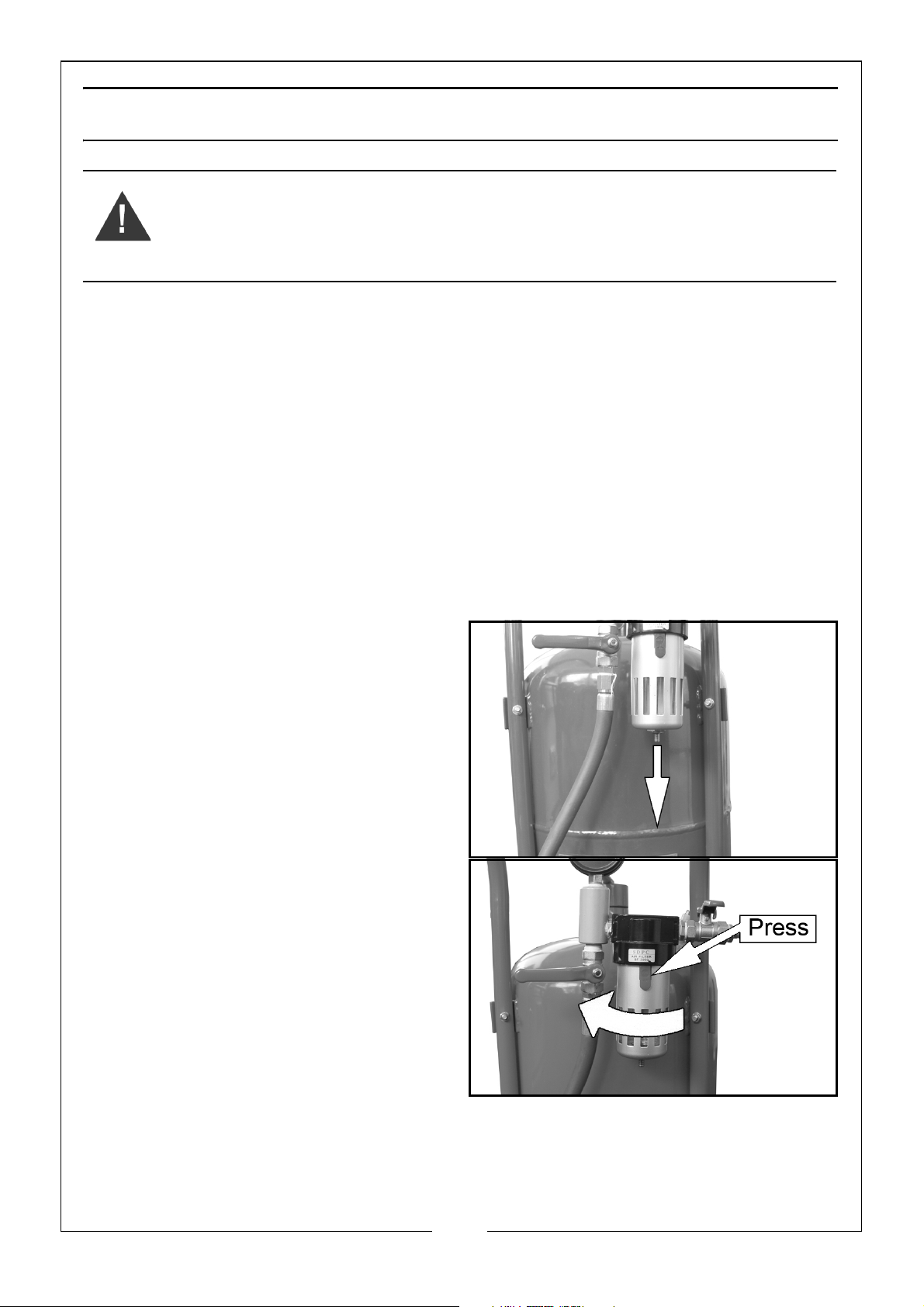

Fig 1

Fig 2

1/2 of the water trap bowl. DO NOT leave water standing in the water trap when
storing the sandblaster.

18. DO NOT allow the sandblaster to sit pressurized while unattended or not in use.

19. Periodically check the abrasive medium delivery components. Valves, hoses and
nozzles that carry the abrasive medium after it leaves the pressure tank are
subjected to the abrasive blasting action so will wear out more quickly than other
components.

20. Release the air pressure in the tank before opening. See “Releasing Pressure from the
Tank” section, Make sure pressure gauge reads “0” before opening the tank. DO
NOT attempt any maintenance on the sandblaster until the pressure gauge reads
“0” and it has been disconnected from the air supply.

21. Maintain the correct air pressure whenever working. DO NOT allow working pressure
to exceed 125 psi. If the safety valve does not release excess air pressure, stop all
work and release pressure from the tank (see “Releasing Pressure from the Tank”
section).

22. ALWAYS make sure there is adequate ventilation. DO NOT work in confined areas.

23. In the case of injury seek expert medical advice immediately.

24. Use clamps or a vice to hold the work if it is small or light weight rather than using
your hands. This frees both hands to operate the nozzle.

ASSEMBLY

FIT THE PRESSURE GAUGE TO THE TANK

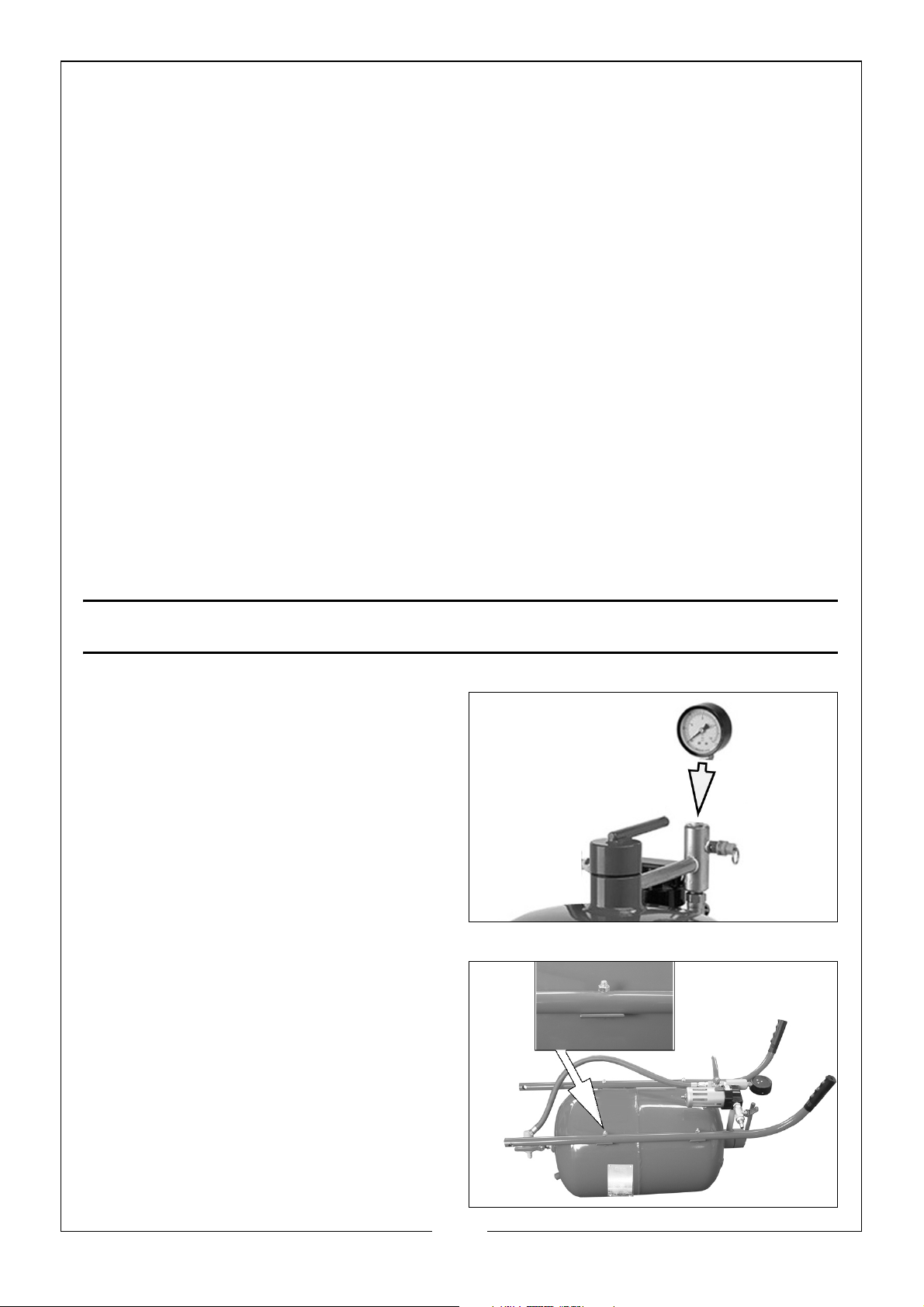

1. Screw the pressure gauge onto the
sandblaster as shown in Fig 1.

FIT THE HANDLE BARS TO THE TANK

1. Lay the tank on a flat level surface
such as a workbench, with the
handlebar mounting brackets facing
up, as shown in Fig 2.

2. Align the holes in the left handlebar
with the handlebar mounting brackets
on the left side of the tank.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

3. Fit a washer onto each of the four handlebar mounting screws. Insert a screw
through each of the holes in the handlebar and mounting brackets,

4. Fit a nut onto each of the screws and firmly tighten with a wrench.

5. Repeat steps 2-4 for the right handlebar.

ASSEMBLE THE AXLE

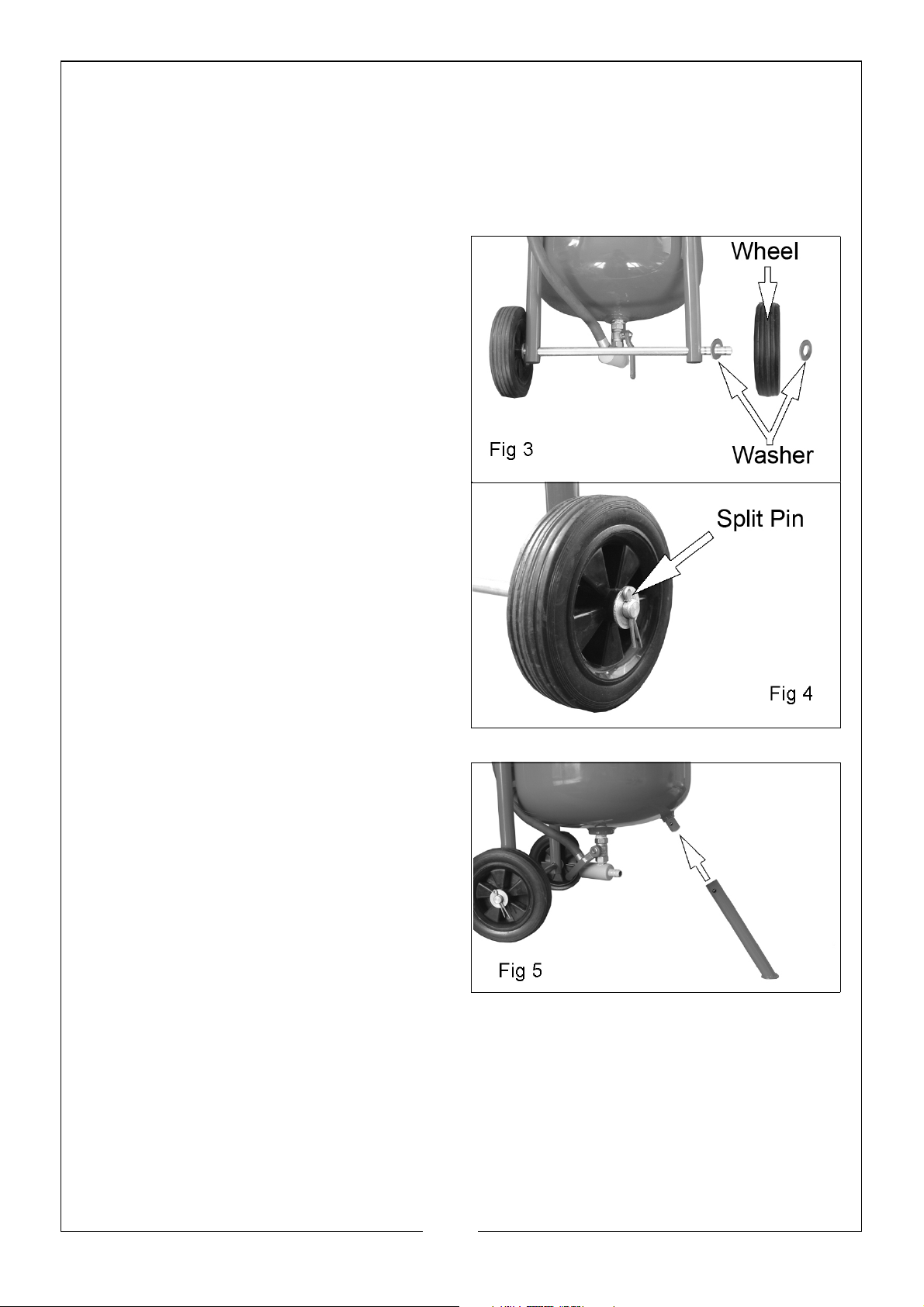

1. Slide the axle through the holes at the
bottom of the handlebars, see Fig 3.

2. Slide a washer onto each end of the
axle.

3. Slide a wheel onto each end of the
axle followed by another washer.

4. Slide a split pin through the holes in
each end of the axle and bend it so
that the wheels/washers cannot slide
off, see Fig 4.

ATTACH THE FRONT LEG

1. Roll the tank over so that the
handlebars are now facing down.

2. Align the holes of the leg with the
holes in the leg mounting on the tank,
see Fig 5.

3. Insert the split pin through the holes
and bend it so the front foot cannot
slide off the leg mount.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ATTACH THE MEDIA HOSE

Fig 7

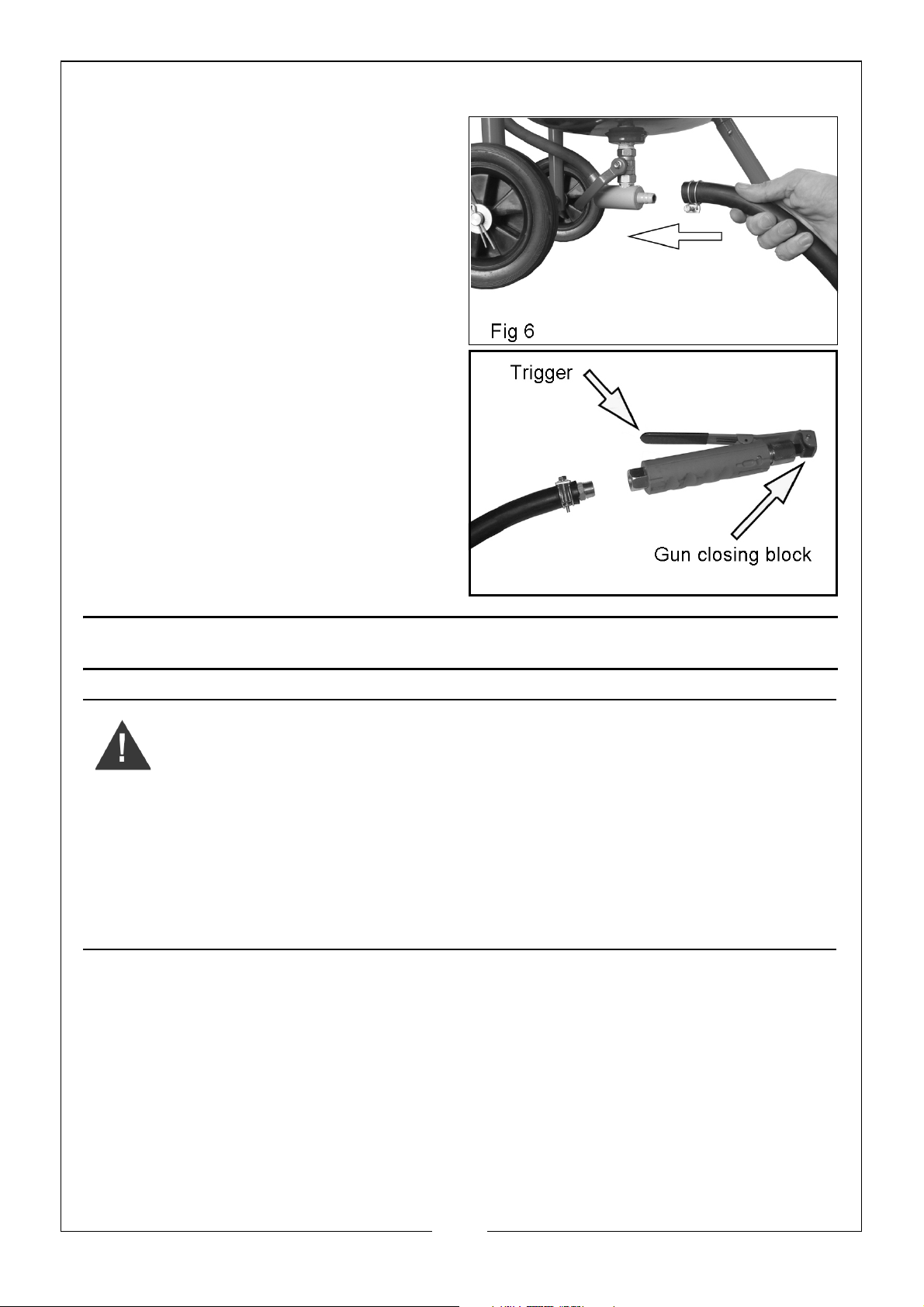

1. Slide the hose onto the outlet at the
bottom of the sandblaster as shown in
Fig 6.

2. Tighten the clip shown to secure the
hose.

3. Connect the sandblasting gun to the

other end of the hose using a suitable
spanner to ensure an air- tight seal.
Ensure the inlet connector is tightly
fitted to the gun.

• A spare gun closing block is

supplied for future use.

OPERATION

WARNING: ALWAYS WEAR YOUR HOOD, DUST MASK AND HEAVY DUTY
CANVAS GLOVES WHEN OPERATING THE SANDBLASTER.

WARNING: BEFORE OPERATING YOUR SANDBLASTER, INSPECT EACH
CONNECTION, DOUBLE CHECKING TO MAKE SURE THAT ALL ARE TIGHT
AND PROPERLY SEALED.

WARNING: THIS SANDBLASTER IS NOT INTENDED FOR USE WITH SILICA
BASED ABRASIVES. WHICH HAVE BEEN LINKED TO SEVERE RESPIRATORY
DISEASE. ALWAYS USE SILICA SUBSTITUTES (SUCH AS CLARKE GLASS BEAD
ABRASIVE.

SAFETY AND HEALTH CONSIDERATIONS

• Before opening the tank make sure it is not pressurized. Ensure the pressure

gauge reads “0”. If it does not, release pressure from the tank (See page 9).

• Disconnect the compressor before opening the tank. Protect yourself and

those around you from “over-spray”. Remember that your sandblaster is
shooting a powerful spray of abrasive material. DO NOT point it at yourself or
anyone around you.

• Wear protective clothing including protective hood and heavy gloves when

using this sandblaster.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

• Wear a dust mask over your mouth when using this sandblaster. You will

Fig 8

create a cloud of abrasive material and debris which is dangerous to inhale.

• Protect anything around you that may be damaged from the spray of
abrasive particles. Nothing subject to contamination damage or with a fine
surface should be near your sandblaster work area.

ABRASIVE SELECTION AND LOADING

The type of abrasive you choose will greatly influence the amount of time needed to
clean a given surface area. See page 12 for suitable abrasives.

• To prevent clogging, ensure that the abrasive you use is dry.

• While you may re-use abrasive but remember that abrasive grit/material
does wear out. With use, abrasive becomes smoother and rounder, thus
reducing its effectiveness.

NOTE: Re-using abrasive may also cause clogging due to fine debris contained

in the medium from prior use.

4. Close the air supply valve by turning it
to the closed position, see Fig 8.

5. Squeeze the trigger to release any
pressure from the tank.

• Make sure the pressure gauge

reads “0”.

6. Remove the filler cap.

7. Using the sieve and funnel supplied, pour the
abrasive material into the tank, see Fig 9.

• Do not fill the tank more than ¾ full.

• If humidity in your region is 90% or more,

only fill the tank ½ full and check the water
trap more frequently.

8. Replace the filler cap ensuring the O-ring is in
place.

NOTE: Position your air compressor in another

room to prevent damage from the
intake of abrasive dust laden air.

ABRASIVE FLOW ADJUSTMENT

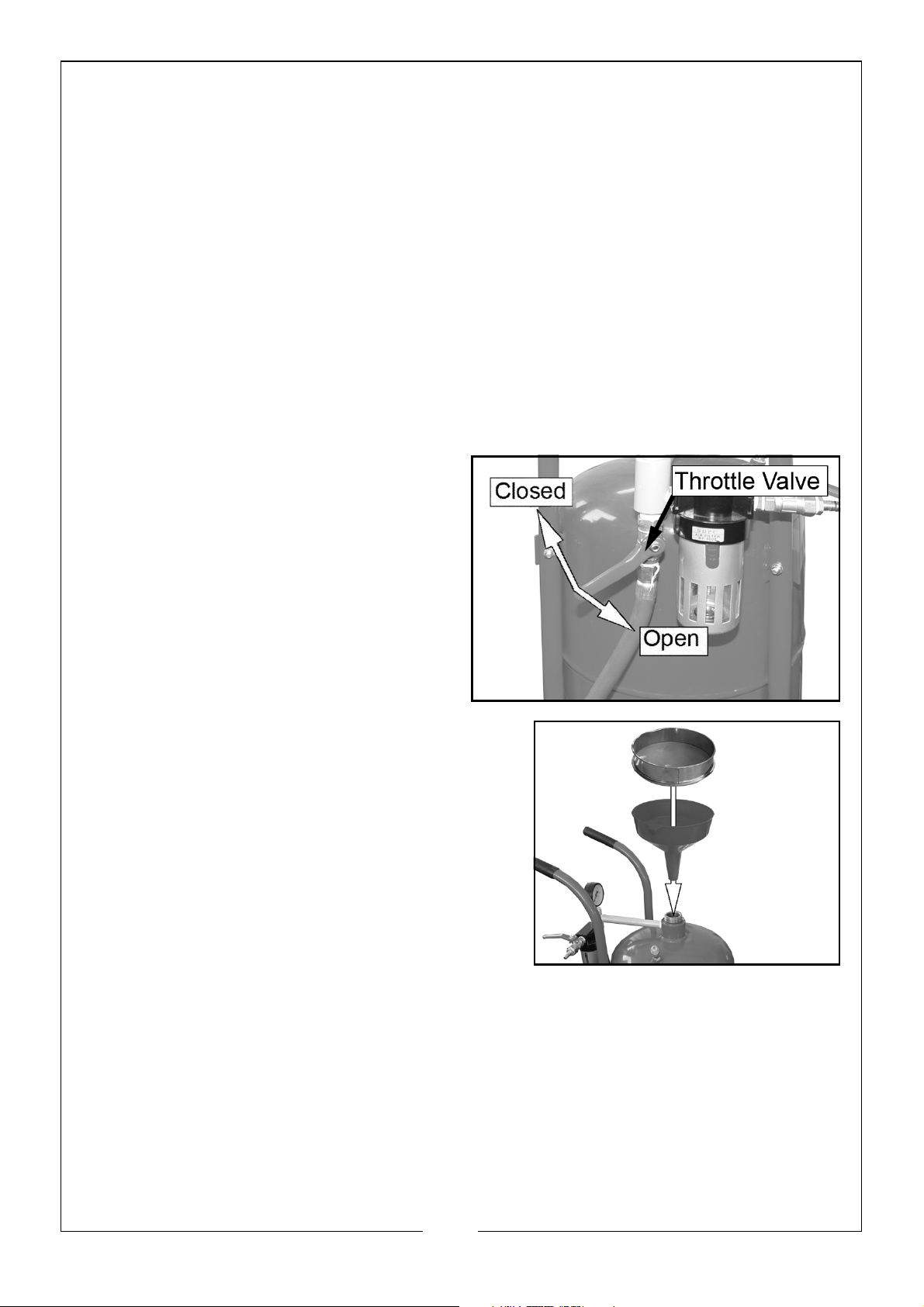

• Choose a larger nozzle for a broader spray pattern. Choose a smaller nozzle

for more focused spray.

• Adjust air pressure with the throttle valve. Adjust abrasive flow with the

abrasive control valve.

• Watch for abrasive clogging. Release pressure from the tank if necessary and

replace the abrasive with drier or cleaner abrasive.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TO START BLASTING

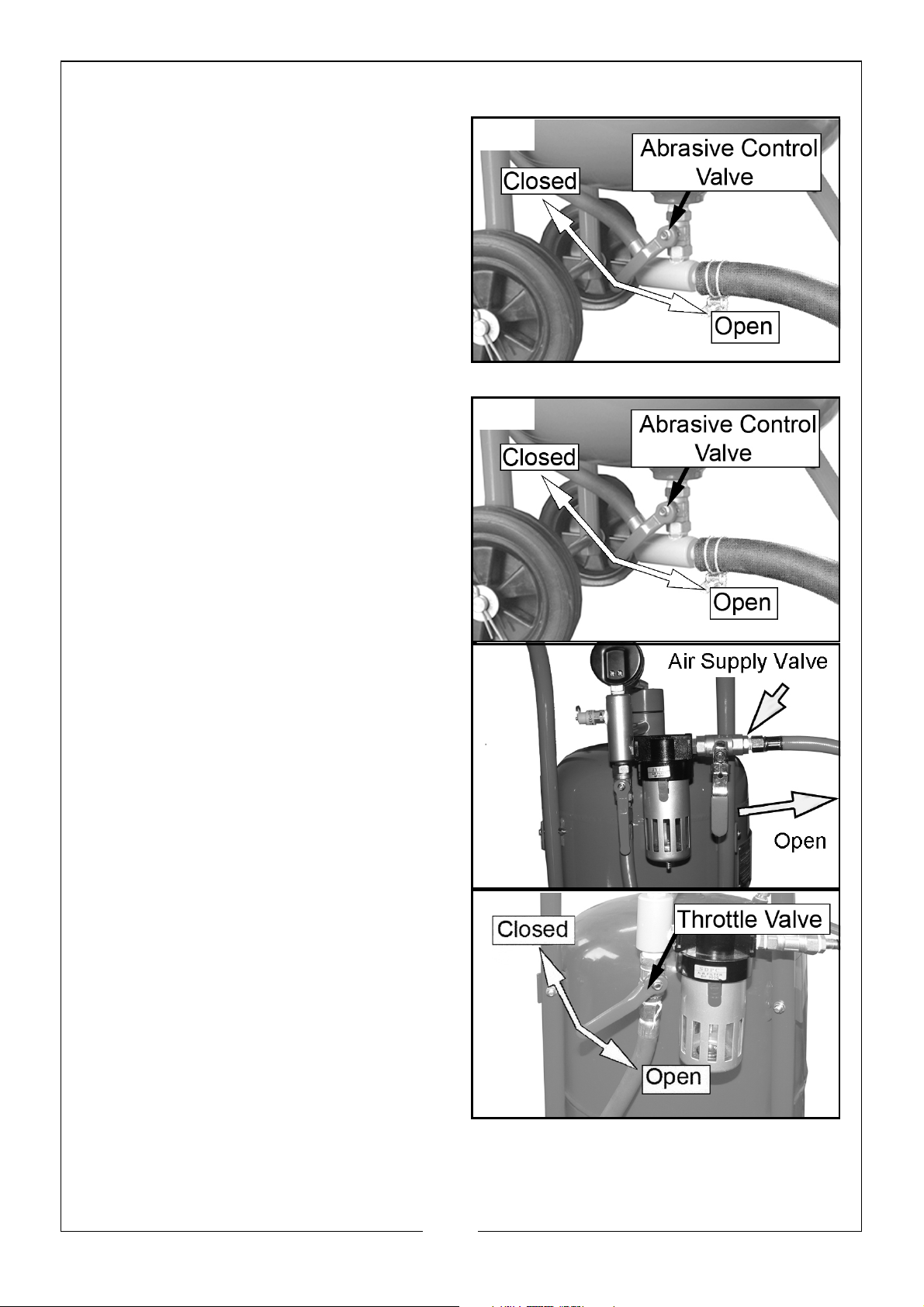

Fig 10

Fig 11

Fig 12

Fig 13

NOTE: Start with all valves in the closed position. Following the instructions below

will help prevent clogging in the delivery hose, outlet manifold and the
gun.

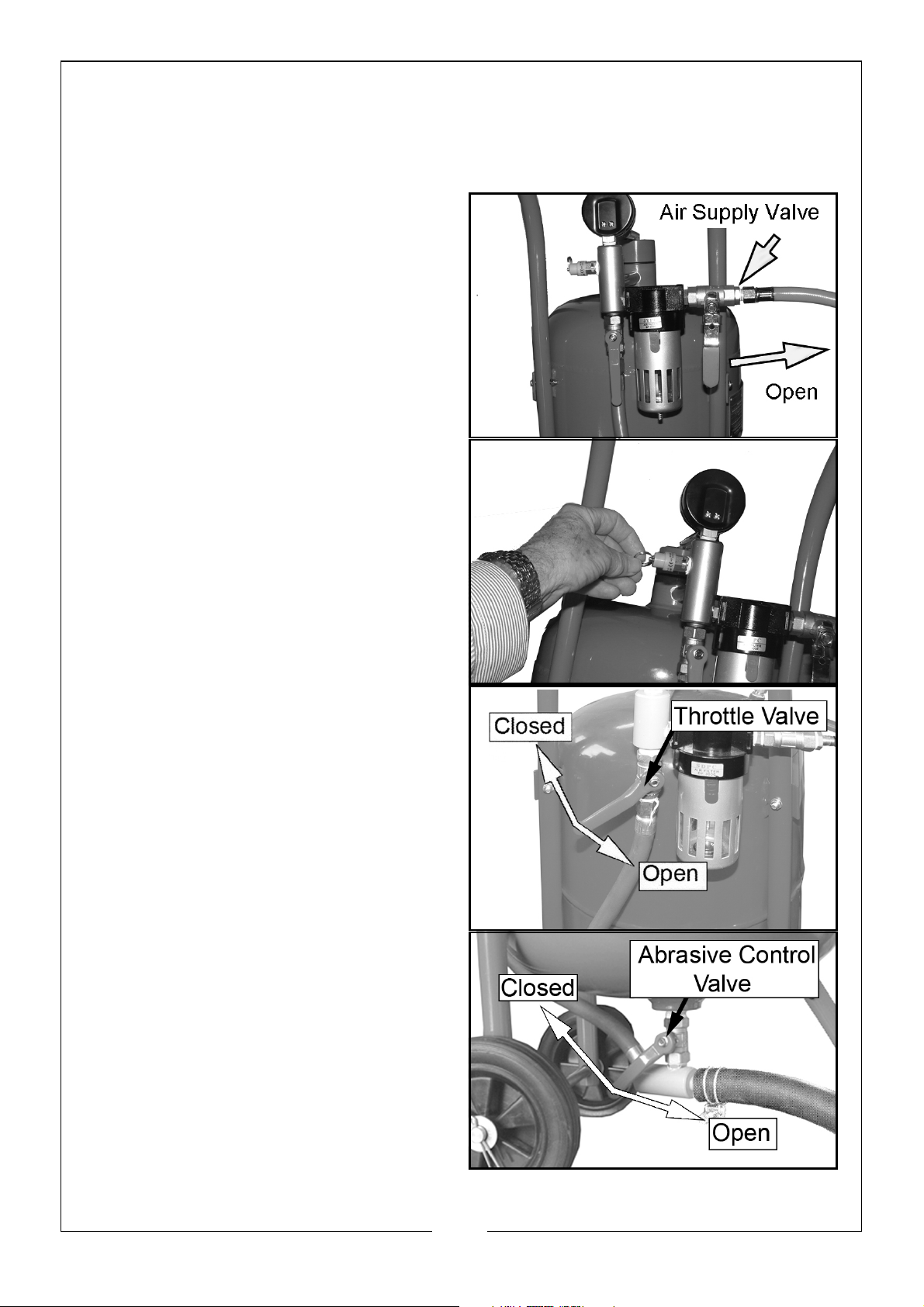

1. Connect the compressor to the inlet
connector.

2. Start the compressor and open the air
supply valve, see Fig 10.

• The tank will start to pressurise.

3. Test the safety valve by pulling on the
valve as shown in Fig 11.

• Air will hiss out when the valve is

pulled.

4. Open the throttle valve, Fig 12.

5. Check for leaks at the filler cap and
along all hoses and fittings as the
system pressurises. If leaks are
observed, release the pressure from
the tank and repair any leaks
immediately.

6. Squeeze and hold the trigger until air is
flowing through it.

7. With the trigger open, slowly open the
abrasive control valve as shown in Fig
13 until abrasive begins to flow out of
the nozzle.

8. Adjust the abrasive medium control
valve until the desired amount of
abrasive material is flowing through the
gun.

9. Begin blasting.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TO STOP BLASTING

Fig 14

Fig 15

Fig 16

Fig 17

1. While continuing to squeeze the
trigger, turn the abrasive control valve
to the closed position, see Fig 14.

2. When you notice only air (no abrasive
material) is coming out of the gun, you
can stop the air flow by releasing the
trigger. By doing this you are ensuring a
clean manifold, hose and gun.

3. ALWAYS clean the gun thoroughly after
use.

RELEASING PRESSURE FROM THE TANK

1. When finished blasting, close the
abrasive control valve, see Fig 15.

2. Squeeze the trigger to expel any
remaining abrasive material from the
abrasive media hose and gun.

3. When you notice only air (no abrasive
material) is coming out of the nozzle,
close the Air Supply Valve, see Fig 16.

4. Ensure the throttle valve is open, see
Fig 17.

5. Point the gun in a safe direction.

6. Squeeze the trigger until air stops
flowing and the pressure gauge reads
“0”.

7. Disconnect air supply hose from the
supply valve.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

Fig 18

Fig 19

WARNING: DISCONNECT THE SANDBLASTER FROM THE AIR SUPPLY
BEFORE CHANGING ACCESSORIES, ATTEMPTING TO MOVE THE
SANDBLASTER OR PERFORMING ANY MAINTENANCE.

1. Keep your sandblaster clean and protect it from damage.

2. When initially pressurising, check for leaks at the top of the tank and at all hoses and
fittings.

3. Leaking joints maybe repaired by replacing worn or damaged parts or using teflon
tape.

4. Check for worn abrasive hose and fittings.

5. Watch for leaks, blistering, bulging or thinning of the hose.

6. Replace any parts which appear worn.

AIR FILTER

DRAINING

Condensation will collect in the air filter which must be drained manually.

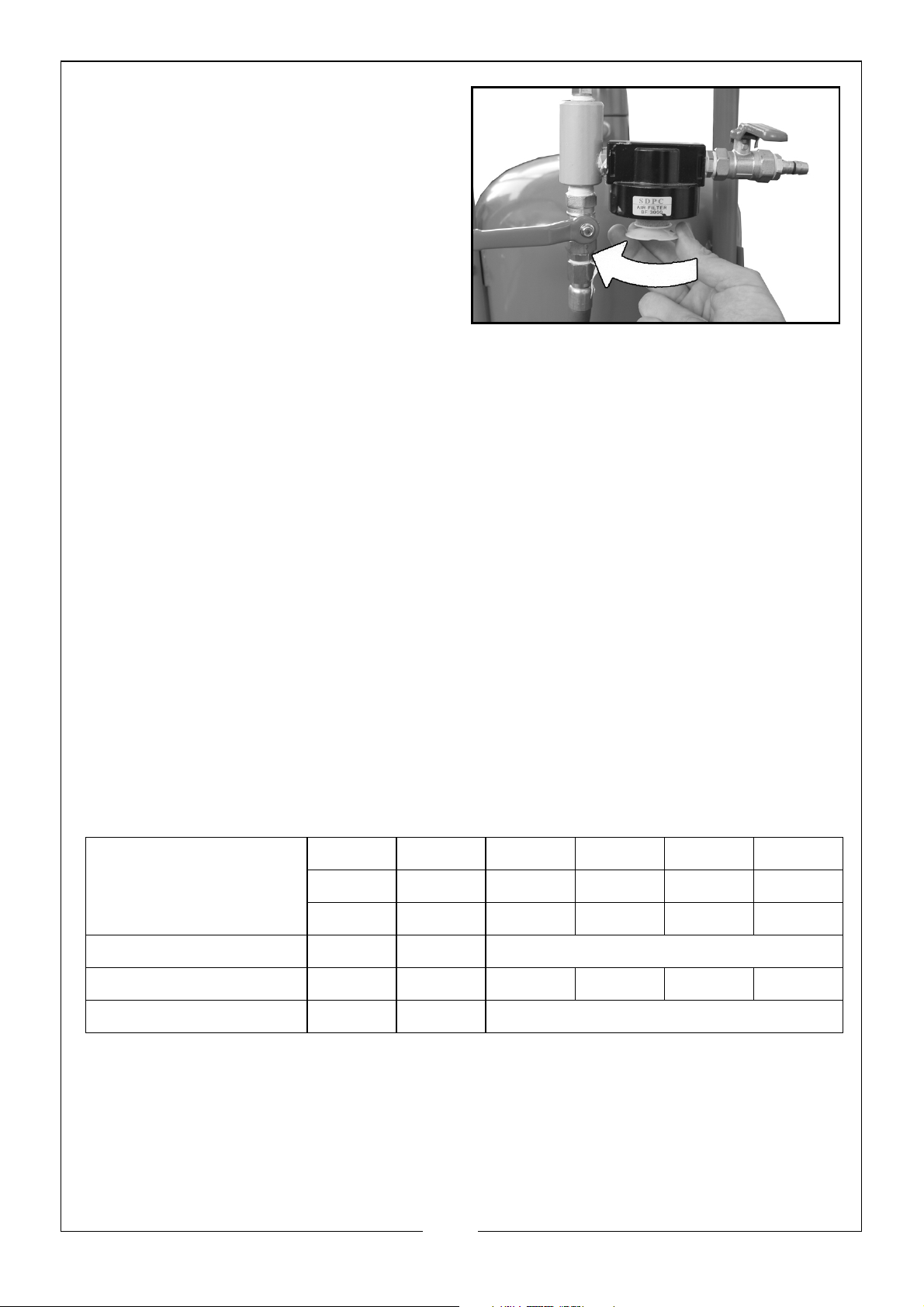

1. Drain the air filter by pulling down on
the drain plug until all the water comes
out, see Fig 18.

CLEANING/REPLACING

1. Press the release catch and unscrew
the condensation chamber, see Fig 19.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

2. Unscrew the filter as shown in Fig 20

Fig 20

and wipe clean.

NOTE: Do not use harsh or abrasive

chemicals when cleaning the
condensation chamber.

3. Refit the condensation chamber.

REPLACING THE NOZZLE

NOTE: ONLY use identical replacement

parts when servicing.

After l0-l2 hours of blasting time the nozzle should be checked for wear. The nozzle will
wear out over time and should be replaced when the hole is no longer round or the
abrasive media does not flow smoothly through. To replace the nozzle:

• Refer to page 14 for the following replacement parts.

1. Disconnect the sandblasting gun from the air hose.

2. Unscrew the nozzle adapter (38), located at the front of the sandblasting gun.

3. Remove the old nozzle (37).

4. lnsert the new nozzle.

• A pack of 4 replacement nozzles are available from your Clarke dealer: Part
number 7640132.

5. Replace the nozzle adapter (38) and firmly screw it onto the gun.

• Keep your sandblaster clean and protect it from damage.

• Check for a worn abrasive material hose and fittings. Watch for leaks,
blistering, bulging or thinning of the hose.

• Replace any parts which appear worn.

SUITABLE ABRASIVES AVAILABLE FROM YOUR CLARKE STOCKIST

Aluminium Oxide
Powder

60 60-80 60-80 80 80-120 120

22kg 20kg 7.5kg 22kg 7.5kg 22kg

3052070 3052110 3052100 3052075 3052105 3052080

Glass Bead Abrasive 3052095 20kg

Soda Blast Abrasive 3052805 7.5kg 3052800 22kg

Garnett Abrasive 3052090 22kg

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATIONS

Sand Grade Type Above 60-120 grit

Abrasive Material Aluminium Oxide, Sand,

Garnet, Glass Beads

Tank Capacity (working) 32 Litres (7.04 Gallons)

Operating Pressure 65 - 125 PSI (4.4 - 8.6 Bar)

Flow Rate Required 169-707 l/min (6 - 25 CFM) depending on nozzle &

hose size

Min Compressor Size 2-10 HP (dependant on settings)

Nozzle Sizes 2, 2.5, 3, 3.5 mm

Dimensions (L x W x H) 500 x 855 x 345 mm

Weight (empty) 21 kg

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

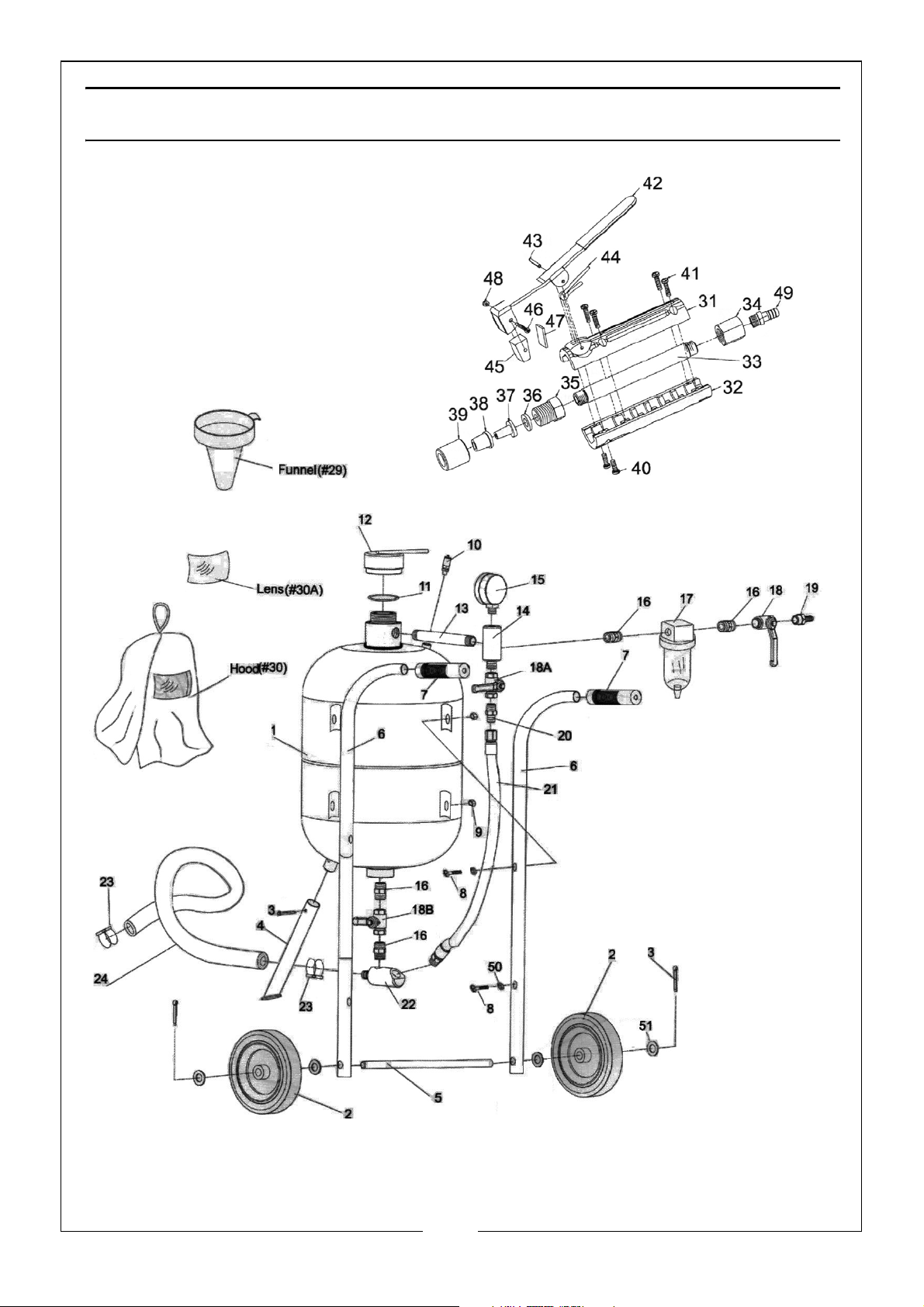

EXPLODED DIAGRAM

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

NO DESCRIPTION NO DESCRIPTION

1 Tank 24 Abrasive Media Hose

2 Wheel 29 Funnel

3 Cotter Pin 30 Hood

4 Front Leg 30A Lens (for Hood)

5 Axle 31 Upper Gun Body

6 Handle Bar 32 Lower Gun Body

7 Handle Grip 33 Metal Pipe

8 Pan Head Screw 34 Inlet Connector

9Hex Nut 35Adapter

10 Safety Valve 36 O-Ring

11 0-Ring 37 Ceramic Nozzle

12 Tank Filler Cap 38 Rubber Adapter

13 Connecting Pipe 39 Nozzle Cap Nut

14 Intake Manifold 40 Screw ST 4.2 x 16

15 Pressure Gauge 41 Screw ST 4.2 x 12

16 3/8” Connector 42 Trigger

17 Water Trap Filter 43 Spring Pin

18 3/8” Brass Air Supply Valve 44 Spring

18A 3/8” Brass Throttle Valve 45 Rubber Pad

18B 3/8” Steel Abrasive Control Valve 46 Screw M3 x 25

19 Inlet Connector 47 Hard Alloy Pad

20 Connector 48 Nut M3

21 Air Hose 49 Hose Adapter

22 Abrasive Outlet Manifold 50 Washer

23 Hose Clamps 51 Washer

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DECLARATION OF CONFORMITY

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
