SAND BLAST CABINET

MODEL NO: SB30

PART NO: 7640115

USER INSTRUCTIONS

DL0822 Rev 5

INTRODUCTION

Thank you for purchasing this CLARKE Sand Blast Cabinet which is designed for
professional workshop use.

Before attempting to operate the cabinet, please read this manual
thoroughly and carefully follow all instructions given. In doing so you will ensure
the safety of yourself and that of others around you, and you can also look
forward to the product giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Recycle unwanted materials instead of disposing of them as
waste. All unwanted accessories and packaging should be sorted
and taken to a recycling centre for disposal in a manner which is
compatible with the environment.

Through purchase of this product, the customer is taking on the obligation to
deal with the WEEE in accordance with the WEEE regulations in relation to the
treatment, recycling & recovery and environmentally sound disposal of the
WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DESCRIPTION

The cabinet is lit by a low voltage (12 volt) fluorescent tube, fed from a plug-in

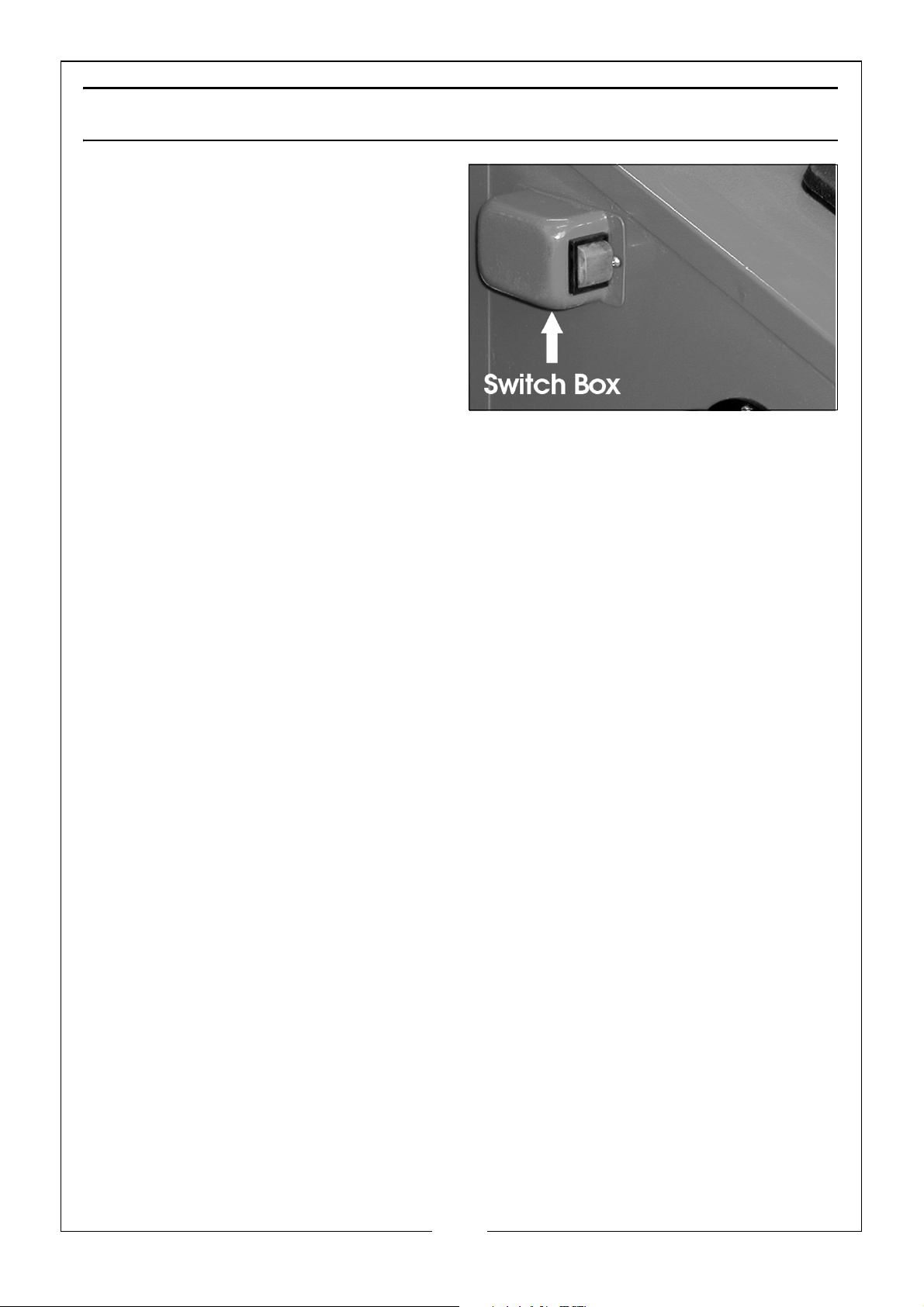

type transformer. The switchbox is mounted on the left side of the cabinet. The
transformer should be plugged directly into the mains supply and connected
to the switchbox which contains the ON/OFF rocker switch.

A vacuum extraction device must be used, connected to the port in the left
side of the cabinet.

At the rear of the cabinet is a breather, which must be clear at all times.

The cabinet is provided with a window, the inside of which is protected by a
clear plastic membrane. The protective membrane may be renewed quickly
and easily should it become damaged by the sand blast action.

A variety of abrasive nozzles is supplied with the unit to produce a useful range
of power and grit densities to satisfy all requirements. The cabinet is designed
for use with dry abrasives ONLY. We recommend Aluminium Oxide (for
cleaning steel) and Glass Beads (for cleaning aluminium).

It is necessary to provide a clean, dry air supply, capable of delivering a
minimum of 10 cuft/min at a maximum 100psi. Please consult your air
compressor manual, ensuring you comply with all safety precautions
regarding the use of air compressors, and observe all necessary precautions
when using compressed air.

If an air compressor is used, ensure it is located well away from the cabinet.

SAFETY PRECAUTIONS

Ensure you comply with all precautions regarding the use of air compressors
and compressed air.

• Ensure all air connections are secure.

• Do not use the machine if the integral gloves are ripped or unserviceable.

• Keep the jet well away from the air hose, gloves, florescent tube & window.

• Ensure the clear plastic lid is firmly secured before pressing the trigger.
ALWAYS wear safety glasses. (Normal eye glasses are NOT safety glasses).

• Do not use any silica based abrasives with this tool. Silica based abrasives
have been linked to severe respiratory disease. Always use recommended
abrasives. Abrasives used in this unit may be covered by COSHH
Regulations.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

INVENTORY

Carefully unpack the unit, and check to ensure that no damage was caused
in transit. Should any damage be apparent, please contact your Clarke
dealer immediately. Remove all components from the carton and check
them against the following.

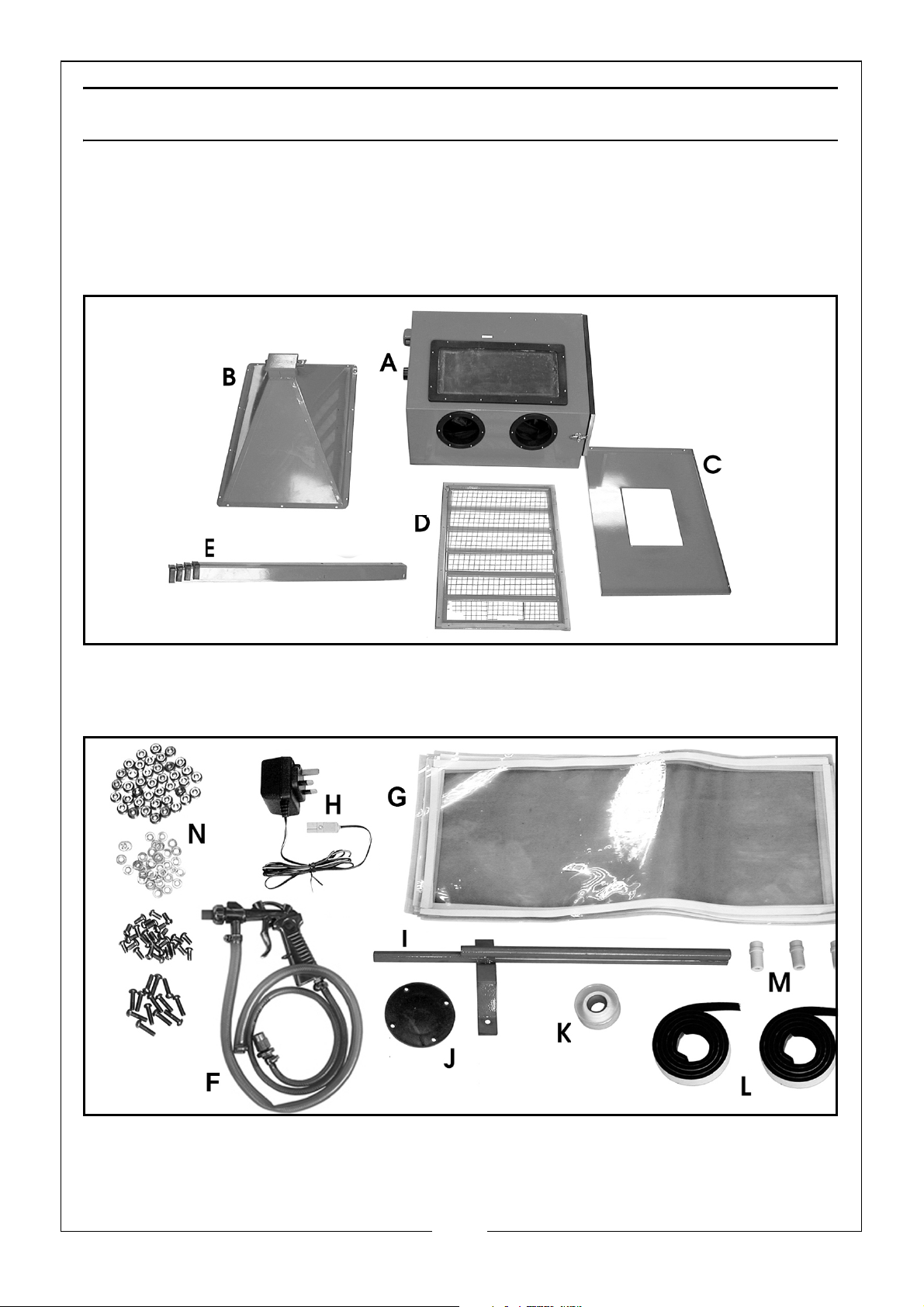

ITEMS SUPPLIED LOOSE.

A - Cabinet B - Funnel C - Shelf

D - Grid Support E - Legs

ITEMS SUPPLIED IN THE CARTON

F - Gun & Hose G - Protective Film H - Transformer I - Pick-up Tube

J - Intake Vent Cover K - PTFE Tape L - Foam Strip (may be fitted)

M - Ceramic Nozzles (one nozzle fitted) N - Nuts, screws & washers

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ASSEMBLY

NOTE: PTFE tape is provided for use to ensure an airtight fit.

1. Lay the cabinet on its back and
attach the four legs using the M6
x12mm screws, flat washers and
nuts, ensuring the flat washers are
against the screw heads.

2. Fit the intake vent cover to the
cabinet.

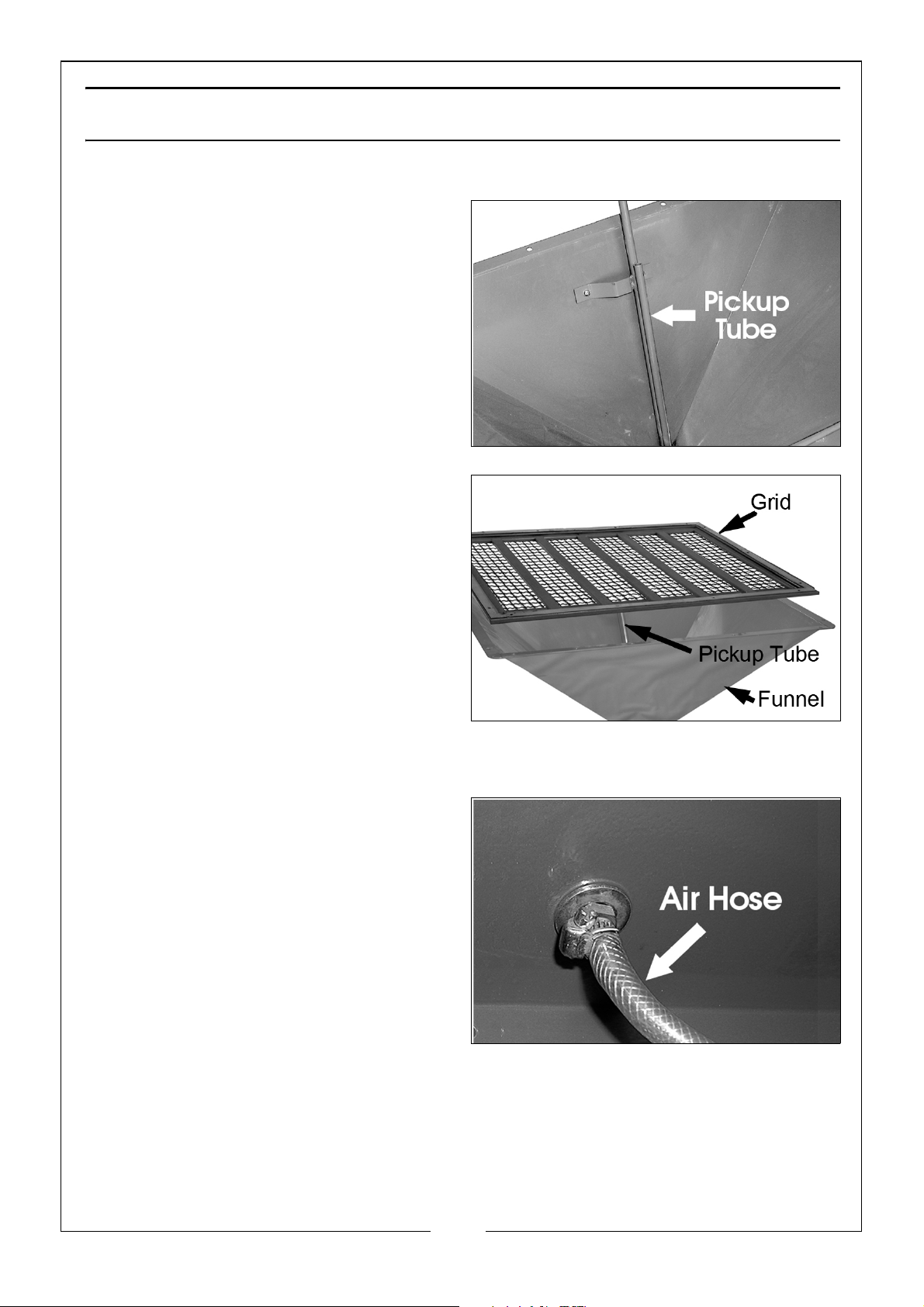

3. Attach the pick-up tube to the
funnel as shown, using the M6 x
12mm screws provided.

4. If not already fitted, peel the
backing paper from the foam strip
and apply the strip to the edge of
the grid support. Trim the strip
accordingly.

5. Use a punch (or similar) to make
holes in the foam strip, at the bolt
holes.

6. Place the grid support on the
funnel flange and the grid into the
recess in the grid support, so that the pick-up tube protrudes through the
grid neatly. Do not use undue force.

7. Turn the cabinet on to its legs then
and with assistance, raise the
funnel to meet the underside of
the cabinet, ensuring the pickup
tube is at the front of the cabinet.
Bolt the funnel assembly to the
cabinet using the M6 x 20mm
screws with the nuts and flat
washers provided, ensuring the
flat washers are against the screw
heads.

8. Open the cabinet door and attach the air hose from the gun to the inlet
port on the front of the cabinet, then connect the pick-up hose from the
gun to the pick-up tube attached to the funnel, securing with the worm
drive clip provided.

9. Attach the shelf to the legs using the screws and nuts provided.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATION

Plug the transformer into the power
supply and switch the power ON.
Switch the lamp ON by pushing the
rocker switch on the switch box ‘I’.
Switch OFF by pushing ‘O’.

Ensure all air connections are secure,
and the pick up is correctly located
beneath the grid, before filling the
cabinet with abrasive media. Do not
fill higher than the level of the grid.

NOTE: PTFE tape is provided which may be used on the threads of the

various connectors to ensure an airtight connection.

Select the ceramic abrasive nozzle to produce the jet required for the
abrasive media being used, and assemble according to the instructions given
below.

Place the object to be cleaned in the cabinet, and close the lid, securing with
the swivel clip.

Turn on the extraction device which must be attached to the port on the left
side of the cabinet before turning on the air supply.

Set the pressure to the required value, but not higher than 100lbf/in

2

, and
check to ensure there are no air leaks. Should there be any, turn off the air
supply and repair where necessary, before turning the supply back on. Pull the
trigger on the gun and proceed to blast the object to be cleaned.

Keep the jet facing the object and away from the clear plastic lid. Do not
allow the jet to train on the rubber gloves, the air hose within the cabinet or
the fluorescent lamp.

When completed, release the trigger then turn off the air supply. As a
precautionary measure, ALWAYS pull the trigger before opening the lid.

NOTE: There are no hard or fast rules governing nozzle sizes and air

pressures used with different abrasives. With experience and
experimentation you will quickly learn the best combinations for
the required result.

NOTE: On more delicate parts, start with minimal air pressure to avoid

unnecessary peaning or excessive abrasion, and work up to a
setting to produce the desired finish.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CAUTION: SHOULD ANY ABRASIVE BE SPILLED, ENSURE IT IS CLEANED UP
IMMEDIATELY, AS ITS SLIPPERY PROPERTIES CAN BE EXTREMELY HAZARDOUS.

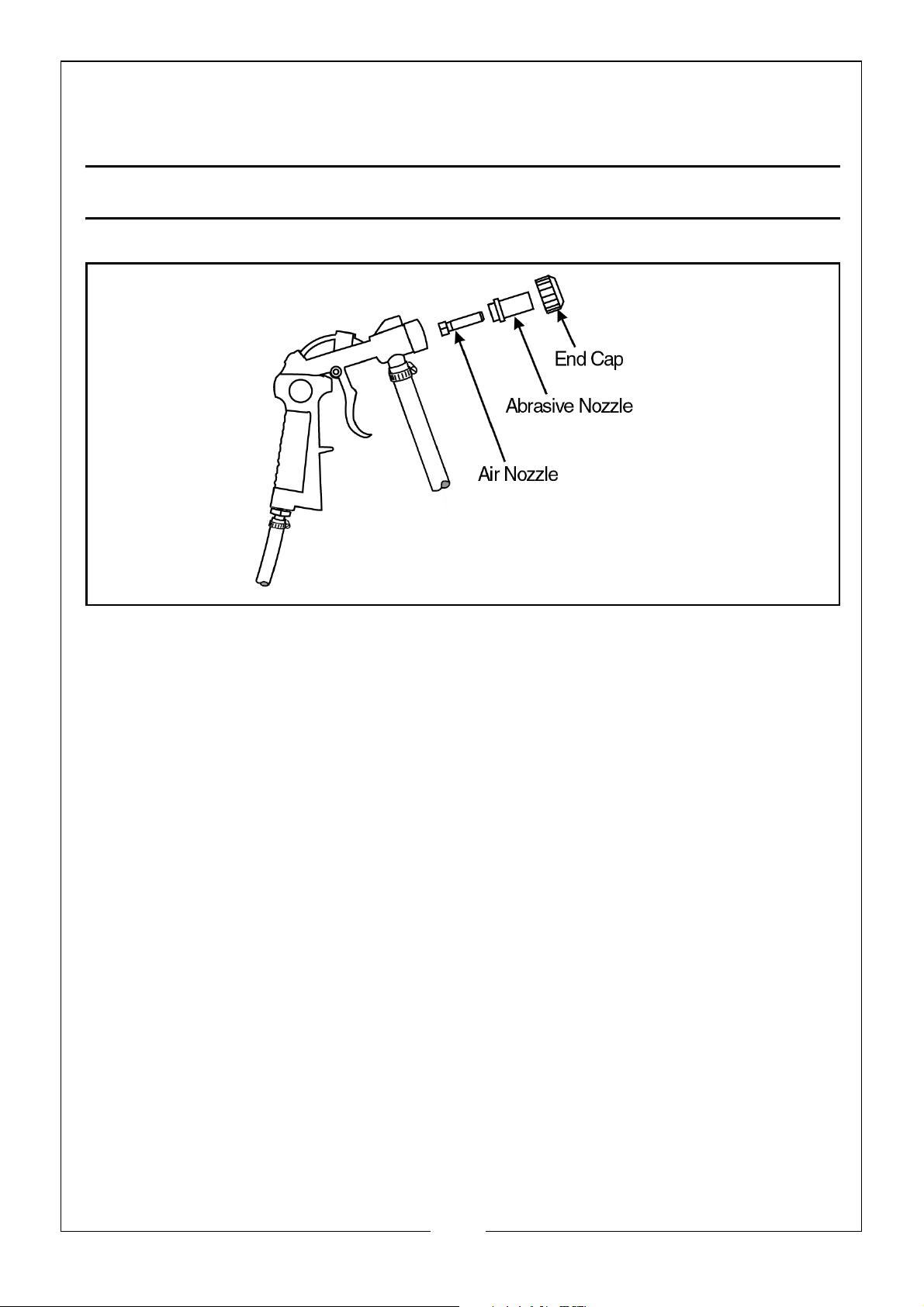

REPLACING THE ABRASIVE NOZZLE

Ensure the air supply is disconnected before performing this operation.

1. Pull the trigger of the gun as a precautionary measure.

2. Unscrew the end cap and withdraw the ceramic nozzle.

3. Replace with the nozzle of your choice and carefully thread the end cap
back on to the gun, taking great care NOT to cross thread the fine thread.

NOTE: Should it be necessary to change the air nozzle, first remove the

abrasive nozzle as described above. A box spanner will be
required to unscrew and withdraw the air nozzle.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

Before use, check to ensure that all parts are serviceable, including the air
inlet hose, rubber gloves. and abrasive pick up.

The door securing clamp must be perfectly serviceable so as not to allow the
door to open during operation. The build up of air pressure within the cabinet
could force the door open, allowing abrasive to escape. This is not only
wasteful, but could be a health hazard.

Change the window protective film should visibility be impaired. Simply peal
off the old film and replace with a new one. Replacement protection film is
available from your Clarke dealer.

Ensure you comply with all precautions regarding the use of compressed air,
and air compressor operation.

Inspect the abrasive media regularly. If badly contaminated, it should be
replaced. A hinged cover is provided at the base of the funnel to allow quick
draining of the media.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

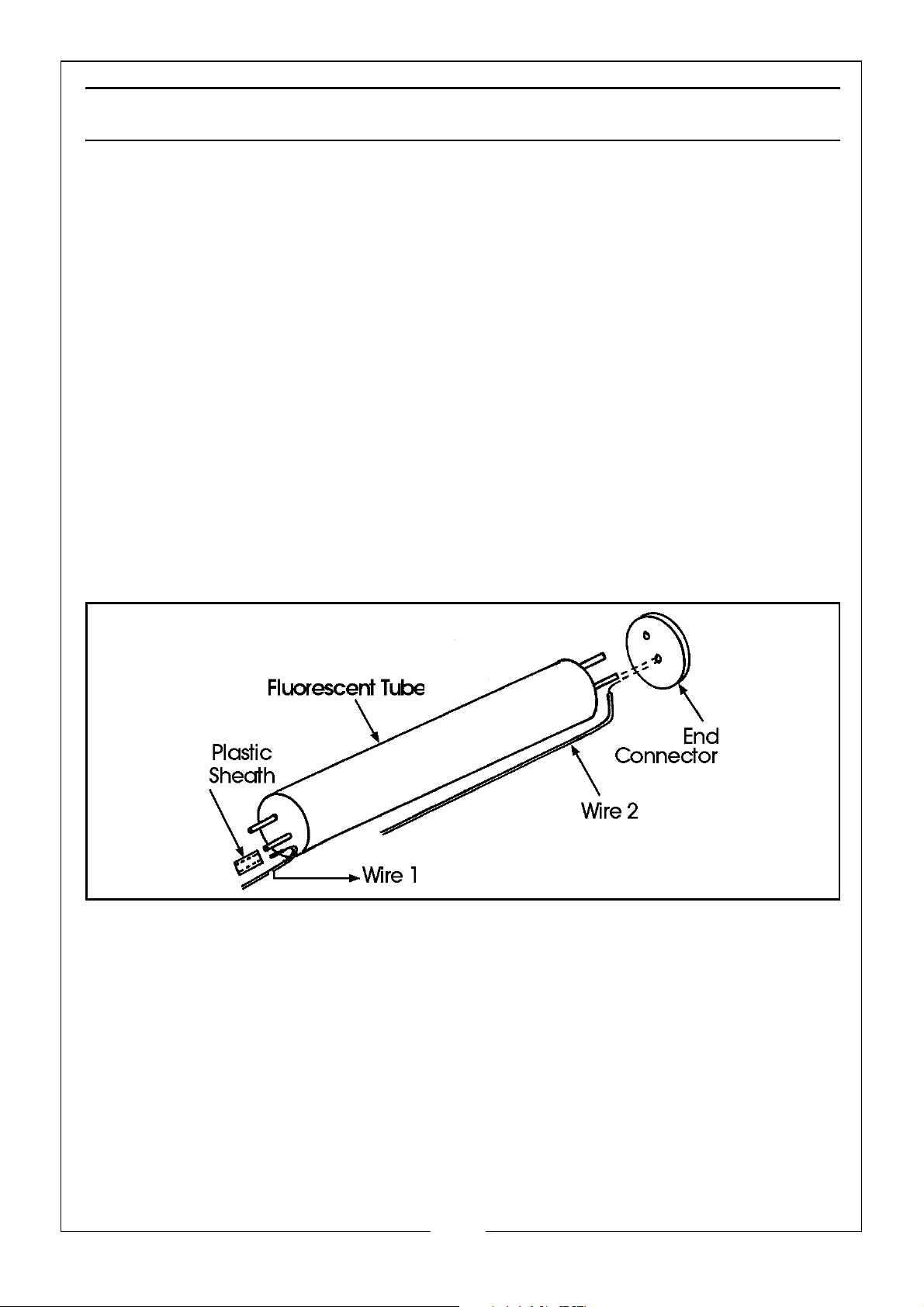

CHANGING THE FLUORESCENT TUBE

Ensure the transformer is disconnected from the power supply before opening
the door and cutting the two ties securing the lamp to its retaining clips.

Carefully pull the lamp from the retaining clips then hold the clear plastic
protective outer tube firmly and ease off the plastic end cover from the non­wired end. (This may take a little persuasion and perseverance).

Once the end cover has been removed, hold the end cover at the opposite
end (the cable input end), and pull off the outer protective clear plastic tube.
The fluorescent tube is now fully revealed.

Pull off the end connector, which secures a wire to one of the pins, taking care
not to distort the aluminium reflector. Then pull off the wire secured by a plastic
sheath to one of the pins at the cable input end.

Assemble in reverse order, ensuring the wires are correctly held by the plastic
sheath at one end and the end connector at the other, with the reflector
correctly in position.

Re-fit the assembly into its retaining clips and test its operation by plugging the
transformer into the mains.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TROUBLESHOOTING

Problem Check Solution

Excessive dust in the
cabinet.

Uneven blasting
action

No dust extract device
used.

Air vent or overflow
blocked.

Abrasive media worn. Replace abrasive media

Too much abrasive media in
the cabinet.

Loose airline or loose
connections.

Too much abrasive media in
the cabinet.

Abrasive is damp. Renew abrasive or dry

Moisture present inside
cabinet.

Install dust extract
device.

Clean rear vent and
keep vent away from
any wall.

Remove excessive
media.

Tighten fittings and
ensure airline is secure.

Remove excessive
media.

thoroughly before use.

Check airline to ensure it
is free from moisture.

Inadequate speed or
inefficient blast.

Static electricity
present

Excessive media
blown into the
surrounding

Abrasive media worn. Replace abrasive media

Pressure too low. Increase inlet pressure

and ensure control valve
is fully open.

Dry weather conditions. Leave the item to be

cleaned on the grid.

Door not secure. Secure the door with the

clip provided.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATION

Weight 44.60kg

External Dimensions (D x W x H) 600 x 930 x 1385mm

Cabinet Inner Dimensions
(D x W x H)

Max Air Supply 10psi (7 Bar)

Min. Air Delivery
(Cubic Feet per Minute)

Electrical Power Supply

Power Cable Length

555 x 860 x (Front)363mm
555 x 860 x (Rear)560mm

10CFM

230V 50Hz 1ph

1850mm

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

PART NO DESCRIPTION PART NO DESCRIPTION

1 Cabinet 23 Air Adaptor Nut

2 Intake Guard Ring 24 Low Voltage Light

3 Intake Vent Cover 25 Light Clamp

4 Hinge 26 Steel Screen

5 Plastic Door 27 Cotton Sealant

6 Metal Liner 28 Cabinet Duct

7 Gloves (pair) 29 Abrasive Suction Pipe

8 Clamp for Glove 30 Abrasive Removal Cover

9 Glove mounting ring 31 Cover Lock

10 Rubber Insert 32 Shelf

11 Suction Flange 33 Legs

12 Suction Flange Cover 34 Feet

13 Switch 35 Abrasive Intake Hose

14 Low Voltage Switch Box 36 Abrasive Gun

15 Low Voltage Plug 37 Nozzle Adapter Nut

16 Adaptor 38 Nozzle

17 Plastic Frame 39 Clamp

18 Plexiglass 40 Air Hose Adaptor

19 Glass 41 Clamp

20 Protective Film 42 Air Hose

21 Cotton Sealant 43 Flat Washer

22 Swivel Clip

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

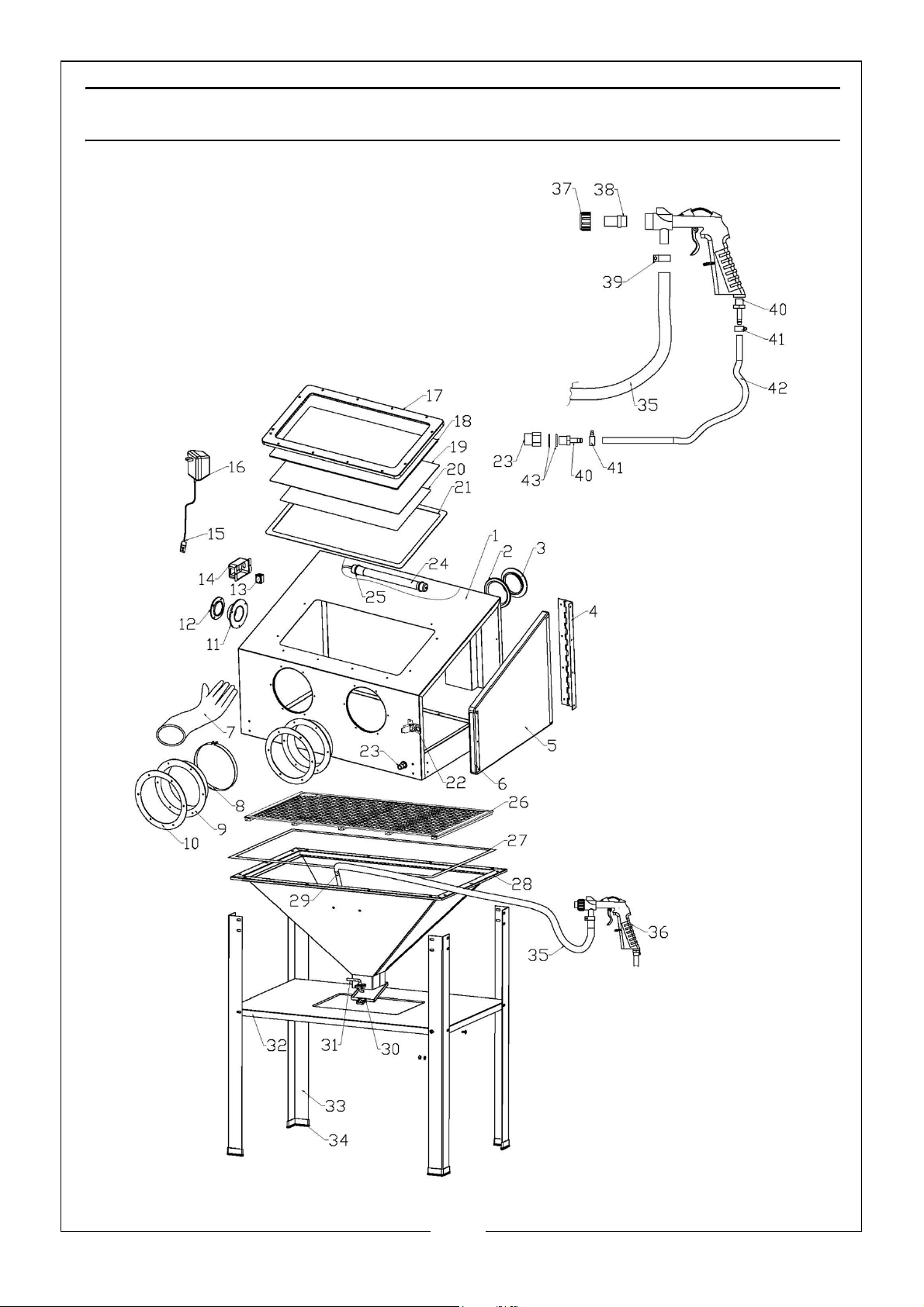

PARTS DIAGRAM

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

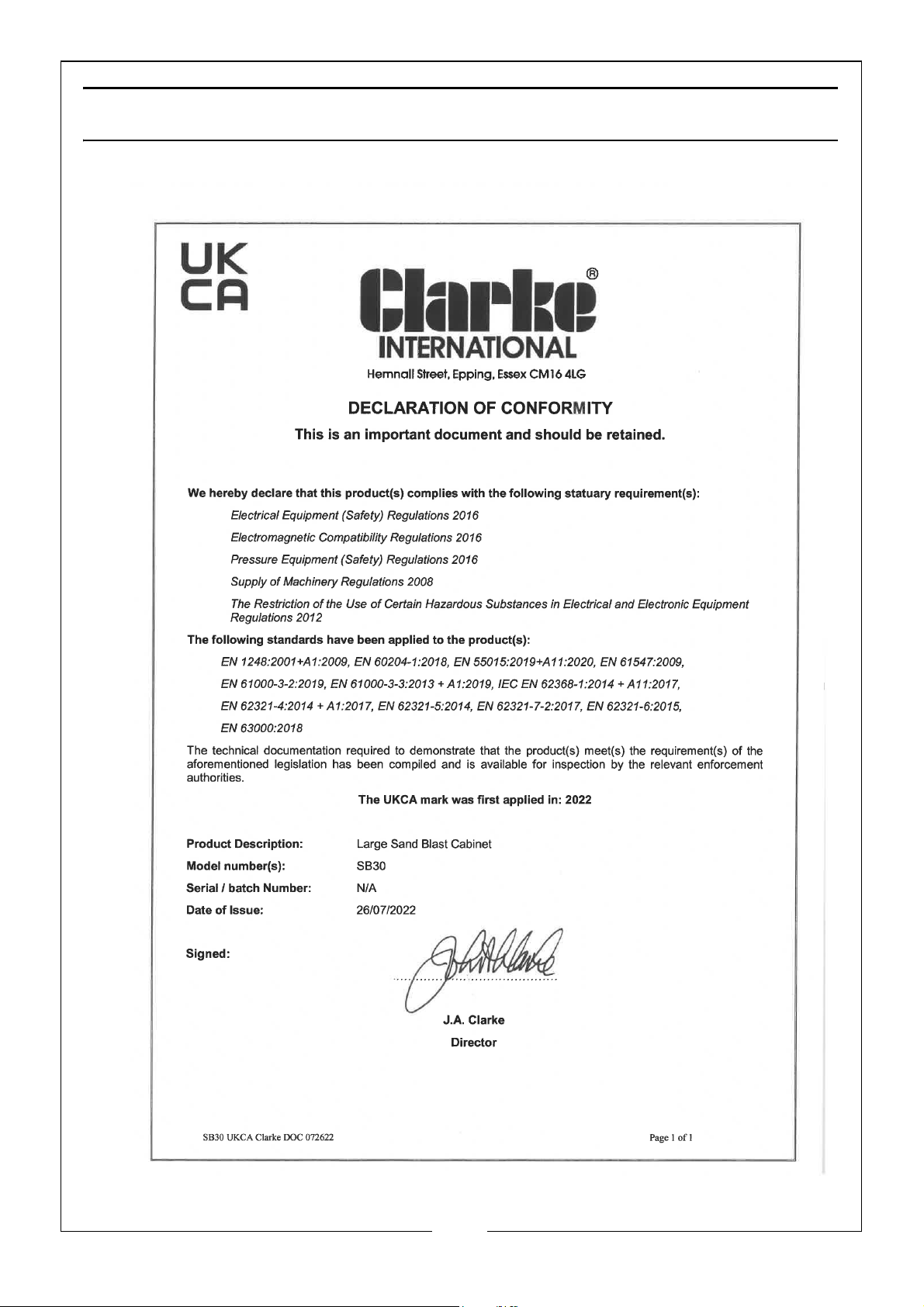

DECLARATION OF CONFORMITY - UKCA

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

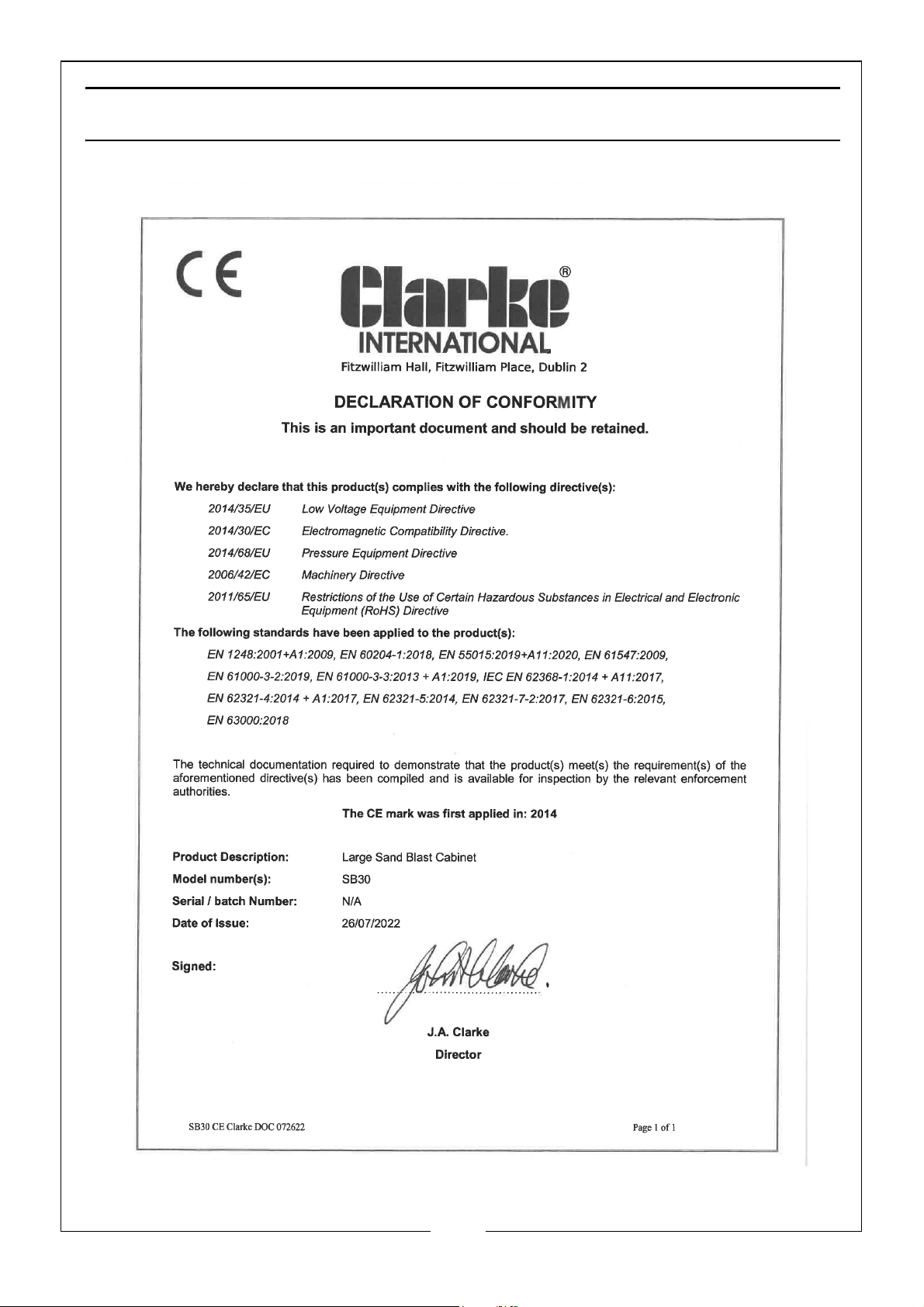

DECLARATION OF CONFORMITY - CE

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
