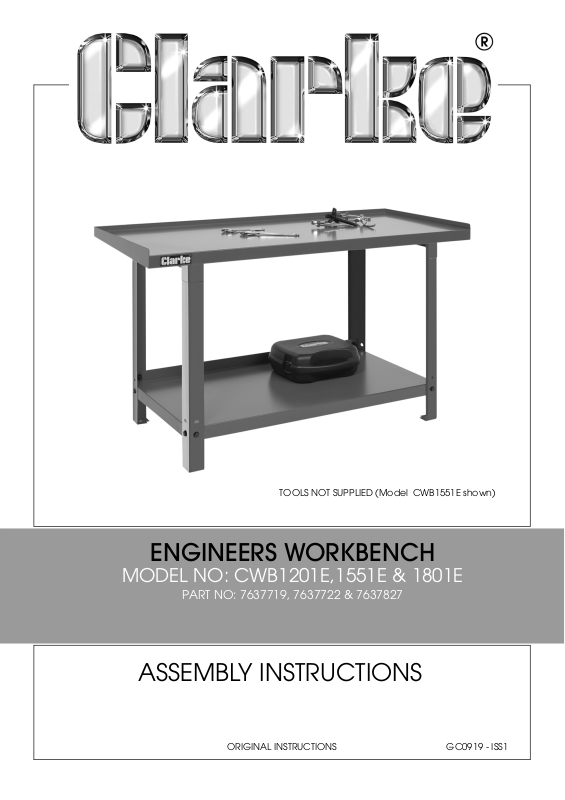

Page 1
TOOLS NOT SUPPLIED (Model CWB1551E shown)
ENGINEERS WORKBENCH
MODEL NO: CWB1201E,1551E & 1801E
PART NO: 7637719, 7637722 & 7637827
ASSEMBLY INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0919 - ISS1
Page 2
SPECIFICATION
CWB1201E CWB1551E CWB1801E
Dimensions (w x d x h) mm 1200x650x894 1550x650x894 1800x650x894
Weight 19.5 kg 23.7 kg 26.1
Maximum Load Total 220 kg
Maximum Load (Table top) 180 kg
Maximum Load on shelf 40 kg
SAFETY PRECAUTIONS
ALWAYS seek assistance when lifting heavy items.
ALWAYS keep children and animals away from tools and work area.
ALWAYS keep work area clean and free from oil spills etc.
ALWAYS wear protective footwear when assembling the workbench.
ASSEMBLY
Thank you for purchasing this CLARKE product. Please read and follow the
instructions carefully.
Unpack your workbench and check to ensure that no damage was suffered
during transit. Should any damage be apparent, you should contact your
CLARKE dealer immediately.
The kit comprises the workbench top, lower shelf and four legs with 16 x M8
bolts with nuts and flat washers.
The workbench is more easily assembled with the use of an assistant.
1. Rest the workbench top upside down on a soft, protective surface and at
each of the rear mountings, attach a leg, with the foot pad downwards
using two M8 bolts with each leg, ensuring a flat washer is used with the nut.
Nip up the nuts - DO NOT fully tighten.
2. Attach the front legs in a similar manner using M8 bolts with nuts and flat
washers. DO NOT fully tighten.
3. Position the shelf between the legs, using an assistant, and bolt it to the legs,
using M8 bolts with nuts and flat washers. DO NOT fully tighten the nuts. NOTE
The shelf will only fit one way round, as illustrated.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
4. Finally, turn the workbench on to its feet and shake it vigorously to ensure it is
completely stable and resting evenly on all four legs, then fully tighten all
nuts.
The feet of the workbench have fixing holes so that it can be secured in a
suitable location if required.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
3
