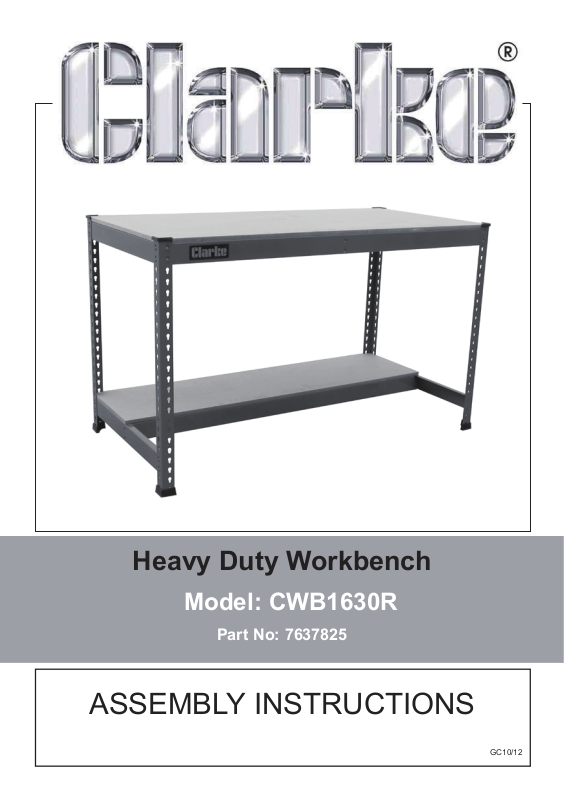

Page 1
Heavy Duty Workbench
Model: CWB1630R
Part No: 7637825
ASSEMBLY INSTRUCTIONS
GC10/12
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product. Before assembling the
workbench, be sure to read these instructions thoroughly. In doing so you will
ensure the safety of yourself and of others around you, and you can look
forward to the product giving you long and satisfactory service.
CONTENTS
Long Beam
E
Shelf Support
Beam
G
A
Post
Centre Support
A
Posts (917mm long)
Plastic Feet
Plastic Post Caps
Centre Support
Long Beams (with holes)
Long Beams (without holes)
Shelf Support Beam
Upper End Beams
Lower End Beams
Shelf Clips
Small Board
Large Board
Safe Working Load
B
J
K
L
D
C
D
G
H
I
Long Beam
F
Upper End
Beam
H
Lower End
Beam
I
CWB1630R (with 1 half shelf)
4
4
4
1
E
F
300kg (full shelf) /100kg (half shelf) UDL
2
1
1
2
2
2
1
1
2
Parts & Service: 020 8988 7400/E-mail:[email protected] or [email protected]
Page 3
ASSEMBLY
The tabs of the beams will often enter the slots fully using just firm hand
pressure but if they are too tight, you may require a rubber mallet or hammer
to assist. If so, always use a cloth to
protect the product paint finish.
1. Decide how high you want the
shelf to be, relative to the floor.
2. Fit the upper end beams between
two posts as shown in Fig 1.
A
• Only use the mallet to tap gently,
ensuring the tabs of the beams
are in line with the slots in the posts.
• When using a hammer or mallet,
always strike the edge closest to
the post and protect the paint with
a cloth.
3. Repeat this again for the other
end of the assembly, making sure
that the corresponding end
beam is at the same height.
FIG 1
FIG 2
FIG 3
Slots
Long Beam
Upper
End
Beam
Centre Support
E
H
D
4. Now fit the long beams to match
the upper end beams as shown
E
H
in Fig 2.
5. Fit the centre support between
the lower end beams to support
D
Lower End Beam
I
the lower shelf as shown in Fig 3.
Note that the edge with the wider
flange should be installed
uppermost to touch the shelf. (the
face with open edges should face
the rear of the unit).
Shelf Support
G
6. Slot the shelf support beam
between the long beams to carry
the large board.
Parts & Service: 020 8988 7400/E-mail:[email protected] or [email protected]
L
G
E
FIG 4
3
Beam
Page 4
7. Fix the shelf clips to the centre
support and place the small
board on the half shelf
D
K
J
8. Fit the plastic post caps top of each
post as shown in Fig 5.
9. Fix the plastic foot to end of
each post as in Fig 6.
A
B
SAFETY ADVICE
• Always place heavier items on the
shelf where possible.
• Always distribute your loads evenly
where possible.
Plastic
Post
Cap
FIG 5
C
Post
A
GUARANTEE
This CLARKE product is guaranteed against
FIG 6
Plastic
Foot
faulty manufacture for a period of 12 months from the date of purchase. Please
keep your receipt as proof of purchase. This guarantee is invalid if the product is
found to have been abused or tampered with in any way, or not used for its
intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does
not effect your statutory rights.
B
Parts & Service: 0208 988 7400
E-mail: [email protected] or [email protected]
Clarke International Hemnall Street, Epping, Essex CM16 4LG
