Assembly
Before assembly, please check that you have
all of the following parts. If any are missing,
please contact our Part Department on 0208988-7400

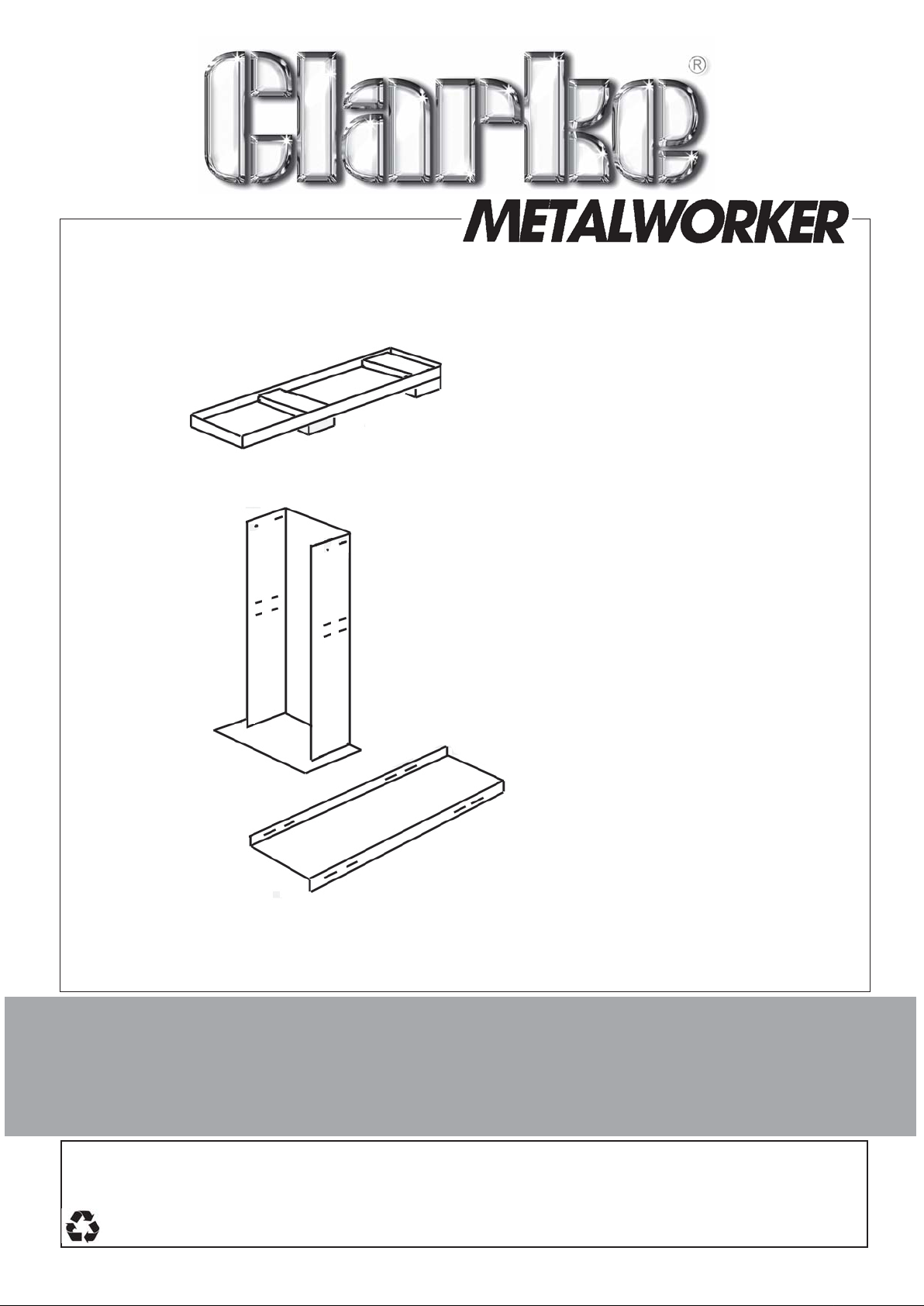

1 x Table Top/ Suds Tray assembly with drain
plug.
2 x End Unit
NOTE: All the component parts of this
unit are drilled or pierced to ensure
accurate assembly.
It will be easier to assemble this unit
upside-down.
1) Lay the table top on a non-abrasive
floor surface.
2) Position one End Unit around the
outside of the angle plates on the
underside of the Suds Tray and fix
loosely with 4 x nuts, bolts and
washers.
Repeat this procedure with the other end
unit.
3) Locate and loosely fix the shelf unit
in place using 2 x nuts, bolts and
washers each side and at the front
and rear.
Note that the turned down edge is at
the front and the turned up edge at
the rear.
1 x Shelf Unit
Bag of fixings containing:
M10 Hex Head Bolts x 20
M10 Locknuts x 16
M10 Plain Washers x 36
M10 x 80 mm Hex Head Bolts x4

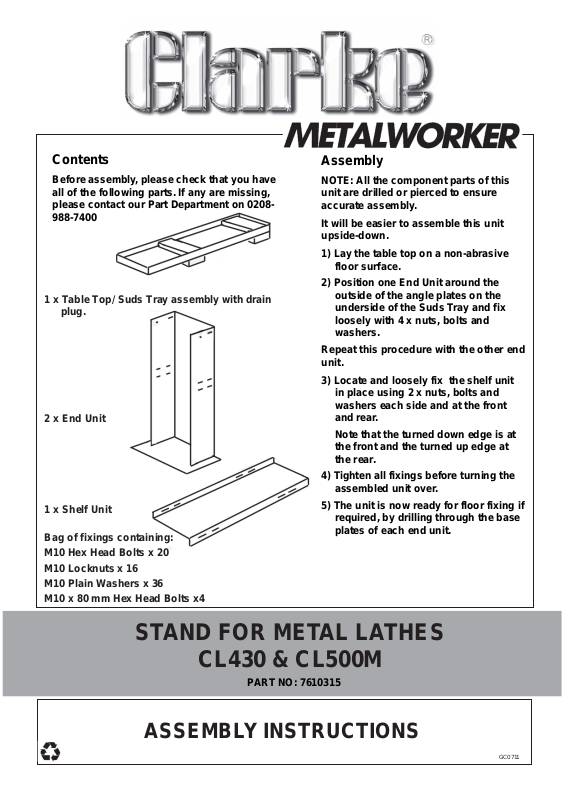

STAND FOR METAL LATHES
ASSEMBLY INSTRUCTIONS
4) Tighten all fixings before turning the
assembled unit over.
5) The unit is now ready for floor fixing if
required, by drilling through the base
plates of each end unit.
CL430 & CL500M
P ART NO: 7610315
GC0711
