Page 1
WARNING: Read the instructions before using the machine.
POWER WASHER
MODEL NO: JETSTAR 1950
PART NO: 7336010
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
DL0621 - ISS 4
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Power Washer.
This pressure washer is designed for cleaning machines, vehicles, buildings,
boats, facades, terraces, gardening tools, etc. by means of a high-pressure
water jet (if necessary, with additional cleaning agents).
Only use accessories, replacement parts and cleaning agents recommended
by Clarke international.
Before attempting to use this product, please read this manual thoroughly.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
LIST OF CONTENTS
The following items should be supplied in the carton. If any parts are missing or
damaged, please see your Clarke dealer where you purchased the machine.
1 x Pressure Washer (with integral
detergent tank)
1 x Gun Assembly 1 x Pair of Storage Brackets
1 x Lance & Nozzle assembly (with High/
Low & Pencil Jet/Fan settings)
1 x High Pressure (outlet) Hose 1 x Nozzle Cleaning Pin
1 x Inlet Hose Adaptor (fitted)
1 x Inlet Filter (installed)
1 x Manual
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY RULES
WARNING: WATER AT HIGH PRESSURE CAN BE DANGEROUS AND CAN
CAUSE DAMAGE IF THE OPERATOR IS CARELESS. NEVER ALLOW ANYONE
TO OPERATE THIS PRESSURE WASHER UNLESS THEY ARE FAMILIAR WITH THE
SAFETY PRECAUTIONS.
1. NEVER direct the spray towards any person or animal.
2. NEVER direct the spray towards electrical wiring or equipment.
3. NEVER hold your finger over the high pressure nozzle.
4. NEVER allow children or untrained personnel to use this machine.
5. NEVER operate the machine with any of the covers removed.
6. NEVER attempt any repairs to this machine. Always refer to your Clarke dealer.
7. NEVER supply any liquid other than water to the water inlet.
8. NEVER use the detergent bottle to introduce flammable liquids/solvents, e.g. paint
thinners, petrol, oil as there is a risk of explosion.
9. NEVER direct the jet at electrical equipment or the machine itself.
10. NEVER use the pressure washer if the supply cable or important parts of the machine
are damaged.
11. ALWAYS release any residual pressure in the system by turning off the water supply
and operating the trigger before disconnecting any hose or accessory.
12. ALWAYS keep the machine itself dry and well clear of water spray.
13. ALWAYS wear protective clothing and safety glasses. Loose particles and other
debris may be propelled at high speed by the water jet.
14. ALWAYS grip the gun firmly and expect the spray gun to ‘kick’ when starting.
15. ALWAYS respect the requirements of the local water company. Pressure washers may
only be connected to the mains drinking water supply, if a system separator (known
as a backflow preventer) is installed in the supply hose.
16. ALWAYS disconnect from the water supply, and ensure the system is completely
drained when not in use. Store in a cool dry location.
17. ONLY use chemical cleaning agents (detergents), that are approved for pressure
washers. CLARKE Traffic Film Remover or CLARKE Wash and Wax (available from your
dealer), is recommended.
18. WARN IN G: High pressure water jets can be dangerous if subject to misuse. The jet
must not be directed at a person or anything that they are wearing.
19. WARN IN G: High pressure hoses, fittings and couplings are important for the safety of
the machine. Use only hoses, fittings and couplings recommended by the
manufacturer.
20. WARN IN G: Water that has flowed through a system separator (known as a backflow
preventer) is considered non-drinkable.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

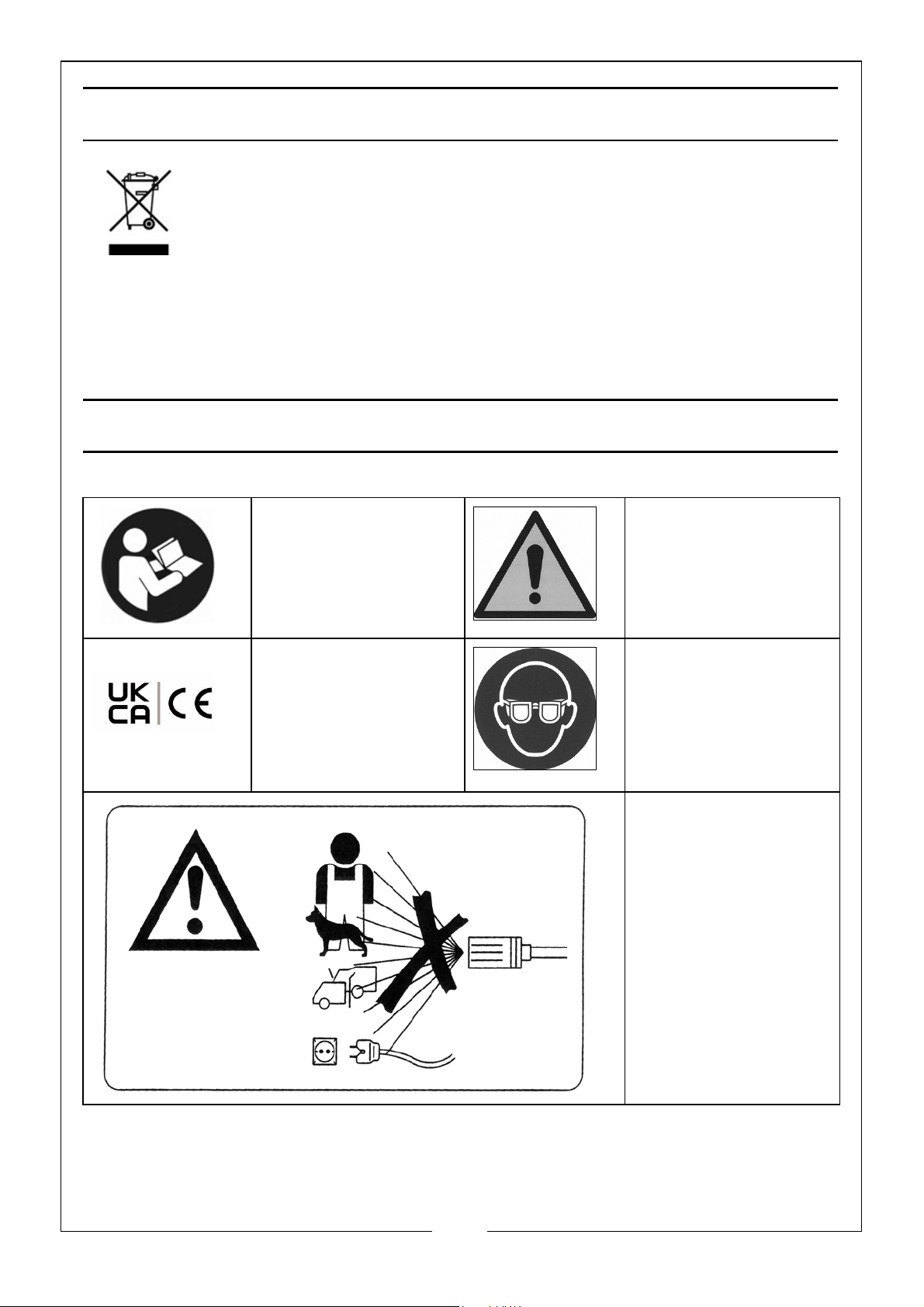

SYMBOLS ON THE MACHINE
Read the manual
before use.
Conforms to UKCA &
CE Regulations.
Failing to follow these
instructions could
result in injury or
damage to the
machine.
Wear safety glasses
when using this
machine.
The high pressure jet
must not be directed
at persons, animals,
live electrical
equipment or at the
appliance itself.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

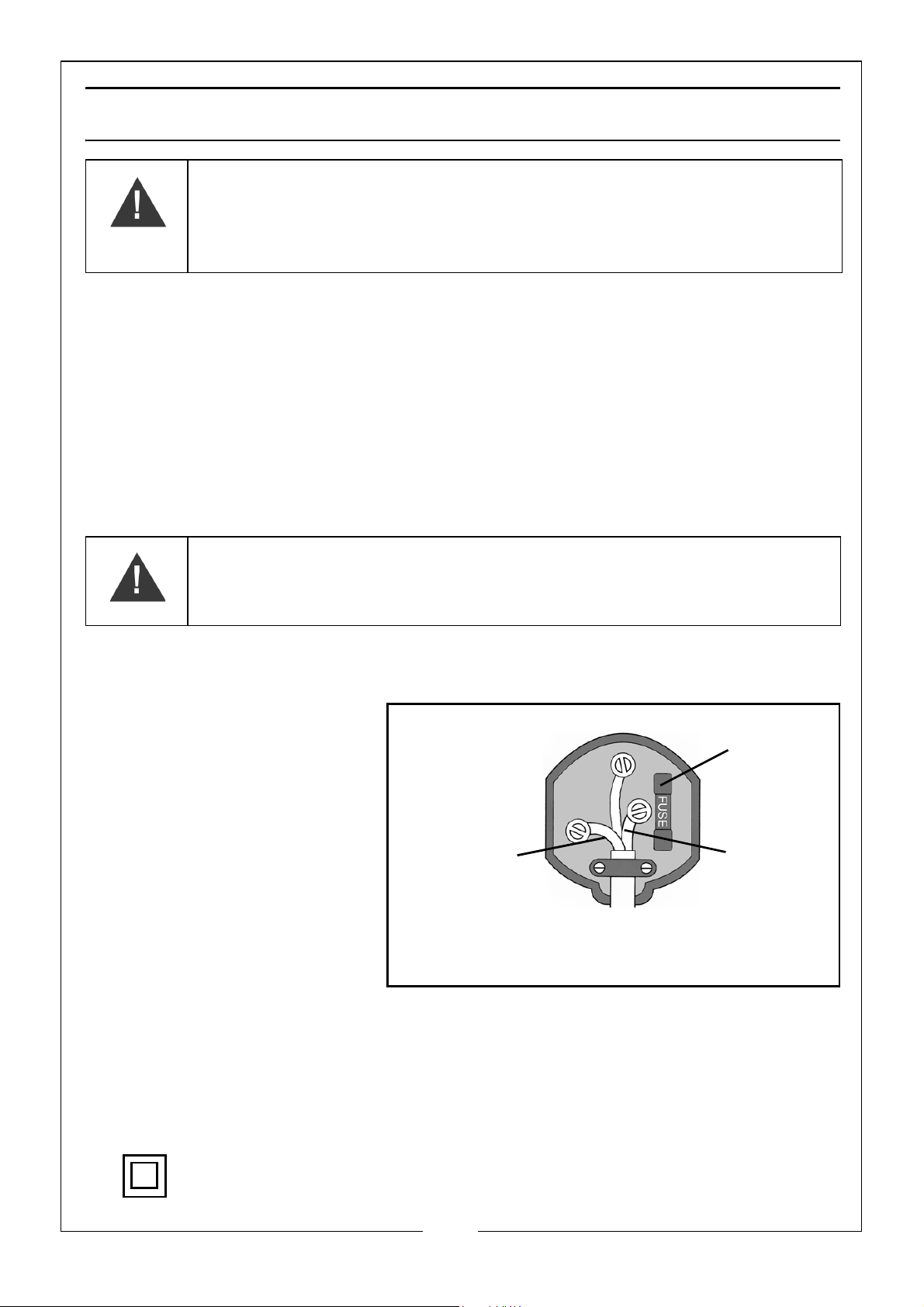

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
a 13 Amp
the cable is firmly held by the clamp
fuse.
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.
Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. Connecting it to any
other power source may cause damage.
If it is necessary to change the fuse in the plug, the fuse cover must be refitted.
If the fuse cover becomes lost or damaged, the plug must not be used until a
suitable replacement is obtained.
If the plug has to be changed due to damage, a replacement should be
fitted, following the wiring instructions shown below. The old plug must be
disposed of as insertion into a mains socket could cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE
If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.
• The wire which is
coloured Blue must be
connected to the
terminal which is
marked N or coloured
Black.
• The wire which is
coloured Brown must
be connected to the
terminal which is
marked L or coloured
Red.
We strongly recommend that this machine is connected to the mains supply via
a Residual Current Device (RCD) that will interrupt the supply if the leakage
current to earth exceeds 30 rnA for 30 ms
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
This symbol indicates that this is a Class II product, and does not
require an earth connection.
5
Page 6

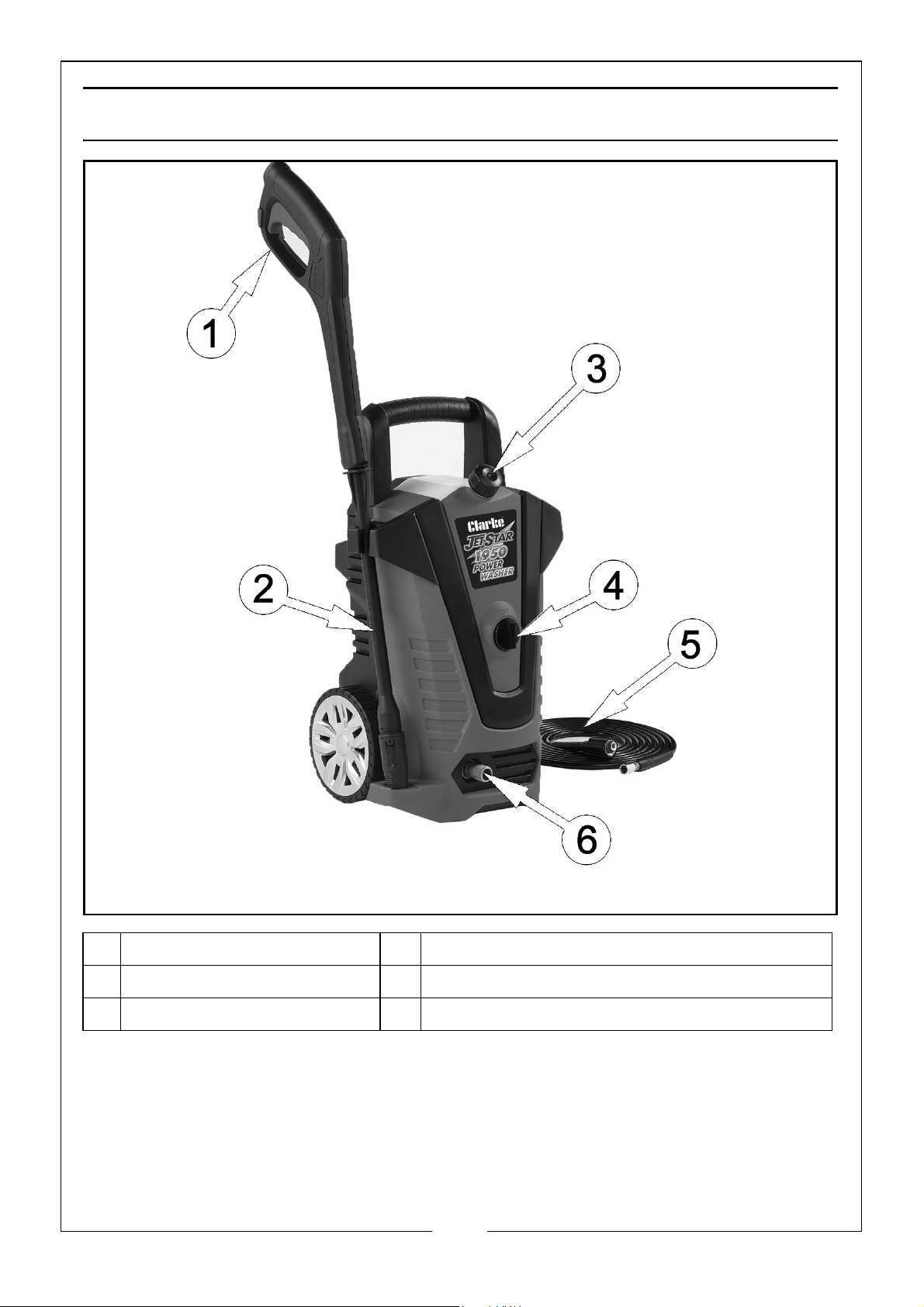

OVERVIEW
1 Spray Gun Assembly 4 ON/OFF Switch
2 Lance 5 High Pressure Hose
3 Detergent Bottle 6 High Pressure Hose Connection Point
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

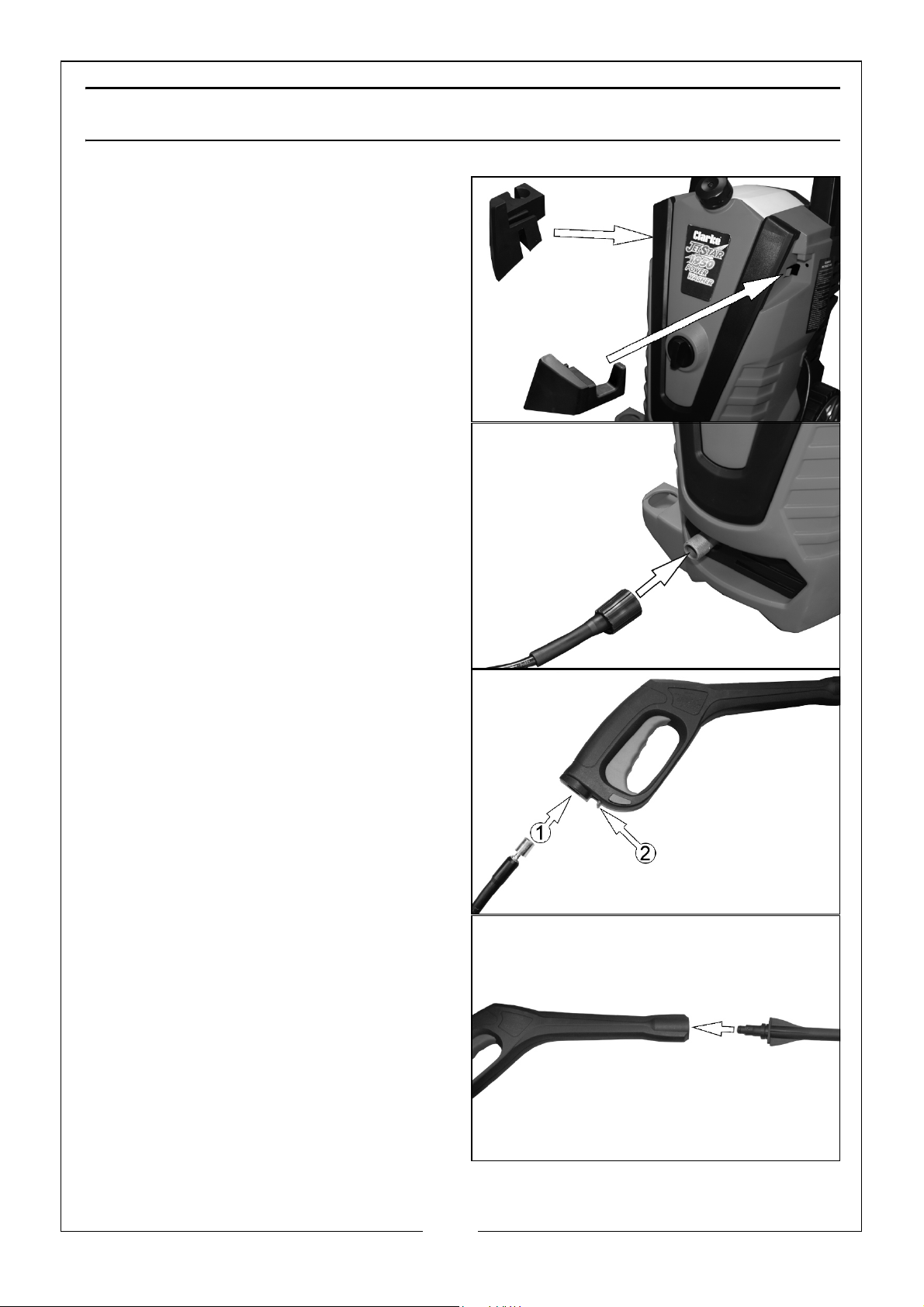

ASSEMBLY
1. Slide the brackets into their
positions.
• They will ‘click’ into place.
2. Connect the high pressure hose to
the pressure washer as shown and
tighten securely.
3. Insert the hose into the gun fully
4. Slide the hose clip towards the
hose to lock in place.
5. Insert the lance into the gun as
shown and twist to lock in place.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8

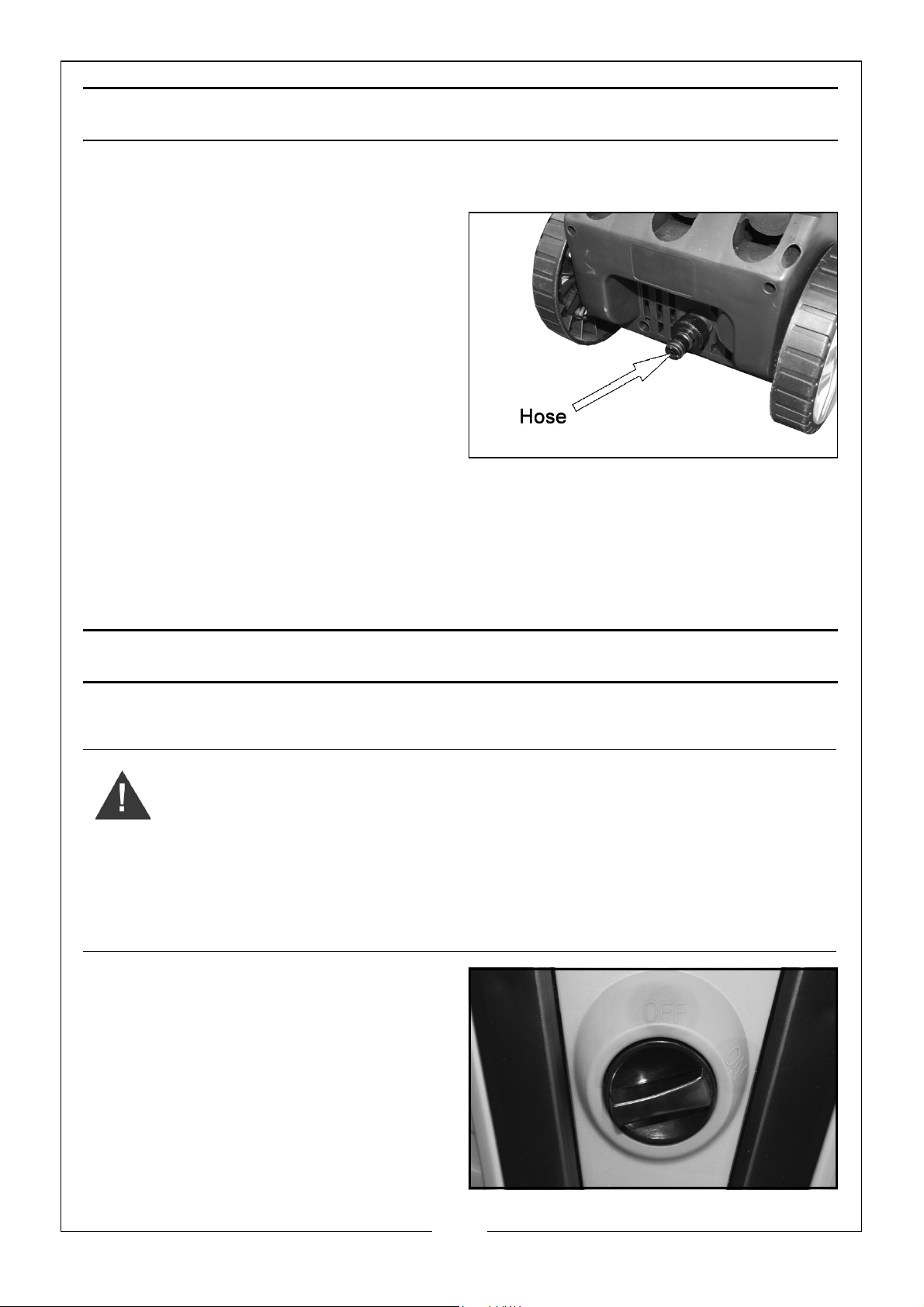

CONNECTING THE MAINS WATER SUPPLY
NOTE: Always follow the regulations of your local water supplier.
1. Screw the inlet adaptor to the
water inlet as shown.
2. Connect the supply hose to the
inlet adaptor.
• A standard garden hose or a
reinforced hose with an inner
diameter of at least 10 mm
available from your CLARKE
dealer will be suitable.
3. Connect the supply hose to the
water supply.
• The water supply must provide a minimum of 6.5 litres per minute at a
maximum of 40°C.
4. Open the water tap fully.
OPERATION
1. Turn the water supply on, making sure that the tap is fully open.
WARNING: FAILURE TO TURN ON THE WATER FULLY COULD CAUSE
DAMAGE TO THE POWER WASHER INTERNAL COMPONENTS.
WARNING: DO NOT USE THE POWER WASHER IF THE SUPPLY CABLE OR
IMPORTANT PARTS OF THE MACHINE ARE DAMAGED, E.G. SAFETY
DEVICES, HIGH PRESSURE HOSES, TRIGGER.
WARNING: WE RECOMMEND THAT THIS MACHINE IS CONNECTED TO THE
MAINS SUPPLY VIA A RESIDUAL CURRENT DEVICE (RCD).
2. Plug the mains power cable into
the electricity supply.
3. Set the switch to the ON position.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9

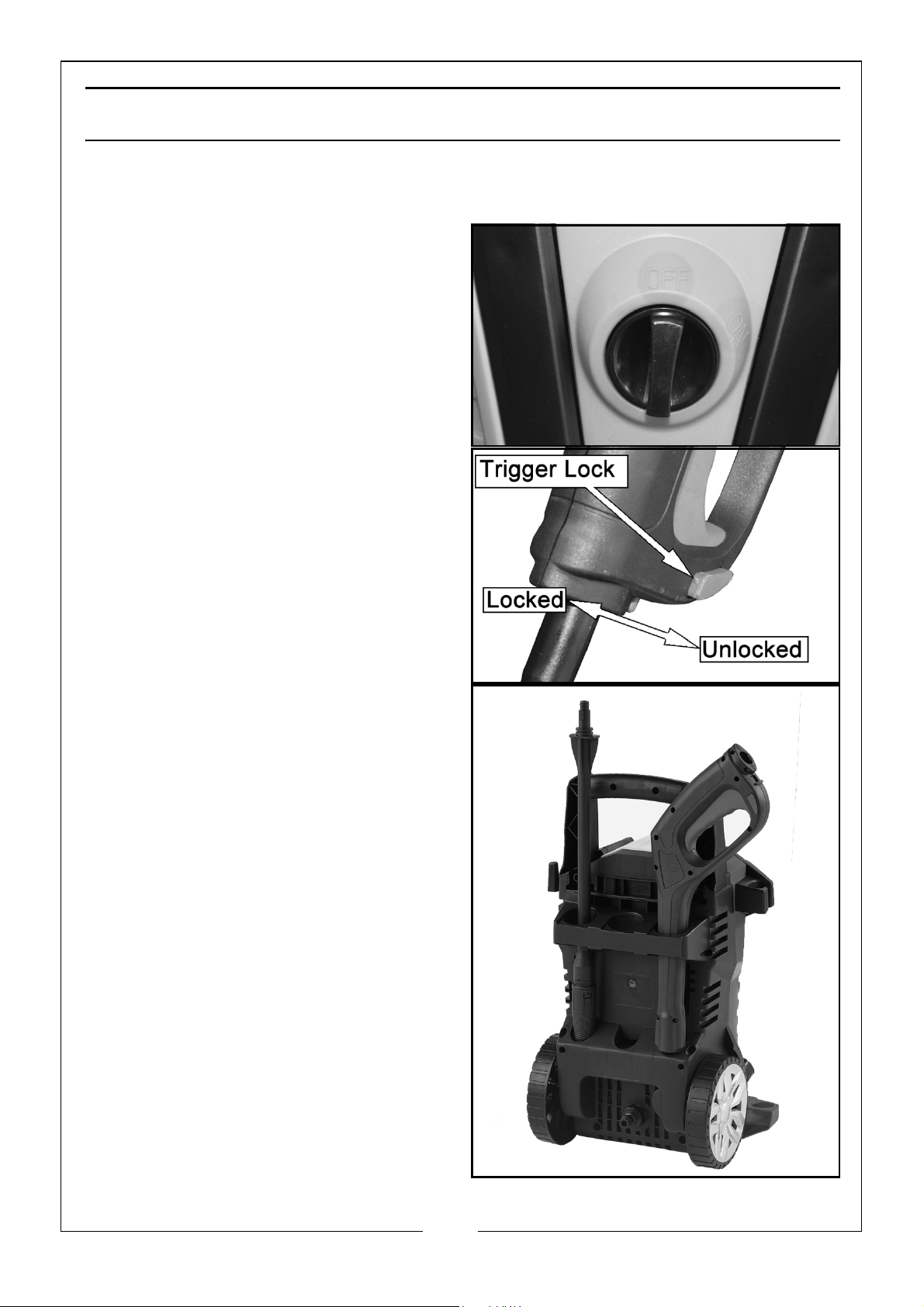

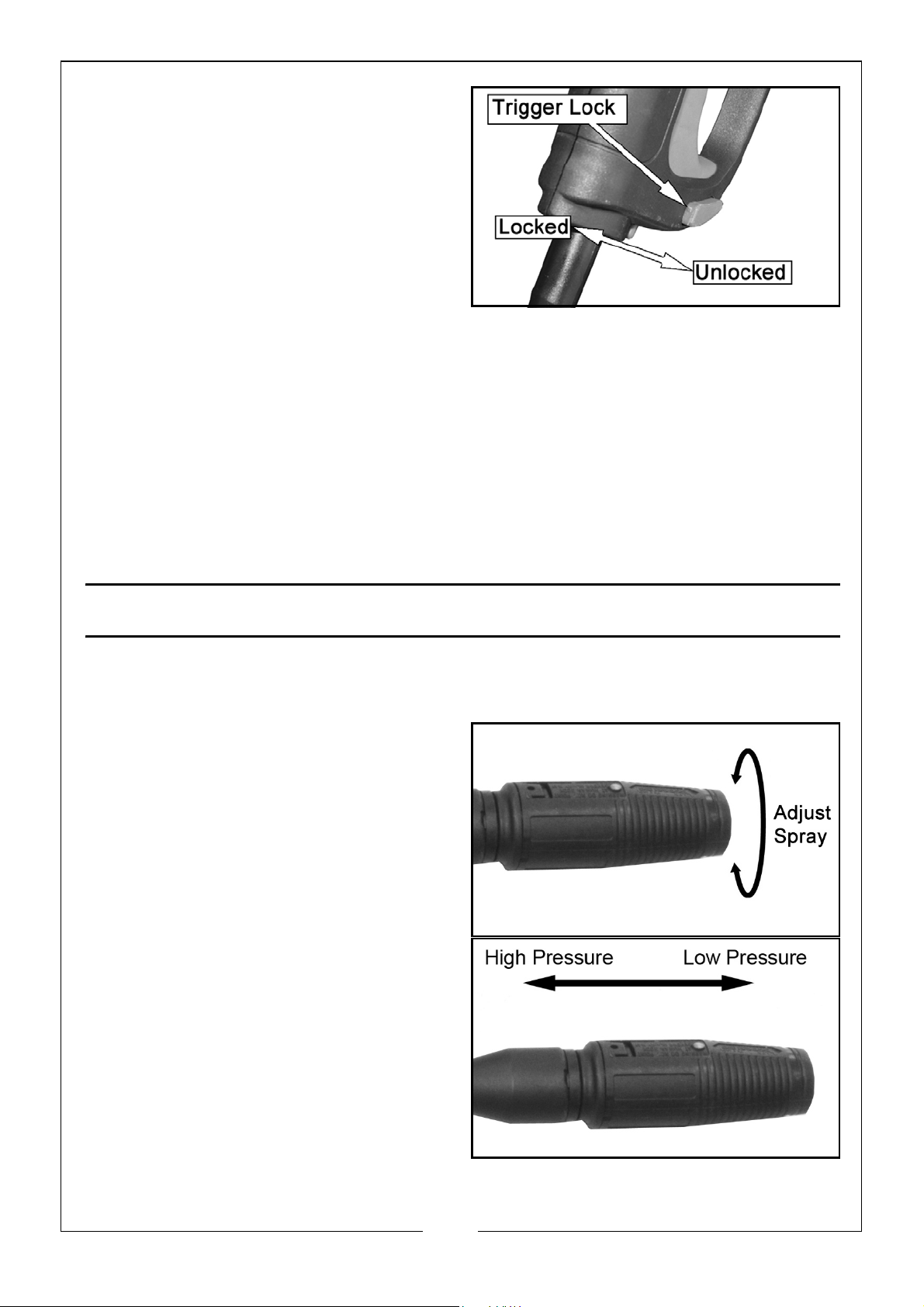

4. Release the trigger lock.
• The pressure washer is now
ready for use.
5. Make sure that you have a firm
footing and are also holding the
gun and spray lance firmly.
• Expect the spray gun to 'kick'
when starting.
6. Pull the trigger on the gun to start water flow.
• If you release the trigger the device will switch off again, the system
remains under high pressure.
• During longer breaks (more than 5 minutes), turn the pressure washer off.
See “Shutting Down” on page 11.
7. Once the machine has been turned off, release any residual pressure in
the system by turning off the water supply and operating the trigger before
disconnecting any hose or accessory.
ADJUSTMENTS
TO CHANGE THE SPRAY PATTERN (NARROW JET / WIDE SPRAY)
1. Hold the shaft of the lance in one
hand.
2. To vary the spray between narrow
and wide, turn the nozzle counterclockwise through a half-a-turn
(180°).
ADJUSTING THE PRESSURE
Hold the rear of the nozzle and slide
the front of the nozzle forwards for
low pressure and backwards for high
pressure.
Other ways to adjust the pressure
include Increasing the distance you
are from the surface being cleaned
and adjusting the spray to a wider
angle (lowers the pressure).
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10

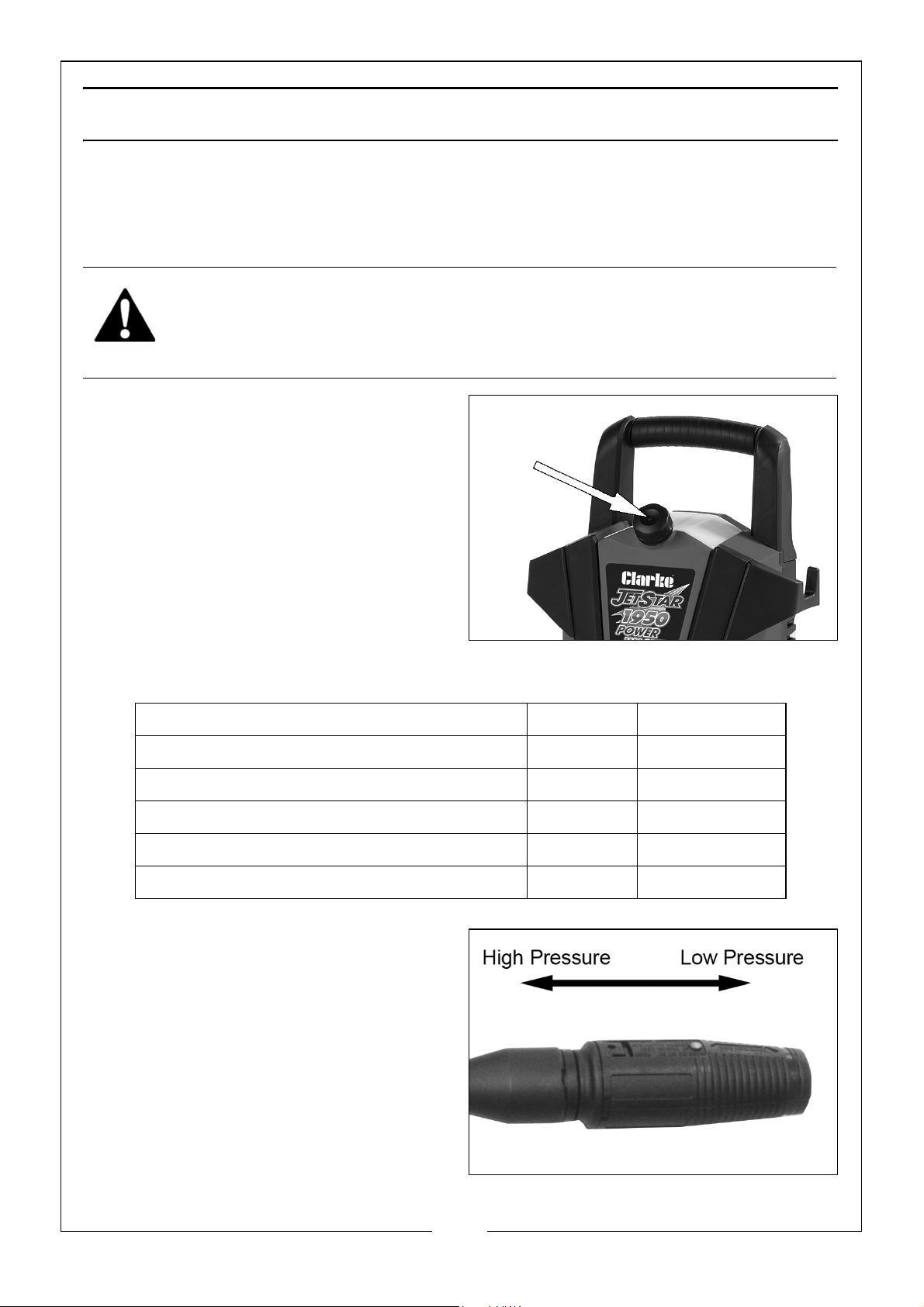

APPLYING CHEMICALS AND CLEANING AGENTS
To improve the cleaning performance, you can introduce chemical cleaning
agents (detergents) to the water jet using the detergent tank. This is
particularly useful when washing cars, greasy engine parts, or removing oil
spots on concrete etc.
CAUTION: IF YOUR EYES COME INTO CONTACT WITH ANY CLEANING
FLUIDS, RINSE THEM IMMEDIATELY WITH PLENTY OF FRESH CLEAN WATER
AND SEEK MEDICAL ADVICE IF REQUIRED.
To prepare for detergent application:
1. Remove the detergent filler cap
and fill the tank with detergent.
• Only use detergents
recommended for use with
pressure washers such as
CLARKE Traffic Film Remover for
car cleaning, patio cleaning
etc., or CLARKE Wash & Wax,
both available from your
CLARKE dealer.
DESCRIPTION SIZE PART NUMBER
Car Wash & Wax Shampoo 5 Litre 3050815
Concentrated Traffic Film Remover 5 Litre 3050821
Concentrated Traffic Film Remover 25 Litre 3050820
Ready To Use Traffic Film Remover 5 Litre 3050818
Ready To Use Traffic Film Remover 25 Litre 3050819
2. Replace the cap.
3. Slide the nozzle forwards to low
pressure.
4. Use the pressure washer as
normal.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
SHUTTING DOWN
When you have finished using the pressure washer, follow the procedure
shown below to switch off and disconnect the unit.
1. Set the switch to the OFF position.
2. Turn off the water supply at the
tap.
• To release the pressure in the
machine, pull and hold the
trigger until no more water
comes out of the nozzle.
3. Engage the trigger lock.
4. Disconnect from the power
supply.
5. Wind the hose onto the reel and
put the spray gun/lance into the
holder on the power washer.
STORAGE PROCEDURE
Disconnect from the water supply,
and ensure the system is completely
drained when not in use.
Store in a cool dry location.
Avoid storing the power washer at
freezing temperatures.
Residual water in the high pressure
pump of hose assembly may cause
permanent damage to the
components if it freezes.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
MAINTENANCE
WARNING: REMOVE THE PLUG FROM THE SOCKET-OUTLET BEFORE
CLEANING OR MAINTENANCE AND WHEN REPLACING PARTS

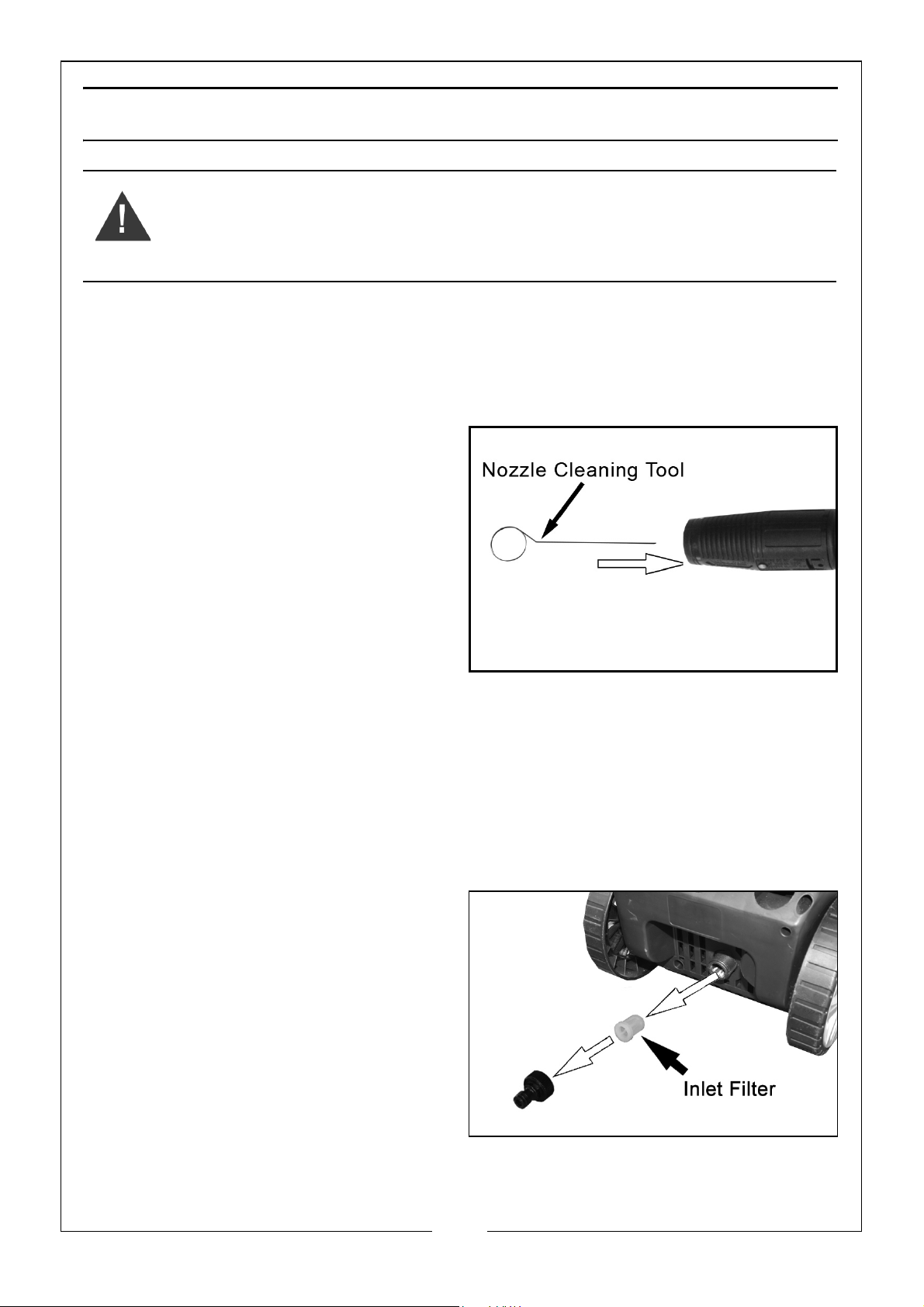

CLEANING THE NOZZLE
If the nozzle becomes partially clogged with foreign material such as dirt or
limescale, excessive pressure may develop and the pump pressure will
pulsate. Clean the nozzle immediately as follows:
1. Turn off the power washer and
turn off the water supply.
2. Pull the trigger to relieve any
water pressure.
3. Disconnect the lance from the
spray gun.
4. Remove any obstructions by
directing the water supply into the
end of the lance for 30 seconds to
back flush loose particles.
5. If flushiing does not dislodge the obstruction, carefully use the nozzle
cleaning tool, to clear the nozzle.
6. Reconnect the lance to the gun and turn on the water supply
CLEANING THE WATER INLET FILTER
This filter should be checked periodically and cleaned if necessary.
1. Remove the inlet filter from the
pressure washer as shown.
2. Clean the filter by flushing both
sides with water.
3. Replace the filter into the water
inlet.
• The tapered side faces in.
NOTE: Do not operate the pressure
washer without the filter
installed.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
No water
delivery.
Low or irregular
pressure.
Motor suddenly
stops.
Pressure
fluctuations or
pressure drop.
Motor does not
start when
switched on.
Water filter blocked. See cleaning the water filter.
Clogged lance nozzle. Clean the nozzle.
Insufficient water supply. Check connections.
Pump taking in air. Check connections.
Detergent inlet sucking in
air.
Water filter dirty. Clean or replace.
Water temperature is too
high
Thermal protection has
activated due to
overheating.
Shortage of water. Turn water tap on fully.
No water due to clogged
inlet filter.
Plug is not connected
properly.
Check connections and that
detergent supply is topped up.
Make sure the water supply is below 40
degrees.
Switch off the machine and wait until
the unit has cooled down sufficiently.
Clean water inlet filter.
Check plug and lead and have them
replaced by a qualified electrician if
necessary.
Mains fuse tripped/blown. Renew fuse or reset.
Motor hums
when trigger
operated and
does not start.
Motor cuts out. Motor protection switch
Additives are not
being supplied.
Mains voltage too low. Have electrical connection checked.
has been activated.
Nozzle partly clogged. Clean using the supplied nozzle
Detergent container is
empty.
High Pressure is selected. Set the lance to LOW pressure.
Switch off and allow to cool for at least
15 minutes.
cleaning needle.
Fill detergent container.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
PRODUCT SPECIFICATIONS
Model Number JETSTAR 1950
Part Number 7336010
Voltage 230V/50Hz
Motor Input Power 1600 W
Duty Cycle S1 Continuous
Working pressure 90 bar
Maximum pump pressure 135 bar
Maximum output flow rate 6.5 l/min
Maximum input temperature
40
0
C
Detergent tank capacity 0.5 l
Sound Pressure Level (L
Sound Power level (L
Guaranteed sound power level (L
)91
PA
)93
WA
)96
WA
Sound Uncertainty Factor K 3
Vibration
2.8 m/s
2
Uncertainty Factor K 1.5
Dimensions (L x W x H) 287 x 322 x 555 mm
Weight 8.4 kg
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15

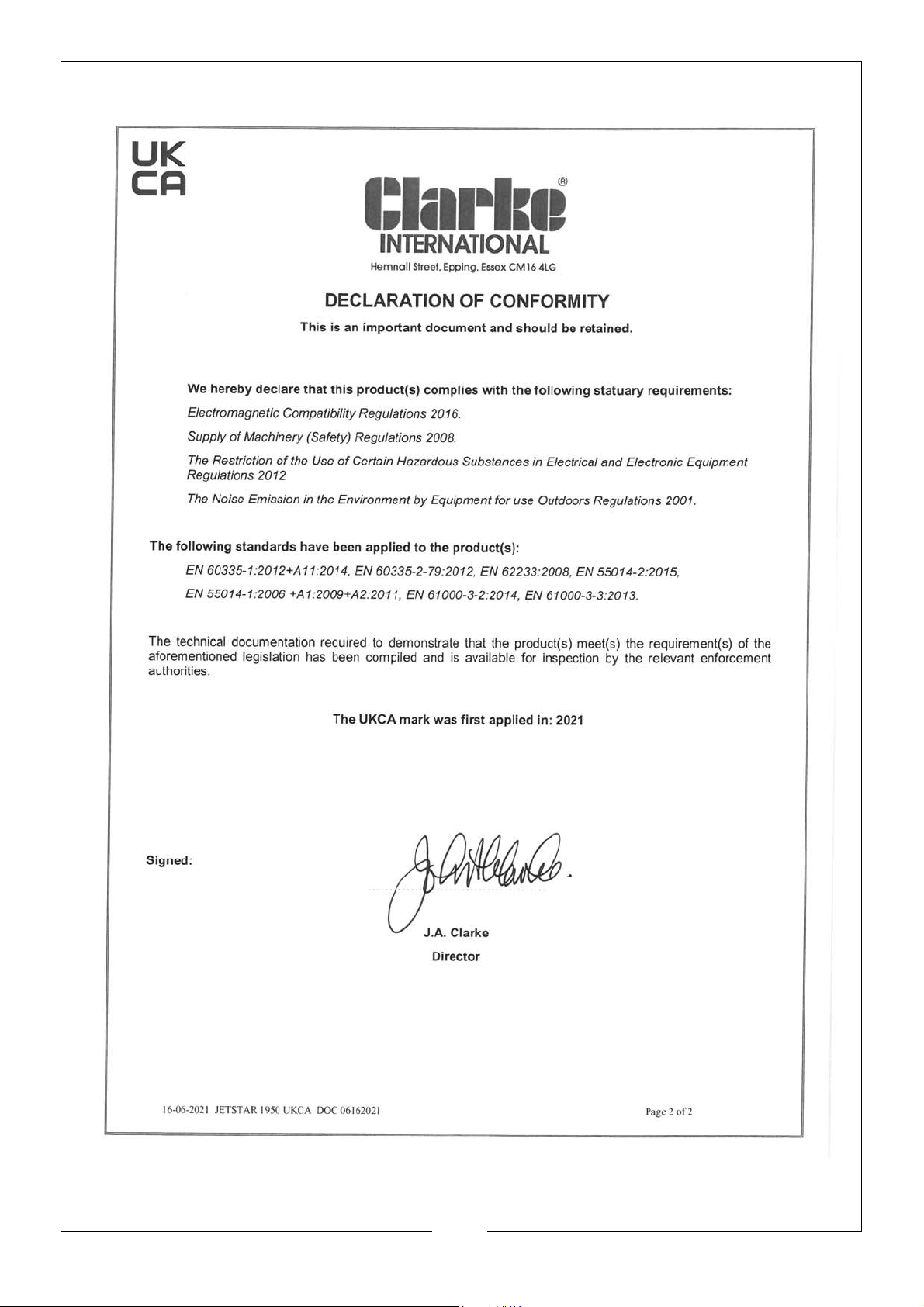

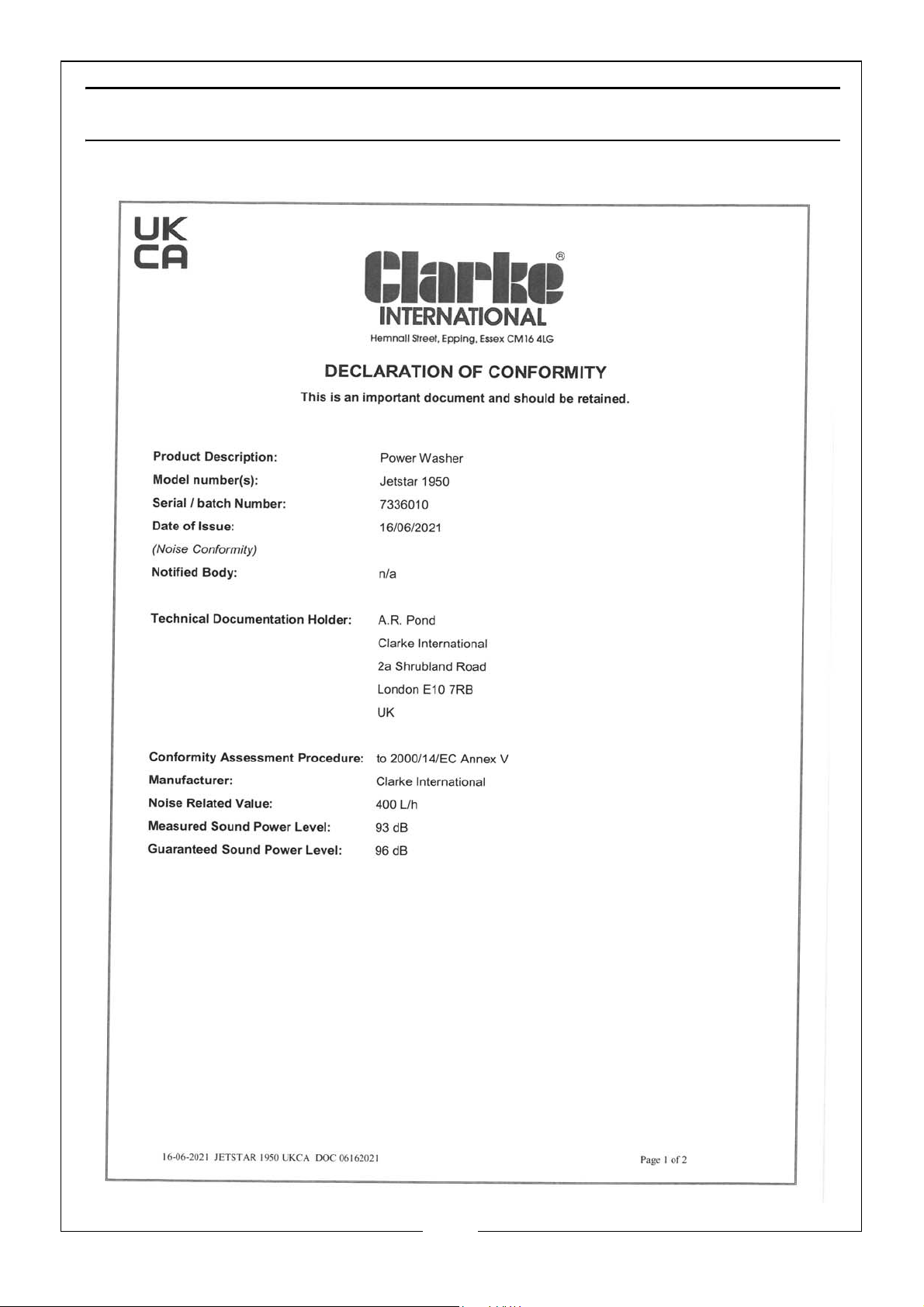

DECLARATION OF CONFORMITY - UKCA
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
Page 17

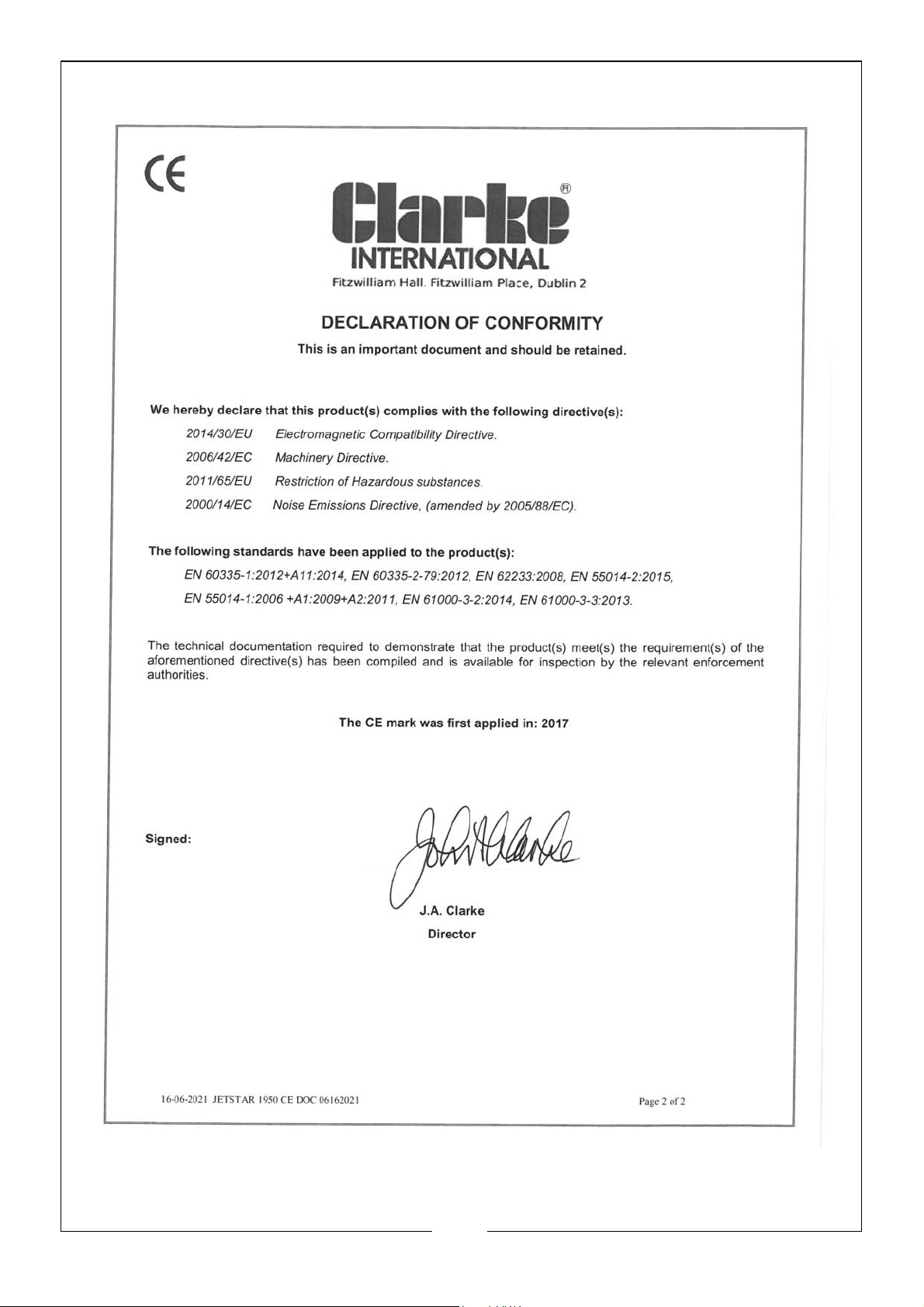

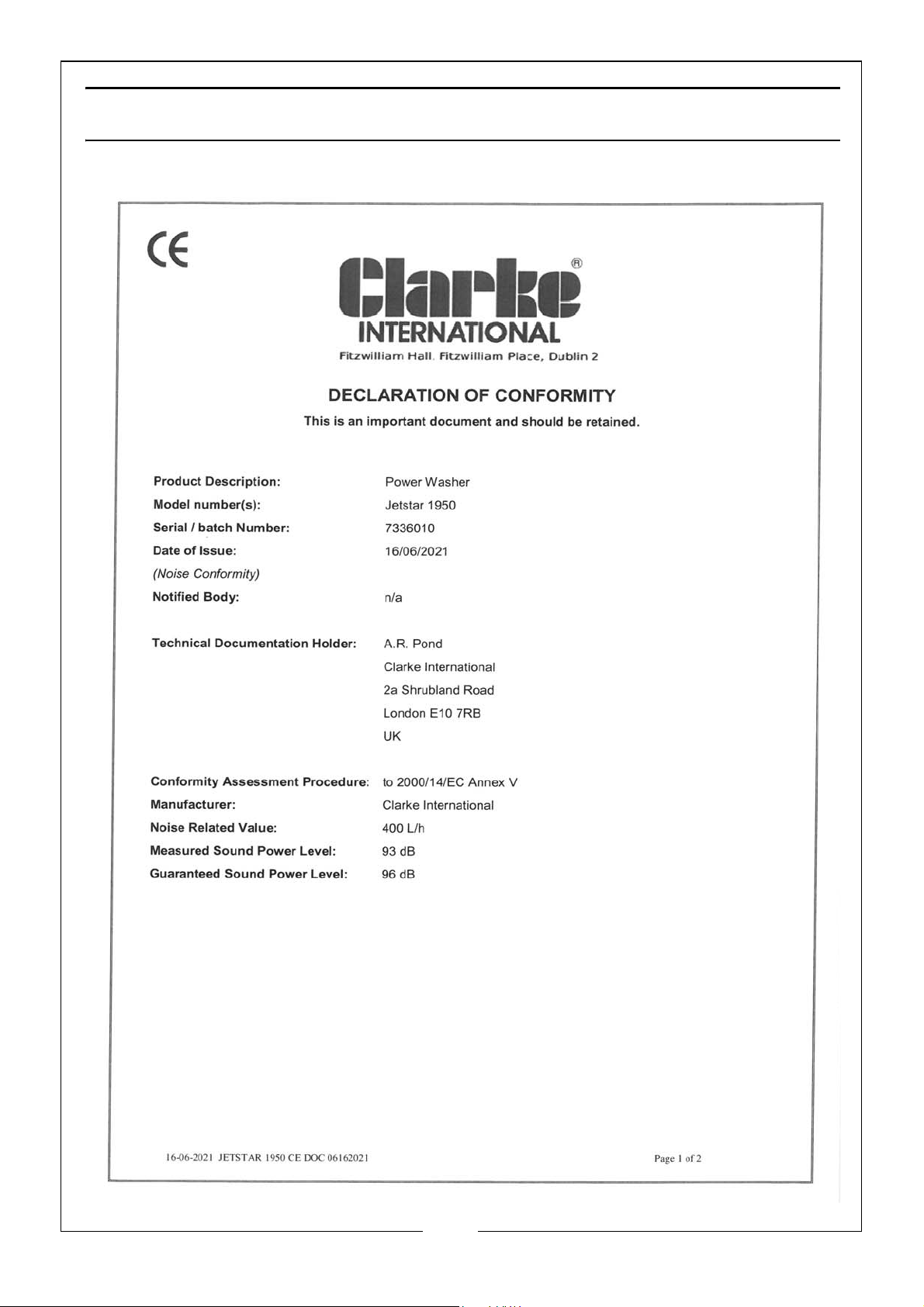

DECLARATION OF CONFORMITY - CE
17
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 18
Page 19
ASSOCIATED PRODUCTS
Traffic Film Remover, 5 Litres Concentrate
Part Number: 3050821
Traffic Film Remover, 25 Litres Concentrate
Part Number: 3050820
Traffic Film Remover, 5 Litres Ready to Use
Part Number: 3050818
Traffic Film Remover, 25 Litres Ready to Use
Part Number: 3050819
Car Wash & Wax Shampoo, 5 Litres
Part Number: 3050815
19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20
Loading...
