Page 1
WARNING: Read the instructions before using the machine.
POWER WASHER
MODEL NO: JET 9500B
PART NO: 7333521
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC0521
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Power Washer.
This pressure washer is designed for cleaning machines, vehicles, buildings,
boats, facades, terraces, gardening tools, etc. by means of a high-pressure
water jet (if necessary, with additional cleaning agents).
Only use accessories, replacement parts and cleaning agents recommended
by Clarke international.
Before attempting to use this product, please read this manual thoroughly.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY RULES
WARNING: WATER AT HIGH PRESSURE CAN BE DANGEROUS AND CAN
CAUSE DAMAGE IF THE OPERATOR IS CARELESS. NEVER ALLOW ANYONE
TO OPERATE THIS PRESSURE WASHER UNLESS THEY ARE FAMILIAR WITH THE
SAFETY PRECAUTIONS.
1. NEVER direct the spray towards any person or animal.
2. NEVER direct the spray towards electrical wiring or equipment.
3. NEVER hold your finger over the high pressure nozzle.
4. NEVER allow children or untrained personnel to use this machine.
5. NEVER operate the machine with any of the covers removed.
6. NEVER attempt any repairs to the washer. Always refer to your dealer.
7. NEVER supply any liquid other than water to the water inlet.
8. NEVER use the detergent bottle to introduce flammable liquids/solvents,
e.g. paint thinners, petrol, oil as there is a risk of explosion.
9. NEVER use the pressure washer if the supply cable or important parts of the
machine are damaged.
10. ALWAYS release any residual pressure in the system by turning off the water
supply & operating the trigger before disconnecting hoses or accessories.
11. ALWAYS keep the machine itself dry and well clear of water spray.
12. ALWAYS wear protective clothing and safety glasses. Loose particles and
other debris may be propelled at high speed by the water jet.
13. ALWAYS grip the gun firmly & expect the spray gun to ‘kick’ when starting.
14. ALWAYS respect the requirements of the local water company. Pressure
washers may only be connected to the mains drinking water supply, if a
system separator (aka a backflow preventer) is installed in the supply hose.
15. ALWAYS disconnect from the water supply, and ensure the system is
completely drained when not in use. Store in a cool dry location.
16. ONLY use chemical cleaning agents (detergents), that are approved for
pressure washers. CLARKE Traffic Film Remover or CLARKE Wash and Wax
(available from your dealer), is recommended.
17. WARNING: High pressure water jets can be dangerous if subject to misuse.
The jet must not be directed at a person or anything that they are wearing.
18. WARNING: High pressure hoses, fittings and couplings are important for the
safety of the machine. Use only hoses, fittings and couplings
recommended by the manufacturer.
19. WARNING: Water that has flowed through a system separator (known as a
backflow preventer) is considered non-drinkable.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

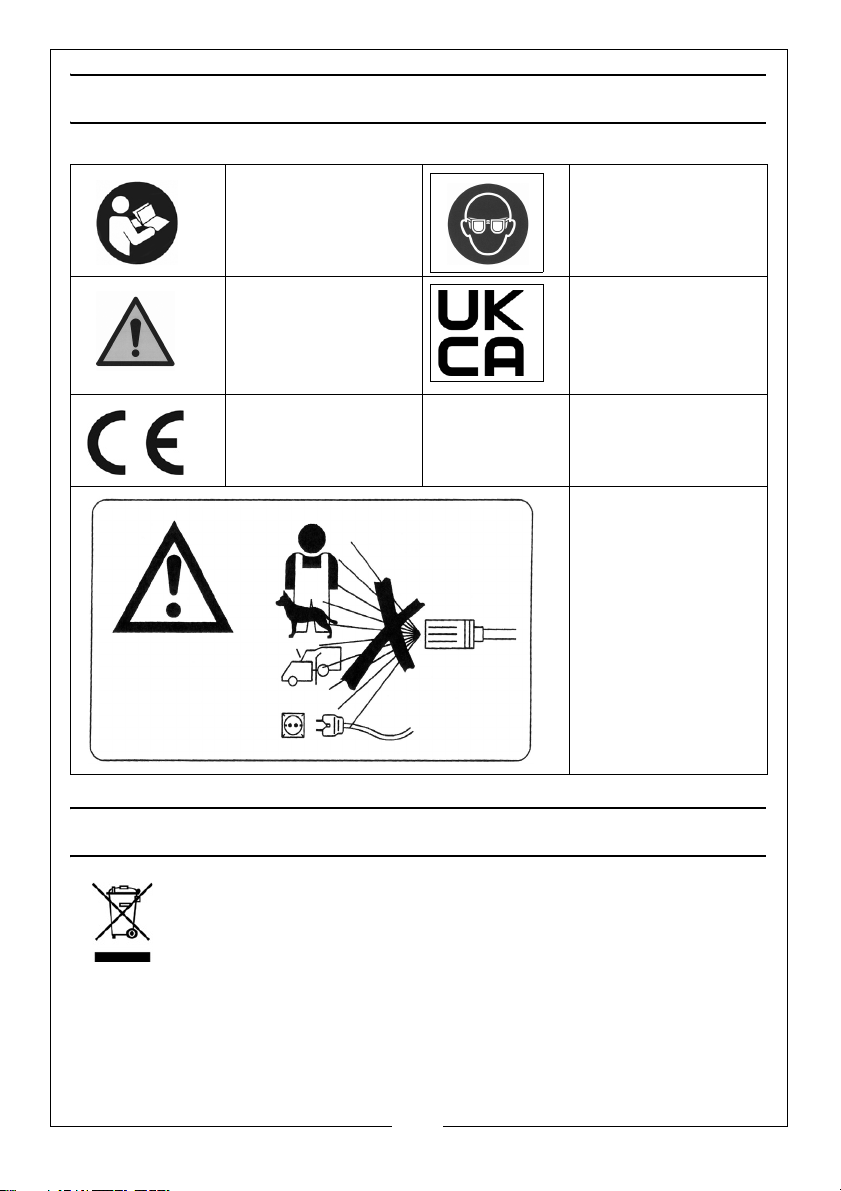

SYMBOLS ON THE MACHINE
Read the manual
before use.
Failing to follow
these instructions
could result in injury
or damage to the
machine.
Conforms to
European CE
Regulations.
Wear safety glasses
when using this
machine.
Conforms to UK
regulations
The high pressure jet
must not be directed
at persons, animals,
live electrical
equipment or at the
appliance itself.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

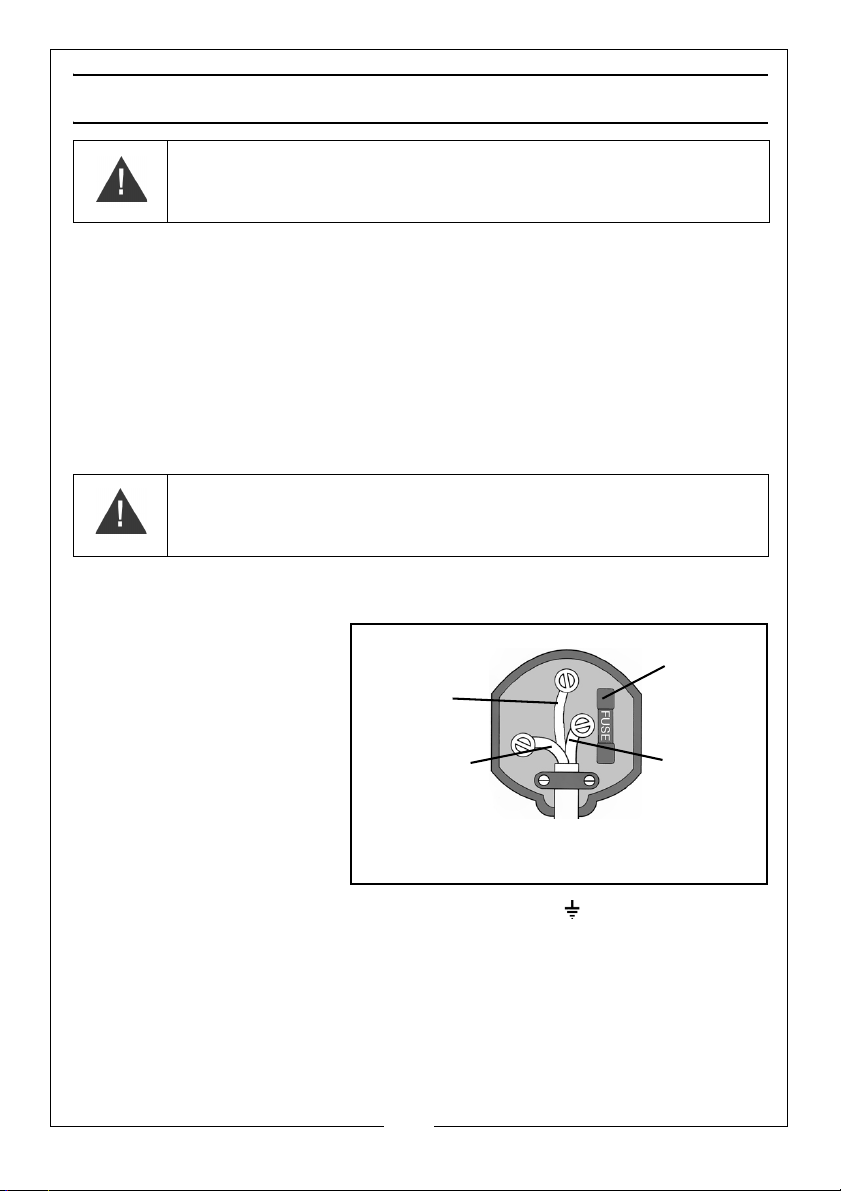

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
Earth
(Green and
a 13 Amp
the cable is firmly held by the clamp
fuse.
Yel low)
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
If the colours of the wires in the power cable do not agree with the markings
on the plug.
• The BLUE wire must be
connected to the
terminal which is
marked N or coloured
black.
• The BROWN wire must
be connected to the
terminal which is
marked L or coloured
red.
• The YELLOW AND
GREEN wire must be
connected to the terminal which is marked E or or coloured green.
We strongly recommend that this machine is connected to the mains supply
through a Residual Current Device (RCD)
If you are not sure, consult a qualified electrician. DO NOT try to do any
repairs.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
5
Page 6

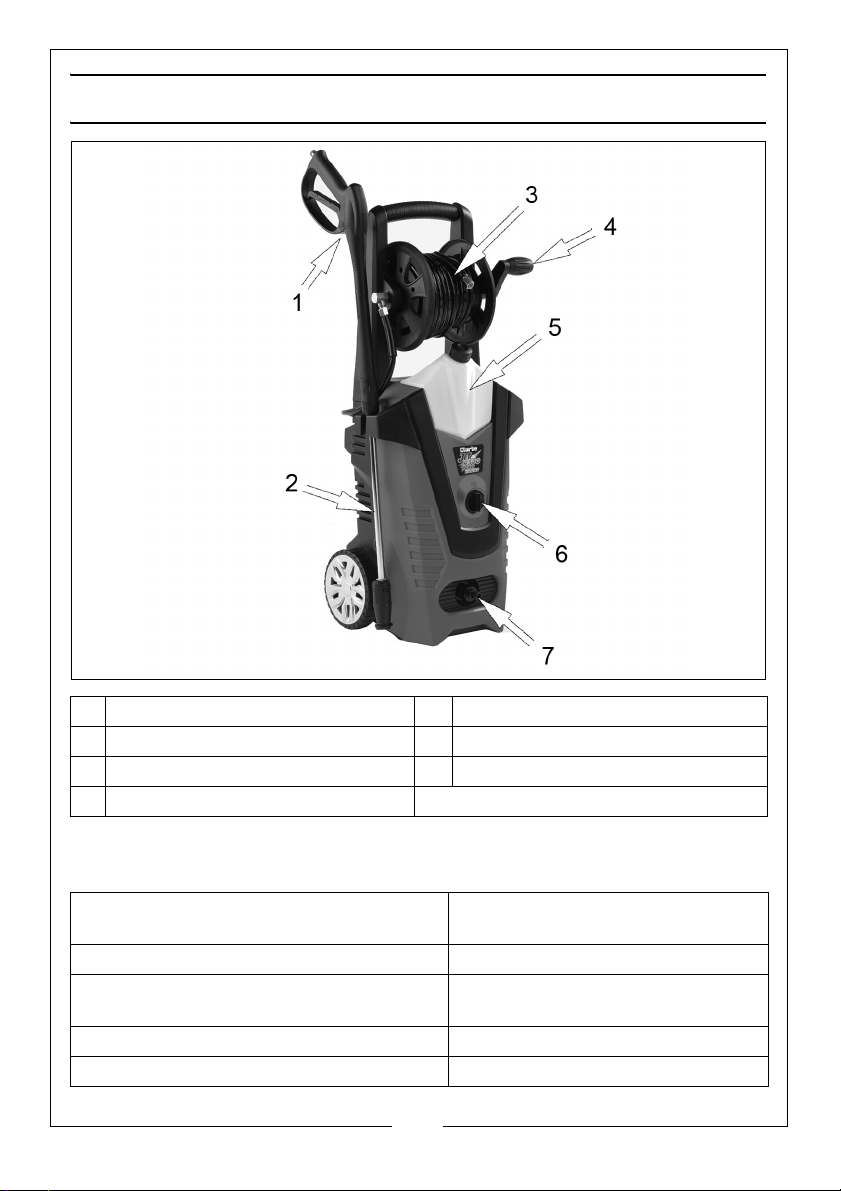

OVERVIEW
1 Spray Gun Assembly 5 Detergent Container
2 Lance 6 ON/OFF Switch
3 Hose 7 Mains Water Inlet
4 Reel Handle
The following items should be supplied in the carton. If any parts are missing or
damaged, please see your dealer where you purchased the machine.
1 x Pressure Washer (with integral
detergent tank)
1 x Gun Assembly 1 x Pair of Storage Brackets
1 x Lance & Nozzle assembly (with High/
Low & Pencil Jet/Fan settings)
1 x High Pressure outlet) hose (on reel) 1 x Manual (this document
1 x Inlet Hose Adaptor (fitted) 1 x Nozzle Cleaning Pin
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
1 x Inlet Filter (installed)
1 x Cranking Handle for Hose reel
6
Page 7

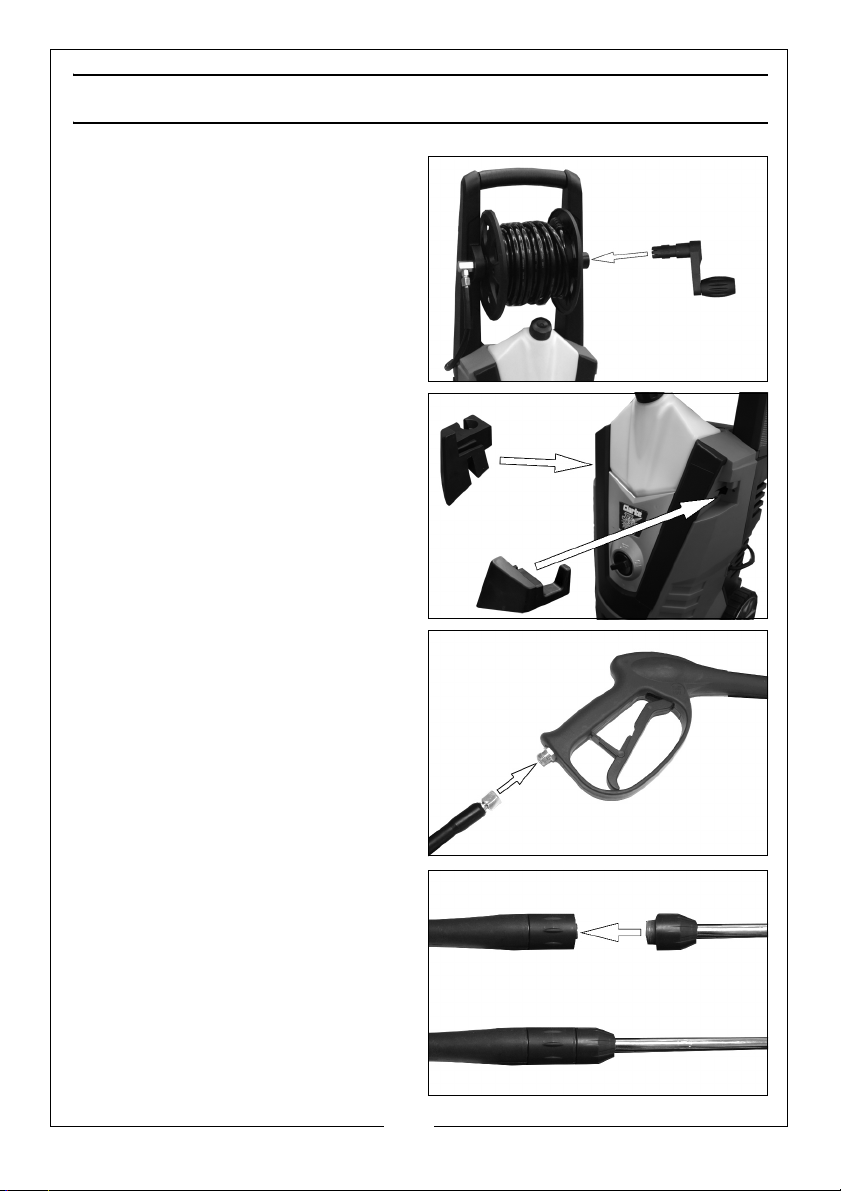

ASSEMBLY
1. Push the handle into the hose reel
as shown.
• It will ‘click’ into place.
2. Slide the brackets into their
positions.
• They will ‘click’ into place.
3. Unwind the high pressure hose
from the hose reel and connect
the hose to the gun.
• Tighten securely with a suitable
spanner.
4. Fit the lance to the gun as shown.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
CONNECTING THE MAINS WATER SUPPLY
NOTE: Always follow the regulations of your local water supplier.

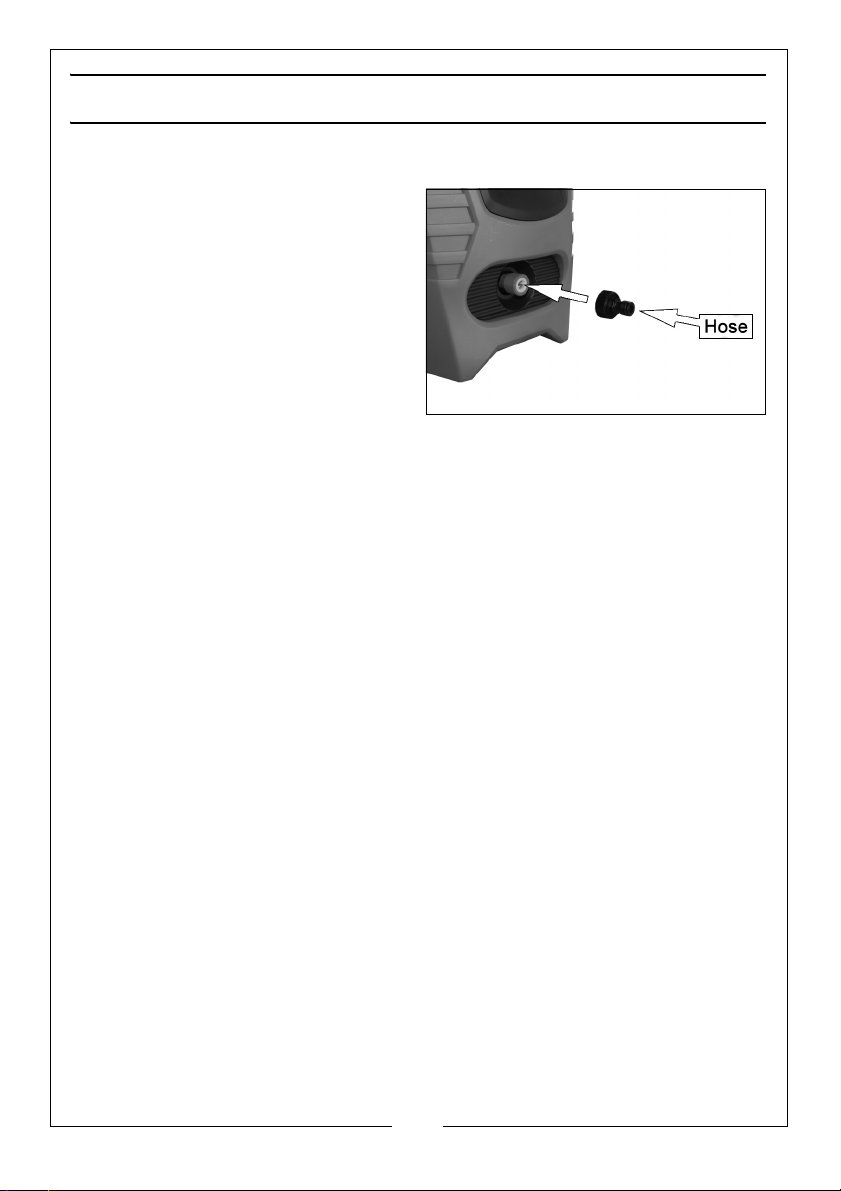

1. Screw the inlet adaptor to the
water inlet as shown.
2. Connect the supply hose to the
inlet adaptor.
• A standard garden hose or a
reinforced hose with an inner
diameter of at least 10 mm
available from your CLARKE
dealer will be suitable.
3. Connect the supply hose to the
water supply.
• The water supply must provide a minimum of 7 litres per minute at a
maximum of 40°C.
4. Open the water tap fully.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
OPERATION
1. Turn the water supply on, making sure that the tap is fully open.
WARNING: FAILURE TO TURN ON THE WATER FULLY COULD CAUSE
DAMAGE TO THE POWER WASHER INTERNAL COMPONENTS.
WARNING: DO NOT USE THE POWER WASHER IF THE SUPPLY CABLE OR
IMPORTANT PARTS OF THE MACHINE ARE DAMAGED, E.G. SAFETY
DEVICES, HIGH PRESSURE HOSES, TRIGGER.
WARNING: WE RECOMMEND THAT THIS MACHINE IS CONNECTED TO THE
MAINS SUPPLY VIA A RESIDUAL CURRENT DEVICE (RCD).

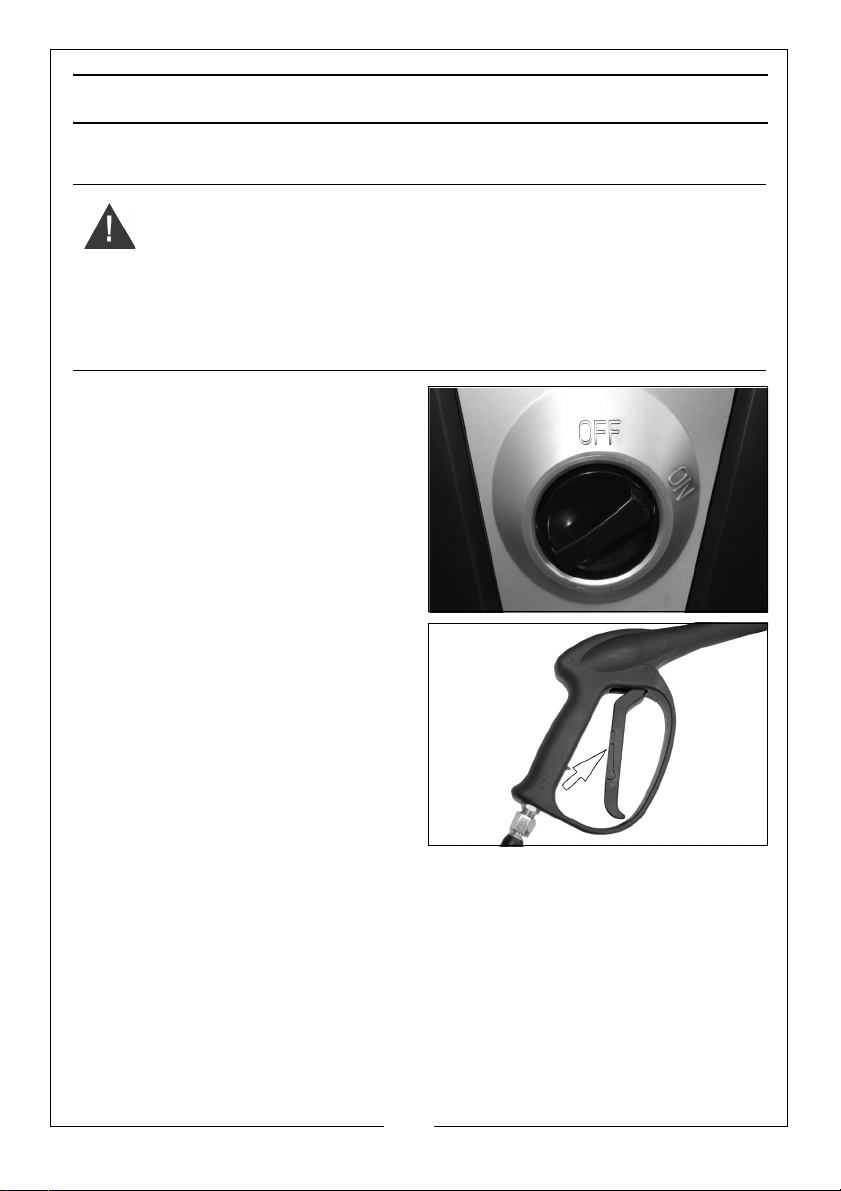

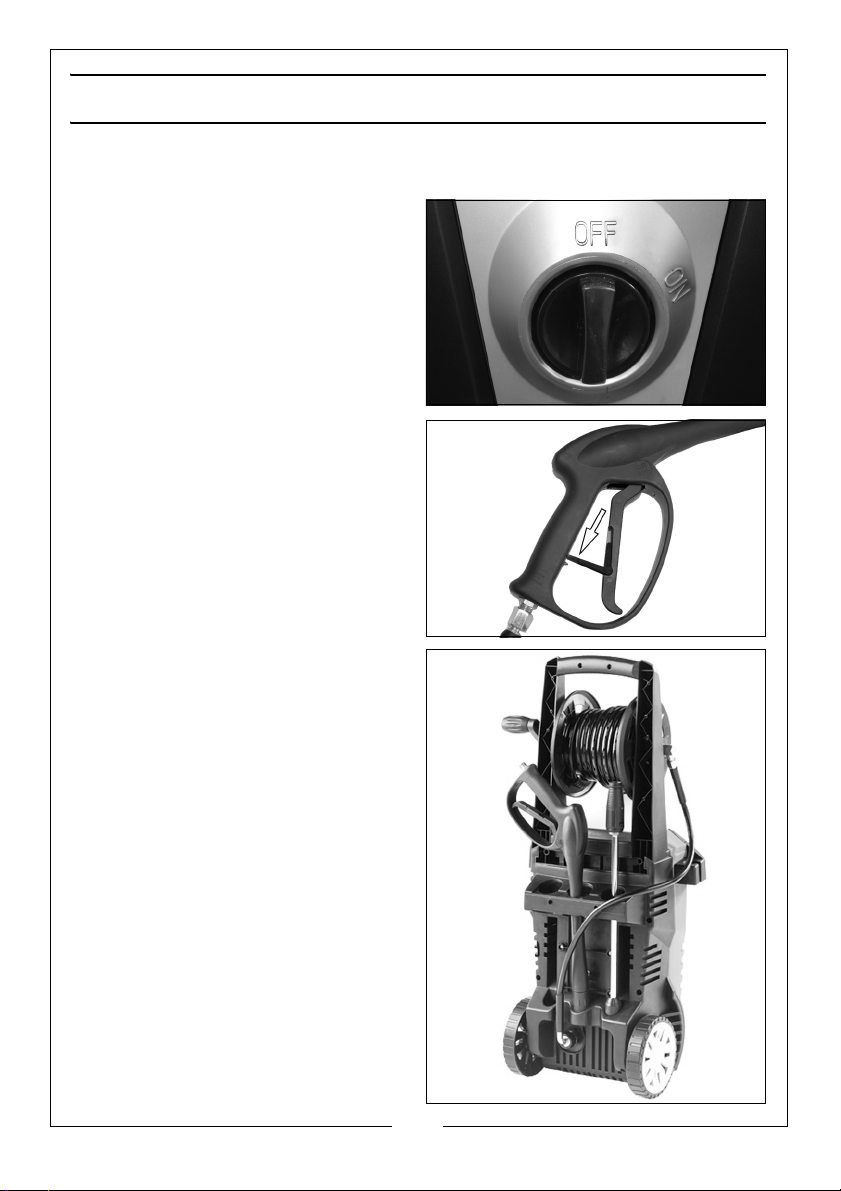

2. Plug the mains power cable into
the electricity supply.
3. Set the switch to the ON position.
4. Release the trigger lock.
• The pressure washer is now
ready for use.
5. Make sure that you have a firm
footing and are also holding the
gun and spray lance firmly.
• The lance and gun will kick
back when in use.
6. Pull the trigger on the gun to start
water flow.
• If you release the trigger the device will switch off again, the system
remains under high pressure.
• During longer breaks (more than 5 minutes), turn the pressure washer off.
See “Shutting Down” on page 12.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10

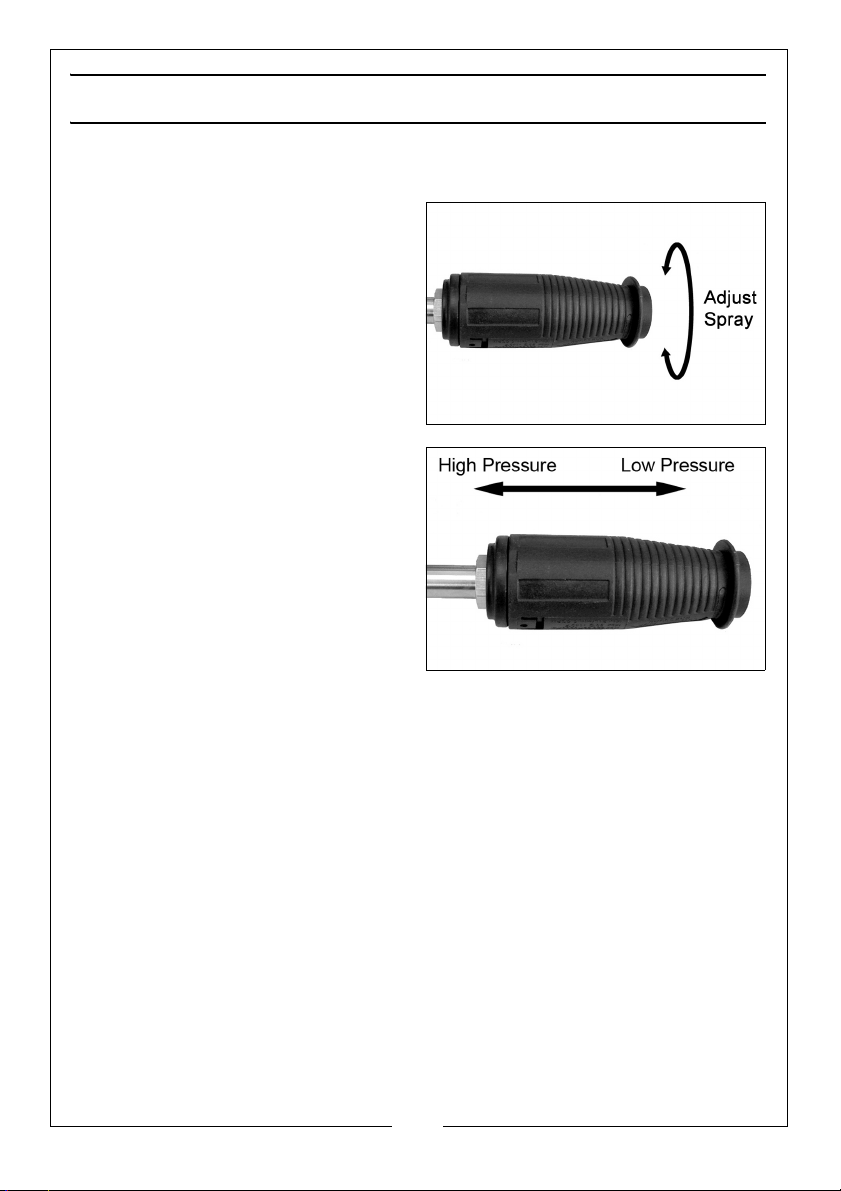

ADJUSTMENTS
TO CHANGE THE SPRAY PATTERN (NARROW JET / WIDE SPRAY)
1. Hold the shaft of the lance in one
hand.
2. Twist the nozzle with the other
hand.
3. To vary the spray between narrow
and wide, turn the nozzle counterclockwise through a half-a-turn
(180°).
ADJUSTING THE PRESSURE
Hold the rear of the nozzle and slide
the front of the nozzle forwards for
low pressure and backwards for high
pressure.
Other ways to adjust the pressure
include Increasing the distance you
are from the surface being cleaned
and adjusting the spray to a wider
angle (lowers the pressure).
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

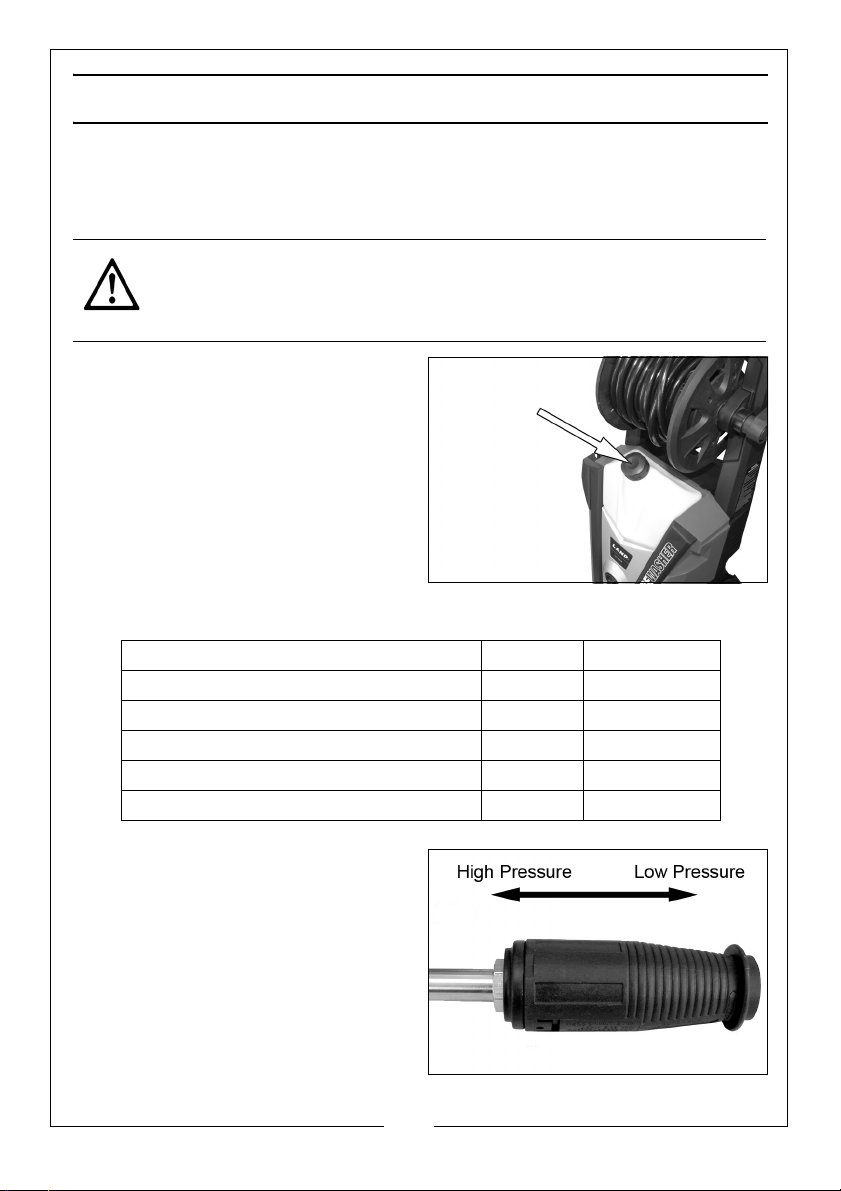

USING CHEMICALS AND CLEANING AGENTS
To improve the cleaning performance, you can introduce chemical cleaning
agents (detergents) to the water jet using the detergent tank. This is
particularly useful when washing cars, greasy engine parts, or removing oil
spots on concrete etc.
CAUTION: IF YOUR EYES COME INTO CONTACT WITH ANY CLEANING
FLUIDS, RINSE THEM IMMEDIATELY WITH PLENTY OF FRESH CLEAN WATER
AND SEEK MEDICAL ADVICE IF REQUIRED.
To prepare for detergent application:
1. Remove the detergent filler cap
and fill the tank with detergent.
• Only use detergents
recommended for use with
pressure washers such as
CLARKE Traffic Film Remover for
car cleaning, patio cleaning
etc., or CLARKE Wash & Wax,
both available from your
CLARKE dealer.
DESCRIPTION SIZE PART NUMBER
Car Wash & Wax Shampoo 5 Litre 3050815
Concentrated Traffic Film Remover 5 Litre 3050821
Concentrated Traffic Film Remover 25 Litre 3050820
Ready To Use Traffic Film Remover 5 Litre 3050818
Ready To Use Traffic Film Remover 25 Litre 3050819
2. Replace the cap.
3. Slide the nozzle forwards to low
pressure.
4. Use the pressure washer as
normal.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
SHUTTING DOWN
When you have finished using the pressure washer, follow the procedure
shown below to switch off and disconnect the unit.
1. Set the switch to the OFF position.
2. Turn off the water supply at the
tap.
3. Release the pressure in the pump
and hose by squeezing the trigger
for a few seconds until no more
water comes out of the nozzle.
4. Engage the trigger lock.
5. Disconnect from the mains power
supply.
6. Wind the hose onto the reel and
store the spray gun/lance in the
holder on the power washer.
STORAGE PROCEDURE
Make sure that the pressure washer
has been thoroughly cleaned before
storing it in a clean dry place. See
“Maintenance” on page 13.
Avoid storing the power washer at
freezing temperatures.
Residual water in the high pressure
pump of hose assembly may cause
permanent damage to the
components if it freezes.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13
MAINTENANCE
WARNING: THE MACHINE SHALL BE DISCONNECTED FROM THE POWER
SUPPLY BY REMOVING THE PLUG DURING CLEANING OR MAINTENANCE
AND WHEN REPLACING PARTS.

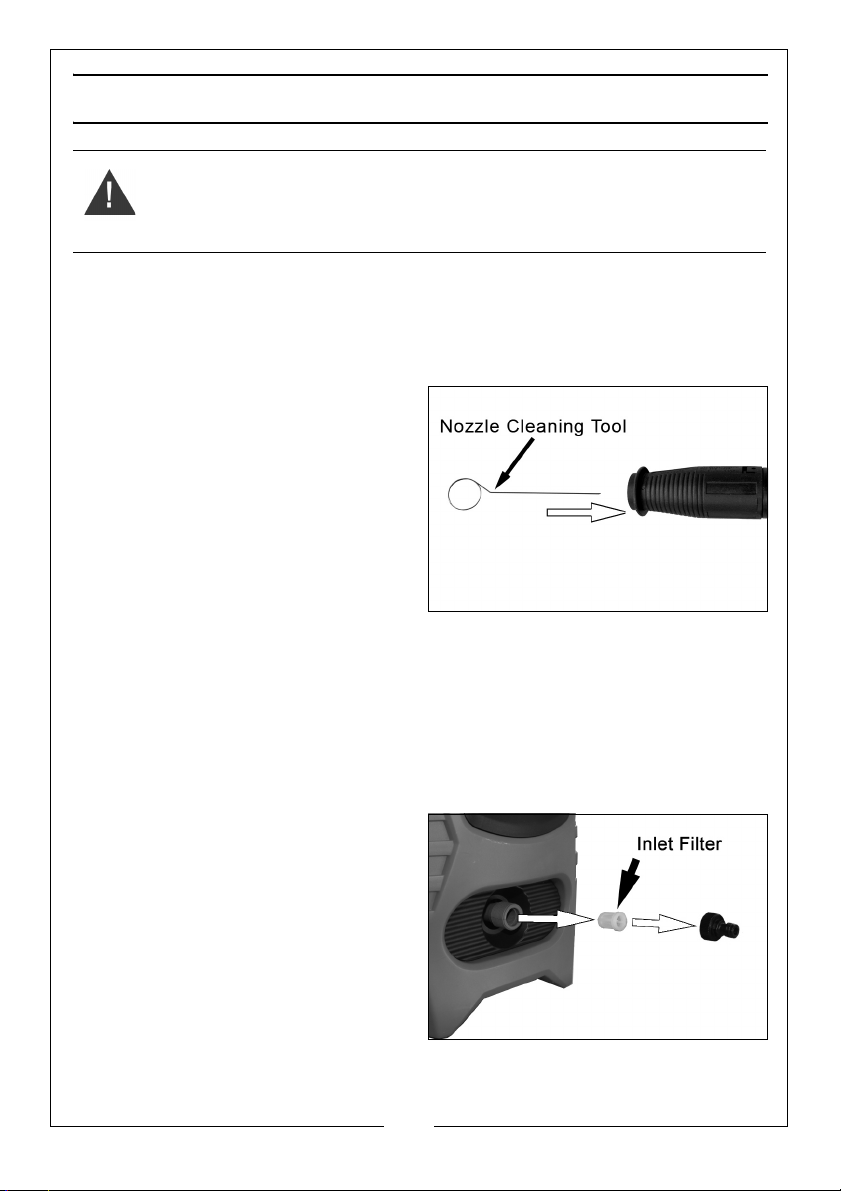

CLEANING THE NOZZLE
If the nozzle becomes partially clogged with foreign material such as dirt or
limescale, excessive pressure may develop and the pump pressure will
pulsate. Clean the nozzle immediately as follows:
1. Turn off the power washer and
turn off the water supply.
2. Pull the trigger to relieve any
water pressure.
3. Disconnect the lance from the
spray gun.
4. Remove any obstructions by
directing the water supply into the
end of the lance for 30 seconds to
back flush loose particles.
5. If flushing does not dislodge the obstruction, carefully use the nozzle
cleaning tool, to clear the nozzle.
6. Reconnect the lance to the gun and turn on the water supply.
CLEANING THE WATER INLET FILTER
This filter should be checked periodically and cleaned if necessary.
1. Remove the inlet filter from the
pressure washer as shown.
2. Clean the filter by flushing both
sides with water.
3. Replace the filter into the water
inlet.
• The tapered side faces in.
NOTE: Do not operate the pressure
washer without the filter
installed.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
No water
delivery.
Low or irregular
pressure.
Motor suddenly
stops.
Pressure
fluctuations or
pressure drop.
Motor does not
start when
switched on.
Motor hums
when trigger
operated and
does not start.
Motor cuts out. Motor protection switch
Additives are
not being
supplied.
Water filter blocked. See cleaning the water filter.
Clogged lance nozzle. Clean the nozzle.
Insufficient water supply. Check connections.
Pump taking in air. Check connections.
Detergent inlet sucking in
air.
Water filter dirty. Clean or replace.
Water temperature is too
high
Thermal protection has
activated due to
overheating.
Shortage of water. Turn water tap on fully.
No water due to
clogged inlet filter.
Plug is not connected
properly.
Mains fuse tripped/
blown.
Mains voltage too low. Have electrical connection
has been activated.
Nozzle partly clogged. Clean using the supplied nozzle
Detergent container is
empty.
High Pressure is selected. Set the lance to LOW pressure.
Check connections and that
detergent supply is topped up.
Make sure the water supply is
below 40 degrees.
Switch off the machine and wait
until the unit has cooled down
sufficiently.
Clean water inlet filter.
Check plug and lead and have
them replaced by a qualified
electrician if necessary.
Renew fuse or reset.
checked.
Switch off and allow to cool for at
least 15 minutes.
cleaning needle.
Fill detergent container.
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
PRODUCT SPECIFICATIONS
Model Number JET 9500B
Part Number 7333521
Voltage 230V/50Hz
Motor Input Power 2400 W
Duty Cycle S1 Continuous
Working pressure 130 bar
Maximum pump pressure 200 bar
Maximum output flow rate 7 l/min
Maximum input temperature
Detergent tank capacity 1.4 l
Sound Pressure Level (L
Sound Power level (L
Guaranteed sound power level (L
)91
PA
)93
WA
WA
Sound Uncertainty Factor K 3
Vibration
Uncertainty Factor K 1.7
Dimensions (L x W x H) 322 x 380 x 862 mm
Weight 21.6 kg
0
40
)96
2.7 m/s
C
2
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
Page 17

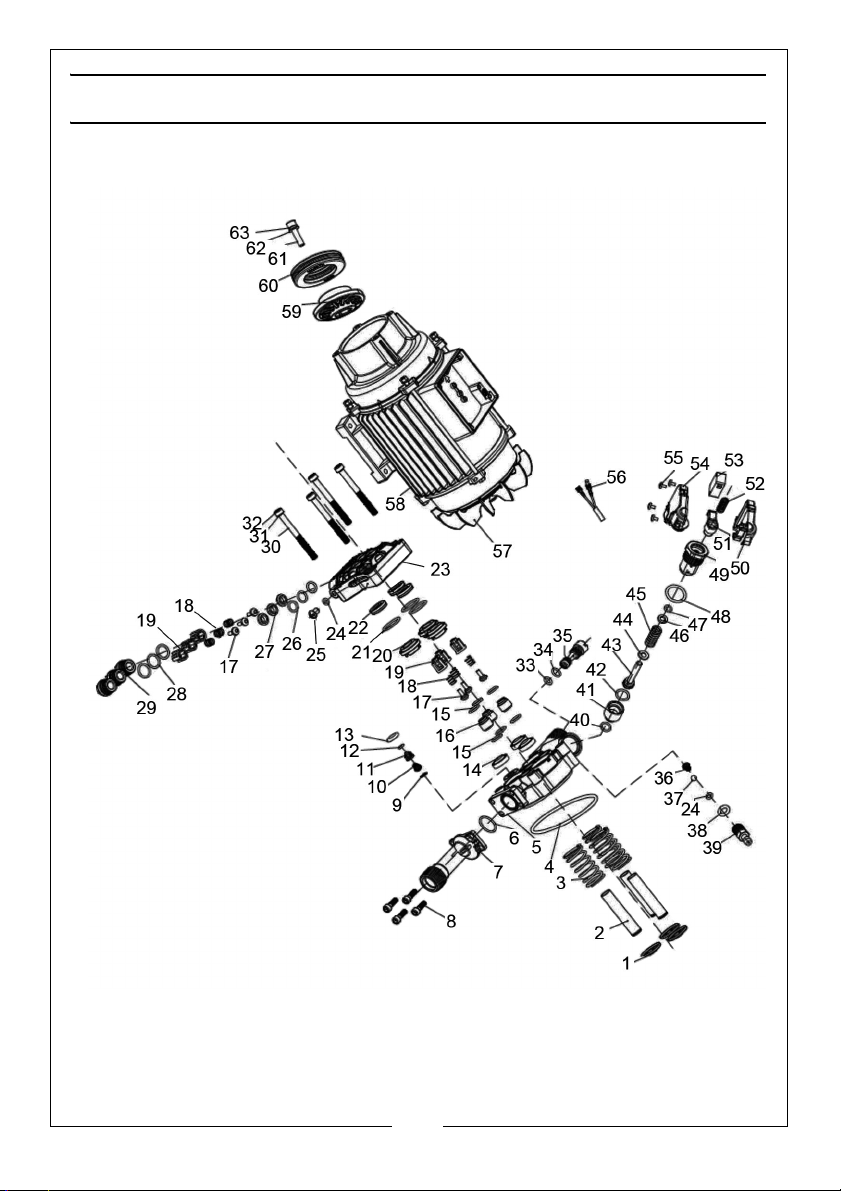

COMPONENT PARTS
No Description No Description
1 Plunger spring seat 33 O-ring
2 Plunger 34 O-ring
3 Plunger spring 35 Venturi tube
4 O-ring 36 Cone spring
5 Pump body 37 Ss ball
6 O-ring 38 O-ring
7 Water input tube 39 Siphon hose connector
8 Screw (inner hex) 40 O-ring
9 Check valve spring seat assy 41 Overflow valve sleeve
10 Check valve spring assy 42 O-ring
11 Check valve spring spool assy 43 Overflow valve spool
12 O-ring 44 Limit ring
13 O-ring 45 Overflow valve spring
14 Oil seal 46 Overflow valve washer
15 O-ring 47 O-ring
16 Water inlet check valve seat 48 O-ring
17 Check valve spool 49 Overflow valve nut
18 Check valve spring 50 Button-microswitch box
19 Check valve bracket 51 Microswitch bar
20 Plunger bracket 52 Spring-microswitch bar
21 O-ring 53 Microswitch
22 Water seal 54 Cover-microswitch box
23 Pump cover 55 Cross self-tapping screw
24 O-ring 56 Cable-microswitch
25 Screw 57 Fan
26 O-ring 58 Induction motor
27 Water outlet check valve seat 59 Wobble plate
28 O-ring 60 Bearing
29 Water outlet valve plug 61 Screw (inner hex)
30 Bolt (inner hex) 62 Flat washer
31 Flat washer 63 Spring washer
32 Spring washer
17
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 18
DECLARATION OF CONFORMITY-EU
18
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 19
DECLARATION OF CONFORMITY-UK
19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20
Loading...
