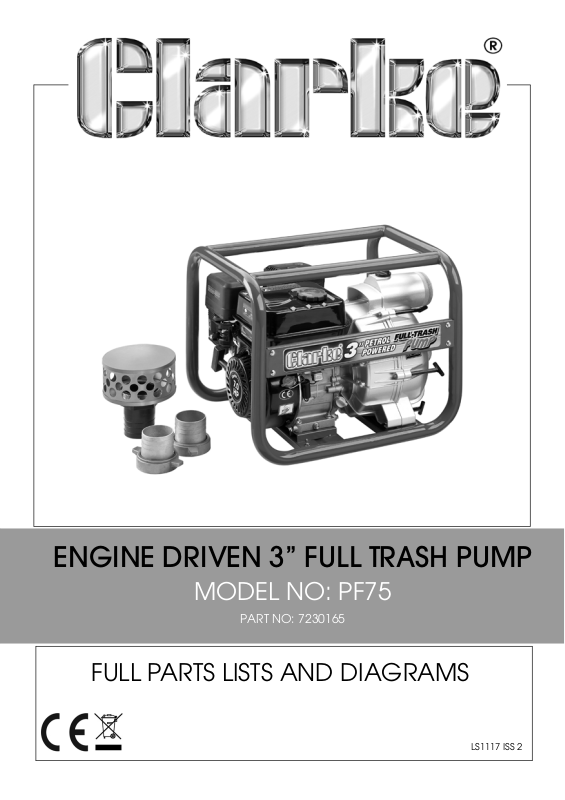

ENGINE DRIVEN 3” FULL TRASH PUMP
MODEL NO: PF75
PART NO: 7230165
FULL PARTS LISTS AND DIAGRAMS
LS1117 ISS 2
Page 2
EXPLODED DIAGRAMS AND PARTS LIST
FIG 1 - HEAD SUBASSEMBLY, CYLINDER / PLUG,SPARK
NUMBER DESCRIPTION PART NUMBER
4 GASKET, CYLINDER HEAD ZG12131Z530320
5 CYLINDER HEAD COVER SUBASSEMBLY ZG12410Z440210
6 CYLINDER HEAD COVER GASKET ZG12004Z440210
7 BREATHER TUBE, ZG17004Z440110
8 BOLT ZG90001061201
9 STUD ZG90204Z010310
10 STUD ZG90203Z010110
11 PIN ZG90502111400
12 CYLINDER HEAD BOLT, ZG12003Z010110
13 SPARK PLUG ZG30010Z010210
14 CYLINDER HEAD SUBASSEMBLY ZG12140Z440420
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
FIG 2 - CRANKCASE. / GEAR ASSEMBLY, GOVERNOR
NUMBER DESCRIPTION PART NUMBER
1 CRANKCASE SUBASSEMBLY ZG11310Z530410
2 ENGINE OIL SENSOR ZG37060Z010110
3 GOVERNOR GEAR ASSEMBLY ZG16400Z010110
7 GOVERNOR ARM ZG16061Z010110
8 DRAIN PLUG BOLT ZG11007Z010110
9 WASHER ZG90408Z010110
12 BEARING ZG905470205CL
13 OIL SEAL ZG90682Z300110
16 WASHER ZG90408Z010210
17 PIN ZG90501Z010110
18 BOLT ZG90001061401
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
FIG 3 - COVER SUBASSEMBLY, CRANKCASE
NUMBER DESCRIPTION PART NUMBER
1 CRANKCASE COVER ZG11411Z440210
2 BEARING ZG905470205CL
3 OIL SEA ZG90682Z300110
4 CRANKCASE GASKET ZG11001Z440110
5 PIN ZG90502081200
6 OIL DIPSTICK SUBASSEMBLY ZG15010Z010120
8 ENGINE OIL PLUG SUBASSEMBLY ZG15030Z010120
9 BOLT ZG90001083201
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
FIG 4 - VALVE TRAIN / CAMSHAFT SUBASSEMBLY
NUMBER DESCRIPTION PART NUMBER
1 CAMSHAFT ASSEMBLY ZG14200Z530110
3 EXHAUST VALVE ZG12121Z010120
4 INTAKE VALVE ZG12111Z010110
5 VALVE SPRING SEAT ZG12112Z010110
6 EXHAUST VALVE RETAINER ZG12107Z010110
7 VALVE R0TATOR ZG12104Z010110
8 SEAL GUIDE ZG12101Z020110
9 VALVE TAPPET ZG14081Z040110
10 VALVE LIFTER ZG14071Z440110
11 LIFTER STOPPER PLATE SUBASSEMBLY ZG14090Z010110
12 VALVE ADJUSTING BOLT ZG14313Z010110
13 VALVE ROCKER ZG14311Z010110
14 VALVE ADJUSTING NUT ZG14314Z010110
15 VALVE LOCK NUT ZG14312Z010110
16 SPRING, VALVE ZG12103Z010110
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
FIG 5 - OIL RING SET / CRANKSHAFT CONNETING ROD
NUMBER DESCRIPTION PART NUMBER
1 PISTON PIN CLIP ZG13122Z010110
2 PISTON ZG13111Z140220
3 PISTON PIN ZG13121Z010110
4 CONNECTING ROD ZG13010Z440210
6 THE FIRST RING ZG13201Z140210
7 THE SECOND RING ZG13202Z140210
8 OIL RING SET ZG13210Z140220
FIG 6 - CRANKSHAFT CONNETING ROD
NUMBER DESCRIPTION PART NUMBER
1 CRANKSHAFT ASSEMBLY ZG13300Z530210
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
FIG 7 - RECOIL STARTER
NUMBER DESCRIPTION PART NUMBER
1 RECOIL STARTER ASSEMBLY ZG28200Z440110
2 BOLT ZG90001060803
3 RECOIL STARTER REEL END CAP ZG90722Z300110
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
FIG 8 - SHROUD / LOWER SHIELD
NUMBER DESCRIPTION PART NUMBER
1 SHROUD ZG28110Z010410
2 CYLINDER BODY SHROUD ZG19304Z010110
3 LOWER SHIELD ZG19340Z010120
4 OIL PROTECTOR ZG37050Z010210
5 SWITCH SUBASSEMBLY, STOP ENGINE ZG35540Z060120
6 BOLT ZG90001061001
7 BOLT ZG90001061001
8 COLLAR ZG90740Z010110
9 BOLT ZG90001061601
10 BOLT ZG90001061201
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
FIG 9 - CARBURETOR ASSEMBLY
NUMBER DESCRIPTION PART NUMBER
1 CARBURETOR ASSEMBLY ZG16100Z530410
2 AIR CLEANER GASKET ZG17001Z010210
3 CARBURETOR GASKET ZG16001Z010110
4 CARBURETOR INSULATOR PLATE ZG16003Z010110
5 CARBURETOR INSULATOR GASKET ZG16002Z050110
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
FIG 10 - AIR CLEANER
NUMBER DESCRIPTION PART NUMBER
1 NUT ZG903050600
2 AIR CLEANER ZG17100Z440220
FIG 11 - FLYWHEEL / IMPELLER / STARTER PULLEY / IGNITION COIL
NUMBER DESCRIPTION PART NUMBER
1 FLYWHEEL NUT ZG13501Z010110
2 STARTER PULLEY ZG28002Z260210
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
3 IMPELLER ZG19352Z440110
4 FLYWHEEL SUBASSEMBLY ZG13510Z440110
7 BOLT ZG90001062501
9 IGNITION COIL ZG30400Z300110
FIG 12 - MUFFLER ASSEMBLY
NUMBER DESCRIPTION PART NUMBER
1 EXHAUST OUTLET GASKET, ZG18001Z440110
2 NUT ZG90303080031
3 MUFFLER ASSEMBLY ZG18100Z442310H699
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
FIG 13 - FUEL TANK ASSEMBLY
NUMBER DESCRIPTION PART NUMBER
1 FUEL TANK ZG16620Z440510
2 FUEL STRAINER ZG16652Z010710
3 FUEL TANK COVER ZG16730Z440320
4 FUEL TANK OIL OUTLET SUBASSEMBLY ZG16680Z010110
5 CLAMP ZG90685Z030220
6 FUEL TUBE ZG90686Z010710
7 BOLT ZG90001063001
8 NUT ZG90305060031
9 RUBBER JACKET ZG30431Z010110
10 ZG16804Z440210
11 CLAMP ZG90685Z030410
12 ZG15150Z010510
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13
FIG 14 - THROTTLE CONTROL ASSEMBLY
NUMBER DESCRIPTION PART NUMBER
1 THROTTLE CONTROL ASSEMBLY ZG16520Z010420
11 BOLT ZG90001061001
12 GOVERNOR SPRING ZG16063Z050120
13 GOVERNEOR ROD ZG16062Z010110
14 THROTTLE VALVE RETURNING
ZG16012Z010110
SPRING
15 GOVERNOR SUPPORT BOLT, ZG16072Z010110
16 NUT ZG90305060031
17 GOVERNOR SUPPORT
16070-Z010110-GMQGZ80-45-30
SUBASSEMBLY
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
FIG 15 - WATER PUMP ASSEMBLY
NUMBER DESCRIPTION PART NUMBER
1 HOSE HOOP ASSEMBLY ZGGMQGZ804530F6801
2 FILTER COVER ZGGMQGZ804530F6802
3 FILTER ZGGMQGZ804530F6803
4 BOLT ZGGMQGZ804530F6804
5 WASHER ZGGMQGZ804530F6805
6 WASHER ZGGMQGZ804530F6806
7 SCREW RING RETAINING ZGPF75F6807
8 HOSE SEAL ZGPF75F6808
9 HOSE SPIGOT 3" ZGPF75F6809
10 WATER INLET ZGGMQGZ804530F6810
11 INLET WATER GASKET ZGGMQGZ804530F6811
12 THREAD PLUG ZGGMQGZ804530F6812
13 SCREW PLUG WASHER ZGGMQGZ804530F6813
14 WATER OUTLET ZGGMQGZ804530F6814
15 OUTLET GASKET ZGGMQGZ804530F6815
16 PUMP BODY ZGGMQGZ804530F6816
17 WHORL CASE SEALING RING ZGGMQGZ804530F6817
18 WHORL CASE ZGGMQGZ804530F6818
19 BOLT ZGGMQGZ804530F6819
20 WASHER ZGGMQGZ804530F6820
21 WATER PUMP IMPELLER ZGGMQGZ804530F6821
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
22 KEY ZGGMQGZ804530F6822
23 WATER PUMP JOINT CUSHION ZGGMQGZ804530F6823
24 IMPELLER SEAL ZGGMQGZ804530F6824
25 PORCELAIN SEAL ZGGMQGZ804530F6825
26 MECHANISM SEAL ASSEMBLY ZGGMQGZ804530F6826
27 WATER PUMP JOINT ZGGMQGZ804530F6827
28 WASHER ZGGMQGZ804530F6828
29 BOLT ZGGMQGZ804530F6829
30 WATER PUMP ASSEMBLY ZGGMQGZ804530F6830
FIG 16 - ENGINE FRAME ASSEMBLY
NUMBER DESCRIPTION PART NUMBER
1 ENGINE FRAME ASSEMBLY ZG51100V010110H700
2 DECORATIVE FRAME ZG210GM720423-0002
3 ENGINE FRAME SHOCK
ZG51014HY450110GMQGZ804525
ABSORPTION SEAT
4 BOLT ZG90001061201
5 BOLT ZG90001085001
6 NUT ZG90305060031
7 NUT ZG90327080031
15
