Page 1
PARAFFIN/DIESEL HEATER
MODEL NO: XR60
PART NO: 6931002
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
DL0422 - ISS 6
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully..
This is a forced air unit, where a fan pushes the air through the heater body. Proper combustion depends upon this air flow; therefore, the heater must not be, modified or operated with parts removed or missing. Likewise, safety systems must not be circumvented or modified in order to operate the heater.
FUNCTION AND OPERATING PARAMETERS
This is a multi-fuel (Diesel or Paraffin), forced air heater. It’s intended use is for drying and the warming of commercial/industrial buildings where adequate ventilation is provided.
• It must be operated as prescribed in the operating manual.
• Is not intended to be used for domestic use or for the heating of habitable areas.
• Is not intended to be used to reach and maintain a certain level of human thermal comfort within an enclosed space in which the heater is situated.
• Is not intended to be used in enclosed areas with restricted ventilation.
• Is not for use in areas with high levels of fluctuating drafts.
• The heater must be placed on flat level
operation.
• Is not intended for warming animals or live stock.
non combustible surface during
SAFETY SYMBOLS
The following symbols appear on the heater.
Hot Surface, do not touch
2
High Voltage
Page 3
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
SAFETY WARNINGS
Your safety is important to you and to others, so please read these instructions before you operate this heater.
1. Failure to comply with the precautions and instructions provided with this heater can result in death, serious bodily injury and property loss or damage from the hazards of fire, explosion, burns, asphyxiation, carbon monoxide poisoning, and/or electric shock.
2. Only persons who understand and follow the instructions should use or service this heater.
3. When used, the heater should rest on a suitable insulating material at least 1” thick and extending 3 feet or more beyond the heater in all directions
4. Not for home or recreational vehicle use.
5. Do not use petrol or volatile fuels.
6. Disconnect the heater from the power supply before adding fuel.
7. Always re-fuel outdoors away from any open flame or other sources of ignition.
8. Do not use an external fuel source.
9. Do not use the heater where flammable liquids or vapours may be present.
10. Do not start the heater when the combustion chamber is hot.
11. Plug the electrical cable into a properly grounded mains socket.
12. Do not leave the heater unattended when in use.
13. Do not start or use the heater if there is unburnt fuel in the combustion chamber.
14. The heater must be placed on flat level operation.
non combustible surface during
3
Page 4
GENERAL PRECAUTIONS
VENTILATION
Even though this heater operates very close to 100 percent combustion efficiency, it still produces small amounts of carbon monoxide.
Carbon monoxide (CO) is toxic.
CO can build up in a confined spaces and failure to provide adequate ventilation can be fatal.
The early symptoms of asphyxiation caused by inadequate ventilation are:
•headache •nausea
•dizziness •dry mouth or sore throat
Be sure to follow all warnings in this manual.
WE RECOMMEND THE USE OF A CARBON MONOXIDE DETECTOR
BYSTANDERS
When the heater is to be operated in the presence of other people the user is responsible for informing those present of the safety precautions and of the hazards involved.
4
Page 5

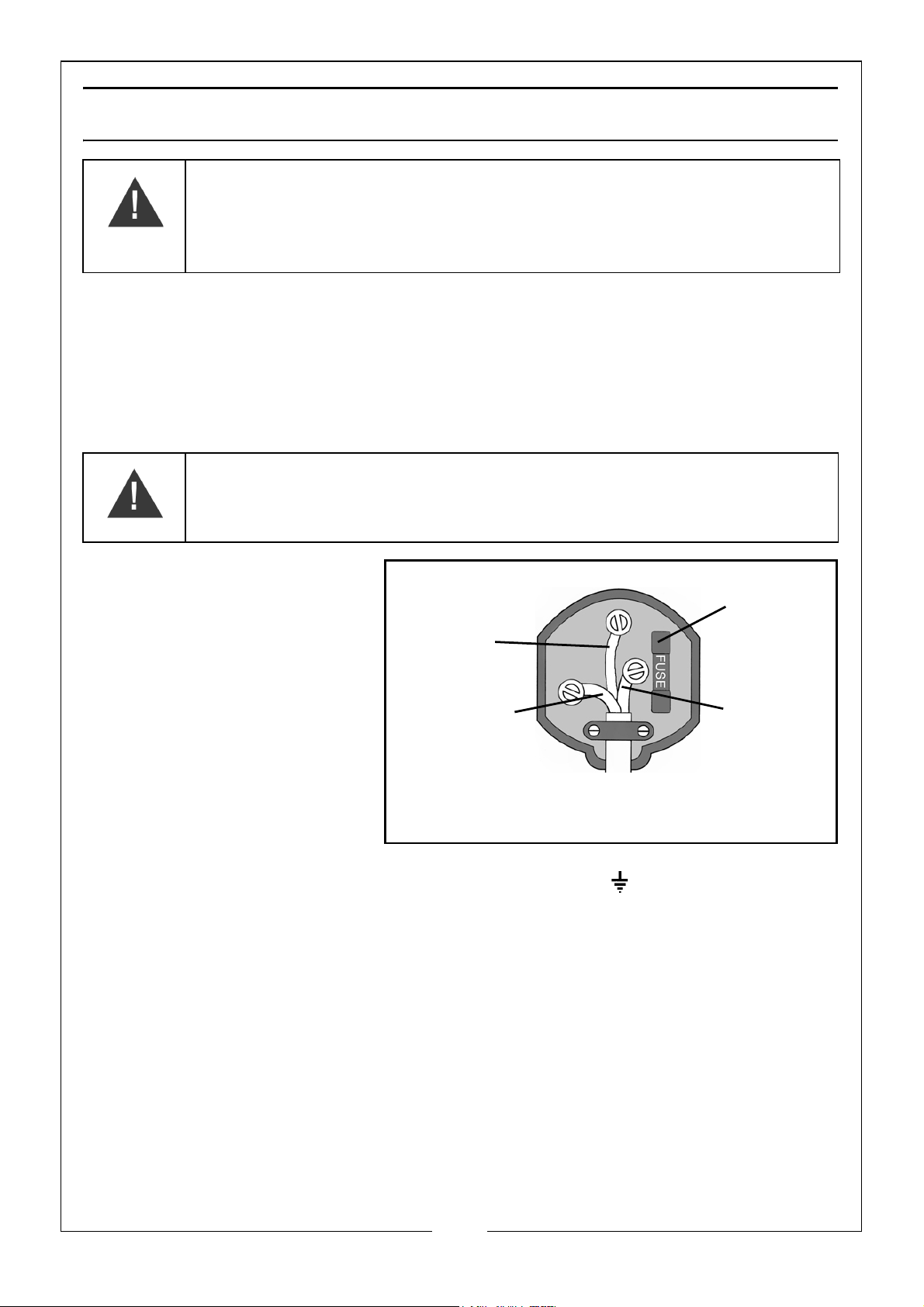

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
Earth
(Green and
a 13 Amp
the cable is firmly held by the clamp
fuse.
Yellow)
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved BS1363/A plug fitted with a BS1362 13 amp fuse.
If the plug has to be changed because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. The old plug must be discarded safely, as insertion into a power socket could cause an electrical hazard.
WARNING: WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: GREEN/YELLOW = EARTH, BLUE = NEUTRAL, BROWN = LIVE.
• The BLUE wire must be
connected to the terminal which is marked N or coloured black.
We strongly recommend that this machine is connected to the mains supply through a Residual Current Device (RCD)
If you are not sure, consult a qualified electrician. DO NOT try to do any repairs.
•The BROWN wire must
be connected to the terminal which is marked L or coloured red.
• The YELLOW AND
GREEN wire must be connected to the terminal which is marked E or or coloured green.
5
Page 6
SAFETY PRECAUTIONS
1. Check the heater thoroughly for damage. Never operate a damaged heater.
2. This heater is for indoor use only.
3. Use in well ventilated spaces and provide at least 2 sq. ft. (0.19 sq.m.) of air opening near the floor and 2 sq. ft. (0.19 sq. m.) near the ceiling directly to outdoors. Increase air openings for each additional heater.
4. Always keep combustibles, like paper and wood at least 8 ft. (2.4 m) from the front of the heater and 3 ft. (1 m) from the top, sides and rear.
5. Locate the heater10 ft. (3 m) from canvas or plastic coverings and secure them to prevent movement.
CAUTION: DUE TO THE HIGH SURFACE AND EXHAUST TEMPERATURES, ADULTS AND CHILDREN MUST KEEP CLEAR OF THE UNIT TO AVOID BURNS OR CLOTHING IGNITION.
6. Make sure that the heater is not directly exposed to rain or water spray.
7. Never use in living spaces and/or where children may be present.
8. Only operate on a stable, flat level surface.
9. Do not use with ductwork. Do not restrict air inlet or exit.
10. Do not move or service the heater while hot or in operation.
11. Use only in accordance with local regulations and relevant building codes.
12. The heater is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
13. If the supply cable is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
6
Page 7
PREPARATION
UNPACKING
1. Remove heater from carton.
2. Remove all protective material which may have been applied to the heater for shipment.
FUELS
Diesel or paraffin are the only fuels that should be used in this heater.
FILLING THE FUEL TANK
IMPORTANT: Before filling the fuel tank the first time or after extended storage periods, drain the fuel tank of any moisture or condensation.
1. Follow all of the “Safety Precautions”.

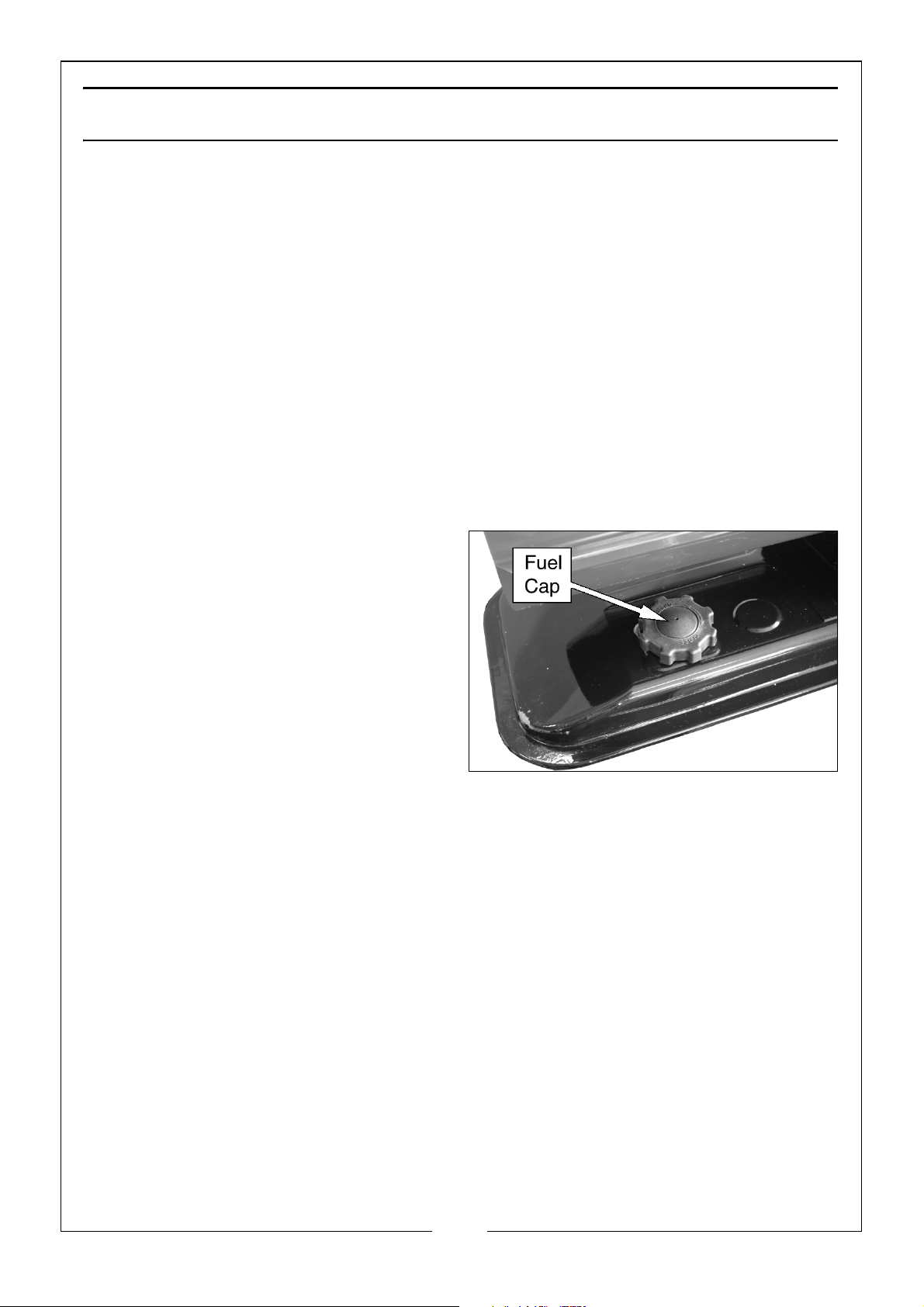

2. Remove the fuel cap.
NOTE: If you lose the fuel cap a
replacement must be obtained before use, this is available from your local Clarke service department part number GF0K070000.
3. Fill the fuel tank with clean diesel or paraffin.
• In cold weather, condensation
may develop in the tank if the tank is empty and it is recommended that a tablespoon of de-icer be added for each gallon of fuel in the tank.
• When filling the heater, make sure that the heater is level and do not
overfill. Use a funnel or can with a long fill spout.
• Fill with a minimum of 5 litres of fuel.
LOCATION
• Locate heater at a safe distance from combustible materials.
• This heater must not be placed on wooden floors or other combustible
materials.
• When used, the heater should rest on suitable insulating material at least
1 inch thick and extending 3 ft. or more beyond the heater in all directions?
• Only operate on a flat level and stable surface.
7
Page 8

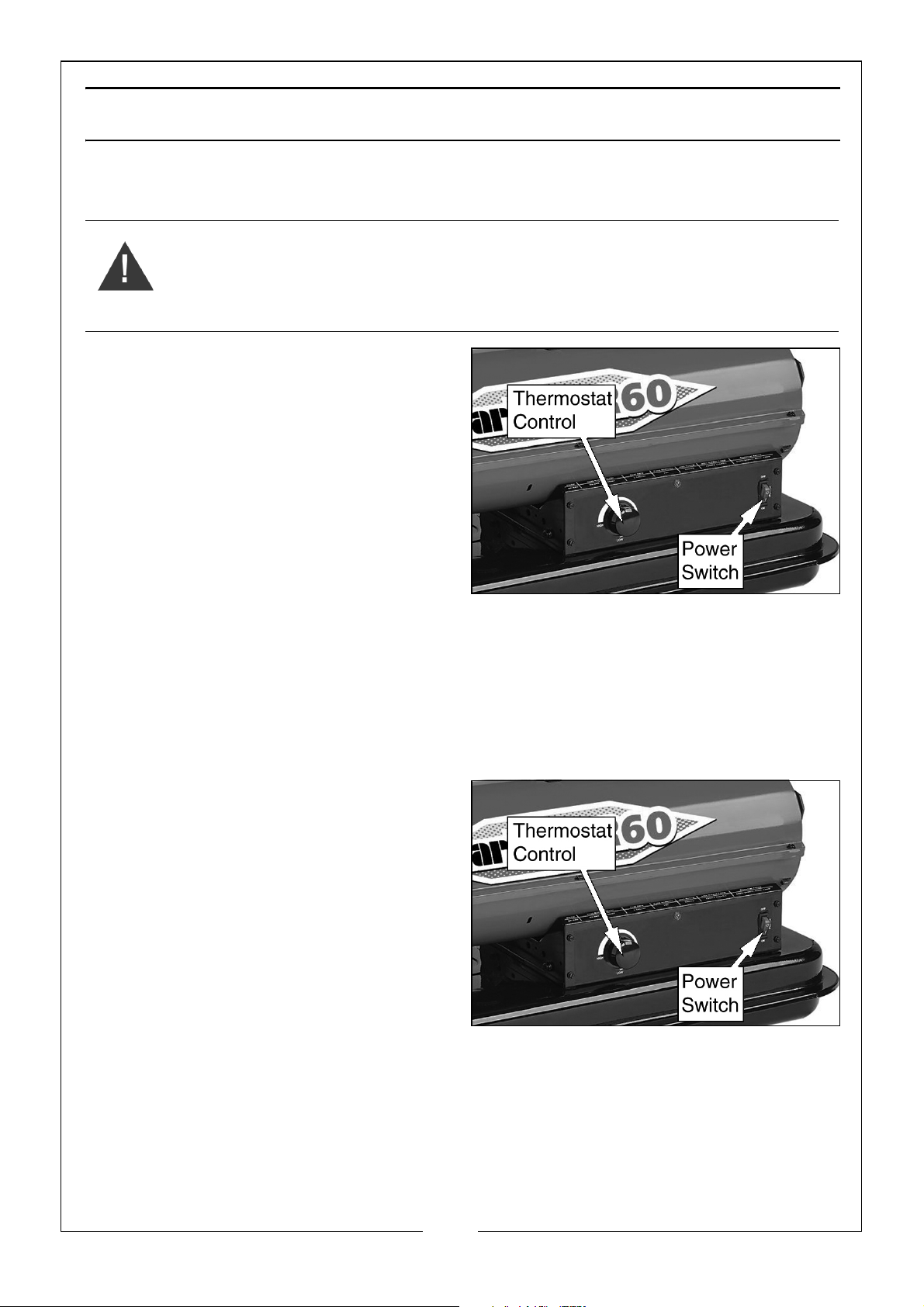

OPERATING INSTRUCTIONS
HEATER START UP
WARNING: DO NOT START HEATER WHEN EXCESS FUEL HAS ACCUMULATED IN THE COMBUSTION CHAMBER.
1. Make sure power switch is in the OFF position.
2. Turn thermostat to lowest setting.
3. Plug the heater into the mains power supply.
4. Turn the thermostat to highest setting.
5. Start heater by setting the power switch to the ON position.
• The switch illuminates in the ON position.
6. Adjust thermostat to desired setting.
NOTE: Heater will cycle on/off to maintain an even temperature.
HEATER SHUT DOWN
1. Set the power switch to the OFF position.
2. For extended shutdown, unplug the heater from the mains supply.
BEFORE STORAGE
• Clean the heater as described
in the MAINTENANCE section.
• We recommend completely
filling the tank with fuel for extended storage to minimize condensation inside the tank.
8
Page 9
MAINTENANCE, STORAGE AND SERVICING
WARNING: TO PREVENT PERSONAL INJURY, UNPLUG THE HEATER FROM THE MAINS SUPPLY BEFORE SERVICING.
DAILY SCHEDULE
GENERAL
1. Make a general visual inspection of the heater for loose or damaged parts.
2. Check nuts and bolts are secure.
3. Damaged parts should be repaired or replaced before using the heater again.
4. Check heater operation to be sure it is operating normally as follows:
• The flame is contained within the heater.
• The flame is essentially yellow.
• There is no strong disagreeable odor, eye burning or other physical
discomfort.
• There is no smoke or soot internal or external to the heater.
• There are no unplanned or unexplained shut downs of the heater
REMOVE DUST
Clean the heater twice a season (more often under dusty conditions).
1. Remove accumulated dust from the transformer, burner, motor and fan blades with compressed air.
2. Wipe clean with a clean dry cloth.
FUEL TANK (EVERY 500 HOURS)
Clean twice a season (during frequently used periods, clean twice a month). Drain and flush the fuel tank with clean fuel oil.
9
Page 10
FILTERS
Dirty air filters will cause an imbalance in the air-fuel mixture. The best indication that this condition exists is an increase in odour or difficulty getting your heater to ignite. This heater should never be operated without the filters in place. If required, clean the filters as follows.

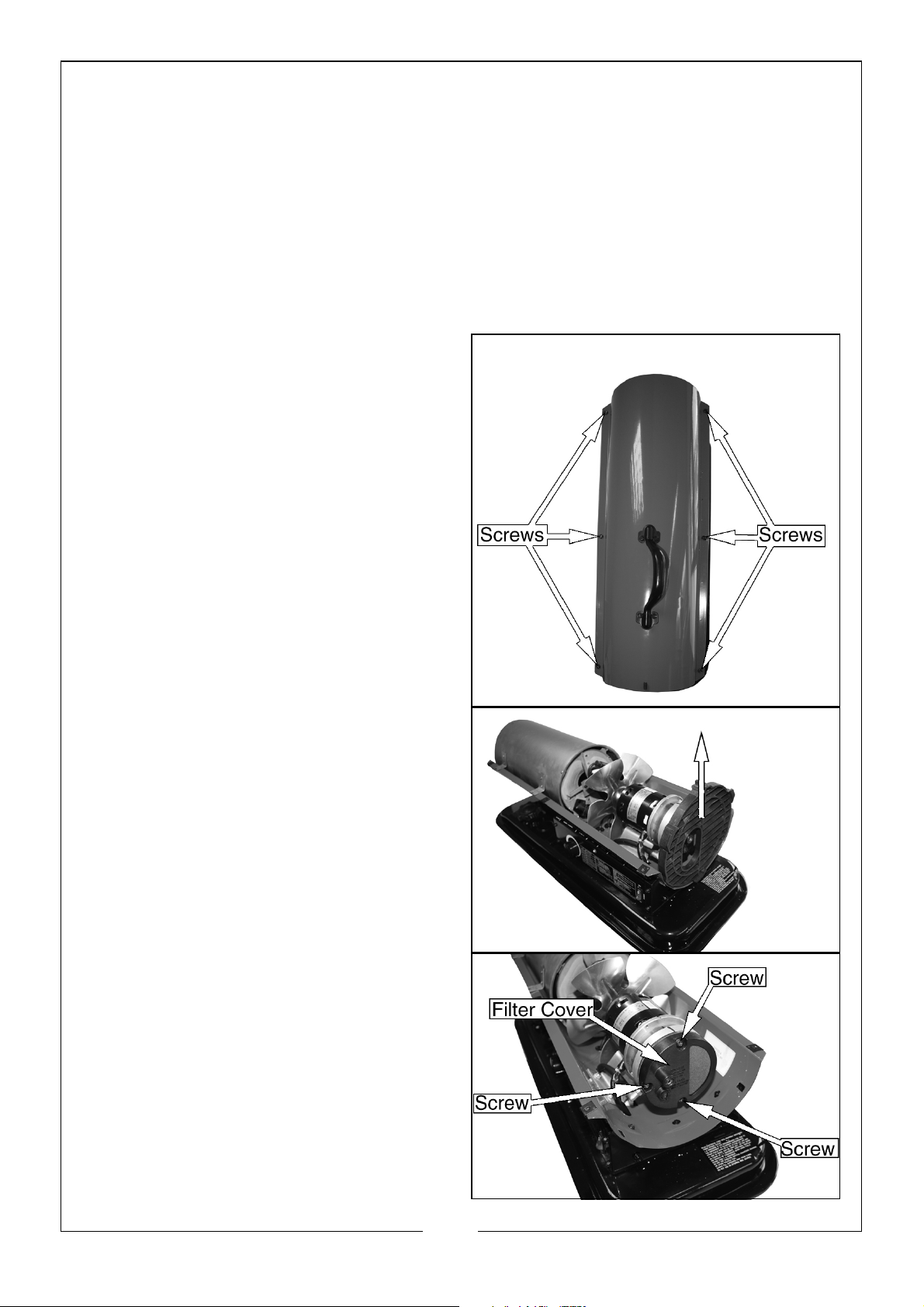

ACCESSING THE FILTERS
1. Make sure that the plug is removed from the mains supply before carrying out any maintenance.
2. Remove the six screws shown and remove the top cover of the heater.
3. Lift out the rear guard.
4. Remove the three screws securing the filter cover.
5. Pull the filter cover away from the motor.
10
Page 11

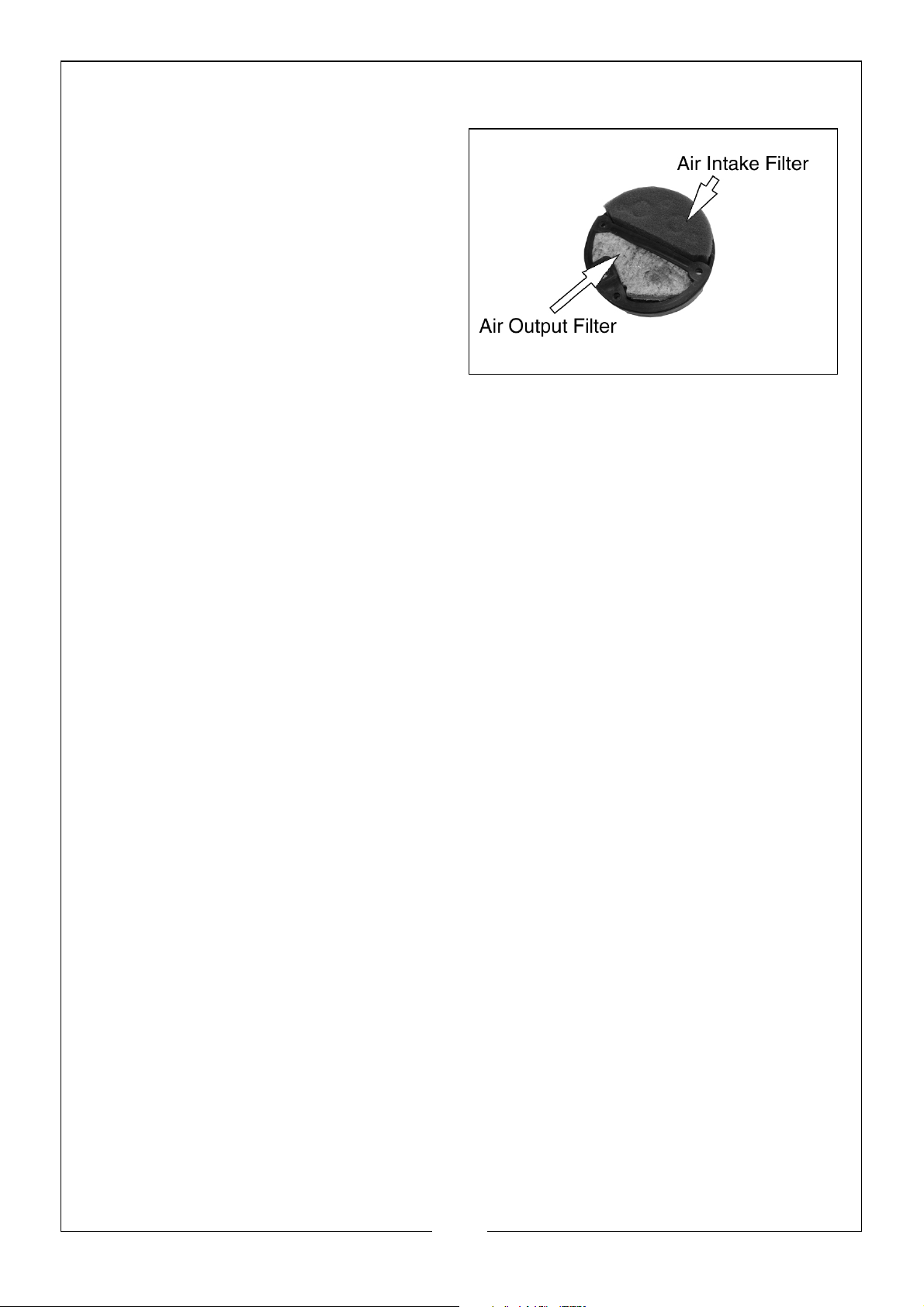

AIR INTAKE FILTER CLEANING
1. To clean the air intake filter.
• Remove and wash the filter element with a mild detergent.
• Dry thoroughly and refit.
• Clean as often as necessary (at least approximately every 500hrs.).
• Do not oil the filter element. If your heater is used where there is considerable dust or dirt.
NOTE: If the filter is damaged or extremely dirty, a replacement filter of the
same type must be fitted, this is available from your local Clarke service department part number GF50K100406.
AIR OUTPUT FILTER CLEANING
1. To clean the air output filter (Annually or as required)
• Remove the air output filter and tap the contaminated side gently on a solid object to remove contaminates.
NOTE: Compressed air or liquids should not be used to clean this filter.
NOTE: If the filter appears damaged or extremely dirty, replace it with a new
filter of the same type must be obtained and fitted this is available from your local Clarke service department part number GF50K100401.
2. Reinstall clean filter in to the filter body in the same position as it was when removed.
3. Replace the filter cover and secure using the screws removed in step 4.
NOTE: When replacing the filter cover, make sure that the gasket is firmly in
place and the screws in the filter cover are tight to prevent air leaks. if the gasket is damaged a replacement must be obtained and fitted this is available from your local Clarke service department part number GF50K100407.
4. Refit the rear guard and replace the top cover.
5. Make sure all screws are replaced before use.
STORAGE
Store the heater in a dry location free from fumes or dust.
11
Page 12
TROUBLE SHOOTING
LED OPERATION TROUBLE SHOOTING
Steady ON System
Check
Steady OFF
2 Flashes No flame
detected
3 Flashes High limit
switch failure (unit has overheated)
4 Flashes Flame sensor
Failure
System performing self test. No action required.
No action required.
Heater fails to start.
1. Check fuel level
2. Return to Clarke service department for repair.
Make sure heater is cooled down,
1. Make sure that the power switch is set to the OFF position.
2. Wait 5 minutes
3. Start heater by setting the power switch to the ON position.
1. Return to Clarke service department for repair.
12
Page 13

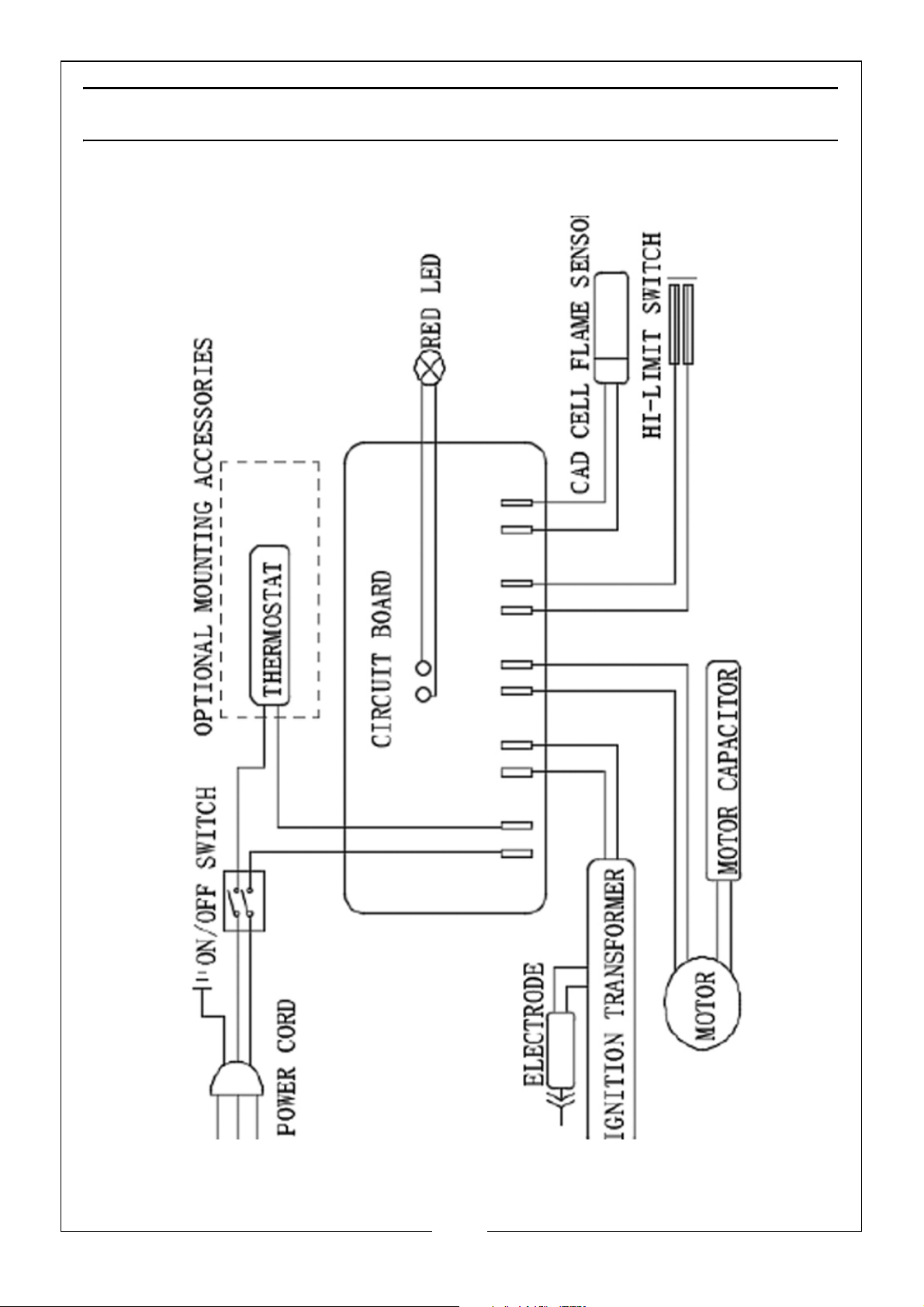

WIRING DIAGRAM
13
Page 14
SPECIFICATIONS
Model XR60
Burn Rate: (Btu/hr.) 50,000
Fuel consumption: 1.6 L/hr.
Approx Running Time: 9.4 hr
Electrical input: 230V~50Hz
Power 166 W
Max.Outlet Temp: 1300°F (704°C)
Fuel Tank Capacity: 15 L
Ignition system: Electric Ignition
Primary Safety Control: Flame failure device
Weight (kg) 12.45
Dimensions (DxWxH) mm 774 x 300 x 388
14
Page 15

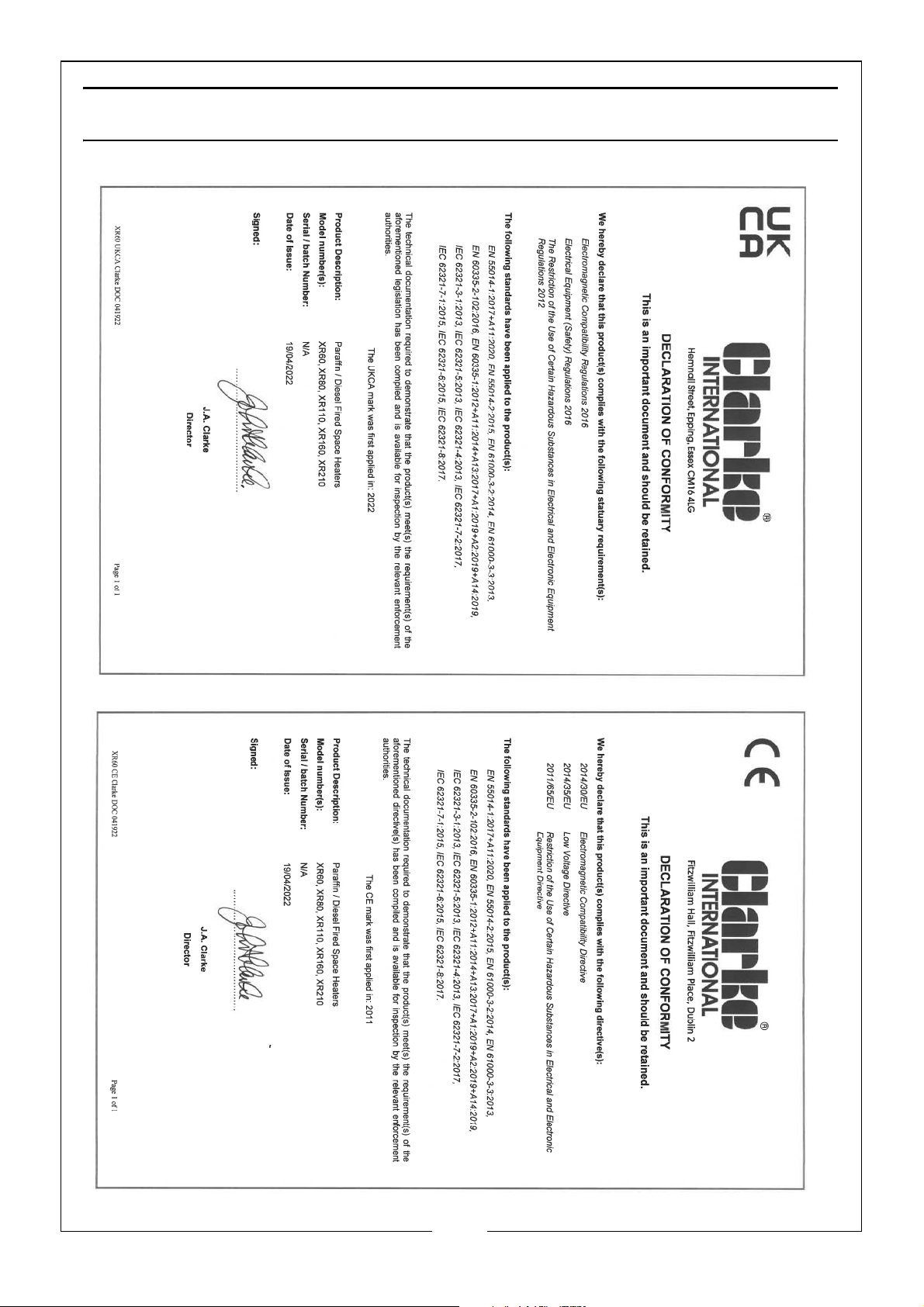

DECLARATION OF CONFORMITY
15
