Page 1
10” T ABLE SAW
10” T ABLE SAW
1206
©
Model CTS11
Model CTS11
Part Number 6500750
Operating & Maintenance
Instructions
Page 2
2
Page 3
Thank you for purchasing your new CLARKE 10” TABLE SAW, which is designed for DIY, and
hobby use ONL Y.
Before attempting to operate this machine, please read this instruction manual thoroughly
and follow all directions carefully. In doing so you will ensure the safety of both yourself and
others around you, and, at the same time, you should look forward to it providing long and
trouble free service.
GUARANTEE
This product is guaranteed against faults in manufacture for 12 months from purchase date.
Keep your receipt as proof of purchase. This guarantee is invalid if the product has been found
to have been abused in any way, or not used for the purpose for which it was intended, or to
have been tampered with in any way. The reason for return must be clearly stated. This
guarantee does not affect your statutory rights.
CONTENTS
Specifications .............................................................................................4
Safety Instructions ......................................................................................5
Electrical Connections...............................................................................8

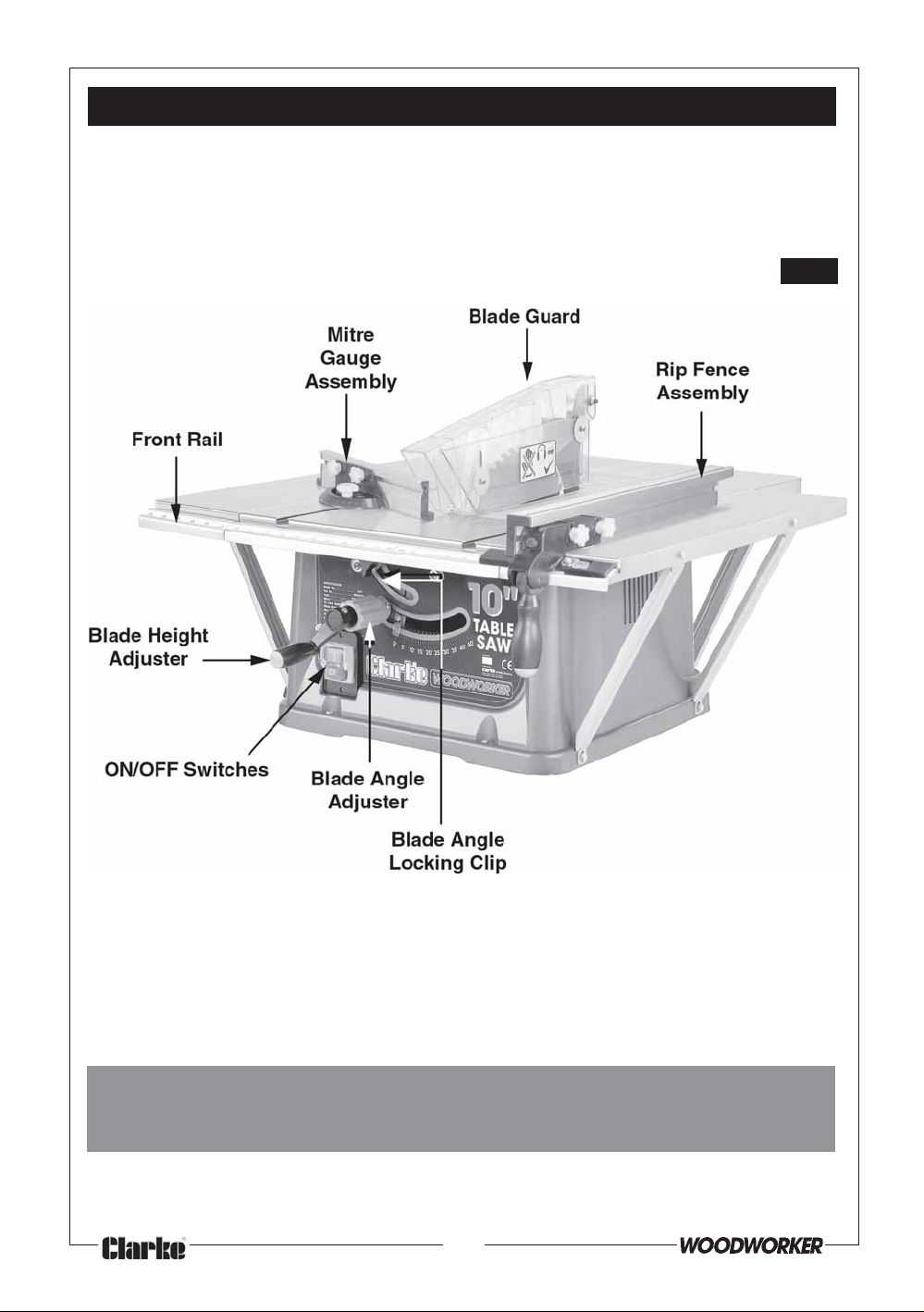

Features .......................................................................................................9
Glossary of Terms......................................................................................10
Unpacking and Checking Contents ......................................................11
Assembly...................................................................................................12

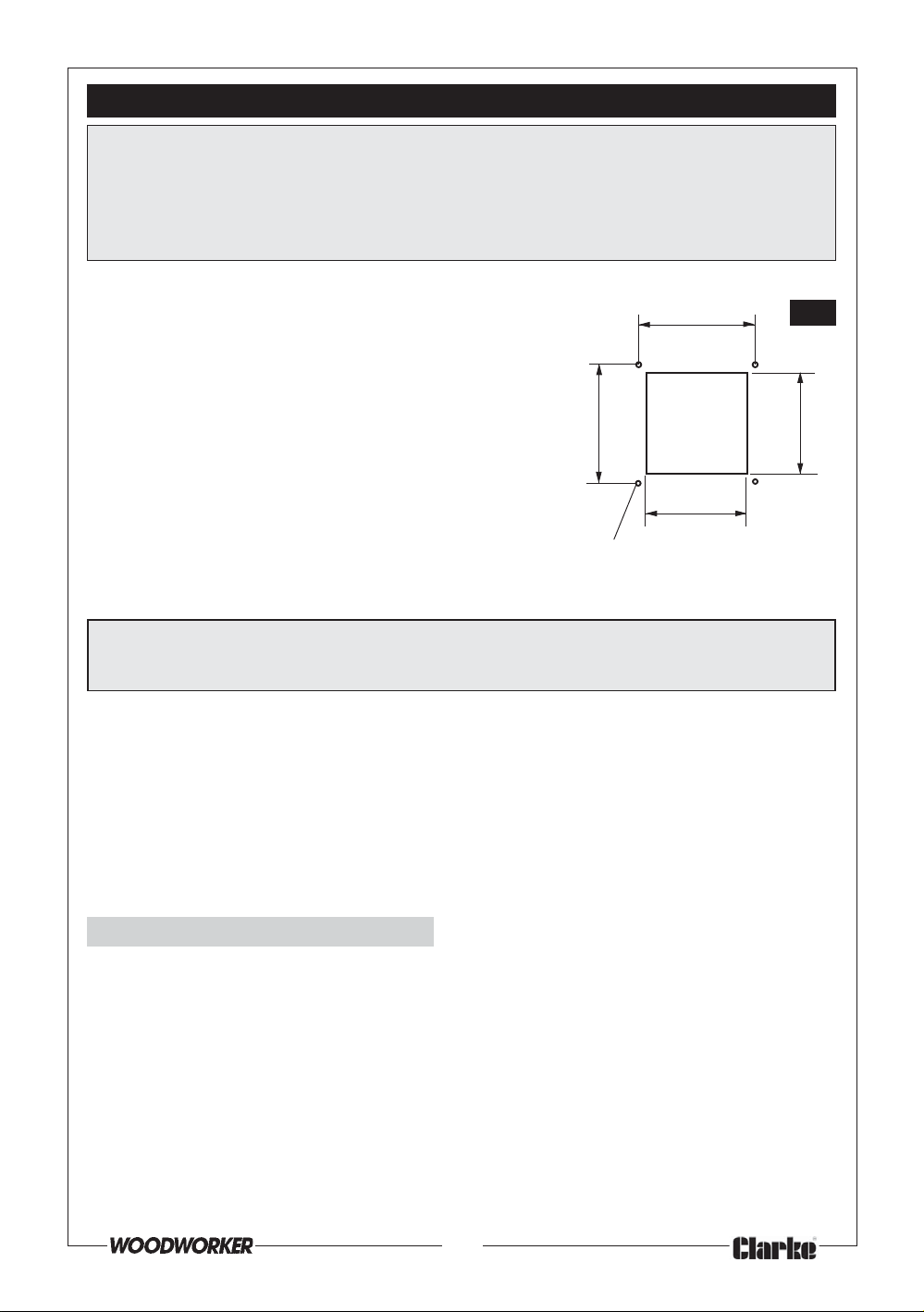

Mounting the Saw.....................................................................................16
Important Checks before Starting ..........................................................18
Operation ..................................................................................................18
Starting & Stopping ....................................................................18
Adjustments ..............................................................................................19

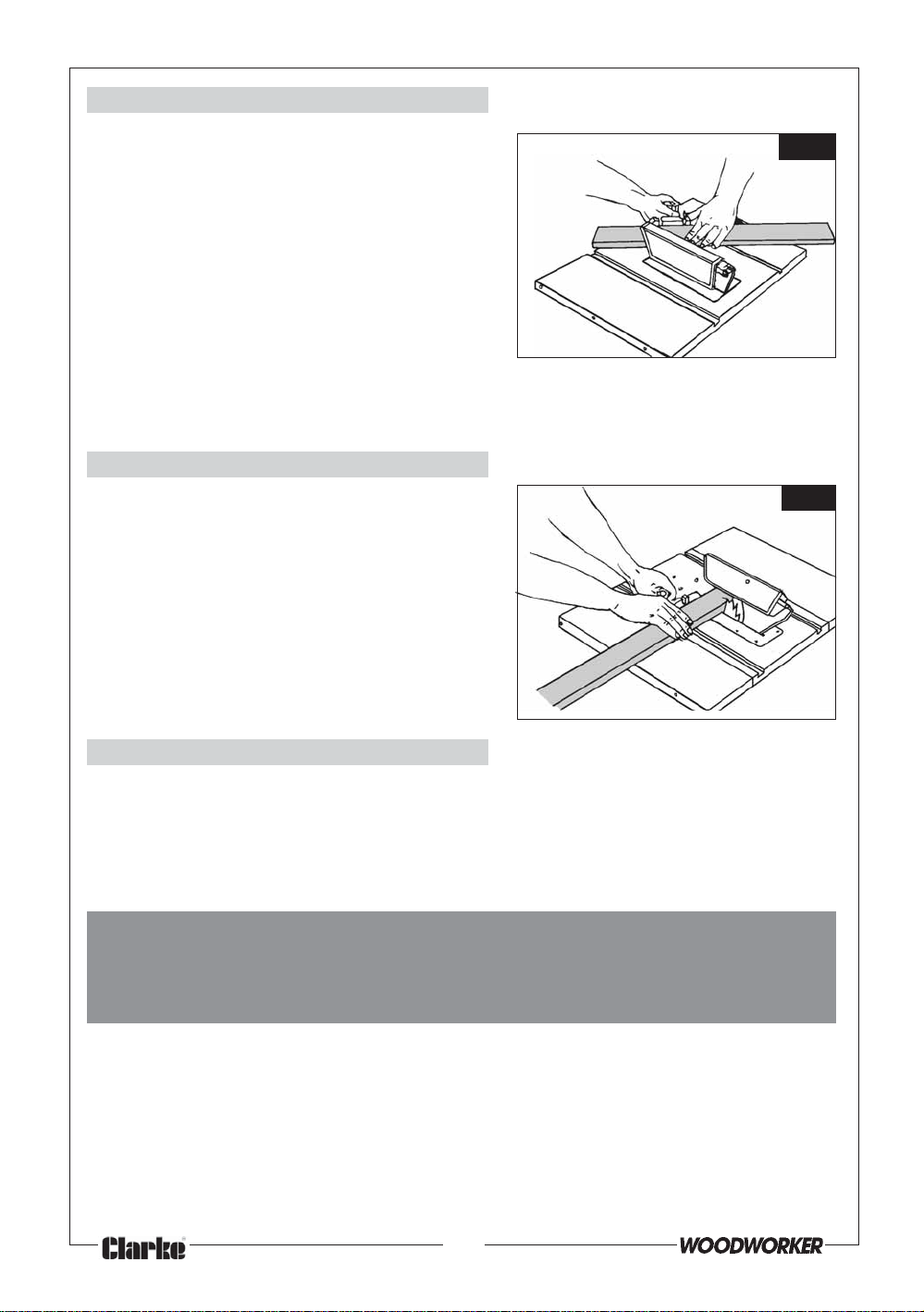

Cutting Methods .......................................................................................22
Maintenance ............................................................................................26

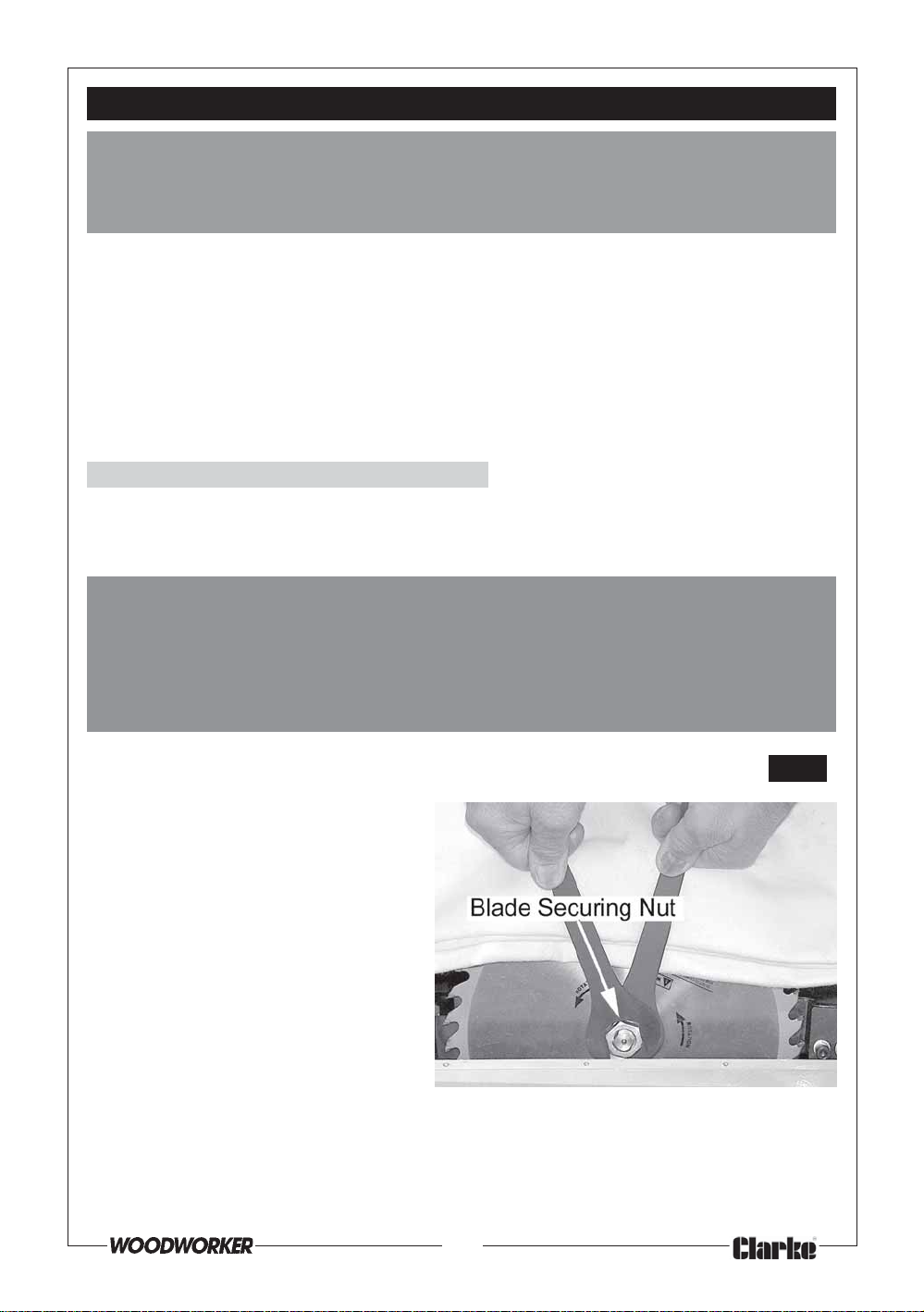

Changing the Blade ..................................................................26

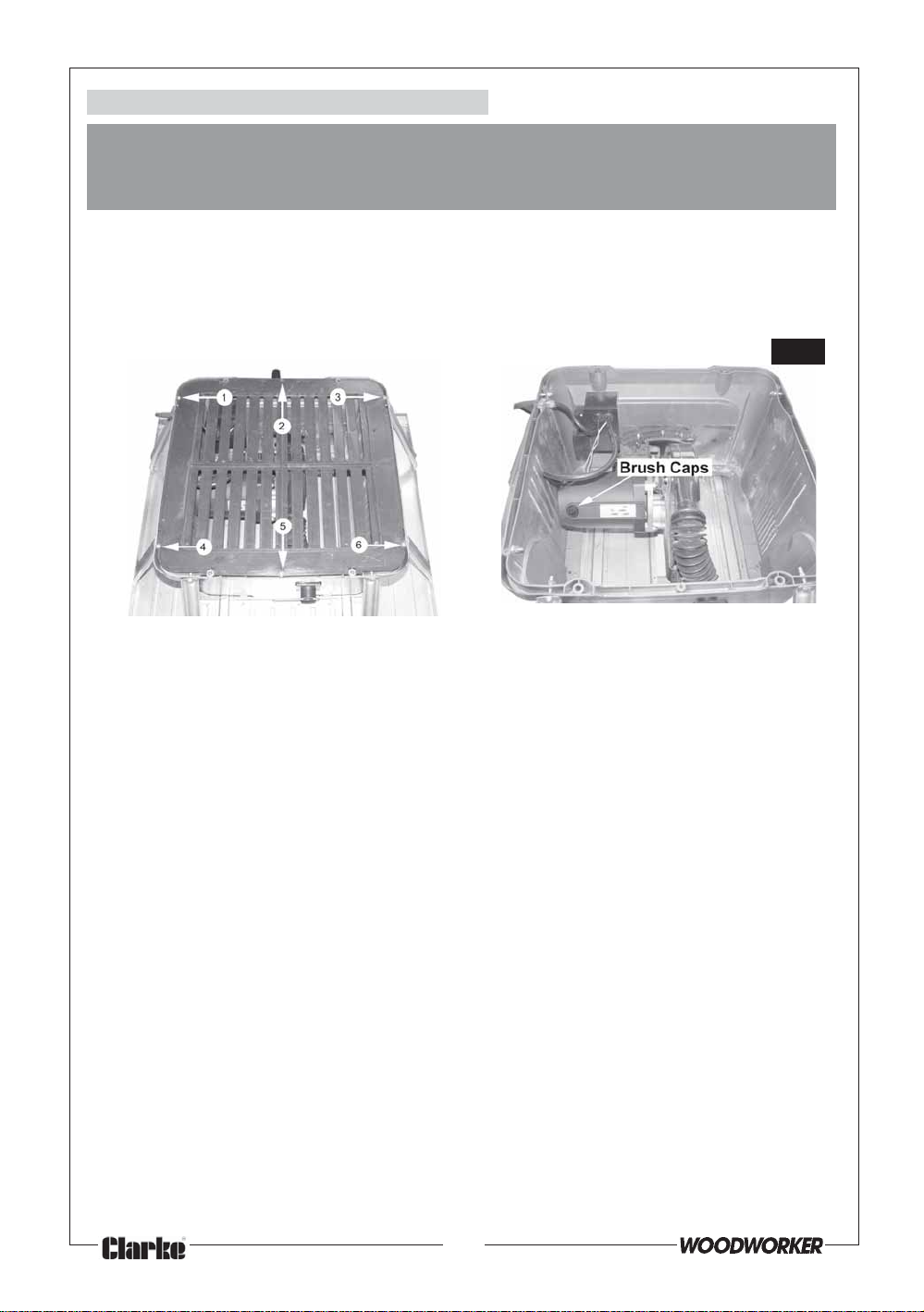

Renewal Motor Brush .................................................................27
Trouble Shooting .......................................................................................28

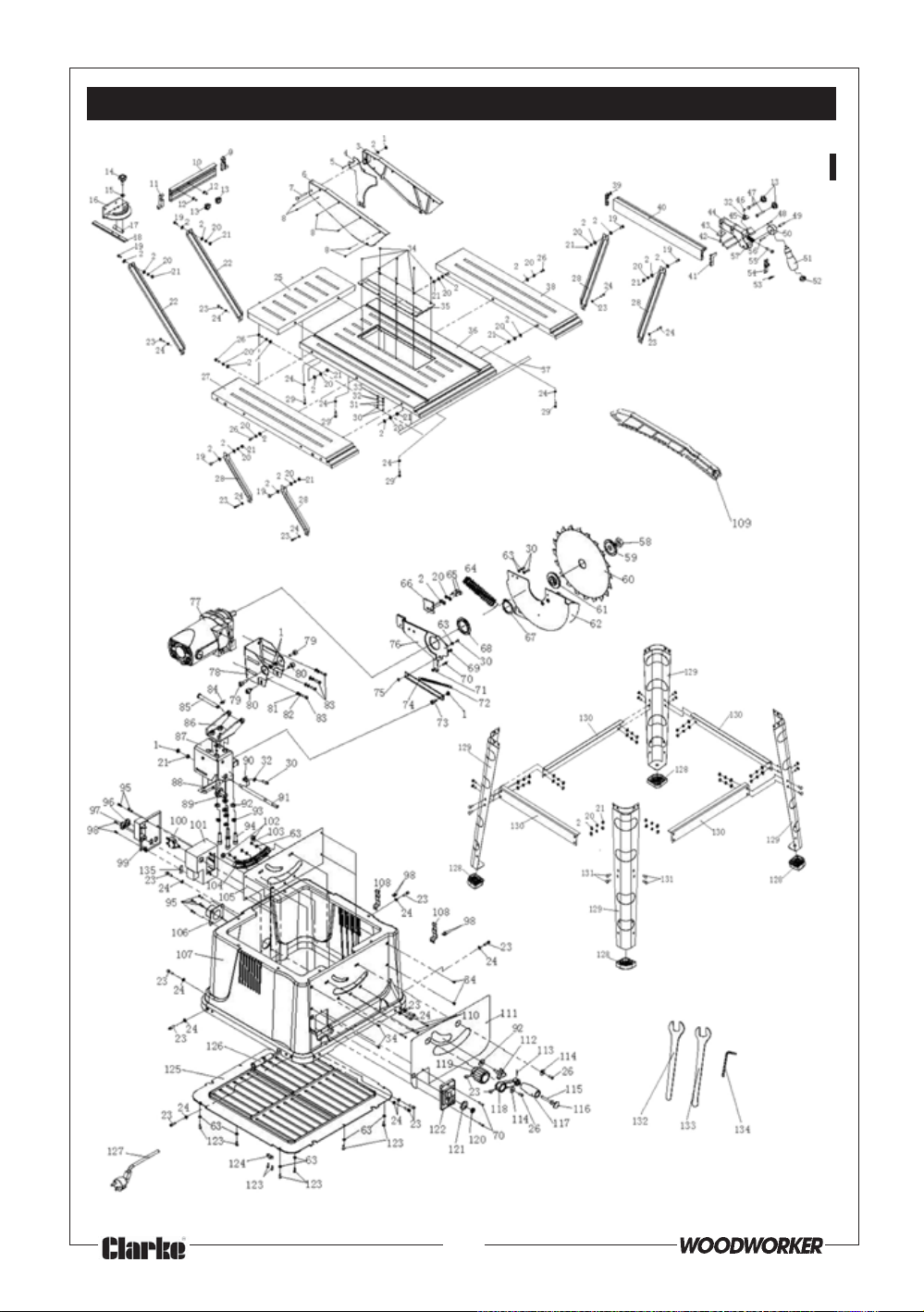

Parts Lists and Diagrams ..........................................................................29
3
Page 4
SPECIFICATIONS
Model No ..............................................CTS11
Part No...................................................6500753
Motor .....................................................230V~ 50Hz 1ph
Power rating ..............................1.5Kw
Speed ........................................4435 rpm
Fuse rating .................................13 Amps
Saw Blade .............................................10” dia. (254x16mm) TCT
Maximum depth of cut at 0
Maximum depth of cut at 45
Product Weight.....................................23.5 kg
Noise level at operating position........112.3dB LWA (under load)
Dimensions (LxWxH) .............................668 x 468 x 301 mm
Dimensions (LxWxH) with extensions...848 x 730 x 301 mm
Use of machine
O
..............75 mm
O
............55 mm
This machine is designed to rip and cross cut wood exclusively, up to a maximum thickness of
75mm.
For correct operation it must be fixed and operated as laid down in this manual.
This saw is intended for DIY, and hobby use ONLY.
Restrictions of use
This saw is NOT suitable for cutting:
• Timber greater than 75mm in thickness.
• Metal, Stone, Rubber, Plastic, Bones, Etc.
• Logs or round timber .
DO NOT use to rebate, tenon, mould or groove.
DO NOT fit any other tool or combination of blades.
DO NOT use as a free standing machine or as a hand held machine.
DO NOT modify the machine or its guards/controls in any way.
DO NOT use with any covers/guards removed.
When disposing of this product, it must be disposed of according to law. Do not dispose
of with general waste.
4
Page 5
SAFETY INSTRUCTIONS
KEEP WORK AREA CLEAN : Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT: Do not expose power tools to rain. Do not use power tools in
damp, or wet locations. Keep the work area well lit. Do not use this saw in the presence of flammable
liquids or gases.
GUARD AGAINST ELECTRIC SHOCK: Avoid body contact with earthed, or grounded surfaces, e.g. pipes,
radiators, ranges, refrigerators etc.
KEEP CHILDREN AWAY: Do not let children, or persons not involved in the work, touch the tool, or the
extension lead and keep them away from the work area.
STORE IDLE TOOLS: When not in use, all tools should be stored in a dry, locked up place, out of reach of
children.
DO NOT FORCE THE TOOL: It will do the job better and safer at the rate for which it was intended.
USE THE RIGHT TOOL: Do not force small tools, to do the job of a heavy duty tool. Do not use tools for
purposes not intended.
DRESS PROPERLY: Do not wear loose clothing, or jewellery that can be caught in moving parts. Non-skid
footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.
SAFETY GLASSES: Use safety glasses when operating this tool.
DUST MASKS: If the work is dusty, use dust masks to reduce the risk of inhalation of harmful dust.

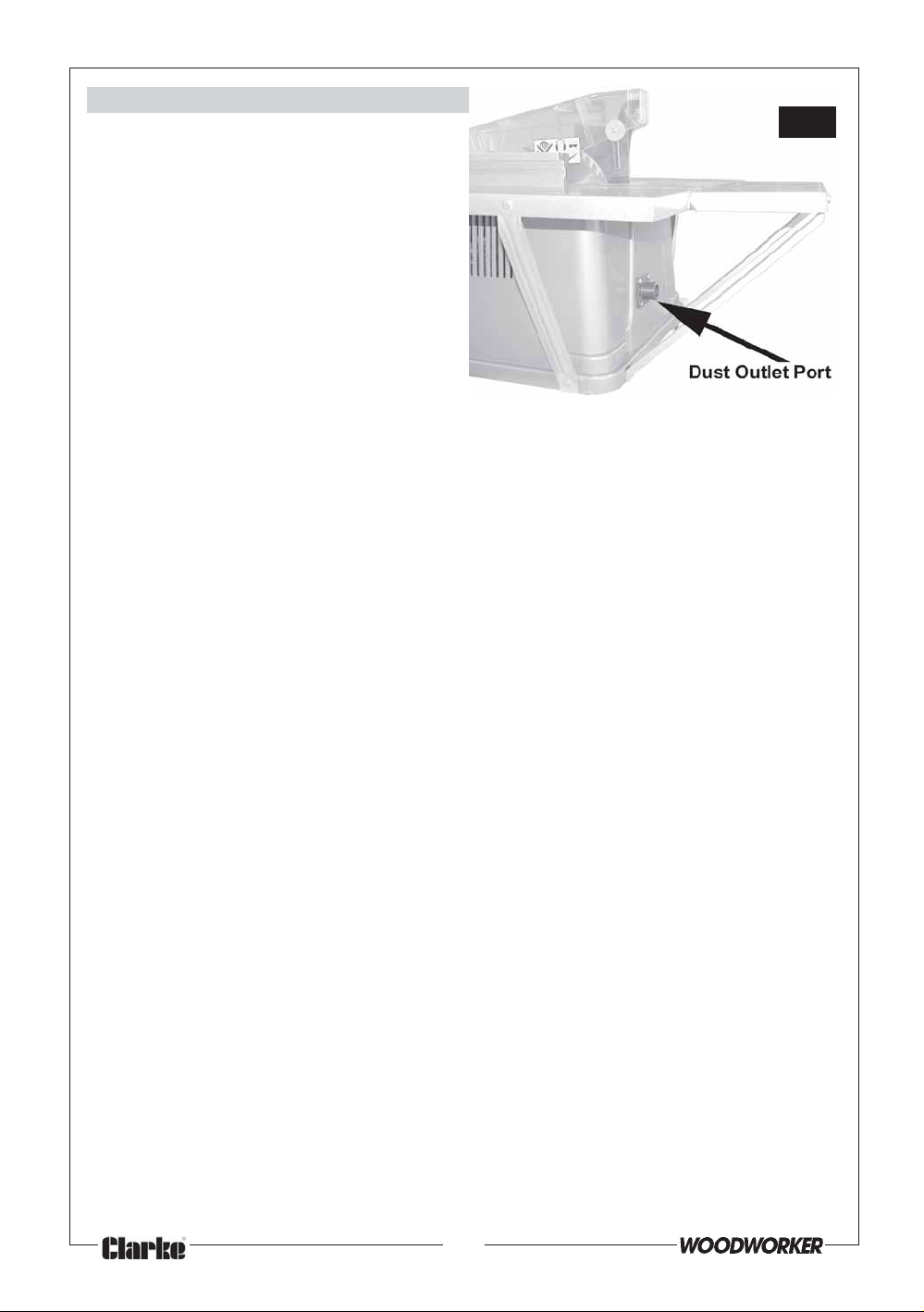

CONNECT DUST EXTRACTION EQUIPMENT: Always connect a suitable vacuum cleaner attachment.
PROTECT YOUR EARS: Hearing protection should be worn when using this tool.
DO NOT ABUSE THE MAINS LEAD: Never pull the mains lead to disconnect it from the mains socket. Keep
the mains lead away from heat, oil and sharp edges.
SECURE THE WORK: Use clamps, or vices to hold the workpiece. It is safer than using your hand.
DO NOT OVERREACH: Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE: Keep the blade clean for better and safer performance. Follow the
instructions for changing the blade. Inspect the mains lead periodically and if damaged have it
repaired by an authorised service facility. Inspect extension leads periodically and replace if damaged.
Keep all handles and grips dry, clean and free from oil and grease.
DISCONNECT TOOLS: Disconnect tools fro mains supply when not in use, before servicing and when
changing accessories such as blades.
REMOVE ADJUSTING KEYS AND WRENCHES: Form the habit of checking to see that all keys and adjusting
wrenches are removed from the tool before turning it on.
TRANSPORTING THE TABLE SAW: When moving or transporting the table saw, only lift from the table top.
Do not use the blade guard for lifting, moving or transporting the saw.
5
Page 6
SAFETY INSTRUCTIONS
USE OUTDOOR EXTENSION LEADS: When the tool is used outdoors, use only extension leads intended for
outdoor use and so marked. Always make sure that the extension lead is suitably rated for the tool.
Position the extension lead so that it does not create a hazard.
STAY ALERT: Watch what you are doing. Use common sense. Do not operate tools when you are tired.
CHECK DAMAGED PARTS: Before further use of the tool, any part that is damaged should be carefully
checked to determine that it will operate properly and perfor m its intended function. Check for
alignment of moving parts, free running of moving parts, breakage of parts, mounting and any other
conditions that may affect its operation. Any part that is damaged should be properly repaired, or
replaced, by authorised service personnel, unless otherwise indicated in this User Guide. Have defective
switches replaced by authorised service personnel. Do not use the tool if the switch does not turn it on
and off.
WARNING: The use of any accessory, or attachment, other than those recommended in this User Guide,
may present a risk of personal injury.
HAVE YOUR TOOL REPAIRED BY A QUALIFIED PERSON: This electric tool is in accordance with the relevant
safety requirements. Repairs should only be carried out by qualified persons using original spare parts,
otherwise this may result in considerable danger to the user.
SAW BLADES: Do not use saw blades which are damaged or deformed. Use only saw blades
recommended by the manufacturer which conform to EN847-1 . Do not use High Speed Steel (HSS)
blades. Use only saw blades for which the maximum possible speed is not less than the maximum
spindle speed (no load speed) of the table saw and the material to be cut.
USE THE BLADE GUARD: Make sure that the blade guard moves freely on it’s pivot point and that the
front of the guard is always in contact with the saw table when not cutting. Always use the blade guard
and riving knife for every operation.
NEVER: Use this saw for non-through cutting operations.
SUITABLE MATERIALS: Do not use the saw to cut materials other than wood.
MAXIMUM DEPTH OF CUT: The maximum depth of cut of this table saw is 75 mm. See the Product
Specification on page 4.
PROVIDE ADEQUATE SUPPORT FOR LONG WORKPIECES: Provide adequate support to the rear and sides
of the saw table for wide, or long pieces of work. Saw horses or similar devices should be used to
prevent the ends of the workpiece from drooping.
ASSEMBLY: Do not operate this saw until it has been fully assembled and correctly prepared for use in
accordance with the instructions in this User Guide.
MIND YOUR HANDS: Keep your hands well away from the blade area at all times. Do not place them in
the path of the blade when operating the saw.
WEAR GLOVES: Wear gloves when handling saw blades and rough material. Saw blades should be
carried in a holder whenever practical.
SECURE HANDLES AND CLAMPS: Make sure that all handles, clamps and guards are securely fitted
before operating the saw. Do not perform any cutting operation freehand.
6
Page 7
SAFETY INSTRUCTIONS
USE THE MITRE GAUGE: Always hold the work firmly against the mitre gauge fence when cross cutting.

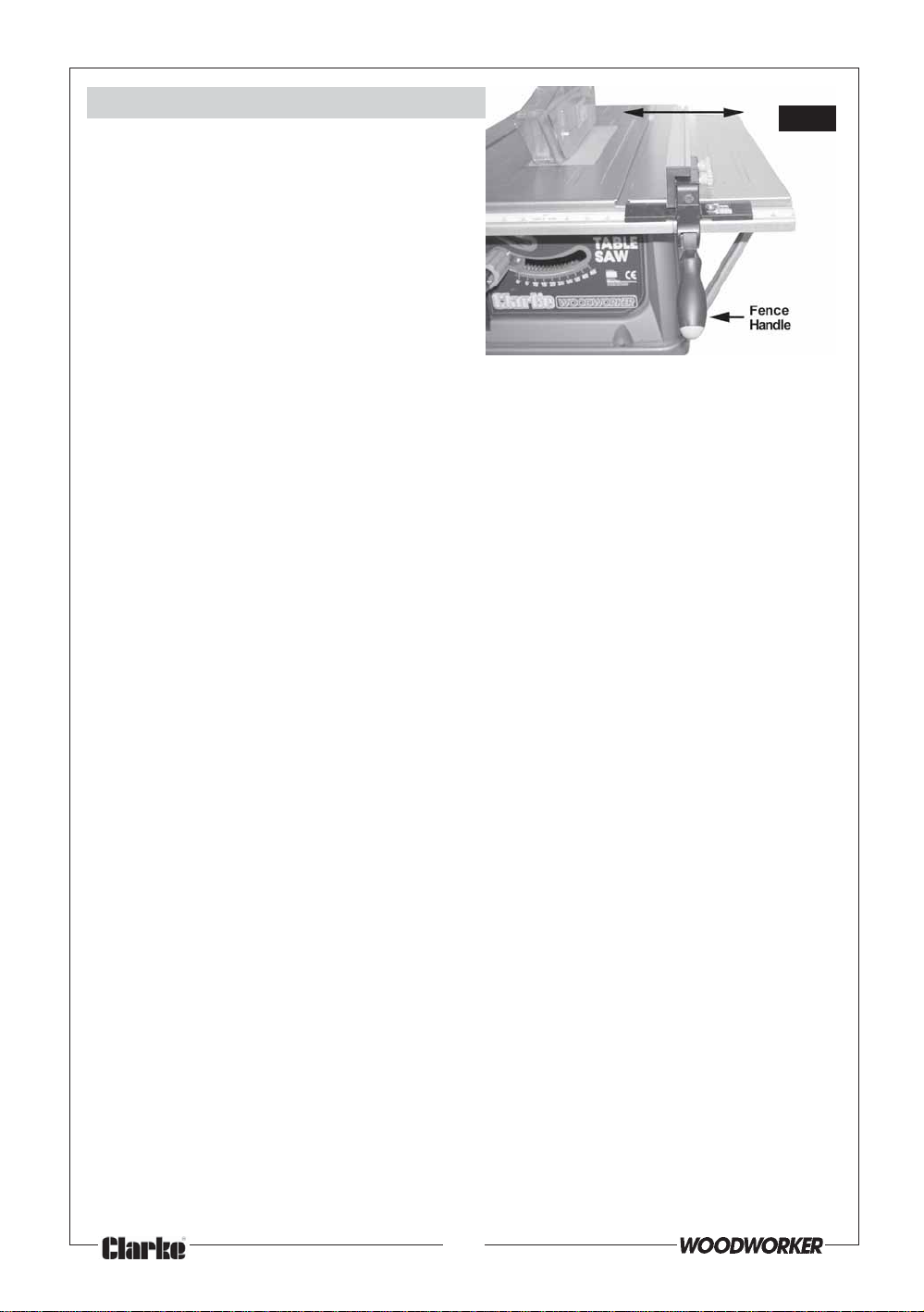

LOCK THE GUIDES: Always ensure the rip fence guide is securely fastened when in use.
USE A PUSH STICK: Use a push-stick to feed the workpiece past the saw blade. The push stick should
always be stored with the machine when not in use.
DO NOT WORK FREE-HAND: Never perform any operation ‘free-hand’ i.e. do not use your hands alone
to support, or guide the workpiece. Always use either the parallel fence guide, or the mitre gauge (as
appropriate) to position and guide the work.
STAY CLEAR :Never stand, or have any part of your body in line with the path of the saw blade. A small
cut-off piece could be caught by the back of the blade and thrown towards the operator. Stand to
one side of the blade. Keep your hands out of the line of the saw blade.
CROSSCUTTING: Move the parallel fence guide out of the way when crosscutting. Never use the parallel
fence guide as a cut-off gauge when crosscutting.
SWITCH OFF: If off-cuts of wood become jammed in the machine, switch off and disconnect from the
mains supply before removal.
STALLED BLADE: If the blade stalls, or stops while cutting,
before attempting to free the blade.

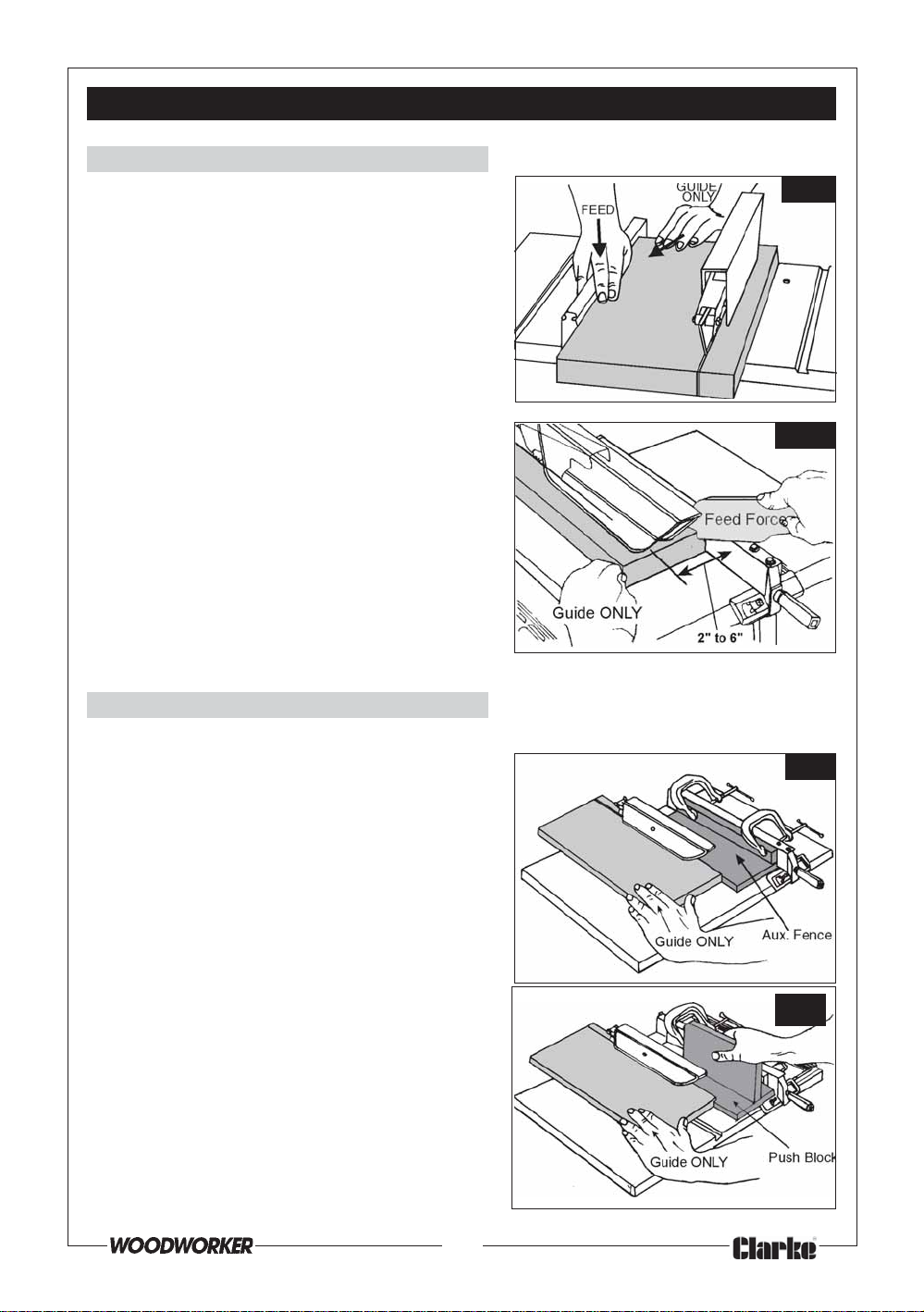

RIPPING: When ripping or bevel ripping, always use the parallel fence guide, together with the push
stick. Never make these cuts freehand. The blade could bind in the cut and cause a

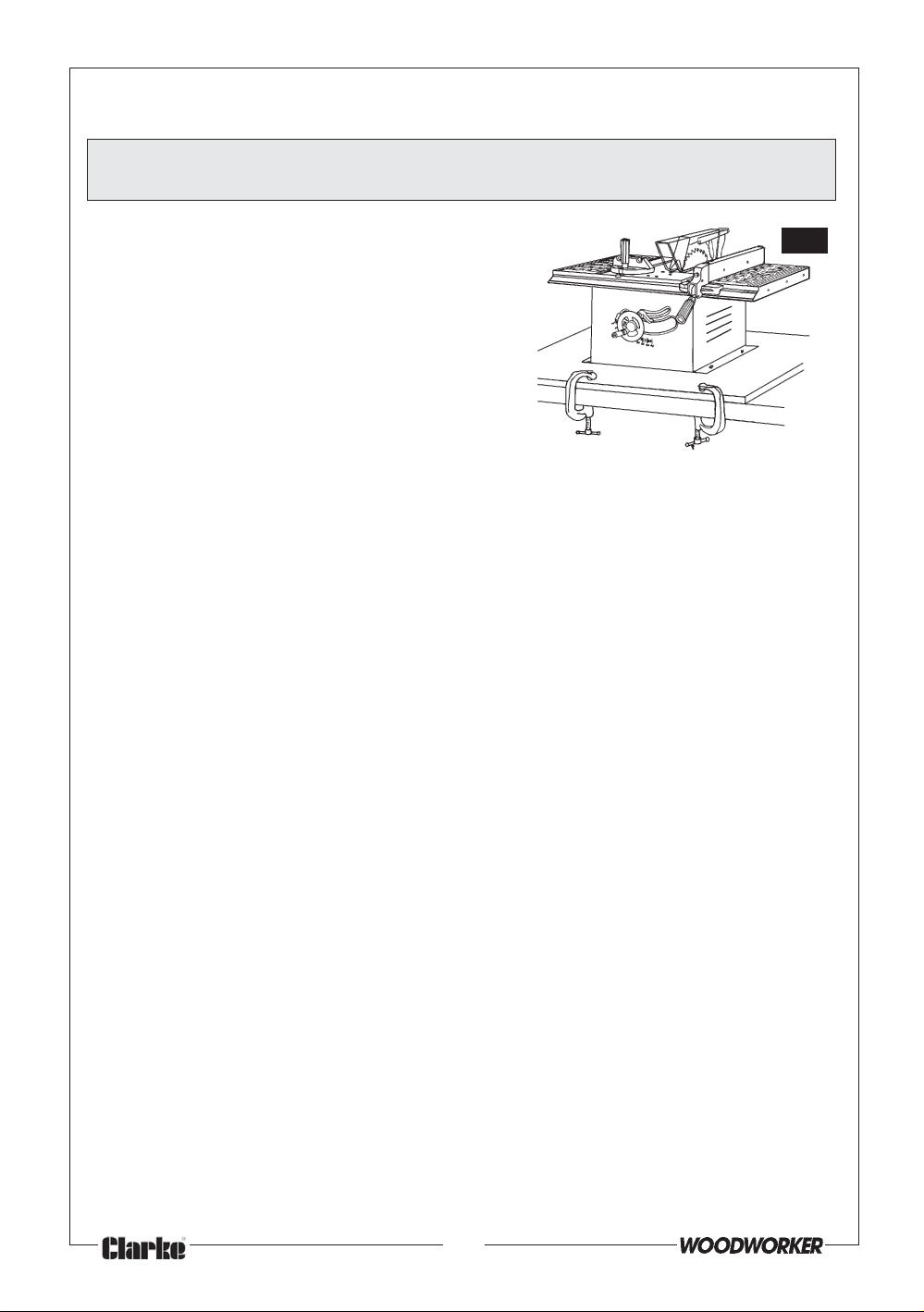

MOUNTING THE SAW TABLE: Mount the table saw to the stand or workbench before performing any
cutting operations.
REMOVE THE MITRE GAUGE: Remove the mitre gauge from the table during any cutting operations
which involve the parallel fence guide.
MAXIMUM BLADE EXTENSION: Have the blade extended to approximately 22mm above the top of the
workpiece. Additional blade exposure would be potentially dangerous.
DO NOT REACH OVER: Do not reach over, or behind the blade for any reason.
SMALL PIECES AND TRAPPED PIECES: Do not pick up small pieces of cut-off material from the table.
Remove them by pushing them off the table with the push stick. They could be thrown back at you by
the rear of the blade. Do not remove small pieces of cut-off material that may become trapped inside
the blade guard while the saw is running. This could endanger your hands, or cause a
the saw OFF and when the blade has stopped turning, lift the guard and remove the piece of debris.
REBATING AND GROOVING: Rebating and grooving should not be undertaken on the saw.
SLOTTING: The table saw must not be used for slotting (stopped groove).
switch off
and disconnect from the mains supply
kickback
kickback
.
. Turn
7
Page 8
ELECTRICAL CONNECTIONS
WARNING! THIS APPLIANCE MUST BE EARTHED.
Connect the mains lead to a 230 volt (50Hz) domestic electrical supply via a standard 13 amp
BS 1363 plug fitted with a 13 amp fuse, or a suitably fused isolator switch.
IMPORT ANT: The wires in the mains lead are coloured in accordance with the following code:
Green & Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the flexible cord of this appliance may not correspond with the coloured
markings identifying terminals in your plug, proceed as follows:
Connect GREEN & YELLOW coloured cord to plug terminal marked with a letter “E” or
Earth symbol ‘ ‘ or coloured GREEN or GREEN & YELLOW.
Connect BROWN coloured cord to plug terminal marked letter “L” or coloured RED.
Connect BLUE coloured cord to plug terminal marked letter “N” or coloured BLACK.
We strongly recommend that this unit is connected to the mains supply via a Residual
Current Device (RCD).
IMPORTANT!
If this appliance is fitted with a plug which is moulded onto the electric cable (i.e. non- rewireable) please note:
1. The plug must be thrown away if it is cut from the electric cable. There is a danger of
electric shock if it is subsequently inserted into a socket outlet.
2. Never use the plug without the fuse cover fitted.
3. Should you wish to replace a detachable fuse carrier, ensure that the correct replacement
is used (as indicated by marking or colour code).
4. Replacement fuse covers can be obtained from your local dealer or most electrical
stockists.
Fuse Rating
The fuse in the plug must be replaced with one of the same rating (13 amps) and this replacement
must be ASTA approved to BS1362.
Extension Cable
If an extension cable is fitted, ensure the minimum cross section of the conductor is 1 .5mm2 for
up to 15 metres in length, and 2.5mm2 for up to 25 metres.
WARNING:
If the power cable is worn or cut, or damaged in any way, have it replaced
8
Page 9
FEATURES
1. The switch panel incorporates the ON and OFF switches.
Fig.1
2. A dust extraction port is provided at the rear of the machine. A vacuum extractor with a suitable
flexible hose (30mm diameter), may be connected if required.
3. The table is provided with two slots, one each side of the saw blade, running front to back. These
slots are for use with the mitre gauge when cross cutting either square or mitres and is explained
under ‘Operation’. A scale on the mitre gauge indicates the angle at which the workpiece is being
mitred.
4. Four holes are provided in the base so that the saw may be bolted to a table stand. Please note
that the machine MUST be firmly secured to either a workbench or a stand to ensure its complete
stability.
NOTE: The stand illustrated is designed specifically for the CTS11 and is available from your Clarke
dealer.
5. The blade height adjuster raises or lowers the blade.
6. The blade angle adjuster, allows the saw blade to be tilted to any angle from 0O to 45O , as shown
on the scale on the front panel.
7. The rip fence is for use when rip cutting timber. It locates on the front rail and can be easily moved
or locked in place by pushing the locking handle down.
8. A mitre gauge assembly may be used either side of the saw blade, the mitre gauge fence allows
the workpiece to be held at any angle for accurate cross cutting.
9. The blade guard protects the operator and must ALWAYS be in place and working properly.
WARNING: THIS MACHINE IS NOT DESIGNED FOR ‘NON-THROUGH CUTTING’ OPERATIONS
10. The table insert is removable to facilitate the installation or removal of the saw blade, and must
ALWAYS be in place when the table saw is being used.
9
Page 10
GLOSSARY OF TERMS
Crosscut A cutting operation made across the width of the workpiece - across the
grain.
Featherboard A device which can help guide workpieces during rip type operation.
Heel Misalignment of the blade.
Kerf The amount of material removed by the blade in a through cut.
Kickback An uncontrolled grabbing, and throwing of the workpiece back toward
the front of the saw during a rip type operation.
Leading End The end of the workpiece which, during a rip type operation, is pushed
into the cutting tool first.
Push Stick A device used to feed the workpiece through the saw during narrow
ripping type operation and which helps keep the operator’s hands well
away from the blade.
Push Block A device used for ripping type operations too narrow to allow use of a
push stick.
Rabbet A notch in the edge of a workpiece.
Ripping A cutting operation along the length of the workpiece - in the direction of
the grain.
Riving Knife Positioned behind the saw blade to prevent wood closing and jamming
after being cut.
10
Page 11
UNPACKING AND CHECKING CONTENTS
The Table Saw is shipped complete in one carton.
Separate all parts from the packing materials and check to ensure that all components are accounted
for, according to the following list, before discarding any packing material.
Fig.2
Should any component be missing or damaged in transit, please contact your CLARKE dealer
immediately, or CLARKE Customer Service Department on 020 8558 7400
WARNING!
DO NOT plug the table saw into the mains until it is fully assembled and checks made
according to these instructions.
11
Page 12

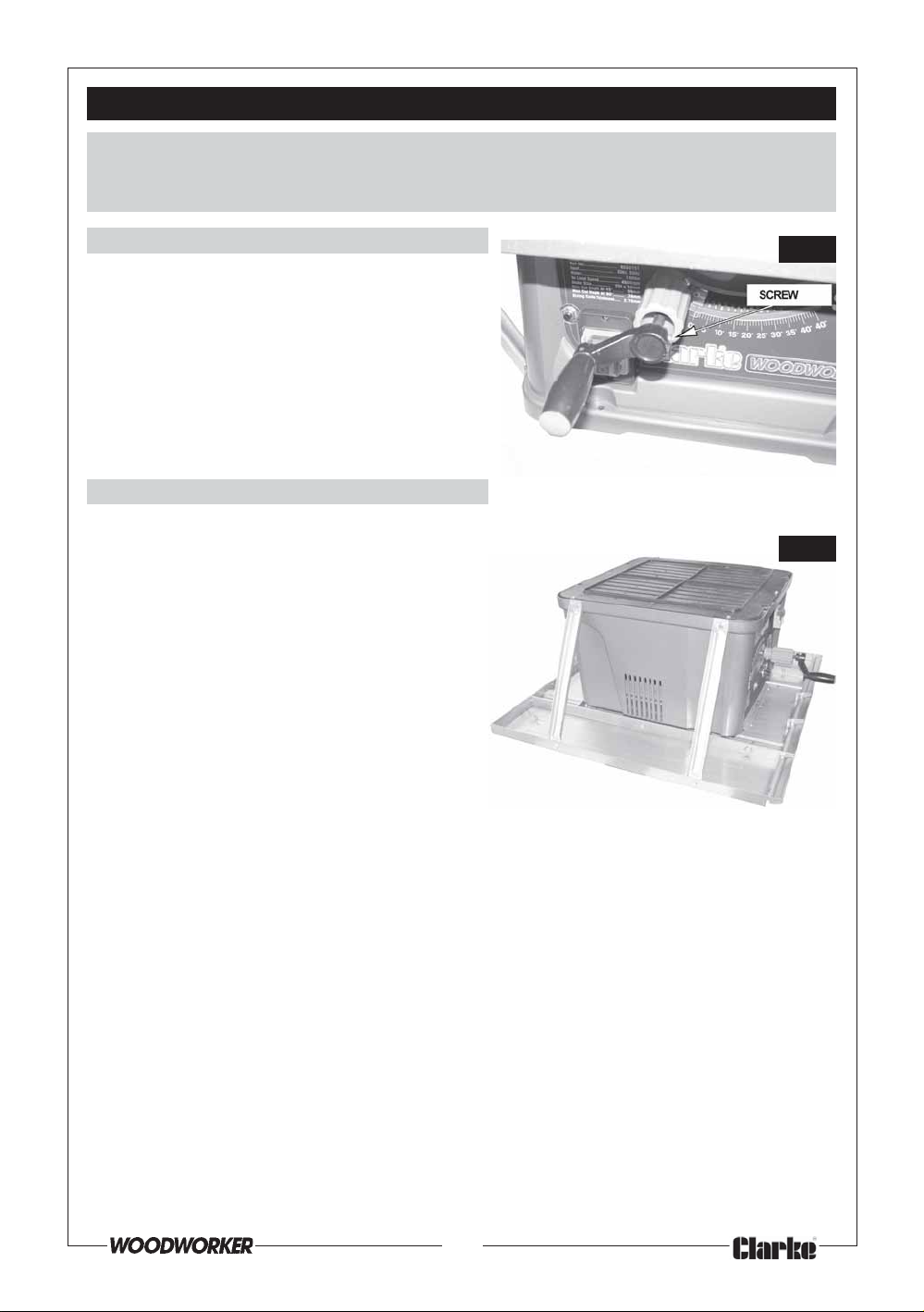

ASSEMBLY
IMPORTANT:
Take great care to avoid contact with the saw teeth which are extremely sharp
when performing the following operations.
Handle
1. Attach the handle to the blade angle adjuster as
shown.
2. Use the screw to secure the handle to the shaft.
Table Extensions
1. Lower the blade as far as possible.
2. Carefully turn over the table saw so that it rests on
its table and remove the bottom grille.
3. Attach 2 short extension support struts, to each
side with a single M6x15 bolt, using a flat and
spring washer on the inside.
DO NOT tighten at this stage.
4. Attach each Table Extension, noting that they
are ‘handed’ i.e. left hand and right hand, due to
the positioning of the support strut securing holes.
Fig. 3
Fig. 4
5. Secure each extension to the table with bolts with
washers, taking great care NOT to cross thread
the bolts.
Attach the support struts to each extension. Tighten the nuts whilst pushing down on the extension,
to ensure it lies flat and level with the table.
6. Repeat the process using the 2 long extension support struts and the rear table extension.
7. Replace the bottom grille and, with assistance, turn the table saw on to its base.
NOTE: If the optional stand is to be used, the saw should be bolted to it at this stage.
12
Page 13

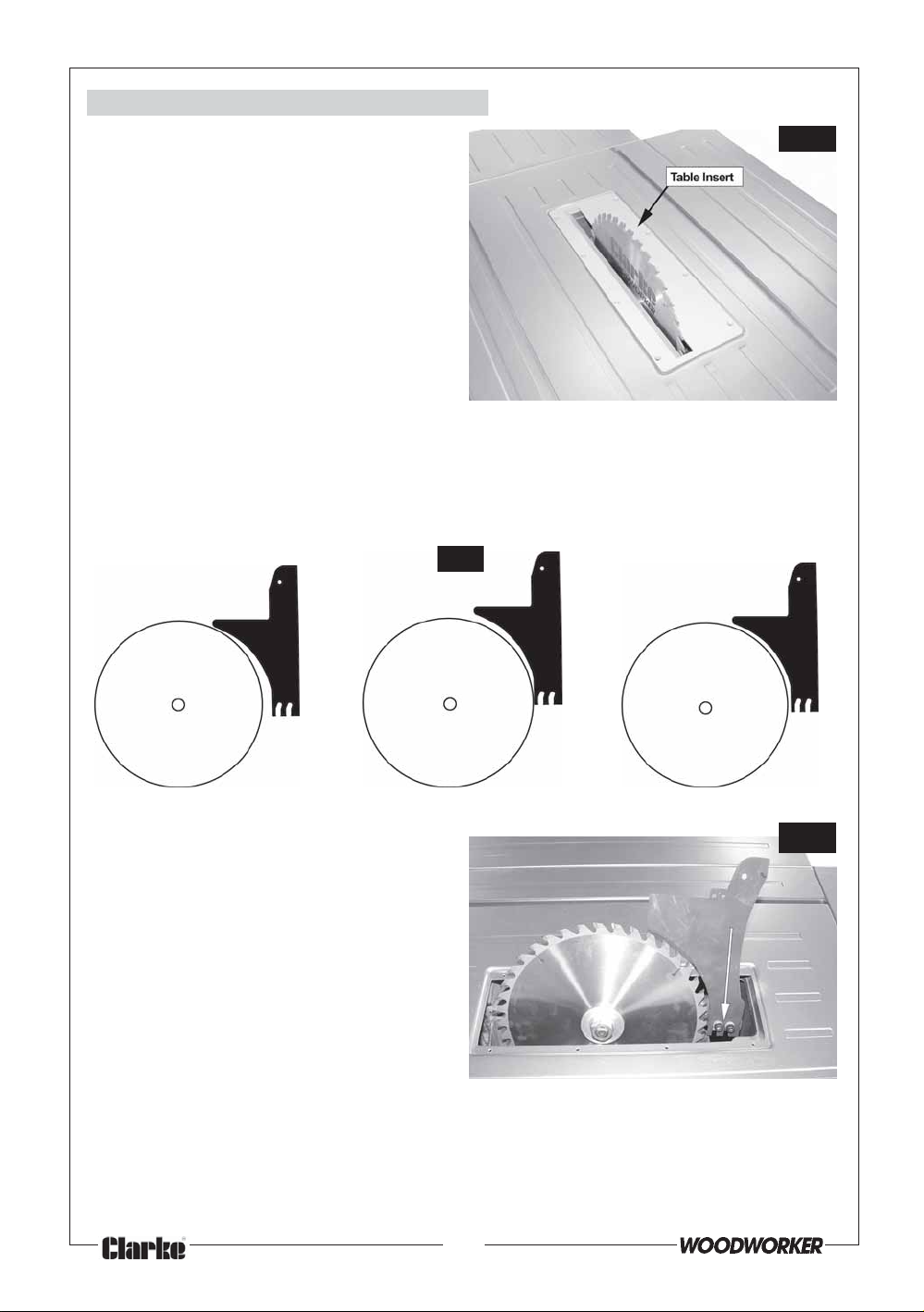

Riving Knife
1. Remove the table insert.
2. Raise the blade as far as possible. You may find it helpful to adjust the blade angle, so that the
blade lays on its side.
3. Slide the Riving Knife into position, and adjust the Riving knife so that a clearance of no more than
5mm exists between blade and knife, and along the full length of the riving knife, as shown in Fig. 5
Fig. 6
Fig. 5
✘
4. Tighten the riving knife securing bolts as
shown in Fig. 4.
5. When satisfied, tighten the riving knife securing bolt before replacing the Table Insert.
Note:
Make sure that the Riving Knife is directly in line with the blade at all times. If at any time it
becomes misaligned, it must be straightened before the table saw is used.
✘
13
✔
Fig. 7
Page 14

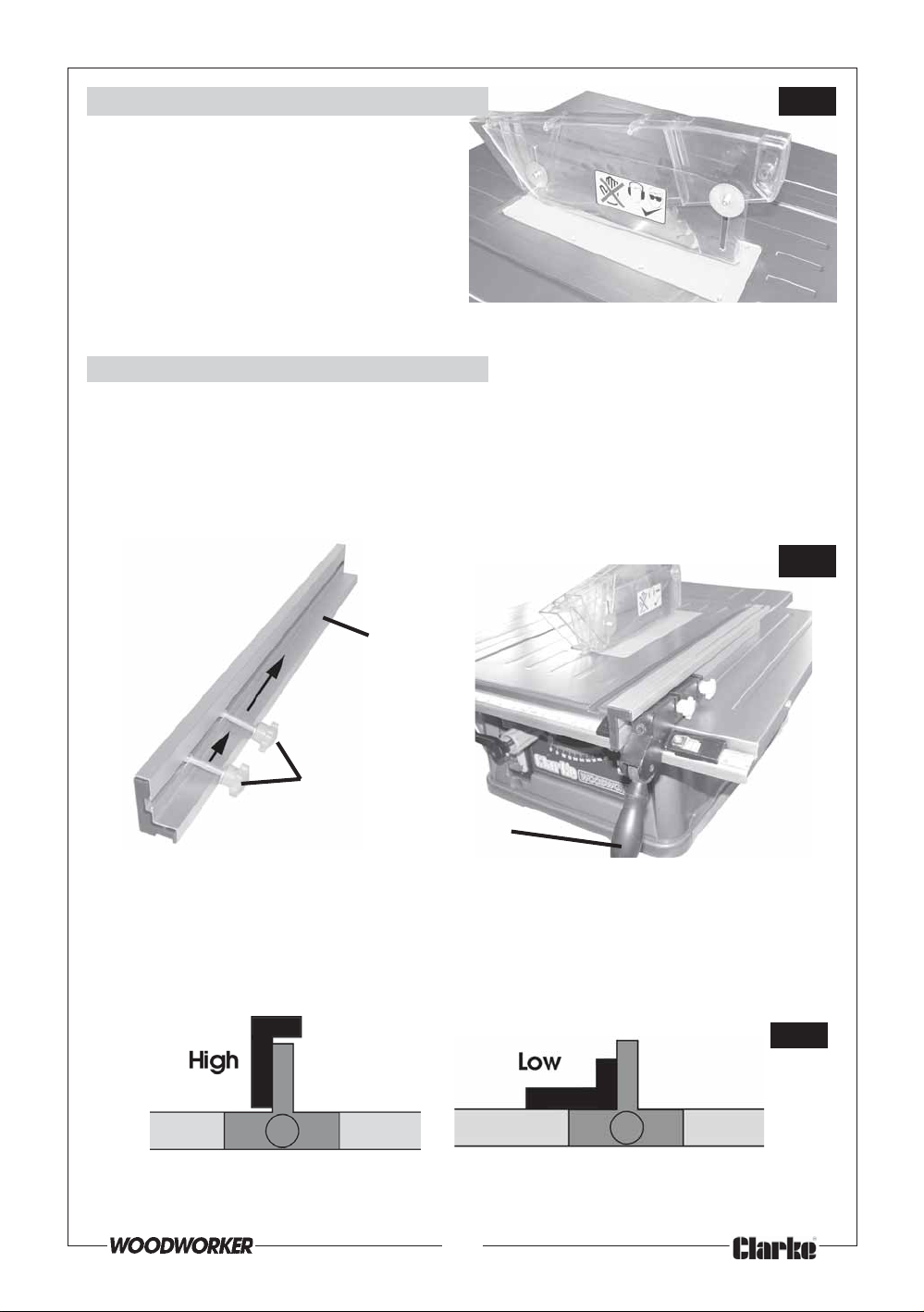

Fitting The Blade Guard
1. Raise the saw blade as far as possible.
2. Attach the blade guard to the riving knife, as
shown.
• The guard should be secure, but capable of
dropping under its own weight.
Rip Fence
The rip fence has the following parts:
A. The handle assembly ‘A’
B. The fence ‘B’
C. Two fixings, each comprising a coach bolt and securing knobs ‘C’.
Fig. 8
Fig. 9
b
c
a
1. Slide the two coach bolts (c) into the fence (b) as shown above.
2. Place the fence onto the handle assembly, making sure that the two coach bolts locate into the
slots provided.
3. Tighten the securing knobs (c) to fix the fence to the handle assembly.
Fig. 10
Note: The rip Fence has two slots, allowing the fence to be attached in the ‘high’
or ‘low’ position
14
Page 15
Dust Outlet
1. Connect a vacuum cleaner hose to the dust
outlet port on the rear of the table saw.
Fig. 11
15
Page 16
MOUNTING THE SAW
IMPORTANT
If the saw is to be a permanent fixture, ensure it is sited in an area with adequate
illumination and power supply.
DO NOT place it where you will be working in your own shadow, or where extension
cables are required - these are hazardous in a workshop environment.
If the table saw is to be used in a permanent location, it should
be fastened securely to a firm supporting surface such as a
stand or workbench, using the four mounting holes in the base.
A Floor Stand, specially designed for your CTS11 Table Saw is
Holes should be drilled through the supporting surface of the
workbench using the dimensions illustrated and the machine
should be bolted down firmly.
If a VACUUM DUST EXTRACTION device is not to be used, an
opening MUST also be made in the workbench, the same size as
the opening in the bottom of the saw. (which houses the Bottom
Grid). This is in order to allow the saw dust to drop through.
Dimensions of the opening are shown in Fig.12.
1. Each of the four mounting holes should be bolted securely using 8mm bolts (not included) which
should be 12mm longer than the thickness of the bench top.
2. Locate and mark where the saw is to be mounted.
3. Drill four (4) 10mm diameter holes through workbench.
4. Place the table saw on the workbench aligning the holes in the base with the holes drilled in the
workbench.
available from your CLARKE dealer .
419mm (16.5”)
Mounting Holes
IMPORTANT
Ensure the Bottom Grid is in place when bolting the machine to the workbench.
286mm (11.25”)
opening
in bottom
of saw
305mm (12”)
Fig.12
330mm (13”)
5. Insert four (4) 8mm bolts and tighten.
Mounting to Plywood
An alternative method of securing your table saw is to fasten the saw base to a mounting board,
600x600mm minimum size, to prevent the saw from tipping whilst in use. A good grade of plywood with
a minimum thickness of 19mm is recommended.
1. Follow the instructions for mounting to a workbench, substituting a plywood board with a minimum
size of 600x600mm.
The opening in the board should be the same as that shown in the diagram above.
To secure the table saw to the plywood board use 8mm countersunk screws with lock washers and
hex nuts (not included). Screw length must be at least 12mm more than the thickness of the
mounting board.
16
Page 17
NOTE: For proper stability, holes must be counter sunk on the underside of the plywood so that screw heads
are flush with the bottom surface of the mounting board.
IMPORTANT
Ensure the Bottom Grid is in place when bolting the machine to the workbench.
2. Securely clamp the board to a workbench
using two or more “G” clamps, as illustrated
in Fig. 13.
Fig.13
17
Page 18
IMPORTANT CHECKS - BEFORE STARTING
IMPORT ANT :
Before attempting to use the machine, it is necessary to ensure the various
components are correctly adjusted, and securly fitted.
• MAke sure the Saw is fitted to the bench or stand securely.
• Make sure that the blade is securly fitted.
• Make sure that the blade guard is fitted securly and is capable of dropping under its own
weight.
• Remove all tools and pieces of wood from the top of the table.
• If the rip fence is being used, make sure it is secure.
• Make sure the saw blade is at the required height and that the angle lock knob is tight before
use.
OPERATION
Starting And Stopping The Machine
The ON and OFF switches are located on the front of the table saw.
1. Plug the mains plug into the mains supply.
2 Press the Green button of (I).
• The table saw will now start. Always allow the blade to reach full speed before perfor ming any
cutting operations.
To switch the saw off:
4 Push the Red button (O).
• The table saw will stop.
NOTE: The blade will continue to rotate for a few seconds after the saw has been switched
off.
If, during use, the power is interrupted for any reason, the table saw will automatically switch OFF.
• It will not start again when power is restored.
You can restart the table saw by pressing the Green ON button.
18
Page 19
Overload Cut-Out
Your machine also features an overload cut-out device, so that if the machine is overloaded (due to
feed pressure being too great, a dull blade or low voltage etc.), the overload relay will intervene and
the motor will automatically cut out. In this event:
a. Disconnect from the mains supply.
b. Allow the motor to cool for at least five minutes.
c. Push the reset button, adjacent to the ON/OFF switches, which resets the overload
device.
d. Plug the machine back into the mains supply, and switch the saw back on.
WARNING!
THE MACHINE MUST BE IN THE OFF POSITION, AND THE PLUG REMOVED FROM THE POWER
SOURCE WHILST COOLING DOWN TAKES PLACE. THIS PREVENTS ACCIDENTAL STARTING WHEN
THE RESET BUTTON IS PUSHED, AS THE NO VOLT RELEASE WILL NOT HAVE TRIPPED .
ADJUSTMENTS

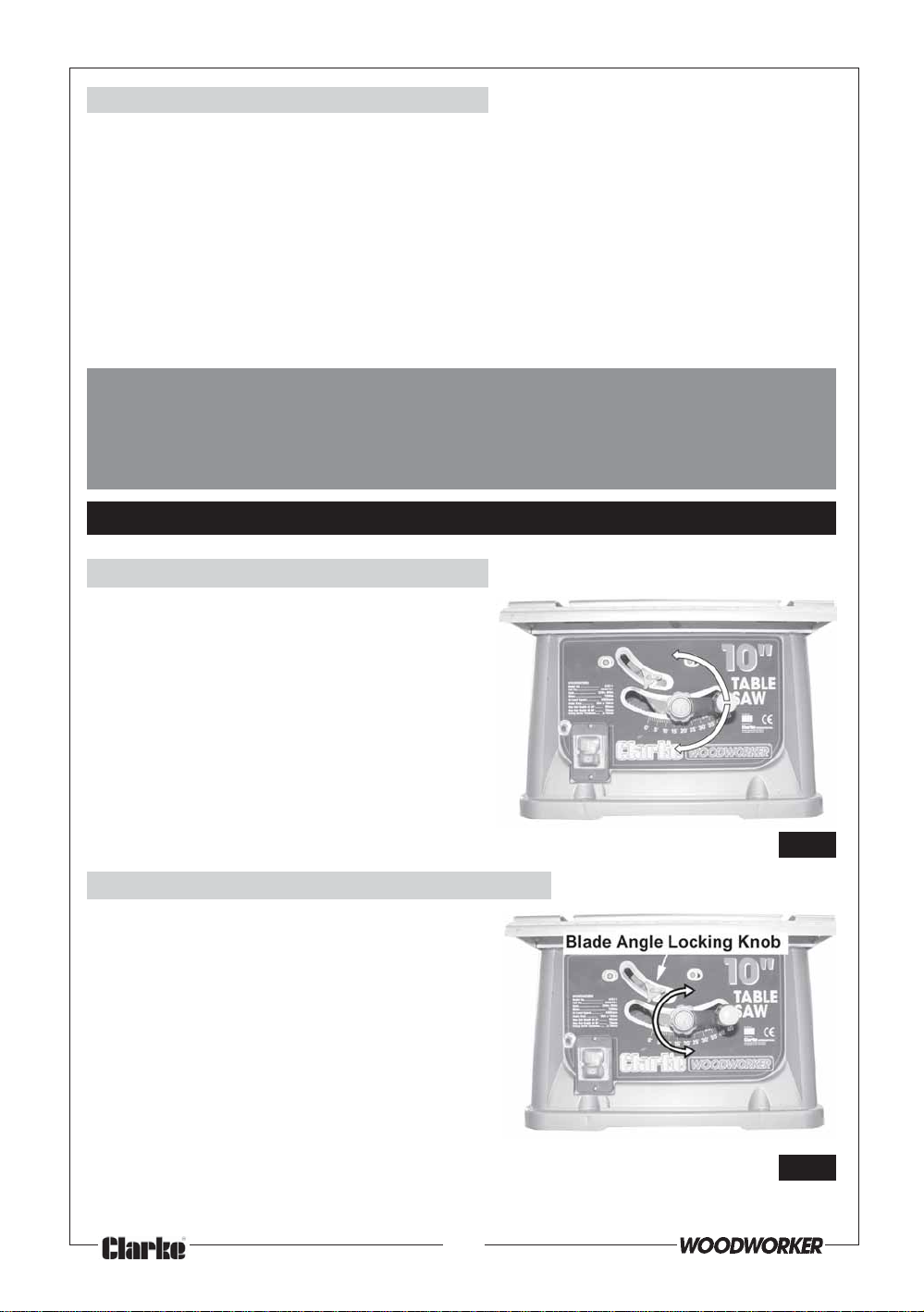

Changing The Blade Height
Turn the blade height handle to adjust the height of
the blade.
• Rotate the blade height adjuster clockwise to
lower the blade.
• Rotate the blade height adjuster
anticlockwise to raise the blade.
Changing The Blade Angle (Bevel Cutting)
Turn the blade angle adjustment dial to adjust the
angle of the blade ( 0-45 degrees ).
1. Loosen, the blade angle locking knob.
• Rotate the blade angle adjuster clockwise to
increase the angle.
• Rotate the blade angle adjuster anticlockwise
to decrease the angle.
2. Tighten the blade angle locking knob.
19
Page 20
Using The Mitre Gauge
1. Slide the securing bolts into the slot on the
fence as shown.
2. Slide the mitre gauge assembly into one of the
slots on the table.
3. Loosen the Locking knob and set the mitre gauge
to the required angle.
4. Tighten the Locking knob.
5. The mitre gauge is suitable for most
applications but for extra accuracy, a
protractor or other measuring device should
be used when setting the cutting angle. Test
the accuracy of the angle on a piece of
scrap material before cutting the workpiece.
Mitre Gauge Adjustment
To produce an accurate cut at 90O you should check the gauge as follows:
Fig. 16
Fig. 17
1. Loosen the lock knob and, using a set square as shown , set
the slide bar at 90O to the body.
2. Tighten the Locking knob and re-check with the square to
ensure no movement has taken place during the tightening
process.
• The graduations on the mitre gauge provide accuracy
for average woodworking. In some cases where extreme
accuracy is required, make a trial cut and then recheck it
with an accurate square or protractor.
• When using the left hand groove, hold the workpiece
firmly against the mitre gauge head with your left hand,
and push with your right hand.
Fig. 18
• When using the right hand groove, hold the work piece with the right hand and push with the
left.
WARNING: THE RIP FENCE MUST BE REMOVED FROM THE TABLE WHEN USING THE MITRE GAUGE.
20
Page 21
Adjusting The Rip Fence
1. Lift the fence handle up.
2. Slide the rip fence to the position you require.
3. Push the fence handle down to lock into place.
Fig. 19
21
Page 22
CUTTING METHODS
Ripping Or Rip Cutting
Ripping means to cut a piece of timber in the same
direction as the grain, i.e. usually lengthwise.
• The rip fence can be positioned to the right or
left of the saw blade, and can be adjusted to
suit the width of cut required,
1. Lock the rip fence into position.
• When the width of rip is 150mm (6”) and wider
use your right hand to feed the workpiece, only
use left hand to guide the workpiece. (Fig.20).
• If the width of rip is narrower than 50mm (2”), the
push stick cannot be used because it will interfere
with the guard. It is therefore necessary to use an
auxiliary fence, and push block as shown in fig.
15. (SEE PAGE 18 FOR RIP FENCE & AUX. FENCE)
2. Attach auxiliary fence to rip fence with two ‘G’
clamps as shown in fig 22.
3. Feed the workpiece by hand until the end is
approximately 1” from the front edge of the table.
Continue to feed using the push block until the cut is
complete.
Fig. 20
Fig. 21
Rip Cutting A Bevel
By tilting the saw blade (up to 45O), it is possible to rip cut
a bevel in your work. To do this:
1. Set the blade angle using the blade angle adjuster.
• If the workpiece is less than 150mm (6”) wide,
position the rip fence on the RIGHT SIDE of the
blade. This will provide more space between the
fence and the saw blade for the use of a push
stick.
Fig.22
Fig.23
22
Page 23

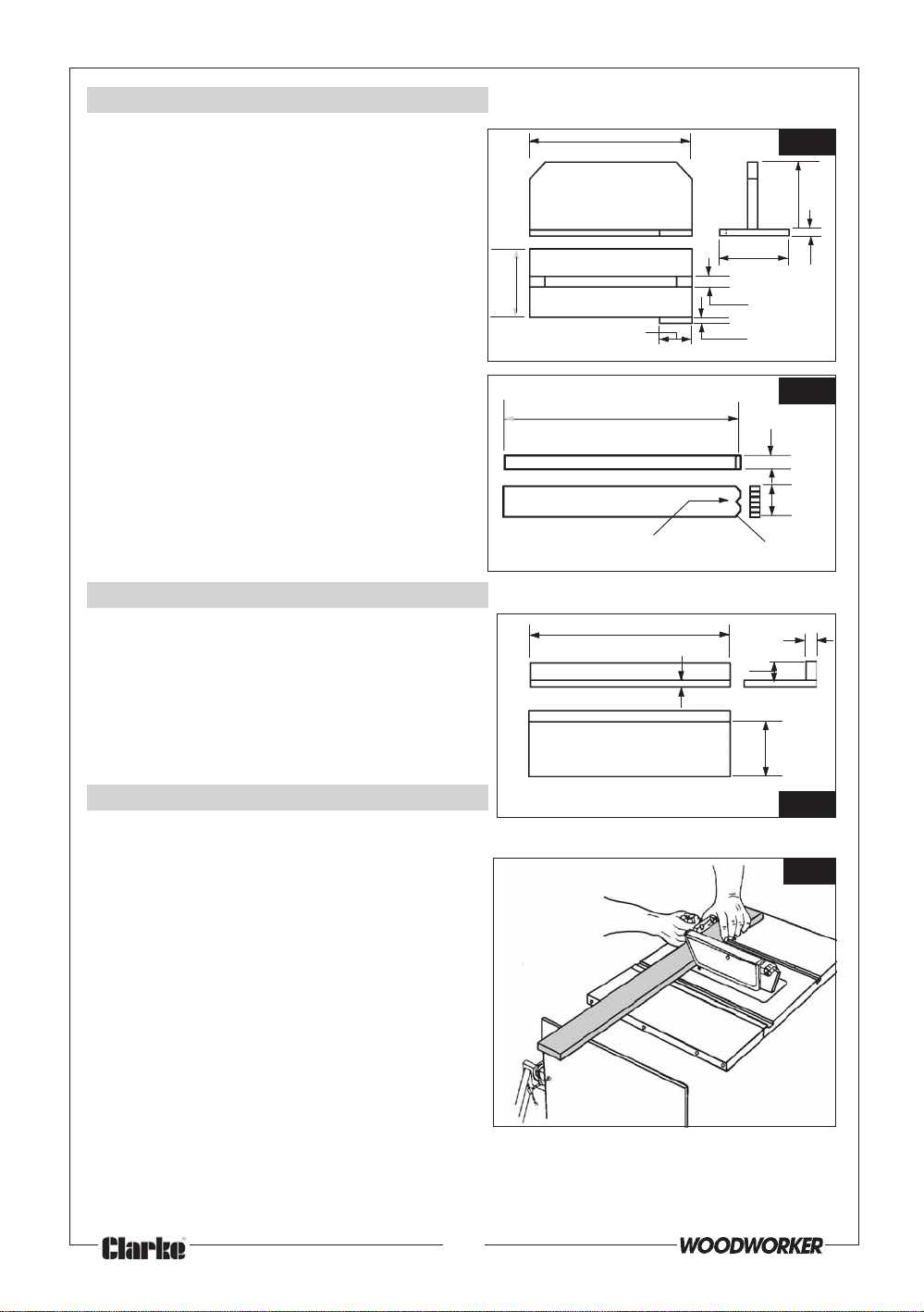

Push Stick And Push Block
Make the Push Block using pieces of 10mm plywood
and 19mm hardwood as shown in Fig.24.
• The small piece of wood 10x10x64mm should
be GLUED to the plywood. DO NOT USE NAILS
or SCREWS. This is to prevent damaging the
saw blade in the event you mistakenly cut
into the push block.
• Position the handle in the centre of the
plywood and fasten together with glue and
wood screws screwed in from below. (Ensure
the screw holes are countersunk. The screw
heads must not be proud).
Replacement Push Sticks can be made using a
suitable piece of timber as shown in Fig. 25.
Auxiliary Fence
Make an auxiliary fence using pieces of 10mm
plywood and 19mm hardwood. Fasten together with
glue and wood screws. Dimensions are shown in Fig.
26.
NOTE: The Push Block is used with the Auxiliary
Fence, the 120mm dimensions must be identical
on both the pieces.
Crosscutting
120mm
304mm
445mm
64mm
380mm
45° x 45° notch
10mm
Auxiliary Fence
130mm
19mm
10mm
19mm
6 x 6mm
44mm
Fig.24
127mm
10mm
Fig.25
40mm
19mm
120mm
Fig.26
Crosscutting is the term used to describe cuts made
in timber across the grain. This type of cut requires the
use of the MITRE GAUGE. This includes bevel cutting,
mitre cutting and compound mitre cutting
(described later in this paragraph).
1. To perform a cross cutting operation, hold the
work firmly against the mitre gauge fence.
2. With the timber carefully lined up with the saw
blade, the mitre gauge is gently pushed along
the groove, past the saw blade, producing the
desired cut.
Cross cutting, with support
23
Fig.27
Page 24
CROSSCUTTING TIPS
1. Do not make cuts freehand (without using the mitre gauge or other auxiliary device) the blade may
bind in the cut and cause kickback or cause your fingers or hand to slip into the blade.
2. Always lock the mitre gauge when in use.
3. Remove rip fence from table when not in use.
4. Make sure blade guard is installed (for all operations).
5. Set the saw blade height to the thickness of the wood plus 2-3mm.
6. Do not stand in front of the blade in case of a throwback (small cutoff piece caught by the back of
the blade and thrown toward the operator). Always stand slightly to one side of the blade.
7. Keep your hands clear, and away from the blade.
8. If the blade stalls or stops during the cutting process, switch the machine OFF and disconnect from
the mains supply, before you attempt to free the blade.
9. Do not reach over or behind the blade for any reason.
10. Do not pick up small pieces of cutoff material from the table. Remove them by pushing them off
the table with a stick.
11. Do not remove small pieces of cutoff material that may become trapped inside the blade guard
while the saw is running. Turn the saw off. Once the blade has stopped turning, lift the guard and
remove the trapped piece with a stick.
12. If the workpiece is warped, place the concave side down. This will prevent it from rocking while it is
being cut.

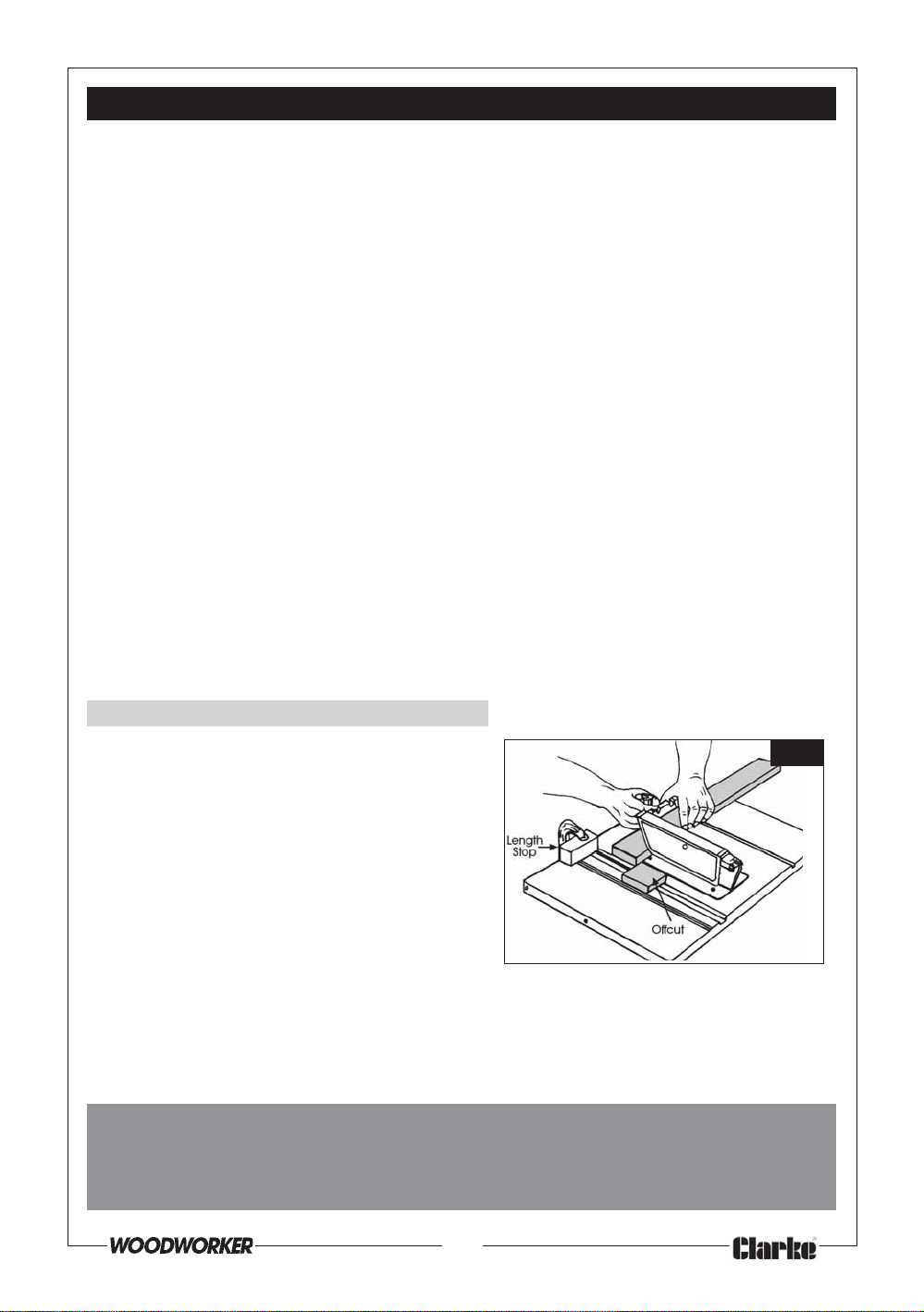

Repetitive Cutting
Repetitive cutting is the term used when cutting a
quantity of pieces of the same length without having
to mark each piece.
When making repetitive cuts from a long workpiece,
make sure it is supported.
1. When making repetitive cuts, clamp a block of
wood 75mm (3”) long to the table at the desired
length to act as a length stop.
Repetitive cutting
NOTE: When clamping the block, make sure that
the end of the block is well in front of the saw
blade. Make sure it is clamped securely.
2. Slide the workpiece along the mitre gauge until it touches the block, hold it securely.
When cutting long workpieces, make sure the end is supported.
3. Make the cut, pull the workpiece back and push the offcut off of the table using a
push stick, DO NOT ATTEMPT TO PICK IT UP AS THIS COULD ENDANGER YOUR HANDS.
WARNING!
NEVER USE THE RIP FENCE AS A LENGTH STOP BECAUSE THE CUT-OFF PIECE COULD BIND
BETWEEN THE FENCE AND THE BLADE CAUSING A KICKBACK.
Fig.28
24
Page 25
Mitre Cutting
Mitre cutting is the term used for cutting at an angle
other than 90O to the edge of the wood.
1. Adjust the mitre gauge to the desired angle, and
lock it.
• The mitre gauge may be used in either of the
grooves in the table.
• When using the mitre gauge in the LEFT hand
groove, hold the workpiece firmly against the
mitre gauge with your left hand and push with
your right.
• When using the RIGHT hand groove, hold the workpiece with your RIGHT HAND and the lock
knob with your left hand.
Bevel Crosscutting
Bevel crosscutting is the same as crosscutting except
that the wood is also cut at an angle, other than 90
degrees with the flat side of the wood.
1. Adjust the blade to the desired height and angle.
• Use the mitre gauge in the right hand groove. Do
not use the left hand groove, the blade guard
will interfere.
Fig. 29
Fig. 30
• Hold the workpiece with your right hand and the
push with your left hand.
Compound Mitre Cutting
Compound mitre cutting is a combination of mitre cutting and bevel crosscutting. The cut is made at an
angle other than 90O to both the edge and the flat side of the wood.
• Adjust the mitre gauge and the blade to the desired angle.
• Make sure the mitre gauge body is locked.
WARNING!
WHEN MITRE CUTTING, AN AREA OF BLADE IS EXPOSED.
GREAT CARE MUST BE TAKEN WHEN USING THE TABLE SAW FOR THIS OPERATION.
25
Page 26
MAINTENANCE
WARNING!
FOR YOUR OWN SAFETY, SWITCH MACHINE OFF AND REMOVE PLUG FROM POWER SOURCE
BEFORE ADJUSTING, MAINTAINING OR LUBRICATING YOUR SAW.
Do not allow sawdust build up inside the saw. Use the dust extraction port
Inspect the power cable frequently. If it is worn or cut, or damaged in any way, have it replaced
immediately by a qualified service agent.
NOTE: Do not use any of the following to clean this table saw: gasoline, carbon tetrachloride,
chlorinated cleaning solvents, ammonia and household detergents which contain ammonia.
You may apply a coat of wax to the table to keep the surface clean and allow wood being cut to slide
more freely.
Changing The Blade
• Use only Clarke Blades, (see parts list for part numbers).
• Replace the blade when teeth become damaged or dull.
WARNING!
TO PREVENT PERSONAL INJURY, ALWAYS DISCONNECT PLUG FROM POWER SOURCE BEFORE
CHANGING BLADES.
TAKE GREAT CARE WHEN HANDLING SAW BLADES - THE TEETH ARE EXTREMELY SHARP, AND
CARELESSNESS CAN CAUSE SERIOUS PERSONAL INJURY
1. Raise the blade as far as possible, then
remove the blade guard.
2. Remove the table insert.
3. Turn the blade angle adjuster to 45o.
4. Use the two spanners provided to
remove the blade securing nut, one to
engage with the flats on the outer
flange, the other to remove the nut.
5. Replace the blade in reverse order,
ensuring the teeth point down towards
the table at the front, and it sits snugly on
the boss on the inner flange before
replacing the outer flange and
tightening the securing nut.
Fig.31
26
Page 27
Renewing Motor Brushes
WARNING!
ENSURE THE PLUG IS DISCONNECTED FROM THE POWER SUPPLY BEFORE PROCEEDING
• Lower the blade to minimum height and remove the riving knife and blade guard.
• Turn the table saw over so that it rests on its table top .
1. Remove the bottom grill by removing the 6 screws shown.
Fig.32
2. Unscrew and remove the brush caps, (one either side of the motor housing), then withdraw the
brush with springs attached.
3. Carefully insert replacement brushes and replace the screw on caps.
• Always replace both brushes at the same time.
27
Page 28
TROUBLE SHOOTING
TROUBLE PROBABLE CAUSE REMEDY
Saw will not start 1. Saw not plugged in 1. Plug in the machine
2. Fuse blown or circuit breaker 2. Replace fuse or reset circuit
tripped breaker
3. Power cable damaged 3. Have cable replaced by
Material Pinches 1. Rip fence not aligned with blade 1. Check and adjust rip fence
Blade When Ripping 2. Warped wood, edge against 2. Select another piece of wood
fence not straight
Material binds on 1. Riving knife not aligned correctly 1. Check and align Riving knife with
Riving Knife with blade blade
Saw makes 1. Dull blade 1. Replace blade
unsatisfactory cuts 2. Blade mounted backwards 2. Turn blade around
3. Gum or pitch on blade 3. Remove blade and clean with
4. Incorrect blade for work 4. Change the blade
5. Gum or pitch on table causing 5. Clean table with turpentine and
erratic feed steel wool and apply wax
Material kicked back 1. Rip fence out of alignment 1. Align rip fence with blade
from blade slot 2. Riving knife not aligned with blade 2. Align Riving knife with blade
3. Feeding stock without rip fence 3. Install and use rip fence
4. Riving knife not in place 4. Install and use Riving knife with
5. Letting go of material before it is 5. Push material all the way past
all the way past the saw blade blade before releasing work
6. Dull blade 6. Replace blade
7. Mitre angle lock knob is not tight 7. Tighten knob
authorised service centre
turpentine and coarse steel wool
guard
Blade does not raise 1. Sawdust and dirt in raising and 1. Brush or blow out loose dust
or tilt freely tilting mechanism and dirt
Blade does not come 1. Extension cable too light or too 1. Replace with adequate size
up to speed long cable
2. Low voltage 2. Contact your electric company
Machine vibrates 1. Saw not mounted securely to 1. Tighten all mounting hardware
Does not make 1. Mitre gauge out of adjustment 1. Adjust mitre gauge
accurate 45O and
90O crosscuts
Stand or work bench
2. Stand or bench on uneven floor 2. Reposition on flat level surface
Fasten to floor if necessary
3. Damaged saw blade 3. Replace blade
28
Page 29
PARTS LISTS
No. Description Qty Part No
1 Locking nut M6 4 HTCTS11001
2 Flat washer 39 HTCTS11002
3 Left board 1 HTCTS11003
4 Guard support 1 HTCTS11004
5 Elastic pin 1 HTCTS11005
6 Right board 1 HTCTS11006
7 Locking bolt 1 HTCTS11007
8 Screw ST3.2×8 6 HTCTS11008
9 End cover 1 HTCTS11009
10 Fence 1 HTCTS11010
11 End cover 1 HTCTS11011
12 Screw M6×16 2 HTCTS11012
13 Locking Knob(a) 4 HTCTS11013
14 Locking Knob(b) 1 HTCTS11014
15 Flat washer 1 HTCTS11015
16 Mitre Gauge 1 HTCTS11016
17 Plastic Piece 1 HTCTS11017
18 Bar 1 HTCTS11018
19 Screw M6×16 6 HTCTS11019
20 Elastic washer 32 HTCTS11020
21 Nut M6 25 HTCTS11021
22 Rear Extension table
support 2 HTCTS11022
23 Screw M5×12 18 HTCTS11023
24 Flat washer 20 HTCTS11024
25 Rear Extension table 1 HTCTS11025
26 Screw M6×16 6 HTCTS11026
27 Left Extension table 1 HTCTS11027
28 Left/Right Extension
table support 4 HTCTS11028
29 Screw M5×20 4 HTCTS11029
30 Screw M4×8 6 HTCTS11030
31 Elastic washer 2 HTCTS11031
32 Flat washer 4 HTCTS11032
33 Washer 2 HTCTS11033
34 Screw M4×8 12 HTCTS11034
35 Blade guard 1 HTCTS11035
36 Main table 1 HTCTS11036
37 Scale Label 1 HTCTS11037
38 Right Extension table 1 HTCTS11038
No. Description Qty Part No
39 End cover 3 HTCTS11039
40 Fence 1 HTCTS11040
41 End cover 1 HTCTS11041
42 Screw M4×10 1 HTCTS11042
43 Pad 1 HTCTS11043
44 Locking base 1 HTCTS11044
45 Guide 1 HTCTS11045
46 Screw M4×10 1 HTCTS11046
47 Screw M6×35 2 HTCTS11047
48 Shaft(a) 1 HTCTS11048
49 Shaft(b) 1 HTCTS11049
50 Eccentric Wheel 1 HTCTS11050
51 Handle 1 HTCTS11051
52 Handle cover 1 HTCTS11052
53 Clamp piece 1 HTCTS11053
54 Clamp paw 1 HTCTS11054
55 Screw 1 HTCTS11055
56 Elastic pin 1 HTCTS11056
57 Spring 1 HTCTS11057
58 Nut M16 1 HTCTS11058
59 Outer Flange 1 HTCTS11059
60 Saw Blade 1 HTCTS11060
61 Inner Flange 1 HTCTS11061
62 Lower Blade Guard 1 HTCTS11062
63 Flat washer 12 HTCTS11063
64 Dust tube 1 HTCTS11064
65 Screw 2 HTCTS11065
66 Fixing board 1 HTCTS11066
67 Circlip 1 HTCTS11067
68 Fixing Ring 1 HTCTS11068
69 Flat Pin 1 HTCTS11069
70 Screw M4×14 3 HTCTS11070
71 Nut 1 HTCTS11071
72 Spring 1 HTCTS11072
73 Screw 1 HTCTS11073
74 Spring bar 1 HTCTS11074
75 E ring 1 HTCTS11075
76 Lower suport 1 HTCTS11076
77 Motor 1 HTCTS11077
78 Motor support 1 HTCTS11078
29
Page 30
PARTS LISTS
No. Description Qty Part NoNo. Description Qty Part No
79 Screw 2 HTCTS11079
80 Screw 2 HTCTS11080
81 Flat washer 4 HTCTS11081
82 Elastic washer 4 HTCTS11082
83 Screw M5×16 4 HTCTS11083
84 Pin 1 HTCTS11084
85 Shaft 1 HTCTS11085
86 Turing base 1 HTCTS11086
87 Base 1 HTCTS11087
88 Adjusting Nut 1 HTCTS11088
89 Gear 1 HTCTS11089
90 Angle pointer 1 HTCTS11090
91 Adjusting Bar 1 HTCTS11091
92 Flat washer 5 HTCTS11092
93 Elastic washer 4 HTCTS11093
94 Screw M8×20 4 HTCTS11094
95 Screw ST4.2×12 6 HTCTS11095
96 Guard ring (a) 1 HTCTS11096
97 Guard ring (b) 1 HTCTS11097
98 Screw ST3.2×10 6 HTCTS11098
99 Cable collect 1 HTCTS11099
100 Over-load protector 1 HTCTS11100
101 Cable collect housing 1 HTCTS11101
102 N u t 2 HTCTS11102
103 Locking Nut M4 3 HTCTS11103
104 Angle adjusting base 1 HTCTS11104
105 Fence 1 HTCTS11105
106 Dust adaptor 1 HTCTS11106
107 Machine housing 1 HTCTS11107
108 Push stick clip 2 HTCTS11108
109 Push stick 1 HTCTS11109
110 Screw M4×25 3 HTCTS11110
111 Main label 1 HTCTS11111
112 Locking handle 1 HTCTS11112
113 Elastic pin 1 HTCTS11113
114 Flat washer 2 HTCTS11114
115 Pin 1 HTCTS11115
116 Handle cap 1 HTCTS11116
117 Handle 1 HTCTS11117
118 Rocker 1 HTCTS11118
119 Turing handle 1 HTCTS11119
120 Nut 1 HTCTS11120
121 Label 1 HTCTS11121
122 Magnetic Switch 1 HTCTS11122
123 Screw ST4.2×16 8 HTCTS11123
124 Cable clamp 1 HTCTS11124
125 Bottom Plate 1 HTCTS11125
126 Guard ring 1 HTCTS11126
127 Cable 1 HTCTS11127
128 Damping washer 4 HTCTS11128
129 Leg 4 HTCTS11129
130 Support leg 4 HTCTS11130
131 Screw M6×16 16 HTCTS11131
132 Wrench(a) 1 HTCTS11132
133 Wrench(b) 1 HTCTS11133
134 Allen key 1 HTCTS11134
135 Capacitor 1 HTCTS11135
PARTS AND SERVICE CONTACTS
For Spare Parts and Service, please contact your nearest dealer,
or CLARKE International, on one of the following numbers.
PARTS & SERVICE TEL: 020 8988 7400
PAR TS & SERVICE FAX: 020 8558 3622
or e-mail as follows:
PAR TS: [email protected]
SERVICE: [email protected]
30
Page 31
PARTS DIAGRAM
Fig.37
31
Page 32
32
Loading...
