Page 1
10” TABLE SAW
10” TABLE SAW
0504
©
Model CTS10D
Model CTS10D
Part Number 6500750
Operating & Maintenance
Instructions
PRODUCT SERIAL/BATCH NO............................
Page 2
2
Page 3
Thank you for purchasing your new CLARKE 10” TABLE SAW, which is designed for DIY, and
hobby use ONLY.
Before attempting to operate this machine, please read this instruction manual thoroughly
and follow all directions carefully. In doing so you will ensure the safety of both yourself and
others around you, and, at the same time, you should look forward to it providing long and
trouble free service.
GUARANTEE
This product is guaranteed against faults in manufacture for 12 months from purchase date.
Keep your receipt as proof of purchase. This guarantee is invalid if the product has been found
to have been abused in any way, or not used for the purpose for which it was intended, or to
have been tampered with in any way. The reason for return must be clearly stated. This
guarantee does not affect your statutory rights.
CONTENTS
Specifications ............................................................................................. 4
General Safety Rules .................................................................................. 5
Additional Safety Rules for Table Saws .................................................... 6
Electrical Connections ............................................................................... 7
Features .......................................................................................................8
Glossary of Terms........................................................................................9

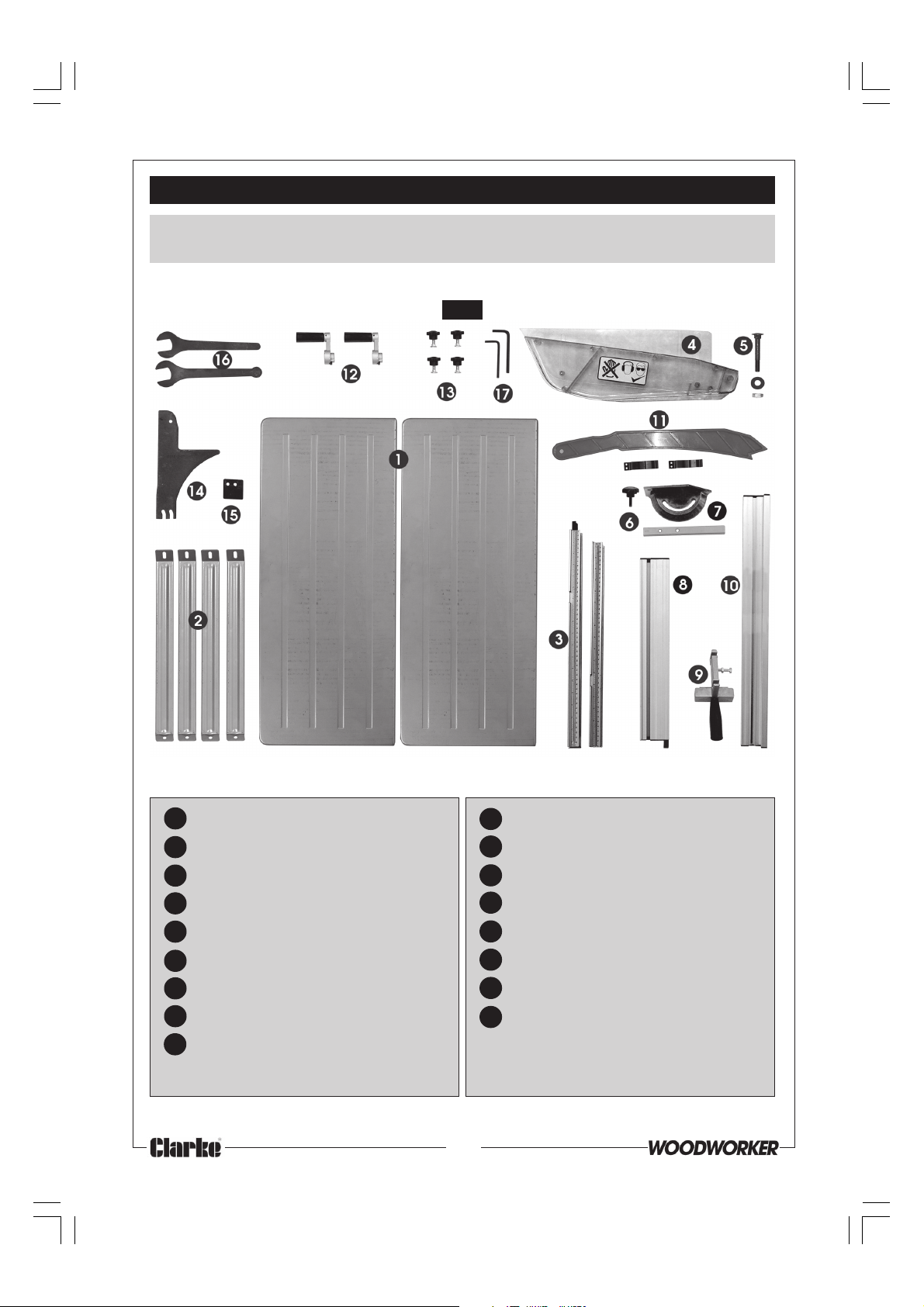

Unpacking and Checking Contents ......................................................10
Assembly Instructions .............................................................................. 11

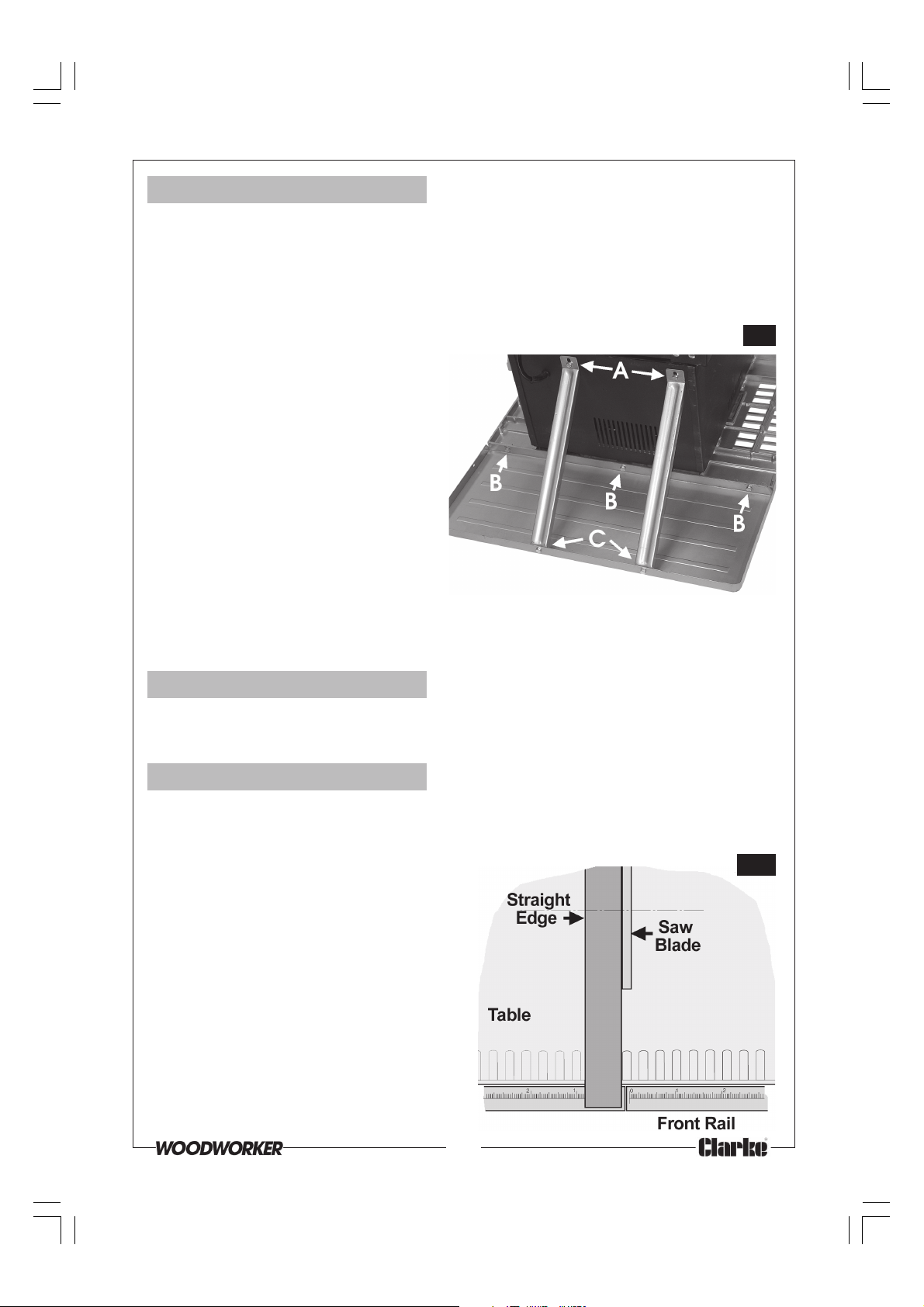

Mounting the Saw .....................................................................................15
Important Checks before Starting ..........................................................16
Operating Instructions ............................................................................. 16
Starting & Stopping .................................................................... 16

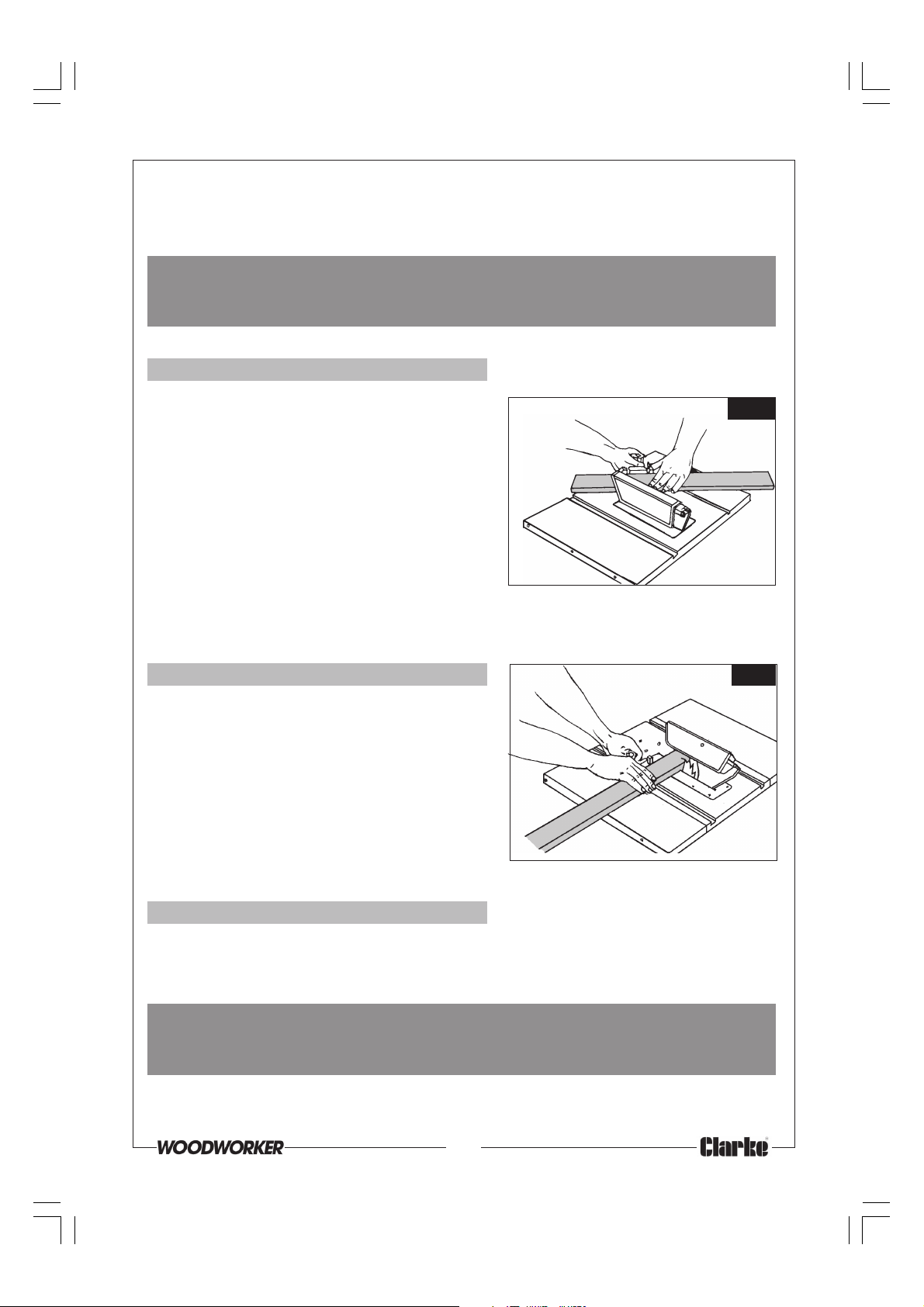

Rip Cutting .................................................................................. 17
Cross Cutting .............................................................................. 18

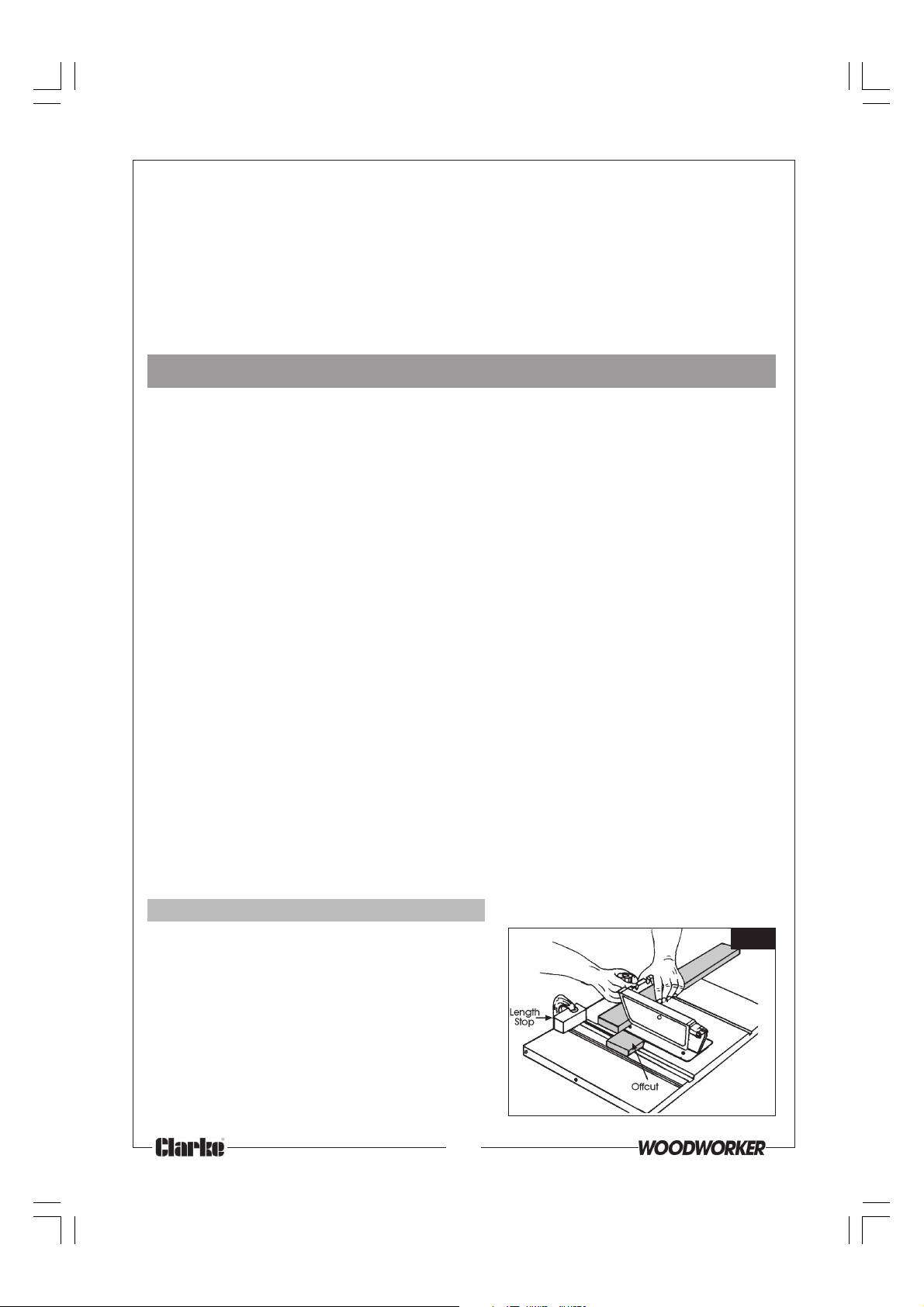

Repetitive Cutting ...................................................................... 19

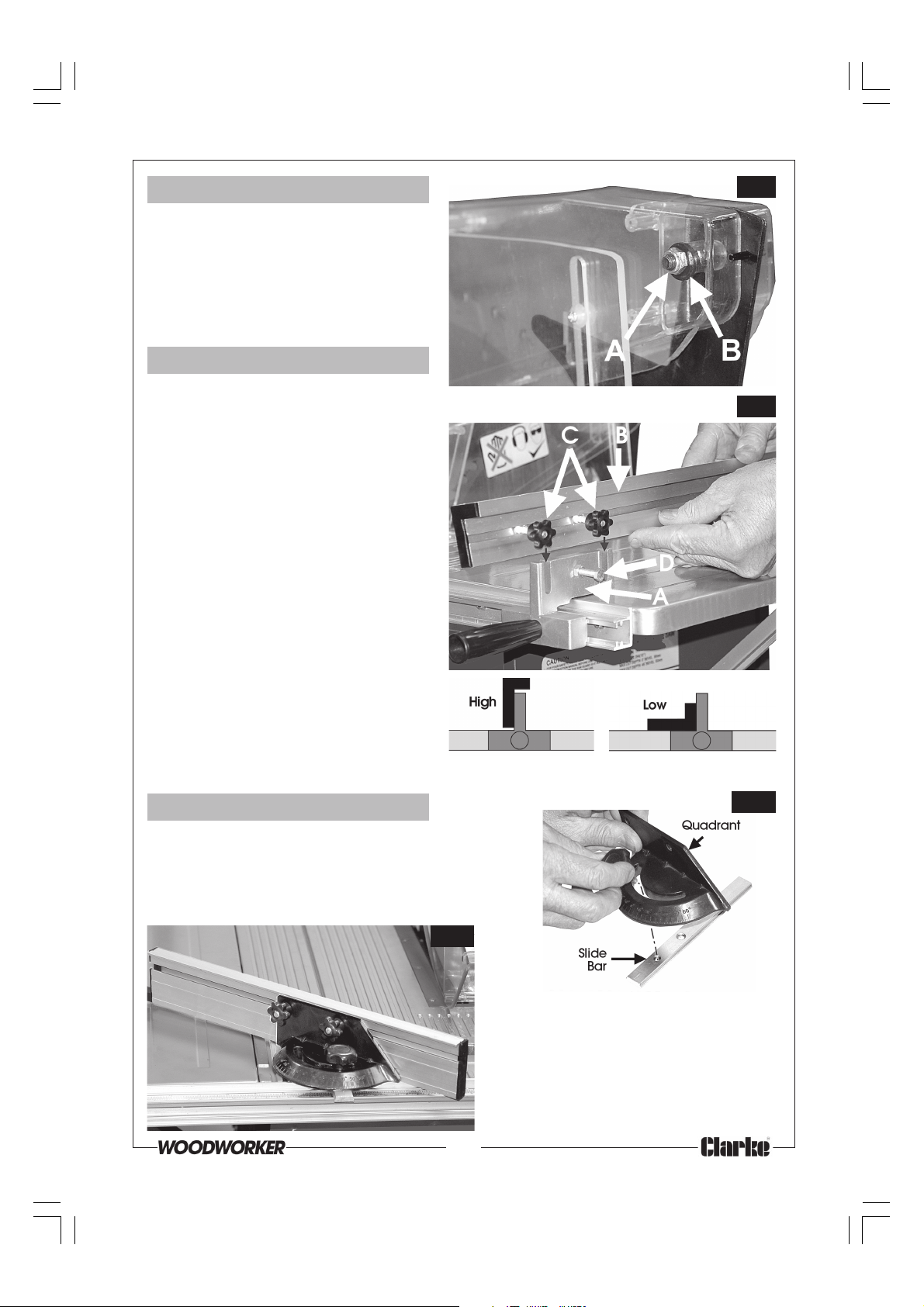

Mitre Cutting ...............................................................................20
Bevel Cross Cutting .................................................................... 20
Compound Mitre Cutting .......................................................... 20
Maintenance ............................................................................................ 21

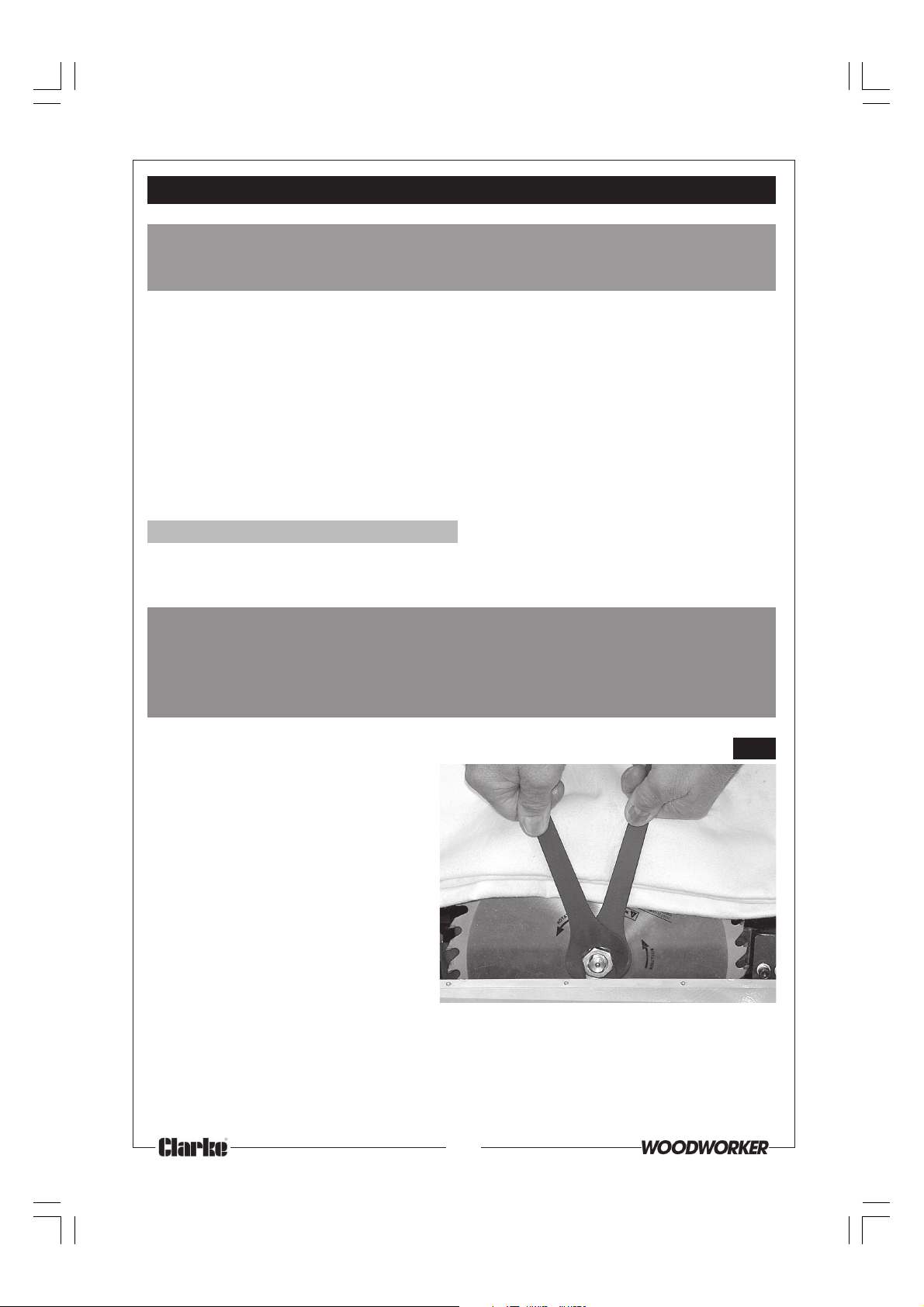

Changing the Saw Blade .......................................................... 21
Saw Blade Adjustments ............................................................. 22
Motor Brush Renewal .................................................................22
Trouble Shooting .......................................................................................23

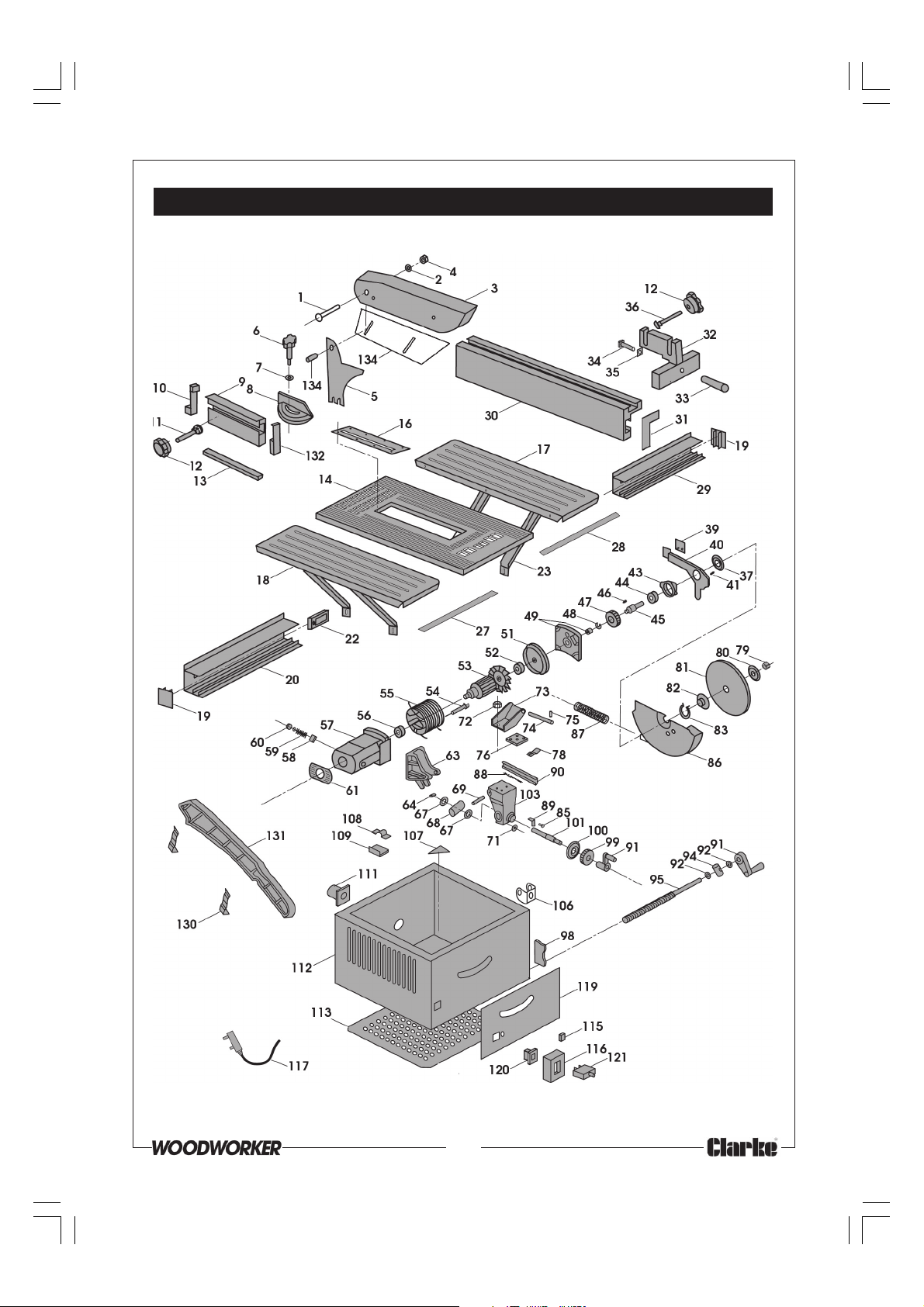

Parts Lists and Diagrams .................................................................... 24-26
Personal Notes ..........................................................................................27
3
Page 4
SPECIFICATIONS
Model No ..............................................CTS10D
Part No. ..................................................6500751
Motor ..................................................... 230V~ 50Hz 1ph
Power rating ..............................1.5Kw
Speed ........................................ 4500 rpm
Fuse rating ................................. 13Amps
Saw Blade ............................................. 10” dia. - 5/8” bore (254x16mm) TCT
O
Maximum depth of cut at 90
Maximum depth of cut at 45
Net Weight ............................................28KG
Noise level at operating position ........ 112.3dB LWA (under load)
Overall dimensions (LxWxH) ................ 958x765x441mm
Use of machine
This machine is designed to rip and cross cut wood exclusively, up to a maximum thickness of
78mm.
For correct operation it must be fixed and operated as laid down in this manual.
This saw is intended for DIY, and hobby use ONLY.
............78mm
O
............55mm
Restrictions of use
This saw is NOT suitable for cutting:
• Timber greater than 78mm in thickness.
• Metal, Stone, Rubber, Plastic, Bones, Etc.
• Logs or round timber.
DO NOT use to rebate, tenon, mould or groove.
DO NOT fit any other tool or combination of blades.
DO NOT use as a free standing machine or as a hand held machine.
DO NOT modify the machine or its guards/controls in any way.
DO NOT use with any covers/guards removed.
When disposing of this product, it must be disposed of according to all local ordinances
4
Page 5
GENERAL SAFETY RULES
WARNING
!
As with all machinery, there are certain hazards involved with their operation
and use. Exercising respect and caution will considerably lessen the risk of
personal injury. However, if normal safety precautions are overlooked or
ignored, personal injury to the operator or damage to property may result.
1. READ and BECOME FAMILIAR with the entire operating manual. Learn the machine’s
applications and limitations as well as the specific potential hazards peculiar to it.
2. CHECK DAMAGED PARTS. Before using the machine, check to ensure that a guard or
other damaged part, will operate properly and perform its intended function. Check
for alignment of moving parts, breakage of parts, mountings, or any other conditions
that may affect its operation. A guard or other part that is damaged should be properly
repaired or replaced.
3. REMOVE TOOLS BEFORE SERVICING and when changing accessories such as blades,
fences etc.
4. ALWAYS KEEP GUARDS in place and in working order.
5. ALWAYS USE SAFETY GOGGLES. Also use face or dust mask if cutting operation is dusty.
REMEMBER, everyday eyeglasses do not have impact resistant lenses, they are NOT
safety glasses.
6. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
7. WEAR EAR PROTECTORS/DEFENDERS.
8. DO NOT FORCE THE MACHINE. It will do a better and safer job at the rate for which it
was designed.
9. REMOVE ALL TOOLS. Form the habit of checking to see that keys and adjusting spanners
etc., are removed from machine before turning it on.
10. ALWAYS feed the work into the blade against direction of rotation only.
11. DRUGS, ALCOHOL, MEDICATION. Do not operate machine whilst under the influence of
drugs, alcohol or any medication.
12. USE RECOMMENDED ACCESSORIES. The use of improper accessories could be hazardous.
13. NEVER STAND ON THE MACHINE. Injury could occur from a fall.
14. NEVER LEAVE MACHINE RUNNING UNATTENDED. Turn power OFF. Don’t leave machine
until it comes to a complete stop.
15. ALWAYS DISCONNECT THE PLUG from electrical outlet when adjusting, changing parts
or working on the machine.
16. AVOID DANGEROUS ENVIRONMENT. Don’t use power tools in damp or wet locations or
expose them to rain. Keep your work area well illuminated. DO NOT USE in explosive
atmosphere (around paint, flammable liquids etc.).
17. KEEP CHILDREN AWAY. All visitors should be kept a safe distance from work area,
especially whilst operating the machine.
18. MAINTAIN BLADE and ACCESSORIES IN TOP CONDITION. Keep blade sharp and clean
for best and safest performance. Follow instructions for lubricating and changing
accessories.
5
Page 6
19. DON’T OVERREACH. Keep your proper footing and balance at all times. For best footing
wear rubber soled shoes or boots. Keep the floor clear of oil, scrap wood, etc.
20. WEAR PROPER APPAREL. Loose clothing or jewellery may get caught in moving parts.
Wear protective hair covering to contain long hair.
21. MAKE WORKSHOP CHILDPROOF. Lock the saw away, or cover securely when not in use.
ADDITIONAL SAFETY RULES FOR TABLE SAWS
✔ ALWAYS use saw Blade Guard and Riving Knife for every operation.
✔ ALWAYS hold the work firmly against the mitre gauge or fence.
✔ ALWAYS use a push-stick when required. Always use a push-stick for ripping narrow
stock. Refer to ripping applications in instruction manual where push-stick is covered in
detail.
✔ ALWAYS use in a well ventilated area. Remove sawdust frequently. Clean out sawdust
from the interior of the saw to prevent a potential fire hazard.
✔ ALWAYS move the rip fence out of the way when crosscutting.
✔ ALWAYS switch off and disconnect from supply before removing off cuts of wood from
the machine
✔ ALWAYS provide adequate support to the rear and sides of the saw table for wide or
long workpieces.
✔ ALWAYS keep the blade sharp, the Rip Fence parallel to the saw blade, and the Riving
Knife and Blade Guard in place. Do not release work before it is pushed all the way
past the saw blade.
✔ ALWAYS avoid awkward operations and hand positions where a sudden slip could cause
your hand to move into the blade.
✔ PERMANENTLY mount your table saw before performing any cutting operations.
Refer to ‘Mounting the Saw’ on page 15.
✘ NEVER stand or have any part of your body in line with the path of the saw blade.
Keep your hands out of the line of the saw blade.
✘ NEVER reach behind or over the blade for any reason.
✘ NEVER use the fence as a cutoff gauge when crosscutting.
✘ NEVER attempt to free a stalled saw blade without first turning the saw OFF. Turn off
power switch immediately to prevent motor damage.
✘ NEVER use solvents to clean plastic parts. Solvents could possibly dissolve or otherwise
damage the material. Only a soft damp cloth should be used to clean plastic parts.
✘ NEVER force feed the work into the blade. A light pressure ONLY is required
✘ NEVER cut metals or materials which may make hazardous dust.
✘ NEVER perform any operation ‘freehand’ which means using your hands to support or
guide the work piece. Always use either the fence or the mitre gauge to position and
6
Page 7
ELECTRICAL CONNECTIONS
WARNING! THIS APPLIANCE MUST BE EARTHED.
Connect the mains lead to a 230 volt (50Hz) domestic electrical supply via a standard 13 amp
BS 1363 plug fitted with a 13 amp fuse, or a suitably fused isolator switch.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:
Green & Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the flexible cord of this appliance may not correspond with the coloured
markings identifying terminals in your plug, proceed as follows:
Connect GREEN & YELLOW coloured cord to plug terminal marked with a letter “E” or
Earth symbol “ ”, or coloured GREEN or GREEN & YELLOW.
Connect BROWN coloured cord to plug terminal marked letter “L” or coloured RED.
Connect BLUE coloured cord to plug terminal marked letter “N” or coloured BLACK.
We strongly recommend that this unit is connected to the mains supply via a Residual
Current Device (RCD).
IMPORTANT!
If this appliance is fitted with a plug which is moulded onto the electric cable (i.e. non- rewireable) please note:
1. The plug must be thrown away if it is cut from the electric cable. There is a danger of
electric shock if it is subsequently inserted into a socket outlet.
2. Never use the plug without the fuse cover fitted.
3. Should you wish to replace a detachable fuse carrier, ensure that the correct replacement
is used (as indicated by marking or colour code).
4. Replacement fuse covers can be obtained from your local dealer or most electrical
stockists.
Fuse Rating
The fuse in the plug must be replaced with one of the same rating (13 amps) and this replacement
must be ASTA approved to BS1362.
Extension Cable
If an extension cable is fitted, ensure the minimum cross section of the conductor is 1 .5mm2 for
up to 15 metres in length, and 2.5mm2 for up to 25 metres.
WARNING:
If the power cable is worn or cut, or damaged in any way, have it replaced
immediately to avoid shock or fire hazard.
7
Page 8

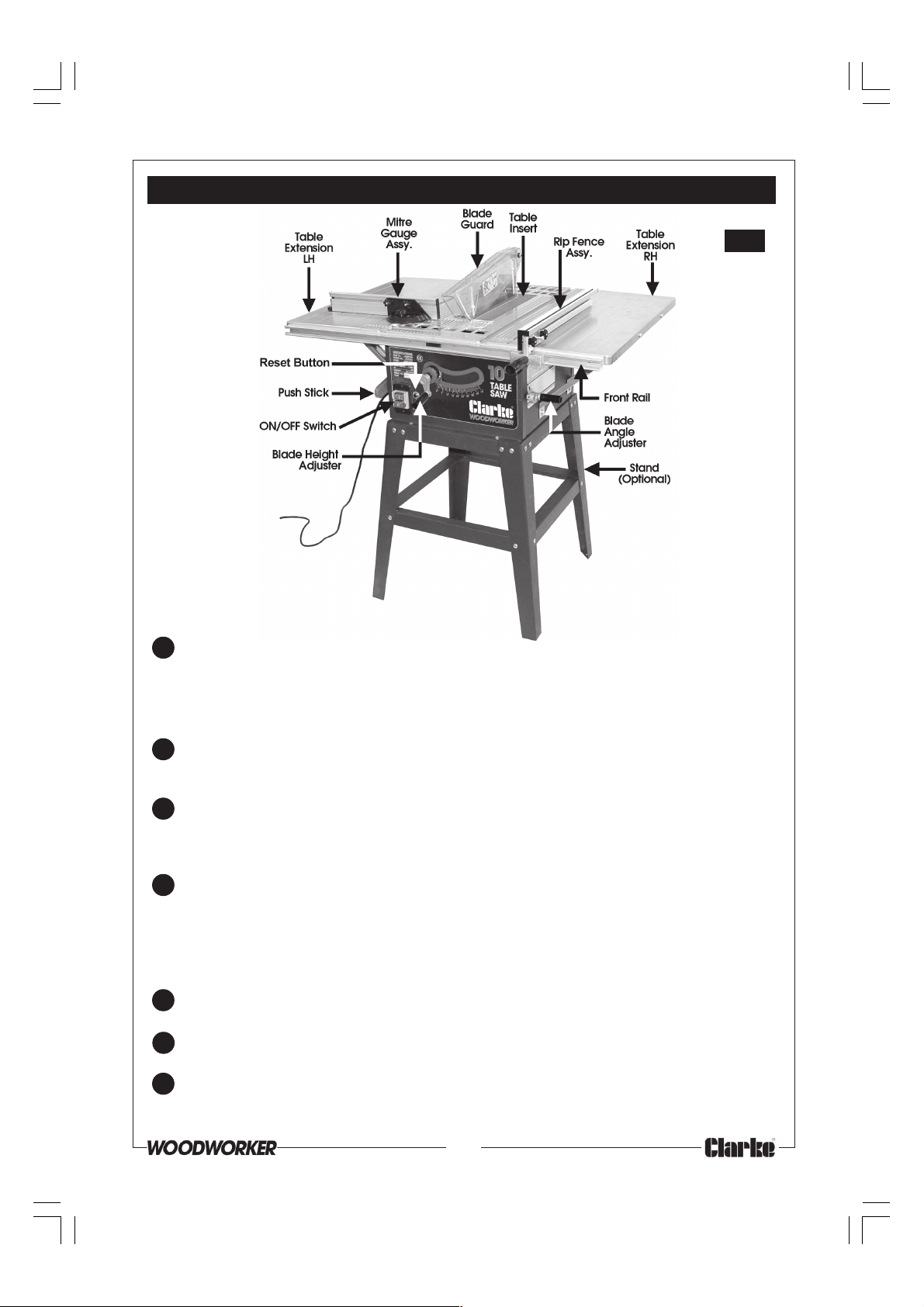

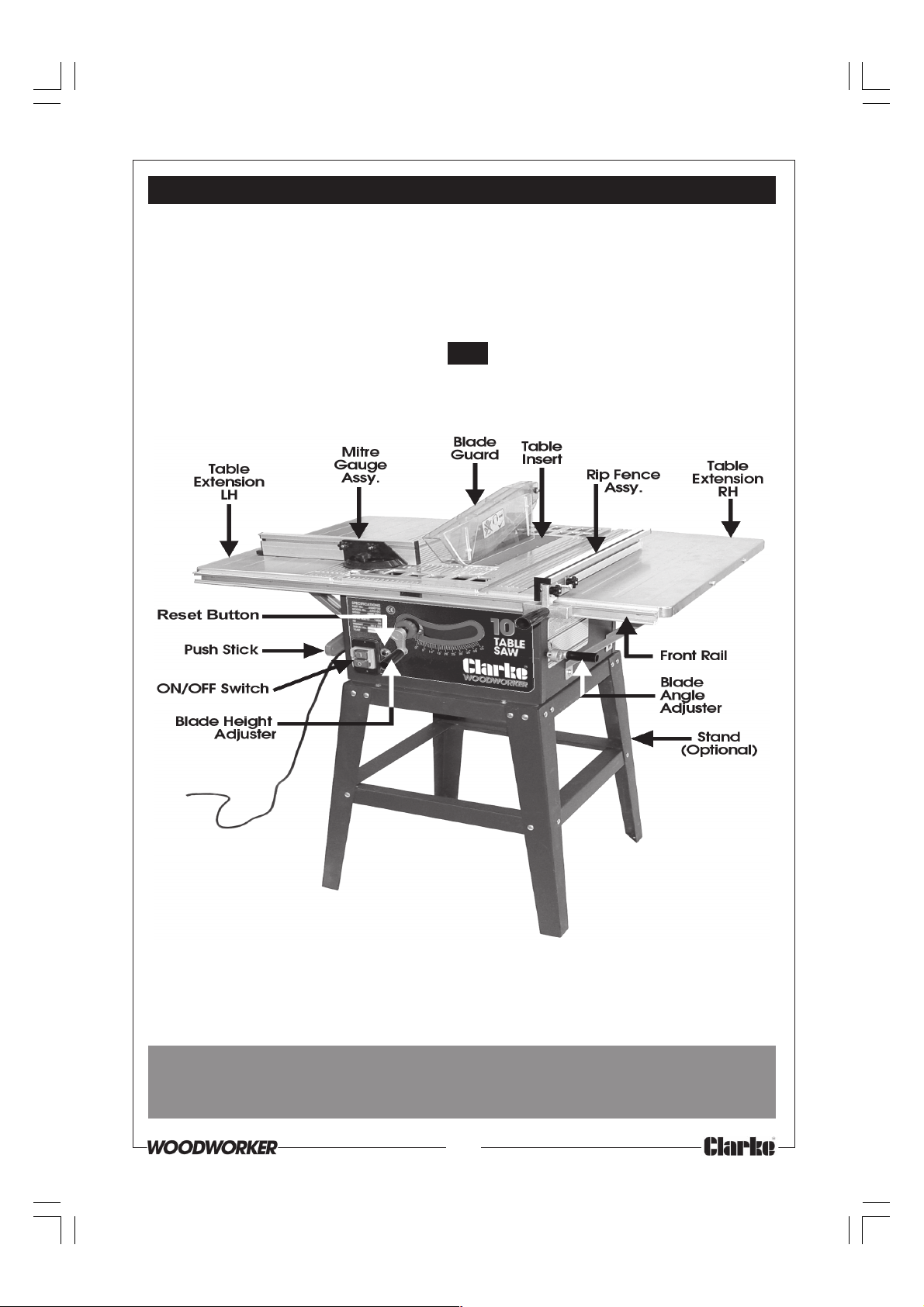

FEATURES
Fig.1
1. The switch panel incorporates the ON and OFF switches.
Your saw also features an Overload Protection device, so that if the motor is overloaded
(due to feed pressure being too great, dull blade or low voltage), the Overload Relay
will intervene, and the motor will automatically cut out. A reset button is provided at the
front of the machine...wait at least 5 minutes before pressing and trying to restart.
2. A Dust Extraction Outlet is provided at the rear of the machine. A vacuum extractor
with a suitable flexible hose (30mm dia.), may be connected and used either
permanently or intermittently as required.
3. The Table is provided with two slots, one each side of the saw blade, running front to
back. These slots are for use with the Mitre Gauge when cross cutting either square or
mitres and is explained under ‘Operation’. A scale on the Mitre Gauge indicates the
angle at which the workpiece is being mitred.
4. Four holes are provided in the base so that the saw may be bolted to a workbench or
stand. Please note that the machine MUST be firmly secured to either a workbench or a
support to ensure its complete stability. This is explained in detail under ‘Mounting the
Saw on page 15.
NOTE: The stand illustrated is designed specifically for the CTS10D and is available from
your Clarke dealer.
5. The Blade Height Adjuster Wheel raises or lowers the blade and may be locked in position
by tightening the large ring nut on the adjuster shaft.
6. The Blade Angle Adjuster, when turned, allows the saw blade to be tilted to any
desired angle from 0O to 45O , as shown on the Blade Tilt Scale on the front panel.
7. The Rip Fence is for use when rip cutting timber. It locates on the front rail and can be easily
moved or locked in place by screwing IN the locking handle. Take care NOT to overtighten.
8
Page 9
8. A Mitre Gauge may be used either side of the saw blade, in the groove provided. A
Mitre Gauge fence allows workpieces to be held securely at any angle for accurate
cross cutting.
9. The Blade Guard protects the operator and must ALWAYS be in place and working
properly.
WARNING: This machine IS NOT designed for ‘non-through cutting’ operations
10. The Table Insert is removable to facilitate the installation or removal of the saw blade,
and must ALWAYS be in place.
GLOSSARY OF TERMS
Arbor The shaft on which a cutting tool is mounted.
Crosscut A cutting or shaping operation made across the width of the workpiece -
across the grain.
Featherboard A device which can help guide workpieces during rip type operation.
Heel Misalignment of the blade.
Kerf The amount of material removed by the blade in a through cut.
Kickback An uncontrolled grabbing, and throwing of the workpiece back toward
the front of the saw during a rip type operation.
Leading End The end of the workpiece which, during a rip type operation, is pushed
into the cutting tool first.
Push Stick A device used to feed the workpiece through the saw during narrow
ripping type operation and which helps keep the operator’s hands well
away from the blade.
Push Block A device used for ripping type operations too narrow to allow use of a
Push stick.
Rabbet A notch in the edge of a workpiece.
Resin A sticky, sap base substance that has hardened.
Ripping A cutting operation along the length of the workpiece - in the direction of
the grain.
Riving Knife Positioned behind the saw blade to prevent wood closing and jamming
after being cut.
9
Page 10
UNPACKING AND CHECKING CONTENTS
The Table Saw is shipped complete in one carton.
Separate all parts from the packing materials and check to ensure that all components are
accounted for, according to the following list, before discarding any packing material.
Should any component be missing or damaged in transit, please contact your CLARKE dealer
immediately, or CLARKE Customer Service Department on 020 8558 7400
Fig.1
Note: The Saw is shown, mounted on the optional Stand, available from your Clarke dealer.
WARNING!
DO NOT plug the machine into the mains until the saw is fully assembled and checks made
according to these instructions.
10
Page 11
ASSEMBLY
IMPORTANT:
Please read the following instructions carefully before attempting to assemble the saw.
1. Carefully remove the components from the packaging and lay them out, checking
them off against the following list:
Fig.2
Table of main components. Package also includes nuts, bolts and washers, referred to within
the assembly instructions.
Table Extension x 2
1
Table Extension Supports x 4
2
Front Rail (2 piece)
3
Blade Guard
4
Blade Gd Bolt, Plastic Washer & Locknut
5
Mitre Gauge Securing Knob*
6
Mitre Gauge Assy and Sliding Bar*
7
Mitre Gauge Fence*
8
Rip Fence Handle
9
* These items may be pre-assembled
Should any component be deficient, or damaged, please contact you Clarke dealer immediately
11
Rip Fence
10
Push Stick and 2 spring clips
11
Handle assemblies x 2
12
Rip/Mitre Fence Securing Knobs x4**
13
Riving Knife
14
Riving Knife clamping plate***
15
Blade Spanners
16
Hex. Wrenches x 2
17
** These may be attached to the respective fences
*** This item may be assembled to machine
Page 12
A. Table Extension
1. Carefully invert the saw assembly so that it rests on its table on a firm, level surface and
remove the bottom grille - 4 securing screws.
2. Remove the polystyrene motor support (used for transit purposes).
3. Attach 4 Table Extension Support struts, each with a single M6x15 bolt (A), with flat washer
on the inside, and flat and spring washer on the outside against the strut. DO NOT
tighten at this stage.
4. Attach each Table Extension, noting that they
are ‘handed’ i.e. left hand and right hand,
due to the positioning of the support strut
securing holes.
Secure each extension to the aluminium
table with 3 x M6 x 15 bolts with washers
(B), taking great care NOT to cross
thread the bolts. DO NOT Tighten at
this stage.
Attach the support struts to each
extension (C). Tighten the nuts whilst
pushing down on the extension, to
ensure it lies flat and level with the
table
5. Replace the bottom grille and, with assistance, turn the saw on to
its base.
NOTE: If the optional Stand is to be used, the saw should be bolted to it at this stage.
Fig.3
B. Handles
Attach the handles to the Blade Raising/Lowering mechanism, and the Blade Angle adjuster,
ensuring the grub screws are secured against the flats on the respective shafts.
C. Front Rail
Attach the Front Rail (2 parts) to the front edge of the table, using the M5 x 12 Hex. socket head
screws and flat washers provided. Nuts, flat and spring washers are also used at the Table
Extensions. Ensure the top edge of the Rail is level with the table surface.
To ensure the Rip Fence may be positioned
with a degree of accuracy with respect to
its distance from the saw blade, align the
Front Rail as follows:
Do not tighten the securing bolts when
fitting.
Raise the saw blade by turning the handle
on the front of the machine.
Place a straight edge across the blade so
that it extends as far as the front rail, as
shown in Fig. 4. Move the rail so that the
straight edge lines up with the zero mark
on the rail (see Fig.4), then tighten the rail
securing bolts. Repeat this for the other half
of the rail.
Fig.4
12
Page 13

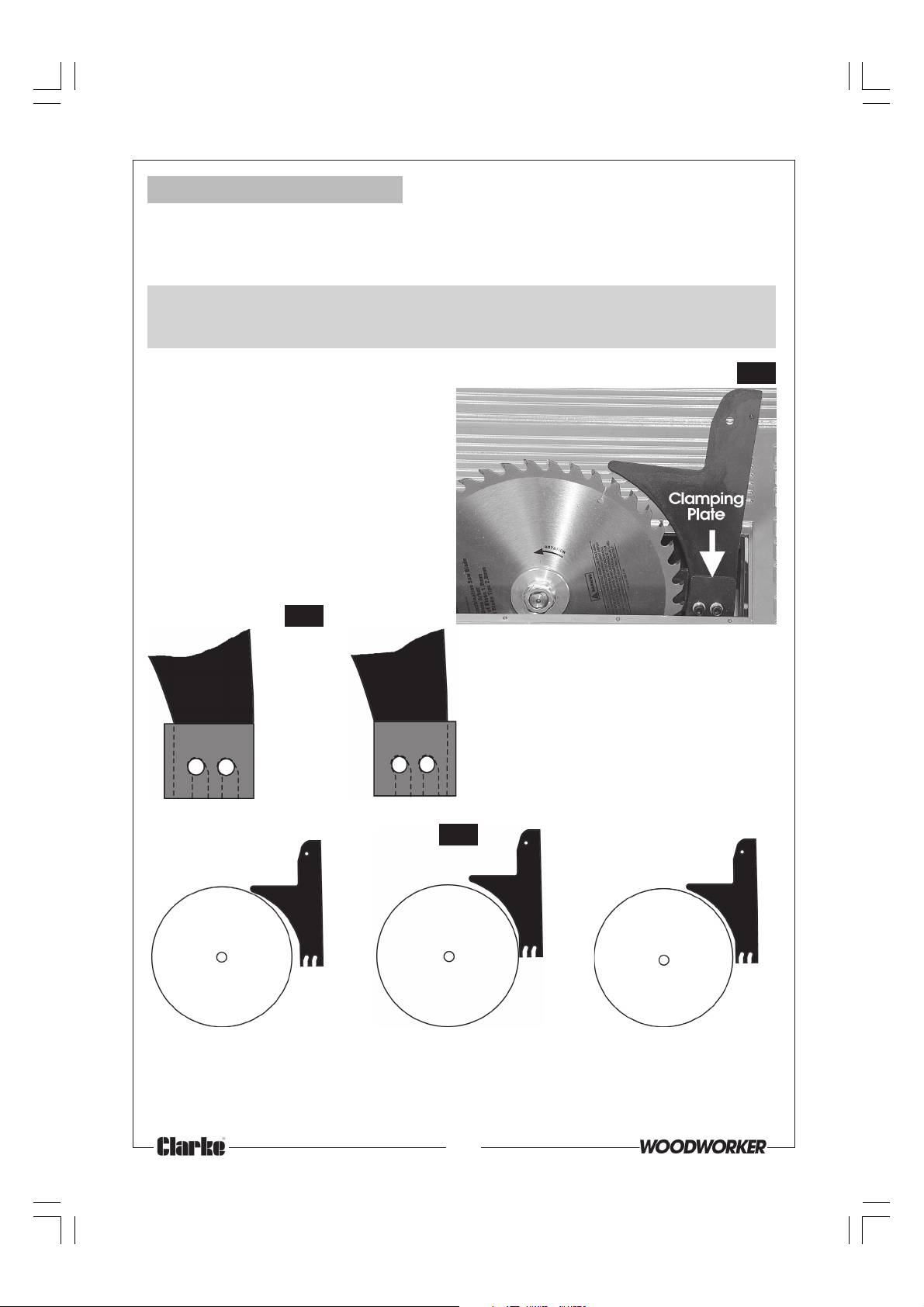

D. Riving Knife
1. Remove the Table Insert (8 countersunk head screws).
2. Raise the blade to its fullest extent....it is helpful also, to turn the angle adjuster so as to lay
the blade on its side to some degree
IMPORTANT:
Take great care to avoid contact with the saw teeth which are extremely sharp
when performing the following operations.
Fig.5
3. Attach the Riving Knife to the bracket
as shown in Fig. 5, using the two hex.
socket head screws with spring and
flat washers provided.
Fig.6
Riving
<
Knife
✘
Clamping
<
Bracket
✘
Note:
It is most important that the Riving Knife is directly in line with the blade at all times. If at any
time it becomes misaligned, it must be straightened before the saw is put into use.
4. When satisfied, ensure all securing screws are tight before replacing the Table Insert.
>
✔
>
✘✔
Ensure the Clamping Bracket is correctly
oriented, as illustrated in Fig.6, and the
Riving knife is adjusted so that a clearance
of no more than 5mm exists between blade
and knife, and along the full length of the
riving knife, as illustrated in Fig. 7
Fig.7
13
Page 14
E. Blade Guard
Attach the Blade Guard to the Riving
Knife, as shown in Fig. 8, ensuring the large
plastic washer (B) is used. Tighten the self
locking nut (A) sufficiently for the Guard
to be secure, but capable of dropping
fully under its own weight.
F. Rip Fence
The Rip Fence comprises:
A. The handle assembly ‘A’
B. The Fence ‘B’
C. Two fixings, each comprising a coach
bolt and knob ‘C’.
1. Slide the Handle Assy. into the slot in
the Front Rail, and tighten the handle
at any convenient position on the Rail.
2. Slide the coach bolts into the slot in
the Fence.
3. Arrange the coach bolts with knobs
screwed on a few turns, as shown in
Fig. 9 and engage in the slots in the
handle assembly, as indicated.
4. Tighten the securing knobs to lock the
fence to the handle.
To ensure the fence is exactly 90O Use the jacking
screw ‘D’. Screw in a liitle way so that it makes
contact with the rip fence and lock in place,
then tighten the knobs ‘A’ using the jacking
screw as a pivot to achieve the desired result.
Check using a large square.
Note: The rip Fence has two slots, allowing the fence
to be attached in the ‘high’ or ‘low’ position
G. Mitre Gauge
The Mitre Gauge comprises:
a. The Quadrant with fixing knob
b. Slide Bar
c. The Fence
d. Two fixings each comprising a coach bolt and knob.
Fig.8
Fig.9
Fig.10
Fig.11
14
1. Attach the Quadrant to the Slide Bar
ensuring the peg on the underside of the
Quadrant sits in the hole in the bar.
Tighten the fixing knob
2. Slide the coach bolts into the slot in the
Fence.
3. Allow the coach bolts to enter the holes in
the Quadrant and screw on the fixing knobs.
Page 15
H. Push Stick Brackets
Screw on the Push Stick Spring Clips to the left side of the main casing, using the four screws,
and washers provided.
MOUNTING THE SAW
IMPORTANT
If the saw is to be a permanent fixture, ensure it is sited in an area with adequate
illumination and power supply.
DO NOT place it where you will be working in your own shadow, or where extension
cables are required - these are hazardous in a workshop environment.
If the table saw is to be used in a permanent location, it should be fastened securely to a firm
supporting surface such as a stand or workbench, using the four mounting holes in the base.
A Floor Stand, specially designed for your CTS10D Table Saw
is available from your CLARKE dealer .
Holes should be drilled through the supporting surface of the workbench, using the machine as
a template to mark out the holes.
If a VACUUM DUST EXTRACTION device is NOT to be used, an opening MUST also be made in the
workbench, the same size as the opening in the bottom of the saw. (which houses the Bottom Grille).
This is in order to allow the saw dust to drop through.
IMPORTANT
Ensure the Bottom Grille is in place when bolting the machine to the workbench.
1. Each of the four mounting holes should be bolted securely using 8mm bolts (not
included) which should be 12mm longer than the thickness of the bench top.
2. Locate and mark where the saw is to be mounted.
3. Drill four (4) 10mm diameter holes through workbench.
4. Place table saw on the workbench aligning the holes in the base with the holes drilled in
the workbench.
5. Bolt down ensuring flat and spring washers are used at the bolt head and with the nut.
Mounting to Plywood
An alternative method of securing your table saw is to fasten the saw base to a mounting
board, 600x600mm minimum size, to prevent the saw from tipping whilst in use. A good grade
of plywood with a minimum thickness of 19mm is recommended.
Follow the instructions for mounting to a workbench, substituting a plywood board with a minimum
size of 600x600mm.
The opening in the board should be the same as the bottom grille.
To secure the table saw to the plywood board use 8mm countersunk screws with lockwashers
and hex nuts (not included). Screw length must be at least 12mm more than the thickness of
the mounting board.
NOTE: For proper stability, holes must be counter sunk on the underside of the plywood so that screw
heads are flush with the bottom surface of the mounting board.
IMPORTANT
Ensure the Bottom Grille is in place when bolting the machine to the workbench.
15
Page 16
IMPORTANT CHECKS - BEFORE STARTING
IMPORTANT:
Before attempting to use the machine, it is necessary to ensure the various
components are correctly adjusted, and checked for security.
ALWAYS raise the blade and check for security.
Ensure the Blade Guard is fitted and is secure, capable of dropping under its own weight.
Remove all tools or pieces of wood from the table.
Ensure the Rip Fence is secure.
Ensure the saw Blade is at the desired height and locked in place.
OPERATION
1. Starting and Stopping the Machine
The ON and OFF switches are located on the front left of the machine.
The upper, GREEN switch is the ‘ON’ switch and is marked with an ‘I’ symbol.
The lower, RED switch is the ‘OFF’ switch. It is raised and marked with the symbol ‘O’.
For additional safety, the ON switch is a ‘NO VOLT RELEASE’ type. This means that if the power is
interrupted for whatever reason whilst the machine is switched ON, the no volt release will
automatically trip, setting the machine to the OFF position, thereby preventing it from starting
again when the power is restored. The machine may then be restarted by pressing the ON
switch.
OVERLOAD CUT-OUT
Your machine also features an OVERLOAD CUTOUT device, so that if the machine is overloaded
(due to feed pressure being too great, a dull blade or low voltage etc.), the overload relay will
intervene and the motor will automatically cut out. In this event:
a. Press the OFF button and disconnect from the mains supply.
b. Allow the motor to cool for three to five minutes.
b. Push the reset button, adjacent to the ON/OFF switches, which resets the overload
device.
c. Plug the machine back into the mains supply, and switch the saw back on.
WARNING!
THE MACHINE MUST BE IN THE OFF POSITION, AND THE PLUG REMOVED FROM THE POWER
SOURCE WHILST COOLING DOWN TAKES PLACE. THIS PREVENTS ACCIDENTAL STARTING WHEN
THE RESET BUTTON IS PUSHED, AS THE NO VOLT RELEASE WILL NOT HAVE TRIPPED
16
.
Page 17

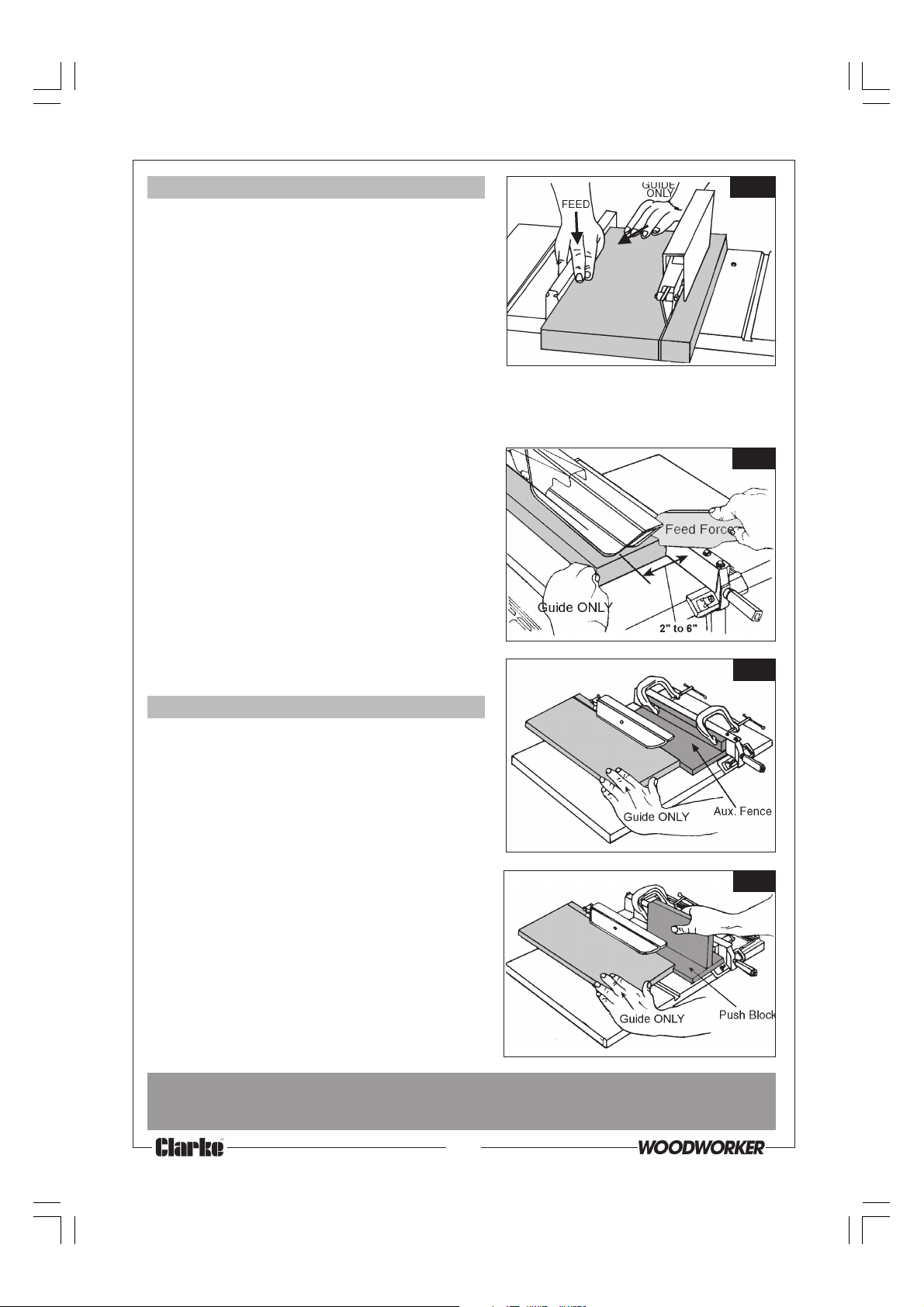

2. Ripping or Rip Cutting
Fig.12
This is the term used for cutting timber in the same
direction as the grain, i.e usually lengthwise.
To assist in producing a straight, true cut, a RIP
FENCE is used. This may be positioned to the right or
left of the saw blade, and may be adjusted to suit
the width of cut required, and firmly secured in
place, ensuring it is parallel to the blade, by
screwing in the rip fence handle.
When the width of rip is 150mm (6”) and wider use your RIGHT HAND to FEED the workpiece, use LEFT
HAND only to GUIDE the workpiece, do not feed the workpiece with the left hand. (Fig.12).
NOTE: With the Rip Fence mounted on the left of the blade, the reverse is true.
When width of rip is 50 - 150mm (2”- 6”) wide use a
push stick to feed the work. (Fig.13).
Fig.13
When width of rip is narrower than 50mm (2”), the
push stick cannot be used because the guard will
interfere. It is therefore necessary to use an auxiliary
fence, and push block together as shown in fig. 15.
(SEE PAGE 18 FOR RIP FENCE & AUX. FENCE)
Attach auxiliary fence to rip fence with two ‘G’
clamps as shown in fig 14.
Feed the workpiece by hand until the end is
approximately 1” from the front edge of the table.
Continue to feed using the push block on top of
auxiliary fence until the cut is complete.
Fig.14
3. Rip Cutting a Bevel.
By tilting the saw blade (by up to 45O), it is possible
to rip cut a bevel in your work. To do this, set the
blade angle by slackening off the Blade Tilt Lock
knob, and position the blade using the angle gauge
and pointer mounted on the front of the machine.
(If absolute accuracy is required, check the blade
angle with a protractor).
When bevel ripping material 150mm (6”) or
narrower, use the fence on the RIGHT SIDE of the
blade ONLY. This will provide more space between
the fence and the saw blade for the use of a push
stick. If the fence is mounted to the left, the saw
blade guard may interfere with proper use of a push
stick.
NOTE: Your saw is equipped with positive stops for fast and
accurate positioning of the saw blade at 90 and 45
degrees to the table. Should these stops become out of
alignment, they may be readjusted according to the
instructions given under ‘Maintenance’
WARNING! TO PREVENT PERSONAL INJURY, ALWAYS DISCONNECT PLUG FROM POWER
SOURCE WHEN MAKING ADJUSTMENTS.
17
Fig.15
Page 18

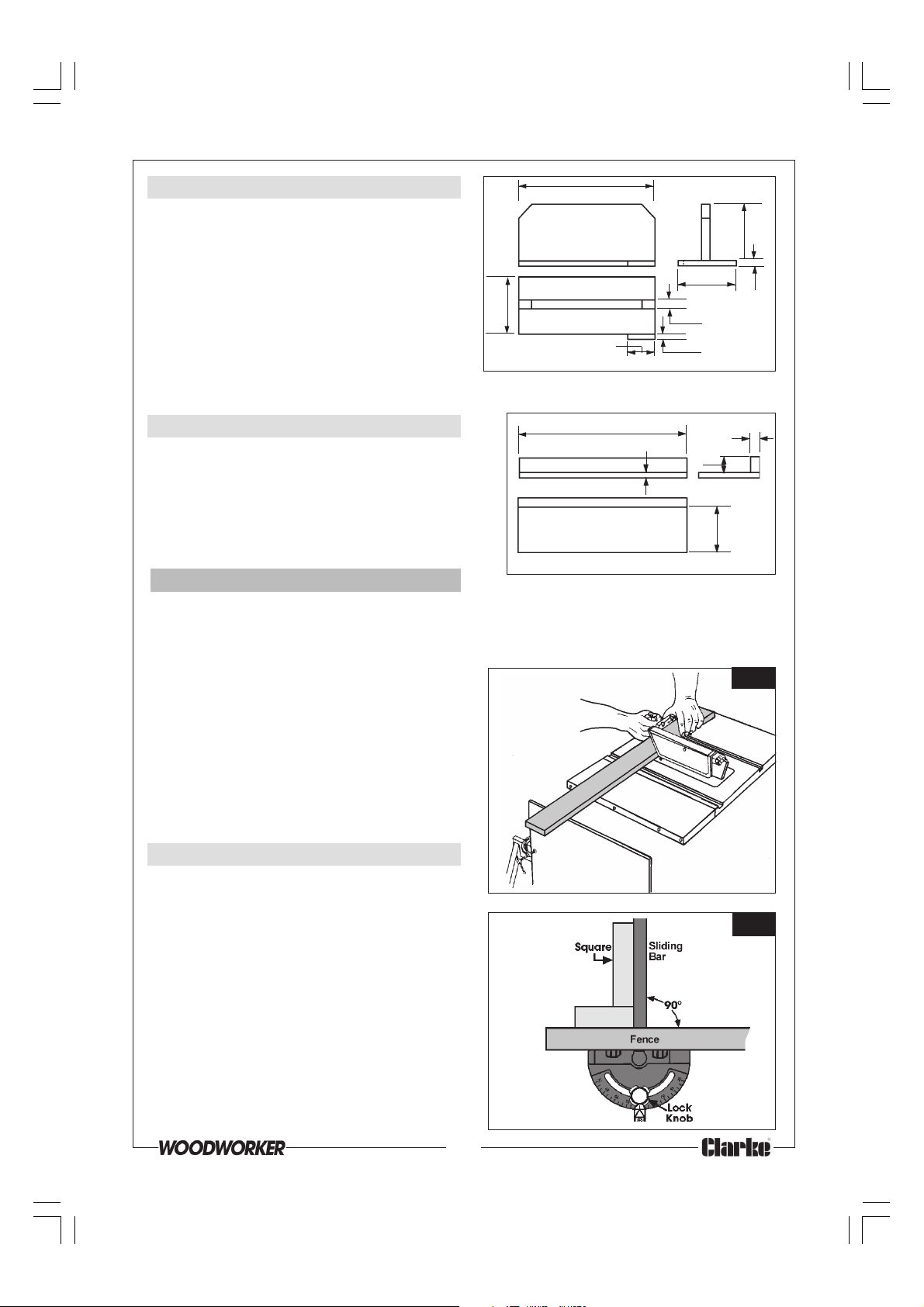

PUSH STICK AND PUSH BLOCK
304mm
Make the Push Block using pieces of 10mm plywood
and 19mm hardwood as shown in Fig.10.
The small piece of wood 10x10x64mm should be
127mm
GLUED to the plywood. DO NOT USE NAILS or
SCREWS. This is to prevent damaging the saw blade
in the event you mistakenly cut into the push block.
Position the handle in the centre of the plywood
and fasten together with glue and wood screws
screwed in from below. (Ensure the screw holes are
120mm
64mm
130mm
19mm
10mm
10mm
countersunk. The screw heads must not be proud).
Replacement Push Sticks can be made using a suitable piece of timber as shown.
AUXILIARY FENCE
Make one using pieces of 10mm plywood and
19mm hardwood. Fasten together with glue and
445mm
10mm
19mm
44mm
wood screws. Dimensions are shown in Fig. 12.
NOTE:
Since the Push Block is used with the Auxiliary Fence, the
120mm dimensions must be held identical on both the
pieces.
Auxiliary Fence
120mm
4. Crosscutting.
Crosscutting is the term used to describe cuts made in timber across the grain. This type of cut
requires the use of the MITRE GAUGE. This includes bevel cutting, mitre cutting and compound
mitre cutting (described later in this paragraph).
To perform a cross cutting operation, the work is firmly
held against the mitre gauge fence as shown in
Fig.16, with the mitre gauge bar located in either
the left or right hand groove in the table.
With the timber carefully lined up with the saw blade,
the mitre gauge is gently moved along the groove,
past the saw blade, producing the desired cut. Long
workpieces should be supported. A simple
arrangement is to clamp a piece of plywood to a
sawhorse as shown in Fig. 16
Fig.16
MITRE GAUGE ADJUSTMENT
To produce an accurate cut at 90O you should
check the gauge as follows:
1. Loosen the lock knob and set mitre gauge
body so the pointer is at the 0O mark, then
tighten the lock knob.
2. Make a cut on a piece of scrap wood.
Check it with a square to see if the piece of
wood was cut at 90O.
If the piece of wood was not cut 90O, adjust
the mitre gauge body, tighten lock knob
and make additional cuts until you are
certain you have made a 90O cut.
3. Finally, slacken off the pointer securing
screw and zero the pointer.
Cross cutting, with support
Fig.17
Mitre Gauge Adj.
18
Page 19
The graduations on the mitre gauge provide accuracy for average woodworking. In some
cases where extreme accuracy is required, when making angle cuts for example, make a trial
cut and then recheck it with an accurate square or protractor.
For maximum accuracy when using the mitre gauge, always favour one side of the groove in
the table. In other words, don’t move the mitre gauge from side to side while cutting but keep
one side of the bar riding against one side of the groove.
When using the left hand groove, hold the workpiece firmly against the mitre gauge head with
your left hand, and grip the lock knob and push with your right hand. When using the right hand
groove, hold the work piece with the right hand and grip the lock knob with the left.
When crosscutting, you should ALWAYS abide by the following rules:
1. Never make these cuts freehand (without using the mitre gauge or other auxiliary device)
because the blade could bind in the cut and cause a kickback or cause your fingers or
hand to slip into the blade.
2. Always lock the mitre gauge securely when in use.
3. Remove rip fence from table during any operations which utilise the mitre gauge.
4. Make sure blade guard is installed (for all sawing operations).
5. Set the saw blade height to the thickness of the wood plus 2-3mm. Additional blade
exposure would increase the hazard potential.
6. Do not stand directly in front of the blade in case of a throwback (small cutoff piece caught
by the back of the blade and thrown toward the operator). Always stand to one side of the
blade.
7. Keep your hands clear, and out of the path of, the blade.
8. If blade stalls or stops while cutting, switch the machine OFF and disconnect from the mains
supply, before attempting to free the blade.
9. Do not reach over or behind the blade to pull the workpiece through the cut, to support
long or heavy workpieces, to remove cutoff pieces of material, or for any other reason.
10. Do not pick up small pieces of cutoff material from the table. Remove them by pushing
them off the table with a long stick. Otherwise they could be thrown back at you by the
rear of the blade.
11. Do not remove small pieces of cutoff material that may become trapped inside the blade
guard while the saw is running. This could endanger your hands or cause a kickback. Turn
the saw off. After the blade has stopped turning, lift the guard and remove the trapped
piece.
12. If workpiece is warped, place the concave side down. This will prevent it from rocking
while it is being cut.
5. Repetitive Cutting
Repetitive cutting is the term used when cutting a
quantity of pieces of the same length without
having to mark each piece.
When making repetitive cuts from a long workpiece,
make sure it is supported.
1. When making repetitive cuts, clamp a block of
wood 75mm (3”) long to the table at the
desired length to act as a length stop.
NOTE: When clamping the block, make sure that the end
of the block is well in front of the saw blade. Be sure it is
clamped securely.
19
Repetitive cutting
Fig.18
Page 20
2. Slide the workpiece along the mitre gauge until it touches the block, hold it securely.
When cutting long workpieces, make sure the end is supported - from the floor.
3. Make the cut, pull the workpiece back and push the cut-off piece off the table with a
long push stick, DO NOT ATTEMPT TO PICK IT UP AS THIS COULD ENDANGER YOUR HANDS
WARNING!
NEVER USE THE RIP FENCE AS A LENGTH STOP BECAUSE THE CUT-OFF PIECE COULD BIND
BETWEEN THE FENCE AND THE BLADE CAUSING A KICKBACK.
6. Mitre Cutting
Mitre cutting is the term used for cutting at an angle
other than 90O to the edge of the wood. Follow the same
procedure as you would for crosscutting.
Adjust the mitre gauge to the desired angle, and lock it.
The mitre gauge may be used in either of the
grooves in the table.
When using the mitre gauge in the LEFT hand
groove, hold the workpiece firmly against the mitre
gauge head with your LEFT HAND, and grip the lock
knob with your right.
When using the RIGHT hand groove, hold the
workpiece with your RIGHT HAND and the lock knob
with your left hand.
7. Bevel Crosscutting
Bevel crosscutting is the same as crosscutting
except that the wood is also cut at an angle, other
than 90 degrees with the flat side of the wood.
Adjust the blade to the desired height and angle.
Use the Mitre Gauge in the groove to the RIGHT of
the blade. It cannot be used in the groove to the
LEFT because the blade guard will interfere. Hold
the workpiece with your right hand and the lock
knob with your left hand.
Fig.19
Fig.20
8. Compound Mitre Cutting
Compound mitre cutting is a combination of mitre cutting and bevel crosscutting. The cut is
made at an angle other than 90O to both the edge and the flat side of the wood.
Adjust the mitre gauge and the blade to the desired angle, and ensure the mitre gauge body is locked.
WARNING!
WHEN MITRE CUTTING, AN AREA OF BLADE IS EXPOSED.
GREAT CARE MUST BE TAKEN WHEN USING THE MACHINE FOR THIS OPERATION.
20
Page 21
MAINTENANCE
WARNING!
FOR YOUR OWN SAFETY, SWITCH MACHINE OFF AND REMOVE PLUG FROM POWER SOURCE
BEFORE ADJUSTING, MAINTAINING OR LUBRICATING YOUR SAW.
Do not allow sawdust to accumulate inside the saw. Use a dust extractor if possible, if not,
frequently blow out any dust that may accumulate inside the saw cabinet and the motor.
Inspect the power cable frequently. If it is worn or cut, or damaged in any way, have it replaced
immediately.
NOTE: Certain cleaning agents and solvents can damage plastic parts. Some of these are: gasoline, carbon
tetrachloride, chlorinated cleaning solvents, ammonia and household detergents which contain ammonia.
Avoiding the use of these and other types of cleaning agents will minimise the possibility of damage.
A coat of wax applied to the table will help to keep the surface clean and allow workpieces to
slide more freely.

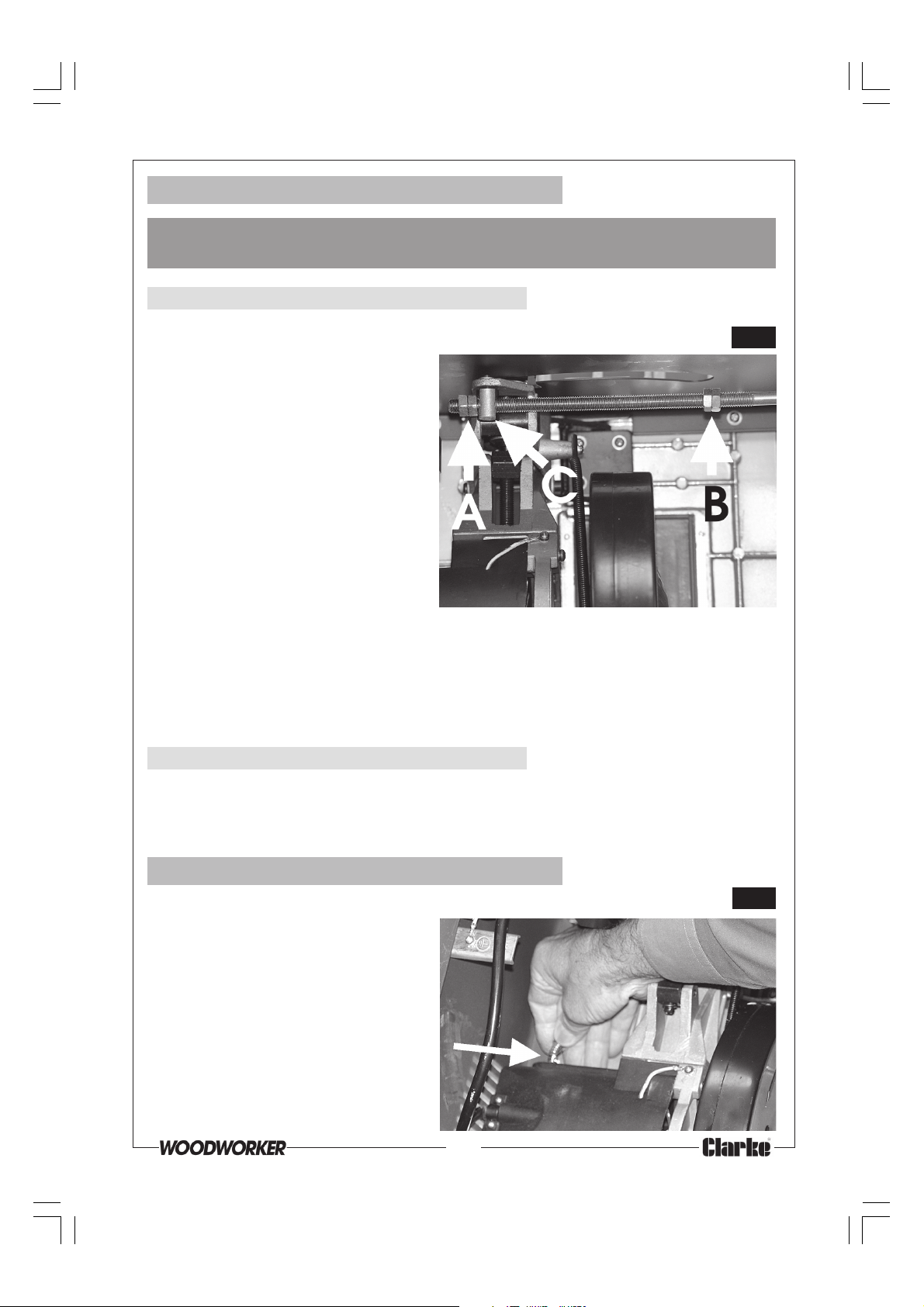

1. Changing the Blade
IMPORTANT: 1. Use only Clarke Blade, (see parts list for part numbers).
2. Replace the blade when teeth become damaged or dull.
WARNING!
1. TO PREVENT PERSONAL INJURY, ALWAYS DISCONNECT PLUG FROM POWER SOURCE
BEFORE CHANGING BLADES.
2. TAKE GREAT CARE WHEN HANDLING SAW BLADES - THE TEETH ARE EXTREMELY SHARP,
AND CARELESSNESS CAN CAUSE SERIOUS PERSONAL INJURY
1. Raise the blade as far as possible,
then remove the blade Guard... a
single mounting bolt.
It also helps to turn the blade angle
adjuster so as to lay the blade on
its side to some degree.
NOTE: From this point, take great care to avoid
contact with the tips of the saw blade,
preferably place a thick cloth over the teeth,
as shown in Fig 21.
2. Undo the Blade securing nut, using
the two spanners provided, one to
engage with the flats on the outer
flange, the other to remove the nut.
3. Replace the blade in reverse order,
ensuring the teeth point down towards the table at the front, and it sits snugly on the boss
on the inner flange before replacing the outer flange and tightening the securing nut.
21
Fig.21
Page 22
2. Adjusting 90 and 45 Degree Positive Stops
WARNING!
ENSURE THE PLUG IS DISCONNECTED FROM THE POWER SUPPLY BEFORE PROCEEDING
2A. Adjusting Positive Stop at 90 Degrees
(i) Raise the blade to maximum
height.
(ii) Turn machine so that it rests on
its back edge, and
(iii) Turn the blade angle adjusting
handle until it hits the 90O stop.
(iv) Place a combination square on
the table with one end of square
against the blade and check to
see if the blade is 90O to the
table.
If the blade is not 90O to the
table, proceed as follows:
(a) Undo the locknut and
spin the adjuster nut
shown at ‘A’ Fig 22
(b) Turn the adjuster handle until the blade is precisely 90
(c) Carefully spin ther adjuster nut up to meet the stop on the rod shown at ‘C’,
then screw up the locknut and tighten.
NOTE: BEFORE replacing the bottom grille, it is prudent to check the blades’
necessary adjustments as described below.
2B. Adjusting Positive Stop at 45 Degrees.
O
45O.
setting and make any
Fig.22
The procedure is the same as that above, but using a 45O gauge, with the blade held firmly
against the 45O stop, shown at ‘B’ above.
When adjustments are complete, replace the bottom grille securely.
3. Renewing Motor Brushes
1. Remove bottom grille.
2. Unscrew and remove the Brush Caps,
then withdraw the brush with springs
attached as shown in Fig 23.
3. Carefully insert the brushes and screw
on the caps.....this operation should
be carried out with care...by gently
turning the cap whilst pressing down
against spring pressure, the spring cap
will eventually find its way into its guide
within the holder, when the cap may
then be tightened.
22
Fig.23
Page 23
TROUBLE SHOOTING
TROUBLE PROBABLE CAUSE REMEDY
Saw will not start 1. Saw not plugged in 1. Plug in the machine
2. Fuse blown or circuit breaker 2. Replace fuse or reset circuit
tripped breaker
3. Power cable damaged 3. Have cable replaced by
Does not make 1. Positive stops not adjusted 1. Check blade with square and
accurate 45O and 90
Rip Cuts and adjust pointer to zero
Material Pinches 1. Rip fence not aligned with blade 1. Check and adjust rip fence
Blade When Ripping 2. Warped wood, edge against 2. Select another piece of wood
Material binds on 1. Riving knife not aligned correctly 1. Check and align riving knife with
Riving Knife with blade blade
Saw makes 1. Dull blade 1. Replace blade
unsatisfactory cuts 2. Blade mounted backwards 2. Turn blade around
Material kicked back 1. Rip fence out of alignment 1. Align rip fence with blade
from blade slot 2. Riving knife not aligned with blade 2. Align riving knife with blade
O
fence not straight
3. Gum or pitch on blade 3. Remove blade and clean with
4. Incorrect blade for work 4. Change the blade
5. Gum or pitch on table causing 5. Clean table with turpentine and
erratic feed steel wool and apply wax
3. Feeding stock without rip fence 3. Install and use rip fence
4. Riving knife not in place 4. Install and use riving knife with
5. Letting go of material before it is 5. Push material all the way past
all the way past the saw blade blade before releasing work
6. Dull blade 6. Replace blade
7. Mitre angle lock knob is not tight 7. Tighten knob
authorised service centre
correctly adjust positive stops
turpentine and coarse steel wool
guard
Blade does not raise 1. Sawdust and dirt in raising and 1. Brush or blow out loose dust
or tilt freely tilting mechanism and dirt
Blade does not come 1. Extension cable too light or too 1. Replace with adequate size
up to speed long cable
2. Low voltage 2. Contact your electric company
Machine vibrates 1. Saw not mounted securely to 1. Tighten all mounting hardware
Does not make 1. Mitre gauge out of adjustment 1. Adjust mitre gauge
accurate 45O and
90O crosscuts
Stand or work bench
2. Stand or bench on uneven floor 2. Reposition on flat level surface
Fasten to floor if necessary
3. Damaged saw blade 3. Replace blade
23
Page 24
PARTS LISTS
No. Description Qty Part No
1 Connecting Bolt 1 CTS10D001
2 Flat Washer 1 CTS10D002
3 Blade Guard 1 CTS10D003
4 Nut 1 CTS10D004
5 Riving Knife 1 CTS10D005
6 Locking Knob 1 CTS10D006
7 Washer 1 CTS10D007
8 Mitre Gauge 1 CTS10D008
9 Mitre Gauge Fence 1 CTS10D009
10 End Cover 2 CTS10D010
11 Screw 2 CTS10D011
12 Knob 2 CTS10D012
13 Sliding Bar 1 CTS10D013
14 Main Table 1 CTS10D014
16 Sliding Bar 1 CTS10D016
17 Extension Table (A) 1 CTS10D017
18 Extension Table (B) 1 CTS10D018
19 Front Rail End Cap 2 CTS10D019
20 Front Rail - Left 1 CTS10D020
22 Front Rail Connector 1 CTS10D022
23 Support Bar 4 CTS10D023
27 Scale Label 1 CTS10D027
28 Scale Label 1 CTS10D028
29 Front Rail - Right 1 CTS10D029
30 Rip Fence 1 CTS10D030
31 End Cover 2 CTS10D031
32 Locking Paw 1 CTS10D032
33 Rip Fence Look 1 CTS10D033
34 Screw 1 CTS10D034
35 Square Washer 1 CTS10D035
36 Screw 2 CTS10D036
37 Fixing Ring 1 CTS10D037
39 Fixing Plate 1 CTS10D039
40 Riving Knife Support 1 CTS10D040
41 Pin 1 CTS10D041
43 Gear Cover 1 CTS10D043
No. Description Qty Part No
44 Bearing 1 CTS10D044
45 Gear Shaft 1 CTS10D045
46 Key 1 CTS10D046
47 Gear 1 CTS10D047
48 Retaining Ring 1 CTS10D048
49 Gear Box 1 CTS10D049
50 Screw 4 CTS10D050
51 Inner Ring 1 CTS10D051
52 Bearing 1 CTS10D052
53 Rotor 1 CTS10D053
54 Screw 2 CTS10D054
55 Stator 1 CTS10D055
56 Bearing 1 CTS10D056
57 Motor Housing 1 CTS10D057
58 Carbon Brush Holder 2 CTS10D058
59 Carbon Brush 2 CTS10D059
60 Carbon Brush Cap 2 CTS10D060
61 End Cover 1 CTS10D061
63 Motor Support 1 CTS10D063
64 Elastic Pin 4 CTS10D064
67 Flat Wahser 1 CTS10D067
68 Elevating Device 1 CTS10D068
69 Elastic Pin 2 CTS10D069
71 Flat Washer 1 CTS10D071
72 Nut 4 CTS10D072
73 Turning Support 1 CTS10D073
74 Fixing Shaft 4 CTS10D074
75 Elastic Pin 1 CTS10D075
76 Fixing Plate (A) 1 CTS10D076
78 Fixing Plate B) 1 CTS10D0078
79 Nut 4 CTS10D079
80 Outer Flange 1 CTS10D080
81 Saw Blade 1 CTS10D081
82 Inner Flange 1 CTS10D082
83 Retaining Ring 1 CTS10D083
86 Lower Blade Guard 1 CTS10D086
24
Page 25
No. Description Part No Qty
No. Description Part No Qty
87 Dust Tube 1 CTS10D087
88 Spring 1 CTS10D088
89 Angle Pointer 1 CTS10D089
90 Spring Bar 1 CTS10D090
91 Turning Handle 2 CTS10D091
92 Retaining Ring 2 CTS10D092
94 Angle Fixing Device 1 CTS10D094
95 Angle Adjusting Rod 1 CTS10D095
98 Side Rating Label 1 CTS10D098
99 Locking Wheel 1 CTS10D099
100 Clamping Plate 1 CTS10D100
101 Elevating Adjust Bolt 1 CTS10D101
102 Elastic Washer 1 CTS10D102
103 Motor Holder 1 CTS10D103
106 Fixing Holder 1 CTS10D106
107 Triangle Steel Plate 1 CTS10D107
108 Cable Clamping Plate 1 CTS10D108
109 Cable Holder 1 CTS10D109
111 Dust Adaptor 1 CTS10D111
112 Machine Housing 1 CTS10D112
113 Bottom Plate 1 CTS10D113
115 Capacitor 1 CTS10D115
116 Switch Cover 1 CTS10D116
117 Cable & Plug 1 CTS10D117
119 Front Label 1 CTS10D119
120 Magnetic Switch 1 CTS10D120
121 Fuse Link 1 CTS10D121
130 Push Stick Clip 2 CTS10D130
131 Push Stick 1 CTS10D131
132 End Cover 2 1 CTS10D132
133 Spring Washer 14 CTS10D133
134 Side Cover 1 CTS10D134
PARTS AND SERVICE CONTACTS
For Spare Parts and Service, please contact your nearest dealer,
or CLARKE International, on one of the following numbers.
PARTS & SERVICE TEL: 020 8988 7400
PARTS & SERVICE FAX: 020 8558 3622
or e-mail as follows:
PARTS: [email protected]
SERVICE: [email protected]
25
Page 26
PARTS DIAGRAM
26
Page 27
NOTES
27
Page 28
Loading...
