Clarke 6470612 User guide

50L 110V INDUSTRIAL DEHUMIDIFIER

MODEL NO: IDH50L110V

PART NO: 6470612

OPERATION & MAINTENANCE

INSTRUCTIONS

DL0522 Iss 1

INTRODUCTION

Thank you for purchasing this CLARKE 50 Litre 110V Industrial Dehumidifier.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Recycle unwanted materials instead of disposing of them as waste.
All unwanted accessories and packaging should be sorted and
taken to a recycling centre for disposal in a manner which is
compatible with the environment.

By purchasing this product, the customer is taking on the obligation
to deal with its safe disposal in accordance with the Waste Electrical
and Electronic Equipment regulations (WEEE).

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

R290 is a refrigerant that complies with EEC environmental standards;
nonetheless, the refrigerant circuit on the machine should not be punctured.
At the end of its working life, consign the dehumidifier unit to a special
collection centre.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ELECTRICAL CONNECTIONS

Plug must be BS60309 approved.

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
POWER SUPPLY.

Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. Connecting it to any
other power source may cause damage.

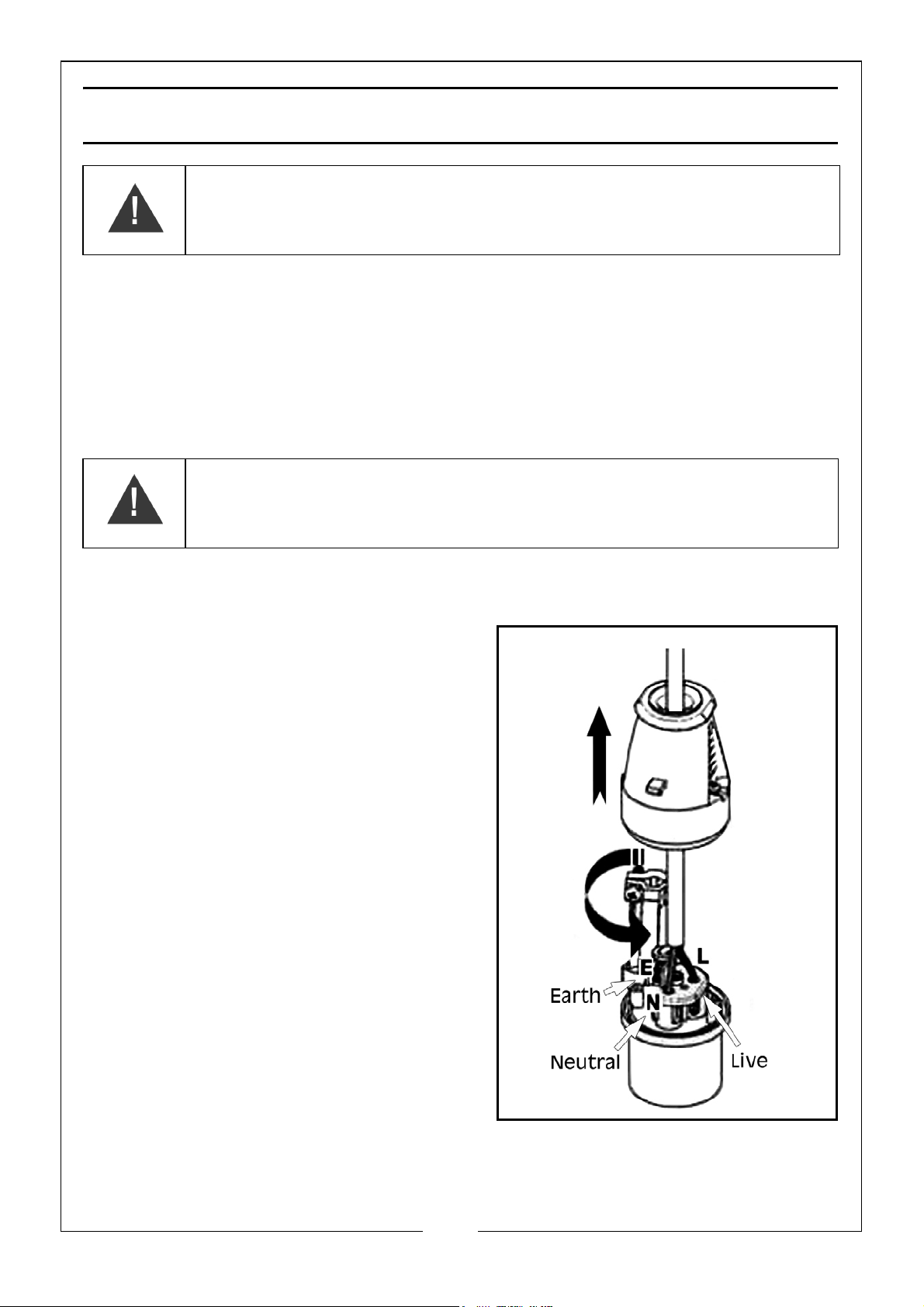

If the plug has to be changed due to damage, a replacement should be
fitted, following the wiring instructions shown below. The old plug must be
disposed of as insertion into a 110v socket could cause an electrical hazard.

WARNING: THE WIRES IN THE 3 CORE POWER CABLE OF THIS
PRODUCT ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING
CODE: BLUE = NEUTRAL, BROWN = LIVE,YELLOW/GREEN = EARTH

If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.

•The Blue wire must be connected
to the terminal which is marked N
or Neutral.

•The Brown wire must be
connected to the terminal which
is marked L or Live.

•The Yellow/Green wire must be

If in any doubt, consult a qualified
electrician. DO NOT attempt any repairs
yourself.

connected to the terminal which
is marked E or Earth.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

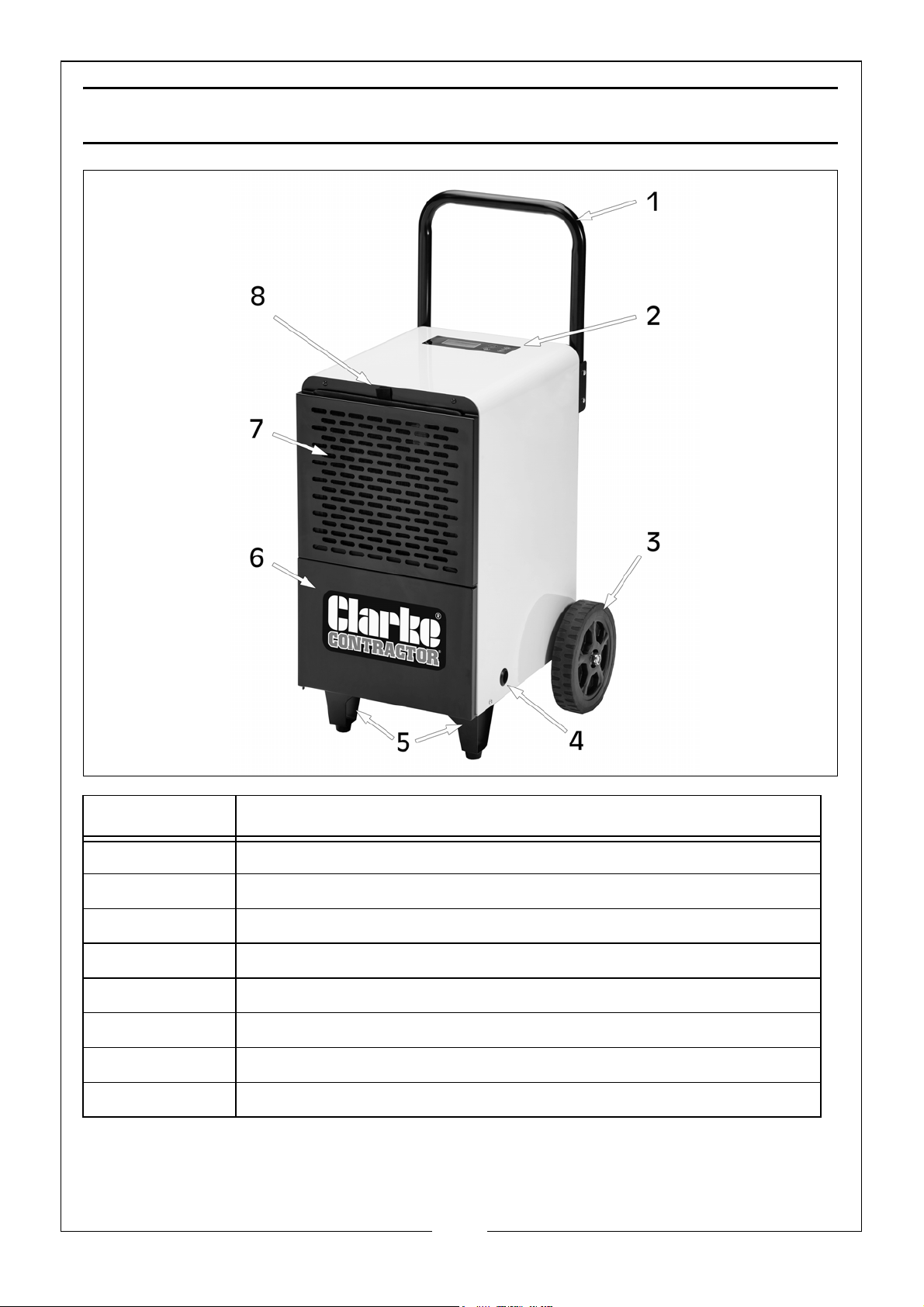

OVERVIEW

No. Description

1Handle

2 Control Panel

3 2 x Wheels

4 Continuous Drainage Pipe Outlet Hole

52 x Feet

6 5 Litre Internal Water Tank

7 Air Inlet and Filter

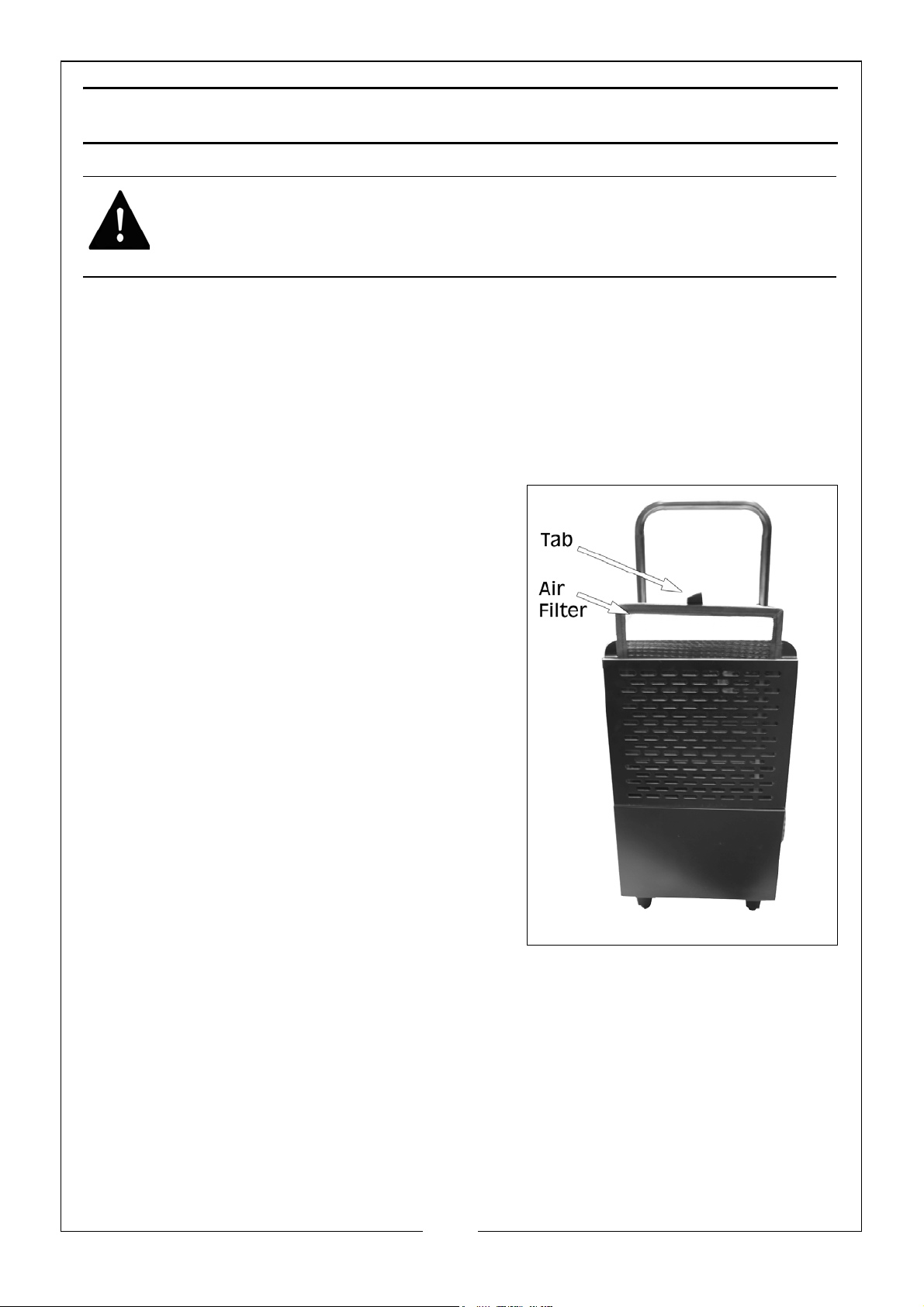

8 Air Filter Pull Tab

Contents List: 1 x 50L Dehumidifier, 2 x Wheels, 1 x Wheel Axle Rod (Inc: Nuts &
Washers), 4 x Axle Fixing Screws, 1 x Drainage Pipe

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY WARNINGS

WARNING: IF THE SUPPLY CABLE IS DAMAGED, IT MUST BE REPLACED BY
THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED
PERSONS IN ORDER TO AVOID A HAZARD.

1. Please read these instructions carefully and retain for future reference.

2. Position the mains cable so that it cannot be inadvertently pulled or
pinched and where it does not cause a trip hazard.

3. This appliance is designed to dehumidify industrial environments and MUST
NOT be used for other purposes.

4. If the appliance requires repair, ALWAYS contact your CLARKE dealer.
ALWAYS insist on original spare parts. Repairs carried out by unauthorized
persons may be dangerous and invalidate the guarantee.

5. Children SHOULD NOT play with the appliance. Cleaning and user
maintenance SHOULD NOT be undertaken by children.

6. Before cleaning or maintenance operations, ALWAYS unplug the appliance
from the power supply.

7. DO NOT move the appliance by pulling the power cable.

8. DO NOT install the appliance in rooms containing gas, oil or fuel.

9. DO NOT install near sources of heat.

10. DO NOT use the appliance on inclined surfaces.

11. Keep the appliance away from inflammable substances (alcohol etc) or
pressurised containers (e.g. aerosol cans).

12. DO NOT rest heavy or hot objects on top of the appliance.

13. ALWAYS transport the appliance upright. Wait at least 1 hour after

transporting the appliance before using it to allow the refrigerant gasses to
settle.

14. DO NOT use the appliance outdoors.

15. DO NOT obstruct the air inlet or outlet.

16. DO NOT use means to accelerate the defrosting process or to clean, other
than those recommended in this manual.

17. DO NOT store in a room continuously operating ignition sources like open
flames, operating gas appliance or electric heater.

18. DO NOT cover the dehumidifier when in use. Place at least 50cm (100cm
from front) from walls, doors, windows or obstructions.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

WARNING: DO NOT USE OR STORE THE DEHUMIDIFIER NEAR A HEAT
SOURCE, AS THE UNIT CONTAINS PRESSURISED FLAMMABLE REFRIGERANT
GAS (R290-HYDROCARBON PROPANE)

R290 REFRIGERANT GAS (HYDROCARBON PROPANE)

H220: Extremely Flammable Gas.

H280: Contains Gas Under Pressure, May Explode if Heated.

R290 refrigerant gas complies with UK & European environmental
directives.

R290 has a low GWP (Global Warming Potential) of 3 and CO2
equivalent to 0.0006t

The dehumidifier contains approximately 200g of R290 refrigerant gas. The
refrigerant system MUST NOT be perforated or punctured.

• DO NOT use or store in an unventilated space with an area smaller than

4m² per unit. The room must be such as to prevent stagnation of possible
leaks of refrigerant gas as there could be a danger of fire or explosion
hazard should the refrigerant come into contact with electric heaters,
stoves or other sources of ignition.

• Refrigerant gas may be odourless.

• DO NOT use the product and contact the retailer for advice if damage

has occurred to the unit which may have compromised the refrigerant
system.

• Any repairs or maintenance must only be carried out on the unit by a

suitably qualified engineer. Before opening and servicing the unit, the
authorized engineer must be in possession of a copy of the
manufacturer's service manual and must follow the safety information
contained within it to ensure all hazards are minimized.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

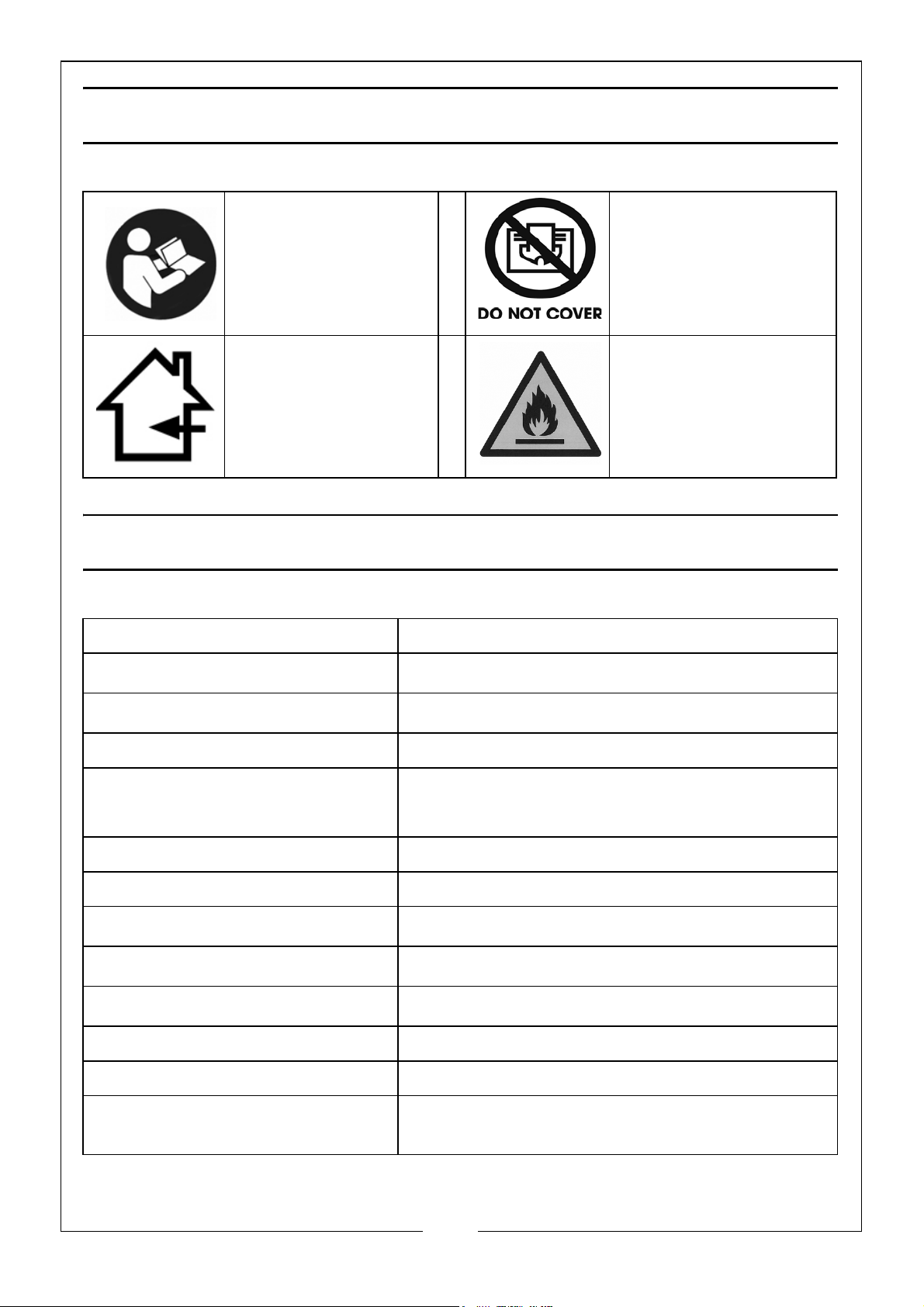

SAFETY SYMBOLS

Read the manual
and safety
instructions before
use

Indoor use only Warning: Risk of Fire,

TECHNICAL SPECIFICATION

Power Source AC 110V

Do not cover when
in use

Flammable Gas
(R290)

Input Current @ Rated Load

Power

7.4A @ 30

800W @ 30

o

C RH 80%, 5.5A @ 27oC RH 60%

o

C RH 80%, 600W @ 27oC RH 60%

IP Rating IP22

Dehumidifying Extraction Rate

50 litres/day @ 30
30 litres/day @ 27

o

C RH 80%

o

C RH 60%

Max. Suction Pressure 1.0Mpa

Max. Discharge Pressure 2.5Mpa

Max. Air Flow Rate

Working Space

Operating Temperature

300m

50 - 120m

5

3

/h

o

C - 35oC

3

Refrigerant 200g of R290 (Hydrocarbon Propane)

Weight 30kg

Dimensions (DxWxH) Handle Down: 480mm x 450mm x 655mm

Handle Up: 480mm x 450mm x 900mm

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

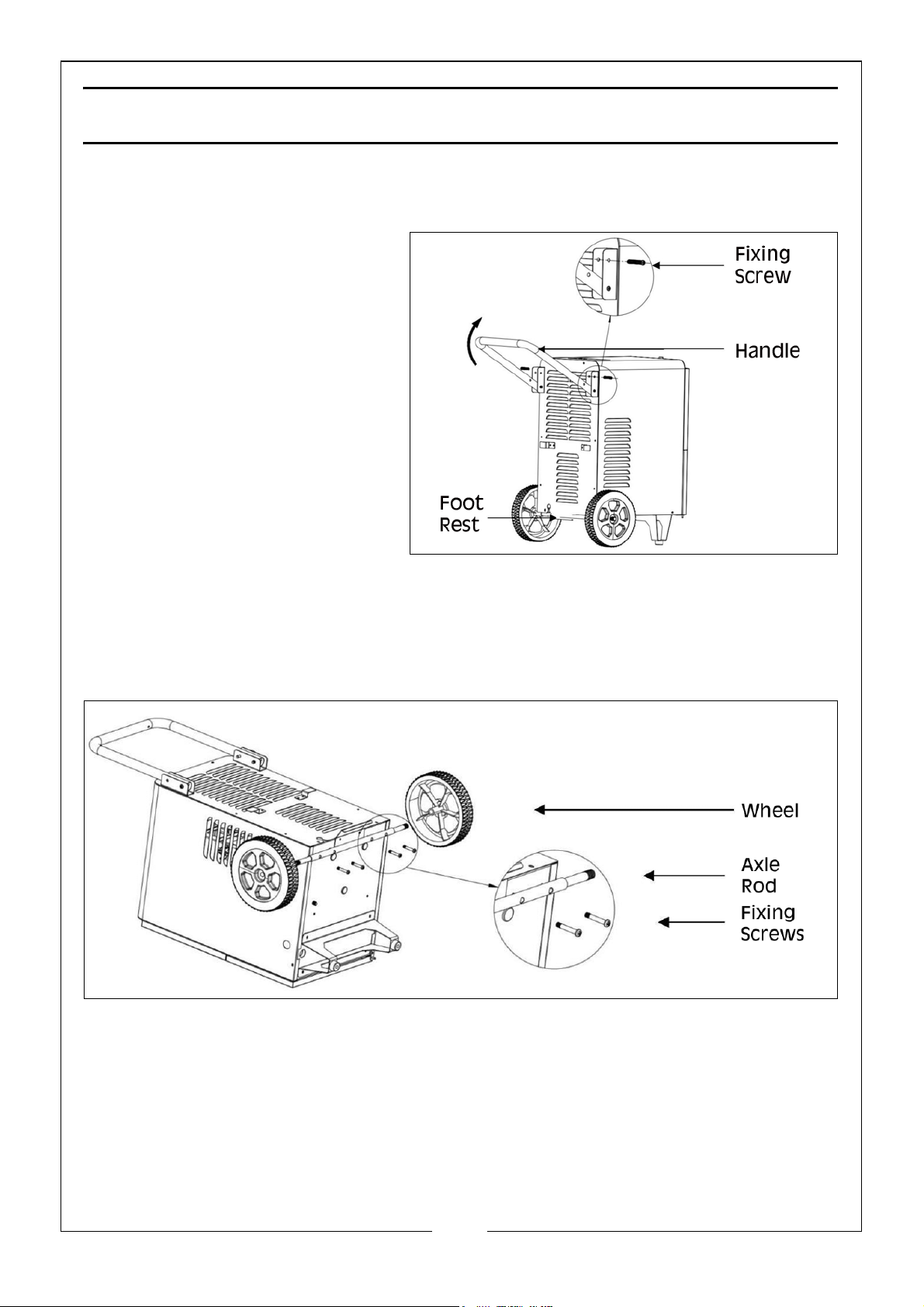

ASSEMBLY

HANDLE

1. Place the machine in the
upright position, Lift the
handle on the rear of the
machine by 180 degrees to
the upright position.

2. Secure the handle in
position using the screws
provided.

WHEELS

1. Incline the machine body, as shown, and fix the wheel axle on the bottom
of the machine body using the 4 screws.

2. Using the nuts and washers, fix the wheels to the axle rod.

3. Once the wheels have been installed, place the machine in the upright
position.

NOTE: Once assembly is complete, leave the machine to stand for 1

hour, this is for the refrigeration gases to settle before use.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATION

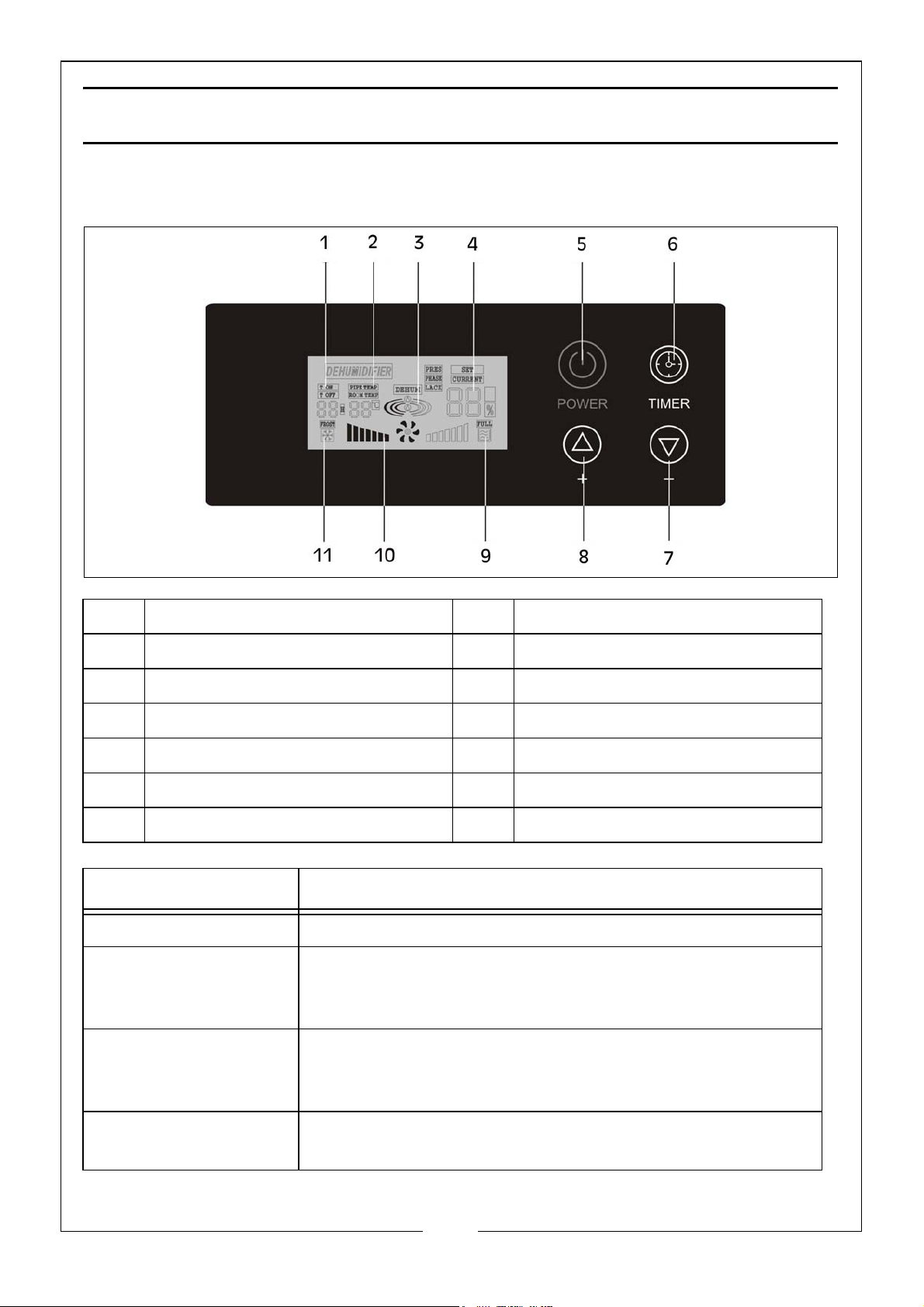

CONTROL PANEL

No. Description No. Description

1Timer 7Subtract

2 Temperature 8 Add

3 Dehumidification 9 Full Water Tank

4 Humidity 10 Air Speed

5 Power 11 Defrosting

6Timer Set

Button Operation Instructions

On/Off (Button 5) Switches the machine On and Off

+ (Button 8) Adjusts different set values in different states:

1: Increases the humidity value set (RH 10% to 95%)
2: Increases the timing (Hours) set (00 to 24)

- (Button 7) Adjusts different set values in different states:
1: Decreases the humidity value set (RH 10% to 95%)
2: Decreases the timing (Hours) set (00 to 24)

Timer (Button 6) Short press the button to launch a cycle to Off.

Set On/Off timer and exit

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

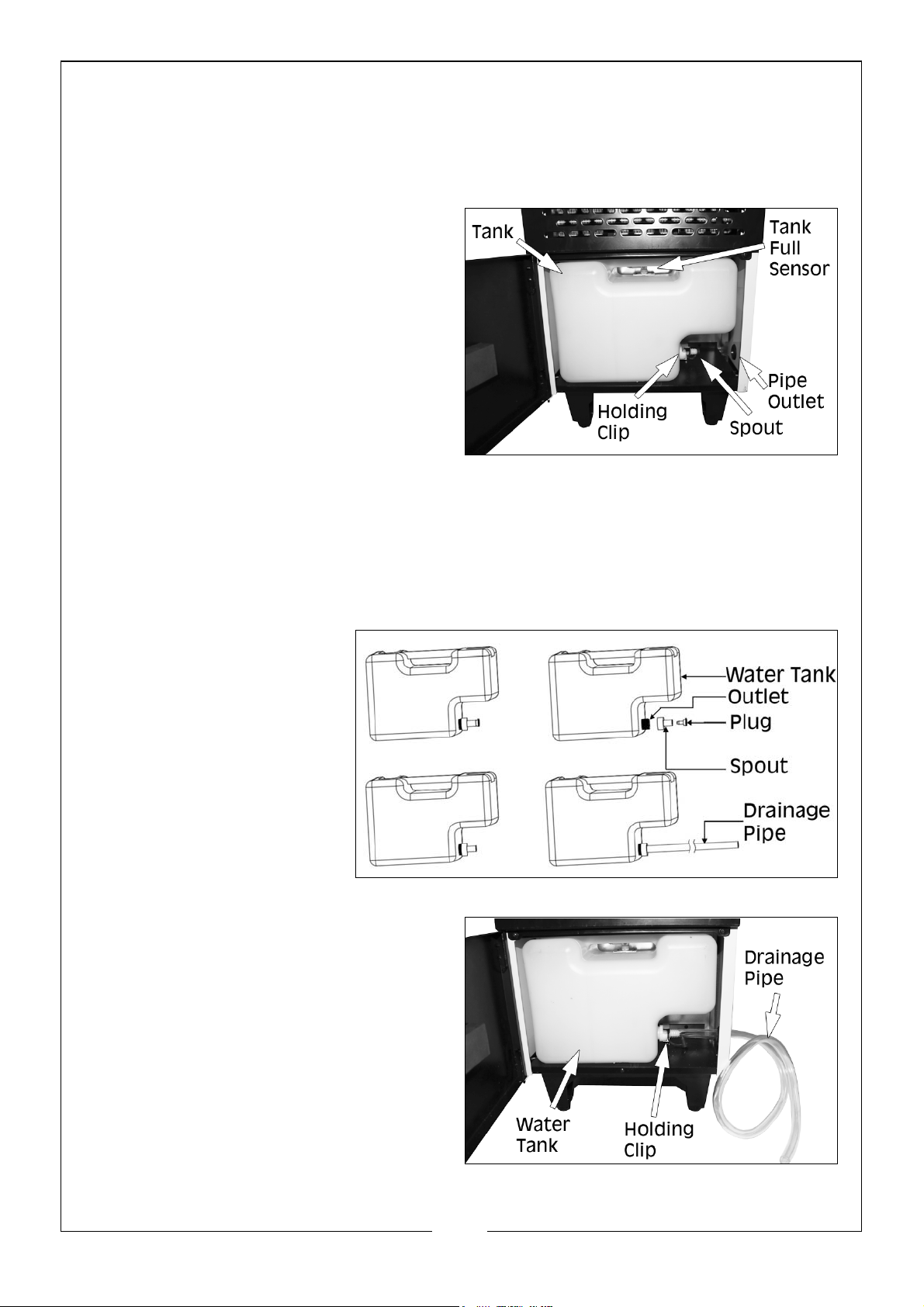

WATER TANK & CONTINUOUS DRAINING

This machine has a 7 litre internal water tank. When the water tank is full, the
machine will automatically shutdown at 5 litres and enter standby mode, on
the LED display the ‘Full Water Tank’ will light up and an alarm will sound.

TO EMPTY THE TANK

1. Open the water tank door at the
front of the machine.

2. Pull water tank out of the holding
clips and empty.

3. Replace the water tank back in
the holding clips and close the
door.

NOTE: The water tank full alarm will

continually sound when the tank is removed and will not turn off
until the tank is empty and correctly seated back in the machine.

PREPARATION FOR CONTINUOUS DRAINING

An external drainage pipe enables continuous dehumidifying without having
to empty the water tank.

1. Extract the water tank
from the machine
and remove the plug
from the water tank
spout.

2. Locate the external
drainage pipe and
feed it through the
drainage pipe outlet
hole on the side of the
machine.

3. Place the end of the pipe onto
the water tank spout and replace
the tank back in the machine.

4. Place the external end of the
pipe into a suitable receptacle/
drain ensuring that the end of the
pipe is below the level of the
outlet in the unit body.

NOTE: If using a receptacle, make

sure it is large enough as the
machine can produce up to 50 litres of water in a 24 hour period.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

NOTE: The pipe has an internal diameter of 13mm and is 100cm long.

NOTE: DO NOT submerge the end of the pipe in water, as this may cause

water to be drawn back up into the machine.

TIMING AND ON/OFF FUNCTION

Setting the timer for both powering on and off will initiate the cycle timer

mode.

SETTING OF TIMER - POWER ON

1. When the machine is powered off, press the “Timing” button.

2. The “Timing On” icon will flicker and the time set will flicker on the display
screen.

3. Press the “+” or “-” buttons to adjust the timing. The dehumidifier will make
a sound once the button is pressed. The time set will increase or decrease
by “1”, holding the button for 2 seconds will continually increase or
decrease the time.

4. Once the required time is set, non-action of the buttons for 10 seconds the
dehumidifier will accept the new setting and the “Timing On” icon will
flicker (Ranging from 0 to 24 hours, and 0 hours as default).

SETTING OF TIMER - POWER OFF

1. When the machine is powered on, press the “Timing” button.

2. The “Timing Off” icon will flicker and the time set will flicker on the display
screen.

3. Press the “+” or “-” buttons to adjust the timing. The dehumidifier will make
a sound once the button is pressed. The time set will increase or decrease
by “1”, holding the button for 2 seconds will continually increase or
decrease the time.

4. Once the required time is set, non-action of the buttons for 10 seconds the
dehumidifier will accept the new setting and the “Timing Off” icon will
flicker (Ranging from 0 to 24 hours, and 0 hours as default).

HUMIDITY CONTROL

• When the rooms humidity value is 3% lower than the set humidity on the

machine, the compressor will shut down, the fan will delay shut down for
3 minutes and then shut down; and when it is 3% higher than the
humidity value set on the machine, both the fan and compressor will
start to operate.

• When the humidity is set at the minimum value (10%), the machines

default will enter the continuous dehumidifying mode.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

• When started, the compressor will start 3 seconds later and when it is

shut down, the fan will run for 3 seconds.

• If a fault of the humidity sensor occurs, the machine will turn to the

continuous dehumidifying mode.

• If a fault of the coil sensor occurs, the machine will turn to the timing

defrosting mode (See Defrosting Mode).

PROTECTION FUNCTION

• Once shut down, the compressor will take 3 minutes to restart. Quick

start is available for the first power-on.

• Power off memory: For abrupt power outage or accidental unplugging,

the machine will automatically return to the operating state right before
the ‘incident’, and continue at that state for the next power-on.

DEFROSTING MODE

Defrosting
Mode

Automatic
Defrosting

Timing
Defrosting

Description

Sensor at Normal State 1: It enters this mode when the

compressor runs constantly for 30
minutes and the coil temperature is

o

tested to be < or = 1
2: In defrosting, the compressor stops
running, the fan continues running
and the defrost light is on.

In this mode, the machine will defrost for 8 minutes and then
switch to standby mode.

C.

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

WARNING: ALWAYS UNPLUG THE DEHUMIDIFIER BEFORE PERFORMING
ANY CLEANING OR MAINTENANCE OPERATIONS.

CLEANING THE CABINET

• Use a soft damp cloth to clean the exterior.

• Never use harsh chemicals or abrasive cleaning agents as these may

damage the casing finish.

• Clean the water tank and its cover regularly to prevent mould build up.

CLEANING THE AIR FILTER

1. At the front of the machine, pull the filter
upwards, using the tab.

2. Wash the filter under running water to
remove any dust and dirt.

3. Allow the filter to dry naturally.

4. Refitting is the reverse process.

The frequency depends on the duration
and the level of dust in the environment. If
the machine is being used regularly, it is
recommended that you clean the filter
every 2 weeks.

STORAGE

• Unplug from the mains socket.

• Empty any water from the tank.

• Clean and reinstall the filter.

• Cover the dehumidifier to prevent dust getting into the workings.

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TROUBLESHOOTING

Cause Solution

No operation
(Shown as no
power)

No operation
(Shown as
power on)

Dehumidifier
function not
effective

Power outage Check if the power supply is in

working order.

Confirm the plug is correctly
inserted in the power socket.

Fuse in plug or fuse board
blown

Environmental humidity
lower than the set value

The machine is defrosting Wait for defrosting to complete.

If a door or window are
open

Room temperature is too
low

Room temperature too
high, humidity too low.

Replace the relevant fuse.

Reset humidity setting
according to the demand.

Close the door or window.

Do not use the dehumidifier.

In dry conditions the
dehumidification ability will
reduce.

Air filter blocked. Remove any dirt or obstruction

Noise is
abnormal
during
operation

Water Leak Connection of drainage

Frosting Occurs The ambient temperature is

Dehumidifier is positioned
incorrectly.

Air filter blocked. Remove any dirt or obstruction

There is a ‘tittering’ sound. This is the flow of the refrigerant,

pipe become loose.

Drainage system is
blocked.

low and the machine is
waiting for defrost.

from the air intake.

Check that dehumidifier is
placed on a flat level surface.

from the air intake.

which is a normal
phenomenon.

Check pipe connection.

Remove obstacle and
straighten out drainage pipe.

This is a normal phenomenon
and the dehumidifier has an
automatic defrost function.

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DISPLAY CODES

Display Code Instruction Action

E1 Fault with coil sensor See Defrosting Mode.

E2/E3 Fault with humidity and/or

temperature sensor

EE Refrigerant leakage Contact CLARKE service

Replace temperature
and humidity sensor.

department if EE signal
remains.

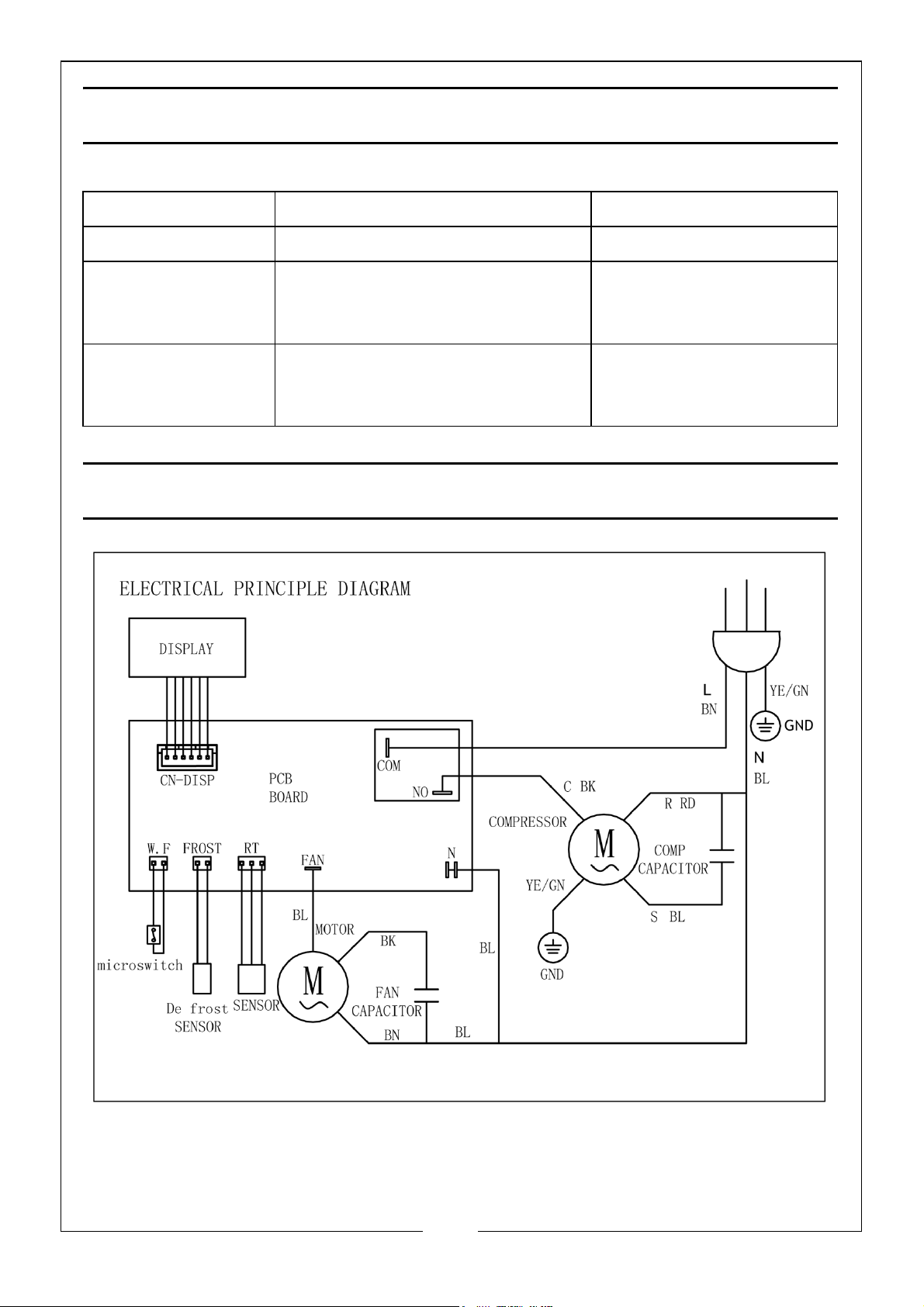

ELECTRICAL DIAGRAM

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

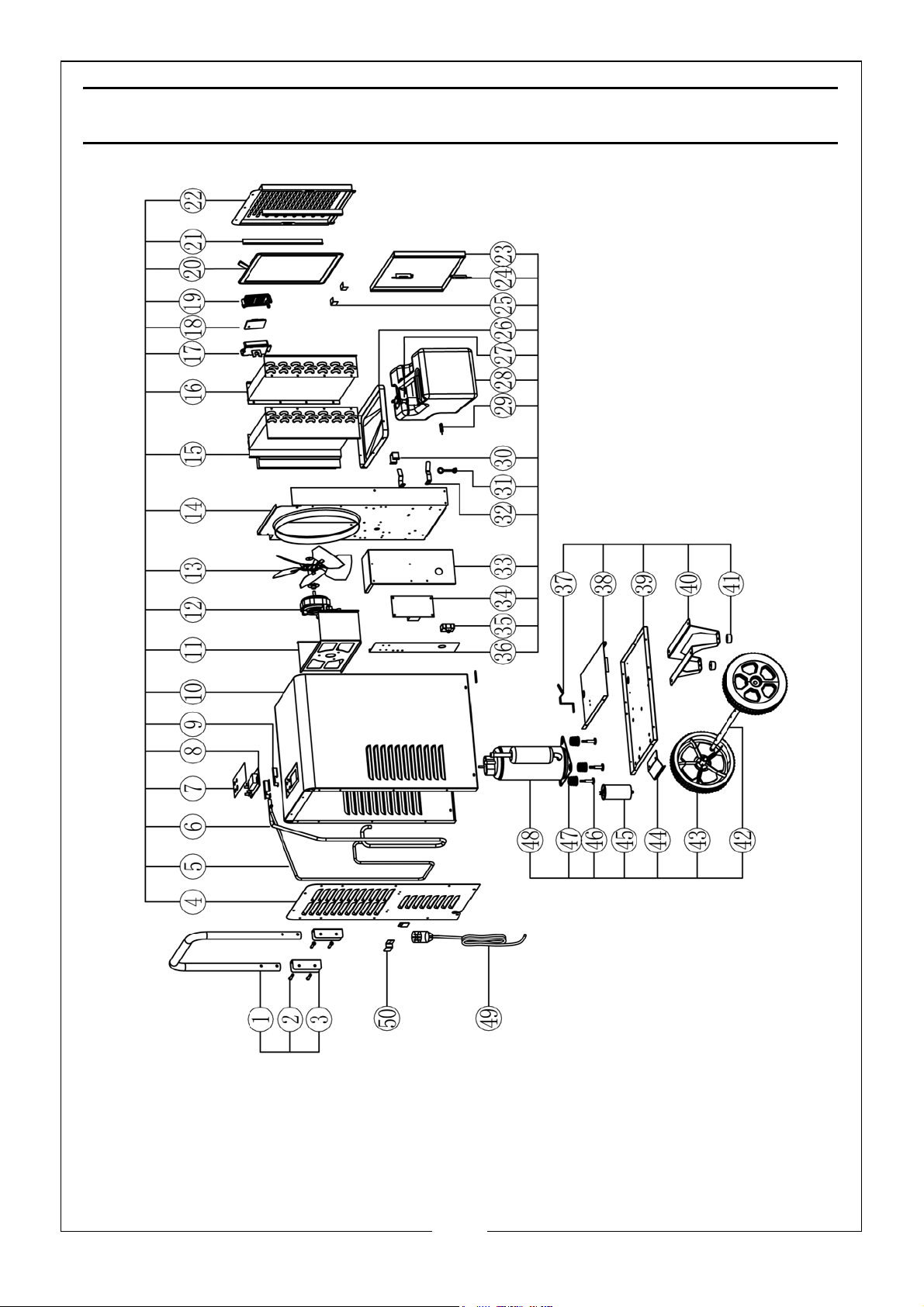

COMPONENT PARTS DIAGRAM

16

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

COMPONENT PARTS LIST

No Description No Description

1 Handle 34 Power Strip

2 4 x Bolt & Nut, M6 x 35 35 Fan Motor Capacitor

3 Handle Bracket 36 Control Box Side Plate

4 Back Cover 37 Water Tank Bracket

5 Discharge Pipe 38 Water Tank Support Plate

6 Suction Pipe 39 Main Body Base Plate

7 Control Panel Label 40 Foot Bracket

8 Control Panel 41 Foot Pad

9 Control Panel Holder 42 Wheel Axle, 16mm x 462mm

10 Main Body Shell 43 Wheel

11 Motor Bracket 44 Foot Rest

12 220V/50Hz Fan Motor 45 Compressor Capacitor

13 250mm Fan Blade 46 Compressor Bolt, M8 x 40

14 Partition Plate 47 Compressor Mat

15 Condenser 48 Compressor

16 Evaporator 49 Power Cable

17 Sensor Bracket 50 Power Cable Storage Clip

18 Temp. & Humidity Sensor

19 Sensor Cover

20 Filter

21 Front Cover Bracket

22 Front Cover/Grill

23 Water Tank Door

24 Hinge Bolt

25 Door Hinge

26 Water Drip Pan

27 Water Level Switch

28 Water Tank

29 Magnetron Switch

30 Magnetron Switch Holder

31 Water Tank Plug

32 Water Tank Bracket

33 Control Box

17

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

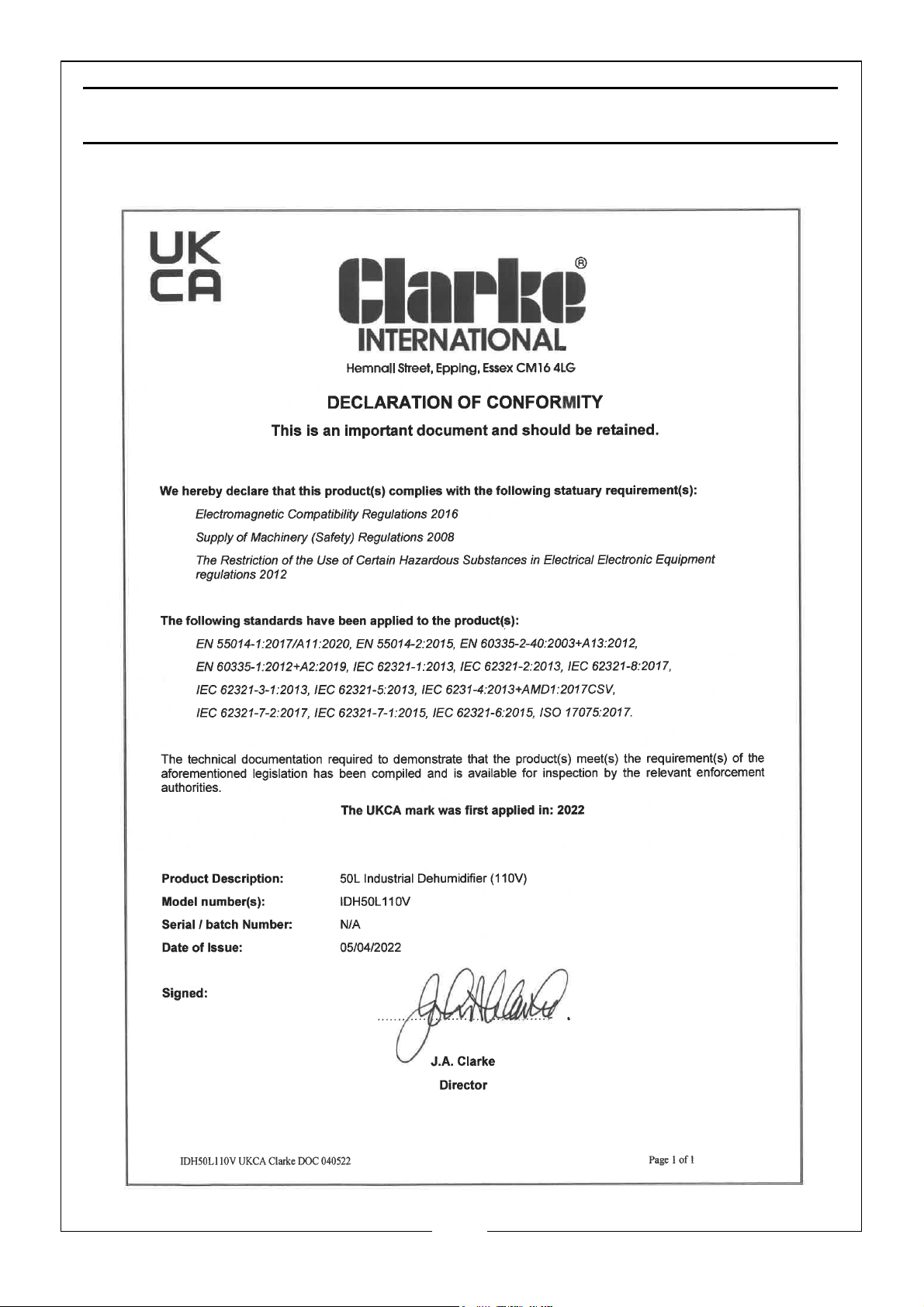

DECLARATION OF CONFORMITY - UKCA

18

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ASSOCIATED 110V PRODUCTS

EURO5 Generator -

PG3800ADV

•Max Output:3000W

•5.6HP Petrol Engine

•Dims(LWH):600mm x
480mm x 445mm

•Part No. 8857854

12” Ventilator/Air Mover

- CON305

•Fan Dia.: 12” (300mm)

•Air Flow: 3900m3/h

•Dims(LWH):375mm x
386mm x 430mm

•Part No. 3230480

2.8kW Electric Fan
Heater- Devil 3003

•Adjustable Thermostat

•Weight: 6.15kg

•Dims(LWH):400mm x
260mm x 390mm

•Part No. 6925125

Transformer - CTR3000 110V Extension Lead -

C14EC

•BS4343 Dual Sockets

•3300va with Overload
Circuit Protection

•Dims(LWH):236mm x
195mm x 265mm

•Part No. 3220785

•16 Amp

•14 Metres

•Part No. 3220825

Twin LED Work Light &

Tripod - SMD84T/110

•2 x 1650 Lumen
Floodlights

•Internal or External Use
IP54

•Adjustable Height
upto 1720mm

•Part No. 4003640

19

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
