355MM 110 V ABRASIVE CUT-OFF SAW
MODEL NO: CON14110
PART NO: 6470169
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL0922 - ISS 3
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Abrasive Cut-Off Saw which is suitable
for cutting any ferrous metals which are compatible with the type of abrasive
wheel fitted.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
SAFETY SYMBOLS
Read instruction
manual before use
Wear ear defenders Wear a dust mask
Wear protective gloves Class II product that does
Wear eye protection
not require an earth
connection
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL POWER TOOL SAFETY WARNINGS
WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL
INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/
OR SERIOUS INJURY. THE TERM “POWER TOOL” IN THE WARNINGS REFERS
TO YOUR SAW.
Save all warnings and instructions for future reference.
WORK AREA SAFETY
a. Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
b. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
a. Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will reduce risk of electric
shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d. Do not abuse the cable. Never use the cable for carrying, pulling or
unplugging the power tool. Keep cable away from heat, oil, sharp
edges or moving parts. Damaged or entangled cables increase the risk
of electric shock.
e. When operating a power tool outdoors, use an extension cable suitable
for outdoor use. Use of a cable suitable for outdoor use reduces the risk
of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
PERSONAL SAFETY
a. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal
injury.
b. Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool
may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use
of dust collection can reduce dust-related hazards.
POWER TOOL USE AND CARE
a. Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at
the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
c. Disconnect the plug from the power source and/or the battery pack
from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d. Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tool's operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power
tools.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
e. Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the tool. Power tools are dangerous in the hands of untrained users.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and the
work to be performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
SERVICING
a. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
ADDITIONAL WARNINGS FOR CUT-OFF SAWS
1. IMPORTANT: You should not operate this machine unless you are thoroughly
familiar with metal cutting saws. If there is any doubt whatsoever, you
should consult a qualified person.
2. DO NOT operate the machine until it is completely assembled and this
entire manual has been read and understood.
3. Ensure the proper electrical regulations are followed.
4. Ensure the abrasive disc is securely mounted in accordance with these
instructions before connecting to a power supply.
5. DO NOT over tighten the abrasive disc. This can cause stress, and could
lead to the wheel shattering when under load.
6. Always check the abrasive disc for cracks before use.
7. Before switching the machine on, ALWAYS ensure the work is properly
secured. ALWAYS use the vice, NEVER hand hold a workpiece.
8. Make all adjustments with the power OFF.
9. When starting a cut, always ease the tool into the work. A harsh or sudden
impact could shatter the abrasive disc.
10. Ensure the abrasive disc reaches maximum speed before beginning a cut.
11. DO NOT use the machine with the guards removed.
12. Ensure you use the correct type of abrasive disc for the type of material
being cut. Metal cutting & masonry abrasive discs are available from your
Clarke dealer. NEVER cut magnesium, wood, or non-ferrous metals.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
ELECTRICAL CONNECTIONS (110V ONLY)
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO A
POWER SUPPLY.
This product can be connected to one of the following power supplies:
• 110V Generator, 110V Isolating Transformer or 110V site supply
Connecting it to any other power source may
cause damage.
This product includes a fitted industrial plug to BSEN 60309 and cable for use with a 110 volt supply.
ON NO ACCOUNT MUST A 230V, 13AMP (BS1363)
PLUG BE USED.
If using a portable 110V transformer make sure it
has a rated capacity sufficient to take the load of
the saw.
If the plug needs changing at any time, a plug of
identical specification must be used:
1. Undo the socket screws & remove the rear
section.
2. Rotate the cable clamp clear of the terminals.
3. Feed the cable through the rear gland in the
plug.

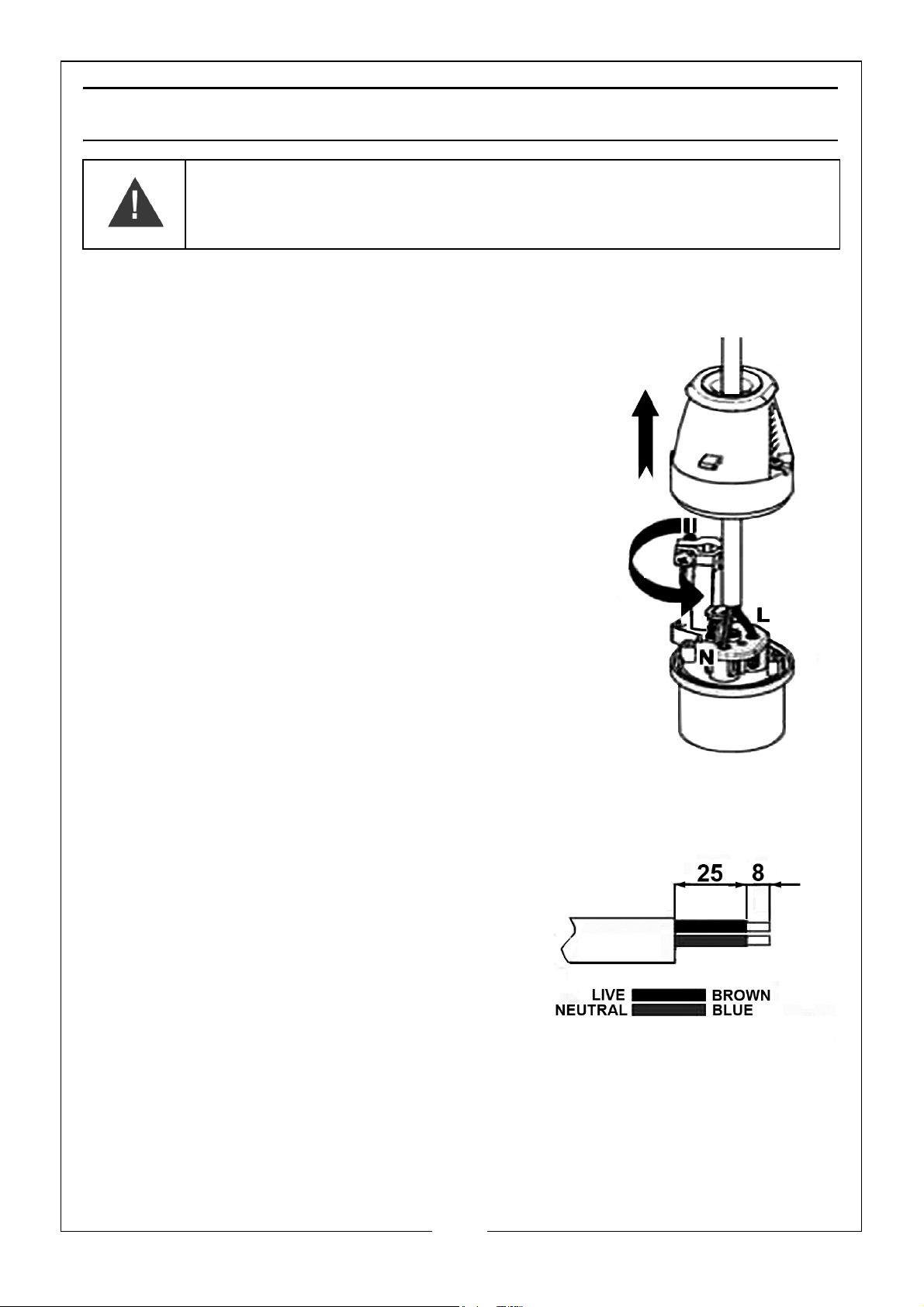

4. Remove the cable sheath to the required lengths as shown in the diagram.
5. Terminate the correct wires in the
correct terminal blocks as shown.
6. Remove the cable clamp screws. Clip
the cable clamp back into position and
place the clamp around the outer
sheath of the cable. Replace the screws
and tighten until the cable is secure.
7. Replace the rear cover and tighten the
cover screws.
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself. This is a Class II product and does not require an earth connection.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
UNPACKING AND ASSEMBLY
Unpack the saw carefully and ensure that the following items are in the box. In
the event of any deficiencies you should contact your CLARKE dealer
immediately.
• Abrasive Cut-off Saw
• 355mm Cutting disc (supplied fitted)
• Work holding clamp c/w fixing bolts

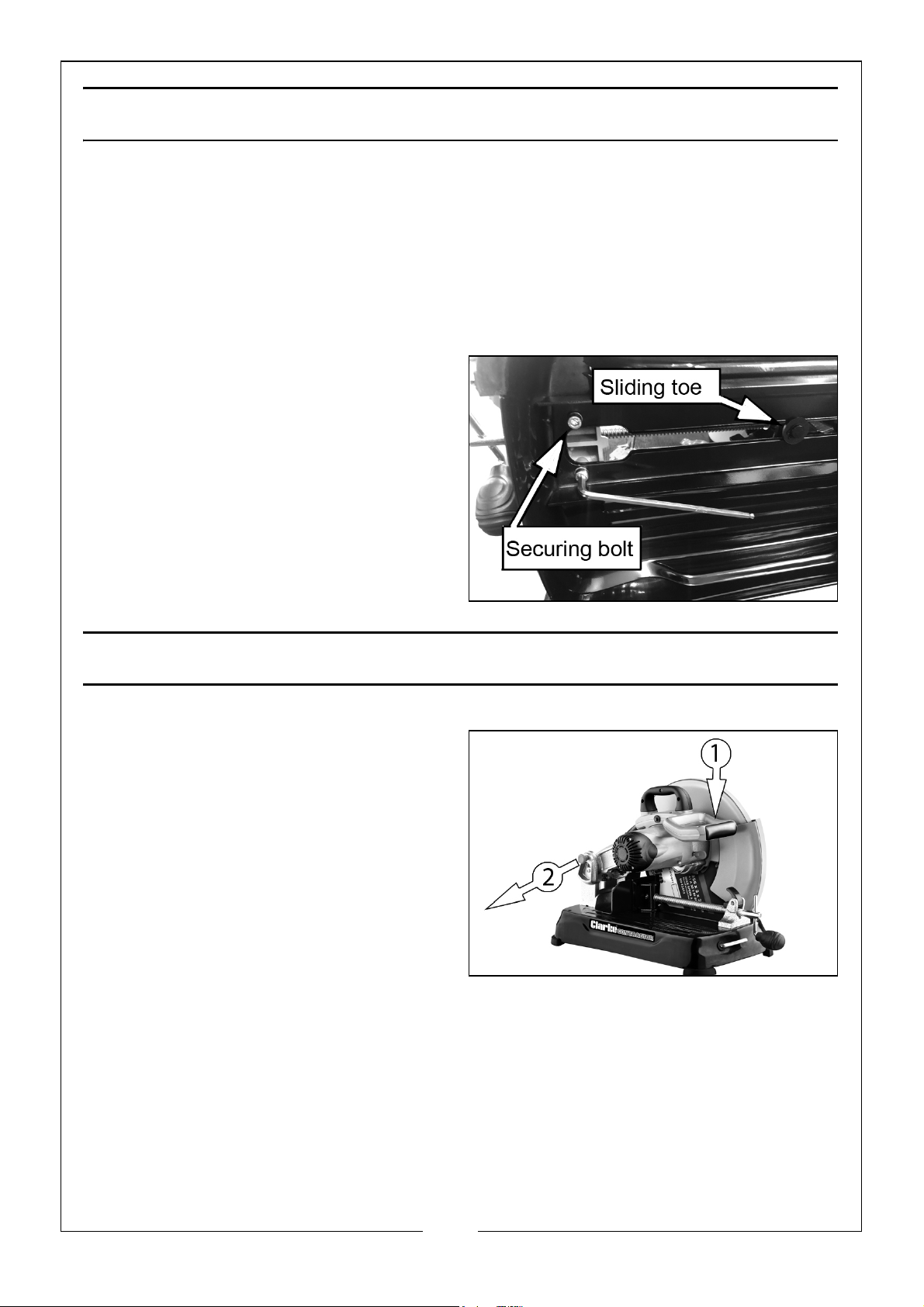

Install the work holding clamp to the
base of the machine.
With the saw on its side, slide the toe of
the work clamp along the slot in the
saw base.
Secure it to the base from underneath
using the two fixing bolts supplied.
Tighten using a 6mm hex key.
BEFORE USE
UNLOCKING / LOCKING
To unlock the saw and raise the motor
arm.
1. Push down on the handle (1).
2. Pull the locking pin out slightly (2) to
unlock the motor arm.
3. Release the pressure on the handle.
• The motor arm will then raise into
position.
• Reverse this process when locking the motor arm down for storage.
MATERIAL CLAMPING AND SUPPORT
• Angle iron should be clamped and cut with both edges resting
against the base of the saw.
• A spacer block slightly narrower than the workpiece can be used to
raise the workpiece if required.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
• A long workpiece must be supported by a block so that it will be
level with the top of the base. The cut-off end should be free to fall
downward to avoid binding against the wheel.
OPERATION

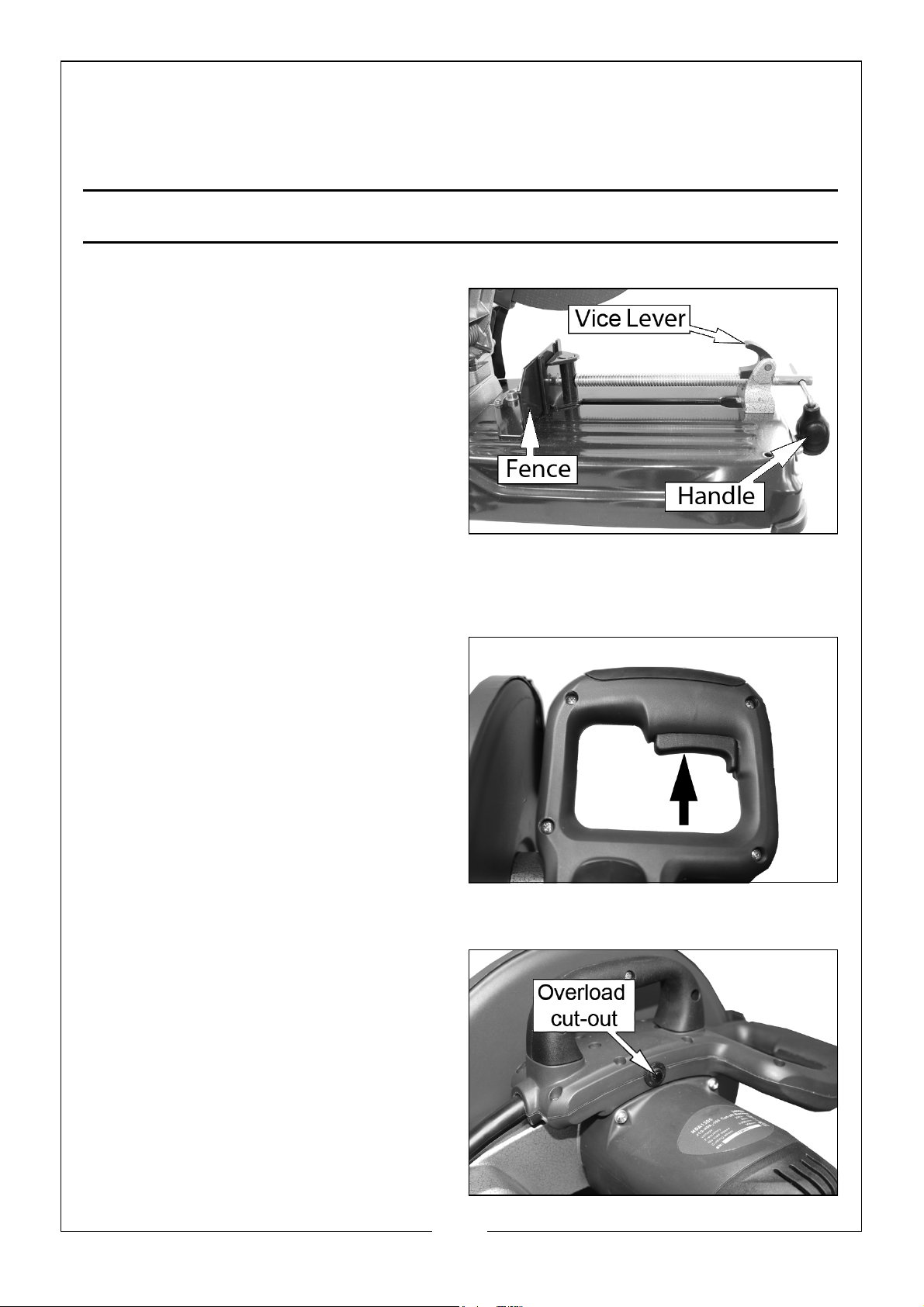

VICE OPERATION
1. Turn the handle counterclockwise
to remove clamping pressure.
2. Lift the vice lever up.
3. Pull the handle out as far as
desired.
• The vice may be pushed forward
into the work without turning the
handle.
4. Lower the vice lever then tighten the vice on to the workpiece using the
handle.
TRIGGER SWITCH
1. To start the saw, pull the trigger
switch.
• Wait a couple of seconds until
the blade reaches full speed.
2. To turn the saw off, release the
trigger switch.
• Keep hands and materials away
from the wheel until it has come
to a complete stop.
OVERLOAD CUT-OUT
The motor is protected against
overload by an overload cut-out. If the
rated current is exceeded, the
overload cut-out switches the saw off.
After a short cooling-off phase, the
saw can be reset by pressing the
overload switch.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
ADJUSTMENTS
WARNING: TURN OFF AND UNPLUG THE SAW BEFORE MAKING ANY
ADJUSTMENTS. MAKE SURE THE TRIGGER SWITCH IS IN THE OFF POSITION.
CHANGE THE CUTTING ANGLE
1. Use the hex wrench provided to
loosen (do not remove) the two
fence bolts.
2. Adjust the fence to the desired
angle.
3. Re-tighten both fence bolts before
use.
• When making a mitre cut, the vice may not clamp securely,
depending on the thickness of the workpiece and the mitre angle.
• Other aids (such as spring, bar or C-clamps) will be necessary to
secure the workpiece to the fence when making these cuts.

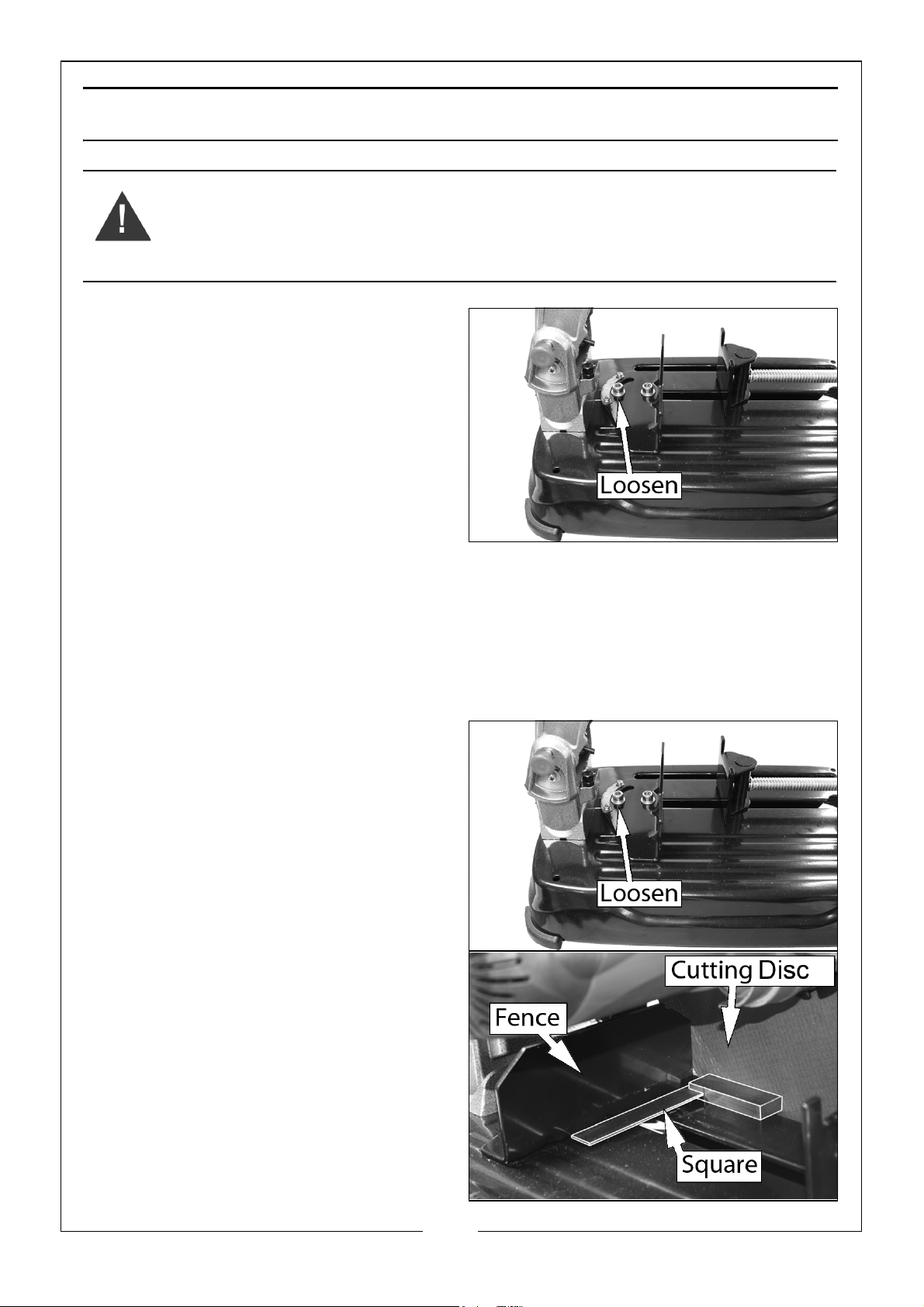

SQUARING THE FENCE TO THE BLADE
1. Disconnect the power supply.
2. Loosen the two fence bolts, push
the arm down until the cutting disc
lowers into the base.
3. Place a set square against the
cutting disc and adjust the fence to
rest against the square.
4. Securely tighten both fence bolts
before use.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
TO CHANGE THE SPACING BETWEEN THE FENCE AND VICE
1. Use the wrench provided to loosen
and remove the two fence bolts.
2. Adjust the fence to the desired
position.
3. Replace the fence bolts and
tighten securely before use.

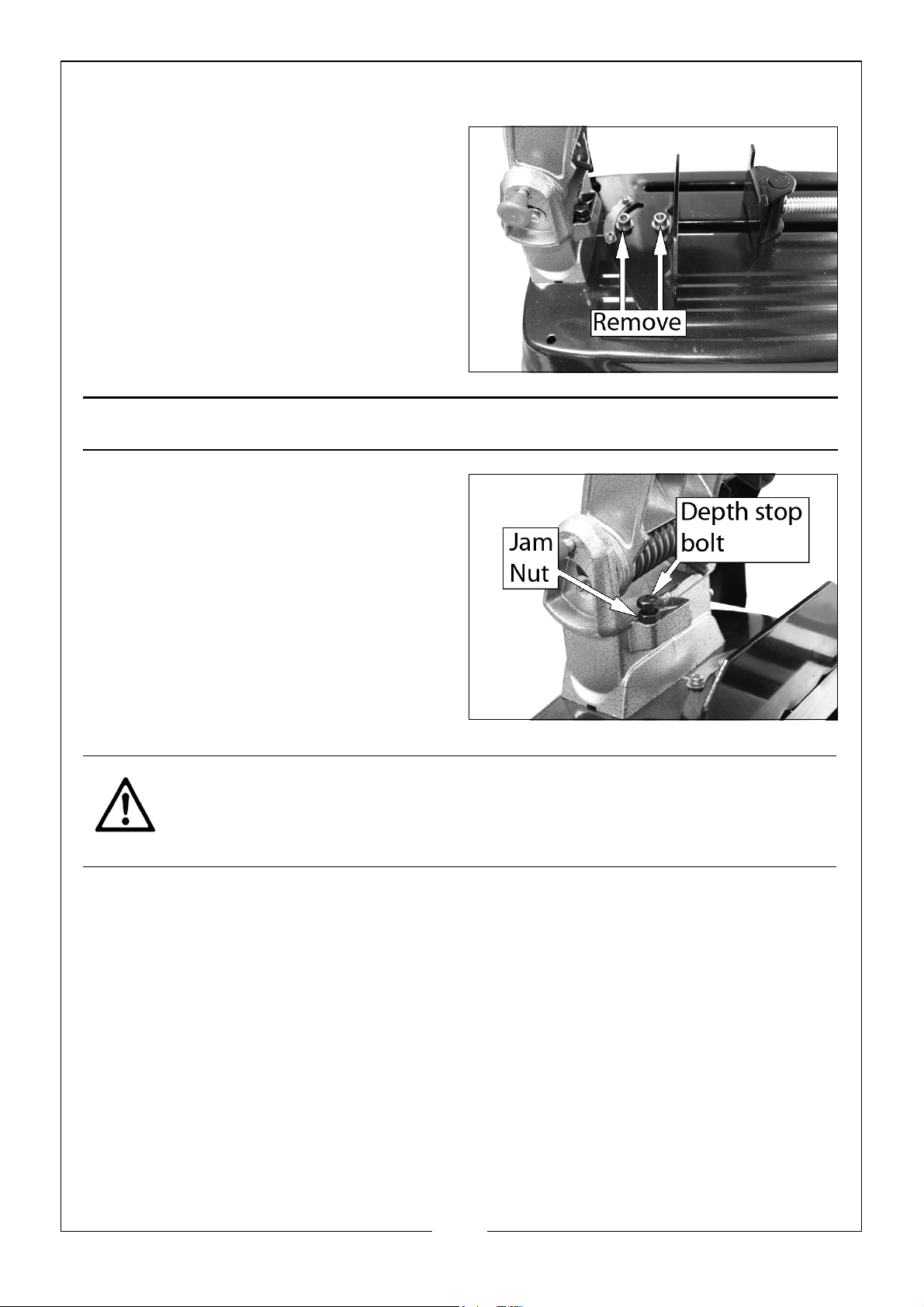

DEPTH STOP
The depth stop is set at the factory for
a new 14" (355mm) cutting disc. This
can be adjusted as the wheel wears.
1. Loosen the jam nut.
2. Loosen the depth stop bolt.
3. Adjust the bolt to desired height.
4. Then turn the jam nut until seated
firmly against the casting.
• Securely tighten the depth stop bolt before use.
CAUTION: WHEN CHANGING TO A NEW CUTTING DISC, RE-ADJUST THE
DEPTH STOP TO THE ORIGINAL POSITION TO PREVENT CUTTING INTO THE
SUPPORTING SURFACE.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

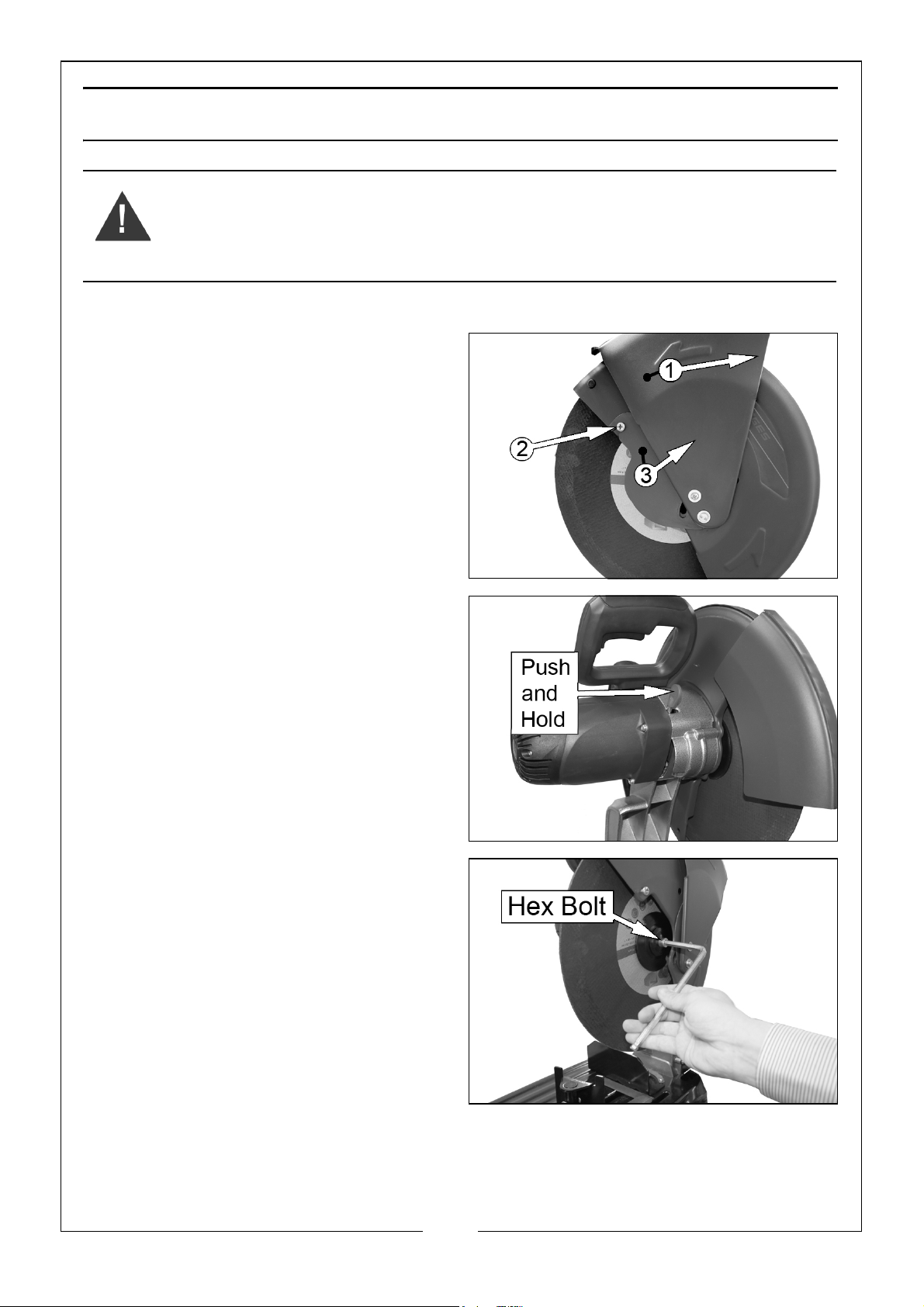

REMOVAL AND INSTALLATION OF CUTTING DISCS
WARNING: TURN OFF AND UNPLUG THE SAW BEFORE MAKING ANY
ADJUSTMENTS OR REMOVING OR INSTALLING CUTTING WHEELS. BE SURE
THE TRIGGER SWITCH IS IN THE OFF POSITION.
Cutting discs are available from your CLARKE dealer - Part Number: 6470800
1. Lift the blade guard out of the way
as shown.
2. Loosen the screw shown
3. Rotate the hub cover as shown to
expose the blade.
4. Push and hold the blade lock.
• You may need to rotate the
blade by hand to allow the lock
to engage.
5. Remove the Hex bolt, washer,
outside flange and old cutting disc.
• Make sure that the retaining disc
surfaces are clean and flat.
6. Install the new cutting disc by
reversing the above steps.
• Do not overtighten the Hex bolt.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
MAINTENANCE
CLEANING
1. Blow dirt and dust out of all air vents with clean, dry air at least once a
week.
2. Never use solvents or other harsh chemicals for cleaning the saw.
3. Use a cloth dampened only with water and mild soap.
4. Never let any liquid get inside the saw or immerse any part of the saw in
liquid.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
This means that this product must not be disposed of with general household
waste. It must be disposed of according to the laws governing Waste
Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
SPECIFICATIONS
Voltage 110V AC @ 50Hz
Input power 1800W
No-load speed 3800 rpm
Weight 18.2 kg
Dimensions (L x W x H) 550 x 315 x 400 / 570 (Height with saw head lowered /
raised) mm
Max cutting dimensions (mm) Round (130 dia @ 90°) - (115 dia @ 45°)
Square (120 x 120 @ 90°) - (95 x 95 @ 45°)
Rectangle (220 x 80 @ 90°) - (100 x 70 @ 45°)
Angle (140 x 140 @ 90°) - (90 x 90 @ 45°)
Sound Pressure Level (LPA) 95.24 dB(A)
Sound Power Level (LWA) 108.24 dB(A)
Sound Uncertainty Value (K) 3 dB(A)
Vibration < 2.5 m/s²
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13
Page 14

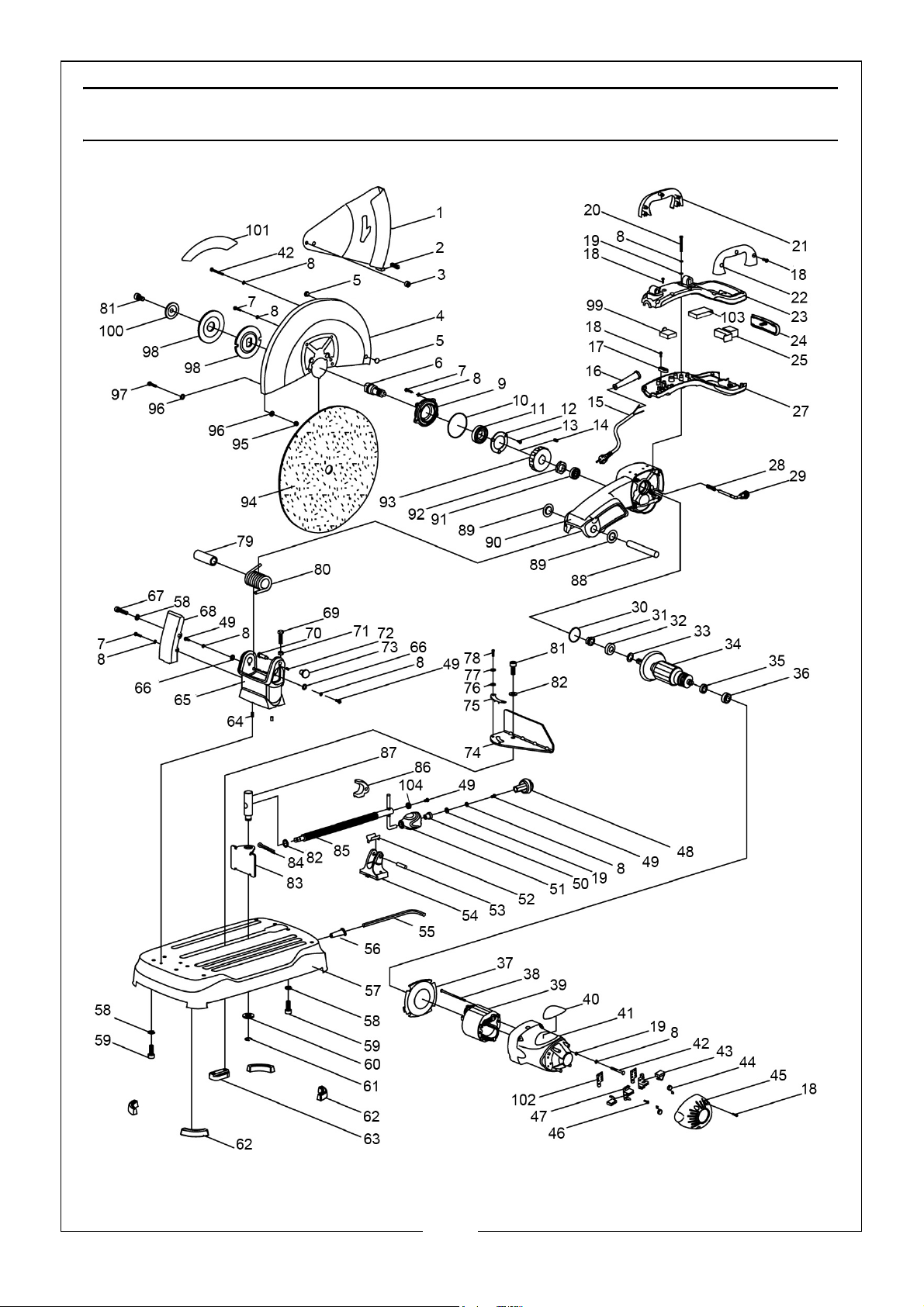

PARTS LIST
1Rotational Cover
2Plastic Sheath
3 Sleeve Spacer
4 Disc Safety Guard
5Rubber Sheath
6Output Spindle
7Bolt M5 x 16
8Washer 5 mm
9 Bearing Holder
10 O-Ring
11 Bearing 6005-2RZ
12 Bearing Washer
13 Bolt M4 x 12
14 Pin 6 x12
15 Cable with Plug
16 Cable Gland
17 Cable Clamp
18 Self- Tapping Screw
ST4.2x16
19 Washer 5 mm
20 Bolt M5 x30
21 Right Handle
22 Left Handle
23 Upper Grip
24 Soft Grip Cover
25 ON-OFF Switch
26 N/A
27 Lower Grip
28 Compression Spring
29 Spindle-Lock Assembly
30 O-Ring 34.5x2.65
31 Oil-Seal Sheath
32 Bearing 6202-2Z/C
33 Washer
34 Armature
35 Bearing 609-2Z/C4
36 Rubber Bearing Sleeve
37 Fan Guide
38 Self-Tapping Screw
ST4.8x95
39 Stator
40 Rating Plate
41 Housing
42 Bolt M5 x 50
43 Carbon Brush
44 Roll Spring
45 Back Cover
46 Self-Tapping Screw
ST3.5x13
47 Brush Holder Assembly
48 Rotating Knob II
49 Bolt M5 x8
50 Rotating Sleeve
51 Rotating Knob III
52 Extract Reducer
53 Pin 8m 6 x35
54 Pin Holder
55 Hexagon Spanner
56 Rubber Pipe
57 Base
58 Washer 8 mm
59 Bolt M8 x 20
60 Washer
61 Circlip 15 mm
62 Rubber Foot
63 Bolts Locking Holder
64 Pin 6mm x 20
65 Gear Housing Holder
66 Washer
67 Bolt M8 x 35
68 Rear Guard
69 Bolt M8 x 25
70 Lockpin
71 Nut M8
72 Rubber Pin
73 Lockpin Knob
74 Fixed Block Plate
75 Scale Plate
76 Washer 4 mm
77 Washer 4 mm
78 Bolt M4 x 6
79 Sheath
80 Twisted Spring
81 Bolt M10 x 25
82 Washer 10 mm
83 Movable Block Plate
84 Circlip 10 mm
85 Stud
86 Fast Clamp Nut
87 Vertical Pin
88 Rotating Spindle
89 Plastic Washer
90 Gear Housing
91 Bearing 6200-2Z
92 Nut
93 Driven Gear
94 Cutting Disc
95 Nut M6
96 Washer 6 mm
97 Bolt M6×20
98 Outer Retaining Disc
99 Overload protection
100 Inner Retaining Disc
101 Name Plate
102 Brush Holder
103 Foam pad
104 Lock Washer
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
DECLARATION OF CONFORMITY
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
Loading...
