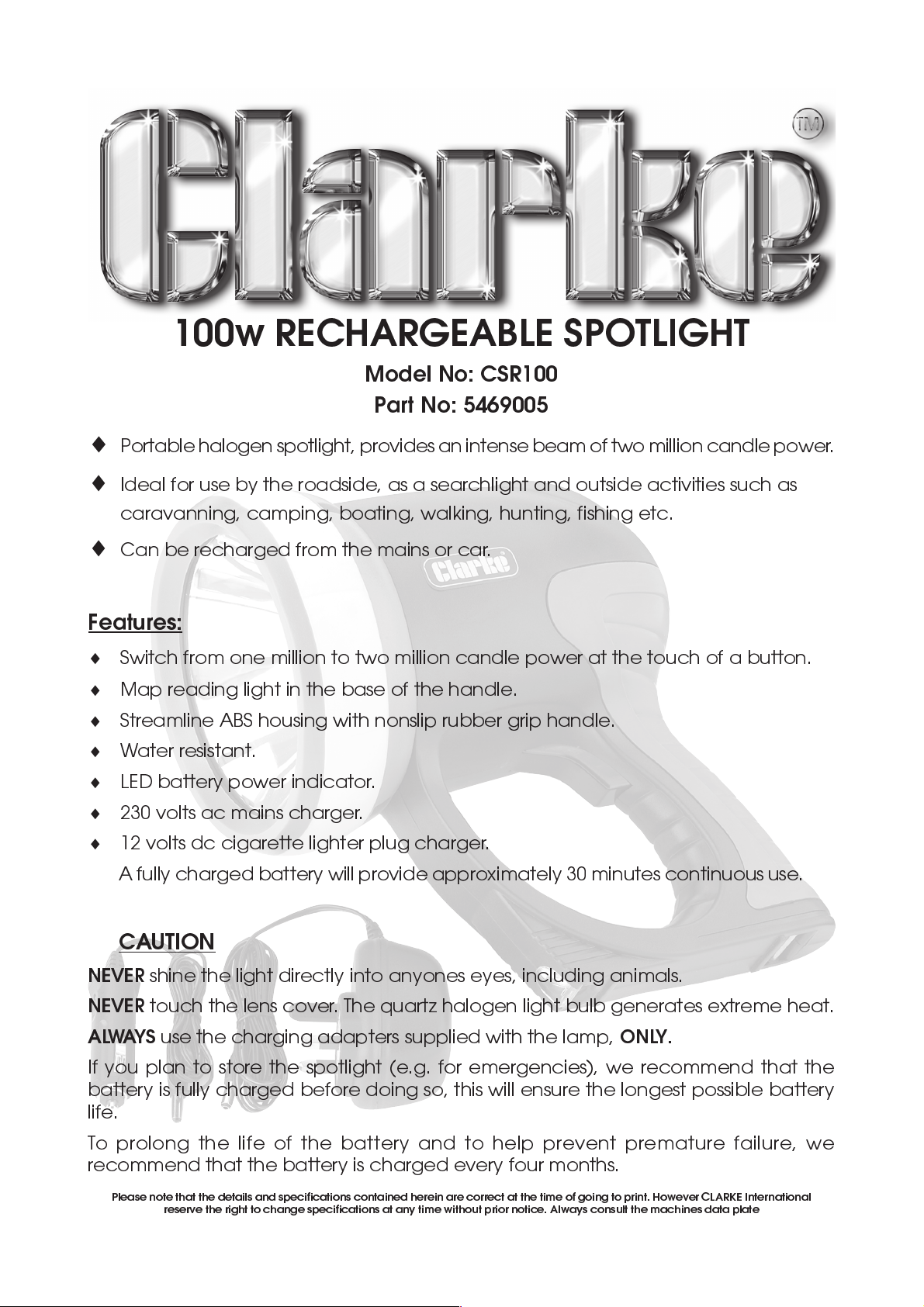

100w RECHARGEABLE SPOTLIGHT
Model No: CSR100
Part No: 5469005
¨
Portable halogen spotlight, provides an intense beam of two million candle power.
¨
Ideal for use by the roadside, as a searchlight and outside activities such as
caravanning, camping, boating, walking, hunting, fishing etc.
¨
Can be recharged from the mains or car.
Features:
¨
Switch from one million to two million candle power at the touch of a button.
¨
Map reading light in the base of the handle.
¨
Streamline ABS housing with nonslip rubber grip handle.
¨
Water resistant.
¨
LED battery power indicator.
¨
230 volts ac mains charger.
¨
12 volts dc cigarette lighter plug charger.
A fully charged battery will provide approximately 30 minutes continuous use.
CAUTION
NEVER
NEVER
ALWAYS
If you plan to store the spotlight (e.g. for emergencies), we recommend that the
battery is fully charged before doing so, this will ensure the longest possible battery
life.
To prolong the life of the battery and to help prevent premature failure, we
recommend that the battery is charged every four months.
shine the light directly into anyones eyes, including animals.
touch the lens cover. The quartz halogen light bulb generates extreme heat.
use the charging adapters supplied with the lamp,
Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International
reserve the right to change specifications at any time without prior notice. Always consult the machines data plate
ONLY.
Page 2

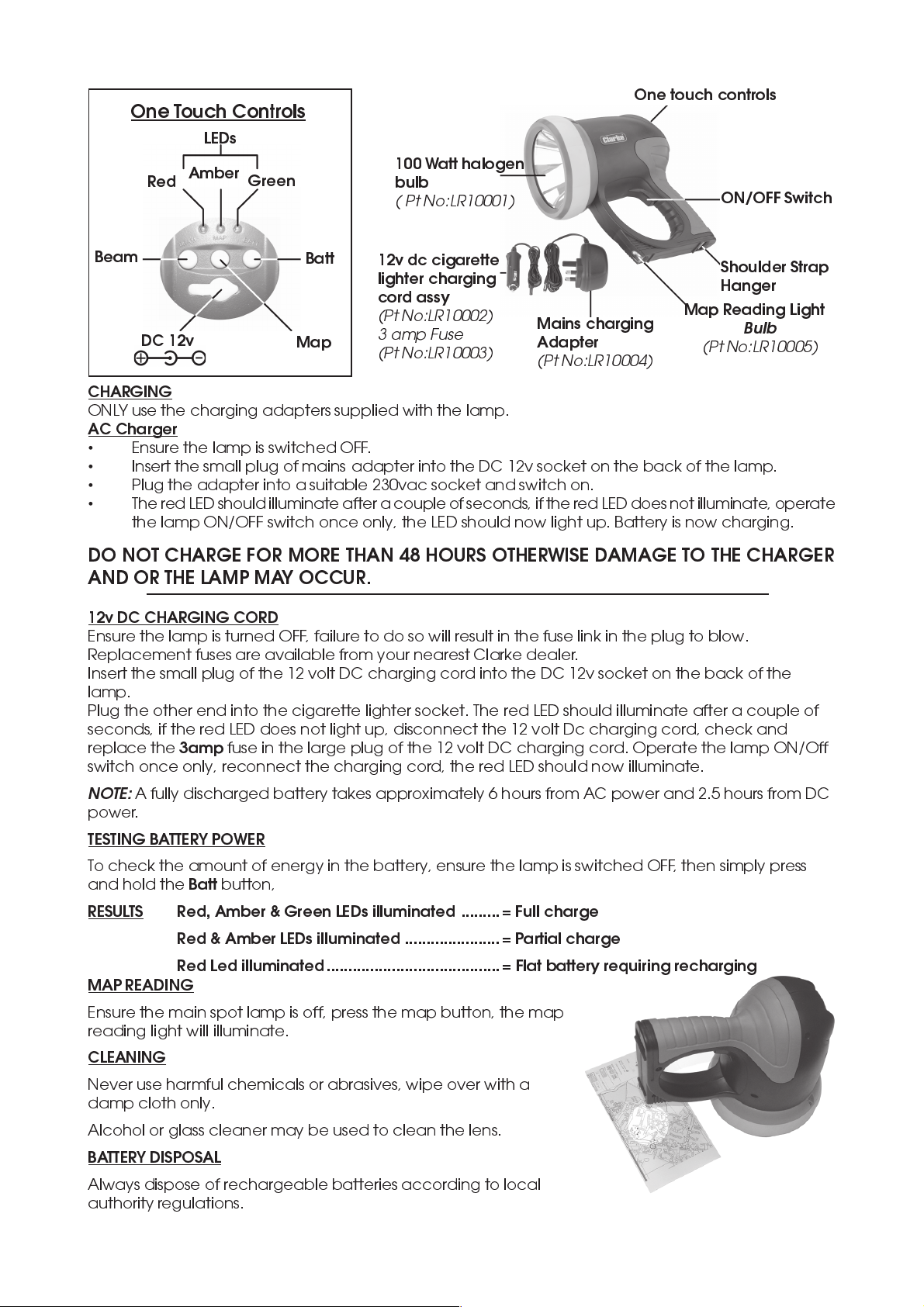

One Touch Controls
LEDs
Red
Amber
Green
100 Watt halogen
bulb
( Pt No:LR10001)
One touch controls
ON/OFF Switch
Beam
DC 12v
CHARGING
ONLY use the charging adapters supplied with the lamp.
AC Charger
Ensure the lamp is switched OFF.
Insert the small plug of mains adapter into the DC 12v socket on the back of the lamp.
Plug the adapter into a suitable 230vac socket and switch on.
The red LED should illuminate after a couple of seconds, if the red LED does not illuminate, operate
the lamp ON/OFF switch once only, the LED should now light up. Battery is now charging.
Batt
Map
12v dc cigarette
lighter charging
cord assy
(Pt No:LR10002)
3 amp Fuse
(Pt No:LR10003)
Mains charging
Adapter
(Pt No:LR10004)
Shoulder Strap
Hanger
Map Reading Light
Bulb
(Pt No:LR10005)
DO NOT CHARGE FOR MORE THAN 48 HOURS OTHERWISE DAMAGE TO THE CHARGER
AND OR THE LAMP MAY OCCUR.
12v DC CHARGING CORD
Ensure the lamp is turned OFF, failure to do so will result in the fuse link in the plug to blow.
Replacement fuses are available from your nearest Clarke dealer.
Insert the small plug of the 12 volt DC charging cord into the DC 12v socket on the back of the
lamp.
Plug the other end into the cigarette lighter socket. The red LED should illuminate after a couple of
seconds, if the red LED does not light up, disconnect the 12 volt Dc charging cord, check and
replace the
switch once only, reconnect the charging cord, the red LED should now illuminate.
3amp
fuse in the large plug of the 12 volt DC charging cord. Operate the lamp ON/Off
NOTE:
A fully discharged battery takes approximately 6 hours from AC power and 2.5 hours from DC
power.
TESTING BATTERY POWER
To check the amount of energy in the battery, ensure the lamp is switched OFF, then simply press
and hold the
RESULTS Red, Amber & Green LEDs illuminated .........= Full charge
MAP READING
Ensure the main spot lamp is off, press the map button, the map
reading light will illuminate.
CLEANING
Never use harmful chemicals or abrasives, wipe over with a
damp cloth only.
Alcohol or glass cleaner may be used to clean the lens.
BATTERY DISPOSAL
Always dispose of rechargeable batteries according to local
authority regulations.
Batt
button,
Red & Amber LEDs illuminated ......................= Partial charge
Red Led illuminated........................................= Flat battery requiring recharging
