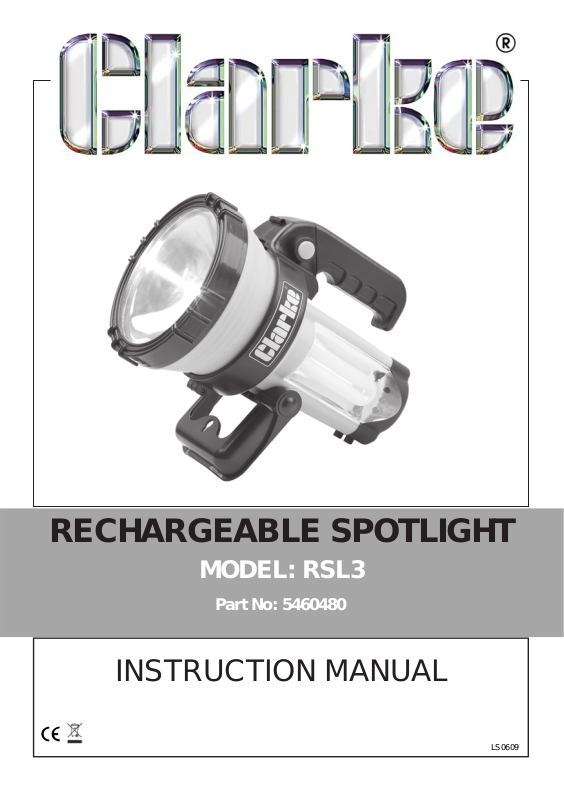

Page 1
RECHARGEABLE SPOTLIGHT
MODEL: RSL3
Part No: 5460480
INSTRUCTION MANUAL
LS0609
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product.
Before attempting to use the product, it is essential that you read this manual
thoroughly and carefully follow all instructions given. In doing so you will ensure the
safety of yourself and that of others around you, and you can also look forward to the
product giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with
in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Do not dispose of this product with general household waste. It must be
disposed of according to the laws governing Waste Electrical and Electronic
equipment, at a recognised disposal facility.
SPECIFICATIONS
Built-in battery: .......................................... 6 volt 4AH sealed lead acid.
Bulb (Spotlight): ........................................ 25W
Bulb (Fluorescent): ................................... 7W
Charging time: AC charger ................... 15 hours
Charging time: 12V DC charger ............ 12 hours
2
Page 3
SAFETY INSTRUCTIONS
GENERAL SAFETY
Ensure the spotlight is correctly charged
before initial use.
When fully charged the spotlight must
not be used for more than 20 minutes of
continuous use. To do so may damage
the lamp.
DO NOT cover or block the lens during
use.
DO NOT turn the spotlight on when it is
being re-charged.
DO NOT shine directly into any person or
animals eyes.
DO NOT stand the spotlight near any
surface or item that may be adversely
effected by the heat emitted from the
lens.
DO NOT allow children to use the
spotlight.
DO NOT handle or move the spotlight
whilst it is being charged.
DO NOT use the spotlight if you suspect
that the battery or the spotlight casing is
damaged.
Inspect the charger plug, cable and
connector for damage to ensure items
are safe before connecting to the mains
power supply. If worn or damaged DO
NOT use.
Check that the voltage marked on the
charger plug is the same as the power
supply to be used.
BATTERY SAFETY
BEWARE, LEAD-ACID BATTERIES MAY BE
DANGEROUS IF NOT HANDLED CAREFULLY
AND ACCORDING TO THESE
INSTRUCTIONS.
DO NOT disassemble the battery for any
reason.
DO NOT smoke or allow a spark or flame
in the vicinity of the battery.
WARNING! DO NOT allow metal tools to
touch both battery terminals
simultaneously. Arcing or short circuit will
result.
DO NOT allow battery wires to touch
each other or to make contact with any
other metal parts.
DO NOT cross-connect wires to the
battery as this will damage the unit.
Ensure positive (+) (RED) is to positive and
negative (-) BLACK is to negative.
DO NOT leave battery in a discharged
state, recharge battery immediately.
ELECTRICAL SAFETY
USE ONLY THE CHARGERS SUPPLIED TO
CHARGE THE SPOTLIGHT.
WARNING! It is the user’s responsibility to
read, understand and comply with the
following electrical instructions
• DO NOT pull the charger plug
from the mains socket by the
lead.
• DO NOT use any other type of
charger with this product.
• DO NOT get the charger wet, or
use in wet, damp conditions (for
indoor use only).
3
Page 4

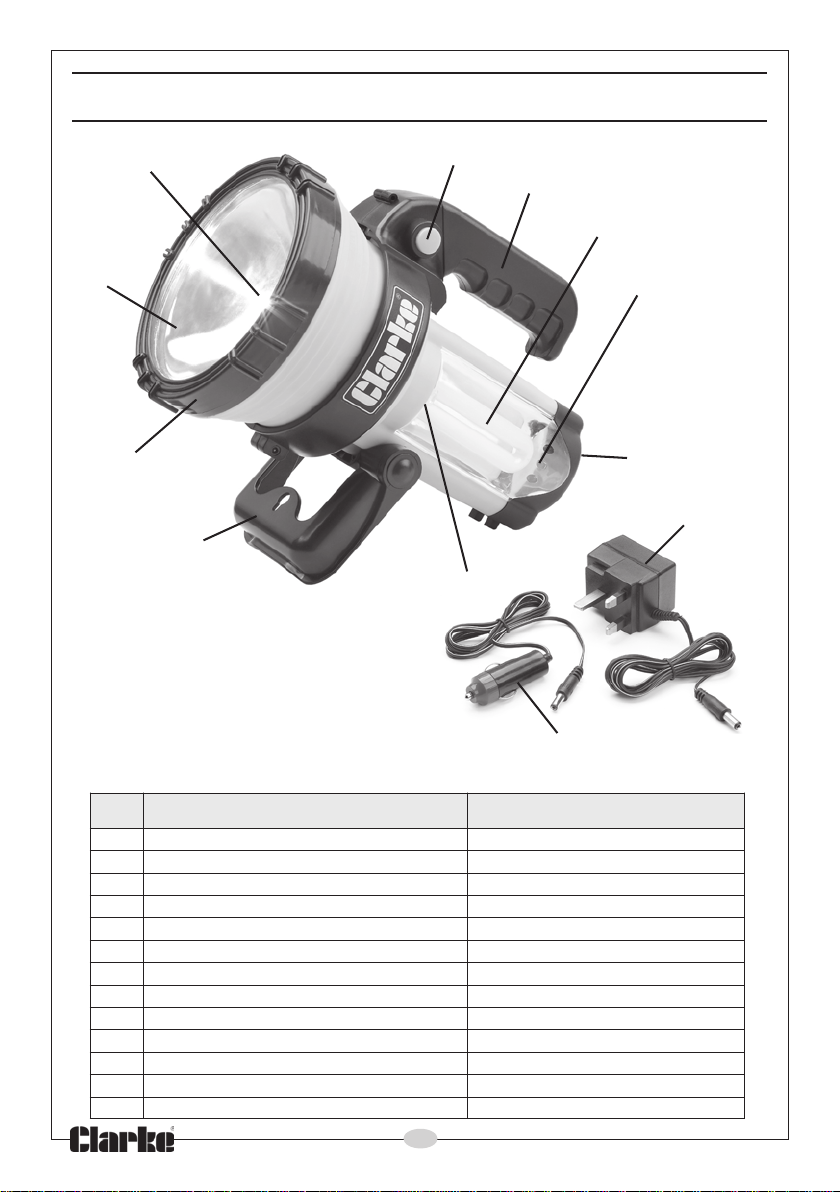

PARTS IDENTIFICATION
10
1
2
3
9
8
4
5
11
7
6
12
ON NOITPIRCSED )ELBALIAVAFI(REBMUNTRAP
1nottubgnikcoleldnaHA/N
2eldnaHA/N
3thgiLtnecseroulF303LSRUA
4thgiLthgiNA/N
5snottuBgnitarepO503LSRUA
6kcaJgnigrahC603LSRUA
7dnatSgnidloFA/N
8dooHA/N
9sneL903LSRUA
01bluBthgiltopS013LSRUA
11regrahCCA113LSRUA
21regrnahCCD213LSRUA
31yrettaB313LSRUA
4
Page 5
OPERATION
CHARGING THE BATTERY
AC CHARGING
1 . Plug the charging adaptor into the charging jack on the spotlight.
2. Connect the other end of the charger to the mains supply and charge for 15
hours.
• The spotlight must NOT be operated when using the AC charger.
DC CHARGING
1 . Plug the charging adaptor into the charging jack on the spotlight.
2. Connect the other end of the charger to the vehicle cigarette lighter socket and
charge for 12 hours.
• Since using the DC charger will cause a drain on the vehicle battery, the
vehicle engine should be run periodically during the charging process.

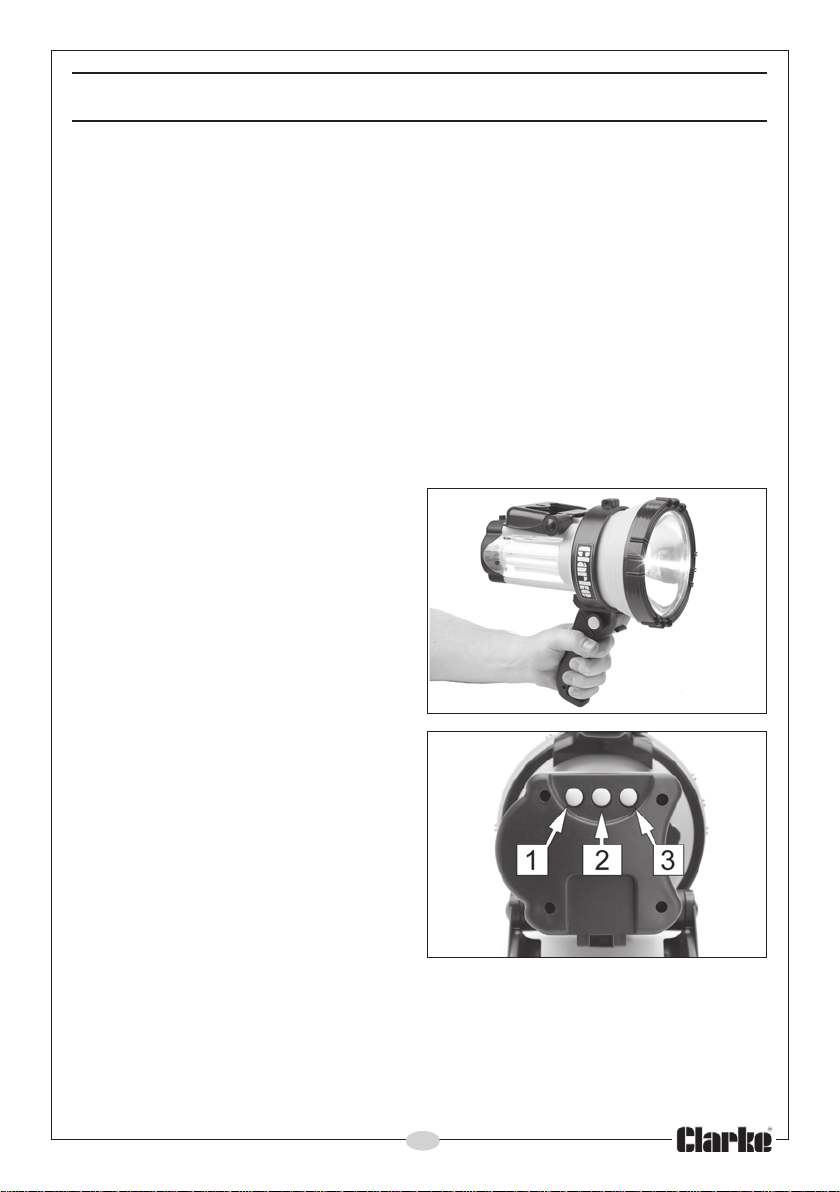

ROTATING THE HANDLE
1. Press and hold the handle locking
button.
2. Rotate the handle into the pistol
configuration as shown.
3. Release the locking button.
USING THE TORCH
Press the corresponding button on the
rear of the torch to select which light
you want to come on.
1. Spot light
2. Night light
3. Fluorescent light
Fig. 1
Fig. 2
5
Page 6
MAINTENANCE

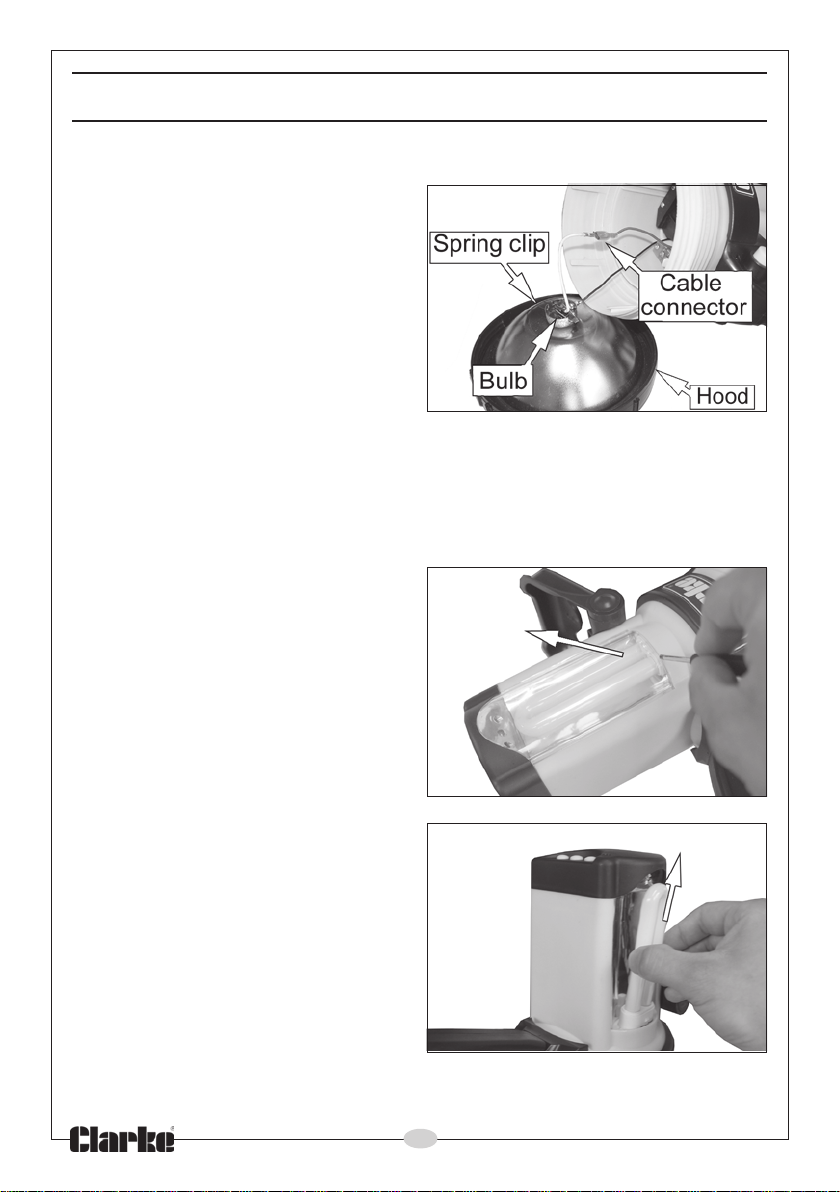

CHANGING THE BULB
1. Remove the hood from the spotlight
by turning it anticlockwise.
2. Carefully lift the hood and reflector
away from the torch.
• Note the position of the spring clip
and cable connector.
3. Disconnect the cable.
4. Squeeze the two ends of the spring
clip together and remove the spring
clip.
5. Pull the bulb out of the reflector.
6 Hold the new bulb (Part number AURSL310) using a lint free cloth to avoid skin
contact and install it by reversing the procedure above.
CHANGING THE FLUORESCENT BULB
1. Using a small flat screwdriver, pry up
the plastic cover taking care that you
don’t scratch the cover.
Fig. 3
Fig. 4
2. Lift out the fluorescent bulb and
replace with a new one. (Part number
AURSL303)
3. Replace the plastic cover.
Fig. 5
6
Page 7

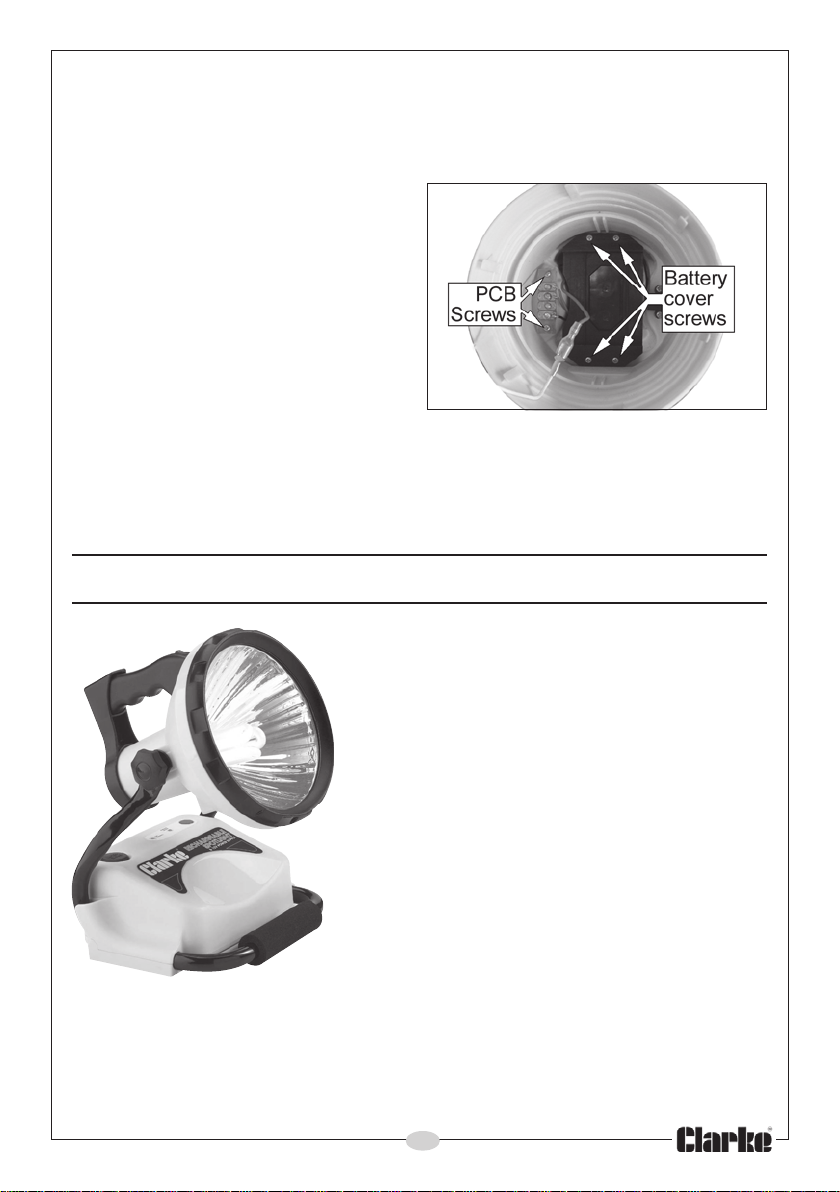

REPLACING THE BATTERY
Before exposing the battery for replacement, remove personal metallic items such as
rings, bracelets, necklaces and watches.
1. Remove the hood from the spotlight by turning it anticlockwise.
2. Carefully lift the hood and reflector
away from the torch.
3. Remove the screws holding the
printed circuit board (PCB)
4. Disconnect the battery terminal wires.
Remove the black negative wire first.
5. Remove battery cover screws.
6. Carefully remove the battery.
7. Replace with a 6V 4AH Sealed Lead
Acid Battery available from you
Clarke dealer (Part number AURSL313) and install by reversing the above
procedure.
Fig. 6
• Take care not to pinch or cross-connect any wires.
8. Dispose of old batteries in accordance with local regulations.
9. Charge the battery fully before use.
