Page 1
4 TON LOG SPLITTER
MODEL NO: LOGBUSTER H4
PART NO: 3402152
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
DL1221 - ISS 3
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE 4 Ton Log Splitter.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
2
Page 3

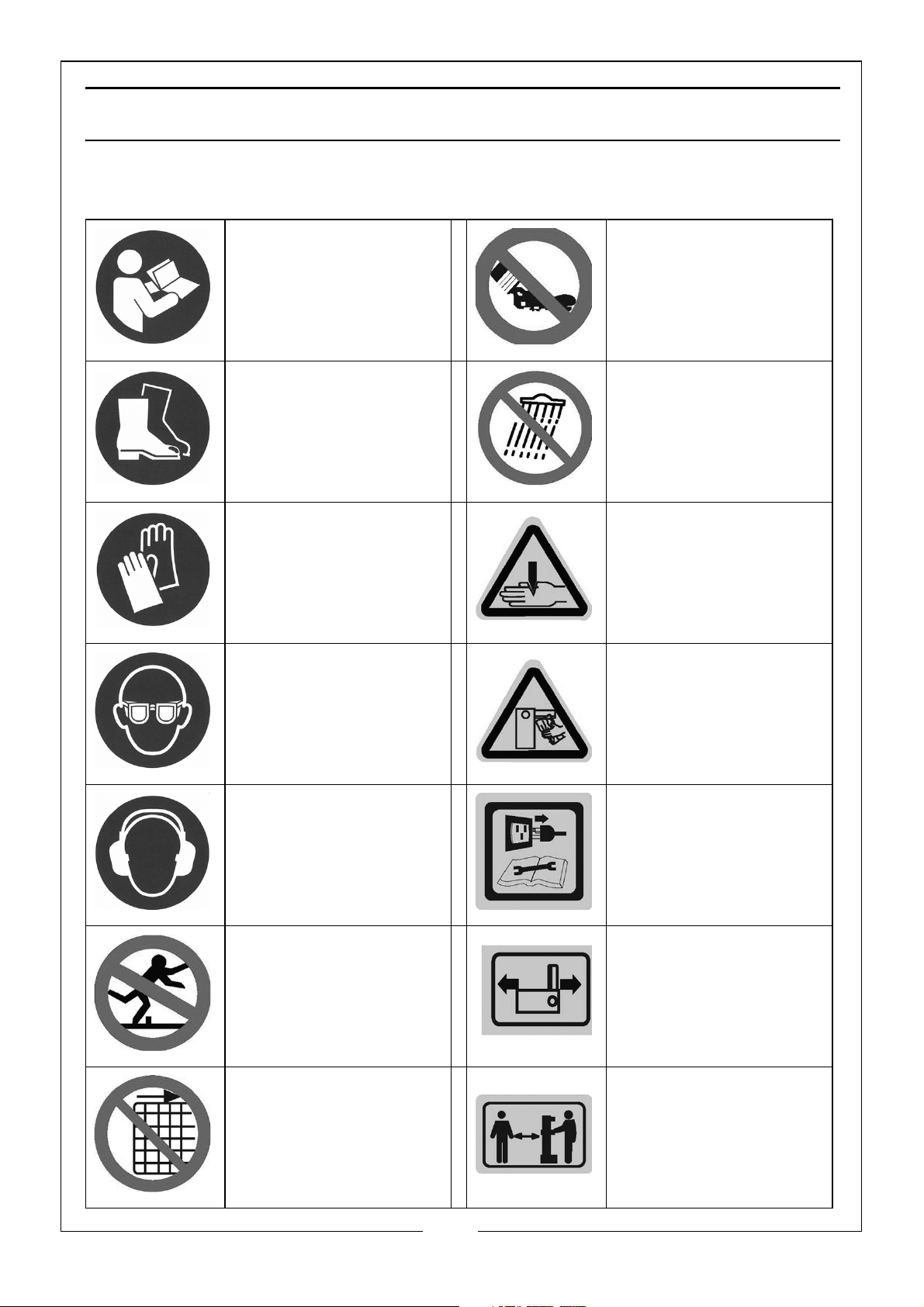

SAFETY SYMBOLS
The following symbols represent important information about the product or instructions on its use.
Read these instructions in full before using the machine.
Wear safety footwear! Do not use in the rain.
Wear protective gloves!
Wear eye protection!
Dispose of any used oil in an environment­friendly way.
Danger! Keep clear of moving parts!
Do not remove jammed logs with your hands.
Before starting any Wear hearing protection!
Keep your work space tidy! Untidiness may result in accidents.
Do not remove or tamper with any protection or safety device.
3
repair maintenance or
cleaning, always
disconnect the power.
Avoid injury from the
movement of the
splitting blade
Keep bystanders
away from the
working area.
Page 4
GENERAL SAFETY RULES
WARNING: READ ALL OF THESE INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
WORK AREA
1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents.
2. Do not operate log splitters in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Log splitters create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while operating the log splitter. Distractions can cause you to lose control.
4. The surface must be perfectly level to prevent the machine from moving during operation.
ELECTRICAL SAFETY
1. The log splitters plug must match the outlet. Never modify the plug in any way. Unmodified plugs and matching outlets will reduce risk of electric
shock.
2. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose log splitters to rain or wet conditions. Water entering a log splitter will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the log splitter. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric
shock.
5. When operating the log splitter outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6. Do not leave the log splitter unattended when plugged in to the mains
supply
.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when operating a log splitter. Do not use the log splitter while you are tired or
4
Page 5
under the influence of drugs, alcohol or medication. A moment of inattention while operating log splitters may result in serious personal injury.
2. Use safety equipment. Always wear eye protection. Safety equipment such as non-skid safety shoes, close fitting clothing and suitable work gloves should always be used.
3. Avoid accidental starting. Ensure the switch is in the off position before plugging in.
4. Do not overreach. Keep proper footing and balance at all times. This enables better control of the log splitter in unexpected situations.
5. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
USAGE AND CARE
1. Do not force the log splitter. It will do the job better and safer at the rate for which it was designed.
2. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the log splitter. Such preventive safety measures reduce the risk of starting the log splitter accidentally.
3. Store the log splitter out of the reach of children and do not allow persons unfamiliar with log splitters or these instructions to operate the log splitter. Log splitters are dangerous in the hands of untrained users.
4. Maintain the log splitter. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the log splitters operation. If damaged, have the log splitter repaired before use.
Many accidents are caused by poorly maintained power tools.
5. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
SERVICE
1. Have your log splitter serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the log splitter
is maintained.
5
Page 6
LOG SPLITTERS SPECIFIC WARNINGS
UNDERSTAND YOUR LOG SPLITTER
• Read and understand the owner's manual and labels affixed to the log splitter. Learn its limitations as well as the specific potential hazards.
DRUGS, ALCOHOL AND MEDICATION
• Do not operate the log splitter while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly.
AVOID DANGEROUS WORKING CONDITIONS
• Place the log splitter on a 72-85 cm high, stable, flat, and level work bench where there is plenty of room for handling, and help the operator stay alert. Bolt the log splitter to the work surface if it tends to slip, walk, or slide.
NOTE: The log splitter is heavy and may require 2 people to lift into position.
• Keep your work area clean and well lit. Cluttered areas invite injuries.
• Do not use the log splitter in wet or damp areas or expose it to rain.
• Do not use it in areas where fumes from paint, solvents or flammable liquids pose a potential hazard.
INSPECT YOUR LOG SPLITTER
• Check your log splitter before turning it on.
• Keep guards in place and in working order.
• Replace damaged, missing or failed parts before using it.
DRESS PROPERLY
• Do not wear loose clothing, gloves, neckties or jewelry (rings, wrist watches). They can be caught in moving parts.
• Protective electrically non-conductive gloves and non-skid footwear are recommended when working.
• Wear protective hair covering to contain long hair, preventing it from get caught in machinery.
6
Page 7
PROTECT YOUR EYES AND FACE
• Any log splitter may throw foreign objects into the eyes. This can cause permanent eye damage. Always wear safety goggles. Everyday eyeglasses have only impact resistant lenses. They are not safety glasses.
• Do not put the log splitter on the ground for operations. This is awkward operating position that the operator has to bring his face close to the machine, and thus risks being struck by wood chips or debris.
EXTENSION CABLES
• Improper use of extension cables may cause inefficient operation of the log splitter which can result in overheating.
• Make sure that the extension cable is no longer than 10m and its cross section is no less than 2.5mm motor.
AVOID ELECTRIC SHOCK
• Check that the electric circuit is adequately protected and that it corresponds with the power, voltage and frequency of the motor.
2
to allow sufficient current flow to the
• Check that there is a ground connection, and a regulation differential switch upstream.
• Ground the log splitter. Prevent body contact with grounded surfaces: pipes, radiators, ranges, and refrigerator enclosures.
• Never open the push button box on the motor. Should this be necessary, contact a qualified electrician.
• Make sure your fingers do not touch the plug’s metal prongs when plugging or unplugging the log splitter.
PREVENT FIRES
• Do not smoke or have open flames when operating or refilling the log splitter with oil.
• Never operate the log splitter near a flame or spark. Oil is flammable.
KEEP BYSTANDERS AWAY
• The log splitter must be always operated by one person only. Other people should keep a safe distance from the work area, especially when the log splitter is under operation.
• Never let another person help you free a jammed log.
7
Page 8
INSPECT YOUR LOG
• Make sure there are no nails or foreign objects in logs to be split. The ends of the logs must be cut square. Branches must be cut off flush with the trunk.
DON'T OVERREACH
• Floor must not be slippery.
• Keep proper footing and balance at all times.
• Never stand on log splitter. Serious injury could occur if the tool is tipped or if the cutting tools is unintentionally contacted.
• Do not store anything above or near the log splitter where anyone might stand on the tool to reach them.
AVOID INJURY FROM UNEXPECTED ACCIDENT
• Always pay full attention to the movement of the log pusher.
• Do not attempt to load the log on until the log pusher has stopped.
• Keep hands out of the way of all moving parts
PROTECT YOUR HANDS
• Keep you hands away from splits and cracks which open in the log; They may close suddenly and crush or amputate your hands.
• Do not remove jammed logs with your hands
DON'T FORCE THE TOOL
• It will do a better and safer job at its intended rate.
• Never try to split logs larger than those indicated in the specifications table. This could be dangerous and may damage the machine.
• Don't use log splitter for a purpose for which it was not intended.
NEVER LEAVE LOG SPLITTER RUNNING UNATTENDED
• Don't leave log splitter until it has come to a complete stop
DISCONNECT POWER
• Unplug when not in use, before making adjustments, cleaning, or working on the log splitter.
MAINTAIN YOUR LOG SPLITTER WITH CARE
• Keep the log splitter clean and free from debris for best and safest performance.
8
Page 9
PROTECT THE ENVIRONMENT
• Take any used oil to an authorized collection point.
• Do not discharge into drains, soil or water.
MAKE THE WORKSHOP CHILDPROOF
• Lock the workshop. Store the log splitter away from children and others not qualified to use it.
SPECIAL WARNINGS & INSTRUCTIONS
• The splitting operation of the machine is designed to be activated by one person. While there is the possibility that additional operators could be working with the machine (e.g. for loading and unloading), only one operator should activate splitting operations;
• The machine shall not be used by children;
• Do not remove jammed logs with your hands. Never let another person help you free a jammed log.
9
Page 10
SPECIFICATIONS
Motor 230V @ 50Hz / 1 Ph
Input Wattage 1500W
Duty Cycle S6 40%*
Log Size Capacity Diameter 5 - 25 cm
Length 13 - 37 cm
Maximum Force 4000 kg
Hydraulic Pressure 16.5 Mpa
Hydraulic Oil Capacity 2.4 L
Ram Travel 29 cm
Speed Forward 3.86 cm/sec
Retract 6.44 cm/sec
Noise Pressure Level (LpA)
Vibration <2.5 m/s²
Dimensions Length 99.5 cm
Weight 45 kg
*This product is designed so that the motor may be run under load for an accumulated period of 4 minutes only and off load for an accumulated period of 6 minutes in any 10 minute period.
under no load; 78.8 dbA
under full load 89.8 dbA
Width 42.5 cm
Height 61 cm
10
Page 11
ELECTRICAL CONNECTIONS
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:
Green & Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the flexible lead of this appliance may not correspond with the coloured markings identifying terminals in your plug proceed as follows:
• Connect GREEN & YELLOW cord to terminal marked with a letter “E” or
Earth symbol “ ”.
• Connect BROWN cord to terminal marked with a letter “L”.
• Connect BLUE cord to terminal marked with a letter “N”.
If this appliance is fitted with a plug which is moulded onto the electric cable (i.e. non-rewireable) please note:
1. The plug must be thrown away if it is cut from the electric cable. There is a danger of electric shock if it is subsequently inserted into a socket outlet.
2. Never use the plug without the fuse cover fitted.
3. When replacing a detachable fuse carrier, ensure the correct replacement is used (as indicated by marking or colour code).
4. Replacement fuse covers can be obtained from your local dealer or most electrical stockists.
FUSE RATING
The fuse in the plug must be replaced with one of the same rating and this replacement must also be ASTA approved to BS1362.
We strongly recommend that this machine is connected to the mains supply via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
11
Page 12

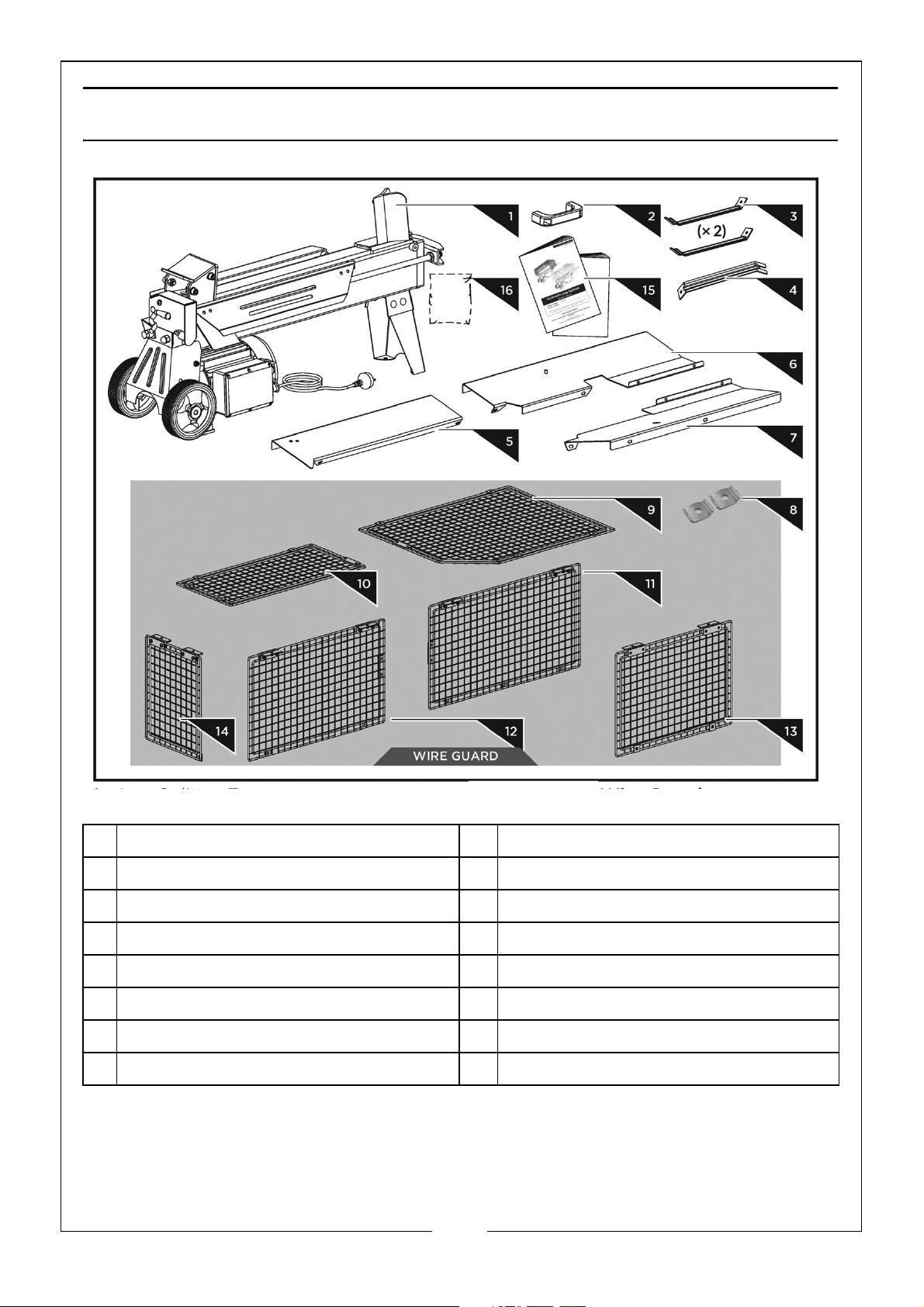

CONTENTS
1 Log Splitter Frame 9 Top Guard Plate 1
2 Transport Handle 10 Top Guard Plate 2
3 2 x Support Strut 1 11 Rear Guard Plate 1
4 Support Strut 2 12 Rear Guard Plate 2
5 Guard Bottom Plate 13 Front Guard Plate
6 Log Tray 1 14 Left Guard Plate
7 Log Tray 2 15 Instruction Manual
8 Saddle Plates 16 Fixings kit
12
Page 13

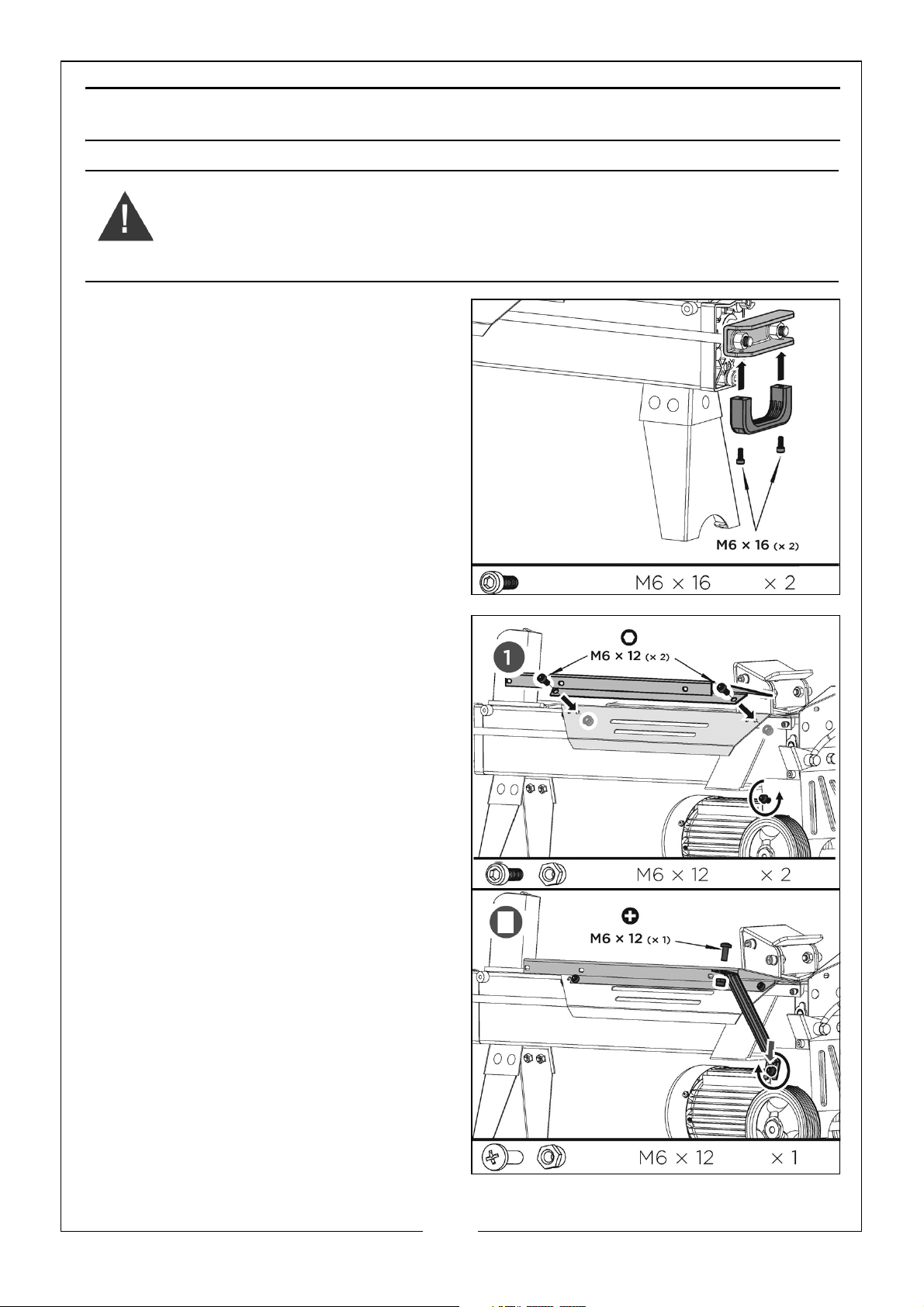

ASSEMBLY
WARNING: WE RECOMMEND THAT YOU GET ASSISTANCE WHEN ASSEMBLING THIS PRODUCT DUE TO THE SIZE AND WEIGHT OF THE COMPONENT PARTS.
LIFTING HANDLE
1. Mount the transport handle to the U bracket with two M6×16 bolts.
LOG TRAY
1. Mount the guard bottom plate to rear guiding plate and secure with two M6×12 socket head cap screws and locknuts.
2. Loosen the socket head cap screw and big washer on the wheel bracket.
3. Insert the open end of support strut 2 between the big washer and wheel bracket and tighten screw.
13
Page 14

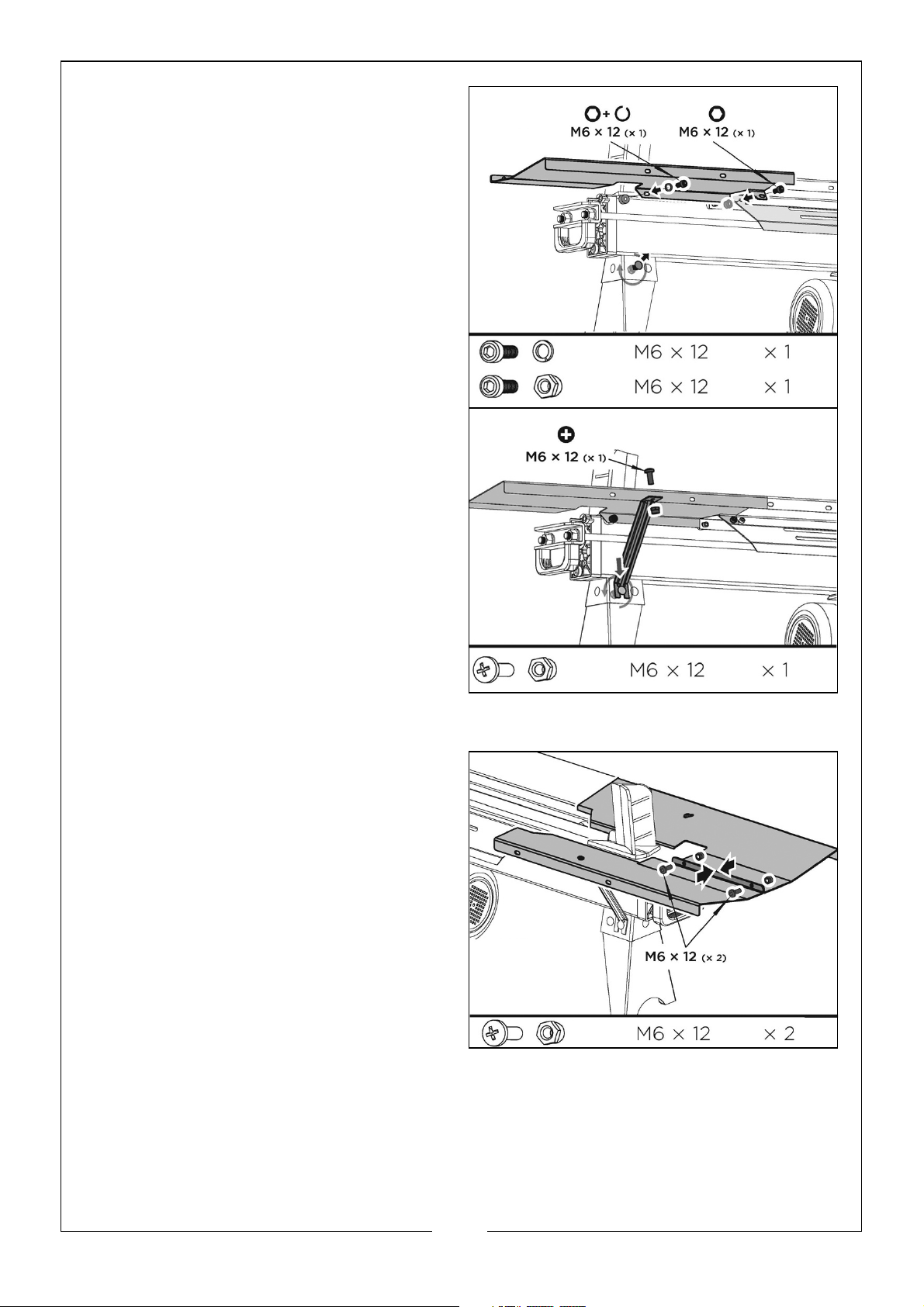

4. Align the two mounting holes of the log tray 1 to the holes on rear side of the splitter.
• Insert one socket head cap
screw M6×12 and spring washer 6 into the mounting hole on left side
• Insert the other socket head
cap screw M6×12 and locknut M6 on right side and securely tighten both.
5. Loosen the cap head bolt and nut on left side of the front leg, insert the open end of support strut 1 onto the bolt and then tighten the nut.
6. Connect the upper end of support strut 1 to the log tray 1 with cross recessed pan head screw M6×12 and locknut M6 and then tighten it.
7. Repeat steps 4-6 with the second tray on the opposite side of the log splitter.
8. Connect both log trays together with two M6×12 screws and locknuts.
14
Page 15

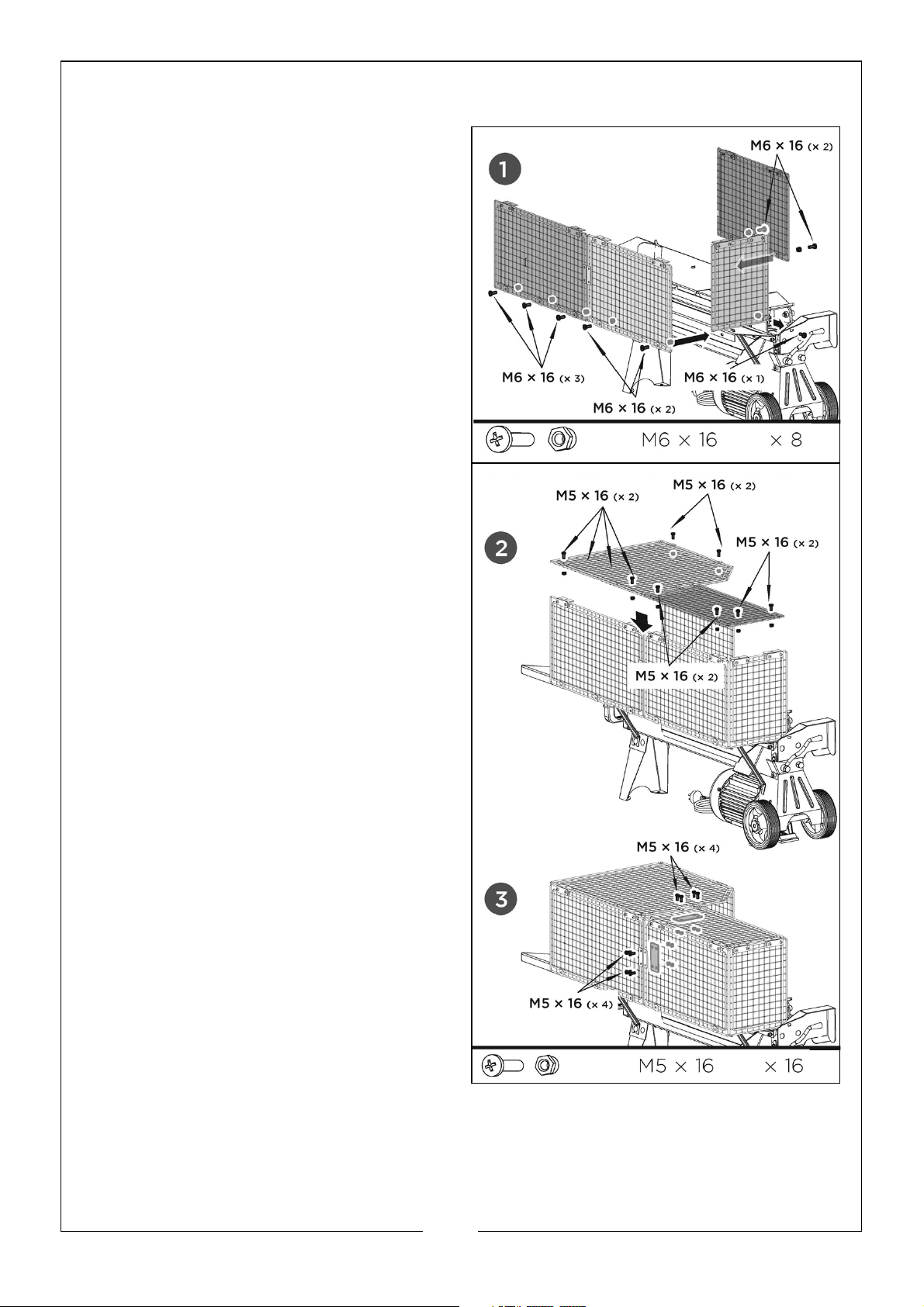

FITTING THE WIRE FRAME GUARD
1. Attach the front guard plate, left guard plate and two rear guard plates to the log tray and bottom plate with M6×16 bolts and nuts.
2. Mount the two top guard plates to the vertical plates with M5x16 bolts and nuts.
3. Connect two top guard plates / rear guard plates with the plate connectors and M5x16 bolts and nuts.
15
Page 16

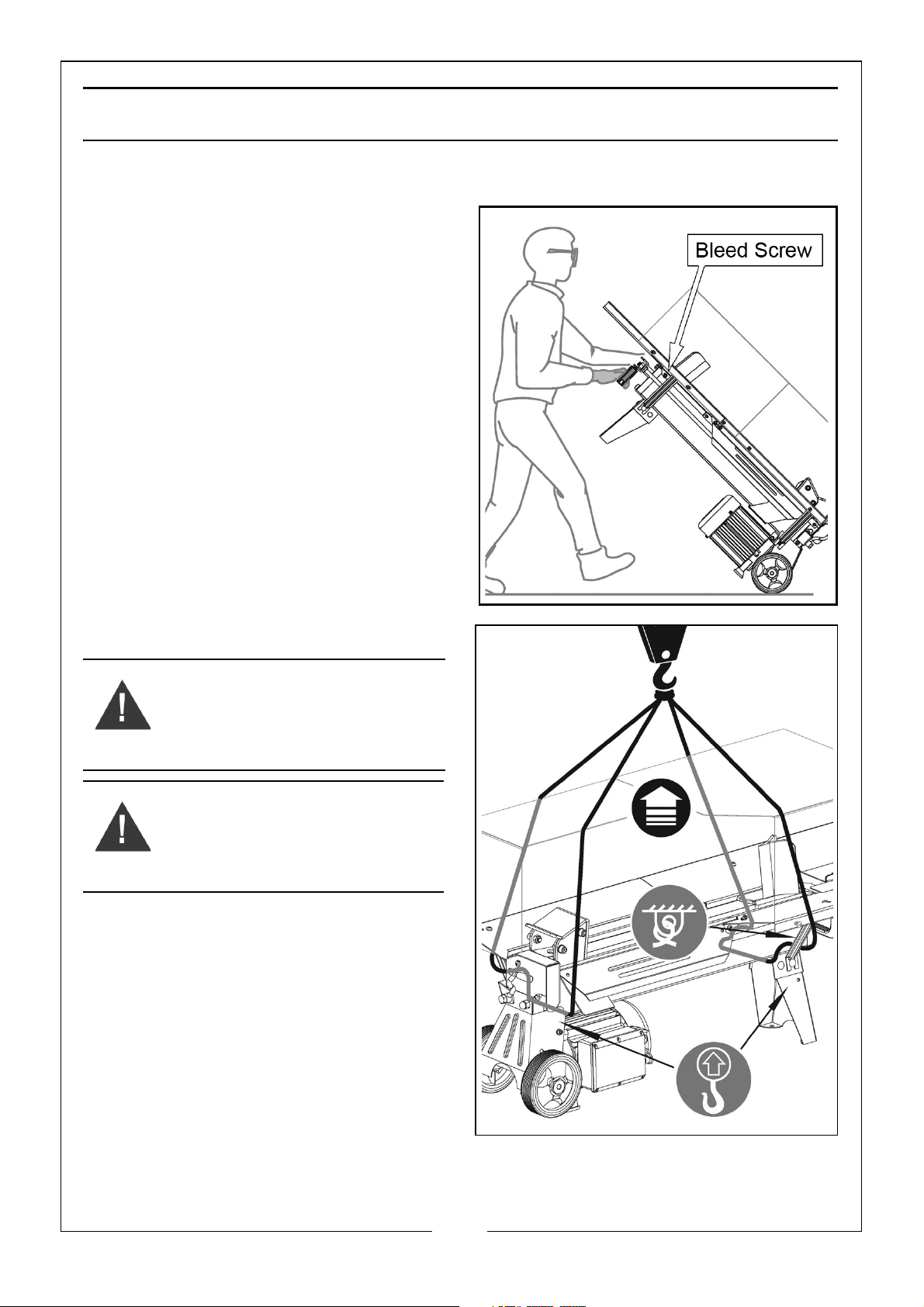

TRANSPORT
MOVING BY HAND
The log splitter is equipped with 2 wheels.
1. Grip the handle and tilt the log splitter on to its wheels.
• Make sure that the Bleed Screw
is tightened securely before moving.
LIFTING WITH A CRANE
WARNING: IF USING A CRANE, ATTACH A HOIST SLING AS SHOWN.
WARNING: FOR LONG DISTANCE TRANSPORT, SECURE THE LOG SPLITTER TO PREVENT MOVEMENT.
16
Page 17

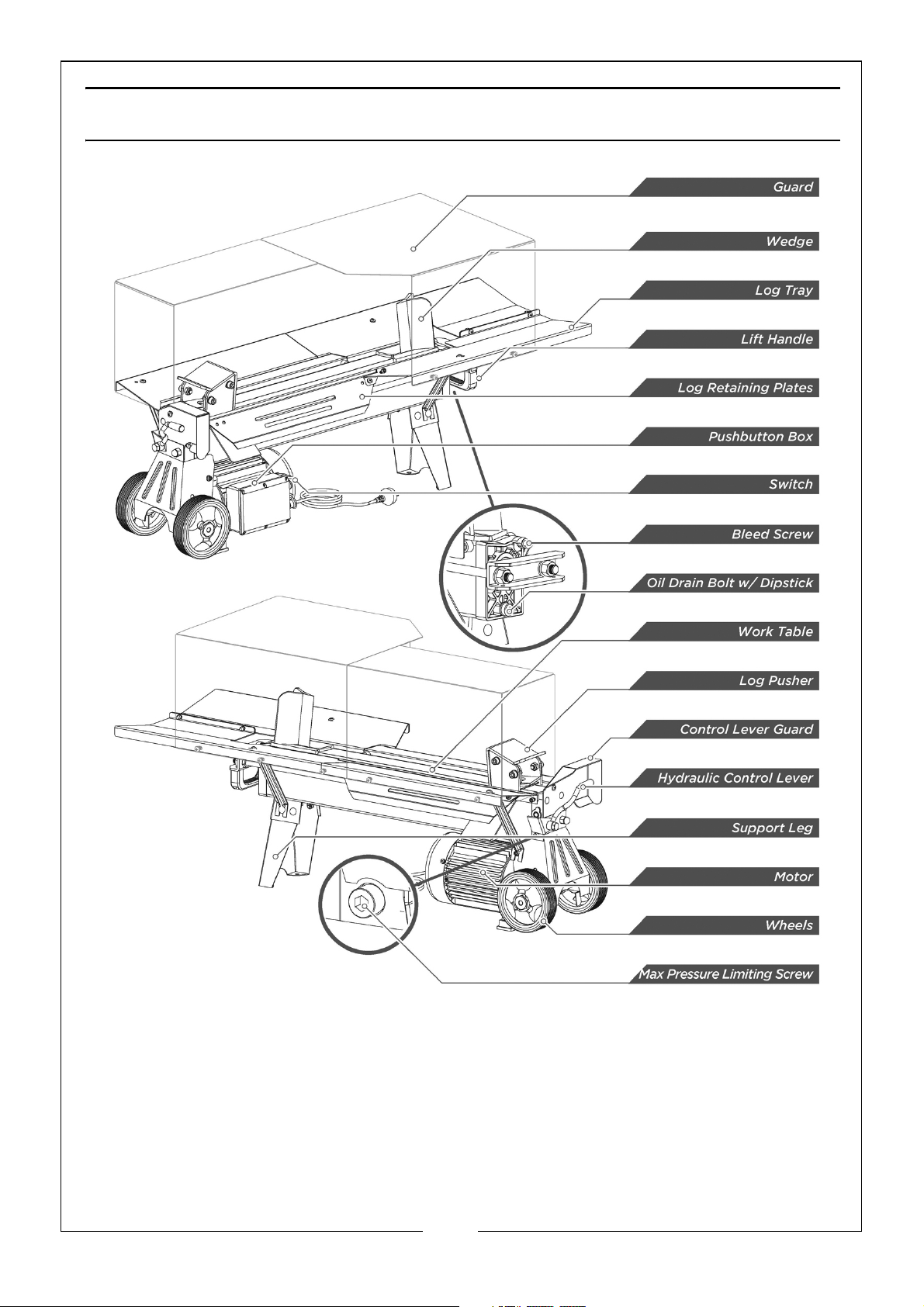

KNOW YOUR MACHINE
17
Page 18

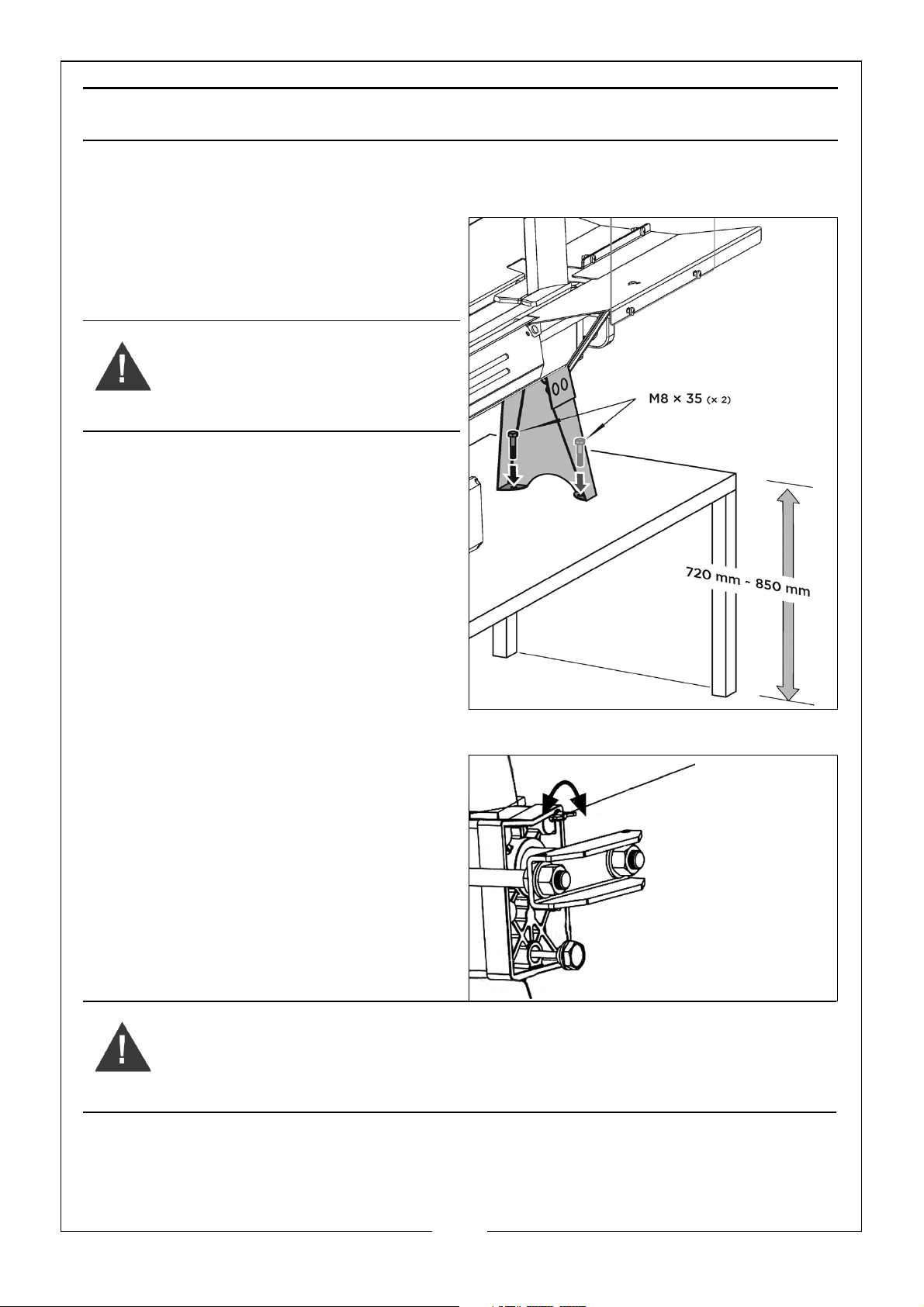

BEFORE USE
Bleed Screw
POSITIONING
1. Place the log splitter on to a 72-85 cm high, stable, flat, and level work bench where there is plenty of room for handling.
WARNING: THE LOG SPLITTER IS HEAVY AND MAY REQUIRE 2 PEOPLE TO LIFT INTO POSITION.
2. Bolt the log splitter to the work surface using two bolts (M8×35).
.
BLEEDING THE HYDRAULIC SYSTEM
Before operating the log splitter, the Bleed Screw should be loosened by 2-3 turns until air can go in and out of the oil tank smoothly.
• Air flow through the Bleed
Screw hole may be detectable when the log splitter is in operation.
WARNING: FAILURE TO LOOSEN THE BLEED SCREW BEFORE USE WILL CAUSE PERMANENT DAMAGE TO THE LOG SPLITTER.
• Before moving the log splitter, make sure the Bleed Screw is tightened to
avoid oil leaking from this point.
18
Page 19
OPERATION
POSITIONING THE LOGS
• Always place the logs on the log retaining plates.
• Make sure the logs do not twist, rock or slip while being split.
• Do not force the log splitter by splitting the log on the upper part of the wedge. This will break the wedge or damage the machine.
• Break log in the direction of its grain.
• Do not place the log across the log splitter for splitting. It may be dangerous and may seriously damage the machine.
• Do not attempt to split 2 logs at the same time. One of them may fly up and hit you.

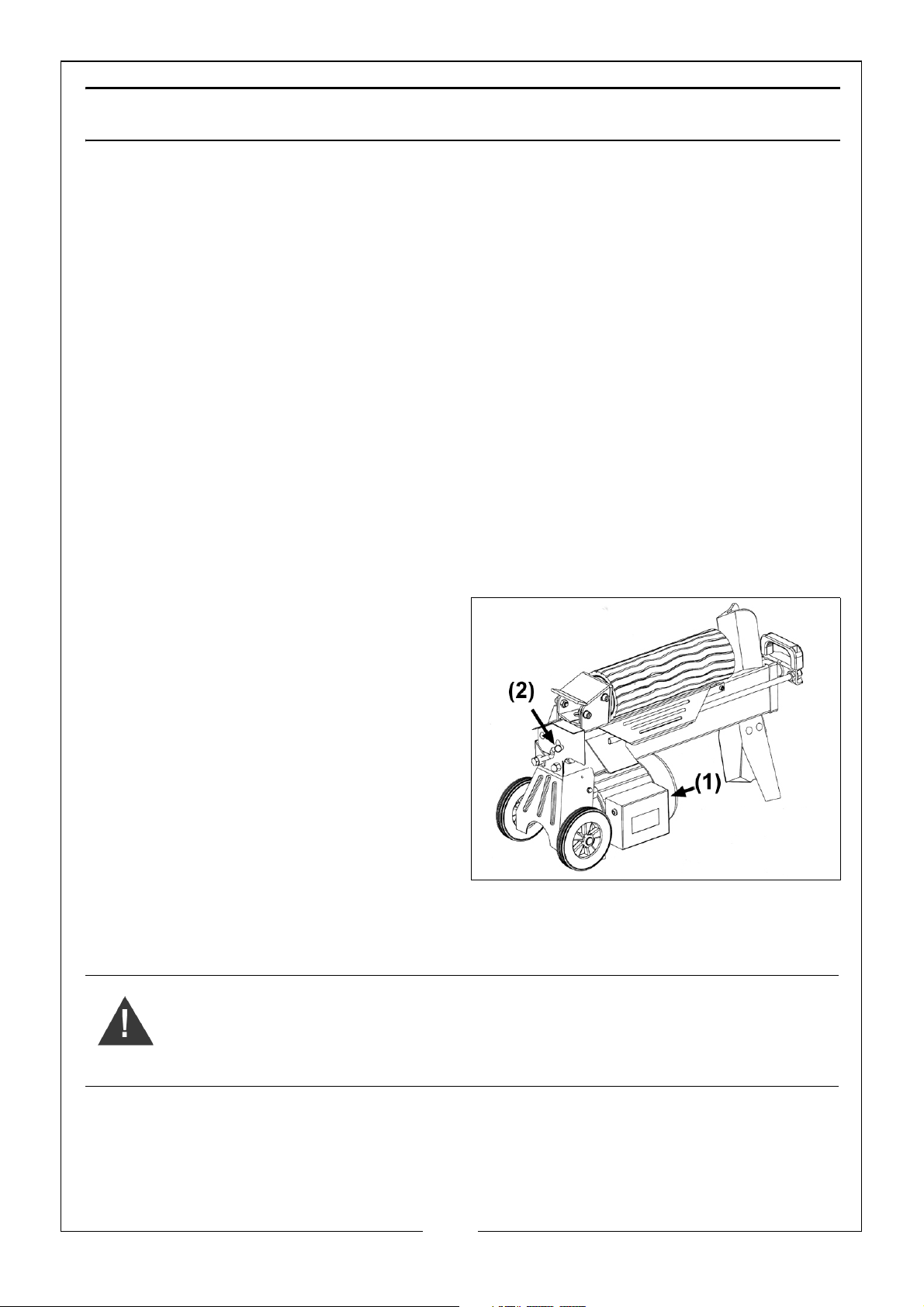

OPERATING THE LOG SPLITTER
This log splitter is designed to be operated by one person only and requires
two handed operation by the user -
The left hand controls the hydraulic control lever (2) and the right hand controls the push button switch.
1. Push and hold the push button switch (1).
2. Then press and hold down the control lever (2) to start the log splitter.
• The log splitter will stop moving
if the button is released.
• if the control lever is released,
the log pusher returns to the starting position.
NOTE: Once you start splitting the log, never reach into the splitting zone.
WARNING: NEVER FORCE THE LOG SPLITTER FOR MORE THAN 5 SECONDS TO SPLIT EXCESSIVELY HARD WOOD. AFTER THIS TIME, THE OIL UNDER PRESSURE WILL OVERHEAT AND THE MACHINE COULD BE DAMAGED.
For extremely hard logs, rotate the log by 90° to see whether it can be split in a different position. In any case, if you are still not able to split the log, this means that the wood exceeds the capacity of the machine and should be discarded to protect the log splitter.
19
Page 20

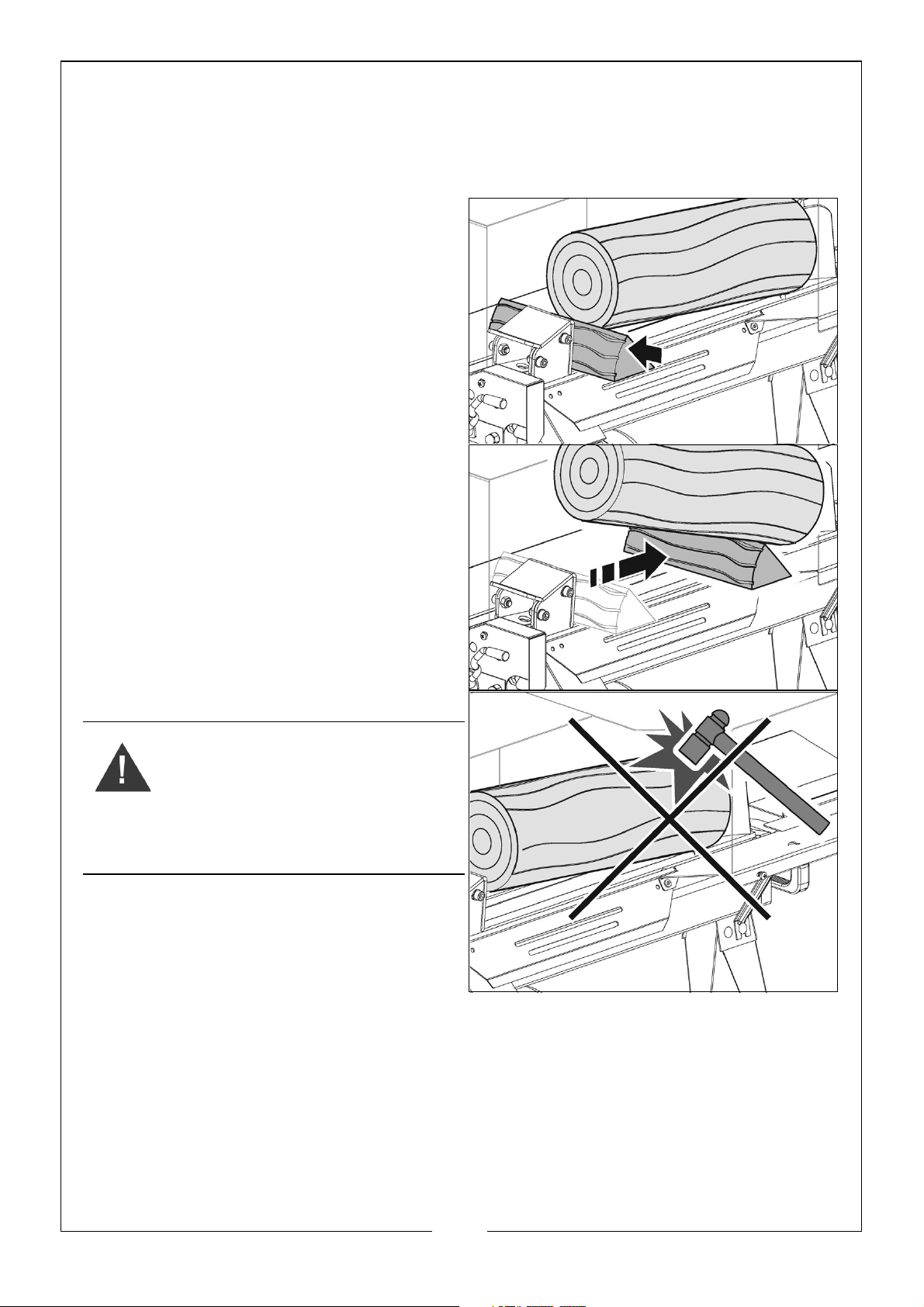

FREEING A JAMMED LOG
1. Release both controls.
• The log pusher moves back and completely stops at its starting position.
2. Insert a wedge of wood under the jammed log.
3. Start the log splitter to push the wedge under the jammed log.
4. Repeat above procedure with sharper sloped wedges until the log is completely free.
WARNING: DO NOT TRY TO HIT THE JAMMED LOG OFF OF THE LOG SPLITTER, THIS MAY DAMAGE THE MACHINE OR MAY CAUSE THE LOG TO FLY UP AND CAUSE AN ACCIDENT.
20
Page 21
MAINTENANCE

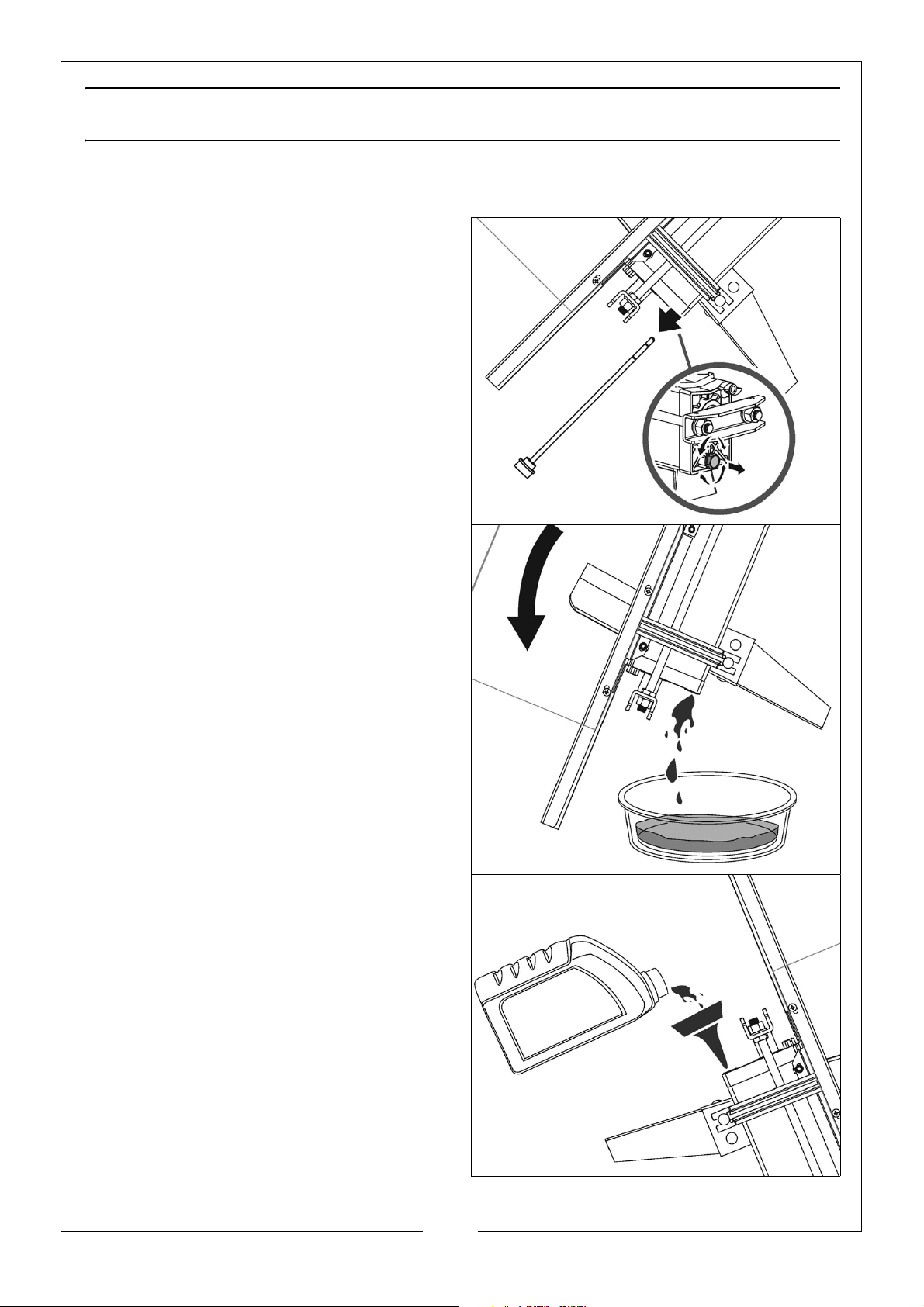

REPLACING THE HYDRAULIC OIL (EVERY 150 HOURS USE)
1. Make sure that all moving parts have stopped and the log splitter is unplugged.
2. Remove the transport handle.
3. Unscrew and remove the Oil Drain Bolt.
4. Lift the rear of the log splitter and let the hydraulic oil drain into a 4 litre container
5. Tilt machine backwards and refill with new oil, using a clean funnel, pour in 2.4 Litres of Clarke hydraulic oil,
IMPORTANT: Only use CLARKE HYDRAULIC OIL, available from your nearest dealer.
Part No: 1Ltr - 3050830
5Ltr - 3050835
21
Page 22

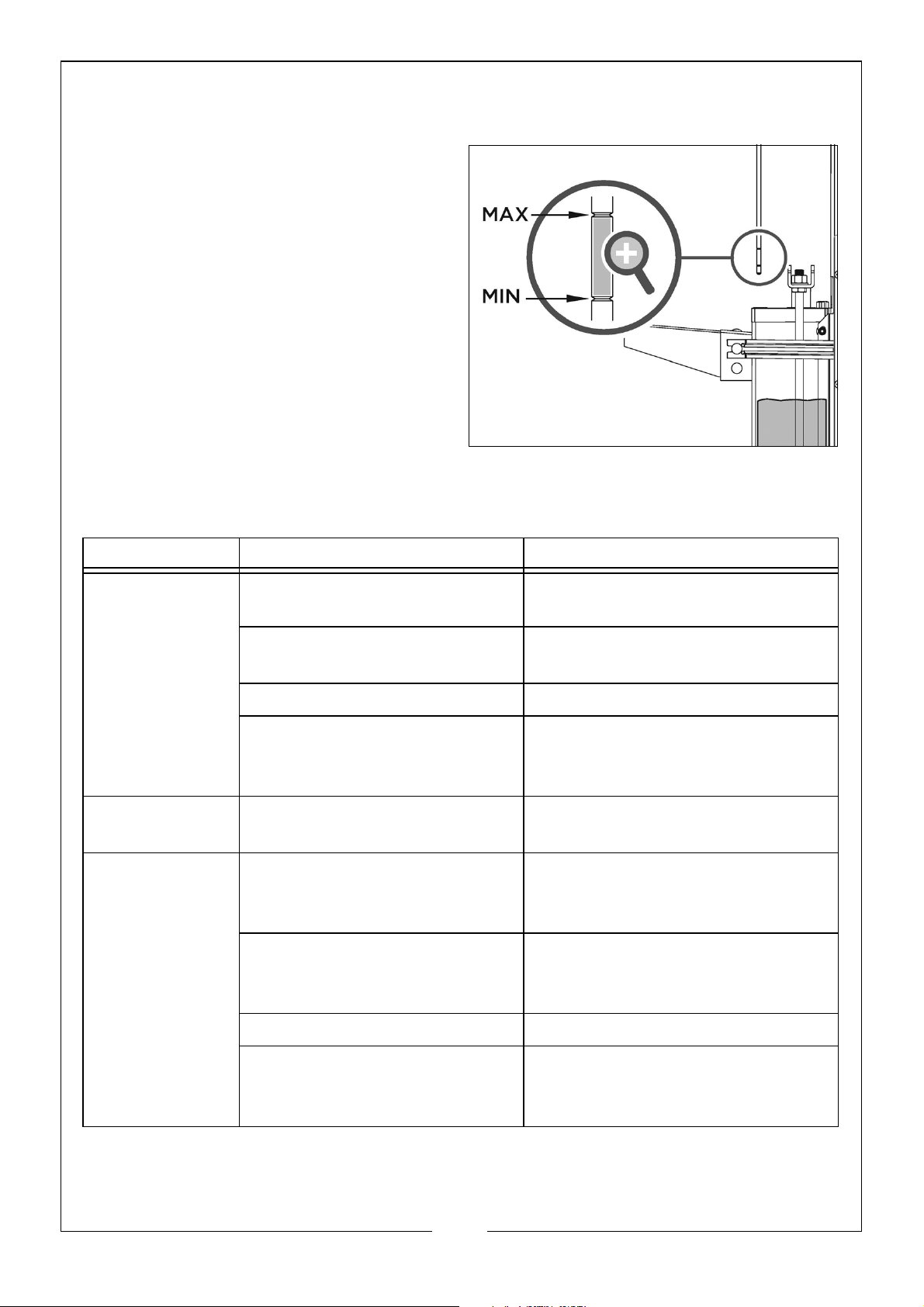

6. Clean the surface of the dipstick on the Oil Drain Bolt and put it back into the oil tank while keeping the log splitter vertical.
7. Make sure the level of the refilled oil is just between 2 grooves on the dipstick.
8. Clean the Oil Drain Bolt before refitting it. Make sure it is tightened to avoid leakage before placing the log splitter horizontally.
SHARPENING WEDGE
After using the log splitters for some time, sharpen the wedge of the log splitter using a fine-toothed file and smooth any burrs or crushed area along the cutting edge.
TROUBLESHOOTING
PROBLEM CAUSE REMEDY
Fails to split logs
The log pusher moves jerkily
Oil leaks around cylinder ram or from other points.
Log is improperly positioned. Refer to "Log splitter Operation"
section on page 18
Wedge cutting edge is blunt.
Oil leaks Contact the dealer
Unauthorised adjustment was made on Max. Pressure Limiting Screw.
Excessive air in the hydraulic system.
Air sealed in hydraulic system while operating.
Bleed Screw is not tightened before moving the log splitter.
Refer to "Sharpening Wedge" section See page 22.
Contact the dealer.
Check oil level for possible oil refilling. Contact the dealer.
Loosen Bleed Screw by 3- 4 turns before operating the log splitter.
Tighten the Bleed Screw up before moving the log splitter.
Oil Drain Bolt is not tight. Tighten the Oil Drain Bolt.
Hydraulic Control Valve Assembly and / or seal(s) worn
22
Contact the dealer.
Page 23

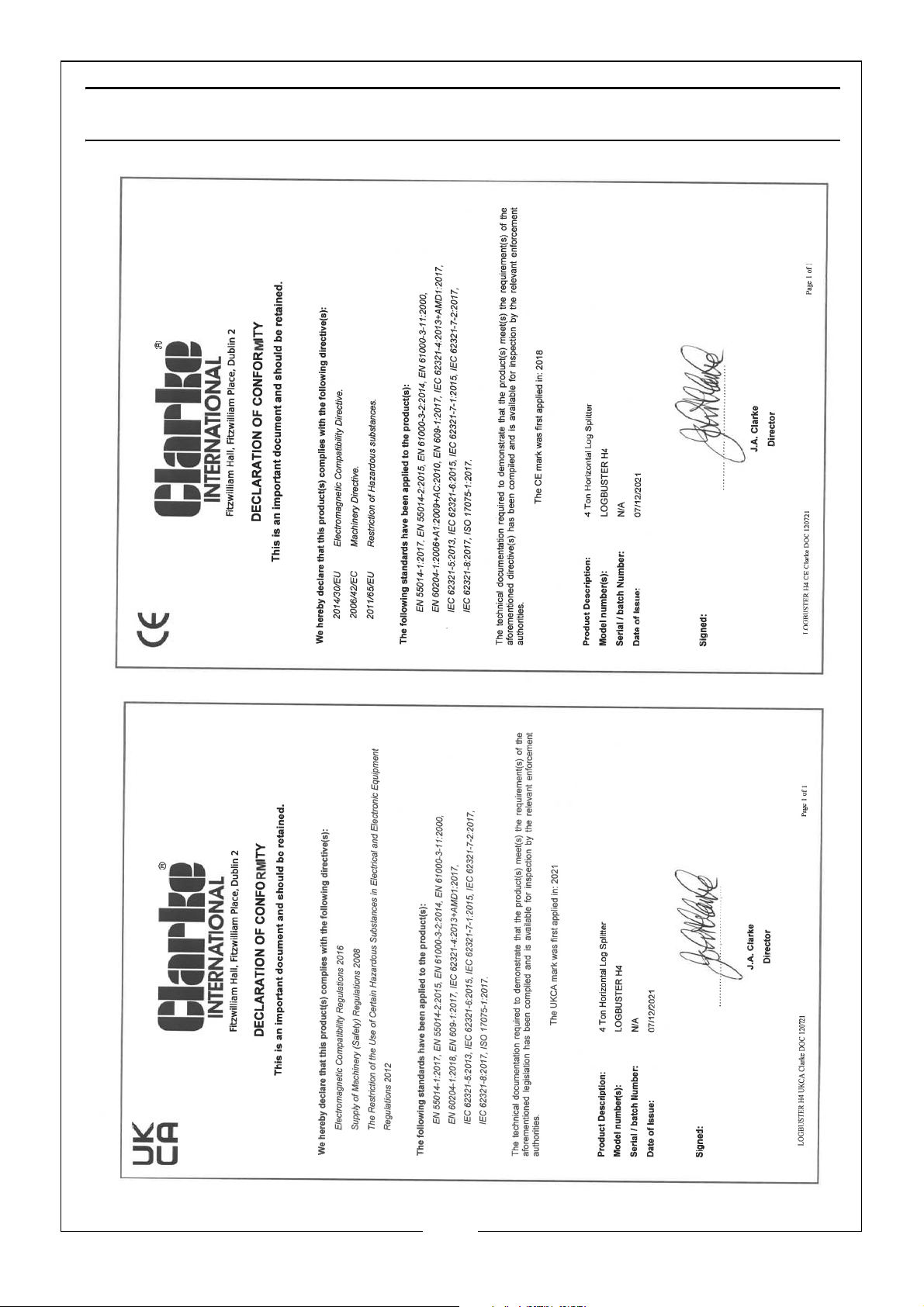

DECLARATION OF CONFORMITY
23
Page 24
24
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
