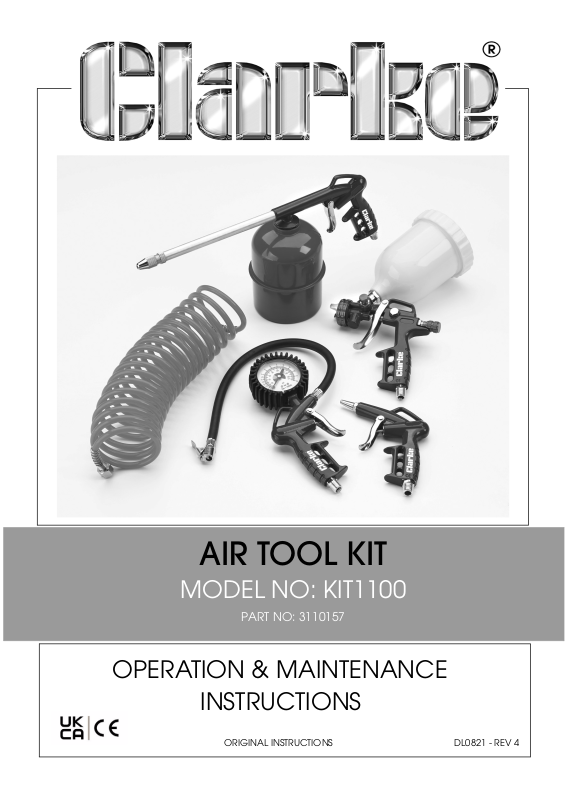

AIR TOOL KIT
MODEL NO: KIT1100
PART NO: 3110157
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL0821 - REV 4
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Air Tool Kit.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY PRECAUTIONS
Before using your airline accessory kit it is in your own interest to read and pay
attention to the following safety rules.
1. Keep the work area clean and well lit. Cluttered areas invite injuries.
2. Keep children away. Children must never be allowed in the work area.
3. Store idle equipment. When not in use, tools should be locked up in a dry
location. Always lock up tools and keep out of reach of children.
4. Stay alert. Watch what you are doing, use common sense. Do not operate
any tool when you are tired.
5. Check for damaged parts. Before using any tool or equipment, any part
that appears damaged should be carefully checked to determine that it
will operate properly and perform its intended function.
6. Do not operate tools or equipment if under the influence of alcohol or
drugs. If there is any doubt, do not operate the equipment.
COMPRESSED AIR EQUIPMENT
1. Compressed air can be dangerous. Ensure that you are thoroughly familiar
with all precautions relating to the use of compressors and a compressed
air supply.
2. Never direct a jet of compressed air at people or animals.
3. Always ensure that the equipment/tool being used has a safe working
pressure exceeding the output pressure of the compressor that it is
connected to.
4. Always ensure that the air supply is turned off at the tool outlet and vent all
compressed air from the air hose and the equipment attached to it, before
disconnecting air hoses or other equipment from your compressor.
5. Ensure all fixed air connections are properly sealed using teflon tape or
pipe sealant.
6. Never exceed the operating pressure of the individual items stated in the
specification.
7. We strongly recommend that items contained in this kit be used in
conjunction with appropriate eye and face protecting goggles, glasses or
spray masks available from most DIY and hardware stores.
BLOW GUN
1. Always wear a suitable approved breathing mask, to protect against
inhalationof dust.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
SPRAY GUN
1. Never spray paint close to any source of heat or flame.
2. Always ensure the spraying area has adequate fresh air ventilation.
3. Always make sure there is adequate ventilation. Do not spray in confined
or enclosed areas.
4. Always wear a suitable approved breathing mask when spraying, to
protect against inhalation of paint spray or fumes. An air feed mask may
be required when spraying toxic types of paint. If in doubt, check with the
paint manufacturer.
5. Always check the manufacturer’s data sheets on the paint products being
sprayed for any particular hazards, and follow the manufacturer’s
instructions. Take particular care if spraying isocyanate paints.
6. Always disconnect the spray gun from the air supply when it is not in use,
and before any disassembly.
7. Always keep the spray nozzle in place when spraying.
8. Always thoroughly clean the spray gun after use. See ‘Maintenance’ on
page 13.
9. In the case of injury, seek expert medical advice immediately. Never
smoke while spraying or preparing paints, or spray near a naked flame,
heat source and electric sparks. Many paints are flammable.
10. Never exceed the maximum input air pressure of 50psi (3.5 bar).
NOTE: Products used in this spray gun may be covered by COSHH
Regulations.
11. When replacing parts, only use those supplied by Clarke International as
stated in the parts list on page 14.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

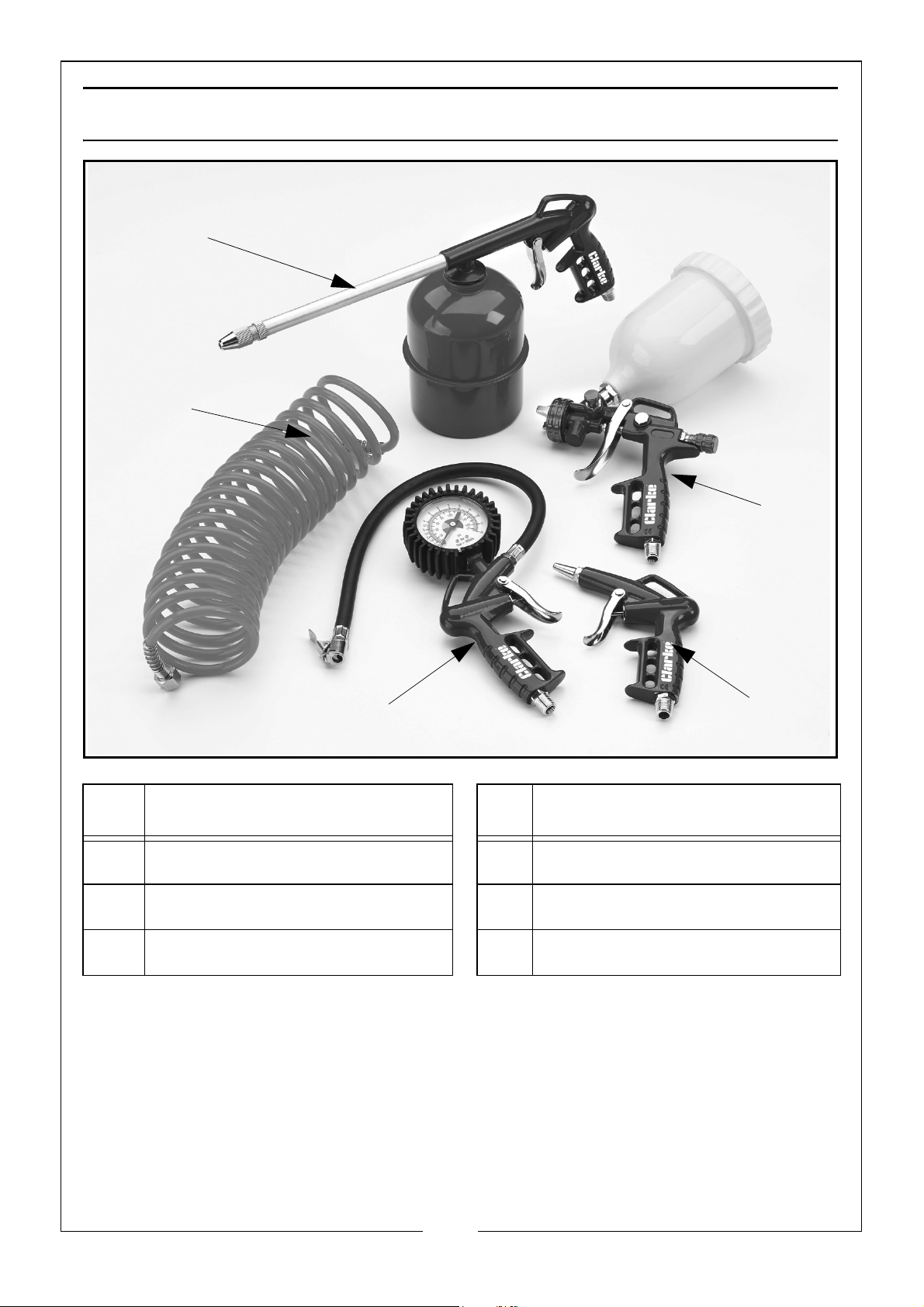

PRODUCT OVERVIEW
1
3
2
5
4
NO DESCRIPTION NO DESCRIPTION
1 Wash Gun 4 Tyre Inflator
2 Spray Gun 5 Air Hose
3 Blow Gun
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
OPERATION
CAUTION: SOME ITEMS IN THIS KIT HAVE A LOWER WORKING PRESSURE
THAN MANY COMPRESSORS WILL SUPPLY, THEREFORE, AN AIRLINE
REGULATOR SHOULD BE INSTALLED. SEE PAGE 14 FOR WORKING
PRESSURES.
CAUTION: AIRLINE LUBRICATORS SHOULD NOT BE USED WITH THESE ITEMS
1. WASH GUN
This gun is suitable for spraying various
cleaning agents such as paraffin and
engine de-greaser. Preservatives
such as creosote can also be
sprayed onto fences and sheds. The
gun can also be used for spraying
plants, trees and shrubs with
insecticide.
1. Follow all safety precautions for
compressed air when attaching
the gun to the air hose.

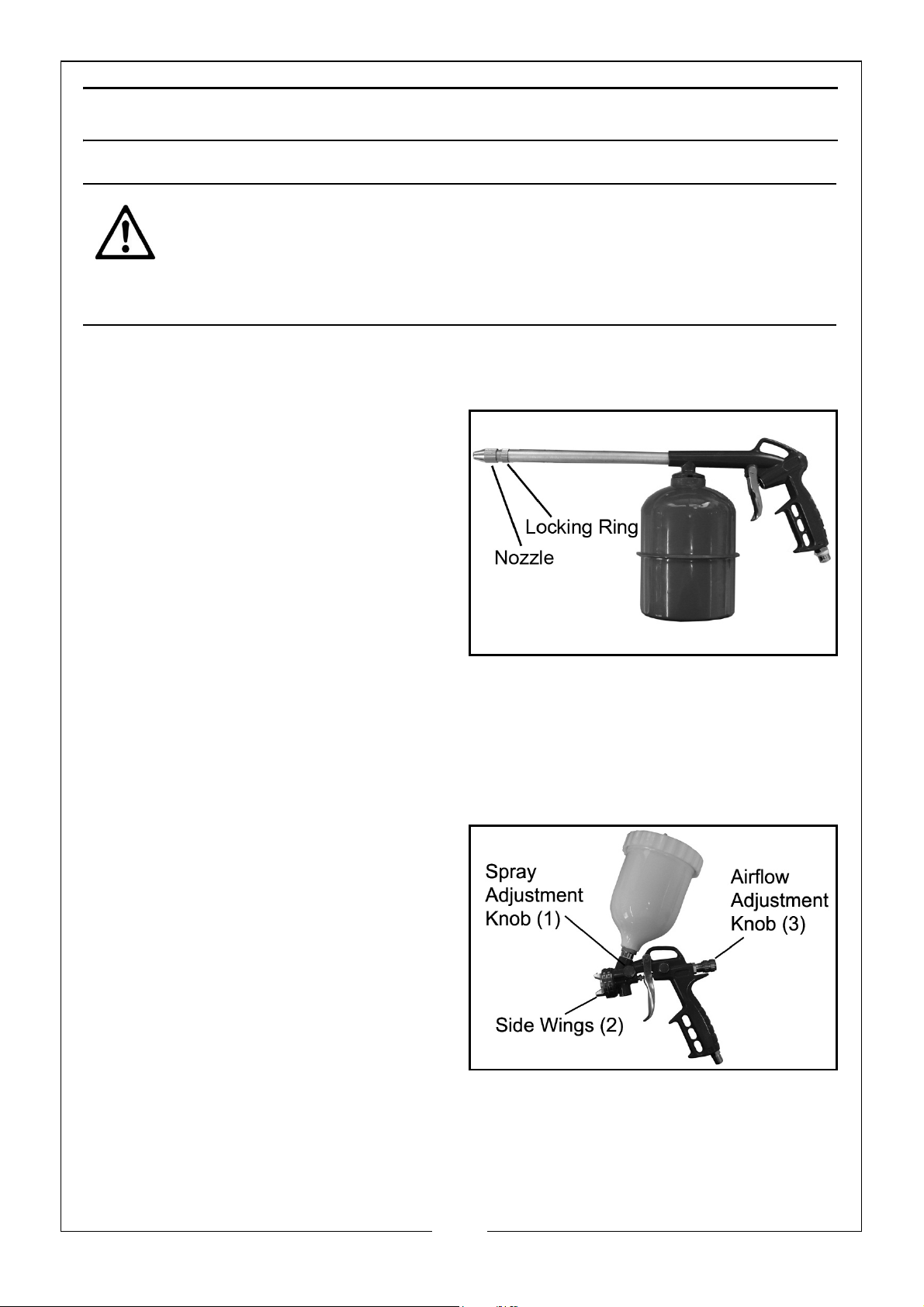

2. Adjust the nozzle to give a coarse or fine spray, by adjusting the nozzle
shown. Undo the locking ring and adjust the nozzle by screwing in or out,
then lock in place by screwing up the locking ring once again.
2. SPRAY GUN
This professional type gravity fed
spray gun is suitable for use with most
conventional paints. The spray gun is
fed with paint from the paint
container. The airflow through the air
cap draws paint into the nozzle
assembly, where it is atomised and
sprayed forward
1. Operate this gun from a tank
mounted air compressor with
motor power of 3hp and above.
2. Follow all safety precautions for compressed air when attaching the gun to
the air hose.
.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
PREPARATION BEFORE PAINTING
1. Mix the paint to the correct viscosity for spraying according to the paint
manufacturer’s instructions and strain it into the paint container through a
fine mesh filter. When mixing the paint, make sure that you have enough
thinners left to clean the spray gun after use.

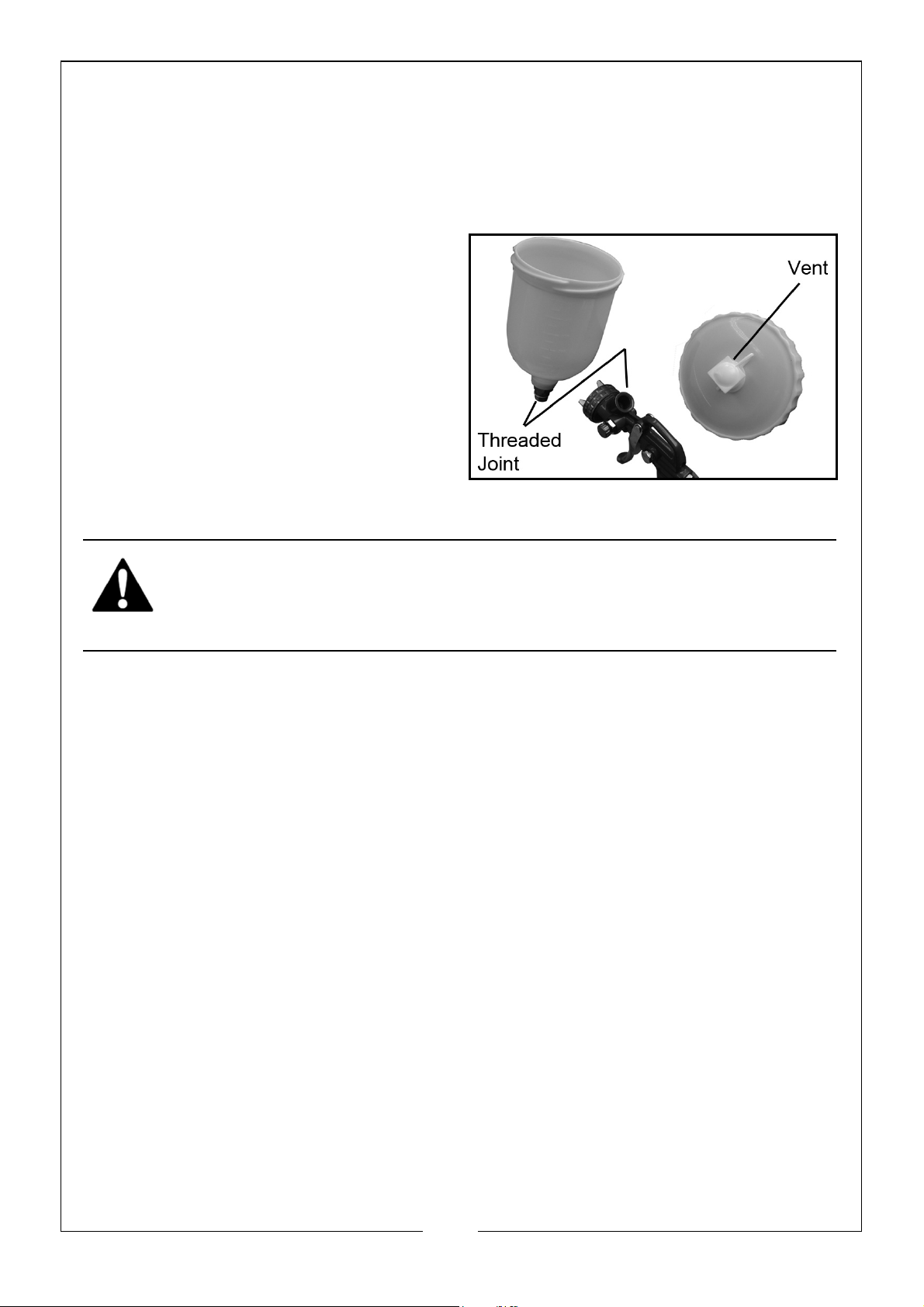

2. Do not fill the paint container to
more than 3/4 full. Make sure that
the top edge of the container
and lid are clean and free from
damage before mounting the
gun on the container. It is also very
important to keep the container
vent clear.
3. Remember that some modern
paints require specialist respiratory
protection. Always consult the
paint manufacturers instructions.
WARNING: NEVER ATTEMPT TO SPRAY UNLESS YOU ARE WEARING
SUITABLE, APPROVED RESPIRATORY AND EYE PROTECTION.
4. Ensure that the area in which you will be spraying is clean and dust free. To
obtain best results, it is vital that the surface to be sprayed is well prepared.
It must be clean, free from dust, dirt and grease. Mask any area that is not
to be sprayed and cover adjacent equipment to protect from overspray.
5. Ensure the surface to be painted is clean, dry and free from oil or dust.
Check the paint manufacturer’s instructions for any special surface
preparation required.
REMEMBER - TIME SPENT PREPARING SAVES TIME SPENT FINISHING.
PAINT THINNING
Paint thinning is particularly important when spraying. Many paints are
supplied ready for brush application and need to be sufficiently diluted for
spraying purposes. Always follow the paint manufacturers instructions. If in
doubt, always consult the paint manufacturer.
A Viscosity Cup (not supplied), will assist in determining the correct thickness of
the paint.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
The ideal viscosity for most paints is as follows:
Water based paints 35-45 secs
Oil based paints 15-25 secs
Enamel paints 15-25 secs
Primers 20-30 secs
Var nis hes 20 -25 sec s
Aluminium paints 15-25 secs
Wood preservatives Do not dilute
Wood Stains Do not dilute
Smooth masonry paint Dilute by 10-15%
1. Dip the cup into the paint and fill to the brim. Time how long it takes for the
cup to empty.
2. Thin as required until times are achieved.
3. Alternatively if a viscosity cup is not available, the following information
can be used as a rough guide.
• Water based paints (emulsions) 10-20% water.
• Oil based paints (gloss) up to 10% thinners.
• Cellulose paints up to 50% cellulose thinners.
4. If in any doubt, contact the paint manufacturer.
5. Having mixed the paint thoroughly in a separate container, pour into the
spray gun paint container through a fine filter.
• DO NOT OVERFILL PAINT CONTAINER - never more than three
quarters full.
• To avoid creating a vacuum, remove the vent cap from the top of
the paint container before spraying. Replace the cap to avoid
spillage when you stop.
ADJUSTMENTS OF THE SPRAY GUN
ADJUSTING THE PAINT SPRAY PATTERN

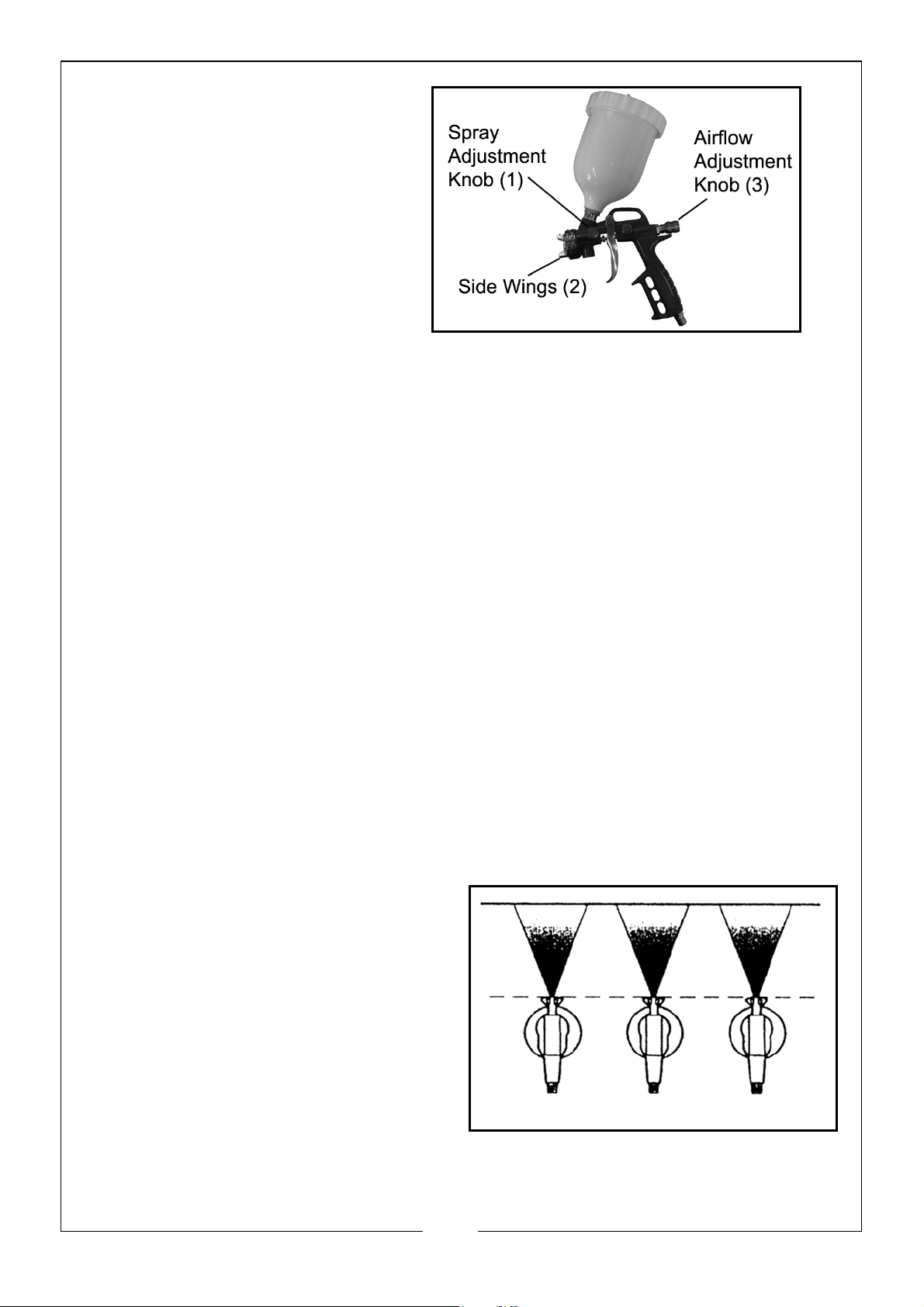

1. Set the Spray Adjustment knob (1) according to the paint in use and the
spray pattern required to give either a wide, fan shaped spray pattern or a
narrow spray pattern.
2. You can adjust the orientation of the fan pattern either vertically or
horizontally to suit your requirements by turning the nozzle side wings (2) to
the desired position.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
• As the width of the spray is
increased, paint flow will
also need to be increased.
ADJUSTING THE AIR FLOW
1. To increase the air flow, turn
the Airflow Adjustment knob
(3) to regulate the air supply.
• The air flow needed will
vary according to the paint
in use, with thicker paints needing more air.
SPRAYING TECHNIQUES
1. Practice spraying on a piece of material with the same type of surface as
the article you wish to spray, e.g. metal for a car body panel, wood for a
piece of furniture etc.
2. Always make adjustments to the spray pattern according to the
conditions.You may need to increase the paint and air flow when using a
wider fan setting.
3. To reduce overspray, always use the lowest possible air pressure that
produces an acceptable spray pattern.
• If the gun is too far from the surface or the paint is too thin, the paint
will start to dry before hitting the surface, resulting in a rough, sandy
finish. Allowing overspray to fall on a finished area will also result in a
rough finish. Too much paint feed or holding the gun too close to the
work will lead to runs and sagging.
• The paint should be agitated by gentle shaking at regular intervals
during use to ensure consistency and avoid colour difference due to
the paint settling in the container.

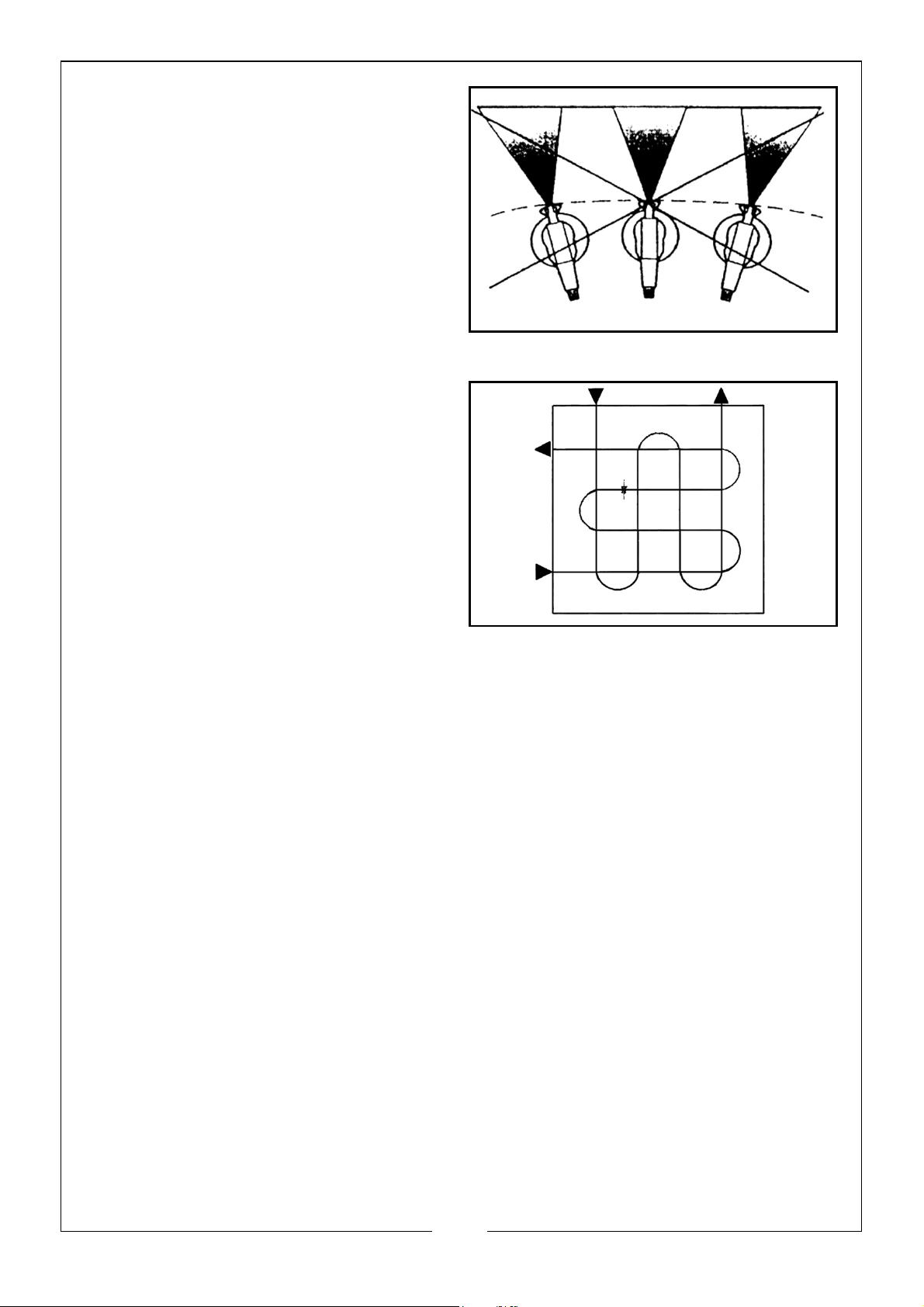

4. To obtain the best results, keep
your spray gun level and parallel
to the surface at all times. Keep
the nozzle 23 - 30 cm from the
surface and spray evenly from
side to side or up and down. Use
your arm to control the spray gun,
not your wrist.
5. The gun should be perpendicular
to the surface being covered and
moved parallel with it. The stroke
should be started before the trigger is pulled and likewise released before
the stroke is ended. This gives accurate control of the gun and material.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
6. Do not spray at an angle as this
will lead to paint runs on the
surface. Always use a smooth and
even stroke.
7. When spraying large areas, use a
criss-cross pattern as shown.
8. Never start or stop the spray gun
while it is aimed at the surface to
be sprayed. Evenly control the
speed of movement of the spray
gun.
• Moving quickly over the
surface will give a thin coat
and slow movement will give a
heavy coat.
• Apply one coat at a time. If a further coat is required, make sure you
observe the manufacturers drying time recommendations before
applying a second coat.
• When spraying small areas, keep the output control on a low setting
as this will avoid using too much paint and prevent overspray.
9. Where possible, avoid stopping and starting when spraying an object. This
can lead to too much, or not enough paint being applied
.
• The material deposited should always be even and wet. Lap each
stroke over the preceding stroke to obtain a uniform finish.
• To ensure the edges are covered, start spraying just to the side of the
area being sprayed and do not stop until the spray has gone past
the opposite edge.
• Damage to the needle or nozzle, or any of the air ports, will result in a
faulty spray pattern. Take care when cleaning or assembling these
components.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
COMMON PAINT SPRAYING PROBLEMS
Problem Cause Solution
Atomisation is poor
(paint comes out in
blobs).
Over-painting.
Orange peel or fogging. Wrong solvent used. Use different solvent.
Paint volume adjustment
is incorrect (paint is too
thick).
Spray gun not clean,
resulting in needle valve
sticking.
Too much paint. Adjust the volume
Viscosity too low. Check the paint
Spray gun held wrong
distance from surface.
Add thinners to paint
and re-fill.
Adjust air regulator to
increase pressure.
Dismantle spray gun and
clean with thinner.
regulator to reduce paint
volume. Try spraying two
thin coats of paint.
viscosity using a viscosity
cup.
Hold spray gun at
different distance to the
target.
Paint too thick. Thin the paint/test
Air pressure too high. Reduce air pressure.
Rough texture as if paint
is drying before hitting
surface.
Paint is too thin.
Air pressure could be too
high.
3. BLOW GUN
This blow gun can be used to blow
away dust and wood shavings as well
as metal filings and swarf.
1. Take great care when using this
item. Do not use high air pressures
when cleaning dust from
electrical or electronic
components.
viscosity using a viscosity
cup.
Add more paint to
container.
Reduce air pressure.
• The air supply should be
completely clean and dry.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12

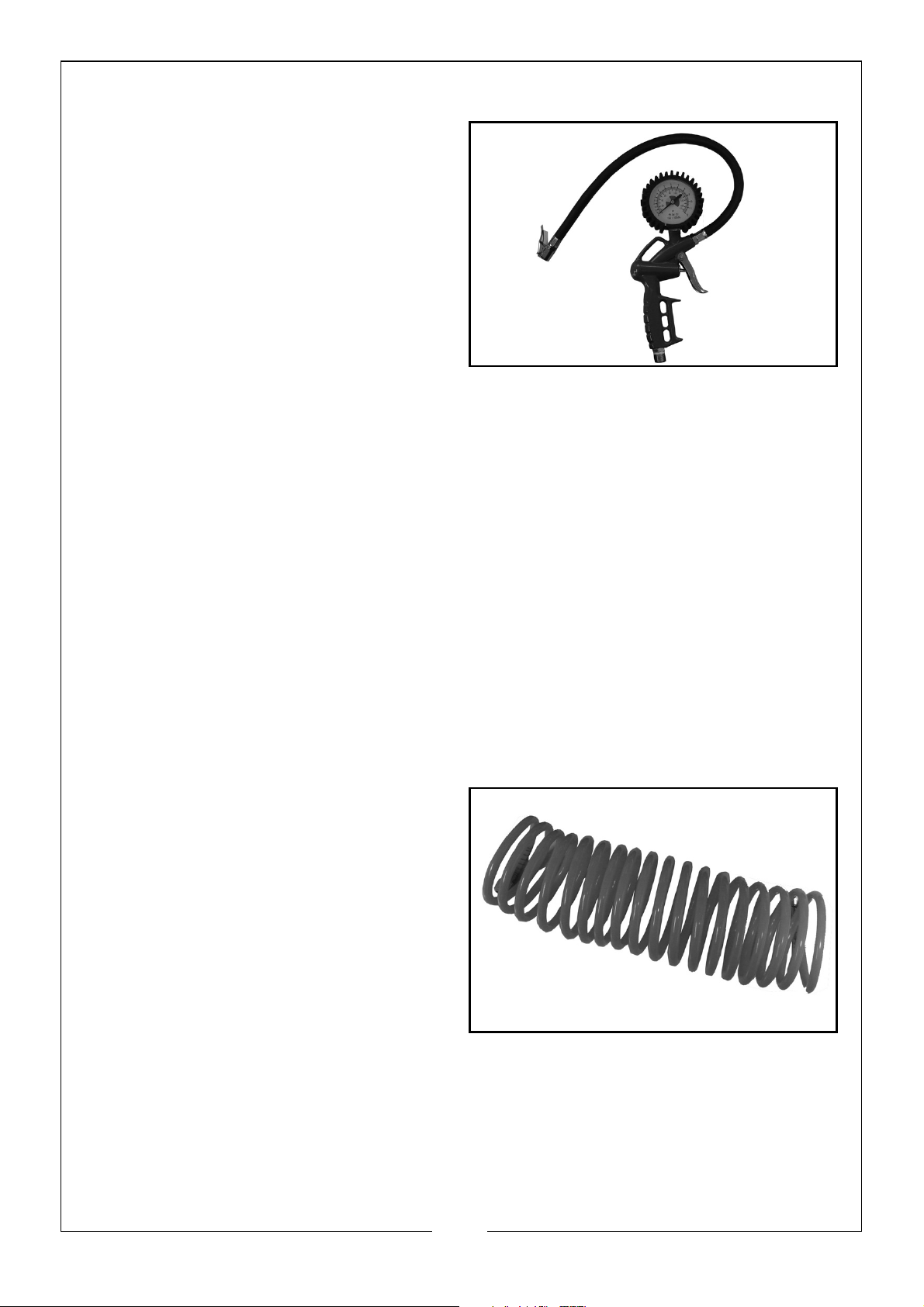

4. TYRE INFLATOR
This lightweight pistol grip tyre inflator
complete with air pressure gauge is
suitable for inflating tyres on motor
vehicles and trailers etc.
1. Attach the hose to the tyre inflator
and fully tighten.
2. Remove the dust cap from the
tyre valve and check that the tyre
valve is clean before connecting.
3. Depress the lever on the end of
the connector and push the connector fully home onto the tyre valve.
Release the lever to hold the connector in position. (If the valve leaks, the
connector may need repositioning). Correct position is confirmed by a
steady reading on the gauge.
4. Check the tyre pressure on the gauge.
5. Pull the trigger to inflate the tyre, or press the button on the side of the pistol
grip to deflate. Re-check the tyre pressure.
6. When the tyre pressure is correct, carefully disconnect and remove the
connector. Replace the dust cap on the tyre valve.
IMPORTANT: The air pressure gauge on this product is for guidance only. It is
important that you check the pressure with an approved, calibrated
gauge.
5. AIR HOSE
The recoil hose included in this kit is
fitted with connectors for use with the
other items.
AIRLINE ACCESSORIES AND EQUIPMENT
An extensive range of airline equipment is available from your Clarke dealer
including hoses, retractable hose reels, filter/regulators, in-line regulators,
pressure gauges, spray gun cleaning kit, respiratory masks and safety goggles.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13
MAINTENANCE
BLOW GUN AND WASH GUN MAINTENANCE
The only maintenance other than to replace worn or broken parts is to keep
the gun clean and lubricated.
Occasionally clean the gun and lubricate the trigger parts.
Inspect the blow gun and air hose for wear or damage periodically and
replace if necessary.
DO NOT use damaged or leaking hoses.
SPRAY GUN MAINTENANCE
It is essential that the spray gun is kept clean. Dried paint in the nozzle
assembly or airways will stop the gun from working. For the gun to perform at
its best it must be thoroughly cleaned after every use.
CLEANING PROCEDURE
1. After use, empty any remaining paint from the paint container, wipe the
container clean with a dry, lint free rag, and fill with thinner. Spray the
thinners through the spray gun until it is clean.
2. Residue from dirty solvent may clog the narrow air passages in the gun. Use
a small cleaning brush and solvent to wash off accumulated paint.
3. Wipe down the outside of the gun with a solvent dampened cloth.
• DO NOT poke any of the holes in the nozzle with metal instruments.
These holes are precision drilled and can be damaged by probing
with anything harder than a wooden toothpick.
4. Make sure that the air inlet vent to the paint container is kept clean.
Blockages in this vent will prevent an even material flow through the gun.
• Component parts of spray guns are supplied in matched sets and
should only be used together.
• Do not overtighten components, and be careful not to cross thread
any parts on assembly.
• Never use silicon based lubricants as this may cause paint finish
defects.
5. Check the air supply hose regularly for any signs of damage and replace it
if necessary. Do not use damaged or leaking hoses.
6. Finally, empty the spray gun and dry all components thoroughly. Store in a
clean, dry place.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
SPECIFICATION
Spray Gun
Dimensions (L x W x H) 360 x 160 x 110 mm
Max Working Pressure 3.5 bar/ 50 psi
Cup Capacity 500 ml
Blow Gun
Dimensions (L x W x H) 220 x 160 x 20 mm
Max Working Pressure 6 bar/ 87 psi
Tyre Inflator
Dimensions (L x W x H) 230 x 120 x 35 mm
Hose Length 430 mm
Max Working Pressure 4 bar/ 58 psi
Wash Gun
Dimensions (L x W x H) 110 x 390 x 190 mm
Max Working Pressure 4 bar/ 58 psi
Container Capacity 800 ml
Hose
Length 5 m
Bore 6 mm
Working Pressure 8 bar / 116 psi
Max Working Pressure 10 bar / 145 psi
SPARE PARTS LIST
ID DESCRIPTION PART NO
1 Spray Gun Repair Kit WUFKIT10001
2 Blow Gun Repair Kit WUFKIT10002
3 Wash Gun Repair Kit WUFKIT10003
4 Tyre Inflator Repair KIt WUFKIT10004
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
DECLARATION OF CONFORMITY
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
Loading...
