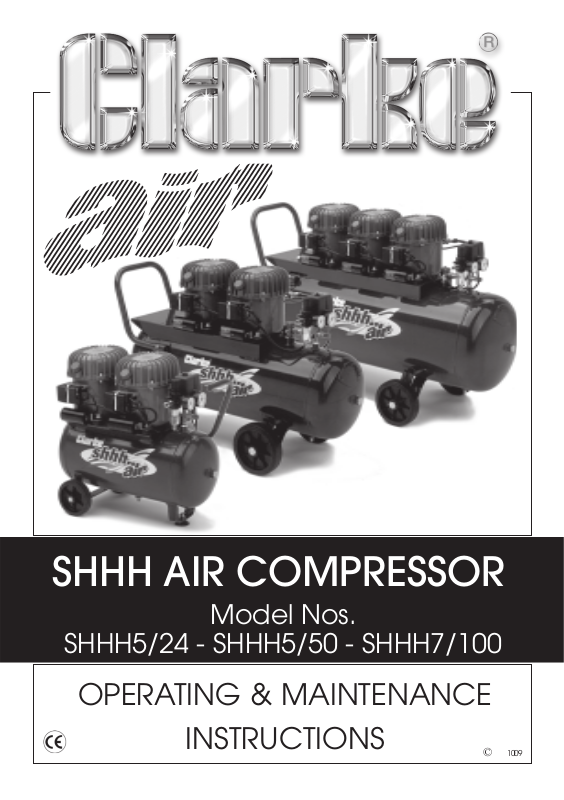

SHHH AIR COMPRESSOR

Model Nos.

SHHH5/24 - SHHH5/50 - SHHH7/100

OPERATING & MAINTENANCE

INSTRUCTIONS

1009

©

Thank you for purchasing this CLARKE Shhh Air silent running air compressor.

Before attempting to operate the machine, please read this leaflet thoroughly and
carefully follow the instructions given. In doing so you will ensure the safety of yourself
and that of others around you, and you can also look forward to the compressor
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months
from the date of purchase. Please keep your receipt as proof of purchase. This
guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be
returned without prior permission. This guarantee does not effect your statutory
rights.

CONTENTS Page

Safety Precautions .......................................................................... 4

Electrical Connections ................................................................... 5

Preparation for Use ......................................................................... 6

Operation ........................................................................................ 6

Shutting Down .................................................................................. 7

Fault Finding ..................................................................................... 8

Maintenance .................................................................................. 9

Parts & Service ................................................................................. 9

Specifications ................................................................................ 10

Accessories .................................................................................... 10

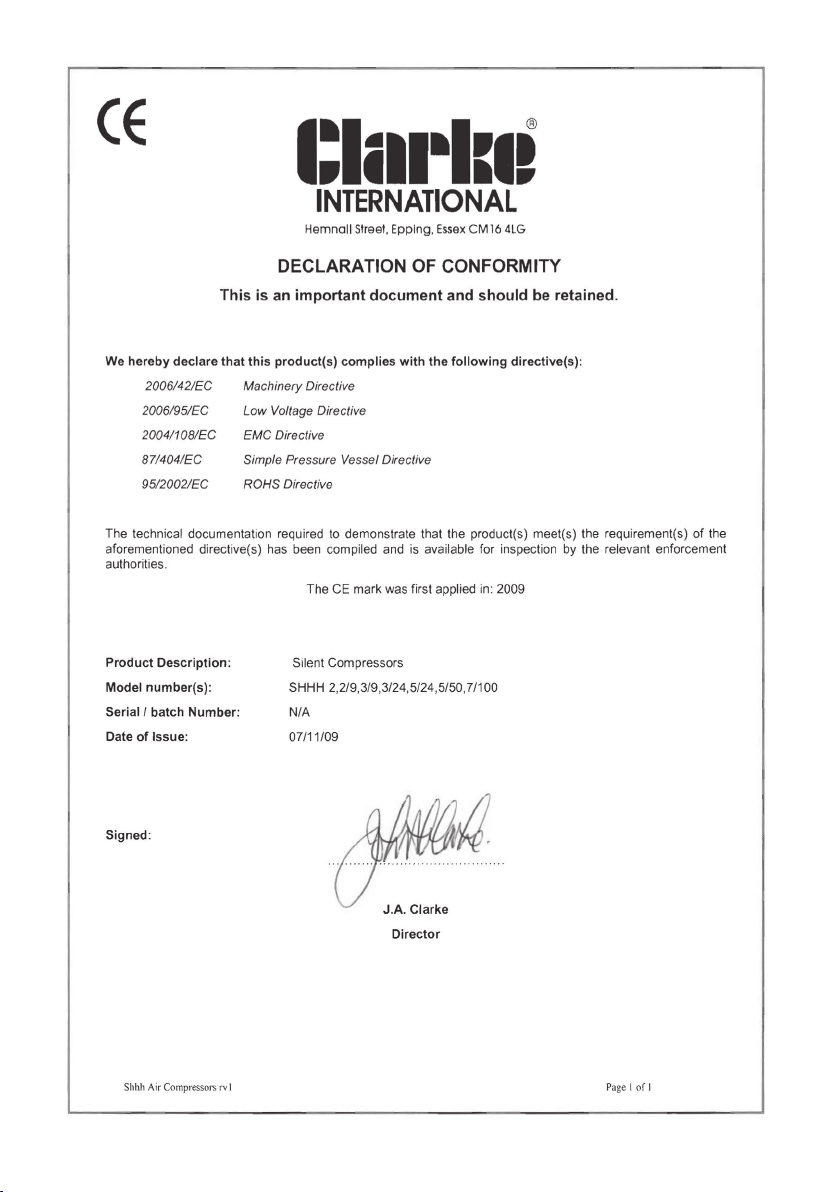

Declaration of Conformity ........................................................... 11

Parts and Service Contacts ......................................................... 11

3

SAFETY PRECAUTIONS

WARNING

As with all machinery, there are certain hazards involved with their operation and use.

Exercising respect and caution will considerably lessen the risk of personal injury.

However, if normal safety precautions are overlooked, or ignored, personal injury to

It is in your own interest to read and pay attention to the following rules:

1. COMPRESSED AIR IS DANGEROUS, NEVER direct a jet of air at people or animals, and
NEVER discharge compressed air against the skin.

2. DO NOT operate your compressor with any guards removed.

3. Electrical or mechanical repairs should only be carried out by a qualified engineer. If
problems occur, contact your Clarke dealer.

4. Before carrying out any maintenance, ensure the pressure is expelled from the air
receiver, and the machine is disconnected from the mains supply.

5. DO NOT leave pressure in the receiver overnight, or when transporting.

6. DO NOT adjust, or tamper with the safety valves. The maximum pressure is factory set,
and clearly marked on the machine.

7. DO NOT operate in wet or damp conditions. Keep the machine dry at all times.
Similarly, a clean atmosphere will ensure efficient operation. Do not use in dusty or
otherwise dirty locations.

8. Some of the metal parts can become quite hot during operation. Take care not to
touch these until the machine has cooled down.

9. Always adjust the pressure regulator to the recommended setting for the particular
spray gun or tool being used.

10. When spraying flammable materials e.g. cellulose paint, ensure that there is adequate
ventilation and keep clear of any possible source of ignition.

11. Protect yourself. Think carefully about any potential hazards which may be created by
using the air compressor and use the appropriate protection. e.g. Goggles will protect
your eyes from flying particles. Face masks will protect you against paint spray and/or
fumes.

12. Before spraying any material always consult paint manufacturer’s instructions for
safety and usage.

13. Do not exert any strain on electrical cables and ensure that air hoses are not kinked
or wrapped around machinery etc.

14. When disconnecting air hoses or other equipment from your compressor ensure that
the air supply is turned off at the machine outlet and vent all pressurised air from
within the machine and other equipment attached to it.

15. Make sure that children and animals are kept well away from the compressor and
any equipment attached to it.

16. Always ensure that all individuals using the compressor have read and fully understand
these operating instructions.

17. Ensure that any equipment or tool used in conjunction with your compressor, has a
safety working pressure exceeding that of the machine.

the operator, or damage to property may result.

4

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an
approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

WARNING! THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in the mains lead are coloured in accordance with the following

code:

Green & Yellow - Earth

Blue - Neutral

Brown - Live

As the colours of the flexible lead of this appliance may not correspond with the
coloured markings identifying terminals in your plug proceed as follows:

❐ Connect GREEN & YELLOW cord to terminal marked with a letter “E” or Earth

symbol “ ” or coloured GREEN or GREEN & YELLOW.

❐ Connect BROWN cord to terminal marked with a letter “L” or coloured RED.

❐ Connect BLUE cord to terminal marked with a letter “N” or coloured BLACK.

If this appliance is fitted with a plug which is moulded onto the electric cable (i.e.
non-rewireable) please note:

1. The plug must be thrown away if it is cut from the electric cable. There is a

danger of electric shock if it is subsequently inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. Should you wish to replace a detachable fuse carrier, ensure that the correct

replacement is used (as indicated by marking or colour code).

4. Replacement fuse covers can be obtained from your local dealer or most

electrical stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating (13 amps) and
this replacement must be approved to BS1362.

We recommend that this machine is connected to the mains supply via a Residual
Current Device (RCD)

If in any doubt, DO NOT attempt any connections or repairs yourself. Consult a
qualified electrician, your Clarke dealer,

or telephone CLARKE International Service Dep’t on: 0208 988 7400

or, e-mail : [email protected]

5

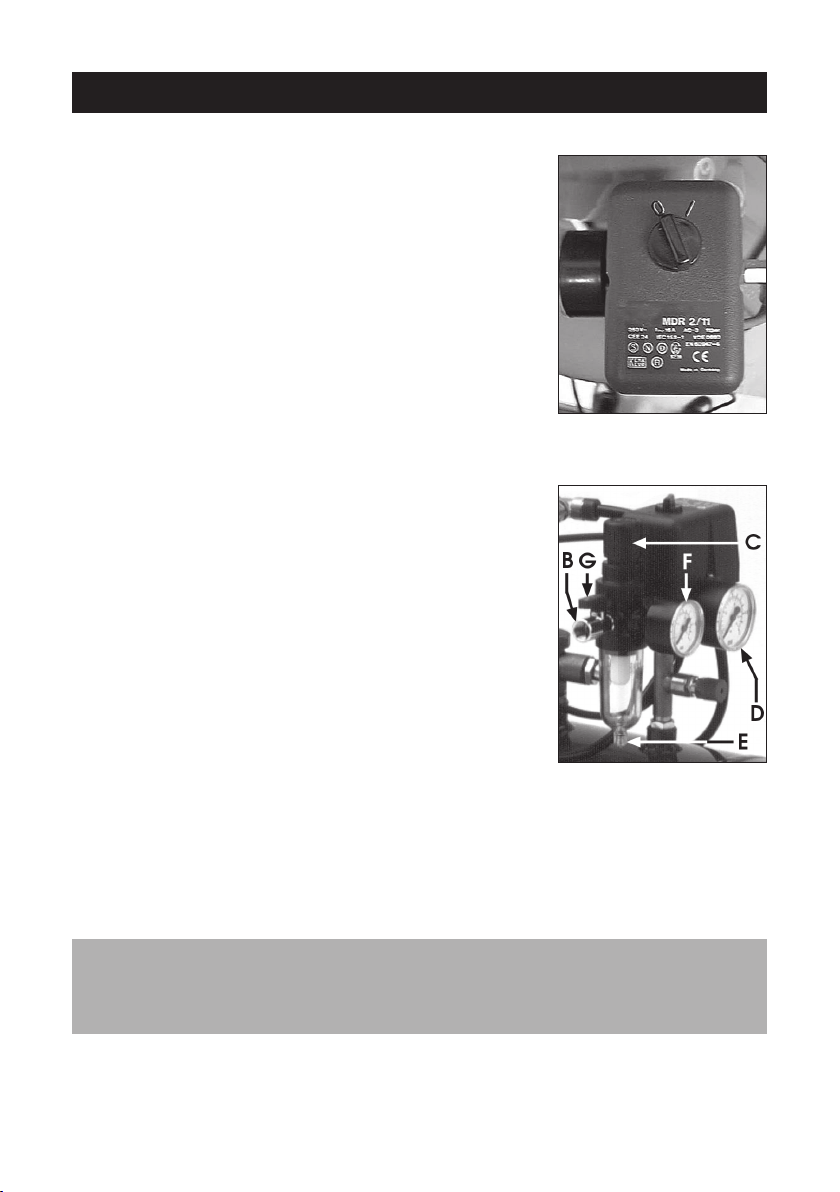

OPERATION

1. Ensure the compressor is on level ground...do not allow

it to run, positioned on an incline.

2. Check that the mains voltage corresponds with that

shown on the data label on the side of the compressor.

3. Ensure that the ON/OFF switch, mounted on the Pressure

Switch (shown in fig.1), is turned to the ‘0’ (OFF) position,
then plug in and switch on at the mains supply.

. To start the compressor, turn the ON/OFF switch to the

‘I’ (ON) position - the motor should start immediately.

NOTE: Should the motor fail to start immediately, it is possible
that the air receiver is already full of air. Check the tank
pressure gauge (F, fig. 2). If you release air, by opening the
air outlet tap, the motor will start automatically once the cut­in pressure is reached.

Before connecting your airline to the compressor,allow
it to run for 10 - 15 seconds, with the air outlet tap,(G,
Fig. 2) completely open to permit a good distribution
of the lubricating oil.

2. Close the outlet tap then connect one end of suitable

air hose to the connector at the filter/regulator outlet,
(B, Fig. 3) and the other end to the equipment to be
used.

3. Set the outlet pressure by adjusting the Pressure

Regulator.

To do this, lift the Pressure Regulator Knob (C Fig. 2),
and turn it clockwise to increase pressure, anticlockwise
to decrease.

To lock the regulator knob and hence the outlet
pressure, push the Regulator knob down until it clicks
into place.

Fig.1

Fig.2

NOTE: For most spray work do not exceed 50 psi (unless following paint manufacturer’s
instructions).

For other airline equipment such as, tyre gauges, staple guns, paraffin guns etc., it may be
necessary to set the operating pressure at a higher (or lower) level.

IMPORTANT:

Always refer to the accessory manufacturers recommendations for

4. With operating pressure set, reopen the air outlet tap.

optimum

operating pressures for their equipment.

6

7. The pressure switch, located within the plastic cover beneath the ON/OFF switch,

should not require adjustment. This is an automatic device and has been preset at
the factory to stop the motor when pressure in the receiver reaches its maximum,
and to start it again when the pressure in the receiver falls to the minimum preset
value. This operation is completely automatic and does not affect the spraying
process in any way. However, should problems develop with the cut-in, cut out
settings, please consult your Clarke dealer, or the Clarke Service Department.

NOTE:

a

. If the machine pumps continuously without cutting out then the compressor is too

small for the application/tool being used, and damage may result. Consult your
Clarke dealer.

b. The motor is protected by a Thermal Overload so that if the motor overheats for any

reason - the thermal overload will trip, stopping the motor. If this happens, switch off
the compressor and Allow the motor to cool down before restarting (15 - 20 minutes).

c. DO NOT exceed the Duty Cycle for the machine (see Specifications).

SHUTTING DOWN THE COMPRESSOR

1. To shut off the compressor, simply turn the ON/OFF switch (see Fig. 1), to the O’ (OFF)

position.

IMPORTANT:

ALWAYS switch the compressor ON or OFF at the Pressure

Switch...NEVER at the mains supply switch

2. Close the air outlet tap and trigger the equipment (spray

gun,air tool etc.) to release air from the air hose before
disconnecting the hose from the machine.

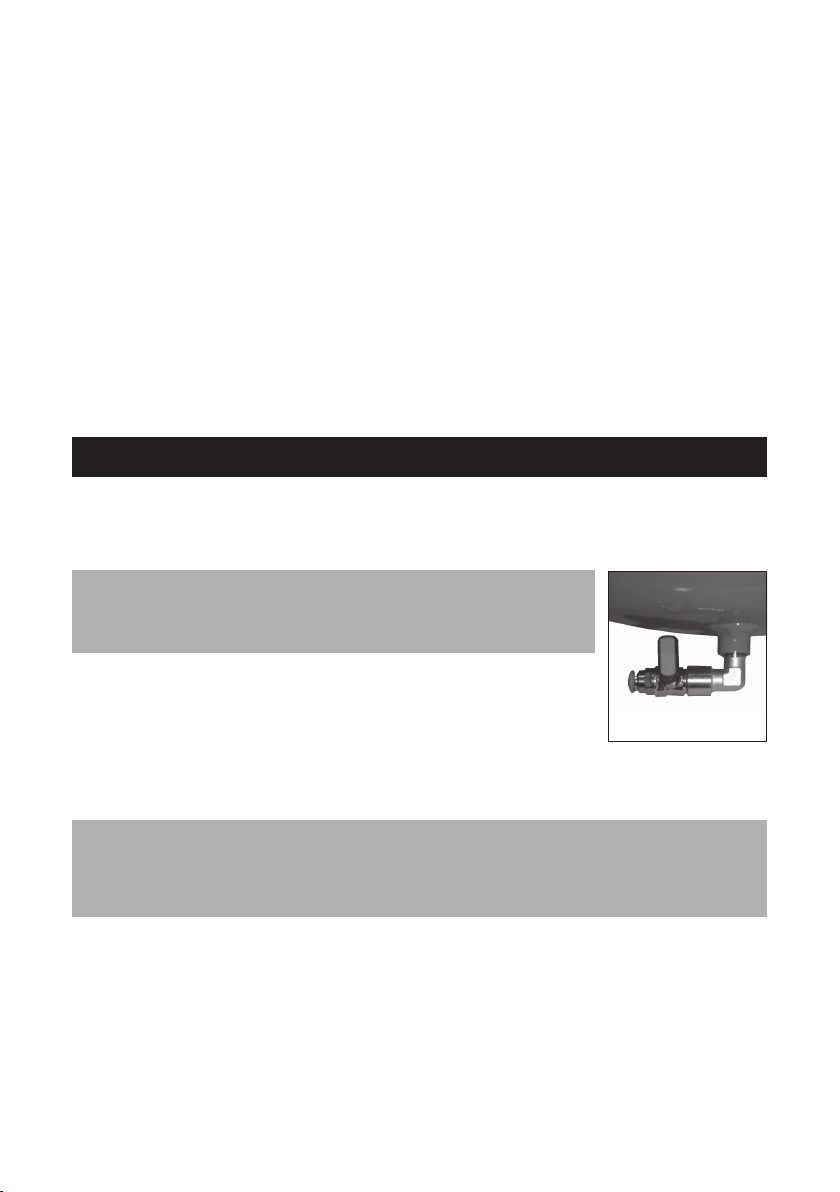

3. Before transporting your compressor or when leaving

overnight, expel all air from the receiver by opening the
drain valve Fig 4.

Fig.4

IMPORTANT:

DO NOT FORGET to close the valve again when the tank is empty, particularly if the

compressor may not be used for some time.

7

FAULT FINDING

PROBLEM

The compressor
will not start, or
stops and will not
start again.

Compressor does
not start.

The compressor
does not reach
the set pressure
and overheats
easily.

Air leaking from
the pressure
switch valve
when the
compressor is not
running.

PROBABLE CAUSE

Bad connections.

Blown fuse.

Overload cutout
switch has tripped.

Air receiver is charged
(Does not apply to
SHHH2).

Inlet Air Filter is blocked.

NOTE: It is also possible
that you are using
more air than the
compressor is capable
of delivering.

Faulty non-return
valve.

REMEDY

Check the electrical
connections. Clean and
tighten as necessary.
Replace fuse.

Switch off the compressor and
wait 25-20 mins before
attempting to restart.

Open drain valve to expel air.
Compressor should start again
when pressure reduces to
approx 95 psi.

Renew Oil Filler/Air Filter plug.

Drain the receiver completely
of air and renew the non-return
valve.

Air pressure from
the regulator will
not adjust.

Compressor
operating, but no
air from outlet.

the regulator body is
broken.

Inlet Air Filter Blocked.

Pressure Regulator
closed.

Drain valve open.

Bleed Pipe (from
Pressure Switch to non­return valve) broken or
disconnected.

8

Replace Regulator.The diaphragm within

Renew Oil Filler/Air Filter Plug.

Turn Regulator clockwise to set
required pressure.

Close Drain Valve.

Reconnect or replace Bleed
Pipe.

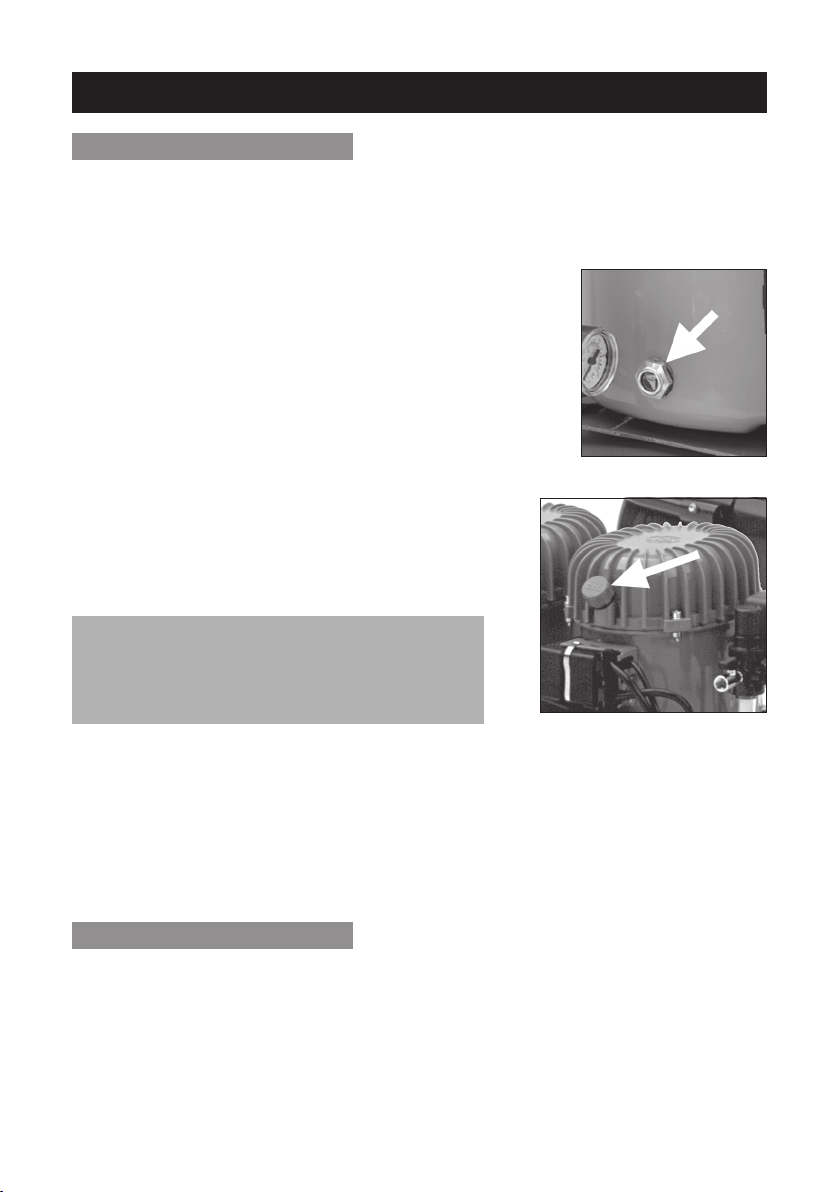

MAINTENANCE

DAILY

1. Check the oil level before you start and top up if necessary - use Clarke
Synthetic Air Compressor Oil ONLY, available from your Clarke dealer...

Part No. 3050795

The oil level is checked by viewing the oil
sight glass, shown arrowed in Fig. 5

To add oil, proceed as follows:

Remove the oil filler plug, shown
arrowed in Fig. 6, and top up until the
oil level is midway on the oil sight glass.

Take great care not to cross thread the
filler plug when replacing.

IMPORTANT:

DO NOT replace the oil filler plug with

anything other than the original, as the filler

plug doubles as an air breather

Fig.5

Fig.6

2. Drain any condensate that may have accumulated in the air outlet filter, by
pushing the valve (E in Fig. 3), upwards.

3. When you have finished with the compressor, A LWAYS open the drain valve -
at the base of the tank, to expel all air, and to allow any
condensate to drain off.

DO NOT FORGET to close the valve again when the tank is empty.

PERIODICALLY

1. Renew Oil Filler Plug/Air Breather every 500 hours of operation.

2. If oil becomes contaminated it will be necessary to drain it by removing the
filler plug/air filter, inverting the compressor and allowing time for the oil to
drain, before filling with new SYNTHETIC OILto the middle of the oil sight glass.

9

SPECIFICATIONS

SHHH 5/24 SHHH 5/50 SHHH 7/100

Motor 230V 50Hz 1Ph 230V 50Hz 1Ph 230V 50Hz 1Ph

Max.Pressure 8 bar 8 bar 8 bar

Air Displacement 4.5cfm 4.5cfm 6.5cfm

Electric Motor 0.92HP 0.92HP 1.37HP

Air Receiver Capacity 25 Ltr 50Ltr 100Ltr

Fuse Rating 13amps 13amps 13amps

Duty Cycle S2 50%* S2 50%* S2 50%*

Part No. 2320805 2320810 2320850

Compressor Oil CLARKE Synthetic Oil

Compressor Oil Part No. 3050795

*S2 50% = 5 min ON followed by 5 min OFF

ACCESSORIES

Your Shhh Air Compressor can be used in conjunction with a wide range of optional
accessories for inflating tyres, air brushing, stapling, blowing and many other uses.
For details contact your local Clarke dealer. or visit the Clarke website.
www.clarkeinternational.com.

Should you experience any difficulties obtaining accessories, please contact the
Clarke sales department (telephone [phone]) for details of your nearest
dealer.

10
11
