Page 1
BOXER 55
BOXER 55
AIR COMPRESSOR
AIR COMPRESSOR
OPERATION & MAINTENANCE
INSTRUCTIONS
1010
©
Page 2
Thank you for purchasing this Clarke Boxer 55 Air Compressor which is fitted
with a 50 litre air reservoir.
Please read this leaflet thoroughly and carefully follow all instructions. In doing
so you will ensure the safety of yourself and that of others around you, and you
can look forward to the compressor giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months
from the date of purchase. Please keep your receipt as proof of purchase. This
guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned without prior permission. This guarantee does not effect your statutory
rights.
When disposing of this product, ensure it is disposed of according to all local ordinances. It must
not be disposed of with general household waste.
2
Page 3
CONTENTS PAGE
Safety Precautions .......................................................................... 4
Warning Symbols ............................................................................. 9
Electrical Connections ................................................................... 10

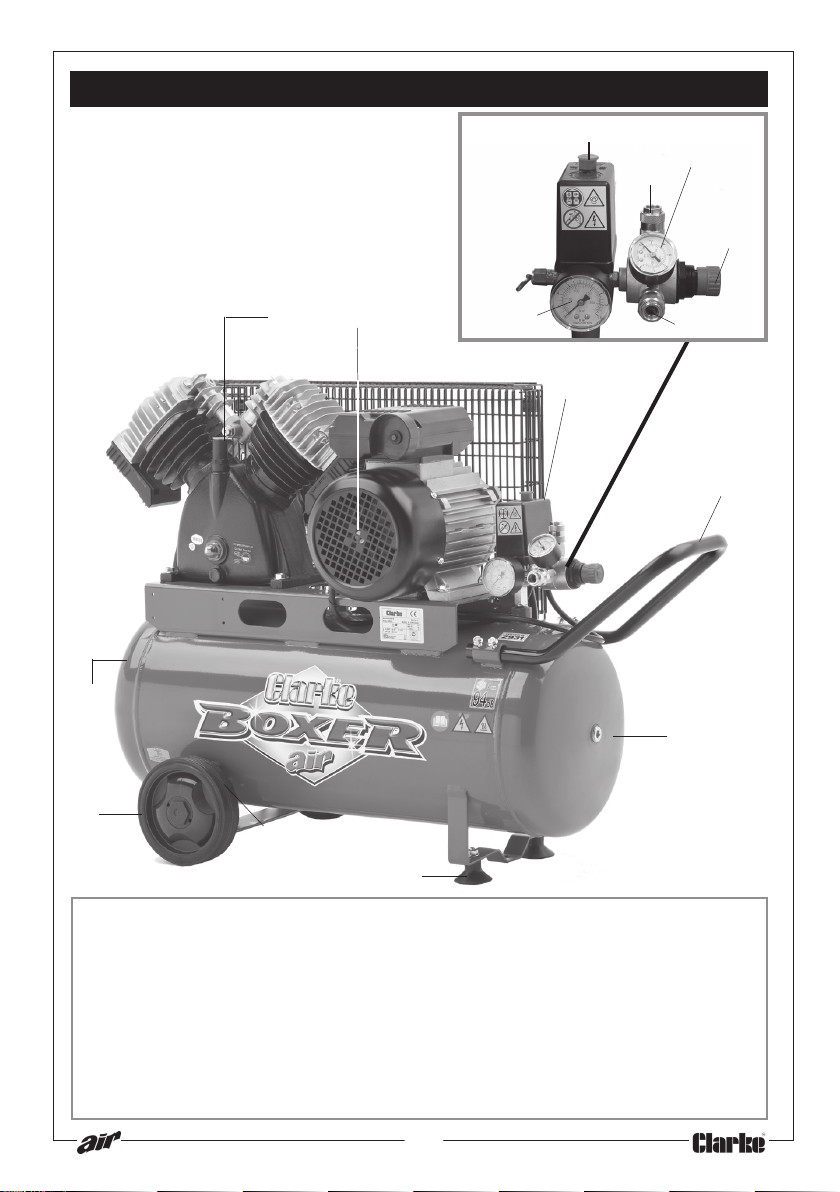

Parts Identification .......................................................................... 11

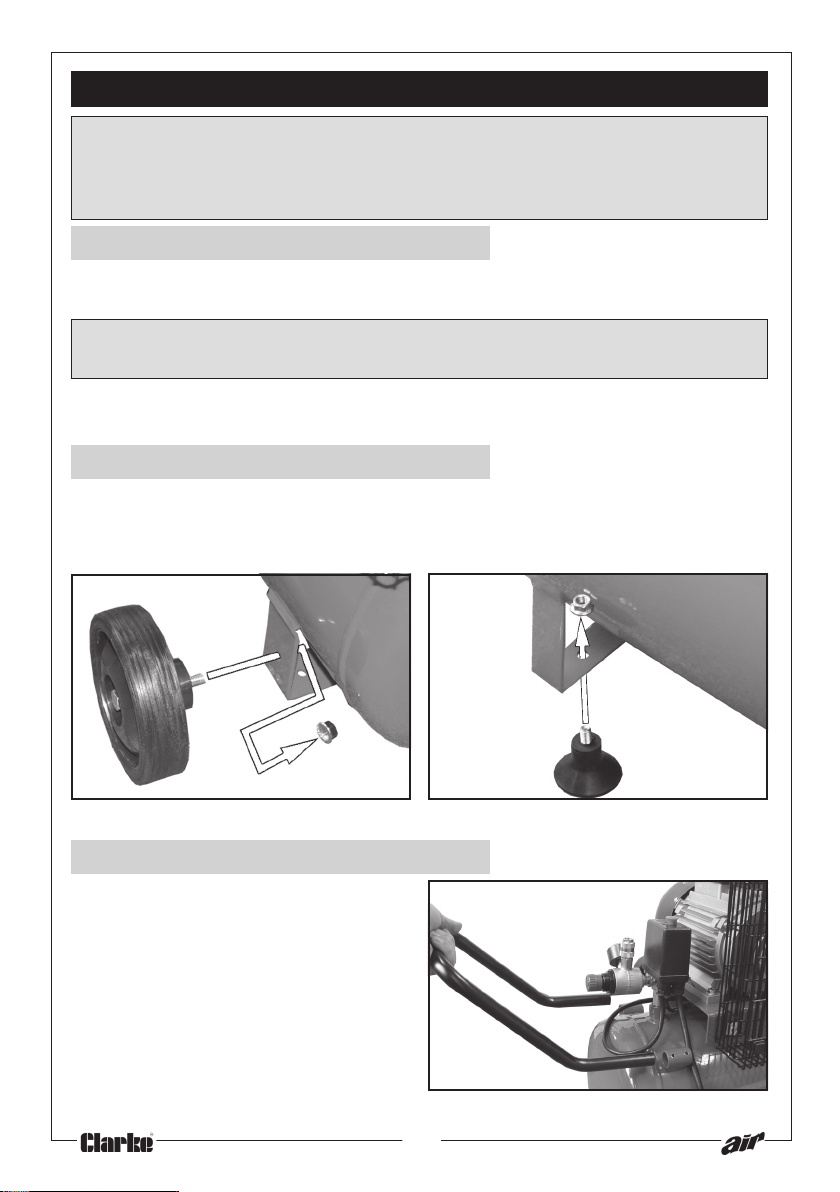

Assembly ........................................................................................... 12
Preparation for use.......................................................................... 14
Operating instructions .................................................................... 15

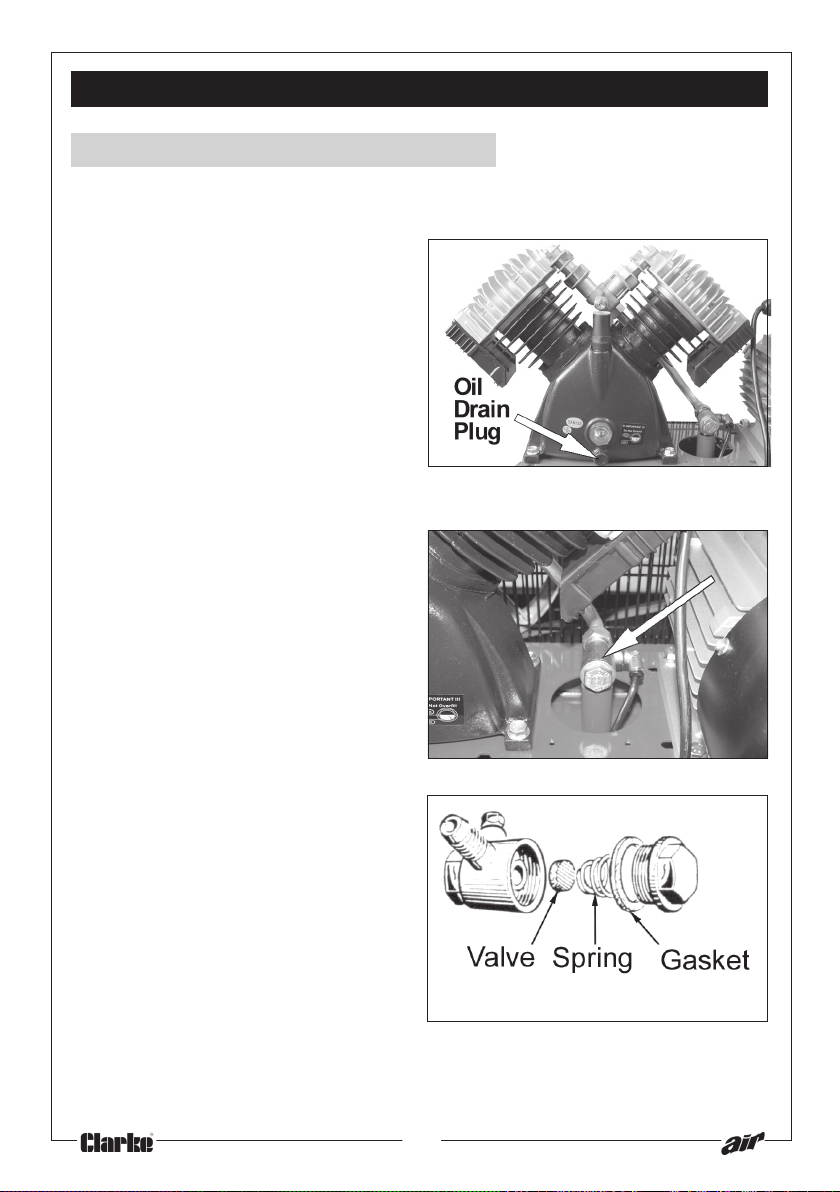

Routine Maintenance..................................................................... 19
Troubleshooting ............................................................................... 22
Specifications .................................................................................. 23

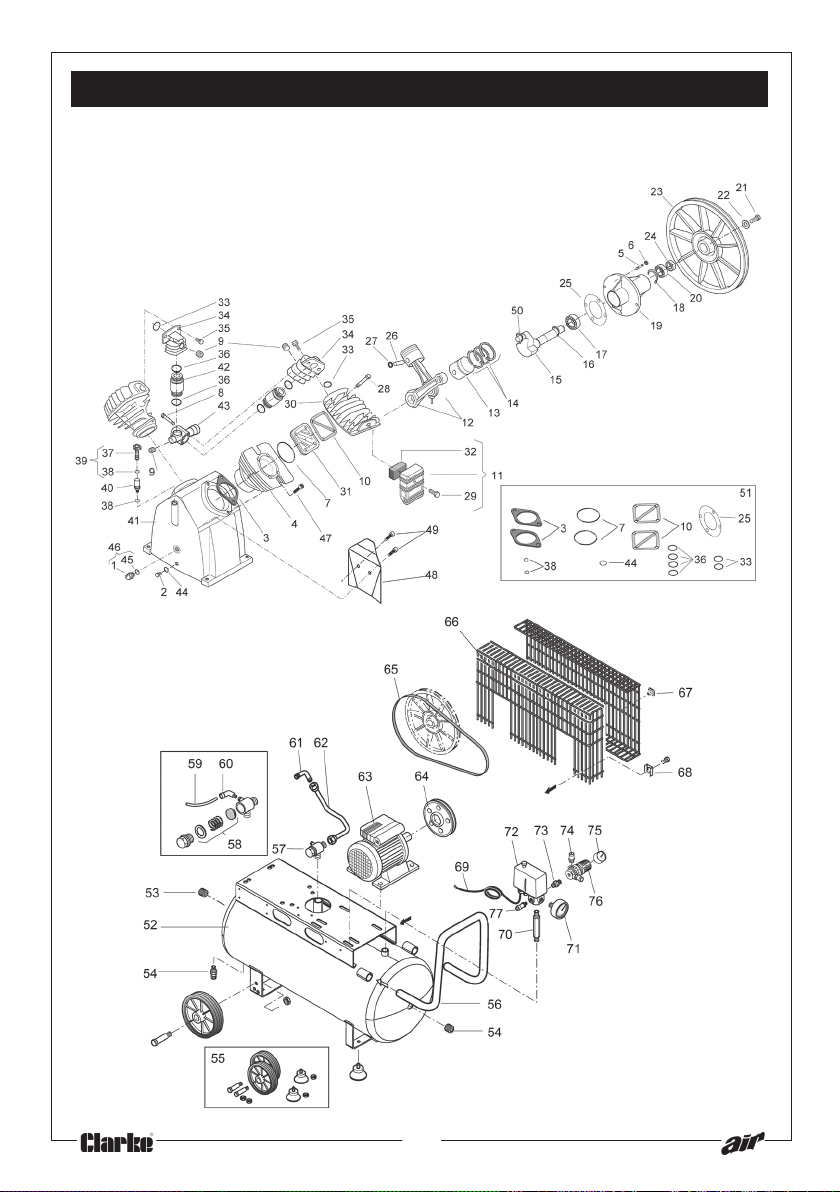

Parts Diagram .................................................................................. 24
Parts List ............................................................................................ 25

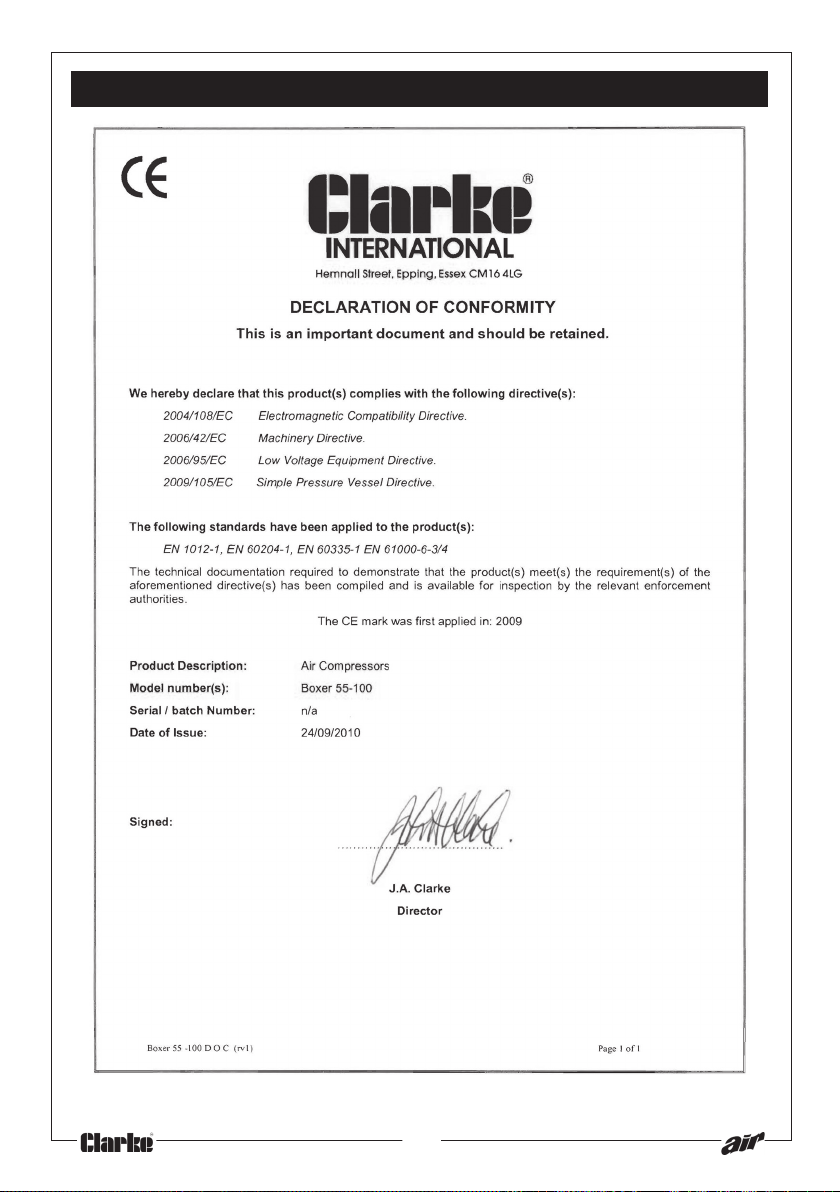

Declaration of Conformity` ............................................................ 26
3
Page 4
SAFETY PRECAUTIONS
WARNING
As with all machinery, there are certain hazards involved with their
operation and use. Exercising respect and caution will considerably
lessen the risk of personal injury. However, if normal safety
precautions are overlooked, or ignored, personal injury to the
operator, or damage to property may result. It is in your own interest
to read and pay attention to the following rules:
WARNING!
When using the air compressor, you should follow basic safety
precautions including the following to reduce the risk of personal
injury. Make sure that you have read all of the instructions before
using the air compressor. Keep this booklet with the compressor for
future reference by the operator. Persons who have not read this
booklet should not use the air compressor.
WARNING!
Compressed air can be dangerous. Death or serious injury could
result from improper or unsafe use of this compressor. To avoid these
risks, use your common sense and follow these basic safety
instructions. Compressed air should never be inhaled as it may
contain toxic vapours or solid particles. Always work in good
ventilation, especially when spraying paints or other toxic substances
and always use a suitable face mask. Do not spray near sources of
possible ignition.
WARNING!
Attachments, hoses and accessories must meet or exceed the
maximum pressure rating of this compressor.
If low pressure parts are used, the air pressure could cause them to
explode or fly apart, resulting in serious injury. Always take great
care when releasing the pressure and connecting/disconnecting
tools.
WARNING!
This compressor must be connected to a power socket that is
safeguarded by a suitable circuit breaker or fuse.
4
Page 5
SAFETY PRECAUTIONS
TRAINING: Prior to use all operators should become familiar with the instructions in this
booklet. In particular, become familiar with the ON/OFF control for emergency stopping.
ALWAYS USE EYE PROTECTION: When operating the air compressor, always use eye
protection, and make sure that other people in the work area are also using eye
protection. Eye protectors must provide protection from flying particles both from the
front and from the side.
NEVER TOUCH MOVING PARTS: Never place your hand near any moving parts
on the air compressor or operate with the covers removed.
PROTECT YOUR SELF AGAINST ELECTRIC SHOCK: Never operate the air
compressor in wet or damp locations.
DRESS PROPERLY: Loose clothing or jewellery may be caught in moving parts.
Always tie long hair back.
KEEP VISITORS/CHILDREN AWAY: Do not allow visitors/children to handle the air
compressor or attachments and ensure that any people in the work area are
suitably dressed.
KEEP THE WORK AREA CLEAN: Cluttered areas invite accidents, clear the work
area of all unnecessary tools, debris and furniture.
DISCONNECT THE AIR COMPRESSOR: Always disconnect the air compressor from
the mains power supply and decompress before performing maintenance,
changing any parts and when not in use.
DO NOT ABUSE THE CABLE: Never pull on the cable when removing the plug
from the socket, or lift the compressor by the mains cable.
BREATHING QUALITY AIR: This compressor should not be used to supply breathing
quality air.
DO NOT ABUSE THE COMPRESSOR: Do not stand on the compressor.
SAFETY VALVE: Never remove or attempt to adjust the safety valve. Keep the
safety valve free from paint and other accumulations.

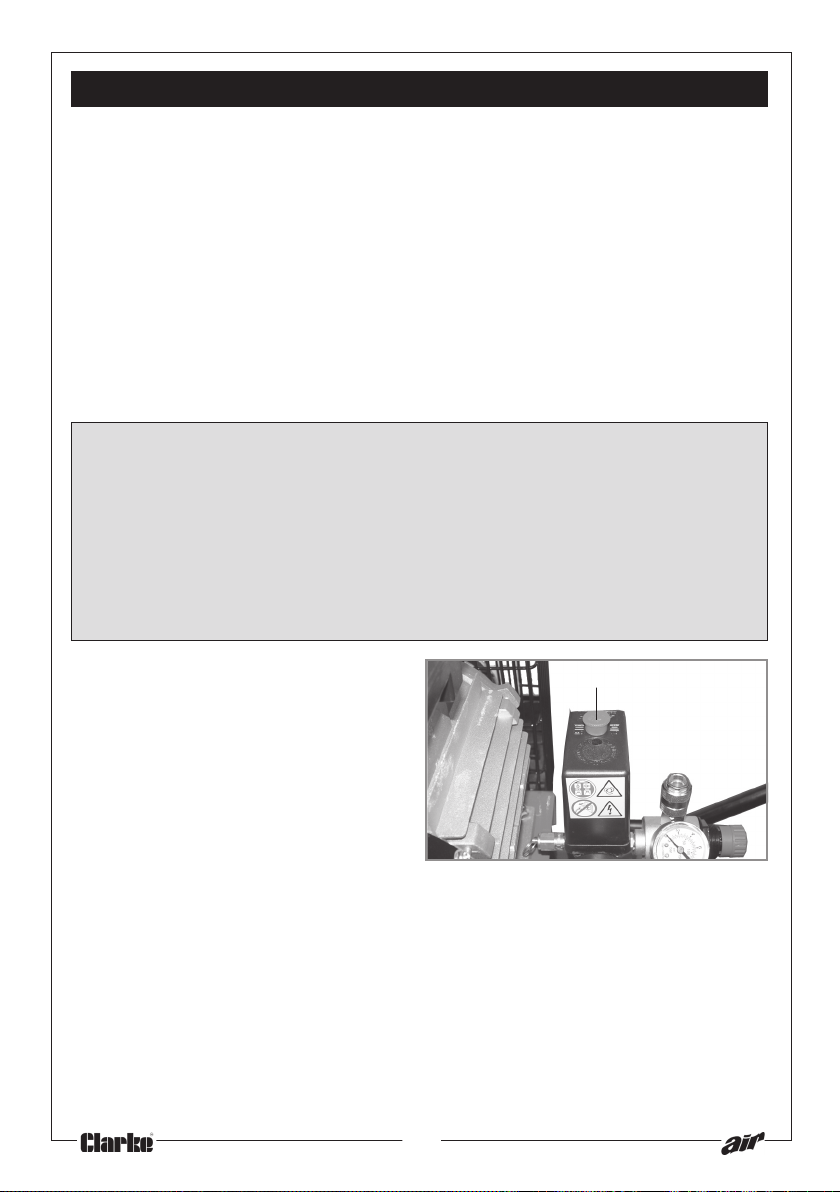

AVOID UNINTENTIONAL STARTING: Do not move the air compressor when it is
connected to the mains power supply. When connecting the air compressor to the
mains supply make sure the red button on top of the air compressor is in the OFF
(down) position.
5
Page 6
SAFETY PRECAUTIONS
STORE THE AIR COMPRESSOR PROPERLY: When not in use the air compressor
should be stored in a secure, dry place out of the reach of children. Always lock up the
storage area.
PROTECT YOUR HEARING: Ear protection should be worn when operating this
compressor.
MAINTAIN THE AIR COMPRESSOR WITH CARE: If the air compressor is damaged in
any way, have it repaired by a qualified service engineer.
ONLY USE PARTS AND ACCESSORIES RECOMMENDED IN THIS MANUAL: The use
of unauthorised accessories or attachments is not permitted and may result in
personal injury and damage to the air compressor. Do not attempt to repair or
modify the air compressor.
STAY ALERT: Watch what you are doing, use common sense, and do not operate
the air compressor when you are tired. The air compressor should not be used if
you are under the influence of alcohol, drugs or any medication that makes
you drowsy.
BEFORE EACH USE CHECK THE AIR COMPRESSOR AND HOSE FOR DAMAGED
PARTS: Never use the air compressor if it has been damaged in any way. Have
the air compressor repaired by a qualified service engineer. Do not use the air
compressor if the On/Off switch does not operate correctly.
HANDLE THE AIR COMPRESSOR CAREFULLY: Operate the air compressor
according to the instructions contained within this instruction booklet. This air
compressor should never be operated by children or individuals unfamiliar with
its operation.
KEEP THE MOTOR AIR VENT CLEAR: Keep the motor vent clear and free from dust,
wipe regularly to maintain an adequate supply of clean air to the air
compressor.
OPERATE THE AIR COMPRESSOR AT THE CORRECT VOLTAGE: Make sure that the
mains supply voltage is the same as the voltage shown on the rating plate.
DO NOT WIPE THE PLASTIC PARTS WITH SOLVENT: Do not use solvents or thinners
such as petrol, benzene, carbon tetrachloride or alcohol to clean the air
compressor, as these chemicals will damage the finish. With the air compressor
unplugged from the supply, use a dry cloth to wipe over the plastic casing.
KEEP ALL SCREWS AND COVERS TIGHTLY IN PLACE: Check the screws and covers
periodically.
6
Page 7
SAFETY PRECAUTIONS
ADEQUATE VENTILATION: The compressor should only be used in areas with
adequate ventilation and should not be exposed to heat, or used near inflammable
substances.
NEVER USE AN AIR COMPRESSOR WHICH APPEARS DEFECTIVE OR IS
OPERATING ABNORMALLY: If the compressor operates unusually or makes strange
noises, switch off immediately and purge the air tank. Arrange repair with an
authorised service centre.
DO NOT MODIFY THE AIR COMPRESSOR: Do not attempt to modify the air
compressor, tank, fittings or attachments in any way. Doing so will invalidate the
guarantee and could result in personal injury.
DO NOT MODIFY THE TANK: Do not modify the tank or operate at pressures or
temperatures outside the limits stated in this booklet.
TURN OFF THE AIR COMPRESSOR WHEN NOT IN USE: When not in use, turn off the
air compressor by pressing the On/Off switch, remove the plug from the mains
supply and slowly undo the drain valve to release the pressure from the tank.
Remember to close the drain valve before storage and ensure it is fully
tightened before use.
DO NOT TOUCH HOT SURFACES: During operation, the motor, connections,
compressor body, cylinder head and tubes may get hot, please take care.
DO NOT DIRECT THE AIR STREAM AT THE BODY: Do not direct the air stream at
people or animals, as injury may result. Compressed air can cause soft tissue
damage and propel dirt and other particles at high speed.
ONLY USE RECOMMENDED PARTS: To avoid the risk of bursting, only hoses with a
rated pressure of 10 bar, or more should be used. Never attempt to repair faulty
hoses.
DO NOT USE THIS COMPRESSOR TO INFLATE SMALL, LOW-PRESSURE OBJECTS: Items
such as children's toys or footballs can explode if over-inflated.
AVOID KINKING OR TRAPPING THE AIR HOSE: Always replace faulty hoses - never
attempt a repair if a leak is detected.

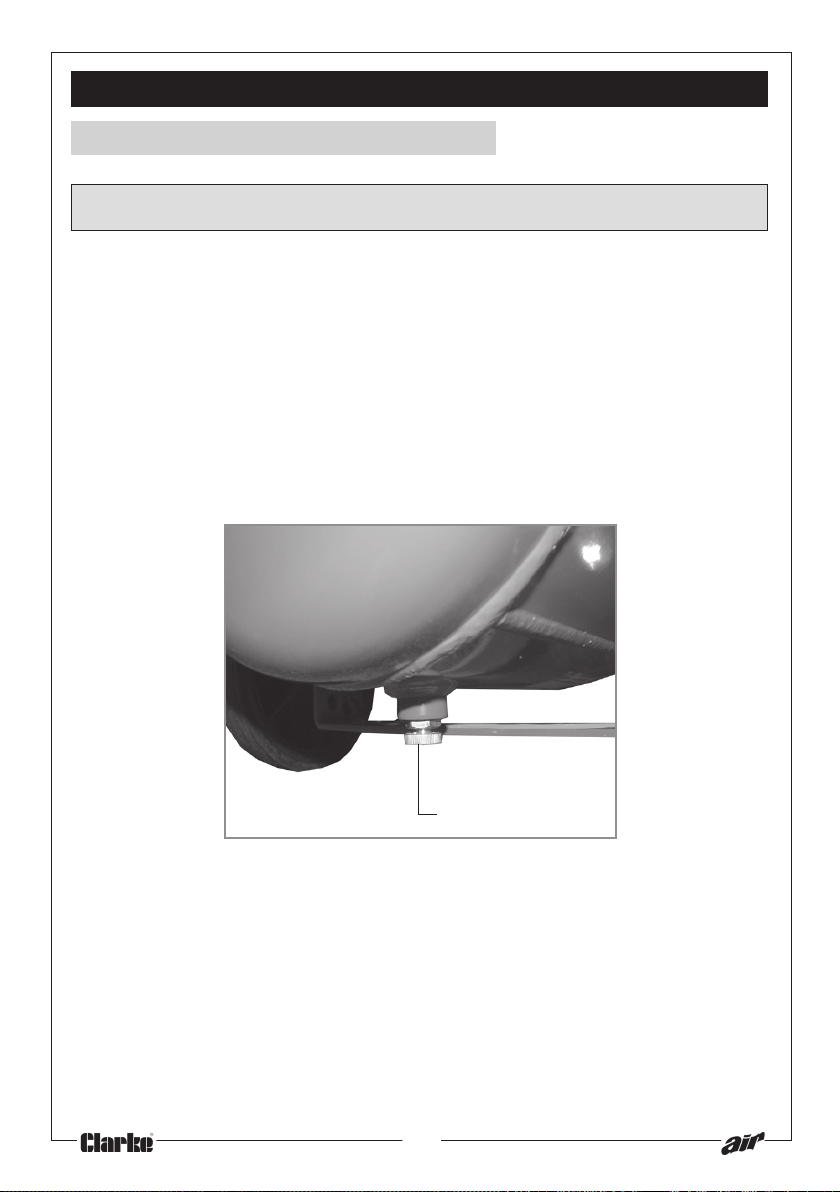

DRAIN TANK: Drain the tank after each use. Switch off and slowly open the drain
valve to release the air then tilt the compressor to empty condensed water.
NEVER STOP THE COMPRESSOR BY REMOVING THE PLUG OR SWITCHING OFF
AT THE MAINS SUPPLY: Always use the On/Off switch on the compressor.
7
Page 8
SAFETY PRECAUTIONS
NEVER OPERATE WITHOUT ALL GUARDS IN PLACE: Never operate without all
guards or safety features in place and in proper working order.
NEVER OPERATE IN THE PRESENCE OF FLAMMABLE LIQUIDS OR GASES: The air
compressor produces sparks during operation.
CHECK FOR DAMAGED PARTS AND AIR LEAKS: If any part of the compressor is
damaged, it should be carefully checked to determine that it will operate
correctly and perform its intended function. Check for the alignment of parts,
damage to parts, air leaks and any other conditions that may affect its
operation. A guard or any other part that is damaged or defective should be
properly repaired or replaced by an authorised service centre. Defective
pressure switches must be replaced prior to further use of the compressor.
ONLY USE WITHIN THE RECOMMENDED OPERATING TEMPERATURE RANGE: This
compressor should only be used in an ambient temperature of between 0OC
and 25OC.
CLEANING AND CONDITION OF THE COMPRESSOR: Keep the external surfaces of
the tank clean. Avoid impact damage and do not allow the tank to come into
contact with abrasive or corrosive materials.
MOVING THE COMPRESSOR: Always transport the compressor by lifting or pulling
it with the appropriate grips or handles.
USING THE COMPRESSOR FOR PAINTING:
• Do not work in enclosed areas or near naked flames.
• Make sure that the area in which you are working has good ventilation.
• Protect your nose and mouth with a suitable face mask.
• Always check the safety data sheets for substances being sprayed &
ensure manufacturers instructions are followed.
MOTOR HOUSING: Do not insert your fingers or other objects inside the motor
housing to avoid physical damage or damage to the compressor.
8
Page 9

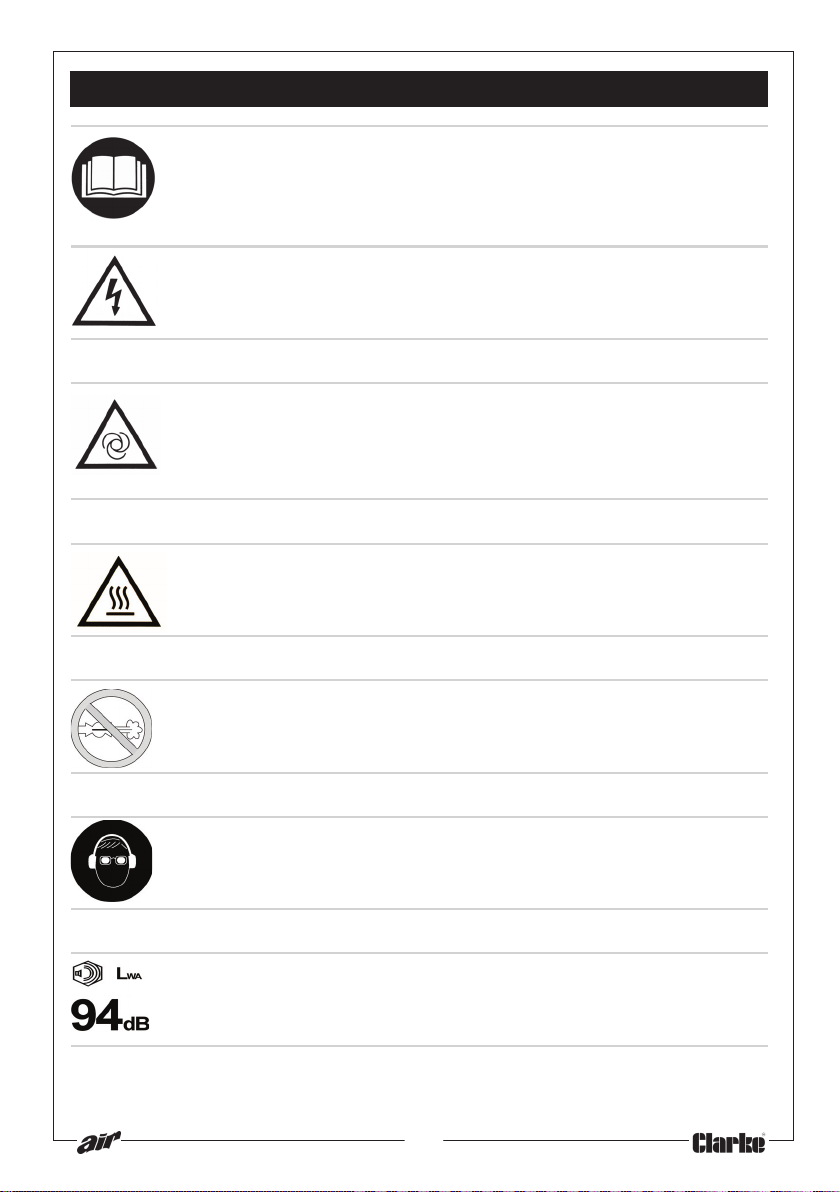

WARNING SYMBOLS
READ THIS INSTRUCTION BOOKLET CAREFULLY BEFORE
POSITIONING, OPERATING OR ADJUSTING THE
COMPRESSOR.
Risk of electric shock. The compressor must be disconnected
from the mains supply before removing any covers. Do not
use in a damp environment.
Risk of accidental start-up. The compressor could start
automatically in the event of a power cut and subsequent
reset. Do not carry the compressor while it is connected to the
power source, or when the tank is filled with compressed air.
This compressor contains surfaces which may reach a high
temperature during operation. Never operate with the motor
housing removed.
Air and condensation water can burst from the compressor
when the drain plug is removed.
Wear a safety goggles and ear protectors when using this
compressor
This compressor produces a high sound level during
operation. Ear protection should be worn.
9
Page 10
ELECTRICAL CONNECTIONS
Connect the mains lead to a 230 Volt (50Hz) single phase 30 amp electrical supply,
through a suitably fused isolator with a fuse rating of 20 Amps.
DO NOT connect to a domestic system via a 13 AMP plug.
WARNING! THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in the mains lead are coloured in accordance with the following
code:
Green & Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the flexible lead of this appliance may not correspond with the coloured
markings identifying terminals in your plug proceed as follows:
• The wire which is coloured green and yellow must be connected to the
terminal which is marked with the letter E or by the earth Symbol ( ) or coloured
green or green and yellow.
• The wire which is coloured blue must be connected to the terminal which is
marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.
We recommend that this machine is connected to the mains supply via a
Residual Current Device (RCD)
If in any doubt, DO NOT attempt any connections or repairs yourself. Consult a qualified
electrician, your local Clarke dealer or Clarke International on:
020 8988 7400 or e-mail [email protected]
10
Page 11
PARTS IDENTIFICATION
2
5
14
4
11
10
13
8
1
3
14
12
6
9
7
1 Motor housing
2 On/Off switch (red button)
3 Main reservoir pressure gauge
4 Output pressure regulator
5 Output pressure gauge
6 Trolley handle
7 Support foot
8 Drain valve
9 Compressed air reservoir
10 Transportation wheel
11 Data plate
12 Pressure regulator and cut-out
13 Oil dipstick
14 Outlet tap
11
Page 12
ASSEMBLY
WARNING!
Before assembling and using the air compressor, make sure that you have
read and understood all of the safety instructions.
Installation
Take care when lifting the compressor from the packaging.
CAUTION! Do not lift the compressor from the gauge of fittings assembly. Get
assistance if necessary. This unit weighs 54.5 kg.
After removing the compressor from its packaging, check the integrity of the
unit, making sure it has not been damaged in transit.
Fitting the Wheels / Feet
1. Fix a wheel to each side of the compressor and secure using the stub axle and
nut supplied. see Figure 1. Cover the stub axle using the cap provided.
2. Fix the two front feet as shown in figure 2.
Figure 1 Figure 2
Fitting the Handle
1. Place the handle in the correct
position and secure using the 4 bolts
supplied.
Figure 3
12
Page 13
2
2

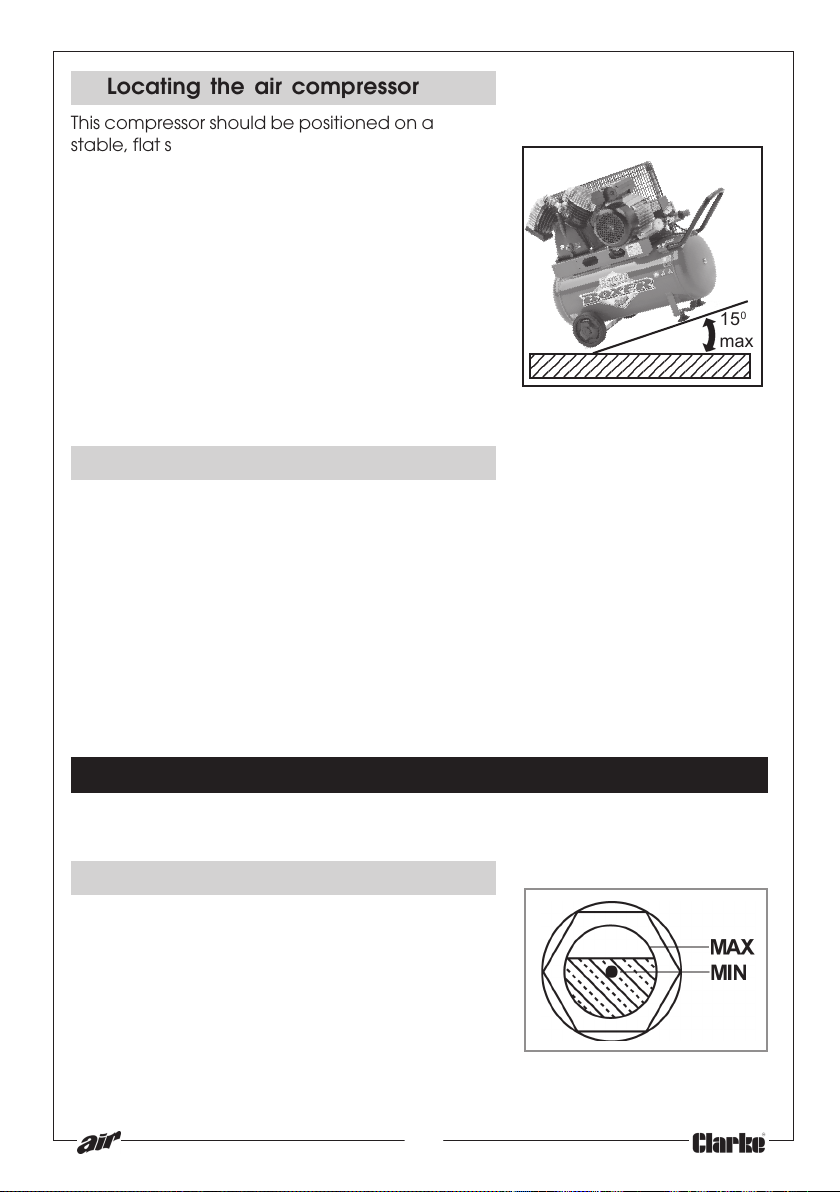

Locating the air compressor
This compressor should be positioned on a
stable, flat surface (or one with a maximum
inclination of 15O), See figure 4, and ensure it is
completely stable
If it is placed on a shelf or surface raised off the
ground, it must be secured appropriately to
prevent it from tipping off during use.
Do not cover or box in the compressor. Always
position it at least 50cm from any obstacle or
wall
Make sure the compressor has good all round
23456789012345678901
23456789012345678901
Figure 4
15
max
ventilation.
Moving the air compressor
Before moving the compressor, switch off and disconnect it from the mains
power supply.
• Always use the handle.
• Do not lift by (or put strain on) fittings, valves or hoses.
• Take care when moving the compressor to avoid damaging the valves or
fittings.
The compressor is heavy, take care when lifting and moving this compressor to
avoid personal injury. Get assistance if necessary.
PREPARING FOR USE
Before connecting your compressor to the mains supply,
Check the Oil
0
1 Check the sight glass, and ensure the oil level
is between the min and max mark. See figure
5.
• If needed top up the reservoir with Clarke
SAE 40 Compressor oil, available from your
Clarke dealer.
13
Figure 5
Page 14
PREPARING FOR USE
Before connecting your compressor to the mains supply, check the following:-
• The mains voltage is 230V.
• The ON/OFF switch is in the OFF (lower) position.
• The pressure regulator should be set at its lowest setting, i.e. turned fully
anticlockwise.
• If the compressor has not been used for 24 hours or so, open the drain
valve to drain any condensate which may have accumulated. When
clear, close the drain valve, finger tight.
IMPORTANT: If the receiver is under pressure, keep your hands well away
from the air being expelled.... remember, compressed air is DANGEROUS!
WARNING!
Before connecting any air tool, make sure you have read and fully
understood the manufacturers instruction booklet for the tool being used.
Also ensure that the tool is compatible with the compressor and hose
specifications.
If the pressure rating of the tool is less than 10 bar, the pressure regulator must
be used to adjust the output pressure.
1 Ensure that the red On/Off switch
is set to the OFF position (pressed
down). See figure 6.
2. Insert the mains plug into the mains
socket and switch on the power.
3. Pull up the red ON/OFF switch up
and run the compressor (with the
outlet tap open) for 10 to 15
seconds, to allow the distribution
of the lubricating oil.
4 Attach the air hose to the outlet
connector.
On/Off Switch
Figure 6
14
Page 15
OPERATING INSTRUCTIONS
Switching the air compressor ON
The compressor will make a continuous loud noise when the tank is charging this is normal.
1 Lift the red On/Off switch located on top of the pressure regulator to switch
the compressor ON.
• The compressor will then charge the main tank to 10 bar (145 psi). When
this pressure is reached, the compressor will switch off.
• The compressor will restart automatically whenever the pressure in the
main tank falls below a certain level.

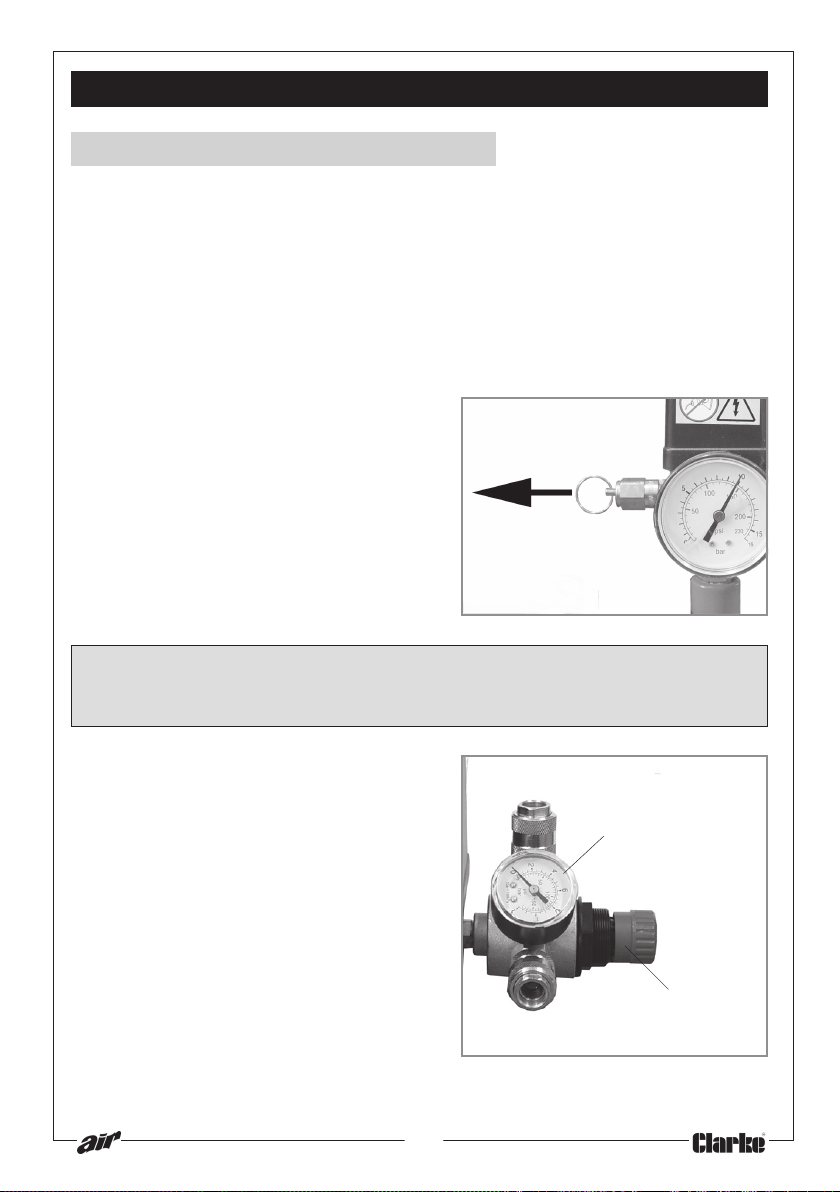

2 Check the operation of the safety
valve, under pressure, daily by pulling
the ring as shown in figure 7. Air should
be released you pull the ring and stop
when the ring is released.
• If the valve does not operate as
described, or if the valve is stuck, it
must be replaced by qualified
service personnel before using the
compressor.
Figure 7
WARNING!
Do not remove or attempt to adjust the safety valve.
3 Release the pressure regulater by
pulling it out, turn it to select the
pressure you need.
4 Lock the pressure regulator by pushing
it it towards the guages. See figure 8.
• This will prevent you from
accidentally increasing the pressure
to a dangerous level.
15
Output pressure
gauge
Pressure
regulator
Figure 8
Page 16
OPERATING INSTRUCTIONS

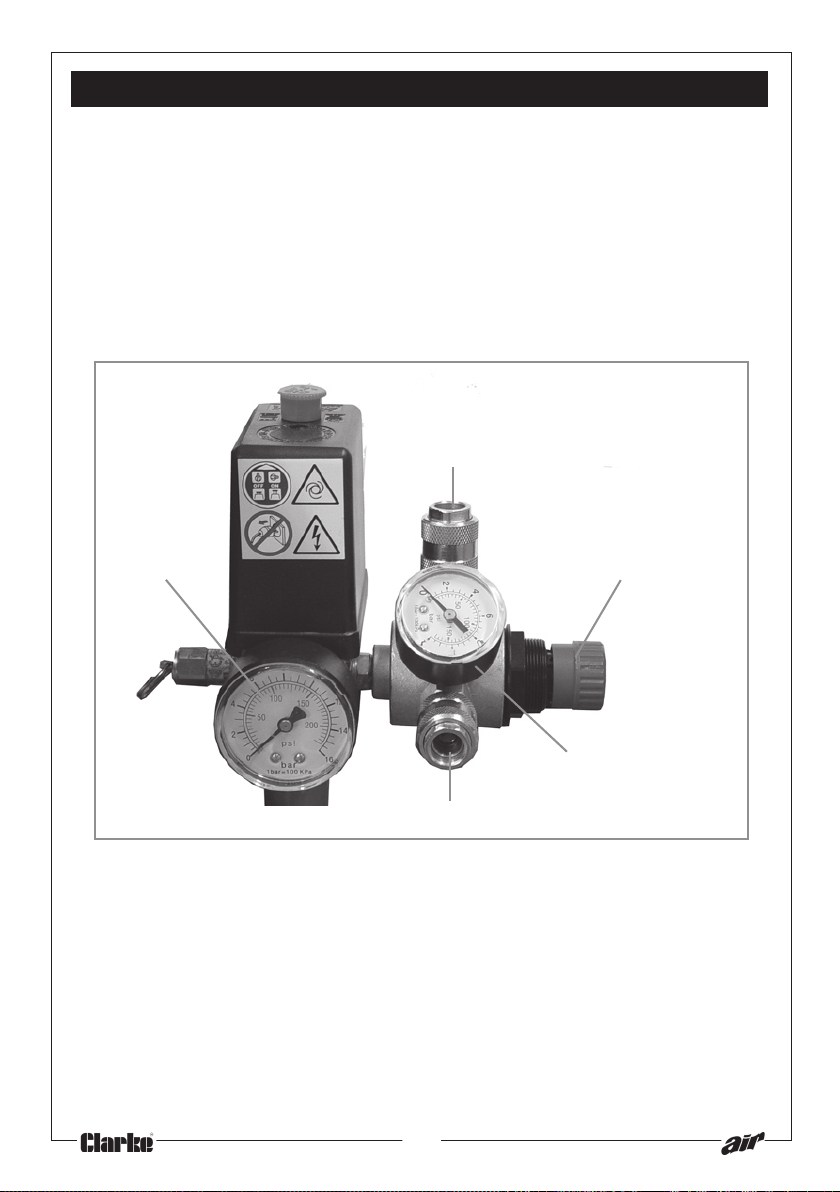

5 The illustration below shows the pressure regulator locked at 6 bar .
• Never set the pressure higher than the rated pressure of the attachments
being used, as there is a risk of bursting and resultant injury.
To increase the output pressure from this value you will need to release the
locking ring by pulling it outwards.
• Only alter this setting if you are using an air tool which is capable of
supporting the higher pressure.
Outlet
Main
reservoir
pressure
gauge
Pressure regulator
Figure 9
Output pressure gauge
Outlet
16
Page 17
OPERATING INSTRUCTIONS
Switching the air compressor OFF
To switch the air compressor off,
1. Close the outlet tap and press down on the on/off button (red button)
located on top of the air compressor.
2. Switch off the mains supply and remove the plug.
• You should never leave the compressor air reservoir unattended while
under pressure.
• Always release the pressure from the reservoir when not in use or prior
to storage, as described in 'Draining the reservoir' on page 18.
Removing a tool from the air hose
WARNING!
Always set the pressure regulator to zero before attempting to remove or
replace a tool.
1 Stop the power supply by pressing down on the on/off button (red button)
located on top of the air compressor.
2 Close the air outlet tap and trigger the equipment (spraygun, air tool etc),
to release air from the air hose BEFORE disconnecting the hose from the
machine.

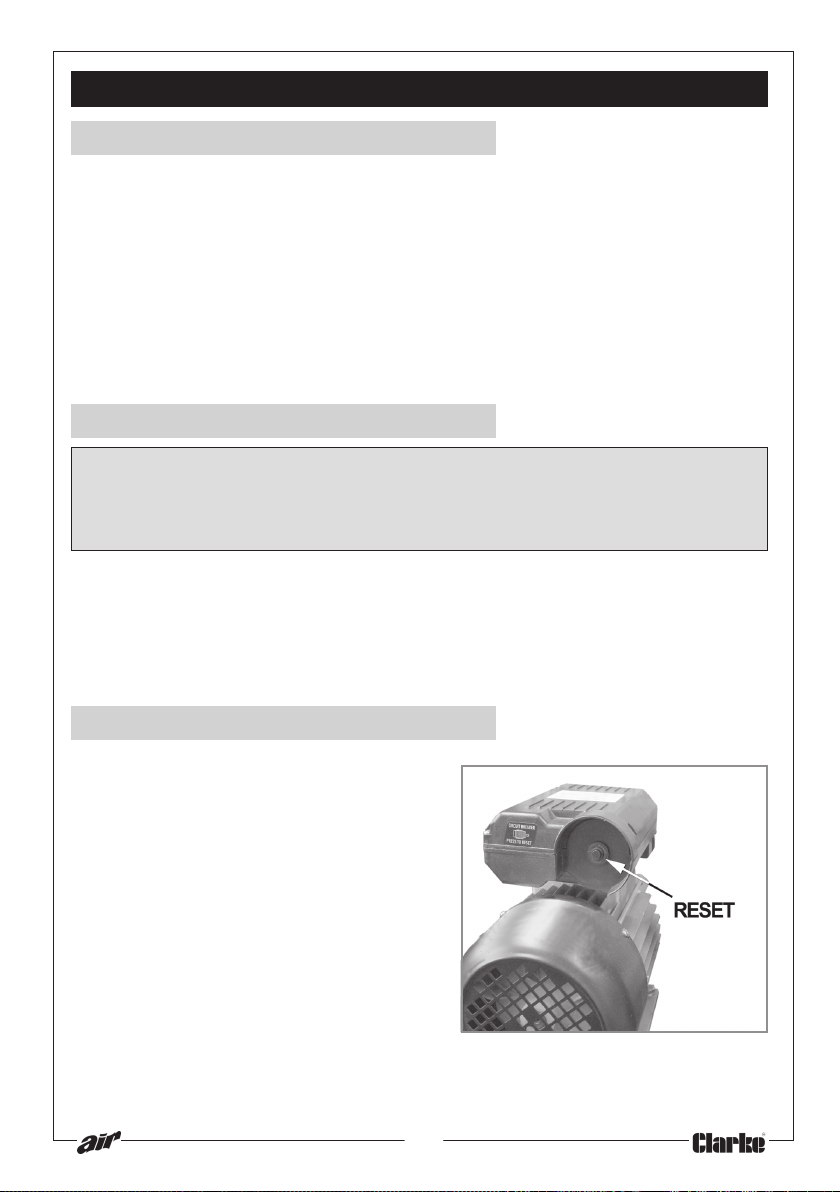

Reset button
This compressor is equipped with a thermal
overload device, which operates as a
safety device to protect the motor.
When the motor overheats for any reason,
the overload cutout automatically cuts the
power thereby preventing damage to the
motor.
Wait around 5 minutes for the motor to cool
and press the reset button. See figure 10.
If you restart the compressor and the
overload cutout activates again, switch off
the compressor, remove the plug from the
mains and have your compressor checked by a qualified service agent.
Figure 10
17
Page 18
OPERATING INSTRUCTIONS
Draining the reservoir
CAUTION! It is important to drain the reservoir before storage.
1 Press the red On/Off button down to switch the air compressor off and
remove the plug from the mains supply.
• Place a suitable container beneath the compressor to catch any
condensate.
2 Carefully undo the drain valve anticlockwise until you hear a hissing noise,
this is the reservoir depressurising. See figure 11.
• When the reservoir pressure gauge indicates zero and the hissing has
stopped, tighten the drain valve again.
Figure 11
Drain valve
18
Page 19
ROUTINE MAINTENANCE
IMPORTANT: Before carrying out any maintenance, always disconnect the
compressor from the mains supply, drain the air receiver and, if necessary,
allow the machine to cool down before starting work.
Daily
Check Oil
Ensure the oil level is between the min and max marks on the dipstick. See page
12 and top-up if necessary - (use Clarke SAE 40compressor oil, available from
your local dealer).
Drain the tank
After use, always open the drain valve to ensure that any liquid that may have
condensed, is drained off. See page 18.
Monthly

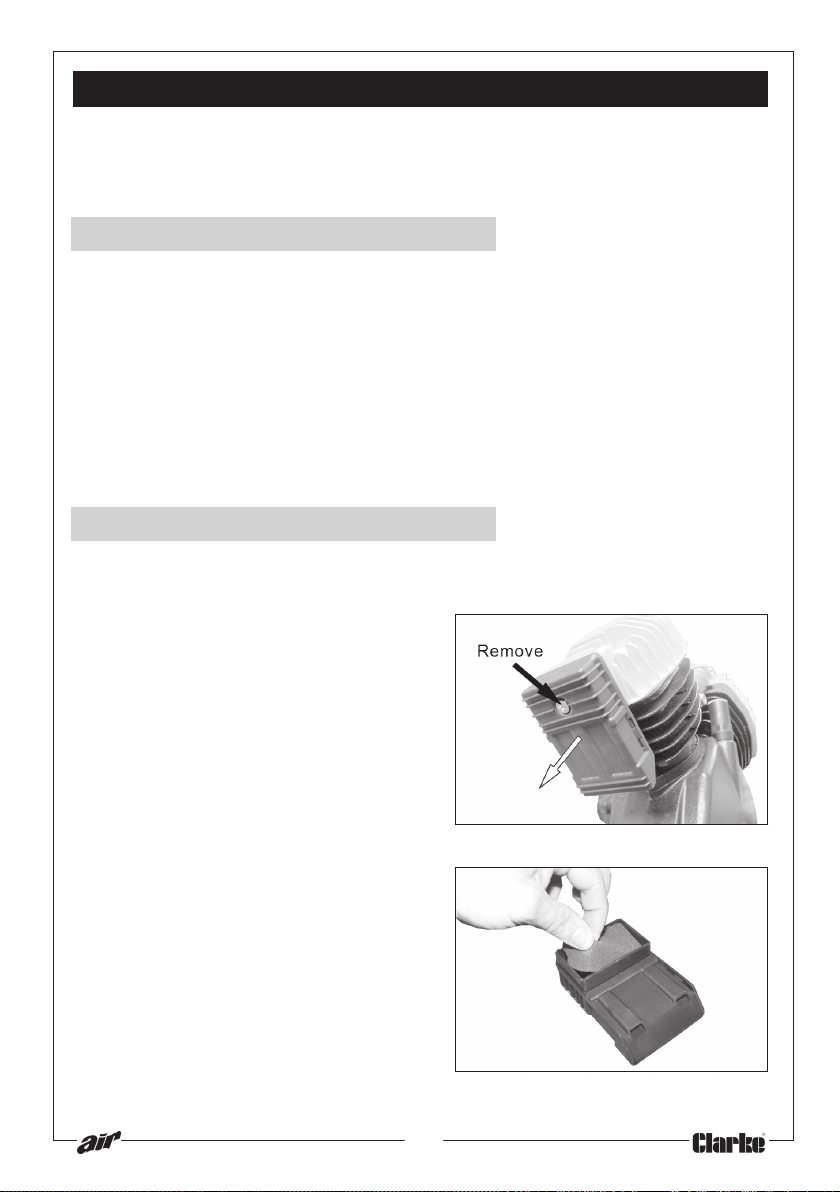

The air intake filter should be inspected on a MONTHLY basis, and more often in
dusty conditions,
To clean the air intake filter,
1 Remove the screw and pull the filter
cover away from the compressor as
shown. See figure 12.
2 Remove the sponge filter from the
filter cover. See figure 13.
3 Clean the sponge and the filter
cover using a soft brush.
• If necessary, the sponge filter may
be gently washed in warm soapy
water,
• Rinse and allow the filter to dry
thoroughly before refitting.
5 Ensure that the filter and filter cover is
then placed back into its original
position.
• If any part of the filter is
damaged, you should obtain a
replacement.
Figure 12
Figure 13
19
Page 20
ROUTINE MAINTENANCE
Every six months
Make sure that all bolts are securely tightened.
Clean all the external parts of the
compressor.
Oil
After the first 100 hours use, replace
the oil completely using Clarke SAE40
compressor oil. Thereafter, replace the
oil completely after every 500 hours of
operation or every 6 months.
To empty the oil from the machine,
remove the oil drain plug from the
crankcase cover.
Non Return Valve
Examine the non-return valve, and
replace the gasket and valve if
necessary
Figure 14
Figure 15
Figure 16
20
Page 21
ROUTINE MAINTENANCE

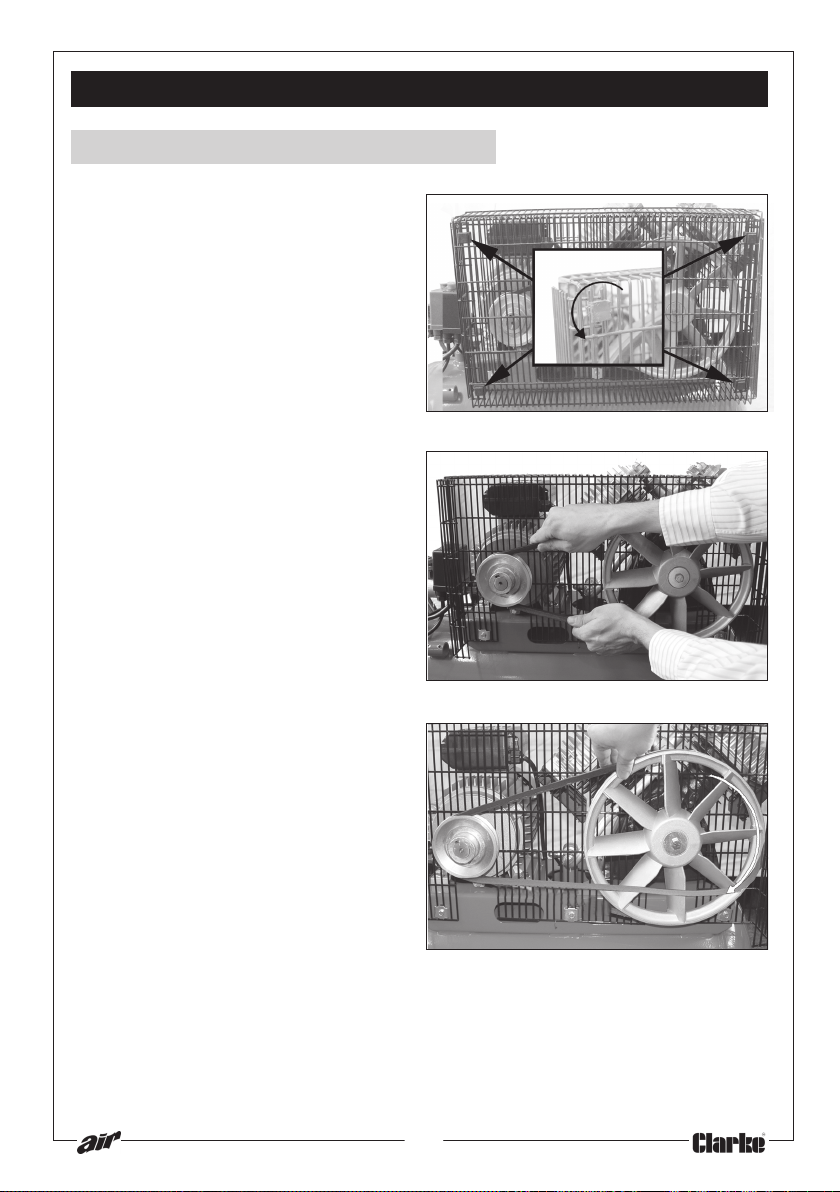

Replacing the drive belt
1 Rotate the clips on the front of the
safety cage. Remove the front of
the cage and take out the worn
or broken drive belt.
2. Place the replacement drive belt
over the small wheel. See figure
18.
Figure 17
3. Position part of the drive belt over
the large belt wheel as shown in
figure 19.
4. Rotate the large belt wheel by
hand in a anticlockwise direction
whilst guiding the belt on to the
belt wheel.
Figure 18
Figure 19
21
Page 22
TROUBLE SHOOTING
With considerate use, your Clarke Boxer 55 Air Compressor should provide you
with long and trouble free service. Routine checks should be made on both the
electrical supply as well as on all the compressed air lines and connections. If
any fault appears, the reason for which is not immediately obvious, we
recommend that you contact your local Clarke dealer.
tluaF esuaC ydemeR
rosserpmocehT
seoddnadeppots
.tratston
.snoitcennocdaB
lacirtcelekcehC
dnanaelC.snoitcennoc
.yrassecensanethgit
hctiwstuotucdaolrevO
ytudrodeppirtsah
neebsahelcyc
.dedeecxe
.tuo
rosserpmocehT
eod
.ylisae
hcaertons
erusserpteseht
staehrevodna
.tratston
seodrosserpmoC
morfgnikaelriA
usserpeht
er
nehwevlavhctiws
sirosserpmoceht
.gninnurton
morferusserpriA
lliwrotalugereht
.tsujdaton
sirosserpmocehT
dnaysionyrev
cillatemasekam
.dnuosgnikconk
.nekorb
.nekorb
tnrubsgnidniwrotoM
daehrosserpmoC
evlavronwolbteksag
degrahcreviecerriA lepxeotevlavniardnepO
.evlavnruter-nonytluaF reviecerniardtsriF
nihtiwmgarhpaidehT
siydobrotalugereht
degamadrosserpmoC
.luahrevosdeendna
ehtgnisserp
.rotom
ebsecafrus
.relaed
.tnega
tiawdnaffohctiwS
erofebsetunim5xorppa
nottubteser
.niaganognihctiwsdna
lacolruoytcatnoCekralC
tnemecalperarofrelaed
otrosserpmocroftiaW
elbmessasid,nwodlooc
ynaecalperdnadaeh
.stnenopmocnekorb
erof
gnilaesllanaelcylluferaC
tbuodnifI.gnilbmessaer
ekralCruoytcatnoc
dluohsrosserpmoC.ria
erusserpnehwniagatrats
.isp59.xorppaotsecuder
evomeR.riafoyletelpmoc
,gulpdneevlaveht
evlavehtnaelcylluferac
dnateksagehtdnataes
rugiFeeS.elbmessaer
.41e
rotalugerecalpeR
otenihcamehtnruteR
ecivrestseraenruoy
CAUTION Do not attempt any repair or adjustment if you are uncertain as
to how it should be done. If you have any queries, contact your local
Clarke Dealer.
22
Page 23
SPECIFICATIONS
Electrical Supply ..................................... 230 V, 1 Phase 50Hz
Max. Operating Pressure ....................... 10 bar / 145 psi
Motor Rating ........................................... 3 HP
Air Displacement .................................... 12.2 cuft/min
Air Receiver ............................................ 50 litre
Net Weight .............................................. 54.5kg
Dimensions ( L x W x H ) .......................... 825 x 395 x 715 mm
Duty Cycle ............................................... S1 (continuous)
Part No. .................................................... 2225455
Please note that the details and specifications contained herein, are correct at
the time of going to print. However, we reserve the right to change
specifications at any time without prior notice. Always consult the machine’s
data plate
23
Page 24
PARTS DIAGRAM
24
Page 25
PARTS LIST
NO. DESCRIPTION PART NO.
1 OIL GLASS NO GASKET FN012101000
2 OIL DRAIN TAP FN012022000
3 CYLINDER GASKET FN113175015
4 CYLINDER FN113181001
5 STUD BOLT FN113125043
6 NUT FN014003018
7 O RING FN010057000
8 SCREW FN014013035
9 PLUG FN011018000
10 HEAD GASKET FN116091014
11 INTAKE FILTER FN317051000
12 CONROD (MACHINING) FN113181002
13 PISTON FN113165013
14 PISTON RING KIT FN216025002
15 CRANKSHAFT FN113181003
16 CIRCLIP FN015005000
17 BEARING FN033027000
18 CIRCLIP FN015148000
19 FRONT SUPPORT FN113172002
20 BEARING FN033006000
21 SCREW FN014001053
22 WASHER FN014005001
23 FLYWHEEL FN013160010
24 OIL SEAL FN010183000
25 FRONT SUPPORT GASKET FN113172015
26 PISTON PIN FN116025006
27 CIRCLIP FN015023000
28 SCREW F/RO FN014002041
29 SCREW FN014020001
30 HEAD FN116091003
31 VALVE HOLDER PLATE FN413175002
32 FILTER ELEMENT FN116091018
33 O RING FN010102000
34 AFTER-COOLER FN113194002
35 SCREW FN014013082
36 O RING FN010078000
37 OIL FILLER PLUG FN012047000
38 O RING FN010024000
39 TAP ASSEMBLY FN312047000
40 OIL TAP SPACER FN113172009
NO. DESCRIPTION PART NO.
41 CRANKCASE FN113181011
42 JOINT FOR AFTER COOLER FN113196001
43 JOINT COLLECTOR FN116055038
44 O RING FN010201000
45 OIL MIRROR GASKET FN010231000
46 OIL GLASS FN012029000
47 SCREW FN014001048
48 BULKHEAD FN113181010
49 SCREW FN017017008
50 CIRCLIP FN015146000
51 GASKETS FN213195002
52 TANK FN170121001V
53 PLUG FN111008000
54 DRAIN COCK FN022026000
55 WHEELS SET FN470QH0012
56 HANDLE FN168IQ0002
57 NON RETURN VALVE FN347062000
58 VALVE MAINTENANCE SET FN247002000
59 RILSAN PIPE FN046001000
60 L FITTING FN011289000
61 L FITTING FN011959000
62 DELIVERY PIPE FN170YZ0003
63 MOTOR FN540E150605
64 PULLEY FN140380004
65 V-BELT FN045020000
66 BELT GUARD FN199140647
67 BELT GUARD BLOCK FN020320000
68 BELT GUARD BLOCK FN020319000
69 SQUARE WASHER FN014005007
70 CABLE WITHOUT PLUG FN174001030
71 NIPPLE FN199110140
72 SAFETY VALVE FN047206000
73 PRESSURESWITCH FN321087000
74 GAUGE FN330007000
75 NIPPLE FN011017000
76 AIR OUTLET TAP FN322007000
77 PRESSURE REDUCER FN319131000
78 GAUGE FN330006000
79 PUMP SKM 13/S FN5131960000
SPARE PARTS AND SERVICE
For spare parts and service, please contact your nearest dealer, or Clarke
International, on one of the following numbers.
PARTS & SERVICE TEL.: 020 8988 7400
PARTS & SERVICE FAX: 020 8558 3622
or e-mail as follows:
PARTS: [email protected]
SERVICE: [email protected]
25
