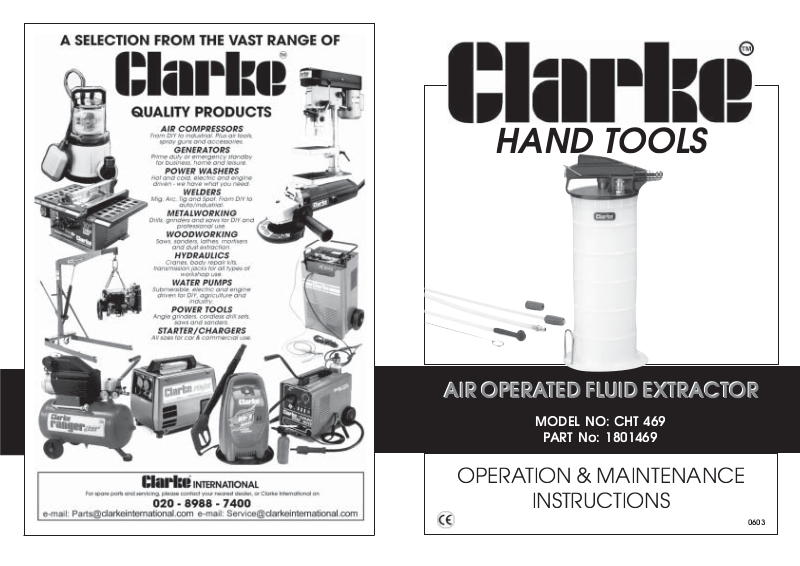

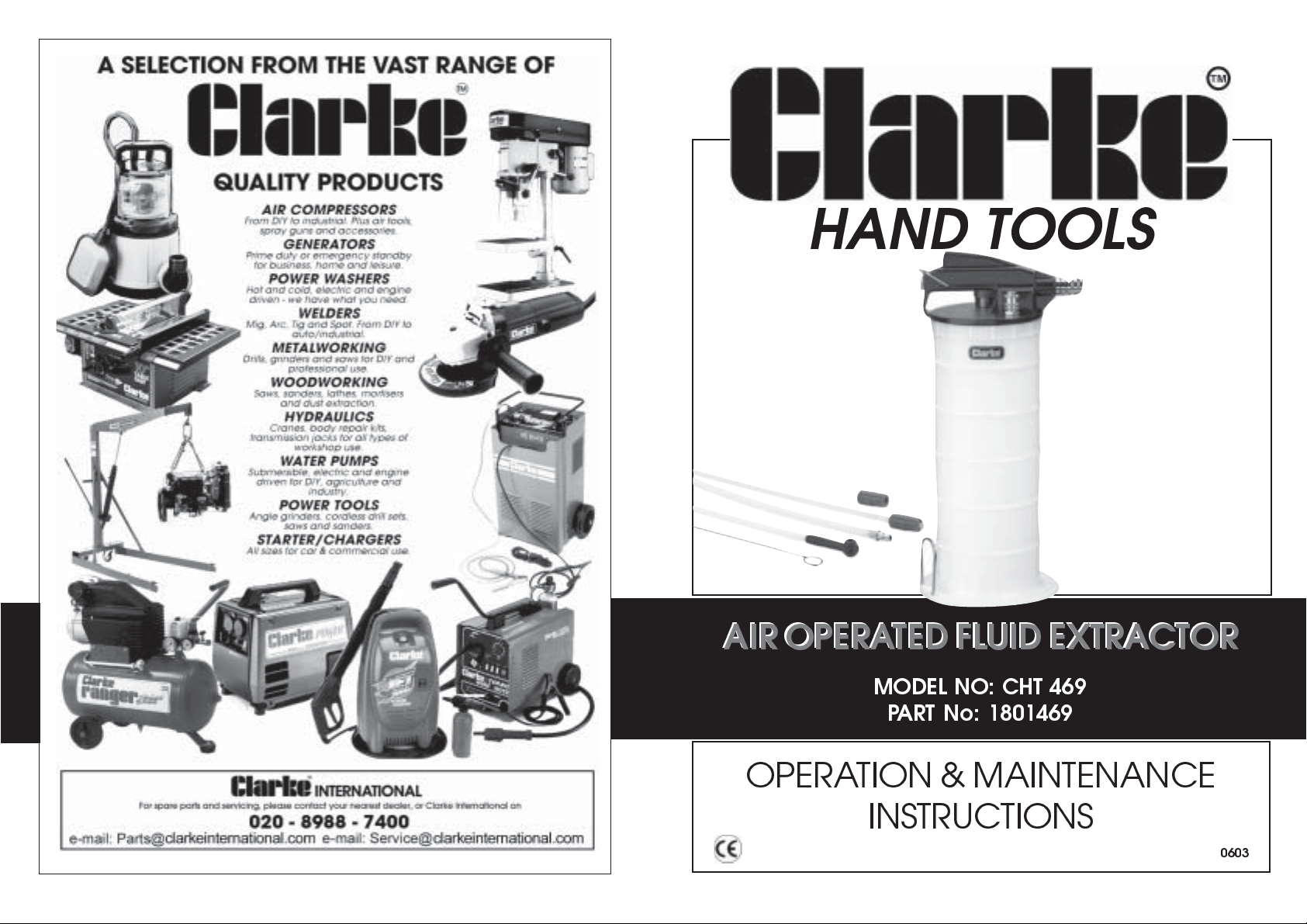

Page 1
HAND TOOLS
AIR OPERATED FLUID EXTRACTOR
AIR OPERATED FLUID EXTRACTOR
MODEL NO: CHT 469
PART No: 1801469
OPERATION & MAINTENANCE
INSTRUCTIONS
0603
Page 2

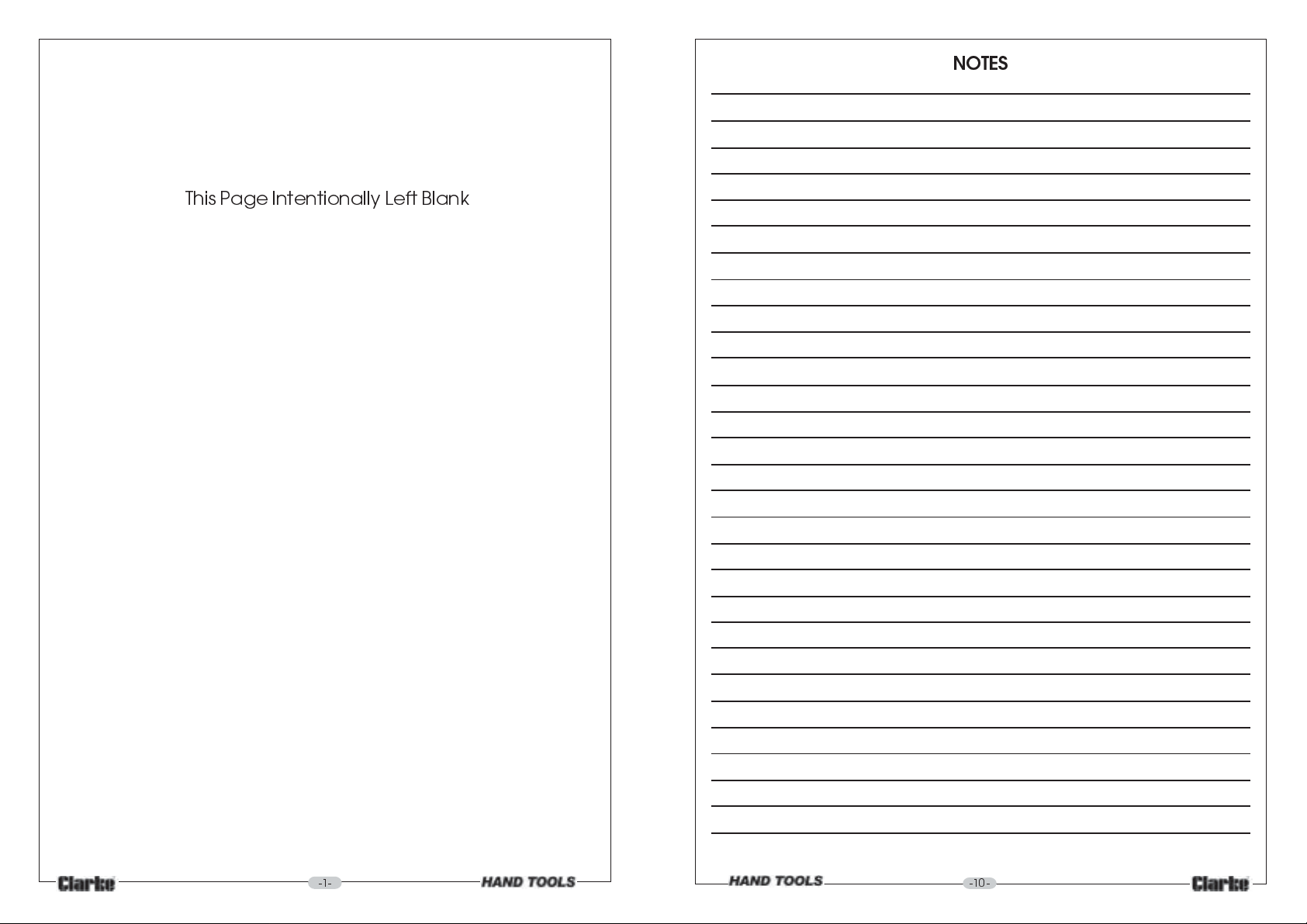

This Page Intentionally Left Blank
NOTES
-1- -10 -
Page 3

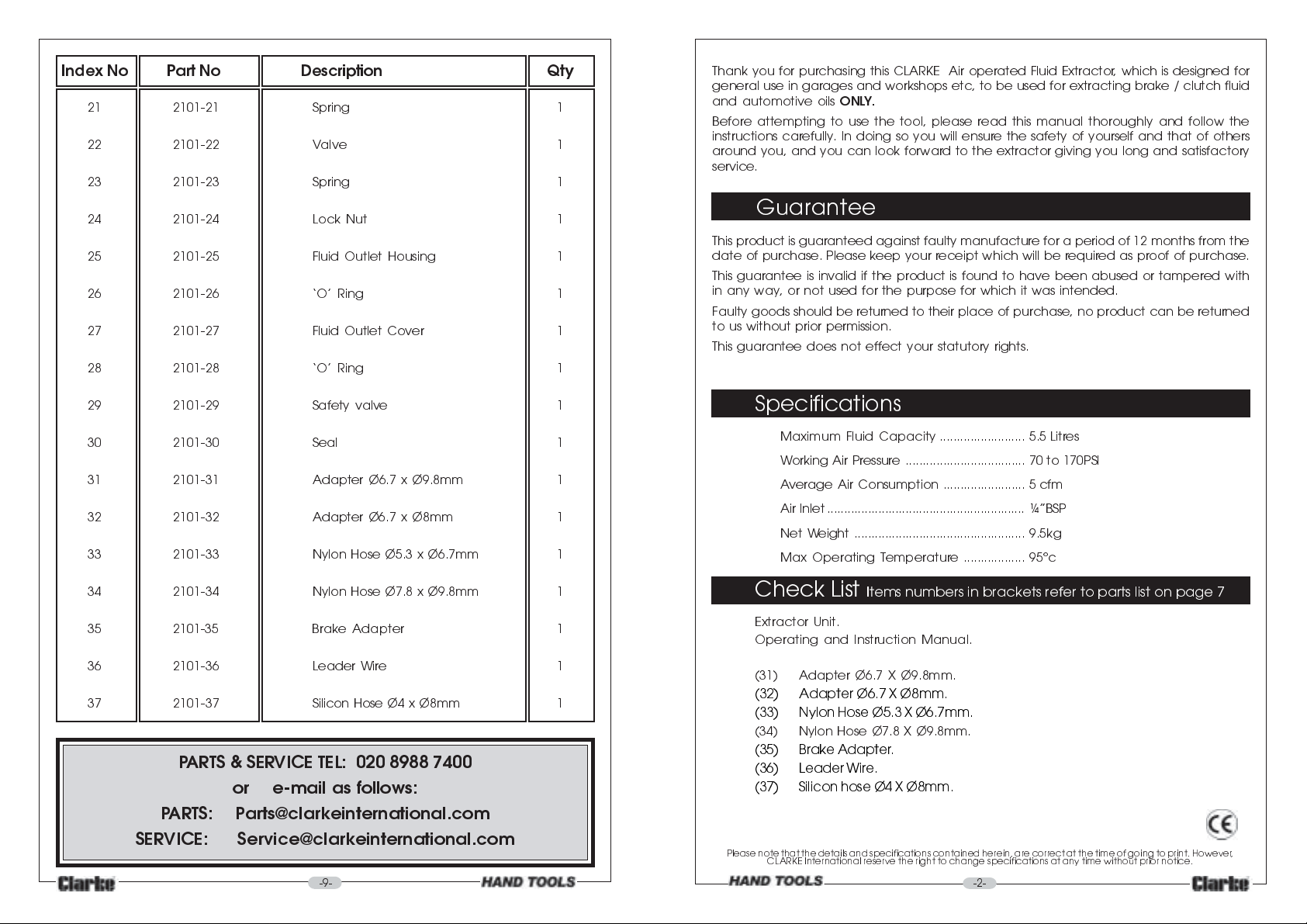

Index No Part No Description Qty
21 2101-21 Spring 1
22 2101-22 Valve 1
23 2101-23 Spring 1
Thank you for purchasing this CLARKE Air operated Fluid Extractor, which is designed for
general use in garages and workshops etc, to be used for extracting brake / clutch fluid
and automotive oils
Before attempting to use the tool, please read this manual thoroughly and follow the
instructions carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to the extractor giving you long and satisfactory
service.
ONLY.
24 2101-24 Lock Nut 1
25 2101-25 Fluid Outlet Housing 1
26 2101-26 O Ring 1
27 2101-27 Fluid Outlet Cover 1
28 2101-28 O Ring 1
29 2101-29 Safety valve 1
30 2101-30 Seal 1
31 2101-31 Adapter Ø6.7 x Ø9.8mm 1
32 2101-32 Adapter Ø6.7 x Ø8mm 1
33 2101-33 Nylon Hose Ø5.3 x Ø6.7mm 1
34 2101-34 Nylon Hose Ø7.8 x Ø9.8mm 1
35 2101-35 Brake Adapter 1
Guarantee
This product is guaranteed against faulty manufacture for a period of 12 months from the
date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with
in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned
to us without prior permission.
This guarantee does not effect your statutory rights.
Specifications
Maximum Fluid Capacity ......................... 5.5 Litres
Working Air Pressure ................................... 70 to 170PSI
A verage Air Consumption ........................ 5 cfm
Air Inlet .......................................................... ¼BSP
Net Weight .................................................. 9.5kg
Max Operating Temperature .................. 95ºc
Check List
Extractor Unit.
Operating and Instruction Manual.
Items numbers in brackets refer to parts list on page 7
36 2101-36 Leader Wire 1
37 2101-37 Silicon Hose Ø4 x Ø8mm 1
PARTS & SERVICE TEL: 020 8988 7400
or e-mail as follows:
PARTS: Parts@clarkeinternational.com
SERVICE: Service@clarkeinternational.com
-9- -2-
(31) Adapter Ø6.7 X Ø9.8mm.
(32) Adapter Ø6.7 X Ø8mm.
(33) Nylon Hose Ø5.3 X Ø6.7mm.
(34) Nylon Hose Ø7.8 X Ø9.8mm.
(35) Brake Adapter.
(36) Leader Wire.
(37) Silicon hose Ø4 X Ø8mm.
Please note that the details and specifications contained herein, are correct at the time of going to print. However,
CLARKE International reserve the right to change specifications at any time without prior notice.
Page 4

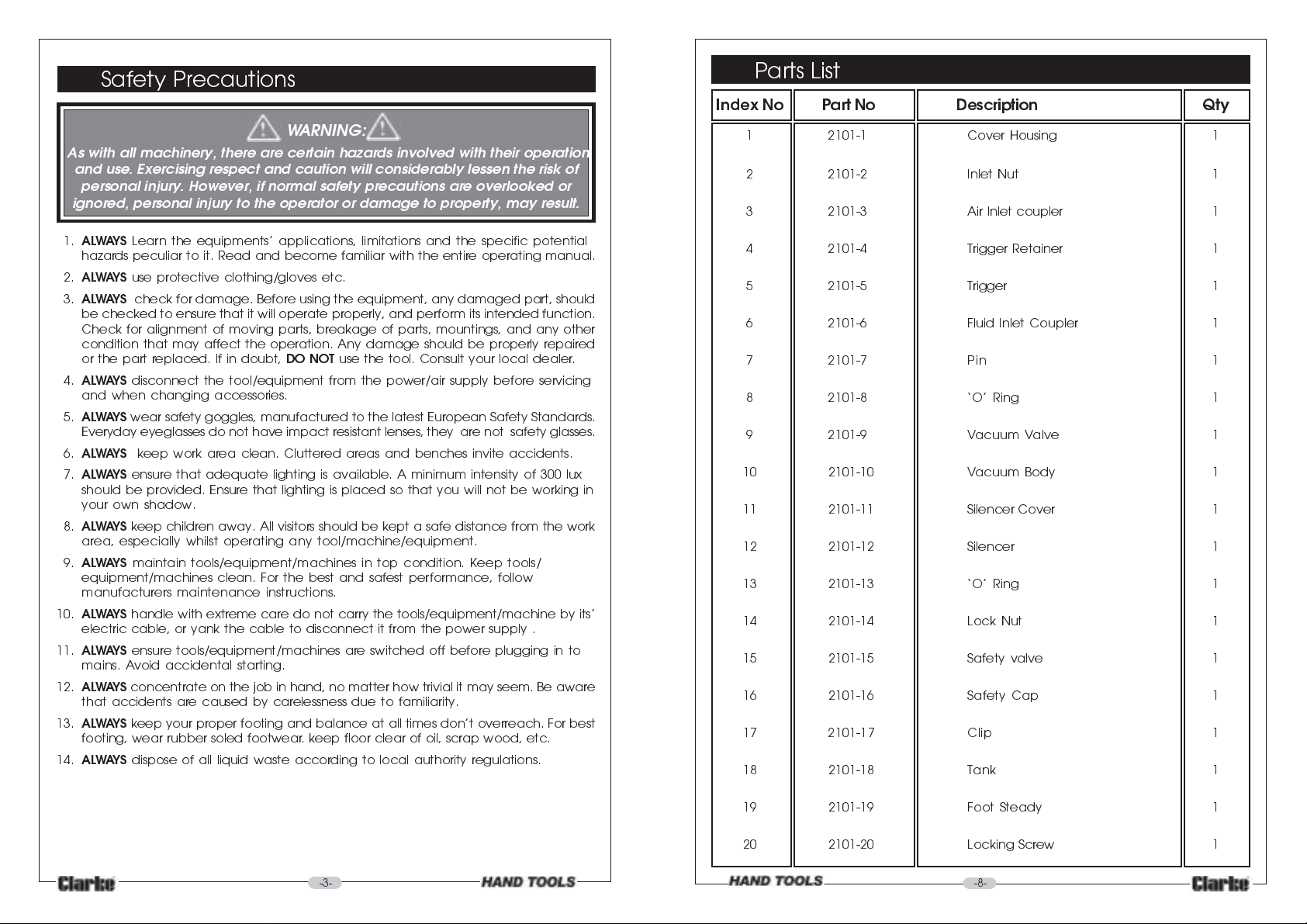

Safety Precautions
WARNING:
As with all machinery, there are certain hazards involved with their operation
and use. Exercising respect and caution will considerably lessen the risk of
personal injury. However, if normal safety precautions are overlooked or
ignored, personal injury to the operator or damage to property, may result.
1.
ALWAYS
hazards peculiar to it. Read and become familiar with the entire operating manual.
2.
ALWAYS
3.
AL WA YS
be checked to ensure that it will operate properly, and perform its intended function.
Check for alignment of moving parts, breakage of parts, mountings, and any other
condition that may affect the operation. Any damage should be properly repaired
or the part replaced. If in doubt,
4.
ALWAYS
and when changing accessories.
5.
AL WAYS
Everyday eyeglasses do not have impact resistant lenses, they are not safety glasses.
6.
AL WAYS
7.
ALWAYS
should be provided. Ensure that lighting is placed so that you will not be working in
your own shadow.
8.
ALWAYS
area, especially whilst operating any tool/machine/equipment.
9.
ALWAYS
equipment/machines clean. For the best and safest performance, follow
manufacturers maintenance instructions.
10.
AL WAYS
electric cable, or yank the cable to disconnect it from the power supply .
11.
ALWAYS
mains. Avoid accidental starting.
12.
AL WAYS
that accidents are caused by carelessness due to familiarity.
13.
ALWAYS
footing, wear rubber soled footwear. keep floor clear of oil, scrap wood, etc.
14.
ALWAYS
Learn the equipments applications, limitations and the specific potential
use protective clothing/gloves etc.
check for damage. Before using the equipment, any damaged part, should
DO NOT
disconnect the tool/equipment from the power/air supply before servicing
wear safety goggles, manufactured to the latest European Safety Standards.
keep work area clean. Cluttered areas and benches invite accidents.
ensure that adequate lighting is available. A minimum intensity of 300 lux
keep children away. All visitors should be kept a safe distance from the work
maintain tools/equipment/machines in top condition. Keep tools/
handle with extreme care do not carry the tools/equipment/machine by its
ensure tools/equipment/machines are switched off before plugging in to
concentrate on the job in hand, no matter how trivial it may seem. Be aware
keep your proper footing and balance at all times dont overreach. For best
dispose of all liquid waste according to local authority regulations.
use the tool. Consult your local dealer .
Parts List
Index No Part No Description Qty
1 2101-1 Cover Housing 1
2 2101-2 Inlet Nut 1
3 2101-3 Air Inlet coupler 1
4 2101-4 Trigger Retainer 1
5 2101-5 Trigger 1
6 2101-6 Fluid Inlet Coupler 1
7 2101-7 Pin 1
8 2101-8 O Ring 1
9 2101-9 Vacuum Valve 1
10 2101-10 Vacuum Body 1
11 2101-11 Silencer Cover 1
12 2101-12 Silencer 1
13 2101-13 O Ring 1
14 2101-14 Lock Nut 1
15 2101-15 Safety valve 1
16 2101-16 Safety Cap 1
17 2101-17 Clip 1
18 2101-18 Tank 1
19 2101-19 Foot Steady 1
20 2101-20 Locking Screw 1
-3- -8-
Page 5

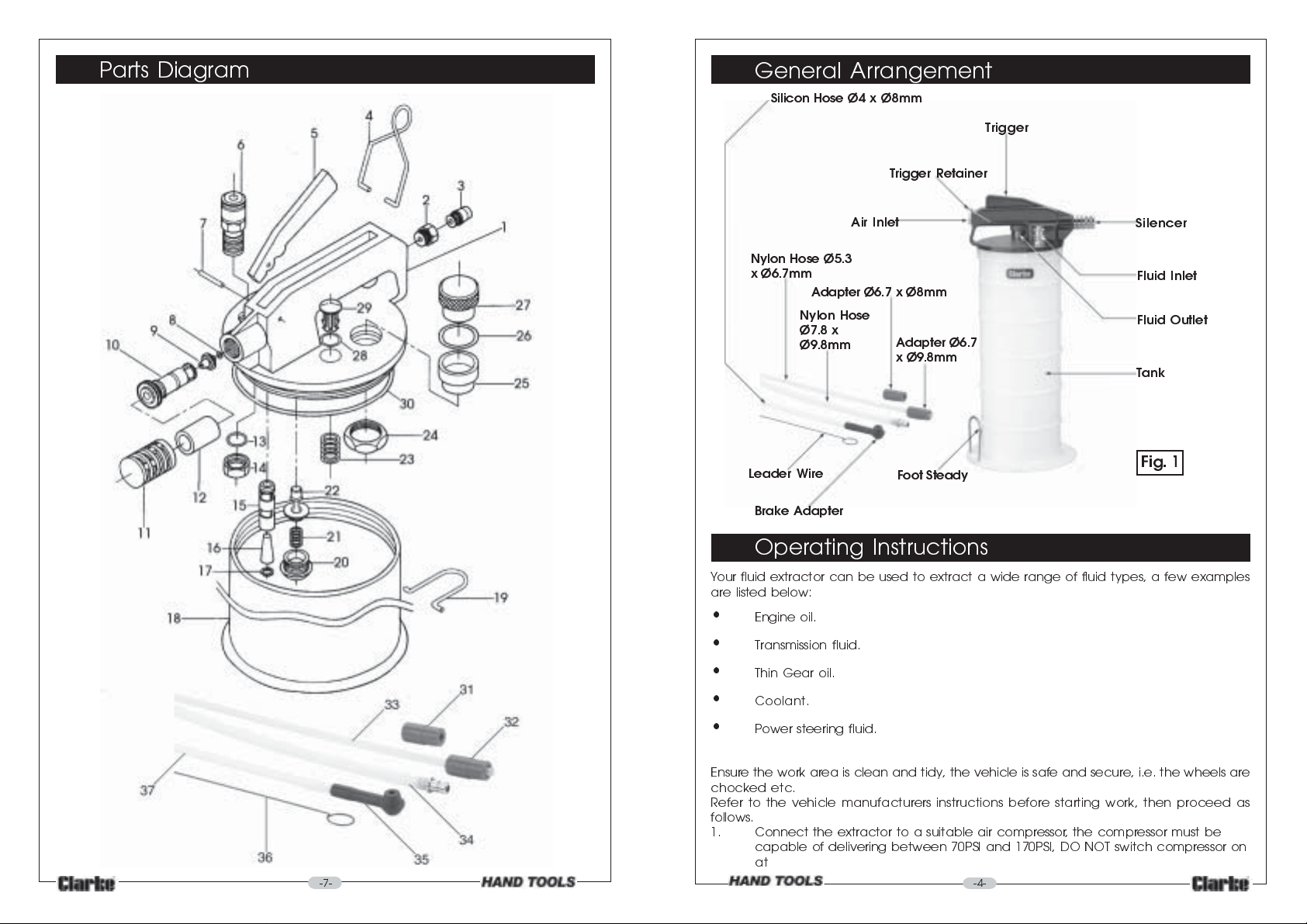

Parts Diagram
General Arrangement
Silicon Hose Ø4 x Ø8mm
Trigger
Trigger Retainer
Nylon Hose Ø5.3
x Ø6.7mm
Adapter Ø6.7 x Ø8mm
Nylon Hose
Ø7.8 x
Ø9.8mm
Leader Wire
Brake Adapter
Air Inlet
Adapter Ø6.7
x Ø9.8mm
Foot Steady
Silencer
Fluid Inlet
Fluid Outlet
Tank
Fig. 1
Operating Instructions
Your fluid extractor can be used to extract a wide range of fluid types, a few examples
are listed below:
Engine oil.
Transmission fluid.
Thin Gear oil.
Coolant.
Power steering fluid.
Ensure the work area is clean and tidy, the vehicle is safe and secure, i.e. the wheels are
chocked etc.
Refer to the vehicle manufacturers instructions before starting work, then proceed as
follows.
1. Connect the extractor to a suitable air compressor, the compressor must be
capable of delivering between 70PSI and 170PSI, DO NOT switch compressor on
at
-7- -4-
Page 6

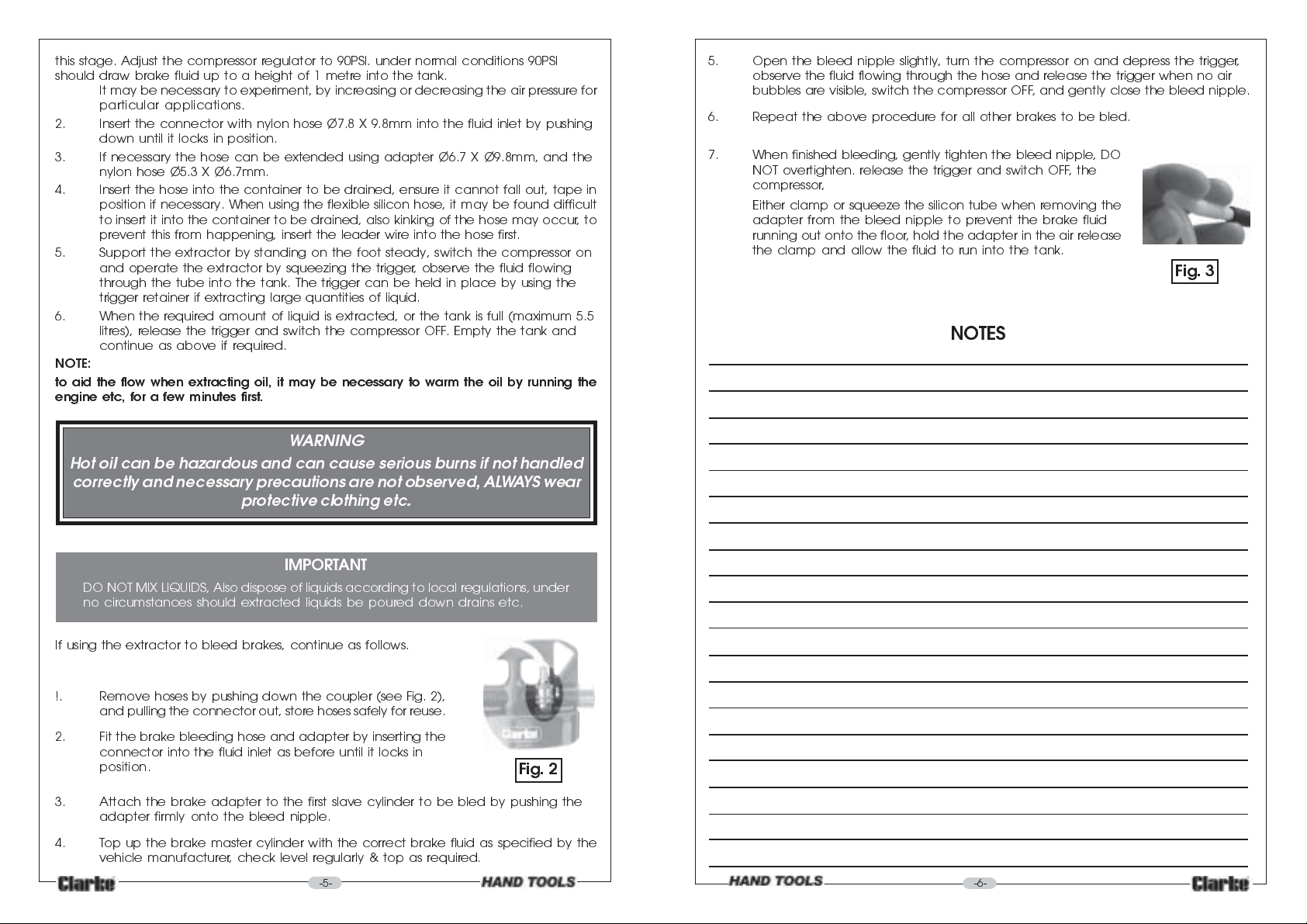

this stage. Adjust the compressor regulator to 90PSI. under normal conditions 90PSI
should draw brake fluid up to a height of 1 metre into the tank.
It may be necessary to experiment, by increasing or decreasing the air pressure for
particular applications.
2. Insert the connector with nylon hose Ø7.8 X 9.8mm into the fluid inlet by pushing
down until it locks in position.
3. If necessary the hose can be extended using adapter Ø6.7 X Ø9.8mm, and the
nylon hose Ø5.3 X Ø6.7mm.
4. Insert the hose into the container to be drained, ensure it cannot fall out, tape in
position if necessary. When using the flexible silicon hose, it may be found difficult
to insert it into the container to be drained, also kinking of the hose may occur, to
prevent this from happening, insert the leader wire into the hose first.
5. Support the extractor by standing on the foot steady, switch the compressor on
and operate the extractor by squeezing the trigger, observe the fluid flowing
through the tube into the tank. The trigger can be held in place by using the
trigger retainer if extracting large quantities of liquid.
6. When the required amount of liquid is extracted, or the tank is full (maximum 5.5
litres), release the trigger and switch the compressor OFF. Empty the tank and
continue as above if required.
NOTE:
to aid the flow when extracting oil, it may be necessary to warm the oil by running the
engine etc, for a few minutes first.
WARNING
Hot oil can be hazardous and can cause serious burns if not handled
correctly and necessary precautions are not observed, ALWAYS wear
protective clothing etc.
5. Open the bleed nipple slightly, turn the compressor on and depress the trigger,
observe the fluid flowing through the hose and release the trigger when no air
bubbles are visible, switch the compressor OFF, and gently close the bleed nipple.
6. Repeat the above procedure for all other brakes to be bled.
7. When finished bleeding, gently tighten the bleed nipple, DO
NOT overtighten. release the trigger and switch OFF, the
compressor,
Either clamp or squeeze the silicon tube when removing the
adapter from the bleed nipple to prevent the brake fluid
running out onto the floor, hold the adapter in the air release
the clamp and allow the fluid to run into the tank.
Fig. 3
NOTES
IMPORTANT
DO NOT MIX LIQUIDS, Also dispose of liquids according to local regulations, under
no circumstances should extracted liquids be poured down drains etc.
If using the extractor to bleed brakes, continue as follows.
!. Remove hoses by pushing down the coupler (see Fig. 2),
and pulling the connector out, store hoses safely for reuse.
2. Fit the brake bleeding hose and adapter by inserting the
connector into the fluid inlet as before until it locks in
position.
3. Attach the brake adapter to the first slave cylinder to be bled by pushing the
adapter firmly onto the bleed nipple.
4. Top up the brake master cylinder with the correct brake fluid as specified by the
vehicle manufacturer, check level regularly & top as required.
-5- -6-
Fig. 2
