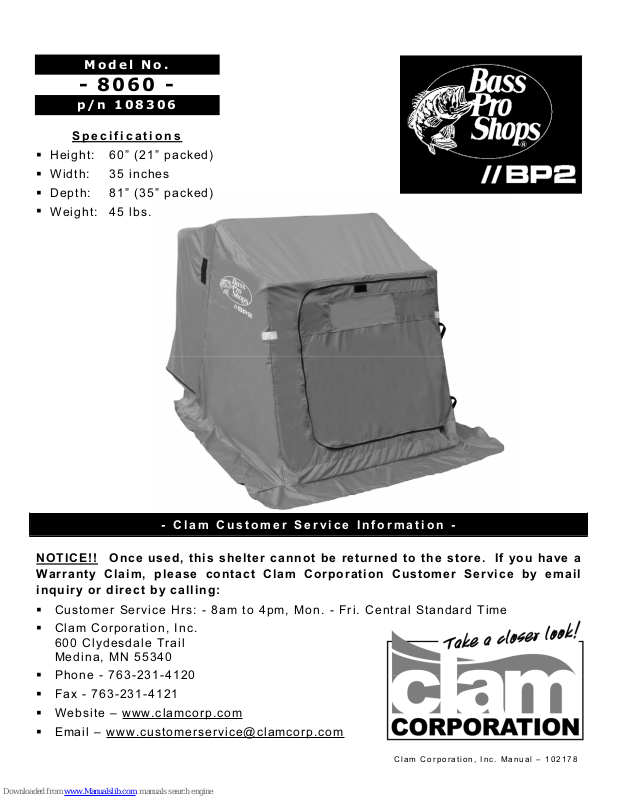

Page 1
Model No.
- 8060 -
p/n 108306
Specifications
Height: 60” (21” packed)
ŀ
Width: 35 inches
ŀ
Depth: 81” (35” packed)
ŀ
Weight: 45 lbs.
ŀ
- Clam Customer Service Information -
NOTICE!! Once used, this shelter cannot be returned to the store. If you have a
Warranty Claim, please contact Clam Corporation Customer Service by email
inquiry or direct by calling:
Customer Service Hrs: - 8am to 4pm, Mon. - Fri. Central Standard Time
ŀ
Clam Corporation, Inc.
ŀ
600 Clydesdale Trail
Medina, MN 55340
Phone - 763-231-4120
ŀ
Fax - 763-231-4121
ŀ
Website – www.clamcorp.com
ŀ
Email – [email protected]
ŀ
Clam Corporation, Inc. Manual – 102178
Page 2

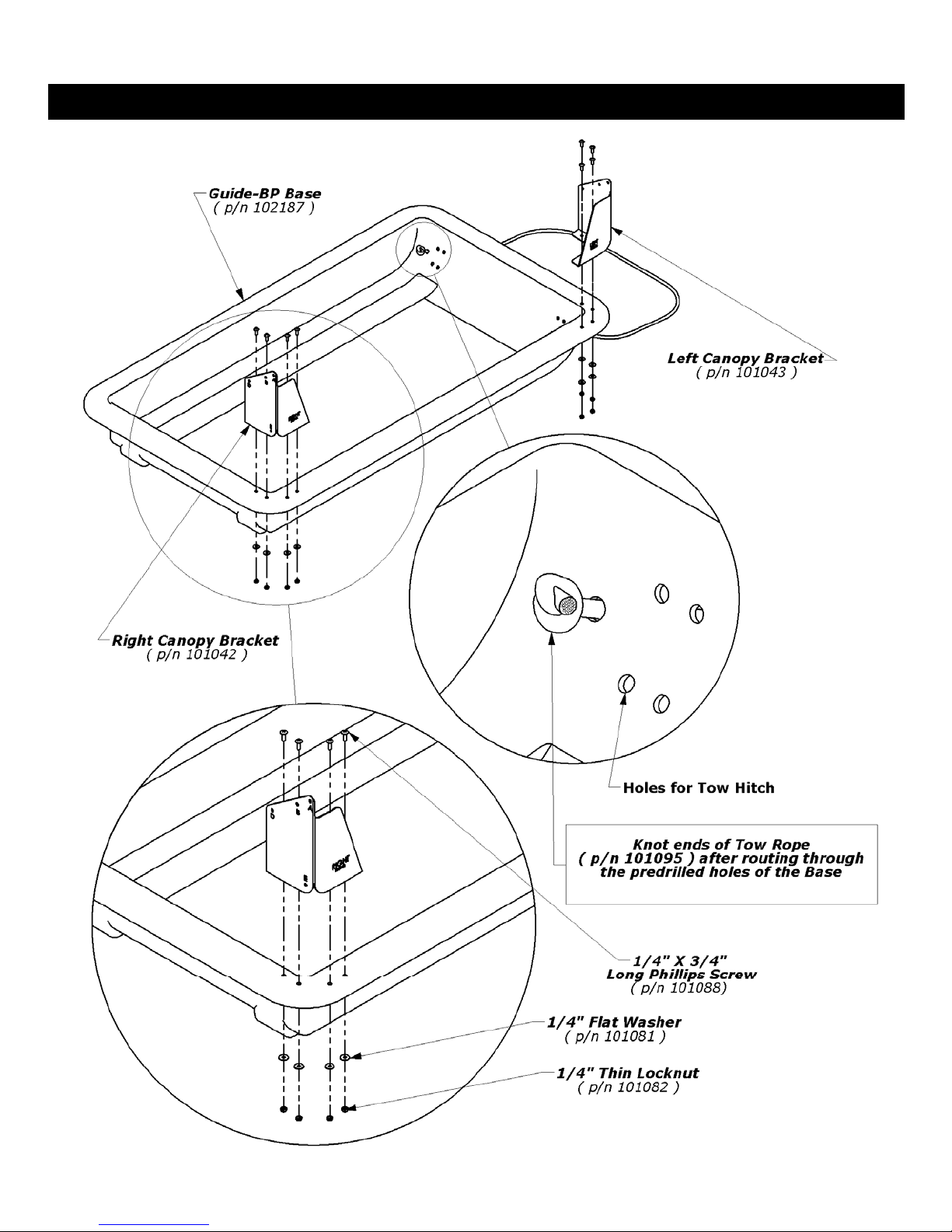

- Step One -
2
Page 3

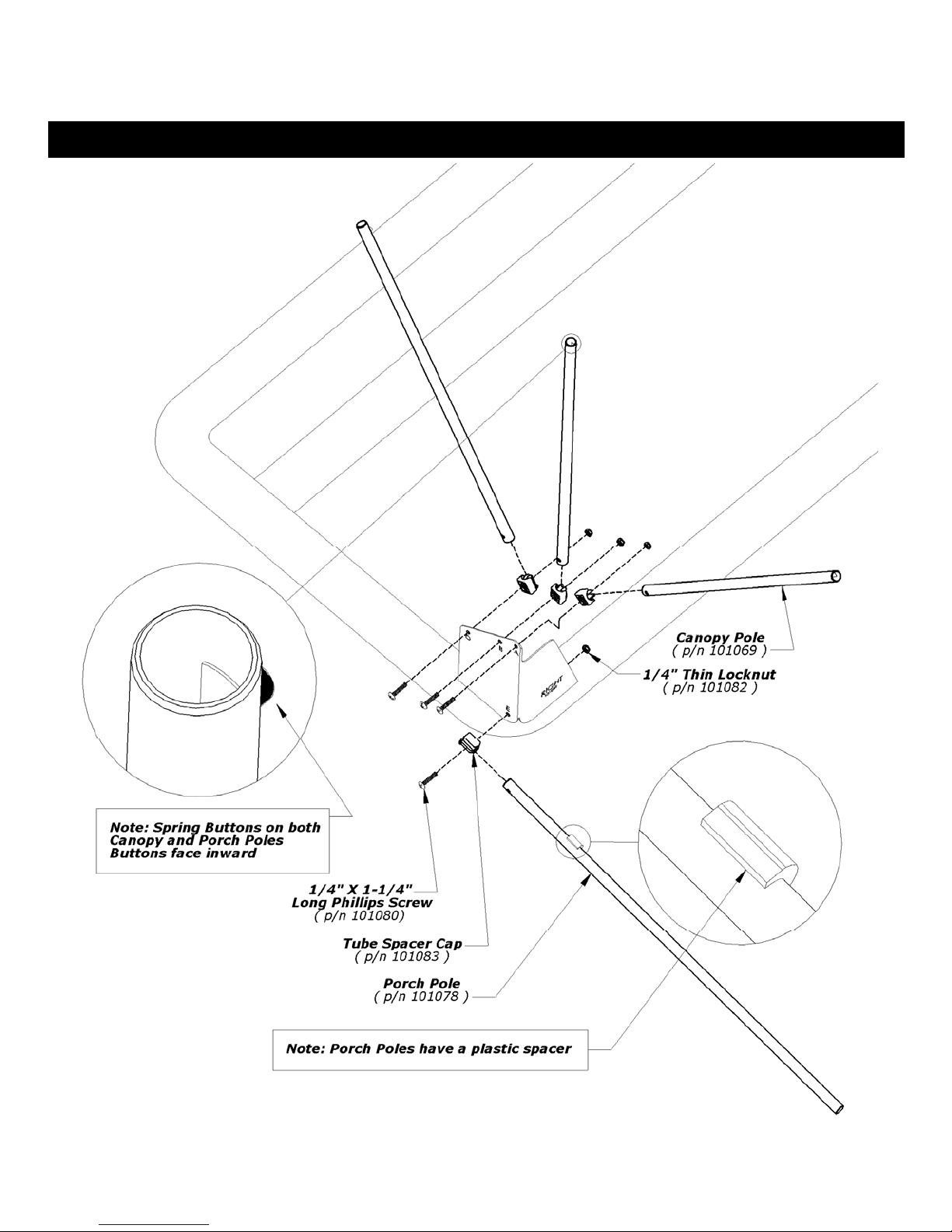

- Step Two -
3
Page 4

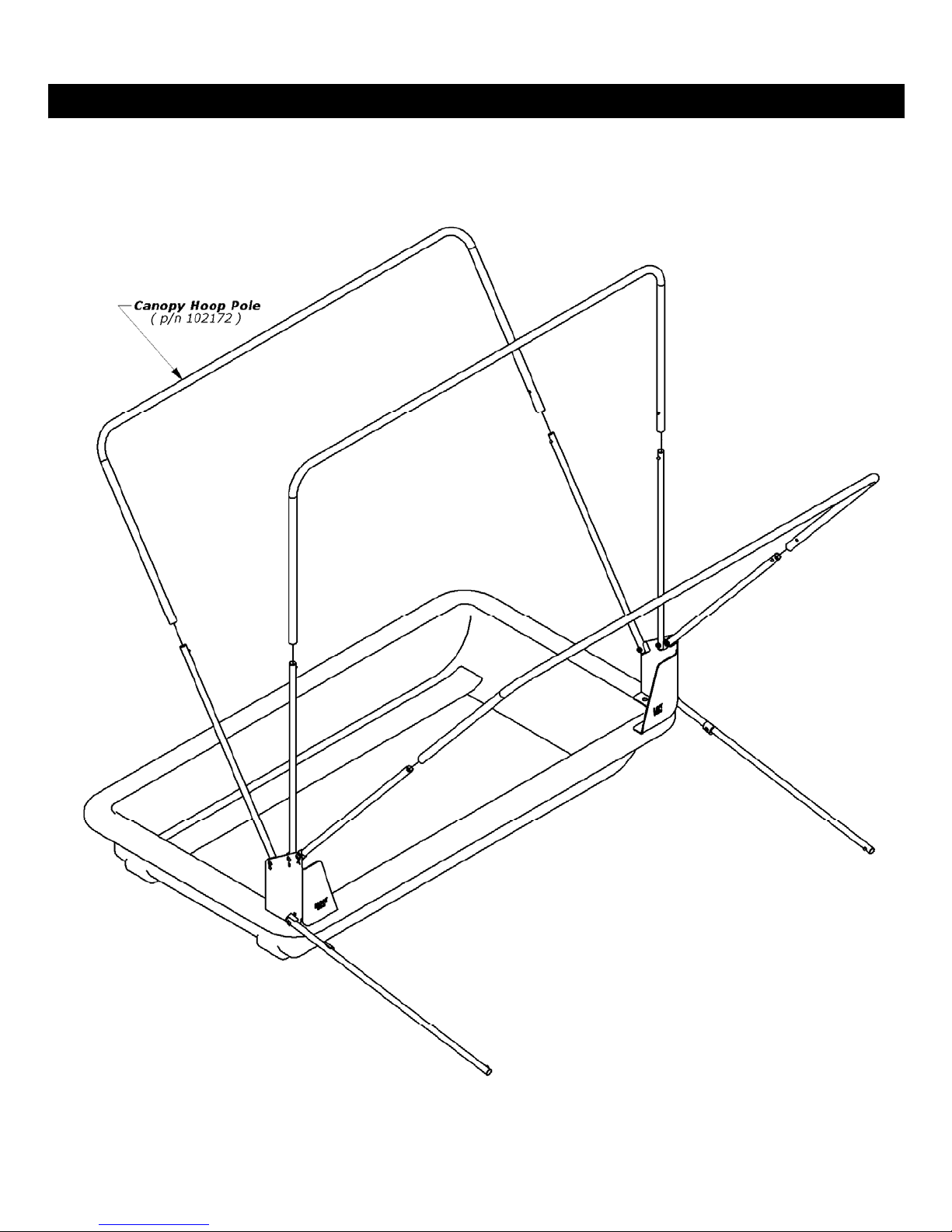

- Step Three -
Slide the Canopy Hoop Poles onto the Canopy Poles until the spring buttons engage the holes near the
ends.
Lean the Canopy Hoop Poles down and locate the Tent.
4
Page 5

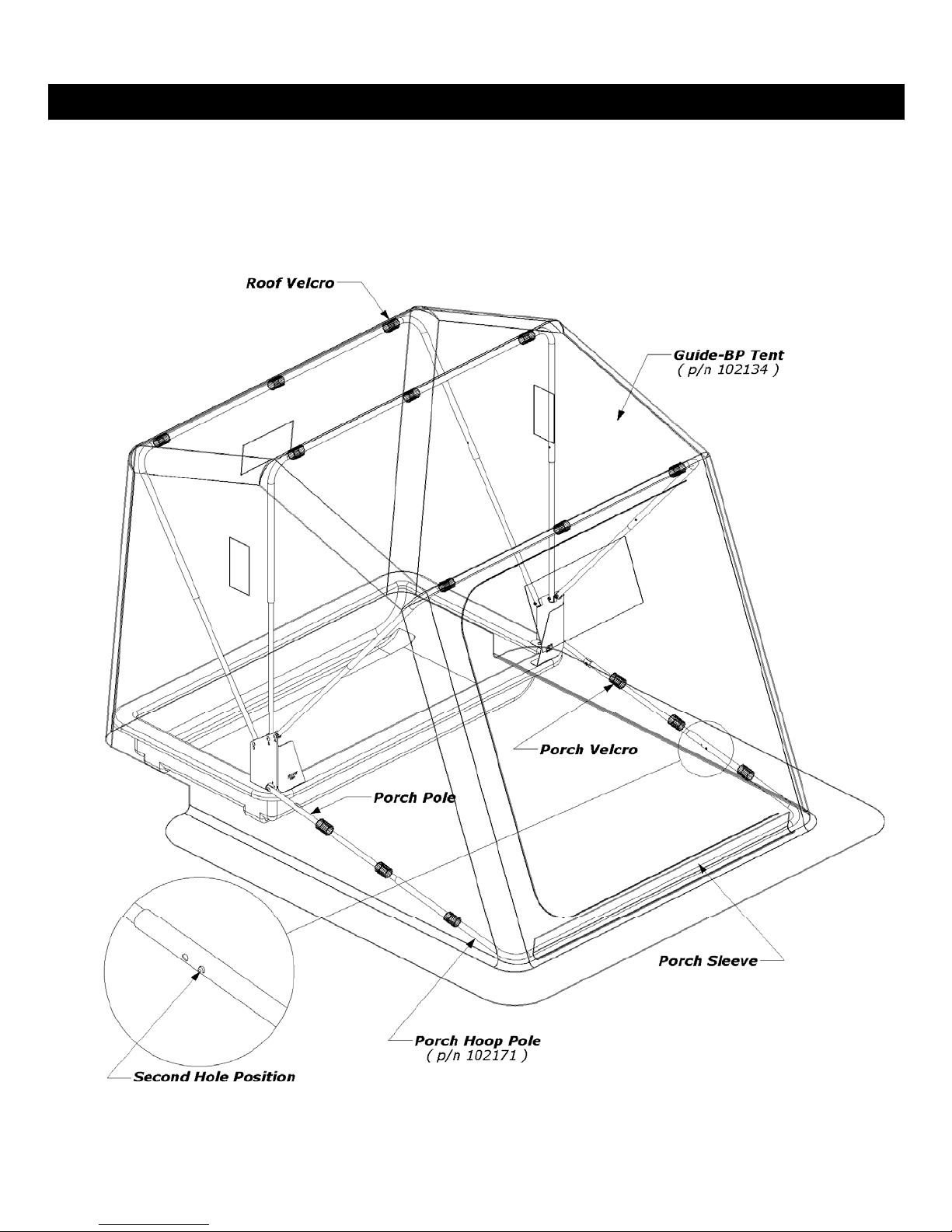

- Step Four -
Drape the Tent over the supported hoops then go inside and spread out the Canopy Hoop Poles, attaching
the Roof Velcro as you go.
Feed the length of the Porch Hoop Pole through the Porch Hoop Sleeve sewn on the Tent. Slide the Porch
Hoop Pole onto the Porch Poles, engaging the second hole position.
Attach the Porch Velcro on each side of the Tent. The Tent is now ready to be “set” in the next step.
5
Page 6
- Step Five -
To “set” the tent, grasp the tent material at the rear of the shelter and pull it downward. Observe the
porch area of the tent lifting accordingly as you pull. When the U-Channel Molding is correctly installed,
the Porch Hoop Pole will lightly touch the floor.
To achieve this condition, start by finding the center of the Molding. From behind the unit, pull the
midpoint of the Tent downward and fold the Tent material under the lip of the Base. Then press the
midpoint of the molding over the Tent material and Base lip. Continue pressing outward in both
directions until you have secured about twelve inches of material to the base
Having temporarily secured the tent to the base, take a walk around the unit. Readjust the Molding until
you have verified the proper Porch Hoop Pole position and also that the Tent sides and corners are
properly proportioned.
When satisfied, continue applying the Molding around the shelter, one direction from center and then the
other, pulling the material as you go so that surface is relatively wrinkle-free and snug.
Secure the Molding with the included #6 Phillips Screws. Evenly space them about every ten to twelve
inches, and also put a screw in the center of both corners. Since there aren’t any predrilled holes, it's
advisable to use a powered driver for this operation.
6
Page 7
- Tips for Use -
Folding and transporting your Fish Trap is easy:
Push the spring buttons and retract each hoop, starting with the rear hoop and working towards the
ŀ
front. Rotate all retracted hoops to the resting position. Tuck the tent into the base and between the
hoops so that no material is left hanging on the ground for transport.
Cover with the Travel Cover* (an optional but recommended accessory to help prolong the life of the
ŀ
unit). Tow the unit out to your favorite fishing spot! (NOTE: continuous pulling behind a four wheeler or
snowmobile may result in premature wear of the base. We recommend the optional Wear Strips* be
mounted to the base of your Fish Trap).
Make sure your Ice Shelter is completely dried out before storing for long periods of time. Store your Ice
ŀ
Shelter in a cool, dry place. Keep away from rodents.
*See our accessory catalog or www.clamcorp.com for these items and more!
- Safety Instructions -
PLEASE FULLY UNDERSTAND AND FOLLOW ALL SAFETY INSTRUCTIONS AS OUTLINED. FAILURE TO DO
SO COULD RESULT IN SEVERE INJURY OR DEATH.
Do not use open flame heaters in your ice shelter. Injury or death may result from fire if tent fabric is
ŀ
exposed to open flame. The tent is not fireproof, but the fabric is treated with a fire retardant that
meets CPAI-84 specifications. Application of any foreign substance may render the flame retardant
properties ineffective. Ice Armor fabric will melt when contact is made with hot surfaces (i.e.,
heaters).
Death from asphyxiation may result from use of oxygen depleting heaters. Open all vents for fresh
ŀ
air ventilation.
Never leave shelter unattended when set up
ŀ
Due to the increase in traffic (snowmobiles, autos, etc.) on area lakes, ice fishing can be hazardous
ŀ
at night. If you choose to fish at night or in poor visibility conditions, be sure to take precautions with
lights or reflectors to show drivers your whereabouts. Exterior reflectors must be visible at all times
to reduce risk of collisions.
Clam Corporation, Inc. warrants to the original retail purchaser that all Clams are free from
manufacturer’s defects for one (1) year from the date of original purchase. Warranty does not cover
cracked windows, tent tears, broken or bent hoops due to high wind weather conditions or unattended
use. Clam Corporation will replace or repair any part found defective within the one (1) year time limit.
All parts must be returned to Clam Corporation, Inc. Before returning any parts, you must first call or
write and acquire a return authorization. All returns must be returned postage-prepaid and include the
original cash register receipt (date and purchase price).
- Limitation of Liability -
It is expressly understood that Clam Corporation’s liability for its products, whether due to breach of
warranty, negligence, strict liability, or otherwise, is limited to the repair of the product as stated above.
Clam Corporation is not liable for any injury, loss, damage, or expense, whether direct or consequential,
including but not limited to loss of use, income, profit, or damage to material arising in connection with
the sale, installation, use of, inability to use, or the repair or replacement of Clam Corporation products.
Clam Corporation reserves the right to make alterations or modifications in its products at any time,
which in its opinion, may improve the performance and efficiency of the product. It shall not be obligated
to make such alterations or modifications to products already in service.
- Warranty -
7
