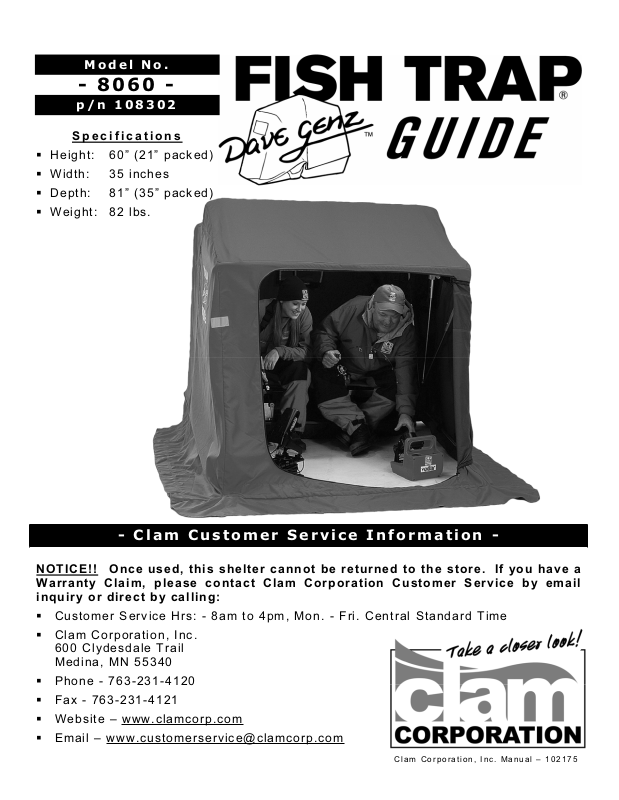

Page 1
Model No.
- 8060 -
p/n 108302
Specifications
Height: 60” (21” packed)
ŀ
Width: 35 inches
ŀ
Depth: 81” (35” packed)
ŀ
Weight: 82 lbs.
ŀ
- Clam Customer Service Information -
NOTICE!!
Warranty Claim, please contact Clam Corporation Customer Service by email
inquiry or direct by calling:
Customer Service Hrs: - 8am to 4pm, Mon. - Fri. Central Standard Time
ŀ
Clam Corporation, Inc.
ŀ
600 Clydesdale Trail
Medina, MN 55340
Phone - 763-231-4120
ŀ
Fax - 763-231-4121
ŀ
Website – www.clamcorp.com
ŀ
Email – [email protected]
ŀ
Once used, this shelter cannot be returned to the store. If you have a
Clam Corporation, Inc. Manual – 102175
Page 2
- Parts List -
Item Qty p/n Description
1 1 101042 Right Canopy Bracket
2 1 101043 Left Canopy Bracket
3 8 101048 Slide Block
4 2 101060 Cloth Accessory Hammock
5 6 101069 Canopy Pole
6 1 101074 Adjustable Spreader Pole
7 2 101078 Porch Pole
8 8 101080 1/4" Dia. X 1-1/4" Long Phillips Screw
9 20 101081 1/4" Flat Washer
10 44 101082 1/4" Thin Locknut
11 8 101083 Tube Cap Spacer
12 20 101088 1/4" Dia. X 3/4" Long Phillips Screw
13 1 101095 Tow Rope
14 1 101116 U-Channel Molding
15 4 101146 1-1/2" X 1-3/4" Aluminum Angle X 9" Long
16 8 101147 #10 X 1" Long Phillips Screw
17 16 101148 #6 X 3/8" Long Phillips Screw
18 2 101399 Seat Swivel Assembly
19 8 101429 1-1/8" Dia. Tube Cap
20 2 101463 Folding Seat Assembly
21 16 101470 1/4" Dia. X 1/2" Long Hex Head Screw
22 8 101486 1/4" Dia. X 1-3/4" Long Phillips Screw
23 4 101608 1-1/8" Dia. Tube
24 4 101609 Seat Support Bracket
25 1 101612 Guide Base
26 1 102129 Guide Tent
27 1 102171 Porch Hoop Pole
28 3 102172 Canopy Hoop Pole
2
Page 3

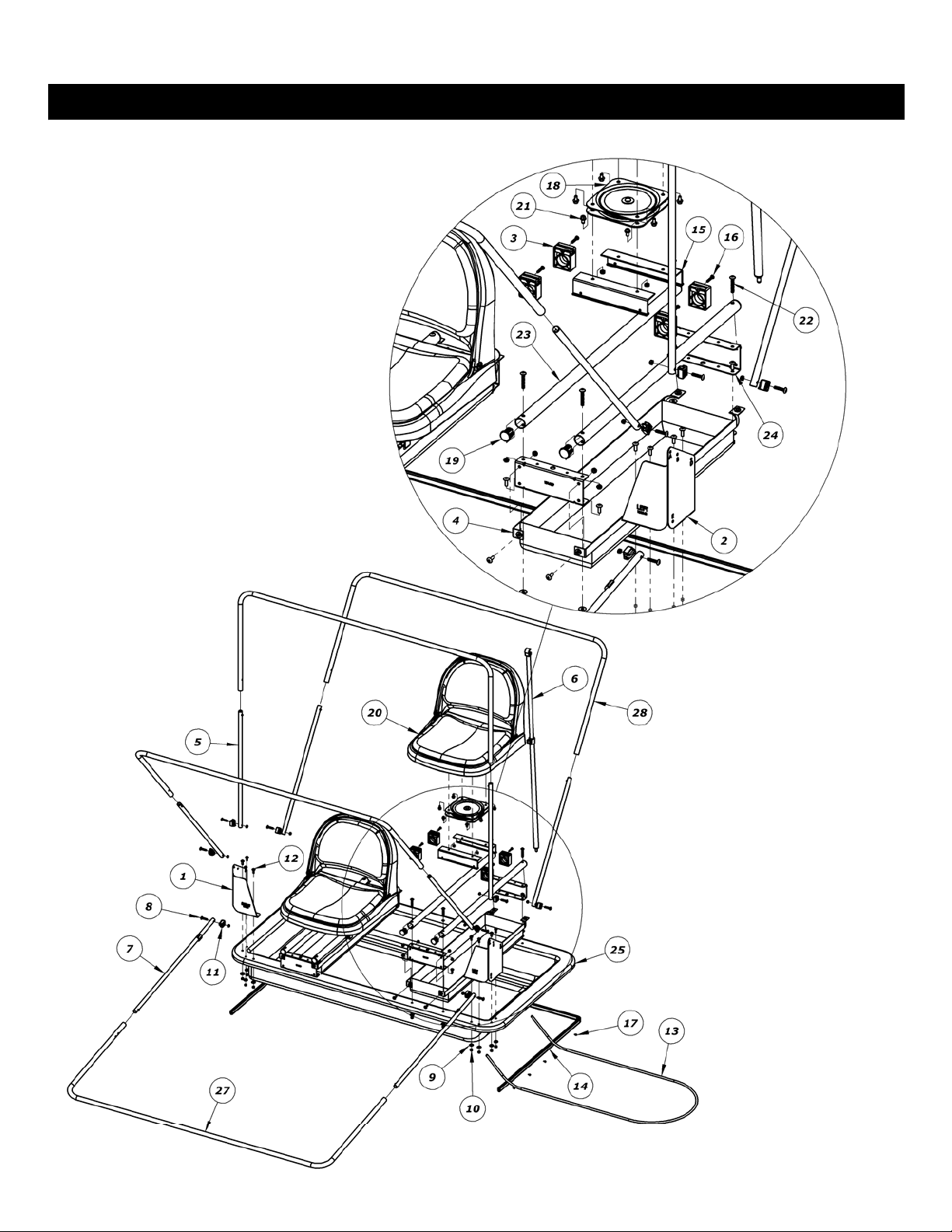

- Parts Diagram -
3
Page 4

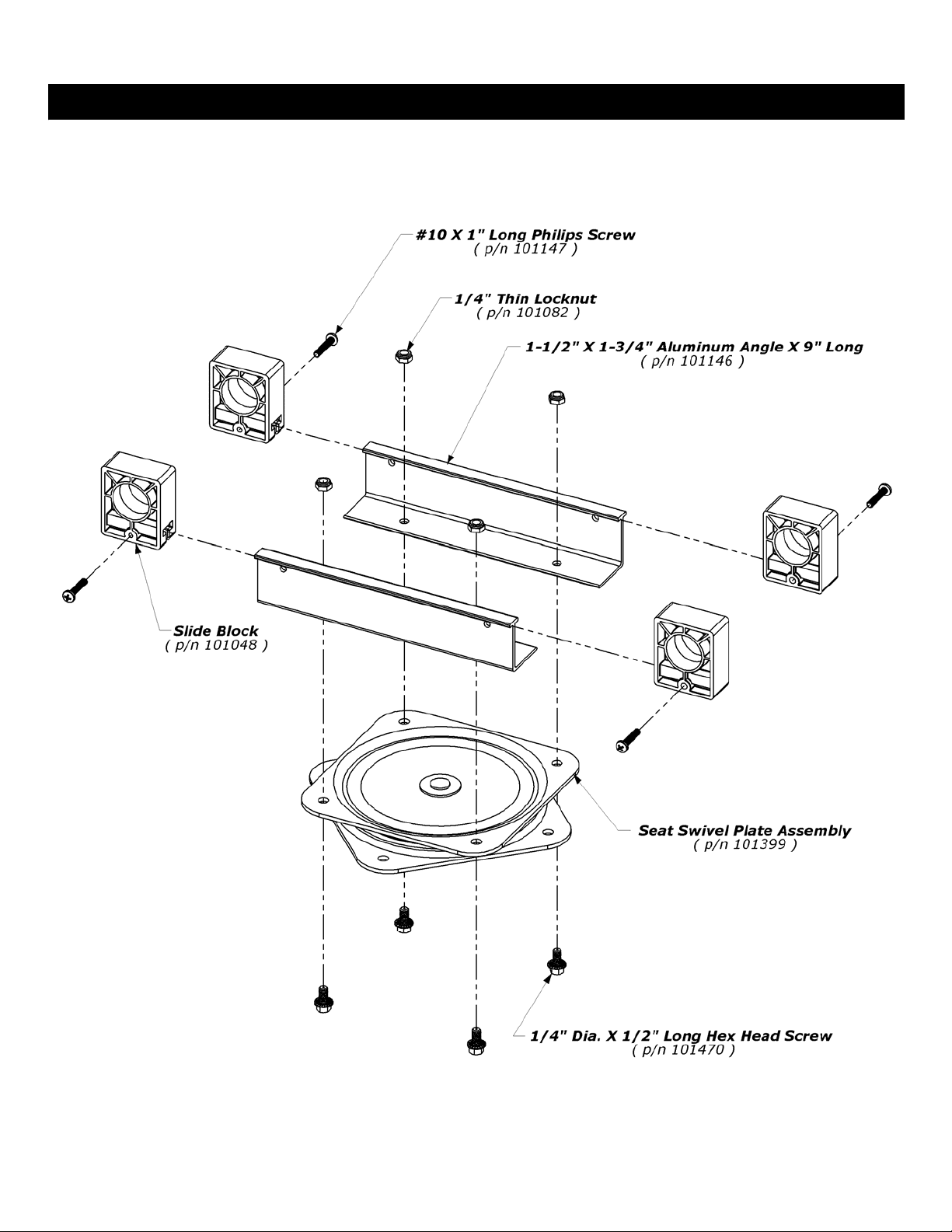

- Step One -
4
Page 5

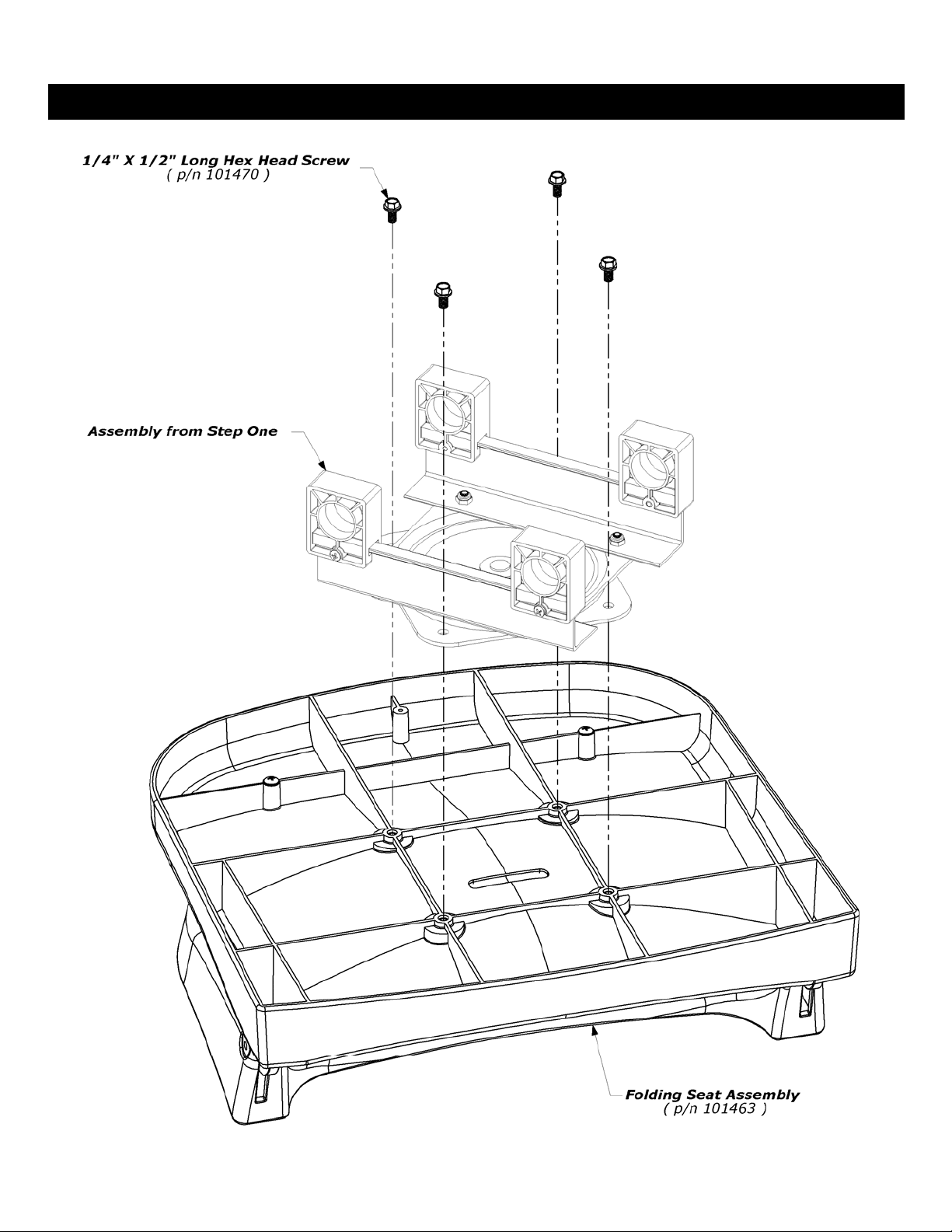

- Step Two -
5
Page 6

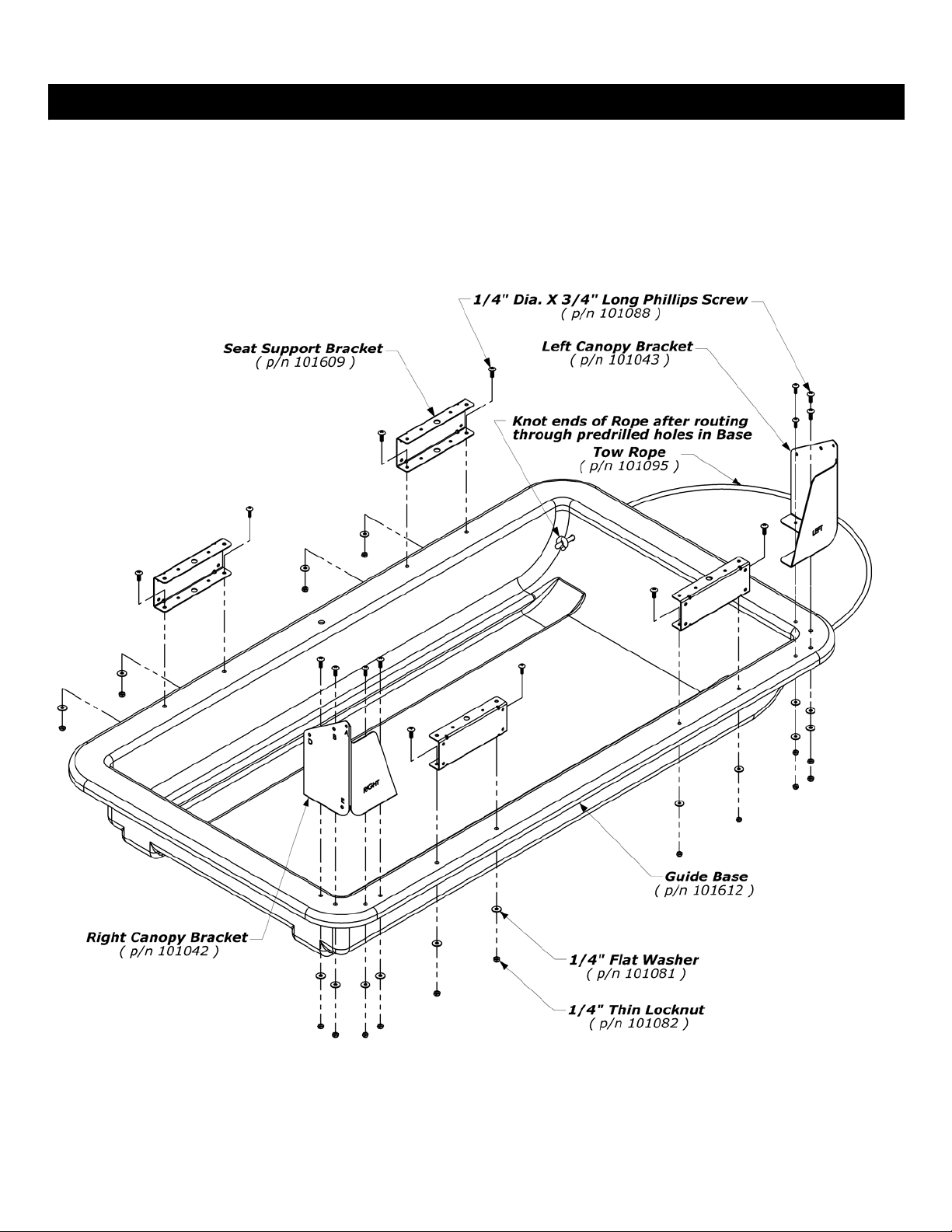

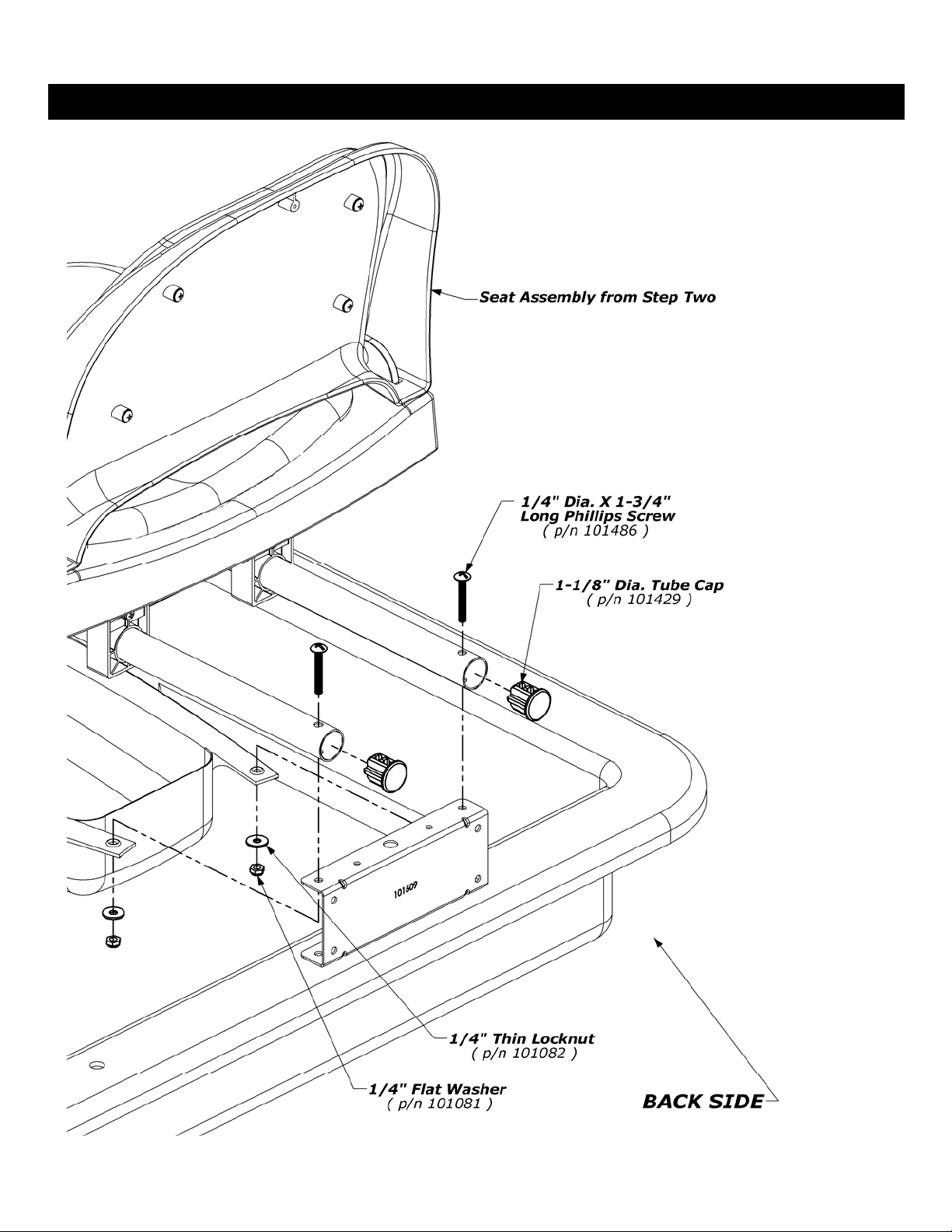

- Step Three -
6
Page 7
7

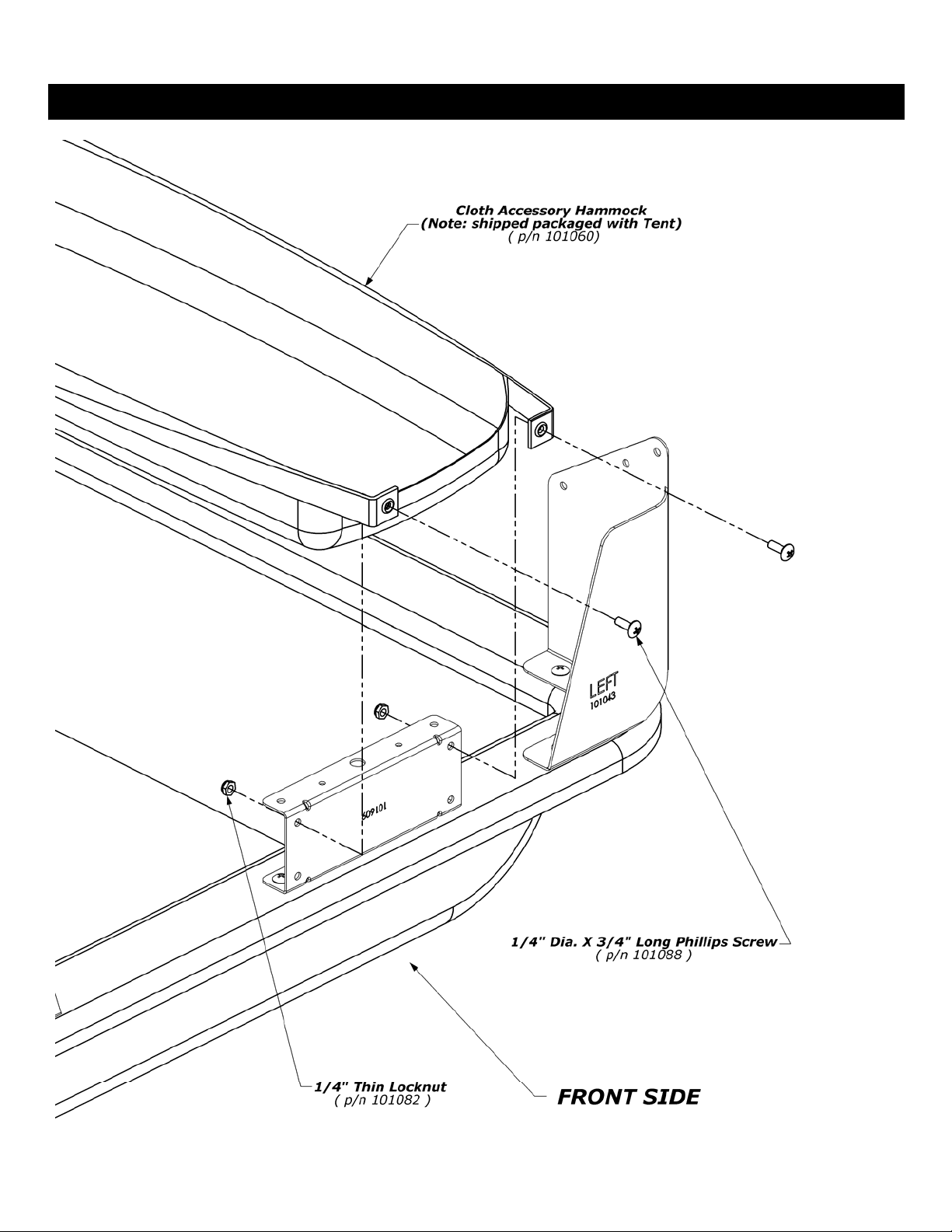

- Step Four -
Page 8

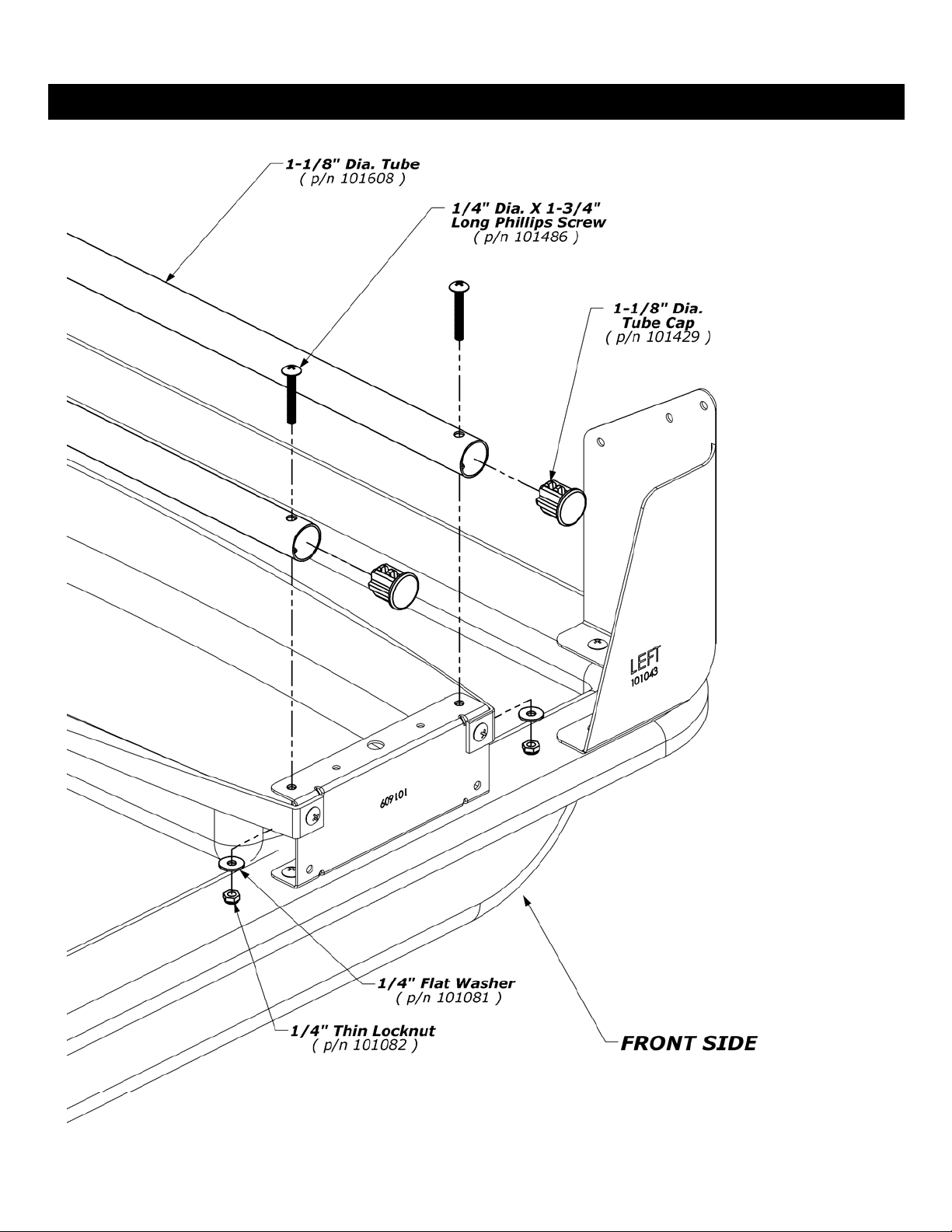

- Step Five -
8
Page 9
- Step Six -
9
Page 10

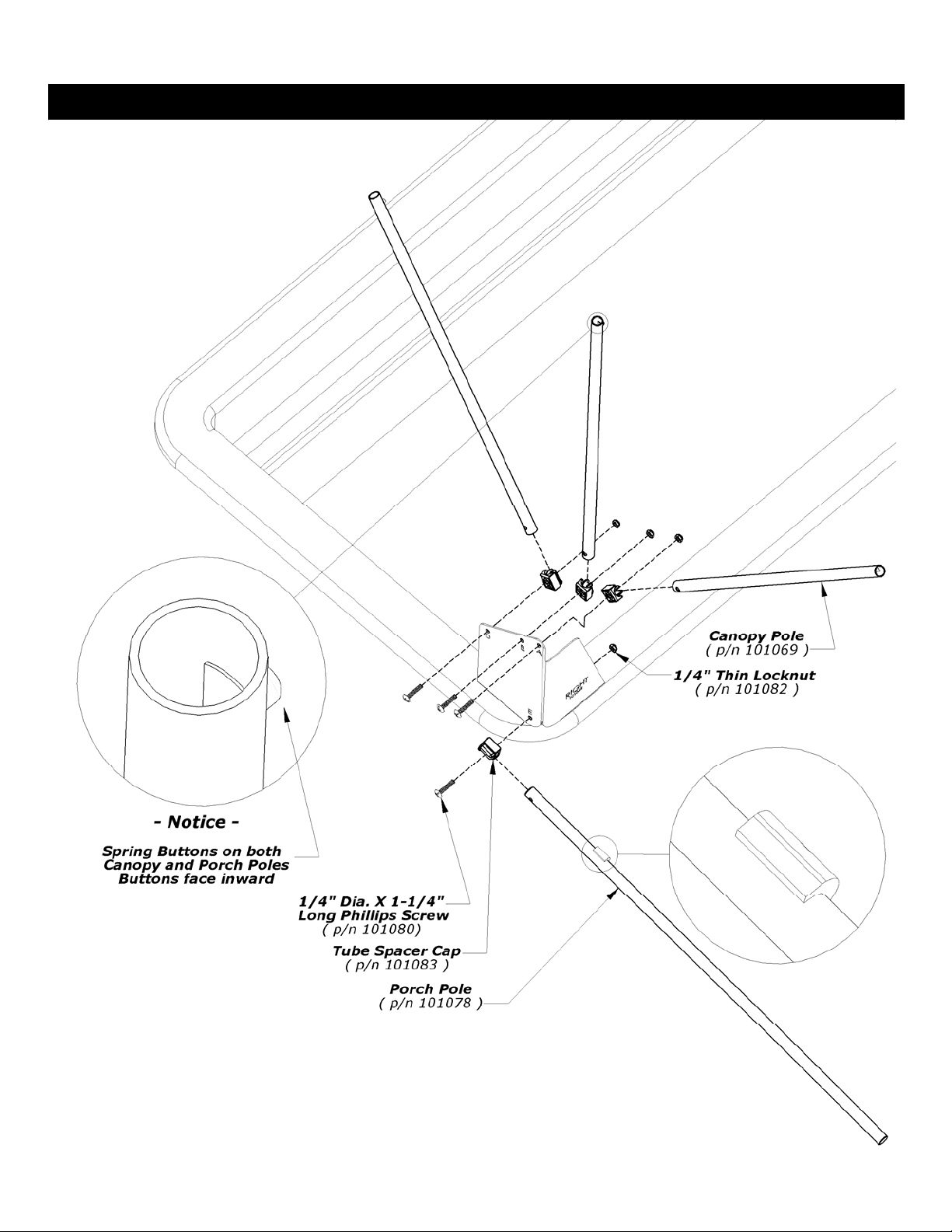

- Step Seven -
10
Page 11

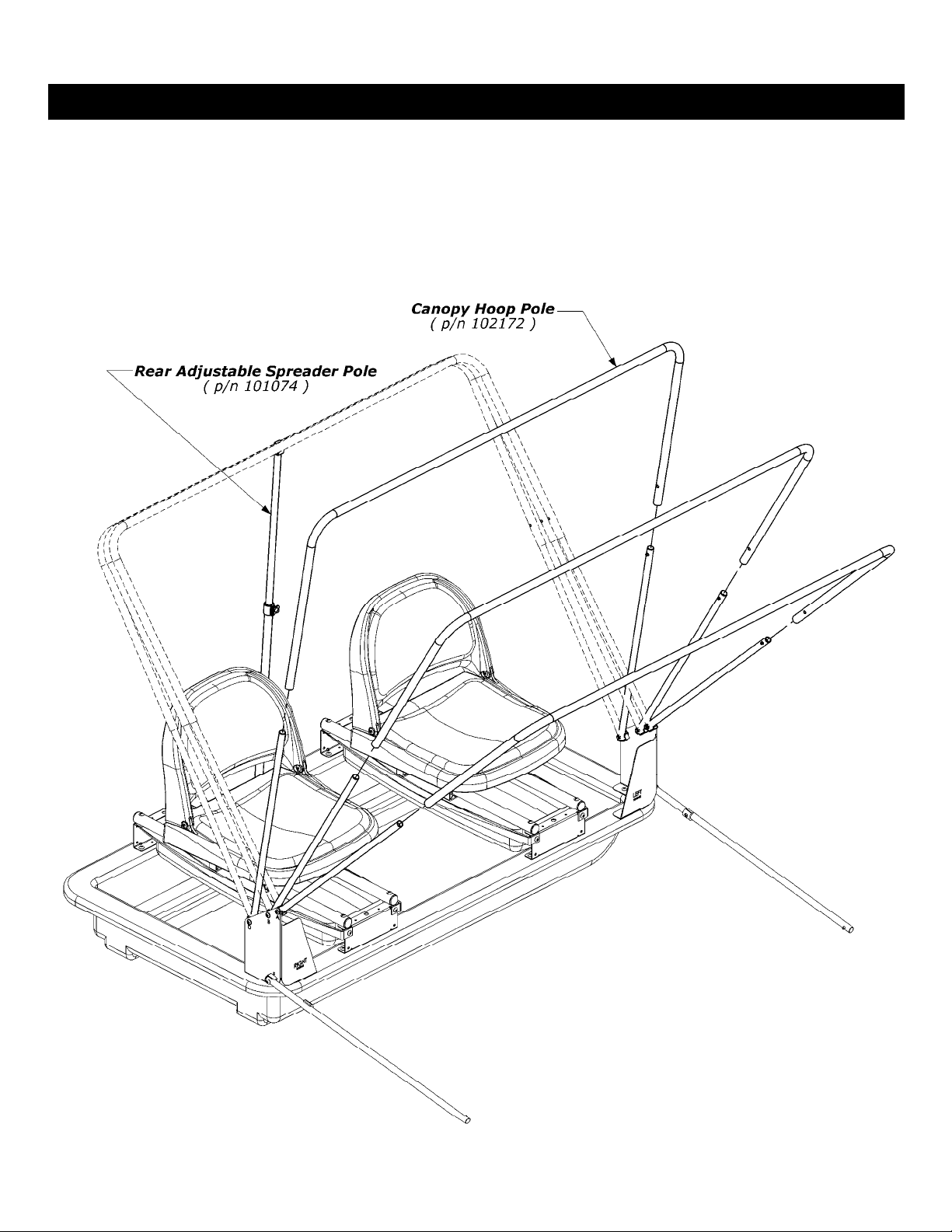

- Step Eight -
Slide the Canopy Hoop Poles onto the Canopy Poles until the spring buttons engage the holes near the
ends.
Support the first Hoop Pole with the Rear Adjustable Spreader Poles (the shorter of the two provided
lengths).
Lean the two remaining Canopy Hoop Poles against the first.
11
Page 12

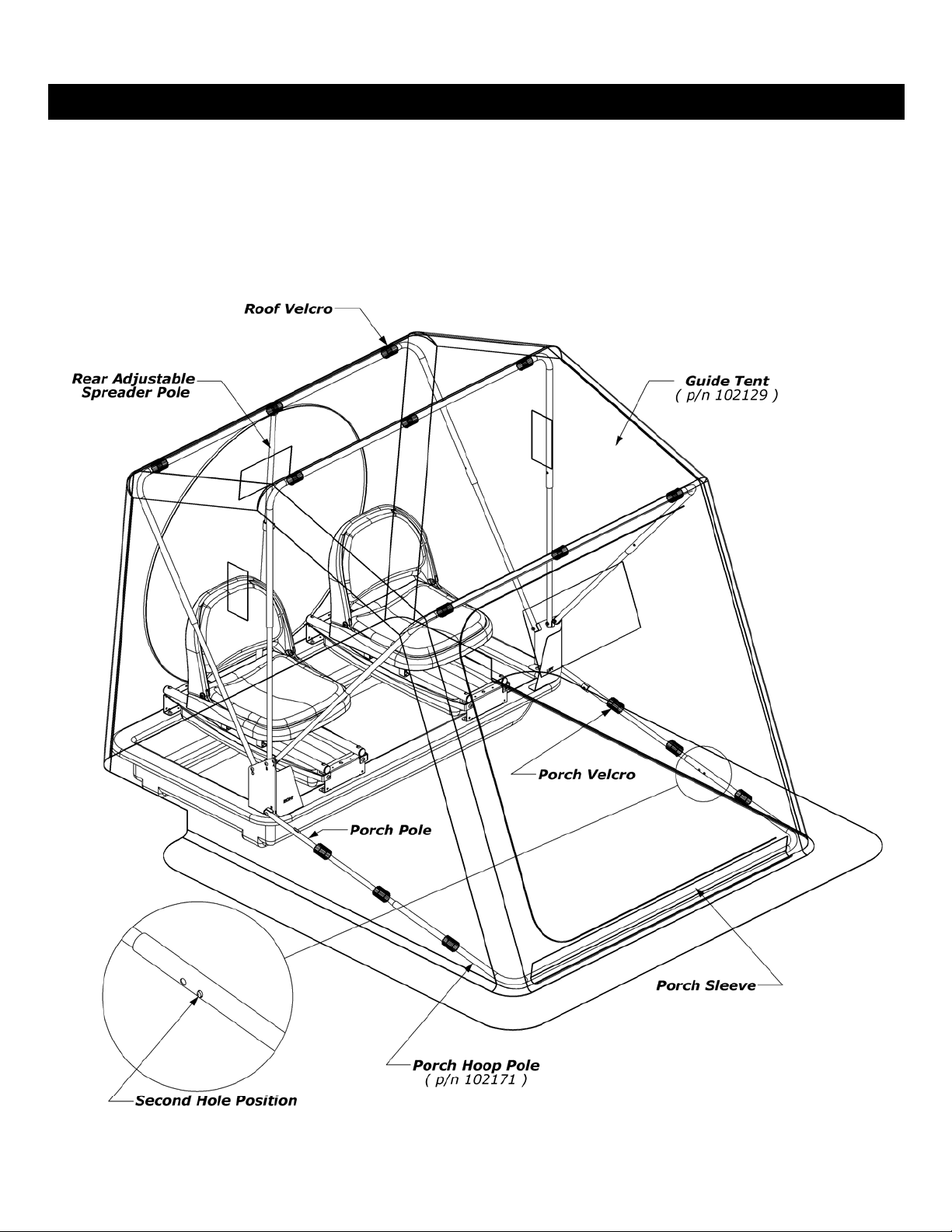

- Step Nine -
Drape the Tent over the supported hoops then go inside and spread out the Canopy Hoop Poles, attaching
the Roof Velcro as you go.
Feed the length of the Porch Hoop Pole through the Porch Hoop Sleeve sewn on the Tent. Slide the Porch
Hoop Pole onto the Porch Poles, engaging the second hole position.
Attach the Porch Velcro on each side of the Tent. Remove the Rear Adjustable Spreader Pole now
supporting the hoops to allow the tent to be “set” in the next step.
12
Page 13

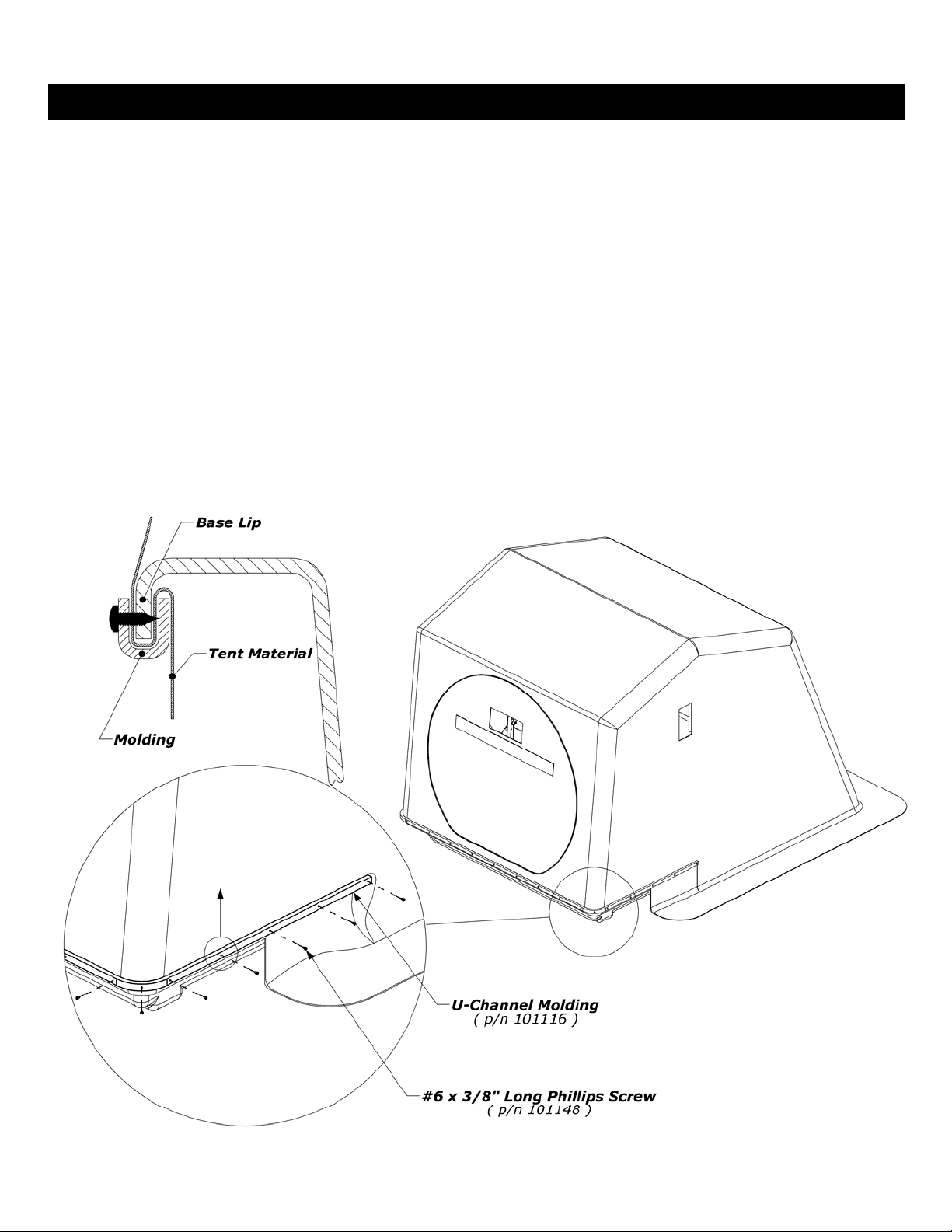

- Step Ten -
To “set” the Tent, grasp the Tent Material at the rear of the shelter and pull it downward. Observe the
porch area of the tent lifting accordingly as you pull. When the U-Channel Molding is correctly installed,
the Porch Hoop Pole will lightly touch the floor.
To achieve this condition, start by finding the center of the Molding. From behind the unit, pull the
midpoint of the Tent downward and fold the Tent Material under the Base Lip. Press the midpoint of the
Molding over the Tent material and Base lip. Continue pressing outward in both directions until you have
secured about twelve inches of Molding onto the Base.
Having temporarily secured the Tent to the Base, take a walk around the unit. Readjust the Molding until
you have verified the proper Porch Hoop Pole position and also that the Tent sides and corners are
properly proportioned.
When satisfied, continue applying the Molding around the shelter, one direction from center and then the
other, pulling the material as you go so that surface is relatively wrinkle-free and snug. Use a side-cutters
to trim the ends of the Molding if they are not equal relative to Base.
Reinstall the Rear Adjustable Spreader Pole to tighten the fit of the Tent. If everything still looks good,
secure the Molding with the #6 Phillips Screws. Evenly space them about every ten to twelve inches, and
also put a screw in the center of both corners. Since there aren’t any predrilled holes, it's advisable to
use a powered driver for this operation.
13
Page 14
- Tips for Use -
Folding and transporting your Fish Trap is easy:
Unsnap the Rear Spreader Pole and lay it in the bottom of the base.
ŀ
Push the spring buttons and retract each hoop, starting with the rear hoop and working towards the
ŀ
front. Rotate all retracted hoops to the resting position. Tuck the tent into the base and between the
hoops so that no material is left hanging on the ground for transport.
Cover with the Travel Cover* (an optional but recommended accessory to help prolong the life of the
ŀ
unit). Tow the unit out to your favorite fishing spot! (NOTE: continuous pulling behind an ATV or
snowmobile may result in premature wear of the base. We recommend the optional Wear Strips* be
mounted to the base of your Fish Trap).
Make sure your Ice Shelter is completely dried out before storing for long periods of time. Store your Ice
Shelter in a cool, dry place. Keep away from rodents.
*See our accessory catalog or www.clamcorp.com for these items and more!
- Safety Instructions -
Please fully understand and follow all safety instructions as outlined. Failure to do so could result in
severe injury or death.
Do not use open flame heaters in your ice shelter. Injury or death may result from fire if tent fabric is
ŀ
exposed to open flame. The tent is not fireproof, but the fabric is treated with a fire retardant that meets
CPAI-84 specifications. Application of any foreign substance may render the flame retardant properties
ineffective. Ice Armor fabric will melt when contact is made with hot surfaces (i.e., heaters).
Death from asphyxiation may result from use of oxygen depleting heaters. Open all vents for fresh air
ŀ
ventilation.
Never leave shelter unattended when set up.
ŀ
Due to the increase in traffic (snowmobiles, autos, etc.) on area lakes, ice fishing can be hazardous at
ŀ
night. If you choose to fish at night or in poor visibility conditions, be sure to take precautions with
lights or reflectors to show drivers your whereabouts. Night time: exterior reflectors must be visible to
reduce risk of collisions.
- Warranty -
Clam Corporation, Inc. warrants to the original retail purchaser that all Clams are free from
manufacturer’s defects for one (1) year from the date of the original purchase. Warranty does not cover
cracked windows, tent tears, broken or bent hoops due to high wind weather conditions or unattended
use. Clam Corporation will replace or repair any part found defective within the one (1) year time limit. All
parts must be returned to Clam Corporation, Inc. Before returning any parts, you must first call or write
and acquire a return authorization. All returns must be returned postage-prepaid and include the original
cash register receipt (date and purchase price).
Note: Please write the return authorization number on the outside of the package with the
return article to help ensure the transaction gets processed swiftly and accurately.
- Limitation of Liability -
It is expressly understood that Clam Corporation liability for its products, whether due to breach of
warranty, negligence, strict liability, or otherwise, is limited to the repair of the product as stated above.
Clam Corporation is not liable for any injury, loss, damage, or expense, whether direct or consequential,
including but not limited to loss of use, income, profit, or damage to material arising in connection with
the sale, installation, use of, inability to use, or the repair or replacement of Clam Corporation products.
Clam Corporation reserves the right to make alterations or modifications in its products at any time, which
in its opinion, may improve the performance and efficiency of the product. It shall not be obligated to
make such alterations or modifications to products already in service.
