Page 1
Model No.
-8237-
Specifications
Height - 75 inches
▪
Length – 94 inches
▪
W i d t h - 74 inches
▪
Weight - 150 lbs.
▪
p/n 108237
Instruction No. 101915
- Clam Customer Service Information -
NOTICE!! - ONCE USED, THIS SHELTER CANNOT BE RETURNED TO THE STORE. IF YOU HAVE
A WARRANTY CLAIM, PLEASE CONTACT CLAM CORP. CUSTOMER SERVICE BY EMAIL
INQUIREY OR DIRECT BY CALLING:
■ Customer Service Hrs: - 9am to 4pm, Mon. - Fri. Central Standard Time
■ Clam Corporation, Inc.
600 Clydesdale Trail
Medina, MN 55340
■ Phone - 763-231-4120
■ Fax - 763-231-4121
■ Email – [email protected]
■ Website – www.clamcorp.com
Page 2
- Bill of Materials -
Q
,
E
7
, 1/
, 1/
, 1/
S
E
E
7
S
7
,
,
,
,
7
, 1/
, 1/
S
, 1/
S
,
S
ITEMQTY P/NDESCRIPTIONITEM
1 8 101048 BLOCK
2 26 101081 WASHER
3 34 101082 LOCKNUT
4 8 101088 SCREW
5 4 101146 ANGLE, 9" LONG ALUMINUM ANGL
6 8 10114
2 101399 PLATE, 6" SQUARE SWIVEL 23 1 101840 POLE ASSY, REAR SPREADER
8 2 101424 BRKT
9 8 101429 CAP
10 2 101442 CLIP
11 2 101466 HAMMOCK
12 16 101470 BOLT
13 2 101473 SCREW
14 4 101486 SCREW
15 4 101652 TUBE
16 2 101810 BRKT, XTR CANOPY
SLID
4" FLAT 18 2 101813 BRKT, RAIL HANGER
4" THIN 19 2 101817BRKT, FRONT SEAT
4-20 X 0.75 PHILLIP
SCREW, #10 X 1" LONG PHILLIP
REAR SEAT 24 1 101843 TENT, X2
1-1/8" TUBE 25 4 101863 POLE ASSY, CANOPY HOOP
LATCH 26 2 101839 POLE ASSY, ROOF SPREADER
CLOTH ACCESSORY 2
4" DIA HEX HEAD BOLT X 1/2"
4" DIA X 1-1/2" PHILLIP
4" DIA X 1-3/4" PHILLIP
1-1/8" DIA 31 20 101938 SCREW, #8 PHILLIP
1
20 6 101829 POLE ASSY, STRAIGHT POL
21 2 101830 POLE ASSY, BENT CANOPY
22 2 101836 POLE ASSY, FRONT SPREADER
28 8 101906 SCREW, 1/4" DIA X 2-1/2" PHILLIPS
29 1 101908 TUBE, LRG XTR SEAT RAIL
30 1 101910 MOLDING, U-CHANNEL
TY P/NDESCRIPTION
1 101812 BASE, LARGE XTR
2 101905 SEAT ASSY, TWO-TONE
- Seat Parts Diagram (see pg. 4 for Assembly) -
2
Page 3
- Shelter Parts Diagram (See pg. 4 for Assembly) -
3
Page 4

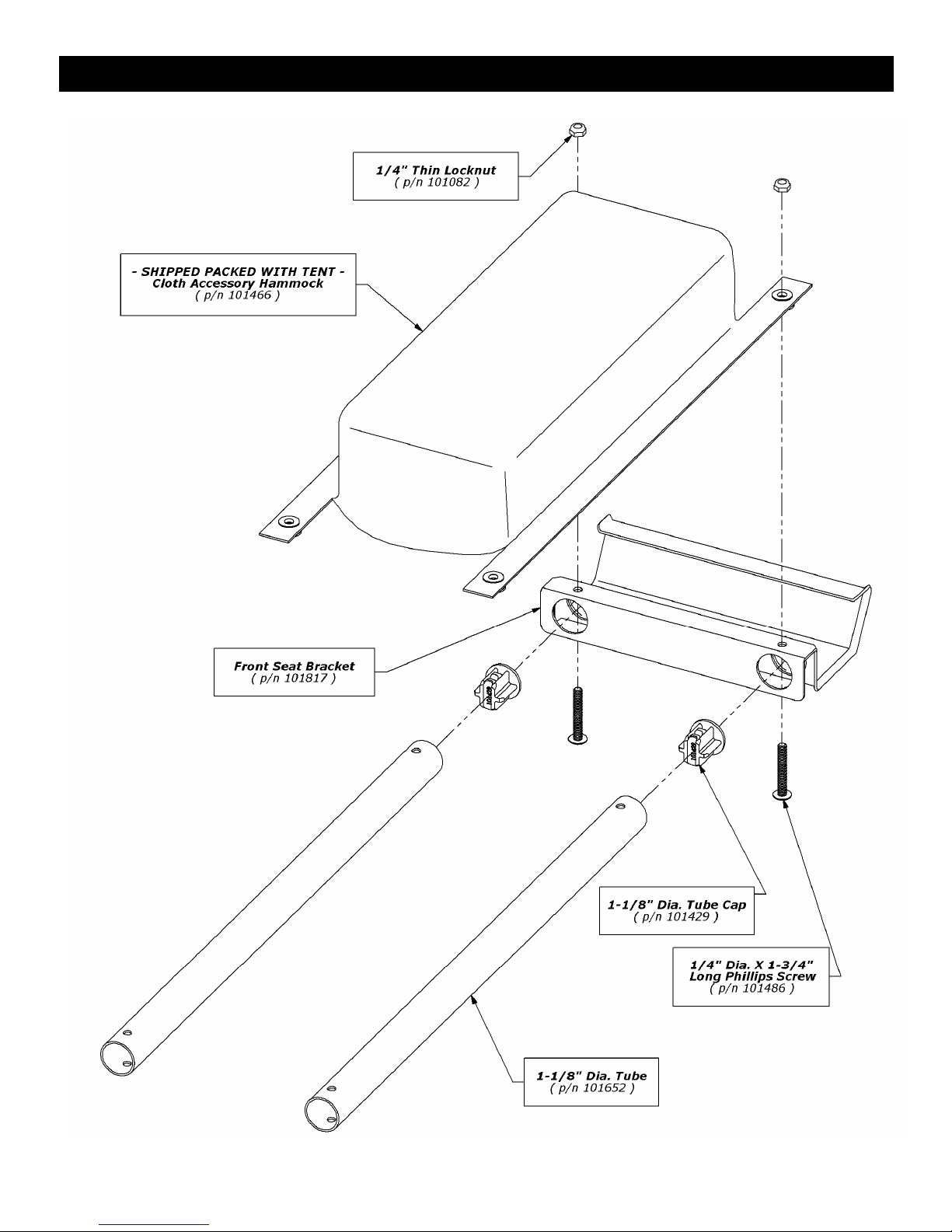

- Step 0ne -
4
Page 5
- Step Two -
5
Page 6
- Step Three -
6
Page 7

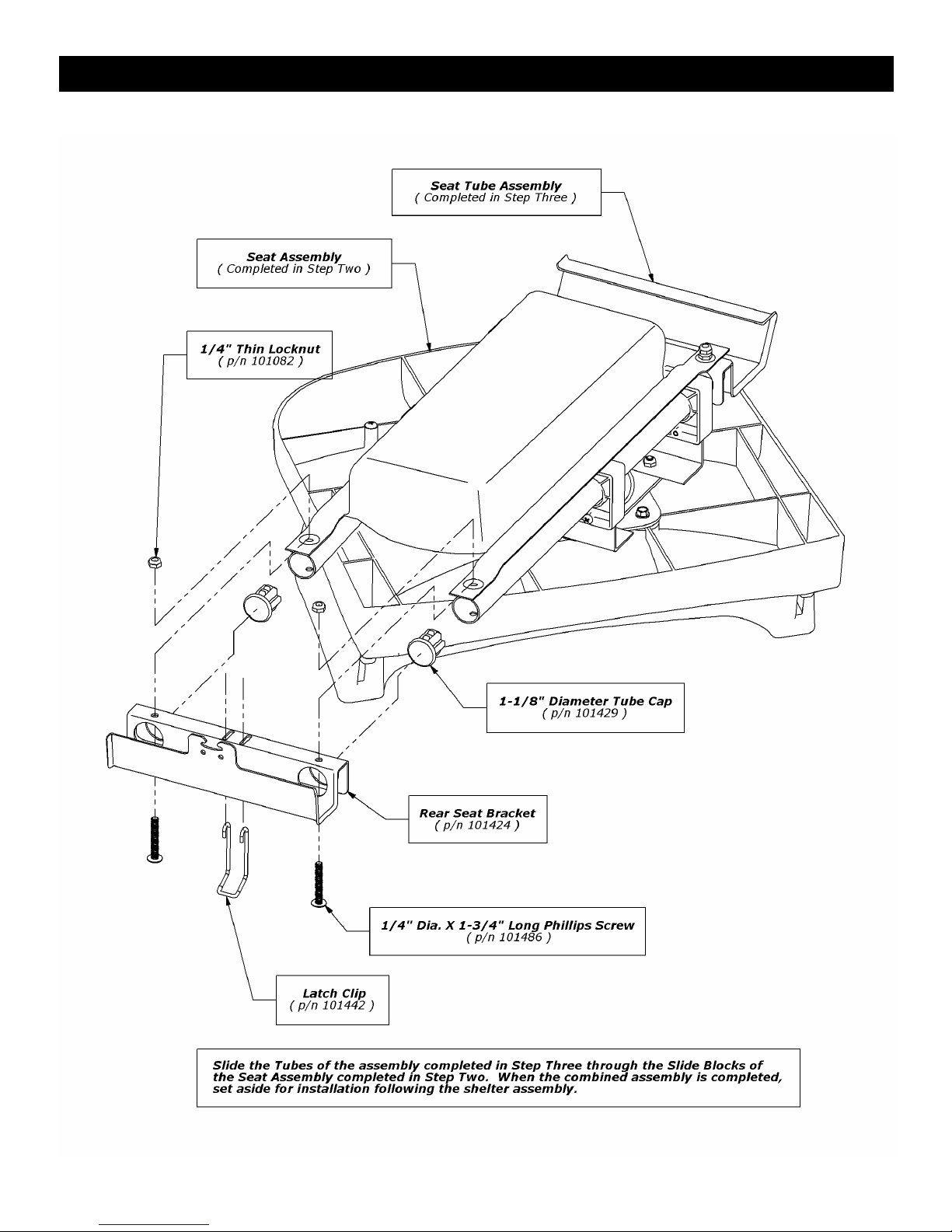

- Step Four -
7
Page 8

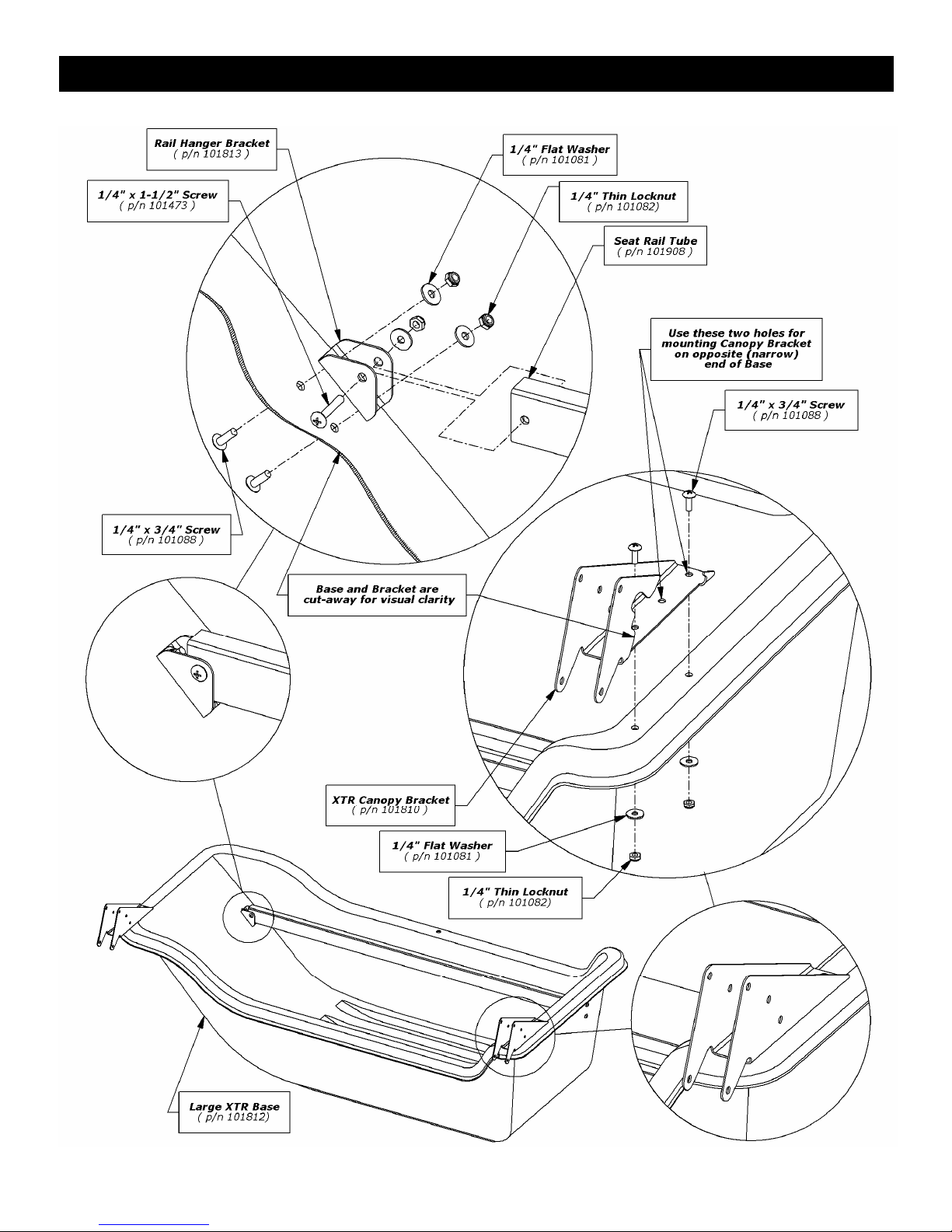

- Step Five -
8
Page 9

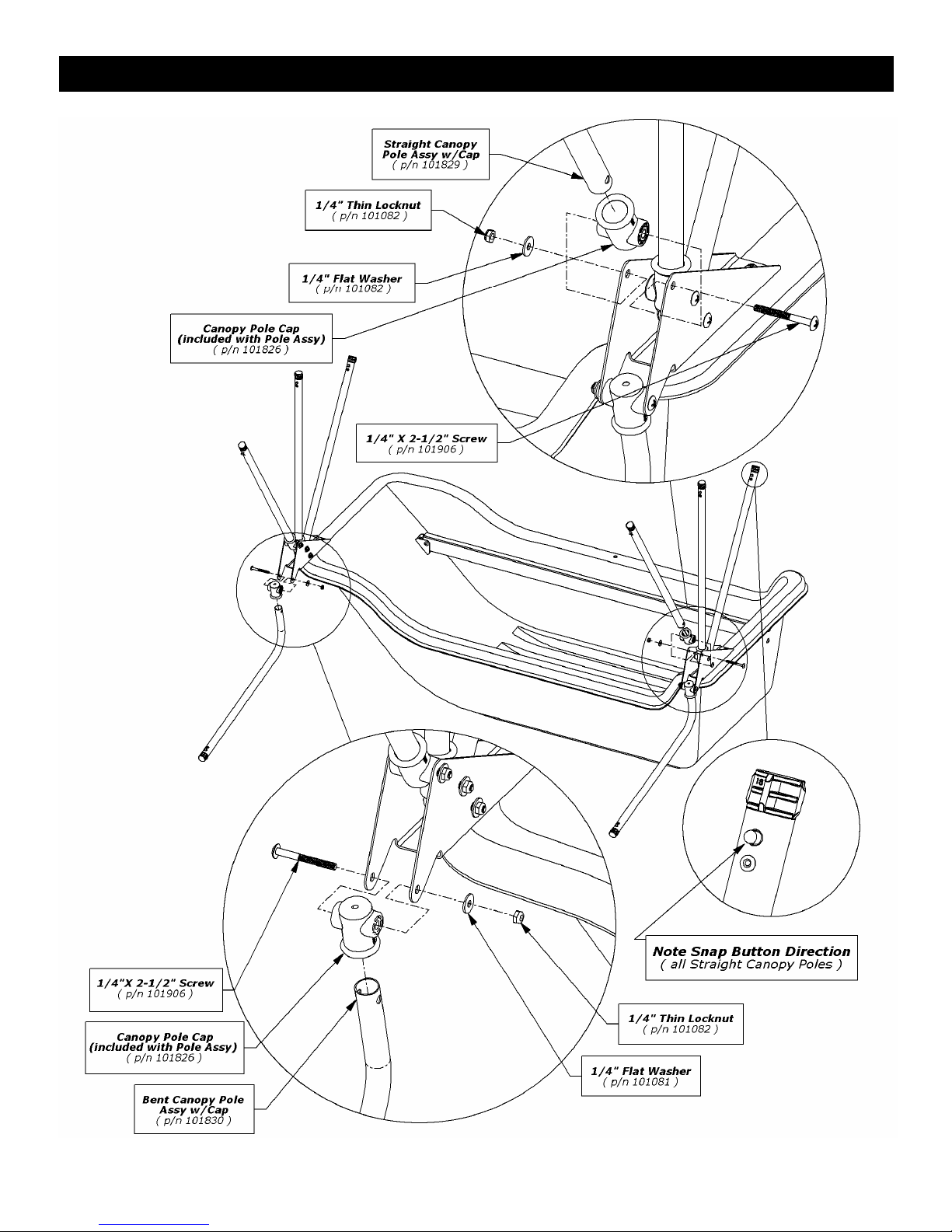

- Step Six -
9
Page 10

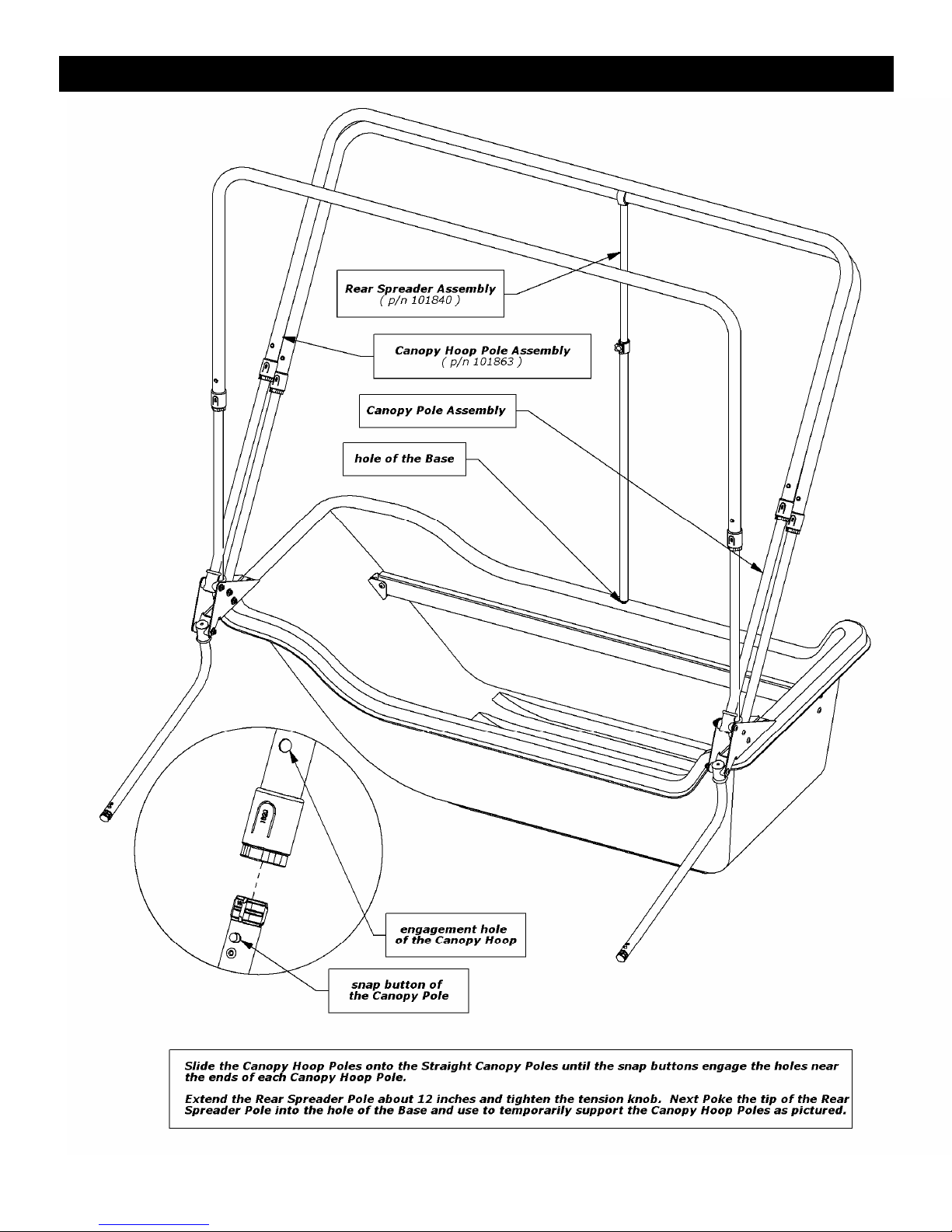

- Step Seven -
10
Page 11

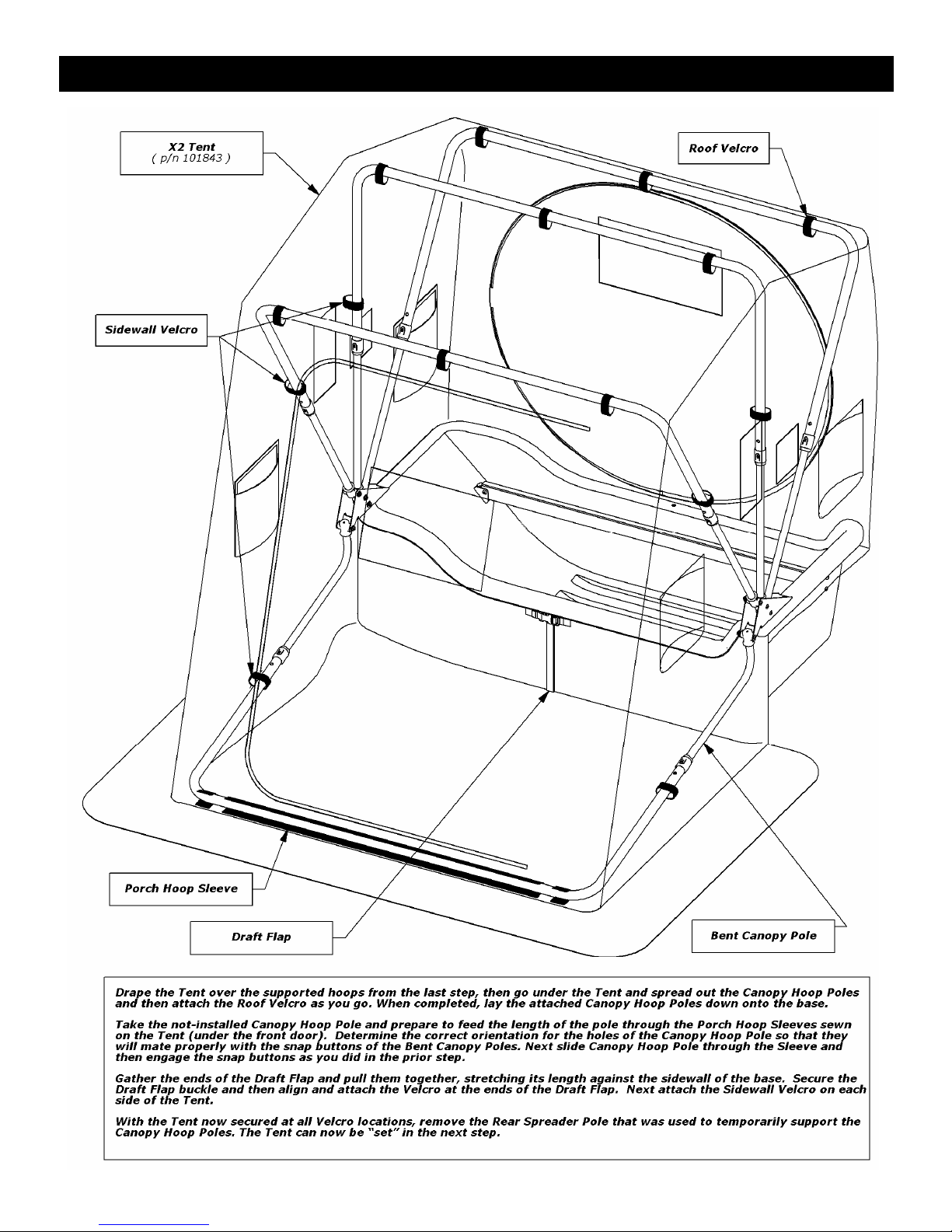

- Step Eight -
11
Page 12

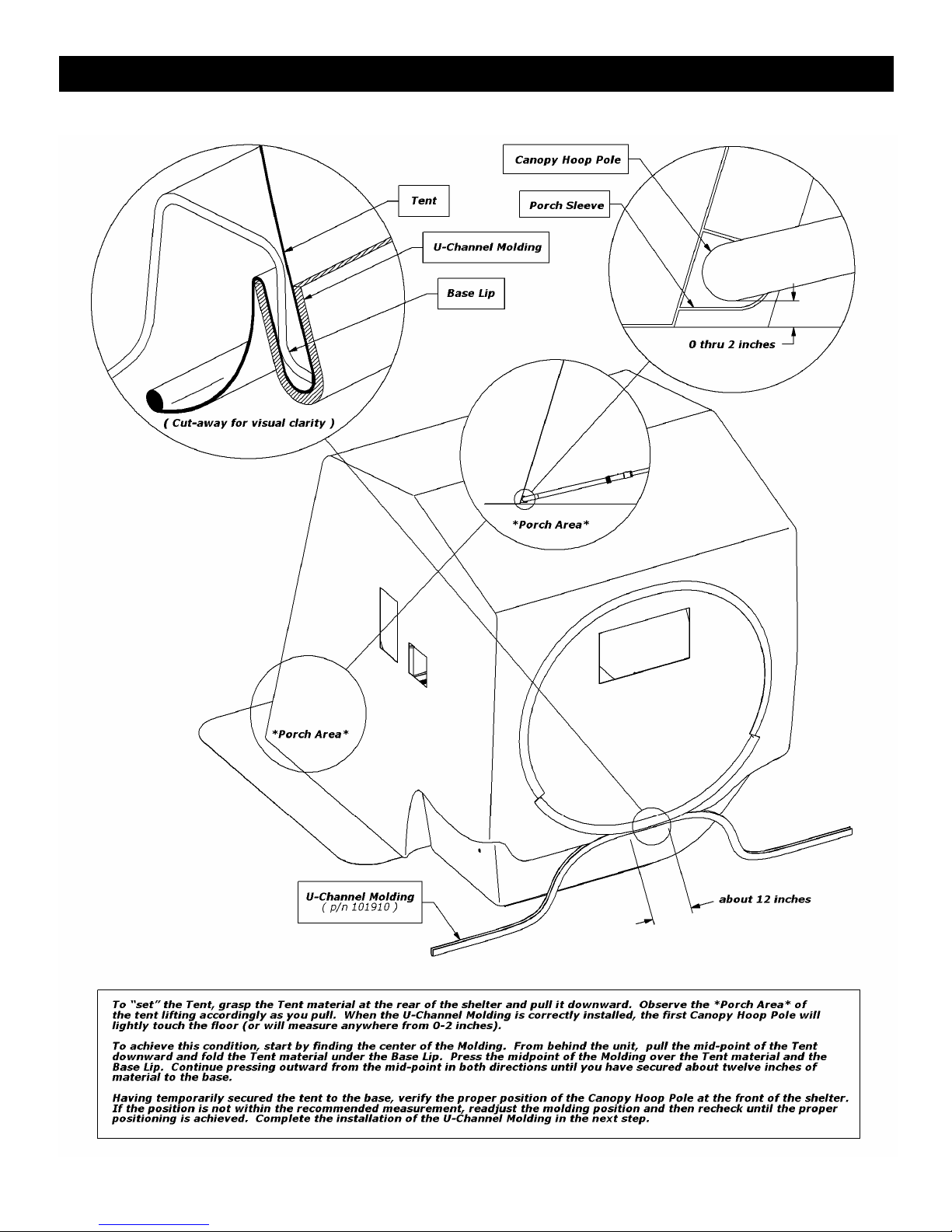

- Step Nine -
12
Page 13

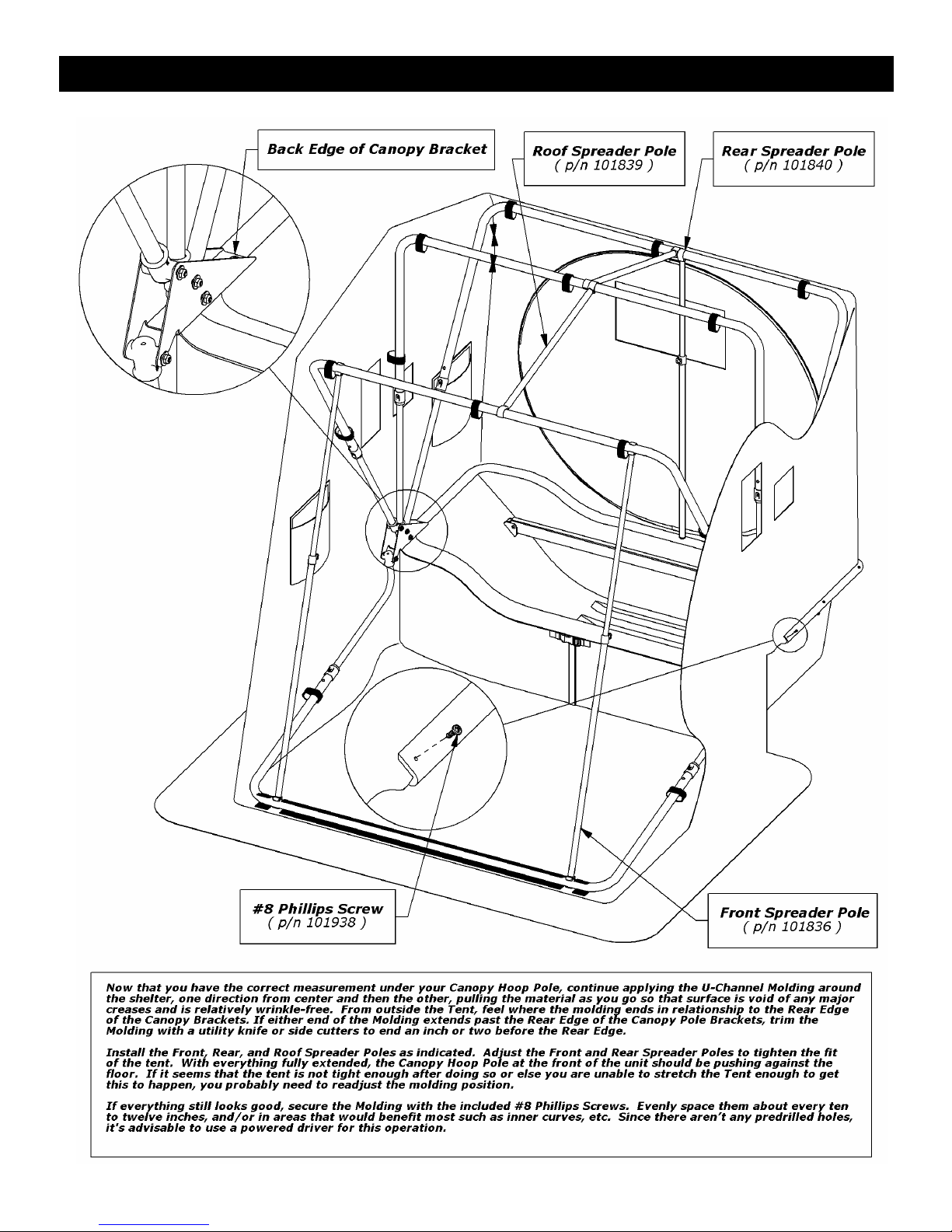

- Step Ten -
13
Page 14

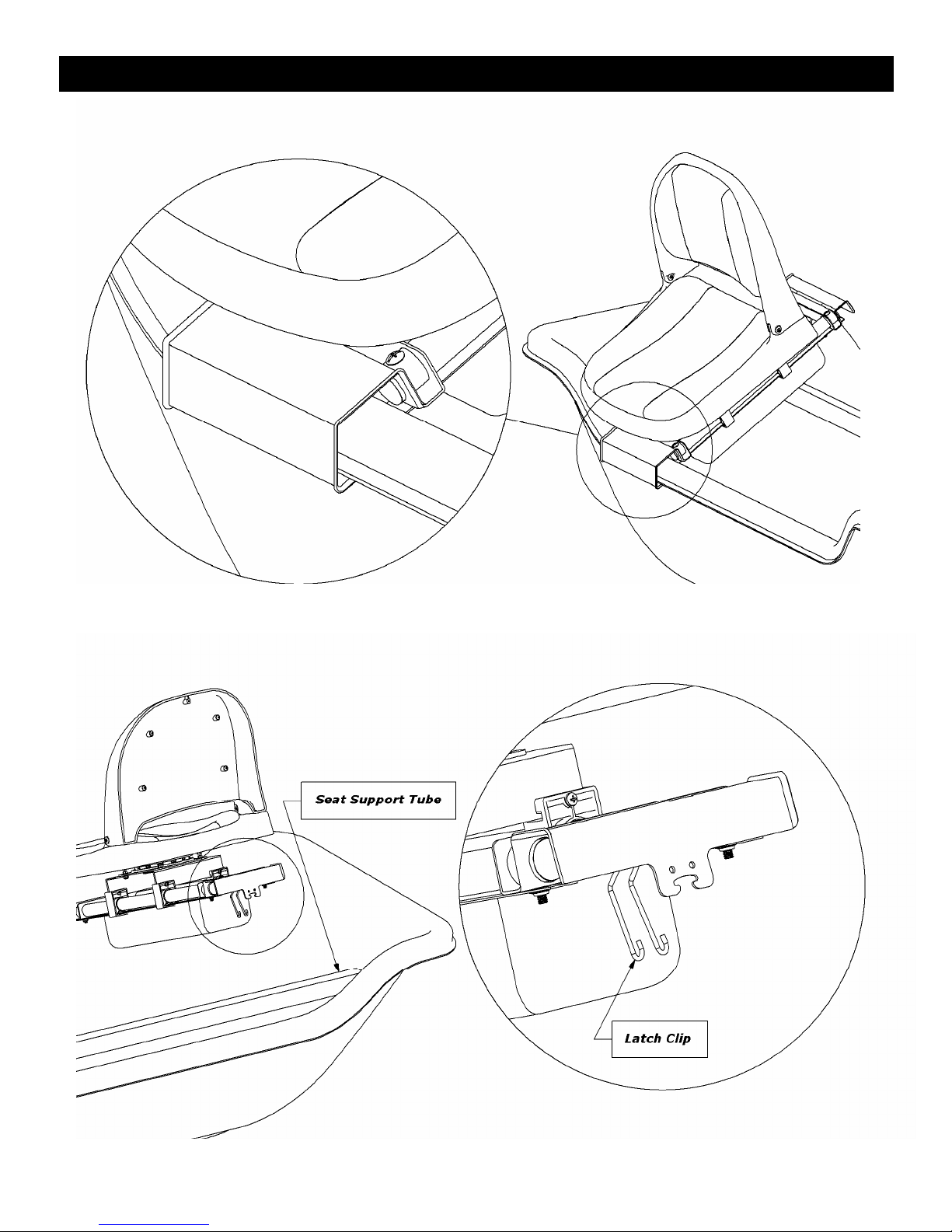

- Seating Installation -
Angle the Seat Assembly slightly while placing the bottom lip of the Front Seat Bracket under the
outside edge of the Base Lip.
With the Latch Clip hanging freely, tilt the complete assembly downward until the interior of the Rear
Seat Bracket surrounds the Support Tube.
14
Page 15

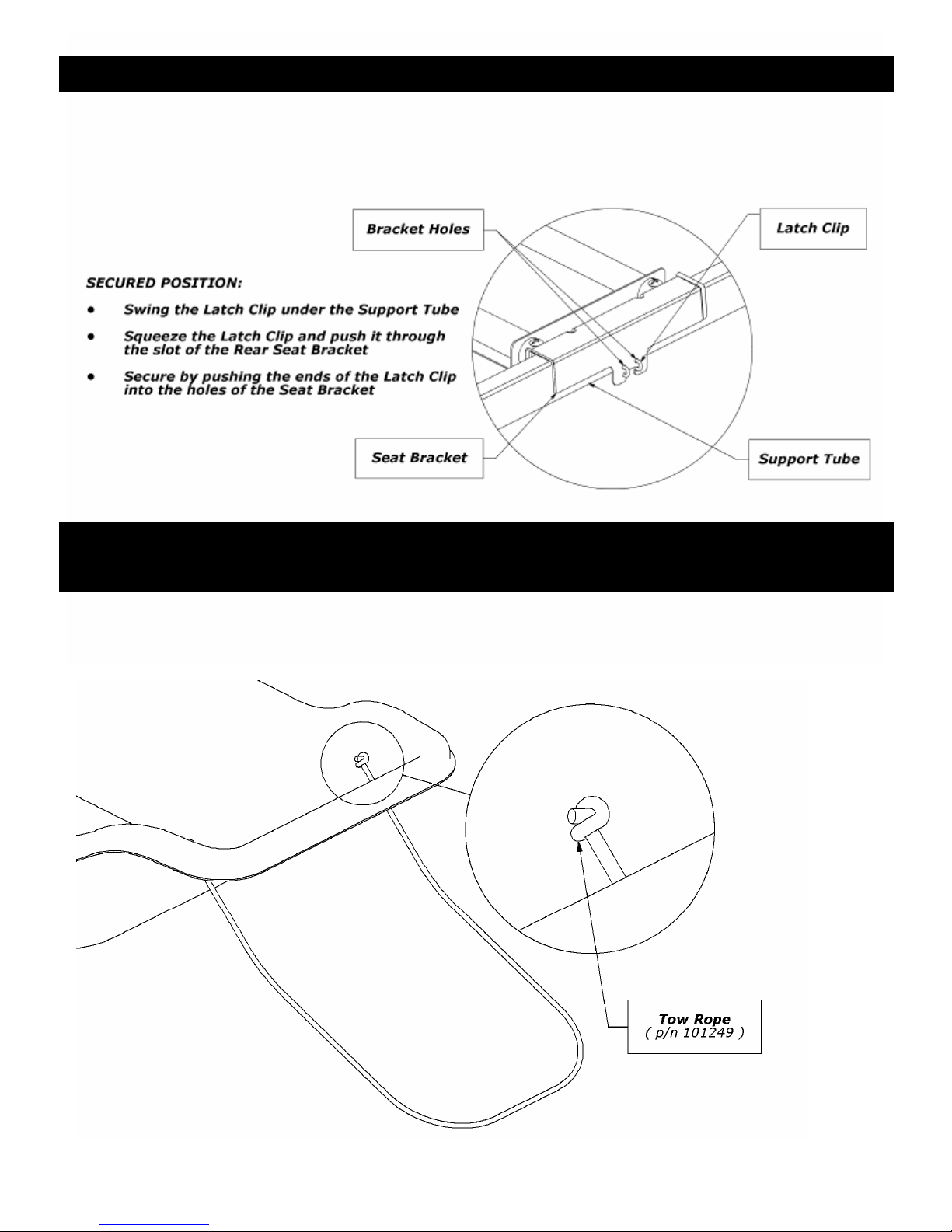

- Seating Installation (cont.) -
Reach under the Rear Seat Bracket and slide the Latch Clip outwards and then up against the underside
of the Support Tube. Squeeze the Latch Clip into the horizontal slot of the Rear Seat Bracket.
Secure the position of the Latch Clip by pushing it into the two holes located above the horizontal slot
of the Rear Seat Bracket.
WARNING: ALWAYS KEEP THE LATCH CLIP IN THE SECURED POSITION DURING USE.
FAILURE TO DO SO COULD RESULT IN INJURY FROM THE SEAT COMING OFF OF ITS
MOUNTING SYSTEM.
Included is a Tow Rope for those not planning to install the optional Tow Hitch Assembly (available for
purchase at www.clamcorp.com.). Two install the Tow Rope, drill two 1/2" holes in the sloped front of
the Base. Knot the ends of the Tow Rope after routing through the drilled holes.
15
Page 16
- Safety Instructions -
Please fully understand and follow all safety instructions as outlined. Failure to do so could result in
severe injury or death.
Do not use open flame heaters in your ice shelter. Injury or death may result from fire if tent fabric is
▪
exposed to open flame. The tent is not fireproof, but the fabric is treated with a fire retardant that
meets CPAI-84 specifications. Application of any foreign substance may render the flame retardant
properties ineffective. Ice Armor fabric will melt when contact is made with hot surfaces (i.e.,
heaters).
Death from asphyxiation may result from use of oxygen depleting heaters. Open all vents for fresh air
▪
ventilation.
Never leave shelter unattended when set up.
▪
Due to the increase in traffic (snowmobiles, autos, etc.) on area lakes, ice fishing can be hazardous at
▪
night. If you choose to fish at night or in poor visibility conditions, be sure to take precautions with
lights or reflectors to show drivers your whereabouts. Night time: exterior reflectors must be visible
to reduce risk of collisions.
- Warranty -
Clam Corporation, Inc. warrants to the original retail purchaser that all Clams are free from
manufacturers defects for one (1) year from the date of the original purchase. Warranty does not cover
cracked windows, tent tears, broken or bent hoops due to high wind weather conditions or unattended
use. Clam Corporation will replace or repair any part found defective within the one (1) year time limit.
All parts must be returned to Clam Corporation, Inc. Before returning any parts, you must first call or
write and acquire a return authorization. All returns must be returned postage-prepaid and include the
original cash register receipt (date and purchase price).
- Limitation of Liability -
It is expressly understood that Clam Corporation liability for its products, whether due to breach of
warranty, negligence, strict liability, or otherwise, is limited to the repair of the product as stated
above. Clam Corporation is not liable for any injury, loss, damage, or expense, whether direct or
consequential, including but not limited to loss of use, income, profit, or damage to material arising in
connection with the sale, installation, use of, inability to use, or the repair or replacement of Clam
Corporation products. Clam Corporation reserves the right to make alterations or modifications in its
products at any time, which in its opinion, may improve the performance and efficiency of the product.
It shall not be obligated to make such alterations or modifications to products already in service.
