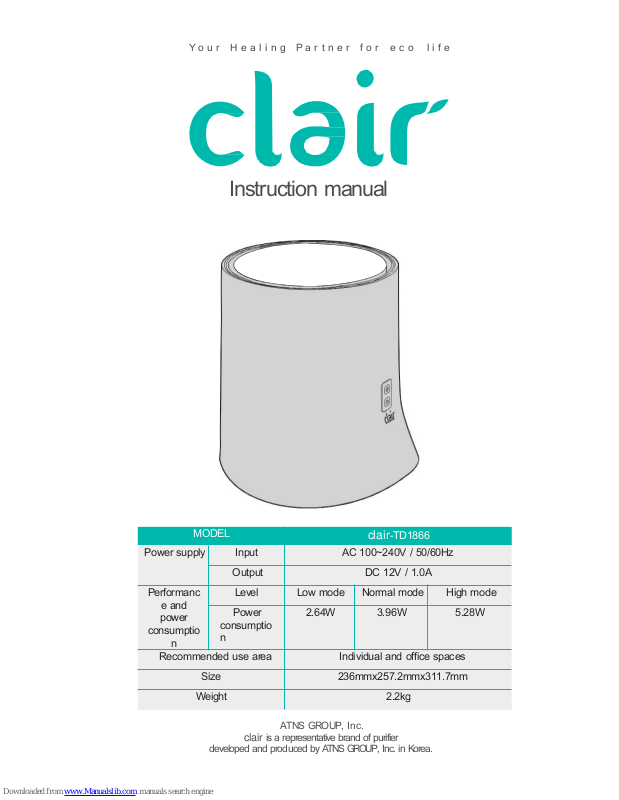

Y o u r H e a l i n g P a r t n e r f o r e c o l i f e
ATNS GROUP, Inc.
clair is a representative brand of purifier
developed and produced by ATNS GROUP, Inc. in Korea.
Instruction manual
MODEL
clair-TD1866
Power
supply
Input AC 100~240V / 50/60Hz
Output DC 12V / 1.0A
Performanc
e and
power
consumptio
n
Level Low mode Normal mo
de
High mode
Power
consumptio
n
2.64W 3.96W 5.28W
Recommended use area Individual and office spaces
Size 236mmx257.2mmx311.7mm
Weight 2.2kg
See how much clair cares for its customers!
Innovative technology through a paradigm shift
-
the
e2f
filter
Nuisance static electricity is born again as an innovative filter resulting in a paradigm shift.
The clair e2f filter can collect ultrafine particles that escape existing filters and enter our lungs.
Now try the e2f filter!
Removal of allergens and other substances that cause sick house syndrome
clair removes harmful materials such as CO, exhaust gases (NOx, SOx), formaldehyde and
toluene (VOCs), so it is great for use at home with respiratory patients, atopic patients,
pregnant women and infants.
Safely purified air with no hazardous secondary substances
Air purifiers based on electric collectors or aromatic mixing generate hazardous secondary
substances, such as ozone and carbon, which cause headaches, dizziness, drowsiness,
asthma and atopy. The clair air purifier is free of hazardous secondary substances.
Viruses and bacteria removal
It maintains a pleasant indoor environment by removing viruses, mold, fungi and bacteria.
Features of product
Low maintenance costs
Because the cost for continuous use is only about ₩200 a month, it has negligible impact
on the electricity bill. The e2f filter can be used for over a year, which makes maintenance
easier and reduces filter costs.
Convenience
It is designed for convenient, one button operation, and the filter can be separated,
replaced and cleaned by users themselves.
Attractive design
A simple and premium design coordinates with bedrooms and living rooms. It
can be used in individual spaces and office environments.
Made in Korea
All models are made in Korea to ensure customer reliability. A/S (after service) is available
through the join medium and small enterprise AS centers operated by the government.
한국어
- 2 -
English 中國語
● Main body
● e2f filter
● DC adapter ● User Manual
Front Back
Air inlet
Top cover
Control unit
Air outlet
Mood light
Adapter
joint
※Caution!
Plug the DC adapter
in the main body
before connecting to
a power outlet.
1. Check condition of product before
installation.
Product components
and names
Product components
Installation method
Operation method and motion
Operation mode Operation method
Names of each part
4. Be careful not to block the top cover with
foreign objects as not to prevent air intake.
IN
OUT
3. Press the power button to operate the
product.
2. Connect DC adapter to the back of the
main body and then plug into a power outlet.
Operation details Button indicator
Level 1
Press the power button once
Low speed mode
Press the power button
once during intensive mode
Press the intensive button
once during intensive mode
Level 2 Press the power button twice Nomal speed mode
Intensive mode Press the intensive button once
High speed mode
(automatic transfer to low speed
mode after 2 hours)
OFF
Press the power button during
level 2 operation
Stop
Press the power button for longer than
2 seconds regardless of mode
Mood light ON/OFF
Press intensive button for longer than
2 seconds regardless of mode
Mood light ON or OFF
한국어
- 3 -
English 中國語

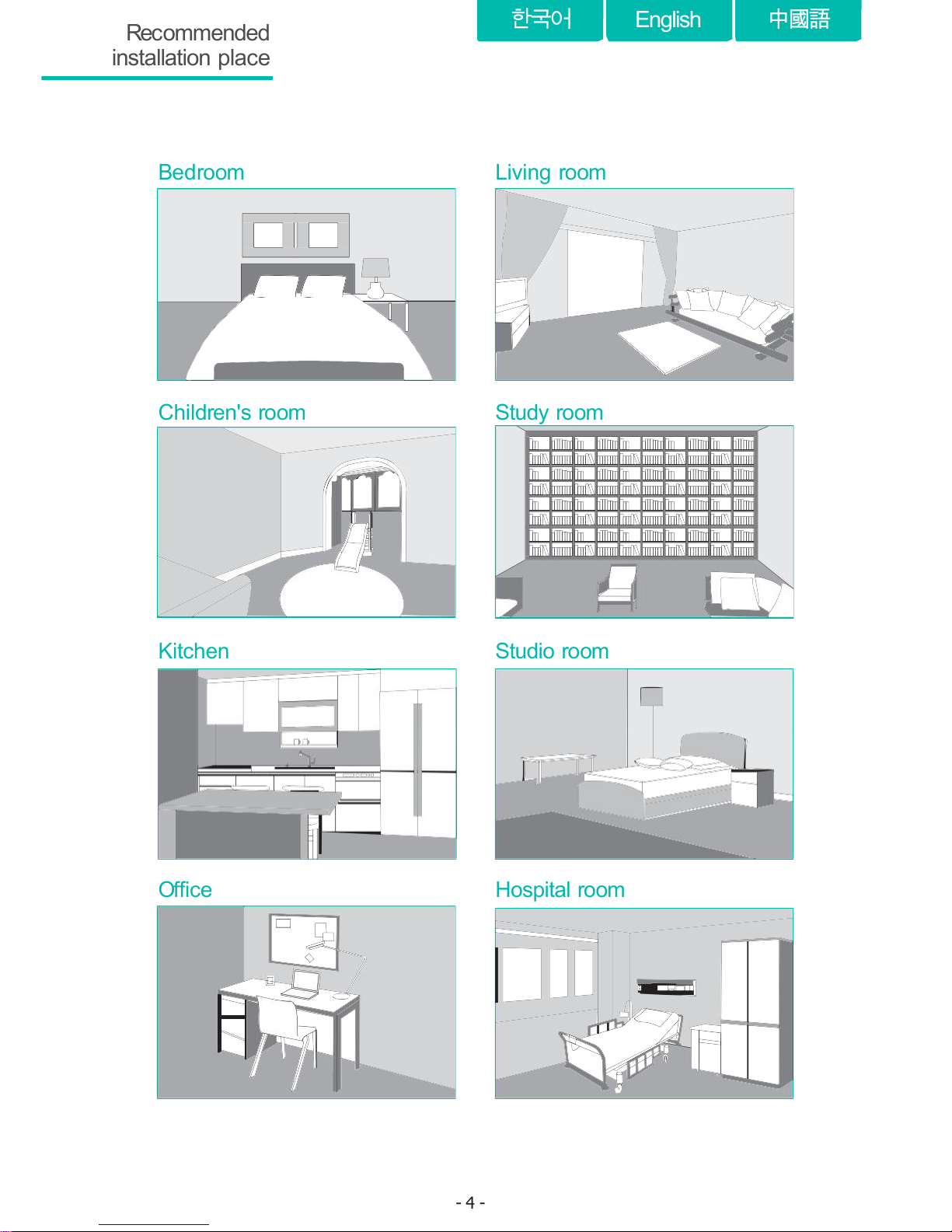

Recommended
installation place
Bedroom Living room
Children's room Study room
Kitchen Studio room
Office Hospital room
한국어
- 4 -
English 中國語
18months

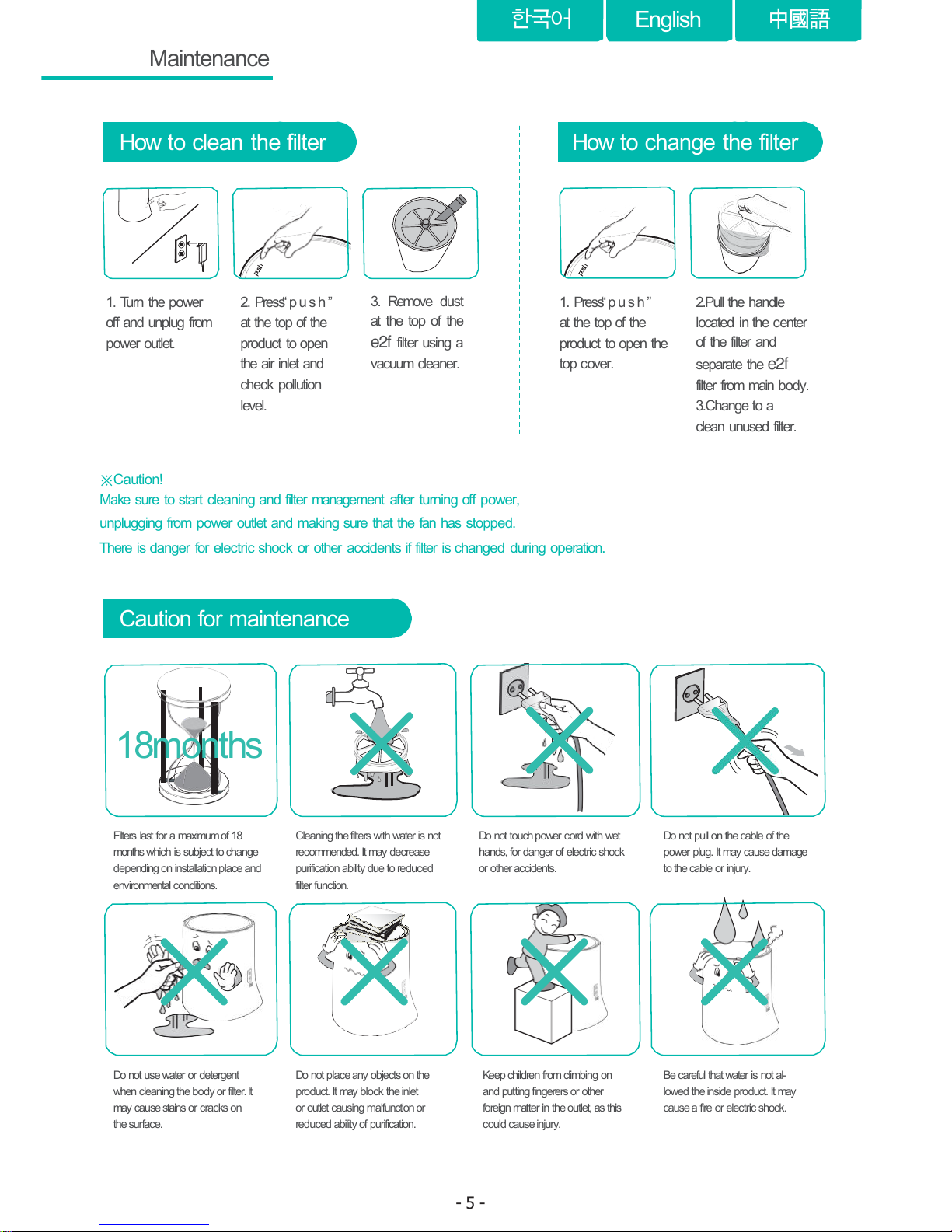

Maintenance
How to clean the filter
Caution for maintenance
How to change the filter
※Caution!
Make sure to start cleaning and filter management after turning off power,
unplugging from power outlet and making sure that the fan has stopped.
There is danger for electric shock or other accidents if filter is changed during operation.
1. Turn the power
off and unplug from
power outlet.
2. Press p u s h
at the top of the
product to open
the air inlet and
check pollution
level.
3. Remove dust
at the top of the
e2f filter using a
vacuum cleaner.
Filters last for a maximum of 18
months which is subject to change
depending on installation place and
environmental conditions.
Do not use water or detergent
when cleaning the body or filter. It
may cause stains or cracks on
the surface.
Do not place any objects on the
product. It may block the inlet
or outlet causing malfunction or
reduced ability of purification.
Keep children from climbing on
and putting fingerers or other
foreign matter in the outlet, as this
could cause injury.
Be careful that water is not al-
lowed the inside product. It may
cause a fire or electric shock.
Cleaning the filters with water is not
recommended. It may decrease
purification ability due to reduced
filter function.
Do not touch power cord with wet
hands, for danger of electric shock
or other accidents.
Do not pull on the cable of the
power plug. It may cause damage
to the cable or injury.
1. Press p u s h
at the top of the
product to open the
top cover.
2.Pull the handle
located in the center
of the filter and
separate the e2f
filter from main body.
3.Change to a
clean unused filter.
한국어
- 5 -
English 中國語

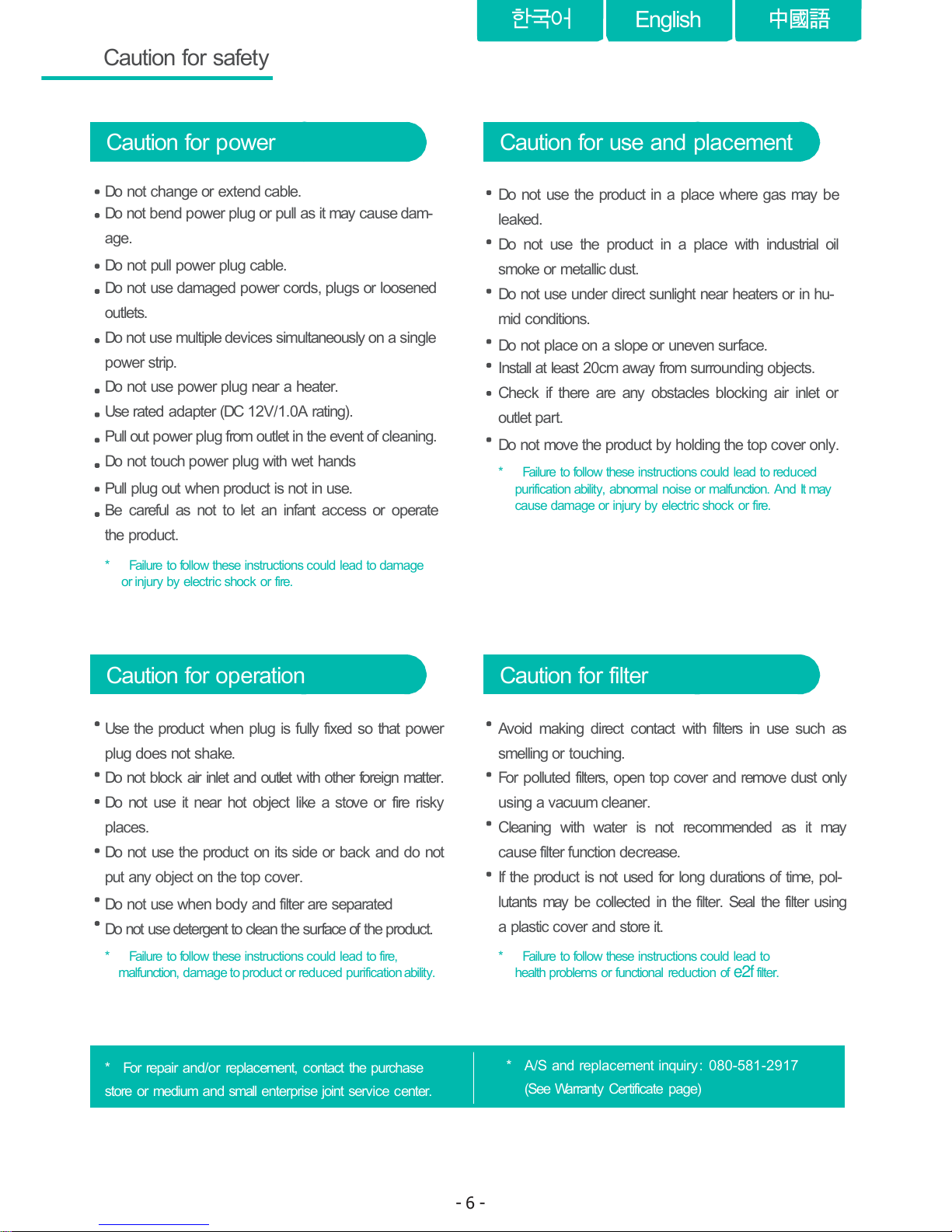

Caution for safety
Caution for power
Caution for operation
Caution for use and placement
Caution for filter
Do not change or extend cable.
Do not bend power plug or pull as it may cause dam-
age.
Do not pull power plug cable.
Do not use damaged power cords, plugs or loosened
outlets.
Do not use multiple devices simultaneously on a single
power strip.
Do not use power plug near a heater.
Use rated adapter (DC 12V/1.0A rating).
Pull out power plug from outlet in the event of cleaning.
Do not touch power plug with wet hands
Pull plug out when product is not in use.
Be careful as not to let an infant access or operate
the product.
* Failure to follow these instructions could lead to damage
or injury by electric shock or fire.
Use the product when plug is fully fixed so that power
plug does not shake.
Do not block air inlet and outlet with other foreign matter.
Do not use it near hot object like a stove or fire risky
places.
Do not use the product on its side or back and do not
put any object on the top cover.
Do not use when body and filter are separated
Do not use detergent to clean the surface of the product.
* Failure to follow these instructions could lead to fire,
malfunction, damage to product or reduced purification ability.
Do not use the product in a place where gas may be
leaked.
Do not use the product in a place with industrial oil
smoke or metallic dust.
Do not use under direct sunlight near heaters or in hu-
mid conditions.
Do not place on a slope or uneven surface.
Install at least 20cm away from surrounding objects.
Check if there are any obstacles blocking air inlet or
outlet part.
Do not move the product by holding the top cover only.
* Failure to follow these instructions could lead to reduced
purification ability, abnormal noise or malfunction. And It may
cause damage or injury by electric shock or fire.
Avoid making direct contact with filters in use such as
smelling or touching.
For polluted filters, open top cover and remove dust only
using a vacuum cleaner.
Cleaning with water is not recommended as it may
cause filter function decrease.
If the product is not used for long durations of time, pol-
lutants may be collected in the filter. Seal the filter using
a plastic cover and store it.
* Failure to follow these instructions could lead to
health problems or functional reduction of e2f filter.
* For repair and/or replacement, contact the purchase
store or medium and small enterprise joint service center.
* A/S and replacement inquiry: 080-581-2917
(See Warranty Certificate page)
한국어
- 6 -
English 中國語

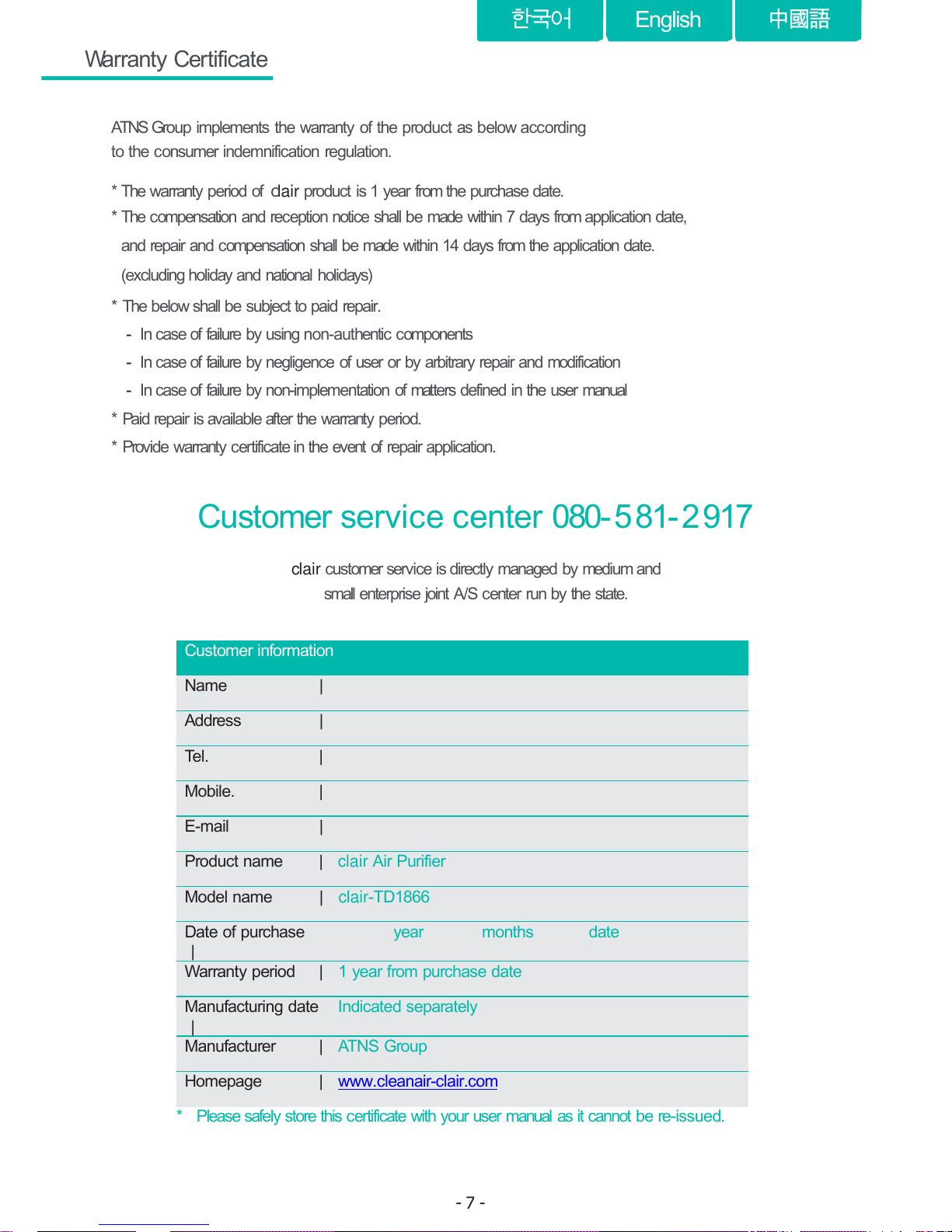

Warranty Certificate
ATNS Group implements the warranty of the product as below according
to the consumer indemnification regulation.
* The warranty period of clair product is 1 year from the purchase date.
* The compensation and reception notice shall be made within 7 days from application date,
and repair and compensation shall be made within 14 days from the application date.
(excluding holiday and national holidays)
* The below shall be subject to paid repair.
- In case of failure by using non-authentic components
- In case of failure by negligence of user or by arbitrary repair and modification
- In case of failure by non-implementation of matters defined in the user manual
* Paid repair is available after the warranty period.
* Provide warranty certificate in the event of repair application.
Customer service center 080-581-2917
clair customer service is directly managed by medium and
small enterprise joint A/S center run by the state.
* Please safely store this certificate with your user manual as it cannot be re-issued.
한국어
- 7 -
English 中國語
Custome
r information
Nam
e ｜
A
ddress ｜
T
el. ｜
Mobile
. ｜
E
-mail ｜
P
roduct name
｜
c
lair Air Purifier
M
odel name
｜
c
lair-TD1866
Dat
e of purchase
｜
year months date
W
arranty period
｜
1
year from purchase date
Manu
facturing date
｜
Indicat
ed separately
Manu
facturer
｜
A
TNS Group
Homepag
e
｜
www.cleanair
-clair.com

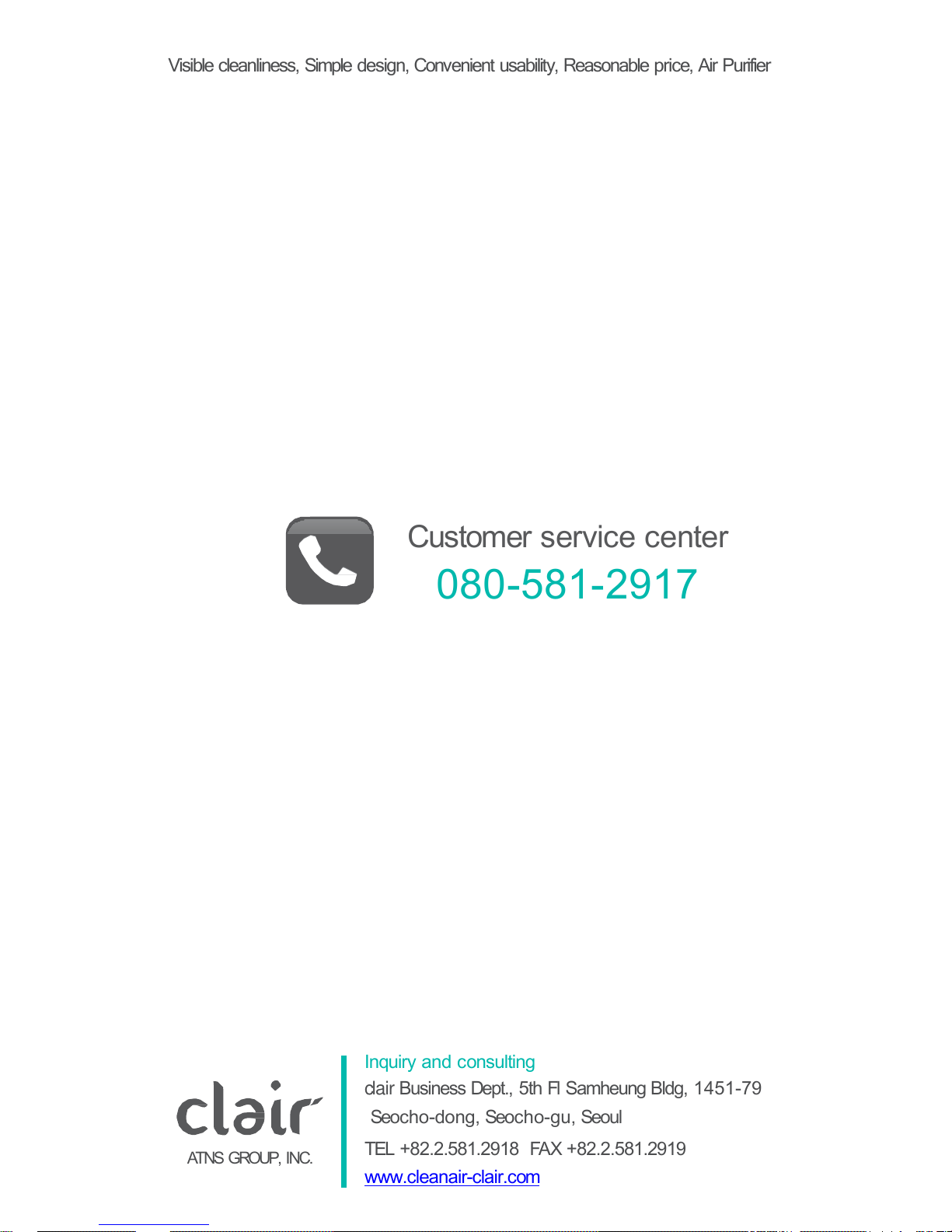

Visible cleanliness, Simple design, Convenient usability, Reasonable price, Air Purifier
Customer service center
080-581-2917
Inquiry and consulting
clair Business Dept., 5th Fl Samheung Bldg, 1451-79
Seocho-dong, Seocho-gu, Seoul
TEL +82.2.581.2918 FAX +82.2.581.2919
www.cleanair-clair.com
ATNS GROUP, INC.
