CLACK
SPARE PARTS LIST
VALID AS FROM 15/02/2017
CONTENTS
Accessories
Bypass valve ................................................................................................................................................................................................ 4
1” and 1.25” Alternating valves & no hardwater Bypass ................................................................................................................... 5
1.5” and 2” MAV & NHWBP .......................................................................................................................................................................7
3” and 3” MAV & NHWBP ......................................................................................................................................................................... 9
Clack 1” & 1.25” Valve
TC Control front cover & software ........................................................................................................................................................10
CI control front cover & software ...........................................................................................................................................................11
Drive assembly ........................................................................................................................................................................................... 12
1” Drive cap assembly, piston & stack assy ........................................................................................................................................13
1.25” Drive cap assembly, piston & stack assy ..................................................................................................................................14
Injector cap, screen, injector, plug & o-ring ........................................................................................................................................15
Refill control ................................................................................................................................................................................................16
Drain line 3/4” ............................................................................................................................................................................................. 17
Drain line 1” adaptor .................................................................................................................................................................................. 19
Turbine assy & plug ..................................................................................................................................................................................20
Connections ................................................................................................................................................................................................ 21
Clack 1.5” & 2” Valve
Front cover & software ............................................................................................................................................................................22
Drive assembly .......................................................................................................................................................................................... 23
1.5” Drive cap assembly, piston & stack assy - Generation 1 Valve Body ..................................................................................24
2” Drive cap assembly, piston & stack assy ......................................................................................................................................25
2” QC Drive cap assembly, piston & stack assy ...............................................................................................................................26
1.5” injectors (Generation 1) .................................................................................................................................................................... 27
1.5” injectors & refill (Generation 2)......................................................................................................................................................28
2” injectors & refill ....................................................................................................................................................................................30
1.5” refill (Generation 1) ............................................................................................................................................................................ 32
1.5” Drain line 3/4” .................................................................................................................................................................................... 33
1.5” Drain line 1” adaptor .........................................................................................................................................................................34
1.5” & 2” Valve s/s external DLFC housing ........................................................................................................................................35
Accessories - Adaptors ........................................................................................................................................................................... 37
Accessories - 1.5” & 2” meter assembly ............................................................................................................................................. 38
2
CONTENTS
Clack WS2H & WS3H
Front cover & drive assembly................................................................................................................................................................39
Clack WS2” & 3”
Brine and injector system .......................................................................................................................................................................40
Drive cap assembly, main piston, regenerant piston and spacer stack assembly...................................................................41
Clack WS2H
Drain elbow (3/4” male BSP without silencer) ..................................................................................................................................42
Drain fitting (1” male BSP straight without silencer) ......................................................................................................................... 44
Drain line flow control .............................................................................................................................................................................45
2 1/2” Groovelock clamp assembly...................................................................................................................................................... 47
Drive cap assembly, main piston, regenerant piston and spacer stack assembly..................................................................48
Clack WS3
Meter assembly ......................................................................................................................................................................................... 49
Drain line flow control .............................................................................................................................................................................50
Front cover and software ........................................................................................................................................................................51
Drive assembly ..........................................................................................................................................................................................52
Clack 1” TT Valve
Drive cap assembly .................................................................................................................................................................................. 53
Valve body ..................................................................................................................................................................................................54
Injector cap, screen, injector, plug & o-ring .......................................................................................................................................56
Refill control ...............................................................................................................................................................................................57
Drain line 3/4” ............................................................................................................................................................................................58
Drain line 1” adaptor .................................................................................................................................................................................59
Turbine assy & plug ..................................................................................................................................................................................60
3
ACCESSORIES
3
BYPASS VALVE
9
8
10
9
8
10
1
1
2
2
3
3
1
1
2
2
3
N° Reference Clack
Description Qty €
Code
1 5303025096 V3151 WS1 Nut 1’’ quick connect 2 1,40
2 5303025094 V3150 WS1 Split Ring 2 0,47
3 5303022165 V3105 O-Ring 215 2 0,46
8 5303029462 V3152 O-Ring 135 2 0,97
9 5303028483 V3155 O-Ring 112 2 0,25
10 5303028660 V3156 O-Ring 214 2 0,36
Kit 5303024075 V3006 WS1 Bypass assembly Kit 55,58
4
ACCESSORIES
1” AND 1.25” ALTERNATING VALVES &
NO HARDWATER BYPASS
B
A
N° Reference Clack
Code
1 5303020048 V3073 MAV/NHWBP Cover Assembly 1 21,04
2 5303021232 V3476 WS Motor Assembly 8’ 1 25,60
3 5303020049 V3592 Screw #8 – 3/4 PHPN T-25 SS 3 0,30
4 5303021197 V3262-01 WS1.5/2 ALT / 2 Reduction Gear Cover Assem-
5 5303025074 V3110 Drive Gear 12x36 3 1,28
6 5303021198 V3264 WS2 Reduction Gear Axel 3 0,69
7 5303020050 V3527 Screw 1/4-20 X 3/4 BHSGS SS 4 0,36
8 5303021661 V3072 MAV/NHWBP 1/1.25/1.5 Drive Asy 1 27,56
9 5303021662 V3506-01 MAV/NHWBP 1/1.25/1.5 Piston 1 38,06
10 5303021663 V3074 MAV/NHWBP 1/1.25/1.5 Stack Asy 1 20,73
Description Qty €
1 5,42
bly
5
ACCESSORIES
1” AND 1.25” ALTERNATING VALVES &
NO HARDWATER BYPASS
B
N° Reference Clack
Code
N.S. 5303025096 V3151 WS1 Nut 1’’ quick connect 2 1,40
N.S. 5303025094 V3150 WS1 Split Ring 2 0,47
N.S. 5303022165 V3105 O-Ring 215 2 0,46
N.S. 5303021231 V3474 WS Alternating Connection Cord 12’ (3 wire)
A 5303029140 V3069FF-01 Alternating valve WS1 & WS1.25 (Female x
A 5303029141 V3069MM-01 Alternating valve WS1 & WS1.25 (male x
B 5303020764 V3070FF NHWBP WS1 & WS1.25 (Female x Female) 1 181,79
B 5303020765 V3070FM NHWBP WS1 & WS1.25 (Female x Male) 1 181,79
MAV: Motor Alternating Valves
NHWBP: (No hardwater bypass) No hard water during the regeneration
Description Qty €
1 10,09
Black
1 212,21
Female)
1 212,21
male)
6

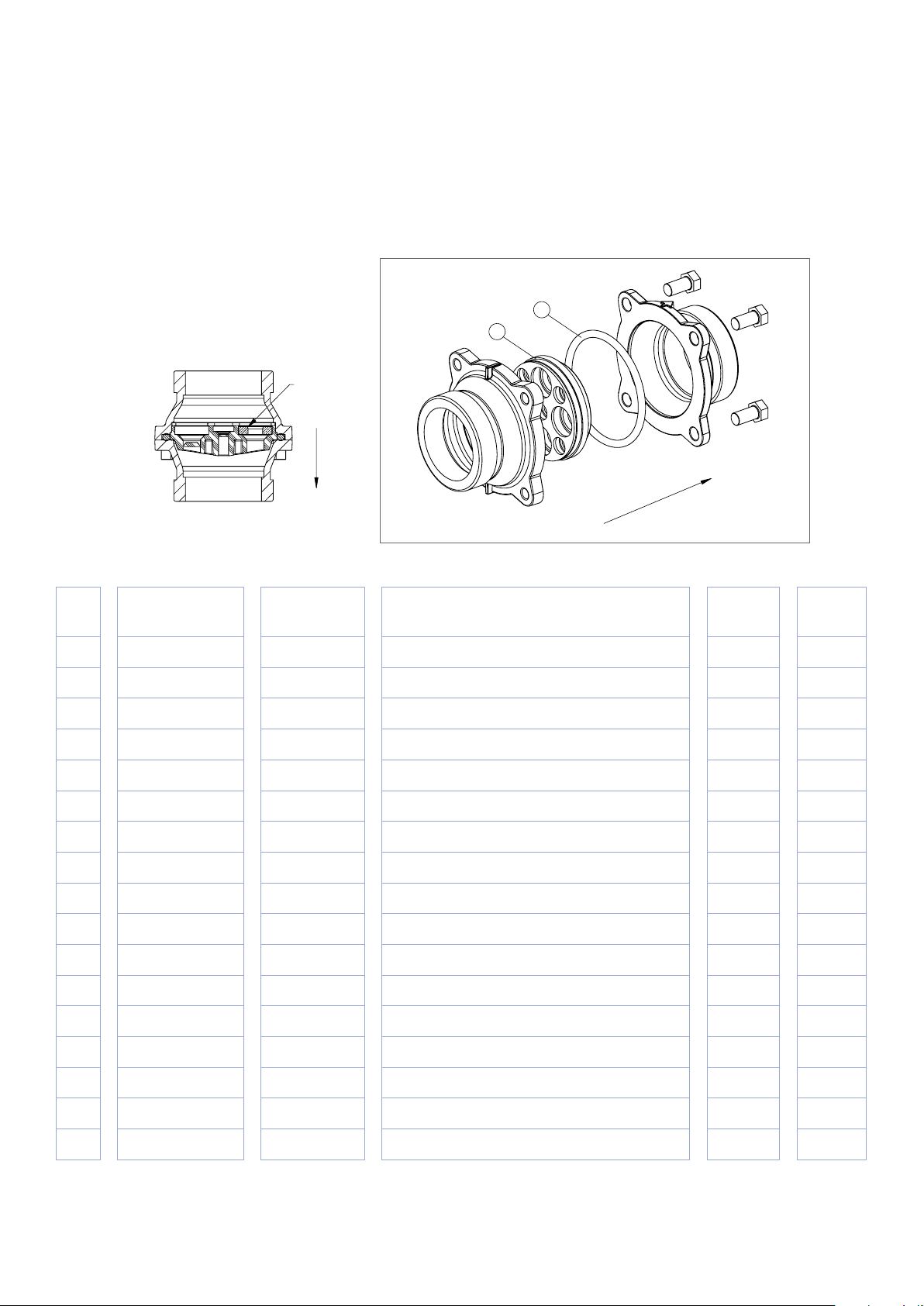

ACCESSORIES
1.5“ AND 2” MAV & NHWBP
1
2
3
4
5
6
N° Reference Clack
11
Description Qty €
7
8
9
10
12
A
B
Code
1 5303020048 V3073 MAV/NHWBP Cover Assembly 1 21,04
2 5303021232 V3476 WS Motor Assembly 8’ 1 25,60
3 5303020049 V3592 Screw #8 – 3/4 PHPN T-25 SS 3 0,30
4 5303021197 V3262-01 WS1.5/2 ALT / 2 Reduction Gear Cover
1 5,42
Assembly
5 5303025074 V3110 Drive Gear 12x36 3 1,28
6 5303021198 V3264 WS2 Reduction Gear Axel 3 0,69
7 5303020050 V3527 Screw 1/4-20 X 3/4 BHSGS SS 4 0,36
8 5303021661 V3072 MAV/NHWBP 1/1.25/1.5 Drive Asy 1 27,56
8 5303020054 V3078 MAV/NHWBP 2” Drive Asy 1 47,44
9 5303021662 V3506-01 MAV/NHWBP 1/1.25/1.5 Piston 1 38,06
9 5303020055 V3634-01 MAV/NHWBP 2” Piston 1 39,25
10 5303021663 V3074 MAV/NHWBP 1/1.25/1.5 Stack Asy 1 20,73
10 5303020056 V3077 MAV/NHWBP 2” Stack Asy 1 34,84
7
ACCESSORIES
1.5“ AND 2” MAV & NHWBP
1
2
3
4
5
6
N° Reference Clack
11
Description Qty €
7
8
9
10
12
A
B
Code
11 5303020052 V3525B-
SPT-01
11 5303020058 V3633B-
SPT-01
N.S. 5303021231 V3474 WS Alternating Connection Cord 12’ (3 wire)
N.S. 5303020082 V3805 Stain Relief Cover Kit 1 2,71
1.5” MAV Body BSPT 1 447,81
2” MAV Body BSPT 1 643,88
1 10,09
Black
A 5302036536 V3071BSPT Alternating valve WS1.5 499,39
A 5303022418 V3076BSPT Alternating valve WS2 636,91
B 5303020095 V3097BSPT NHWBP WS1.5 (male x female) 322,99
B 5303020096 V3098BSPT NHWBP WS2 (male x female) 387,42
8
ACCESSORIES
3“ MAV & NHWBP
1
2
3
4
5
6
N° Reference Clack
11
Description Qty €
7
8
9
10
12
A
Code
1 Cover Assembly 1
B
2 5303021232 V3476 WS Motor Assembly 8’ 1 25,60
3 5303020049 V3592 Screw #8 – 3/4 PHPN T-25 SS 3 0,30
4 5303021197 V3262-01 WS1.5/2 ALT / 2 Reduction Gear Cover
Assembly
5 5303025074 V3110 Drive Gear 12x36 3 1,28
6 5303021198 V3264 WS2 Reduction Gear Axel 3 0,69
7 Screw 2
8 Drive Assembly 3” 1
9 5303020093 V3695-01 WS3 MAV Piston 1 51,15
10 5303020094 V3084 WS3 MAV Stack assembly 1 73,37
11 MAV Body 1
A 5303021840 Alternating valve WS3 1 2.387,60
B 5303020097 NHWBP WS3 (male x female) 1 1.236,66
1 5,42
9
CLACK 1” & 1.25” VALVE
TC CONTROL FRONT COVER & SOFTWARE
4
1
N° Reference Clack
Code
4 5303020087 V3818TC-
2TO4TC
Description Qty €
WS1 TC PC Board 4 Digits 1 76,06
10
CLACK 1” & 1.25” VALVE
CI CONTROL FRONT COVER & SOFTWARE
4
1
N° Reference Clack
Code
1 5303028712 V3175CI-01 WS1CI Front Cover Asy Black 1 19,68
4* 5303025070 V3108CI-
BOARD
N.S. 5303024085 V3186EU Transformer 220-240V 12V EU Standard 24,16
N.S. 5303024086 V3186UK Transformer 220-240V 12V UK Optional 24,16
N.S. 5303020092 V3186EU-OD Clack In-Line transformer 12 Volt Optional 18,98
Description Qty €
WS1CI PC Board Replacement 1 134,61
11

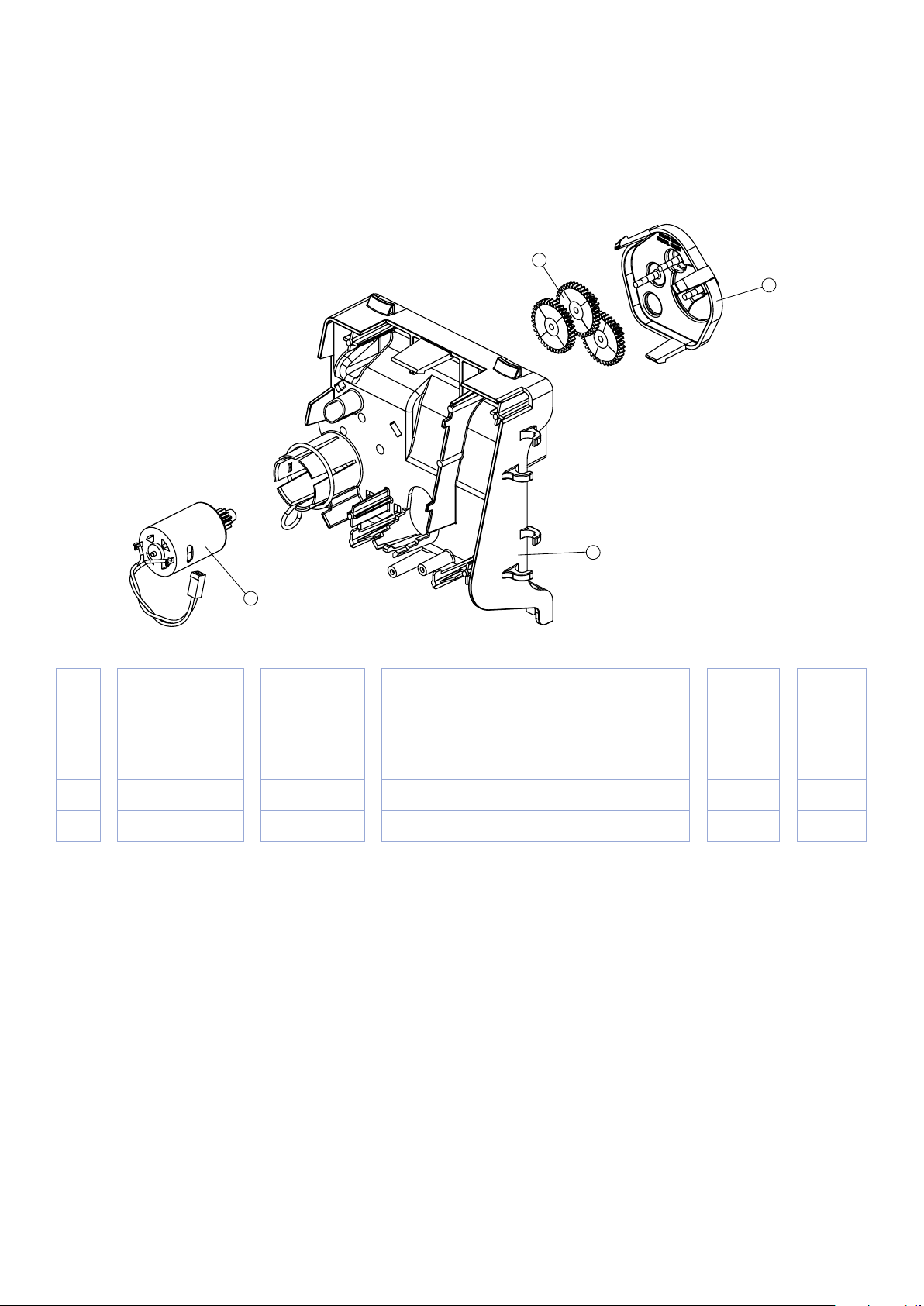

CLACK 1” & 1.25” VALVE
DRIVE ASSEMBLY
5
6
3
2
N° Reference Clack
Code
2 5303025068 V3107-01 Motor 12V 1 17,17
3 5303025067 V3106-01 Drive Bracket & Spring Clip 1 9,21
5 5303025074 V3110 Drive Gear 12x36 3 1,28
6 5303025073 V3109 Drive Gear Cover 1 2,34
Description Qty €
12
CLACK 1” & 1.25” VALVE
1” DRIVE CAP ASSEMBLY, PISTON & STACK ASSY
3
1
4b
2
5
7
8
N° Reference Clack
4a
6
Description Qty €
Code
1 5303020199 V3005-02 WS1 Spacer Stack Asy 1 39,27
2 5303025053 V3004 WS1 Drive Cap Asy 1 27,47
3 5303025110 V3178 WS1 Drive Back Plate 1 6,19
4a 5303025064 V3011 WS1 Piston Downflow Asy 1 13,18
4b 5303025065 V3011-01 WS1 Piston Upflow Asy 1 25,81
5 5303025104 V3174 WS1 / WS1.25 / WS1.5 Regenerant Piston 1 9,59
6 5303023290 V3135 O-Ring 228 1 3,83
7 5303023291 V3180 O-Ring 337 1 4,28
8 5303022165 V3105 O-Ring 215 2 0,46
N.S. 5303025046 V3001 WS1 Body Asy 1 43,59
13
CLACK 1” & 1.25” VALVE
1.25” DRIVE CAP ASSEMBLY, PISTON & STACK
ASSY
3
3
1
1
2
2
5
5
4
4
6
6
7
7
8
8
N° Reference Clack
Description Qty €
Code
1 5303020202 V3430-01 WS1.5 Spacer Stack Assembly 1 60,70
2 5303025053 V3004 WS1 Drive Cap Asy 1 27,47
3 5303025110 V3178 WS1 Drive Back Plate 1 6,19
4 5303028210 V3407 WS1.5 Piston Downflow Asy 1 51,47
5 5303025104 V3174 WS1 / WS1.25 / WS1.5 Regenerant Piston 1 9,59
6 5303023290 V3135 O-Ring 228 1 3,83
7 5303023291 V3180 O-Ring 337 1 4,28
8 5303021013 V3357 O-Ring 218 1 1,13
N.S. 5303028655 V3020-02 WS1.25 Body Asy 32mm Distributor 1 78,13
14
CLACK 1” & 1.25” VALVE
INJECTOR CAP, SCREEN, INJECTOR, PLUG &
O-RING
1
1
2
2
3
3
4
5
5
4
N° Reference Clack
Description Qty €
Code
1 5303025108 V3176 WS1 Injector Cap 1 1,84
2 5303029462 V3152 O-Ring 135 2 0,97
3 5303025109 V3177 WS1 Injector Screen 1 2.29
4 5303024122 V3010-1Z WS1 Injector Asy Z Plug 1 1,65
5 5303024111 V3010-1A WS1 Injector Asy A Black Option 3.50
5 5303024112 V3010-1B WS1 Injector Asy B Brown Option 3.50
5 5303024113 V3010-1C WS1 Injector Asy C Violet Option 3.50
5 5303024114 V3010-1D WS1 Injector Asy D Red Option 3.50
5 5303024115 V3010-1E WS1 Injector Asy E White Option 3.50
5 5303024116 V3010-1F WS1 Injector Asy F Blue Option 3.50
5 5303024117 V3010-1G WS1 Injector Asy G Yellow Option 3.50
5 5303024118 V3010-1H WS1 Injector Asy H Green Option 3.50
5 5303024119 V3010-1I WS1 Injector Asy I Orange Option 3.50
5 5303024120 V3010-1J WS1 Injector Asy J Light Blue Option 2.98
5 5303024121 V3010-1K WS1 Injector Asy K Light Green Option 2.98
The injector plug and the injector each contain one 011 (lower) and 013 (upper) O-Ring.
15
CLACK 1” & 1.25” VALVE
REFILL CONTROL
4
3
3
8
8
4
2
2
5
5
7
7
9
9
1
1
6
6
N° Reference Clack
Description Qty €
Code
1 5303025125 V3195-01 WS1 Refill Port Plug Asy 1 7,01
2 5303025041 H4615 Elbow Locking Clip 1 0,97
3 5303025044 JCP-P-6 Polytube Insert 3/8’’ 1 0,28
4 5303025045 JCPG-6PBLK Nut 3/8’’ Compression 1 0,74
5 5303025040 H4613 Elbow Cap 3/8’’ 1 2,46
6 5303024403 V3163 O-Ring 019 1 0,65
7 5303025100 V3165-01 WS1 Refill Flow Control Retainer Asy 1 4,91
8 5303025111 V3182 WS1 Refill Flow Control (0.5 gpm) 1 1,28
N.S. 5303025043 H4650 Elbow 1/2’’ W/Nut & Insert Option 10,48
16
CLACK 1” & 1.25” VALVE
DRAIN LINE 3/4”
2
3
3
2
4
4
5
5
6
6
N° Reference Clack
1
1
7
7
Description Qty €
Code
1 5303025041 H4615 Elbow Locking Clip 1 0,97
2 5303024090 PKP10TS8-
BULK
3 5303024088 V3192 WS1 Nut 3/4” Drain Elbow For 5/8 x 1/2 Poly Option 1,17
Insert Polytube 5/8” Option 1,81
4 5303025098 V3158-01 WS1 Drain Elbow 3/4’’ Male Asy 1 4,80
5 5303024403 V3163 O-Ring 019 1 0,65
6 5303025099 V3159-01 WS1 DLFC Retainer Asy 1 1,87
7 5303024091 V3162-007 WS1 DLFC 007 (0,7 gpm) For 3/4” Option 1,82
7 5303024092 V3162-010 WS1 DLFC 010 (1.0 gpm) For 3/4” Option 2,43
7 5303024093 V3162-013 WS1 DLFC 013 (1.3 gpm) For 3/4” Option 2,43
7 5303024094 V3162-017 WS1 DLFC 017 (1.7 gpm) For 3/4” Option 2,43
7 5303024095 V3162-022 WS1 DLFC 022 (2.2 gpm) For 3/4” Option 2,43
7 5303024096 V3162-027 WS1 DLFC 027 (2.7 gpm) For 3/4” Option 2,43
7 5303024097 V3162-032 WS1 DLFC 032 (3.2 gpm) For 3/4” Option 2,43
7 5303024098 V3162-042 WS1 DLFC 042 (4.2 gpm) For 3/4” Option 2,43
17
CLACK 1” & 1.25” VALVE
DRAIN LINE 3/4”
2
3
3
2
4
4
5
5
6
6
N° Reference Clack
1
1
7
7
Description Qty €
Code
7 5303024099 V3162-053 WS1 DLFC 053 (5.3 gpm) For 3/4” Option 2,43
7 5303024100 V3162-065 WS1 DLFC 065 (6.5 gpm) For 3/4” Option 2,43
7 5303024101 V3162-075 WS1 DLFC 075 (7.5 gpm) For 3/4” Option 2,43
7 5303024102 V3162-090 WS1 DLFC 090 (9.0 gpm) For 3/4” Option 2,43
7 5303024103 V3162-100 WS1 DLFC 100 (10.0 gpm) For 3/4” Option 2,43
Use one DLFC if using ¾’’ fittings
18
CLACK 1” & 1.25” VALVE
DRAIN LINE 1” ADAPTOR
3
9
8
N° Reference Clack
2
4
5
1
Description Qty €
6
7
Code
1 5303025041 H4615 Elbow Locking Clip 1 0,97
2 5303024083 V3008-02 WS1 Drain Ftg 1” Straight w/Check Valve 1 20,99
5 5303024403 V3163 O-Ring 019 1 0,65
6 5303025094 V3150 WS1 Split Ring 2 0,47
7 5303025096 V3151 WS1 Nut 1’’ quick connect 2 1,40
8 5303022165 V3105 O-Ring 215 2 0,46
9 5303025164 V3190-090 WS1 DLFC 090 (9.0 gpm) For 1” Option 5,95
9 5303024104 V3190-100 WS1 DLFC 100 (10.0 gpm) For 1” Option 5,95
9 5303024105 V3190-110 WS1 DLFC 110 (11.0 gpm) For 1” Option 5,95
9 5303024106 V3190-130 WS1 DLFC 130 (13.0 gpm) For 1” Option 5,95
9 5303024107 V3190-150 WS1 DLFC 150 (15.0 gpm) For 1” Option 5,95
9 5303024108 V3190-170 WS1 DLFC 170 (17.0 gpm) For 1” Option 5,95
9 5303024109 V3190-200 WS1 DLFC 200 (20.0 gpm) For 1” Option 5,95
9 5303024110 V3190-250 WS1 DLFC 250 (25.0 gpm) For 1” Option 5,95
19
CLACK 1” & 1.25” VALVE
TURBINE ASSY & PLUG
4
4
5
5
2
2
6
6
3
3
1
1
N° Reference Clack
Description Qty €
Code
1 5303025096 V3151 WS1 Nut 1’’ quick connect 2 1,40
2 5303025051 V3003 WS1 Meter Asy 1 69,06
4* 5303022165 V3105 O-Ring 215 2 0,46
5 5303025052 V3003-01 WS1 Meter Plug Asy 1 4,10
20
CLACK 1” & 1.25” VALVE
1
CONNECTIONS
2
3
N° Reference Clack
Code
1 5303025096 V3151 WS1 Nut 1’’ quick connect 2 1,40
2 5303025094 V3150 WS1 Split Ring 2 0,47
3 5303022165 V3105 O-Ring 215 2 0,46
kit 5303026540 V3007-14 WS1 3/4” Plastic Male BSPT Assembly Kit 17,33
kit 5303024082 V3007-06 WS1 Ftg 1” Plastic Male BSPT Asy Kit 17,33
kit 5303024081 V3007-08 WS1 Ftg 1.25” Plastic Male BSPT Asy Kit 17,63
Description Qty €
21
CLACK 1.5” & 2” VALVE
FRONT COVER & SOFTWARE
1
4
N° Reference Clack
Code
1 5303028712 V3175CI-01 WS1CI Front Cover Asy Black 1 19,68
4* 5303025070 V3108CI-
BOARD
Description Qty €
WS1CI PC Board Replacement 1 134,61
22
CLACK 1.5” & 2” VALVE
DRIVE ASSEMBLY
5
6
3
2
N° Reference Clack
Code
2 5303025068 V3107-01 Motor 12V 1 17,17
3 5303025067 V3106-01 Drive Bracket & Spring Clip 1 9,21
5 5303025074 V3110 Drive Gear 12x36 3 1,28
6 5303025073 V3109 Drive Gear Cover 1 2,34
Description Qty €
23
CLACK 1.5” & 2” VALVE
1.5” DRIVE CAP ASSEMBLY, PISTON & STACK ASSY
- GENERATION 1 VALVE BODY
7511
7
6
2
1
3
4
8
9
N° Reference Clack
Description Qty €
Code
1 5303025053 V3004 WS1 Drive Cap Asy 1 27,47
2 5303023290 V3135 O-Ring 228 1 3,83
3 5303028210 V3407 WS1.5 Piston Downflow Asy 1 51,47
4 5303025104 V3174 WS1 / WS1.25 / WS1.5 Regenerant Piston 1 9,59
5 5303021033 V3423 WS1.5 Backplate Dowel 1 0,41
6 5303020202 V3430-01 WS1.5 Spacer Stack Assembly 1 60,70
7 5303025110 V3178 WS1 Drive Back Plate 1 6,19
8 5303021031 V3419 O-Ring 347 1 4,27
9 5303021035 V3441 O-Ring 226 1 4,27
N.S. 5303020098 V3950BSPT WS1.5 Body BSPT W/V3419&V3465 1 441,73
N.S. 5303020012 V3465 WS2H/3 Plug 1/4” Hex BSPT 2 10,58
24
CLACK 1.5” & 2” VALVE
2” DRIVE CAP ASSEMBLY, PISTON & STACK ASSY
11
N° Reference Clack
1
10
2
3
5
8
9
6
4
Description Qty €
7
Code
1 5303021704 V3726 WS2 Brine Piston Assembly 1 26,30
2 5303021703 V3725 WS2 Piston Downflow Assembly 1 54,98
3 5303020013 V3452 O-Ring 230 1 1,40
4 5303021706 V3728 WS2 Drive Cap Assembly 1 57,62
5 5303021702 V3724 Washer Flat SS 1/4 4 0,22
6 5303020014 V3642 Bolt BHCS SS 1/4-20 x 1.25 4 0,88
8 5303021707 V3729 WS2 Stack Assembly 1 76,70
7 Back Plate 1
9 5303021031 V3419 O-Ring 347 1 4,27
10 5303021035 V3441 O-Ring 226 1 4,27
11 5303020012 V3465 WS2H/3 Plug 1/4” Hex BSPT 2 10,58
25
CLACK 1.5” & 2” VALVE
2” QC DRIVE CAP ASSEMBLY, PISTON & STACK
ASSY
11
12
13
N° Reference Clack
1
14
10
2
3
5
9
6
4
8
Description Qty €
7
Code
1 5303021704 V3726 WS2 Brine Piston Assembly 1 26,30
2 5303021703 V3725 WS2 Piston Downflow Assembly 1 54,98
3 5303020013 V3452 O-Ring 230 1 1,40
4 5303021706 V3728 WS2 Drive Cap Assembly 1 57,62
5 5303021702 V3724 Washer Flat SS 1/4 4 0,22
6 5303020014 V3642 Bolt BHCS SS 1/4-20 x 1.25 4 0,88
7 Back Plate 1
8 5303021707 V3729 WS2 Stack Assembly 1 76,70
9 5303021031 V3419 O-Ring 347 1 4,27
10 5303020013 V3452 O-Ring 230 1 1,40
11 5303020018 V3737B-
SPT-01
N.S. 5303020012 V3465 WS2H/3 Plug 1/4” Hex BSPT 2 10,58
WS2 QC Body BSPT 1 1.145,90
26
CLACK 1.5” & 2” VALVE
1.5” INJECTORS (GENERATION 1)
7
1
2
3
7
4
Injector nozzle colored
Injector throats black
7
5
WS1.5
INJECTOR
ALL THROATS ARE
BLACK
AND ALL NOZZLES
ARE COLORED
N° Reference Clack
Code
1 5303021032 V3422 Bolt 1/4 x 1 Hex Head 3 0,61
2 5303028209 V3403 WS1.5 Injector Cap 1 3,60
4 5303028202 V3010-1.5B WS1.5 Injector Asy B Violet Option 24,32
4 5303028204 V3010-1.5C WS1.5 Injector Asy C Red Option 24,32
4 5303028205 V3010-1.5D WS1.5 Injector Asy D White Option 24,32
4 5303028206 V3010-1.5E WS1.5 Injector Asy E Blue Option 24,32
4 5303028207 V3010-1.5F WS1.5 Injector Asy F Yellow Option 24,32
4 5303028208 V3010-1.5G WS1.5 Injector Asy G Green Option 19,33
4 5303028652 V3010-1.5H WS1.5 Injector Asy H Orange Option 24,32
4 5303029313 V3010-15Z WS1.5 Injector Asy Z Plug Option 7,86
5 5303029314 V3404 WS1.5 Injector Screen 1 2,42
Description Qty €
27
CLACK 1.5” & 2” VALVE
1.5” INJECTORS & REFILL (GENERATION 2)
15
13
12
14
9
N° Reference Clack
16
17
18
7
6
Description Qty €
11
10
1
8
19
2
4
3
5
Code
2 5303021035 V3441 O-Ring 226 1 4,27
3 5303020127 V3968-01 WS1.5 feed tube grey in color 1 13,31
4 5303025109 V3177 WS1 Injector Screen 1 2.29
5 5303020128 V3969-01 WS1.5 draw tube grey in color 1 13,72
6 5303025108 V3176 WS1 Injector Cap 1 1,84
7 5303029462 V3152 O-Ring 135 1 0,97
8 5303028202 V3010-1.5B WS1.5 Injector Asy B Violet Option 24,32
8 5303028204 V3010-1.5C WS1.5 Injector Asy C Red Option 24,32
8 5303028205 V3010-1.5D WS1.5 Injector Asy D White Option 24,32
8 5303028206 V3010-1.5E WS1.5 Injector Asy E Blue Option 24,32
8 5303028207 V3010-1.5F WS1.5 Injector Asy F Yellow Option 24,32
8 5303028208 V3010-1.5G WS1.5 Injector Asy G Green Option 19,33
8 5303028652 V3010-1.5H WS1.5 Injector Asy H Orange Option 24,32
8 5303029313 V3010-15Z WS1.5 Injector Asy Z Plug Option 7,86
28
CLACK 1.5” & 2” VALVE
1.5” INJECTORS & REFILL (GENERATION 2)
15
13
12
14
9
N° Reference Clack
16
17
18
7
6
Description Qty €
11
10
1
8
19
2
4
3
5
Code
9 5303020036 V3498 WS1.5 Brine Elbow Assembly with Refill
Flow C
10 5303028212 V3428 Ws1.5 Refill Retainer Asy 1 5,88
Option 9,70
11 5303024403 V3163 O-Ring 019 1 0,65
12 5303028640 H4612 Elbow Cap 1/2’ 1 1,37
13 5303028644 JCPG-8PBLK Nut 1/2’’ Compression 1 0,67
14 5303028643 JCP-P-8 Polytube Insert 1/2’’ 1 0,32
15 5303025111 V3182 WS1 Refill Flow Control (0.5 gpm) 1 1,28
16 5303025041 H4615 Elbow Locking Clip 1 0,97
17 5303021702 V3724 Washer Flat SS 1/4 4 0,22
18 5303020014 V3642 Bolt BHCS SS 1/4-20 x 1.25 4 0,88
19 5303025125 V3195-01 WS1 Refill Port Plug Asy 1 7,01
29
CLACK 1.5” & 2” VALVE
2” INJECTORS & REFILL
10
10
11
16
16
15
15
14
14
13
13
12
12
11
N° Reference Clack
9
9
8
8
3
3
2
2
4
Description Qty €
7
6
5
3
Code
1 5303021233 V3477 WS2 Injector Cap 1 4,69
2 5303029462 V3152 O-Ring 135 1 0,97
3 5303021705 V3727 WS2 Injector Body Assembly 1 36,96
4 * 5303020026
4 * 5303020027
4 * 5303020028
4 * 5303020029
V3010-2R-15B
V3010-2S-15C
V3010-2T-15D
V3010-2U-15E
WS2/2H Injector R Modified Assembly Options 33,06
WS2/2H Injector S Modified Assembly Options 33,06
WS2/2H Injector T Modified Assembly Options 36,01
WS2/2H Injector U Modified Assembly Options 37,05
4 * 5303020030
4 * 5303020031
4 * 5303020032
V3010-2V-15F
V3010-2W-15G
V3010-2X-15H
WS2/2H Injector V Modified Assembly Options 37,05
WS2/2H Injector W Modified Assembly Options 28,90
WS2/2H Injector X Modified Assembly Options 28,90
4 5303021065 V3010-2A WS2 Injector Assembly A Options 29,95
4 5303021066 V3010-2B WS2 Injector Assembly B Options 29,95
4 5303021067 V3010-2C WS2 Injector Assembly C Options 29,95
4 5303021068 V3010-2D WS2 Injector Assembly D Options 29,95
4 5303021069 V3010-2E WS2 Injector Assembly E Options 29,95
4 5303021070 V3010-2F WS2 Injector Assembly F Options 29,95
4 5303021071 V3010-2G WS2 Injector Assembly G Options 29,95
* with V3010-1
30
CLACK 1.5” & 2” VALVE
2” INJECTORS & REFILL
10
10
11
16
16
15
15
14
14
13
13
12
12
11
N° Reference Clack
9
9
8
8
3
3
2
2
4
Description Qty €
7
6
5
3
Code
5 5303021727 V3731 WS2 Injector Draw Tube Assy DF 1 6,14
6 5303021708 V3730 WS2 Injector Feed Tube Assy DF 1 5,67
7 5303020033 V3315 O-Ring 231 (WS2H Injector Housing) 1 2,27
8 5303021702 V3724 Washer Flat SS 1/4 4 0,22
9 5303020034 V3643 Bolt BHCS SS 1/4-20 x 2.25 4 1,41
10 5303024095 V3162-022 WS1 DLFC 022 (2.2 gpm) For 3/4” 1 2,43
11 5303021096 V3231 WS2 Refill Flow Control Retainer 1 3,33
12 5303021208 V3277 O-Ring 211 1 0,52
13 5303022165 V3105 O-Ring 215 1 0,46
14 5303025094 V3150 WS1 Split Ring 1 0,47
15 5303025096 V3151 WS1 Nut 1’’ quick connect 1 1,40
16 5303025093 V3149 WS1 Ftg 1’’ PVC Male NPT Elbow 1 2,17
A 5303025124 V3189 WS1 Ftg 3/4’’ & 1’’ PVC Solvent Elbow Option 2,17
B 5303020008 H4915 FTG KIT 494 BV 1/2 Polytube Option 3,96
C 5303020035 V3499 WS2H/3 Fitting Cap 1” Threaded Option 3,05
The WS2 valve is delivered standard with 2.2 gpm DLFC
31
CLACK 1.5” & 2” VALVE
1.5” REFILL (GENERATION 1)
N° Reference Clack
Code
1 5303025125 V3195-01 WS1 Refill Port Plug Asy 1 7,01
2 5303021027 V3415 WS1.5 BLFC Adapter 1 3,91
3 5303025041 H4615 Elbow Locking Clip 1 0,97
4 5303028212 V3428 Ws1.5 Refill Retainer Asy 1 5,88
5 5303024403 V3163 O-Ring 019 1 0,65
6 5303028640 H4612 Elbow Cap 1/2’ 1 1,37
7 5303028644 JCPG-8PBLK Nut 1/2’’ Compression 1 0,67
8 5303028643 JCP-P-8 Polytube Insert 1/2’’ 1 0,32
9 5303025111 V3182 WS1 Refill Flow Control (0.5 gpm) 1 1,28
10 5303020036 V3498 WS1.5 Brine Elbow Assembly with Refill
N.S. 5303028715 V3434-01 WS1.5 Refill Ad. Asy (5/8ö O.D. Tube) Option 7,89
Description Qty €
Option 9,70
Flow C
32
CLACK 1.5” & 2” VALVE
1.5” DRAIN LINE 3/4”
Water Flow
Proper DLFC orientation
directs water ow towards
the washer face with
rounded edge.
N° Reference Clack
4
1
5
Description Qty €
6
1
2
Code
1 5303025041 H4615 Elbow Locking Clip 1 0,97
2 5303021026 V3414 WS1.5 DLFC Adapter 1 5,24
3 5303025098 V3158-01 WS1 Drain Elbow 3/4’’ Male Asy 1 4,80
4 5303024403 V3163 O-Ring 019 1 0,65
5 5303025099 V3159-01 WS1 DLFC Retainer Asy 1 1,87
6 5303024097 V3162-032 WS1 DLFC 032 (3.2 gpm) For 3/4” Option 2,43
6 5303024098 V3162-042 WS1 DLFC 042 (4.2 gpm) For 3/4” Option 2,43
6 5303024099 V3162-053 WS1 DLFC 053 (5.3 gpm) For 3/4” Option 2,43
6 5303024100 V3162-065 WS1 DLFC 065 (6.5 gpm) For 3/4” Option 2,43
6 5303024101 V3162-075 WS1 DLFC 075 (7.5 gpm) For 3/4” Option 2,43
6 5303024102 V3162-090 WS1 DLFC 090 (9.0 gpm) For 3/4” Option 2,43
6 5303024103 V3162-100 WS1 DLFC 100 (10.0 gpm) For 3/4” Option 2,43
33
CLACK 1.5” & 2” VALVE
1.5” DRAIN LINE 1” ADAPTOR
3
Proper DLFC orientation
directs water ow towards
the washer face with
rounded edge.
Water Flow
9
N° Reference Clack
10
8
7
6
5
4
1
2
Description Qty €
Code
1 5303025041 H4615 Elbow Locking Clip 1 0,97
2 5303021026 V3414 WS1.5 DLFC Adapter 1 5,24
3 5303024083 V3008-02 WS1 Drain Ftg 1” Straight w/Check Valve 1 20,99
4 5303024403 V3163 O-Ring 019 1 0,65
6 5303025096 V3151 WS1 Nut 1’’ quick connect 2 1,40
7 5303025094 V3150 WS1 Split Ring 1 0,47
8 5303022165 V3105 O-Ring 215 1 0,46
10 5303025164 V3190-090 WS1 DLFC 090 (9.0 gpm) For 1” Option 5,95
10 5303024104 V3190-100 WS1 DLFC 100 (10.0 gpm) For 1” Option 5,95
10 5303024105 V3190-110 WS1 DLFC 110 (11.0 gpm) For 1” Option 5,95
10 5303024106 V3190-130 WS1 DLFC 130 (13.0 gpm) For 1” Option 5,95
10 5303024107 V3190-150 WS1 DLFC 150 (15.0 gpm) For 1” Option 5,95
10 5303024108 V3190-170 WS1 DLFC 170 (17.0 gpm) For 1” Option 5,95
10 5303024109 V3190-200 WS1 DLFC 200 (20.0 gpm) For 1” Option 5,95
10 5303024110 V3190-250 WS1 DLFC 250 (25.0 gpm) For 1” Option 5,95
34
CLACK 1.5” & 2” VALVE
1.5” & 2” VALVE S/S EXTERNAL DLFC HOUSING
Washer
Radius
N° Reference Clack
1
Description Qty €
6
AB
Code
1 5303020038 V3081 WS1.5 Retainer DLFC Assembly 1 17,77
6 5303021035 V3441 O-Ring 226 1 4,27
N.S. 5303024091 V3162-007 WS1 DLFC 007 (0,7 gpm) For 3/4” Option 1,82
N.S. 5303024092 V3162-010 WS1 DLFC 010 (1.0 gpm) For 3/4” Option 2,43
N.S. 5303024093 V3162-013 WS1 DLFC 013 (1.3 gpm) For 3/4” Option 2,43
N.S. 5303024094 V3162-017 WS1 DLFC 017 (1.7 gpm) For 3/4” Option 2,43
N.S. 5303024095 V3162-022 WS1 DLFC 022 (2.2 gpm) For 3/4” Option 2,43
N.S. 5303024096 V3162-027 WS1 DLFC 027 (2.7 gpm) For 3/4” Option 2,43
N.S. 5303024097 V3162-032 WS1 DLFC 032 (3.2 gpm) For 3/4” Option 2,43
N.S. 5303024098 V3162-042 WS1 DLFC 042 (4.2 gpm) For 3/4” Option 2,43
N.S. 5303024099 V3162-053 WS1 DLFC 053 (5.3 gpm) For 3/4” Option 2,43
N.S. 5303024100 V3162-065 WS1 DLFC 065 (6.5 gpm) For 3/4” Option 2,43
N.S. 5303024101 V3162-075 WS1 DLFC 075 (7.5 gpm) For 3/4” Option 2,43
N.S. 5303024102 V3162-090 WS1 DLFC 090 (9.0 gpm) For 3/4” Option 2,43
N.S. 5303024103 V3162-100 WS1 DLFC 100 (10.0 gpm) For 3/4” Option 2,43
35
CLACK 1.5” & 2” VALVE
1.5” & 2” VALVE S/S EXTERNAL DLFC HOUSING
Washer
Radius
N° Reference Clack
1
Description Qty €
6
AB
Code
N.S. 5303024104 V3190-100 WS1 DLFC 100 (10.0 gpm) For 1” Option 5,95
N.S. 5303024105 V3190-110 WS1 DLFC 110 (11.0 gpm) For 1” Option 5,95
N.S. 5303024106 V3190-130 WS1 DLFC 130 (13.0 gpm) For 1” Option 5,95
N.S. 5303024107 V3190-150 WS1 DLFC 150 (15.0 gpm) For 1” Option 5,95
N.S. 5303024108 V3190-170 WS1 DLFC 170 (17.0 gpm) For 1” Option 5,95
N.S. 5303024109 V3190-200 WS1 DLFC 200 (20.0 gpm) For 1” Option 5,95
N.S. 5303024110 V3190-250 WS1 DLFC 250 (25.0 gpm) For 1” Option 5,95
A 5303010061 V3983 WS2 DLFC Adapter Option 4,10
B 5303022421 V3079BSPT DLFC Asy 1.25” Stainless Steel 125,92
B 5303029018 V3080BSPT WS DLFC Asy M1.5” x F1.5”’ BSPT 202,25
36
CLACK 1.5” & 2” VALVE
ACCESSORIES - ADAPTORS
1
5
N° Reference Clack
Code
1 5303021212 V3280 O-Ring 332 1 1,71
2 5303021213 V3281 O-Ring 348 1 3,05
5 5303020022 COR60FL O-Ring 6” Flange Adapter 1 15,21
2
Description Qty €
37
CLACK 1.5” & 2” VALVE
ACCESSORIES - 1.5” & 2” METER ASSEMBLY
1
6
6
N° Reference Clack
Code
1 5303028147 V3003-02 WS1.5/2/2H/3 Commercial Meter Assy 1 101,65
2 5303020006 V3632 WS1.5/2/3 Meter Retaining Clip 1 4,35
Description Qty €
38
CLACK WS2H & WS3
FRONT COVER & DRIVE ASSEMBLY
1a
5
1
7
2
3
6
4
10
8
9
N° Reference Clack
Description Qty €
Code
1 5303021086 V3068 WS2 Pod Assembly 1 37,24
1a 5303021817 V3082 WS2H/WS3 Pod Asy Compl w/board Option 388,66
2 5303021097 V3241-01
BOARD
3 5303021101 V3248 WS2 Cable Display Pod 1 63,69
4 5303021098 V3242-01
BOARD
6 5303025068 V3107-01 Motor 12V 1 17,17
7 5303021094 V3226-01 WS2 Drive Bracket Assembly 1 17,00
8 5303025074 V3110 Drive Gear 12x36 3 1,28
9 5303025073 V3109 Drive Gear Cover 1 2,34
10 5303021056 V3243-01
BOARD
N.S. 5303021059 V3475-12 WS2 System Connection Cord 12” Red Option 17,44
N.S. 5303021060 V3475-24 WS2 System Connection Cord 24” Blue Option 31,65
WS2/3 PC Board Display 1 227,43
WS2/3 PC Board Valve 1 742,41
WS2/3 PC Board System with relay Option 394,81
N.S. 5303021061 V3475-36 WS2 System Connection Cord 36’ Yellow Option 42,95
39
CLACK WS2” & 3”
BRINE AND INJECTOR SYSTEM
15
14
N° Reference Clack
13
3
1
2a
2b
Description Qty €
12
11
10
9
8
4
7
5
16
6
Code
1 5303020074 V3237-01 WS2H/3 Soft Water Fill Tube Assembly 1 5,47
2a Injector tube assy for A - C injectors, valve
WS2H only
2a Injector tube assy for H only, injectors valve
WS2H only
2b 5303020075 V3670-01 WS3 Injector Tube Downflow Assembly 1 9,93
1
1
3 5303021221 V3289 O-Ring 344 1 3,11
4 5303021085 V3067 WS2 Brine Body Assembly 1 45,79
5 5303021233 V3477 WS2 Injector Cap 1 4,69
6 5303029462 V3152 O-Ring 135 2 0,97
7 5303021206 V3275 WS2 Screw BSHD SS 3/8 - 16 x 2 1/4 4 2,92
9* 5303024095 V3162-022 WS1 DLFC 022 (2.2 gpm) For 3/4” Option 2,43
10 5303021096 V3231 WS2 Refill Flow Control Retainer 1 3,33
11 5303021208 V3277 O-Ring 211 1 0,52
12 5303022165 V3105 O-Ring 215 2 0,46
13 5303025094 V3150 WS1 Split Ring 2 0,47
14 5303025096 V3151 WS1 Nut 1’’ quick connect 1 1,40
15 5303025093 V3149 WS1 Ftg 1’’ PVC Male NPT Elbow 1 2,17
- (a) 5303025124 V3189 WS1 Ftg 3/4’’ & 1’’ PVC Solvent Elbow Option 2,17
40
CLACK WS2” & 3”
BRINE AND INJECTOR SYSTEM
15
14
N° Reference Clack
Code
16 ** 5303020026
16 ** 5303020027
V3010-2R-15B
V3010-2S-15C
13
3
1
2a
2b
12
11
10
9
8
4
7
5
16
6
Description Qty €
WS2/2H Injector R Modified Assembly Options 33,06
WS2/2H Injector S Modified Assembly Options 33,06
16 ** 5303020028
16 ** 5303020029
16 ** 5303020030
16 ** 5303020031
16 ** 5303020032
V3010-2T-15D
V3010-2U-15E
V3010-2V-15F
V3010-2W-15G
V3010-2X-15H
WS2/2H Injector T Modified Assembly Options 36,01
WS2/2H Injector U Modified Assembly Options 37,05
WS2/2H Injector V Modified Assembly Options 37,05
WS2/2H Injector W Modified Assembly Options 28,90
WS2/2H Injector X Modified Assembly Options 28,90
16 5303021065 V3010-2A WS2 Injector Assembly A Options 29,95
16 5303021066 V3010-2B WS2 Injector Assembly B Options 29,95
16 5303021067 V3010-2C WS2 Injector Assembly C Options 29,95
16 5303021068 V3010-2D WS2 Injector Assembly D Options 29,95
16 5303021069 V3010-2E WS2 Injector Assembly E Options 29,95
16 5303021070 V3010-2F WS2 Injector Assembly F Options 29,95
16 5303021071 V3010-2G WS2 Injector Assembly G Options 29,95
16 5303021072 V3010-2H WS2 Injector Assembly H Options 43,70
- (b) 5303020035 V3499 WS2H/3 Fitting Cap 1” Threaded Options 3,05
* Any DLFC from 0.7 up to 10.0 gpm can be used (5303024091 up to 5303024103).
** With V3010-1
41
CLACK WS2H
DRIVE CAP ASSEMBLY, MAIN PISTON, REGENERANT PISTON AND SPACER STACK ASSEMBLY
10
11
19
9
15
16
17
18
2
1
3
N° Reference Clack
B or indent
indicates BSPT
8
5
4
6
7
Description Qty €
Code
4 5303021084 V3066 WS2 Drive Assembly 1 199,32
5 5303021221 V3289 O-Ring 344 1 3,11
6 5303021089 V3204-01 WS2H Piston 1 76,64
7 5303021095 V3238-01 WS2 Brine Piston 1 56,76
8 5303021083 V3065 WS2 Spacer Stack Assembly 1 129,42
N.S. 5303020012 V3465 WS2H/3 Plug 1/4” Hex BSPT 2 10,58
10 5303020006 V3632 WS1.5/2/3 Meter Retaining Clip 1 4,35
11 5303028147 V3003-02 WS1.5/2/2H/3 Commercial Meter Assy 1 101,65
13 5303022165 V3105 O-Ring 215 2 0,46
16 5303020013 V3452 O-Ring 230 1 1,40
17 5303021079 V3054 WS2 4” Base Clamp Assembly 1 74,70
N.S. 5303021064 D1300-01 WS2 Top Bae Diuser 1 25,05
42
CLACK WS2H
7
6
5
4
1
2
DRAIN ELBOW (3/4” MALE BSP WITHOUT
SILENCER)
N° Reference Clack
Description Qty €
Code
1 5303010061 V3983 WS2 DLFC Adapter 1 4,10
2 5303021026 V3414 WS1.5 DLFC Adapter 1 5,24
3 5303025041 H4615 Elbow Locking Clip 1 0,97
4 5303024091 V3162-007 WS1 DLFC 007 (0,7 gpm) For 3/4” Option 1,82
4 5303024092 V3162-010 WS1 DLFC 010 (1.0 gpm) For 3/4” Option 2,43
4 5303024093 V3162-013 WS1 DLFC 013 (1.3 gpm) For 3/4” Option 2,43
4 5303024094 V3162-017 WS1 DLFC 017 (1.7 gpm) For 3/4” Option 2,43
4 5303024095 V3162-022 WS1 DLFC 022 (2.2 gpm) For 3/4” Option 2,43
4 5303024096 V3162-027 WS1 DLFC 027 (2.7 gpm) For 3/4” Option 2,43
4 5303024097 V3162-032 WS1 DLFC 032 (3.2 gpm) For 3/4” Option 2,43
4 5303024098 V3162-042 WS1 DLFC 042 (4.2 gpm) For 3/4” Option 2,43
4 5303024099 V3162-053 WS1 DLFC 053 (5.3 gpm) For 3/4” Option 2,43
4 5303024100 V3162-065 WS1 DLFC 065 (6.5 gpm) For 3/4” Option 2,43
4 5303024101 V3162-075 WS1 DLFC 075 (7.5 gpm) For 3/4” Option 2,43
4 5303024102 V3162-090 WS1 DLFC 090 (9.0 gpm) For 3/4” Option 2,43
4 5303024103 V3162-100 WS1 DLFC 100 (10.0 gpm) For 3/4” Option 2,43
5 5303025099 V3159-01 WS1 DLFC Retainer Asy 1 1,87
6 5303024403 V3163 O-Ring 019 1 0,65
7 5303028661 V3158-03 WS1 Drain Elbow 3/4’’ Male Asy No Silencer 1 1,49
43
CLACK WS2H
DRAIN FITTING (1” MALE BSP STRAIGHT WITHOUT
SILENCER)
1
6
4
5
2
N° Reference Clack
3
9
10
Description Qty €
8
Code
3 5303024403 V3163 O-Ring 019 1 0,65
4 5303025094 V3150 WS1 Split Ring 1 0,47
5 5303025096 V3151 WS1 Nut 1’’ quick connect 1 1,40
6 5303022165 V3105 O-Ring 215 1 0,46
7 5303025164 V3190-090 WS1 DLFC 090 (9.0 gpm) For 1” Option 5,95
7 5303024104 V3190-100 WS1 DLFC 100 (10.0 gpm) For 1” Option 5,95
7 5303024105 V3190-110 WS1 DLFC 110 (11.0 gpm) For 1” Option 5,95
7 5303024106 V3190-130 WS1 DLFC 130 (13.0 gpm) For 1” Option 5,95
7 5303024107 V3190-150 WS1 DLFC 150 (15.0 gpm) For 1” Option 5,95
7 5303024108 V3190-170 WS1 DLFC 170 (17.0 gpm) For 1” Option 5,95
7 5303024109 V3190-200 WS1 DLFC 200 (20.0 gpm) For 1” Option 5,95
7 5303024110 V3190-250 WS1 DLFC 250 (25.0 gpm) For 1” Option 5,95
8 5303025041 H4615 Elbow Locking Clip 1 0,97
9 5303021026 V3414 WS1.5 DLFC Adapter 1 5,24
10 5303010061 V3983 WS2 DLFC Adapter 1 4,10
N.S. 5303022419 V3008-05 WS2 Fitting drain 1” male BSP straight with-
out silencer
44
1 40,92
CLACK WS2H
DRAIN LINE FLOW CONTROL
1
Washer
Radius
Direction
Of Flow
5
N° Reference Clack
Direction
Of Flow
Description Qty €
A
Code
A 5303028615 V3051BSPT WS2 DLFC Asy Bspt (No DLFC Buttons) 239,66
1 5303021078 V3052 WS2 DLFC Retainer Assembly 1 50,27
5 5303021209 V3278 O-Ring 338 1 2,31
N.S. 5303024091 V3162-007 WS1 DLFC 007 (0,7 gpm) For 3/4” Option 1,82
N.S. 5303024092 V3162-010 WS1 DLFC 010 (1.0 gpm) For 3/4” Option 2,43
N.S. 5303024093 V3162-013 WS1 DLFC 013 (1.3 gpm) For 3/4” Option 2,43
N.S. 5303024094 V3162-017 WS1 DLFC 017 (1.7 gpm) For 3/4” Option 2,43
N.S. 5303024095 V3162-022 WS1 DLFC 022 (2.2 gpm) For 3/4” Option 2,43
N.S. 5303024096 V3162-027 WS1 DLFC 027 (2.7 gpm) For 3/4” Option 2,43
N.S. 5303024097 V3162-032 WS1 DLFC 032 (3.2 gpm) For 3/4” Option 2,43
N.S. 5303024098 V3162-042 WS1 DLFC 042 (4.2 gpm) For 3/4” Option 2,43
N.S. 5303024099 V3162-053 WS1 DLFC 053 (5.3 gpm) For 3/4” Option 2,43
N.S. 5303024100 V3162-065 WS1 DLFC 065 (6.5 gpm) For 3/4” Option 2,43
N.S. 5303024101 V3162-075 WS1 DLFC 075 (7.5 gpm) For 3/4” Option 2,43
N.S. 5303024102 V3162-090 WS1 DLFC 090 (9.0 gpm) For 3/4” Option 2,43
N.S. 5303024103 V3162-100 WS1 DLFC 100 (10.0 gpm) For 3/4” Option 2,43
N.S. 5303025164 V3190-090 WS1 DLFC 090 (9.0 gpm) For 1” Option 5,95
45
CLACK WS2H
DRAIN LINE FLOW CONTROL
1
Washer
Radius
Direction
Of Flow
5
Direction
Of Flow
A
N° Reference Clack
Description Qty €
Code
N.S. 5303024104 V3190-100 WS1 DLFC 100 (10.0 gpm) For 1” Option 5,95
N.S. 5303024105 V3190-110 WS1 DLFC 110 (11.0 gpm) For 1” Option 5,95
N.S. 5303024106 V3190-130 WS1 DLFC 130 (13.0 gpm) For 1” Option 5,95
N.S. 5303024107 V3190-150 WS1 DLFC 150 (15.0 gpm) For 1” Option 5,95
N.S. 5303024108 V3190-170 WS1 DLFC 170 (17.0 gpm) For 1” Option 5,95
N.S. 5303024109 V3190-200 WS1 DLFC 200 (20.0 gpm) For 1” Option 5,95
N.S. 5303024110 V3190-250 WS1 DLFC 250 (25.0 gpm) For 1” Option 5,95
46
CLACK WS2H
1
2
2 1/2” GROOVELOCK CLAMP ASSEMBLY
N° Reference Clack
Code
1 5303028616 V3053 WS2 2-1/2’’ Groove Lock Clamp Asy 1 102,63
2 5303021222 V3290 WS2 Groove Lock Seal 2 1/2” 1 36,33
Description Qty €
47
CLACK WS3
DRIVE CAP ASSEMBLY, MAIN PISTON, REGENERANT PISTON AND SPACER STACK ASSEMBLY
B Indicates BSPT
9
N Indicates NPT
3
4
2
1
N° Reference Clack
5
6
Description Qty €
8
7
10
11
12
14
13
Code
4 5303020061 V3093 WS3 Drive Assembly 1 163,65
5 5303021221 V3289 O-Ring 344 1 3,11
6 5303020062 V3666-01 WS3 Piston 1 110,74
7 5303021095 V3238-01 WS2 Brine Piston 1 56,76
8 5303020063 V3092 WS3 Stack Assembly 1 135,66
N.S. 5303020012 V3465 WS2H/3 Plug 1/4” Hex BSPT 2 10,58
9 5303020065 V3667B-
WS3 Body W/V3465 Plug 1
1.645,66
SPT-03
10 5303020066 V3763 O-Ring 361 (WS3 Body) 1 4,98
11 5303020067 V3762 O-Ring 341 (For Valve Bodies W/NPT or
1 2,67
BSPT Th
12 5303020068 V3091 WS3 Base Clamp Assembly 1 88,74
N.S. 5303020069 V3672 WS3 Top Bae Diuser 3”/90mm 1 17,49
48
CLACK WS3
METER ASSEMBLY
1
6
6
N° Reference Clack
Description Qty €
Code
1 5303021091 V3221 WS3 Remote Meter Turbine with 15 Foot
Cord
3 5303022165 V3105 O-Ring 215 2 0,46
5 5303020071 V3601B-
SPT-01
6 5303020006 V3632 WS1.5/2/3 Meter Retaining Clip 1 4,35
1-6 5303021838 V3095B-
SPT-15
WS3 Meter Housing BSPT 1 O.R.
WS3 Meter BSPT assembly 1 1.596,99
1 118,44
49
CLACK WS3
DRAIN LINE FLOW CONTROL
Positioning of V3767
into V3766
N° Reference Clack
Interlock between two V3766’s
Larger hole for DLFC installation
2
4
B indicates BSPT
N indicates NPT
Description Qty €
1
1
6
3
6
5
V3768 retainer ring position
if one V3766 is used.
SCALE 1 : 2
SECTION A-A
V3768 retainer ring position
if two V3766 are used.
A
SECTION B-B
B
SCALE 1 : 2
A
Code
A 5303021837 V3764BSPT WS3 3’’ DLFC Asy MxF BSPT-No DLFC
Buttons
1 5303025164 V3190-090 WS1 DLFC 090 (9.0 gpm) For 1” Option 5,95
396,09
1 5303024104 V3190-100 WS1 DLFC 100 (10.0 gpm) For 1” Option 5,95
1 5303024105 V3190-110 WS1 DLFC 110 (11.0 gpm) For 1” Option 5,95
1 5303024106 V3190-130 WS1 DLFC 130 (13.0 gpm) For 1” Option 5,95
1 5303024107 V3190-150 WS1 DLFC 150 (15.0 gpm) For 1” Option 5,95
1 5303024108 V3190-170 WS1 DLFC 170 (17.0 gpm) For 1” Option 5,95
1 5303024109 V3190-200 WS1 DLFC 200 (20.0 gpm) For 1” Option 5,95
1 5303024110 V3190-250 WS1 DLFC 250 (25.0 gpm) For 1” Option 5,95
3 WS3 DLFC Retainer
4 WS3 DLFC Retainer Cover
5 WS3 DLFC Retainer Ring
6 O-Ring 336
50
CLACK 1” TT VALVE
FRONT COVER AND SOFTWARE
1
4
N° Reference Clack
Code
1 5303028712 V3175CI-01 WS1CI Front Cover Asy Black 1 19,68
4* 5303025070 V3108CI-
BOARD
Description Qty €
WS1CI PC Board Replacement 1 134,61
51
CLACK 1” TT VALVE
DRIVE ASSEMBLY
5
6
3
2
N° Reference Clack
Code
2 5303025068 V3107-01 Motor 12V 1 17,17
3 5303025067 V3106-01 Drive Bracket & Spring Clip 1 9,21
5 5303025074 V3110 Drive Gear 12x36 3 1,28
6 5303025073 V3109 Drive Gear Cover 1 2,34
Description Qty €
52
CLACK 1” TT VALVE
DRIVE CAP ASSEMBLY
3b
2
3a
1
4
5
N° Reference Clack
Code
1 5303020199 V3005-02 WS1 Spacer Stack Asy 1 39,27
2 5303025053 V3004 WS1 Drive Cap Asy 1 27,47
3 5303025064 V3011 WS1 Piston Downflow Asy 1 13,18
3 5303025065 V3011-01 WS1 Piston Upflow Asy 1 25,81
4 5303025104 V3174 WS1 / WS1.25 / WS1.5 Regenerant Piston 1 9,59
5 5303023290 V3135 O-Ring 228 1 3,83
Description Qty €
53

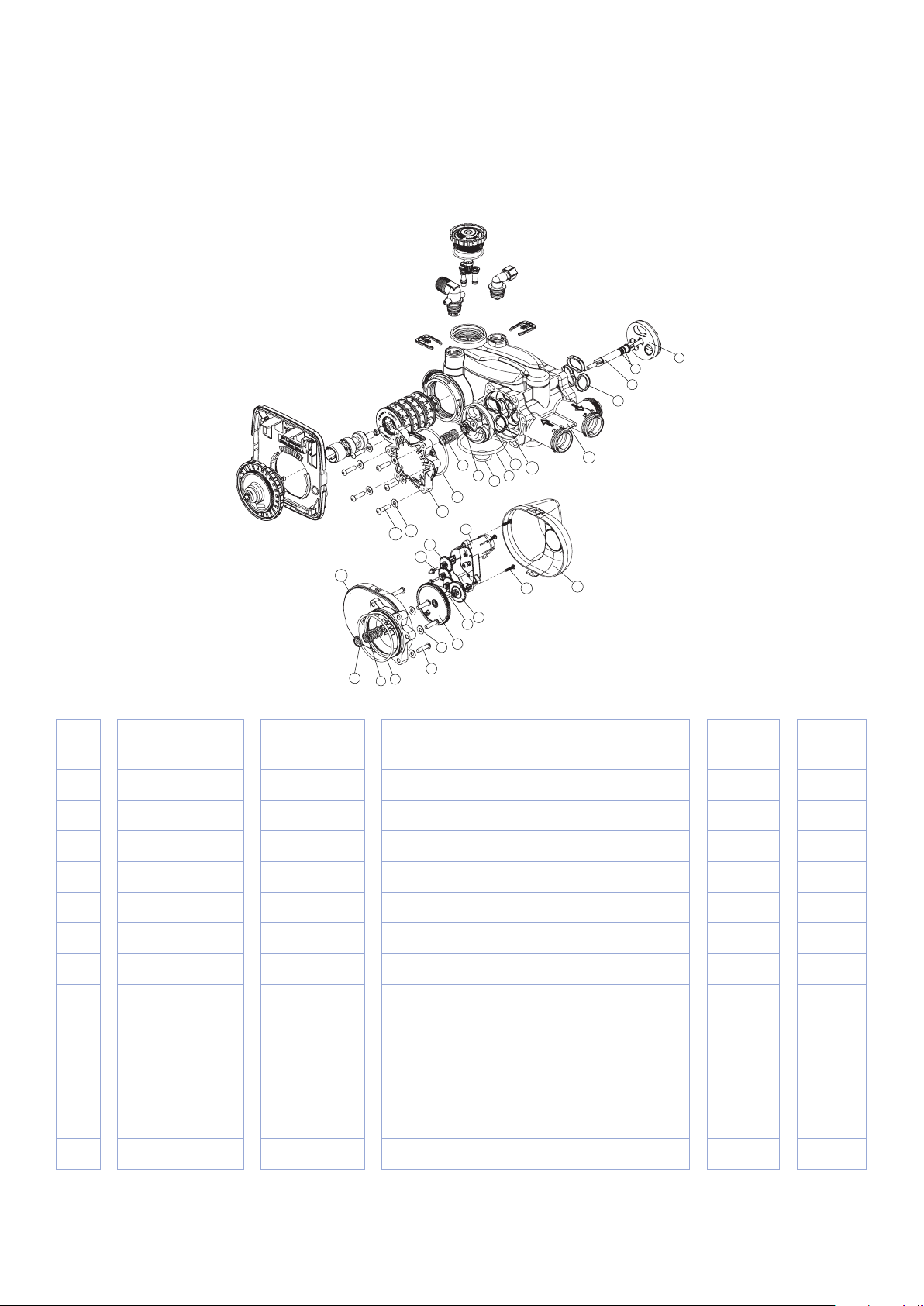

CLACK 1” TT VALVE
VALVE BODY
7
N° Reference Clack
13
12
10
5
4
3
2
1
14
6
4
9
20
19
18
16
15
2
1
7
6
19
10
8
9
1
11
21
Description Qty €
Code
1 Screw 12
2 5303021702 V3724 Washer Flat SS 1/4 4 0,22
3 Transfer Cap Assembly 1
4 O-Ring 236 2
5 Transfer Spring 2
6 Transfer Spring Support 2
7 Rotor Disk Assembly 2
8 5303022165 V3105 O-Ring 215 2 0,46
9 5303023291 V3180 O-Ring 337 1 4,28
10 5303020143 V4016 T1 transfer seal for Clack Twin 6 4,26
11 Valve Body 1
12 Transfer Drive Shaft Assembly 1
13 O-Ring 109 2
54
CLACK 1” TT VALVE
VALVE BODY
7
N° Reference Clack
13
12
10
5
4
3
2
1
14
6
4
9
20
19
18
16
15
2
1
7
6
19
10
8
9
1
11
21
Description Qty €
Code
14 Transfer Drive Cap Assembly 1
15 Transfer Drive Gear Assembly 1
16 Transfer Drive Gear Axle 1
18 5303021198 V3264 WS2 Reduction Gear Axel 3 0,69
19 5303025074 V3110 Drive Gear 12x36 3 1,28
20 5303021197 V3262-01 WS1.5/2 ALT / 2 Reduction Gear Cover
1 5,42
Assembly
21 5303020049 V3592 Screw #8 – 3/4 PHPN T-25 SS 3 0,30
22 Cover Assembly 1
N.S. Transfer Motor Assembly 1
N.S. 5303025096 V3151 WS1 Nut 1’’ quick connect 1 1,40
N.S. 5303028147 V3003-02 WS1.5/2/2H/3 Commercial Meter Assy 1 101,65
N.S. 5303020124 V4052-01 TT interconnect kit 12-21 1 69,05
N.S. 5302034077 D1400 Clack In/Out Head 1 67,96
55
CLACK 1” TT VALVE
INJECTOR CAP, SCREEN, INJECTORN, PLUG &
O-RING
1
1
2
2
3
3
4
5
5
4
N° Reference Clack
Description Qty €
Code
1 5303025108 V3176 WS1 Injector Cap 1 1,84
2 5303029462 V3152 O-Ring 135 1 0,97
3 5303025109 V3177 WS1 Injector Screen 1 2.29
4 5303024122 V3010-1Z WS1 Injector Asy Z Plug Option 1,65
5 5303024111 V3010-1A WS1 Injector Asy A Black Option 3.50
5 5303024112 V3010-1B WS1 Injector Asy B Brown Option 3.50
5 5303024113 V3010-1C WS1 Injector Asy C Violet Option 3.50
5 5303024114 V3010-1D WS1 Injector Asy D Red Option 3.50
5 5303024115 V3010-1E WS1 Injector Asy E White Option 3.50
5 5303024116 V3010-1F WS1 Injector Asy F Blue Option 3.50
5 5303024117 V3010-1G WS1 Injector Asy G Yellow Option 3.50
5 5303024118 V3010-1H WS1 Injector Asy H Green Option 3.50
5 5303024119 V3010-1I WS1 Injector Asy I Orange Option 3.50
5 5303024120 V3010-1J WS1 Injector Asy J Light Blue Option 2.98
5 5303024121 V3010-1K WS1 Injector Asy K Light Green Option 2.98
The injector plug and the injector each contain one 011 (lower) and 013
56
CLACK 1” TT VALVE
REFILL CONTROL
3
3
8
8
4
N° Reference Clack
4
2
2
Description Qty €
5
5
7
7
9
9
1
1
6
6
Code
1 5303025125 V3195-01 WS1 Refill Port Plug Asy 1 7,01
2 5303025041 H4615 Elbow Locking Clip 1 0,97
3 5303025044 JCP-P-6 Polytube Insert 3/8’’ 1 0,28
4 5303025045 JCPG-6PBLK Nut 3/8’’ Compression 1 0,74
5 5303025040 H4613 Elbow Cap 3/8’’ 1 2,46
6 5303024403 V3163 O-Ring 019 1 0,65
7 5303025100 V3165-01 WS1 Refill Flow Control Retainer Asy 1 4,91
8 5303025111 V3182 WS1 Refill Flow Control (0.5 gpm) 1 1,28
N.S. 5303025043 H4650 Elbow 1/2’’ W/Nut & Insert Option 10,48
57
CLACK 1” TT VALVE
DRAIN LINE 3/4”
3
3
2
2
4
4
5
5
6
6
N° Reference Clack
1
1
7
7
Description Qty €
Code
1 5303025041 H4615 Elbow Locking Clip 1 0,97
2 5303024090 PKP10TS8-
BULK
3 5303024088 V3192 WS1 Nut 3/4” Drain Elbow For 5/8 x 1/2 Poly Option 1,17
4 5303025098 V3158-01 WS1 Drain Elbow 3/4’’ Male Asy Option 4,80
5 5303024403 V3163 O-Ring 019 1 0,65
Insert Polytube 5/8” 1 1,81
6 5303025099 V3159-01 WS1 DLFC Retainer Asy 1 1,87
7 5303024091 V3162-007 WS1 DLFC 007 (0,7 gpm) For 3/4” Option 1,82
7 5303024092 V3162-010 WS1 DLFC 010 (1.0 gpm) For 3/4” Option 2,43
7 5303024093 V3162-013 WS1 DLFC 013 (1.3 gpm) For 3/4” Option 2,43
7 5303024094 V3162-017 WS1 DLFC 017 (1.7 gpm) For 3/4” Option 2,43
7 5303024095 V3162-022 WS1 DLFC 022 (2.2 gpm) For 3/4” Option 2,43
7 5303024096 V3162-027 WS1 DLFC 027 (2.7 gpm) For 3/4” Option 2,43
7 5303024097 V3162-032 WS1 DLFC 032 (3.2 gpm) For 3/4” Option 2,43
7 5303024098 V3162-042 WS1 DLFC 042 (4.2 gpm) For 3/4” Option 2,43
7 5303024099 V3162-053 WS1 DLFC 053 (5.3 gpm) For 3/4” Option 2,43
7 5303024100 V3162-065 WS1 DLFC 065 (6.5 gpm) For 3/4” Option 2,43
7 5303024101 V3162-075 WS1 DLFC 075 (7.5 gpm) For 3/4” Option 2,43
7 5303024102 V3162-090 WS1 DLFC 090 (9.0 gpm) For 3/4” Option 2,43
7 5303024103 V3162-100 WS1 DLFC 100 (10.0 gpm) For 3/4” Option 2,43
Use one DLFC if using ¾’’ fittings
58
CLACK 1” TT VALVE
DRAIN LINE 1” ADAPTOR
3
9
8
2
4
5
1
6
7
N° Reference Clack
Description Qty €
Code
1 5303025041 H4615 Elbow Locking Clip 1 0,97
2 5303024083 V3008-02 WS1 Drain Ftg 1” Straight w/Check Valve 1 20,99
5 5303024403 V3163 O-Ring 019 1 0,65
6 5303025094 V3150 WS1 Split Ring 1 0,47
7 5303025096 V3151 WS1 Nut 1’’ quick connect 1 1,40
8 5303022165 V3105 O-Ring 215 1 0,46
9 5303025164 V3190-090 WS1 DLFC 090 (9.0 gpm) For 1” Option 5,95
9 5303024104 V3190-100 WS1 DLFC 100 (10.0 gpm) For 1” Option 5,95
9 5303024105 V3190-110 WS1 DLFC 110 (11.0 gpm) For 1” Option 5,95
9 5303024106 V3190-130 WS1 DLFC 130 (13.0 gpm) For 1” Option 5,95
9 5303024107 V3190-150 WS1 DLFC 150 (15.0 gpm) For 1” Option 5,95
9 5303024108 V3190-170 WS1 DLFC 170 (17.0 gpm) For 1” Option 5,95
9 5303024109 V3190-200 WS1 DLFC 200 (20.0 gpm) For 1” Option 5,95
9 5303024110 V3190-250 WS1 DLFC 250 (25.0 gpm) For 1” Option 5,95
59
CLACK 1” TT VALVE
TURBINE ASSY & PLUG
4
4
5
5
2
2
6
6
3
3
1
1
N° Reference Clack
Description Qty €
Code
1 5303028147 V3003-02 WS1.5/2/2H/3 Commercial Meter Assy 1 101,65
3 5303022165 V3105 O-Ring 215 1 0,46
60
Loading...
