Water Specialist

1” Control Valve Series Model: WS1CS

1.25” Control Valve Series Model: WS1.25CS

Operation and Instruction Manual for OEM Only.

Please Note: This operation and instruction manual is for the training of the OEM and for the OEM to use to train their customers. This document is not to be used as the complete system manual.

WS1CS & WS1.25CS Manual Page 3

Table of Contents

Introduction ..................................................................................................................................................................................4

General Warnings (Must appear in OEM’s manual) .............................................................................................................4

Speciﬁ cations which must be included in OEM’s Manual ....................................................................................................5

Quick Reference Speciﬁ cations .............................................................................................................................................5

Control Valve Function and Cycles of Operation ........................................................................................................................6

Drive Assembly ...................................................................................................................................................................10

Drive Cap Assembly, Main Piston and Regenerant Piston ..................................................................................................10

Spacer Stack Assembly ........................................................................................................................................................10

Injector Cap, Screen, Injector Plug and Injector .................................................................................................................11

Reﬁ ll Flow Control Assembly or Reﬁ ll Port Plug ...............................................................................................................11

Drain Line Flow Control and Fitting Assembly ..................................................................................................................12

Mixing Valve .......................................................................................................................................................................13

Water Meter or Meter Plug ..................................................................................................................................................13

Installation Fitting Assemblies ............................................................................................................................................13

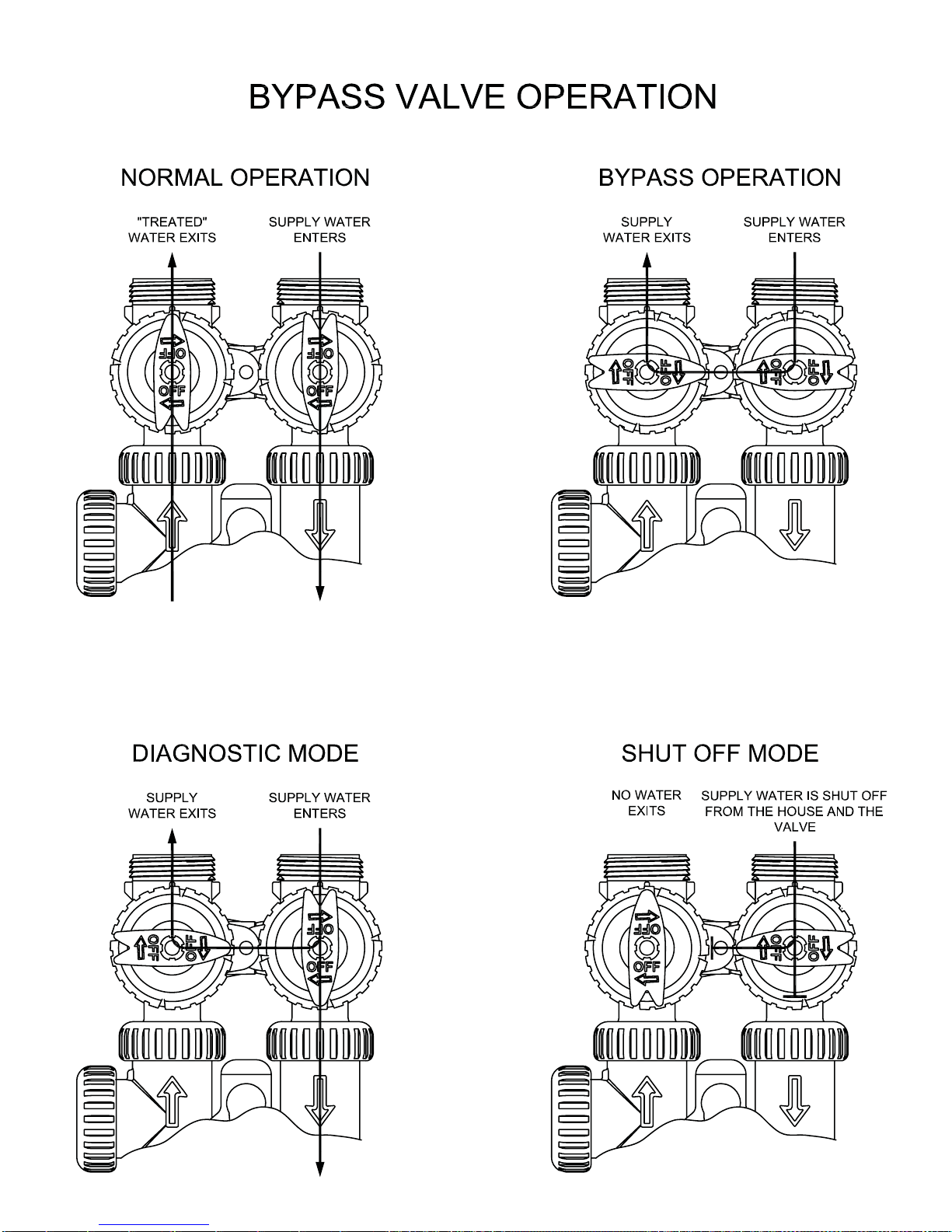

Bypass Valve ........................................................................................................................................................................14

OEM General Instructions .........................................................................................................................................................16

OEM Softener System Setup Quick Reference ...................................................................................................................17

OEM Filter System Setup Quick Reference ........................................................................................................................20

Installer Display Settings .....................................................................................................................................................22

User Display Settings ..........................................................................................................................................................22

Diagnostics ..........................................................................................................................................................................24

Valve History .......................................................................................................................................................................25

Installation ..................................................................................................................................................................................28

Drawings and Part Numbers ......................................................................................................................................................30

Front Cover and Drive Assembly ........................................................................................................................................31

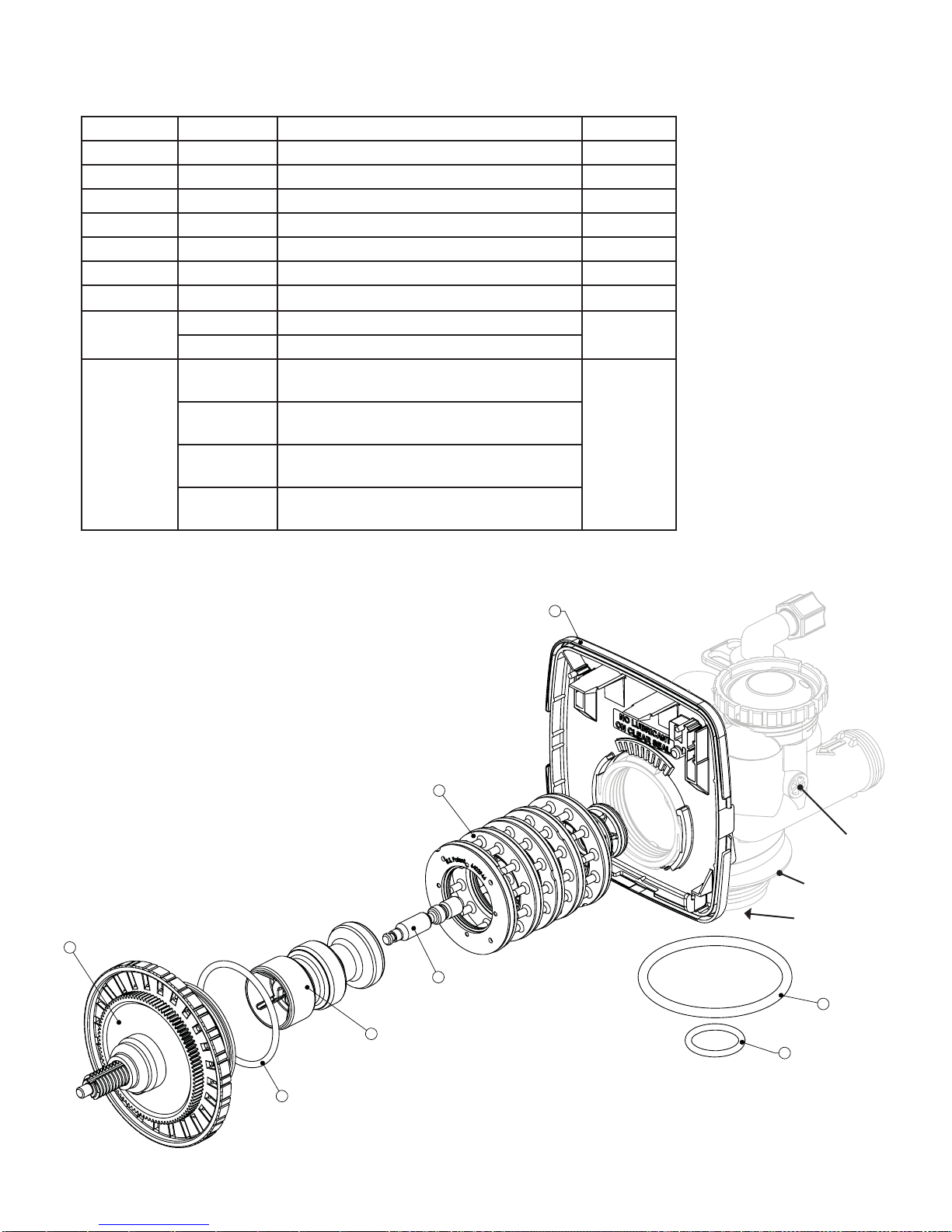

WS1CS Drive Cap Assembly, Downﬂ ow Piston, Upﬂ ow Piston, Regenerant Piston and Spacer Stack Assembly ...........32

WS1.25CS Drive Cap Assembly, Downﬂ ow Piston, Regenerant Piston and Spacer Stack Assembly ...............................33

Injector Cap, Injector Screen, Injector, Plug and O-ring .....................................................................................................34

Reﬁ ll Flow Control Assembly and Reﬁ ll Port Plug ............................................................................................................35

Drain Line – 3/4” .................................................................................................................................................................36

Drain Line – 1” ....................................................................................................................................................................37

Water Meter, Meter Plug and Mixing Valve ........................................................................................................................38

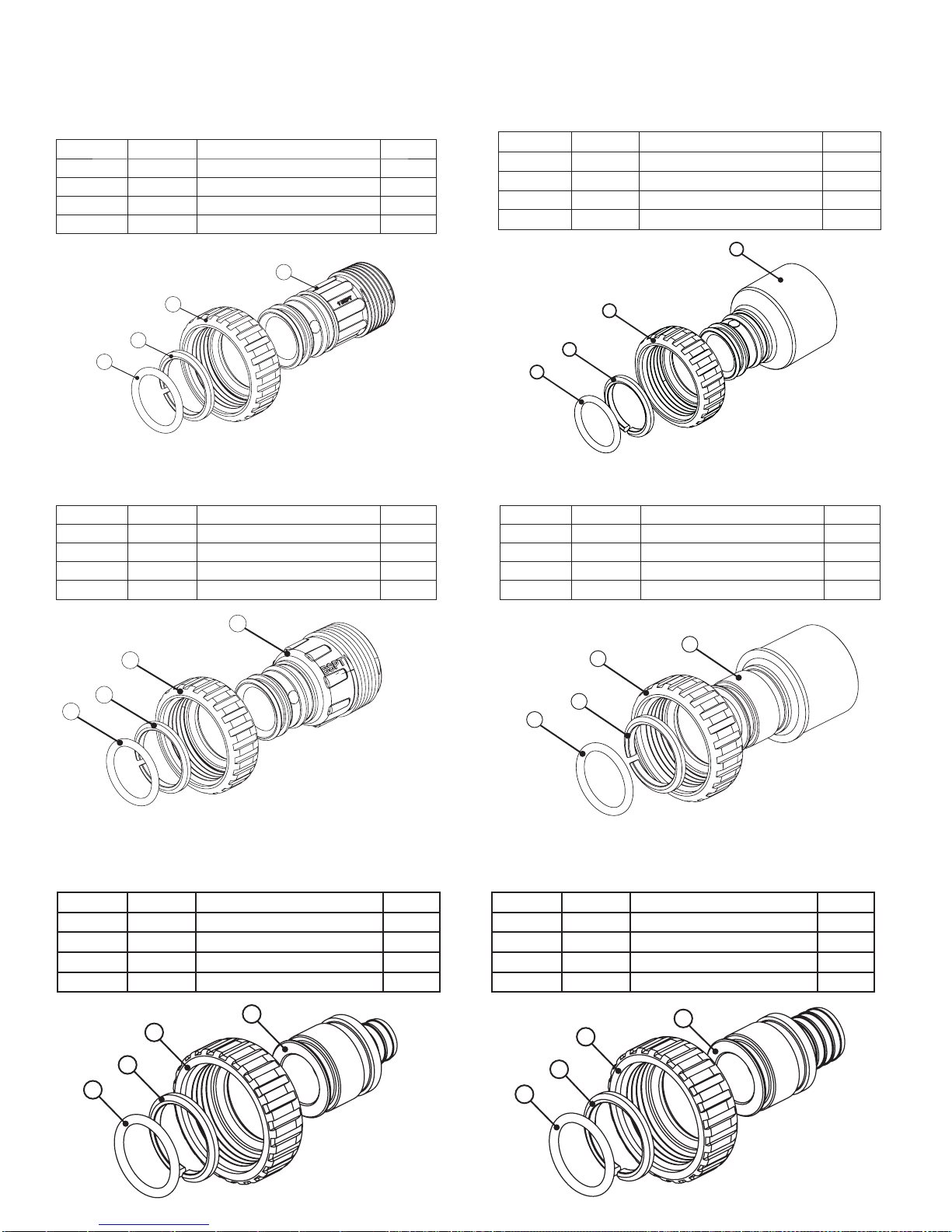

Installation Fitting Assemblies ............................................................................................................................................39

Bypass Valve ........................................................................................................................................................................41

Flow Diagrams – Service and Backwash ............................................................................................................................42

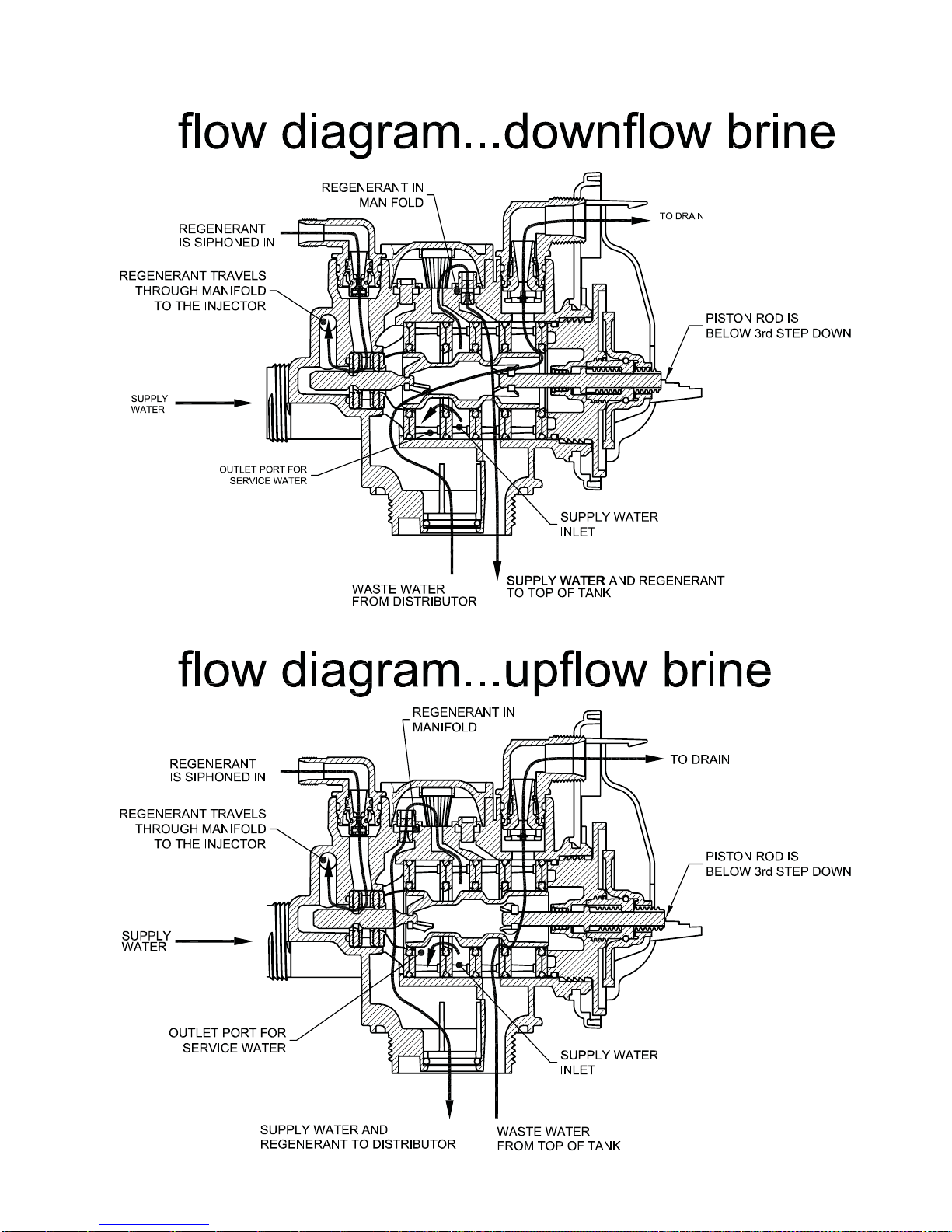

Flow Diagrams – Downﬂ ow and Upﬂ ow ............................................................................................................................43

Flow Diagrams – Rinse and Fill ..........................................................................................................................................44

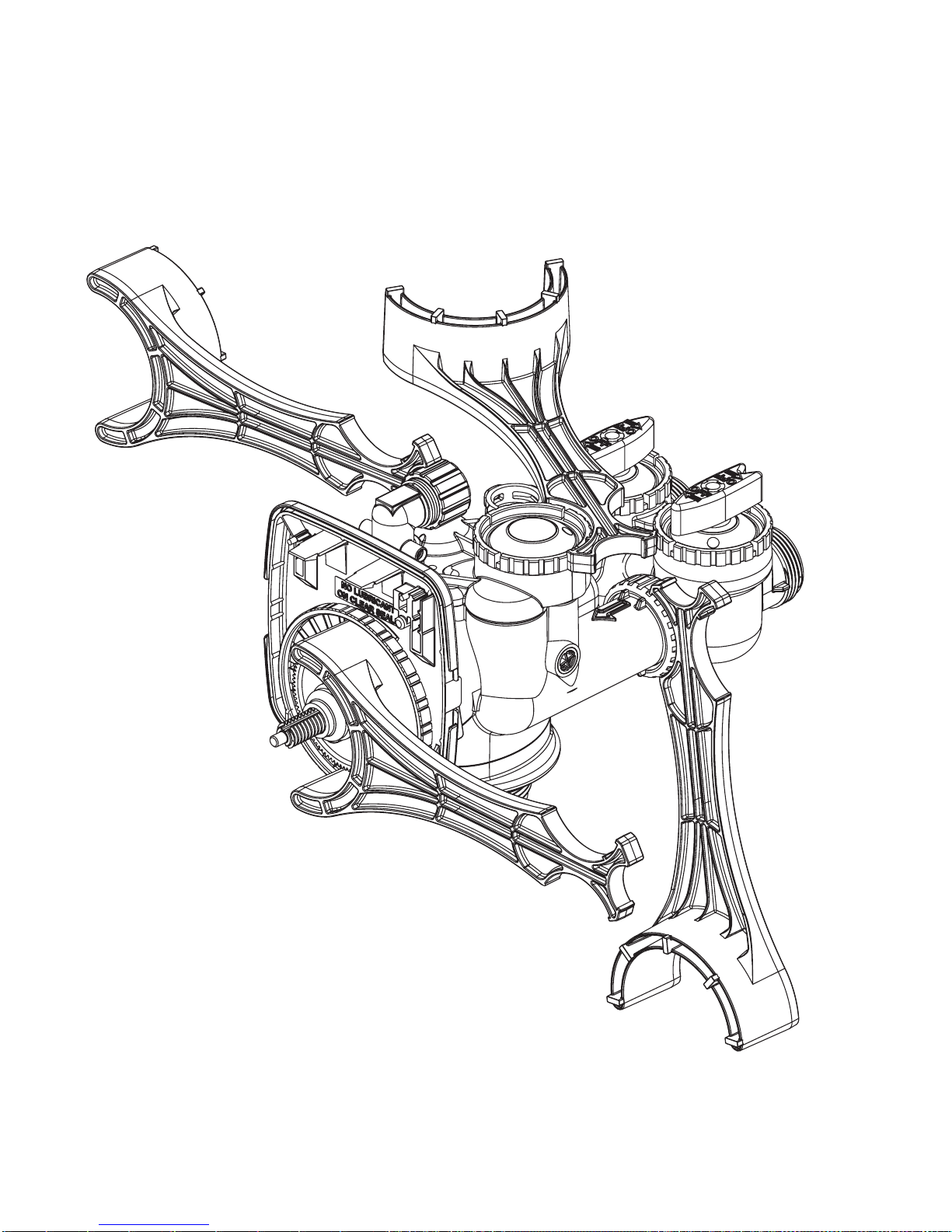

WS1 Wrench ........................................................................................................................................................................45

Service Instructions ....................................................................................................................................................................46

Troubleshooting .........................................................................................................................................................................51

WS1CS & WS1.25CS Identiﬁ cation .........................................................................................................................................53

Injector Graphs US Units: Injector Draw, Slow Rinse and Total Flow Rates ...........................................................................54

Injector Graphs Metric Units: Injector Draw, Slow Rinse and Total Flow Rates ......................................................................56

Limited W arranty .......................................................................................................................................................................60

Page 4 WS1CS & WS1.25CS Manual

Introduction

This manual is about a control valve to be used on water softeners or water ﬁ lters. The manual is designed to aid water treatment equipment manufacturers in the selection of the various control valve options. Information in this manual is different than what is needed for installation and servicing of a particular water treatment system. This manual is not intended to be used as a manual for a complete water softener or ﬁ lter. Certain parts of the manual will serve as aids to manufacturers in the writing and layout of the manuals for installers and service personnel.

General Warnings (Must appear in OEM’s manual)

The following general warnings and the speciﬁ cations in Table 1 must appear in the OEM’s System Manual.

The control valve, ﬁ ttings and/or bypass are designed to accommodate minor plumbing misalignments but are not designed to support the weight of a system or the plumbing.

Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere. A silicone lubricant may be used on black o-rings but is not necessary. Avoid any type of lubricants, including silicone, on clear lip seals.

The nuts and caps are designed to be unscrewed or tightened by hand or with the special plastic wrench. If necessary a pliers can be used to unscrew the nut or cap. Do not use a pipe wrench to tighten or loosen nuts or caps. Do not place a screwdriver in the slots on caps and/or tap with a hammer.

Do not use pipe dope or other sealants on threads. Use teﬂ on tape on threaded inlet, outlet and drain ﬁ ttings. Teﬂ on tape is not necessary on the nut connection or caps because of o-ring seals.

After completing any valve maintenance involving the drive assembly or the drive cap assembly and pistons, press and hold NEXT and REGEN buttons for 3 seconds or unplug power source jack from the printed circuit board (black wire) and plug back in. This resets the electronics and establishes the service piston position. The display should ﬂ ash all wording, ﬂ ash the software version (e.g. 405), and then reset the valve to the service position.

All plumbing should be done in accordance with local plumbing codes. The pipe size for the drain line should be a minimum of ½”. Backwash ﬂ ow rates in excess of 7 gpm or length in excess of 20’ require a ¾” drain line.

Solder joints near the drain must be done prior to connecting the drain line ﬂ ow control ﬁ tting. Leave at least 6” between the drain line control ﬁ tting and solder joints when soldering pipes that are connected on the drain line control ﬁ tting. Failure to do this could cause interior damage to the drain line ﬂ ow control ﬁ tting.

When assembling the installation ﬁ tting package (inlet and outlet), connect the ﬁ tting to the plumbing system ﬁ rst and then attach the nut, split ring and o-ring. Heat from soldering or solvent cements may damage the nut, split ring or o-ring. Solder joints should be cool and solvent cements should be set before installing the nut, split ring and o-ring. Avoid getting primer and solvent cement on any part of the o-rings, split rings, bypass valve or control valve.

Plug into an electrical outlet. Note: All electrical connections must be connected according to local codes. (Be certain the outlet is uninterrupted.)

Install grounding strap on metal pipes.

WS1CS & WS1.25CS Manual Page 5

Table 1

Speciﬁ cations which must be included in OEM’s Manual

Minimum/Maximum Operating Pressures 20 psi (138 kPa) -125 psi (862 kPa) Minimum/Maximum Operating Temperatures 40°F (4°C) - 110°F (43°C) AC Adapter:

Supply Voltage Supply Frequency Output Voltage Output Current

No user serviceable parts are on the PC board, the motor, or the AC adapter. The means of disconnection from the main power supply is by unplugging the AC adapter from the wall.

Service ﬂ ow rate 1" (includes bypass and meter) 27 gpm (102.2 lpm) @15 psig (103 kPa) drop Backwash ﬂ ow rate 1" (includes bypass) 27 gpm (102.2 lpm) @25 psig (172 kPa) drop Service ﬂ ow rate 1.25" (includes meter) 34 gpm (128.7 lpm) @15 psig (103 kPa) drop Service ﬂ ow rate 1.25" (includes bypass and meter) 32 gpm (121.1 lpm) @15 psig (103 kPa) drop Backwash ﬂ ow rate 1.25" 32 gpm (121.1 lpm) @25 psig (172 kPa) drop Backwash ﬂ ow rate 1.25" (includes bypass) 30 gpm (113.5 lpm) @25 psig (172 kPa) drop Minimum/Maximum Operating Pressures 20 psi (138 kPa) -125 psi (862 kPa) Minimum/Maximum Operating Temperatures 40°F (4°C) - 110°F (43°C) AC Adapter:

Supply Voltage Supply Frequency Output Voltage

Output Current Regenerant Reﬁ ll Rate 0.5 gpm (1.9 lpm) Injectors See Injector Graphs Drain Line Flow Controls See Table 11 Inlet / Outlet Fitting Options

Distributor Tube Opening WS1CS Valve 1.05” outside diameter (¾” NPS)

Distributor Tube Opening WS1.25CS Valve

Tank Thread 2½” - 8 NPSM Control Valve Weight 4.5 lbs. 2.0 kg PC Board Memory Nonvolatile EEPROM

Compatible with regenerants/chemicals Sodium chloride, potassium chloride, potassium

Table 2 contains a summary of speciﬁ cations for the control valve and bypass valve.

Quick Reference Speciﬁ cations

U.S. International 120 V AC 230V AC 60 Hz 50 Hz 12 V AC 12 V AC 500 mA 500 mA

Table 2

U.S. International 120 V AC 230V AC 60 Hz 50 Hz 12 V AC 12 V AC 500 mA 500 mA

- 1” NPT elbow which has a unique drill out feature to allow a ¼” NPT connection to the inlet and/or outlet

- ¾” & 1” PVC solvent weld ﬁ tting

- ¾” or 1” straight brass sweat ﬁ ttings

- 1” or 1 ¼”plastic male NPT ﬁ ttings

- 1” or 1 ¼” plastic male BSPT ﬁ ttings

- 1¼” & 1½” brass sweat ﬁ tting

- 1¼” & 1½” PVC solvent ﬁ tting

- ¾” or 1” PEX ﬁ ttings

1.32” outside diameter (1” NPS) 32 mm outside diameter

(electrically erasable programmable read only memory)

permanganate, sodium bisulﬁ te, chlorine and chloramines

Page 6 WS1CS & WS1.25CS Manual

Control Valve Function and Cycles of Operation

This glass ﬁ lled Noryl1 (or equivalent) fully automatic control valve is designed as the primary control center to direct and regulate all cycles of a water softener or ﬁ lter. When the WS1CS control valve is manufactured as a softener, the control valve can be ordered to perform downﬂ ow or upﬂ ow regeneration. The WS1.25CS control valve is only available in downﬂ ow regeneration. When the WS1CS or WS1.25CS control valve is set up as a ﬁ lter, the control valve can be set to perform downﬂ ow regeneration or simply backwash. The control valve can be set to regenerate on demand (consumption of a predetermined amount of water) and/or as a time clock (passage of a particular number of days). The control valve can be set so that a softener can meet the Water Quality As so ci a tion (WQA) Standard S100 or NSF/ANSI Standard 44 efﬁ ciency rating.

It is not recommended to change control valves from downﬂ ow to upﬂ ow brining or vice versa in the ﬁ eld. The valve bodies for downﬂ ow and upﬂ ow are unique to the regeneration type and and should not be interchanged. A mismatch of valve body and regeneration piston will result in hard water bypass during service.

The control valve is compatible with a variety of regenerants and resin cleaners. The control valve is capable of routing the ﬂ ow of water in the necessary paths to regenerate or backwash water treatment systems. The injector regulates the ﬂ ow of brine or other regenerants. The control valve regulates the ﬂ ow rates for backwashing, rinsing, and the replenishing of treated water into a regenerant tank, when applicable.

The control valve uses no traditional fasteners (e.g. screws); instead clips, threaded caps and nuts and snap type latches are used. Caps and nuts only need to be ﬁ rmly hand tightened because radial seals are used. Tools required to service the valve include one small blade screw driver, one large blade screw driver, pliers and a pair of hands. A plastic wrench is available which eliminates the need for screwdrivers and pliers. Disassembly for servicing takes much less time than com pa ra ble products currently on the market. Control valve in stal la tion is made easy because the distributor tube can be cut ½” above to ½” below the top of tank thread. The distributor tube is held in place by an o-ring seal and the control valve also has a bayonet lock feature for upper distributor baskets.

The AC adapter power pack comes with a 15 foot power cord and is designed for use with the control valve. The AC adapter power pack is for dry location use only. The control valve remembers all settings for up to 8 hours if the power goes out and the battery is not depleted. After 8 hours, the only item that needs to be reset is the time of day; other values are permanently stored in the nonvolatile memory. If a power loss lasts less than 8 hours and the time ﬂ ashes on and off, the time of day should be reset and the non rechargeable battery should be replaced.

Table 3 shows the order of the cycles when the valve is set up as a softener. The OEM has the option of having the regenerant reﬁ ll after the rinse cycle or have the regenerant preﬁ ll before regeneration. If the OEM chooses to have the regenerant preﬁ ll before regeneration, the preﬁ ll starts two hours before the regeneration time set. During the 2-hour period in which the brine is being made, treated (softened) water is still available. For example: regeneration time = 2:00 am, preﬁ ll option selected, downﬂ ow softener. Fill occurs at 12:00 a.m., start of backwash cycle occurs at 2:00 a.m. Tables 4 and 5 show the length of the cycles when different program codes are selected.

Table 3

Regeneration Cycles Softening

WS1CS & WS1.25CS Downﬂ ow Regenerant

Reﬁ ll After Rinse

Cycle: Backwash

Cycle: Regenerate

Cycle: Second

Backwash*

Cycle: Rinse

Cycle: Fill/Dissolve

Cycle: Service

WS1CS & WS1.25CS Downﬂ ow Regenerant

Preﬁ ll

Cycle: Fill

Cycle: Service

Cycle: Backwash

Cycle: Regenerate

Cycle: Second

Backwash*

Cycle: Rinse

Cycle: Service

WS1CS Only

Upﬂ ow Regenerant

Reﬁ ll After Rinse

Cycle: Regenerate

Cycle: Backwash

Cycle: Rinse

Cycle: Fill/Dissolve

Cycle: Service

WS1CS Only

Upﬂ ow Regenerant

Preﬁ ll

Cycle: Fill

Cycle: Service

Cycle: Regenerate

Cycle: Backwash

Cycle: Rinse

Cycle: Service

*Second Backwash is optional

Noryl is a trademark of General Electric.

WS1CS & WS1.25CS Manual Page 7

Table 4

Downﬂ ow Softener Program Codes for WS1CS or WS1.25CS

Program

Code

Main Piston

1st

Backwash

Brine/Slow

Rinse

2nd

Backwash

Fast

Rinse P1 Downﬂ ow34033 P2 Downﬂ ow34533 P3 Downﬂ ow44543 P4 Downﬂ ow46043 P5 Downﬂ ow56044 P6 Downﬂ ow56054 P7 Downﬂ ow64543 P8 Downﬂ ow66054 P9 Downﬂ ow66065

P10 Downﬂ ow75054 P11 Downﬂ ow76066 P12 Downﬂ ow76577 P13 Downﬂ ow84554 P14 Downﬂ ow86066 P15 Downﬂ ow86088 P16 Downﬂ ow86586 P17 Downﬂ ow86587 P18 Downﬂ ow87585 P19 Downﬂ ow95055 P20 Downﬂ ow96054 P21 Downﬂ ow96585 P22 Downﬂ ow 10 45 4 4 P23 Downﬂ ow 10 60 5 4 P24 Downﬂ ow 10 65 8 8 P25 Downﬂ ow 10 65 6 5 P26 Downﬂ ow 10 75 7 5 P27 Downﬂ ow 12 45 4 4 P28 Downﬂ ow 12 60 6 4 P29 Downﬂ ow 12 60 8 8 P30 Downﬂ ow 12 65 6 6 P31 Downﬂ ow 12 65 8 8 P32 Downﬂ ow 12 65 12 8 P33 Down

ﬂ ow 12 75 6 6 P34 Downﬂ ow 14 45 5 4 P35 Downﬂ ow 14 60 6 5 P36 Downﬂ ow 14 60 8 8 P37 Downﬂ ow 14 65 7 6 P38 Downﬂ ow 14 65 8 8 P39 Downﬂ ow 14 65 12 8 P40 Downﬂ ow 14 75 8 7 P41 Downﬂ ow 16 60 7 5 P42 Downﬂ ow 16 65 8 6 P43 Downﬂ ow 16 65 8 8 P44 Downﬂ ow 16 65 12 8 P45 Downﬂ ow 16 75 9 7

Table 6 shows the order of the cycles when the valve is set up as a ﬁ lter. If the control valve is set to regenerate for a ﬁ lter, the OEM has the option of having the regenerant reﬁ ll after the rinse cycle or have the regenerant preﬁ ll before regeneration. If the OEM chooses to have the regenerant preﬁ ll before regeneration, the preﬁ ll starts two hours before the regeneration time set. During the 2-hour period in which the regenerant is being made, treated water is still available. For example: regeneration time = 2:00 am, preﬁ ll option selected, downﬂ ow ﬁ lter. Fill occurs at 12:00 a.m., start of backwash cycle occurs at 2:00 a.m. Tables 7 and 8 show the length of the cycles when the valve is set up as a ﬁ lter.

When the control valve is used as a nonregenerating ﬁ lter, the OEM has the option to specify one backwash or two backwashes. If two backwashes are speciﬁ ed, two rinses occur. Tables 7 and 8 show the length of the cycles when the valve is set up as a ﬁ lter. When used as a non- regenerating ﬁ lter, the downﬂ ow piston must be installed, the regenerant piston removed, injector plugs must be installed in both the DN and UP injector locations and the reﬁ ll elbow must be replaced with a reﬁ ll port plug.

NOTE: The program codes listed on this page and the following page should be used only as a guideline. Any program code listed can be applied to a softener or ﬁ lter application for WS1CS valves.

Page 8 WS1CS & WS1.25CS Manual

Table 5

Upﬂ ow Softener Program Codes for WS1CS only

Program

Code

P60 Upﬂ ow N/A 45 6 4 P61 Upﬂ ow N/A 45 8 6 P62 Upﬂ ow N/A 60 10 6 P63 Upﬂ ow N/A 60 12 8 P64 Upﬂ ow N/A 75 10 6 P65 Upﬂ ow N/A 75 12 8

Main

Piston

1st

Backwash

Brine/Slow

Rinse

2nd

Backwash

Table 6

Regeneration Cycles Filtering for WS1CS or WS1.25CS

Fast

Rinse

Downﬂ ow

Regenerant Reﬁ ll After Rinse

Cycle: Backwash

Cycle: Regenerate

Cycle: Second Backwash*

Cycle: Rinse

Cycle: Fill

Cycle: Service

*Second Backwash is optional in some Program Codes

Regenerating Filter Program Codes for WS1CS or WS1.25CS

Program

Code

P70 Downﬂ ow6206 6 P71 Downﬂ ow 12 10 N/A 12 P72 Downﬂ ow 4 50 N/A 4 P73 Downﬂ ow 10 50 N/A 6 P74 Downﬂ ow 12 60 N/A 10 P75 Downﬂ ow 12 75 N/A 10

Downﬂ ow Regenerant Preﬁ ll No Regenerant

Cycle: Fill

Cycle: Service

Cycle: Backwash

Cycle: Regenerate

Cycle: Second Backwash*

Cycle: Rinse

Cycle: Service

Main Piston 1st

Backwash

Table 7

Brine/

Slow

Rinse

2nd

Backwash

Cycle: Backwash

Cycle: Rinse Cycle: Second Backwash* Cycle: Second Rinse Cycle: Service

Fast

Rinse

Non-Regenerant Filter Program Codes for WS1CS or WS1.25CS

Program

Main Piston 1st

Code

P80 Downﬂ ow 8 8 N/A N/A P81 Downﬂ ow 12 6 N/A N/A P82 Downﬂ ow 14 8 N/A N/A P83 Downﬂ ow 14 10 N/A N/A P84 Downﬂ ow 16 10 N/A N/A P85 Downﬂ ow 18 10 N/A N/A P86 Downﬂ ow 20 10 N/A N/A P90 Downﬂ ow 8 6 10 8 P91 Downﬂ ow 12 6 12 10

Note: For non-regenerant ﬁ lters: 1) The regenerant piston is removed; 2) injector plugs are installed in both the UP and DN holes under the injector cap.

Backwash

Table 8

Fast Rinse

2nd

Backwash

Fast Rinse

WS1CS & WS1.25CS Manual Page 9

Table 9

DIR/Time Clock Options

Filter Settings

Backwash

Only

Day

Override

DIR

Time

Clock

Reserve Capacity Softener

Regenerant Yes Automatically calculated Yes Off Auto Yes

If desired enter a value less than estimated capacity

Yes Yes Yes Off Yes Yes Automatically calculated Yes Any Number Auto Yes Yes

If desired enter a value less than estimated capacity

Yes Yes Yes Any Number

Yes None Yes Yes Yes Any Number Off

The control valve with a water meter can be set for Demand Initiated Regeneration (DIR) only, Time Clock operation only or DIR and Time Clock which ever comes ﬁ rst, depending upon what settings are selected for Day Override and Gallon Capacity.2 See Table 9.

If a control valve does not contain a meter, the valve can only act as a time clock, and day override should be set to any number and gallon capacity should be set to off.

Gallon

Capacity

Any

Number

Any

number

For DIR Softeners, there are two options for setting the Gallons Capacity. The Gallons Capacity is automatically calculated if set to AUTO. Reserve Capacity is automatically estimated based on water usage if AUTO is used. The other option is to set the Gallons Capacity to a speciﬁ c number. If a speciﬁ c number is set, reserve capacity is zero, unless the value is manually set (i.e. the manufacturer intentionally sets the gallon capacity number below the calculated capacity of the system).

The control valve can also be set to regenerate immediately or at the next regeneration time by changing the Regeneration Time Option. There are three choices for settings:

1. “NORMAL” means regeneration will occur at the preset regeneration time.

2. “on 0” means regeneration will occur when the gallons capacity reaches zero.

3. “NORMAL” and “on 0” means the regeneration will occur at the preset regeneration time unless the gallons capacity reaches zero. If the gallons capacity reaches zero the regeneration will begin 10 minutes after no water usage.

The user can initiate manual regeneration. The user has the option to request the manual regeneration at the delayed regeneration time or to have the regeneration occur immediately:

1. Pressing and releasing the REGEN button. “Regen Today” will ﬂ ash on the display and the regeneration will occur at the delayed regeneration time. The user can cancel the request by pressing and releasing the REGEN button. This method of manually initiating regeneration is not allowed when the system is set to “on 0,” i.e. immediately regenerate when the gallon capacity reaches zero.

2. Pressing and holding the REGEN button for approximately 3 seconds will immediately start the regeneration. The user cannot cancel this request, except by resetting the control by pressing NEXT and REGEN buttons simultaneously for 3 seconds.

The control valve consists of the following components:

1. Drive Assembly

2. Drive Cap Assembly, Main Piston and Regenerant Piston

3. Spacer Stack Assembly

4. Injector Cap, Screen, Injector Plug and Injector

5. Reﬁ ll Flow Control Assembly or Reﬁ ll Port Plug

6. Drain Line Flow Control and Fitting Assembly

7. Water Meter or Meter Plug

8. Mixing Valve (optional)

9. Installation Fitting Assemblies

10. Bypass Valve (optional)

Note: The WS1CS and WS1.25CS share many of the same components. Refer to Figure 6 for control valve identiﬁ cation.

See Installer Display Settings Step 3I, OEM Softener Setup Step 7S and OEM Filter Setup Step 6F for explanations of Day

Override and Gallon Capacity.

Day Override and Gallon Capacity can not both be set to “oFF” at the same time.

Page 10 WS1CS & WS1.25CS Manual

Drive Assembly

The drive assembly consists of the following parts:

• Drive Bracket

• Printed Circuit (PC) Board

• Motor

• Drive Gears

• Drive Gear Cover

The drive bracket holds the PC board, the motor, the drive gears and the drive gear cover in place.

The PC board receives and retains information, displays the information, determines when to regenerate and initiates regeneration. The display shows different types of information in the initial system set up (for softeners or ﬁ lters), installer display settings, diagnostics, valve history or user display settings. For a complete list of information see Table 14.

The PC board powers the motor. The PC board’s two-prong jack connects wires to the direct current (DC) motor. The motor is held in place on the drive bracket by a spring-loaded clip and a small bulge in the plastic, which ﬁ ts in one of the slots on the motor housing. The motor turns drive gears that drive the piston to cycle positions for backwashing, regeneration, rinsing, reﬁ ll or service. The motor is fully reversible (turns both ways) and changes direction of rotation to change the direction of piston motion. The motor is easily replaced if necessary.

There are three drive gears held in place by the drive gear cover. All three drive gears are the same size. A reﬂ ective coating is applied to the gears. As the center drive gear turns a light shines on the coating and a light sensing diode determines if a light pulse was returned. The PC board counts the pulses and determines when to stop driving the motor.

Drive Cap Assembly, Main Piston and Regenerant Piston

The drive gears turn the main gear of the drive cap assembly, which moves the piston. The screw-driven, horizontally moving piston stops at speciﬁ c positions to direct the ﬂ ow of water to backwash, regenerate, rinse or reﬁ ll. The PC board determines the position of the piston by counting pulses produced when the piston is moved. An optical sensor looking at one of the reduction drive gears generates these pulses. Each cycle position is deﬁ ned by a number of pulses. The counter is zeroed each time the valve goes to the service position. The PC board ﬁ nds the service position by noting the increase in current delivered to the motor when the mechanical stop at the service position is reached. This method of controlling piston position allows for greater ﬂ exibility and requires no switches or cams (U.S. Patent 6444127).

One of three main pistons is always used:

1. A 1.25" diameter downﬂ ow piston is used when the WS1CS control valve is used as a downﬂ ow softener, regenerating ﬁ lter or non-regenerating ﬁ lter.

2. A 1.25" diameter upﬂ ow piston is used when the WS1CS control valve is used as an upﬂ ow softener.

3. A 1.5" diameter downﬂ ow piston is used when the WS1.25CS control valve is used as a downﬂ ow softener, regenerating ﬁ lter or non-regenerating ﬁ lter. An upﬂ ow piston is not available for the WS1.25CS control valve.

If the control valve is used as a softener or a regenerating ﬁ lter, a regenerant piston must be attached to the main piston. If the control valve is to be used on a system that does not require a regenerant to be added, the regenerant piston must be removed.

Spacer Stack Assembly

The spacer stack assembly provides the necessary ﬂ ow passage for water during the different cycles. The all-plastic spacer stack assembly (U.S. Patent 6402944) is a one-piece design which allows the stack to be removed using your ﬁ ngers.

The exterior of the stack is sealed against the body bore with self lubricating EPDM o-rings, while the interior surface is sealed against the piston using slippery self cleaning directional (one-way) silicone lip seals. The lip seals are clear in color and have a special slippery coating so that the piston does not need to be lubricated.

WS1CS & WS1.25CS Manual Page 11

Injector Cap, Screen, Injector Plug and Injector

The screen, injector and/or injector plug(s) are installed under the injector cap in an easy to access location on top of the valve. The injector cap contains four slots so no water accumulates in the cap. The injector cap is designed to be hand tightened.

Under the injector cap there is an easy to clean removable screen to prevent fouling of the injector. There are two holes under the injector cap labeled “DN” and “UP”. The holes will be ﬁ lled with a plug or an injector.

The plug (Order # V3010-1Z) prevents water from traveling a certain pathway. The injector lets water pass through the pathway. The self-priming injector increases the velocity of the water, creating a zone of negative pressure that draws in the concentrated liquid regenerant, such as sodium chloride (brine), potassium permanganate, etc. The regenerant blends with the stream of water, which passes through the media to regenerate the bed.

The injector provides a consistent regenerant/water mixture ratio over the entire operating pressure range of the control valve. The injector provides good performance in a variety of applications, which may involve elevated drain lines and long regenerant draw lengths. Injectors are chosen by knowing the type, amount, and regenerant ﬂ ow rate for a particular type of media. Guidelines can be found in the media manufacturer’s literature. The color coded injectors give different regenerant draw, slow rinse and total ﬂ ow rates over the pressure range. See Table 10 for color codings, and injector graphs for total, slow rinse and draw ﬂ ow rates.

Table 10

Injector Order Information

WS1CS Only

Injector Order Number Injector Color

T ypical Tank Diameter

Down

WS1CS & WS1.25CS V3010-1A Black 6” 8” V3010-1B Brown 7” 9” V3010-1C Violet 8” 10”

V3010-1D Red 9” 12” V3010-1E White 10” 13”

V3010-1F Blue 12” 14”

V3010-1G Yellow 13” 16” V3010-1H Green 14” 18”

V3010-1I Orange 16” 22” V3010-1J Light Blue 18”

V3010-1K Light Green 22”

The control valve has been designed to allow for the following options:

• regeneration downﬂ ow WS1CS & WS1.25CS (for softeners or regenerating ﬁ lters install injector in DN location, plug in UP location)

• regeneration upﬂ ow WS1CS only (upﬂ ow option is for softeners only, install injector in UP location, plug in other hole location)

• no regeneration WS1CS & WS1.25CS (both the DN and UP holes have injector plugs installed) and plug installed for the reﬁ ll elbow.

NOTE: It is not recommended to ﬁ eld convert valves from upﬂ ow to downﬂ ow and vice versa. Separate areas in the valve supply water to the injector for upﬂ ow and downﬂ ow valves.

The reﬁ ll ﬂ ow control assembly consists of a reﬁ ll ﬂ ow elbow, reﬁ ll ﬂ ow control retainer assembly, reﬁ ll ﬂ ow control, polytube insert and nut assembly. The reﬁ ll ﬂ ow control retainer ﬁ ts in the reﬁ ll elbow. The reﬁ ll ﬂ ow control retainer houses the reﬁ ll ﬂ ow control which controls the ﬂ ow rate when the regenerant tank is being reﬁ lled. The reﬁ ll ﬂ ow control is a ﬂ exible washer-like part with a small oriﬁ ce and a precision molded contour that delivers a steady 0.5 gpm regenerant tank reﬁ ll rate at varying inlet pressures. Reﬁ ll is accomplished with treated water.

Actual tank size used may vary depending on the design and application of the system. Tank diameter is an approximation for the

following:

1. downﬂ ow softener using standard mesh synthetic cation exchange media regenerating with sodium chloride.

2. upﬂ ow softener using standard mesh synthetic cation exchange media regenerating with sodium chloride, an inlet water pressure

of 30 to 50 psi and water temperature of 60°F water or warmer. Higher pressures or lower temperatures would need smaller injectors to avoid lifting the bed.

Reﬁ ll Flow Control Assembly or Reﬁ ll Port Plug

Page 12 WS1CS & WS1.25CS Manual

The reﬁ ll ﬂ ow control assembly is installed in an easy to access reﬁ ll elbow located on top of the control valve. The reﬁ ll ﬂ ow control assembly is attached to the control valve with a locking clip. The locking clip allows the elbow to rotate 270 degrees so the outlet can be orientated towards the regenerant tank.

The control valve has a standard reﬁ ll elbow to which a 3/8” ﬂ exible tube can be connected. An optional elbow can be ordered which accommodates a ½” ﬂ exible tube for a high regenerant draw rate situation (G injectors and larger). Both elbows use the same reﬁ ll ﬂ ow control and retainer.

If the control valve is to be used as a non-regenerant ﬁ lter control valve, the reﬁ ll elbow is removed and replaced with a reﬁ ll port plug.

Drain Line Flow Control and Fitting Assembly

The drain line ﬂ ow control assembly includes a drain line ﬂ ow control and a ﬁ tting. The drain line ﬂ ow control allows proper media bed expansion by regulating the ﬂ ow rate to the drain. The drain line ﬂ ow control is a ﬂ exible washer-like part with an oriﬁ ce and a

precision molded contour. The ﬂ ow rates are within information.

Drain Line Flow Control and Fitting Assembly Information

± 10% over the pressure range of 20 psi to 125 psi. See Table 11 for ﬂ ow rate

Table 11

Drain Line

Fitting

¾” V3162-007 007 0.7 2.6 ¾” V3162-010 010 1.0 3.8 ¾” V3162-013 013 1.3 4.9 ¾” V3162-017 017 1.7 6.4 ¾” V3162-022 022 2.2 8.3 ¾” V3162-027 027 2.7 10.2 ¾” V3162-032 032 3.2 12.1 ¾” V3162-042 042 4.2 15.9 ¾” V3162-053 053 5.3 20.1 ¾” V3162-065 065 6.5 24.6 ¾” V3162-075 075 7.5 28.4 ¾” V3162-090 090 9.0 34.1 ¾” V3162-100 100 10.0 37.9

1” V3190-090 090 9.0 34.1 1” V3190-100 100 10.0 37.9 1” V3190-110 110 11 41.6 1” V3190-130 130 13 49.2 1” V3190-150 150 15 56.8 1” V3190-170 170 17 64.3 1” V3190-200 200 20 75.7 1” V3190-250 250 25 94.6

Drain Line Flow

Control Order No.

Number on Drain Line

Flow Control

Backwash Flow Rate

(gpm)

Backwash Flow Rate

(lpm)

The drain line ﬂ ow control and ﬁ tting are located on top of the control valve and replaceable without the use of special tools. The drain line ﬂ ow control can be installed in the standard ¾” drain line elbow, which accommodates 5/8” polytube or ¾” NPT drain

line connections. The optional nut and polytube insert for the ¾” drain line elbow is designed for use with ﬂ exible polytube only. The ¾” drain line elbow can be rotated 180 degrees so the outlet can be orientated to the nearest drain. The same retainer is used for all drain line ﬂ ow controls for the ¾” ﬁ tting. Drain line ﬂ ow controls designed for the 3/4” ﬁ tting are available for ﬂ ow rates ranging from 0.7 to 10 gpm.

An optional 1” straight drain line ﬁ tting is available to accommodate drain line ﬂ ow rates ranging from 9 to 25 gpm. This ﬁ tting is straight but still connects to the control valve using the same locking clip. The drain line ﬂ ow control is located between two ﬁ tted parts (i.e. the ﬁ tting acts as the retainer). The nut is unscrewed to access the drain line ﬂ ow control.

WS1CS & WS1.25CS Manual Page 13

Water Meter or Meter Plug

The water meter is installed on the outlet side of the control valve. The water meter uses a turbine to measure gallons of treated water. The turbine rotates with the ﬂ ow of water and reports its rate of rotation through Hall effect5 circuitry to the printed circuit (PC) board. This rotation permits the PC board to record the total volume of treated water and the ﬂ ow rate. The small centrally located magnet is shielded from water, which substantially reduces iron-fouling problems with the turbine.

THIS WATER METER SHOULD NOT BE USED AS THE PRIMARY MONITORING DEVICE FOR CRITICAL HEALTH EFFECT APPLICATIONS.

The turbine is accurate to within ± 5% over a wide operating ﬂ ow rate range (0.25 gpm up to control valve maximums) and has a very low pressure drop. Water used for regeneration is not metered. If the control valve is set to preﬁ ll the regenerant, water used between the preﬁ ll cycle up to the start of the regeneration cycle is metered. If the control valve is in regeneration mode (e.g. a backwash cycle) and there is a water demand, that water usage is not metered.

When facing the front of the control valve, the water meter is positioned on the left-hand side of the control valve. Allow sufﬁ cient clearance to clean and repair the water meter without disconnecting the plumbing or disassembling any other parts of the control valve.

Control valves can be ordered with a meter plug (i.e. no electronics or turbine) rather than a water meter if desired. Control valves without meters should only be set up for time clock operation (i.e. no water meter, no demand-initiated regeneration). Control valves with water meters provide a wider variety of useful information (see OEM General Instructions for list of information).

A unique feature of this control valve is the ability to display actual water usage for the last 63 days. The values are initially stored as “----”. This means the value is unknown. As days pass values are stored as “0” for no ﬂ ow or the actual number of gallons. The counting of the gallons starts at the regeneration time. If no regeneration time can be set (i.e. when the valve is set for immediate regeneration) the counting of gallons starts at 12 a.m. Day 1 is yesterday, day 2 the day before yesterday, etc. As new values are added the oldest history disappears.

Another unique feature is that the valve automatically calculates a reserve capacity when set up as a softener with “Gallons Capacity” set to “AUTO” and the “Regeneration Time Option” set to “Normal” or “Normal + on 0”. The actual reserve capacity is compared to the gallons capacity remaining immediately prior to the preset regeneration time. A regeneration will occur if the actual reserve capacity is less than the gallons capacity remaining. The actual reserve capacity is calculated by using the estimated reserve capacity and adjusting it up or down for actual usage.

The estimated reserve capacity for a given day of the week is the maximum value stored for the last three non-trivial water usages (i.e. more than 20 gallons/day) in seven day intervals.

Mixing V alve

The mixing valve is installed on the outlet side of the control valve. The mixing valve is used to blend raw water with treated water.

To adjust the blended water, close the mixing valve. Open a water faucet to the desired ﬂ ow rate. Open the mixing valve until the desired hardness is reached. Close the faucet.

Installation Fitting Assemblies

The installation ﬁ ttings are used to connect the optional bypass or the control valve to the plumbing system. These are the installation ﬁ tting assemblies available:

• 1” NPT PVC elbow ﬁ tting assembly

• ¾” & 1” PVC solvent weld elbow ﬁ tting assembly

• ¾” or 1” straight brass sweat ﬁ tting assemblies

• 1” or 1 ¼” plastic male NPT ﬁ tting assemblies

• 1” or 1 ¼” plastic male BSPT ﬁ tting assemblies

• 1¼” & 1½” brass sweat ﬁ tting assembly

• 1¼” & 1½” PVC solvent ﬁ tting assembly

• ¾” or 1” PEX ﬁ tting assemblies

The installation ﬁ tting assemblies are sold in pairs and consist of two ﬁ ttings, two nuts, two split rings and two o-rings. The installation ﬁ tting assemblies and the bypass valve are sold separately from the control valve.

Both elbow ﬁ ttings have a unique drill out feature to allow a ¼” NPT connection to the inlet and/or outlet which can be used for a RO feed, test ports, pressure tap ports, etc.

Some semiconductor materials exhibit a phenomenon in the presence of a magnetic ﬁ eld that is adaptable to sensing devices. When a current is passed through one pair of wires attached to a semiconductor, another pair of wires properly attached and oriented with respect to the semiconductor will develop a voltage proportional to the magnetic ﬁ eld present and the current in the other pair of wires. Holding the exciting current constant and moving a permanent magnet near the semiconductor produces a voltage output proportional to the movement of the magnet. Hall effect devices provide a high speed response, excellent temperature stability, and no physical contact.

Has not been tested for compliance with California Proposition 65, so this ﬁ tting should not be installed in California.

Page 14 WS1CS & WS1.25CS Manual

Bypass Valve

The bypass valve is typically used to isolate the control valve from the plumbing system’s water pressure in order to perform control valve repairs or maintenance. The WS1 bypass valve is particularly unique in the water treatment industry due to its versatility and state of the art design features. The 1” full ﬂ ow bypass valve incorporates four positions, including a diagnostic position that allows service personal to work on a pressurized system while still providing untreated bypass water to the facility or residence. Its completely non-metallic, all-plastic design allows for easy access and serviceability without the need for tools.

The bypass body and rotors are glass ﬁ lled Noryl self-lubricating EPDM to help prevent valve seizing after long periods of non-use. Internal o-rings can easily be replaced if service is required.

The bypass consists of two interchangeable plug valves that are operated independently by red arrow-shaped handles. The handles identify the ﬂ ow direction of the water. The plug valves enable the bypass valve to operate in four positions.

1. Normal Operation Position: The inlet and outlet handles point in the direction of ﬂ ow indicated by the engraved arrows

on the control valve. Water ﬂ ows through the control valve during normal operation and this position also allows the control valve to isolate the media bed during the regeneration cycle. (See Figure 1)

2. Bypass Position: The inlet and outlet handles point to the center of the bypass, the control valve is isolated from the water

pressure contained in the plumbing system. Untreated water is supplied to the plumbing system. (See Figure 2)

3. Diagnostic Position: The inlet handle points in the direction of ﬂ ow and the outlet handle points to the center of bypass

valve, system water pressure is allowed to the control valve and the plumbing system while not allowing water to exit from the control valve to the plumbing. (See Figure 3)

4. Shut Off Position: The inlet handle points to the center of the bypass valve and the outlet handle points in the direction of

ﬂ ow, the water is shut off to the plumbing system . If water is available on the outlet side of the softener it is an indication of water bypass around the system (i.e. a plumbing connection somewhere in the building bypasses the system). (See Figure 4)

(or equivalent) and the nuts and caps are glass ﬁ lled polypropylene. All seals are

Noryl is a trademark of General Electric.

WS1CS & WS1.25CS Manual Page 15

Figure 1 Figure 2

Figure 3 Figure 4

Page 16 WS1CS & WS1.25CS Manual

OEM General Instructions

The control valve offers multiple procedures that allow the valve to be modiﬁ ed to suit the needs of the installation. These procedures are:

• OEM Softener Setup

• OEM Filter Setup

• Installer Displays & Settings

• User Displays & Settings

• Diagnostics

• Valve History

These procedures can be accessed in any order. Details on each of the procedures are provided on the following pages. Table 14 lists all information that may be displayed, where to ﬁ nd additional instructions about the information or instructions on how to access or change the information.

At the discretion of the manufacturer, the ﬁ eld technician can access all settings. To “lock out” access to diagnostic and valve history displays and modiﬁ cations to settings except hardness, day override, time of regeneration and time of day by anyone but the manufacturer, press ▼, NEXT, ▲, and SET CLOCK in sequence after settings are made. To “unlock”, so other displays can be viewed and changes can be made, press ▼, NEXT, ▲, and SET CLOCK in sequence.

When in operation normal user displays such as time of day, gallons remaining or days remaining before regeneration are shown. When stepping through a procedure, if no buttons are pressed within ﬁ ve minutes the display returns to a normal user display. Any changes made prior to the ﬁ ve minute time out are incorporated. The one exception is current ﬂ ow rate display under the diagnostic procedure. The current ﬂ ow rate display has a 30 minute time out feature.

To quickly exit OEM Softener Setup, OEM Filter Setup, Installer Display Settings, Diagnostic or Valve History press SET CLOCK. Any changes made prior to the exit are incorporated.

When desired (e.g. when the valve is installed in a new location) certain information on the valve can be reset to zero. Table 14 identiﬁ es which information can be reset. To reset to zero, press NEXT and ▼ buttons simultaneously to go to the Service/

OEM 1 screen, and release. Press ▲ and ▼ simultaneously to reset diagnostic values to zero. Screen will return to User Display.

Sometimes it is desirable to have the valve initiate and complete two regenerations within 24 hours and then return to the preset regeneration procedure. It is possible to do a double regeneration if the control valve is set to “NORMAL” or “NORMAL + on 0” in Step 8S or Step 7F. To do a double regeneration:

1. Press the “REGEN” button once. REGEN TODAY will ﬂ ash on the display.

2. Press and hold the “REGEN” button for three seconds until the valve regeneration initiates.

Once the valve has completed the immediate regeneration, the valve will regenerate one more time at the preset regeneration time.

WS1CS & WS1.25CS Manual Page 17

STEP 1S

STEP 2S

STEP 3S

STEP 4S

STEP 5S

OEM Softener System Setup Quick Reference

This is a quick reference setup procedure. See OEM Softener System Setup Detail for more information on available settings.

STEP 1S – Press NEXT and ▼ buttons simultaneously for 3 seconds. If screen in step 2S does not appear in 5 seconds the lock on the valve is activated. To unlock press ▼, NEXT, ▲, and SET CLOCK in sequence, then press NEXT and ▼ simultaneously for 3 seconds.

STEP 2S – Choose Softening using ▼ or ▲ buttons. Press NEXT to go to Step 3S. Press REGEN to exit OEM Softener System Setup.

STEP 3S – Set Reﬁ ll option using ▼ or ▲ buttons:

• “PoST” to reﬁ ll the brine tank after the ﬁ nal rinse; or

• “PrE” to reﬁ ll the brine tank two hours before the regeneration time set.

Press NEXT to go to Step 4S. Press REGEN to return to previous step.

STEP 4S – Program Code: Enter the desired program code from Table 4 or Table 5. Prior to selecting a Program Code, verify the correct valve body, main piston, regenerant piston, and stack are being used, and that the injector or injector plug(s) are in the correct locations. See Compliance Table in Service Instructions under the Injector Cap, screen, Injector Plug and Injector section and Figure 6. Note: Do not select P60 through P65 if using a WS1.25CS valve. Press NEXT to go to Step 5S. Press REGEN to return to previous step.

RETURN TO

NORMAL MODE

STEP 6S

STEP 7S

STEP 8S

STEP 5S – Enter the ion exchange capacity in grains of hardness as calcium carbonate for

the system based on test data using ▼ or ▲ buttons. Press NEXT to go to Step 6S. Press REGEN to return to previous step.

STEP 6S – Enter the pounds of salt per regeneration using ▼ or ▲ buttons. Press NEXT to go to Step 7S. Press REGEN to return to previous step.

STEP 7S – Set Gallons Capacity using ▼ or ▲ buttons:

• “AUTO” (reserve capacity automatically estimated and gallons capacity automatically calculated from grains capacity and water hardness);

• “oFF” (regeneration based on day override); or

• number of gallons (20 to 50,000).

See Table 12 for more detail. Press NEXT to go to Step 8S. Press REGEN to return to previous step.

STEP 8S – Set Regeneration Time Option using ▼ or ▲ buttons:

• “NORMAL” means regeneration will occur at the preset time;

• “on 0” means regeneration will occur immediately when the gallons capacity reaches

0 (zero); or

• “NORMAL + on 0” means regeneration will occur at one of the following:

4 the preset time when the gallons capacity falls below the reserve or the speciﬁ ed

number of days between regenerations is reached whichever comes ﬁ rst; or 4 after 10 minutes of no water usage when the gallon capacity reaches 0 (zero). See Table 12 for more detail. Press NEXT to exit OEM Softener System Setup. Press REGEN to return to previous step.

Page 18 WS1CS & WS1.25CS Manual

Table 12

Softener Setting Options

Gallons

Capacity

Regeneration

Time Option

Day

Override

AUTO NORMAL oFF

AUTO NORMAL

Any

number

NORMAL oFF

oFF NORMAL

Any

number

NORMAL

Any

number

Any

number

Any

number

AUTO On O oFF

Any

number

On O oFF

AUTO NORMAL on 0 oFF

AUTO NORMAL on 0

Any

number

NORMAL on 0

Any

number

Any

number

Result

Reserve capacity automatically estimated. Regeneration occurs when gallons capacity falls below the reserve capacity at the next Regen Set Time.

Reserve capacity automatically estimated. Regeneration occurs at the next Regen Set Time when gallons capacity falls below the reserve capacity or the speciﬁ ed number of days between regenerations is reached.

Reserve capacity not automatically estimated. Regeneration occurs at the next Regen Set Time when gallons capacity reaches 0.

Reserve capacity not automatically estimated. Regeneration occurs at the next Regen Set Time when the speciﬁ ed number of days between regenerations is reached.

Reserve capacity not automatically estimated. Regeneration occurs at the next Regen Set Time when gallons capacity reaches 0 or the speciﬁ ed number of days between regenerations is reached.

Reserve capacity not automatically estimated. Regeneration occurs immediately when gallons capacity reaches 0. Time of regeneration will not be allowed to be set because regeneration will always occur when gallons capacity reaches 0.

Reserve capacity automatically estimated. Regeneration occurs when gallons capacity falls below the reserve capacity at the next Regen Set Time or regeneration occurs after 10 minutes of no water usage when gallon capacity reaches 0.

Reserve capacity not automatically estimated. Regeneration occurs at the next Regen Set Time when the speciﬁ ed number of days between regenerations is reached or regeneration occurs after 10 minutes of no water usage when gallon capacity reaches 0.

Reserve capacity estimate is based on history of water usage.

WS1CS & WS1.25CS Manual Page 19

OEM Softener System Setup Detail

STEP 1S – Press NEXT and ▼ simultaneously for 3 seconds. If screen in step 2S does not appear in 5 seconds the lock on the valve

is activated. To unlock press ▼, NEXT, ▲, and SET CLOCK in sequence, then press NEXT and ▼ simultaneously for 3 seconds.

STEP 2S - Softening or Filtering: First the OEM must set the valve for use as a softener. Press ▼ or ▲ to choose softening. Press NEXT to go to Step 3S. Press REGEN to exit OEM Softener System Setup.

STEP 3S – Reﬁ ll: Select “PoST” to reﬁ ll the brine tank after the ﬁ nal rinse or select “PrE” to reﬁ ll the brine tank two hours before the regeneration time set. Press NEXT to go to Step 4S. Press REGEN to return to previous step.

STEP 4S - Program Code: Enter the desired program code from Table 4 or Table 5. Prior to selecting a Program Code, verify the correct valve body, main piston, regenerant piston, and stack are being used, and that the injector or injector plug(s) are in the correct locations. See Compliance Table in Service Instructions under the Injector Cap, screen, Injector Plug and Injector section and Figure 6. Note: Do not select P60 through P65 if using a WS1.25CS valve. Press NEXT to go to Step 5S. Press REGEN to return to previous step.

STEP 5S – Grains Capacity: Enter the ion exchange capacity in grains of hardness as calcium carbonate for the system based on the pounds of salt that will be set in the next step. The allowable range varies from 5,000 to 200,000 grains.

The increment increase is 500 for the range from 5000 to 30,000; 1000 for the range of 30,000 to 100,000; and 2000 for the range of 100,000 to 200,000. Press NEXT to go to Step 6S. Press REGEN to return to previous step.

STEP 6S – Pounds Salt: Enter the pounds of salt per regeneration. The range varies from a low of 0.3 to a high of 120. Press NEXT to go to Step 7S. Press REGEN to return to previous step.

STEP 7S – Gallons Capacity: If value is set to:

• “AUTO” gallon capacity will be automatically calculated and reserve capacity will be automatically estimated;

• “oFF” regeneration will be based solely on the day override set (see Installer Display Settings step 3I); or

• as a number (allowable range 20 to 50,000) regeneration initiation will be based off the value speciﬁ ed. Increment increase is 20 for the range of 20 to 1000; 50 for the range of 1000 to 10,000 and 100 for the range of 10,000 to 50,000. If “oFF” or a number is used, hardness display will not be allowed to be set in Installer Display Settings.

See Table 12 for more

detail. Press NEXT to go to Step 8S. Press REGEN to return to previous step.

STEP 8S – Regeneration Time Option: Three choices for settings are available “NORMAL”, “on 0” and “NORMAL + on 0”. See Table 12 for more detail. Press NEXT to exit OEM Softener System Setup. Press REGEN to return to previous step.

9 Grains of capacity is affected by the salt dose setting. The capacity for that salt dosage should be conﬁ rmed by OEM testing. The capacity and hardness levels entered are used to automatically calculate reserve capacity when gallon capacity is set to AUTO. 10 It is suggested the “AUTO” setting be used in order to insure a proper reserve capacity.

Page 20 WS1CS & WS1.25CS Manual

OEM Filter System Setup Quick Reference

This is a quick reference setup procedure. See OEM Filter System Setup Detail for more

STEP 1F

STEP 2F

information on available settings.

STEP 1F – Press NEXT and ▼ simultaneously for 3 seconds. If screen in step 2F does not appear in 5 seconds the lock on the valve is activated. To unlock press ▼, NEXT, ▲, and SET CLOCK in sequence, then press NEXT and ▼ simultaneously for 3 seconds.

STEP 2F – Choose Filtering using ▼ or ▲ buttons. Press NEXT to go to step 3F. Press REGEN to exit OEM Filter System Setup.

STEP 3F

STEP 4F

STEP 5F

STEP 6F

STEP 3F – Set Reﬁ ll option using ▼ or ▲ buttons:

• “PoST” to reﬁ ll the brine tank after the ﬁ nal rinse; or

• “PrE” to reﬁ ll the brine tank two hours before the regeneration time set.

Press NEXT to go to step 4F. Press REGEN to return to previous step.

STEP 4F – Program code: Enter the desired program code from Table 4, Table 7 or Table 8. Prior to selecting a Program Code, verify the correct valve body, main piston, regenerant piston, and stack are being used, and that the injector or injector plug(s) are in the correct locations. See Compliance Table in Service Instructions under the Injector Cap, screen, Injector Plug and Injector section and Figure 6. Press NEXT to go to Step 5F. Press REGEN to return to previous step.

STEP 5F – Enter “oFF” if regenerant is not used (i.e. backwash only) or enter the reﬁ ll volume (in gallons) using ▼ or ▲ buttons. Press NEXT to go to step 6F. Press REGEN to return to previous step.

STEP 6F – Set Gallons Capacity using ▼ or ▲ buttons:

• “oFF” (regeneration based on day override); or

• number of gallons (20 to 50,000).

See Table 13 for more detail. Press NEXT to go to step 7F. Press REGEN to return to previous step.

STEP 7F

STEP 7F – Set Regeneration Time Option using ▼ or ▲ buttons:

• “NORMAL” means regeneration will occur at the preset time;

• “on 0” means regeneration will occur immediately when the gallons capacity reaches

• “NORMAL + on 0” means regeneration will occur at one of the following:

4 the preset time when the speciﬁ ed number of days between regenerations is

4 after 10 minutes of no water usage when the gallon capacity reaches 0 (zero).

RETURN TO

NORMAL MODE

See Table 13 for more detail. Press NEXT to exit OEM Filter System Setup. Press REGEN to return to previous step.

0 (zero); or

reached; or

WS1CS & WS1.25CS Manual Page 21

Table 13

Filter Setting Options

Gallons

Capacity

Regeneration

Time Option

oFF NORMAL

Any

number

Any

number

Any

number

Any

number

NORMAL oFF

NORMAL

On O oFF

NORMAL on 0

Day

Override

Any

number

Any

number

Any

number

Result

Reserve capacity not automatically estimated. Regeneration occurs at the next Regen Set Time when the speciﬁ ed number of days between regenerations is reached.

Reserve capacity not automatically estimated. Regeneration occurs at the next Regen Set Time when gallons capacity reaches 0.

Reserve capacity not automatically estimated. Regeneration occurs at the next Regen Set Time when gallons capacity reaches 0 or the speciﬁ ed number of days between regenerations is reached.

OEM Filter System Setup Detail

STEP 1F – Press NEXT and ▼ simultaneously for 3 seconds. If screen in step 2F does not appear in 5 seconds the lock on the valve

is activated. To unlock press ▼, NEXT, ▲, and SET CLOCK in sequence, then press NEXT and ▼ simultaneously for 3 seconds.

STEP 2F - Softening or Filtering: First the OEM must set the valve for use as a ﬁ lter. Press ▼ or ▲ to choose ﬁ ltering. Press NEXT to go to step 3F. Press REGEN to exit OEM Filter System Setup.

STEP 3F – Reﬁ ll: Select “PoST” to reﬁ ll the brine tank after the ﬁ nal rinse or select “PrE” to reﬁ ll the brine tank two hours before the regeneration time set. If “oFF” is selected in Step 6F the display can be left on “PoST” or “PrE” because no reﬁ ll occurs. Press NEXT to go to step 4F. Press REGEN to return to previous step.

STEP 5F – Fill Volume: If the ﬁ lter design does not require a regenerant the value is set to “oFF”. If a regenerant is required, the volume of reﬁ ll (in gallons) can be set to the desired value. The default value is 0.8 and the value ranges from 0.1 to 100.0. The increment increase is 0.1 for the range of 0.1 to 10.0; 0.5 for the range of 10.0 to 50.0 and 1.0 for the range of 50.0 to 100.0. Press NEXT to go to step 6F. Press REGEN to return to previous step.

STEP 6F – Gallons Capacity: If value is set to:

• “oFF” regeneration will be based solely on the day override set (see Installer Display Settings step 3I); or

• as a number (allowable range 20 to 50,000) regeneration initiation will be based off the value speciﬁ ed.

Increment increase is 20 for the range of 20 to 1000; 50 for the range of 1000 to 10,000 and 100 for the range of 10,000 to 50,000. Hardness display will not be allowed to be set in the Install Display Settings. See Table 13 for more detail. Press NEXT to go to step 7F. Press REGEN to return to previous step.

STEP 7F – Regeneration Time Option: Three choices for settings are available “NORMAL”, “on 0” and “NORMAL + on 0”. See Table 13 for more detail. Press NEXT to exit OEM Filter System Setup. Press REGEN to return to previous step.

Page 22 WS1CS & WS1.25CS Manual

Installer Display Settings

STEP 1I

STEP 2I

STEP 3I

STEP 4I

STEP 5I

STEP 1I - Press NEXT and ▲ simultaneously for 3 seconds.

STEP 2I – Hardness: Set the amount of hardness in grains of hardness as calcium

carbonate per gallon using the ▼ or ▲ buttons. The default is 20 with value ranges from 1 to 150 in 1 grain increments. Note: The grains per gallon can be increased if soluble iron needs to be reduced. This display will show “–nA–” if “FILTER” is selected in Step 2F or if ‘AUTO’ is not selected in Step 7S. Press NEXT to go to step 3I. Press REGEN to exit Installer Display Settings.

STEP 3I – Day Override: When gallon capacity is set to off, sets the number of days between regenerations. When gallon capacity is set to AUTO or to a number, sets the maximum number of days between regenerations. If value set to “oFF” regeneration initiation is based solely on gallons used. If value is set as a number (allowable range from 1 to 28) a regeneration initiation will be called for on that day even if sufﬁ cient number of gallons were not used to call for a regeneration. Set Day Override using ▼ or ▲ buttons:

• number of days between regeneration (1 to 28); or

• “oFF”.

See Table 12 for more detail on softener setup and Table 13 for more detail on ﬁ lter setup. Press NEXT to go to step 4I. Press REGEN to return to previous step.

STEP 4I – Next Regeneration Time (hour): Set the hour of day for regeneration using ▼ or ▲ buttons. AM/PM toggles after 12. The default time is 2:00 a.m. This display will show

“REGEN on 0 GAL” if “on 0” is selected in Step 8S or Step 7F. Press NEXT to go to step 5I. Press REGEN to return to previous step.

STEP 5I – Next Regeneration Time (minutes): Set the minutes of day for regeneration using ▼ or ▲ buttons. This display will not be shown if “on 0” is selected in Step 8S or Step 7F. Press NEXT to exit Installer Display Settings. Press REGEN to return to previous step.

To initiate a manual regeneration immediately, press and hold the “REGEN” button for three seconds. The system will begin to regenerate immediately. The control valve may be stepped through the various regeneration cycles by pressing the “REGEN” button.

RETURN TO

NORMAL MODE

User Display Settings

General Operation

When the system is operating one of two displays will be shown. Pressing NEXT will alternate between the displays. One of the displays is always the current time of day. The second display is one of the following: days remaining or gallons remaining. Days remaining is the number of days left before the system goes through a regeneration cycle. Capacity remaining is the number of gallons that will be treated before the system goes through a regeneration cycle. The user can scroll between the displays as desired.

If the system has called for a regeneration that will occur at the preset time of regeneration, the words REGEN TODAY will appear on the display.

When water is being treated (i.e. water is ﬂ owing through the system) the word “Softening” or “Filtering” ﬂ ashes on the display if a water meter is installed.

REGEN TODAY will show if a regeneration is expected “Tonight.”

WS1CS & WS1.25CS Manual Page 23

Regeneration Mode Typically a system is set to regenerate at a time of low water usage. An example of a time with low water usage is when a household is asleep. If there is a demand for water when the system is regenerating, untreated water will be used.

When the system begins to regenerate, the display will change to include information about the step of the regeneration process and the time remaining for that step to be completed. The system runs through the steps automatically and will reset itself to provide treated water when the regeneration has been completed.

Manual Regeneration Sometimes there is a need to regenerate the system sooner than when the system calls for it, usually referred to as manual regeneration. There may be a period of heavy water usage because of guests or a heavy laundry day.

To initiate a manual regeneration at the preset delayed regeneration time, when the regeneration time option is set to “NORMAL” or “NORMAL + on 0”, press and release “REGEN”. The words “REGEN TODAY” will ﬂ ash on the display to indicate that the system will regenerate at the preset delayed regeneration time. If you pressed the “REGEN” button in error, pressing the button again will cancel the request. Note: If the regeneration time option is set to “on 0” there is no set delayed regeneration time so “REGEN TODAY” will not activate if “REGEN” button is pressed.

REGEN TODAY will Flash if a regeneration is expected “Tonight.”

To initiate a manual regeneration immediately, press and hold the “REGEN” button for three seconds. The system will begin to regenerate immediately. The request cannot be cancelled.

Note: For softeners, if brine tank does not contain salt, ﬁ ll with salt and wait at least two hours before regenerating.

STEP 1U

Set Time of Day The user can also set the time of day. Time of day should only need to be set after power outages lasting more than 8 hours, if the battery has been depleted and a power outage

STEP 2U

occurs, or when daylight saving time begins or ends. If a power outage lasting more than 8 hours occurs, the time of day will ﬂ ash on and off which indicates the time of day should be reset. If a power outage lasts less than 8 hours and the time of day ﬂ ashes on and off, the time of day should be reset and the battery replaced.

STEP 1U – Press SET CLOCK.

STEP 3U

STEP 2U - Current Time (hour): Set the hour of the day using ▼ or ▲ buttons. AM/PM

toggles after 12. Press NEXT to go to step 3U.

STEP 3U - Current Time (minutes): Set the minutes of the day using ▼ or ▲ buttons. Press NEXT to exit Set Clock. Press REGEN to return to previous step.

Power Loss If the power goes out, the system will keep time for up to 8 hours or until the battery is depleted. If a power outage of more than 8 hours occurs, the time of day will ﬂ ash on and off which indicates the time of day should be reset. The system will remember the rest. If a power outage lasts less than 8 hours and the time of day ﬂ ashes on and off, the non rechargeable battery should be replaced.

Error Message If the word “ERROR” and a number are alternately ﬂ ashing on the display contact the OEM for help. This indicates that the valve was not able to function properly.

Page 24 WS1CS & WS1.25CS Manual

STEP 1D

Diagnostics

STEP 1D – Press ▼ and ▲ simultaneously for three seconds. If screen in step 2D does not appear

STEP 2D

in 5 seconds the lock on the valve is activated. To unlock press ▼, NEXT, ▲, and SET CLOCK in sequence, then press ▲ and ▼ simultaneously for 3 seconds.

STEP 3D

STEP 4D

STEP 5D

STEP 6D

STEP 2D

– Days, since last regeneration: This display shows the days since the last regeneration occurred. Press the NEXT button to go to Step 3D. Press REGEN to exit Diagnostics.

STEP 3D – Gallons, since last regeneration: This display shows the number of gallons that have been treated since the last regeneration. This display will equal zero if a water meter is not installed. Press the NEXT button to go to Step 4D. Press REGEN to return to previous step.

STEP 4D – Gallons, reserve capacity used for last 7 days: If the valve is set up as a softener, a meter

is installed and Set Gallons Capacity is set to “Auto,” this display shows 0 day (for today) and ﬂ ashes the reserve capacity. Pressing the ▲ button will show day 1 (which would be yesterday) and ﬂ ashes the reserve capacity used. Pressing the ▲ button again will show day 2 (the day before yesterday) and the reserve capacity. Keep pressing the ▲ button to show the gallons for days 3, 4, 5 and 6. The ▼ button can be pressed to move backwards in the day series. Press the NEXT button at any time to go to Step 5D. Press REGEN to return to previous step.

STEP 5D - Gallons, 63 day usage history: This display shows day 1 (for yesterday) and ﬂ ashes the number of

gallons treated yesterday. Pressing the ▲ button will show day 2 (which would be the day before yesterday) and ﬂ ashes the number of gallons treated on that day. Continue to press the ▲ button to show the maximum number of gallons treated for the last 63 days. This display will show dashes if a water meter is not installed. Press the NEXT button at any time to go to Step 6D. Press REGEN to return to previous step.

STEP 7D

STEP 8D

STEP 9D

STEP 10D

STEP 6D – Flow rate, current: Turn the water on at one or more taps in the building. The ﬂ ow

rate in gallons per minute will be displayed. If ﬂ ow stops the value will fall to zero in a few seconds. This display will equal zero if a water meter is not installed. Press the NEXT button to go to Step 7D. Press REGEN to return to previous step.

STEP 7D – Flow rate, maximum last seven days: The maximum ﬂ ow rate in gallons per minute that occurred in the last seven days will be displayed. This display will equal zero if a water meter is not installed. Press the NEXT button to go to Step 8D. Press REGEN to return to previous step.

STEP 8D – Gallons, total used since last reset: The total number of gallons used since last reset will be displayed. This display will equal zero if a water meter is not installed. Press the NEXT button to go to Step 9D. Press REGEN to return to previous step.

STEP 9D – Days, total number since last reset: The total number of days the control valve has been in service since last reset will be displayed. Press the NEXT button to go to Step 10D. Press REGEN to return to previous step.

STEP 10D – Regenerations, total number since last reset: The total number of regenerations that have occurred since last reset will be displayed. Press the NEXT button to exit Diagnostics. Press REGEN to return to previous step.

RETURN TO

NORMAL MODE

The values in steps 2D through 5D and 7D through 10D can be reset to zero. See Table 14,

Reset Diagnostic Settings for procedure. Resetting one value resets them all.

WS1CS & WS1.25CS Manual Page 25

STEP 1VH

Valve History

STEP 1VH – Press ▼ and ▲ simultaneously for three seconds and release. Then

STEP 1VH

STEP 2VH

press ▼ and ▲ simultaneously and release. If screen in step 2VH does not appear in 5 seconds the lock on the valve is activated. To unlock press ▼, NEXT, ▲, and SET CLOCK in sequence, then press ▼ and ▲ simultaneously for 3 seconds and release. Then press ▼ and ▲ simultaneously and release.

STEP 2VH – Software Version: This display shows the software version of the valve. Press the NEXT button to go to Step 3VH. Press REGEN to exit Valve History.

STEP 3VH

STEP 4VH

STEP 5VH

STEP 3VH

– Flow rate, maximum since startup: This display shows the maximum ﬂ ow rate in gallons per minute that has occurred since startup. This display will equal zero if a water meter is not installed. Press the NEXT button to go to Step 4VH. Press REGEN to return to previous step.

STEP 4VH – Gallons, total used since start-up: This display shows the total gallons treated since startup. This display will equal zero if a water meter is not installed. Press the NEXT button to go to Step 5VH. Press REGEN to return to previous step.

STEP 5VH – Days, total since start-up: This display shows the total days since startup. Press the NEXT button to go to Step 6VH. Press REGEN to return to previous step.

STEP 6VH – Regenerations, total number since start-up: This display shows the total number of regenerations that have occurred since startup. Press the NEXT button to go to Step 7VH. Press REGEN to return to previous step.

STEP 7VH – Error, number of occurrences since start-up: This display shows E and the total number of errors that have occurred since startup. Press the NEXT button to exit Valve History. Press REGEN to return to previous step.

STEP 6VH

STEP 7VH

RETURN TO

NORMAL MODE

Values in steps 3VH through 7VH cannot be reset.

Page 26 WS1CS & WS1.25CS Manual

Table 14

Summary of Data Inputted of Information Available

Data Inputted or Information

available

OEM General

Instructions

OEM

Softener

Setup

OEM Filter

Setup

Installer

Displays &

Settings

User Displays

& Settings

Diagnostics Valve History

Access to Setup Step 1S Step 1F Step 1I Step 1D Step 1VH Capacity, Gallon Step 7S Step 6F Capacity, Ion Exchange Step 5S

Capacity, remaining until regeneration

Day Override Step 3I Days, remaining until

regeneration

Days, since last regeneration Step 2D Days, total number since last reset Step 9D Days, total since start-up Step 5VH

Error Error, number of occurrences

since startup Exit Set-up, Diagnostic or Valve History steps

Press Set Clock

Step 7VH

Fill Volume Step 5F Flow rate, current

Flow Rate, maximum last seven

days Flow rate, maximum since

startup Gallons, 63 day usage history Gallons, reserve capacity used for

last 7 days Gallons, since last regeneration Gallons, total used since last

reset Gallons, total used since start-up

Step 6D Step 7D

Step 3VH

Step 5D Step 4D Step 3D Step 8D

Step 4VH

Hardness Step 2I

Press

▼, NEXT,

Lock/Unlock

▲, and SET

CLOCK in

sequence

Pounds Salt per regeneration Step 6S Program Code Step 4S Step 4F Reﬁ ll, Pre or Post Step 3S Step 3F

Regeneration Step and Time Remaining Regeneration Time Option, Delayed or Immediate Regeneration, Manual Initiation, delayed

Regeneration, Manual Initiation, immediate

Regenerations, total number since last reset Regenerations, total number since start-up

Step 8S Step 7F

Press and release

REGEN

Press and hold

REGEN for 3

seconds

Step 10D

Step 6VH

Gray shading indicates that the values can be reset to zero. To reset the values press NEXT and ▼ simultaneously to go to the

Service/OEM 1 screen, and then press ▲ and ▼ simultaneously to reset values. Screen will return to User Display.

See the trouble shooting guide for help diagnosing error codes.

A water meter is necessary for this information to be collected.

WS1CS & WS1.25CS Manual Page 27

Data Inputted or

Information available

Reinitialize Valve

OEM General

Instructions

Press NEXT and

REGEN for 3

seconds OR unplug

power source plug

(black wire) and

plug back in

OEM

Softener

Setup

Press NEXT and

▼ simultaneous-

Reset Diagnostic Settings

ly for 3 seconds

and then press

▲ and ▼ for 3

seconds

Softening/Filtering Step 2S

Press NEXT and

REGEN for 3

seconds

Software Version

or unplug

power source jack (black wire) and plug back in

Time of Day

Time of Day, Regeneration

OEM Filter

Setup

Step

Installer

Displays &

Settings

Step 4I and

User

Displays &

Settings

Step 2U and

Valve

History

Step 2VH

Page 28 WS1CS & WS1.25CS Manual

Installation

Reﬁ ll Flow Control Assembly or Reﬁ ll Port Plug

Control valves that are setup for backwash only come equipped with a reﬁ ll port plug. The reﬁ ll port plug has no regenerant line connection.

Control valves that use a regenerant come equipped with a 3/8” reﬁ ll ﬂ ow control assembly. To switch to the ½” reﬁ ll ﬂ ow control assembly, remove the reﬁ ll ﬂ ow control and retainer (from the 3/8” reﬁ ll elbow) by twisting and pulling out. Insert the reﬁ ll ﬂ ow control and retainer into the ½” reﬁ ll elbow.

To complete the regenerant line connection, orientate the outlet in the desired direction and push the plastic insert into the polytube. Push the polytube into the nut. Do not use pipe dope or other sealants on threads. The threads for the compression nut do not need Teﬂ on tape. Tighten the nut securely to create a pressure tight connection. A pliers or crescent wrench may be used to tighten or unscrew the nut. The nut, gripper and retainer sleeve is a 3 piece assembly that can come apart if removed from the elbow body. Parts must be reassembled exactly as shown in reﬁ ll ﬂ ow control assembly drawing to function properly. If the nut is completely removed from the body, slip the nut, plastic gripper and retainer sleeve on to the tube then tighten on to the ﬁ tting.

Drain Line Flow Control and Fitting Assembly

To determine which drain line ﬂ ow control to use, obtain media bed expansion tables from the media manufacturer, choose a water temperature and look up the desired backwash rate per square foot of bed area. Then calculate the backwash rate using the desired tank diameter. Using Table 11, choose the drain line ﬂ ow control that has the backwash ﬂ ow rate closest to the calculated backwash rate. If a manufacturer chooses to use an external drain line ﬂ ow control, use an elbow ﬁ tting that does not contain a hole.

If the drain line is a 5/8” ﬂ exible polytube, slide the nut onto the polytube, then place the polytube insert into the end of the polytube and tighten the nut on to the ¾” drain line ﬁ tting. The nut is only designed for use with ﬂ exible polytube. Use other nuts if attaching different materials.

To access the drain line ﬂ ow control remove the locking clip by pulling it straight out. Pull ﬁ tting out and replace the locking clip so that it is not misplaced. The drain line ﬁ tting is pressed in and has an o-ring seal.

In the ¾” elbow, the white ﬂ ow control retainer is pressed in and has an o-ring seal. The retainer can be removed by rotating and pulling. The ﬂ ow control can be removed by prying upward with a small blade ﬂ at screwdriver in one of the slots on the side. The drain line ﬂ ow control and retainer can be chemically cleaned in dilute sodium bisulﬁ te or vinegar, or replaced. Do not use a wire brush to clean the

ﬂ ow control or the washer. The washers are identiﬁ ed with three numbers, which correspond to the ﬂ ow rate. When reinstalling make sure the identifying number and the rounded inside diameter on the washer is visible when seated in the retainer. The white ﬂ ow control washer retainer can also be removed and cleaned. Push the retainer in ﬁ rmly when reinstalling.

In the 1” straight ﬁ tting, the retainer is the ﬁ tting. Unscrew the nut to access the ﬂ ow control. The drain line ﬂ ow control and the ﬁ tting can be chemically cleaned or replaced. Do not use a wire brush to clean the ﬂ ow control or the ﬁ tting.

Do not use Vaseline, oils, or other unacceptable lubricants on o-rings. A silicone lubricant may be used on the black o-ring. Use a pliers or crescent wrench to tighten or unscrew the nut. Do not use a pipe wrench to tighten or loosen nut. Do not use pipe dope or other sealants on threads. Use Teﬂ on tape on the threads of the drain line control ﬁ tting when installing ¾” NPT or 1” straight ﬁ tting.

WS1CS & WS1.25CS Manual Page 29

Installation Fitting Assemblies

The installation ﬁ ttings connect to the control valve or the bypass valve using nuts that only require hand tightening. Hand tighten nut connections between control valve and installation ﬁ ttings, control valve and bypass valve, and bypass valve and installation ﬁ ttings allow for easy serviceability. Do not use a pipe wrench to tighten nuts on installation ﬁ ttings. Hand tighten only.

The split ring retainer design holds the nut on and allows load to be spread over the entire nut surface area, reducing the chance for leakage. The split ring design incorporated into the installation ﬁ ttings allows approximately 2 degrees off axis alignment to the plumbing system. The installation ﬁ ttings are designed to accommodate minor plumbing misalignments but are not designed to support the weight of a system or the plumbing.

When assembling the installation ﬁ tting package, connect the ﬁ tting to the plumbing system ﬁ rst and then attach the nut, split ring and o-ring. Heat from soldering or solvent cements may damage the nut, split ring or o-ring. Solder joints should be cool and solvent cements should be set before installing the nut, split ring and o-ring. Avoid getting primer and solvent cement on any part of the o-rings, split rings, bypass valve or control valve. Solvent cements and primers should be used in accordance with the manufacturer’s instructions.

Slip the nut onto the ﬁ tting ﬁ rst, then the split ring second and the o-ring last. Hand tighten the nut. If the ﬁ tting is leaking tightening the nut will not stop the leak. Remove the nut, remove the ﬁ tting, and check for damage or misalignment of the o-ring.

Do not use pipe dope or other sealant on threads. Use Teﬂ on tape on threaded inlet, outlet and drain ﬁ ttings. Teﬂ on tape is not necessary on the nut connection or caps because of o-ring seals.

Do not use Vaseline, oils, or other unacceptable lubricants on o-rings. A silicone lubricant may be used on black o-rings.

Bypass Valve

The bypass valve easily connects to the control valve body using nuts that only require hand tightening. Hand tightened nut connections between control valve and ﬁ ttings, control valve and bypass valve, and bypass valve and installation ﬁ ttings allow for easy serviceability. The split ring retainer design holds the nut on and allows load to be spread over the entire nut surface area, reducing the chance for leakage. The split ring design incorporated into the bypass allows approximately 2 degrees off axis alignment to the plumbing system. The bypass is designed to accommodate minor plumbing misalignments but is not designed to support the weight of a system or the plumbing.

Avoid getting primer and solvent cements on any part of the o-rings or split rings, bypass valve or control valve. Do not use pipe dope or other sealant on threads. Teﬂ on tape is not necessary on the caps because of o-ring seals.

Do not use Vaseline, oils, or other unacceptable lubricants on o-rings. A silicone lubricant may be used on black o-rings.

Mixing Valve

The mixing valve is an option on the control valve. If the control valve is ordered with a mixing valve it will be installed in the control valve assembly process.

To adjust the blended water, close the mixing valve. Open a water faucet to the desired ﬂ ow rate. Open the mixing valve until the desired hardness is reached. Close the faucet.

Note: The use of the mixing valve requires modiﬁ cation to the valve body. These modiﬁ cations should not be done in the ﬁ eld.

Page 30 WS1CS & WS1.25CS Manual

Drawings and

Part Numbers

WS1CS & WS1.25CS Manual Page 31















Front Cover and Drive Assembly

Drawing No. Order No. Description Quantity

1 V3175-01 WS1 FRONT COVER ASY 1 2 V3107-01 WS1 MOTOR 1 3 V3106-01 WS1 DRIVE BRACKET & SPRING CLIP 1 4 V3108CS-01 WS1/125 CS PC W BAT 1 5 V3110 WS1 DRIVE GEAR 12X36 3 6 V3109 WS1 DRIVE GEAR COVER 1

V3002 WS1 DRIVE ASY *

Not Shown V3186 WS1 AC ADAPTER 110V - 12V 1

When replacing the battery, align

positives and push down to fully seat.

Correct Battery

Orientation

Battery replacement is

3 volt lithium coin cell

type 2032.

Battery Fully Seated

Page 32 WS1CS & WS1.25CS Manual

WS1CS Drive Cap Assembly, Downﬂ ow Piston, Upﬂ ow Piston, Regenerant Piston and Spacer Stack Assembly

Drawing No. Order No. Description Quantity

1 V3005 WS1 Spacer Stack Assembly 1 2 V3004 Drive Cap ASY 1

3 V3178 WS1 Drive Back Plate 1 4a V3011* WS1 Piston Downﬂ ow ASY 4b V3011-01* WS1 Piston Upﬂ ow ASY

5 V3174 WS1 Regenerant Piston 1

6 V3135 O-ring 228 1

7 V3180 O-ring 337 1

8 V3105 O-ring 215 (Distributor Tube) 1

V3001 WS1 Body ASY Downﬂ ow

Not Shown

V3001-02 WS1 Mixing Valve Body ASY

V3001UP WS1 Body ASY Upﬂ ow

V3001-02UP WS1 Mixing Valve Body Upﬂ ow ASY

Not Shown V3013 WS1 Mixing Valve ASY 1

*V3011 is labeled with DN and V3011-01 is labeled with UP. Note: The regenerant piston is not used in backwash only applications.

Black Plug

WS1CS & WS1.25CS Manual Page 33

WS1.25CS Drive Cap Assembly, Downﬂ ow Piston, Regenerant Piston and Spacer Stack Assembly

Drawing No. Order No. Description Quantity

1 V3430 WS1.5 Spacer Stack Assembly 1 2 V3004 Drive Cap ASY 1 3 V3178 WS1 Drive Back Plate 1 4 V3407 WS1.5 Piston Downﬂ ow ASY 1 5 V3174 WS1 Regenerant Piston 1 6 V3135 O-ring 228 1 7 V3180 O-ring 337 1

Not Shown

V3358 O-ring 219 (Distributor Tube Opening 1.32") V3357 O-ring 218 (Distributor Tube Opening 32mm) V3020 WS1.25 Body ASY Downﬂ ow

(Distributor Tube Opening 1.32")

V3020-01 WS1.25 Mixing Valve Body Downﬂ ow ASY

(Distributor Tube Opening 1.32")

V3020-02 WS1.25 Body ASY Downﬂ ow

(Distributor Tube Opening 32mm)

V3020-03 WS1.25 Mixing Valve Body Downﬂ ow ASY

(Distributor Tube Opening 32mm)

Note: The regenerant piston is not used in backwash only applications.

Grey Plug on all

WS1.25 bodies

*Grey Ring

*Grey Distributor

O-ring retainer

*Only for valves that have a

32mm Distributor Tube Opening

Page 34 WS1CS & WS1.25CS Manual

Injector Cap, Injector Screen, Injector, Plug and O-Ring

Drawing No. Order No. Description Quantity

1 V3176 INJECTOR CAP 1 2 V3152 O-RING 135 1 3 V3177-01 INJECTOR SCREEN CAGE 1 4 V3010-1Z WS1 INJECTOR ASY Z PLUG 1

V3010-1A WS1 INJECTOR ASY A BLACK V3010-1B WS1 INJECTOR ASY B BROWN V3010-1C WS1 INJECTOR ASY C VIOLET V3010-1D WS1 INJECTOR ASY D RED

V3010-1E WS1 INJECTOR ASY E WHITE

V3010-1F WS1 INJECTOR ASY F BLUE V3010-1G WS1 INJECTOR ASY G YELLOW V3010-1H WS1 INJECTOR ASY H GREEN

V3010-1I WS1 INJECTOR ASY I ORANGE

V3010-1J WS1 INJECTOR ASY J LIGHT BLUE V3010-1K WS1 INJECTOR ASY K LIGHT GREEN

Not Shown V3170 O-RING 011 * Not Shown V3171 O-RING 013 *

*The injector plug and the injector each contain one 011 (lower) and 013 (upper) o-ring.

Note: For upﬂ ow position, injector is located in the up hole and injector plug is in the other hole. WS1CS upﬂ ow bodies are identiﬁ ed by having the DN marking removed. For a ﬁ lter that only backwashes, injector plugs are located on both holes.











WS1CS & WS1.25CS Manual Page 35

Reﬁ ll Flow Control Assembly and Reﬁ ll Port Plug

Drawing No. Order No. Description Quantity

1 V3195-01 WS1 Reﬁ ll Port Plug Asy This part is required for backwash only systems 2 H4615 Elbow Locking Clip 1 3 JCP-P-6 Polytube insert 3/8” 1 4 JCPG-6PBLK Nut 3/8” 1 5 H4613 Elbow Cap 3/8” 1 6 V3163 0-ring 019 1 7 V3165-01* WS1 RFC Retainer Asy 1 8 V3182 WS1 RFC 1

9 V3330-01 WS1 Brine Elbow Asy w/RFC 3/8" Option Not Shown V3552 WS1 Brine Elbow Asy w/RFC 1/2" Option Not Shown H4650 Elbow ½” with nut and insert Option

*Assembly includes V3182 WS1 RFC.

















Water

Flow

Proper RFC orientation directs refill water flow towards the washer face with rounded edge and text.

Page 36 WS1CS & WS1.25CS Manual

Drain Line – 3/4”

Drawing No. Order No. Description Quantity

1 H4615 Elbow Locking Clip 1 2 PKP10TS8-BULK Polytube insert 5/8 Option 3 V3192 WS1 Nut ¾ Drain Elbow Option

4* V3158-01 WS1 Drain Elbow ¾ Male 1

5 V3163 O-ring 019 1

6* V3159-01 WS1 DLFC Retainer ASY 1

V3162-007 WS1 DLFC 0.7 gpm for ¾ V3162-010 WS1 DLFC 1.0 gpm for ¾ V3162-013 WS1 DLFC 1.3 gpm for ¾ V3162-017 WS1 DLFC 1.7 gpm for ¾ V3162-022 WS1 DLFC 2.2 gpm for ¾ V3162-027 WS1 DLFC 2.7 gpm for ¾

V3162-032 WS1 DLFC 3.2 gpm for ¾ V3162-042 WS1 DLFC 4.2 gpm for ¾ V3162-053 WS1 DLFC 5.3 gpm for ¾ V3162-065 WS1 DLFC 6.5 gpm for ¾ V3162-075 WS1 DLFC 7.5 gpm for ¾ V3162-090 WS1 DLFC 9.0 gpm for ¾ V3162-100 WS1 DLFC 10.0 gpm for ¾

*4 and 6 can be ordered as a complete assembly - V3331 WS1 Drain Elbow and Retainer Asy

One DLFC

must be

used if ¾

ﬁ tting is

used

Valves are shipped without drain line ﬂ ow control (DLFC) - install DLFC before using. Valves are shipped without ¾ nut for drain elbow (polytube installation only) and 5/8" polytube insert (polytube installation only).















Water Flow

Proper DLFC orientation directs water flow towards the washer face with rounded edge.

WS1CS & WS1.25CS Manual Page 37

Drain Line – 1”

Drawing No. Order No. Description Quantity

1 H4615 Elbow Locking Clip 1

2 V3008-02 WS1 Drain FTG 1 Straight 1 3* V3166 WS1 Drain FTG Body 1 1 4* V3167 WS1 Drain FTG Adapter 1 1 5* V3163 0-ring 019 1 6* V3150 WS1 Split Ring 1 7* V3151 WS1 Nut 1” QC 1 8* V3105 O-ring 215 1

V3190-090 WS1 DLFC 9.0 gpm for 1 V3190-100 WS1 DLFC 10.0 gpm for 1 V3190-110 WS1 DLFC 11.0 gpm for 1

V3190-130 WS1 DLFC 13.0 gpm for 1 V3190-150 WS1 DLFC 15.0 gpm for 1 V3190-170 WS1 DLFC 17.0 gpm for 1 V3190-200 WS1 DLFC 20.0 gpm for 1 V3190-250 WS1 DLFC 25.0 gpm for 1

* Can be ordered as a set. Order number V3008-02, description: WS1 Drain FTG 1 Straight.

One DLFC

must be

used if 1”

ﬁ tting is

used

Water Flow

Proper DLFC orientation directs water flow towards the washer face with rounded edge.



















Page 38 WS1CS & WS1.25CS Manual

Water Meter, Meter Plug and Mixing Valve

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” QC 1 2 V3003* WS1 Meter ASY 1 3 V3118-01 WS1 Turbine ASY 1 4 V3105 O-ring 215 1 5 V3003-01 WS1 Meter Plug ASY 1 6 V3013 Mixing Valve Optional

* Order number V3003 includes V3118-01 WS1 Turbine Asy and V3105 O-ring 215.

THIS WATER METER SHOULD NOT BE USED AS THE PRIMARY MONITORING DEVICE FOR CRITICAL HEALTH EFFECT APPLICATIONS.

WS1CS & WS1.25CS Manual Page 39

Installation Fitting Assemblies

Description: WS1 Fitting 1” PVC Male NPT Elbow Assembly

Order No: V3007

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3149 WS1 Fitting 1 PVC Male NPT Elbow 2

Order No: V3007-02

Description: WS1 Fitting 1” Brass Sweat Assembly

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3188 WS1 Fitting 1 Brass Sweat Assembly 2

Description: WS1 Fitting ¾” & 1” PVC Solvent 90° ASY

Order No: V3007-01

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3189

WS1 Fitting ¾ & 1 PVC Solvent 90

Description: WS1 Fitting ¾” Brass Sweat Assembly

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3188-01

Order No: V3007-03

WS1 Fitting ¾ Brass Sweat

Order No: V3007-04

Description: WS1 Fitting 1” Plastic Male NPT Assembly

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3164 WS1 Fitting 1" Plastic Male NPT 2

1 NPT

Order No: V3007-05

Description: WS1 Fitting 1-¼” Plastic Male Assembly

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3317 WS1 Fitting 1-¼" Plastic Male NPT 2

Page 40 WS1CS & WS1.25CS Manual

Installation Fitting Assemblies

Description: WS1 Fitting 1” Plastic Male BSPT Assembly

Order No: V3007-06

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3316 WS1 Fitting 1" Plastic Male BSPT 2

Description: WS1 Fitting 1¼” & 1½” PVC Solvent Assembly

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3352 WS1 Fitting 1¼”&1½” PVC Solvent 2

Order No. V3007-07

Order No. V3007-08

Description: WS1 Fitting 1-1/4” Plastic Male BSPT Assembly

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3361 WS1 Fitting 1-1/4" Plastic Male BSPT 2

Order No: V3007-09

Description: WS1 Fitting 1¼” & 1½” Brass Sweat Assembly

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3375 WS1 Fitting 1¼" & 1½" Brass Sweat 2

Description: WS1 Fitting 3/4” PEX Assembly

Order No. V3007-10

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3535 WS1 Fitting 3/4” PEX 2

Description: WS1 Fitting 1” PEX Assembly

Order No. V3007-11

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3515 WS1 Fitting 1” PEX 2

WS1CS & WS1.25CS Manual Page 41

Bypass Valve

Drawing No. Order No. Description Quantity

1 V3151 WS1 Nut 1” Quick Connect 2 2 V3150 WS1 Split Ring 2 3 V3105 O-Ring 215 2 4 V3145 WS1 Bypass 1” Rotor 2 5 V3146 WS1 Bypass Cap 2 6 V3147 WS1 Bypass Handle 2 7 V3148 WS1 Bypass Rotor Seal Retainer 2 8 V3152 O-ring 135 2 9 V3155 O-ring 112 2

10 V3156 O-ring 214 2

(Not Shown) Order No. V3191-01, Description: WS1 Bypass Vertical Adapter Assembly

Order No. Description Quantity

V3151 WS1 Nut 1” Quick Connect 2 V3150 WS1 Split Ring 2 V3105 O-Ring 215 2 V3191 WS1 Bypass Vertical Adapter 2





1







1



Page 42 WS1CS & WS1.25CS Manual

Flow Diagrams – Service and Backwash

WS1CS & WS1.25CS Manual Page 43

Flow Diagrams – Downﬂ ow and Upﬂ ow

(WS1CS Only)

Page 44 WS1CS & WS1.25CS Manual

Flow Diagrams – Rinse and Fill

WS1CS & WS1.25CS Manual Page 45

WS1 Wrench

(Order No. V3193-01)

Although no tools are necessary to assemble or disassemble the valve, the WS1 wrench (shown in various positions on the valve) may be purchased to aid in assembly or disassembly.

/RRVHQV'UDLQ1XW,Q 3RO\WXEH$SSOLFDWLRQV

/RRVHQV,QMHFWRU$QG %\SDVV&DSV

/RRVHQV'ULYH&DS

/RRVHQV4XLFN &RQQHFW1XWV

Page 46 WS1CS & WS1.25CS Manual

Service Instructions

Drive Assembly

Remove the valve cover to access the drive assembly.

Disconnect the power source plug (black wire) from the PC board prior to disconnecting the motor or water meter plugs from the PC board. The power source plug connects to the four-pin jack. The motor plug connects to the two-pin jack on the left-hand side of the PC board. The water meter plug (gray wire) connects to the three-pin jack on the far right-hand side of the PC board.

The PC board can be removed separately from the drive bracket but it is not recommended. Do not attempt to remove the display panel from the PC board. Handle the board by the edges. To remove the PC board from the drive bracket, unplug the power, water meter and motor plugs from the PC board. Lift the middle latch along the top of the drive bracket while pulling outward on the top of the PC board. The drive bracket has two plastic pins that ﬁ t into the holes on the lower edge of the PC board. Once the PC board is tilted about 45° from the drive bracket it can be lifted off of these pins. To reinstall the PC board, position the lower edge of the PC board so that the holes in the PC board line up with the plastic pins. Push the top of the PC board towards the valve until it snaps under the middle latch, weave the power and water meter wires into the holders and reconnect the motor, water meter and power plugs.

The drive bracket must be removed to access the drive cap assembly and pistons or the drive gear cover. It is not necessary to remove the PC board from the drive bracket to remove the drive bracket. To remove the drive bracket start by removing the plugs for the power source and the water meter. Unweave the wires from the side holders. Two tabs on the top of the drive back plate hold the drive bracket in place. Simultaneously lift the two tabs and gently ease the top of the drive bracket forward. The lower edge of the drive bracket has two notches that rest on the drive back plate. Lift up and outward on the drive bracket to disengage the notches.

To reassemble, seat the bottom of the drive bracket so the notches are engaged at the bottom of the drive back plate. Push the top of the drive bracket toward the two latches. The drive bracket may have to be lifted slightly to let the threaded piston rod pass through the hole in the drive bracket. Maintain a slight engaging force on top of the drive bracket while deﬂ ecting the bracket slightly to the left by pressing on the side of the upper right corner. This helps the drive gears mesh with the drive cap assembly. The drive bracket is properly seated when it snaps under the latches on the drive back plate. If resistance is felt before latching, then notches are not fully engaged, the piston rod is not in hole, the wires are jammed between the drive bracket and drive back plate, or the gear is not engaging the drive cap assembly.

To inspect the drive gears, the drive gear cover needs to be removed. Before trying to remove the gear cover, the drive bracket must be removed from the drive back plate. (Refer to the instructions above regarding removing the drive bracket from the drive back plate. The drive gear cover can be removed from the drive bracket without removing the motor or the PC board.) The drive gear cover is held in place on the drive bracket by three clips. The largest of the three clips is always orientated to the bottom of the drive bracket. With the PC board facing up, push in and down on the large clip on the drive gear cover. Handle the cover and the gears carefully so that the gears do not fall off of the pegs in the cover.

Replace broken or damaged drive gears. Do not lubricate any of the gears. Avoid getting any foreign matter on the reﬂ ective coating because dirt or oils may interfere with pulse counting.

The drive gear cover only ﬁ ts on one way, with the large clip orientated towards the bottom. If all three clips are outside of the gear shroud on the drive bracket, the drive gear cover slips easily into place.

The drive bracket does not need to be removed from the drive plate if the motor needs to be removed. To remove the motor, disconnect the power and motor plugs from the jacks on the PC board. Move the spring clip loop to the right and hold. Rotate the motor at least a ¼ turn in either direction so the wires are vertical (up & down) before gently pulling on the wire connectors to remove the motor. Pulling directly on the wires without rotating the motor may break the wires off the motor.

WS1CS & WS1.25CS Manual Page 47

Replace the motor if necessary. Do not lubricate the motor or the gears. To reinstall the motor, move the spring clip loop to the right and hold. Gently turn the motor while inserting so that the gear on the motor meshes with the gears under the drive gear cover. Release the spring clip loop and continue to rotate the motor until the wires are horizontal and the motor housing engages the small plastic bulge inside the drive bracket motor retainer. Reconnect the motor plug to the two-pronged jack on the lower left hand side of the PC board. If the motor will not easily engage with the drive gear when reinstalling, lift and slightly rotate the motor before reinserting. Reconnect the power plug.

Replace the valve cover. After completing any valve maintenance, press and hold NEXT and REGEN buttons for 3 seconds or unplug power source jack (black wire) and plug back in. This resets the electronics and establishes the service piston position. The display should ﬂ ash all wording, then ﬂ ash the software version (e.g. 405) and then reset the valve to the service position.

Drive Cap Assembly, Main Piston and Regenerant Piston

The drive assembly must be removed to access the drive cap assembly. The drive cap assembly must be removed to access the piston(s). The drive cap assembly is threaded into the control valve body and seals with an o-ring. To remove the drive cap assembly use the special plastic wrench or insert a ¼” to ½” ﬂ at blade screwdriver into one of the slots around the top 2” of the drive cap assembly so it engages the notches molded into the drive back plate around the top 2” of the piston cavity. See Figure 5. The notches are visible through the holes. Lever the screwdriver so the drive cap assembly turns counter clockwise. Once loosened, unscrew the drive cap assembly by hand and pull straight out.

Figure 5

The drive cap assembly contains the drive cap, the main drive gear, drive cap spline, piston rod and various other parts that should not be dissembled in the ﬁ eld. The only replaceable part on the drive cap assembly is the o-ring. Attached to the drive cap assembly is the main piston (downﬂ ow or upﬂ ow) and if a regenerant is used, a regenerant piston.

Page 48 WS1CS & WS1.25CS Manual

The regenerant piston (the small diameter one behind the main piston) is removed from the main piston by pressing sideways and unsnapping it from its latch. Chemically clean in dilute sodium bisulﬁ te or vinegar, or replace the regenerant piston if needed. To remove the main downﬂ ow or upﬂ ow piston fully extend the piston rod and then unsnap the main piston from its latch by pressing on the side with the number. Chemically clean in dilute sodium bisulﬁ te or vinegar, or replace the main piston.

Reattach the main piston to the drive cap assembly. Reattach the regenerant piston (if needed) to the main piston. Do not lubricate the piston rod, main piston or regenerant piston. Lubricant will adversely affect the clear lip seals. Reinsert the drive cap assembly and piston into the spacer stack assembly and hand tighten the drive cap assembly. Continue to tighten the drive cap assembly using a screwdriver as a ratchet until the black o-ring on the spacer stack assembly is no longer visible through the drain port. Excessive force can break the notches molded into the drive back plate. Make certain that the main drive gear still turns freely. The exact position of the piston is not important as long as the main drive gear turns freely.

Reattach the drive assembly to the control valve and connect all plugs. After completing any valve maintenance, press and hold NEXT and REGEN buttons for 3 seconds or unplug power source jack (black wire) and plug back in. This resets the electronics and establishes the service piston position. The display should ﬂ ash all wording, then ﬂ ash the software version (e.g. 405) and then reset the valve to the service position.

Note: Refer to Figure 6 to identify the main piston.

Spacer Stack Assembly (Refer to Figure 6 for WS1CS and WS1.25CS spacer stack identiﬁ cation)

To access the spacer stack assembly remove the drive assembly, drive cap assembly and piston. The spacer stack assembly can be removed easily without tools by using thumb and foreﬁ nger. Inspect the black o-rings and clear lip seals for wear or damage. Replace the entire stack if necessary. Do not disassemble the WS1CS or WS1.25CS stack.

The spacer stack assembly may be chemically cleaned (dilute sodium bisulﬁ te or vinegar) or wiped with a soft cloth.

The spacer stack assembly can be pushed in to the control valve body bore by hand. Since the spacer stack assembly can be compressed it is easier to use a blunt object (5/8” to 1-1/8” in diameter) to push the center of the assembly into the control valve body. The assembly is properly seated when at least four threads are exposed (approximately 5/8”). Do not force the spacer stack assembly in. The control valve body bore interior can be lubricated with silicone to allow for easy insertion of the entire stack. Do not use silicone or any other type of lubricant on the clear lip seals or the piston.

Reattach the drive cap assembly and piston(s) and the drive assembly.

After completing any valve maintenance, press and hold NEXT and REGEN buttons for 3 seconds or unplug power source jack (black wire) and plug back in. This resets the electronics and establishes the service piston position. The display should ﬂ ash all wording, then ﬂ ash the software version (e.g. 405) and then reset the valve to the service position.

Injector Cap, Screen, Injector Plug and Injector

Unscrew the injector cap and lift off. Loosen cap with special plastic wrench or pliers if necessary. Attached to the injector cap is a screen. Remove the screen and clean if fouled.

The plug and/or injector can be pried out with a small screwdriver. The plug can be wiped clean. If the plug leaks replace the entire plug. The injector consists of a throat and a nozzle. Chemically clean the injector with vinegar or sodium bisulﬁ te. The holes can be blown out with air. Both pieces have small diameter holes that control the ﬂ ow rates of water to insure that the proper concentration of regenerant is used. Sharp objects, which can score the plastic, should not be used to clean the injector. Scoring the injector or increasing the diameter of the hole could change the operating parameters of the injector. Push the plug(s) and/or injectors ﬁ rmly in place, replace the screen and hand tighten the injector cap.

WS1CS & WS1.25CS Manual Page 49

Two holes are labeled DN and UP. Check for compliance. See Table.

Compliance Table

Application Injector and/or Plug(s) Main Piston

WS1CS Downﬂ ow Softener or Regenerating Filter WS1CS Backwash Only Filter

WS1CS Upﬂ ow Softener WS1.25CS Downﬂ ow

Softener or Regenerating Filter (1.32" Distributor) WS1.25CS Backwash Only Filter (1.32" Distributor) WS1.25CS Downﬂ ow Softener or Regenerating Filter (32mm Distributor) WS1.25CS Backwash Only Filter (32mm Distributor)

Injector in “DN” hole, Plug in “UP” hole

Plug in “DN” and “UP” holes, Install Reﬁ ll Port Plug Injector in “UP” hole, Plug in unlabeled hole

Injector in “DN” hole, Plug in “UP” hole

Plug in “DN” and “UP” holes, Install Reﬁ ll Port Plug

Injector in “DN” hole, Plug in “UP” hole

Plug in “DN” and “UP” holes, Install Reﬁ ll Port Plug

Reﬁ ll Flow Control Assembly or Reﬁ ll Port Plug

Regenerant

Piston

Stack Body

V3011 V3174 V3005

V3011 None V3005

V3011-01 V3174 V3005

V3407 V3174 V3430

V3407 None V3430

V3407 V3174 V3430

V3407 None V3430

V3001 or

V3001-02 (Mixing)

V3001 or

V3001-02 (Mixing)

V3001UP or

V3001-02UP (Mixing)

V3020 or

V3020-01 (Mixing)

V3020 or

V3020-01 (Mixing)

V3020-02 or

V3020-03 (Mixing)

V3020-02 or

V3020-03 (Mixing)

To clean or replace the reﬁ ll ﬂ ow control, pull out the elbow-locking clip and then pull straight up on the elbow. Replace the elbow locking clip in the slot so that it is not misplaced. Twist to remove the white ﬂ ow control retainer. The ﬂ ow control can be removed by prying upward through the side slots of the retainer with a small ﬂ at blade screwdriver.

Chemically clean the ﬂ ow control or the white ﬂ ow control retainer using dilute sodium bisulﬁ te or vinegar. Do not use a wire brush. If necessary, replace the ﬂ ow control, o-ring on the ﬂ ow control retainer, or the o-ring on the elbow.

Reseat the ﬂ ow control so the rounded end is visible in the ﬂ ow control. Reseat the white ﬂ ow control retainer by pushing the retainer into the elbow until the o-ring seats. Remove locking clip, push down on elbow to reseat and insert locking clip.

Do not use Vaseline, oils, or other unacceptable lubricants on o-rings. A silicone lubricant may be used on the o-ring on the elbow or the white retainer.

Water Meter or Meter Plug

The water meter assembly is connected to the PC board by a wire. If the entire water meter assembly is to be replaced, remove the control valve cover and disconnect the power source and water meter plugs from the PC board. Unlatch the drive assembly and lean it forward. Unthread the water meter wire from the side of the drive assembly and through the drive back plate. To reinstall, rethread the water meter wire through the drive back plate and the side of the drive assembly. Reattach the drive assembly and the water meter and power plugs.

THIS WATER METER SHOULD NOT BE USED AS THE PRIMARY MONITORING DEVICE FOR CRITICAL HEALTH EFFECT APPLICATIONS.

If no water meter wire is visible, then a plug is installed, not a water meter.

The water meter wire does not need to be removed from the PC board if the water meter is only being inspected and cleaned. To remove the water meter assembly, unscrew the meter cap on the left side of the control valve. Pliers may be used to unscrew the nut if necessary.

With the nut removed, a slot at the top of the water meter is visible. Twist a ﬂ at blade screwdriver in the slot between the control

Page 50 WS1CS & WS1.25CS Manual

valve body and the meter. When the meter is part way out it is easy to remove the water meter from the housing. Once the water meter is removed from the control valve body, gently pull forward on the turbine to remove it from the shaft. Do not use a wire brush to clean the turbine. Wipe with a clean cloth or chemically clean in dilute sodium bisulﬁ te or vinegar. The turbine can be immersed in the chemical. Do not immerse electronics. If the turbine is scored or damaged or the bearings on the turbine are worn, replace the turbine.

Do not lubricate the turbine shaft. The turbine shaft bearings are prelubricated. Do not use Vaseline, oils, or other unacceptable lubricants on the o-ring. A silicone lubricant may be used on the black o-ring.

Snap the turbine on the shaft and reinsert the water meter into the side slot. Hand tighten the nut. Do not use a pipe wrench to tighten nut.

Mixing Valve

To clean or replace the mixing valve, unthread the mixing valve from the valve body. Chemically clean the mixing valve with a dilute sodium bisulﬁ te or vinegar solution. Do not use Vaseline, oils, or other unacceptable lubricants on o-rings. A silicone lubricant may be used on the o-ring. Before replacing the mixing valve in the valve body turn the knob clockwise so that the mixing valve is in the open position. Failure to do this may cause damage to the mixing valve when it is screwed in to the valve body.

To adjust the blended water, close the mixing valve. Open a water faucet to the desired ﬂ ow rate. Open the mixing valve until the desired hardness is reached. Close the faucet.

Bypass Valve

The working parts of the bypass valve are the rotor assemblies that are contained under the bypass valve caps. Before working on the rotors, make sure the system is depressurized. Turn the red arrow shaped handles towards the center of the bypass valve and back several times to ensure rotor is turning freely.

The nuts and caps are designed to be unscrewed or tightened by hand. If necessary a pliers can be used to unscrew the nut or cap. Do not use a pipe wrench to tighten or loosen nuts or caps. Do not place screwdriver in slots on caps and/or tap with a hammer. To access the rotor, unscrew the cap and lift the cap, rotor and handle out as one unit. Twisting the unit as you pull it out will help to remove it more easily. There are three o-rings: one under the rotor cap, one on the rotor stem and the rotor seal. Replace worn o-rings. Clean rotor. Reinstall rotor.

When reinstalling the red arrow handles be sure that:

1. The handle pointers are lined up with the control valve body arrows and the rotor seal o-ring and retainer on both rotors face to the right when being viewed from the front of the control valve; or

2. Arrows point toward each other in the bypass position.

Since the handles can be pulled off, they could be accidentally reinstalled 180° from their correct orientation. To install the red arrow handles correctly, keep the handles pointed in the same direction as the arrows engraved on the control valve body while tightening the bypass valve caps.

WS1CS & WS1.25CS Manual Page 51

Table 15

Troubleshooting Procedures

Problem Possible Cause Solution

a. AC Adapter unplugged a. Connect power

1. Timer does not display time of day

2. Timer does not display correct time of day

3. No softening/ﬁ ltering display when water is ﬂ owing

4. Control valve regenerates at wrong time of day

5. ERROR followed by code

number

Error Code 1001 -Unable to recognize start of regeneration Error Code 1002 – Unexpected stall Error Code 1003 – Motor ran to long, timed out trying to reach next cycle position Error Code 1004 - Motor ran to long, timed out trying to reach home position

If other Error Codes display contact the factory.

b. No electric power at outlet b. Repair outlet or use working outlet c. Defective AC Adapter c. Replace AC Adapter d. Defective PC board d. Replace PC board a. Switched outlet a. Use uninterrupted outlet

b. If power outage is for more than 8

b. Power outage

hours, reset time of day. If power outage is for less than 8 hours, reset

time of day and replace battery. c. Defective PC board c. Replace PC board a. Bypass valve in bypass position a. Put bypass valve in service position b. Meter connection disconnected b. Connect meter to PC board c. Restricted/stalled meter turbine c. Remove meter and check for rotation

or foreign material d. Defective meter d. Replace meter e. Defective PC board e. Replace PC board a. Power outages

a. If power outage is for more than 8

hours, reset time of day. If power

outage is for less than 8 hours, reset

time of day and replace battery. b. Time of day not set correctly b. Reset to correct time of day c. Time of regeneration incorrect c. Reset regeneration time d. Control valve set at “on 0”

(immediate regeneration)

e. Control valve set at NORMAL +

on 0

a. Control valve has just been

serviced

d. Check control valve set-up procedure

regeneration time option

e. Check control valve set-up procedure

regeneration time option

a. Press NEXT and REGEN for 3 seconds

or unplug power source jack (black wire) and plug back in to reset control valve

b. Foreign matter is lodged in control

valve

b. Check piston and spacer stack assembly

for foreign matter

c. High drive forces on piston c. Replace piston(s) and spacer stack

assembly

d. Control valve piston not in home

position

d. Press NEXT and REGEN for 3 seconds

or unplug power source jack (black wire) and plug back in to reset control valve

e. Motor not inserted fully to engage

pinion, motor wires broken or

e. Check motor and wiring. Replace

motor if necessary

disconnected, motor failure

f. Drive gear label dirty or damaged,

f. Replace or clean drive gear

missing or broken gear

g. Drive bracket incorrectly aligned

g. Reseat drive bracket properly

to back plate h. PC board is damaged or defective h. Replace PC board i. PC board incorrectly aligned to

drive bracket

i. Ensure PC board is correctly snapped

on to drive bracket

Page 52 WS1CS & WS1.25CS Manual

Problem Possible Cause Solution

a. Motor not operating a. Replace motor b. No electric power at outlet b. Repair outlet or use working outlet

6. Control valve stalled in regeneration

7. Control valve does not regenerate automatically when REGEN button is depressed and held

8. Control valve does not regenerate automatically but does when REGEN button is depressed

9. Time of day ﬂ ashes on and off

c. Defective AC Adapter c. Replace AC Adapter d. Defective PC board d. Replace PC board e. Broken drive gear or drive cap assembly e. Replace drive gear or drive cap assembly f. Broken piston retainer f. Replace drive cap assembly g. Broken main or regenerant piston g. Replace main or regenerant piston a. AC Adapter unplugged a. Connect AC Adapter b. No electric power at outlet b. Repair outlet or use working outlet c. Broken drive gear or drive cap assembly c. Replace drive gear or drive cap assembly d. Defective PC board d. Replace PC board a. By-pass valve in bypass position a. Put bypass valve in normal operation

position b. Meter connection disconnected b. Connect meter to PC board c. Restricted/stalled meter turbine c. Remove meter and check for rotation or

foreign matter d. Defective meter d. Replace meter e. Defective PC board e. Replace PC board f. Set-up error f. Check control valve set-up procedure a. Power outage a. Reset the time of day. If due to a power

outage less than 8 hours, reset time of day

and replace battery.

WS1CS & WS1.25CS Manual Page 53

Figure 6

WS1CS & WS1.25CS Identiﬁ cation

WS1CS with 1.050" Distributor Tube Opening Identiﬁ cation

Black Plug

Note: The WS1CS downﬂ ow piston is a solid amber color. The WS1CS upﬂ ow piston is black and amber.

WS1.25CS with 1.32" Distributor Tube Opening Identiﬁ cation

Spacer Color: Grey

1.25"

Spacer Color: Black

1.5"

Grey Plug

WS1.25CS with 32mm Distributor Tube Opening Identiﬁ cation

Grey Plug

Grey Ring

Grey Distributor O-ring Retainer

1.5"

Spacer Color: Black

1.5"

Page 54 WS1CS & WS1.25CS Manual

WS1CS & WS1.25CS Manual Page 55

Page 56 WS1CS & WS1.25CS Manual

WS1CS & WS1.25CS Manual Page 57

Page 58 WS1CS & WS1.25CS Manual

WS1CS & WS1.25CS Manual Page 59

Revision History:

07/27/07

BATTERY UPDATES - PC BOARD:

Page 6, 23, 31, 35, 51, 52

Page 60 WS1CS & WS1.25CS Manual

CLACK CORPORATION

FIVE-YEAR SOFTENER AND FILTER CONTROLS

LIMITED WARRANTY

Clack Corporation (“Clack”) warrants to OEM that its Softener and Filter Control V alves will be free from defects in material and workmanship under normal use and service for a period of ﬁ ve years from the date of shipment of such Valves from Clack’s plant in Windsor, Wisconsin when installed and operated within recommended parameters. No warranty is made with respect to defects not reported to Clack within the warranty period and/or defects or damages due to neglect, misuse, alterations, accident, misapplication, physical damage, or damage caused by ﬁ re, acts of God, freezing or hot water or similar causes. For outdoor installations where the Softener and Filter Control Valves are not under cover, the weather cover must be utilized for the warranty to be valid.

Clack’s obligation to OEM under this Limited Warranty shall be limited, at its option, to replacement or repair of any Softener and Filter Control valve covered by this Limited Warranty. Prior to returning a Control Valve, OEM must obtain a return goods authorization number from Clack and return the Control Valve freight prepaid. If any Control Valve is covered under this Limited Warranty, Clack shall return the Control Valve repaired, or its replacement, prepaid to the original point of shipment.

CLACK GIVES THIS WARRANTY TO OEM IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND HEREBY EXPRESSLY DISCLAIMS ALL OTHER SUCH WARRANTIES. CLACK’S LIABILITY HERE UNDER SHALL NOT EXCEED THE COST OF THE PRODUCT. UNDER NO CIRCUMSTANCES WILL CLACK BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR ANY OTHER LOSS, DAMAGE OR EXPENSE OF ANY KIND, INCLUDING LOSS OF PROFITS, ARISING IN CONNECTION WITH THE INSTALLATION OR USE OR INABILITY TO USE THE CONTROL VALVES OR ANY WATER TREATMENT SYSTEM THE CONTROL VALVE IS INCORPORATED INTO.

Form No. 2573 – Updated 7/27/07

U.S. Patents 6402944, 6444127 and 6776901

Clack Water Specialist WS1CS, Water Specialist WS1.25CS Operation And Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
