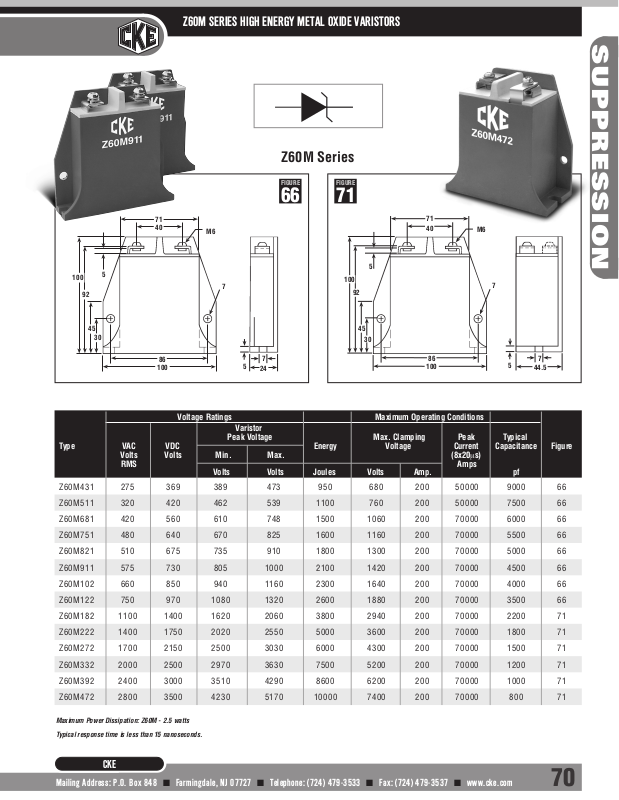

CKE Z60M SERIES Catalog Page
Z60M SERIES HIGH ENERGY METAL OXIDE VARISTORS
Mailing Address: P.O. Box 848 ■ Farmingdale, NJ 07727 ■ Telephone: (724) 479-3533 ■ Fax: (724) 479-3537 ■ www.cke.com
70
CKE
Z60M Series
Voltage Ratings Maximum Operating Conditions
Varistor
Peak Voltage Max. Clamping Peak Typical
Type VAC VDC Energy Voltage Current Capacitance Figure
Volts Volts Min. Max. (8x20
µ
s)
RMS Amps
Volts Volts Joules Volts Amp. pf
Z60M431 275 369 389 473 950 680 200 50000 9000 66
Z60M511 320 420 462 539 1100 760 200 50000 7500 66
Z60M681 420 560 610 748 1500 1060 200 70000 6000 66
Z60M751 480 640 670 825 1600 1160 200 70000 5500 66
Z60M821 510 675 735 910 1800 1300 200 70000 5000 66
Z60M911 575 730 805 1000 2100 1420 200 70000 4500 66
Z60M102 660 850 940 1160 2300 1640 200 70000 4000 66
Z60M122 750 970 1080 1320 2600 1880 200 70000 3500 66
Z60M182 1100 1400 1620 2060 3800 2940 200 70000 2200 71
Z60M222 1400 1750 2020 2550 5000 3600 200 70000 1800 71
Z60M272 1700 2150 2500 3030 6000 4300 200 70000 1500 71
Z60M332 2000 2500 2970 3630 7500 5200 200 70000 1200 71
Z60M392 2400 3000 3510 4290 8600 6200 200 70000 1000 71
Z60M472 2800 3500 4230 5170 10000 7400 200 70000 800 71
Maximum Power Dissipation: Z60M - 2.5 watts
Typical response time is less than 15 nanoseconds.
71
40
M6
5
7
7
5
100
92
86
100
45
30
24
FIGURE
66
FIGURE
71
M6
71
40
7
5
86
100
100
92
45
30
5
7
44.5
SUPPRESSION
