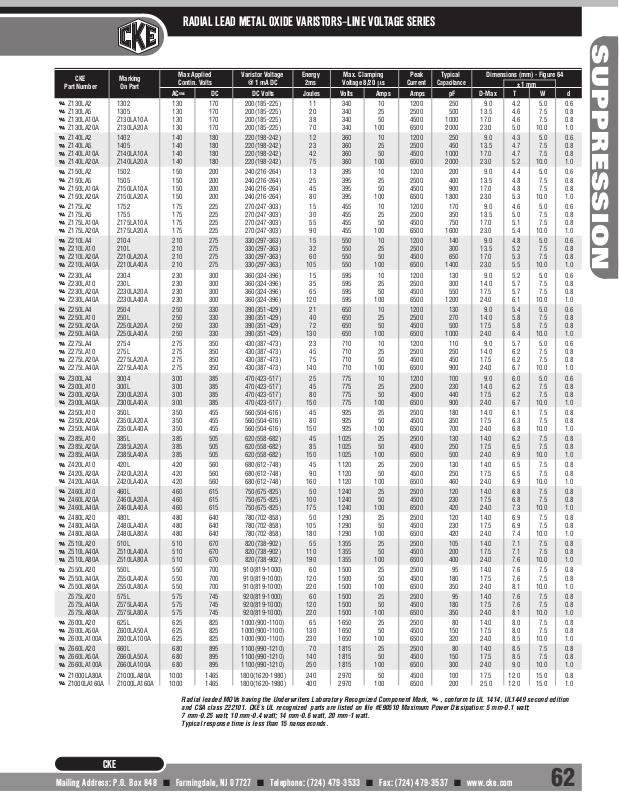

CKE LINE VOLTAGE SERIES Catalog Page

RADIAL LEAD METAL OXIDE VARISTORS–LINE VOLTAGE SERIES

Mailing Address: P.O. Box 848 ■ Farmingdale, NJ 07727 ■ Telephone: [phone] ■ Fax: [phone] ■ www.cke.com

62

CKE

SUPPRESSION

CKE Marking

Max Applied Varistor Voltage Energy Max. Clamping Peak Typical Dimensions (mm) - Figure 64

Part Number On Part

Contin. Volts @ 1 mA DC 2ms Voltage 8/20

µ

s Current

Capacitance

±1 mm

AC

RMS

DC DC Volts Joules Volts Amps Amps pF D-Max T W d

Z130LA2 1302 130 170 200(185-225) 11 340 10 1200 250 9.0 4.2 5.0 0.6
Z130LA5 1305 130 170 200(185-225) 20 340 25 2500 500 13.5 4.6 7.5 0.8
Z130LA10A Z130LA10A 130 170 200(185-225) 38 340 50 4500 1000 17.0 4.6 7.5 0.8
Z130LA20A Z130LA20A 130 170 200(185-225) 70 340 100 6500 2000 23.0 5.0 10.0 1.0

Z140LA2 1402 140 180 220(198-242) 12 360 10 1200 250 9.0 4.3 5.0 0.6
Z140LA5 1405 140 180 220(198-242) 23 360 25 2500 450 13.5 4.7 7.5 0.8
Z140LA10A Z140LA10A 140 180 220(198-242) 42 360 50 4500 1000 17.0 4.7 7.5 0.8
Z140LA20A Z140LA20A 140 180 220(198-242) 75 360 100 6500 2000 23.0 5.2 10.0 1.0

Z150LA2 1502 150 200 240(216-264) 13 395 10 1200 200 9.0 4.4 5.0 0.6
Z150LA5 1505 150 200 240(216-264) 25 395 25 2500 400 13.5 4.8 7.5 0.8
Z150LA10A Z150LA10A 150 200 240(216-264) 45 395 50 4500 900 17.0 4.8 7.5 0.8
Z150LA20A Z150LA20A 150 200 240(216-264) 80 395 100 6500 1800 23.0 5.3 10.0 1.0

Z175LA2 1752 175 225 270(247-303) 15 455 10 1200 170 9.0 4.6 5.0 0.6
Z175LA5 1755 175 225 270(247-303) 30 455 25 2500 350 13.5 5.0 7.5 0.8
Z175LA10A Z175LA10A 175 225 270(247-303) 55 455 50 4500 750 17.0 5.1 7.5 0.8
Z175LA20A Z175LA20A 175 225 270(247-303) 90 455 100 6500 1600 23.0 5.4 10.0 1.0

Z210LA4 2104 210 275 330(297-363) 15 550 10 1200 140 9.0 4.8 5.0 0.6
Z210LA10 210L 210 275 330(297-363) 32 550 25 2500 300 13.5 5.2 7.5 0.8
Z210LA20A Z210LA20A 210 275 330(297-363) 60 550 50 4500 650 17.0 5.3 7.5 0.8
Z210LA40A Z210LA40A 210 275 330(297-363) 105 550 100 6500 1400 23.0 5.5 10.0 1.0

Z230LA4 2304 230 300 360(324-396) 15 595 10 1200 130 9.0 5.2 5.0 0.6
Z230LA10 230L 230 300 360(324-396) 35 595 25 2500 300 14.0 5.7 7.5 0.8
Z230LA20A Z230LA20A 230 300 360(324-396) 65 595 50 4500 550 17.5 5.7 7.5 0.8
Z230LA40A Z230LA40A 230 300 360(324-396) 120 595 100 6500 1200 24.0 6.1 10.0 1.0

Z250LA4 2504 250 330 390(351-429) 21 650 10 1200 130 9.0 5.4 5.0 0.6
Z250LA10 250L 250 330 390(351-429) 40 650 25 2500 270 14.0 5.8 7.5 0.8
Z250LA20A Z250LA20A 250 330 390(351-429) 72 650 50 4500 500 17.5 5.8 7.5 0.8
Z250LA40A Z250LA40A 250 330 390(351-429) 130 650 100 6500 1000 24.0 6.4 10.0 1.0

Z275LA4 2754 275 350 430(387-473) 23 710 10 1200 110 9.0 5.7 5.0 0.6
Z275LA10 275L 275 350 430(387-473) 45 710 25 2500 250 14.0 6.2 7.5 0.8
Z275LA20A Z275LA20A 275 350 430(387-473) 75 710 50 4500 450 17.5 6.2 7.5 0.8
Z275LA40A Z275LA40A 275 350 430(387-473) 140 710 100 6500 900 24.0 6.7 10.0 1.0

Z300LA4 3004 300 385 470(423-517) 25 775 10 1200 100 9.0 6.0 5.0 0.6
Z300LA10 300L 300 385 470(423-517) 45 775 25 2500 230 14.0 6.2 7.5 0.8
Z300LA20A Z300LA20A 300 385 470(423-517) 80 775 50 4500 440 17.5 6.2 7.5 0.8
Z300LA40A Z300LA40A 300 385 470(423-517) 150 775 100 6500 900 24.0 6.7 10.0 1.0

Z350LA10 350L 350 455 560(504-616) 45 925 25 2500 180 14.0 6.1 7.5 0.8
Z350LA20A Z350LA20A 350 455 560(504-616) 80 925 50 4500 350 17.5 6.3 7.5 0.8
Z350LA40A Z350LA40A 350 455 560(504-616) 150 925 100 6500 700 24.0 6.8 10.0 1.0

Z385LA10 385L 385 505 620(558-682) 45 1025 25 2500 130 14.0 6.2 7.5 0.8
Z385LA20A Z385LA20A 385 505 620(558-682) 85 1025 50 4500 250 17.5 6.5 7.5 0.8
Z385LA40A Z385LA40A 385 505 620(558-682) 150 1025 100 6500 500 24.0 6.9 10.0 1.0

Z420LA10 420L 420 560 680(612-748) 45 1120 25 2500 130 14.0 6.5 7.5 0.8
Z420LA20A Z420LA20A 420 560 680(612-748) 90 1120 50 4500 250 17.5 6.5 7.5 0.8
Z420LA40A Z420LA40A 420 560 680(612-748) 160 1120 100 6500 460 24.0 6.9 10.0 1.0

Z460LA10 460L 460 615 750(675-825) 50 1240 25 2500 120 14.0 6.8 7.5 0.8
Z460LA20A Z460LA20A 460 615 750(675-825) 100 1240 50 4500 230 17.5 6.8 7.5 0.8
Z460LA40A Z460LA40A 460 615 750(675-825) 175 1240 100 6500 420 24.0 7.3 10.0 1.0

Z480LA20 480L 480 640 780(702-858) 50 1290 25 2500 120 14.0 6.9 7.5 0.8
Z480LA40A Z480LA40A 480 640 780(702-858) 105 1290 50 4500 230 17.5 6.9 7.5 0.8
Z480LA80A Z480LA80A 480 640 780(702-858) 180 1290 100 6500 420 24.0 7.4 10.0 1.0

Z510LA20 510L 510 670 820(738-902) 55 1355 25 2500 105 14.0 7.1 7.5 0.8
Z510LA40A Z510LA40A 510 670 820(738-902) 110 1355 50 4500 200 17.5 7.1 7.5 0.8
Z510LA80A Z510LA80A 510 670 820(738-902) 190 1355 100 6500 400 24.0 7.6 10.0 1.0

Z550LA20 550L 550 700 910(819-1000) 60 1500 25 2500 95 14.0 7.6 7.5 0.8
Z550LA40A Z550LA40A 550 700 910(819-1000) 120 1500 50 4500 180 17.5 7.6 7.5 0.8
Z550LA80A Z550LA80A 550 700 910(819-1000) 220 1500 100 6500 350 24.0 8.1 10.0 1.0

Z575LA20 575L 575 745 920(819-1000) 60 1500 25 2500 95 14.0 7.6 7.5 0.8
Z575LA40A Z575LA40A 575 745 920(819-1000) 120 1500 50 4500 180 17.5 7.6 7.5 0.8
Z575LA80A Z575LA80A 575 745 920(819-1000) 220 1500 100 6500 350 24.0 8.1 10.0 1.0

Z600LA20 625L 625 825 1000(900-1100) 65 1650 25 2500 80 14.0 8.0 7.5 0.8
Z600LA50A Z600LA50A 625 825 1000(900-1100) 130 1650 50 4500 150 17.5 8.0 7.5 0.8
Z600LA100A Z600LA100A 625 825 1000(900-1100) 230 1650 100 6500 320 24.0 8.5 10.0 1.0

Z660LA20 660L 680 895 1100(990-1210) 70 1815 25 2500 80 14.0 8.5 7.5 0.8
Z660LA50A Z660LA50A 680 895 1100(990-1210) 140 1815 50 4500 150 17.5 8.5 7.5 0.8
Z660LA100A Z660LA100A 680 895 1100(990-1210) 250 1815 100 6500 300 24.0 9.0 10.0 1.0

Z1000LA80A Z1000LA80A 1000 1465 1800(1620-1980) 240 2970 50 4500 100 17.5 12.0 15.0 0.8
Z1000LA160A Z1000LA160A 1000 1465 1800(1620-1980) 400 2970 100 6500 200 25.0 12.0 15.0 1.0

Radial leaded MOVs having the Underwriters Laboratory Recognized Component Mark, , conform to UL 1414, UL1449 second edition
and CSA class 222101. CKE’s UL recognized parts are listed on file #E90510 Maximum Power Dissipation: 5 mm-0.1 watt;
7 mm-0.25 watt; 10 mm-0.4 watt; 14 mm-0.6 watt, 20 mm-1 watt.
Typical response time is less than 15 nanoseconds.
