Civco GUS G10-U2-EU, GUS G10VP-EU, GUS G14-U2-AC-EU, GUS G10VPL-EU, GUS G14-U3-EU Operator's Manual
...
or Transvaginal/Transrectal
Ultrasound Probes & Endoscopes
Operator’s Manual
Disinfection Soak Stations
F
REF:
G10-U2-EU
G10VP-EU
G10VPL-EU
G10ENT-EU
G14-U2-AC-EU
G14-U3-EU
G14KA-EU
G14KAL-EU
G14ENT-3-EU
GUS Disinfection Soak Station™
Contents
Principle of Operation ............................................................................................................ 3
Safety Precautions ................................................................................................................. 4
Setting up your GUS............................................................................................................... 5
Upon Delivery .............................................................................................................................................................. 5
GUS Components ......................................................................................................................................................... 5
Wall Mounting Installation Instructions ................................................................................. 6
Using High Level Disinfectants with your GUS ......................................................................... 7
For G10VP-EU, G10VPL-EU, G14KA-EU & G14KAL-EU ONLY ....................................................................................... 7
Step 1: Marking the Cable ........................................................................................................................................... 7
Step 2: Placing Probe in Container ............................................................................................................................... 7
Step 3: Filling the Containers –For ALL Units ............................................................................................................... 8
Step 4: Ready for Use - For ALL Units ........................................................................................................................... 9
Disinfection ........................................................................................................................... 9
For G10VP-EU, G10VPL-EU, G14KA-EU & G14KAL-EU – ONLY ..................................................................................... 9
For G10ENT-EU, G14ENT-3-EU, G10-U2-EU, G14-U2-AC-EU, G14-U3-EU – ONLY ..................................................... 10
Rinsing ................................................................................................................................ 10
System Maintenance ........................................................................................................... 11
Repair and Modification ............................................................................................................................................ 11
Disposing of Used High Level Disinfectants ........................................................................... 11
Changing the Filters ............................................................................................................. 11
Cleaning .............................................................................................................................. 12
Limited Warranty ................................................................................................................ 14
APPENDIX A: TROUBLESHOOTING ........................................................................................ 15
Quick Trouble Shoot................................................................................................................................................... 15
APPENDIX B: SITE REQUIREMENTS ....................................................................................... 16
Environmental Conditions.......................................................................................................................................... 16
Ventilation Requirements .......................................................................................................................................... 16
Supply Ratings ........................................................................................................................................................... 16
Warning Symbols ....................................................................................................................................................... 16
Signal Word ............................................................................................................................................................... 16
APPENDIX C: GUS PRODUCT SPECIFICATIONS ....................................................................... 17
GUS Product Specifications ........................................................................................................................................ 17
UL Approval ............................................................................................................................................................... 18
CE Mark Approval ...................................................................................................................................................... 18
EC Representative ...................................................................................................................................................... 18
50010_F GUS 10-14 (International) Series
2
GUS Disinfection Soak Station™
Principle of Operation

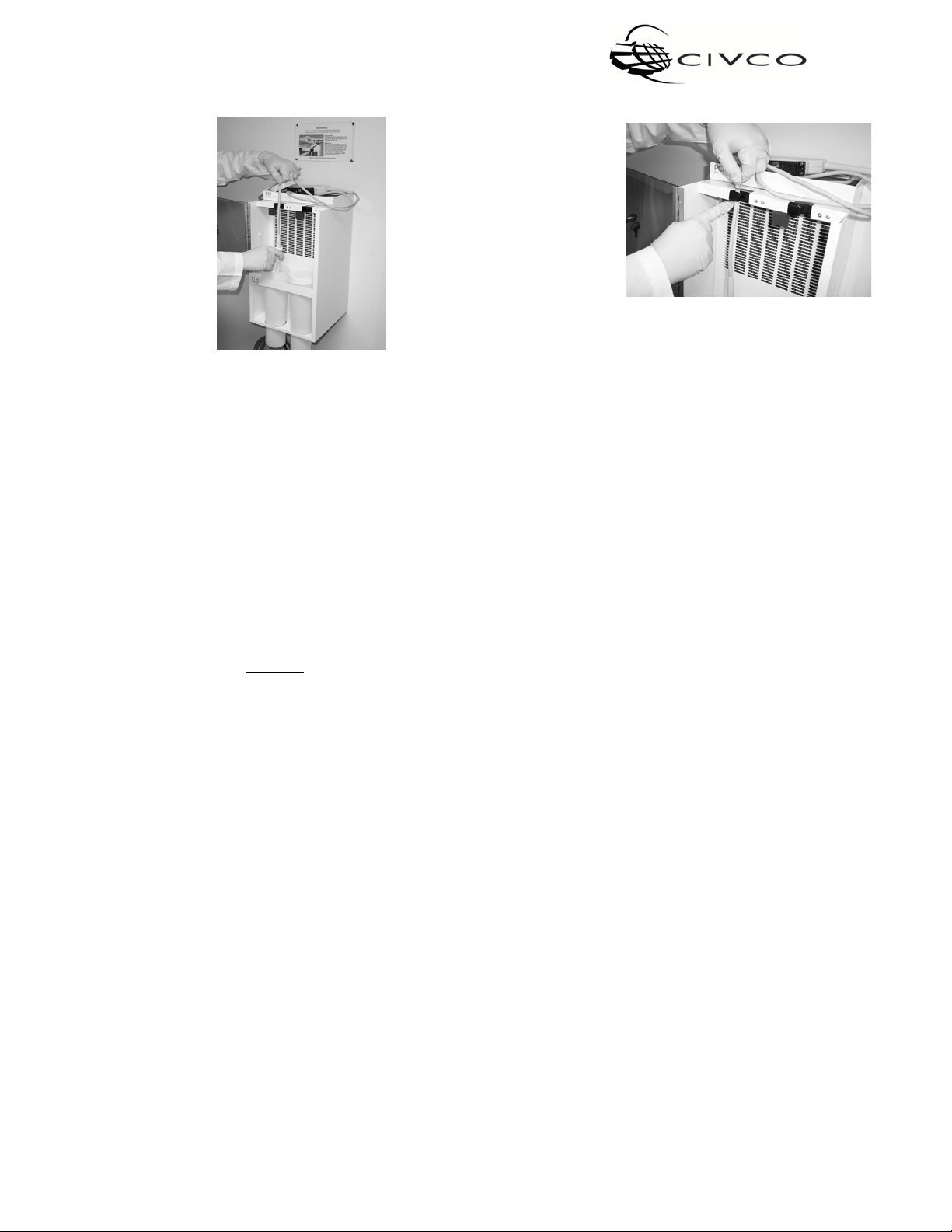

The GUS System allows Ultrasound Probes and/or Scopes to be immersed in a high-level disinfectant
solution. The Probe and/or Scope is suspended in the soaking container, preventing damage to the
sensitive tip.
The system is designed to remove fumes from:
• Glutaraldehyde,
• Ortho-phthaldehyde (OPA),
• Hydrogen Peroxide,
• Peracetic Acid.
For the use of alternative high level disinfectants, please contact your local representative.
One of the containers is used for clean rinse water. This ensures that when the Probe or Scope is
removed from the unit for the final rinse, no high-level disinfectant will drip or off-gas.
The unit’s blower and carbon-filtration system removes fumes from high-level disinfectant solutions.
Blowers draw the fumes through the carbon filter where they are effectively neutralized and clean air
is returned to the room. No ductwork or external venting is required. The G10 series has two
blowers; the G14 series has three blowers.
50010_F GUS 10-14 (International) Series
3
GUS Disinfection Soak Station™
Safety Precautions
Signal Word
The following signal words are used throughout this manual:
WARNING: Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to
alert against unsafe practices or potential equipment damage.
NOTE: Indicates additional helpful information.
Warning Symbols: The meanings of the labels and symbols that appear on the
packaging and/or the system are as follows:
Dangerous electrical voltage
Protective Grounding
NOTE: Do not use the system for any purpose other than its intended use.
The GUS System is not intended for the storage of probes, moisture on the probes
can promote growth of bacteria.
Disconnect the power before replacing the filter or when servicing the unit.
Refer to the MSDS of the high-level disinfectant that you are using for additional
safety precautions.
NEVER place the probe into a dry tube. Make sure that the tip of your TOE probe is
straight before inserting. Use a fluid motion when inserting the probe to prevent it
from sticking in the tube.
50010_F GUS 10-14 (International) Series
4
GUS Disinfection Soak Station™
GUS Items
G10-U2EU
G10ENTEU
G10VP-EU
G10VPLEU
G14-U2AC-EU
G14-U3EU
G14ENT-3EU
G14KA-EU
G14KALEU
Containers with Caps.
Containers with Caps
48.3 cm Tubes
61 cm Tubes
Keys for Safety Door
Philips Screwdriver
Warning Card
Filter Installed In Unit.
Power Cord
Operator’s Manual
Customer Survey
Wall anchors
Labels
Red Pen
Shelf Adaptors
Spring Clips
Test Strip Clip
Stoppers
Foam Pad
Funnel
Cleaning Brush
Tong
Setting up your GUS
Upon Delivery
Match all items in the package with those on the list of components given below. Inspect each item
for damage. If any components are missing or damaged or if you have any questions, do not use the
system; immediately contact your local representative.
GUS Components
30.5 cm Soak/Rinse
43.2 cm Soak/Rinse
Warranty Card &
High Level Disinfection
2 2 3
2 3
2 3
2 2 3
2 2 2 2 2 2 2 2 2
1 1 1 1 1 1 1 1 1
1 1 1 1 1
1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1
2 2 2 4 3 3 3 3 5
1 1 1 1 2 2 2 2 2
1 1 1 1 1 1 1 1 1
2 2 2 2 2
2 2 2 2 2
1 1 1 1 1
2 2 2 3 3
1 1 1 1 1 1 1 1 1
1 1
1 1
1
50010_F GUS 10-14 (International) Series
5
GUS Disinfection Soak Station™
Wall Mounting Installation Instructions
NOTE: THESE UNITS MUST BE WALL MOUNTED
1. You will need the following items before attempting to install this unit:
Measuring tape Level Pencil or pen
2. Location selection:
• There must be a minimum of 10 cm of clearance on the left side of the unit to allow for access
to the On/Off switch and fuses, and 10.2 cm of clearance beneath the unit.
3. Measure up from the floor to the top of the unit approx. 139 cm (recommended) or to the
comfort level of the operator.
4. At that point,
For the G10 Series: using a level, draw a line approximately 21 cm long. Mark two points on
this line 20.3 cm apart.
For the G14 Series: using a level, draw a line approximately 35.5 cm long. Mark two points on
this line 33 cm apart, and a control mark 16.5 cm in from either of the outer marks.
5. Using the enclosed Phillips screwdriver, press the tip of the wall anchor through these two points
and turn clockwise until the anchor is flush with the wall.
6. Screw the two supplied Philips screws into the anchors. Back off the screws approximately
0.4 cm from the wall and align the unit mounting holes over the screws and tighten the screws.
(CAUTION: Do not over-tighten the screws.)
7. For masonry walls use a suitable lead or plastic shield and bolt. These shields are not supplied.
8. Insert empty soak and rinse containers in unit. For the G14 series, place the rinse container in the
middle. Apply the supplied labels as appropriate.
9. Display the Warning Card on the wall in a visible location directly above or beside the unit.
NOTE: Use of removable power cords not supplied by CIVCO Medical Solutions may
affect the safety and performance of this device.
50010_F GUS 10-14 (International) Series
6
