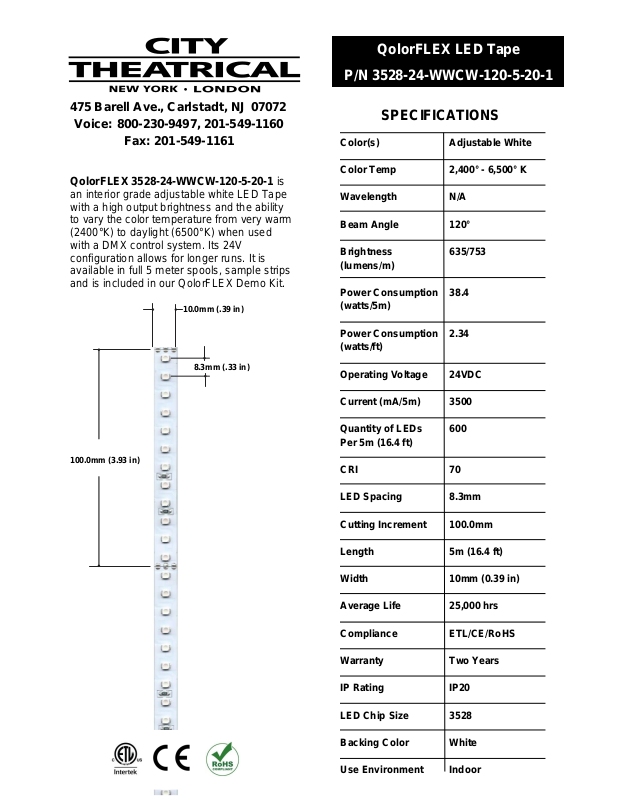

City Theatrical QolorFLEX 3528-24-WWCW-120-5-20-1 Datasheet

475 Barell Ave., Carlstadt, NJ 07072
Voice: 800-230-9497, 201-549-1160
Fax: 201-549-1161
S
Color(s) Adjustable White
Color Temp 2,400° - 6,500° K
Wavelength N/A
Beam Angle 120°
Brightness 635/753 (lumens/m)
Power Consumption 38.4 (watts/5m)
Power Consumption 2.34 (watts/ft)
Operating Voltage 24VDC
Current (mA/5m) 3500
Quantity of LEDs 600 Per 5m (16.4 ft)
CRI 70
LED Spacing 8.3mm
Cutting Increment 100.0mm
Length 5m (16.4 ft)
Width 10mm (0.39 in)
Average Life 25,000 hrs
Compliance ETL/CE/RoHS
Warranty Two Years
IP Rating IP20
LED Chip Size 3528
Backing Color White
Use Environment Indoor
QolorFLEX 3528-24-WWCW-120-5-20-1 is
an interior grade adjustable white LED Tape with a high output brightness and the ability to vary the color temperature from very warm (2400°K) to daylight (6500°K) when used with a DMX control system. Its 24V configuration allows for longer runs. It is available in full 5 meter spools, sample strips and is included in our QolorFLEX Demo Kit.
10.0mm (.39 in)
100.0mm (3.93 in)
8.3mm (.33 in)
SPECIFICATIONS
