Integration Overview

The EasyCall Gateway has been certified for interoperability with Nortel
Communication Server 1000 version 5.0. The EasyCall Gateway supports SIP trunks.

To enable the EasyCall Gateway to work with the Nortel system, you must configure
the telephony system trunk between the EasyCall Gateway and the Nortel system.

C

HAPTER

1

EasyCall Gateway integrated with Nortel Communication Server

The integration described in this guide can be done in tandem with EasyCall Gateway
installation and configuration, which includes defining the properties of the telephony
system trunk and defining any changes the EasyCall Gateway makes to telephone
numbers before sending them to the telephony system for dialing. For information
about EasyCall Gateway configuration, refer to the EasyCall Gateway Administrator’s
Guide.

Those responsible for configuring the telephone system must take the specific
characteristics of a site into consideration to determine the appropriate settings.
Configuration of the Nortel telephone system for integration with the EasyCall Gateway
is similar to integration with a voicemail system.

The following topics describe how to configure trunks for the supported Nortel
systems.

“Nortel SIP Trunk Integration” on page 3

Call Detail Records

A Call Detail Record (CDR) is a file that contains information about calls placed
through the EasyCall Gateway. Information provided in the CDRs can be used for
billing calls to cost centers and for auditing potential abuse.

2 EasyCall Gateway Telephony System Integr ator ’s Guide

Nortel SIP T runk Integration

This chapter describes a sample configuration of Nortel telephony system for
integration with the EasyCall Gateway through a SIP trunk. The example
configurations are performed through the Nortel CS 1000 Element Manager and Nortel
overlays.

Please note the following regarding Nortel SIP trunk integration:

• When a call is made, there are two SIP virtual channels used on the CS 1000.
These are local loopback virtual channels.

• The EasyCall Gateway supports only the URI format number@IpAddress
(53380@47.248.100.179) and not the URI format [e-mail]
([e-mail]). This prevents the EasyCall Gateway from working
with a Nortel CS1000 SIP Gateway via Nortel SPS/NRS. Therefore, a direct SIP
connection should be set up between the CS1000 SIP GW and the EasyCall
Gateway without SPS involvement.

The following topics describe a sample configuration of Nortel SIP trunks:
“Configuring the IP Peer Network in Communication Server 1000” on page 3
“Configuring the SIP Route and Trunks on the Call Server” on page 11
“Verifying the Integration” on page 14

C

HAPTER

2

Configuring the IP Peer Network in Communication
Server 1000

The SIP Trunk Gateway runs only on the Signaling Server. You must configure both
the Signaling Server, using the CS 1000 Element Manager as described in this
section, and the Call Server, as described in “Configuring the SIP Route and Trunks on
the Call Server” on page 11.

The following topics describe how to use the Element Manager to configure the SIP
Trunk Gateway on the Signaling Server:

“Enabling the SIP Trunk Gateway (SIP Virtual Trunk Application)” on page 4
“Configuring the SIP Trunk Gateway” on page 8
“Configuring Voice Codec for Nortel IP Phones” on page 9
“Restarting the Signaling Server” on page 11

4 EasyCall Gateway Telephony System Integr ator ’s Guide

Enabling the SIP T runk Gateway (SIP Virtual T runk
Application)

1. Log in to the CS 1000 Element Manager.

2. From the EM Navigator, go to System > IP Network > Nodes: Servers, Media
Cards to open the Node Configuration page.

3. Click Edit.

Chapter 2 Nortel SIP Trunk Integration 5

4. Select Signaling Servers to display the list of signaling servers.

5. Select the appropriate Signaling Server 47.248.100.130 Prop erties to display
its properties.

6 EasyCall Gateway Telephony System Integr ator ’s Guide

6. From the Enable IP Peer Gateway (Virtual Trunk TPS) list, select a SIP option.
This field is used to enable SIP Trunk Gateway and Services.

7. Select the SIP Transport Protocol. This is the transport protocol used for SIP
message exchange between the Gateway and Redirect/Proxy Server. Defaults
to TCP, the recommended option for SIP traffic.

8. Verify the Local SIP Port. This is the port to which the gateway listens. Defaults
to 5060.

Note: The EasyCall Gateway always listens on port 5060. By default, the
EasyCall Gateway communicates with the SIP trunk over port 5060; that port is
configurable.

Chapter 2 Nortel SIP Trunk Integration 7

9. Enter the SIP Domain Name to identify the SIP Service Domain. This string is
used in building all SIP messages and appears in the phone context.

• The SIP Domain Name configured in the Signaling Server properties

must match the Service Domain name configured in the NRS.

• The string must be less than 128 characters in length.

• The valid characters are a-z, 0-9, period (.), hyphen (-), comma (,), and

underscore (_).

• This field must be specified if the SIP Trunk Gateway application is

enabled.

10. Click Save and Transfer.

8 EasyCall Gateway Telephony System Integr ator ’s Guide

Configuring the SIP T runk Gateway

1. From the EM Navigator, select System IP Network > Nodes: Servers, Media
Cards.

2. Click Edit.

3. Select SIP GW Settings to expand the section.

Chapter 2 Nortel SIP Trunk Integration 9

4. Complete the following for the Primary server:

• TLS Security: Select Security Disable from the list.

• Primary Proxy / Re-direct IP address: Enter the TLAN network interface

IP address of the Primary SIP Proxy Server / SIP Redirect Server.

• Primary Proxy / Re-direct IP Port: Leave the default port value as 5060

for the Primary SIP Proxy Server / SIP Redirect Server.

• Primary Proxy Supports Registration: This checkbox indicates to the

SIP Trunk Gateway whether the primary SIP Proxy Server / SIP Redirect
Server supports registration. If the checkbox is selected, then the SIP
Trunk Gateway must register with the primary SIP Proxy Server / SIP
Redirect Server. If the checkbox is not selected, then the SIP Trunk
Gateway will not register with the primary SIP Proxy Server / SIP Redirect
Server.

•The Primary CDS Proxy or Re-direct server flag is not used in this

release.

• Transport Protocol: Select UDP.

5. Click Save and Transfer.

Configuring Voice Codec for Nortel IP Phones

1. From the EM Navigator, select System IP Network > Nodes: Servers, Media
Cards.

2. Click Edit.

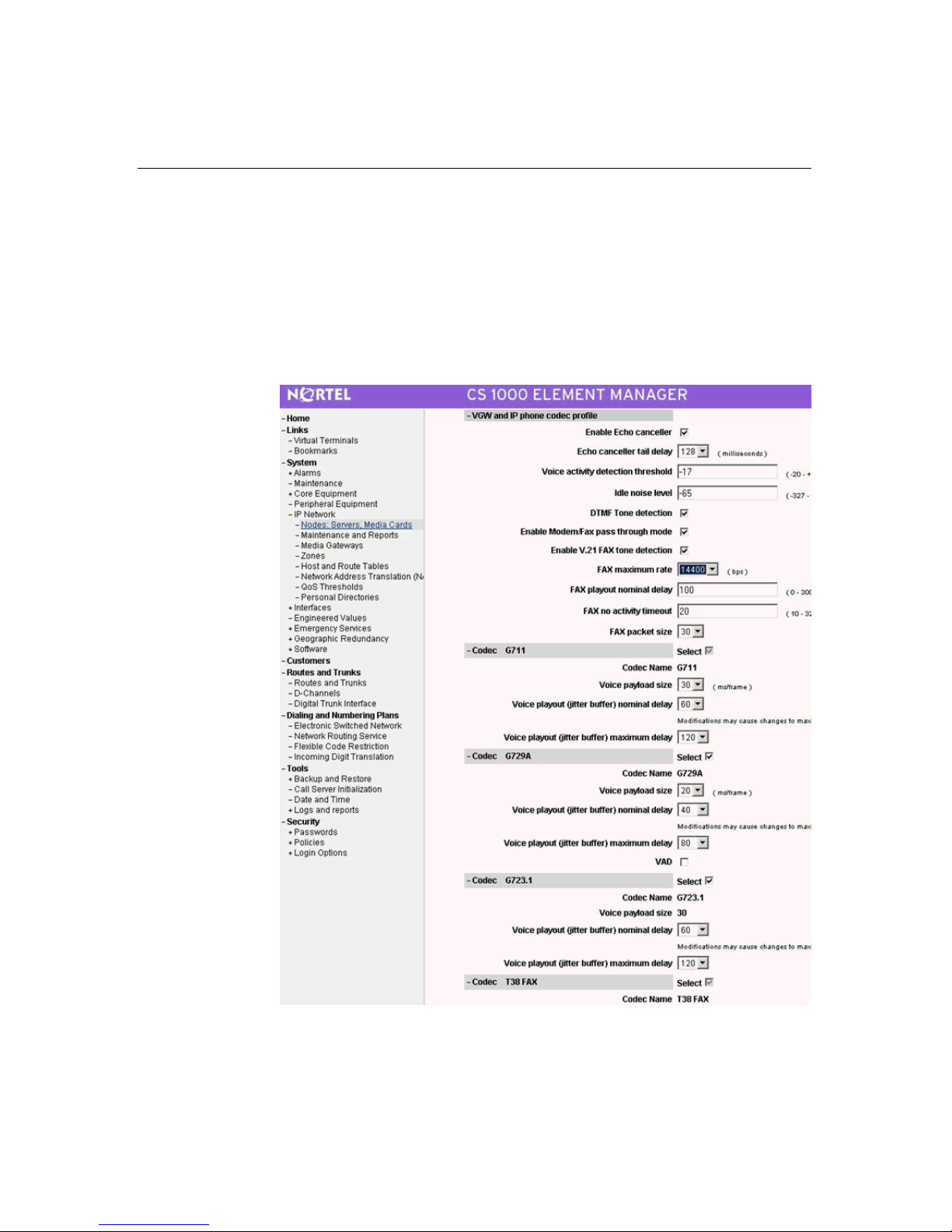

3. Click VGW and IP phone codec profile to expand the list.

10 EasyCall Gateway Telephony System Integr ator’s Guide

4. To configure a codec, select the Select check box to the right of the codec
name.

Note: The G.711 and T38 FAX codecs are automatically selected.

5. Click on the codec name to modify the Voice payload size (ms/frame), Voice

playout (jitter buffer) nominal delay, and Voice playout (jitter buffer)
maximum delay values of a codec. Use the lists to choose the values.

For detailed information about configuring codecs, refer to the Nortel
publications, Converging the Data Network with VoIP (NN43001-260) and IP
Line: Description, Installation, and Operation (NN43100-500).

6. Click Save and Transfer.

Chapter 2 Nortel SIP Trunk Integration 11

Restarting the Signaling Server

Some fields in the CS 1000 Element Manager can be changed at run-time: SIP
domain name, CDS proxy (yes or no), Gateway username and password, dialing
plans, and all “SIP Service” related fields except ACD DN. The rest of the fields require
a restart of the Signaling Server.

To perform a warm restart

1. From the EM Navigator, select System > IP Network > Maintenance and
Reports.

2. Select the node containing the Signaling Server to be restarted.

3. Click Reset for the Signaling Server.

To perform a cold restart

• Press the RST button on the front panel to cold restart the Signaling Server.

Configuring the SIP Route and Trunks on the Call Server

The following topics describe how to configure the SIP route and trunks on the Call
Server using Nortel LD Overlays:

LD 97: “Defining a Virtual Superloop” on page 11
LD 17: “Creating a Virtual D-Channel” on page 12
LD 16: “Defining ISDN Support for a Customer ” on page 12
LD 15: “Creating a Virtual Service Route” on page 12
LD 14: “Creating Virtual Trunks” on page 13

Defining a Virtual Superloop

The following example shows how to define a virtual superloop using LD 97. For all
other fields not listed in the example, press Enter to use default values.

Prompt Response Description

REQ CHG
TYPE SUPL
SUPL V100

Change existing data.
Superloop.
Create new virtual superloop 100.

12 EasyCall Gateway Telephony System Integr ator’s Guide

Creating a Virtual D-Channel

The following example shows how to create a virtual D-channel using LD 17. For all
other fields not listed in the example, press Enter to use default values.

Prompt Response Description

REQ CHG
TYPE ADAN
ADAN NEW DCH 12
CTYP DCIP
DES VTRK
USR ISLD

IFC SL1

RCAP ND2 MWI

Change existing data
Action Device And Number
Action Device And Number. Create new D-channel 12.
Card Type: D-channel is over IP (DCIP)
Designator
ISDN Mode of Operation. Mode: Integrated services

signaling link dedicated
Interface type for D-channel. Interface type is Meridian

1 – Meridian 1 (SL1)
Remote Capabilities. Allow Name display format 2

(ND2), Message Waiting Indicator (MWI)

Defining ISDN Support for a Customer

The following example shows how to define a custsomer with ISDN support using LD

15. For all other fields not listed in the example, press Enter to use default values.

Prompt Response Description

REQ CHG
TYPE CDB
CUST 0
ISDN YES

Change existing data
Customer data block
Customer number.
Customer is equipped with ISDN.

Creating a Virtual Service Route

The following example shows how to create a service route using LD 16. For all other
fields not listed in the example, press Enter to use default values.

Prompt Response Description

REQ NEW
TYPE RDB
CUST 0
ROUT 12
DES SIP

Create new data.
Route data block.
Customer number.
Route number.
Designator field for trunk.

Chapter 2 Nortel SIP Trunk Integration 13

Prompt Response Description

TKTP TIE
ICOG IAO
VTRK YES
ZONE 2

TIE trunk only, allowed between SL-1.
Incoming and outgoing.
Virtual trunk route.
Zone for codec selection and bandwidth

management.

NODE 510
PCID SIP
ISDN YES
MODE ISLD
DCH 12
PNI 1
IFC SL1
INAC YES

Node ID of signaling server of this route.
Protocol ID for this route is SIP.
ISDN option.
Route uses ISDN signaling link.
D-channel number used for this route.
Customer private network identifier.
Interface type: Meridian 1 to Meridian 1.
Insert ESN Access Code to an incoming private

network call.

NCNA YES
NCRD YES

Network calling name allowed.
Network call redirection.

Creating Virtual Trunks

The following example shows how to create virtual trunks using LD 14. For all other
fields not listed in the example, press Enter to use default values.

Prompt Response Description

REQ NEW 32
TYPE IPTI
TN 100 0 0 0
DES SIP
CUST 0
RTMB 12 1

STRI IMM
STRO IMM
CHID 1

Create 32 new trunks.
IP trunk.
Virtual card and channel number.
Designator field for trunk.
Customer number.
Route number 12, and trunk member numbers

started from 1.
Start arrangement incoming.
Start arrangement outgoing.
Channel ID for trunk.

14 EasyCall Gateway Telephony System Integr ator’s Guide

Verifying the Integration

To verify path replacement

• To verify media bridging when the SIP trunk integration is used please capture
network traffic between EasyCall Gateway and telephony system. Make sure
that after the setup of the second call no RTP packets are flowing through the
EasyCall Gateway.
