CITECH RS 301 User Manual
Instruction Manual
RS-301
www.hifirose.com
Contents
Safety Precautions
Warnings
Precautions
On the Use of Products
Before Use
1. List of components
2. Notes on use
3. Instructions for using keys and buttons on the bottom bar
4. Status LED
5. Inserting / Removing an External Memory Card
6. Power connection using genuine adapter
Basic Function
1. Power ON / OFF
2. Icon at the top of the screen
3. Home Screen and Menu Widgets
4. Setting
5. Music
6. Video
7. Radio
8. Clock
9. ITunes Remote
10. Rose Tube
11. Wireless HiFi
12. Wired connection of PC
Product Specifications
Hardware Specifications
Others
1. Display of Specific Absorption Rate
2. Wait a minute! It's not a malfunction.
3. Checking Consumer Guidelines
Safety Precautions
1.
Warnings
•
Do not apply excessive force to the product, or throw it and shock it with sharpness. Failure to do so may cause heat, ignition or
explosion.
When using a child, the guardian should tell the child how to use it properly and make sure that he/she is using it correctly. Also, use it
•
within '-10 ° C to 50 ° C' and do not use it in a high humidity environment.
•
Using in an environment with a temperature below - 10 ° C or in a high-temperature enclosed environment such as a Sauna may
cause malfunction, corrosion, heat, ignition or explosion.
components of the product.
above 65 ° C.
•
Be sure to use a genuine adapter supplied by Rose. Failure to do so may result in product failure.
•
Do not spill dirt or liquid on the product as it may damage parts and circuits. If the product gets wet, contact the nearest service center
without turning on the power.
•
Do not connect the product to an antenna or accessory that is not guaranteed by Rose, and do not place it on anything (iron desk,
microwave oven, etc.) that may interfere with radio waves.
The product is sensitive to radio waves, so the performance of the product may deteriorate when using it in the vicinity of steel water and
electromagnetic wave equipment.
Precautions
2.
For the safety of the user, please be sure to read and understand the following contents.
Due to the user's carelessness, malfunction or repair of the product, data (photos, music, video files, etc.) other than
•
ringtones and pictures provided to the product may be erased.
•
Rose is not liable for damages caused by data loss.
•
Do not carry or store the product together with a metal product in a bag. This is because the appearance of the product may be
deformed or damaged and the product may not work properly.
Do not use chemical solutions (alcohol, thinner, solvent, etc.) or detergent to clean the product. If the product is rubbed with chemical
•
solution, heat may be generated on the product and cause fire.
•
Do not disassemble, modify or repair the product at will. In that case, free repair is not possible. If a malfunction occurs, contact a
designated service center for repair.
•
Use only the programs provided by the provider. If a randomly generated file or a user-deployed file is transferred to the product, it may
cause an operation error or cause serious damage to the product.
There is a risk of injury if the touch screen is damaged. Therefore, do not touch it by hand, but contact the nearest service center.
•
3.
On the use of products
•
Be sure to read this instruction manual before using the product.
•
The contents of this instruction manual are based on the initial settings of RS-301.
•
Execution screens and pictures provided in this instruction manual may differ from actual ones.
•
In order to improve the performance of RS-301, some functions of the instruction manual may be changed without prior notice to the
user.
•
Check Rose's homepage (www.hifirose.com) for the latest version of the instruction manual.
•
Functions and additional services of RS-301 may vary depending on software and service provider.
•
Warranty service does not apply for problems caused by installing applications that are not provided by Rose or by arbitrarily modifying
the software.
•
Rose is not responsible for the use of files that violate copyright laws.
•
In the case of such wireless equipment, there is a possibility of radio wave interference, so the service related to personal safety can not
be provided.
•
It is a household (Class B) electric wave equipment and is mainly intended for use at home.
4.
Notes on use
•
The contents of this instruction manual may differ from the actual version depending on the software version of the product.
In addition, moisture and liquid components can damage the surface and circuit
In the case of RS-301, the power is automatically turned off for safety in high temperature environments
However, free repair is not possible at this time.
When cleaning, wipe with a soft cloth or a towel.
Rose is not responsible for any problems caused by this.
1.
List of Components
•
This product is optimized for the components supplied with the purchase, and some functions may be restricted
when used by connecting to non-component products.
The image of the components may differ from the actual product, and the list of components may change according
•
to the manufacturer's policy.
8-degree spike
1)
- It is a replacement spike for touch panel operation and audiovisual position adjustment according to
user's environment.
- How to replace: Remove the two front spikes of the main body by turning it to the left and replace
it by turning the 8-degree spike all the way to the right. Using 8-degree spikes makes the touch
operation easier.
Silicone Pad
2)
- It is a replacement silicone pad for touch panel operation and audiovisual position adjustment
according to user's environment.
- How to replace: After removing all the spikes on the body by turning them to the left, remove the
double-sided tape from the silicone pad and use it by attaching it to the seated surface.
Free cards from Groovers
3)
- It is a 30-day free pass for the high-quality sound source of the Groovers.
- How to use: After joining Groovers as a member, you can use the "+" button on the upper left to
access the homepage and enter the coupon number provided by Rose in the "Coupon/Voucher”
screen.
2.
Basic Function
Power Button
Power ON: Press for 1 second
··Power OFF: Press for 3 seconds ▶ Touch 'End' button
··Restart: Press for 3 seconds ▶ Touch 'Restart' button
Wheel key
•
Active standby
[Screen ON] Press for 1 second ▶ Stop sound and turn off screen
[Screen OFF] Press for 1 second ▶ Screen is ON
Status LED
•
The state of the product can be checked according to the color of LED flashing.
At the end, touch the screen background to cancel.
·
··
using the product.
If the product is not shut down normally, it may cause an error on the screen momentarily.
This phenomenon is temporary and does not indicate a problem with the screen. Therefore, please use
with confidence.
Turn: Adjust the volume
Red- Cross-lighting: ‘Power Off’ during adapter connection/ • White-Cross-lighting: OTA update at Boot time
· If the adapter is not removed, the flashing function is maintained.
To avoid unintentional touching and reduce power consumption, turn off the screen when you are not
Connection on the back of the product
1.
AUX input - Symbol for input of the AUX
2.
Headphone output - Symbol for the output of the headphone
3.
Micro SD card - Symbol for Micro SD card
4.
USB A terminal - Symbol for USB A terminal
5.
USB B terminal - Symbol for USB B terminal
6.
LAN terminal - Symbol for LAN terminal
7.
OTG terminal - Symbol for OTG terminal
8.
Reset - Symbol for reset hole
9.
Power Connection - Symbol for power connection
Connecting the adapter power ··Please connect in the following order:
Be sure to use a genuine adapter supplied by Rose. Other power adapters may cause malfunction or damage the
product (performance degradation).
Inserting / Removing an External Memory Card
··
This product accepts only micro SD cards as external memory cards and is compatible up to 128GB.
Turning off the power or disconnecting the card while using an external memory card may cause the system to malfunction or
Rose is not responsible for data damage or loss due to user‘s improper handling of external memory cards.
fail.
3. Home Screens and Menu Widgets
04:05 p.m.
Display the time
Unique ID value of the product (different by device)
When Headset is connected
When AUX is connected
When iTunes Remote is connected
When a Bluetooth device is connected
When the AirPlay service is connected
Signal sensitivity when WiFi is ON
When Ethernet is connected
Home button: Go to home screen while running application
Cancel button: Return to previous screen
Playlist
Menu widget
Top bar
Configuration of the Home Screen
It is a space to select Shortcut Icon. Home screen menus can be moved using left and right scrolling.
Top bar
·
Top bar: Display the connection status of 'Time, Product ID, Headset, Aux, iTunes Remote, Bluetooth,
Airplay, WiFi'.
·
Menu widget: Move to another menu item by scrolling left / right (Playlist at the bottom)
·
Play-list: The list that is currently playing
Top bar - Display of information
ROSE-FF62
Top bar - Icon
This is an icon that informs the status of the product and can be checked in the notification bar at the top
of the screen.
Icon of Menu Run
4.
Setting
Perform Rose's information and basic settings.
System Information
Turn on the Power of the RS-301 and go to the setup screen as shown in the Picture (A) below. When you go to the
setting screen, you can see the system information like a Picture (B).
When you click the version information (A) in the Picture (B), a pop-up window like the Picture (C) appears and you can
find the version information of Rose.
If you click on open source license (B) in Picture (B), you can see the open source license as Picture (D).
(A)
(B)
(C)
Display settings
You can set the brightness and theme.
Moving the brightness progress bar (A) in the Picture (A) adjusts the brightness of the display screen.
When you click the Type A button (B), Type B button (C), and Type C button (D) of the theme (A), it is possible to change
the theme of Rose's main screen like Picture (B), Picture (C), Picture (D).
(D)
(A) (B)
(C) (D)
Language settings
When you click the language setting (A) in the Picture (A), a pop-up window for setting the language will be displayed like
the Picture (B).
When you select the language you want to change in the Picture (B), a pop-up window of the notice like the Picture (C) will
appear. If you click "Yes" here, Rose will re-boot and the language will change.
If you click on the ‘Initialize data’ (B) in the Picture (A), a pop-up window will appear as shown in the Picture (D). If you
click "Yes" at this time, it will be executed again and Rose's data will be initialized.
(A) (B)
(C)

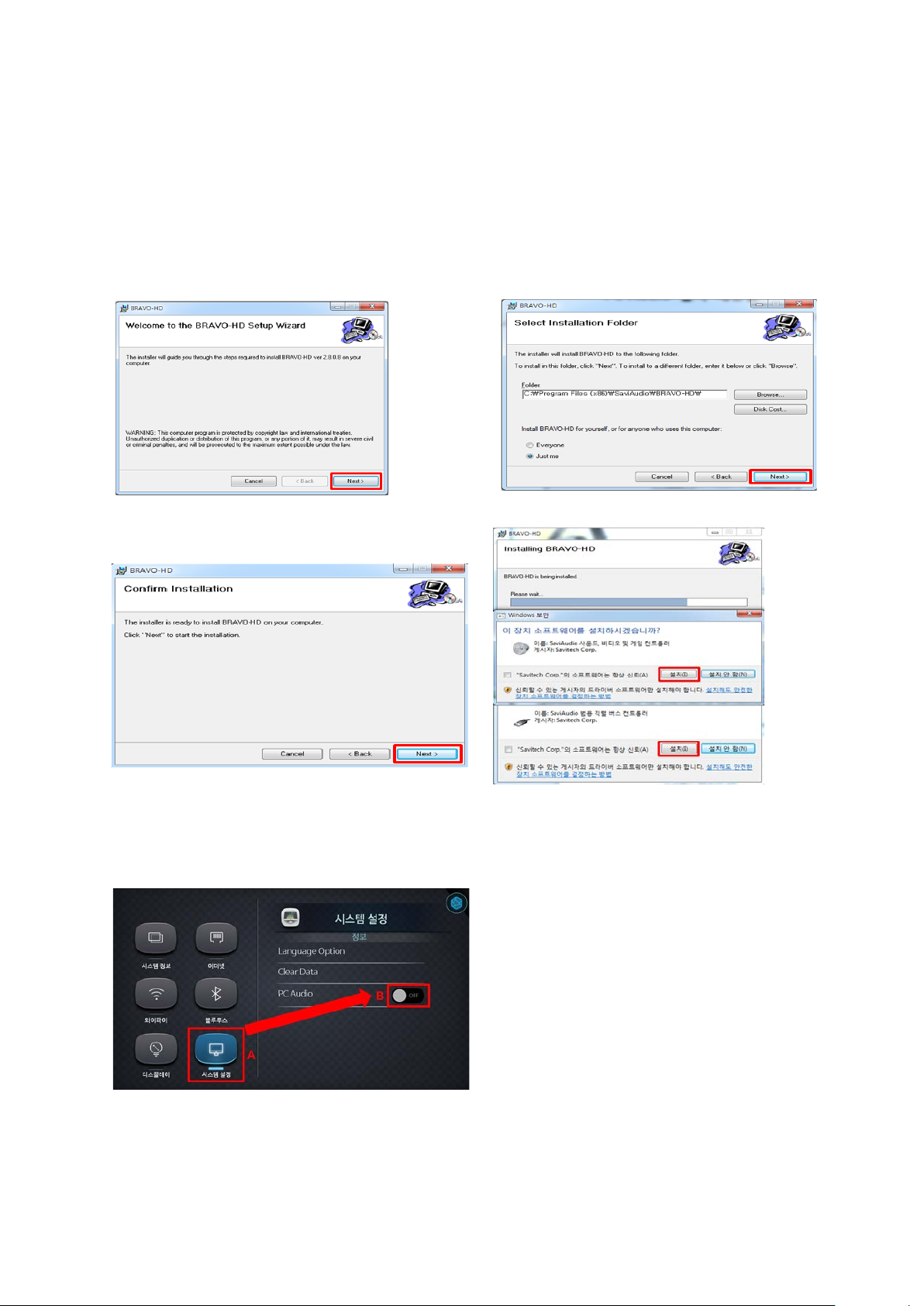

If you connect the PC's USB port to Rose's USB-B port using the PC audio cable and activate the PC audio (C) button in the
picture (A), the sound of the PC is output to Rose.
For Picture (A), if you click System Update (D) when it is not the latest version, a pop-up window will appear for updating
like as a Picture (E) and you can update to the latest version.
(D)
(E)
Clock settings
It shows the time information when the network is connected, and shows the location information together when
connected with WIFI.
Clock screen
Turn on the RS-301 and go to the clock screen as shown in the Picture (A) below.
After moving to the clock screen, when you click on a blank space in the Picture below (B), the screen will changes in the
order of picture (B) - picture (C) - picture (D).
(A) (B)
When you click the Alarm Icon in the Picture (B), Picture (C), and Picture (D), it will move to the alarm setting screen.
(B)
Alarm settings
You can set 'Repeat alarm', 'Re-ring', 'Set time', 'Ringtone', and 'Volume' in Alarm setting of the Picture (A).
If you click 'Re-ring' (A) in Picture (A), pop-up window will appear like Picture (B) and you can set the time to ring again.
The volume can be set for each alarm, and it is set to the volume (D) size at the alarm setting, not the system volume.
(D)
(A) (B)
If you click the Time Setting (C) in the Picture (A), a pop-up window like the Picture (C) will appear and you can set the
time for the alarm operation.
If you click the Ringtone (B) in the Picture (A), a pop-up window will appear like the Picture (D) and you can set the
ringtone with default bell, USB, Micro SD Card and radio.
(C)
When the alarm setting is completed, an alarm list will be created as shown in the Picture (E) below.
When you click the ‘Add Alarm Button’ (A) in the Picture (E), a pop-up window of photo (A) will appear.
If you click the 'Remove Alarm Button' (B) in the Picture (E), the set alarm will be deleted from the list.
In the Picture (E), if you click the alarm (C) you want to edit in the alarm list, a pop-up window of Picture (A) will appear
and you can edit it.
If you click 'Alarm Activation Button' (D) in the Picture (E), you can make the setting for alarm activation.
5.
Getting Started with Rose <Wireless HiFi>
1.
Internet connection
(E)
(D)
Ethernet settings (wired)
1)
It is possible to view information about the Ethernet connection.
If the Ethernet is connected like the Picture (A), it shows the Ethernet information.
If you click Static IP in the Picture (B), it will be moved to the window where you can set IP manually.
(A)
In the Picture (C), enter the IP to be manually entered into the Static IP (A), and then click the IP Setting (B) button to
manually set the IP.
(B)
(C)
2)
Wi-Fi settings (wireless)
You can connect the network using Wi-Fi.
If WiFi is not activated, you can see WiFi list like Picture (B) by clicking 'Activate Button' in Picture (A).
(A)

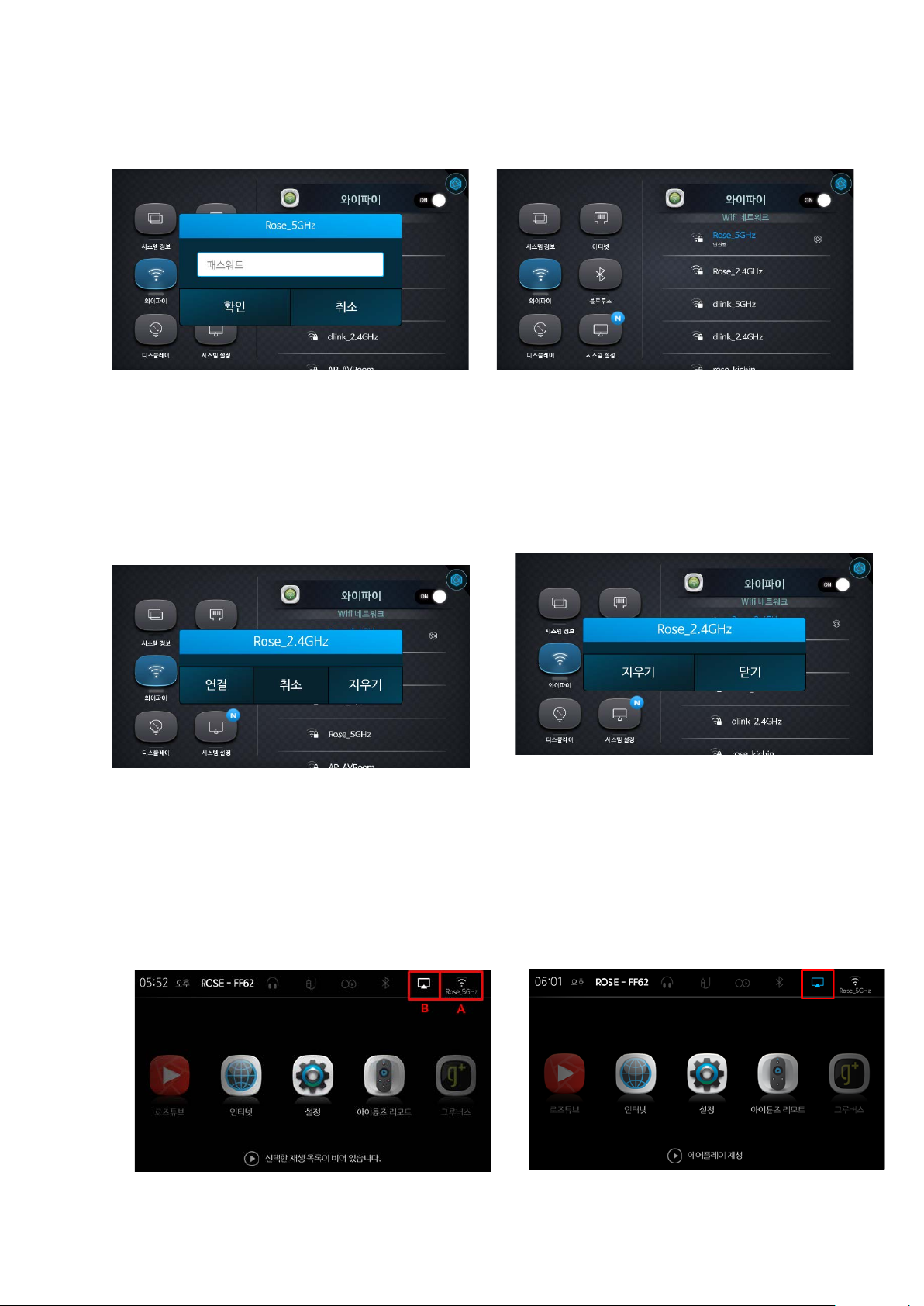

If you click on the WiFi you want to connect from the WiFi list in Picture (B), a pop-up window will appear for entering the
password as shown in Picture (C).
(B)
Loading...
