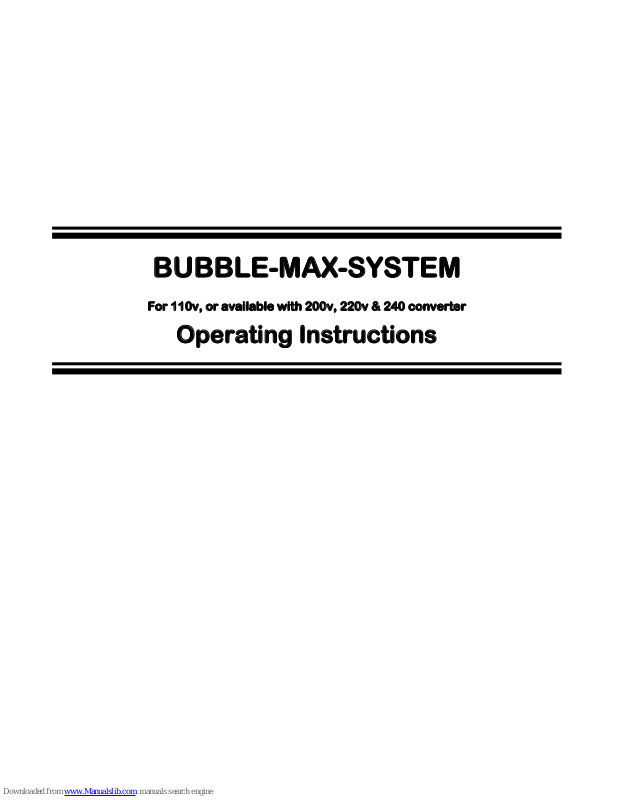

Page 1
BUBBLE-MAX-SYSTEM
For 110v, or available with 200v, 220v & 240 converter
Operating Instructions
Page 2
Bubble-Max System includes the following:
¾ Bubble-Max machine 110v with cord & 2-liter bottle
¾ stand with platform (voltage converter attached on 220v units).
¾ fan, 110v 3-speed with stand
¾ rubber strap to hold machine to stand
1. Place the Bubble-Max machine on top of the platform with the round base sitting flat on the
floor, pointing in the desired direction (same direction as circular part of frame). Attach the
Bubble-Max on top of the stand using the rubber strap. Stretch the stra p through the handle,
attaching the “s” hooks in the holes on the flat plate stand. The machine should be pointing
in the direction the bubbles are desired (same direction as circular part of frame). Note: DO
NOT hang machine without the proper brackets (
See Hanging Bubble-Max Instructions
).
2. Place the 3-speed fan under the Bubble-Max, tight against the round portion of the base,
pointing the direction of air upward 24” in front of the opening where bubbles come out. Us e
care not to blow on the bubble machine (this may cause a build-up of excess bubbles). The
fan head can be tilted, and speed may be adjusted to your needs.
3. For 220v Users: Read voltage converter operating instructions. Plug the cords of both the
Bubble-Max machine and the fan into the converter cube tap. The converter may also be
plugged into a controlled outlet to simultaneously turn the machine and fan on and off. For
farthest flying bubbles, keep the fan on all the time, and hav e only the bubble-Max t urn on/of f
by unplugging it.
4. Fill the reservoir with up to one quart of CITC Bubble fluid. For using the machine longer than
one hour, fill the 2-liter bottle with CITC Bubble Fluid, replacing the cap with the spring-loaded
cover. Turn the bottle upside-down, so the cap lines up with the rod sticking up from the rear
reservoir. As soon as it touches the rod, press down to open the lid on the bottl e. When the
reservoir is full, the fluid will stop going into the reservoir.
5. Once the fluid level is above the wand, completely covering it, turn on the machine and fan to
direct the bubbles. You may change the speed of the fan below with the on/off k nob, startin g
at high and gradually reducing down in speed. The fan does not have to be at top speed to
move the bubbles 40 ft. high or more, the high setting will just move the bubbles faster.
CITC’s Bubble-Max System is designed to reduce residue on the ground in front of the machine. With
bubbles flying high, the bubbles will evenly disperse the fluid in a large variety of locations , thereby
reducing residue problems. The Bubble-Max is warranted for one y ear when using CITC Bu bble Fluid.
CITC Bubble Fluid is non-toxic, ozone safe, agent that is extremely environmentally safe,
biodegradable and has low-popping strength. CITC Bubble Fluid is a full-strength bubbling popular
worldwide. It leaves the lowest amount of residue and causes the least splatter.
Page 3
Limited Warranty Conditions
This limited warranty guarantees to the original purchaser that this product shall be free of
defects in material and workmanship, under normal use, for a period of one year from the
date of purchase shown on the sales receipt. This warranty covers parts and labor providing
the product is returned to CITC in the original shipping carton and packaging. The warranty
for electrical is a (90) NINETY DAY limited warranty.
Damage resulting from shipping, accidents, misuse, negligence, unauthorized repairs or
modification is not covered by this warranty. Using any fluid other than what is recommended
for this machine will void warranty. No liability is accepted for injury or for loss, damage or
expense resulting from any interruption whatsoever in the operation of the product or from
any consequential loss arising there from. No liability is accepted for normal wear and tear.
We wish to satisfy YOU, our customer, and have implemented many measures to prevent
problems and assure customer satisfaction. However, should you need a missing part or
have a functional problem with your product, please call (888) 786-CITC from 7:30 am – 4:00
pm (Pacific Time) Monday – Friday, except for holidays. Our customer service department
will respond to your problems immediately.
Please have the following information available whenyou call:
Model and Serial Number
Where and when the product was purchased
Nature of the problem
Subject to the following conditions, CITC will repair any defect or fault in the unit if it is
caused by a proven factory defect within one year of delivery to the end user.
Insignificant deviations of the regular product quality does not guarantee replacement
rights, nor do faults or defects caused by water, by generally abnormal environment
conditions or Force Majeure:
1. Faulty parts will be repaired or replaced (manufacturer’s choice) with correct
parts. Faulty units must be shipped to CITC at customer’s expense. An RMA# must
come with the unit.
2. The customer loses all rights for limited warranty services, if any repairs or
adjustments are done to the units by unauthorized persons and/or if spare parts
are used, which are not approved by CITC. The right of limited warranty service is
also lost if a fluid other than appropriate CITC fluid has been used or if units are
sent to in with full fluid bottles.
3. Freight costs to and from CITC when under the limited warranty services are the
responsibility of the customer. Customer must place appropriate insurance on
return of product. However, if product is returned due to factory defect within the
first 30 days of receipt, CITC will cover the cost of returning the repaired unit to
the customer.
4. Limited warranty services do not cause an extension of the limited warranty time
or the start of a new limited warranty time. The warranty of replaced parts ends
with the limited warranty time of the whole unit.
Page 4
5. If a defect/fault can not be repaired by us in a satisfactory time, we will, within 30 days
after sale of the unit, either:
Replace the whole unit for free or take back the whole unit and refund the purchase price.
6. Further claims, especially for damages, losses etc. outside the unit are excluded.
7. Your limited warranty coverage is based on completion of the warranty card and
returning it with your proof of purchase within 30 days of purchase.
Your limited warranty coverage is based on completion of the warranty card and returning it
with your proof of purchase within 30 days of purchase. If you should send the unit for service,
do not forget to remove any liquid from the fluid bottle, and place unit in original box. Obtain
your RMA# by calling CITC. Payment arrangements for repair must be made before receiving
RMA # in case unit is not covered under Limited Warranty.
Send unit to:
CITC
RMA # XXXXXXX
1420 80
Everett, WA 98036
Tel: (888) 786-CITC or (425) 776-4950
Fax: (425) 776-5129
Website: www.citcfx.com
E-mail: [email protected]
TH
ST. SW #D
1420 80th St. SW D, Everett, WA 98036-7083
425-776-4950 FAX: 425-776-5129
www.citcfx.com [email protected]
December 01, 2008
