Cisco UCS C22 M3
High-Density Rack-Mount
Server
(Small Form Factor Hard
Disk Drive Model)
CISCO SYSTEMS PUBLICATION HISTORY
170 W
EST TASMAN DR.
S
AN JOSE, CA, 95134 REV A.1 NOVEMBER 2, 2012
WWW.CISCO.COM
Page 2
CONTENTS
OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
DETAILED VIEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Chassis Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Chassis Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
BASE SERVER STANDARD CAPABILITIES and FEATURES . . . . . . . . . . . . . . . . . 6
CONFIGURING the SERVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
STEP 1 VERIFY SERVER SKU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
STEP 2 SELECT CPU(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
STEP 3 SELECT MEMORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
STEP 4 SELECT RAID CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
STEP 5 SELECT HARD DISK DRIVES (HDDs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
STEP 6 SELECT PCIe OPTION CARD(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
STEP 7 ORDER OPTIONAL NETWORK CARD ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . 23
STEP 8 SELECT AC POWER CORD(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
STEP 9 ORDER POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
STEP 10 ORDER OPTIONAL REVERSIBLE CABLE MANAGEMENT ARM . . . . . . . . . . . . . . . . . 30
STEP 11 ORDER A TRUSTED PLATFORM MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
STEP 12 ORDER OPTIONAL USB 2.0 DRIVES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
STEP 13 SELECT OPERATING SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
STEP 14 SELECT OPERATING SYSTEM MEDIA KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
STEP 15 SELECT OPTIONAL VALUE-ADDED SOFTWARE . . . . . . . . . . . . . . . . . . . . . . . . . 36
STEP 16 SELECT SERVICE and SUPPORT LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
OPTIONAL STEP - ORDER RACK(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
OPTIONAL STEP - ORDER PDU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
SUPPLEMENTAL MATERIAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
CHASSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
CPUs and DIMMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Physical Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Memory Population Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Recommended Memory Population . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Supported DIMM Populations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Low-Voltage DIMM Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
RACKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Motherboard USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Compliance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
2
Page 3
OVERVIEW
Front View
Rear View
OVER VIEW
The Cisco® UCS C22 M3 Rack Server combines economics and a density-optimized feature set from entry
level enterprise to SMB with applications such as scale out, virtualization, IT and web infrastructure, VPN
servers, file/print servers, and appliances.
Building on the success of the Cisco UCS C-Series Servers, the Cisco UCS C22 M3 server and the Cisco 1225
VIC further extend the capabilities of the Cisco UCS portfolio in a 1RU form factor with the addition of the
Intel® Xeon® processor E5-2400 series processor family CPUs, which delivers the bes t combina t ion of
performance and efficiency gains. In addition, the Cisc o UCS C22 M3 server offers 12 DI MM slots, up to eight
disk drives, 2 PCIe slots and two 1 Gigabit Ethernet LAN-on-motherboard (LOM) ports that provide both
price/performance in a compact form factor.
Figure 1 Cisco UCS C22 M3 High-Density SFF Rack Server
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
3
Page 4
DETAILED VIEWS
HDD06
HDD01
HDD07
HDD02
HDD08
HDD03
HDD04HDD04HDD04 HDD05HDD05HDD05
1 2 3 4
9 10
5 6 7 8
302158
DETAILED VIEWS
Chassis Front View
Figure 2 shows the Cisco UCS C22 M3 High-Density SFF Rack Server.
Figure 2 Chassis Front View
1 Power button/power status LED 6 Power supply status LED
2 Identification button/LED 7 Network link activity LED
3 System status LED 8 USB 2.0 ports (two)
4 Fan status LED 9 Pull-out asset tag
5 Temperature status LED 10 Drives
(up to eight hot-swappable 2-5-inch drives)
4
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 5
Chassis Rear View
PSU 1PSU 1PSU 1
PCIe 2
PCIe 2PCIe 2 PCIe 1PCIe 1PCIe 1
1 2 3
654 7 8 9
302159

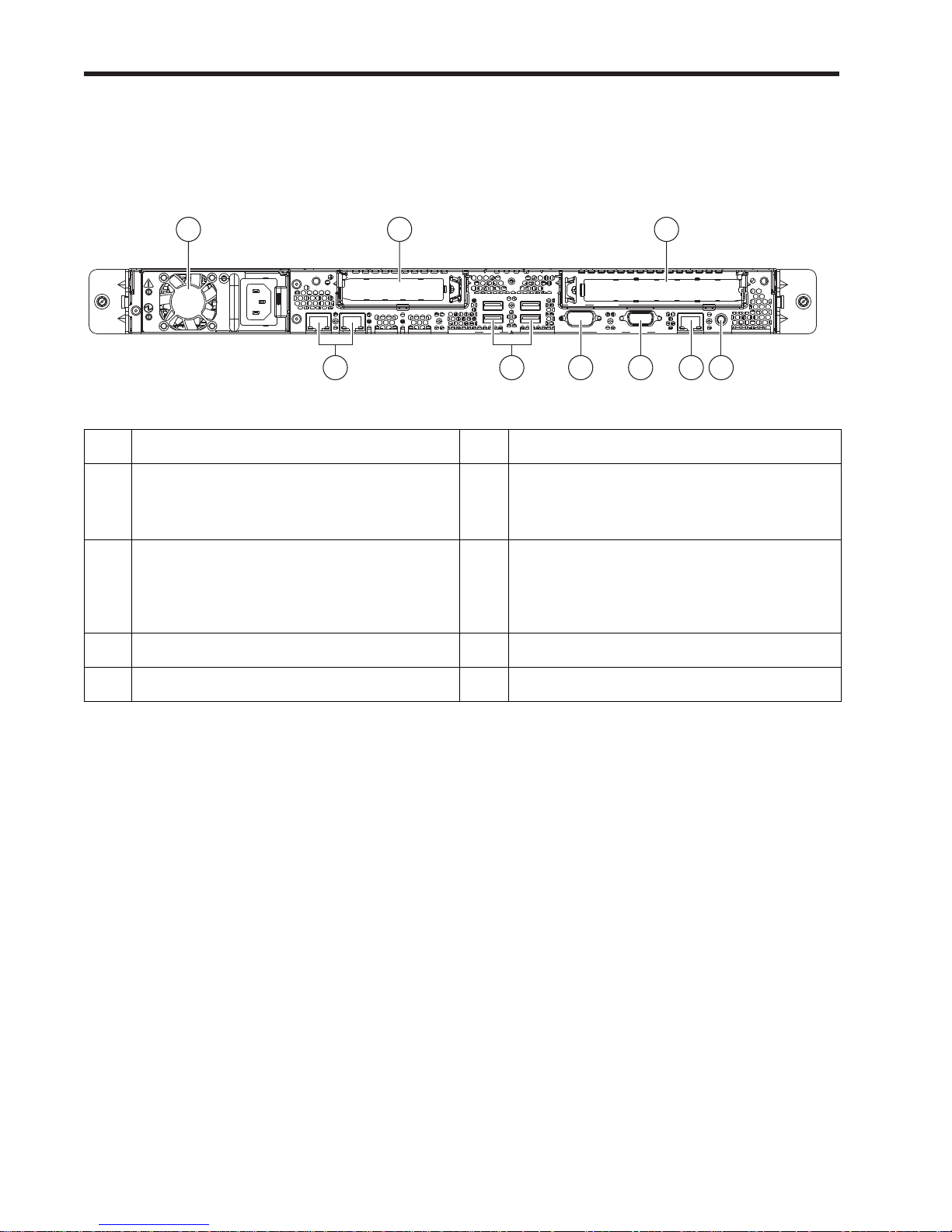

Figure 3 shows the external features of the rear panel.
Figure 3 Chassis Rear View
1 Power supply 6 Serial port (DB-9 connector)
DETAILED VIEWS
2 Slot 2: Low-profile PCIe slot on riser 2
(x16 PCIe Gen 3 slot, x16 connector,
half-length, half-height)
3 Slot 1: Standard-profile PCIe slot on riser 1
(x16 PCIe Gen 3 slot, x16 extended
connector (Cisco CNIC), half-length,
full-height)
4 Dual 1-Gb Base-T Ethernet ports (two) 9 Rear Identification button/LED
5 USB 2.0 ports (four) - -
7 VGA video port (DB-15 connector)
8 10/100/1000 Base-T Ethernet dedicated
management port
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
5
Page 6
BASE SERVER STANDARD CAPABILITIES and FEATURES
BASE SERVER STANDARD CAPABILITIES and FEATURES
Table 1 lists the capabilities and features of the base server. Details about how to configure the server for
a particular feature or capability (for example, number of processors, disk drives, or amount of memory)
are provided in
Table 1 Capabilities and Features
Capability/Feature Description
Chassis Single rack unit (1RU) chassis
CPU One or two Intel® Xeon E5-2400 series processor family CPUs
Chipset Intel C600 chipset
Memory 12 DIMM slots
NIC Embedded dual-port Intel I350 PCIe-based Gigabit Ethernet controller
Expansion slots Two riser cards with one PCIe card slot in each riser
CONFIGURING the SERVER, page 8.
■ Riser 1 (controlled by CPU 1)
• One x16 PCIe Gen 3 slot, x16 extended connector (Cisco CNIC),
half-length, full-height, with NCSI
Cisco 1225 virtual interface card requires an NCSI slot.
■ Riser 2 (controlled by CPU 2)
• One x16 PCIe Gen 3 slot, x16 connector, half-length, half-height, no
NCSI support
1
and Cisco CNIC2 support. The
Storage controller The following RAID options are available:
■ Software RAID, utilizing the SAS controller built into the C600 chipset
and LSI Mega software RAID (MegaSR). This implementation of RAID does
not consume a PCIe slot.
■ Plug-in RAID controller cards (these cards consume PCIe slots)
• LSI MegaRAID 9265CV-8i (with 1GB Transportable Memory Module
(TMM) data cache and SuperCap for data cache power backup)
• LSI MegaRAID 9240-8i
• LSI MegaRAID 9220-8i
• LSI MegaRAID 9220-4i
Internal storage devices ■ Up to eight 2.5-inch SAS or SATA hot-swappable hard disk drives (HDDs)
■ One connector on the motherboard that can accommodate a USB 2.0
drive. You can order an 8 GB drive for this connector and use it as a
hypervisor or license dongle. The 8 GB USB drive comes blank.
External Storage
Devices
■ A 16 GB USB drive (if ordered) comes as a separate item in the shipping
box and contains preloaded drivers and utilities. You can move the 16 GB
drive from one server to another an using external USB 2.0 connector in
order to install the drivers and utilities onto multiple servers.
6
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 7
BASE SERVER STANDARD CAPABILITIES and FEATURES
Notes . . .
Capability/Feature Description
Video The Emulex Pilot 3 Integrated Baseboard Management Controller provides
video:
■ Matrox G200e video controller
■ Integrated 2D graphics core with hardware acceleration
■ Supports all display resolutions up to 1920 x 1200 x 16 bpp resolution at
60 Hz
■ 24-bit color depth for all resolutions less than 1600x1200
■ Up to 256 MB video memory
Interfaces ■ Rear panel
• One DB9 serial port connector
• Four USB 2.0 port connectors
• One DB15 VGA connector
• One 10/100/1000 Ethernet management port
• Two 1 GbE Ethernet LOM ports
■ Front panel
•Two USB 2.0 ports
Front Panel ■ A front panel controller provides status indications and control buttons
Power subsystem One 450 W power supply or one 650 W power supply, depending on server
configuration and loading. Prior to making a power supply selection, the UCS
Power Calculator should be run to determine the right size power supply for
your server configuration. A fully configured C22 M3 server may require the
650 W power supply. The UCS Power Calculator can be found at the following
link:
https://express.salire.com/Go/Cisco/Cisco-UCS-Power-Calculator.aspx
Fans Chassis:
■ Five fans for front-to-rear cooling. N + 1 redundant.
Power supply:
■ The power supply is equipped with a fan.
Integrated management
processor
Cisco Integrated Management Controller (CIMC).
Depending on your CIMC settings, the CIMC can be accessed through the 1-Gb
Ethernet dedicated management port, the 1-Gb Ethernet LOM ports, or a
Cisco 1225 virtual interface card.
1. NCSI = network communications services interface protocol. The slot stays active when the server is in standby
power state.
2. CNIC = Cisco network interface card.
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
7
Page 8
CONFIGURING the SERVER
CONFIGURING the SER VER
Follow these steps to configure the Cisco UCS C22 M3 High-Density SFF Rack Server:
■ STEP 1 VERIFY SERVER SKU, page 9
■ STEP 2 SELECT CPU(s), page 10
■ STEP 3 SELECT MEMORY, page 12
■ STEP 4 SELECT RAID CONFIGURATION, page 15
■ STEP 5 SELECT HARD DISK DRIVES (HDDs), page 19
■ STEP 6 SELECT PCIe OPTION CARD(s), page 21
■ STEP 7 ORDER OPTIONAL NETWORK CARD ACCESSORIES, page 23
■ STEP 8 SELECT AC POWER CORD(s), page 26
■ STEP 9 ORDER POWER SUPPLY, page 29
■ STEP 10 ORDER OPTIONAL REVERSIBLE CABLE MANAGEMENT ARM, page 30
■ STEP 11 ORDER A TRUSTED PLATFORM MODULE, page 31
■ STEP 12 ORDER OPTIONAL USB 2.0 DRIVES, page 32
■ STEP 13 SELECT OPERATING SYSTEM, page 33
■ STEP 14 SELECT OPERATING SYSTEM MEDIA KIT, page 35
■ STEP 15 SELECT OPTIONAL VALUE-ADDED SOFTWARE, page 36
■ STEP 16 SELECT SERVICE and SUPPORT LEVEL, page 37
■ OPTIONAL STEP - ORDER RACK(s), page 41
■ OPTIONAL STEP - ORDER PDU, page 42
8
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 9
CONFIGURING the SERVER
STEP 1 VERIFY SERVER SKU
Verify the product ID (PID) of the server as shown in Table 2.
Table 2 PID of the C22 M3 High-Density SFF Rack Base Server
Product ID (PID) Description
UCSC-C22-M3S UCS C22 M3 SFF with rail kit, without PSU, CPU, memory, HDD, or PCIe cards
The Cisco C22 M3 server:
■ Includes a rail kit
■ Does not include power supply, CPU, memory, hard disk drives (HDDs), or plug-in PCIe cards.
NOTE: Use the steps on the following pages to configure the server with
the components that you want to include.
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
9
Page 10
CONFIGURING the SERVER
Notes . . .
STEP 2 SELECT CPU(s)
The standard CPU features are:
■ Intel Xeon E5-2400 series processor family CPUs
■ Intel C600 chipset
■ Cache size of 10, 15, or 20 MB
Select CPUs
The available CPUs are listed in Table 3.
Table 3 Available Intel CPUs: Xeon E5-24xx Family
Highest DDR3
DIMM Clock
Support (MHz)
Product ID (PID)
Intel
Number
Clock
Freq
(GHz)
Power
(W)
Cache
Size
(MB)
Cores QPI
UCS-CPU-E5-2470 E5-2470 2.30 95 20 8 8.0 1600
UCS-CPU-E5-2450 E5-2450 2.10 95 20 8 8.0 1600
UCS-CPU-E5-2440 E5-2440 2.40 95 15 6 7.2 1333
UCS-CPU-E5-2420 E5-2420 1.90 95 15 6 7.2 1333
UCS-CPU-E5-2403 E5-2403 1.80 80 10 4 6.4 1066
UCS-CPU-E5-2430L E5-2430L 2.00 60 15 6 6.4 1333
1. If higher or lower speed DIMMs are selected than what is shown in the table for a given CPU, the DIMMs will be
clocked at the lowest common denominator of CPU clock and DIMM clock.
Approved Configurations
(1) 1-CPU configurations:
■ Select any one CPU listed in Table 3.
1
(2) 2-CPU Configurations:
■ Select two identical CPUs from any one of the rows of Table 3 on page 10.
Caveats
■ You can select either one processor or two identical CPUs.
■ If you select one CPU, only one PCIe slot (the full-height slot on riser 1) is available for use.
10
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 11
CONFIGURING the SERVER
■ For optimal performance, select DIMMs with the highest clock speed for a given processor
(see
Table 3 on page 10). If you select DIMMs whose speeds are lower or higher than that
shown in the tables, suboptimal performance will result.
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
11
Page 12
CONFIGURING the SERVER
STEP 3 SELECT MEMORY
The standard memory features are:
■ DIMMs
— Clock speed: 1333 or 1600 MHz
— Ranks per DIMM: 1 or 2
— Operational voltage: dual voltage capable (1.5 V or 1.35 V)
— Registered ECC DDR3 DIMMS (RDIMMS)
■ Memory is organized with three memory channels per CPU, with up to two DIMMs per
channel, as shown in
Figure 4 C22 M3 SFF Memory Organization
Figure 4.
12
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 13
Select DIMMs
Select the memory configuration. The available memory DIMMs are listed in Table 4.
NOTE: When memory mirroring is enabled, the memory subsystem simultaneously
writes identical data to two channels. If a memory read from one of the channels
returns incorrect data due to an uncorrectable memory error, the system
automatically retrieves the data from the other channel. A transient or soft error in
one channel does not affect the mirrored data, and operation continues unless there
is a simultaneous error in exactly the same location on a DIMM and its mirrored
DIMM. Memory mirroring reduces the amount of memory available to the operating
system by 50% because only one of the two populated channels provides data.
Table 4 Available DDR3 DIMMs
CONFIGURING the SERVER
Product ID (PID) PID Description Voltage
DIMM Options
UCS-MR-1X041RY-A 4GB DDR3-1600-MHz RDIMM/PC3-12800/1R/x4/1.35v/35nm 1.35 V 1
UCS-MR-1X082RX-A 8GB DDR3-1333-MHz RDIMM/PC3-10600/2R/x4/1.35v/35nm 1.35 V 2
UCS-MR-1X082RY-A 8GB DDR3-1600-MHz RDIMM/PC3-12800/2R/x4/1.35v/35nm 1.35 V 2
UCS-MR-1X162RY-A 16GB DDR3-1600-MHz RDIMM/PC3-12800/2R/x4/1.35v/35nm 1.35 V 2
Memory Mirroring Option
N01-MMIRROR Memory mirroring option
Approved Configurations
(1) 1-CPU configuration without memory mirroring:
■ Select from 1 to 6 DIMMs. Refer to Memory Population Rules, page 46, for more detailed
information.
(2) 1-CPU configuration with memory mirroring:
Ranks/
DIMM
■ Select either 2 or 4 DIMMs. The DIMMs will be placed by the factory as shown in the following
table:
Number of
DIMMs
2 1 DIMM in Channel A, 1 DIMM in Channel B
4 2 DIMMs in Channel A, 2 DIMMs in Channel B
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
DIMM Placement in Channels
(Channel C is not used with memory mirroring)
13
Page 14
CONFIGURING the SERVER
■ Select the memory mirroring option (N01-MMIRROR) as shown in Table 4 on page 13.
(1) 2-CPU configuration without memory mirroring:
■ Select from 1 to 6 DIMMs per CPU (2 to 12 DIMMs total). Refer to Memory Population Rules,
page 46, for more detailed information.
(2) 2-CPU configuration with memory mirroring:
■ Select 2 or 4 DIMMs per CPU (4 or 8 DIMMs total). The DIMMs will be placed by the factory as
shown in the following table
:
Number of
DIMMs per
(Channels C and F are not used with memory mirroring)
DIMM Placement
CPU
2 CPU 1:
1 DIMM in Channel A
1 DIMM in Channel B
4 CPU 1:
2 DIMMs in Channel A
2 DIMMs in Channel B
■ Select the memory mirroring option (N01-MMIRROR) as shown in Table 4 on page 13.
CPU 2:
1 DIMM in Channel D
1 DIMM in channel E
CPU 2:
2 DIMMs in Channel D
2 DIMMs in Channel E
NOTE: System performance is optimized when the DIMM type and quantity are equal
for both CPUs.
Caveats
■ Do not mix 1333 MHz and 1600 MHz DIMMs
■ Do not mix DIMM types (RDIMM, LRDIMM, or UDIMM)
■ Do not select more than two different types of DIMMs (only two PID types allowed)
■ For 2-CPU configurations, install a minimum of 2 DIMMs (one per CPU).
■ If you use different types of DIMMs, the quantity of each type of DIMM must be even (2, 4, or
6). For example, 4 UCS-MR-1X082RY-A DIMMs and 6 UCS-MR-1X162RY-A DIMMs. Also, the sum
of all PIDs must adhere to the maximum quantity rule of 12 DIMMs for 2-CPU systems.
■ By default, all DIMMs run at 1.35 V, which yields 1333-MHz memory speeds. To run the
memory DIMMS at 1600 MHz, you need to go into the BIOS or set the policy with UCSM
(service profile) to run in Performance Mode. This forces the DIMMs to operate at 1.5 V and
yields 1600-MHz speeds, provided:
— The DIMMs are 1600-MHz devices
— The CPUs chosen support 1600-MHz operation.
For more information regarding memory, see CPUs and DIMMs, page 44.
14
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 15
STEP 4 SELECT RAID CONFIGURATION
The RAID controller choices are:
■ Software RAID, implemented using the C600 chipset built-in SAS RAID controller plus LSI
MegaSR (this configuration does not consume a PCIe slot), or
■ Plug-in PCIe controller cards:
— LSI MegaRAID 9265CV-8i (with 1 GB TMM data cache and SuperCap for data cache
power backup)
— LSI MegaRAID 9240-8i
— LSI MegaRAID 9220-8i
— LSI MegaRAID 9220-4i
Cisco can provide factory-configured RAID systems depending on the RAID controller card chosen
and the number of drives ordered. Factory-configured RAID options are listed in
NOTE: Factory-configured RAID is not available if you choose software RAID (in this
case, you must configure RAID yourself using separate software).
CONFIGURING the SERVER
Table 5.
RAID levels 50 and 60 are supported, although they are not available as factory-configured RAID
options.
Select RAID Options
Select one RAID controller (either software RAID in Table 5 or hardware RAID using a plug-in
RAID controller and an appropriate RAID configuration option in Table 6 on page 16).
Table 5 Available Software RAID (LSI MegaSR) Options
Product ID (PID) PID Description
RAID Controllers
UCSC-RAID-ROM5 Software RAID (LSI MegaSR), supporting up to eight SAS or SATA drives. SAS and
SATA drives can be mixed. This option supports RAID 0, 1, and 10, and operates
at 3 Gb/s. Operating systems supported are Windows and Linux only (no VMware
support).
UCSC-RAID-ROM55 Software RAID (LSI MegaSR), supporting up to eight SAS or SATA drives. SAS and
SATA drives can be mixed. This option supports RAID 0, 1, 10, and 5, and
operates at 3 Gb/s. Operating systems supported are Windows and Linux only
(no VMware support).
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
15
Page 16
CONFIGURING the SERVER
Table 6 Available Hardware RAID Options
Product ID (PID) PID Description
RAID Controllers
UCS-RAID-9265CV LSI MegaRAID 9265CV-8i (with data cache backup)
■ Supports up to eight internal SAS or SATA drives. SAS and SAT A drives can be
mixed.
■ Includes a 1 GB Transportable Memory Module (TMM) data cache and
SuperCap power module for data cache backup
■ RAID levels supported: RAID 0, 1, 10, 5, 50, 6, 60 (see the RAID
Configuration Options section later in this table)
UCSC-RAID-9240-8I LSI MegaRAID 9240-8i
■ Supports up to eight internal SAS or SATA drives. SAS and SAT A drives can be
mixed.
■ No data cache backup. There is no direct attached buffer memory. The
controller utilizes system RAM for buffer cache memory.
■ RAID levels supported: RAID 0, 1, 10, 5, 50 (see the RAID Configuration
Options section later in this table)
UCSC-RAID-9220-8I LSI MegaRAID 9220-8i
■ Supports up to eight internal SAS or SATA drives. SAS and SAT A drives can be
mixed.
■ No data cache backup. There is no direct attached buffer memory. The
controller utilizes system RAM for buffer cache memory.
■ RAID levels supported: RAID 0, 1, 10 (see the RAID Configuration Options
section later in this table)
UCSC-RAID-9220-4i LSI MegaRAID 9220-4i
■ Supports up to four internal SAS or SATA drives. SAS and SATA drives can be
mixed.
■ No data cache backup. There is no direct attached buffer memory. The
controller utilizes system RAM for buffer cache memory.
■ RAID levels supported: RAID 0, 1, 10 (see the RAID Configuration Options
section later in this table)
16
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 17
Table 6 Available Hardware RAID Options (continued)
Product ID (PID) PID Description
RAID Configuration Options (not available for LSI MegaSR software RAID)
R2XX-RAID0 Factory preconfigured RAID striping option
Enable RAID 0 Setting. Requires a minimum of one hard drive.
R2XX-RAID1 Factory preconfigured RAID mirroring option
Enable RAID 1 Setting. Requires exactly two drives with the same size, speed,
capacity.
R2XX-RAID5 Factory preconfigured RAID option
Enable RAID 5 Setting. Requires a minimum of three drives of the same size,
speed, capacity.
R2XX-RAID6 Factory preconfigured RAID option
Enable RAID 6 Setting. Requires a minimum of four drives of the same size,
speed, capacity.
R2XX-RAID10 Factory preconfigured RAID option
Enable RAID 10 Setting. Requires an even number of drives (minimum of four
drives) of the same size, speed, capacity.
CONFIGURING the SERVER
NOTE: Although RAID levels 50 and 60 are not orderable from the factory, they are
supported for selected controllers as shown in
Table 5.
NOTE: No RAID factory preconfigured RAID option can be chosen (a factory RAID
volume cannot be configured) if:
■ there are no drives, or
■ SAS and SATA drives are mixed, or
■ different capacity drives are mixed
Approved Configurations
Select a software RAID option from Table 5 on page 15 or a single plug-in PCIe RAID controller
from Table 6. You may also select an appropriate optional RAID configuration option listed in
Table 6 for plug-in PCIe RAID cards.
Caveats
■ In 1-CPU configurations, there is only one full-height PCIe slot available (located on riser 1).
— If you choose software RAID, you can select one additional optional PCIe card from
Table 8 on page 21
—If you choose a plug-in RAID controller from Table 5 on page 15, you will not be
able to select any optional PCIe card from Table 8 on page 21.
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
17
Page 18
CONFIGURING the SERVER
— Note that only a single Cisco 1225 Virtual Interface Card (VIC) card is supported and
■ In 2-CPU configurations, there are two PCIe slots available (one full-height slot and one
half-height slot).
— If you choo se software RAI D, you can select up to two additional optional PCIe cards
— If you choose a plug-in RAID controller from Table 5 on page 15, you will be able to
■ The optional plug-in PCIe RAID controller cards are all half-height. If you choose one of
these cards in a 2-CPU configuration, only the full-height PCIe card slot will be available for
an additional optional PCIe card.
■ Note that only a single Cisco 1225 Virtual Interface Card (VIC) card is supported and it must
be installed in the full-length, full-height PCIe slot (slot 1) on riser 1, which is the only slot
that supports NCSI. So take this into account when populating RAID controller cards.
■ You can choose only one type of RAID controller, either software RAID or a PCIe plug-in
controller. If you choose software RAID, both PCIe slots are available for adding optional
PCIe cards.
it must be installed in the full-length, full-height PCIe slot (slot 1) on riser 1, which
is the only slot that supports NCSI. So take this into account when populating RAID
controller cards.
from
Table 8 on page 21
select one additional optional PCIe card from Table 8 on page 21.
■ For plug-in RAID controller cards, you can choose an optional RAID configuration (RAID 0, 1,
5, 6, or 10), which is preconfigured at the factory. The RAID level you choose must be an
available RAID choice for the controller selected. RAID levels 50 and 60 are supported,
depending on the RAID controller selected, although they are not available as configuration
options.
■ No RAID factory preconfigured RAID option can be chosen (a factory-configured RAID volume
is not available) if:
— there are no drives, or
— SAS and SATA drives are mixed, or
— different capacity drives are mixed
18
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 19
STEP 5 SELECT HARD DISK DRIVES (HDDs)
The standard disk drive features are:
■ 2.5-inch small form factor
■ Hot-pluggable
■ Sled-mounted
Select Drives
The available drives are listed in Table 7.
Table 7 Available Hot-Pluggable Sled-Mounted HDDs
CONFIGURING the SERVER
Product ID (PID) PID Description
Drive
Type
Capacity
HDDs
A03-D146GC2 146 GB 6Gb SAS 15K RPM SFF SAS 146 GB
UCS-HDD300GI2F105 300 GB 6Gb SAS 15K RPM SFF SAS 300 GB
A03-D300GA2 300 GB 6Gb SAS 10K RPM SFF SAS 300 GB
A03-D500GC3 500 GB SATA 7.2K RPM SFF SATA 500 GB
A03-D600GA2 600 GB 6Gb SAS 10K RPM SFF SAS 600 GB
UCS-HDD900GI2F106 900 GB 6Gb SAS 10K RPM SFF SAS 600 GB
A03-D1TBSATA 1 TB SATA 7.2K RPM SFF SATA 1 TB
NOTE: No factory-configured RAID option can be chosen (a factory RAID volume is
not available) if:
■ there are no drives, or
■ SAS and SATA drives are mixed, or
■ different capacity drives are mixed
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
19
Page 20
CONFIGURING the SERVER
Approved Configurations
(1) Software RAID (LSI MegaSR)
■ Select up to eight SAS/SATA drives (note that no factory-configured RAID option can be
chosen for software RAID). You can mix SAS and SATA drives.
(2) LSI MegaRAID 9265CV-8i (with data cache and SuperCap), LSI MegaRAID 9240-8i, and LSI
MegaRAID 9220-8i
■ Select up to eight SAS/SATA drives listed in Table 7. You can mix SAS and SATA drives.
(3) LSI MegaRAID 9220-4i
■ Select up to four SAS/SATA drives listed in Table 7. You can mix SAS and SATA drives.
Caveats
■ No factory-configured RAID option can be chosen (a factory RAID volume is not available) if:
— there are no drives, or
— SAS and SATA drives are mixed, or
— different capacity drives are mixed
■ If you select one or more HDDs, you must select either a PCIe RAID controller from Table 6
on page 16 or a software RAID option from Table 5 on page 15.
20
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 21
STEP 6 SELECT PCIe OPTION CARD(s)
Notes . . .
The standard PCIe card offerings are:
■ Converged Network Adapters (CNAs)
■ Network Interface Cards (NICs)
■ Host Bus Adapters (HBAs)
Select PCIe Option Cards
The available PCIe option cards are listed in Table 8.
Table 8 Available PCIe Option Cards
CONFIGURING the SERVER
Product ID (PID) PID Description
Card
Height
Converged Network Adapters (CNAs)
UCSC-PCIE-CSC-02 Cisco VIC 1225 Dual Port 10Gb SFP+ CNA Half
UCSC-PCIE-BSFP Broadcom NetXtreme II 57712 Dual Port 10 Gigabit Ethernet PCIe
Half
Adapter Card with SFP+
1
UCSC-PCIE-QSFP
Qlogic QLE8242-CU dual-port 10 GbE FCoE CNA Half
UCSC-PCIE-ESFP Emulex OCe11102-FX dual-port 10 GbE FCoE CNA Half
Network Interface Cards (NICs)
N2XX-ABPCI01-M3 Broadcom 5709 Dual-Port Ethernet PCIe Adapter w/TOE for M3 Servers Half
N2XX-ABPCI03-M3 Broadcom 5709 Quad Port 10/100/1Gb NIC w/TOE iSCSI for M3 Servers Half
UCSC-PCIE-BTG Broadcom 57712 Dual Port 10GbE 10G-BaseT w/TOE Half
N2XX-AIPCI01 Intel 10GbE 2-Port Niantec Controller with Copper SFP+ Cable Half
UCSC-PCIE-IRJ45 Intel Quad Port GbE controller (this is a quad-port i350 controller) Half
Host Bus Adapters (HBAs)
N2XX-AEPCI03 Emulex LPe 11002, 4Gb Fibre Channel PCIe Dual Channel HBA Half
N2XX-AEPCI05 Emulex LP e 12002, 8Gb dual port Fibre Channel HBA Half
N2XX-AQPCI03 Qlogic QLE2462, 4Gb dual port Fibre Channel HBA Half
N2XX-AQPCI05 Qlogic QLE2562, 8Gb dual port Fibre Channel HBA Half
1. The “QSFP” in UCSC-PCIE-QSFP stands for QLogic SFP (QSFP is not to be confused with 40 GbE QSFP)
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
21
Page 22
CONFIGURING the SERVER
Approved Configurations
(1) No RAID controller plug-in card
■ If you did not choose a plug-in RAID controller card (for example, you sele cted software
RAID (LSI MegaSR) or no RAID controller at all), you can select up to one PCIe option card
listed in
configurations.
(2) One RAID controller plug-in card
■ If you selected a plug-in PCIe RAID controller, you cannot select any additional PCIe cards for
1-CPU configurations; however, you can select one additional optional PCIe cards for 2-CPU
configurations.
Caveats
Table 8 on page 21 for 1-CPU configurations or up to two cards for 2-CPU
NOTE: If a plug-in RAID controller card is installed, any optional PCIe card yo u select
will be installed in the full-height slot. RAID controllers are always installed in the
half-height slot.
■ Only a single Cisco 1225 Virtual Interface Card (VIC) card is supported and it must be
installed in the full-height slot of riser 1, which is the only slot that supports NCSI.
■ All PCIe cards will fit in either riser 1 or riser 2, except the VIC card, which must be installed
in the full-height slot of riser 1. The Cisco 1225 VIC card must be plugged into slot 1, which
supports NCSI.
■ Additional considerations for the Cisco 1225 VIC card:
— Supports 10G SFP+ optical and copper twinax connections
— Supported only in PCIe slot 1 of this server. Slot 1 can operate while the server is in
standby power mode.
— R equires that the server has CIMC firmware version 1.4(6) or later installed. There is
a heartbeat LED on the top of the card that indicates when firmware is active.
— To use this card for UCS integration (Cisco UCS Manager mode) with Cisco UCS
Manager 2.1(0) or later, the minimum card-firmware and uboot image level is
2.1(0.306).
■ To help ensure that your operating system is compatible with the card you have selected,
check the Hardware Compatibility List at this URL:
http://www.cisco.com/en/US/products/ps10477/prod_technical_reference_list.html
22
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 23
CONFIGURING the SERVER
STEP 7 ORDER OPTIONAL NETWORK CARD ACCESSORIES
Copper twinax cables and SFP optical modules may be ordered to support the two-port network cards that
are available with the server.
Choose Optional Twinax Cables
Table 9 lists the copper twinax cables available for the PCIe cards. You can choose cable lengths
of 1, 3, 5, 7, or 10 meters. The two longer cables (7 and 10 meters) are active, which means
that they contain active components within the SFP+ housing to improve signal quality.
Table 9 Available Twinax Cables
Product ID (PID) PID Description
SFP-H10GB-CU1M 10GBASE-CU SFP+ Cable (1 M)
SFP-H10GB-CU3M 10GBASE-CU SFP+ Cable (3 M)
SFP-H10GB-CU5M 10GBASE-CU SFP+ Cable (5 M)
SFP-H10GB-ACU7M 10GBASE-CU SFP+ Cable (7 M)
SFP-H10GB-ACU10M 10GBASE-CU SFP+ Cable (10 M)
Approved Configurations
(1) Choose Up to Two Twinax Cables for Each Network Card Ordered
■ You may choose one or two twinax cables for each network card ordered. The cables can be
different lengths; however, you would normally order two cables of equal lengths to connect
to the primary and redundant network switching equipment.
Caveats
The twinax cables listed in Table 9 can be ordered only for the following PCIe cards:
— UCSC-PCIE-CSC-02 (Cisco VIC 1225 Dual Port 10Gb SFP+ CNA)
— UCS-PCIE-BSFP (Broadcom 57712)
— N2XX-AEPCI01 (Emulex OCe10102-F)
— N2XX-AIPCI01 (Intel Dual Port Ethernet X520)
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
23
Page 24
CONFIGURING the SERVER
Choose Optional SFP Modules
Optical Cisco SFP+ modules are listed in Table 10.
Table 10 Available SFP Modules
Product ID (PID) PID Description
SFP-10G-SR 10GBASE-SR SFP+ Module
850 nm, multimode, SR, 3.3V, LC connector, with Digital Optical Monitoring
DS-SFP-FC8G-SW 8 Gbit SFP+ Module
850 nm, multimode, SR, 3.3V, LC connector, with Digital Optical Monitoring
Approved Configurations
(1) Choose Up to Two SFP+ Modules for Each Network Card Ordered
■ You may choose one or two SFP+ optical modules cables for each network card ordered. You
would normally order two modules for connecting to the primary and redundant network
switching equipment. With the SFP+ optical modules, you can use common fiber optic
cables, widely available.
See Figure 5 on page 25 for typical SFP+ and twinax connections to the network cards.
Caveats
The SFP-10G-SR optical module listed in Table 10 should be ordered only for the following PCIe
cards, as they do not come by default with any optical modules:
— UCSC-PCIE-CSC-02 (Cisco VIC 1225 Dual Port 10Gb SFP+ CNA)
— UCSC-PCIE-BSFP (Broadcom 57712)
— N2XX-ABPCI02 (Broadcom 57711)
— N2XX-AEPCI01 (Emulex OCe10102-F)
The DS-SFP-FC8G-SW optical module listed in Table 10 should be ordered only for the following
PCIe cards, as they do not come by default with any optical modules:
— N2XX-AEPCI05 (Emulex LPe 12002, 8Gb dual-port Fibre Channel HBA)
24
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 25
Figure 5 Network Card Connections
CONFIGURING the SERVER
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
25
Page 26
CONFIGURING the SERVER
1
Cordset rating 13A, 250V
(6.6 feet) (79±2m)
Plug:
EL312MoldedTwistlock
(NEMA L6-20)
186568
Connector:
EL 701
(IEC60320/C13)
STEP 8 SELECT AC POWER CORD(s)
Using Table 11, select the appropriate AC power cords. You can select a minimum of no power
cords and a maximum of two. If you select the option R2XX-DMYMPWRCORD, no power cord is
shipped with the server.
Table 11 Available Power Cords
Product ID (PID) PID Description Images
R2XX-DMYMPWRCORD No power cord (dummy PID to
allow for a no power cord option)
CAB-N5K6A-NA Power Cord, 200/240V 6A, North
America
CAB-AC-250V/13A Power Cord, NEMA L6-20 250V/20A
plug-IEC320/C13 receptacle, North
America,
CAB-C13-CBN CABASY,WIRE,JUMPER CORD, 27" L,
C13/C14, 10A/250V
CAB-C13-C14-2M CABASY,WIRE,JUMPER CORD,PWR,
2 Meter, C13/C14, 10A/250V
Not applicable
Plug: NEMA 6-15P
Cordset rating: 10 A, 250 V
Length: 8.2 ft
Connector:
IEC60320/C13
86570
CAB-C13-C14-AC CORD,PWR,JMP,IEC60320/C14,IEC6
0320/C13, 3.0M
26
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 27
Table 11 Available Power Cords
2500 mm
Cordset rating: 10 A, 250/500 V MAX
Length: 8.2 ft
Plug:
EL 219
(IRAM 2073)
Connector:
EL 701
(IEC60320/C13)
Plug:
Cordset rating: 10 A, 250 V/500 V MAX
Length: 2500mm
Connector:
EL 701C
(EN 60320/C15)
EL 210
(BS 1363A) 13 AMP fuse
Cordset rating 10A, 250V
(2500 mm)
Plug:
EL 218
(CCEE GB2009)
186573
Connector:
EL 701
(IEC60320/C13)
Connector:
VSCC15
Cordset rating: 10A/16 A, 250 V
Length: 8 ft 2 in. (2.5 m)
Plug:
M2511
186576
1
Cordset rating 10A, 250V/500V MAX
(2500 mm)
Plug:
EL 212
(SI-32)
186574
Connector:
EL 701B
(IEC60320/C13)
EL
-212
16A
250V
Product ID (PID) PID Description Images
SFS-250V-10A-AR Power Cord, SFS, 250V, 10A,
Argentina
CAB-9K10A-AU P ower Cord, 250V AC 10A 3112 Plug,
Australia
SFS-250V-10A-CN Power Cord, SFS, 250V, 10A, China
CONFIGURING the SERVER
CAB-250V-10A-CN AC Power Cord - 250V, 10A - PRC
CAB-9K10A-EU Power Cord, 250VAC 10A CEE 7/7
Plug, EU
SFS-250V-10A-ID Power Cord, SFS, 250V, 10A, India
SFS-250V-10A-IS Power Cord, SFS, 250V, 10A, Israel
Plug:
EL 208
Cordset rating 16A, 250V
(2500mm)
OVE
Connector:
EL 701
87490
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
27
Page 28
CONFIGURING the SERVER
Plug:
I/3G
(CEI 23-16)
Connector
C15M
(EN60320/C15 )
Cordset rating: 10 A, 250 V
Length: 8 ft 2 in. (2.5 m)
186575
Plug:
MP232-R
Cordset rating: 10 A, 250 V
Length: 8 ft. 2 in (2.5 m)
Connector:
IEC 60320 C15
Plug:
Cordset rating: 10 A, 250 V/500 V MAX
Length: 2500mm
186580
Connector:
EL 701C
(EN 60320/C15)
EL 210
(BS 1363A) 13 AMP fuse
Table 11 Available Power Cords
Product ID (PID) PID Description Images
CAB-9K10A-IT Power Cord, 250VAC 10A CEI
23-16/VII Plug, Italy
CAB-9K10A-SW Power Cord, 250VAC 10A MP232
Plug, Switzerland
CAB-9K10A-UK Power Cord, 250VAC 10A BS1363
Plug (13 A fuse), UK
CAB-9K12A-NA Power Cord, 125VAC 13A NEMA
Image not available
5-15 Plug, North America
CAB-JPN-3PIN Power Cord 3PIN, Japan Image not available
28
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 29
STEP 9 ORDER POWER SUPPLY
The C22 M3 server accommodates one power supply. A lightly loaded server can operate from
one 450 W power supply. A fully loaded server might need to be powered with a 650 W power
supply (see
Prior to making a power supply selection, the UCS Power Calculator should be run to determine
the right size power supply for your server configuration. A fully configured C22 M3 server may
require the 650 W power supply. The UCS Power Calculator can be found at the following link:
https://express.salire.com/Go/Cisco/Cisco-UCS-Power-Calculator.aspx
Table 12 Power Supply PIDs
Product ID (PID) PID Description
UCSC-PSU-450W 450 W power supply
UCSC-PSU-650W 650 W power supply
Table 12).
CONFIGURING the SERVER
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
29
Page 30
CONFIGURING the SERVER
STEP 10 ORDER OPTIONAL REVERSIBLE CABLE MANAGEMENT ARM
The reversible cable management arm mounts on either the right or left slide rails at the rear of
the server and is used for cable management. Use
Table 13 Cable Management Arm
Product ID (PID) PID Description
UCSC-CMA1 Cable Management Arm for C22 rack servers
NOTE: If you order and install a cable management arm, you will need the longest
power cable available.
For more information about the cable management arm, see the Cisco UCS C22 M3 Installation
and Service Guide at this URL:
Table 13 to order a cable management arm.
http://www.cisco.com/en/US/docs/unified_computing/ucs/c/hw/C22/install/C22.pdf
30
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 31
STEP 11 ORDER A TRUSTED PLATFORM MODULE
Trusted Platform Module (TPM) is a computer chip (microcontroller) that can securely store
artifacts used to authenticate the platform (server). These artifacts can include passwords,
certificates, or encryption keys. A TPM can also be used to store platform measurements that
help ensure that the platform remains trustworthy. Authentication (ensuring that the platform
can prove that it is what it claims to be) and attestation (a process helping to prove that a
platform is trustworthy and has not been breached) are necessary steps to ensure safer
computing in all environments.
The TPM ordering information is listed in Table 14.
Table 14 Trusted Platform Module
Product ID (PID) PID Description
UCSX-TPM1-001 Trusted Platform Module
CONFIGURING the SERVER
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
31
Page 32
CONFIGURING the SERVER
STEP 12 ORDER OPTIONAL USB 2.0 DRIVES
You may order one or two optional USB 2.0 drives. One socket on the motherboard can
accommodate the 8 GB drive and you can use any of the external USB 2.0 ports for the 16 GB
drive.
The 8 GB drive (if ordered) is blank and comes installed on the motherboard. It can be used for
a hypervisor or a license dongle. The 16 GB drive (if ordered) comes as a separate item in the
shipping box and contains preloaded drivers and utilities. You can move the 16 GB drive from
one server to another in order to install the drivers and utilities onto multiple servers.
The USB drive ordering information is listed in Table 15.
Table 15 USB 2.0 Drive
Product ID (PID) PID Description
UCS-USBFLSHA-8GB 8 GB Flash USB Drive for C22/C24
UCS-USBFLSHA-16GB 16 GB Flash USB Drive for C22/C24, preloaded with UCS SCU/HUU
bootable images and driver ISO file
See Figure 6 on page 43 for the location of the internal 8 GB USB connector.
32
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 33
STEP 13 SELECT OPERATING SYSTEM
Several operating systems are available from which to choose. Select one of the operating
systems shown in
Table 16 Operating Systems
PID Description Product ID (PID)
SUSE Linux Enterprise Server
SLES-1A SLES/1yr subscription/svcs required/0 media
SLES-3A SLES/3yr subscription/svcs required/0 media
Red Hat Enterprise Linux
RHEL-2S-1G-1A RHEL/2 Socket/1 Guest/1Yr Svcs Required
RHEL-2S-1G-3A RHEL/2 Socket/1 Guest/3Yr Svcs Required
RHEL-2S-4G-1A RHEL/2 Socket/4 Guest/1Yr Svcs Required
Table 16.
CONFIGURING the SERVER
RHEL-2S-4G-3A RHEL/2 Socket/4 Guest/3Yr Svcs Required
RHEL-2S-UG-1A RHEL/2 Socket/U Guest/1Yr Svcs Required
RHEL-2S-UG-3A RHEL/2 Socket/U Guest/3Yr Svcs Required
RHEL Add-Ons
RHEL-HA-2S-1A RHEL Option/High-Availability/2 Socket/1Yr Svcs Required
RHEL-RS-2S-1A RHEL Option/Resilient w/Ha /2 Socket/1 Yr Svcs Required
RHEL-SFS-2S-1A RHEL Option/Scalable File System/2 Socket/1 Yr Svcs Required
RHEL-HA-2S-3A RHEL Option/High-Availability/2 Socket/3Yr Svcs Required
RHEL-RS-2S-3A RHEL Option/Resilient Storage w/ HA /2 Socket/3 Yr Svcs Reqd
RHEL-SFS-2S-3A RHEL Option/Scalable File System/2 Socket/3 Yr Svcs Required
Windows Server
MSWS-08R2-STHV Windows Svr 2008 ST media R2 ST (1-4CPU, 5CAL)
MSWS-08R2-ENHV Windows Svr 2008 EN media R2 EN (1-8CPU, 25CAL)
MSWS-08R2-DCHV2S Windows Svr 2008 R2-2 CPU-Data Center
MSWS-08R2-DCHV4S Windows Svr 2008 R2-4 CPU-Data Center
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
33
Page 34
CONFIGURING the SERVER
Table 16 Operating Systems (continued)
PID Description Product ID (PID)
VMWare Server
VMW-VS5-STD-1A VMware vSphere 5 Standard for 1 Processor, 1 Year, Support Rqd
VMW-VS5-STD-2A VMware vSphere 5 Standard for 1 Processor, 2 Year, Support Rqd
VMW-VS5-STD-3A VMware vSphere 5 Standard for 1 Processor, 3 Year, Support Rqd
VMW-VS5-STD-4A VMware vSphere 5 Standard for 1 Processor, 4 Year, Support Rqd
VMW-VS5-STD-5A VMware vSphere 5 Standard for 1 Processor, 5 Year, Support Rqd
VMW-VS5-ENT-1A VMware vSphere 5 Enterprise for 1 Processor, 1 Year Support
VMW-VS5-ENT-2A VMware vSphere 5 Enterprise for 1 CPU, 2 Yr Support
VMW-VS5-ENT-3A VMware vSphere 5 Enterprise for 1 CPU, 3 Yr Support
VMW-VS5-ENT-4A VMware vSphere 5 Enterprise for 1 Processor, 4 Year Support
VMW-VS5-ENT-5A VMware vSphere 5 Enterprise for 1 CPU, 5 Yr Support
VMW-VS5-ENTP-1A VMware vSphere 5 Enterprise Plus for 1 Processor, 1 Y ear, Support Rqd
VMW-VS5-ENTP-2A VMware vSphere 5 Enterprise Plus for 1 CPU, 2 Yr Support
VMW-VS5-ENTP-3A VMware vSphere 5 Enterprise Plus for 1 Processor, 3 Y ear, Support Rqd
VMW-VS5-ENTP-4A VMware vSphere 5 Enterprise Plus for 1 Processor, 4 Year Support
VMW-VS5-ENTP-5A VMware vSphere 5 Enterprise Plus for 1 Processor, 5 Y ear, Support Rqd
34
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 35
STEP 14 SELECT OPERATING SYSTEM MEDIA KIT
Select the optional operating system media listed in Table 17.
Table 17 OS Media
Product ID (PID) PID Description
RHEL-6 RHEL 6 Recovery Media Only (Multilingual)
SLES-11 SLES 11 media only (multilingual)
MSWS-08R2-STHV-RM Windows Svr 2008 R2 ST (1-4CPU, 5CAL), Media
MSWS-08R2-ENHV-RM Windows Svr 2008 R2 EN (1-8CPU, 25CAL), Media
MSWS-08R2-DCHV-RM Windows Svr 2008 R2 DC (1-8CPU, 25CAL), Media
CONFIGURING the SERVER
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
35
Page 36
CONFIGURING the SERVER
STEP 15 SELECT OPTIONAL VALUE-ADDED SOFTWARE
You can select from a variety of value-added software listed in Table 18.
Table 18 Value Added Software
Product ID (PID) PID Description
BMC-SE-4C BMC BladeLogic Standard Edition, 4 Cores, Support Required
BMC-SE-6C BMC BladeLogic Standard Edition, 6 Cores, Support Required
BMC-SE-8C BMC BladeLogic Standard Edition, 8 Cores, Support Required
BMC-SE-10C BMC BladeLogic Standard Edition, 10 Cores, Support Required
BMC-AE-4C BladeLogic Advanced Edition, 4 Cores, Support Required
BMC-AE-6C BMC BladeLogic Advanced Edition, 6 Cores, Support Required
BMC-AE-8C BMC BladeLogic Advanced Edition, 8 Cores, Support Required
BMC-AE-10C BMC BladeLogic Advanced Edition, 10 Cores, Support Required
BMC-002 BMC BladeLogic CM, Physical Server
BMC-012 BMC BPPM Per Server
VMW-VC5-STD-1A VMware vCenter 5 Standard for 1 Processor, 1 Year, Support Rqd
VMW-VC5-STD-2A VMware vCenter 5 Standard for 1 Processor, 2 Year, Support Rqd
VMW-VC5-STD-3A VMware vCenter 5 Standard for 1 Processor, 3 Year, Support Rqd
VMW-VC5-STD-4A VMware vCenter 5 Standard for 1 Processor, 4 Year, Support Rqd
VMW-VC5-STD-5A VMware vCenter 5 Standard for 1 Processor, 5 Year, Support Rqd
36
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 37
STEP 16 SELECT SERVICE and SUPPORT LEVEL
A variety of service options are available, as described in this section.
Unified Computing Warranty, No Contract
If you have noncritical implementations and choose no service contract, the following coverage
is supplied:
■ Three-year parts coverage.
■ Next business day (NBD) onsite parts replacement eight hours a day, five days a week.
■ 90-day software warranty on media.
■ Downloads of BIOS, drivers, and firmware updates.
■ UCSM updates for systems with Unified Computing System Manager. These updates include
minor enhancements and bug fixes that are designed to maintain the compliance of UCSM
with published specifications, release notes, and industry standards.
Please visit Cisco Unified Computing Warranty for more information on the Cisco Unified
Computing Warranty.
Unified Computing Warranty Plus Service
CONFIGURING the SERVER
For faster parts replacement than is provided with the standard Cisco Unified Computing System
warranty, Cisco offers the Cisco Unified Computing Warranty Plus Service. You can choose from
several levels of advanced parts replacement coverage, including onsite parts replacement in as
little as two hours. Warranty Plus provides remote access any time to Cisco support professionals
who can determine if a return materials authorization (RMA) is required. See
Table 19.
Table 19 UCS Computing Warranty Plus Service
Product ID (PID) On Site? Description
CON-UCW2-C22M3S No UC Warranty Plus 8x5x4
CON-UCW3-C22M3S No UC Warranty Plus 24x7x4
CON-UCW4-C22M3S No UC Warranty Plus 24x7x2
CON-UCW5-C22M3S Yes UC Warranty Plus 8X5XNBD
CON-UCW6-C22M3S Yes UC Warranty Plus 8X5X4
CON-UCW7-C22M3S Yes UC Warranty Plus 24x7x4
CON-UCW8-C22M3S Yes UC Warranty Plus 24x7x2
Unified Computing Support Service
For support of the entire Cisco Unified Computing System, Cisco offers the Cisco Unified
Computing Support Service. This service provides expert software and hardware support to help
sustain performance and high availability of the unified computing environment. Access to the
Cisco Technical Assistance Center (TAC) is provided around the clock, from anywhere in the
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
37
Page 38
CONFIGURING the SERVER
world. As a part of this service, Cisco will assist in issues i nvolving third-party software that have
been certified for use on the Cisco Unified Computing System
For Cisco UCS servers under Cisco Unified Computing System Manager (UCSM), you get Smart Call
Home, which provides proactive, embedded diagnostics and real-time alerts. For systems that
include Unified Computing System Manager, the support service includes downloads of UCSM
upgrades. The Unified Computing Support Service includes flexible hardware replacement
options, including replacement in as little as two hours. There is also access to Cisco's extensive
online technical resources to help maintain optimal efficiency and uptime of the unified
computing environment. You can choose a desired service listed in
Table 20 UCS Computing Support Service
Product ID (PID) On Site? Description
CON-UCS1-C22M3S No UC Support 8X5XNBD
CON-UCS2-C22M3S No UC Support 8X5X4
CON-UCS3-C22M3S No UC Support 24x7x4
CON-UCS4-C22M3S No UC Support 24x7x2
Table 20.
CON-UCS5-C22M3S Yes UC Support 8X5XNBD
CON-UCS6-C22M3S Yes UC Support 8X5X4
CON-UCS7-C22M3S Yes UC Support 24x7x4
CON-UCS8-C22M3S Yes UC Support 24x7x2
Unified Computing Drive Retention Service
With the Cisco Unified Computing Drive Retention (UCDR) Service, you can obtain a new disk
drive in exchange for a faulty drive without returning the faulty drive. In exchange for a Cisco
replacement drive, you provide a signed Certificate of Destruction (CoD) confirming that the
drive has been removed from the system listed, is no longer in service, and has been destroyed.
Sophisticated data recovery techniques have made classified, proprietary, and confidential
information vulnerable, even on malfunctioning disk drives. The UCDR service enables you to
retain your drives and ensures that the sensitive data on those drives is not compromised, which
reduces the risk of any potential liabilities. This service also enables you to comply with
regulatory, local, and federal requirements.
If your company has a need to control confidential, classified, sensitive, or proprietary data, you
might want to consider one of the Drive Retention Services listed in
Table 21.
NOTE: Cisco does not offer a certified drive destruction service as part of this
service.
38
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 39
Table 21 Drive Retention Service Options
CONFIGURING the SERVER
Service Description
UCS Mission Critical
Support Service
With Drive
Retention
UCS Support
Service With Drive
Retention
UCS Warranty Plus
With Drive
Retention
Service
Program Name
Service
Level GSP
Service Level Product ID (PID)
UC CRIT DR UCMD7 24x7x4 Onsite CON-UCMD7-C22M3S
UCMD8 24x7x2 Onsite CON-UCMD8-C22M3S
UC SUPP DR UCSD1 8x5xNBD CON-UCSD1-C22M3S
UCSD2 8x5x4 CON-UCSD2-C22M3S
UCSD3 24x7x4 CON-UCSD3-C22M3S
UCSD4 24x7x2 CON-UCSD4-C22M3S
UCSD5 8x5xNBD Onsite CON-UCSD5-C22M3S
UCSD6 8x5x4 Onsite CON-UCSD6-C22M3S
UCSD7 24x7x4 Onsite CON-UCSD7-C22M3S
UCSD8 24x7x2 Onsite CON-UCSD8-C22M3S
UC PLUS DR UCWD2 8x5x4 CON-UCWD2-C22M3S
UCWD3 24x7x4 CON-UCWD3-C22M3S
UCWD4 24x7x2 CON-UCWD4-C22M3S
UCWD5 8x5xNBD Onsite CON-UCWD5-C22M3S
UCWD6 8x5x4 Onsite CON-UCWD6-C22M3S
UCWD7 24x7x4 Onsite CON-UCWD7-C22M3S
UCWD8 24x7x2 Onsite CON-UCWD8-C22M3S
Mission Critical Support Service
This service delivers personalized technical account management, expedited technical support,
and expert field support engineering for the Cisco Unified Computing System (UCS).
The Mission Critical Support Service provides a designated technical account manager (TAM) who
acts as a strategic resource to help ensure that the unified computing environment runs at peak
efficiency. If a problem arises that threatens business continuity, the TAM provides crisis
management leadership, and your IT staff receives expedited access to Cisco's Technical
Assistance Center (TAC).
Mission Critical Support Service is a layered service available for all Cisco data center products
already support by a UCS Support Service or SMARTnet service contract. For further information
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
39
Page 40
CONFIGURING the SERVER
about Cisco Mission Critical Support Service, please visit Data Center Technical Support and
Operations Management CEC site and Service Description or contact your Cisco account
Manager.
For more service and support information, see this URL:
http://www.cisco.com/en/US/services/ps2961/ps10312/ps10321/Cisco_UC_Warranty_Support_DS.pdf
For a complete listing of available services for Cisco Unified Computing System, see this URL:
http://www.cisco.com/en/US/products/ps10312/serv_group_home.html
40
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 41
OPTIONAL STEP - ORDER RACK(s)
Notes . . .
The optional R42610 rack is available from Cisco for the C-Series servers, including the C22 M3
SFF server. This rack is a standard 19-inch rack and can be ordered with a variety of options, as
listed in
Table 22 Racks and Rack Options
Product ID (PID) PID Description
Table 22. Racks are shipped separately from the C22 M3 SFF server.
OPTIONAL STEP - ORDER RACK(s)
RACK-UCS
RACK-UCS2
1
1
Cisco R42610 expansion rack, no side panels
Cisco R42610 standard rack, w/side panels
RACK-BLANK-001 Filler panels (qty 12), 1U, plastic, toolless
RACK-CBLMGT-001 Cable mgt D rings (qty 10), metal
RACK-CBLMGT-011 Cable mgt straps (qty 10), Velcro
RACK-FASTEN-001 Mounting screws (qty 100), M6
RACK-FASTEN-002 Cage nuts (qty 50), M6
RACK-JOIN-001 Rack joining kit
1. Use these same base PIDs to order spare racks (available only as next-day replacements).
For more information about the R42610 rack, see RACKS, page 50.
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
41
Page 42
OPTIONAL STEP - ORDER PDU
OPTIONAL STEP - ORDER PDU
An optional power distribution unit (PDU) is available from Cisco for the C-Series rack servers,
including theC22 M3 server. This PDU is available in a zero rack unit (RU) style (see
Table 23 PDU Options
Product ID (PID) PID Description
RP208-30-2P-U-2 Zero RU PDU
For more information about the PDU, see PDUs, page 52.
Table 22).
42
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 43
SUPPLEMENTAL MATERIAL
CHASSIS
An internal view of the C22 M3 chassis with the top cover removed is shown in Figure 6.
Figure 6 C22 M3 SFF With Top Cover Off
2 3 5 74 6
SYS FAN1
SUPPLEMENTAL MATERIAL
1
1 Drives
(hot-swappable, accessed through front panel)
SYS FAN2
SYS FAN3
SYS FAN4
SYS FAN5
16
CPU 1
CPU 2
PCIe 1
PCIe 2
PSU 1
14
15
9 RTC battery on motherboard
13
8
9
10
11
12
285200
2 Front panel operations board 10 PCIe riser 2 (PCIe slot 2)
3 Drive backplane 11 Trusted platform module socket on
4 Cooling fans (five) 12 Power supply
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
motherboard (not visible under PCIe riser 2)
(accessed through rear panel)
43
Page 44
SUPPLEMENTAL MATERIAL
5 DIMM slots on motherboard (12) 13 Integrated SAS RAID connectors on
motherboard
(left to right, SCU_Port 0, SCU_Port 1)
6 CPU and heatsinks (2) 14 Software RAID 5 key header on
motherboard
7 PCIe riser 1 (PCIe slot 1) 15 RAID SCU option ROM header on
motherboard
8 Internal USB 2.0 port
(on motherboard under PCIe riser 1)
16 Mounting point for SuperCap power module
(RAID backup unit)
CPUs and DIMMs
Physical Layout
Each CPU has three DIMM channels:
■ CPU1 has channels A, B, and C
■ CPU2 has channels D, E, and F
Each DIMM channel has two banks: Bank 0 and Bank 1. The blue-colored DIMM banks are for Bank 0 and the
black-colored are for Bank 1.
As an example, DIMM slots A0, B0, and C0 belong to Bank 0, while A1, B1, and C1 belong to Bank 1.
Figure 7 shows how banks and channels are physically laid out on the motherboard. The DIMM slots on the
top (channels A, B, and C) are associated with CPU 1, while the DIMM slots on the bottom (channels D, E,
and F) are associated with CPU 2. Bank 0 slots (blue) are populated before Bank 1 slots (black).
44
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 45
Figure 7 Physical Layout of CPU DIMM Channels and Banks
285209
A0
A1
B0
B1
C0
C1
D0
D1
E0
E1
F0
F1
Front of Server
CPU1
CPU2
SUPPLEMENTAL MATERIAL
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
45
Page 46
SUPPLEMENTAL MATERIAL
Memory Population Rules
When considering the memory configuration of your server, you should consider the following items:
■ Each channel has two DIMM slots (for example, channel A = slots A0 and A1).
— Each channel can operate with one or two DIMMs installed.
— If a channel has only one DIMM, populate slot 0 first (the blue slot).
■ When both CPUs are installed, populate the DIMM slots of each CPU identically.
— Fill blue slots in the channels first: A0, D0, B0, E0, C0, F0
— Fill black slots in the channels second: A1, D1, B1, E1, C1, F1
■ Any DIMM installed in a DIMM socket for which the CPU is absent is not recognized.
■ For optimum performance, populate at least one DIMM per memory channel per CPU.
■ When populating DIMM slots, multiples of 6 DIMMs are best for achieving optimum
performance, since there are 3 memory channels per CPU socket and 2 CPUs must be
populated.
■ At 1 DPC and 2 DPC, 1600-MHz DIMMS will run at 1600 MHz (provided the CPU supports 1600
MHz DIMMs) and 1333-MHz DIMMs will run at 1333 MHz.
■ When mixing DIMMs, the following rules need to be followed:
— When mixing DIMMs of different densities (sizes), populate DIMMs with the highest
density first. For example, if you have to mix 16 GB with 8 GB DIMMs, populate 16
GB DIMMs in blue slots (or bank 0) and then 8 GB in black slots (or bank 1).
— When mixing DIMMs with different ranks, populate DIMMs with the higher rank first.
For example, populate 16 GB 2R or 8 GB 2R before 4 GB 1R DIMMs.
— DIMMs of different sizes (4 GB, 8 GB, 16 GB) can be mix ed across diff erent channels.
Total memory size in a single channel should be the same. For example, if you are
mixing 4 GB and 8 GB DIMMs to achieve total 72 GB (6x8 GB + 6x4 GB) for a server,
then populate blue slots with 8 GB DIMMs and black slots with 4 GB DIMMs and total
memory size should be 12 GB across all 3 channels for both CPUs.
— When mixing DIMMs, all the DIMMs in the server must be the same speed.
46
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 47
SUPPLEMENTAL MATERIAL
Notes . . .
Recommended Memory Population
This section explains the recommended DIMM population order rules for the C22 M3 server.
■ All DIMMs must be DDR3 DIMMs.
■ Mixing of Registered and Unbuffered DIMMs is not allowed per platform.
■ Do not mix 1333-MHz DIMMs with 1600-MHz DIMMs.
Follow Table 24 when populating DIMMs in the server.
Table 24 Recommended DIMM Population
CPU 1 CPU 2
Total
Memory
Size
Blue Slots
Bank 0
(A0, B0, C0)
Black Slots
Bank 1
(A1, B1, C1)
Blue Slots
Bank 0
(D0, E0, F0)
Black Slots
Bank 1
(D1, E1, F1)
Total DIMMs in
System
48 GB
1
3 x 4 GB 3 x 4 GB 3 x 4 GB 3 x 4 GB 12
3 x 8 GB — 3 x 8 GB — 6
72 GB 3 x 8 GB 3 x 4 GB 3 x 8 GB 3 x 4 GB 12
96 GB
2
3 x 8 GB 3 x 8 GB 3 x 8 GB 3 x 8 GB 12
3 x 16 GB — 3 x 16 GB — 6
120 GB 3 x 16 GB 3 x 4 GB 3 x 16 GB 3 x 4 GB 12
144 GB 3 x 16 GB 3 x 8 GB 3 x 16 GB 3 x 8 GB 12
192 GB 3 x 16 GB 3 x 16 GB 3 x 16 GB 3 x 16 GB 12
1. For 48 GB, there are two possible sweet spot configurations:
• 6 x 8 GB occupies 1 DPC, so there is a possibility of increasing total memory size in the system (beyond 48 GB) by
going to 2 DPC while still maintaining memory speed at 1600 MHz.
• If there is no plan to increase total memory size in the system (beyond 48 GB), then 12 x 4GB is more price
effective at this time.
2. For 96 GB, there are two possible optimal configurations:
• 6 x 16GB occupies 1 DPC, so there is a possibility of increasing total memory size in the system (beyond 96 GB)
by going to 2 DPC while maintaining the maximum memory speed at 1600 MHz.
• 12 x 8GB gives the peak performance for this configuration and is recommended if there is no plan of increasing
the total memory in the future.
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
47
Page 48
SUPPLEMENTAL MATERIAL
Notes . . .
Supported DIMM Populations
The supported DIMM populations are listed in Table 25.
Table 25 Supported DIMM Configurations
CPU 1 DIMMs
# CPU 1
DIMMs
CPU 1
Capacity
CPU 2 DIMMs
# CPU 2
DIMMs
CPU 2
Capacity
Total
DIMMs for
both CPUs
Total
Capacity
for 2 CPUs
1 x 4 GB 1 4 GB 1 x 4 GB 1 4 GB 2 8 GB
2 x 4 GB 2 8 GB 2 x 4 GB 2 8 GB 4 16 GB
1 x 8 GB 1 8 GB 1 x 8 GB 1 8 GB 2 16 GB
3 x 4 GB 3 12 GB 3 x 4 GB 3 12 GB 6 24 GB
4 x 4 GB 4 16 GB 4 x 4 GB 4 16 GB 8 32 GB
2 x 8 GB 2 16 GB 2 x 8 GB 2 16 GB 4 32 GB
1 x 16 GB 1 16 GB 1 x 16 GB 1 16 GB 2 32 GB
5 x 4 GB 5 20 GB 5 x 4 GB 5 20 GB 10 40 GB
6 x 4 GB 6 24GB 6 x 4 GB 6 24GB 12 48 GB
3 x 8 GB 3 24 GB 3 x 8 GB 3 24 GB 6 48 GB
4 x 8 GB 4 32 GB 4 x 8 GB 4 32 GB 8 64 GB
2 x 16 GB 2 32 GB 2 x 16 GB 2 32 GB 4 64 GB
3 x 8 GB + 3 x 4 GB
1
6
36 GB
3 x 8 GB + 3 x 4 GB
2
6
36 GB
12 72 GB
5 x 8 GB 5 40 GB 5 x 8 GB 5 40 GB 10 80 GB
6 x 8 GB 6 48 GB 6 x 8 GB 6 48 GB 12 96 GB
3 x 16 GB 3 48 GB 3 x 16 GB 3 48 GB 6 96 GB
3 x 16 GB + 3 x 4 GB
3
6
60 GB
3 x 16 GB + 3 x 4 GB
4
6
60 GB
12 120 GB
4 x 16 GB 4 64 GB 4 x 16 GB 4 64 GB 8 128 GB
3 x 8 GB + 3 x 16 GB
5
6
72 GB
3 x 8 GB + 3 x 16 GB
6
6
72 GB
12 144 GB
5 x 16 GB 5 80 GB 5 x 16 GB 5 80 GB 10 160 GB
6 x 16 GB 6 96 GB 6 x 16 GB 6 96 GB 12 192 GB
1. UCS-MR-1X082RY-A + UCS-MR-1X041RY-A
2. UCS-MR-1X082RY-A + UCS-MR-1X041RY-A
3. UCS-MR-1X162RY-A + UCS-MR-1X041RY-A
4. UCS-MR-1X162RY-A + UCS-MR-1X041RY-A
5. UCS-MR-1X082RY-A + UCS-MR-1X162RY-A
6. UCS-MR-1X082RY-A + UCS-MR-1X162RY-A
48
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 49
SUPPLEMENTAL MATERIAL
Low-Voltage DIMM Considerations
The C22 M3 server can be ordered with low-voltage (1.35 V) DIMMs only. Note the following considerations:
■ Low-voltage DIMMs within the server must have the identical manufacturer, type, speed,
and size.
■ Low-voltage DIMMs and standard-voltage DIMMs can be mixed in the same server. Note that
this causes the system BIOS to default to standard-voltage operation (Performance Mode).
That is, the server cannot operate in Power Saving Mode unless all DIMMs are low-voltage
DIMMs.
■ CPUs that have a maximum memory frequency less than 1333 MHz support low-voltage
DIMMs operating in Power Saving Mode only, and do not support Performance Mode.
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
49
Page 50
SUPPLEMENTAL MATERIAL
RACKS
The Cisco R42610 rack (see Figure 8) is certified for Cisco UCS installation at customer sites and is suitable
for the following equipment:
■ Cisco UCS B-Series servers and fabric interconnects
■ Cisco UCS C-Series and select Nexus switches
The rack is compatible with hardware designed for EIA-standard 19-inch racks. Rack specifications are
listed in
Table 26 Cisco R42610 Rack Specifications
Parameter Standard Rack Expansion Rack
Table 26.
Dimensions (H x W x D) 78.74 x 24 x 43.38 in.
(2000 x 610 x 1102 mm)
Dimensions (H x W x D)
with packaging
Distance from front
89 x 33 x 47 in.
(2261 x 838 x 1194 mm)
29.2 in (741 mm) 29.2 in (741 mm)
78.74 x 23.58 x 43.38 in.
(2000 x 599 x 1102 mm)
89 x 33 x 47 in.
(2261 x 838 x 1194 mm)
mounting rail to rear
mounting rail
Weight 299.83 lb (136 kg) 231. 49 lb (105 kg)
Weight with packaging 354 lb
(161 kg)
284 lb
(129 kg)
Side panels included Yes No
Equipment mounting
42RU 42RU
capacity
Static load capacity 2100 lb
(954 kg)
2100 lb
(954 kg)
Dynamic load capacity Not applicable Not applicable
NOTE: The AC input connector is an IEC 320 C-14 15 A/250 VAC power inlet.
50
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 51
Figure 8 Cisco R42610 Rack
Front view - door closed Front view - door open Front view - door removed
SUPPLEMENTAL MATERIAL
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
51
Page 52
SUPPLEMENTAL MATERIAL
PDUs
Cisco RP Series Power Distribution Units (PDUs) offer power distribution with branch circuit protection.
Cisco RP Series PDU models distribute power to up to 24 outlets. The architecture organizes power
distribution, simplifies cable management, and enables you to move, add, and change rack equipment
without an electrician.
With a Cisco RP Series PDU in the rack, you can replace up to two dozen input power cords with just one.
The fixed input cord connects to the power source from overhead or under-floor distribution. Your IT
equipment is then powered by PDU outlets in the rack using short, easy-to-manage power cords.
The C-series severs accept the zero-rack-unit (0RU) PDU. See Figure 9).
Figure 9 Zero Rack Unit PDU (PID = RP208-30-2P-U-2)
1 Breakers 3 C13 plugs
2 Ground connection 4 C19 plugs
Cisco RP Series PDU models provide two 20-ampere (A) circuit breakers for groups of receptacles. The
effects of a tripped circuit are limited to a receptacle group. Simply press a button to reset that circuit.
52
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 53
SUPPLEMENTAL MATERIAL
Motherboard USB Port
The C22 M3 SFF motherboard has one general-purpose USB socket as shown in Figure 10.
Figure 10 Motherboard USB Port
SYS FAN1
1 Internal USB 2.0 port
(on motherboard under PCIe riser 1)
SYS FAN2
SYS FAN3
SYS FAN4
SYS FAN5
CPU 1
CPU 2
- -
PCIe 1
1
PCIe 2
PSU 1
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
53
Page 54
SUPPLEMENTAL MATERIAL
HDD04
HDD05
LED Indicators
The server contains LED indicators on the front and rear panels. Their functions are described in the
following sections.
Front Panel
Figure 11 shows the front panel LEDs.
Figure 11 Front Panel LEDs
1 2 3 4 5 6 7 8 9
HDD01
HDD04
HDD04 HDD05
1 Power button/Power status LED 6 Power supply status LED
2 Identification button/LED 7 Network link activity LED
3 System status LED 8 Hard drive fault LED
4 Fan status LED 9 Hard drive activity LED
5 Temperature status LED - -
See Table 27 for the functions of the front panel LEDs.
Table 27 Front Panel LEDs
LED LED State Meaning
Power
(LED is integrated into
power button)
HDD05
Off Server power is off
On (amber) Server power is soft off (power is supplied only to the
HDD06
CIMC and some motherboard functions)
HDD02
HDD07
HDD03
HDD08
333247
On (green) Card power is on
Unit ID
(LED is integrated into
unit ID button)
54
Off Unit ID not active
On (blue) Unit ID is activated
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 55
Table 27 Front Panel LEDs (continued)
LED LED State Meaning
System Status Off Undefined
On (green) Server is in normal operating condition
On (amber) Server is in a degraded operational state. For example:
■ Power supply redundancy is lost.
■ CPUs are mismatched.
■ At least one CPU is faulty.
■ At least one DIMM is faulty.
■ At least one drive in a RAID configuration failed.
Blinking (amber) Server is in a critical fault state. For example:
■ Boot failed.
■ Fatal CPU and/or bus error is detected.
■ Server is in over-temperature condition
SUPPLEMENTAL MATERIAL
Fan S tatus Off Undefined
On (green) Fans are operating and no error condition has been
detected
On (amber) Fans are in a degraded operational state, indicating that
one of the fans has a fault.
Blinking (amber) Critical fault state, indicating that two or more fans
have a fault.
Temperature Status Off Undefined
On (green) System is operating at normal temperature and no error
conditions have been detected.
On (amber) One or more temperature sensors exceeded a warning
threshold.
Blinking (amber) One or more temperature sensors exceeded a critical
threshold
Power Supply Status Off Undefined
On (green) AC power supplies are operating and no error condition
has been detected.
On (amber) One or more power supplies are in a degraded
operational state.
Blinking (amber) One or more power supplies are in a critical fault state.
Network Link Status Off Undefined
On (green) Link pulses detected on any of the LOM ports, but no
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
activity.
55
Page 56
SUPPLEMENTAL MATERIAL
285202
PSU 1
PCIe 2 PCIe 1
1
2
3
4
5 7
6
Table 27 Front Panel LEDs (continued)
LED LED State Meaning
Blinking (green) Activity on any of the LOM ports
Hard Drive Fault Off The hard drive is operating properly
On (amber) The hard drive has failed
Blinking (amber) The hard drive is rebuilding
Hard Drive Activity Off There is no hard drive in the hard drive sled (no access,
no fault)
On (green) The hard drive is ready
Blinking (green) The hard drive is reading or writing data
Rear Panel
Figure 12 shows the rear panel LEDs.
Figure 12 Front Panel LEDs
1 Power supply fault LED 5 10/100/1000 Ethernet dedicated
management link status LED
2 Power supply AC OK LED 6 10/10 0/1 000 Ethernet dedicated
management link speed LED
3 1-Gb Ethernet link speed LED 7 Rear Identification button/LED
4 1-Gb Ethernet link status LED -
56
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 57
SUPPLEMENTAL MATERIAL
See Table 28 for the functions of the rear panel LEDs.
Table 28 Rear Panel LEDs
LED LED State Meaning
Power Supply Fault Off The power supply is operating normally
Blinking (amber) An event warning threshold has been reached, but the
power supply continues to operate
On (amber) A critical fault threshold has been reached, causing the
power supply to shut down (for example, a fan failure or
an over-temperature condition).
Power Supply AC Off There is no AC power to the power supply
Blinking (green) AC power OK, DC output not enabled
On (green) AC power OK, DC outputs OK
1GbE Link Speed Off Link Speed = 10 MbpS
On (amber) Link Speed = 100 MbpS
On (green) Link Speed = 1 GbpS
1GbE Link Status Off No Link
On (green) Link is active
Blinking (green) Traffic is present on the active link
10/100/1000 Base-T
Off No Link
Link Status
On (green) Link is active
Blinking (green) Traffic is present on the active link
10/100/1000 Base-T
Off Link Speed = 10 Mbps
Link Speed
On (amber) Link Speed = 100 Mbps
On (green) Link Speed = 1 Gbps
Unit ID
Off Unit ID not active
(LED is integrated into
unit ID button)
On (blue) Unit ID is activated
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
57
Page 58
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Dimensions and Weight
Table 29 UCS C22 M3 Dimensions and Weight
Parameter Value
Height 1.70 in (43.2 mm)
Width 16.93 in.(430 mm)
Depth 26.0 in. (660.4 mm)
Front Clearance 3 in. (76 mm)
Side Clearance 1 in. (25 mm)
Rear Clearance 9 in. (233 mm)
Weight
Maximum (8 HDDs, 2 CPUs, 12 DIMMs, 1 power supply) 27.78 lbs (12.6 kg)
Bare (0 HDD, 0 CPU, 0 DIMM, no power supply) 23.48 lbs (10.65 kg)
Power Specifications
The general power specifications for the C22 M3 SFF server 450 W power supply are listed in Table 30.
Table 30 UCS C22 M3 SFF 450 W Power Supply Specifications
Description Specification
AC input voltage 90 to 264 VA C self- ranging
100 to 120 VAC nominal
200 to 240 VAC nominal
AC input frequency Range: 47 to 63 Hz (single phase, 50 to 60 Hz nominal)
Maximum AC input current 6 A maximum at 100 VAC
3 A maximum at 208 VAC
Maximum AC inrush current 9 A peak @ 35° C, 208 VAC
Maximum output power for the
power supply
450 W
Power supply output voltage Main power: 12 VDC
Power supply efficiency CSCI Platinum
58
Standby power: 12 VDC
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 59
TECHNICAL SPECIFICATIONS
NOTE: AC input connector is an IEC 320 C-14 15A/250VAC power inlet.
The general power specifications for the C22 M3 SFF server 650 W power supply are listed in Table 30.
Table 31 UCS C22 M3 SFF 650 W Power Supply Specifications
Description Specification
AC input voltage 90 to 264 VA C self- ranging,
100 to 120 VAC nominal
200 to 240 VAC nominal
AC input frequency Range: 47 to 63 Hz (single phase, 50 to 60 Hz nominal)
Maximum AC input current 7.6 A maximum at 100 VAC
3.65 A maximum at 208 VAC
Maximum AC inrush current 11 A peak @ 35° C, 208 VAC
Maximum output power for the
650 W
power supply
Power supply output voltage Main power: 12 VDC
Standby power: 12 VDC
Power supply efficiency CSCI Platinum
NOTE: AC input connector is an IEC 320 C-14 15A/250VAC power inlet.
For configuration-specific power specifications, use the Cisco UCS Power Calculator at this URL:
https://express.salire.com/Go/Cisco/Cisco-UCS-Power-Calculator.aspx
Environmental Specifications
The power specifications for the C22 M3 server are listed in Table 32.
Table 32 UCS C22 M3 Environmental Specifications
Parameter Minimum
Temperature operating 41 to 104° F (5 to 40° C)
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
derate the maximum temperature by 1°C per every 305m of
altitude above sea level
59
Page 60
TECHNICAL SPECIFICATIONS
Table 32 UCS C22 M3 Environmental Specifications
Parameter Minimum
Temperature nonoperating –40 to 149°F (–40 to 65°C)
Humidity (RH) nonoperating,
10 to 90%
non-condensing
Altitude operating 0 to 3,000 m (0 to 10,000 ft.)
Altitude nonoperating 0 to 12,192 m (0 to 40,000 ft.)
Sound Power level, Measure
5.9
A-weighted per ISO7779 LWAd (Bels)
Operation at 73°F (23°C)
Sound Pressure level, Measure
46
A-weighted per ISO7779 LpAm (dBA)
Operation at 73°F (23°C)
60
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Page 61
TECHNICAL SPECIFICATIONS
Compliance Requirements
The regulatory compliance requirements for C-Series servers are listed in Table 33.
Table 33 UCS C-Series Regulatory Compliance Requirements
Parameter Description
Regulatory Compliance Products should comply with CE Markings per directives
2004/108/EC and 2006/95/EC
Safety UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
AS/NZS 60950-1
GB4943 2001
EMC - Emissions 47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A
EMC - Immunity EN55024
CISPR24
EN300386
KN24
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
61
Page 62
TECHNICAL SPECIFICATIONS
62
Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
Loading...
