Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Spec Sheet

CISCO SYSTEMS PUBLICATION HISTORY

170 W

EST TASMAN DR.

AN JOSE, CA, 95134 REV A.13 APRIL 25, 2014

WWW.CISCO.COM

Page 2

CONTENTS

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

DETAILED VIEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chassis Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Chassis Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

BASE SERVER STANDARD CAPABILITIES and FEATURES . . . . . . . . . . . . . . . . . 6

CONFIGURING the SERVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

STEP 1 VERIFY BASE SKU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

STEP 2 CHOOSE CPU(S) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

STEP 3 CHOOSE MEMORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

STEP 4 CHOOSE RAID CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

STEP 5 ORDER SAS EXPANDER AS NEEDED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

STEP 6 CHOOSE HARD DISK DRIVES or SOLID STATE DRIVES . . . . . . . . . . . . . . . . . . . . . . 21

STEP 7 CHOOSE PCIe OPTION CARD(S) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

STEP 8 ORDER OPTIONAL NETWORK CARD ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . 25

STEP 9 CHOOSE OPTIONAL DVD-RW DRIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

STEP 10 ORDER OPTIONAL REDUNDANT POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . 29

STEP 11 CHOOSE AC POWER CORDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

STEP 12 ORDER TOOL-LESS OPTIONAL RAIL KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

STEP 13 ORDER OPTIONAL CABLE MANAGEMENT ARM . . . . . . . . . . . . . . . . . . . . . . . . . . 34

STEP 14 ORDER A TRUSTED PLATFORM MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

STEP 15 CHOOSE OPERATING SYSTEM AND VALUE-ADDED SOFTWARE . . . . . . . . . . . . . . . 36

STEP 16 CHOOSE OPERATING SYSTEM MEDIA KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

STEP 17 CHOOSE SERVICE and SUPPORT LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

OPTIONAL STEP - ORDER RACK(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

OPTIONAL STEP - ORDER PDU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

SUPPLEMENTAL MATERIAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

CHASSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

CPUs and DIMMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Physical Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Memory Population Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Low-Voltage DIMM Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Recommended Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Configuration Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

SAS EXTENDER and SAS EXPANDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

SAS Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

SAS Expander . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

RACKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

POWER SUPPLIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

KVM CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Motherboard USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Compliance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 3

OVERVIEW

Front View

Rear View

OVERVIEW

The Cisco® UCS C210 M2 server is a general-purpose, two-socket, two rack-unit (2RU) rack server that builds on the success of the UCS C210 M1 server. The UCS C210 M2 server (shown in capabilities of the Cisco Unified Computing System™. The server uses Intel's latest Xeon 5600 Series multicore processors with 12 DIMM slots, 5 PCIe slots, embedded dual-port gigabit Ethernet controller, and up to 16 2.5-inch SAS/SATA hot-swappable hard disk drives (HDDs) or solid-state drives (SSDs).

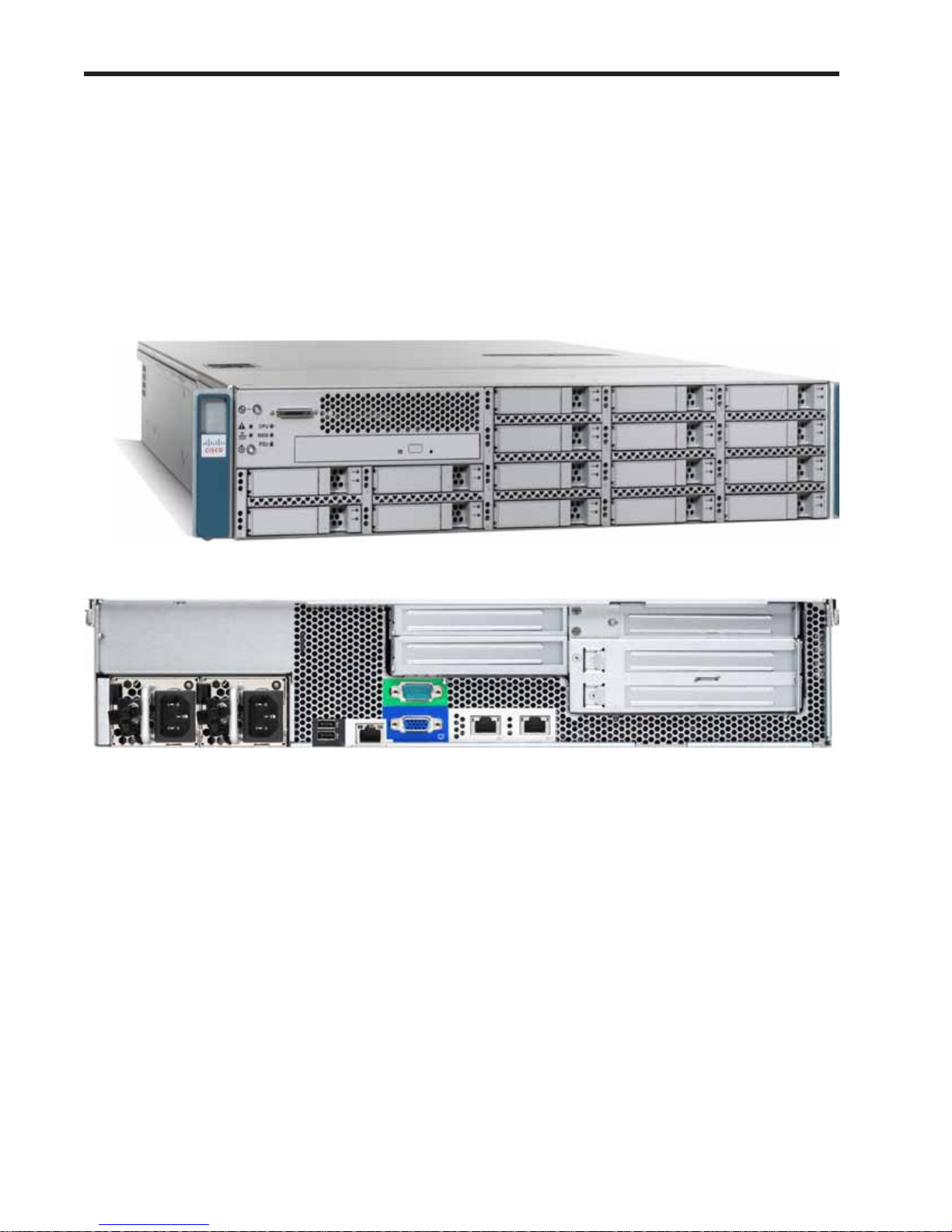

Figure 1 Cisco UCS C210 M2 High-Density Rack Server

Figure 1) extends the

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 4

DETAILED VIEWS

Chassis Front View

Figure 2 shows the Cisco UCS C210 M2 General-Purpose Rack Server.

Figure 2 Chassis Front View

1 Locator LED/Locator Button 6 Memory fault LED 2 Network Activity LED 7 Power supply fault LED 3 System fault LED 8 Console connector (with supplied KVM cable,

provides DB15 video, DB9 serial, and two USB 2.0 connectors)

4 Power button/Power status LED 9 DVD-RW drive, with dual-layer (DL) media

support (optional)

5 CPU fault LED 10 Hard drives (up to 16 2.5” HDD)

For more information regarding the KVM cable connection, see KVM CABLE on page 57.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 5

Chassis Rear View

Figure 3 shows the external features of the rear panel.

Figure 3 Chassis Rear View

1 Power supply (up to 2) 5 Serial connector (DB9)

DETAILED VIEWS

2 USB 2.0 connectors (2) 6 10/100/1000 Megabit Ethernet ports (2) 3 10/100 Ethernet management port (RJ-45) 7 Standard-profile PCIe card slots (five total)

4 Video connector (DB15 VGA)

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 6

BASE SERVER STANDARD CAPABILITIES and FEATURES

Table 1 lists the capabilities and features of the base server. Details about how to configure the server for

a particular feature or capability (for example, number of processors, disk drives, or amount of memory) are provided in

Table 1 Capabilities and Features

Capability/Feature Description

Chassis Two rack unit (2RU) chassis

CPU Up to two quad-core Intel® Xeon® 5500 or 5600 series processors

Chipset Intel® 5520 (Tylersburg) chipset

Memory 12 slots for registered ECC DIMMS (up to 192 GB), supporting Intel SDDC

NIC Embedded dual-port Intel 82576NS PCIe-based Gigabit Ethernet controller

Expansion slots Five PCIe slots (on a riser card)

CONFIGURING the SERVER on page 8.

■ Slots 1 and 4 are full-height, full length, x8 lane, with a x16 connector

■ Slots 2, 3, and 5 are full-height, half-length, x8 lane, with a x16

connector

Storage controller One of the following:

■ An onboard SATA RAID 0/1 controller integrated on motherboard

(Intel ICH10R) that can control up to four SATA drives (only), or

■ An optional RAID mezzanine card:

• LSI® 1064E 4-port controller mezzanine card (RAID levels 0, 1, or 1E) for up to 4 internal SAS or SATA drives with the factory default SAS Extender or the optional SAS Expander installed, or

■ One of these optional RAID PCIe plug-in cards (installed in PCIe slot #4):

• LSI 6G MegaRAID SAS 9280-4i4e controller (RAID levels 0, 1, 5, 6, 10, 50, or 60 support) for up to 4 internal SAS or SATA drives (no mixing) with the factory default SAS Extender, plus external JBOD expansion, or

• LSI 6G MegaRAID SAS 9261-8i controller (RAID levels 0, 1, 5, 6, 10, 50, or 60 support) for up to 8 internal SAS or SATA drives with the factory default SAS Extender, or up to 16 SAS or SATA drives with a SAS Expander installed

Video ■ 1280 x 1024 resolution

■ 32-bit color depth

■ 8 MB video memory

Internal storage devices ■ Up to 16 2.5-inch SAS or SATA hot-swappable hard disk drives (HDDs) or

solid state drives (SSDs)

■ USB socket on motherboard

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 7

BASE SERVER STANDARD CAPABILITIES and FEATURES

Capability/Feature Description

Interfaces ■ Rear panel

• One DB9 serial port connector

• Two USB 2.0 port connectors

• One DB15 VGA connector

• Two RJ-45 10/100/1000 Ethernet port connectors

• One RJ-45 10/100 Ethernet management port

■ Front panel

• One KVM console connector

Front Panel ■ Optional DVD-RW optical drive, with dual-layer (DL) media support

Power subsystem Up to two 650 W power supplies (N+1 or nonredundant configuration options)

Fans Chassis:

■ Three 80-mm redundant fans

Power supply:

■ Each power supply is equipped with a fan.

Integrated management processor

Cisco Integrated Management Controller (CIMC) (with integrated video, KVM redirection, Security Intelligence Operations (SIO), fan speed control, Platform Environment Control Interface (PECI), and voltage monitoring)

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 8

CONFIGURING the SERVER

CONFIGURING the SER VER

Follow these steps to configure the Cisco UCS C210 M2 General-Purpose Rack Server:

■ STEP 1 VERIFY BASE SKU, page 9

■ STEP 2 CHOOSE CPU(S), page 10

■ STEP 3 CHOOSE MEMORY, page 13

■ STEP 4 CHOOSE RAID CONFIGURATION, page 17

■ STEP 5 ORDER SAS EXPANDER AS NEEDED, page 20

■ STEP 6 CHOOSE HARD DISK DRIVES or SOLID STATE DRIVES, page 21

■ STEP 7 CHOOSE PCIe OPTION CARD(S), page 23

■ STEP 8 ORDER OPTIONAL NETWORK CARD ACCESSORIES, page 25

■ STEP 9 CHOOSE OPTIONAL DVD-RW DRIVE, page 28

■ STEP 10 ORDER OPTIONAL REDUNDANT POWER SUPPLY, page 29

■ STEP 11 CHOOSE AC POWER CORDS, page 30

■ STEP 12 ORDER TOOL-LESS OPTIONAL RAIL KIT, page 33

■ STEP 13 ORDER OPTIONAL CABLE MANAGEMENT ARM, page 34

■ STEP 14 ORDER A TRUSTED PLATFORM MODULE, page 35

■ STEP 15 CHOOSE OPERATING SYSTEM AND VALUE-ADDED SOFTWARE, page 36

■ STEP 16 CHOOSE OPERATING SYSTEM MEDIA KIT, page 39

■ STEP 17 CHOOSE SERVICE and SUPPORT LEVEL, page 40

■ OPTIONAL STEP - ORDER RACK(s) on page 44

■ OPTIONAL STEP - ORDER PDU on page 45

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 9

STEP 1 VERIFY BASE SKU

Verify the product ID (PID) of the base server as shown in Table 2.

Table 2 PID of the Base C210 M2 Rack Server

Product ID (PID) Description

R210-2121605W UCS C210 M2 Srvr w/1PSU, w/o CPU, mem, HDD, DVD or PCIe card

The R210-2121605W base server:

■ Includes one power supply.

■ Does not include CPU, memory, hard disk drives (HDDs), Solid-State Drives (SSDs), plug-in

PCIe cards, or optional DVD-RW drive.

NOTE: Use the steps on the following pages to configure the server with the components that you want to include.

CONFIGURING the SERVER

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 10

CONFIGURING the SERVER

Notes . . .

STEP 2 CHOOSE CPU(S)

The standard CPU features are:

■ Intel Xeon 5600-series (Westmere-EP) or Intel Xeon 5500-series (Nehalem) CPUs

■ Intel 5520 chipset

■ Cache size of 4, 8, or 12 MB

Choose CPUs

The available CPUs are listed in Table 3.

Table 3 Available CPUs: Intel Xeon Westmere-EP x56xx Family

Product ID (PID)

Intel

Number

Clock

Freq

(GHz)

Power

(W)

Cache

Size (MB)

Cores QPI

Highest DDR3 DIMM

Clock Support (MHz)

A01-X0117 X5675 3.06 95 12 6 6.4 GT/s 1333

A01-X0102 X5670 2.93 95 12 6 6.4 GT/s 1333

A01-X0105 X5650 2.66 95 12 6 6.4 GT/s 1333

A01-X0109 E5640 2.66 80 12 4 5.86 GT/s 1066

A01-X0120 E5649 2.53 80 12 6 5.86 GT/s 1333

UCS-CPU-E5645 E5645 2.40 80 12 6 5.86 GT/s 1333

A01-X0111 E5620 2.40 80 12 4 5.86 GT/s 1066

A01-X0106 L5640 2.26 60 4 6 5.86 GT/s 1333

A01-X0107 L5630 2.13 40 12 4 5.86 GT/s 1066

A01-X0123 E5606 2.13 80 8 4 4.8 GT/s 1066

A01-X0108 L5609 1.86 40 12 4 4.8 GT/s 1066

1. If higher or lower speed DIMMs are selected than what is shown in the table for a given CPU, the DIMMs will be clocked at the lowest common denominator of CPU clock and DIMM clock. For example:

Selecting lower-speed DIMMs

DIMMs, the DIMMs will be clocked at the lower speed of 1066 MHz.

Selecting higher-speed DIMMs:

DIMMs), the DIMMS will be clocked at the lower speed of 1066 MHz.

: If you use an X5650 CPU (which can support up to 1333-MHz DIMMs) with 1066-MHz

If you use 1333-MHz DIMMs with an E5620 CPU (which can support up to 1066-MHz

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 11

The available 5500-series CPUs are listed in Table 4.

Notes . . .

Table 4 Available Intel CPUs: Xeon Nehalem x55xx Family

CONFIGURING the SERVER

Product ID (PID)

Intel

Number

Clock

Freq

(GHz)

Power

(W)

Cache

Size (MB)

Cores QPI

Highest DDR3 DIMM

Clock Support (MHz)

N20-X00001 X5570 2.93 95 8 4 6.4 GT/s 1333

N20-X00006 X5550 2.66 95 8 4 6.4 GT/s 1333

N20-X00002 E5540 2.53 80 8 4 5.86 GT/s 1066

N20-X00003 E5520 2.26 80 8 4 5.86 GT/s 1066

N20-X00004 L5520 2.26 60 8 4 5.86 GT/s 1066

N20-X00009 E5504 2.00 80 4 4 4.8 GT/s 800

A01-X0113 E5506 2.13 80 4 4 4.8 GT/s 800

1. If higher or lower speed DIMMs are selected than what is shown in the table for a given CPU, the DIMMs will be clocked at the lowest common denominator of CPU clock and DIMM clock. For example:

Selecting lower-speed DIMMs

DIMMs, the DIMMs will be clocked at the lower speed of 1066 MHz.

Selecting higher-speed DIMMs:

DIMMs), the DIMMS will be clocked at the lower speed of 800 MHz.

: if you use an X5570 CPU (which can support up to 1333-MHz DIMMs) with 1066-MHz

If you use 1333-MHz DIMMs with an E5506 CPU (which can support up to 800-MHz

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 12

CONFIGURING the SERVER

Approved Configurations

(1) Single-CPU configurations:

■ Choose any one CPU listed in Table 3 on page 10 or Table 4 on page 11.

(2) Two-CPU Configurations:

■ Choose two identical CPUs from any one of the rows of Table 3 on page 10 or Table 4 on

page 11.

Caveats

■ You can select either one processor or two identical processors.

■ For optimal performance, select DIMMs with the highest clock speed for a given processor

(see

Table 5 on page 14). If you select DIMMs whose speeds are lower or higher than that

shown in the tables, suboptimal performance will result.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 13

STEP 3 CHOOSE MEMORY

The standard memory features are:

■ DIMMs

— Clock speed: 800 MHz, 1066 MHz, or 1333 MHz

— Ranks per DIMM: 1, 2, or 4

— Operational voltage: single voltage (1.5 V) or dual voltage (1.35 V/1.5 V)

—Registered

■ DDR3 ECC registered DIMMs (RDIMMs), supporting Intel SDDC

■ Memory is organized with three memory channels per CPU, with up to two DIMMs per

channel (DPC), as shown in

Figure 4 C210 M2 Memory Organization

Figure 4.

CONFIGURING the SERVER

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 14

CONFIGURING the SERVER

Choose DIMMs and Memory Mirroring

Choose the memory configuration and whether or not you want the memory mirroring option. The available memory DIMMs and mirroring option are listed in

NOTE: When memory mirroring is enabled, the memory subsystem simultaneously writes identical data to two channels. If a memory read from one of the channels returns incorrect data due to an uncorrectable memory error, the system automatically retrieves the data from the other channel. A transient or soft error in one channel does not affect the mirrored data, and operation continues unless there is a simultaneous error in exactly the same location on a DIMM and its mirrored DIMM. Memory mirroring reduces the amount of memory available to the operating system by 50% because only one of the two populated channels provides data.

Table 5 Available DDR3 DIMMs

Table 5.

Product ID (PID) PID Description Voltage

DIMM Options

UCS-MR-1X041RX-A 4GB DDR3-1333-MHz RDIMM/PC3-10600/1R/1.35v 1.35 1

UCS-MR-1X082RY-A 8GB DDR3-1600-MHz RDIMM/PC3-12800/2R/x4/dual voltage 1.35/1.5 V 2

UCS-MR-1X162RY-A 16GB DDR3-1600-MHz RDIMM/PC3-12800/2R/x4/1.5v 1.35/1.5 V 4

Memory Mirroring Option

N01-MMIRROR Memory mirroring option

Approved Configurations

(1) 1-CPU configuration without memory mirroring:

■ Choose from one to six DIMMs (note that there are six DIMM slots per CPU)

(2) 1-CPU configuration with memory mirroring:

■ Choose either two or four DIMMs. The DIMMs will be placed by the factory as shown in the

following table:

Ranks/D IMM

Number of

DIMMs

2 1 DIMM in Channel A, 1 DIMM in Channel B

4 2 DIMMs in Channel A, 2 DIMMs in Channel B

■ Choose the memory mirroring option (N01-MMIRROR) as shown in Table 5 on page 14.

DIMM Placement in Channels

(Channel C is not used with memory mirroring)

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 15

CONFIGURING the SERVER

(3) 2-CPU configuration without memory mirroring:

■ Choose from 1 to 6 DIMMs per CPU (from 2 to 12 total DIMMs)

(4) 2-CPU configuration with memory mirroring:

■ Choose 2, 4, 6, or 8 DIMMs per CPU. The DIMMs will be placed by the factory as shown in the

following table

Number of

DIMMs

(Channels C and F are not used with memory mirroring)

DIMM Placement

2 CPU 1: 1 DIMM in Channel A CPU 2: 1 DIMM in Channel D

4 CPU 1: 2 DIMMs in Channel A CPU 2: 2 DIMMs in Channel D

6 CPU 1:

2 DIMMs in Channel A 1 DIMM in Channel B

8 CPU 1:

2 DIMMs in Channel A 2 DIMMs in Channel B

■ Choose the memory mirroring option (N01-MMIRROR) as shown in Table 5 on page 14.

CPU 2: 2 DIMMs in Channel D 1 DIMM in Channel E

CPU 2: 2 DIMMs in Channel D 2 DIMMs in Channel E

NOTE: System performance is optimized when the DIMM memory type and the DIMM quantity is equal for both CPUs.

Caveats

■ DIMM voltage:

— You can mix dual voltage DIMMs (operate at either 1.5 V or 1.35 V) and single voltage

DIMMs (operate at only 1.5 V).

— Dual-voltage DIMMs can be operated in either of these modes:

• Power Saving Mode at a maximum speed of 1066 MHz

• Performance Mode at a maximum speed of 1333 MHz

If you mix both types of DIMMs in your configuration, the server forces all DIMMs to

operate in Performance Mode.

■ Memory mirroring:

If you choose the Memory RAS option, be aware that it is available only with an even

number of memory channels. For example, if you choose six DIMMs and select RAS,

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 16

CONFIGURING the SERVER

mirroring will go into effect on only two channels with two DIMMS per channel (you cannot implement RAS on three channels). In this case, two DIMMS would go unused.

For more information regarding memory, see CPUs and DIMMs on page 47.

NOTE: For memory mirroring, DIMM pairing across buses must be identical. If you only have two DIMMs, they need to be the same PID because you have one DIMM on each of two buses.

If you have four DIMMs in a 2-CPU system, for example, you can have two 4-GB and two 8-GB DIMMs. One 4-GB/8-GB DIMM pair would located on Channel A of CPU 1, and one 4-GB/8-GB DIMM pair would be located on Channel D of CPU 2.

If you have four DIMMs in a 1-CPU system, for example, you can have two 4-GB and two 8-GB DIMMs. One 4-GB/8-GB DIMM pair would located on Channel A of CPU 1, and one 4-GB/8-GB DIMM pair would be located on Channel B of CPU 1.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 17

STEP 4 CHOOSE RAID CONFIGURATION

The base server motherboard comes with an integrated SATA RAID 0/1 controller, which supports up to 4 SATA drives only (the integrated controller does not support SAS drives). Therefore, a separate plug-in PCIe controller card is not required when ordering SATA drives and a RAID 0 or 1 configuration is desired.

You can use the built-in SATA RAID 0/1 controller as described in the preceding paragraph or you can instead choose to implement a RAID configuration by using the optional mezzanine card on the server motherboard or by using an optional plug-in PCIe RAID controller card.

Cisco can provide factory-configured RAID 0, 1, 1E, 5, 6, and 10 systems depending on the RAID implementation chosen and the number of drives ordered. Factory-configured RAID options are listed at the end of 9261-8i, but are not factory configurable.

Choose RAID Options

Choose one RAID controller, one RAID configuration option, and, if desired, the battery backup option listed in

Table 6. Note that RAID levels 50 and 60 are supported on the 9280-4i4e and

Table 6.

CONFIGURING the SERVER

Table 6 Available RAID Options

Product ID (PID) PID Description

RAID Controllers

R2X0-ML002 LSI 1064E 4-port SAS 3.0G RAID Mezzanine Card

■ Installed on the mezzanine connector inside the UCS C210 M2 server

■ Supports up to four SAS or SATA drives with the factory default SAS Extender

or the optional SAS Expander installed. You cannot mix SSD and HDD drive types. You cannot mix SAS and SATA drives.

■ No battery backup

■ Factory-configured RAID options: RAID 0, 1, or 1E

UCSC-RAID-C-4I4E LSI MegaRAID SAS 9280-4i4e, four internal and four external ports

■ Takes up one of five available PCIe slots (must be installed in slot #4)

■ Supports up to 4 internal SAS or SATA drives (no mixing) plus external JBOD

expansion with the factory default SAS Extender installed. You cannot mix SSD and HDD drive types

■ Battery backup option available (see the battery backup PID section in this

table)

■ Factory-configured RAID options: RAID 0, 1, 5, 6, 10 (see the RAID PIDs

section in this table)

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 18

CONFIGURING the SERVER

Table 6 Available RAID Options (continued)

Product ID (PID) PID Description

R2XX-PL003 LSI MegaRAID SAS 9261-8i (RAID 0, 1, 5, 6, 10)

■ Takes up one of five available PCIe slots (must be installed in slot #4)

■ Supports up to eight internal SAS or SATA drives with the factory default SAS

Extender installed. You can mix SAS and SATA drive types, but you cannot mix HDD and SSD drive types.

■ Supports up to 16 internal SAS or SATA drives with the optional SAS Expander

installed. You can mix SAS and SATA drive types, but you cannot mix HDD and SSD drive types.

■ Includes 512 MB of write cache

■ Battery backup option available (see the battery backup PID section in this

table)

■ Factory-configured RAID options: RAID 0, 1, 5, 6, 10 (see the RAID PIDs

section in this table)

RAID Battery Backup Option (not available with mezzanine card)

R2XX-LBBU2 Battery Backup

RAID Configuration (note: Mezzanine card supports only RAID 0, 1, and 1E)

R2XX-RAID0 Factory pre-configured RAID striping option

Enable RAID 0 Setting. Requires a minimum of 1 hard drive.

R2XX-RAID1 Factory pre-configured RAID mirroring option

Enable RAID 1 Setting. Requires exactly 2 drives, with same size, speed, capacity.

R2XX-RAID5 Factory pre-configured RAID option

Enable RAID 5 Setting. Requires minimum 3 drives of same size, speed, capacity.

R2XX-RAID6 Factory pre-configured RAID option

Enable RAID 6 Setting. Requires minimum 4 drives of same size, speed, capacity.

R2XX-RAID10 Factory pre-configured RAID option

Enable RAID 10 Setting. Requires an even number of drives (minimum 4 drives) of same size, speed, capacity.

NOTE: No RAID option can be chosen if you have one of the following configurations:

• A mix of SAS and SATA drives

•No drives

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 19

CONFIGURING the SERVER

Approved Configurations

(1) Integrated SATA RAID 0/1 controller

■ Choose none of the options listed in Table 6. In this case, the integrated RAID 0/1 controller

will be used.

(2) Optional RAID controller

■ Choose one of the RAID controllers options (with or without battery backup) listed in

Table 6.

(3) Optional RAID configuration

■ Choose one of the RAID configuration options listed in Table 6.

NOTE: If an optional RAID configuration is not chosen, the disks will be configured as a JBOD.

Caveats

■ The MegaRAID cards (LSI MegaRAID SAS 9280-4i4e or LSI MegaRAID SAS 9261-8i) must be

installed in PCIe slot #4. Refer to

■ If you choose the mezzanine RAID controller card, you will still have all five PCIe slots

Figure 3 on page 5 for PCIe slot numbering.

available for adding optional cards.

■ The two optional plug-in RAID controllers are each half-height PCIe cards. If you choose one

of these optional cards, you will still have four slots available for adding optional PCIe cards.

■ You can choose only one RAID controller (integrated controller, mezzanine card controller, or

one plug-in PCIe controller).

■ You can choose an optional RAID configuration (RAID 0, 1, 5, 6, or 10), which is

pre-configured at the factory. If you do not choose a RAID configuration, the disks will be configured as a JBOD.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 20

CONFIGURING the SERVER

STEP 5 ORDER SAS EXPANDER AS NEEDED

You must order a SAS Expander if the system will have more than eight disk drives or you plan to upgrade to over eight disk drives in the future.

If you do not select a SAS Expander, the SAS Extender comes standard with the UCS C210 M2 server chassis. The SAS Extender supports up to eight disk drives. The SAS Extender option is not field upgradeable to a SAS Expander. Both the SAS Extender and SAS Expander, however, are field-replaceable. You can replace an extender or expander only with the same type of card.

If desired, select the SAS Expander listed in Table 7.

Table 7 SAS Expander

Product ID (PID) Description

R210-SASXPAND SAS Pass-Thru Expander (srvr requiring > 8 HDDs)

For more information about the SAS Expander and SAS Extender, see SAS EXTENDER and SAS

EXPANDER on page 52.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 21

STEP 6 CHOOSE HARD DISK DRIVES or SOLID STATE DRIVES

The standard disk drive features are:

■ 2.5-inch small form factor

■ Hot-pluggable

■ Sled-mounted

Choose Drives

The available drives are listed in Table 8.

Table 8 Available Hot-Pluggable Sled-Mounted HDDs and SSDs

CONFIGURING the SERVER

Product ID (PID) PID Description

Drive Type

Capacity

HDDs

A03-D146GC2 146GB 6 Gb SAS 15K RPM SFF SAS 146 GB

A03-D300GA2 300 GB 6 Gb SAS 10K RPM SFF HDD SAS 300 GB

UCS-HDD300GI2F105 300GB 6Gb SAS 15K RPM SFF HDD SAS 300 GB

A03-D500GC3 500 GB 6 Gb SATA 7.2K RPM SFF SATA 500 GB

A03-D600GA2 600 GB 6 Gb SAS 10K RPM SFF HDD SAS 600 GB

UCS-HDD900GI2F106 900GB 6Gb SAS 10K RPM SFF HDD SAS 900 GB

A03-D1TBSATA 1 TB 6 Gb SATA 7.2K RPM SFF HDD SATA 1 TB

SSDs

UCS-SSD100GI1F104 NEW 100GB SATA SSD SFF (STEC) SATA 100 GB

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 22

CONFIGURING the SERVER

Approved Configurations

(1) Integrated SATA RAID 0/1 controller

■ Select up to 4 SATA (only) drives listed in Table 8. You cannot mix HDD and SDD SATA drive

types.

(2) LSI 1064E 4-port SAS 6.0G RAID Mezzanine card RAID controller

■ Select up to four SAS or SATA drives listed in Table 8. You cannot mix HDD and SSD drives.

You cannot mix SAS and SATA drive types.

(3) LSI MegaRAID SAS 9280-4i4e RAID controller

■ Select up to four SAS or SATA internal drives listed in Table 8 for configurations with the

factory-default extender. You cannot mix HDD and SSD drive types or SAS and SATA drives.

(4) LSI MegaRAID SAS 9261-8i RAID controller

■ Select up to eight internal SAS or SATA drives listed in Table 8. You can mix SAS and SATA

drives but you cannot mix HDD and SSD drive types. If you order the optional SAS Expander, the controller can support up to 16 internal drives.

Caveats

■ If the integrated RAID controller on the server motherboard is used (no PCIe or mezzanine

card controller selected), all the drives must be SATA.

A SAS Extender is not field-upgradable to a SAS Expander, so if you are configuring a system with eight or more drives or anticipate the system will implement more than eight drives in the future, make sure you order a SAS Expander. You can replace an extender or expander only with the same type of card.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 23

STEP 7 CHOOSE PCIe OPTION CARD(S)

The standard PCIe card offerings are:

■ Ethernet

■ Fibre Channel

■ iSCSI

■ Virtual Interface Card (VIC)

Choose PCIe Option Cards

The available PCIe option cards are listed in Table 9.

Table 9 Available PCIe Option Cards

CONFIGURING the SERVER

Product ID (PID) PID Description

Card Height

Converged Network Adapters (CNA)

N2XX-ACPCI01 Cisco UCS P81E Virtual Interface Card/ 2-port 10Gbps Full

N2XX-AEPCI01 Emulex OneConnect OCe10102-F CNA 2-port 10Gbps Half

UCSC-PCIE-BSFP Broadcom 57712 Dual Port 10Gb SFP+ w/TOE iSCSI Half

Network Interface Cards (NICs)

N2XX-ABPCI02 Broadcom 57711 Dual Port 10GbE NIC w/TOE iSCSI Half

N2XX-ABPCI03-M3 Broadcom 5709 Quad Port 1Gb w/TOE iSCSI for M3 Servers Half

N2XX-ABPCI01-M3 Broadcom 5709 Dual Port 1Gb w/TOE iSCSI for M3 Servers Half

N2XX-AQPCI01 Qlogic QLE 8152-CNA 2port 10Gb SFP+ Copper Half

N2XX-AIPCI02 Intel Quad port GbE Controller (E1G44ETG1P20) Half

N2XX-AIPCI01 Intel X520 Dual Port 10Gb SFP+ Adapter Half

N2XX-AMPCI01 Mellanox ConnectX-2 EN with dual 10GbE SFP+ ports Half

Host Bus Adapters (HBAs)

N2XX-AEPCI03 Emulex LPe 11002 Dual Port 4Gb Fibre Channel HBA Half

N2XX-AEPCI05 Emulex LPe 12002 Dual Port 8Gb Fibre Channel HBA Half

N2XX-AQPCI03 Qlogic QLE2462 Dual Port 4Gb Fibre Channel HBA Half

N2XX-AQPCI05 Qlogic QLE2562 Dual Port 8Gb Fibre Channel HBA Half

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 24

CONFIGURING the SERVER

Approved Configurations

(1) No RAID controller plug-in card

■ If you did not choose a plug-in RAID controller (for example, you are using the mezzanine

card or the interated RAID controller on the motherboard), you can select up to five PCIe option cards listed in

(2) One RAID controller plug-in card

■ If you selected a plug-in RAID controller, you can select up to four of the optional PCIe cards

listed in

Caveats

Table 9.

NOTE: If a plug-in RAID controller card is installed, any optional PCIe card you select will be installed in one of the remaining four PCIe slots. You can install a maximum of one plug-in PCIe RAID controller card.

■ There are five PCIe slots. All are full-height. All of the PCIe adapter cards are half-height,

with the exception of the Virtual Interface Card (VIC) (N2XX-ACPCI01), which is a full-height card.

— If you selected a plug-in RAID controller in STEP 4 CHOOSE RAID CONFIGURATION,

four slots remain available.

— Only a single Cisco UCS P81E Virtual Interface Card/ 2-port 10Gbp card may be

installed and it must be installed in slot 1 or slot 2. Note, however, that if the server is running UCSM, only slot 1 is supported for the VIC card. See

Figure 3 on page 5

for slot numbering.

NOTE: If you are using Unified Computing System Manager (UCSM), the Cisco UCS P81E Virtual Interface Card/ 2-port 10Gbp card must be installed only in PCIe slot 1.

— All cards will fit in any slot.

■ The MegaRAID cards (LSI MegaRAID SAS 9280-4i4e or LSI MegaRAID SAS 9261-8i) must be

installed in PCIe slot #4. Refer to

■ To help ensure that your operating system is compatible with the card you have selected,

Figure 3 on page 5 for PCIe slot numbering.

please check the Hardware Compatibility List at this URL:

http://www.cisco.com/en/US/products/ps10477/prod_technical_reference_list.html

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 25

CONFIGURING the SERVER

STEP 8 ORDER OPTIONAL NETWORK CARD ACCESSORIES

Copper twinax cables and SFP optical modules may be ordered to support the two-port network cards that are available with the server.

Choose Optional Twinax Cables

Copper twinax cables are listed in Table 10. You can choose cable lengths of 1, 3, 5, 7, or 10 meters. The two longer cables (7 and 10 meters) are active, which means that they contain active components within the SFP+ housing to improve signal quality.

Table 10 Available Twinax Cables

Product ID (PID) PID Description

SFP-H10GB-CU1M 10GBASE-CU SFP+ Cable (1 M)

SFP-H10GB-CU3M 10GBASE-CU SFP+ Cable (3 M)

SFP-H10GB-CU5M 10GBASE-CU SFP+ Cable (5 M)

SFP-H10GB-ACU7M 10GBASE-CU SFP+ Cable (7 M)

SFP-H10GB-ACU10M 10GBASE-CU SFP+ Cable (10 M)

Approved Configurations

(1) Choose Up to Two Twinax Cables for Each Network Card Ordered

■ You may choose one or two twinax cables for each network card ordered. The cables can be

different lengths; however, you would normally order two cables of equal lengths to connect to the primary and redundant network switching equipment.

Caveats

The twinax cables listed in Table 10 can be ordered only for the following PCIe cards:

— N2XX-ACPCI01 (Cisco UCS P81E Virtual Interface Card/ 2-port 10Gbps)

— UCS-PCIE-BSFP (Broadcom 57712)

— N2XX-ABPCI02 (Broadcom 57711)

— N2XX-AEPCI01 (Emulex OCe10102-F)

— N2XX-AIPCI01 (Intel Dual Port Ethernet X520)

— N2XX-AQPCI01 (Qlogic QLE 8152-CNA)

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 26

CONFIGURING the SERVER

Choose Optional SFP Modules

Optical Cisco SFP+ modules are listed in Table 11.

Table 11 Available SFP Modules

Product ID (PID) PID Description

SFP-10G-SR 10GBASE-SR SFP+ Module

850 nm, multimode, SR, 3.3V, LC connector, with Digital Optical Monitoring

DS-SFP-FC8G-SW 8 Gbit SFP+ Module

850 nm, multimode, SR, 3.3V, LC connector, with Digital Optical Monitoring

Approved Configurations

(1) Choose Up to Two SFP+ Modules for Each Network Card Ordered

■ You may choose one or two SFP+ optical modules cables for each network card ordered. You

would normally order two modules for connecting to the primary and redundant network switching equipment. With the SFP+ optical modules, you can use common fiber optic cables, widely available.

See Figure 5 on page 27 for typical SFP+ and twinax connections to the network cards.

Caveats

The SFP-10G-SR optical module listed in Table 11 should be ordered only for the following PCIe cards, as they do not come by default with any optical modules:

— N2XX-ACPCI01 (Cisco UCS P81E Virtual Interface Card/ 2-port 10Gbps)

— UCSC-PCIE-BSFP (Broadcom 57712)

— N2XX-ABPCI02 (Broadcom 57711)

— N2XX-AEPCI01 (Emulex OCe10102-F)

The DS-SFP-FC8G-SW optical module listed in Table 11 should be ordered only for the following PCIe cards, as they do not come by default with any optical modules:

— N2XX-AEPCI05 (Emulex LPe 12002 Dual Port 8Gb Fibre Channel HBA)

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 27

Figure 5 Network Card Connections

CONFIGURING the SERVER

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 28

CONFIGURING the SERVER

STEP 9 CHOOSE OPTIONAL DVD-RW DRIVE

An optional DVD-RW optical drive, with dual-layer (DL) media support, may be ordered. The drive is listed in

Table 12 Available DVD-RW Drive

Product ID (PID) PID Description

R210-ODVDRW DVD-RW Drive for UCS C210 M2 Rack Servers

Table 12.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 29

STEP 10 ORDER OPTIONAL REDUNDANT POWER SUPPLY

The C210 M2 server can accommodate two power supplies. Only one power supply is required. One 650 W power supply ships with the base server chassis. You can order an optional redundant power supply listed in

Table 13 Redundant Power Supply

Product ID (PID) PID Description

R2X0-PSU2-650W-SB 650 W power supply, w/added 5A Standby for UCS C200 or C210

Table 13s.

CONFIGURING the SERVER

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 30

CONFIGURING the SERVER

Cordset rating 13A, 250V

(6.6 feet) (79±2m)

Plug:

EL312MoldedTwistlock

(NEMA L6-20)

186568

Connector:

EL 701

(IEC60320/C13)

Cordset rating 10A, 250V

(686mm)

Plug:

SS10A

186569

Connector:

HS10S

2500 mm

Cordset rating: 10 A, 250/500 V MAX

Length: 8.2 ft

Plug:

EL 219

(IRAM 2073)

Connector:

EL 701

(IEC60320/C13)

Plug:

Cordset rating: 10 A, 250 V/500 V MAX

Length: 2500mm

Connector:

EL 701C

(EN 60320/C15)

EL 210

(BS 1363A) 13 AMP fuse

STEP 11 CHOOSE AC POWER CORDS

Select the appropriate AC power cords listed in Table 14. You may select a minimum of no power cords and a maximum of two power cords. If you select the option R2XX-DMYMPWRCORD, no power cord is shipped with the server.

Table 14 Available Power Cords

Product ID (PID) PID Description Images

R2XX-DMYMPWRCORD No power cord (dummy PID to

allow for a no power cord option)

CAB-N5K6A-NA Power Cord, 200/240V 6A, North

America

CAB-AC-250V/13A Power Cord, NEMA L6-20 250V/20A

plug-IEC320/C13 receptacle, North America,

CAB-C13-C14-JMPR Power Cord, recessed receptacle

AC power cord 27

SFS-250V-10A-AR Power Cord, SFS, 250V, 10A,

Argentina

Not applicable

Plug: NEMA 6-15P

Cordset rating: 10 A, 250 V

Length: 8.2 ft

Connector:

IEC60320/C13

86570

CAB-9K10A-AU Power Cord, 250VAC 10A 3112 Plug,

Australia

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 31

Table 14 Available Power Cords (continued)

Cordset rating 10A, 250V

(2500 mm)

Plug:

EL 218

(CCEE GB2009)

186573

Connector:

EL 701

(IEC60320/C13)

Connector:

VSCC15

Cordset rating: 10A/16 A, 250 V

Length: 8 ft 2 in. (2.5 m)

Plug:

M2511

Cordset rating 10A, 250V/500V MAX

(2500 mm)

Plug:

EL 212 (SI-32)

186574

Connector:

EL 701B

(IEC60320/C13)

-212

16A 250V

Plug:

I/3G

(CEI 23-16)

Connector

C15M

(EN60320/C15 )

Cordset rating: 10 A, 250 V

Length: 8 ft 2 in. (2.5 m)

Plug:

MP232-R

Cordset rating: 10 A, 250 V

Length: 8 ft. 2 in (2.5 m)

Connector:

IEC 60320 C15

Plug:

Cordset rating: 10 A, 250 V/500 V MAX

Length: 2500mm

Connector:

EL 701C

(EN 60320/C15)

EL 210

(BS 1363A) 13 AMP fuse

Product ID (PID) PID Description Images

SFS-250V-10A-CN Power Cord, SFS, 250V, 10A, China

CAB-9K10A-EU Power Cord, 250VAC 10A CEE 7/7

Plug, EU

SFS-250V-10A-ID Power Cord, SFS, 250V, 10A, India

Plug:

EL 208

CONFIGURING the SERVER

OVE

Cordset rating 16A, 250V

(2500mm)

Connector:

EL 701

87490

SFS-250V-10A-IS Power Cord, SFS, 250V, 10A, Israel

CAB-9K10A-IT Power Cord, 250VAC 10A CEI

23-16/VII Plug, Italy

CAB-9K10A-SW Power Cord, 250VAC 10A MP232

Plug, Switzerland

CAB-9K10A-UK Power Cord, 250VAC 10A BS1363

Plug (13 A fuse), UK

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 32

CONFIGURING the SERVER

Table 14 Available Power Cords (continued)

Product ID (PID) PID Description Images

CAB-9K12A-NA Power Cord, 125VAC 13A NEMA

Image not available

5-15 Plug, North America

CAB-JPN-3PIN Power Cord 3PIN, Japan Image not available

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 33

STEP 12 ORDER TOOL-LESS OPTIONAL RAIL KIT

A rail kit is not included with the Cisco UCS C210 M2 base server chassis, but you can order the tool-less rail kit listed in

Table 15 Rail Kit

Product ID (PID) PID Description

R2XX-G31032RAIL Rail Kit for UCS 200, 210 Rack Servers

NOTE: This third-generation rail kit works in racks with square holes or 10-32 round holes and is shorter than the previous generation rail kit. The new R2XX-G31032RAIL measures 23.5 inches to 36 inches in length. By comparison, the previous version, R250-SLDRAIL, measured 27 inches to 37 inches in length.

See the section titled OPTIONAL STEP - ORDER RACK(s) on page 44 for information about racks and rack equipment.

Table 15).

CONFIGURING the SERVER

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 34

CONFIGURING the SERVER

STEP 13 ORDER OPTIONAL CABLE MANAGEMENT ARM

The cable management arm hooks onto the right and left slide rails at the rear of the server and is used for cable management. You can order the cable management arm listed in

Table 16 Cable Management Arm

Product ID (PID) PID Description

R2XX-CMAG3-1032 Cable Mgmt Arm for R2XX-G31032RAIL for C200/C210

For more information about the cable management arm, see the Cisco UCS C210 Installation and Service Guide at this URL:

http://www.cisco.com/en/US/docs/unified_computing/ucs/c/hw/C210M1/install/C210M1.html

Table 16.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 35

STEP 14 ORDER A TRUSTED PLATFORM MODULE

Trusted Platform Module (TPM) is a computer chip (microcontroller) that can securely store artifacts used to authenticate the platform (server). These artifacts can include passwords, certificates, or encryption keys. A TPM can also be used to store platform measurements that help ensure that the platform remains trustworthy. Authentication (ensuring that the platform can prove that it is what it claims to be) and attestation (a process helping to prove that a platform is trustworthy and has not been breached) are necessary steps to ensure safer computing in all environments.

The TPM ordering information is listed in Table 17.

Table 17 Trusted Platform Module

Product ID (PID) PID Description

R200-TPM1 Tr ust ed Pla tfo r m Mo du le

CONFIGURING the SERVER

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 36

CONFIGURING the SERVER

STEP 15 CHOOSE OPERATING SYSTEM AND VALUE-ADDED SOFTWARE

Several operating systems and value-added software programs are available. Select as desired from Table

Table 18 OSs and Value-Added Software (for 2-CPU servers)

PID Description Product ID (PID)

Microsoft Windows Server

MSWS-08R2-STHV Windows Svr 2008 ST media R2 ST (1-4CPU, 5CAL) MSWS-08R2-ENHV Windows Svr 2008 EN media R2 EN (1-8CPU, 25CAL) MSWS-08R2-DCHV2S Windows Svr 2008 R2-2 CPU-Data Center MSWS-12-ST2S Windows Server 2012 Standard (2 CPU/2 VMs) MSWS-12-DC2S Windows Server 2012 Datacenter (2 CPU/Unlimited VMs) MSWS-12-ST2S-NS Windows Server 2012 Standard (2 CPU/2 VMs) No Cisco SVC MSWS-12-DC2S-NS Windows Server 2012 Datacenter (2 CPU/Unlim VM) No Cisco SVC

SUSE

SLES-SVR-2S-1G-1A SUSE Linux Enterprise Srvr (1-2 CPU,1 Phys);1yr Support Reqd SLES-SVR-2S-1G-3A SUSE Linux Enterprise Srvr (1-2 CPU,1 Phys);3yr Support Reqd SLES-SVR-2S-1G-5A SUSE Linux Enterprise Srvr (1-2 CPU,1 Phys);5yr Support Reqd SLES-SVR-2S-UG-1A SUSE Linux Enterprise Svr (1-2 CPU,Unl Vrt);1yr Support Reqd SLES-SVR-2S-UG-3A SUSE Linux Enterprise Svr (1-2 CPU,Unl Vrt);3yr Support Reqd SLES-SVR-2S-UG-5A SUSE Linux Enterprise Svr (1-2 CPU,Unl Vrt);5yr Support Reqd SLES-SHA-2S-1A SUSE Linux High Availability Ext (1-2 CPU); 1yr Support Reqd SLES-SHA-2S-3A SUSE Linux High Availability Ext (1-2 CPU); 3yr Support Reqd SLES-SHA-2S-5A SUSE Linux High Availability Ext (1-2 CPU); 5yr Support Reqd SLES-HGC-2S-1A SUSE Linux GEO Clustering for HA (1-2 CPU); 1yr Support Reqd SLES-HGC-2S-3A SUSE Linux GEO Clustering for HA (1-2 CPU); 3yr Support Reqd SLES-HGC-2S-5A SUSE Linux GEO Clustering for HA (1-2 CPU); 5yr Support Reqd SLES-SAP-2S-1G-1A SLES for SAP Applications (1-2 CPU,1 Phys); 1yr Support Reqd SLES-SAP-2S-1G-3A SLES for SAP Applications (1-2 CPU,1 Phys); 3yr Support Reqd SLES-SAP-2S-1G-5A SLES for SAP Applications (1-2 CPU,1 Phys); 5yr Support Reqd SLES-SAP-2S-UG-1A SLES for SAP Applications (1-2 CPU,Unl Vrt);1yr Support Reqd SLES-SAP-2S-UG-3A SLES for SAP Applications (1-2 CPU,Unl Vrt);3yr Support Reqd SLES-SAP-2S-UG-5A SLES for SAP Applications (1-2 CPU,Unl Vrt);5yr Support Reqd

18.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 37

CONFIGURING the SERVER

Table 18 OSs and Value-Added Software (for 2-CPU servers) (continued)

PID Description Product ID (PID)

Red Hat Enterprise Linux

RHEL-2S-1G-1A RHEL/2 Socket/1 Guest/1Yr Svcs Required RHEL-2S-1G-3A RHEL/2 Socket/1 Guest/3Yr Svcs Required RHEL-2S-4G-1A RHEL/2 Socket/4 Guest/1Yr Svcs Required RHEL-2S-4G-3A RHEL/2 Socket/4 Guest/3Yr Svcs Required RHEL-2S-UG-1A RHEL/2 Socket/U Guest/1Yr Svcs Required RHEL-2S-UG-3A RHEL/2 Socket/U Guest/3Yr Svcs Required RHEL-HA-2S-1A RHEL Option/High-Availability/2 Socket/1Yr Svcs Required RHEL-HA-2S-3A RHEL Option/High-Availability/2 Socket/3Yr Svcs Required RHEL-RS-2S-1A RHEL Option/Resilient w/Ha /2 Socket/1 Yr Svcs Required RHEL-RS-2S-3A RHEL Option/Resilient Storage w/ HA /2 Socket/3 Yr Svcs Reqd RHEL-SFS-2S-1A RHEL Option/Scalable File System/2 Socket/1 Yr Svcs Required RHEL-SFS-2S-3A RHEL Option/Scalable File System/2 Socket/1 Yr Svcs Required

BMC

BMC-012 BMC BPPM Per Server BMC-SE-4C BMC BladeLogic Standard Edition, 4 Cores, Support Required BMC-SE-6C BMC BladeLogic Standard Edition, 6 Cores, Support Required BMC-SE-8C BMC BladeLogic Standard Edition, 8 Cores, Support Required BMC-SE-10C BMC BladeLogic Standard Edition, 10 Cores, Support Required BMC-AE-4C BMC BladeLogic Advanced Edition, 4 Cores, Support Required BMC-AE-6C BMC BladeLogic Advanced Edition, 6 Cores, Support Required BMC-AE-8C BMC BladeLogic Advanced Edition, 8 Cores, Support Required BMC-AE-10C BMC BladeLogic Standard Edition, 10 Cores, Support Required

Nexus 1000V for Hyper-V and vSphere

N1K-VSG-UCS-BUN Over half off N1K and VSG w/ purchase of UCS B/C Series N1K-VLEM-UCS-1 Nexus 1000V License Paper Delivery (1 CPU) for bundles VSG-VLEM-UCS-1 VSG License Paper Delivery (1 CPU) for bundles

UCS Director

CUIC-PHY-SERV-BM-U Cisco Cloupia Resource Lic - One Phy Server node bare metal CUIC-PHY-SERV-U Cisco Cloupia Resource Lic - One physical Server node CUIC-TERM Acceptance of Cisco Cloupia License Terms

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 38

CONFIGURING the SERVER

Table 18 OSs and Value-Added Software (for 2-CPU servers) (continued)

PID Description Product ID (PID)

VMware 5

VMW-VS5-STD-1A VMware vSphere 5 Standard for 1 Processor, 1 Year, Support Rqd VMW-VS5-STD-2A VMware vSphere 5 Standard for 1 Processor, 2 Year, Support Rqd VMW-VS5-STD-3A VMware vSphere 5 Standard for 1 Processor, 3 Year, Support Rqd VMW-VS5-STD-4A VMware vSphere 5 Standard for 1 Processor, 4 Year, Support Rqd VMW-VS5-STD-5A VMware vSphere 5 Standard for 1 Processor, 5 Year, Support Rqd VMW-VS5-ENT-1A VMware vSphere 5 Enterprise for 1 Processor, 1 Year Support Rqd VMW-VS5-ENT-2A VMware vSphere 5 Enterprise for 1 CPU, 2 Yr Support Rqd VMW-VS5-ENT-3A VMware vSphere 5 Enterprise for 1 CPU, 3 Yr Support Rqd VMW-VS5-ENT-4A VMware vSphere 5 Enterprise for 1 Processor, 4 Year Support Rqd VMW-VS5-ENT-5A VMware vSphere 5 Enterprise for 1 CPU, 5 Yr Support Rqd VMW-VS5-ENTP-1A VMware vSphere 5 Enterprise Plus for 1 Processor, 1 Year Support Rqd VMW-VS5-ENTP-2A VMware vSphere 5 Enterprise Plus for 1 CPU, 2 Yr Support Rqd VMW-VS5-ENTP-3A VMware vSphere 5 Enterprise Plus for 1 Processor, 3 Year Support Rqd VMW-VS5-ENTP-4A VMware vSphere 5 Enterprise Plus for 1 Processor, 4 Year Support Rqd VMW-VS5-ENTP-5A VMware vSphere 5 Enterprise Plus for 1 Processor, 5 Year Support Rqd VMW-VC5-STD-1A VMware vCenter 5 Server Standard, 1 yr support required VMW-VC5-STD-2A VMware vCenter 5 Server Standard, 2 yr support required VMW-VC5-STD-3A VMware vCenter 5 Server Standard, 3 yr support required VMW-VC5-STD-4A VMware vCenter 5 Server Standard, 4 yr support required VMW-VC5-STD-5A VMware vCenter 5 Server Standard, 5 yr support required UCS-VMW-TERMS Acceptance of Terms, Standalone VMW License for UCS Servers

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 39

STEP 16 CHOOSE OPERATING SYSTEM MEDIA KIT

Choose the optional operating system media listed in Table 19.

Table 19 OS Media

Product ID (PID) PID Description

RHEL-6 RHEL 6 Recovery Media Only (Multilingual)

SLES-11 SLES 11 media only (multilingual)

MSWS-08R2-STHV-RM Windows Svr 2008 R2 ST (1-4CPU, 5CAL), Media

MSWS-08RS-ENHV-RM Windows Svr 2008 R2 EN (1-8CPU, 25CAL), Media

MSWS-08R2-DCHV-RM Windows Svr 2008 R2 DC (1-8CPU, 25CAL), Media

MSWS-12-ST2S-RM Windows Server 2012 Standard (2 CPU/2 VMs) Recovery Media

MSWS-12-DC2S-RM Windows Server 2012 Datacenter (2 CPU/Unlimited VM) Rec Media

CONFIGURING the SERVER

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 40

CONFIGURING the SERVER

STEP 17 CHOOSE SERVICE and SUPPORT LEVEL

A variety of service options are available, as described in this section.

Unified Computing Warranty, No Contract

If you have noncritical implementations and choose to have no service contract, the following coverage is supplied:

■ Three-year parts coverage.

■ Next business day (NBD) parts replacement eight hours a day, five days a week.

■ 90-day software warranty on media.

■ Downloads of BIOS, drivers, and firmware updates.

■ UCSM updates for systems with Unified Computing System Manager. These updates include

minor enhancements and bug fixes that are designed to maintain the compliance of UCSM with published specifications, release notes, and industry standards.

Unified Computing Mission Critical Service

This service delivers personalized technical account management, expedited technical support, and expert field support engineering for the Cisco Unified Computing System (UCS).

The Mission Critical Support Service provides a designated technical account manager (TAM) who acts as a strategic resource to help ensure that the unified computing environment runs at peak efficiency. If a problem arises that threatens business continuity, the TAM provides crisis management leadership, and your IT staff receives expedited access to Cisco's Technical Assistance Center (TAC).

Please note: This service has qualification criteria. Your company must have $1.2M of UCS equipment, 200 blades and a single location to qualify for this service level. Choose the desired service listed in

Table 20.

Table 20 Unified Computing Mission Critical Service

Product ID (PID) On Site? Description

CON-UCM7-R210W Yes UC Mission Critical 24x7x4 On-site

CON-UCM8-R210W Yes UC Mission Critical 24x7x2 On-site

Unified Computing Support Service

For support of the entire Unified Computing System, Cisco offers the Cisco Unified Computing Support Service. This service provides expert software and hardware support to help sustain performance and high availability of the unified computing environment. Access to Cisco Technical Assistance Center (TAC) is provided around the clock, from anywhere in the world.

For UCS blade servers, there is Smart Call Home, which provides proactive, embedded diagnostics and real-time alerts. For systems that include Unified Computing System Manager, the support service includes downloads of UCSM upgrades. The Unified Computing Support Service includes flexible hardware replacement options, including replacement in as little as two hours. There is also access to Cisco's extensive online technical resources to help maintain

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 41

CONFIGURING the SERVER

optimal efficiency and uptime of the unified computing environment. You can choose a desired service listed in

Table 21.

Table 21 UCS Computing Support Service

Product ID (PID) On Site? Description

CON-UCS1-R210W No UC Support 8X5XNBD

CON-UCS2-R210W No UC Support 8X5X4

CON-UCS3-R210W No UC Support 24x7x4

CON-UCS4-R210W No UC Support 24x7x2

CON-UCS5-R210W Yes UC Support 8X5XNBD

CON-UCS6-R210W Yes UC Support 8X5X4

CON-UCS7-R210W Yes UC Support 24x7x4

CON-UCS8-R210W Yes UC Support 24x7x2

Unified Computing Warranty Plus Service

For faster parts replacement than is provided with the standard Cisco Unified Computing System warranty, Cisco offers the Cisco Unified Computing Warranty Plus Service. You can choose from several levels of advanced parts replacement coverage, including onsite parts replacement in as little as two hours. Warranty Plus provides remote access any time to Cisco support professionals who can determine if a return materials authorization (RMA) is required. You can choose a service listed in

Table 22.

Table 22 UCS Computing Warranty Plus Service

Product ID (PID) On Site? Description

CON-UCW2-R210W No UC Warranty Plus 8x5x4

CON-UCW3-R210W No UC Warranty Plus 24x7x4

CON-UCW4-R210W No UC Warranty Plus 24x7x2

CON-UCW5-R210W Yes UC Warranty Plus 8X5XNBD

CON-UCW6-R210W Yes UC Warranty Plus 8X5X4

CON-UCW7-R210W Yes UC Warranty Plus 24x7x4

CON-UCW8-R210W Yes UC Warranty Plus 24x7x2

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 42

CONFIGURING the SERVER

Unified Computing Drive Retention Service

With the Cisco Unified Computing Drive Retention (UCDR) service, you can obtain a new disk drive in exchange for a faulty drive without returning the faulty drive. In exchange for a Cisco replacement drive, you provide a signed Certificate of Destruction (CoD) confirming that the drive has been removed from the system listed, is no longer in service, and has been destroyed.

Sophisticated data recovery techniques have made classified, proprietary, and confidential information vulnerable, even on malfunctioning disk drives. The UCDR service enables you to retain your drives and ensures that the sensitive data on those drives is not compromised, thereby reducing the risk of any potential liabilities. This service also enables you to comply with regulatory, local, and federal requirements.

If your company has a need to control confidential, classified, sensitive, or proprietary data, you might want to consider one of the Drive Retention Services listed in

NOTE: Cisco does not offer a certified drive destruction service as part of this service.

Table 23 Drive Retention Service Options

Table 23.

Service Description

UCS Mission Critical Support Service With Drive Retention

UCS Support Service With Drive Retention

Service Program

Name

Service

Level GSP

Service Level Product ID (PID)

UC CRIT DR UCMD7 24x7x4 Onsite CON-UCMD7-R210WSFF

UCMD8 24x7x2 Onsite CON-UCMD8-R210WSFF

UC SUPP DR UCSD1 8x5xNBD CON-UCSD1-R210WSFF

UCSD2 8x5x4 CON-UCSD2-R210WSFF

UCSD3 24x7x4 CON-UCSD3-R210WSFF

UCSD4 24x7x2 CON-UCSD4-R210WSFF

UCSD5 8x5xNBD Onsite CON-UCSD5-R210WSFF

UCSD6 8x5x4 Onsite CON-UCSD6-R210WSFF

UCSD7 24x7x4 Onsite CON-UCSD7-R210WSFF

UCSD8 24x7x2 Onsite CON-UCSD8-R210WSFF

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 43

Table 23 Drive Retention Service Options (continued)

CONFIGURING the SERVER

Service Description

UCS Warranty Plus With Drive Retention

For more service and support information, see the following URL:

http://www.cisco.com/en/US/services/ps2961/ps10312/ps10321/Cisco_UC_Warranty_Support_DS.pdf

For a complete listing of available services for Cisco Unified Computing System, see this URL:

http://www.cisco.com/en/US/products/ps10312/serv_group_home.html

Service Program

Name

Service

Level GSP

Service Level Product ID (PID)

UC PLUS DR UCWD2 8x5x4 CON-UCWD2-R210WSFF

UCWD3 24x7x4 CON-UCWD3-R210WSFF

UCWD4 24x7x2 CON-UCWD4-R210WSFF

UCWD5 8x5xNBD Onsite CON-UCWD5-R210WSFF

UCWD6 8x5x4 Onsite CON-UCWD6-R210WSFF

UCWD7 24x7x4 Onsite CON-UCWD7-R210WSFF

UCWD8 24x7x2 Onsite CON-UCWD8-R210WSFF

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 44

OPTIONAL STEP - ORDER RACK(s)

Notes . . .

OPTIONAL STEP - ORDER RACK(s)

The optional R42610 rack is available from Cisco for the C-Series servers, including the C210 M2 server. This rack is a standard 19-inch rack and can be ordered with a variety of options, as listed in

Table 24 Racks and Rack Options

Product ID (PID) PID Description

Table 24. Racks are shipped separately from the C210 M2 server.

RACK-UCS

RACK-UCS2

Cisco R42610 expansion rack, no side panels

Cisco R42610 standard rack, w/side panels

RACK-BLANK-001 Filler panels (qty 12), 1U, plastic, toolless

RACK-CBLMGT-001 Cable mgt D rings (qty 10), metal

RACK-CBLMGT-011 Cable mgt straps (qty 10), Velcro

RACK-FASTEN-001 Mounting screws (qty 100), M6

RACK-FASTEN-002 Cage nuts (qty 50), M6

RACK-JOIN-001 Rack joining kit

1. Use these same base PIDs to order spare racks (available only as next-day replacements).

For more information about the R42610 rack, see RACKS on page 53.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 45

OPTIONAL STEP - ORDER PDU

An optional power distribution unit (PDU) is available from Cisco for the C-Series rack servers, including theC210 M2 server. This PDU is available in a zero rack unit (RU) style (see

Table 25 PDU Options

Product ID (PID) PID Description

RP208-30-2P-U-2 Zero RU PDU

For more information about the PDU, see PDUs on page 55.

OPTIONAL STEP - ORDER PDU

Table 24).

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 46

SUPPLEMENTAL MATERIAL

CHASSIS

An internal view of the C210 M2 chassis with the top cover removed is shown in Figure 6.

Figure 6 C210 M2 With Top Cover Removed

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 47

SUPPLEMENTAL MATERIAL

CPUs and DIMMs

Physical Layout

Each CPU has three DIMM channels:

■ CPU1 has channels A, B, and C.

■ CPU2 has channels D, E, and F.

Each DIMM channel has two banks: Bank 1 and Bank 2. The blue-colored DIMM banks are for Bank 1 and the black-colored DIMM banks are for Bank 2.

As an example, DIMM slots A1, B1, and C1 belong to Bank 1, while A2, B2, and C2 belong to Bank 2.

Figure 7 shows how banks and channels are physically laid out on the motherboard. The DIMM slots on the

right (channels A, B, and C) are associated with CPU1, while the DIMM slots on the left (channels D, E, and F) are associated with CPU2. The Bank 1 (blue) DIMM slots are always located farther away from a CPU than the corresponding Bank 2 (black) slots. Bank 1 slots are populated before Bank 2 slots. If only one DIMM is used for CPU 1, for example, it must be located in slot 2 (A1, channel A, bank 1); likewise, if only one DIMM is used for CPU 2, it must be installed in slot 2 (D1, channel D, bank 1).

Figure 7 CPU DIMM Channels and Banks

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 48

SUPPLEMENTAL MATERIAL

Memory Population Rules

When considering the memory configuration of your server, you should consider the following items:

■ DIMMs within the server should all be the same type and speed. If you mix different DIMM

types or DIMMs with different clock rates in the same server, such configurations are supported; however, these configurations may cause the system to operate at less than optimum levels. See

■ DIMMs can be used either in a one DIMM per Channel (1DPC) configuration or in a two DIMMs

Table 26 on page 49 for recommended DIMM combinations.

per Channel (2DPC) configuration.

■ There are blue and black DIMM slots. Populate blue slots in a bank first.

■ Low-voltage (1.35 V) DIMM and standard-voltage DIMM (1.5 V) can be mixed in the same

server. Note that this causes the system BIOS to default to standard-voltage operation (Performance Mode). See

Low-Voltage DIMM Considerations.

Low-Voltage DIMM Considerations

The C210 M2 server can be ordered with low-voltage (1.35 V) DIMMs or standard-voltage (1.5 V) DIMMs. Note the following considerations:

■ Low-voltage DIMMs within the server must have the identical manufacturer, type, speed,

and size.

■ Low-voltage DIMMs and standard-voltage DIMMs can be mixed in the same server. Note that

this causes the system BIOS to default to standard-voltage operation (Performance Mode). That is, the server cannot operate in Power Saving Mode unless all DIMMs are low-voltage DIMMs.

■ CPUs that have a maximum memory frequency less than 1333 MHz support low-voltage

DIMMs operating in Power Saving Mode only, and do not support Performance Mode.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 49

Recommended Configurations

Notes . . .

Table 26 lists the recommended DIMM combinations for 1- and 2-socket CPU systems. The DIMM

combinations yielding the best performance are noted.

Table 26 Recommended DIMM Combinations

SUPPLEMENTAL MATERIAL

Total Memory Size CPU Socket 1 CPU Socket 2

8 GB (1 CPU) 16 GB (2 CPUs)

12 GB (1 CPU)

DIMM

Bank 1

1 x 8 GB — 1 x 8 GB — 1333 MHz 2

2 x 4 GB — 2 x 4 GB — 1333 MHz 4

3 x 4 GB — 3 x 4 GB — 1333 MHz

DIMM

Bank 2

DIMM

Bank 1

DIMM

Bank 2

24 GB (2 CPUs)

1 x 16 GB — 1 x 16 GB — 1066 MHz 2

16 GB (1 CPU) 32 GB (2 CPUs)

2 x 8 GB — 2 x 8 GB — 1333 MHz 4

2 x 4 GB 2 x 4 GB 2 x 4 GB 2 x 4 GB 1333 MHz 8

24 GB (1 CPU) 48 GB (2 CPUs)

32 GB (1 CPU) 64 GB (2 CPUs)

3 x 8 GB — 3 x 8 GB — 1333 MHz

3 x 4 GB 3 x 4 GB 3 x 4 GB 3 x 4 GB 1333 MHz

2 x 16 GB — 2 x 16 GB — 1066 MHz 4

2 x 8 GB 2 x 8 GB 2 x 8 GB 2 x 8 GB 1333 MHz 8

DIMM Max

Clock rate

Total

DIMMs in

System

36 GB (1 CPU)

3 x 8 GB 3 x 4 GB 3 x 8 GB 3 x 4 GB 1333 MHz

72 GB (2 CPUs)

48 GB (1 CPU) 96 GB (2 CPUs)

60 GB (1 CPU)

3 x 16 GB — 3 x 16 GB — 1066 MHz 6

3 x 8 GB 3 x 8 GB 3 x 8 GB 3 x 8 GB 1333 MHz

3 x 16 GB 3 x 4 GB 3 x 16 GB 3 x 4 GB 800 MHz 12

120 GB (2 CPUs) 64 GB (1 CPU)

2 x 16 GB 2 x 16 GB 2 x 16 GB 2 x 16 GB 800 MHz 8

128 GB (2 CPUs) 72 GB (1 CPU)

3 x 16 GB 3 x 8 GB 3 x 16 GB 3 x 8 GB 800 MHz 12

144 GB (2 CPUs) 96 GB (1 CPU)

3 x 16 GB 3 x 16 GB 3 x 16 GB 3 x 16 GB 800 MHz 12

192 GB (2 CPUs)

1. Best performance configuration.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 50

SUPPLEMENTAL MATERIAL

Configuration Samples

The following figures show examples of how DIMMs are populated for 1-CPU and 2-CPU systems.

Figure 8 Example of 24-GB DIMM Memory Combinations with One CPU

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 51

Figure 9 Example of 96 GB DIMM Memory Combinations with Two CPUs

SUPPLEMENTAL MATERIAL

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 52

SUPPLEMENTAL MATERIAL

197658

197659

SAS EXTENDER and SAS EXPANDER

This server has two factory-configurable options for the hard drive backplane connection:

■ Standard SAS extender, or

■ Optional SAS expander

SAS Extender

The SAS extender (see Figure 10) is installed by default in the C210 M2 server.

Figure 10 SAS Extender

The extender implements four mini-SAS SFF-8087 cable connectors, each of which provides a connection for up to four drives.

The extender supports connection for up to four drives when using the onboard RAID controller, the LSI 1064E mezzanine card, or the LSI MegaRAID SAS 9280-4i4e, and up to 8 drives when using the LSI MegaRAID SAS 9261-8i MegaRAID card.

NOTE: The SAS extender is field-replaceable, but you cannot upgrade from a SAS extender to a SAS expander in the field due to cable routing constraints. You can replace an extender or expander only with the same type of card.

SAS Expander

The SAS expander (see Figure 11) may be optionally ordered for the C210 M2 server.

Figure 11 SAS Expander

NOTE: The SAS expander is a factory-configurable option in this server. The

expander is field-replaceable.

The SAS Expander has two mini-SAS SFF-8087 cable connectors. One connector provides connection for up to 16 drives, and the second connector provides redundancy.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 53

SUPPLEMENTAL MATERIAL

RACKS

The Cisco R42610 rack (see Figure 12) is certified for Cisco UCS installation at customer sites and is suitable for the following equipment:

■ Cisco UCS B-Series servers and fabric interconnects

■ Cisco UCS C-Series and select Nexus switches

The rack is compatible with hardware designed for EIA-standard 19-inch racks. Rack specifications are listed in

Table 27 Cisco R42610 Rack Specifications

Parameter Standard Rack Expansion Rack

Table 27.

Dimensions (H x W x D) 78.74 x 24 x 43.38 in.

(2000 x 610 x 1102 mm)

Dimensions (H x W x D) with packaging

Distance from front

89 x 33 x 47 in. (2261 x 838 x 1194 mm)

29.2 in. (741 mm) 29.2 in. (741 mm)

78.74 x 23.58 x 43.38 in. (2000 x 599 x 1102 mm)

89 x 33 x 47 in. (2261 x 838 x 1194 mm)

mounting rail to rear mounting rail

Weight 299.83 lb (136 kg) 231. 49 lb (105 kg)

Weight with packaging 354 lb

(161 kg)

284 lb (129 kg)

Side panels included Ye s No

Equipment mounting

42RU 42RU

capacity

Static load capacity 2100 lb

(954 kg)

2100 lb (954 kg)

Dynamic load capacity Not applicable Not applicable

NOTE: The AC input connector is an IEC 320 C-14 15 A/250 VAC power inlet.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 54

SUPPLEMENTAL MATERIAL

Front view - door closed Front view - door open Front view - door removed

Figure 12 Cisco R42610 Rack

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 55

SUPPLEMENTAL MATERIAL

PDUs

Cisco RP Series Power Distribution Units (PDUs) offer power distribution with branch circuit protection.

Cisco RP Series PDU models distribute power to up to 24 outlets. The architecture organizes power distribution, simplifies cable management, and enables you to move, add, and change rack equipment without an electrician.

With a Cisco RP Series PDU in the rack, you can replace up to two dozen input power cords with just one. The fixed input cord connects to the power source from overhead or under-floor distribution. Your IT equipment is then powered by PDU outlets in the rack using short, easy-to-manage power cords.

The C-series severs accept the zero-rack-unit (0RU) PDU. See Figure 13).

Figure 13 Zero Rack Unit PDU (PID = RP208-30-2P-U-2)

1 Breakers 3 C19 plugs 2 Ground connection 4 C13 plugs

Cisco RP Series PDU models provide two 20-ampere (A) circuit breakers for groups of receptacles. The effects of a tripped circuit are limited to a receptacle group. Simply press a button to reset that circuit.

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 56

SUPPLEMENTAL MATERIAL

POWER SUPPLIES

The C210 M2 can accommodate one or two 650 W power supplies. A typical power supply is shown in

Figure 14.

Figure 14 C210 M2 Power Supply

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 57

SUPPLEMENTAL MATERIAL

KVM CABLE

The KVM cable provides a connection into the server, providing a DB9 serial connector, a VGA connector for a monitor, and dual USB ports for a keyboard and mouse. With this cable, you can create a direct connection to the operating system and the BIOS running on the server.

The KVM cable ordering information is listed in Table 28.

Table 28 KVM Cable

Product ID (PID) PID Description

37-1016-01 KVM Cable

Figure 15 KVM Cable

1 Connector (to server front panel) 3 VGA connector (for a monitor) 2 DB-9 serial connector 4 Two-port USB connector (for a mouse and

keyboard)

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 58

SUPPLEMENTAL MATERIAL

Motherboard USB Port

The C210 M2 motherboard has a general-purpose USB socket, as shown in Figure 16.

Figure 16 Motherboard USB Port

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 59

TECHNICAL SPECIFICATIONS

Notes . . .

Dimensions and Weight

TECHNICAL SPECIFICATIONS

Table 29 UCS C210 M2 Dimensions and Weight

Parameter Value

Height 3.45 in. (8.76 cm)

Width 17.39 in.(44.17 cm)

Depth 28.35 in. (72.01 cm)

Front Clearance 3 in. (7.62 cm)

Side Clearance 1 in. (2.54 cm)

Rear Clearance 6 in. (15.24 cm)

Weight

1. The system weight given here is an estimate for a fully configured system and will vary depending on the number of peripheral devices and power supplies.

50.70 lbs (23 kg)

Power Specifications

The general power specifications for the C210 M2 server are listed in Table 30.

Table 30 UCS C210 M2 Power Specifications

Description Specification

AC input voltage 100 to 120 VAC nominal

200 to 240 VAC nominal

(Range: 90 to 264 VAC)

AC input frequency 50 to 60 Hz nominal (Range: 47 to 63 Hz)

Maximum AC input current 8 A at 100 VAC

Maximum AC inrush current 30 A peak sub-cycle duration

Maximum output power for each power supply

Power supply output voltage Main power: 12 VDC

Power supply efficiency 92% Peak, complies with 80Plus Gold Standard

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

650 W

Standby Power: 5 VDC

Page 60

TECHNICAL SPECIFICATIONS

NOTE: AC input connector is an IEC 320 C-14 15A/250VAC power inlet.

For configuration-specific power specifications, use the Cisco UCS Power Calculator at this URL:

http://www.cisco.com/assets/cdc_con tent_elements/flash/dataCenter/cisco_ucs_power_calculator/.

As an example, using the calculator, we can determine the approximate power for the following C210 M2 server configuration:

■ Voltage = 115 VAC

■ Power Supplies = 2

■ Processors = 2 CPUs (Intel Xeon 2.93 GHz X5670)

■ Memory DIMMs = 6 x 16 GB

■ Disk Drives = 16 x 1 TB

■ PCIe Cards = 4

■ PCIe RAID Card = 1

The resulting power calculations are:

■ Idle Power = 263 W

■ 50% Load Power = 419 W

■ Max Power = 574 W

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 61

TECHNICAL SPECIFICATIONS

Environmental Specifications

The power specifications for the C210 M2 server are listed in Table 31.

Table 31 UCS C210 M2 Environmental Specifications

Parameter Minimum

Temperature operating 10°C to 35°C (50°F to 95°F)

Temperature nonoperating -40°C to 65°C (-40°F to 149°F)

Altitude operating 0 to 3,000 m (0 to 10,000 ft.); maximum ambient temperature decreases

by 1° per 300 m

Humidity nonoperating 5 to 93%, noncondensing

Vibration nonoperating 2.2 Grms, 10 minutes per axis on each of the three axes

Shock operating Half-sine 2 G, 11 ms pulse, 100 pulses in each direction, on each of the

three axes

Shock nonoperating Trapezoidal, 25 G, two drops on each of six faces

Velocity = 175 inches per second on bottom face drop

Velocity = 90 inches per second on the other five faces

Electrostatic discharge Tested to ESD levels up to 15 kilovolts (kV) air discharge and up to 8 kV

contact discharge without physical damage

Acoustic Sound power: 54.7 dBA (5.7 Bels) at ambient temperature 23°C measured

using the Dome Method

GOST MsanPiN 001-96

Cisco UCS C210 M2 General-Purpose Rack-Mount Server

Page 62

TECHNICAL SPECIFICATIONS

Compliance Requirements

The regulatory compliance requirements for C-Series servers are listed in Table 32.

Table 32 UCS C-Series Regulatory Compliance Requirements

Parameter Description

Regulatory Compliance Products should comply with CE Markings per directives

2004/108/EC and 2006/95/EC

Safety UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition AS/NZS 60950-1 GB4943 2001

EMC - Emissions 47CFR Part 15 (CFR 47) Class A

AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A

EMC - Immunity EN55024

CISPR24 EN300386 KN24

Cisco UCS C210 M2 General-Purpose Rack-Mount Server
