Software version TC6.1 APRIL 2013

Codec C40/C60

Profile 42” Profile 52”/55” Profile 52” Dual / 55” Dual Profile 65”

Administrator guide

For Cisco TelePresence System Codec C40/C60 and Profiles using C40/C60

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Contents

Thank you for choosing Cisco!

Your Cisco product has been designed to give you many years of safe, reliable operation.

This part of the product documentation is aimed at administrators working with the setup of the Codec C60/C40 and Profiles using Codec C60/C40.

Our main objective with this Administrator guide is to address your goals and needs. Please let us know how well we succeeded!

May we recommend that you visit the Cisco web site regularly for updated versions of this guide.

The user documentation can be found on

► http://www.cisco.com/go/telepresence/docs

How to use this guide

The top menu bar and the entries in the Table of contents are all hyperlinks. You can click on them to go to the topic.

Table of Contents

Introduction ............................................................................. 4

User documentation ................................................................. 5

Software ................................................................................... 5

What’s new in this version ........................................................ 6

Profile 42” using Codec C40 ataglance ................................. 8

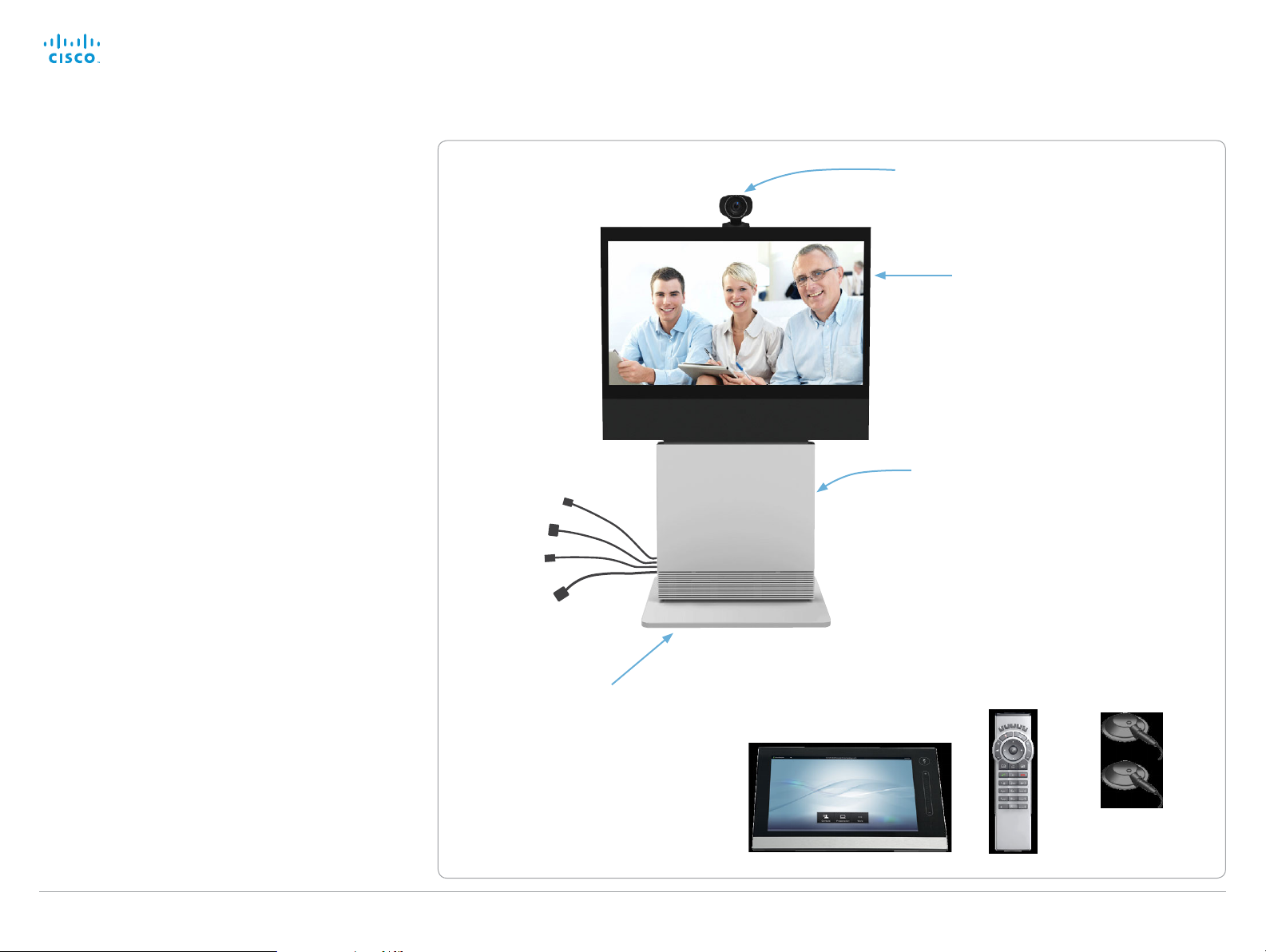

Profile 52”/55” at a glance ........................................................ 9

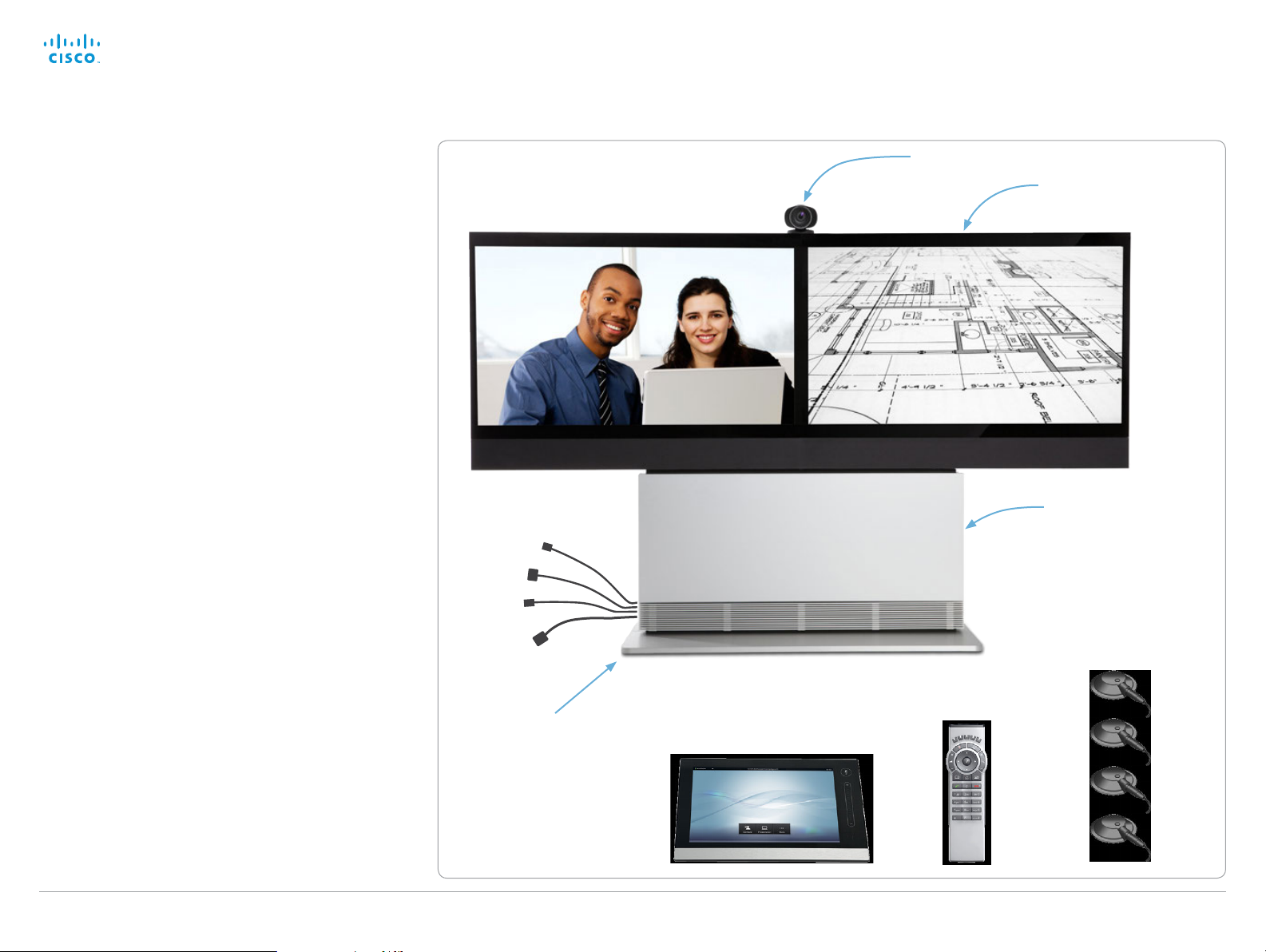

Profile 52” Dual / 55” Dual at a glance ....................................10

Profile 65” at a glance ..............................................................11

Codec C60 at a glance ............................................................12

Codec C40 at a glance ............................................................13

Web interface ........................................................................14

Starting the web interface .......................................................15

Changing the system password ..............................................16

The interactive menu ...............................................................17

System information ..................................................................18

Placing a call ............................................................................19

Sharing content ....................................................................... 20

Controlling and monitoring a call .............................................21

Controlling the camera ........................................................... 22

Local layout control ................................................................. 23

Capturing snapshots ............................................................... 24

Managing the favorites list ...................................................... 25

Favorite list folders .................................................................. 26

System configuration .............................................................. 27

Changing system settings ...................................................... 28

Setting the Administrator Settings menu password ............... 29

System status ......................................................................... 30

Choosing a wallpaper ..............................................................31

Choosing a ringtone ................................................................ 32

Peripherals overview .............................................................. 33

User administration ................................................................. 34

Adding a sign in banner .......................................................... 38

Application programming interface......................................... 39

Managing the video system’s certificates .............................. 40

Managing the list of trusted certificate authorities ..................41

Adding audit certificates ......................................................... 42

Setting strong security mode ................................................. 43

Deleting trust lists (CUCM only) .............................................. 44

Troubleshooting ...................................................................... 45

Downloading log files .............................................................. 46

Upgrading the system software...............................................47

Backup and restore ................................................................. 48

Factory reset ........................................................................... 49

Restarting the system ............................................................. 50

System settings .....................................................................51

Overview of the system settings ............................................ 52

Audio settings ......................................................................... 55

Cameras settings .....................................................................61

Conference settings ............................................................... 64

FacilityService settings ........................................................... 69

GPIO settings .......................................................................... 70

H323 settings ...........................................................................71

Network settings ......................................................................74

NetworkPort settings ...............................................................81

NetworkServices settings ....................................................... 82

Phonebook settings ................................................................ 87

Provisioning settings ............................................................... 88

RTP settings ............................................................................ 90

Security settings ......................................................................91

SerialPort settings................................................................... 93

SIP settings ............................................................................. 94

Standby settings ..................................................................... 97

SystemUnit settings ................................................................ 98

Time settings ........................................................................ 100

UserInterface settings............................................................101

Video settings ....................................................................... 102

Experimental settings ............................................................ 116

Setting passwords ............................................................... 117

Setting the system password ................................................ 118

Setting the menu password ................................................... 119

Setting a root password .........................................................120

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Contents

Appendices ..........................................................................121

About monitors when you have a Codec C60 .......................122

About monitors when you have a Codec C40 .......................123

Connecting the Cisco TelePresence Touch 8” controller ......124

Advanced customization of video and audio .........................125

Optimal definition profiles ......................................................126

ClearPath — Packet loss resilience ........................................127

Requirement for speaker systems connected to a Cisco

TelePresence C Series codec ...............................................128

DNAM for Profile42”/52”/55” ................................................129

DNAM for Profile 65” ............................................................ 130

Factory resetting ...................................................................131

Factory resetting the Touch 8” controller ..............................132

Technical specifications ........................................................ 133

Supported RFCs ....................................................................141

User documentation on the Cisco web site ...........................142

Cisco contacts .....................................................................143

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Introduction

Chapter 1

Introduction

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Introduction

This document provides you with the information required to administrate your product at an advanced level.

Products covered in this guide:

• Profile 52” / 55” / 65” using C60

• Profile 52” Dual / 55” Dual using C60

• Profile 42” / 52” / 55” using C40

• Codec C60

• Codec C40

User documentation

The user documentation for the Cisco TelePresence Codec C Series has several guides suitable for various user groups.

• Installation guides: How to install the product

• Getting started guide: Initial configurations required to get the system up and running

• Administering TC Endpoints on CUCM: Tasks to perform to start using the product with the Cisco Unified Communications Manager (CUCM)

• Administrator guide (this guide): Information required to administer your product

• Quick reference guides: How to use the product (remote control and Touch controller)

• User guides: How to use the product (remote control and Touch controller)

• Camera user guide: User guide for the PrecisionHD cameras

• API reference guide: How to use the Application Programmer Interface (API), and reference guide for the command line commands

• User guide for the TC console application: The free TC Console application provides a graphical interface to the advanced customizable features of the codec.

• Physical interface guides

• Knowledge base articles

• Video conferencing room primer: General guidelines for room design and best practice

• Video conference room acoustics guidelines: Things to do to improve the perceived audio quality

• Software release notes

• Regulatory compliance and safety information guide

• Legal & license information

Downloading the user documentation

We recommend you visit the Cisco web site regularly for updated versions of the user documentation.

Go to: ► http://www.cisco.com/go/telepresence/docs

Guidelines how to find the documentation on the Cisco web site are included in the

► User documentation on the Cisco web site appendix.

Software

You can download the software for your product from the Cisco web site. Go to:

► http://www.cisco.com/cisco/software/navigator.html

We recommend reading the Software Release Notes (TC6), go to:

► http://www.cisco.com/en/US/products/ps11422/tsd_ products_support_series_home.html

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Introduction

What’s new in this version

This section provides an overview of the new and changed system settings and new features in the TC6.1 software version.

Software release notes

For a complete overview of the news and changes, we recommend reading the Software Release Notes (TC6).

Go to: ► http://www.cisco.com/en/US/products/ps11422/

tsd_products_support_series_home.html

Software download

For software download go to: ► http://www.cisco.com/cisco/

software/navigator.html

New features and improvements

Changes in release key policy and software upgrade management

As from software version TC6.1, you do not need to install new release keys; it is sufficient that the video system has a valid release key for an earlier TC software version.

As from TC6.1 software will be available for download only at ► http://www.cisco.com, and only for users with a valid service contract assigned to a CCO (Cisco online connection) ID.

Password always prompted on Telnet and SSH

When signing into the video system using Telnet or SSH, the password will always be prompted. This applies even when the password is empty (not set).

Support for <p> and <br> tags in messages on screen

For security reasons only <p> and <br> HTML tags are supported in messages on screen (cf. Message Alert and Message Prompt commands). These tags will result in line breaks as normal. No other tags will be interpreted; they will appear as text on the screen.

Diagnostics logging

You can use the Touch controller to enable diagnostics logging of the video system. Diagnostics logging is meant for troubleshooting only, and may lower the system performance while switched on.

G.729 audio codec support in SIP calls

Support for the G.729AB audio codec is added in SIP calls in order to provide better IP phone interoperability. G.729 is not supported in H.323 calls.

Voice mail support and message waiting indication

Endpoints registered to a Cisco Unified Communications Manager (CUCM) can be assigned a voice mail profile. When receiving a Busy or No Answer signal from such an endpoint, the call is forwarded to voice mail.

If you have a Touch controller, you can access the voice mail by tapping the Messages icon. Also a message waiting notification will appear.

Shared lines support in CUCM

When registered to a Cisco Unified Communications Manager (CUCM) the endpoint may be part of a shared line. This means that several devices in the same partition share the same directory number. The different devices sharing the same number receive status from the other appearances on the line.

For example, you can set up a shared line so that many devices share the same number and the first available operator picks up the call (help desk). Assisted call handling, where an administrator manages the calls for an executive (forward, barge in) is another example. Also multiple devices belonging to one person can share the same line, thus allowing him/her to pick up a call on one device and resume it on another (single number reach).

You can find information about how to set up shared lines in the CUCM user documentation (Cisco Unified Communications Manager System Guide).

Ad-hoc conferencing in CUCM

Endpoints registered on Cisco Unified Communications Manager (CUCM) version 8.6.2 or later can invoke an ad-hoc conference. This requires that a conference bridge is added as an MCU on CUCM. Any endpoint can participate in the conference, regardless of where they are registered.

If the number of participants drops to two, the conference will de-escalate to a point to point call.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Introduction

Support for consultative transfer

Consultative transfer is supported. A consultative transfer is one in which the transferring party speaks with the third par ty before connecting the caller to the third party.

CTI/JTAPI support (remote expert solution suppor t)

A Cisco Unified Communications Manager (CUCM) exposes call control of endpoints via a Java Telephony API (JTAPI). Cisco’s JTAPI enables custom applications to monitor device availability and control calls remotely. The following features are supported: call, answer, disconnect, hold, resume, blind transfer, consultative transfer and consultative conference.

Endpoints registered to a Cisco Unified Communications Manager (CUCM) 9.0 or later support the Cisco Remote Expert Smart Solution (version 1.8).

Refined Touch user interface

• Missed calls and message waiting indicators; direct access to voice mail

• New dial pad, soft keyboard and improved text selector

• Encryption indicator

• Call duration indicator

• Possibility to enter a release key if a valid release key is missing

System configuration changes

New settings

Network DHCP RequestTFTPServerAddress

SIP Profile Line

SIP Profile Mailbox

Video CamCtrlPip CallSetup Mode

Video CamCtrlPip CallSetup Duration

Video SelfviewControl AutoResizing

Settings that are modified

Conference Multipoint Mode

OLD: <Auto/Off/MultiSite/MultiWay> NEW: <Auto/O ff/MultiSite/MultiWay/

CUCMMediaResourceGroup>

Video Output HDMI[x] MonitorRole

OLD: <First/Second/PresentationOnly> NEW: <First/Second/PresentationOnly/Recorder>

Video Output DVI[x] MonitorRole

OLD: <First/Second/PresentationOnly> NEW: <First/Second/PresentationOnly/Recorder>

Video Output Composite[x] MonitorRole

OLD: <First/Second/PresentationOnly> NEW: <First/Second/PresentationOnly/Recorder>

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Introduction

Profile 42” using Codec C40 ataglance

See the installation sheet for the Profile 42” for instructions on how to install the system.

Codec C40

• Full HD video

• High resolution data sharing

• Full HD Multisite

• Rich I/O capabilities

PrecisionHD 1080p camera

Full HD Camera designed for visual communication with:

• 12 × optical zoom

• Fast and precise pan, tilt and zoom

Monitor

42” Full HD LCD, 16:9, 1080 × 1920 resolution

Audio module

Wide band audio module supporting:

• 20 kHz AAC-LD

• Full echo canceling

• Stereo

Audio amplifier

Optimized DNAM for the Profile system, providing crystal clear and natural audio

Microphones

2 × Microphones

Operating devices

• Touch 8” controller (for C Series)

• Remote control with AAA batteries

Ethernet cable

PC cable

Mic cable

Power cable

Floor standing footplate (Other options: Wheel base

or wall mount on pedestal)

PrecisionHD 1080p camera

Monitor 42’’ Full HD LCD

In the bottom module:

• Audio amplifier (DNAM)

• Codec C40

2 × Microphones with cablesRemote control

Touch controller

Base options

Floor standing footplate, wheel base, or wall mount on pedestal

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Introduction

Profile 52”/55” at a glance

See the installation sheets for the Profile 52”/55” for instructions on how to install the system.

Codec C60/C40

• Full HD video

• High resolution data sharing

• Full HD Multisite

• Rich I/O capabilities

PrecisionHD 1080p camera

Full HD Camera designed for visual communication with:

• 12 × optical zoom

• Fast and precise pan, tilt and zoom

Monitor

52”/55” Full HD LCD, 16:9, 1080 × 1920 resolution

Audio module

Wide band audio module supporting:

• 20 kHz AAC-LD

• Full echo canceling

• Stereo

Audio amplifier

Optimized DNAM for the Profile system, providing crystal clear and natural audio

Ethernet cable

PC cable

Mic cable

Power cable

PrecisionHD 1080p camera

Monitor 52’’/55” Full HD LCD

In the bottom module:

• Audio amplifier (DNAM)

• Codec C60/C40

Microphones

Three (with C60) / Two (with C40) microphones with cables

Operating devices

• Touch 8” controller

• Remote control with AAA batteries

Base options

Floor standing footplate, wheel base, or wall mount on pedestal

Floor standing footplate (Other options: Wheel base

or wall mount on pedestal)

Touch 8”controller

Remote control

Three/two microphones

(Profiles using

Cod ec C 40)

(Profiles using

Cod ec C 60)

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Introduction

Profile 52” Dual / 55” Dual at a glance

See the installation sheets for the Profile 52” Dual / 55” Dual for instructions on how to install the system.

Codec C60

• Full HD video

• High resolution data sharing

• Full HD Multisite

• Rich I/O capabilities

PrecisionHD 1080p camera

Full HD Camera designed for visual communication with:

• 12 × optical zoom

• Fast and precise pan, tilt and zoom

Dual monitor

Dual 52” / Dual 55” Full HD LCD, 16:9, 1080 × 1920 resolution

Audio module

Wide band audio module supporting:

• 20 kHz AAC-LD

• Full echo canceling

• Stereo

Audio amplifier

Optimized DNAM for the Profile system, providing crystal clear and natural audio

Ethernet cable

PC cable

Mic cable

Power cable

PrecisionHD 1080p camera

Dual 52’’/ Dual 55” monitor Full HD LCD

In the bottom module:

• Audio amplifier (DNAM)

• Codec C60

Four microphones

Microphones

Four microphones with cables

Operating devices

• Touch 8” controller

• Remote control with AAA batteries

Base options

Floor standing footplate or wall mount on pedestal

Floor standing footplate (Other option:

Wall mount on pedestal)

Touch 8”controller

Remote control

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Introduction

Profile 65” at a glance

See the Profile 65” Installation Sheet for instructions of how to assemble the system.

Codec C60

• Full HD video

• High resolution data sharing

• Full HD Multisite

• Rich I/O capabilities

PrecisionHD 1080p camera

Full HD Camera designed for Visual communication with:

• 12 × optical zoom

• Fast and precise pan, tilt and zoom

Monitor 65”

65” Full HD LCD, 16:9, 1080 × 1920 resolution

Audio module

Wide band audio module supporting:

• 20 kHz AAC-LD

• Full echo canceling

• Stereo

Audio amplifier

Optimized DNAM for the Profile system, providing crystal clear and natural audio

Ethernet cable

PC cable

Mic cables

Power cable

PrecisionHD 1080p camera

Monitor 65” Full HD LCD

In the bottom module:

• Audio amplifier (DNAM)

• Codec C60

Microphones

Three microphones with cables

Operating devices

• Touch 8” controller

• Remote control with AAA batteries

Base options

Floor standing footplate or wall mount on pedestal

Floor standing footplate (Other option:

Wall mount on pedestal)

Touch 8” controller

Remote control

Three microphones

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Introduction

Codec C60 at a glance

The Codec C60 is the 1080p HD video collaboration engine. Based upon the same technology as the Codec C90, the C60 delivers Full HD video, HD collaboration and superior audio for natural communication at its finest, delivering unrivaled value.

The C60 is a standards-compliant codec for integration into team meeting rooms, boardrooms and industry projects.

• Full High Definition Video with up to 4 HD sources, and collaboration with optimal definition for the best video quality every time, regardless of environment.

• Highest Quality Audio with flexibility to add up to 4 microphones directly from the codec, and superior, full duplex audio with high quality stereo sound.

• Full APIs.

• Ensure successful, streamlined integration projects with standards-compliant professional connectors.

Integrator package

The integrator package of the Codec C60 comes with the PrecisionHD 1080p camera, microphone and cables.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Introduction

Codec C40 at a glance

The Codec C40 provides all the power required to transform any conference room to a HD video collaboration room. Designed for any standard HD integration project, the Codec C40 is the ideal solution for everyday video conferencing and collaboration solution. 1080p HD video, and Multisite™ features combine to make the Codec C40 ideal for a variety of applications.

The Codec C40 is ideal for standard meeting rooms, executive offices and team collaboration rooms.

• Full High Definition Video with up to 2 HD sources, and collaboration with optimal definition for the best video quality every time, regardless of environment.

• Highest Quality Audio with flexibility to add up to 2 microphones directly from the codec, and superior, full duplex audio with high quality stereo sound.

• Full APIs.

• Ensure successful, streamlined integration projects with standards-compliant professional connectors.

Integrator package

The integrator package of the Codec C40 comes with the PrecisionHD 1080p camera, microphone and cables.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Chapter 2

Web interface

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Starting the web interface

The web interface provides full configuration access to your video conference system.

You can connect from a computer and administer the system remotely.

In this chapter you will find information how to use the web interface for system configuration and maintenance.

We recommend that you use the latest release of one of the major web browser.

1. Connect to the video system

Open a web browser and enter the IP address of the video system in the address bar.

To find the IP address (IPv4 orIPv6), tap

Settings (

or navigate to Home > Settings >

System information when using a remote

control and the on-screen menu.

) on a Touch controller;

2. Sign in

Enter the user name and password for your video system and click Sign In.

The system is delivered with a default user named admin with no password (i.e. leave the

Password field blank when signing in for the first

time).

We strongly recommend that you set a password for the admin user, see the next page.

Signing out

Hover the mouse

over your user

name and choose

Sign out from the

drop-down list.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Changing the system password

We strongly recommend that you set a password for any user with ADMIN rights, including the default admin user, to restrict access to system configuration.

You can read more about password protection in the

► Setting passwords chap ter.

1. Open the Change Password dialog

Hover the mouse over your user name, and choose Change password in the drop-down list.

2. Set the new password

Enter your current and new passwords as requested, and click Change password for the change to take effect.

If the password currently is not set, leave the Current password field blank.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

The interactive menu

The web interface provides access to tasks and configurations. They are available from the main menu, which appears near the top of the page when you have signed in.

When you hover the mouse over a main menu item, you can navigate to its related sub-pages.

Main menu

Hover the mouse over a main menu item, the titles of related sub-pages drops down.

Click a sub-page’s title to open it. Only pages that the user has access rights for can be opened; the others are dimmed.

Click Home on the main menu to return to the System Information page.

Sub-pages

You can read more about user administration, user roles and access rights in the ► User administration section.

Call Con trol

Call Control

Favorites Management

Configuration

System Configuration

System Status

Personalization

Peripherals

User Administration

API

Security

Diagnostics

Troubleshooting

Log Files

Maintenance

Software Upgrade

Backu p and Rest ore

Facto ry Rese t

Restar t

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

System information

The video system’s Home page shows an overview of the basic set-up and status of the system.

This includes information like system name and product type, which software version the system runs, its IPaddress, etc. Also the registration status for the video networks (SIP and H.323) is included, as well as the number/URI to use when making a call to the system.

Home

The system information shown in the illustration serve as an

example. Your system may be different.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Placing a call

You can use the Call Control page of the web interface to initiate a call.

Even if the web interface is used to initiate the call it is the video system (display, microphones and loudspeakers) that is used for the call; it is not the PC running the web interface.

Calling

You can call someone either by choosing a contact name in the Local phone book or Directory, or by typing a complete URI or number in the Search and Dial field. Then click Call in the associated contact card.

Searching the contact lists

Enter one or more characters in the Search or Dial field. Matching entries from both the Local phone book and the Directory will be listed as you type.

Select the entry in the phone book or directory before you click Call.

Calling more than one

A point-to-point video call (a call involving two parties only) may be expanded to include more participants.

If your system supports the optional built-in MultiSite feature, up to four participants, yourself included, can join the video call. The call will then become a video conference.

One additional participant can join on audio-only.

Follow the same procedure to call the next conference participant as you did when calling the first participant.

Navigate to: Call Control > Call Control

Calling someone

Click a contact name, either in the

Local phone book or in the Directory.

Then click Call in the contact card.

Alternatively, enter the complete URI

or number in the Search and Dial field.

Then click the Call button that appears

next to the URI or number.

Holding and resuming

Use the to the participant’s name to put him on hold.

To resume the call, use the button that appears for the participant on hold.

button next

Ending a call

To disconnect just one participant in a call, click the

button for that

participant.

Click the End all button to terminate the entire call.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Sharing content

You can connect a presentation source to one of the external inputs of your video system. Most often a PC is used as presentation source, but other options may be available depending on your system setup.

While in a call you can share content with the far end, that is the other participant(s) in the call.

If you are not in a call, the content is shared locally on your display.

Navigate to: Call Control > Call Control

Sharing content

1. Choose a Presentation source from the drop-down list.

2. Click Start Presentation.

Stop content sharing: Click the Stop Presentation button that becomes

visible while sharing.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Controlling and monitoring a call

You can control and monitor several call features using the Call Control page.

Navigate to: Call Control > Call Control

Microphone mute

Click the button to mute the microphone. Then the text changes to

Microphone: Off.

Click again to unmute.

Volume down

Volume up

Show/hide

call details

Click the arrow to show details

about the call.

Click the arrow

again to hide the

information.

Call details

scroll your browser to

If necessary,

see the call details.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Controlling the camera

You can control the camera using the Call Control page.

Click the Camera Control button to open the window where you can pan, tilt and zoom the camera, and apply camera presets.

Navigate to: Call Control > Call Control

Camera presets

If a camera preset is defined it is listed here. Apply the preset by clicking its name.

Choose which camera to control

Click the arrow to open the

drop-down list. Then choose the

camera you want to control.

Pan and tilt

Use the left and right arrows to pan the camera, and the up and down arrows to tilt it.

Zoom

Use + and - to zoom in and out.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Local layout control

You can choose a local layout using the Call Control page.

The term layout is used to describe the various ways the videos from the conference participants and a presentation can appear on your screen. Different types of meetings will require different layouts.

Navigate to: Call Control > Call Control

Change the layout

1. Click Change Layout.

2. Choose your preferred layout in the window that opens.

You may change the layout while

in a call.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Capturing snapshots

The snapshot feature, which is disabled by default, allows snapshots captured by your video system to be displayed on the Call Control page. Captures from your video system’s camera as well as from its presentation channel will be displayed.

This feature might come in handy when administering the video system from a remote location, e.g. to check the camera view.

To use web snapshots you have to sign in with ADMIN credentials.

Enabling the snapshot feature

The snapshot feature is disabled by default. The feature must be enabled using the remote control and on screen menu, or the Touch controller. The Touch controller must be directly connected to the codec’s second Ethernet port.

• Touch controller: Tap Settings (

Settings > Web Snapshots and choose On.

• Remote control and on screen menu: Go to the Advanced configuration menu, navigate to Video >

AllowWebSnapshots and choose On.

Far end snapshots while in a call

While in a call, snapshots of the remote participant’s main camera and presentation channel (far end) will be captured and displayed as shown in the illustration. The snapshots are updated approximately ever y 20seconds.

Far end snapshots are captured even if web snapshots are disallowed on the far end video system. Web snapshots are prohibited only for encrypted calls.

) > Administrator

Navigate to: Call Control > Call Control

Far end snapshots

Take live snapshots

While the Live snapshots box is checked,

snapshots are captured by your video system (main

camera and presentation) approximately every two

seconds.

Snapshots from your video system

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Managing the favorites list

The entries in the favorites list can be accessed from the Touch controller, the on-screen menu (the My contacts folder in the phone book) and the Web interface.

Navigate to: Call Control > Favorites Management

Editing contact details

Click a contacts name followed by Edit. Change the details in the form as

appropriate and click Save.

Deleting a contact

Click a contacts name

followed by Edit. Then click

Delete to remove the entry

from the favorites list.

Adding a contact

Click Add contact and fill in

the form that pops up. Then

click Save to store the contact

in the favorites list.

Storing a contact in a folder

Choose the appropriate folder

from the drop down list.

No folder means that the contact

will be stored at the top level.

Adding a contact method

You can store more than one contact method for each contact, e.g. video, telephone and mobile.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Favorite list folders

The entries in the favorites list can be organized in folders.

Navigate to: Call Control > Favorites Management

Editing folders

i. Click Edit folders.

ii. Click the name of an existing

folder to view and edit its details;

or click Add folder and fill in its

details to create at new folder.

iii. Click Save folder to store the

details; or click Delete folder

to remove the folder and all its

contacts and sub-folders.

Opening a folder

Click the folder name to open the folder and show its list of contacts.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

System configuration

The system settings are grouped in several categories. When you choose a category in the left pane all related settings appear to the right.

Each system setting is further described in the

► System settings cha pte r.

Navigate to: Configuration > System Configuration

Searching for settings

Enter as many letters as needed in the search field.

All settings containing these letters will be highlighted.

Selecting a category

The configuration shown in the illustration ser ve as an example.

Your system may be configured differently.

The system settings are structured in several categories.

Choose a category to display the related settings.

Expanding and collapsing lists

Use the buttons to expand and collapse all or individual lists.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Changing system settings

All system settings can be changed from the System Configuration page. The value space for a setting is specified either as a drop-down list or with explanatory text following a text input field.

Different settings may require different user credentials. In order to be sure that an administrator is able to change all system settings, the user must possess all user roles.

You can read more about user administration and user roles in the ► User administration ch a pte r.

Navigate to: Configuration > System Configuration

Drop-down list

Click the arrow to open the drop-down list. Choose the preferred value and click

Save for the change to take effect.

Text input field

Enter text in the input field and click Save for the change to take effect.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Setting the Administrator Settings menu password

When starting up the video conference system for the first time anyone can access the Administrator Settings menu with either the remote control or the Touch controller because the menu password is not set.

We strongly recommend that you define a menu password, because the Administrator Settings may severely affect the behavior of the video conference system.

You can read more about password protection in the

► Setting passwords chap ter.

Navigate to: Configuration > System Configuration

Changing the menu password

Click Set/Change Administrator

Settings menu password to open

this dialog.

Enter a new password in the text input field and click Save to store it.

Use the Unlock button to clear the existing password.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

System status

The system status is grouped in several categories. When you choose a category in the left column, the related status appears in the window to the right.

Navigate to: Configuration > System Status

Searching for status entries

Enter as many letters as needed in the search field. All

entries containing these letters will be highlighted.

Selecting a category

The system status is structured in

The status shown in the illustration ser ve as an example. The status

of your system may be dif ferent.

several categories. Choose a category

to display the related status information.

Expanding and collapsing lists

Use the buttons to expand and collapse all or individual lists.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Choosing a wallpaper

You can choose from a set of predefined wallpapers to use as background on your display.

If you want the company logo or another custom picture to be displayed on the main display, you may upload and use a custom wallpaper.

If you use the Touch controller: The custom wallpaper applies to only the main display and will not appear on the Touch controller.

Navigate to: Configuration > Personalization : Wallpaper tab

Uploading a custom wallpaper file

Click Browse... and locate your custom wallpaper image file.

The file format must be .png and the maximum image size is 1920 × 1200 pixels.

Click Upload to save the file to the video system.

Choosing a wallpaper

Choose a wallpaper from the list.

If you have uploaded a custom wallpaper, it will appear in the list together with the predefined wallpapers.

The chosen wallpaper is highlighted.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Choosing a ringtone

You can choose from a set of predefined ringtones. The chosen ringtone can be played back from this page.

Even if the web interface is used to initiate the playback it is the video system that plays back the ringtone; it is not the PC running the web interface.

Navigate to: Configuration > Personalization : Ringtone tab

Choosing a ringtone

Choose a ringtone from the drop-down list, and click Save to make it the active ringtone.

Playing back a ringtone

Click the play button ( ► ) to play back the ringtone.

Use the stop button (  ) to end the playback.

You must save the ringtone before it can be played back.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Peripherals overview

This page shows an overview of the video input and video output configuration, as well as information about any camera(s), Touch controller or ISDN Link that is connected to your video system.

Managing ISDN Link

If an ISDN Link is paired to the video system it can be managed from this page.

How to configure and use the ISDN Link are described in the ISDN Link documentation on

► http://www.cisco.com/go/isdnlink-docs

Navigate to: Configuration > Peripherals

The peripherals shown in the illustration serve as examples. Your

system may have different peripherals and video input/output configurations.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

User administration

From this page you can manage the user accounts of your video conference system. You can create new user accounts, edit the details of existing users, and delete users.

The default user account

The system comes with a default administrator user account with full access rights. The username is admin and no password is set.

It is highly recommended to set a password for the admin us er.

Read more about passwords in the ► Setting passwords ch a pte r.

About user roles

A user account must hold one or a combination of several user roles.

The following three user roles, with non-overlapping rights, exist:

• ADMIN: A user holding this role can create new users and change most settings. The user neither can upload audit certificates nor change the security audit settings.

• USER: A user holding this role can make calls and search the phone book. The user can modify a few settings, e.g. adjusting the audio volume and changing the menu language.

• AUDIT: A user holding this role can change the security audit configurations and upload audit certificates.

Navigate to: Configuration > User Administration

Default user account

The system comes with admin as the default user account. This user has full access rights.

An administrator user account with full access rights, like the default admin user, must possess all the three roles.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

User administration, continued

Creating a new user account

Follow these steps in order to create a new user account:

1. Click Add new user....

2. Fill in the Username, Password and PIN code*, and check the appropriate user roles check boxes.

As a default the user has to change the password and PIN code when signing in for the first time.

Do not fill in the Distinguished Name (DN) Subject field unless you want to use certificate login on https.

3. Set the Status to Active to activate the user.

4. Click Create User to save the changes.

Use the Back button to leave without making any changes.

Navigate to: Configuration > User Administration

The password is used with the web interface and command line

interface.

The PIN code is used with the on-screen menu.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

User administration, continued

Changing user privileges

Follow these steps in order to change the user privileges:

1. Click the name of an existing user to open the Editing user window.

2. Check the appropriate user roles check boxes, decide if the user has to change the password and PIN code on the next sign in, and fill in the Distinguished Name (DN) Subject field if using certificate login on https.

3. Click Update User to save the changes.

Use the Back button to leave without making any changes.

Changing the password or PIN code

Follow these steps in order to change the password or PIN code:

1. Click the name of an existing user to open the Editing user window.

2. Enter the new password or PIN code in the appropriate input fields.

3. Click Change Password or Change PIN to save the change.

Use the Back button to leave without making any changes.

Navigate to: Configuration > User Administration

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

User administration, continued

Deactivating a user account

Follow these steps in order to deactivate a user account:

Always keep at least one user with ADMIN rights Active.

1. Click the name of an existing user to open the Editing user window.

2. Set the Status to Inactive.

3. Click Update User to save the changes.

Use the Back button to leave without making any changes.

Deleting a user account

Follow these steps in order to delete a user account:

Always keep at least one user with ADMIN rights.

1. Click the name of an existing user to open the Editing user window.

2. Click Delete user... and confirm when prompted.

Navigate to: Configuration > User Administration

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Adding a sign in banner

A sign in banner is a message that is displayed to the user when signing in.

If a system administrator wants to provide initial information to all users, he can create a sign in banner. The message will be shown when the user signs in to the web interface or the command line interface.

Navigate to: Configuration > Sign In Banner

Adding a sign in banner

Enter the message that you

want to present to the user

when signing in, and click

Save to activate the banner.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Application programming interface

The application programming interface (API) is a tool for integration professionals and developers working with this Cisco product. It is described in detail in the API guide for the product.

XML files

The XML files are part of the codec’s API. They structure information about the codec in a hierarchy.

• Configuration.xml contains the current system settings (configuration). These settings are controlled from the web interface or from the API (Application Programmer Interface).

• The information in status.xml is constantly updated by the system to reflect system and process changes. The status information is normally monitored from the API.

• Command.xml contains an overview of the commands available to instruct the system to perform an action. The commands are issued from the API.

• Valuespace.xml contains an overview of all the value spaces used in the system settings, status information, and commands.

API commands

Commands (xCommand) and configurations (xConfiguration) can be executed from this web page. Syntax and semantics are explained in the API guide for the product.

Navigate to: Configuration > API

Opening an XML file

Click the file name to open the XML file.

Executing API commands

Enter a command, or a sequence of

commands, in the text area and click

Execute to issue the command(s).

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Managing the video system’s certificates

Certificate validation may be required when using TLS (Transport Layer Security).

A server or client may require that your video system presents a valid certificate to them before communication can be set up.

The video system’s certificates are text files that verify the authenticity of the system. These certificates may be issued by a certificate authority (CA).

The certificate are listed as shown in the illustration to the

. They can be used for the following services: HTTPS,

right SIP and IEEE 802.1X.

You can store several certificates on the system, but only one certificate can be used for each service at a time.

If authentication fails, the connection will not be established.

Navigate to: Configuration > Security

Enabling and disabling certificates

Use the buttons to switch a certificate on or off for the different services.

You can also view a certificate, and delete a certificate using the corresponding buttons.

Adding a certificate

1. Click Add certificate... to open the certificate dialog.

2. Click Browse... and find the Certificate and

4. Click the blue Add certificate... button to store the

The cer tificates and certificate issuers shown in the illustration serve as examples. Your system may have other certificate(s).

Private key file(s) on your computer.

3. Fill in the Password if required.

certificate on your system.

Contact your system administrator to obtain the following file(s):

• Certificate (file format: .PEM)

• Private key, may be included in the same file as the certificate (file format: .PEM format)

• Password (required only if the private key is encrypted)

The certificate and the private key will be stored in the same file on the video system.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Managing the list of trusted certificate authorities

Certificate validation may be required when using TLS (Transport Layer Security).

Your video system may be set up to require that a server or client presents its certificate to the system before communication can be set up.

The certificates are text files that verify the authenticity of the server or client. The certificates must be signed by a trusted certificate authority (CA).

To be able to verify the signature of the certificates, a list of trusted CAs must reside on the video system. The certificates of the CAs are listed as shown in the illustration to the right

The list must include CAs to verify certificates for as well HTTPS, SIP and IEEE 802.1X connections.

If the server cannot be authenticated, the connection will not be established.

Navigate to: Configuration > Security

Uploading a list of certificate authorities

The entries in a new file with CA certificates will be appended to the existing list, that is, the previously stored certificates will not be deleted.

i. Click Show CAs... to list the existing CA certificates.

ii. Click Add Certificate Authority....

iii. Click Browse... and find the file containing a list of CA

certificates (file format: .PEM) on your computer.

iv. Click the blue Add certificate authority... button to

store the new CA certificate(s) on your system.

Viewing and deleting certificates

You can view a certificate, and delete a certificate using the corresponding buttons.

Contact your system administrator to obtain the CA certificate list (file format: .PEM).

The cer tificate and certificate issuers shown in the illustration serve as examples. Your system will have other certificate(s).

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Adding audit certificates

Audit logging records all sign in activity and configuration changes on your video system.

Audit logging is disabled by default, but you can enable it using the Security > Audit > Logging > Mode setting on the on-screen menu or the web interface.

In ExternalSecure audit logging mode the video system sends encrypted audit logs to an external audit server (syslog server), which identity must be verified by a signed certificate.

To be able to verify the signature of the audit server certificates, a list of trusted audit certificate authorities (CAs) must reside on the video system.

If the audit server cannot be authenticated, the logs will not be sent.

Always upload the audit certificate list before enabling secure audit logging.

Navigate to: Configuration > Security / Configuration > System Configuration

iii

1. Upload a list of audit server certificates

The entries in a new file with CA certificates will overwrite the existing list, that is, any previously stored audit certificates will be lost when you add a new file.

i. Click Add audit server certificate authority....

ii. Click Browse... and find the file containing the

list of audit CA certificates (.PEM format) on your computer.

iii. Click Add audit certificate to store the

certificate(s) on your system.

Contact your system administrator to obtain the Audit CA list (file format: .PEM).

2. Enable secure audit logging

i. Go to the System

Configuration page and

choose the Security category.

ii. Enter the Address and

Port number of the audit

server. Click Save for the changes to take effect.

iii. Choose ExternalSecure

from the Logging Mode drop-down list. Click

Save for the change to

take effect.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Setting strong security mode

Strong security mode should be used only when compliance with DoD JITC regulations is required.

Read the warning carefully before setting strong security mode.

Strong security mode sets ver y strict password requirements, and requires all users to change their password on the next sign in.

Software upload from TMS, web snapshots and calling from the web interface are prohibited in strong security mode.

Navigate to: Configuration > Security

Setting strong security mode

1. Click Configure strong security mode... and read the warning carefully before continuing.

2. If you want to use strong security mode, check the Iunderstand the risks

of strong security mode check box and

click Enable strong security mode.

3. Change the password to meet the strict criteria shown in the warning. How to change the system password: see the ► Setting passwords section.

4. Restart the codec for the change to take effect.

Return to normal mode

1. When in strong security mode, the system can be restored to normal mode by clicking

Configure strong security mode...

followed by Disable strong

security mode.

2. Restart the codec for the change to take effect.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Deleting trust lists (CUCM only)

The Cisco Unified Communications Manager (CUCM) and Certification Authority Proxy Function (CAPF) information that is shown on the Security page is only relevant for video systems that are registered to CUCM.

The web interface can be used to delete an existing Certificate Trust List (CTL) that is stored on the video system. Normally, you will not delete the old CTL file, but there are a few cases when you will need to delete it.

For more information about CUCM, CAPF and trust lists, read the Administering TC Endpoints on CUCM guide available on the Cisco web site.

Navigate to: Configuration > Security

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Troubleshooting

The troubleshooting page lists the status for some common sources of errors. The list may be different for different products and installations.

Note that errors are clearly marked in red color; warnings are yellow.

Navigate to: Diagnostics > Troubleshooting

Run diagnostics

Click Re-run diagnostics to make sure the information in the list is up-to-date.

The messages shown in the illustration ser ve as examples. Your system may show other information.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Downloading log files

The log files* are Cisco specific debug files which may be requested by the Cisco support organization if you need technical support.

The current log files are time stamped event log files.

All current log files are archived in a time stamped historical log file each time the system reboots. If the maximum number of historical log files is reached, the oldest one will be overwritten.

Navigate to: Diagnostics > Log Files

Downloading all files

Click Download log files archive and follow the instructions.

Open a log file

Click the file name to open the log file in the web browser.

The log files shown in the illustration serve as examples. Your system may have other files.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Upgrading the system software

This video conference system is using TC software. The version described in this document is TC6.1.

Contact your system administrator if you have questions about the software version.

Software release notes

For a complete overview of the news and changes, we recommend reading the Software Release Notes (TC6).

Go to: ► http://www.cisco.com/en/US/products/ps11422/

tsd_products_support_series_home.html

New software

For software download, go to the Cisco Download Software web page:

► http://www.cisco.com/cisco/software/navigator.html.

Then navigate to your product.

The file name is something like “s52000tc6_1_0.pkg” (each software version has a unique file name).

Release key and option keys

You need a valid release key to be able to use the TC software. As from version TC6.1, any TC release key will do.

For older releases the release key is specific for each main release (e.g. TC4, TC5, TC6). If you want to downgrade the software to TC6.0 or older, take care to have the correct key.

An option key is required to activate optional functionality. You may have several option keys in your system.

The available options are:

• Premium resolution

• MultiSite

• Dual display (only Codec C40)

Navigate to: Maintenance > Software Upgrade

Adding release and option keys

If you already have a valid release key and the proper option keys installed on your system, you can skip this point and continue with the software installation.

If you do not have the required key(s), contact your Cisco representative to obtain them. Then perform the following steps:

i. Enter the Release key in the appropriate text input field

and click Add.

ii. Enter an Option Key in the appropriate text input field

and click Add.

If you have more than one option key, repeat step ii for all of them.

Each system has unique keys, for example:

• 1TC006-1-0C22E348 (release key)

• 1R000-1-AA7A4A09 (option key)

Installing new software

Download the appropriate software package from the Cisco Software Download web page (see link to the left) and store it on your local computer. This is a .pkg file.

i. Click Browse... and find the downloaded .pkg file that

contains the new software.

ii. Check the Upgrade automatically after upload check

box, then click Upload to start the installation process straight away.

Keep the check box unchecked if you want to upload the software now and do the installation later.

The complete installation may take up to 30minutes. You can follow the progress on the web page. The system reboots automatically after the installation.

You must sign in anew in order to continue working with the web interface after the reboot.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Backup and restore

All the system settings, which are available on the System configuration page, can be listed on-screen or stored as a text file (.tsh).

The .tsh file can be loaded back onto the system, thereby restoring the old configuration.

Navigate to: Maintenance > Backup and Restore

Backing up or showing the current configuration

Click Preview backup to display the current settings on-screen.

Click Take backup to store the configuration as a text file (.tsh).

Restoring an earlier configuration

Click Browse... and find the file (.tsh) with the configuration you want to restore.

Click Restore to reconfigure the system as defined in the file.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Factory reset

When performing a factory reset the call logs will be deleted and all system parameters will be reset to default values. All files that have been uploaded to the system will be deleted. Release keys and option keys will be preser ved.

It is not possible to undo a factory reset.

There are more information about performing a factory reset in the ► Factory resetting appendix.

Navigate to: Maintenance > Factory Reset

We recommend that you backup your system’s log files and configuration before you perform a factory reset; otherwise these data will be lost.

Click the Download Logs and Download

Configuration Backup buttons and

follow the instructions to save the files on your computer.

Perform a factory reset

1. Read the provided information carefully before you restore the factory settings by clicking Perform

a factory reset....

2. Click Reset to confirm your choice, or Cancel if you have changed your mind.

Wait while the system resets. The system will restart automatically when finished.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

Web interface

Restarting the system

The system can be shut down or restarted remotely using the web interface.

Navigate to: Maintenance > Restart

Restarting the system

Click Restart TelePresence device... to restart the system.

It will take a few minutes before the system is ready for use.

Shutting down the system

Click Shutdown TelePresence device... to shut down the system.

The system cannot be turned on again remotely; you must press its power button physically to turn it on.

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Chapter 3

System settings

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Overview of the system settings

In the following pages you will find a complete list of the system settings which are configured from the System

Configuration page on the web interface. The examples show

either the default value or an example of a value.

Open a web browser and enter the IP address of the video system; then sign in.

Navigate to Home > Settings > System Information using the remote control and on-screen menu, or tap Settings ( controller to find the system’s IP address (IPv4 orIP v6).

) > System Information on the Touch

Audio settings ....................................................................... 55

Audio Input HDMI [2] Level ...................................................... 55

Audio Input HDMI [2] Mode ..................................................... 55

Audio Input HDMI [2] VideoAssociation MuteOnInactiveVideo

Audio Input HDMI [2] VideoAssociation VideoInputSource ..... 55

Audio Input Line [1..2] Channel................................................ 56

Audio Input Line [1..2] Equalizer ID .......................................... 55

Audio Input Line [1..2] Equalizer Mode .................................... 55

Audio Input Line [1..2] Level .................................................... 56

Audio Input Line [1..2] LoopSuppression ................................ 56

Audio Input Line [1..2] Mode .................................................... 56

Audio Input Line [1..2] VideoAssociation MuteOnInactiveVideo

Audio Input Line [1..2] VideoAssociation VideoInputSource ... 56 Audio Input Microphone [1..2]/[1..4] EchoControl

Dereverberation ...................................................................... 57

Audio Input Microphone [1..2]/[1..4] EchoControl Mode .......... 57

Audio Input Microphone [1..2]/[1..4] EchoControl

NoiseReduction ....................................................................... 57

Audio Input Microphone [1..2]/[1..4] Equalizer ID ..................... 57

Audio Input Microphone [1..2]/[1..4] Equalizer Mode ............... 57

Audio Input Microphone [1..2]/[1..4] Level ............................... 58

Audio Input Microphone [1..2]/[1..4] Mode .............................. 58

Audio Input Microphone [1..2]/[1..4] Type ................................ 58

Audio Input Microphone [1..2]/[1..4] VideoAssociation

MuteOnInactiveVideo .............................................................. 58

Audio Input Microphone [1..2]/[1..4] VideoAssociation

VideoInputSource ................................................................... 58

Audio Microphones Mute Enabled .......................................... 60

Audio Output HDMI [1] Level ................................................... 58

Audio Output HDMI [1] Mode .................................................. 59

Audio Output Line [1..2] Channel............................................. 59

Audio Output Line [1..2] Equalizer ID ....................................... 59

Audio Output Line [1..2] Equalizer Mode ................................. 59

Audio Output Line [1..2] Level ................................................. 59

Audio Output Line [1..2] Mode ................................................. 59

Audio Output Line [1] Type ...................................................... 59

Audio Output Line [2] Type ...................................................... 60

.............................................................. 55

.............................................................. 56

Audio SoundsAndAlerts KeyTones Mode ............................... 60

Audio SoundsAndAlerts RingTone .......................................... 60

Audio SoundsAndAlerts RingVolume...................................... 60

Audio Volume .......................................................................... 60

Cameras settings .................................................................. 61

Cameras Camera [1..7] Backlight .............................................61

Cameras Camera [1..7] Brightness Level .................................61

Cameras Camera [1..7] Brightness Mode ................................61

Cameras Camera [1..7] DHCP ................................................. 63

Cameras Camera [1..7] Flip ......................................................61

Cameras Camera [1..7] Focus Mode ........................................61

Cameras Camera [1..7] Gamma Level ..................................... 62

Cameras Camera [1..7] Gamma Mode .................................... 62

Cameras Camera [1..7] IrSensor ............................................. 62

Cameras Camera [1..7] Mirror ................................................. 62

Cameras Camera [1..7] Whitebalance Level ........................... 62

Cameras Camera [1..7] Whitebalance Mode .......................... 62

Cameras PowerLine Frequency ...............................................61

Conference settings ............................................................. 64

Conference [1..1] AutoAnswer Delay ....................................... 64

Conference [1..1] AutoAnswer Mode ...................................... 64

Conference [1..1] AutoAnswer Mute ........................................ 64

Conference [1..1] DefaultCall Protocol ..................................... 65

Conference [1..1] DefaultCall Rate ........................................... 65

Conference [1..1] DoNotDisturb DefaultTimeout ..................... 65

Conference [1..1] DoNotDisturb Mode .................................... 64

Conference [1..1] Encryption Mode ......................................... 65

Conference [1..1] FarEndControl Mode ................................... 65

Conference [1..1] FarEndControl SignalCapability ................... 65

Conference [1..1] IncomingMultisiteCall Mode ........................ 68

Conference [1..1] MaxReceiveCallRate ................................... 66

Conference [1..1] MaxTotalReceiveCallRate ............................ 66

Conference [1..1] MaxTotalTransmitCallRate ........................... 66

Conference [1..1] MaxTransmitCallRate ................................... 66

Conference [1..1] MicUnmuteOnDisconnect Mode ................. 64

Conference [1..1] Multipoint Mode .......................................... 68

Conference [1..1] PacketLossResilience Mode ....................... 67

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Conference [1..1] Presentation OnPlacedOnHold ................... 67

Conference [1..1] Presentation Policy ...................................... 67

Conference [1..1] Presentation RelayQuality ........................... 67

Conference [1..1] VideoBandwidth MainChannel Weight ........ 66

Conference [1..1] VideoBandwidth Mode ................................ 66

Conference [1..1] VideoBandwidth PresentationChannel

..................................................................................... 67

Weight

FacilityService settings ......................................................... 69

FacilityService Service [1..5] CallType .................................... 69

FacilityService Service [1..5] Name ........................................ 69

FacilityService Service [1..5] Number ..................................... 69

FacilityService Service [1..5] Type .......................................... 69

GPIO settings ........................................................................ 70

GPIO Pin [1..4] Mode ............................................................... 70

H323 settings .........................................................................71

H323 NAT Address ..................................................................71

H323 NAT Mode ......................................................................71

H323 Profile [1..1] Authentication LoginName ..........................71

H323 Profile [1..1] Authentication Mode ...................................71

H323 Profile [1..1] Authentication Password ........................... 72

H323 Profile [1..1] CallSetup Mode .......................................... 72

H323 Profile [1..1] Gatekeeper Address .................................. 72

H323 Profile [1..1] Gatekeeper Discovery ................................ 72

H323 Profile [1..1] H323Alias E164 .......................................... 72

H323 Profile [1..1] H323Alias ID ............................................... 72

H323 Profile [1..1] PortAllocation ............................................. 73

Network settings ....................................................................74

Network [1..1] Assignment ........................................................ 74

Network [1..1] DHCP RequestTFTPServerAddress ................. 75

Network [1..1] DNS Domain Name ........................................... 75

Network [1..1] DNS Server [1..3] Address ................................ 75

Network [1..1] IEEE8021X AnonymousIdentity ......................... 78

Network [1..1] IEEE8021X Eap Md5 ......................................... 78

Network [1..1] IEEE8021X Eap Peap ........................................ 79

Network [1..1] IEEE8021X Eap Tls ............................................ 79

Network [1..1] IEEE8021X Eap Ttls ........................................... 79

Network [1..1] IEEE8021X Identity ............................................ 78

Network [1..1] IEEE8021X Mode .............................................. 77

Network [1..1] IEEE8021X Password ........................................ 78

Network [1..1] IEEE8021X TlsVerify .......................................... 78

Network [1..1] IEEE8021X UseClientCertificate ....................... 78

Network [1..1] IPStack ...............................................................74

Network [1..1] IPv4 Address .....................................................74

Network [1..1] IPv4 Gateway .....................................................74

Network [1..1] IPv4 SubnetMask ............................................... 74

Network [1..1] IPv6 Address .................................................... 75

Network [1..1] IPv6 Assignment ................................................ 74

Network [1..1] IPv6 DHCPOptions ........................................... 75

Network [1..1] IPv6 Gateway .................................................... 75

Network [1..1] MTU .................................................................. 79

Network [1..1] QoS Diffserv Audio ........................................... 76

Network [1..1] QoS Diffserv Data ............................................. 76

Network [1..1] QoS Diffserv ICMPv6 ....................................... 77

Network [1..1] QoS Diffserv NTP ............................................. 77

Network [1..1] QoS Diffserv Signalling ..................................... 77

Network [1..1] QoS Diffserv Video ........................................... 76

Network [1..1] QoS Mode ........................................................ 76

Network [1..1] RemoteAccess Allow ........................................ 80

Network [1..1] Speed ............................................................... 79

Network [1..1] TrafficControl Mode .......................................... 79

Network [1..1] VLAN Voice Mode ............................................ 80

Network [1..1] VLAN Voice VlanId............................................ 80

NetworkPort settings ............................................................ 81

NetworkPort [2] Mode ..............................................................81

NetworkServices settings ..................................................... 82

NetworkServices CTMS Encryption ....................................... 86

NetworkServices CTMS Mode ............................................... 85

NetworkServices H323 Mode ................................................ 82

NetworkServices HTTP Mode ................................................ 82

NetworkServices HTTPS Mode .............................................. 83

NetworkServices HTTPS OCSP Mode ................................... 83

NetworkServices HTTPS OCSP URL ..................................... 83

NetworkServices HTTPS VerifyClientCertificate .................... 83

NetworkServices HTTPS VerifyServerCertificate .................. 83

NetworkServices MultiWay Address ...................................... 82

NetworkServices MultiWay Protocol ...................................... 82

NetworkServices NTP Address .............................................. 84

NetworkServices NTP Mode .................................................. 84

NetworkServices SIP Mode .................................................... 84

NetworkServices SNMP CommunityName ............................ 84

NetworkServices SNMP Host [1..3] Address .......................... 84

NetworkServices SNMP Mode ............................................... 84

NetworkServices SNMP SystemContact ............................... 85

NetworkServices SNMP SystemLocation .............................. 85

NetworkServices SSH AllowPublicKey ................................... 85

NetworkServices SSH Mode .................................................. 85

NetworkServices Telnet Mode ............................................... 85

NetworkServices XMLAPI Mode ............................................ 82

Phonebook settings .............................................................. 87

Phonebook Server [1..1] ID ...................................................... 87

Phonebook Server [1..1] Type ................................................. 87

Phonebook Server [1..1] URL .................................................. 87

Provisioning settings ............................................................. 88

Provisioning Connectivity ....................................................... 88

Provisioning ExternalManager Address .................................. 89

Provisioning ExternalManager Domain ................................... 89

Provisioning ExternalManager Path ........................................ 89

Provisioning ExternalManager Protocol .................................. 89

Provisioning HttpMethod ........................................................ 88

Provisioning LoginName ......................................................... 88

Provisioning Mode .................................................................. 88

Provisioning Password ............................................................ 88

RTP settings .......................................................................... 90

RTP Ports Range Start ............................................................ 90

RTP Ports Range Stop ............................................................ 90

Security settings ................................................................... 91

Security Audit Logging Mode ..................................................91

Security Audit OnError Action ..................................................91

Security Audit Server Address ................................................91

Security Audit Server Port .......................................................91

Security Session InactivityTimeout ......................................... 92

Security Session ShowLastLogon .......................................... 92

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

SerialPort settings ................................................................ 93

SerialPort BaudRate ................................................................ 93

SerialPort LoginRequired ........................................................ 93

SerialPort Mode ...................................................................... 93

SIP settings ........................................................................... 94

SIP ListenPort ......................................................................... 96

SIP Profile [1..1] Authentication [1..1] LoginName .................... 94

SIP Profile [1..1] Authentication [1..1] Password ....................... 94

SIP Profile [1..1] DefaultTransport ............................................ 94

SIP Profile [1..1] DisplayName.................................................. 94

SIP Profile [1..1] Line ................................................................ 96

SIP Profile [1..1] Mailbox .......................................................... 95

SIP Profile [1..1] Outbound ....................................................... 95

SIP Profile [1..1] Proxy [1..4] Address ....................................... 95

SIP Profile [1..1] Proxy [1..4] Discovery .................................... 95

SIP Profile [1..1] TlsVerify ......................................................... 94

SIP Profile [1..1] Type ............................................................... 95

SIP Profile [1..1] URI ................................................................. 94

Standby settings ................................................................... 97

Standby BootAction ................................................................ 97

Standby Control ...................................................................... 97

Standby Delay ......................................................................... 97

Standby StandbyAction .......................................................... 97

Standby WakeupAction ........................................................... 97

SystemUnit settings .............................................................. 98

SystemUnit CallLogging Mode ............................................... 98

SystemUnit ContactInfo Type ................................................. 98

SystemUnit IrSensor ............................................................... 99

SystemUnit MenuLanguage .................................................... 98

SystemUnit Name ................................................................... 98

Time settings ...................................................................... 100

Time DateFormat .................................................................. 100

Time TimeFormat .................................................................. 100

Time Zone ............................................................................. 10 0

UserInterface settings ..........................................................101

UserInterface TouchPanel DefaultPanel ................................101

Video settings ......................................................................102

Video AllowWebSnapshots ....................................................112

Video CamCtrlPip CallSetup Duration .................................. 108

Video CamCtrlPip CallSetup Mode ....................................... 108

Video DefaultPresentationSource ......................................... 104

Video Input DVI [3]/[2,3] RGBQuantizationRange .................. 105

Video Input DVI [3]/[2,3] Type ................................................ 105

Video Input HDMI [1..2] RGBQuantizationRange ................... 104

Video Input Source [1..3] CameraControl CameraId ............. 103

Video Input Source [1..3] CameraControl Mode ................... 103

Video Input Source [1..3] Name ............................................ 102

Video Input Source [1..3] OptimalDefinition Profile ............... 103

Video Input Source [1..3] OptimalDefinition Threshold60fps 104

Video Input Source [1..3] PresentationSelection ................... 103

Video Input Source [1..3] Quality ........................................... 104

Video Input Source [1..3] Type .............................................. 102

Video Input Source [1] Connector ......................................... 102

Video Input Source [2] Connector ......................................... 102

Video Input Source [3] Connector......................................... 102

Video Layout LocalLayoutFamily .......................................... 109

Video Layout RemoteLayoutFamily ....................................... 10 9

Video Layout ScaleToFrame ................................................. 106

Video Layout ScaleToFrameThreshold .................................. 106

Video Layout Scaling ............................................................ 105

Video MainVideoSource ....................................................... 104

Video Monitors ...................................................................... 109

Video OSD AutoSelectPresentationSource ........................... 111

Video OSD EncryptionIndicator .............................................110

Video OSD InputMethod Cyrillic ............................................ 112

Video OSD InputMethod InputLanguage ............................... 111

Video OSD LoginRequired ..................................................... 112

Video OSD MenuStartupMode .............................................. 110

Video OSD MissedCallsNotification ....................................... 110

Video OSD Mode ................................................................... 110

Video OSD MyContactsExpanded ......................................... 111

Video OSD Output .................................................................111

Video OSD TodaysBookings .................................................. 111

Video OSD VirtualKeyboard ................................................... 110

Video Output Composite [3] MonitorRole .............................. 114

Video Output Composite [3] OverscanLevel ..........................115

Video Output Composite [3] Resolution .................................115

Video Output DVI [2] MonitorRole ..........................................114

Video Output DVI [2] OverscanLevel ...................................... 114

Video Output DVI [2] Resolution ............................................. 114

Video Output DVI [2] RGBQuantizationRange ........................113

Video Output HDMI [1] CEC Mode .........................................112

Video Output HDMI [1] MonitorRole ....................................... 113

Video Output HDMI [1] OverscanLevel ................................... 113

Video Output HDMI [1] Resolution .......................................... 113

Video Output HDMI [1] RGBQuantizationRange .....................112

Video PIP ActiveSpeaker DefaultValue Position ................... 108

Video PIP Presentation DefaultValue Position ...................... 108

Video Selfview ...................................................................... 106

Video SelfviewControl AutoResizing .................................... 106

Video SelfviewDefault FullscreenMode .................................107

Video SelfviewDefault Mode ..................................................107

Video SelfviewDefault OnMonitorRole ...................................107

Video SelfviewDefault PIPPosition .........................................107

Video SelfviewPosition ......................................................... 10 6

Video WallPaper.....................................................................115

Experimental settings .......................................................... 116

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Audio settings

Audio Input HDMI [2] Mode

Determine if the audio channels on the HDMI input shall be enabled. The HDMI input 2 has two audio channels.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable audio on the HDMI input. On: Enable audio on the HDMI input.

Example:

Audio Input HDMI 2 Mode: On

Audio Input HDMI [2] Level

Define the audio level of the HDMI input connector, in steps of 1 dB. See the Audio Level tables in the Physical Interfaces Guide for the codec for a complete

overview of the menu values represented in dB.

Requires user role: ADMIN

Value space: <-24..0>

Range: Select a value from -24 to 0 dB.

Example:

Audio Input HDMI 2 Level: 0

Audio Input HDMI [2] VideoAssociation MuteOnInactiveVideo

Enable association of a video source to an HDMI audio input.

Requires user role: ADMIN

Value space: <Off/O n>

Off: No video source is associated. On: A video source is associated, and the audio will be muted if the associated video source

is not displayed.

Example:

Audio Input HDMI 2 VideoAssociation MuteOnInactiveVideo: Off

Audio Input HDMI [2] VideoAssociation VideoInputSource

Select the associated video input source.

Requires user role: ADMIN

Value space: <1/2/ 3>

Range: Select one of the video input sources.

Example:

Audio Input HDMI 2 VideoAssociation VideoInputSource: 1

Audio Input Line [1..2] Equalizer ID

Select the audio input line equalizer ID.

Requires user role: ADMIN

Value space: <1..8>

Range: Select EqualizerID 1 to 8.

Example:

Audio Input Line 1 Equalizer ID: 1

Audio Input Line [1..2] Equalizer Mode

Set the audio input line equalizer mode.

Requires user role: ADMIN

Value space: <Off/O n>

Off: No equalizer. On: Enable the equalizer for the audio input line.

Example:

Audio Input Line 1 Equalizer Mode: Off

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Audio Input Line [1..2] VideoAssociation MuteOnInactiveVideo

Enable association of a video source to a Line audio input.

Requires user role: ADMIN

Value space: <Off/O n>

Off: No video source is associated. On: A video source is associated, and the audio will be muted if the associated video source

is not displayed.

Example:

Audio Input Line 1 VideoAssociation MuteOnInactiveVideo: Off

Audio Input Line [1..2] VideoAssociation VideoInputSource

Select the associated video input source.

Requires user role: ADMIN

Value space: <1/2/ 3>

Range: Select one of the video input sources.

Example:

Audio Input Line 1 VideoAssociation VideoInputSource: 1

Audio Input Line [1..2] Channel

Define whether the Audio Line input is a mono signal or part of a multichannel signal.

Requires user role: ADMIN

Value space: <Right/Left/Mono>

Right: The Audio Line input signal is the right channel of a stereo signal. Left: The Audio Line input signal is the left channel of a stereo signal. Mono: The Audio Line input signal is a mono signal.

Example:

Audio Input 1 Channel: Left

Audio Input Line [1..2] Level

Define the audio level of the Line input connector, in steps of 1 dB. See the Audio Level tables in the Physical Interfaces Guide for the codec for a complete

overview of the menu values represented in dB.

Requires user role: ADMIN

Value space: <0..24>

Range: Select a value from 0 to 24 dB.

Example:

Audio Input Line 1 Level: 10

Audio Input Line [1..2] LoopSuppression

Codec C40 and C60 currently does not support loop suppression, hence it is always Off.

Requires user role: ADMIN

Value space: <Off>

Off: Deactivate Loop Suppression.

Example:

Audio Input Line 1 LoopSuppression: Off

Audio Input Line [1..2] Mode

Set the audio input line mode.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable the Audio Line input. On: Enable the Audio Line input.

Example:

Audio Input Line 1 Mode: On

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Audio Input Microphone [1..2]/[1..4] EchoControl Mode

NOTE: Codec C40 has two microphone connectors. Codec C60 has four microphone connectors.

The echo canceller continuously adjusts itself to the audio characteristics of the room and compensate for any changes it detects in the audio environment. If the changes in the audio conditions are very significant the echo canceller may take a second or two to re-adjust.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Echo Control should be switched Off if external echo cancellation or playback equipment is used.

On: Echo Control is normally set to On to prevent the far end from hearing their own audio. Once selected, echo cancellation is active at all times.

Example:

Audio Input Microphone 1 EchoControl Mode: On

Audio Input Microphone [1..2]/[1..4] EchoControl NoiseReduction

NOTE: Codec C40 has two microphone connectors. Codec C60 has four microphone connectors.

The system has a built-in noise reduction which reduces constant background noise (for example noise from air-conditioning systems, cooling fans etc.). In addition, a high pass filter (Humfilter) reduces very low frequency noise. NOTE: Requires the Echo Control Mode to be enabled for the microphone.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Turn off the Noise Reduction. On: The Noise Reduction should be enabled in the presence of low frequency noise.

Example:

Audio Input Microphone 1 EchoControl NoiseReduction: On

Audio Input Microphone [1..2]/[1..4] EchoControl Dereverberation

NOTE: Codec C40 has two microphone connectors. Codec C60 has four microphone connectors.

The system has built-in signal processing to reduce the effect of room reverberation. NOTE: Requires the Echo Control Mode to be enabled for the microphone.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Turn off the dereverberation. On: Turn on the dereverberation.

Example:

Audio Input Microphone 1 EchoControl Dereverberation: On

Audio Input Microphone [1..2]/[1..4] Equalizer ID

NOTE: Codec C40 has two microphone connectors. Codec C60 has four microphone connectors.

Select the audio input microphone equalizer ID.

Requires user role: ADMIN

Value space: <1..8>

Range: Select Equalizer ID 1 to 8.

Example:

Audio Input Microphone 1 Equalizer ID: 1

Audio Input Microphone [1..2]/[1..4] Equalizer Mode

NOTE: Codec C40 has two microphone connectors. Codec C60 has four microphone connectors.

Set the audio input microphone equalizer mode.

Requires user role: ADMIN

Value space: <Off/O n>

Off: No equalizer. On: Enable the equalizer for the audio input microphone.

Example:

Audio Input Microphone 1 Equalizer Mode: Off

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Audio Input Microphone [1..2]/[1..4] VideoAssociation MuteOnInactiveVideo

NOTE: Codec C40 has two microphone connectors. Codec C60 has four microphone connectors.

Enable association of a video source to a microphone audio input.

Requires user role: ADMIN

Value space: <Off/O n>

Off: No video source is associated. On: A video source is associated, and the audio will be muted if the associated video source

is not displayed.

Example:

Audio Input Microphone 1 VideoAssociation MuteOnInactiveVideo: On

Audio Input Microphone [1..2]/[1..4] VideoAssociation VideoInputSource

NOTE: Codec C40 has two microphone connectors. Codec C60 has four microphone connectors.

Select the associated video input source.

Requires user role: ADMIN

Value space: <1/2/ 3>

Range: Select one of the video input sources.

Example:

Audio Input Microphone 1 VideoAssociation VideoInputSource: 1

Audio Input Microphone [1..2]/[1..4] Level

NOTE: Codec C40 has two microphone connectors. Codec C60 has four microphone connectors.

Define the audio level of the Microphone input connector, in steps of 1 dB. See the Audio Level tables in the Physical Interfaces Guide for the codec for a complete

overview of the values represented in dB.

Requires user role: ADMIN

Value space: <0..24>

Range: Select a value from 0 to 24 dB.

Example:

Audio Input Microphone 1 Level: 15

Audio Input Microphone [1..2]/[1..4] Mode

NOTE: Codec C40 has two microphone connectors. Codec C60 has four microphone connectors.

Set the audio input microphone mode.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable the microphone connector. On: Enable the microphone connector.

Example:

Audio Input Microphone 1 Mode: On

Audio Input Microphone [1..2]/[1..4] Type

NOTE: Codec C40 has two microphone connectors. Codec C60 has four microphone connectors.

The microphone connectors are intended for electret type microphones. The microphone connector can be set to line or microphone mode.

Requires user role: ADMIN

Value space: <Microphone/Line>

Microphone: Select Microphone when you have 48 V Phantom voltage and the preamplification is On.

Line: Select Line when you have a standard balanced line input. The phantom voltage and pre-amplification is Off.

Example:

Audio Input Microphone 1 Type: Line

Audio Output HDMI [1] Level

Define the output level of the HDMI output connector, in steps of 1 dB. See the Audio Level tables in the Physical Interfaces Guide for the codec for a complete

overview of the menu values represented in dB.

Requires user role: ADMIN

Value space: <-24..0>

Range: Select a value from -24 to 0dB.

Example:

Audio Output HDMI 1 Level: 0

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Audio Output HDMI [1] Mode

Determine if the audio channel on the HDMI output connector shall be enabled.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable the audio channel on the HDMI output. On: Enable the audio channel on the HDMI output.

Example:

Audio Output HDMI 1 Mode: On

Audio Output Line [1..2] Channel

Define whether the Audio Line output is a mono signal or par t of a multichannel signal.

Requires user role: ADMIN

Value space: <Right/Left/Mono>

Right: The Audio Line output signal is the right channel of a stereo signal. Left: The Audio Line output signal is the left channel of a stereo signal. Mono: The Audio Line output signal is a mono signal.

Example:

Audio Output Line 1 Channel: left

Audio Output Line [1..2] Equalizer ID

Select the audio output line equalizer ID.

Requires user role: ADMIN

Value space: <1..8>

Range: Select EqualizerID 1 to 8.

Example:

Audio Output Line 1 Equalizer ID: 1

Audio Output Line [1..2] Equalizer Mode

Set the audio output line equalizer mode.

Requires user role: ADMIN

Value space: <Off/O n>

Off: No equalizer. On: Enable the equalizer for the audio output line.

Example:

Audio Output Line 1 Equalizer Mode: Off

Audio Output Line [1..2] Level

Define the output level of the Audio Output Line connector, in steps of 1 dB. See the Audio Level tables in the Physical Interfaces Guide for the codec for a complete

overview of the menu values represented in dB.

Requires user role: ADMIN

Value space: <-24..0>

Range: Select a value from -24 to 0 dB.

Example:

Audio Output Line 1 Level: -10

Audio Output Line [1..2] Mode

Set the audio output line mode.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable the Audio Line output. On: Enable the Audio Line output.

Example:

Audio Output Line 1 Mode: On

Audio Output Line [1] Type

Determine if the Audio Line output will be analog or digital type output. The digital output on the Cisco TelePresence Profile systems are identified as DNAM (Digital Natural Audio Module).

Requires user role: ADMIN

Value space: <Auto/SPDIF>

Auto: If a Digital NAM is detected then SPDIF mode will be selected, otherwise analog mode will be selected.

SP DIF: Set to SPDIF when you want the line output to be in digital mode.

Example:

Audio Output Line 1 Type: Auto

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Audio Output Line [2] Type

Line output 2 is a dedicated analog output, hence type can be set to analog only.

Requires user role: ADMIN

Value space: <Analog>

Analog: Can be set to analog only.

Example:

Audio Output Line 2 Type: Analog

Audio Microphones Mute Enabled

Determine whether audio-mute is allowed or not. The default value is True.

Requires user role: ADMIN

Value space: <True/InCallOnly>

Tru e: Muting of audio is always available. InCallOnly: Muting of audio is only available when the device is in a call. When Idle it is not

possible to mute the microphone. This is useful when an external telephone service/audio system is connected via the codec and is to be available when the codec is not in a call. When set to InCallOnly this will prevent the audio-system from being muted by mistake.

Example:

Audio Microphones Mute Enabled: True

Audio SoundsAndAlerts KeyTones Mode

The system can be configured to make a keyboard click sound effect (key tone) when pressing a key on the remote control, or when typing text or numbers on a Touch controller.

Requires user role: USER

Value space: <Off/O n>

Off: No key tones will be played when you type. On: You will hear a key tone when you press a key or type text.

Example:

Audio SoundsAndAlerts KeyTones Mode: Off

Audio SoundsAndAlerts RingTone

Select the ring tone for incoming calls.

Requires user role: USER

Value space: <Marbles/IceCrystals/Polaris/Alert/Discreet/Fantasy/Jazz/Nordic/Echo/Rhythmic>

Range: Select a tone from the list of ring tones.

Example:

Audio SoundsAndAlerts RingTone: Jazz

Audio SoundsAndAlerts RingVolume

Sets the ring volume for an incoming call.

Requires user role: USER

Value space: <0..100>

Range: The value goes in steps of 5 from 0 to 100 (from -34.5 dB to 15 dB). Volume 0 = Off.

Example:

Audio SoundsAndAlerts RingVolume: 50

Audio Volume

Adjust the speaker volume.

Requires user role: USER

Value space: <0..100>

Range: The value must be between 0 and 100. The values from 1 to 100 correspond to the range from -34.5 dB to 15 dB (0.5 dB steps). The value 0 means that the audio is switched off.

Example:

Audio Volume: 70

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Cameras settings

Cameras PowerLine Frequency

Applies to cameras supporting PowerLine frequency anti-flickering, i.e. PrecisionHD 1080p cameras.

Requires user role: ADMIN

Value space: <50Hz/60Hz>

50Hz: Set to 50 Hz. 60Hz: Set to 60 Hz.

Example:

Cameras PowerLine Frequency: 50Hz

Cameras Camera [1..7] Backlight

This configuration turns backlight compensation on or off. Backlight compensation is useful when there is much light behind the persons in the room. Without compensation the persons will easily appear very dark to the far end.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Turn off the camera backlight compensation. On: Turn on the camera backlight compensation.

Example:

Cameras Camera 1 Backlight: Off

Cameras Camera [1..7] Brightness Mode

Set the camera brightness mode.

Requires user role: ADMIN

Value space: <Auto/Manual>

Auto: The camera brightness is automatically set by the system. Manual: Enable manual control of the camera brightness. The brightness level is set using

the Cameras Camera Brightness Level setting.

Example:

Cameras Camera 1 Brightness Mode: Auto

Cameras Camera [1..7] Brightness Level

Set the brightness level. NOTE: Requires the Camera Brightness Mode to be set to Manual.

Requires user role: ADMIN

Value space: <1..31>

Range: Select a value from 1 to 31.

Example:

Cameras Camera 1 Brightness Level: 1

Cameras Camera [1..7] Flip

With Flip mode (vertical flip) you can flip the image upside down.

Requires user role: ADMIN

Value space: <Auto/Off/On>

Auto: When the camera is placed upside down the image is automatically flipped upside down. This setting will only take effect for a camera that automatically detects which way it is mounted.

Off: Display the video on screen the normal way. On: When enabled the video on screen is flipped. This setting is used when a camera is

mounted upside down, but cannot automatically detect which way it is mounted.

Example:

Cameras Camera 1 Flip: Off

Cameras Camera [1..7] Focus Mode

Set the camera focus mode.

Requires user role: ADMIN

Value space: <Auto/Manual>

Auto: The camera will auto focus once a call is connected, as well as after moving the camera (pan, tilt, zoom). The system will use auto focus only for a few seconds to set the right focus; then auto focus is turned off to prevent continuous focus adjustments of the camera.

Manual: Turn the autofocus off and adjust the camera focus manually.

Example:

Cameras Camera 1 Focus Mode: Auto

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Cameras Camera [1..7] Gamma Mode

Applies to cameras which support gamma mode. The Gamma Mode setting enables for gamma corrections. Gamma describes the nonlinear relationship between image pixels and monitor brightness. The Cisco TelePresence PrecisionHD 720p camera supports gamma mode. The PrecisionHD 1080p camera does not support gamma mode.

Requires user role: ADMIN

Value space: <Auto/Manual>

Auto: Auto is the default and the recommended setting. Manual: In severe light conditions, you may switch mode to manual and specify explicitly

which gamma table to use by setting the Gamma Level.

Example:

Cameras Camera 1 Gamma Mode: Auto

Cameras Camera [1..7] Gamma Level

By setting the Gamma Level you can select which gamma correction table to use. This setting may be useful in difficult lighting conditions, where changes to the brightness setting does not provide satisfactor y results. NOTE: Requires the Gamma Mode to be set to Manual.

Requires user role: ADMIN

Value space: <0..7>

Range: Select a value from 0 to 7.

Example:

Cameras Camera 1 Gamma Level: 0

Cameras Camera [1..7] IrSensor

The IR sensor LED is located in the front of the camera and flickers when the IR sensor is activated from the remote control. Both the Codec C Series and PrecisionHD camera have IR sensors, and only one of them needs to be enabled at the time.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable the IR sensor on the camera. On: Enable the IR sensor on the camera.

Example:

Cameras Camera 1 IrSensor: On

Cameras Camera [1..7] Mirror

With Mirror mode (horizontal flip) you can mirror the image on screen.

Requires user role: ADMIN

Value space: <Auto/Off/On>

Auto: When the camera is placed upside down the image is automatically mirrored. Use this setting with cameras that can be mounted upside down, and that can auto detect that the camera is mounted upside down.

Off: See the self view in normal mode, that is the experience of self view is as seeing yourself as other people see you.

On: See the self view in mirror mode, that is the self view is reversed and the experience of self view is as seeing yourself in a mirror.

Example:

Cameras Camera 1 Mirror: Off

Cameras Camera [1..7] Whitebalance Mode

Set the camera whitebalance mode.

Requires user role: ADMIN

Value space: <Auto/Manual>

Auto: The camera will continuously adjust the whitebalance depending on the camera view. Manual: Enables manual control of the camera whitebalance. The whitebalance level is set

using the Cameras Camera Whitebalance Level setting.

Example:

Cameras Camera 1 Whitebalance Mode: Auto

Cameras Camera [1..7] Whitebalance Level

Set the whitebalance level. NOTE: Requires the Camera Whitebalance Mode to be set to manual.

Requires user role: ADMIN

Value space: <1..16>

Range: Select a value from 1 to 16.

Example:

Cameras Camera 1 Whitebalance Level: 1

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Cameras Camera [1..7] DHCP

Applies to cameras which support DHCP (for example the Cisco TelePresence PrecisionHD 1080p 12X camera). The camera must be connected to a LAN. When set, the command enables support for SW upgrade of daisy chained cameras. It will enable the camera's DHCP function and force start of MAC and IP address retrieval. Remember to reset the DHCP when the camera is no longer connected to a LAN.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable DHCP in the camera. NOTE: This setting should be applied when the camera is not connected to a LAN.

On: Enable DHCP in the camera. The camera is automatically re-booted. After re-boot the DHCP is started and the IP address will be retrieved. Run the commnand "xStatus Camera" for result.

Example:

Cameras Camera 1 DHCP: Off

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Conference settings

Conference [1..1] AutoAnswer Mode

Set the auto answer mode.

Requires user role: ADMIN

Value space: <Off/O n>

Off: An incoming call must be answered manually by pressing the OK key or the green Call key on the remote control, or by tapping the Accept key on the Touch controller..

On: Enable auto answer to let the system automatically answer all incoming calls.

Example:

Conference 1 AutoAnswer Mode: Off

Conference [1..1] AutoAnswer Mute

Determine if the microphone shall be muted when an incoming call is automatically answered. NOTE: Requires that AutoAnswer Mode is switched on.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The incoming call will not be muted. On: The incoming call will be muted when automatically answered.

Example:

Conference 1 AutoAnswer Mute: Off

Conference [1..1] AutoAnswer Delay

Define how long (in seconds) an incoming call has to wait before it is answered automatically by the system. NOTE: Requires that AutoAnswer Mode is switched on.

Requires user role: ADMIN

Value space: <0..50>

Range: Select a value from 0 to 50 seconds.

Example:

Conference 1 AutoAnswer Delay: 0

Conference [1..1] MicUnmuteOnDisconnect Mode

Determine if the microphones shall be unmuted automatically when all calls are disconnected. In a meeting room or other shared resources this may be done to prepare the system for the ne x t us e r.

Requires user role: ADMIN

Value space: <Off/O n>

Off: If muted during a call, let the microphones remain muted after the call is disconnected. On: Unmute the microphones after the call is disconnected.

Example:

Conference 1 MicUnmuteOnDisconnect Mode: On

Conference [1..1] DoNotDisturb Mode

Determine if there should be an alert on incoming calls.

Requires user role: USER

Value space: <Off/On/Timed>

Off: The incoming calls will come through as normal. On: All incoming calls will be rejected and they will be registered as missed calls. The calling

side will receive a busy signal. A message telling that Do Not Disturb is switched on will display on the Touch controller or main display. The calls received while in Do Not Disturb mode will be shown as missed calls.

Timed: Select this option only if using the API to switch Do Not Disturb mode on and off (xCommand Conference DoNotDisturb Activate and xCommand Conference DoNotDisturb Deactivate).

Example:

Conference 1 DoNotDisturb Mode: Off

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Conference [1..1] DoNotDisturb DefaultTimeout

This setting determines the default duration of a Do Not Disturb session, i.e. the period when incoming calls are rejected and registered as missed calls. The session can be terminated earlier by using the user interface (remote control or Touch controller) or the Conference DoNotDisturb Mode setting. The default value is 60 minutes.

Requires user role: ADMIN

Value space: <0..1440>

Range: Select the number of minutes (between 0 and 1440, i.e. 24 hours) before the Do Not Disturb session times out automatically.

Example:

Conference 1 DoNotDisturb DefaultTimeOut: 60

Conference [1..1] FarEndControl Mode

Lets you decide if the remote side (far end) should be allowed to select your video sources and control your local camera (pan, tilt, zoom).

Requires user role: ADMIN

Value space: <Off/O n>

Off: The far end is not allowed to select your video sources or to control your local camera (pan, tilt, zoom).

On: Allows the far end to be able to select your video sources and control your local camera (pan, tilt, zoom). You will still be able to control your camera and select your video sources as normal.

Example:

Conference 1 FarEndControl Mode: On

Conference [1..1] FarEndControl SignalCapability

Set the far end control (H.224) signal capability mode.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable the far end control signal capability. On: Enable the far end control signal capability.

Example:

Conference 1 FarEndControl SignalCapability: On

Conference [1..1] Encryption Mode

Set the conference encryption mode. A padlock with the text "Encryption On" or "Encryption Off" displays on screen for a few seconds when the conference starts.

Requires user role: ADMIN

Value space: <Off/On/BestEffort>

Off: The system will not use encryption. On: The system will only allow calls that are encrypted. BestEffort: The system will use encryption whenever possible. > In Point to point calls: If the far end system supports encryption (AES-128), the call will be

encrypted. If not, the call will proceed without encryption. > In MultiSite calls: In order to have encrypted MultiSite conferences, all sites must support

encryption. If not, the conference will be unencrypted.

Example:

Conference 1 Encryption Mode: BestEffort

Conference [1..1] DefaultCall Protocol

Set the Default Call Protocol to be used when placing calls from the system.

Requires user role: ADMIN

Value space: <H323/Sip/H320>

H323: H323 ensures that calls are set up as H.323 calls. Sip: Sip ensures that calls are set up as SIP calls. H320: H320 ensures that calls are set up as H.320 calls (only applicable if connected to a

Cisco TelePresence ISDN Link gateway).

Example:

Conference 1 DefaultCall Protocol: H323

Conference [1..1] DefaultCall Rate

Set the Default Call Rate to be used when placing calls from the system.

Requires user role: ADMIN

Value space: <64..6000>

Range: Select a value between 64 and 6000 kbps.

Example:

Conference 1 DefaultCall Rate: 768

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Conference [1..1] MaxTransmitCallRate

Specify the maximum transmit bit rate to be used when placing or receiving calls. Note that this is the maximum bit rate for each individual call; use the Conference MaxTotalTransmitCallRate setting to set the aggregated maximum for all simultaneous active calls.

Requires user role: ADMIN

Value space: <64..6000>

Range: Select a value between 64 and 6000 kbps.

Example:

Conference 1 MaxTransmitCallRate: 6000

Conference [1..1] MaxReceiveCallRate

Specify the maximum receive bit rate to be used when placing or receiving calls. Note that this is the maximum bit rate for each individual call; use the Conference MaxTotalReceiveCallRate setting to set the aggregated maximum for all simultaneous active calls.

Requires user role: ADMIN

Value space: <64..6000>

Range: Select a value between 64 and 6000 kbps.

Example:

Conference 1 MaxReceiveCallRate: 6000

Conference [1..1] MaxTotalTransmitCallRate

This configuration applies when using a video system's built-in MultiSite feature (optional) to host a multipoint video conference.

Specify the maximum overall transmit bit rate allowed. The bit rate will be divided fairly among all active calls at any time. This means that the individual calls will be up-speeded or downspeeded as appropriate when someone leaves or enters a multipoint conference, or when a call is put on hold (suspended) or resumed.

The maximum transmit bit rate for each individual call is defined in the Conference MaxTransmitCallRate setting.

Requires user role: ADMIN

Value space: <64..10000>

Range: Select a value between 64 and 10000.

Example:

Conference 1 MaxTotalTransmitCallRate: 9000

Conference [1..1] MaxTotalReceiveCallRate

This configuration applies when using a video system's built-in MultiSite feature (optional) to host a multipoint video conference.

Specify the maximum overall receive bit rate allowed. The bit rate will be divided fairly among all active calls at any time. This means that the individual calls will be up-speeded or downspeeded as appropriate when someone leaves or enters a multipoint conference, or when a call is put on hold (suspended) or resumed.

The maximum receive bit rate for each individual call is defined in the Conference MaxReceiveCallRate setting.

Requires user role: ADMIN

Value space: <64..10000>

Range: Select a value between 64 and 10000.

Example:

Conference 1 MaxTotalReceiveCallRate: 9000

Conference [1..1] VideoBandwidth Mode

Set the conference video bandwidth mode.

Requires user role: ADMIN

Value space: <Dynamic/Static>

Dynamic: The available transmit bandwidth for the video channels are distributed among the currently active channels. If there is no presentation, the main video channels will use the bandwidth of the presentation channel.

Static: The available transmit bandwidth is assigned to each video channel, even if it is not active.

Example:

Conference 1 VideoBandwidth Mode: Dynamic

Conference [1..1] VideoBandwidth MainChannel Weight

The available transmit video bandwidth is distributed on the main channel and presentation channel according to "MainChannel Weight" and "PresentationChannel Weight". If the main channel weight is 2 and the presentation channel weight is 1, then the main channel will use twice as much bandwidth as the presentation channel.

Requires user role: ADMIN

Value space: <1..10>

Range: 1 to 10.

Example:

Conference 1 VideoBandwidth MainChannel Weight: 5

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Conference [1..1] VideoBandwidth PresentationChannel Weight

Requires user role: ADMIN

Value space: <1..10>

Range: 1 to 10.

Example:

Conference 1 VideoBandwidth PresentationChannel Weight: 5

Conference [1..1] PacketLossResilience Mode

Set the packetloss resilience mode. This configuration will only take effect for calls initiated after the configuration is set.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable the packetloss resilience. On: Enable the packetloss resilience.

Example:

Conference 1 PacketLossResilience Mode: On

Conference [1..1] Presentation Policy

Control how the presentation ser vice is to be performed.

Requires user role: ADMIN

Value space: <LocalRemote/LocalOnly>

LocalRemote: The presentation will be shown locally and sent to remote side. LocalOnly: The presentation will only be shown locally.

Example:

Conference 1 Presentation Policy: LocalRemote

Conference [1..1] Presentation RelayQuality

This configuration applies to video systems that are using the built-in MultiSite feature (optional) to host a multipoint video conference. When a remote user shares a presentation, the video system (codec) will transcode the presentation and send it to the other participants in the multipoint conference. The RelayQuality setting specifies whether to give priority to high frame rate or to high resolution for the presentation source.

Requires user role: ADMIN

Value space: <Motion/Sharpness>

Motion: Gives the highest possible frame rate. Used when there is a need for higher frame rates, typically when there is a lot of motion in the picture.

Sharpness: Gives the highest possible resolution. Used when you want the highest quality of detailed images and graphics.

Example:

Conference 1 Presentation RelayQuality: Sharpness

Conference [1..1] Presentation OnPlacedOnHold

Define whether or not to continue sharing a presentation after the remote site has put you on hold.

Requires user role: ADMIN

Value space: <Stop/NoAction>

Stop: The video system stops the presentation sharing when the remote site puts you on hold. The presentation will not continue when the call is resumed.

NoAction: The video system will not stop the presentation sharing when put on hold. The presentation will not be shared while you are on hold, but it will continue automatically when the call is resumed.

Example:

Conference 1 Presentation OnPlacedOnHold: NoAction

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Conference [1..1] Multipoint Mode

Define how the video system handles multiparty video conferences. If registered to a Cisco TelePresence Video Communication Server (VCS), the video system

can either use its own built-in MultiSite feature, or it can rely on the MultiWay network solution. MultiWay requires that the video network includes a multipoint control unit (MCU).

If registered to a Cisco Unified Communications Manager (CUCM) version 8.6.2 or newer, the video system can use either the CUCM conference bridge, or the video system's own built-in MultiSite feature. Which one to use is set-up by CUCM.

Both Multiway and the CUCM conference bridge allows you to set up conferences with many participants. The MultiSite feature allows up to four participants (yourself included) plus one additional audio call.

Note that the MultiSite feature is optional and may not be available on all video systems.

Requires user role: ADMIN

Value space: <Auto/Off/MulitSite/MultiWay/CUCMMediaResourceGroupList>

Auto: If a MultiWay address is specified in the NetworkServices MultiWay Address setting, MultiWay takes priority over MultiSite. If neither MultiWay nor MultiSite is available, the Multipoint Mode is set to Off automatically.

Off: Multiparty conferences are not allowed. MultiSite: Multipar ty conferences are set up using MultiSite. If MultiSite is chosen when the

MultiSite feature is not available, the Multipoint Mode will be set to Off. MultiWay: Multiparty conferences are set up using MultiWay. The Multipoint Mode will be set

to Off automatically if the MultiWay service is unavailable, for example if a server address is not specified in the NetworkServices MultiWay Address setting.

CUCMMediaResourceGroupList: Multiparty conferences (ad hoc conferences) are hosted by the CUCM configured conference bridge. This setting is provisioned by CUCM in a CUCM environment and should never be set manually by the user.

Example:

Conference 1 Multipoint Mode: Auto

Conference [1..1] IncomingMultisiteCall Mode

Select whether or not to allow incoming calls when already in a call/conference.

Requires user role: ADMIN

Value space: <Allow/Deny>

Allow: You will be notified when someone calls you while you are already in a call. You can accept the incoming call or not. The ongoing call may be put on hold while answering the incoming call; or you may merge the calls (requires MultiSite or MultiWay support).

Deny: An incoming call will be rejected if you are already in a call. You will not be notified about the incoming call. However, the call will appear as a missed call in the call history list.

Example:

Conference 1 IncomingMultisiteCall Mode: Allow

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

FacilityService settings

FacilityService Service [1..5] Type

Up to five different facility ser vices can be supported simultaneously. With this setting you can select what kind of ser vices they are.

A facility service is not available unless both the FacilityService Service Name and the FacilityService Service Number settings are properly set.

Only FacilitySer vice Service 1 with Type Helpdesk is available on the Touch controller. Facility services are not available when using the remote control and on-screen menu.

Requires user role: ADMIN

Value space: <Other/Concierge/Helpdesk/Emergency/Security/Catering/Transportation>

Other: Select this option for services not covered by the other options. Concierge: Select this option for concierge services. Helpdesk: Select this option for helpdesk services. Emergency: Select this option for emergency services. Security: Select this option for security services. Catering: Select this option for catering services. Transportation: Select this option for transportation services.

Example:

FacilityService Service 1 Type: Helpdesk

FacilityService Service [1..5] Name

Set the name of each facility service. Up to five different facility services are supported. A facility service is not available unless both the FacilityService Service Name and the

FacilityService Service Number settings are properly set. Only FacilitySer vice Service 1 is available on the Touch controller, and its Name is used on the

facility service call button. Facility services are not available when using the remote control and on-screen menu.

Requires user role: ADMIN

Value space: <S: 0, 255>

Format: String with a maximum of 255 characters.

Example:

FacilityService Service 1 Name: ""

FacilityService Service [1..5] Number

Set the number for each facility service. Up to five different facility services are supported. A facility service is not available unless both the FacilityService Service Name and the

FacilityService Service Number settings are properly set. Only FacilitySer vice Service 1 is available on the Touch controller. Facility services are not

available when using the remote control and on-screen menu.

Requires user role: ADMIN

Value space: <S: 0, 255>

Format: String with a maximum of 255 characters.

Example:

FacilityService Service 1 Number: ""

FacilityService Service [1..5] CallType

Set the call type for each facility service. Up to five different facility services are supported. A facility service is not available unless both the FacilityService Service Name and the

FacilityService Service Number settings are properly set. Only FacilitySer vice Service 1 is available on the Touch controller. Facility services are not

available when using the remote control and on-screen menu.

Requires user role: ADMIN

Value space: <Video/Audio>

Video: Select this option for video calls. Aud io: Select this option for audio calls.

Example:

FacilityService Service 1 CallType: Video

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

GPIO settings

GPIO Pin [1..4] Mode

NOTE: This command is not supported on Codec C40. The four GPIO pins are configured individually. The state can be retrieved by "xStatus GPIO Pin

[1..4] State". The default pin state is High (+12 V). When activated as output, they are set to 0 V. To activate them as input, they must be pulled down to 0 V.

Requires user role: ADMIN

Value space: <InputNoAction/OutputManualState/OutputInCall/OutputMicrophonesMuted/

OutputPresentationOn/OutputAllCallsEncrypted/OutputStandbyActive/InputMuteMicrophones>

InputNoAction: The pin state can be set, but no operation is performed. OutputManualState: The pin state can be set by "xCommand GPIO ManualState Set PinX:

<High/Low>" (to +12 V or 0 V, respectively).

OutputInCall: The pin is activated when in call, deactivated when not in call. OutputMicrophonesMuted: The pin is activated when microphones are muted, deactivated

when not muted. OutputPresentationOn: The pin is activated when presentation is active, deactivated when

presentation is not active. OutputAllCallsEncrypted: The pin is activated when all calls are encrypted, deactivated when

one or more calls are not encrypted. OutputStandbyActive: The pin is activated when the system is in standby mode, deactivated

when no longer in standby. InputMuteMicrophones: When the pin is activated (0 V), the microphones will be muted.

When deactivated (+ 12 V), the microphones are unmuted.

Example:

GPIO Pin 1 Mode: InputNoAction

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

H323 settings

H323 NAT Mode

The firewall traversal technology creates a secure path through the firewall barrier, and enables proper exchange of audio/video data when connected to an external video conferencing system (when the IP traffic goes through a NAT router). NOTE: NAT does not work in conjunction with gatekeepers.

Requires user role: ADMIN

Value space: <Auto/Off/On>

Auto: The system will determine if the H323 NAT Address or the real IP address should be used in signaling. This makes it possible to place calls to endpoints on the LAN as well as endpoints on the WAN. If the H323 NAT Address is wrong or not set, the real IP address will be used.

Off: The system will signal the real IP address. On: The system will signal the configured H323 NAT Address instead of its real IP address

in Q.931 and H.245. The NAT Server Address will be shown in the startup-menu as: "My IP Address: 10.0.2.1". If the H323 NAT Address is wrong or not set, H.323 calls cannot be set up.

Example:

H323 NAT Mode: Off

H323 NAT Address

Enter the external/global IP address to the router with NAT support. Packets sent to the router will then be routed to the system. Note that NAT cannot be used when registered to a gatekeeper.

In the router, the following ports must be routed to the system's IP address: * Port 1720 * Port 5555-6555 * Port 2326-2487

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: A valid IPv4 address or IPv6 address.

Example:

H323 NAT Address: ""

H323 Profile [1..1] Authentication Mode

Set the authenticatin mode for the H.323 profile.

Requires user role: ADMIN

Value space: <Off/O n>

Off: If the H.323 Gatekeeper Authentication Mode is set to Off the system will not try to authenticate itself to a H.323 Gatekeeper, but will still try a normal registration.

On: If the H.323 Gatekeeper Authentication Mode is set to On and a H.323 Gatekeeper indicates that it requires authentication, the system will try to authenticate itself to the gatekeeper. NOTE: Requires the Authentication LoginName and Authentication Password to be defined on both the codec and the Gatekeeper.

Example:

H323 Profile 1 Authentication Mode: Off

H323 Profile [1..1] Authentication LoginName

The system sends the Authentication Login Name and the Authentication Password to a H.323 Gatekeeper for authentication. The authentication is a one way authentication from the codec to the H.323 Gatekeeper, i.e. the system is authenticated to the gatekeeper. If the H.323 Gatekeeper indicates that no authentication is required, the system will still try to register. NOTE: Requires the H.323 Gatekeeper Authentication Mode to be enabled.

Requires user role: ADMIN

Value space: <S: 0, 50>

Format: String with a maximum of 50 characters.

Example:

H323 Profile 1 Authentication LoginName: ""

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

H323 Profile [1..1] Authentication Password

Requires user role: ADMIN

Value space: <S: 0, 50>

Format: String with a maximum of 50 characters.

Example:

H323 Profile 1 Authentication Password: ""

H323 Profile [1..1] CallSetup Mode

The H.323 Call Setup Mode defines whether to use a Gatekeeper or Direct calling when establishing H323 calls.

NOTE: Direct H.323 calls can be made even though the H.323 Call Setup Mode is set to Gatekeeper.

Requires user role: ADMIN

Value space: <Direct/Gatekeeper>

Direct: An IP address must be used when dialing in order to make the H323 call. Gatekeeper: The system will use a Gatekeeper to make a H.323 call. When selecting this

option the H323 Profile Gatekeeper Address and H323 Profile Gatekeeper Discovery settings must also be configured.

Example:

H323 Profile 1 CallSetup Mode: Gatekeeper

H323 Profile [1..1] Gatekeeper Discovery

Determine how the system shall register to a H.323 Gatekeeper.

Requires user role: ADMIN

Value space: <Manual/Auto>

Manual: The system will use a specific Gatekeeper identified by the Gatekeeper's IP address. Auto: The system will automatically try to register to any available Gatekeeper. If a

Gatekeeper responds to the request sent from the codec within 30 seconds this specific Gatekeeper will be used. This requires that the Gatekeeper is in auto discovery mode as well. If no Gatekeeper responds, the system will not use a Gatekeeper for making H.323 calls and hence an IP address must be specified manually.

Example:

H323 Profile 1 Gatekeeper Discovery: Manual

H323 Profile [1..1] Gatekeeper Address

Enter the IP address of the Gatekeeper. NOTE: Requires the H.323 Call Setup Mode to be set to Gatekeeper and the Gatekeeper Discovery to be set to Manual.

Requires user role: ADMIN

Value space: <S: 0, 255>

Format: A valid IPv4 address, IPv6 address or DNS name.

Example:

H323 Profile 1 Gatekeeper Address: "192.0.2.0"

H323 Profile [1..1] H323Alias E164

The H.323 Alias E.164 defines the address of the system, according to the numbering plan implemented in the H.323 Gatekeeper. The E.164 alias is equivalent to a telephone number, sometimes combined with access codes.

Requires user role: ADMIN

Value space: <S: 0, 30>

Format: Compact string with a maximum of 30 characters. Valid characters are 0-9, * and #.

Example:

H323 Profile 1 H323Alias E164: "90550092"

H323 Profile [1..1] H323Alias ID

Lets you specify the H.323 Alias ID which is used to address the system on a H.323 Gatekeeper and will be displayed in the call lists. Example: "firstname.lastname@company.com", "My H.323 Alias ID"

Requires user role: ADMIN

Value space: <S: 0, 49>

Format: String with a maximum of 49 characters.

Example:

H323 Profile 1 H323Alias ID: "firstname.lastname@company.com"

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

H323 Profile [1..1] PortAllocation

The H.323 Port Allocation setting affects the H.245 port numbers used for H.323 call signalling.

Requires user role: ADMIN

Value space: <Dynamic/Static>

Dynamic: The system will allocate which ports to use when opening a TCP connection. The reason for doing this is to avoid using the same ports for subsequent calls, as some firewalls consider this as a sign of attack. When Dynamic is selected, the H.323 ports used are from 11000 to 20999. Once 20999 is reached they restart again at 11000. For RTP and RTCP media data, the system is using UDP ports in the range 2326 to 2487. Each media channel is using two adjacent ports, ie 2330 and 2331 for RTP and RTCP respectively. The ports are automatically selected by the system within the given range. Firewall administrators should not try to deduce which ports are used when, as the allocation schema within the mentioned range may change without any further notice.

Static: When set to Static the ports are given within a static predefined range [5555-6555].

Example:

H323 Profile 1 PortAllocation: Dynamic

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Network settings

Network [1..1] IPStack

Select which internet protocols the system will support. NOTE: Restar t the system after changing this setting.

Requires user role: ADMIN

Value space: <IPv4/IPv6>

IPv4: IP version 4 is used for the SIP and H323 calls. IPv6: IP version 6 is used for the SIP and H323 calls.

Example:

Network 1 IPStack: IPv4

Network [1..1] Assignment

Define how the system will obtain its IPv4 address, subnet mask and gateway address. This setting only applies to systems on IPv4 networks.

Requires user role: ADMIN

Value space: <Static/DHCP>

Static: The addresses must be configured manually using the Network IPv4 Address, Network IPv4 Gateway and Network IPv4 SubnetMask settings (static addresses).

DHCP: The system addresses are automatically assigned by the DHCP server.

Example:

Network 1 Assignment: DHCP

Network [1..1] IPv4 Address

Enter the static IPv4 network address for the system. This setting is only applicable when Network Assignment is set to Static.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: A valid IPv4 address.

Example:

Network 1 IPv4 Address: "192.0.2.0"

Network [1..1] IPv4 Gateway

Define the IPv4 network gateway. This setting is only applicable when the Network Assignment is set to Static.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: A valid IPv4 address.

Example:

Network 1 IPv4 Gateway: "192.0.2.0"

Network [1..1] IPv4 SubnetMask

Define the IPv4 network subnet mask. This setting is only applicable when the Network Assignment is set to Static.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: The valid IPv4 address format.

Example:

Network 1 IPv4 SubnetMask: "255.255.255.0"

Network [1..1] IPv6 Assignment

Define how the system will obtain its IPv6 address and the default gateway address. This setting only applies to systems on IPv6 networks.

Requires user role: ADMIN

Value space: <Static/DHCPv6/Autoconf>

Static: The codec and gateway IP addresses must be configured manually using the Network IPv6 Address and Network IPv6 Gateway settings. The options, for example NTP and DNS server addresses, must either be set manually or obtained from a DHCPv6 server. The Network IPv6 DHCPOptions setting determines which method to use.

DHCPv6: All IPv6 addresses, including options, will be obtained from a DHCPv6 server. See RFC 3315 for a detailed description. The Network IPv6 DHCPOptions setting will be ignored.

Autoconf: Enable IPv6 stateless autoconfiguration of the IPv6 network interface. See RFC 4862 for a detailed description. The options, for example NTP and DNS server addresses, must either be set manually or obtained from a DHCPv6 server. The Network IPv6 DHCPOptions setting determines which method to use.

Example:

Network 1 IPv6 Assignment: Autoconf

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Network [1..1] IPv6 Address

Enter the static IPv6 network address for the system. This setting is only applicable when the Network IPv6 Assignment is set to Static.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: A valid IPv6 address.

Example:

Network 1 IPv6 Add ress: "ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff"

Network [1..1] IPv6 Gateway

Define the IPv6 network gateway address. This setting is only applicable when the Network IPv6 Assignment is set to Static.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: A valid IPv6 address.

Example:

Network 1 IPv6 Gateway: "ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff"

Network [1..1] IPv6 DHCPOptions

Retrieve a set of DHCP options, for example NTP and DNS server addresses, from a DHCPv6 server.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable the retrieval of DHCP options from a DHCPv6 server. On: Enable the retrieval of a selected set of DHCP options from a DHCPv6 server.

Example:

Network 1 IPv6 DHCPOptions: On

Network [1..1] DHCP RequestTFTPServerAddress

This setting is used only for video systems that are registered to a Cisco Unified Communications Manager (CUCM).

The setting determines whether the endpoint should ask the DHCP server for DHCP option 150, so that it can discover the address of the TFTP server (provisioning server) automatically.

If this setting is Off or the DHCP server does not support option 150, the TFTP server address must be set manually using the Provisioning ExternalManager Address setting.

Note: If the Network VLAN Voice Mode setting is Auto and the Cisco Discovery Protocol (CDP) assigns an ID to the voice VLAN, then a request for option 150 will always be sent. That is, the Network DHCP RequestTFTFServerAddress setting will be ignored.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The video system will not send a request for DHCP option 150 and the address of the TFTP server must be set manually. See the note above for any exception to this rule.

On: The video system will send a request for option 150 to the DHCP server so that it can automatically discover the address of the TFTP server.

Example:

Network 1 DHCP RequestTFTPServerAddress: Off

Network [1..1] DNS Domain Name

DNS Domain Name is the default domain name suffix which is added to unqualified names. Example: If the DNS Domain Name is "company.com" and the name to lookup is

"MyVideoSystem", this will result in the DNS lookup "MyVideoSystem.company.com".

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: String with a maximum of 64 characters.

Example:

Network 1 DNS Domain Name: ""

Network [1..1] DNS Server [1..3] Address

Define the network addresses for DNS ser vers. Up to 3 addresses may be specified. If the network addresses are unknown, contact your administrator or Internet Service Provider.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: A valid IPv4 address or IPv6 address.

Example:

Network 1 DNS Server 1 Address: ""

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Network [1..1] QoS Mode

The QoS (Quality of Ser vice) is a method which handles the priority of audio, video and data in the network. The QoS settings must be supported by the infrastructure. Diffserv (Differentiated Services) is a computer networking architecture that specifies a simple, scalable and coarsegrained mechanism for classifying, managing network traffic and providing QoS priorities on modern IP networks.

Requires user role: ADMIN

Value space: <Off/Diffserv>

Off: No QoS method is used. Diffserv: When you set the QoS Mode to Diffserv, the Network QoS Diffserv Audio, Network

QoS Diffserv Video, Network QoS Diffserv Data, Network QoS Diffserv Signalling, Network QoS Diffserv ICMPv6 and Network QoS Diffserv NTP settings are used to prioritize packets.

Example:

Network 1 QoS Mode: Diffserv

Network [1..1] QoS Diffserv Audio

Note: This setting will only take effect if Network QoS Mode is set to Diffserv. Define which priority Audio packets should have in the IP network. The priority for the packets ranges from 0 to 63 - the higher the number, the higher the priority.

The recommended class for Audio is CS4, which equals the decimal value 32. If in doubt, contact your network administrator.

The priority set here might be overridden when packets are leaving the network controlled by the local network administrator.

Requires user role: ADMIN

Value space: <0..63>

Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The default value is 0 (best effort).

Example:

Network 1 QoS Diffserv Audio: 0

Network [1..1] QoS Diffserv Video

Note: This setting will only take effect if Network QoS Mode is set to Diffserv. Define which priority Video packets should have in the IP network. The packets on the

presentation channel (shared content) are also in the Video packet category. The priority for the packets ranges from 0 to 63 - the higher the number, the higher the priority.

The recommended class for Video is CS4, which equals the decimal value 32. If in doubt, contact your network administrator.

The priority set here might be overridden when packets are leaving the network controlled by the local network administrator.

Requires user role: ADMIN

Value space: <0..63>

Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The default value is 0 (best effort).

Example:

Network 1 QoS Diffserv Video: 0

Network [1..1] QoS Diffserv Data

Note: This setting will only take effect if Network QoS Mode is set to Diffserv. Define which priority Data packets should have in the IP network. The priority for the packets ranges from 0 to 63 - the higher the number, the higher the priority.

The recommended value for Data is 0, which means best effort. If in doubt, contact your network administrator.

The priority set here might be overridden when packets are leaving the network controlled by the local network administrator.

Requires user role: ADMIN

Value space: <0..63>

Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The default value is 0 (best effort).

Example:

Network 1 QoS Diffserv Data: 0

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Network [1..1] QoS Diffserv Signalling

Note: This setting will only take effect if Network QoS Mode is set to Diffserv. Define which priority Signalling packets that are deemed critical (time-sensitive) for the real-

time operation should have in the IP network. The priority for the packets ranges from 0 to 63 - the higher the number, the higher the priority.

The recommended class for Signalling is CS3, which equals the decimal value 24. If in doubt, contact your network administrator.

The priority set here might be overridden when packets are leaving the network controlled by the local network administrator.

Requires user role: ADMIN

Value space: <0..63>

Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The default value is 0 (best effort).

Example:

Network 1 QoS Diffserv Signalling: 0

Network [1..1] QoS Diffserv ICMPv6

Note: This setting will only take effect if Network QoS Mode is set to Diffserv. Define which priority ICMPv6 packets should have in the IP network. The priority for the packets ranges from 0 to 63 - the higher the number, the higher the priority.

The recommended value for ICMPv6 is 0, which means best effort. If in doubt, contact your network administrator.

The priority set here might be overridden when packets are leaving the network controlled by the local network administrator.

Requires user role: ADMIN

Value space: <0..63>

Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The default value is 0 (best effort).

Example:

Network 1 QoS Diffserv ICMPv6: 0

Network [1..1] QoS Diffserv NTP

Note: This setting will only take effect if Network QoS Mode is set to Diffserv. Define which priority NTP packets should have in the IP network. The priority for the packets ranges from 0 to 63 - the higher the number, the higher the priority.

The recommended value for NTP is 0, which means best effort. If in doubt, contact your network administrator.

The priority set here might be overridden when packets are leaving the network controlled by the local network administrator.

Requires user role: ADMIN

Value space: <0..63>

Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The default value is 0 (best effort).

Example:

Network 1 QoS Diffserv NTP: 0

Network [1..1] IEEE8021X Mode

The system can be connected to an IEEE 802.1X LAN network, with a port-based network access control that is used to provide authenticated network access for Ethernet networks.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The 802.1X authentication is disabled (default). On: The 802.1X authentication is enabled.

Example:

Network 1 IEEE8021X Mode: Off

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Network [1..1] IEEE8021X TlsVerify

Verification of the ser ver-side certificate of an IEEE802.1x connection against the certificates in the local CA-list when TLS is used. The CA-list must be uploaded to the video system.

This setting takes effect only when Network [1..1] IEEE8021X Eap Tls is enabled (On).

Requires user role: ADMIN

Value space: <Off/O n>

Off: When set to Off, TLS connections are allowed without verifying the server-side X.509 certificate against the local CA-list. This should typically be selected if no CA-list has been uploaded to the codec.

On: When set to On, the server-side X.509 certificate will be validated against the local CAlist for all TLS connections. Only servers with a valid certificate will be allowed.

Example:

xConfiguration Network 1 IEEE8021X TlsVerify: Off

Network [1..1] IEEE8021X UseClientCertificate

Authentication using a private key/certificate pair during an IEEE802.1x connection. The authentication X.509 certificate must be uploaded to the video system.

Requires user role: ADMIN

Value space: <Off/O n>

Off: When set to Off client-side authentication is not used (only server-side). On: When set to On the client (video system) will perform a mutual authentication TLS

handshake with the ser ver.

Example:

Network 1 IEEE8021X UseClientCertificate: Off

Network [1..1] IEEE8021X Identity

The 802.1X Identity is the user name needed for 802.1X authentication.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: String with a maximum of 64 characters.

Example:

Network 1 IEEE8021X Identity: ""

Network [1..1] IEEE8021X Password

The 802.1X Password is the password needed for 802.1X authentication.

Requires user role: ADMIN

Value space: <S: 0, 32>

Format: String with a maximum of 32 characters.

Example:

Network 1 IEEE8021X Password: ""

Network [1..1] IEEE8021X AnonymousIdentity

The 802.1X Anonymous ID string is to be used as unencrypted identity with EAP (Extensible Authentication Protocol) types that support different tunneled identity, like EAP-PEAP and EAPTTLS. If set, the anonymous ID will be used for the initial (unencrypted) EAP Identity Request.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: String with a maximum of 64 characters.

Example:

Network 1 IEEE8021X AnonymousIdentity: ""

Network [1..1] IEEE8021X Eap Md5

Set the Md5 (Message-Digest Algorithm 5) mode. This is a Challenge Handshake Authentication Protocol that relies on a shared secret. Md5 is a Weak security.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The EAP-MD5 protocol is disabled. On: The EAP-MD5 protocol is enabled (default).

Example:

Network 1 IEEE8021X Eap Md5: On

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Network [1..1] IEEE8021X Eap Ttls

Set the TTLS (Tunneled Transport Layer Security) mode. Authenticates LAN clients without the need for client certificates. Developed by Funk Software and Certicom. Usually supported by Agere Systems, Proxim and Avaya.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The EAP-TTLS protocol is disabled. On: The EAP-TTLS protocol is enabled (default).

Example:

Network 1 IEEE8021X Eap Ttls: On

Network [1..1] IEEE8021X Eap Tls

Enable or disable the use of EAP-TLS (Transport Layer Security) for IEEE802.1x connections. The EAP-TLS protocol, defined in RFC 5216, is considered one of the most secure EAP standards. LAN clients are authenticated using client certificates.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The EAP-TLS protocol is disabled. On: The EAP-TLS protocol is enabled (default).

Example:

Network 1 IEEE8021X Eap Tls: On

Network [1..1] IEEE8021X Eap Peap

Set the Peap (Protected Extensible Authentication Protocol) mode. Authenticates LAN clients without the need for client certificates. Developed by Microsoft, Cisco and RSA Security.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The EAP-PEAP protocol is disabled. On: The EAP-PEAP protocol is enabled (default).

Example:

Network 1 IEEE8021X Eap Peap: On

Network [1..1] MTU

Set the Ethernet MTU (Maximum Transmission Unit).

Requires user role: ADMIN

Value space: <576 . .15 0 0>

Range: Select a value from 576 to 1500 bytes.

Example:

Network 1 MTU: 1500

Network [1..1] Speed

Set the Ethernet link speed. NOTE: If running older software versions than TC6.0, restart the system for any change to this

setting to take effect.

Requires user role: ADMIN

Value space: <Auto/10half/10 full/100 hal f/10 0fu ll/1000f ull>

Auto: Autonegotiate link speed. 10h alf: Force link to 10 Mbps half-duplex. 10f ull: Force link to 10 Mbps full-duplex. 100 hal f: Force link to 100 Mbps half-duplex. 100 ful l: Force link to 100 Mbps full-duplex. 1000full: Force link to 1 Gbps full-duplex.

Example:

Network 1 Speed: Auto

Network [1..1] TrafficControl Mode

Set the network traffic control mode to decide how to control the video packets transmission speed.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Transmit video packets at link speed. On: Transmit video packets at maximum 20 Mbps. Can be used to smooth out bursts in the

outgoing network traffic.

Example:

Network 1 TrafficControl: On

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Network [1..1] RemoteAccess Allow

Filter IP addresses for access to ssh/telnet/HTTP/HTTPS.

Requires user role: ADMIN

Value space: <S: 0, 255>

Format: String with a maximum of 255 characters, comma separated IP adresses or IP range.

Example:

Net w o r k 1 R e mot e Ac c es s A llo w: "192.16 8.1.231, 192.168.1.182"

Network [1..1] VLAN Voice Mode

Set the VLAN voice mode. The VL AN Voice Mode will be set to Auto automatically if you choose Cisco UCM (Cisco Unified Communications Manager) as provisioning infrastructure via the Provisioning Wizard on the Touch controller.

Requires user role: ADMIN

Value space: <Auto/Manual/Off>

Auto: The Cisco Discovery Protocol (CDP), if available, assigns an id to the voice VLAN. If CDP is not available, VLAN is not enabled.

Manual: The VLAN ID is set manually using the Network VLAN Voice VlanId setting. If CDP is available, the manually set value will be overruled by the value assigned by CDP.

Off: VLAN is not enabled.

Example:

Network 1 VLAN Voice Mode: Off

Network [1..1] VLAN Voice VlanId

Set the VLAN voice ID. This setting will only take effect if VLAN Voice Mode is set to Manual.

Requires user role: ADMIN

Value space: <1..4094>

Range: Select a value from 1 to 4094.

Example:

Network 1 VLAN Voice VlanId: 1

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

NetworkPort settings

NetworkPort [2] Mode

Define if the network port 2 shall be enabled for direct pairing with a Cisco TelePresence Touch controller.

NOTE: Restar t the system for any change to this setting to take effect.

Requires user role: ADMIN

Value space: <Inactive/DirectPairing>

Inactive: Set the NetworkPort 2 to Inactive when no device is connected. DirectPairing: Set the NetworkPort 2 to DirectPairing when you have a Cisco TelePresence

Touch controller connected to the port. This will enable for direct pairing between the Touch controller and the codec.

Example:

NetworkPort 2 Mode: Inactive

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

NetworkServices settings

NetworkServices XMLAPI Mode

Enable or disable the video system's XML API. For security reasons this may be disabled. Disabling the XML API will limit the remote manageability with for example TMS, which no longer will be able to connect to the video system.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The XML API is disabled. On: The XML API is enabled (default).

Example:

NetworkServices XMLAPI Mode: On

NetworkServices MultiWay Address

The MultiWay address must be equal to the Conference Factory Alias, as configured on the Video Communication Server. The Multiway™ conferencing enables video endpoint users to introduce a 3rd party into an existing call.

Multiway™ can be used in the following situations:

1) When you want to add someone else in to your existing call.

2) When you are called by a 3rd party while already in a call and you want to include that person in the call.

Requirements: The Codec C60/C40 must run software version TC4.0 (or later), Video Communication Server (VCS) version X5 (or later) and Codian MCU version 3.1 (or later). Video systems invited to join the Multiway™ conference must support the H.323 routeToMC facility message if in an H.323 call, or SIP REFER message if in a SIP call.

Requires user role: ADMIN

Value space: <S: 0, 255>

Format: String with a maximum of 255 characters (a valid dial URI).

Example:

NetworkServices MultiWay Address: "h323:multiway@company.com"

NetworkServices MultiWay Protocol

Determine the protocol to be used for MultiWay calls.

Requires user role: ADMIN

Value space: <Auto/H323/Sip>

Auto: The system will select the protocol for MultiWay calls. H323: The H323 protocol will be used for MultiWay calls. Sip: The SIP protocol will be used for MultiWay calls.

Example:

NetworkServices MultiWay Protocol: Auto

NetworkServices H323 Mode

Determine whether the system should be able to place and receive H.323 calls or not.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable the possibility to place and receive H.323 calls. On: Enable the possibility to place and receive H.323 calls (default).

Example:

NetworkServices H323 Mode: On

NetworkServices HTTP Mode

Set the HTTP mode to enable/disable access to the system through a web browser. The web interface is used for system management, call management such as call transfer, diagnostics and software uploads.

NOTE: Restar t the system for any change to this setting to take effect.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The HTTP protocol is disabled. On: The HTTP protocol is enabled.

Example:

NetworkServices HTTP Mode: On

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

NetworkServices HTTPS Mode

HTTPS is a web protocol that encrypts and decrypts user page requests as well as the pages that are returned by the web server.

NOTE: Restar t the system for any change to this setting to take effect.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The HTTPS protocol is disabled. On: The HTTPS protocol is enabled.

Example:

NetworkServices HTTPS Mode: On

NetworkServices HTTPS VerifyServerCertificate

When the video system connects to an external HTTPS server (like a phone book ser ver or an external manager), this server will present a certificate to the video system to identify itself.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Do not verify server certificates. On: Requires the system to verify that the server certificate is signed by a trusted Certificate

Authority (CA). This requires that a list of trusted CAs are uploaded to the system in advance.

Example:

NetworkServices HTTPS VerifyServerCertificate: Off

NetworkServices HTTPS VerifyClientCertificate

When the video system connects to a HTTPS client (like a web browser), the client can be asked to present a certificate to the video system to identify itself.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Do not verify client certificates. On: Requires the client to present a certificate that is signed by a trusted Certificate

Authority (CA). This requires that a list of trusted CAs are uploaded to the system in advance.

Example:

NetworkServices HTTPS VerifyClientCertificate: Off

NetworkServices HTTPS OCSP Mode

Define the support for OCSP (Online Certificate Status Protocol) responder services. The OCSP feature allows users to enable OCSP instead of certificate revocation lists (CRLs) to check the certificate status.

For any outgoing HTTPS connection, the OCSP responder is queried of the status. If the corresponding certificate has been revoked, then the HTTPS connection will not be used.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable OCSP support. On: Enable OCSP support.

Example:

NetworkServices HTTPS OCSP Mode: Off

NetworkServices HTTPS OCSP URL

Specify the URL of the OCSP responder (server) that will be used to check the certificate status.

Requires user role: ADMIN

Value space: <S: 0, 255>

Format: String with a maximum of 255 characters.

Example:

NetworkServices HTTPS OCSP URL: "http://ocspserver.company.com:81"

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

NetworkServices NTP Mode

The Network Time Protocol (NTP) is used to synchronize the time of the system to a reference time server. The time server will subsequently be queried every 24th hour for time updates. The time will be displayed on the top of the screen. The system will use the time to timestamp messages transmitted to Gatekeepers or Border Controllers requiring H.235 authentication. The system will use the time to timestamp messages transmitted to Gatekeepers or Border Controllers that requires H.235 authentication. It is also used for timestamping Placed Calls, Missed Calls and Received Calls.

Requires user role: ADMIN

Value space: <Auto/Off/Manual>

Auto: The system will use the NTP server, by which address is supplied from the DHCP server in the network. If no DHCP server is used, or the DHCP server does not provide the system with a NTP server address, the system will use the static defined NTP server address specified by the user.

Off: The system will not use an NTP server. Manual: The system will always use the static defined NTP server address specified by the

us e r.

Example:

NetworkServices NTP Mode: Manual

NetworkServices NTP Address

Enter the NTP Address to define the network time protocol ser ver address. This address will be used if NTP Mode is set to Manual, or if set to Auto and no address is supplied by a DHCP server.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: A valid IPv4 address, IPv6 address or DNS name.

Example:

NetworkServices NTP Address: "1.ntp.tandberg.com"

NetworkServices SIP Mode

Determine whether the system should be able to place and receive SIP calls or not.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable the possibility to place and receive SIP calls. On: Enable the possibility to place and receive SIP calls (default).

Example:

NetworkServices SIP Mode: On

NetworkServices SNMP Mode

SNMP (Simple Network Management Protocol) is used in network management systems to monitor network-attached devices (routers, servers, switches, projectors, etc) for conditions that warrant administrative attention. SNMP exposes management data in the form of variables on the managed systems, which describe the system configuration. These variables can then be queried (set to ReadOnly) and sometimes set (set to ReadWrite) by managing applications.

Requires user role: ADMIN

Value space: <Off/ReadOnly/ReadWrite>

Off: Disable the SNMP network service. ReadOnly: Enable the SNMP network service for queries only. ReadWrite: Enable the SNMP network service for both queries and commands.

Example:

NetworkServices SNMP Mode: ReadWrite

NetworkServices SNMP Host [1..3] Address

Enter the address of up to three SNMP Managers. The system's SNMP Agent (in the codec) responds to requests from SNMP Managers (a PC

program etc.), for example about system location and system contact. SNMP traps are not supported.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: A valid IPv4 address, IPv6 address or DNS name.

Example:

NetworkServices SNMP Host 1 Address: ""

NetworkServices SNMP CommunityName

Enter the name of the Network Services SNMP Community. SNMP Community names are used to authenticate SNMP requests. SNMP requests must have a password (case sensitive) in order to receive a response from the SNMP Agent in the codec. The default password is "public". If you have the Cisco TelePresence Management Suite (TMS) you must make sure the same SNMP Community is configured there too. NOTE: The SNMP Community password is case sensitive.

Requires user role: ADMIN

Value space: <S: 0, 50>

Format: String with a maximum of 50 characters.

Example:

NetworkServices SNMP CommunityName: "public"

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

NetworkServices SNMP SystemContact

Enter the name of the Network Services SNMP System Contact.

Requires user role: ADMIN

Value space: <S: 0, 50>

Format: String with a maximum of 50 characters.

Example:

NetworkServices SNMP SystemContact: ""

NetworkServices SNMP SystemLocation

Enter the name of the Network Services SNMP System Location.

Requires user role: ADMIN

Value space: <S: 0, 50>

Format: String with a maximum of 50 characters.

Example:

NetworkServices SNMP SystemLocation: ""

NetworkServices SSH Mode

SSH (or Secure Shell) protocol can provide secure encrypted communication between the codec and your local computer.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The SSH protocol is disabled. On: The SSH protocol is enabled.

Example:

NetworkServices SSH Mode: On

NetworkServices Telnet Mode

Telnet is a network protocol used on the Internet or Local Area Network (LAN) connections.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The Telnet protocol is disabled. This is the factory setting. On: The Telnet protocol is enabled.

Example:

NetworkServices Telnet Mode: Off

NetworkServices CTMS Mode

This setting determines whether or not to allow multiparty conferences controlled by a Cisco TelePresence Multipoint Switch (CTMS).

Video systems running software TC5.0 or later are able to initiate or join non-encrypted multiparty conferences controlled by CTMS version 1.8 or later. Encrypted conferences are supported as from software versions TC6.0 and CTMS 1.9.1. Encryption is addressed in the NetworkServices CTMS Encryption setting.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Mulitparty conferencing via CTMS is prohibited. On: Mulitparty conferencing via CTMS is allowed.

Example:

NetworkServices CTMS Mode: On

NetworkServices SSH AllowPublicKey

Secure Shell (SSH) public key authentication can be used to access the codec.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The SSH public key is not allowed. On: The SSH public key is allowed.

Example:

NetworkSer vices SSH AllowPublicKey: On

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

NetworkServices CTMS Encryption

This setting indicates whether or not the video system supports encryption when participating in a multiparty meeting controlled by a Cisco TelePresence Multipoint Switch (CTMS).

CTMS allows three security settings for meetings: non-secure (not encrypted), best effort (encrypted if all participants support encryption, otherwise not encrypted) and secure (always encr ypted).

Requires user role: ADMIN

Value space: <Off/BestEffort>

Off: The video system does not allow encryption and therefore cannot participate in a secure CTMS meeting (encrypted). When participating in a best effort CTMS meeting, the meeting will be downgraded to non-secure (not encrypted).

BestEffort: The video system can negotiate encryption parameters with CTMS and participate in a secure CTMS meeting (encrypted). Do not use this value if the CTMS version is older than 1.9.1.

Example:

NetworkServices CTMS Encryption: Off

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Phonebook settings

Phonebook Server [1..1] ID

Enter a name for the external phone book.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: String with a maximum of 64 characters.

Example:

Phonebook Server [1..1] Type

Select the phonebook server type.

Requires user role: ADMIN

Value space: <VCS/TMS/Callway/CUCM>

Example:

Phonebook Server 1 ID: ""

VCS: Select VCS if the phonebook is located on the Cisco TelePresence Video Communication Server.

TMS: Select TMS if the phonebook is located on the Cisco TelePresence Management Suite server.

Callway: Select Callway if the phonebook is to be provided by the WebEx TelePresence subscription service (formerly called CallWay). Contact your WebEx TelePresence provider for more information.

CUCM: Select CUCM if the phonebook is located on the Cisco Unified Communications Manager.

Phonebook Server 1 Type: TMS

Phonebook Server [1..1] URL

Enter the address (URL) to the external phone book server.

Requires user role: ADMIN

Value space: <S: 0, 255>

Format: String with a maximum of 255 characters.

Example:

Phonebook Server 1 URL: "http://tms.company.com/tms/public/external/

phonebook/phonebookservice.asmx"

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Provisioning settings

Provisioning Connectivity

This setting controls how the device discovers whether it should request an internal or external configuration from the provisioning server.

Requires user role: ADMIN

Value space: <Internal/External/Auto>

Internal: Request internal configuration. External: Request external configuration. Auto: Automatically discover using NAPTR queries whether

internal or external configurations should be requested. If the NAPTR responses have the "e" flag, external configurations will be requested. Otherwise internal configurations will be requested.

Example:

Provisioning Connectivity: Auto

Provisioning Mode

It is possible to configure a video system using a provisioning system (external manager). This allows video conferencing network administrators to manage many video systems simultaneously.

With this setting you choose which type of provisioning system to use. Provisioning can also be switched off. Contact your provisioning system provider/representative for more information.

Requires user role: ADMIN

Value space: <Off/TMS/VCS/CallWay/CUCM/Auto>

Off: The video system will not be configured by a provisioning system.

TMS: The video system will be configured using TMS (Cisco TelePresence Management System).

VCS: Not applicable in this version. Callway: The video system will be configured using the

WebEx TelePresence subscription service (formerly called Callway).

CUCM: The video system will be configured using CUCM (Cisco Unified Communications Manager).

Auto: The provisioning server will automatically be selected by the video system.

Example:

Provisioning Mode: TMS

Provisioning LoginName

This is the user name part of the credentials used to authenticate the video system with the provisioning server. This setting must be used when required by the provisioning server. If Provisioning Mode is Callway (WebEx TelePresence), enter the video number.

Requires user role: ADMIN

Value space: <S: 0, 80>

Format: String with a maximum of 80 characters.

Example:

Provisioning LoginName: ""

Provisioning Password

This is the password part of the credentials used to authenticate the video system with the provisioning server. This setting must be used when required by the provisioning server. If Provisioning Mode is Callway (WebEx TelePresence), enter the activation code.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: String with a maximum of 64 characters.

Example:

Provisioning Password: ""

Provisioning HttpMethod

Select the HTTP method to be used for the provisioning.

Requires user role: ADMIN

Value space: <GE T/PO S T>

GE T: Select GET when the provisioning server supports GET.

PO ST: Select POST when the provisioning server supports POS T.

Example:

Provisioning HttpMethod: POST

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Provisioning ExternalManager Address

Enter the IP Address or DNS name of the external manager / provisioning system. If an External Manager Address (and Path) is configured, the system will send a message to this

address when starting up. When receiving this message the external manager / provisioning system can return configurations/commands to the unit as a result.

When using CUCM or TMS provisioning, the DHCP server can be set up to provide the external manager address automatically (DHCP Option 242 for TMS, and DHCP Option 150 for CUCM). An address set in the Provisioning ExternalManager Address setting will override the address provided by DHCP.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: A valid IPv4 address, IPv6 address or DNS name.

Example:

Provisioning ExternalManager Address: ""

Provisioning ExternalManager Protocol

Determine whether to use secure management or not.

Requires user role: ADMIN

Value space: <HTTP/HTTPS>

HTTP: Set to HTTP to disable secure management. Requires HTTP to be enabled in the NetworkServices HTTP Mode setting.

HTTPS: Set to HTTPS to enable secure management. Requires HTTPS to be enabled in the NetworkServices HTTPS Mode setting.

Example:

Provisioning ExternalManager Protocol: HTTP

Provisioning ExternalManager Domain

Enter the SIP domain for the VCS provisioning server.

Requires user role: ADMIN

Value space: <S: 0, 64>

Format: String with a maximum of 64 characters.

Example:

Provisioning ExternalManager Domain: "any.domain.com"

Provisioning ExternalManager Path

Set the Path to the external manager / provisioning system. This setting is required when several management services reside on the same server, i.e. share the same External Manager address.

Requires user role: ADMIN

Value space: <S: 0, 255>

Format: String with a maximum of 255 characters.

Example:

Provisioning ExternalManager Path: "tms/public/external/management/

SystemManagementService.asmx"

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

RTP settings

RTP Ports Range Start

Specify the first port in the range of RTP ports. Also see the H323 Profile [1..1] PortAllocation setting.

NOTE: Restar t the system for any change to this setting to take effect.

Requires user role: ADMIN

Value space: <1024..65502>

Range: Select a value from 1024 to 65502.

Example:

RTP Ports Range Stop

Specify the last RTP port in the range. Also see the H323 Profile [1..1] PortAllocation setting. NOTE: Restar t the system for any change to this setting to take effect.

Requires user role: ADMIN

Value space: <1056..65535>

Example:

RTP Ports Range Start: 2326

Range: Select a value from 1056 to 65535.

RTP Ports Range Stop: 2486

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Security settings

Security Audit Logging Mode

Determine where to record or transmit the audit logs. When using the External or ExternalSecure modes, you also must enter the address and port number for the audit server in the Security Audit Server Address and Security Audit Server Port settings.

NOTE: Restar t the system for any change to this setting to take effect.

Requires user role: AUDIT

Value space: <Off/Internal/External/ExternalSecure>

Off: No audit logging is performed. Internal: The system records the audit logs to internal logs, and rotates logs when they are

full. External: The system sends the audit logs to an external audit server (syslog server). The

audit server must support TCP. ExternalSecure: The system sends encrypted audit logs to an external audit server (syslog

server) that is verified by a certificate in the Audit CA list. The Audit CA list file must be uploaded to the codec using the web interface. The common_name parameter of a certificate in the CA list must match the IP address of the audit server.

Example:

Security Audit Logging Mode: Off

Security Audit Server Address

Enter the IP address of the audit server. Only valid IPv4 or IPv6 address formats are accepted. Host names are not supported. This setting is only relevant when Security Audit Logging Mode is set to External or ExternalSecure.

NOTE: Restar t the system for any change to this setting to take effect.

Requires user role: AUDIT

Value space: <S: 0, 64>

Format: A valid IPv4 address or IPv6 address.

Example:

Security Audit Server Address: ""

Security Audit Server Port

Enter the port of the audit server that the system shall send its audit logs to. The default port is 514. This setting is only relevant when Security Audit Logging Mode is set to External or ExternalSecure.

NOTE: Restar t the system for any change to this setting to take effect.

Requires user role: AUDIT

Value space: <0..65535>

Range: Select a value from 0 to 65535.

Example:

Security Audit Server Port: 514

Security Audit OnError Action

Determine what happens when the connection to the audit server is lost. This setting is only relevant when Security Audit Logging Mode is set to ExternalSecure.

NOTE: Restar t the system for any change to this setting to take effect.

Requires user role: AUDIT

Value space: <Halt/Ignore>

Halt: If a halt condition is detected the system is rebooted and only the auditor is allowed to operate the unit until the halt condition has passed. When the halt condition has passed the audit logs are re-spooled to the audit server. Halt conditions are: A network breach (no physical link), no audit server running (or wrong audit server address or port), TLS authentication failed (if in use), local backup (re-spooling) log full.

Ignore: The system will continue its normal operation, and rotate internal logs when full. When the connection is restored it will again send its audit logs to the audit server.

Example:

Security Audit OnError Action: Ignore

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Security Session ShowLastLogon

When logging in to the system using SSH or Telnet you will see the UserId, time and date of the last session that did a successful login.

Requires user role: ADMIN

Value space: <Off/O n>

On: Show information about the last session. Off: Do not show information about the last session.

Example:

Security Session ShowLastLogon: Off

Security Session InactivityTimeout

Determine how long the system will accept inactivity from the user before he is automatically logged out.

Requires user role: ADMIN

Value space: <0..10000>

Range: Select a value between 1 and 10000 seconds; or select 0 when inactivity should not enforce automatic logout.

Example:

Security Session InactivityTimeout: 0

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

SerialPort settings

SerialPort Mode

Enable/disable the serial port (COM port).

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable the serial port. On: Enable the serial port.

Example:

SerialPort BaudRate

Specify the baud rate (data transmission rate, bits per second) for the serial port. The default value is 38400.

Other connection parameters for the serial port are: Data bits: 8; Parity: None; Stop bits: 1; Flow control: None.

Requires user role: ADMIN

Value space: <9600/19200/38400/57600/115200>

Example:

SerialPort Mode: On

Range: Select a baud rate from the baud rates listed (bps).

SerialPort BaudRate: 38400

SerialPort LoginRequired

Determine if login shall be required when connecting to the serial port.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The user can access the codec via the serial port without any login. On: Login is required when connecting to the codec via the serial port.

Example:

SerialPort LoginRequired: On

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

SIP settings

SIP Profile [1..1] URI

The SIP URI or number is used to address the system. This is the URI that is registered and used by the SIP services to route inbound calls to the system. A Uniform Resource Identifier (URI) is a compact string of characters used to identify or name a resource.

Requires user role: ADMIN

Value space: <S: 0, 255>

Format: Compact string with a maximum of 255 characters.

Example:

SIP Profile 1 URI: "sip:firstname.lastname@company.com"

SIP Profile [1..1] DisplayName

When configured the incoming call will report the DisplayName instead of the SIP URI.

Requires user role: ADMIN

Value space: <S: 0, 255>

Format: String with a maximum of 255 characters.

Example:

SIP Profile 1 DisplayName: ""

SIP Profile [1..1] Authentication [1..1] LoginName

This is the user name part of the credentials used to authenticate towards the SIP proxy.

Requires user role: ADMIN

Value space: <S: 0, 128>

Format: String with a maximum of 128 characters.

Example:

SIP Profile 1 Authentication 1 LoginName: ""

SIP Profile [1..1] DefaultTransport

Select the transport protocol to be used over the LAN.

Requires user role: ADMIN

Value space: <TCP/UDP/Tls/Auto>

TCP: The system will always use TCP as the default transport method. UDP: The system will always use UDP as the default transport method. Tls: The system will always use TLS as the default transport method. For TLS connections

a SIP CA-list can be uploaded to the video system. If no such CA-list is available on the system then anonymous Diffie Hellman will be used.

Auto: The system will try to connect using transport protocols in the following order: TLS, TCP, U D P.

Example:

SIP Profile 1 DefaultTransport: Auto

SIP Profile [1..1] TlsVerify

For TLS connections a SIP CA-list can be uploaded to the video system.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Set to Off to allow TLS connections without verifying them. The TLS connections are allowed to be set up without verifying the x.509 certificate received from the server against the local CA-list. This should typically be selected if no SIP CA-list has been uploaded.

On: Set to On to verify TLS connections. Only TLS connections to ser vers, whose x.509 certificate is validated against the CA-list, will be allowed.

Example:

SIP Profile 1 TlsVerify: Off

SIP Profile [1..1] Authentication [1..1] Password

This is the password part of the credentials used to authenticate towards the SIP proxy.

Requires user role: ADMIN

Value space: <S: 0, 128>

Format: String with a maximum of 128 characters.

Example:

SIP Profile 1 Authentication 1 Password: ""

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

SIP Profile [1..1] Outbound

Turn on or off the client initiated connections mechanism for firewall traversal, connection reuse and redundancy. The current version supports RFC 5626.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Connect to the single proxy configured first in Proxy Address list. On: Set up multiple outbound connections to servers in the Proxy Address list.

Example:

SIP Profile 1 Outbound: Off

SIP Profile [1..1] Proxy [1..4] Address

The Proxy Address is the manually configured address for the outbound proxy. It is possible to use a fully qualified domain name, or an IP address. The default port is 5060 for TCP and UDP but another one can be provided. If SIP Profile Outbound is enabled, multiple proxies can be addressed.

Requires user role: ADMIN

Value space: <S: 0, 255>

Format: A valid IPv4 address, IPv6 address or DNS name.

Example:

SIP Profile 1 Proxy 1 Address: ""

SIP Profile [1..1] Proxy [1..4] Discovery

Select if the SIP Proxy address is to be obtained manually or by using Dynamic Host Configuration Protocol (DHCP).

Requires user role: ADMIN

Value space: <Auto/Manual>

Auto: When Auto is selected, the SIP Proxy address is obtained using Dynamic Host Configuration Protocol (DHCP).

Manual: When Manual is selected, the manually configured SIP Proxy address will be used.

Example:

SIP Profile 1 Proxy 1 Discovery: Manual

SIP Profile [1..1] Type

Enables SIP extensions and special behaviour for a vendor or provider.

Requires user role: ADMIN

Value space: <Standard/Alcatel/Avaya/Cisco/Microsoft/Nortel>

Standard: To be used when registering to standard SIP Proxy (tested with Cisco TelePresence VCS and Broadsoft)

Alcatel: To be used when registering to Alcatel-Lucent OmniPCX Enterprise. NOTE: This mode is not fully supported.

Avaya: To be used when registering to Avaya Communication Manager. NOTE: This mode is not fully supported.

Cisco: To be used when registering to Cisco Unified Communication Manager. Microsoft: To be used when registering to Microsoft LCS or OCS. NOTE: This mode is not

fully supported. Nortel: To be used when registering to Nortel MCS 5100 or MCS 5200 PBX. NOTE: This

mode is not fully supported.

Example:

SIP Profile 1 Type: Standard

SIP Profile [1..1] Mailbox

When registered to a Cisco Unified Communications Manager (CUCM) you may be offered the option of having a private voice mailbox. Enter the number (address) of the mailbox in this setting, or leave the string empty if you do not have a voice mailbox.

Requires user role: ADMIN

Value space: <S: 0, 255>>

Format: String with a maximum of 255 characters.

Example:

SIP Profile 1 Mailbox: "12345678"

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

SIP Profile [1..1] Line

When registered to a Cisco Unified Communications Manager (CUCM) the endpoint may be part of a shared line. This means that several devices share the same directory number. The different devices sharing the same number receive status from the other appearances on the line as defined in RFC 4235.

Note that shared lines are set up by CUCM, not by the endpoint. Therefore do not change this setting manually; CUCM pushes this information to the endpoint when required.

Requires user role: ADMIN

Value space: <Private/Shared>

Shared: The system is part of a shared line and is therefore sharing its directory number with other devices.

Private: This system is not part of a shared line (default).

Example:

SIP Profile 1 Line: Private

SIP ListenPort

Turn on or off the listening for incoming connections on the SIP TCP/UDP ports. If turned off, the endpoint will only be reachable through the SIP registrar (CUCM or VCS). It is recommended to leave this setting at its default value.

Requires user role: ADMIN

Value space: <On/Off>

On: Listening for incoming connections on the SIP TCP/UDP ports is turned on. Off: Listening for incoming connections on the SIP TCP/UDP ports is turned off.

Example:

SIP ListenPort: On

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Standby settings

Standby Control

Determine whether the system should go into standby mode or not.

Requires user role: ADMIN

Value space: <Off/O n>

Off: The system will not enter standby mode. On: Enter standby mode when the Standby Delay has timed out. NOTE: Requires the

Standby Delay to be set to an appropriate value.

Example:

Standby Control: On

Standby Delay

Define how long (in minutes) the system shall be in idle mode before it goes into standby mode. NOTE: Requires the Standby Control to be enabled.

Requires user role: ADMIN

Value space: <1..480>

Range: Select a value from 1 to 480 minutes.

Example:

Standby Delay: 10

Standby BootAction

Define the camera position after a restart of the codec.

Requires user role: ADMIN

Value space: <None/Preset1/Preset2/Preset3/Preset4/Preset5/Preset6/Preset7/Preset8/

Preset9/Preset10/Preset11/Preset12/Preset13/Preset14/Preset15/RestoreCameraPosition/ DefaultCameraPosition>

None: No action. Preset1 to Preset15: After a reboot the camera position will be set to the position defined by

the selected preset. RestoreCameraPosition: After a reboot the camera position will be set to the position it had

before the last boot. DefaultCameraPosition: After a reboot the camera position will be set to the factory default

position.

Example:

Stand by BootAction: DefaultCameraPosition

Standby StandbyAction

Define the camera position when going into standby mode.

Requires user role: ADMIN

Value space: <None/PrivacyPosition>

None: No action. PrivacyPosition: Turns the camera to a sideways position for privacy.

Example:

Standby StandbyAction: PrivacyPosition

Standby WakeupAction

Define the camera position when leaving standby mode.

Requires user role: ADMIN

Value space: <None/Preset1/Preset2/Preset3/Preset4/Preset5/Preset6/Preset7/Preset8/

Preset9/Preset10/Preset11/Preset12/Preset13/Preset14/Preset15/RestoreCameraPosition/ DefaultCameraPosition>

None: No action. Preset1 to Preset15: When leaving standby the camera position will be set to the position

defined by the selected preset. RestoreCameraPosition: When leaving standby the camera position will be set to the position

it had before entering standby. DefaultCameraPosition: When leaving standby the camera position will be set to the factory

default position.

Example:

Standby WakeupAction: RestoreCameraPosition

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

SystemUnit settings

SystemUnit Name

Enter a System Name to define a name of the system unit. If the H.323 Alias ID is configured on the system then this ID will be used instead of the system name. The system name will be displayed:

1) When the codec is acting as an SNMP Agent.

2) Towards a DHCP server.

Requires user role: ADMIN

Value space: <S: 0, 50>

Format: String with a maximum of 50 characters.

Example:

SystemUnit Name: "Meeting Room"

SystemUnit MenuLanguage

Select the language to be used in the menus on screen or on the Touch controller.

Requires user role: USER

Value space: <English/ChineseSimplified/ChineseTraditional/Czech/Danish/Dutch/Finnish/

French/German/Hungarian/Italian/Japanese/Korean/Norwegian/Polish/PortugueseBrazilian/ Russian/Spanish/SpanishLatin/Swedish/Turkish>

Example:

SystemUnit MenuLanguage: English

SystemUnit ContactInfo Type

Choose which type of contact information to show in the status field in the upper left corner of the main display and Touch controller. The information can also be read with the command xStatus SystemUnit ContactInfo.

Requires user role: ADMIN

Value space: <Auto/None/IPv4/IPv6/H323Id/E164Alias/H320Number/SipUri/SystemName/

DisplayName>

Auto: Show the address which another system can dial to reach this system. The address depends on the default call protocol and system registration.

None: Do not show any contact information in the status field. IPv4: Show the IPv4 address as contact information. IPv6: Show the IPv6 address as contact information. H323Id: Show the H.323 ID as contact information (see the H323 Profile [1..1] H323Alias ID

setting). E164 Alia s: Show the H.323 E164 Alias as contact information (see the H323 Profile [1..1]

H323Alias E164 setting). H320Number: Show the H.320 number as contact information (only applicable if connected

to a Cisco TelePresence ISDN Link gateway).

SipUri: Show the SIP URI as contact information (see the SIP Profile [1..1] URI setting). SystemName: Show the system name as contact information (see the SystemUnit Name

setting). DisplayName: Show the display name as contact information (see the SIP Profile [1..1]

DisplayName setting).

Example:

SystemUnit ContactInfo Type: Auto

SystemUnit CallLogging Mode

Set the call logging mode for calls that are received or placed by the system. The call logs may then be viewed via the web interface or using the xHistory command.

Requires user role: ADMIN

Value space: <Off/O n>

Off: Disable logging. On: Enable logging.

Example:

SystemUnit CallLogging Mode: On

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

SystemUnit IrSensor

Both the Codec C Series and PrecisionHD camera have IR sensors, and only one of them needs to be enabled at the time. The IR sensor LED is located on the front of the codec and the camera and flickers when an IR signal is received from the remote control.

Requires user role: ADMIN

Value space: <Auto/Off/On>

Auto: The system will automatically disable the IR sensor on the codec if the IR sensor at camera is enabled. Otherwise, the IR sensor on the codec will be enabled.

Off: Disable the IR sensor on the codec. On: Enable the IR sensor on the codec.

Example:

SystemUnit IrSensor: Auto

Cisco TelePresence System Codec C40/C60 and Profiles using C40/60 Administrator Guide

Contents

Introduction

Web interface

System settings

Setting passwords

Appendices

System settings

Time settings

Time Zone

Set the time zone where the system is located, using Windows time zone description format.

Requires user role: USER

Value space: <GMT-12:00 (International Date Line West)/GMT-11:00 (Midway Island, Samoa)/

GMT-10:00 (Hawaii)/GMT-09:00 (Alaska)/GMT-08:00 (Pacific Time (US & Canada); Tijuana)/ GMT-07:00 (Arizona)/GMT-07:00 (Mountain Time (US & Canada))/GMT-07:00 (Chihuahua, La Paz, Mazatlan)/GMT-06:00 (Central America)/GMT-06:00 (Saskatchewan)/GMT-06:00 (Guadalajara, Mexico City, Monterrey)/GMT-06:00 (Central Time (US & Canada))/GMT-05:00 (Indiana (East))/GMT-05:00 (Bogota, Lima, Quito)/GMT-05:00 (Eastern Time (US & Canada))/ GMT-04:30 (Caracas)/GMT-04:00 (La Paz)/GMT-04:00 (Santiago)/GMT-04:00 (Atlantic Time (Canada))/GMT-03:30 (Newfoundland)/GMT-03:00 (Buenos Aires, Georgetown)/GMT-03:00 (Greenland)/GMT-03:00 (Brasilia)/GMT-02:00 (Mid-Atlantic)/GMT-01:00 (Cape Verde Is.)/ GMT-01:00 (Azores)/GMT (Casablanca, Monrovia)/GMT (Coordinated Universal Time)/GMT (Greenwich Mean Time : Dublin, Edinburgh, Lisbon, London)/GMT+01:00 (West Central Africa)/ GMT+01:00 (Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna)/GMT+01:00 (Brussels, Copenhagen, Madrid, Paris)/GMT+01:00 (Sarajevo, Skopje, Warsaw, Zagreb)/GMT+01:00 (Belgrade, Bratislava, Budapest, Ljubljana, Prague)/GMT+02:00 (Harare, Pretoria)/GMT+02:00 (Jerusalem)/GMT+02:00 (Athens, Istanbul, Minsk)/GMT+02:00 (Helsinki, Kyiv, Riga, Sofia, Tallinn, Vilnius)/GMT+02:00 (Cairo)/GMT+02:00 (Bucharest)/GMT+03:00 (Nairobi)/GMT+03:00 (Kuwait, Riyadh)/GMT+03:00 (Moscow, St. Petersburg, Volgograd)/GMT+03:00 (Baghdad)/ GMT+03:30 (Tehran)/GMT+04:00 (Abu Dhabi, Muscat)/GMT+04:00 (Baku, Tbilisi, Yerevan)/ GMT+04:30 (Kabul)/GMT+05:00 (Islamabad, Karachi, Tashkent)/GMT+05:00 (Ekaterinburg)/ GMT+05:30 (Chennai, Kolkata, Mumbai, New Delhi)/GMT+05:45 (Kathmandu)/GMT+06:00 (Sri Jayawardenepura)/GMT+06:00 (Astana, Dhaka)/GMT+06:00 (Almaty, Novosibirsk)/GMT+06:30 (Rangoon)/GMT+07:00 (Bangkok, Hanoi, Jakarta)/GMT+07:00 (Krasnoyarsk)/GMT+08:00 (Perth)/ GMT+08:00 (Taipei)/GMT+08:00 (Kuala Lumpur, Singapore)/GMT+08:00 (Beijing, Chongqing, Hong Kong, Urumqi)/GMT+08:00 (Irkutsk, Ulaan Bataar)/GMT+09:00 (Osaka, Sapporo, Tokyo)/ GMT+09:00 (Seoul)/GMT+09:00 (Yakutsk)/GMT+09:30 (Darwin)/GMT+09:30 (Adelaide)/ GMT+10:00 (Guam, Port Moresby)/GMT+10:00 (Brisbane)/GMT+10:00 (Vladivostok)/GMT+10:00 (Hobart)/GMT+10:00 (Canberra, Melbourne, Sydney)/GMT+11:00 (Magadan, Solomon Is., New Caledonia)/GMT+12:00 (Fiji, Kamchatka, Marshall Is.)/GMT+12:00 (Auckland, Wellington)/ GMT+13:00 (Nuku alofa)>

Range: Select a time zone from the list time zones. If using a command line interface; watch up for typos.

Example:

Time Zone: "GMT (Greenwich Mean Time : Dublin, Edinburgh, Lisbon,

London)"

Time TimeFormat

Set the time format.

Requires user role: USER

Value space: <24H/12H>

24H: Set the time format to 24 hours. 12H : Set the time format to 12 hours (AM/PM).

Example:

Time Ti meFormat: 24H

Time DateFormat

Set the date format.

Requires user role: USER

Value space: <DD_MM_YY/MM_DD_YY/YY_MM_DD>

DD _ M M _Y Y: The date January 30th 2010 will be displayed: 30.01.10 MM_ D D _Y Y: The date January 30th 2010 will be displayed: 01.30.10 YY_MM_DD: The date January 30th 2010 will be displayed: 10.01.30

Example:

Tim e DateFormat: DD _ MM _ YY

100

Cisco TelePresence System Codec C40, TelePresence System Codec C60 Administrator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

User documentation

Software

Profile 52”/55” at a glance

Profile 52” Dual / 55” Dual at a glance

Profile 65” at a glance

Codec C60 at a glance

Codec C40 at a glance

Web interface

Starting the web interface

Changing the system password

The interactive menu

System information

Placing a call

Sharing content

Controlling and monitoring a call

Controlling the camera

Local layout control

Capturing snapshots

Managing the favorites list

Favorite list folders

System configuration

Changing system settings

Setting the Administrator Settings menu password

System status

Choosing a wallpaper

Choosing a ringtone

Peripherals overview

User administration

Adding a sign in banner

Application programming interface

Managing the video system’s certificates

Managing the list of trusted certificate authorities

Adding audit certificates

Setting strong security mode

Deleting trust lists (CUCM only)

Troubleshooting

Downloading log files

Upgrading the system software

Backup and restore

Factory reset

Restarting the system

System settings

Overview of the system settings

Audio settings

Audio Input HDMI [2] Mode

Audio Input HDMI [2] Level

Audio Input HDMI [2] VideoAssociation MuteOnInactiveVideo

Audio Input HDMI [2] VideoAssociation VideoInputSource

Audio Input Line [1..2] Equalizer ID

Audio Input Line [1..2] Equalizer Mode

Audio Input Line [1..2] VideoAssociation MuteOnInactiveVideo

Audio Input Line [1..2] VideoAssociation VideoInputSource

Audio Input Line [1..2] Channel

Audio Input Line [1..2] Level

Audio Input Line [1..2] LoopSuppression

Audio Input Line [1..2] Mode

Audio Input Microphone [1..2]/[1..4] EchoControl Mode

Audio Input Microphone [1..2]/[1..4] EchoControl NoiseReduction

Audio Input Microphone [1..2]/[1..4] EchoControl Dereverberation

Audio Input Microphone [1..2]/[1..4] Equalizer ID

Audio Input Microphone [1..2]/[1..4] Equalizer Mode

Audio Input Microphone [1..2]/[1..4] VideoAssociation MuteOnInactiveVideo

Audio Input Microphone [1..2]/[1..4] VideoAssociation VideoInputSource

Audio Input Microphone [1..2]/[1..4] Level

Audio Input Microphone [1..2]/[1..4] Mode

Audio Input Microphone [1..2]/[1..4] Type

Audio Output HDMI [1] Level

Audio Output HDMI [1] Mode

Audio Output Line [1..2] Channel

Audio Output Line [1..2] Equalizer ID

Audio Output Line [1..2] Equalizer Mode

Audio Output Line [1..2] Level

Audio Output Line [1..2] Mode

Audio Output Line [1] Type

Audio Output Line [2] Type
