Objectives

Preface

This preface describes how to ﬁnd additional information on the PA-E3serial port adapter and other Cisco products, services, and documentation. This preface contains the following sections:

• Objectives, page v

• Organization, page v

• Related Documentation, page vi

• Cisco Connection Online, page viii

• Documentation CD-ROM, page viii

This document describes how to install and conﬁgure the PA-E3 serial port adapter (PA-E3[=] and PA-2E3[=]) in the following platforms:

• Second-generation Versatile Interface Processor (VIP2) in Cisco 7500 series routers and

Cisco 7000 series routers with the Cisco 7000 Series Route Switch Processor (RSP7000) and Cisco 7000 Series Chassis Interface (RSP7000CI).

• Cisco 7200 series routers, which consist of the two-slot Cisco 7202, four-slot Cisco 7204 and

Cisco 7204VXR, and six-slot Cisco 7206 and Cisco 7206VXR

Organization

• Cisco uBR7200 series universal broadband routers

• Cisco 7100 series routers, which consist of the Cisco 7120 and Cisco 7140

• Catalyst Route Switch Module (RSM)/VIP2 in the Catalyst 5000 family switches

This document is organized into the following chapters:

Section Title Description

Chapter 1 Overview Describes the PA-E3 port adapter and

describes its LED displays, cables, and receptacles.

Chapter 2 Preparing for Installation Describes safety considerations, tools

required, and procedures you should perform before the actual installation.

Preface v

Related Documentation

— Route Switch Module Catalyst VIP2-15 and VIP2-40 Installation and Conﬁguration Note

(Document Number 78-4780-01) which shipped with your Catalyst RSM/VIP2.

• For hardware installation and maintenance information on Cisco 7100 series routers, refer to the

Cisco 7100 Series Installation and Conﬁguration Guide publication that shipped with your Cisco 7100 series router.

• For information on setting up a Virtual Private Network, see the Cisco 7100 Series VPN

Conﬁguration Guide.

• For hardware installation and maintenance information on the Cisco 7200 VXR routers, refer to

the Cisco 7200 VXR Installation and Conﬁguration Guide publication that shipped with your Cisco 7200 VXR router.

• For hardware installation and maintenance information on the Cisco 7200 routers, refer to the

following publications that shipped with your router:

— Cisco 7202 Installation and Conﬁguration Guide — Cisco 7204 Installation and Conﬁguration Guide — Cisco 7206 Installation and Conﬁguration Guide

• For hardware installation and maintenance information on the Cisco uBR7200 series routers,

refer to the Cisco uBR72xx Universal Broadband Router Installation and Conﬁguration Guide that shipped with your Cisco uBR7200 series router.

• For international agency compliance, safety, and statutory information for WAN interfaces for

the Cisco 7500 series routers, Cisco 7000 series routers, Cisco 7200 series routers, Cisco ubr7200 series routers, and Cisco 7100 series routers, refer to the following publications:

— Regulatory Compliance and Safety Information for the Cisco 7500 Series Routers — Regulatory Compliance and Safety Information for the Cisco 7000 Series Routers — Regulatory Compliance and Safety Information for the Cisco 7200 Series Routers

— Regulatory Compliance and Safety Information for the Cisco 7100 Series Routers

— Regulatory Compliance and Safety Information for the Cisco uBR72xx Universal

Broadband Router

Note The regulatory compliance and safety information documentation listed above applies to the

Catalyst 5000 family switches and the Catalyst RSM/VIP2.

• For port adapter hardware and memory conﬁguration guidelines for the Cisco 7200 series

routers, refer to the document Cisco 7200 Series Port Adapter Hardware Conﬁguration Guidelines.

To viewCisco documentation or obtain general information about thedocumentation, seethe “Cisco Connection Online” section on page viii or the “Related Documentation” section on page vi, or call customer service at 800 553-6387 or 408 526-7208. Customer service hours are 5:00 a.m. to 6:00 p.m. Paciﬁc time, Monday through Friday (excluding Cisco-observed holidays). You can also send e-mail to cs-rep@cisco.com.

Preface vii

Cisco Connection Online

CiscoConnection Online (CCO) is Cisco Systems’ primary,real-time support channel.Maintenance customers and partners can self-register on CCO to obtain additional information and services.

Available 24 hours a day, 7 days a week, CCO provides a wealth of standard and value-added services to Cisco’s customers and business partners. CCO services include product information, product documentation, software updates, release notes, technical tips, the Bug Navigator, conﬁguration notes, brochures, descriptions of service offerings, and downloadaccess to public and authorized ﬁles.

CCO serves a wide variety of users through two interfaces that are updated and enhanced simultaneously: a character-based version and a multimedia version that resides on the World Wide Web (WWW). The character-based CCO supports Zmodem, Kermit, Xmodem, FTP, and Internet e-mail,and it is excellent for quick access to information over lower bandwidths. The WWW version of CCO provides richly formatted documentswith photographs,ﬁgures, graphics, and video, aswell as hyperlinks to related information.

You can access CCO in the following ways: WWW: http://www.cisco.com WWW: http://www-europe.cisco.com WWW: http://www-china.cisco.com Telnet: cco.cisco.com Modem: From North America, 408 526-8070; from Europe, 33 1 64 46 40 82. Use the following

terminal settings: VT100 emulation; databits: 8; parity: none; stop bits: 1; and connection rates up to 28.8 kbps.

For a copy of CCO’s Frequently Asked Questions (FAQ), contact cco-help@cisco.com. For additional information, contact cco-team@cisco.com.

If you are a network administrator and need personal technical assistance with a Cisco product that isunder warrantyor coveredby amaintenance contract, contact Cisco’s TechnicalAssistance Center (TAC) at 800 553-2447, 408 526-7209, or tac@cisco.com. To obtain general information about Cisco Systems, Cisco products, or upgrades, contact 800 553-6387, 408 526-7208, or cs-rep@cisco.com.

Documentation CD-ROM

Ciscodocumentation and additional literature are available in a CD-ROMpackage, whichships with your product. The Documentation CD-ROM,a member of the Cisco Connection Family,is updated monthly.Therefore, it mightbe more current than printeddocumentation. Toorder additional copies of the Documentation CD-ROM, contact your local sales representative or call customer service. The CD-ROM package is available as a single package or as an annual subscription. You can also access Cisco documentation on the World Wide Web at http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com.

If you are reading Cisco product documentation on the WorldWide Web,you can submit comments electronically. Click Feedback in the toolbar and select Documentation. After you complete the form, click Submit to send it to Cisco. We appreciate your comments.

PA-E3 Serial Port Adapter Installation and Configuration

viii

CHAPTER

Overview

This chapter describes the one-port PA-E3 and two-port PA-2E3 E3 serial port adapters. This chapter contains the following sections:

• Port Adapter Overview, page 1-1

• PA-E3 Serial Port Adapter Features, page 1-2

• Management Information Base, page 1-3

• PA-E3 Port Adapter LEDs, page 1-3

• PA-E3 Receptacles and Cables, page 1-4

• Interoperability Guidelines for PA-E3 DSUs, page 1-5

Port Adapter Overview

The PA-E3 is a single-width, one-port or two-port module that integrates data service unit (DSU) functionality into the Cisco router (see Figure 1-1 and Figure 1-2). The module providesone or two high-speed serial E3 interfaces on:

• Cisco 7100 series routers

• Cisco 7200 series routers

• Cisco uBR7200 series routers

• Second-generation Versatile Interface Processors (VIP2) in allCisco 7000series and Cisco 7500

series routers

• Catalyst RSM/VIP2 in the Catalyst 5000 family switches

Note Port adapters have a handle attached, but this handle is occasionally not shown in ﬁgures in

this publication to allow a full view of detail on the port adapter’s faceplate.

Overview 1-1

Port Adapter Overview

Figure 1-1 One-Port PA-E3 Serial Port Adapter

XMTR

ENABLED

RCVR

Figure 1-2 Two-Port PA-2E3 Serial Port Adapter

XMTR

ENABLED

RCVR

The one-port PA-E3 provides two network interfaces per VIP2 for Cisco 7000 series and Cisco 7500 series routers and the Catalyst RSM/VIP2 for Catalyst 5000 family switches, and one high-speed interface on the Cisco 7100 series,Cisco 7200series,and Cisco uBR7200 series routers.

The two-port PA-2E3 provides four network interfaces per VIP2 for Cisco 7000 series and Cisco 7500 series routers and the Catalyst RSM/VIP2 for Catalyst 5000 family switches, and two high-speed interfaces on the Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series routers.

AIS

RCLK

OOF

RCLK

OOF

FERF

RCLK

AIS

OOF

RCVR

E3 SERIAL

H10607

2E3 SERIAL

XMTR

H10050

1-2

Serial network interfaces reside on modular port adapters, which provide a direct connection between the high-speed bus in the router and the external networks. The PA-E3 provides a full-duplex synchronous serial E3 interface for transmitting and receiving data at rates of up to 34 megabits per second (Mbps).

The port adapter supports both 16- and 32-bit cyclic redundancy checks (CRCs). The default is 16-bitCRCs;toenable 32-bit CRCs, you use a conﬁguration command. For a description of the CRC function, see the “Conﬁguring Cyclic Redundancy Checks” section on page 8-10.

Note Although the VIP2 and Catalyst RSM/VIP2 supports online insertion and removal (OIR),

individual port adapters do not. To replace port adapters, you must ﬁrst remove the VIP2 and Catalyst RSM/VIP2 from the chassis, and then replace port adapters as required.

The Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series routers support the OIR of all port adapter types.

PA-E3 Serial Port Adapter Installation and Configuration

PA-E3 Serial Port Adapter Features

The PA-E3 serial port adapter has the following features:

• Single-width port adapter for the VIP2 in all Cisco 7000 series and Cisco 7500 routers, and in

Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series routers

• Single-width port adapter for the Catalyst RSM/VIP2 in the Catalyst 5000 family switches

• Single- or double-port E3 rate (34 Mbps) connectivity

• Full-duplex synchronous serial E3 interface

• High-speed High-Level Data Link Control (HDLC) data

• Integrated data service unit (DSU) functionality

• Support for 16- and 32-bit cyclic redundancy checks (CRCs)

• Support for G.751 framing or bypass framing

• Support for ATM-DXI, Frame Relay, HDLC, SMDS, and PPP serial encapsulations

• Support for national service bits

• Support for E3 MIB (RFC 1407)

PA-E3 Serial Port Adapter Features

• Support for remote and local loopback

• HDB3 line coding

• Scrambling and bandwidth reduction

• Online insertion and removal (OIR)

Management Information Base

Management Information Base (MIB) attributes are readable and writable across the Interim Local Management Interface (ILMI) through use of the Simple Network Management Protocol (SNMP).

The one-port PA-E3 supports MIB-II (RFC 1213) and the E3 interface MIB (RFC 1407). The two-port PA-2E3 supports MIB-II (RFC 1213) and the E3 interface MIB (RFC 1407).

PA-E3 Port Adapter LEDs

The one-port PA-E3port adapter hasone status LED and sixuplink port status LEDs (RCLK, FERF, OOF, AIS, RL, and LL) for the serial E3 port. (See Figure 1-3.)

Figure 1-3 One-Port PA-E3 Port Adapter LEDs—Partial Front View Shown

ENABLED

RCVR

XMTR

RCLK

FERF

E3 SERIAL

LEDs

AIS

OOF

H10606

Overview 1-3

PA-E3 Receptacles and Cables

The two-port PA-2E3 port adapter has one status LED and six uplink port status LEDs (RCLK, FERF, OOF, AIS, RL, and LL) for each serial E3 port. (See Figure 1-4.)

Figure 1-4 Two-Port PA-2E3 Port Adapter LEDs—Partial Front View Shown

2E3 SERIAL

H10049

ENABLED

RCVR

XMTR

LEDs

AIS

RCLK

FERFRLRCLK

OOF

AIS

OOF

FERF

After system initialization, the ENABLED LED goes on, indicating that the port adapter has been enabled for operation.

The following conditions must be met before the PA-E3 port adapter is enabled:

• The port adapter contains a valid microcode version that has been downloaded successfully.

• For Cisco 7000 and 7500 series routers, the port adapter is correctly connected to the VIP2 and

the midplane and is receiving power in the Cisco router.

• For the Catalyst 5000 family switches, the port adapter is correctly connected to the

Catalyst RSM/VIP2 and is receiving power in the switch.

• The bus recognizes the port adapter.

If any of these conditions are not met, or if the initialization fails for other reasons, the ENABLED LED does not go on.

Table 1-1 describes the PA-E3 LEDs.

Table 1-1 PA-E3 Port Adapter LEDs Name Color State Description

ENABLED Green On Indicates that the port adapter is ready.

Uplink port status

RCLK Green On Indicates that a receive clock has been detected. FERF Yellow On Indicates that Framer detected Far End Receive

OOF Yellow On Indicates that Framer detected Out of Frame. AIS Yellow On Indicates that Framer detected Alarm Indication

RL Yellow On Indicates that port is in remote loopback mode. LL Yellow On Indicates that port is in local loopback mode.

PA-E3 Receptacles and Cables

The serial interface cable for the PA-E3, which is a 75-ohm coaxial cable, is used to connect your router to a serial E3 network. Serial cables conform to EIA/TIA-612 and EIA/TIA-613 speciﬁcations. The serial ports on the PA-E3 are considered to be DTE devices.

Failure.

Signal.

1-4

PA-E3 Serial Port Adapter Installation and Configuration

Interoperability Guidelines for PA-E3 DSUs

On a single PA-E3, there are one or two serial E3 ports, each with two connectors (receive and transmit), where you connect the Cisco 75-ohm coaxial cable. The 75-ohm coaxial cable (Cisco part number CAB-ATM-DS3/E3) for the PA-E3 is available only from Cisco Systems; it is not available from outside commercial cable vendors.

The Cisco E3 75-ohm coaxial cable, which comes with an attached ferrite sleeve (see Figure 1-5), is available only in 10-foot (3.05-meter) lengths. The typical maximum distance between stations for E3 transmissions is 1300 feet (396 meters).

Note For E3 (75-ohm) connections, you must have ferrite beads on the 75-ohm coaxial cable and

EMI decoupling clips on the Rcvr end of the cable (see Figure 1-5) if compliance with European certiﬁcation standards for emission control is required (EN55022/CISPR22 Class B for radiated emission levels).

Figure 1-5 PA-E3 Cables

EMI decoupler clip

FERF

RCLK

RCVR

XMTR

AIS

OOF

H10314

Ferrite beads

You can test the DTE-to-DCE cable connection by using the loopback dte command. See the “Using the loopback Command to Verify the Physical Interface” section on page 8-20 for more information.

Interoperability Guidelines for PA-E3 DSUs

The PA-E3 supports several types of integrated DSUs. Table 1-2 lists the feature compatibilities of the PA-E3 DSUs.

Table 1-2 Feature Compatibilities of PA-E3 DSUs

Full Rate

DSU

Support

DL3100E Yes No Kentrox Yes Yes

1 DL3100E does not support scrambling. However, the PA-E3 can turn on scrambling

in DSU mode 0 for connecting to another PA-E3. The PA-E3 supports either scrambling (in mode 0) or DL3100E subrate, not both at the same time.

2 The PA-E3 supports either scrambling or Kentrox subrate, not both at the same time.

Scrambling Support

Subrate Support

Yes Yes

Overview 1-5

Interoperability Guidelines for PA-E3 DSUs

1-6

PA-E3 Serial Port Adapter Installation and Configuration

CHAPTER

Preparing for Installation

This chapter describes the general equipment,safety, and site preparation requirements forinstalling PA-E3 port adapters.

• Parts and Tools Required, page 2-1

• Software and Hardware Requirements, page 2-2

• Safety Guidelines, page 2-3

• Compliance Information, page 2-6

Parts and Tools Required

You need the following tools and parts to install a port adapter. If you need additional equipment, contact a service representative for ordering information.

• PA-E3 serial port adapter and one of the following:

— VIP2-15(=) if you are installing only one PA-E3 port adapter; otherwise, we recommend a

VIP2-40(=) or VIP2-50(=).

— Catalyst RSM/VIP2-15(=) if you are installing only one PA-E3 port adapter; otherwise, we

recommend a Catalyst RSM/VIP2-40(=).

— Cisco 7100 series router with at least one available port adapter slot. — Cisco 7200 series router with at least one available port adapter slot. — Cisco uBR7200 series router with at least one available port adapter slot.

• Cisco 75-ohm coaxial serial interface cables. (The PA-E3’s 75-ohm cables are available only

from Cisco Systems; they are not available from outside commercial vendors.)

• Number 1 Phillips screwdriver and a 3/16-inch ﬂat-blade screwdriver (for VIP2 and

Catalyst RSM/VIP2 installation only).

• Your own ESD-prevention equipment or the disposable grounding wrist strap included with all

upgrade kits, ﬁeld-replaceable units (FRUs), and spares.

Preparing for Installation 2-1

Software and Hardware Requirements

Table 2-1 lists the minimum Cisco IOS software release required to use the one-port PA-E3 and two-port PA-2E3 in supported router platforms.

Table 2-1 PA-E3 and PA-2E3 Software Requirements Platforms Recommended Minimum Cisco IOS Release

Cisco 7000 and Cisco 7500 Series

• With VIP2-15(=) or VIP2-40(=)

• With VIP2-50(=)

Cisco 7200 Series

• Cisco 7204VXR and Cisco 7206VXR CiscoIOS Release 12.0(2)XE2 or a later

• Cisco 7204 and Cisco 7206 Cisco IOS Release 11.1(16)CA or a later

• Cisco 7202 Cisco IOS Release 11.1(19)CC1 or a later

Cisco uBR7200 Series

• Cisco uBR7246 and Cisco uBR7223 Cisco IOS Release 12.0(2)XA or a later

Cisco 7100 Series

• Cisco 7120 series and Cisco 7140 series Cisco IOS Release 12.0(4)XE or a later

Catalyst 5000 Family Switches

• With CatalystRSM/VIP2-15(=) or Catalyst RSM/VIP2-40(=)

PA-E3 PA-2E3

Cisco IOS Release 11.1(13)CA or a later release of Cisco IOS Release 11.1 CA

Cisco IOS Release 11.1(14)CA or a later release of Cisco IOS Release 11.1 CA

release of Cisco IOS Release 12.0 XE Cisco IOS Release 12.0(3)T or a later release of Cisco IOS Release 12.0 T

release of Cisco IOS Release 11.1 CA

release of Cisco IOS Release 11.1 CC Cisco IOS Release 11.3(4)AA or a later release of Cisco IOS Release 11.3 AA

release of Cisco IOS Release 12.0 XA

release of Cisco IOS Release 12.0 XE Cisco IOS Release 12.0(5)T or a later release of Cisco IOS Release 12.0 T

Cisco IOS Release 12.0(1) or a later release of Cisco IOS Release 12.0

Cisco IOS Release 11.1(16)CA or a later release of Cisco IOS Release 11.1 CA

Cisco IOS Release 12.0(2)XE2 or a later release of Cisco IOS Release 12.0 XE Cisco IOS Release 12.0(3)T or a later release of Cisco IOS Release 12.0 T

Cisco IOS Release 11.1(16)CA or a later release of Cisco IOS Release 11.1 CA

Cisco IOS Release 11.1(19)CC1 or a later release of Cisco IOS Release 11.1 CC Cisco IOS Release 11.3(4)AA or a later release of Cisco IOS Release 11.3 AA

Cisco IOS Release 12.0(2)XA or a later release of Cisco IOS Release 12.0 XA

Cisco IOS Release 12.0(1) or a later release of Cisco IOS Release 12.0

2-2

Caution

The VIP2 requires that the host Cisco 7000 series router have the RSP7000 and RSP7000CI installed. The VIP2 does not operate properly with the Route Processor (RP), Switch Processor (SP), or Silicon Switch Processor (SSP) installed in the host Cisco series router.

ThePA-E3 is considered a high-bandwidth port adapter; therefore at a minimum, Cisco recommends that the PA-E3 be installed on the VIP2-15 or Catalyst RSM/VIP2-15 motherboard (with 1 MB of SRAM and 8 MB of DRAM). Installation of the PA-E3 on the VIP2-10 (with 512 KB of SRAM and 8 MB of DRAM) is not recommended.

PA-E3 Serial Port Adapter Installation and Configuration

Safety Guidelines

Note The VIP2 and Catalyst RSM/VIP2 supports online insertion and removal (OIR), but

individual port adapters do not. To replace the port adapters, you must ﬁrst remove the VIP2 or Catalyst RSM/VIP2 from the chassis and then replace port adapters as required. OIR is supported for port adapters in the Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series routers. Port adaptershavea handle attached, butthis handle is occasionally not shownin illustrations in this publication to allow a full view of detail on the port adapter’s faceplate.

In the Cisco 7000 series, Cisco 7100 series, Cisco 7500 series, Cisco uBR7200 series routers and Catalyst 5000 family switches, there are no restrictions on slot locations or sequence; however, in the Cisco 7200 series routers, there are speciﬁc conﬁguration guidelines that must be observed for high-bandwidth port adapters.

For speciﬁc Cisco 7200 series hardware conﬁguration information and for memory conﬁguration guidelines for Cisco 7200 series routers, refer to the document Cisco 7200 Series Port Adapter Hardware Conﬁguration Guidelines, which shipped with your Cisco 7200 series chassis and is also available on the Cisco Connection Documentation, Enterprise Series CD-ROM.

To determine if your Cisco 7000 series, Cisco 7100 series, Cisco 7500 series, Cisco 7200 series, or Cisco uBR7200series router,or the Catalyst RSM/VIP2 is compatible with the PA-E3,use theshow version command to display the current hardware conﬁguration of the router,including the system software version that is currently loaded and running.

You can check the version of the default ROM image by removing the board and checking the ROM labels, or by conﬁguring the interface or system software to boot from ROM, restarting the system, and using the show version command to check the running version.

To display the current system software version, use the show version command. In the following example, the running system software is Release 11.1(16)CA.

Router> show version Cisco Internetwork Operating System Software IOS (tm) GS Software, Version 11.1(16)CA Synced to mainline version: 11.1(10.5) Copyright (c) 1986-1997 by cisco Systems, Inc. Compiled Thu 22-May-97 14:32

If your system lacks the required system software and microcode, contact a customer service representative for upgrade information.

Safety Guidelines

The following are safety guidelines that you should follow when working with any equipment that connects to electrical power or telephone wiring.

Warning This warning symbol means danger. You are in a situation that could cause bodily injury. Before

you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Tosee translations of the warningsthat appear in this publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device.

Waarschuwing Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die

lichamelijk letsel kan veroorzaken.Voordatu aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die

Preparing for Installation 2-3

Safety Guidelines

in deze publicatie verschijnen, kunt u het document Regulatory Compliance and Safety Information (Informatie over naleving van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is ingesloten.

Varoitus Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, jokavoijohtaa ruumiinvammaan.

Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät laitteen mukana olevasta Regulatory Compliance and Safety Information -kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).

Attention Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation

pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d’avertissements ﬁgurant dans cette publication, consultez le document Regulatory Compliance and Safety Information (Conformité aux règlements et consignes de sécurité) qui accompagne cet appareil.

Warnung Dieses Warnsymbol bedeutet Gefahr. Sie beﬁnden sich in einer Situation, die zu einer

Körperverletzungführen könnte. Bevor Sie mit derArbeit an irgendeinem Gerät beginnen,seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise ﬁnden Sie im Dokument Regulatory Compliance and Safety Information (Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät geliefert wurde.

Avvertenza Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare

infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativiai circuiti elettrici edessere al corrente delle pratichestandard per la prevenzionedi incidenti. La traduzione delle avvertenzeriportate in questa pubblicazione si trova nel documento Regulatory Compliance and Safety Information (Conformità alle norme e informazioni sulla sicurezza) che accompagna questo dispositivo.

Advarsel Dette varselsymbolet betyr fare. Du beﬁnner deg i en situasjon som kan føre til

personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriskekretser innebærer,samt gjøredeg kjent medvanlig praksis når detgjelderå unngå ulykker. Hvis du vil se oversettelser av de advarslene som ﬁnnes i denne publikasjonen, kan du se i dokumentet Regulatory Compliance and Safety Information (Overholdelse av forskrifter og sikkerhetsinformasjon) som ble levert med denne enheten.

Aviso Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos

físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o documentoRegulatoryCompliance and Safety Information (Informação deSegurançae Disposições Reguladoras) que acompanha este dispositivo.

¡Advertencia! Este símbolo de aviso signiﬁca peligro. Existe riesgo para su integridad física.

Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientosestándar de prevención de accidentes. Para ver una traducción de las advertencias que aparecen en esta publicación, consultar el documento titulado Regulatory Compliance and Safety Information (Información sobre seguridad y conformidad con las disposiciones reglamentarias) que se acompaña con este dispositivo.

2-4

PA-E3 Serial Port Adapter Installation and Configuration

Varning! Denna varningssymbol signalerar fara. Du beﬁnner dig i en situation som kan leda till

personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Se förklaringar av de varningar som förkommer i denna publikation i dokumentet Regulatory Compliance and Safety Information (Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer denna anordning.

Electrical Equipment Guidelines

Follow these basic guidelines when working with any electrical equipment:

• Before beginning any procedures requiring access to the chassis interior, locate the emergency

power-off switch for the room in which you are working.

• Disconnect all power and external cables before moving a chassis.

• Do not workalone when potentiallyhazardous conditions existand never assume that power has

been disconnected from a circuit; always check.

• Do not perform any action that creates a potential hazard to people or makes the equipment

unsafe. Carefully examine your work area for possible hazards such as moist ﬂoors, ungrounded power extension cables, and missing safety grounds.

Electrical Equipment Guidelines

Telephone Wiring Guidelines

Use the following guidelines when working with any equipment that is connected to telephone wiring or to other network cabling:

• Never install telephone wiring during a lightning storm.

• Never install telephone jacks in wet locations unless the jack is speciﬁcally designed for wet

locations.

• Never touch uninsulated telephone wires or terminals unless the telephone line has been

disconnected at the network interface.

• Use caution when installing or modifying telephone lines.

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) damage, which can occur when electronic cards or components are improperlyhandled,resultsincompleteorintermittentfailures.Portadaptersandprocessormodules consist of printed circuit boards that are ﬁxed in metal carriers. Electromagnetic interference (EMI) shielding and connectors are integral components of the carrier. Although the metal carrier helps to protect the board from ESD, use a preventive antistatic strap during handling.

The following are guidelines for preventing ESD damage:

• Always use an ESD wrist or ankle strap and ensure that it makes good skin contact.

• Connect the equipment end of the strap to an unﬁnished chassis surface.

• When installing a component, use any available ejector levers or captive installation screws to

properly seat the bus connectors in the backplane or midplane. These devicesprevent accidental removal, provide proper grounding for the system, and help to ensure that bus connectors are properly seated.

• When removing a component, use any available ejector levers or captive installation screws to

release the bus connectors from the backplane or midplane.

Preparing for Installation 2-5

Compliance Information

• Handle carriers by available handles or edges only; avoid touching the printed circuit boards or

connectors.

• Place a removed component board-side-up on an antistatic surface or in a static shielding

container. If you plan to return the component to the factory, immediately place it in a static shielding container.

• Avoid contact between the printed circuit boards and clothing. The wrist strap only protects

components from ESD voltages on the body; ESD voltages on clothing can still cause damage.

• Never attempt to remove the printed circuit board from the metal carrier.

Caution For safety, periodically check the resistance value of the antistatic strap. The measurement should

be between 1 and 10 megohms (Mohm).

Compliance Information

The following sections provide compliance information thatapplies to the FCC andthe PA-E3 serial port adapter, which has beendesigned to meet these requirements. Modiﬁcations to this product that are not authorized by Cisco Systems, Inc., could void the various approvals and negate your authority to operate the product.

BABT Compliance

The BABT607116 marking on the PA-E3 signiﬁes that it meets United Kingdom directive 607116 and has been designed to BABT standards. The BABT label is located on the top of the PA-E3; Figure 2-1 shows the BABT label for the PA-E3.

Figure 2-1 BABT Label for PA-E3 Serial Port Adapter

607116

ITI-T Compliance

ITI-T recommendation G.823 speciﬁes that it is important to restrict jitter gain. Figure 4 of G.823 shows a typical jitter transfer characteristic. (Note that small jitter gain is allowed.)British Standard 6328:Section 8.1 1990 givesthe allowablegain as 0.5 dB. The PA-E3’s line mode clocking complies with these sections.

TBR24 Compliance

WhenthePA-E3 is in line clocking mode, jitter is not attenuated, and any jitter receivedistransferred to the line. If input jitterexceedsthe limits of TBR24, then outputjitter will not meet TBR24 transfer speciﬁcations. Line clocking mode is intended for use only where the connection involves a single hop, and where clock timing will not be transferred to other network equipment.

H10017

2-6

When not in line clocking mode, the PA-E3 complies with TBR24 standards.

PA-E3 Serial Port Adapter Installation and Configuration

CHAPTER

VIP2 and the PA-E3

This chapter provides information on the PA-E3 serial port adapter and its use on the VIP2 in Cisco 7000 series and Cisco 7500 series routers. This chapter contains the following sections:

• Overview, page 3-1

• Removing a Port Adapter, page 3-4

• Installing a Port Adapter, page 3-5

Overview

The PA-E3 is used on the VIP2 in Cisco 7000 series and Cisco 7500 series routers and can be installed in either port adapter slot 0 or slot 1 on the VIP2 motherboard.

Note You can have up to three E3 serial interfaces on a VIP2 motherboard. Cisco recommends a

conﬁguration of one PA-E3 (with one E3 serial interface) and one PA-2E3 (with two serial interfaces) for a total of three E3 serial interfaces per VIP2.

Figure 3-1 shows two one-port PA-E3 port adapters installed in port adapter slot 0 and slot 1, on a VIP2-15 or VIP2-40.

VIP2 and the PA-E3 3-1

Overview

Figure 3-1 VIP2-15 or VIP2-40 with One-PortPA-E3 Port Adapters in Port Adapter Slots 0

and 1

Bus connector

CPU

Boot ROM

SRAM

DRAM

SIMMs

DIMM U5

PA-E3 in port

adapter slot 0

RCLK

FERF

ENABLED

RCVR

XMTR

AIS

OOF

E3 SERIAL

ENABLED

RCVR

RCLK

FERF

XMTR

AIS

OOF

PA-E3 in port adapter slot 1

T3 SERIAL

H10611

Port adapter handles not shown

RCLK

FERF

OOF

AIS

Note Port adapters have a handle attached, but this handleis not shown to allow a full view of detail

on each port adapter’s faceplate.

3-2

PA-E3 Serial Port Adapter Installation and Configuration

Figure 3-2 shows two one-port E3 port adapters installed in port adapter slots 0 and 1, on a VIP2-50.

Figure 3-2 VIP2-50 with One-Port PA-E3 Port Adapters in Port Adapter Slots 0 and 1

Overview

SRAM

daughter

card

port adapter

PA-E3 in

slot 0

Bus connector

Boot ROM

RCLK

FERF

ENABLED

RCVR

XMTR

AIS

OOF

Port adapter handles not shown

E3 SERIAL

CPU

ENABLED

SDRAM DIMM

PA-E3 in port adapter slot 1

RCLK

T3 SERIAL

H11248

FERF

RCLK

FERF

RCVR

XMTR

AIS

OOF

AIS

OOF

Depending on the circumstances, you might need to install a new port adapter on a VIP2 motherboard or replacea failed port adapter in the ﬁeld. In either case, you need a number 1 Phillips screwdriver, an antistatic mat on which you can place the removed interface processor, and an antistatic container in which you can place a failed port adapter for shipment back to the factory.

Note The PA-E3 can be installed on a VIP2-15, VIP2-20, VIP2-40, or VIP2-50 motherboard;

however, installation on the VIP2-10 is not recommended.

Caution To prevent system problems, do not remove port adapters from the VIP2 motherboard or

attempt to install other port adapters on the VIP2 motherboard while the system is operating. To install or replace port adapters, ﬁrst remove the VIP2 from its interface processor slot.

Note Each port adapter circuit board is mounted to a metal carrier and is sensitive to ESD damage.

The following procedures should be performed by a Cisco-certiﬁed service provideronly.The VIP2 supports online insertion and removal (OIR), but individual port adapters do not. To replace port adapters, you must ﬁrst remove the VIP2 from the chassis and then install or replace port adapters as required. If a blank port adapter is installed on the VIP2 in which you want to install a new port adapter, you must ﬁrst remove the VIP2 from the chassis and then remove the blank port adapter.

VIP2 and the PA-E3 3-3

Removing a Port Adapter

When only one port adapter is installed on a VIP2, a blank port adapter must ﬁll the empty slot. This allows the VIP2 and router chassis to conform to electromagnetic interference (EMI) emissions requirements, and encourages air to ﬂow through the chassis properly. If you plan to install a new port adapter, you must ﬁrst remove the blank port adapter.

Removing a Port Adapter

Following is the standard procedure for removing any type of port adapter on the VIP2:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface.

Note If you want to install a new port adapter on a VIP2 with a single port adapter, you

must ﬁrst remove the blank port adapter from the port adapter slot in which you want to install the new port adapter.

Step 2 Fora newport adapter installation or a portadapter replacement, disconnect any interface

cables from the ports on the front of the port adapter, although this is not required. You can remove VIP2s with cables attached; however, we do not recommend it.

Step 3 To remove the VIP2 from the chassis, follow the steps in the section “Removing a VIP2”

in the conﬁguration note Second-Generation Versatile Interface Processor (VIP2) Installation and Conﬁguration, which shipped with your VIP2. Place the removed VIP2

on an antistatic mat.

Step 4 Locate the screw at the rear of the port adapter (or blank port adapter) to be replaced.

(See Figure 3-3.) This screw secures the port adapter (or blank port adapter) to its slot.

Figure 3-3 Location of Port Adapter Screw—Partial Port Adapter View

H3148

Screw

Step 5 Step 6 With the screw removed, grasp the handle on the front of the port adapter (or blank

Remove the screw that secures the port adapter (or blank port adapter).

port adapter) and carefully pull it out of its slot, away from the edge connector at the rear of the slot. (See Figure 3-4.)

3-4

PA-E3 Serial Port Adapter Installation and Configuration

Figure 3-4 Pulling a Port Adapter Out of a Slot—Partial Port Adapter View

Installing a Port Adapter

H3149

Step 7

If you removed a port adapter, place it in an antistatic container for safe storage or shipment back to the factory. If you removed a blank port adapter, no special handling is required; however, store the blank port adapter for potential future use.

This completes the procedure for removing a new port adapter on a VIP2.

Installing a Port Adapter

Following is the standard procedure for replacing a port adapter on the VIP2:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface. Step 2 Remove the new port adapter from its antistatic container and position it at the opening

of the slot.

Step 3 Carefully align the port adapter carrier between the upper and the lower edges of the port

adapter slot, as shown in Figure 3-5.

VIP2 and the PA-E3 3-5

Installing a Port Adapter

Figure 3-5 Aligning a Port Adapter in a Port Adapter Slot

H3150

Carrier

Upper edge

Lower edge

Caution

To prevent jamming the carrier between the upper and lower edges of the port adapter slot and to ensure that the edge connector at the rear of the port adapter mates with the connector at the rear of the port adapter slot, make certain that the leading edges of the carrier are between the upper and lower slot edges, as shown in the cutaway in Figure 3-5.

Caution To ensure a positive ground attachment between the port adapter carrier and the VIP2

motherboard and port adapter slot, and to ensure that the connectors at the rear of the port adapter and slot mate properly, position the carrier between the upper and lower slot edges, as shown in Figure 3-5.

Step 4 Carefully slide the new port adapter into the port adapter slot until the connector on the

port adapter is completely seated in the connector on the motherboard. (See Figure 3-6.)

3-6

PA-E3 Serial Port Adapter Installation and Configuration

Figure 3-6 Port Adapter Installed in a Port Adapter Slot—Partial Port Adapter View

Installing a Port Adapter

H3152

Step 5 Replace the screw in the rear of the port adapter slot. (See Figure 3-3 for its location.) Do

not overtighten this screw.

Step 6 To reinstall the VIP2 in the system, follow the steps in the section “Installing a VIP2” in

the conﬁguration note Second-Generation Versatile Interface Processor (VIP2) Installation and Conﬁguration, which shipped with your VIP2.

Step 7 If the interface cables have been disconnected, reconnect the interface cables to the port

adapters.

This completes the procedure for installing a port adapter on a VIP2. Proceed to Chapter 8, “Conﬁguring the PA-E3 Interfaces,” for information on how to conﬁgure your port adapter interfaces.

VIP2 and the PA-E3 3-7

Installing a Port Adapter

3-8

PA-E3 Serial Port Adapter Installation and Configuration

CHAPTER

Catalyst RSM/VIP2 and the PA-E3

This chapter provides information on the PA-E3 serial port adapter and its use on the Catalyst RSM/VIP2 in the Catalyst 5000 family switches. This chapter contains the following sections:

• Overview, page 4-1

• Removing a Port Adapter, page 4-3

• Installing a Port Adapter, page 4-4

Overview

The PA-E3 is used on the Catalyst RSM/VIP2 in the Catalyst 5000 family switches and can be installed in either port adapter slot 0 or slot 1 on the Catalyst RSM/VIP2 motherboard.

Note You can have up to three E3 serial interfaces on a Catalyst RSM/VIP2 motherboard. Cisco

recommends a conﬁguration of one PA-E3(with one E3 serial interface) and one PA-2E3(with two serial interfaces) for a total of three E3 serial interfaces.

Figure 4-1 shows two one-port PA-E3 port adapters installed in port adapter slot 0 and slot 1, on a Catalyst RSM/VIP2-40.

Catalyst RSM/VIP2 and the PA-E3 4-1

Overview

Figure 4-1 Catalyst RSM/VIP2-40 with One-Port PA-E3 Port Adapters in Port Adapter

Slots 0 and 1

Standoff

Backplane

bus connector

mounting

hole

Ribbon cables

Standoff

mounting

holes

Port adapter

securing screw

PA-E3 in port

adapter slot 0

RCLK

FERF

ENABLED

RCVR

XMTR

AIS

OOF

E3 SERIAL

ENABLED

RCVR

RCLK

FERF

XMTR

AIS

OOF

Standoff mounting holes

Port adapter securing screw

PA-E3 in port adapter slot 1

T3 SERIAL

26452

Port adapter handles not shown

Note Port adapters have a handle attached, but this handle is not shown in the ﬁgure to allow a full

view of detail on each port adapter’s faceplate.

Depending on the circumstances, you might need to install a new port adapter on a Catalyst RSM/VIP2motherboardor replace a failed port adapter in theﬁeld.In either case, you need the following items:

4-2

• Number 1 Phillips screwdriver

• Antistatic mat on which you can place the removed interface processor

• Antistatic container in which you can place a failed port adapter for shipment back to the factory

Caution To prevent system problems, do not remove port adapters from the Catalyst RSM/VIP2

motherboard or attempt to install other port adapters on the Catalyst RSM/VIP2 motherboard while the system is operating. Toinstall or replaceportadapters, ﬁrst remove the Catalyst RSM/VIP2 from its slot.

Note Each port adapter circuit board is mounted to a metal carrier and is sensitive to ESD damage.

The following procedures should be performed by a Cisco-certiﬁed service provider only. The Catalyst RSM/VIP2 supports online insertion and removal (OIR), but individual port adapters do not. To replace port adapters, you must ﬁrst remove the Catalyst RSM/VIP2 from the chassis and then install or replace port adapters as required. If a blank port adapter is installed on the Catalyst RSM/VIP2 in which you want to install a new port adapter, you must ﬁrst remove the Catalyst RSM/VIP2 from the chassis and then remove the blank port adapter.

PA-E3 Serial Port Adapter Installation and Configuration

When only one port adapter is installed on a Catalyst RSM/VIP2, a blank port adapter must ﬁll the empty slot to conform to electromagnetic interference (EMI) emissions requirements and to allow air to ﬂow through the chassis properly. If you plan to install a new port adapter, you must ﬁrst remove the blank port adapter.

Removing a Port Adapter

The following is the standard procedure for removing any type of port adapter on the Catalyst RSM/VIP2:

Step 1 Attach an antistatic wrist strap between you and an unﬁnished chassis surface.

Note Ifyou wantto install a newportadapter on a Catalyst RSM/VIP2with a single port

adapter, you must ﬁrst remove the blank port adapter from the port adapter slot in which you want to install the new port adapter.

Step 2 Fora newport adapter installation or a portadapter replacement, disconnect any interface

cables from the ports on the front of the port adapter, although this is not required. You can remove a Catalyst RSM/VIP2 with cables attached; however, we do not recommend this action.

Removing a Port Adapter

Step 3 To remove the Catalyst RSM/VIP2 from the chassis, follow the steps in the Route Switch

Module Catalyst VIP2-15 and VIP2-40 Installation and Conﬁguration Note (Document Number 78-4780-01), which shipped with your Catalyst RSM/VIP2.

Step 4 Place the removed Catalyst RSM/VIP2 on an antistatic mat. Step 5 Locate the screw at the rear of the port adapter (or blank port adapter) to be replaced.

(See Figure 4-2.) This screw secures the port adapter (or blank port adapter) to its slot.

Figure 4-2 Location of Port Adapter Screw—Partial Port Adapter View

H3148

Screw

Step 6

Remove the screw that secures the port adapter (or blank port adapter).

Step 7 With the screw removed, grasp the handle on the front of the port adapter (or blank

port adapter) and carefully pull it out of its slot, away from the edge connector at the rear of the slot. (See Figure 4-3.)

Catalyst RSM/VIP2 and the PA-E3 4-3

Installing a Port Adapter

Figure 4-3 Pulling a Port Adapter Out of a Slot—Partial Port Adapter View

H3149

Step 8

This completes the procedure for removing a new port adapter on a Catalyst RSM/VIP2.

Installing a Port Adapter

The following is the standard procedure for replacing a port adapter on the Catalyst RSM/VIP2:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface. Step 2 Remove the new port adapter from its antistatic container and position it at the opening

of the slot.

Step 3 Carefully align the port adapter carrier between the upper and the lower edges of the port

adapter slot, as shown in Figure 4-4.

4-4

PA-E3 Serial Port Adapter Installation and Configuration

Figure 4-4 Aligning a Port Adapter in a Port Adapter Slot

Installing a Port Adapter

H3150

Carrier

Upper edge

Lower edge

Caution

Caution To ensure a positive ground attachment between the port adapter carrier and the

Catalyst RSM/VIP2 motherboard and port adapter slot, and to ensure that the connectors at the rear of the port adapter and slot mate properly, position the carrier between the upper and lower slot edges, as shown in Figure 4-5.

Step 4 Carefully slide the new port adapter into the port adapter slot until the connector on the

port adapter is completely seated in the connector on the motherboard. (See Figure 4-5.)

Catalyst RSM/VIP2 and the PA-E3 4-5

Installing a Port Adapter

Figure 4-5 Port Adapter Installed in a Port Adapter Slot—Partial Port Adapter View

H3152

Step 5 Replace the screw in the rear of the port adapter slot. (See Figure 4-2 for its location.) Do

not overtighten this screw.

Step 6 To reinstall the Catalyst RSM/VIP2 in the system, follow the steps in the Route Switch

Module Catalyst VIP2-15 and VIP2-40 Installation and Conﬁguration Note (Document

Number 78-4780-01), which shipped with your Catalyst RSM/VIP2.

Step 7 If the interface cables have been disconnected, reconnect the interface cables to the port

adapters.

This completes the procedure for installing a port adapter on a Catalyst RSM/VIP2. Proceed to Chapter 8, “Conﬁguring the PA-E3 Interfaces,” for information on how to conﬁgure your port adapter interfaces.

4-6

PA-E3 Serial Port Adapter Installation and Configuration

CHAPTER

Cisco 7200 Series and the PA-E3

This chapter provides information on the PA-E3 serial port adapter and its use in Cisco 7200 series routers. This chapter contains the following sections:

• Overview, page 5-1

• Removing a Port Adapter, page 5-2

• Installing a Port Adapter, page 5-3

Overview

The PA-E3 can be installed in any available port adapter slot in Cisco 7200 series routers (which consist of the two-slot Cisco 7202, four-slot Cisco 7204 and Cisco 7204VXR, and the six-slot Cisco 7206and Cisco 7206VXR). Figure 5-1 shows a one-port PA-E3installed in port adapter slot 3 of a Cisco 7206.

Figure 5-1 Cisco 7206 with a PA-E3 in Port Adapter Slot 3

TOKEN RING

ENABLED

FAST ETHERNET

ETHERNET-10BFL

H10608

RJ45

LINK

MII

RJ-45

1O PWR

LINK

FAST ETHERNET INPUT/OUTPUT CONTROLLER

PA-E3 port adapter

FERF

ENABLED

RCLK

XMTR

RCVR

AIS

OOF

EJECT

PCMCIA

SLOT 0

E3 SERIAL

FAST SERIAL

SLOT 1

FE MII

MII

Depending on your circumstances, you might need to install a new port adapter in a Cisco 7200 series router or replace a failed port adapter in theﬁeld. In either case,no tools are necessary; allport adapters available for the Cisco 7200 series connect directly to the router midplane and are locked into position by a port adapter lever. When removing and replacing a port adapter, you need an antistaticmat onto which you can place a removed port adapter and an antistatic container intowhich you can place a failed port adapter for shipment back to the factory.

Cisco 7200 Series and the PA-E3 5-1

Removing a Port Adapter

Note The Cisco 7200 series routers support online insertion and removal(OIR); therefore, you do

not have to power down the Cisco 7200 series routers when removing and replacing a port adapter.

When a port adapter slot is notin use, a blank port adapter mustﬁll the empty slot to allow the router to conform to EMI emissions requirements and to allow proper airﬂow across the port adapters. If you plan to install a new port adapter in a slot that is not in use, you must ﬁrst remove a blank port adapter.

Removing a Port Adapter

Following is the procedure for removing a port adapter from a Cisco 7200 series router:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface. Step 2 Place the port adapter lever for the desired port adapter slot in the unlocked position. The

port adapter lever remains in the unlocked position. (See Figure 5-2.)

Figure 5-2 Placing the Port Adapter Lever in the Unlocked Position—Cisco 7206 Shown

TOKEN RING

ENABLED

FAST ETHERNET

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

CPU RESET

RJ-45

RJ45

1O PWR

LINK

H6596

ENABLED

LINK

EJECT

PCMCIA

ETHERNET 10BT

FAST SERIAL

FE MII

SLOT 1

MII

SLOT 0

Port adapter

handle

Port adapter Note: This adapter removal applies to any port or service

lever (unlocked

position)

adapter.

Step 3 Grasp the handle on the port adapter and pull the port adapter from the midplane, about

halfway out of its slot. If you are removing a blank port adapter, pull the blank port adapter completely out of the chassis slot.

Note As you disengage the port adapter from the router midplane,OIR administratively

shuts down all active interfaces on the port adapter.

5-2

Step 4 With the port adapter halfway out of the slot, disconnect all cables from the port adapter. Step 5 After disconnecting the cables, pull the port adapter from its chassis slot.

PA-E3 Serial Port Adapter Installation and Configuration

Installing a Port Adapter

Caution Always handle the port adapter by the carrier edges and handle; never touch the port adapter’s

components or connector pins. (See Figure 5-3.)

Figure 5-3 Handling a Port Adapter

Metal carrier

Printed circuit board

H6420

Step 6

Place the port adapter on an antistatic surface with its components facing upward, or in a static shielding bag. If the port adapter will be returned to the factory, immediately place it in a static shielding bag.

This completes the procedure for removing a port adapter from a Cisco 7200 series router.

Installing a Port Adapter

Following is the procedure for installing a new port adapter in a Cisco 7200 series router:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface. Step 2 Remove the new port adapter from its antistatic container and position it at the opening

of the slot. (See Figure 5-4.)

Step 3 Use both hands to grasp the port adapter by its metal carrier edges and position the port

adapter so that its components face downward. (See Figure 5-3.)

Step 4 Align the left and the right edge of the port adapter metal carrier between the guides in

the port adapter slot. (See Figure 5-4.)

Figure 5-4 Aligning the Port Adapter Metal Carrier Between the Slot

Guides

—Cisco 7206 Shown

Slot guide

TOKEN RING

ENABLED

FAST ETHERNET

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

CPU RESET

RJ-45

RJ45

1O PWR

LINK

H6597

ENABLED

LINK

EJECT

PCMCIA

ETHERNET 10BT

FE MII

SLOT 1

MII

SLOT 0

Note: This adapter alignment applies to any port or service adapter.

Cisco 7200 Series and the PA-E3 5-3

Installing a Port Adapter

Step 5 Withthe metal carrieraligned in the slot guides,gently slide the port adapterhalfway into

Caution Do not slide the port adapter all the way into the slot until you have connected all required cables.

Trying to do so disrupts normal operation of the router.

Step 6 With the port adapter halfway in the slot, connect all required cables to the port adapter. Step 7 After connecting all required cables, carefully slide the port adapter all the way into the

Step 8 After seating the port adapter in the router midplane, move the port adapter lever to the

Figure 5-5 Placing the Port Adapter Lever in the Locked Position—Cisco 7206 Shown

the slot.

slot until the port adapter is seated in the router midplane.

locked position. Figure 5-5 shows the port adapter lever in the locked position.

Note If the port adapter lever does not move to the locked position, the port adapter is

not completely seated in the midplane. Carefully pull the port adapter halfway out of the slot, reinsert it, and move the port adapter lever to the locked position.

TOKEN RING

ENABLED

FAST ETHERNET

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

CPU RESET

RJ-45

RJ45

1O PWR

LINK

H6747

ENABLED

LINK

EJECT

PCMCIA

SLOT 0

ETHERNET 10BT

FAST SERIAL

FE MII

SLOT 1

MII

Port adapter

handle

Port adapter

Note: This adapter installation applies to any port or service

lever (locked

position)

adapter.

This completes the procedurefor installing a newport adapter in a Cisco 7200 seriesrouter.Proceed to Chapter 8, “Conﬁguring the PA-E3 Interfaces,” for information on how to conﬁgure your port adapter interfaces.

5-4

PA-E3 Serial Port Adapter Installation and Configuration

CHAPTER

Cisco uBR7200 Series and the PA-E3

This chapter provides information on the PA-E3 serial port adapter and its use in Cisco uBR7200 series universal broadband routers. This chapter includes the following sections:

• Overview, page 6-1

• Removing a Port Adapter, page 6-2

• Installing a Port Adapter, page 6-4

Overview

ThePA-E3 can be installed in any of the availableport adapter slots in Cisco uBR7200 series routers. Figure 6-1 shows a PA-E3 installed in port adapter slot 2 of a Cisco uBR7200 series router.

Figure 6-1 Cisco uBR7200 Series with a PA-E3 Port Adapter in Port Adapter Slot 2

PA-E3

port adapter

ENABLED

XMTR

RCVR

AIS

OOF

E3 SERIAL

FERF

RCLK

15259

Depending on the circumstances, youmight needto install a new port adapter orreplace a failed port adapter in a Cisco uBR7200 series router. In either case, no tools are necessary; all port adapters availablefor the Cisco uBR7200 series routers connect directly to the router midplane and are locked into position by a port adapter retention clip (Cisco uBR7246) or lever (Cisco uBR7223). When removing and replacing a port adapter, you need an antistatic mat onto which you can place a removed port adapter and an antistatic container into which you can place a failed port adapter for shipment back to the factory.

Cisco uBR7200 Series and the PA-E3 6-1

Removing a Port Adapter

Note The Cisco uBR7200 series routers support online Insertion and Removal (OIR); therefore,

you do not have to power down the router when removing and replacing a PA-E3.

When a port adapter slot is not in use, blank port adapters must ﬁll empty slots to allow the router to conform to EMI emissions requirements and to allow proper airﬂow across the port adapters. If you plan to install a new port adapter in a slot that is not in use, you must ﬁrst remove the blank port adapter.

Removing a Port Adapter

Following is the procedure for removing a port adapter from a Cisco uBR7200 series router:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface. Step 2 Unlock the port adapter retaining mechanism.

• Fora Cisco uBR7246, place the portadapter retention clip for thedesired port adapter

slot in the unlocked position. Theretention clip remains in the unlockedposition. (See Figure 6-2.)

Figure 6-2 Placing the Port Adapter Retention Clip in the Unlocked

Position

Port adapters

—Cisco uBR7246 Shown

Port adapter retention clip in unlocked position

H11518

6-2

PA-E3 Serial Port Adapter Installation and Configuration

• For a Cisco uBR7223, place the port adapter lever in the unlocked position.

(See Figure 6-3.)

Figure 6-3 Placing the Port Adapter Lever in the Unlocked

Position

Port adapters

—Cisco uBR7223 Shown

Removing a Port Adapter

Port adapter lever in unlocked position

16217

Step 3

Grasp the handle on the port adapter and pull the port adapter from the router midplane, about halfway out of its slot. If you are removing a blank port adapter, pull the blank port adapter completely out of the chassis slot.

Note As you disengage the port adapter from the midplane, OIR administratively shuts

down all active interfaces on the port adapter.

Step 4 With the port adapter halfway out of the slot, disconnect all cables from the port adapter. Step 5 After disconnecting the cables, pull the port adapter from its chassis slot.

Caution Always handle the port adapter by the carrier edges and handle; never touch the

port adapter’s components or connector pins. (See Figure 6-4.)

Figure 6-4 Handling a Port Adapter

Metal carrier

Printed circuit board

H6420

Cisco uBR7200 Series and the PA-E3 6-3

Installing a Port Adapter

Step 6 Place the port adapter on an antistatic surface with its components facing upward, or in a

static shielding bag. If the port adapter will be returned to the factory, immediately place it in a static shielding bag.

This completes the procedure for removing a port adapter from a Cisco uBR7200 series router.

Installing a Port Adapter

Following is the procedure for installing a port adapter in a Cisco uBR7200 series router:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface. Step 2 Use both hands to grasp the port adapter by its metal carrier edges and position the

port adapter so that its components are downward. (See Figure 6-4.)

Step 3 Align the left and the right edge of the port adapter metal carrier between the guides in

the port adapter slot. (See Figure 6-5.)

Figure 6-5 Aligning the Port Adapter Metal Carrier Between the Slot Guides

Metal carrier

Inside

slot guide

PC board

Step 4 Withthe metal carrieraligned in the slot guides,gently slide the port adapterhalfway into

the slot.

Caution Do not slide the port adapter all the way into the slot until you have connected all required

cables. Trying to do so disrupts normal operation of the router.

Step 5 With the port adapter halfway in the slot, connect all required cables to the port adapter. Step 6 After connecting the cables, carefully slide the port adapter all the way into the slot until

the port adapter is seated in the router midplane.

Step 7 Secure the port adapter:

H11519

6-4

• For a Cisco uBR7246, slide the port adapter retention clip up to the locked position.

See Figure 6-6.

Note If the retention clip does not slide up to the locked position, the port adapter is not

completely seated in the midplane. Carefully pull the port adapter halfwayout of the slot, reinsert it, and slide the retention clip up to the locked position.

PA-E3 Serial Port Adapter Installation and Configuration

Figure 6-6 Placing the Port Adapter Retention Clip in the Locked

Position

Port adapters

—Cisco uBR7246 Shown

H11517

• For a Cisco uBR7223, place the port adapter lever in the locked position. (See

Figure 6-7.)

Installing a Port Adapter

Port adapter retention clip in locked position

Figure 6-7 Placing the Port Adapter Lever in the Locked

Position

Port adapters

Note If the port adapter lever does not move to the locked position, the port adapter is

—Cisco uBR7223 Shown

not completely seated in the midplane. Carefully pull the port adapter halfway out of the slot, reinsert it, and move the port adapter lever to the locked position.

Port adapter lever in locked position

16177

This completes the procedurefor installing a port adapter in a Cisco uBR7200series router.Proceed to Chapter 8, “Conﬁguring the PA-E3 Interfaces,” for information on how to conﬁgure your port adapter interfaces.

Cisco uBR7200 Series and the PA-E3 6-5

Installing a Port Adapter

6-6

PA-E3 Serial Port Adapter Installation and Configuration

CHAPTER

Cisco 7100 Series and the PA-E3

This chapter provides information on the PA-E3 serial port adapter and its use in the Cisco 7100 series routers. This chapter contains the following sections:

• Installation Overview, page 7-1

• Removing a Port Adapter, page 7-2

• Installing a Port Adapter, page 7-3

Installation Overview

The PA-E3can be installed in port adapter slot 3 inCisco 7120 series routers and in port adapter slot 4 in Cisco 7140 series routers. Figure 7-1 shows port adapter slot 3 of a Cisco 7120 series router. Figure 7-2 shows port adapter slot 4 of a Cisco 7140 series router.

Figure 7-1 Cisco 7120 Series Router—Port Adapter Slot 3 Location

CEL CAR ALM

Locked

Unlocked

Slot 3ESD plug

ACT

LNK0LNK

FE 0 / 0 FE

RXTX

0 / 1

SLOT 0 SLOT 1

CONS

PWR

SYS RDY

AUX

7120 - AE3

22133

Cisco 7100 Series and the PA-E3 7-1

Removing a Port Adapter

Figure 7-2 Cisco 7140 Series Router—Port Adapter Slot 4 Location

ESD plug

CEL CAR ALM

155 - MM

Locked

Unlocked

ACT

LNK0LNK

FE 0 / 0 FE

0 / 1

CEL CAR ALM

ACT

155 - MM

Slot 4

SLOT 0 SLOT 1

CONS

7140 - 2MM3

AC OK DC OK

OTF

PWR

AC OK

SYS RDY

DC OK

AUX

OTF

22134

Depending on your circumstances, you might need to install a new port adapter in a Cisco 7100 seriesrouter or replace a failed port adapter in the ﬁeld. All port adapters available for the Cisco 7100 series connect directly to the router and are locked into position by a locking tab with two screws (see Figure 7-1 or Figure 7-2). You need a number 2 Phillips screwdriver to loosen the screws.

Note Cisco 7100 series routers support online insertion and removal (OIR); therefore, you do not

have to power down the router when removing and replacing a port adapter.

Removing a Port Adapter

Follow these steps to remove a port adapter from a Cisco 7100 series router:

Step 1 Attach an ESD-preventive wrist strap between you and the chassis. (See Figure 7-1 or

Figure 7-2 for the location of the ESD plug.)

Step 2 Use a number 2 Phillips screwdriver to loosen the screws on the locking tab; then slide

the tab down to the unlocked position. (See Figure 7-1 or Figure 7-2.)

Step 3 Grasp the handle on the port adapter and pull the port adapter from the router, about

halfway out of its slot. If you are removing a blank port adapter, pull the blank port adapter completely out of the chassis slot.

Note As you disengage the port adapter from the router, OIR administratively shuts

down all active interfaces on the port adapter.

Step 4 With the port adapter halfway out of the slot, disconnect all cables from the port adapter. Step 5 After disconnecting the cables, pull the port adapter from its chassis slot.

Caution Always handle the port adapter by the carrier edges and handle; never touch the port adapter’s

components or connector pins. (See Figure 7-3.)

7-2

PA-E3 Serial Port Adapter Installation and Configuration

Figure 7-3 Handling a Port Adapter

Metal carrier

Printed circuit board

Installing a Port Adapter

H6420

Step 6

Step 7 Installa blank port adapter or replacementport adapterto maintain proper ﬂow of cooling

air across the internal components. For procedures on how to install a port adapter, see the next section, “Installing a Port Adapter”.

Note The blank port adapter is available from Cisco Systems as a spare. The blank

port adapter product number is MAS-7100-PABLANK.

This completes the procedure for removing a port adapter from a Cisco 7100 series router.

Installing a Port Adapter

Follow these steps to install a new port adapter in a Cisco 7100 series router:

Step 1 Attach an ESD-preventive wrist strap between you and the chassis. (See Figure 7-1 for

the location of the ESD plug.)

Step 2 Ensure that the locking tab is down in the unlocked position. If it is locked, use a

number 2 Phillips to loosen the screws; then slide the tab down to the unlocked position. (See Figure 7-1.)

Step 3 Remove the new port adapter from its antistatic container and position it at the opening

of the slot.

Step 4 Use both hands to grasp the port adapter by its metal carrier edges, and position the port

adapter so that its components face downward. (See Figure 7-3.)

Step 5 Align the left and the right edge of the port adapter metal carrier between the guides in

the port adapter slot. (See Figure 7-4.)

Step 6 Withthe metal carrieraligned in the slot guides,gently slide the port adapterhalfway into

the slot.

Caution Do not slide the port adapter all the way into the slot until you have connected all required cables.

Trying to do so disrupts normal operation of the router.

Cisco 7100 Series and the PA-E3 7-3

Installing a Port Adapter

Figure 7-4 Aligning the Single-Width Port Adapter Between the Slot Guides

Guides

XMTRRCVR

RCLK

AIS OOF LL

FERF

0 /

22132

Step 7

With the port adapter halfway in the slot, connect all required cables to the port adapter.

Step 8 After connecting all required cables, carefully slide the port adapter all the way into the

slot until the port adapter is seated in the router.

Step 9 After seating the port adapter in the router, slide the locking tab up to the locked position

and tighten the screws. (Figure 7-1 or Figure 7-2 shows the locking tab in the locked position.)

Note If the port adapter lever is not in the locked position, the port adapter is not

completely seated in the router. Carefully pull the port adapter halfway out of the slot, reinsert it, and move the port adapter lever to the locked position.

This completes the procedurefor installing a newport adapter in a Cisco 7100 seriesrouter.Proceed to Chapter 8, “Conﬁguring the PA-E3 Interfaces,” to connect the necessary cables to your port adapter.

7-4

PA-E3 Serial Port Adapter Installation and Configuration

CHAPTER

Configuring the PA-E3 Interfaces

To continue your PA-E3 serial port adapter installation, you must conﬁgure the E3 interfaces. The instructions that follow apply to all supported platforms. Minor differences between the platforms are noted. This chapter contains the following sections:

• Using the EXEC Command Interpreter, page 8-1

• Identifying Port Adapter Slot and PA-E3 Interface Port Numbers, page 8-2

• Performing a Basic Conﬁguration, page 8-7

• Conﬁguration Example, page 8-8

• Customizing the PA-E3, page 8-8

• Conﬁguring Cyclic Redundancy Checks, page 8-10

• Checking the Conﬁguration, page 8-11

If you installed a newPA-E3 or if you want to change the conﬁguration of an existing interface, you must enter conﬁguration mode using the conﬁgure command. If you replaced a PA-E3 that was previously conﬁgured, the system recognizes the new PA-E3 interfaces and brings each of them up in their existing conﬁguration.

After you verify that the new PA-E3 is installed correctly (the enabled LED goes on), use the privileged-level conﬁgure command to conﬁgure the new interfaces. You will need the following information for your conﬁguration:

• Protocols you plan to route on each new interface

• Internet Protocol (IP) addresses if you are conﬁguring the interfaces for IP routing

• Plan to use bridging or not on the new interfaces

• Timing source for each new interface and clock speeds for external timing

For a summary of the conﬁguration options available and instructions for conﬁguring interfaces on the PA-E3, refer tothe appropriate conﬁguration publications listed in the “Related Documentation” section on page vi.

Using the EXEC Command Interpreter

You modify the conﬁguration of your router through the software command interpreter called the EXEC (also called enable mode). You must enter the privileged level of the EXEC command interpreter with the enablecommand before you can use the conﬁgure command to conﬁgure a new interface or to change the existing conﬁguration of an interface. The system prompts you for a password if one is set.

Configuring the PA-E3 Interfaces 8-1

Identifying Port Adapter Slot and PA-E3 Interface Port Numbers

The system prompt for the privileged level ends with a pound sign (#) instead of an angle bracket (>). At the console terminal, use the following procedure to enter the privileged level:

Step 1 At the user-levelEXEC prompt, enter the enable command. The EXEC prompts you for

a privileged-level password as follows:

Router> enable

Password:

Step 2 Enter the password (the password is case-sensitive). For security purposes, the password

is not displayed.

Step 3 When you enter the correct password, the system displays the privileged-level system

prompt (#):

Router#

Proceed to the following section to conﬁgure the new interfaces.

Identifying Port Adapter Slot and PA-E3 Interface Port Numbers

This section describes how to identify port adapter slot and PA-E3 interface port numbers for Cisco 7200 series routers, Cisco 7100 series routers, Cisco uBR7200 series routers, and the VIP2.

You can identify interface ports by physically checking the port location on the back of the router or by using softwarecommands to display information about a speciﬁc interface or all interfaces in the router.

The PA-E3 can be installed in the following slots on the hardware platforms described in this document:

• VIP2—Port adapter slot 0 and slot 1

• Catalyst RSM/VIP2—Port adapter slot 0 and slot 1

• Cisco 7100 series routers—Port adapter slot 3 in a Cisco 7120 series router and port adapter

slot 4 in a Cisco 7140 series router

• Cisco 7200 series routers—Port adapter slot 1 and slot 2 in a Cisco 7202; port adapter slot 1

through slot 4 in a Cisco 7204 and Cisco 7204VXR; port adapter slot 1 through slot 6 in a Cisco 7206 and Cisco 7206VXR

• Cisco uBR7200series—Port adapterslot 1 and slot 2 in a Cisco uBR7246 andport adapterslot 1

in a Cisco uBR7223

Port adapters have a handle attached, but this handle is occasionally not shown in this document to allow a full view of detail on the port adapter’s faceplate.

Cisco 7200 Series and Cisco uBR7200 Series Ports

Physical port addresses specify the actual physical location of each interface port on a Cisco 7200 series router (see Figure 8-1) or a Cisco uBR7200 series router (see Figure 8-2). This address is composed of a two-part number in the format port adapter slot number/interface port number, as follows:

8-2

• The ﬁrst number identiﬁes the chassis slot in which the PA-E3 is installed.

• The second number identiﬁes the interface port on each PA-E3; the interface port is always

numbered as interface 0 for the one-port PA-E3 and 0 or 1 for the two-port PA-2E3.

PA-E3 Serial Port Adapter Installation and Configuration

Cisco 7200 Series and Cisco uBR7200 Series Ports

Interface ports maintain the same address regardless of whether other port adapters are installed or removed from the slot. However, when you move a port adapter to a different slot, the ﬁrst number in the address changes to reﬂect the new chassis slot number.

In Cisco 7200 series routers, port adapter slots are numbered from the lower left to the upper right, beginning with port adapter slot 1 and continuing through port adapter slot 2 for the Cisco 7202, slot 4 for the Cisco 7204 and Cisco 7204VXR, and slot 6 for the Cisco 7206 and Cisco 7206VXR. Port adapter slot 0 is reserved for the optional Fast Ethernet port on the I/O controller if present. Figure 8-1 shows the port adapter slots and interface ports of a Cisco 7206. The individual interface port numbers always begin with 0. The number of additional ports depends on the number of ports on a port adapter.

Note The I/O controller is available with or without a Fast Ethernet port. You can install both I/O

controller types in all Cisco 7200 series routers; however, when you install an I/O controller with a Fast Ethernet port in a Cisco 7202, the system software automatically disables the port.

For example, the serial port on a one-port PA-E3 in port adapter slot 3 has the address 3/0. (See Figure 8-1.) If the PA-E3is in port adapter slot 1, this same interface port is numbered 1/0. The serial ports on a two-port PA-2E3 in port adapter slot 3 have the addresses 3/0 and 3/1.

Note The PA-E3 is considered a high-bandwidth port adapter; you must observe speciﬁc

conﬁguration guidelines. Refer to the publication Cisco 7200 Series Port Adapter Hardware Conﬁguration Guidelines, which shipped with your Cisco 7200 series chassis and is also available

on the Cisco Connection Documentation, Enterprise Series CD-ROM.

Figure 8-1 Cisco 7206 Serial Port Number Example

TOKEN RING

ENABLED

RJ-45

FAST ETHERNET

ETHERNET-10BFL

H10609

RJ45

LINK

MII

RJ-45

1O PWR

LINK

FAST ETHERNET INPUT/OUTPUT CONTROLLER

PA-E3 port adapter

(port number 3/0)

FERF

ENABLED

RCLK

XMTR

RCVR

AIS

OOF

EJECT

PCMCIA

SLOT 0

E3 SERIAL

FAST SERIAL

SLOT 1

FE MII

MII

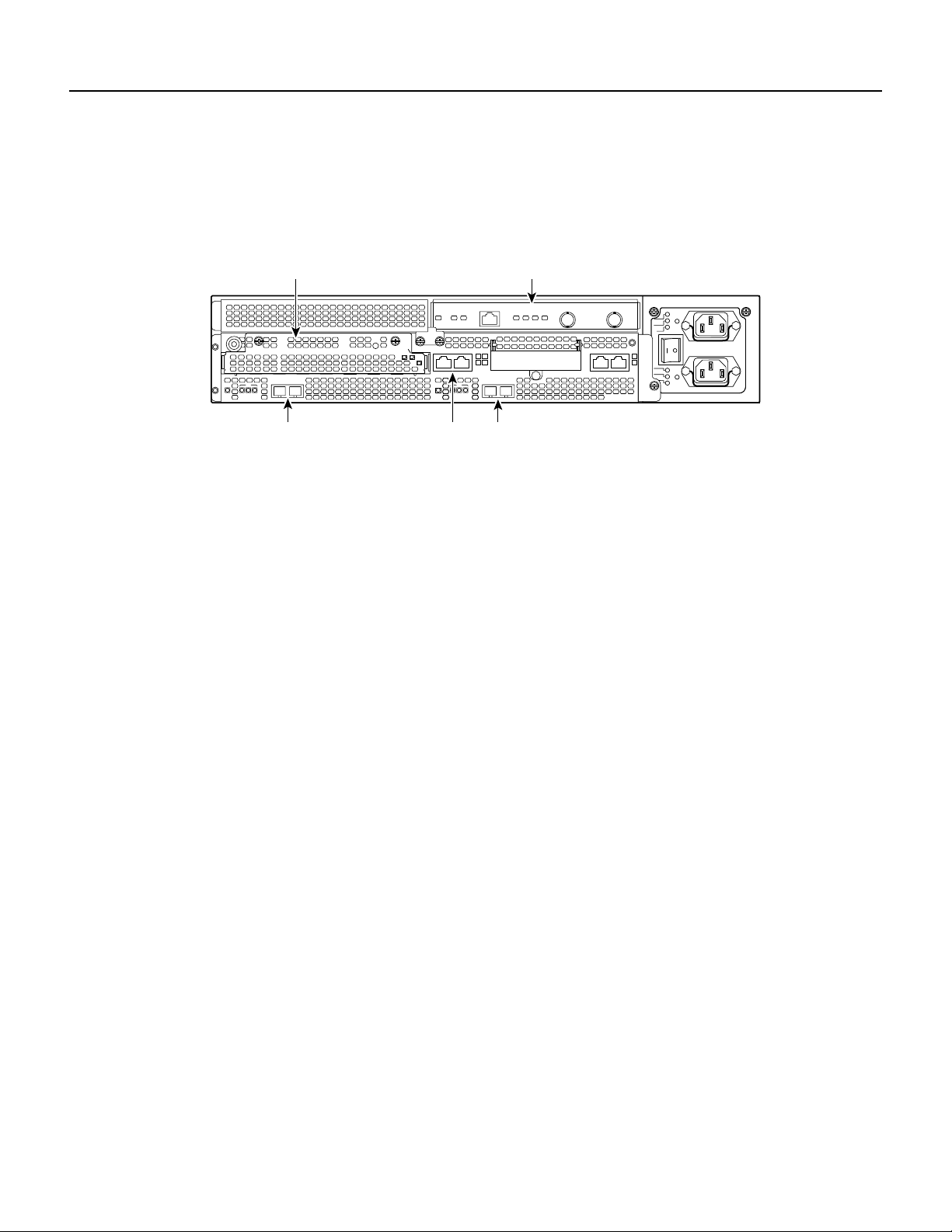

Figure 8-2 shows the interface ports of a PA-E3in slot 2 of a Cisco uBR7200 series router. The port adapterslotsarenumberedslot 1and slot 2 for the Cisco uBR7246 and slot 1 for the Cisco uBR7223 (slot 0 is always reserved for the Fast Ethernet port on the I/O controller if present). The individual interface port numbers always begin with 0. The number of additional ports depends on the number of ports on a port adapter. Port adapters can occupy any port adapter slot; there are no restrictions.

For example, the serial port on a one-port PA-E3 in port adapter slot 1 has the address 1/0. (See Figure 8-2.) If the PA-E3is in port adapter slot 2, this same interface port is numbered 2/0. The serial ports on a two-port PA-2E3 in port adapter slot 2 have the addresses 2/0 and 2/1.

Configuring the PA-E3 Interfaces 8-3

Identifying Port Adapter Slot and PA-E3 Interface Port Numbers

Figure 8-2 PA-E3 Interface Port Address Example—Cisco uBR7246 Shown

PA-E3

port adapter

(port number 1/0)

ENABLED

RCVR

FERF

RCLK

XMTR

AIS

OOF

You can identify interface ports by physically checking the port adapter/interface port location on the back of the router or by using software commands to display information about a speciﬁc interface or all interfaces in the router.

E3 SERIAL

15260

VIP2 Ports

In the router, physical port addresses specify the actual physical location of each interface port on the router interface processor end. (See Figure 8-3.) Each address is composed of a three-part number in the format interface processor slot number/port adapter number/interface port number, as follows:

• The ﬁrst number identiﬁes the chassis slot in which the VIP2 is installed (as shownin the sample

system in Figure 8-3).

• The second number identiﬁes the physical port adapter slot on the VIP2, and is either 0 or 1.

• The third number identiﬁes the interface port on each E3 serial port adapter, which is always

numbered as interface 0 for the one-port PA-E3 and 0 or 1 for the two-port PA-2E3.

Note Although the processor slots in the 7-slot Cisco 7000 and Cisco 7507 and 13-slot Cisco 7513

are vertically oriented and the slots in the 5-slot Cisco 7010 and Cisco 7505 are horizontally oriented, all models use the same method for slot and port numbering.

Interface ports on the VIP2 maintain the same address regardless of whether other interface processors are installed or removed. However, when you move a VIP2 to a different slot, the ﬁrst number in the address changes to reﬂect the new chassis slot number.

Figure 8-3 shows the port adapter slots and interface ports of a sample Cisco 7505 system. On the VIP2, the ﬁrst port adapter slotnumber is always 0. The second portadapter slot number is always 1. The individual interface port numbers always begin with 0. The number of additional ports depends on the number of ports on a port adapter.

8-4

For example, the serial port on a one-port PA-E3 in the ﬁrst port adapter slot in chassis slot 3 is numbered 3/0/0. (See Figure 8-3.) If the PA-E3 is in port adapter slot 1, this same port is numbered 3/1/0. The serial ports on a two-port PA-2E3 in the ﬁrst port adapter slot in chassis slot 3 are numbered 3/0/0 and 3/0/1.

Port adapters can occupy either port adapter slot; there are no restrictions.

PA-E3 Serial Port Adapter Installation and Configuration

Figure 8-3 Cisco 7505 Serial Port Number Example

PA-E3 (port numbers 3/1/0)PA-E3 (port number 3/0/0)

Catalyst RSM/VIP2 Ports

NORMAL

XMTR

RCVR

ENABLED

You can identify interface ports by physically checking the slot/port-adapter/interface port location on the back of the router or by using show commands to display information about a speciﬁc interface or all interfaces in the router.

Catalyst RSM/VIP2 Ports

In the Catalyst RSM/VIP2, each port adapter address is composed of a two-part number in the format port adapter number/interface port number, as follows:

• The ﬁrst number identiﬁesthe physical port adapter slot on the Catalyst RSM/VIP2, and is either

0 or 1.

• The second number identiﬁes the interface port on each E3 serial port adapter, which is always

numbered as interface 0 for the one-port PA-E3 and 0 or 1 for the two-port PA-2E3.

EJECT

SLOT 1

SLOT 0

FERF

RCLK

AIS

OOF

RESET

CPU HALT

E3 SERIAL

ENABLED

XMTR

RCVR

ROUTE SWITCH PROCESSOR

CONSOLE

FERF

RCLK

AIS

OOF

E3 SERIAL

Slot 3 Slot 2 Slot 1

Interface processor slots

Slot 0

H10610

Figure 8-4showsthe port adapters on a Catalyst RSM/VIP2 installed ina Catalyst 5509 switch.The ﬁrst port adapter slot number is always 0. The second port adapter slot number is always 1. The individual interface port numbers always begin with 0. The number of additional ports depends on the number of ports on a port adapter.

For example, the serial port on a one-port PA-E3 in the ﬁrst port adapter slot is numbered 0/0. (See Figure 8-4.) If the PA-E3 is in port adapter slot 1, this same port is numbered 1/0. The serial ports on a two-port PA-2E3 in the ﬁrst port adapter slot are numbered 0/0 and 0/1.

Port adapters can occupy either port adapter slot; there are no restrictions.

Configuring the PA-E3 Interfaces 8-5

Identifying Port Adapter Slot and PA-E3 Interface Port Numbers

Figure 8-4 Serial Port Adapters in the Catalyst 5509

Versatile Interface Processor

with port adapters

Route Switch Module

FAST ETHERNET SWITCHING MODULE

UTP

FAST ETHERNET SWITCHING MODULE

WS-x5530

SYSTEM

SUPERVISOR ENGINE I I I

WS-x5530

SYSTEM

SUPERVISOR ENGINE I I I

ROUTE SWITCH MODULE

FAN

STATUS

ACTIVE

PS2 PS1

FAN

STATUS

ACTIVE

PS2 PS1

STATUS

ENABLED

STATUS

CPU HALT ENABLED

STATUS

100%

RESET

RCVR

PCMICA

CONSOLE AUX

SLOT 1

SLOT 0

Switch Load

100%

SLOT 1

SLOT 0

Switch Load

RCLK

FERF

XMTR

AIS

OOF

PCMCIA

EJECT

FAN

WS-U5531-FETX

PORT 1

MDIX MDIX

PORT 1

MDIX MDIX

RCVR

XMTR

AUX

TX RX

PORT 2 10/100Mbps LINK

E3 SERIAL

RCLK

FERF

AIS

OOF

CONSOLE

FAN

OUTPUT

FAIL

10/100Mbps

PCMCIA

E3 SERIAL

SLOT 1 SLOT 0

OUTPUT

FAIL

LINK

10/100 FAST ETHERCHANNEL

WS-U5531-FETX

10/100Mbps LINK

10/100 FAST ETHERCHANNEL

ENABLED

RESET

CHANNEL 0

CHANNEL 1

You can identify interface ports by physically checking the port-adapter/interface port location on the back of the router or by using show commands to display information about a speciﬁc interface or all interfaces in the router.

26453

Cisco 7100 Series Ports

In the Cisco 7100 series routers, the slot number is the location in the chassis where the interface resides and the port number is the physical port. Interfaces in the Cisco IOS software are identiﬁed by a type, slot number, and port number. For example, serial 3/1 indicates port 1 on the serial port adapter in slot 3.

Slots in the Cisco 7120 series routersare numbered as shown in Figure 8-5. The ﬁxed LAN interface is slot 0, the ﬁxed WAN interface is slot 1, and the modular port adapter interface is slot 3. Slots 2 and 4 are not used on the Cisco 7120 series routers. Slot 5 is the service module.

Figure 8-5 Port Adapter Slot Numbering—Cisco 7120 Series

Slot 5

8-6

PA-E3 Serial Port Adapter Installation and Configuration

CEL CAR ALM

Slot 1 Slot 0

Slot 3

ACT

LNK0LNK

RXTX

FE 0 / 0 FE

0 / 1

SLOT 0 SLOT 1

CONS

PWR

SYS RDY

AUX

7120 - AE3

18498

Slots in the Cisco 7140 series routers are numbered as shown Figure 8-6. The ﬁxed LAN interface is slot 0, the ﬁxed WAN interfaces are slots 1 and 2, and the modular port adapter interface is slot 4. Slot 3 is not used. Slot 5 is the service module.

Figure 8-6 Port Adapter Slot Numbering—Cisco 7140 Series

BOOT

ERROR

155 - MM

CEL CAR ALM

RESETSM-EC-DS

FE 0 / 0 FE

CEL CAR ALM

Slot 1 Slot 0 Slot 2

Performing a Basic Conﬁguration

The following steps are for a basic interface conﬁguration for the PA-E3. Press the Return key after each step unless otherwise noted. At any time you can exit the privilegedlevel and return to the user level by entering disable at the prompt:

router# disable

Performing a Basic Configuration

Slot 4Slot 5

AC OK DC OK

OTF

PWR

AC OK

SYS RDY

DC OK

AUX

OTF

18499

155 - MM

SLOT 0 SLOT 1

CONS

7140 - 2MM3

ACT

LNK0LNK

0 / 1

router>

Step 1 At the privileged-level prompt, enter conﬁguration mode and specify that the console

terminal is the source of the conﬁguration subcommands:

router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)#

Step 2 Specify the interface to conﬁgure:

• ForCisco 7100 series, Cisco 7200 series, or Cisco uBR7200 series routers, specify the

interface to conﬁgure by entering the subcommand interface serial followed by the slot/port (port adapter slot number and interface port number). The example that follows is for the interface of the port adapter in slot 3:

router(config)# interface serial 3/0

• For a VIP2, specify the interface to conﬁgure by entering the subcommand

interface serial, followed by the slot/port-adapter/port (interface processor slot number, port adapter slot number, and interface port number). The example that followsis forthe interfaceof the ﬁrstport adapterona VIP2 in interface processor slot 1:

router(config)# interface serial 1/0/0

• For a Catalyst RSM/VIP2, specify the interface to conﬁgure by entering the

subcommand interface serial, followed by the port-adapter/port (port adapter slot number and interface port number). The example that follows is for the interface of the ﬁrst port adapter on a Catalyst RSM/VIP2:

router(config)# interface serial 0/0

Configuring the PA-E3 Interfaces 8-7

Configuration Example

Step 3 If IP routing is enabled on the system, change to interface conﬁguration modeand use the

Step 4 In interface conﬁguration mode, choose the internal clock source by entering the

Step 5 In interface conﬁguration mode, change the shutdownstate to up and enable the interface

Step 6 Conﬁgure additional interfaces as required. Step 7 When you have included all of the conﬁguration subcommands to complete the

Step 8 Write the new conﬁguration to nonvolatile memory as follows:

ip address conﬁguration subcommand to assign an IP address and subnet mask to the interface, as in the following example:

router(config-if)# ip address 10.0.0.0 10.255.255.255

clock source conﬁguration subcommand, as in the following example:

router(config-if)# clock source internal

Use the no form of this command to restore the default clock source, which is line.

as follows:

router(config-if)# no shutdown

conﬁguration, press Ctrl-Z to exit conﬁguration mode.

router# copy running-config startup-config [OK] router#

To check the interface conﬁguration usingshowcommands, proceed to the “Using showCommands to Display Interface and System Information” section on page 8-12.

Conﬁguration Example

The following example shows a typical conﬁguration for the PA-E3 on a Cisco 7500 series router:

router> enable router# configure terminal router(config)# interface serial router(config)# interface serial 1/0/0 router(config)# ip address 1.1.1.10 255.255.255.0 router(config-if)# clock source internal router(config-if)# no shutdown router(config-if)# ^Z

Customizing the PA-E3

You cancustomize the PA-E3.The features you can customizehavedefault values that will probably suit your environment and need not be changed. However, you might need to enter conﬁguration commands, depending on the requirementsfor your system conﬁguration and theprotocols you plan to route on the interface. Perform the tasks in the following sections if you need to customize the PA-E3.

8-8

PA-E3 Serial Port Adapter Installation and Configuration

Setting the Bandwidth

In interface conﬁguration mode, reduce effective bandwidth (range of 22 to 34010 kilobits per second) by entering the dsu bandwidth conﬁguration subcommand, as in the following example:

router(config-if)# dsu bandwidth 16000

Use the no form of this command to return to the default, 34010.

Note The local port conﬁguration must match the remote port conﬁguration. For example, if you

reduce the effective bandwidth to 16000 on the local port, you must do the same on the remote port.

Deﬁning the DSU Mode

In interface conﬁguration mode, deﬁne the DSU interoperability mode by entering the dsu mode [0 | 1] conﬁguration subcommand, as in the following example:

router(config-if)# dsu mode 1

Use the no form of this command to return to the default, 0.

Setting the Bandwidth

Note The local port conﬁguration must match the remote port conﬁguration. For example, if you

deﬁne the DSU interoperability mode as 1 on the local port, you must do the same on the remote port. Youneed to know what type of DSU is at the remote port to ﬁnd out if it interoperates with the PA-E3. For E3 serial interfaces, specify mode 0 for connection from a PA-E3to another PA-E3 or a Digital Link DSU (DL3100). Specify mode 1 for connection from a PA-E3 to a Kentrox DSU.

Also refer to the “Interoperability Guidelines for PA-E3 DSUs” section on page 15 for information regarding DSU feature compatibilities.

Deﬁning Set Bit (National)

In interface conﬁguration mode, deﬁne set bit in G751 frame (national bit) by entering the national bit [0 | 1] conﬁguration subcommand, as in the following example:

router(config-if)# national bit 1

Use the no form of this command to return to the default, which is 0.

Enabling E3 Scrambling

In interface conﬁguration mode, enable E3 scrambling by entering the scramble conﬁguration subcommand, as in the following example:

router(config-if)# scramble

Use the no form of this command to restore the default value, which is disabled.

Note The local port conﬁguration must match the remote port conﬁguration. For example, if you

enable scrambling on the local port, you must do the same on the remote port.

Also refer to the “Interoperability Guidelines for PA-E3 DSUs” section on page 15 for information regarding DSU feature compatibilities.

Configuring the PA-E3 Interfaces 8-9

Configuring Cyclic Redundancy Checks

Specifying E3 Framing

In interface conﬁguration mode, specify E3 framing by entering the framing {g751 | bypass} conﬁguration subcommand, as in the following example:

router(config-if)# framing g751

Use the no form of this command to return to the default, which is G.751 framing.

Note If you use the bypass option, scrambling must be set to the default, disabled; the DSU mode

must be set to the default, 0; and the DSU bandwidth must be set to the default, 34010.

Setting the Cable Length

In interface conﬁguration mode, set the cable length (0 to 450 feet), as in the following example:

router(config-if)# cablelength 250

Use the no form of this command to return to the default, which is 10 feet.

Conﬁguring Cyclic Redundancy Checks

The PA-E3 uses a 16-bit cyclic redundancy check (CRC) by default; it also supports a 32-bit CRC. The CRC is an error-checking technique that uses a calculated numeric value to detect errors in

transmitteddata. The sender of a data frame divides the bits in the framemessage by apredetermined number to calculate a remainder or frame check sequence (FCS). Before sending the frame, the sender appends the FCS value to the message so that the frame contents are exactly divisible by the predetermined number. The receiver divides the frame contents by the same predetermined number that the sender used to calculate the FCS. If the result is not 0, the receiver assumes that a transmission error occurred and sends a request to the sender to resend the frame.

Note To enable a 32-bit CRC on an interface, follow Step 1 and Step 2 of the preceding procedure

(enter conﬁguration mode and specify the slot and port address of the PA-E3, and the interface port number for a VIP2), and then enter the command crc 32. Enter Ctrl-Z to exit from conﬁguration mode.

For a Cisco 7100 series, Cisco 7200 series, or Cisco uBR7200 series router, use the following example:

router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# router(config)# interface serial 3/0 router(config-int)# crc 32

Ctrl-z

8-10

PA-E3 Serial Port Adapter Installation and Configuration

Checking the Configuration

For a VIP2, use the following example:

router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# router(config)# interface serial 1/0/0 router(config-if)# crc 32

Ctrl-z

For a Catalyst RSM/VIP2, use the following example:

router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# router(config)# interface serial 0/0 router(config-if)# crc 32

Ctrl-z

To disable CRC-32 and return to the default CRC-16 setting, specify the slot and port address (and the interface port number for a VIP2) and use the no crc 32 command. For complete command descriptions and instructions, refer to the related software documentation.

Note When enabling a 32-bit CRC on an interface, ensure that the remote device is also conﬁgured

for a 32-bit CRC. Both the sender and the receiver must use the same CRC setting.

To check the interface conﬁguration using show commands, proceed to the following section, “Checking the Conﬁguration.”

Checking the Conﬁguration

After conﬁguring the new interface, use the show commands to display the status of the new interface or all interfaces, the ping command to check connectivity, and the loopback command to verify the physical interface.

Using show Commands to Verify Status

Use show commands to verify that the new interfaces are conﬁgured and operating correctly:

Step 1 Use the show version command to display the system hardware conﬁguration. Ensure

that the list includes the new interfaces.

Step 2 Display all of the current port adapters and their interfaces with the show controllers

command. Verify that the new PA-E3 appears in the correct slot.

Step 3 Specify one of the new interfaces as follows:

• showinterfacestype slot/port command on Cisco 7100 series, Cisco 7200 series,and

Cisco uBR7200 series routers

• show interfaces type slot/port-adapter/port on the VIP2

• show interfaces port-adapter/port on the Catalyst RSM/VIP2

Verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number and that the interface and line protocol are in the correct state: up or down.

Configuring the PA-E3 Interfaces 8-11

Checking the Configuration

Step 4 Specify one of the new interfaces as follows:

Step 5 View the information that is speciﬁc to the serial interface hardware:

• show interfaces port adapter type slot/port on Cisco 7100 series, Cisco 7200 series,

and Cisco uBR7200 series routers

• show interfaces type slot/port adapter/interface command on the VIP2

• show interfaces port adapter/interface command on the Catalyst RSM/VIP2

Verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number and that the interface and line protocol are in the correct state: up or down.

• For Cisco 7100, Cisco 7200 series and Cisco uBR7200 series routers, specify the new

serial interface with the show controllers serial [port adapter slot number/interface port number] command, and verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number.

• For a VIP2, specify information that is speciﬁc to the new serial interface with the

show controllers serial [type slot/port adapter/interface] command, and verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number.

• For a Catalyst RSM/VIP2, specify information that is speciﬁc to the new serial

interface with the show controllers serial [port adapter/interface] command, and verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number.

Step 6 Display the protocols conﬁgured for the entire system and for the speciﬁc interfaceswith

the show protocols command. If necessary, return to conﬁguration mode to add or remove protocol routing on the system or on speciﬁc interfaces.

Step 7 Display the running conﬁguration ﬁle with the show running-conﬁg command. Display

the conﬁguration stored in NVRAM using the show startup-conﬁg command. Verify that the conﬁguration is accurate for the system and each interface.

If the interface is down and you conﬁgured it as up, or if the displays indicate that the hardware is not functioning properly, ensure that the network interface is properly connected and terminated. If you still have problems bringing the interface up, ask a service representative for assistance.

Using show Commands to Display Interface and System Information

For Cisco 7100, Cisco 7200, or Cisco uBR7200 series routers, to display information about a speciﬁc interface, use the show interfaces command with the interface type and port address in the format show interfaces type slot/port.

8-12

PA-E3 Serial Port Adapter Installation and Configuration

Using show Commands to Display Interface and System Information

The following example of the show interfaces type slot/port command shows all of the information speciﬁc to the serial E3 port (interface port 0) in port adapter slot 2:

router# show interfaces serial 2/0

Serial2/0 is up, line protocol is up Hardware is M1T-E3 pa Internet address is 172.16.0.0/8 MTU 4470 bytes, BW 34010 Kbit, DLY 200 usec, rely 255/255, load 1/255 Encapsulation HDLC, loopback not set, keepalive not set Last input 00:00:05, output 00:00:46, output hang never Last clearing of "show interface" counters never Queueing strategy: fifo Output queue 0/40, 0 drops; input queue 0/75, 0 drops 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 22 packets input, 7128 bytes, 0 no buffer Received 22 broadcasts, 0 runts, 0 giants 0 parity 6 input errors, 3 CRC, 0 frame, 0 overrun, 0 ignored, 3 abort 22 packets output, 7348 bytes, 0 underruns 0 output errors, 0 applique, 6 interface resets 0 output buffer failures, 0 output buffers swapped out 1 carrier transitions rxLOS inactive rxLOF inactive rxAIS inactive txAIS inactive txRAI inactive

For a VIP2, the show interfaces type slot/port-adapter/port command displays status information (including the physical slot and port address) for the interfaces you specify. In this example, a one-port E3 serial port adapter-conﬁgured VIP2 is in chassis slot 1, in port adapter slot 0.

router# show interfaces serial 1/0/0 Serial1/0/0 is up, line protocol is up Hardware is cyBus Serial Internet address is 10.0.0.0/24 MTU 4470 bytes, BW 45045 Kbit, DLY 200 usec, rely 255/255, load 1/255 Encapsulation HDLC, loopback not set, keepalive not set Last input 2d22h, output 00:00:19, output hang never Last clearing of “show interface” counters 2d20h Queueing strategy: fifo Output queue 0/40, 0 drops; input queue 0/75, 0 drops 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 0 packets input, 0 bytes, 0 no buffer Received 0 broadcasts, 0 runts, 0 giants, 0 parity 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort 4084 packets output, 1298712 bytes, 0 underruns 0 output errors, 0 applique, 0 interface resets 0 output buffer failures, 0 output buffers swapped out 0 carrier transitions

For a Catalyst RSM/VIP2, the show interfaces port-adapter/port command displays status information for the interfaces you specify. In this example, a one-port E3 serial port adapter-conﬁgured Catalyst RSM/VIP2 in port adapter slot 0.

router# show interfaces serial 0/0 Serial0/0 is up, line protocol is up Hardware is cyBus Serial Internet address is 10.0.0.0/24 MTU 4470 bytes, BW 45045 Kbit, DLY 200 usec, rely 255/255, load 1/255 Encapsulation HDLC, loopback not set, keepalive not set Last input 2d22h, output 00:00:19, output hang never Last clearing of “show interface” counters 2d20h Queueing strategy: fifo

Configuring the PA-E3 Interfaces 8-13

Checking the Configuration

Output queue 0/40, 0 drops; input queue 0/75, 0 drops 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 0 packets input, 0 bytes, 0 no buffer Received 0 broadcasts, 0 runts, 0 giants, 0 parity 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort 4084 packets output, 1298712 bytes, 0 underruns 0 output errors, 0 applique, 0 interface resets 0 output buffer failures, 0 output buffers swapped out 0 carrier transitions

For Cisco 7100, Cisco 7200, and Cisco uBR7200 series routers, use the show controllers serial command, using arguments such as the slot and port number (slot/port), to display information that is speciﬁc to the serial interface hardware. Following is an example of the show controllers serial slot/port command that shows the serial port adapter installed on a Cisco 7200 series router in chassis slot 3:

router# show controllers serial 3/0

M1T-Serial: show controller: PAS unit 0, subunit 0, f/w version 1-23, rev ID 0x1, version 2 idb = 0x608E3340, ds = 0x608E50C0, ssb=0x608E5A84 Clock mux=0x35, ucmd_ctrl=0x8, port_status=0x25 maxdgram=4474, bufpool=64Kb, 128 particles TM=down CA=up LC=down line state: up Serial DTE cable (Display text omitted.)

For a VIP2, use the show controllers serial command, using arguments such as those that specify the slot, port adapter, and port numbers (slot/port-adapter/port), to display information that is speciﬁc to the serial interface hardware. Following is an example of the show controllers serial slot/port adapter/interface command that shows serial port 2/0/1 on a one-port PA-E3installed on a VIP2 in chassis slot 1:

router# show controllers serial 2/0/1 Serial2/0/1 Mx E3(2) HW Revision 0x2, FW Revision 2.42 Framing is g751, Clock Source is Line, Bandwidth limit is 34010. National Bit is 0, International Bits are: 0 0 DSU mode 0 Data in current interval (421 seconds elapsed): 0 Line Code Violations, 0 P-bit Coding Violation 0 C-bit Coding Violation 0 P-bit Err Secs, 0 P-bit Severely Err Secs 0 Severely Err Framing Secs, 0 Unavailable Secs 0 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs

Total Data (last 1 15 minute intervals): 4 Line Code Violations, 0 P-bit Coding Violation, 0 C-bit Coding Violation, 0 P-bit Err Secs, 0 P-bit Severely Err Secs, 0 Severely Err Framing Secs, 0 Unavailable Secs, 3 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs

No alarms detected. (Display text omitted.)

8-14

PA-E3 Serial Port Adapter Installation and Configuration

Using show Commands to Display Interface and System Information

ForaCatalyst RSM/VIP2,usethe showcontrollersserialcommand, using arguments such as those that specify the port adapter and port numbers (port-adapter/port), to display information that is speciﬁc to the serial interface hardware. Following is an example of the show controllers serial port-adapter/interface command that shows serial port 0/1 on a one-port PA-E3 installed on a Catalyst RSM/VIP2:

router# show controllers serial 0/1 Serial0/1 Mx E3(2) HW Revision 0x2, FW Revision 2.42 Framing is g751, Clock Source is Line, Bandwidth limit is 34010. National Bit is 0, International Bits are: 0 0 DSU mode 0 Data in current interval (421 seconds elapsed): 0 Line Code Violations, 0 P-bit Coding Violation 0 C-bit Coding Violation 0 P-bit Err Secs, 0 P-bit Severely Err Secs 0 Severely Err Framing Secs, 0 Unavailable Secs 0 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs

No alarms detected. (Display text omitted.)

The show version (or show hardware) command displays theconﬁguration of the system hardware (the number of each port adapter type installed), the software version, the names and sources of conﬁguration ﬁles, and the boot images. Following is an example of the output from the show version command on a Cisco 7200 series router:

router# show version

Cisco Internetwork Operating System Software IOS (tm) 7200 Software (C7200-P-M), Version 11.1(16)CA Synced to mainline version: 11.1(10.5) Copyright (c) 1986-1997 by cisco Systems, Inc. Compiled Thu 22-May-97 14:40 Image text-base: 0x600088F0, data-base: 0x604B6000

ROM: System Bootstrap, Version 11.1(5) [mkamson 5], RELEASE SOFTWARE (fc1) ROM: 7200 Software (C7200-BOOT-M), Version 11.1(6), RELEASE SOFTWARE (fc1)

byron uptime is 22 minutes System restarted by reload System image file is "paking/poet/c7200-p-mz", booted via tftp from 172.16.0.0

cisco 7206 (NPE150) processor with 12288K/4096K bytes of memory. R4700 processor, Implementation 33, Revision 1.0 (512KB Level 2 Cache) Last reset from power-on X.25 software, Version 2.0, NET2, BFE and GOSIP compliant. 4 Ethernet/IEEE 802.3 interfaces. 1 Serial network interface. 1 FDDI network interface. 125K bytes of non-volatile configuration memory. 1024K bytes of packet SRAM memory.

4096K bytes of Flash internal SIMM (Sector size 256K). Configuration register is 0x2

Configuring the PA-E3 Interfaces 8-15

Checking the Configuration

Following is an example of the show version command used with a Cisco 7500 series system:

router# show version

Cisco Internetwork Operating System Software IOS (tm) GS Software, Version 11.1(16)CA Synced to mainline version: 11.1(10.5) Copyright (c) 1986-1997 by cisco Systems, Inc. Compiled Thu 22-May-97 14:32 Image text-base: 0x600108E0, data-base: 0x60A00000

ROM: System Bootstrap, Version 5.3.2(3.2) [kmac 3.2], MAINTENANCE INTERIM SOFTWARE ROM: GS Software, Version 11.1(8)CA, EARLY DEPLOYMENT RELEASE SOFTWARE (fc1)

keats uptime is 22 minutes System restarted by reload System image file booted via tftp from 172.16.0.0

Last reset from power-on G.703/E1 software, Version 1.0. G.703/JT2 software, Version 1.0. SuperLAT software (copyright 1990 by Meridian Technology Corp). Bridging software. X.25 software, Version 2.0, NET2, BFE and GOSIP compliant. TN3270 Emulation software (copyright 1994 by TGV Inc). Chassis Interface. 3 VIP2 controllers (1 FastEthernet)(4 Ethernet)(1 Fddi)(2 E3). 4 Ethernet/IEEE 802.3 interfaces. 1 FastEthernet/IEEE 802.3 interface. 2 Serial network interfaces. 1 FDDI network interface. 125K bytes of non-volatile configuration memory.

8192K bytes of Flash internal SIMM (Sector size 256K). Configuration register is 0x2

To determine which type of port adapter is installed in your system, use the show diag slot command. Speciﬁc port adapter information is displayed, as shown in the following example of a one-port PA-E3 in chassis slot 3 on a Cisco 7200 series router:

router# show diag 3

Slot 3: E3 PA port adapter, 1 ports Port adapter is analyzed Port adapter insertion time 01:04:31 ago Hardware revision 1.0 Board revision UNKNOWN Serial number 3710903 Part number 73-1801-03 Test history 0x0 RMA number 00-00-00 EEPROM format version 1 EEPROM contents (hex): 0x20: 01 71 01 00 00 38 9F B7 49 07 09 03 00 00 00 00 0x30: 06 00 00 00 FF FF FF 00 FF FF FF FF FF FF FF FF

8-16

PA-E3 Serial Port Adapter Installation and Configuration

Using show Commands to Display Interface and System Information

To determine which type of portadapter isinstalled ona VIP2in yoursystem,use the show diag slot command. Speciﬁc port adapter information is displayed, as shown in the following example of a one-port PA-E3 in chassis slot 2:

router# show diag 2

Slot 2: Physical slot 2, ~physical slot 0xD, logical slot 2, CBus 0 Microcode Status 0x4 Master Enable, LED, WCS Loaded Board is analyzed Pending I/O Status: None EEPROM format version 1 VIP2 controller, HW rev 2.4, board revision D0 Serial number: 04371939 Part number: 73-1684-03 Test history: 0x00 RMA number: 00-00-00 Flags: cisco 7500

EEPROM contents (hex): 0x20: 01 15 02 04 00 42 B5 E3 49 06 94 03 00 00 00 00 0x30: 68 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Slot database information: Flags: 0x4 Insertion time: 0x14A4 (00:23:00 ago)

Controller Memory Size: 32 MBytes DRAM, 2048 KBytes SRAM

PA Bay 0 Information: E3 Serial PA, 1 port EEPROM format version 1 HW rev 1.00, Board revision AO Serial number: 3549502 Part number: 73-2620-02

To determine which typeof port adapter is installedon a Catalyst RSM/VIP2 in your system,use the show diag command. Speciﬁc port adapter information is displayed, as shown in the following example of a one-port PA-E3:

router# show diag 1

Slot 1: Physical slot 1, ~physical slot 0xD, logical slot 1, CBus 0 Microcode Status 0x4 Master Enable, LED, WCS Loaded Board is analyzed Pending I/O Status: None EEPROM format version 1 VIP2 controller, HW rev 2.4, board revision D0 Serial number: 04371939 Part number: 73-1684-03 Test history: 0x00 RMA number: 00-00-00 Flags: cisco 7500

EEPROM contents (hex): 0x20: 01 15 02 04 00 42 B5 E3 49 06 94 03 00 00 00 00 0x30: 68 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Slot database information: Flags: 0x4 Insertion time: 0x14A4 (00:23:00 ago)

Note The slot values displayed by some commands (such as show diag and show controllers

cbus) are not relevant to any physical connection; disregard these slot values for the

Catalyst RSM/VIP2.

Configuring the PA-E3 Interfaces 8-17

Checking the Configuration

For a VIP2, use the show controllers cbus command to display all of the current interface processors and their interfaces. Followingis anexample of the showcontrollers cbus command that shows serial port 1/0/0 on a one-port PA-E3 installed on a VIP2 in chassis slot 1:

router# show controllers cbus

MEMD at 40000000, 2097152 bytes (unused 4288, recarves 1, lost 0) RawQ 48000100, ReturnQ 48000108, EventQ 48000110 BufhdrQ 48000138 (2810 items), LovltrQ 48000150 (20 items, 2016 bytes) IpcbufQ 48000160 (32 items, 4096 bytes) IpcbufQ_classic 48000158 (8 items, 4096 bytes) 3570 buffer headers (48002000 - 4800FF10) pool0: 9 buffers, 256 bytes, queue 48000140 pool1: 458 buffers, 1536 bytes, queue 48000148 pool2: 229 buffers, 4512 bytes, queue 48000168 pool3: 4 buffers, 4544 bytes, queue 48000170 slot0: VIP2, hw 2.4, sw 21.40, ccb 5800FF20, cmdq 48000080, vps 8192 software loaded from system IOS (tm) VIP Software (SVIP-DW-M), Version 11.1(16)CA ROM Monitor version 17.0 Ethernet0/0/0, addr 00e0.f7d7.cb00 (bia 00e0.f7d7.cb00) gfreeq 48000148, lfreeq 48000178 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 2, maxrxcurr 4 txq 48001A00, txacc 48001A02 (value 152), txlimit 152 Ethernet0/0/1, addr 00e0.f7d7.cb01 (bia 00e0.f7d7.cb01) gfreeq 48000148, lfreeq 48000180 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A08, txacc 48001A0A (value 0), txlimit 152 Ethernet0/0/2, addr 00e0.f7d7.cb02 (bia 00e0.f7d7.cb02) gfreeq 48000148, lfreeq 48000188 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A10, txacc 48001A12 (value 0), txlimit 152 Ethernet0/0/3, addr 00e0.f7d7.cb03 (bia 00e0.f7d7.cb03) gfreeq 48000148, lfreeq 48000190 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A18, txacc 48001A1A (value 0), txlimit 152 (Display text omitted.)

8-18

PA-E3 Serial Port Adapter Installation and Configuration

Using the ping Command to Verify Network Connection

For a Catalyst RSM/VIP2, use the show controllers cbus command to display all of the current interfaces. Following is an example of the show controllers cbus command that shows serial port 0/0 on a one-port PA-E3 installed on a Catalyst RSM/VIP2:

router# show controllers cbus

MEMD at 40000000, 2097152 bytes (unused 4288, recarves 1, lost 0) RawQ 48000100, ReturnQ 48000108, EventQ 48000110 BufhdrQ 48000138 (2810 items), LovltrQ 48000150 (20 items, 2016 bytes) IpcbufQ 48000160 (32 items, 4096 bytes) IpcbufQ_classic 48000158 (8 items, 4096 bytes) 3570 buffer headers (48002000 - 4800FF10) pool0: 9 buffers, 256 bytes, queue 48000140 pool1: 458 buffers, 1536 bytes, queue 48000148 pool2: 229 buffers, 4512 bytes, queue 48000168 pool3: 4 buffers, 4544 bytes, queue 48000170 slot0: VIP2, hw 2.4, sw 21.40, ccb 5800FF20, cmdq 48000080, vps 8192 software loaded from system IOS (tm) VIP Software (SVIP-DW-M), Version 11.1(16)CA ROM Monitor version 17.0 Ethernet0/0, addr 00e0.f7d7.cb00 (bia 00e0.f7d7.cb00) gfreeq 48000148, lfreeq 48000178 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 2, maxrxcurr 4 txq 48001A00, txacc 48001A02 (value 152), txlimit 152 Ethernet0/1, addr 00e0.f7d7.cb01 (bia 00e0.f7d7.cb01) gfreeq 48000148, lfreeq 48000180 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A08, txacc 48001A0A (value 0), txlimit 152 Ethernet0/2, addr 00e0.f7d7.cb02 (bia 00e0.f7d7.cb02) gfreeq 48000148, lfreeq 48000188 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A10, txacc 48001A12 (value 0), txlimit 152 Ethernet0/3, addr 00e0.f7d7.cb03 (bia 00e0.f7d7.cb03) gfreeq 48000148, lfreeq 48000190 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A18, txacc 48001A1A (value 0), txlimit 152 (Display text omitted.)

Note The slot values displayed by some commands (such as show diag and show controllers

cbus) are not relevant to any physical connection; please disregard these slot values for the

Catalyst RSM/VIP2.

For complete command descriptions and examples for the Cisco 7100 series routers, Cisco 7200 series routers, Cisco uBR7200 series routers, the VIP2, and the Catalyst RSM/VIP2, refer to the publications listed in the “Related Documentation” section on page vi.

Using the ping Command to Verify Network Connection

The ping command allows you to verify that an interface port is functioning properly and to check the path between a speciﬁc port and connected devices at various locations on the network. For example, after you verify that the system and VIP2 have booted successfully and are operational, you can use the ping command to verify the status of interface ports. Refer to the publications listed in the “Related Documentation” section on page vi for detailed command descriptions and examples.

The ping command sends an echo request out to a remote device at an IP address that you specify. After sending a series of signals, the command waits a speciﬁed time for the remote device to echo the signals. Each returned signal is displayed as an exclamation point (!) on the console terminal;

Configuring the PA-E3 Interfaces 8-19

Checking the Configuration

each signal that is not returned before the speciﬁed timeout is displayed as a period (.). A series of

exclamationpoints (!!!!!) indicates a good connection;a series of periods (.....) or the message [timed

out] or [failed] indicates that the connection failed. Followingis an exampleof a successful ping command to a remote server with the address 10.0.0.0:

router# ping 10.0.0.0 <Return> Type escape sequence to abort. Sending 5, 100-byte ICMP Echoes to 1.1.1.10, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/15/64 ms router#

If the connection fails, verify that you have the correct IP address for the server and that the server is active(poweredon), andrepeat the ping command. Referto the publications listed inthe “Related Documentation” section on page vi for complete descriptions of interface subcommands and the conﬁguration options available for VIP2-related interfaces, and to determine which subcommands and conﬁguration options support VIP2 functionality.

Using the loopback Command to Verify the Physical Interface

Use the loopback {dte | local | network {line | payload} command to troubleshoot the E3 serial port adapter at the physical interface level. The command loops all packets from the E3 interface either back to the interface or from the network back out towardthe network. Use the no form of the command to remove the loop.

Thefollowingexamples of the loopback {dte| local |network {line | payload} commandconﬁgure loopback modes on the single interface (interface 0) of a one-port E3 serial port adapter in port adapter slot 0 of a VIP2 in chassis slot 10 of a Cisco 7500 series router:

• Set the interface into loopback data terminal equipment (DTE) mode as follows:

Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# interface serial 10/0/0 router(config-if)# loopback dte

Loopback DTE loops the router output data back toward the router (after the line interface unit).

• Set the interface into local loopback mode as follows:

Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# interface serial 10/0/0 router(config-if)# loopback local

Local loopback loops the router output data back toward the router at the framer.

• Set the interface into network line loopback mode as follows:

Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# interface serial 10/0/0 router(config-if)# loopback network line

Network line loopback loops the data back toward the network (before the framer).

8-20

PA-E3 Serial Port Adapter Installation and Configuration

Using the loopback Command to Verify the Physical Interface

• Set the interface into network payload loopback mode as follows:

Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# interface serial 10/0/0 router(config-if)# loopback network payload

Network payload loopback loops just the payload data back towardthe network at the E3 framer.

Configuring the PA-E3 Interfaces 8-21

Checking the Configuration

8-22

PA-E3 Serial Port Adapter Installation and Configuration

Cisco Systems PA-E3, PA-2E3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
