Cisco Systems OL-21851-01 User Manual

CHAP T E R

Configuring the Cisco Unified IP Phone for MIDlets

Revised: January 2012, OL-21851-01

This chapter describes how to configure and manage the Cisco Unified IP Phone and the Enhanced Phone User Interface that uses Java MIDlets on the Cisco Unified IP phone.

This chapter contains the following information:

• Important Notes, page 2-1

• Configuring the Cisco Unified IP Phone, page 2-2

• Uploading Files to the Unified CM TFTP Directory, page 2-15

• Creating MIDlets IP Phone Service in Unified CM, page 2-16

• Configuring MIDlets, page 2-14

• MIDlets Troubleshooting Tips, page 2-19

• Configuring a Remote Phone, page 2-20

• Where to Go Next, page 2-21

Important Notes

See the following advisories and important notes that may affect system behavior:

• MIDlets Software Releases, page 2-1

• Adding a New Phone with MIDlets Capability, page 2-2

MIDlets Software Releases

The supported MIDlets version is embedded in the software files that are available on the Cisco Unified

Communications Manager Support page at the following URL:

http://www.cisco.com/en/US/products/sw/voicesw/ps556/tsd_products_support_series_home.html

OL-21851-01

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

2-1

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Configuring the Cisco Unified IP Phone

Adding a New Phone with MIDlets Capability

If you are using Unified CM release 8.0 and wish to enable MIDlets features on new phone installations, you must first enable Web Access. Web Access is not enabled by default; it must be enabled manually in the Web Access field of the Product Specific Configuration Layout window.

Configuring the Cisco Unified IP Phone

Use the information in this section to perform the following tasks:

• Adding a New Phone, page 2-2

• Managing Cisco Unified IP Phones, page 2-3

Note The Cisco Unified IP Phone is connected to the Cisco TelePresence device with an Ethernet cable. See

the cabling chapters in the Cisco TelePresence Assembly guides for more detailed cabling instructions. Go to the Cisco Support Pages to find installation documentation for your Cisco TelePresence System: Support > Cisco TelePresence > Cisco TelePresence System

Adding a New Phone

To add a new phone:

Step 1 Log in to the Cisco Unified CM Administration interface.

Step 2 From the Device drop-down menu, choose Phone. The Find and List Phones Page appears.

Step 3 Choose Cisco 7970, Cisco 7971, or Cisco 7975 (recommended) from the Phone Type drop-down menu.

Step 4 Click Next. The Phone Configuration window appears.

Step 5 Choose SIP from the Select the Device Protocol drop-down menu.

Step 6 Click Next. The Phone Configuration window is updated with the following configuration fields:

• Device Information

• Protocol Specific Information

• Certification Authority Proxy Function (CAPF) Information

• Expansion Module Information

• External Data Locations Information

• Extension Information

• MLPP Information

• Do Not Disturb

2-2

• Secure Shell Information

• Product Specific Configuration Layout

Step 7 Proceed to “Managing Cisco Unified IP Phones” section on page 2-3 to configure the fields found in the

Phone Configuration window.

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

OL-21851-01

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Managing Cisco Unified IP Phones

Before You Begin

Before starting the following procedure, note the MAC address of the Cisco TelePresence phone device. See the Before You Begin section for information about determining the MAC address.

Note You must restart your system after you have completed the configuration tasks in this section.

Use the tasks in this section to configure the Cisco Unified IP Phone for MIDlets. When you are finished configuring your settings, click Save and follow the prompts to restart the system.

To configure the Cisco Unified IP phone:

Step 1 Log in to the Cisco Unified CM Administration interface.

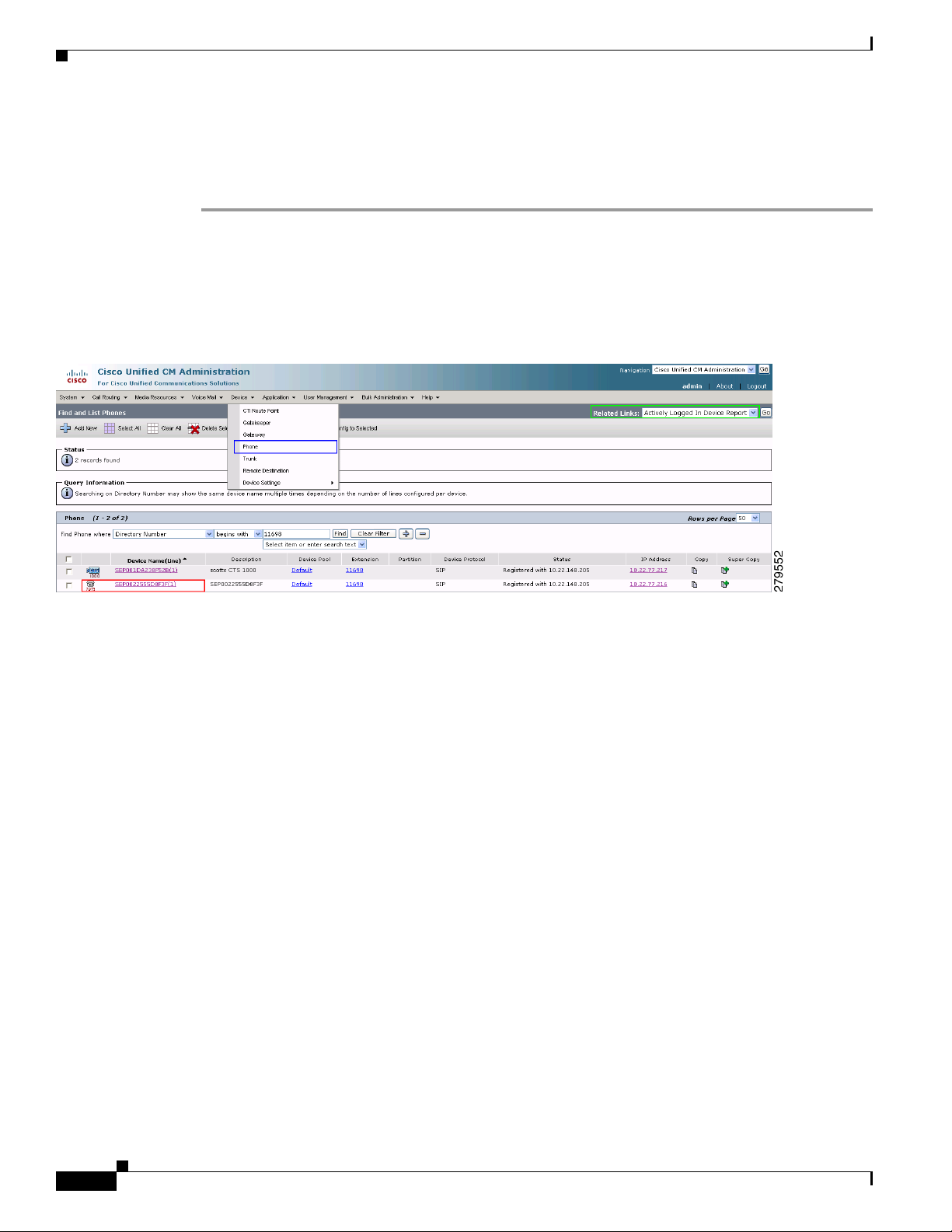

Step 2 From the Device drop-down menu, choose Phone. The Find and List Phones Page appears.

Step 3 Search for a phone using the fields provided or choose a phone from the drop-down menu.

Configuring the Cisco Unified IP Phone

Tip Search for a device type that contains “7970” or “7975.”

Step 4 Click Find. A list of devices appears.

Step 5 Click on a device in the Device Name (Line) column. The Phone Configuration page for that device

appears.

Step 6 In the Phone Type box, verify the following requirements:

• Phone Type—Cisco 7970, Cisco 7971, or Cisco 7975

• Device Protocol—SIP

Step 7 Enter information in the following sections found on the Phone Configuration page to configure the

Cisco IP Phone 7970 Series:

• Device Information, page 2-3

• Protocol Specific Information, page 2-7

• Certification Authority Proxy Function (CAPF) Information, page 2-7

• Expansion Module Information, page 2-8

• External Data Locations Information, page 2-8

• Extension Information, page 2-10

• MLPP Information, page 2-11

• Do Not Disturb, page 2-11

• Secure Shell Information, page 2-11

Device Information

Enter the settings to configure the Cisco Unified IP Phone 7970 Series using the information in

Table 2 - 1 as a guide.

OL-21851-01

• Product Specific Configuration Layout, page 2-11

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

2-3

Configuring the Cisco Unified IP Phone

Note Assign the same directory number that is assigned to the Cisco TelePresence device to the

Cisco Unified IP Phone 7970 Series.

Note The “Required” column in the table reflects fields marked with an asterisk ( * ) in the administration

interface, which are required entries for basic configuration.

Table 2-1 Cisco Unified IP Phone 7970 Series Device Information

Field Required? Setting

Registration — Read-only. Indicates whether the system is

IP Address — Cisco Unified IP Phone IP address. Click on the IP

Active Load ID — View-only field showing the status of the active

Device is active — A green check mark indicates that the device is

Device is trusted — A green check mark indicates that the device is

MAC Address Yes MAC address for the Cisco Unified IP Phone 7975.

Description — Short description of the device.

Device Pool Yes Your device pools. Leave field as Default.

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Registered with Cisco Unified Communications Manager and lists the registered Unified CM address.

address to log into the phone in a new Device Information window.

load.

Note Available on the Cisco Unified IP Phone but

not available on the CTS.

active.

trusted.

Click View Details to open the Device Details window, which includes the following system setting information:

2-4

• Device Pool Settings

• Roaming Sensitive Settings

• Device Mobility Related Information

• Incoming Calling Party Settings

Common Device Configuration — Your configured devices. Leave field as <None>.

Click Details or View to see the following information in a new window:

• Common Device Configuration Information

• Multilevel Precedence and Preemption

Information

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

OL-21851-01

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Table 2-1 Cisco Unified IP Phone 7970 Series Device Information (continued)

Field Required? Setting

Phone Button Template Yes Standard_7975 SIP.

Softkey Template — <None>

Common Phone Profile Yes Standard Common Phone Profile.

Calling Search Space — <None>

AAR Calling Search Space — <None>

Media Resource Group List — <None>

User Hold MOH Audio Source — <None>

Network Hold MOH Audio Source — <None>

Location Yes Hub_None.

AAR Group — <None>

User Locale — <None>

Network Locale — <None>

Built In Bridge Yes Default.

Privacy Yes Default.

Device Mobility Mode Yes Default.

Configuring the Cisco Unified IP Phone

Note Unless you have created extra button

templates, you will see the default button template for your device.

Note This field supports user locales in the

United States.

Note This field supports user locales in the

United States.

OL-21851-01

Note Click Current Device Mobility Settings or

View to see Device Mobility Details for the current device in a new window:

Owner User ID — Saved User IDs. Leave field as <None>.

Phone Personalization Yes Default.

Services Provisioning Yes Default.

Phone Load Name — Leave default setting.

Single Button Barge — Default.

Join Across Lines — Default.

Use Trusted Relay Point Yes Default.

BLF Audible Alert Setting (Phone

Yes Default.

Idle)

BLF Audible Alert Setting (Phone

Yes Default.

Busy)

Always Use Prime Line Yes Default.

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

2-5

Configuring the Cisco Unified IP Phone

Table 2-1 Cisco Unified IP Phone 7970 Series Device Information (continued)

Field Required? Setting

Always Use Prime Line for Voice Message

Calling Party Transformation CSS — <None>

Geolocation — <None>

Check-Boxes

Use Device Pool Calling Party Transformation CSS

Ignore Presentation Indicators Box is unchecked.

Retry Video Call as Audio Box is checked.

Allow Control of Device from CTI Box is checked.

Logged Into Hunt Group Box is checked.

Remote Device Box is unchecked

Protected Device — A new Softkey template without supplementary

Hot Line Device — A custom Softkey template without supplementary

Note When you are finished making changes, click Save to save your settings.

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Yes Default.

— Box is checked.

service Softkeys must be used for a protected phone.

service Softkeys must be used for a Hot line Device.

2-6

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

OL-21851-01

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Protocol Specific Information

Link the Cisco TelePresence device to Cisco Unified Communications Manager phone profiles for the presence group and security-related SIP phone settings using the information in Table 2 - 2 as a guide.

Note The “Required” column in the table reflects fields marked with an asterisk ( * ) in the administration

interface, which are required entries for basic configuration.

Table 2-2 Cisco Unified IP Phone 7970 Series Protocol-Specific Information

Field Required? Setting

Packet Capture Mode Yes <None>

Packet Capture Duration — 0

Presence Group Yes Standard Presence group.

SIP Dial Rules — <None>

MTP Preferred Originating Codec Yes 711ulaw

Device Security Profile Yes Use the default setting.

Rerouting Calling Search Space — <None>

SUBSCRIBE Calling Search Space — <None>

SIP Profile Yes Choose from the following:

Configuring the Cisco Unified IP Phone

Note For more information about configuring

Cisco Unified CM security features, refer to the Cisco Unified Communications

Manager Security Guide, Release 7.1(2).

Digest User — <None>

Check-Boxes

Media Termination point Required — Box is un-checked.

Unattended Port

Require DTMF Reception

Note When you are finished making changes, click Save to save your settings.

Certification Authority Proxy Function (CAPF) Information

Table 2 - 3 describes fields found in the Certification Authority Proxy Function (CAPF) Information

section on the Phone Configuration page. Leave all fields unchanged.

• Standard SIP Profile

• Standard BFCP SIP Profile

Information in this field reflects SIP profiles that have been created on this Unified CM.

See “BFCP over UDP Collaboration Support” in

Chapter 6, “Configuring Cisco TelePresence Features.”

OL-21851-01

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

2-7

Configuring the Cisco Unified IP Phone

Table 2-3 CAPF Settings

Field Required? Setting

Certificate Operation Yes No Pending Operation.

Authentication Mode Yes Leave this field unchanged.

Authentication String —

Key Size (Bits) Yes

Operation Completes By Optional

Certificate Operation Status — <None>

Note Security Profile Contains Additional CAPF Settings. See the “Phone Security Profile CAPF

Information” section on page 1-30.

Expansion Module Information

Table 2 - 4 describes fields found in the Expansion Module Information section on the Phone

Configuration page. Leave all fields unchanged.

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Table 2-4 Expansion Module Information

Field Required? Setting

Module 1 — <None>

Module 1 Load Name — Leave blank.

Module 2 — <None>

Module 2 Load Name — Leave blank.

External Data Locations Information

Define the server locations for external data using the information in the following sections as a guide:

• External Data Location Settings for CTS Release 1.6 and Earlier—Tab le 2- 5

• External Data Location Settings for CTS Release 1.7 and Later—Tab le 2- 6

Note Observe the Following—The server designation can be either the IP address or the hostname of the

Cisco TelePresence device that is associated with this phone.

If a server hostname is used, it must be resolvable by the Cisco Unified IP Phone 7970 Series DNS.

• The format for each required field is http://server hostname: or IP address: Followed by the 8080

port address, then a slash and one of the following, depending on the field:

2-8

–

services.html

–

getservicesmenu.jsp

–

authenticate.html - For CTS release 1.6 systems with MIDlets and earlier (only allowable option)

–

idle.html

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

OL-21851-01

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

• Leave fields in the External Data Locations Information table blank to use the default settings.

Tip Be careful when typing URLs to avoid typos.

External Data Location Settings for CTS Release 1.6 and Earlier

Table 2-5 External Data Location Settings for CTS Release 1.6 and Earlier

Configuring the Cisco Unified IP Phone

Field

Required Non-MIDlets

Required for MIDlets Setting

Information — Yes Leave blank to use the default.

Extension Information

Table 2 - 7 describes fields found in the Extension Information section on the Phone Configuration page.

Note Leave all fields unchanged.

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

2-10

Leave this field blank to accept the default setting.

Maximum length: 255

—

OL-21851-01

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Table 2-7 Cisco Unified IP Phone 7970 Series Extension Information

Field Required? Setting

Check-Box

Enable Extension Mobility

Log Out Profile — Current Device Settings.

Log Out Time

MLPP Information

Leave the multilevel precedence and preemption information (MLPP) Domain field as <None>.

Do Not Disturb

Table 2 - 8 describes fields found in the Do Not Disturb (DND) section on the Phone Configuration page.

Configuring the Cisco Unified IP Phone

— Leave box unchecked.

Table 2-8 Cisco Unified IP Phone 7970 Series Do Not Disturb Fields

Field Required? Setting

Check-Box

Do Not Disturb

DND Option Yes Common Phone Profile Setting.

DND Incoming Call Alert — <None>

Secure Shell Information

Table 2 - 9 describes fields found in the Secure Shell Information section on the Phone Configuration

page. Leave all fields unchanged.

Table 2-9 Cisco Unified IP Phone 7970 Series Secure Shell Information Fields

Field Required? Setting

Secure Shell Admin User — Leave field blank.

Secure Shell Admin Password

Product Specific Configuration Layout

— Leave box unchecked.

OL-21851-01

Table 2 - 10 describes fields found in the Product Specific Configuration Layout section on the Phone

Configuration page. Leave all fields unchanged.

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

2-11

Configuring the Cisco Unified IP Phone

Table 2-10 Product Specific Configuration Layout Fields

Field Required? Setting

Check-Box

Disable Speakerphone

Check-Box

Disable Speakerphone and Headset

Forwarding Delay Yes Disabled.

PC Port Yes Choose Disabled.

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

— Leave the box checked (speakerphone disabled)

unless you are using the One Phone Per Office feature.

Note The speakerphone must be enabled

(Disable Speakerphone box unchecked) to initiate the One Phone Per Office feature. See the “One Phone Per Office” section on

page 6-5.

— Leave the box checked (speakerphone and headset

disabled) unless you are using the One Phone Per Office feature.

Note The Auto Answer feature does not work if

the Disable Speakerphone and Headset box is unchecked.

Additional drop-down menu choice:

• Enabled—Use only to enable the One Phone

Per Office feature.

Note You must enable the PC port on the

Cisco Unified IP Phone for MIDlets and the One Phone Per Office feature to function.

Settings Access Yes Enabled.

Gratuitous ARP Yes Disabled.

PC Voice VLAN Access Yes Enabled.

Video Capabilities Yes Disabled.

Auto Line Select Yes Disabled.

Web Access Yes Choose Enabled.

Note If you are using Cisco Unified CM

firmware release 8.0 and wish to enable MIDlets features on new phone installations, you must first enable this field.

Days Display Not Active — Choose a day of the week.

Display On Time — Leave the default setting.

Display On Duration — Leave the default setting.

Display Idle Timeout — Leave the default setting.

Span to PC Port Yes Disabled.

Logging Display Yes PC Controlled.

2-12

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

OL-21851-01

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Table 2-10 Product Specific Configuration Layout Fields

Field Required? Setting

Load Server — Leave field blank.

Recording Tone Yes Disabled.

Recording Tone Local Volume Yes Leave default setting.

Recording Tone Remote Volume Yes Leave default setting.

Recording Tone Duration — Leave field blank.

Display On When Incoming Call Yes Disabled.

RTCP Yes D isabled.

“more” Softkey Timer — Leave default setting.

Auto Call Select Yes Enabled.

Log Server — Leave field blank.

Advertise G.722 Codec Yes Use System Default.

Wideband Headset UI Control Yes Enabled.

Wideband Headset Yes Enabled.

Peer Firmware Sharing Yes Disabled.

Cisco Discovery Protocol (CDP): Switch Port

Cisco Discovery Protocol (CDP): PC Port

Link Layer Discovery Protocol Media Endpoint Discover (LLDP-MED): Switch Port

Link Layer Discovery Protocol (LLDP): PC Port

LLDP Asset ID — Leave field blank.

LLDP Power Priority Yes Leave the default setting.

Wireless Headset Hookswitch Control

IPv6 Load Server — Leave blank.

IPv6 Log Server — Leave blank.

802.1x Authentication — User Controlled.

Detect Unified CM Connection Failure

Minimum Ring Volume Yes 0-Silent.

HTTPS Server Yes HTTP and HTTPS Enabled.

Handset/Headset Monitor — Disabled.

Enbloc Dialing — Enabled.

Configuring the Cisco Unified IP Phone

Yes Enabled.

Yes Di sa bl ed .

Yes Leave the default setting (Normal).

Additional drop-down menu choices:

• 2 through 15.

OL-21851-01

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

2-13

Configuring MIDlets

Table 2-10 Product Specific Configuration Layout Fields

Field Required? Setting

Switch Port Remote Configuration Yes Disabled.

PC Port Remote Configuration Yes Disabled.

Automatic Port Synchronization Yes Disabled.

SSH Access Yes Disabled.

80-bit SRTCP Yes Disabled.

Configuring MIDlets

To use the Enhanced Phone User Interface (MIDlets), your Cisco Unified IP Phone 7970 Series must be configured to run a new application service. This section explains how to implement the MIDlets interface, which is available in Cisco TelePresence System (CTS) Release 1.5 and later releases.

The Cisco Unified IP Phone auto-configures the IP address of the CTS. The CTS obtains the phone IP address using CDP data and CTS sends the command to the Cisco Unified IP Phone to start the MIDlet. The launch command specifies the IP address of the CTS.

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Before You Begin

Note If you are upgrading from an older XML specification identifier (XSI) user interface to MIDlets, you

must reset the phone and reset the CTS to allow the Java MIDlets application to work with the Cisco Unified IP Phone. See the “Managing Phone Reset and Codec Connectivity” section on page 4-13 for reset information.

• Turn off Auto Answer for the Cisco Unified IP Phone.

• Enable the speakerphone.

• Enable the PC port.

Note You must have MIDlets installed on the Unified CM to use the 720p (Lite) feature. For more information

about 720p (Lite), see the “Quality Per Display - 720p (Lite)” section on page 6-8.

Procedure

This section contains the following configuration tasks:

• Uploading Files to the Unified CM TFTP Directory, page 2-15

• Creating MIDlets IP Phone Service in Unified CM, page 2-16

• Configuring the MIDlets IP Phone Interface, page 2-18

• Setting Phone URL Parameters for MIDlets, page 2-19

2-14

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

OL-21851-01

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Configuring MIDlets

Uploading Files to the Unified CM TFTP Directory

Use the information in the following sections to upload files to the Unified CM TFTP Directory:

• Downloading Cisco TelePresence MIDlet Phone Application .jad and .jar Files from Cisco.com,

page 2-15

• Uploading Cisco TelePresence MIDlet Phone Application .jad and .jar files to Unified CM,

page 2-15

Tip When downloading MIDlet .jad and .jar files, use caution to avoid typos. Some files use a hypen in the

file string (“ - ”) and some use a period (“ . ”). For example, TSPM.1-7-0-0S and TSPM-1.7.4-P1-2S.

Downloading Cisco TelePresence MIDlet Phone Application .jad and .jar Files from Cisco.com

To download Cisco TelePresence MIDlet Phone Application .jad and .jar files from Cisco.com:

Step 1 Go to the Support Download Software page on Cisco.com. The supported MIDlet version with the .jad

and .jar files for the Cisco TelePresence MIDlet Phone Application is embedded in these software files.

Note You can also download software from the Cisco Unified Communications Manager Support page at the

following URL:

http://www.cisco.com/en/US/products/sw/voicesw/ps556/tsd_products_support_series_home.html

TelePresence > Cisco TelePresence Device > TelePresence Software > Latest Releases > Software Release

Tip Do not change the name of the downloaded files or add any extensions to the file name. The .jad and

.jar extensions are appended automatically.

Step 2 Proceed to Uploading Cisco TelePresence MIDlet Phone Application .jad and .jar files to Unified CM.

Uploading Cisco TelePresence MIDlet Phone Application .jad and .jar files to Unified CM

To upload Cisco TelePresence MIDlet Phone Application .jad and .jar files to the Unified CM TFTP Directory:

Step 1 Log in to the Cisco Unified CM Administration interface.

Step 2 From the Bulk Administration drop-down menu, choose Upload/Download Files. The Find and List

Files window appears.

Step 3 Locate the files to upload using the search fields provided in the Find and List Files window.

OL-21851-01

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

2-15

Configuring MIDlets

Step 4 Click Add New to enter new file information using the fields provided. See the “Adding a New Phone”

Step 5 Upload the Cisco TelePresence MIDlet Phone Application .jad and .jar files to the Unified CM TFTP

Step 6 Restart the Unified CM TFTP service by following these steps:

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

section on page 2-2.

directory by following these steps:

a. From the Navigation drop-down menu in the upper right corner, choose Cisco Unified OS

Administration and click Go.

b. Log in to Cisco Unified OS Administration.

c. Choose Software Upgrades then TFTP File Management from the drop-down menu.

d. Search for the TFTP Files using the fields provided and click the Upload File button. The Upload

File dialog box appears.

e. Specify a valid filename and path or click Browse in the Upload File dialog box to find the file and

click Upload File.

a. From the Navigation drop-down menu in the upper right corner, choose Cisco Unified

Serviceability and click Go.

b. Log in to Cisco Unified Serviceability.

c. From the Tools drop-down menu, choose Control Center - Feature Services.

d. From the Select Server drop-down menu, choose the TFTP server and click Go.

e. From the CM Services menu, click the Cisco TFTP radio button.

f. Click the Restart button.

Step 7 Repeat Step c through Step e for all TFTP servers.

Creating MIDlets IP Phone Service in Unified CM

To create IP Phone Service in Unified CM:

Step 1 Log in to the Cisco Unified CM Administration interface.

Step 2 From the Navigation drop-down menu in the upper right corner, choose Cisco Unified CM

Administration and click Go.

Step 3 From the Device drop-down menu, go to Device Settings and click on Phone Services. The Find and

List IP Phone Services window appears.

Step 4 Click the Add New button. The IP Phone Services Configuration screen appears.

Step 5 Fill in the following fields:

a. Service Name—Required. The Service Name must match the filename of the .jad file.

2-16

Note Your filename must not contain the .jad extension. The .jad extension is appended automatically when

you name the file.

b. ASCII Service Name—Required. The ASCII service name must match the configured service

name.

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

OL-21851-01

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

c. Service Description—MIDlet UI.

d. Service URL—Required. IP address of the Service URL must be that of the Unified CM and in the

following format:

http://xx.xx.xx.xx:6970/TSPM-y-y-y-YY.jad

Configuring MIDlets

OL-21851-01

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

2-17

Configuring MIDlets

The following describes the necessary Service URL content:

–

xx.xx.xx.xx is the IP address of the Unified CM server.

–

y-y-y- is the version of the MIDlet application being added to Unified CM.

–

YY is the build version of the MIDlet application being added to Unified CM.

e. Service Category—Required. Choose Java MIDlet from the drop-down menu.

f. Service Type—Required. Choose Standard IP Phone Service.

g. Service Vendor Name—Must be exactly “Cisco” (case-sensitive).

h. Service Version—Leave blank.

Step 6 Click the Enable check box.

Step 7 Click Save to save your changes.

Configuring the MIDlets IP Phone Interface

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

The Cisco Unified IP Phone auto-configures the IP address of the CTS; the CTS obtains the phone IP address using CDP data and the CTS sends the command to the Cisco Unified IP Phone to start the MIDlet. The system launch command specifies the IP address of the CTS.

To configure each Cisco Unified IP Phone 7970 Series to run the MIDlet IP phone interface:

Step 1 Log in to the Cisco Unified CM Administration interface.

Step 2 From the Navigation drop-down menu in the upper right corner, choose Cisco Unified CM

Administration and click Go.

Step 3 From the Device drop-down menu, choose Phone. The Find and List Phones Page appears.

Step 4 Search for a phone using the fields provided or choose a phone from the drop-down menu and click Find.

A list of devices appears.

Step 5 Click on a device in the Device Name (Line) column. The Phone Configuration page for that device

appears.

Step 6 From the Related Links drop-down menu in the upper right corner, choose Subscribe/Unsubscribe

Services and then click Go. The Subscribed Cisco IP Phone Services window for that device appears.

Step 7 In the Service Information box, choose MIDlet IP phone service from the Select a Service drop-down

list and click Next. The Subscribed Cisco IP Phone Services window is updated with configurable Service Name and ASCII Service Name fields.

Step 8 Click Subscribe to save your settings or Back to return to the original Subscribed Cisco IP Phone

Services window.

2-18

If the phone is already subscribed to an older MIDlet version:

a. Unsubscribe the phone from the older service.

b. Subscribe the phone to the new IP phone service that you created in the “Creating MIDlets IP Phone

Service in Unified CM” section on page 2-16.

Step 9 Click Save to save your settings.

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

OL-21851-01

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Note If you are upgrading from an older XML specification identifier (XSI) user interface to MIDlets, you

Setting Phone URL Parameters for MIDlets

Make sure the default services URL is set for MIDlets. To override default settings:

Step 1 Log in to the Cisco Unified CM Administration interface.

Step 2 Choose System > Enterprise Parameters Configuration.

Step 3 In the Phone URL Parameters box, set the URL Services in the following format:

http://xx.xx.xx.xx:8080/ccmcip/getservicesmenu.jsp

MIDlets Troubleshooting Tips

Where xx.xx.xx.xx is the IP address of the Unified CM server.

Note You may use a hostname providing the CTS and the phone is provisioned with a DNS name server.

Step 4 Click Save to save your settings.

MIDlets Troubleshooting Tips

• If the MIDlet does not come up at all, verify that the Unified CM is subscribed. Reset the phone.

• Verify that the phone has the correct firmware for that MIDlet.

• Verify that the CTS has the correct image for that MIDlet.

• If the MIDlet comes up with a blank white screen, verify that the Service URL for the phone is blank.

• If the phone fails to register, verify that phone type is set correctly. For example, Cisco Unified IP

Phone 7970 should not be set as 7975.

• If the phone is stuck in the initializing phase, restart TSPS on the CTS. If after the restart the phone

shows “phoneui=xsi,” reboot the CTS.

• Check the Service URL. If it ends with “services.html,” make it blank and apply changes. Reboot

the CTS.

OL-21851-01

• If no services appear on the phone, even though subscribed to a valid service, check the “Services

Provisioning” field to make sure it is set to Default.

• If the MIDlet fails to start, make sure that the Enable box checked.

• Make sure the service that you are using to subscribe your phone is pointing to the correct JAD file.

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

2-19

Configuring a Remote Phone

To configure the system to use your CTS Cisco Unified IP phone remotely:

Step 1 Log in to the Cisco Unified CM Administration interface.

Step 2 Navigate to Device > Phone and use the search fields to find the phone you wish to use remotely.

Step 3 Write down the IP Address of your phone and CTS, and click the link under Device Name (Line) of your

phone, circled in red in Figure 2-1.

Figure 2-1 Your Phone Device Line

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Step 4

Scroll down to External Data Locations and enter the following in the Authentication Server field:

http://<your Cisco Unified CM IP Address>:8080/authenticate.html

Step 5 Scroll down a little bit more to Secure Shell Information and enter your administration username and

password.

Step 6 Click Save to save your settings.

Step 7 Go to the top right of the screen to Related Links, choose Subscribe/Unsubscribe Services and click

GO.

Step 8 Choose the appropriate MIDlet to download onto the phone. If you are unsure which one you should use,

see the Release Notes for Cisco TelePresence System for your release on Cisco.com.

If MIDlets are already installed and you need to make any changes, do the following:

a. Click the link under Subscribed Services and click the Unsubscribe.

b. Choose the appropriate MIDlet in the Select a Service field.

c. Click Next and then Subscribe.

Step 9 Click Reset to reset the phone and save your settings. See the “Managing Phone Reset and Codec

Connectivity” section on page 4-13 for reset information.

Step 10 Open an SSH client in a browser window and SSH into your phone.

Step 11 When the login: prompt appears, enter the following:

debug.##

2-20

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

OL-21851-01

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

Step 12 When the password: prompt appears, enter debug.## again. A prompt with your MAC address should

appear (example: 002255D8F3FF>).

Step 13 Enter the following:

test open 123

The following should appear: TEST: Opening Session. You can now remotely use your phone. Enter the test key to see all the possible commands you can use (for example, if you enter test key soft5, the 5th soft key on the phone is activated).

Where to Go Next

See the following chapters:

• Chapter 4, “Verifying and Troubleshooting the Cisco TelePresence System Configuration.”

• Chapter 5, “Managing Cisco Unified IP Phone Features”

• Chapter 6, “Configuring Cisco TelePresence Features”

Where to Go Next

OL-21851-01

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

2-21

Where to Go Next

Chapter 2 Configuring the Cisco Unified IP Phone for MIDlets

2-22

Cisco Unified Communications Manager Configuration Guide for the Cisco TelePresence System

OL-21851-01

Cisco Systems OL-21851-01 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Important Notes

Configuring the Cisco Unified IP Phone

Adding a New Phone

Managing Cisco Unified IP Phones

Device Information

Protocol Specific Information

Certification Authority Proxy Function (CAPF) Information

Expansion Module Information

External Data Locations Information

Extension Information

MLPP Information

Do Not Disturb

Secure Shell Information

Product Specific Configuration Layout

Configuring MIDlets

Uploading Files to the Unified CM TFTP Directory

Downloading Cisco TelePresence MIDlet Phone Application .jad and .jar Files from Cisco.com

Uploading Cisco TelePresence MIDlet Phone Application .jad and .jar files to Unified CM

Creating MIDlets IP Phone Service in Unified CM

Configuring the MIDlets IP Phone Interface

Setting Phone URL Parameters for MIDlets

MIDlets Troubleshooting Tips

Configuring a Remote Phone

Where to Go Next
