Safety instructions

Keep the unit away from heat sources.
Do not use the unit near water.
Avoid objects or liquids getting into the unit.
Unplug the power lead if the unit will not be used for a long period.

Mains safety

The unit uses a 230V AC 50 Hz power supply.
When replacing the fuse in the supplied moulded mains plug, always refit the integral fuse holder/cover. Always fit a 3

amp fuse either in the plug or adapter, or at the distribution board.

When replacing the fuse in the main unit (below the power socket) always fit a 100mA fuse as specified on the unit.
Do not attempt to remove any screws or open the unit. No user serviceable parts are inside.
For your safety, always obey the warning:
CAUTION - RISK OF ELECTRIC SHOCK - DO NOT OPEN COVER

Copyright

Copyright 2002 by Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or
computer language, in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination Technologies Limited.

Disclaimer

Imagination Technologies Limited makes no representation or warranties with respect to the content of this document and specifically disclaims any implied warranties of merchantability or fitness for any particular
purpose. Further, Imagination Technologies Limited reserves the right to revise this publication and to make changes in it from time to time without obligation of Imagination Technologies Limited to notify any person
or organization of such revisions or changes.

Trademarks

PURE, the PURE logo, PURE Digital, Metagence, the Metagence logo, Ensigma, the Ensigma logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination
Technologies Limited. All other product names are trademarks of their respective companies.

Credits

This manual was written by Bruce Murray and illustrated by Nick Noble. It is a product of PURE Digital, Imagination Technologies Ltd., Home Park Estate, Kings Langley, Hertfordshire WD4 8LZ, UK.
Edition 3 October 2002

Contents

Introduction................................................................................... 2

Unpacking ..................................................................................... 2

Quick start..................................................................................... 2

Controls and connectors ................................................................ 3

Setting up ...................................................................................... 4

Connecting to your amplifier ....................................................................................................4

Connecting to an auxiliary source ............................................................................................ 4

Connecting to digital devices.................................................................................................... 4

Connecting to your aerial ......................................................................................................... 4

Connecting to an external decoder .......................................................................................... 4

Connecting to power supply ..................................................................................................... 4

Connecting to headphones ....................................................................................................... 4

Connecting to a USB device ......................................................................................................4

Using your DRX-701ES ................................................................... 5

Switching on and off ................................................................................................................. 5

Tuning ...................................................................................................................................... 5

Selecting a station .................................................................................................................... 6

Changing the display brightness .............................................................................................. 6

Changing the display mode ...................................................................................................... 7

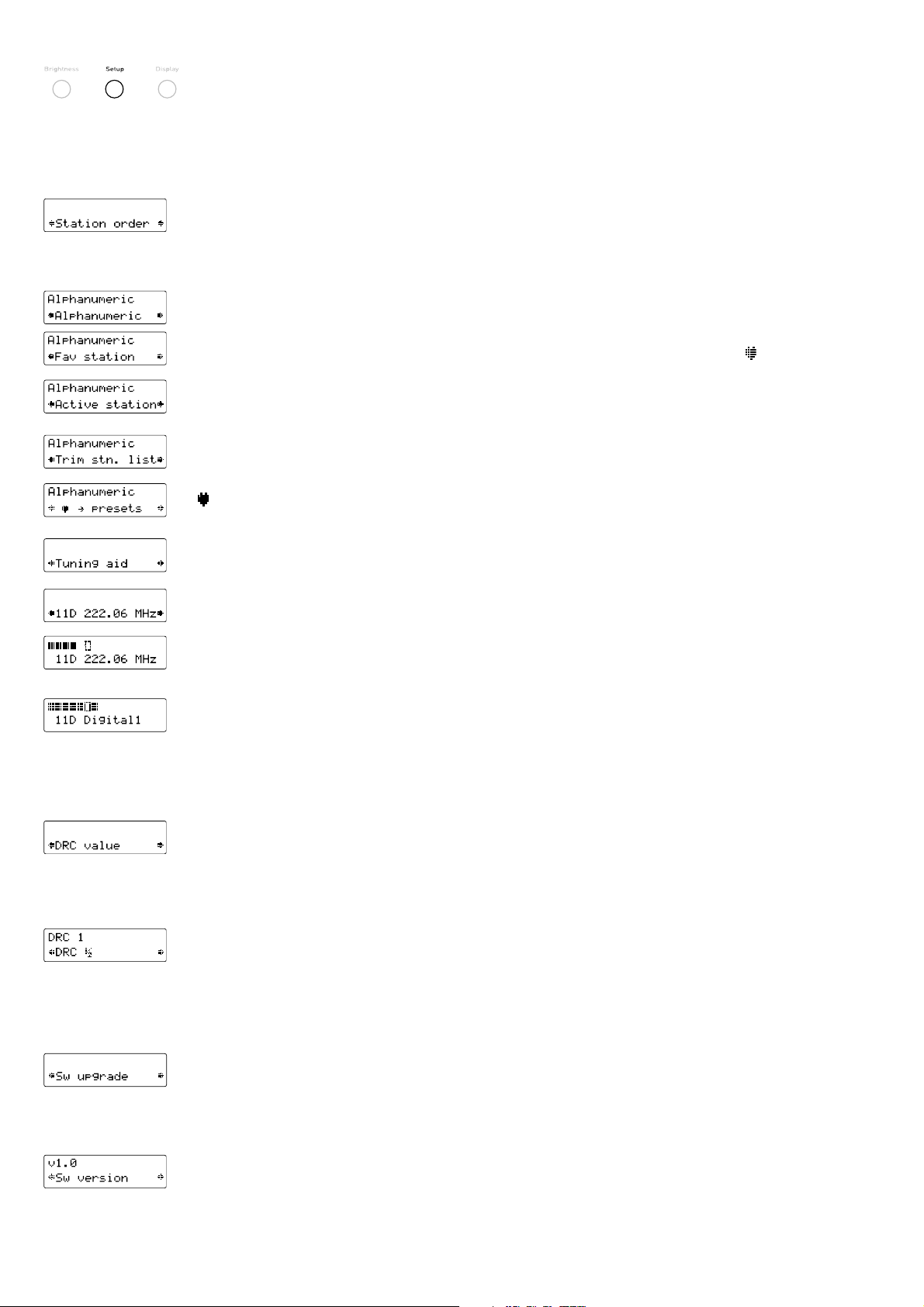

Advanced setup options ........................................................................................................... 7

Using the remote control................................................................ 8

Guide to digital radio...................................................................... 9

Useful addresses...................................................................................................................... 9

Troubleshooting ...........................................................................10

Resetting your DRX-701ES ..................................................................................................... 10

Replacing the fuse.................................................................................................................. 10

Aerial advice ................................................................................11

Accessories ..................................................................................11

Getting help ..................................................................................11

Technical specifications ................................................................12

Warranty information ...................................................................12

Index ............................................................................................13

1

Introduction

Thank you for choosing the PURE DRX-701ES Digital Radio Tuner.
This manual provides information on setting up your unit, instructions on using it and details of the accessories and support available.
The DRX-701ES is a dedicated high performance digital radio tuner. Also known as Digital Audio Broadcast (DAB), digital radio provides superb

quality sound, eliminating the hiss, crackle and fade associated with analogue radio broadcasts.
The DRX-701ES has a range of input and output sockets including: dual phono for stereo analogue audio output to your amplifier; coaxial and

optical S/PDIF digital output (48 kHz) for direct digital recording to MiniDisc, CD-R or DAT; AM/FM tuner line-level input with auto pass-through
to output at power off; optical RDI data output connector, headphone socket and USB port.

If you are new to digital radio, see Guide to digital radio, page 9.

Unpacking

This section lists the contents of your DRX-701ES packag e. Contact us if any items are missing or damaged.

DRX-701ES Digital Radio Tuner unit Stereo phono to stereo phono cable
Two AA batteries for the remote control Power cable with moulded UK 3-pin (3A fused) plug
Infrared remote control handset Warranty registration card

DAB ribbon indoor aerial

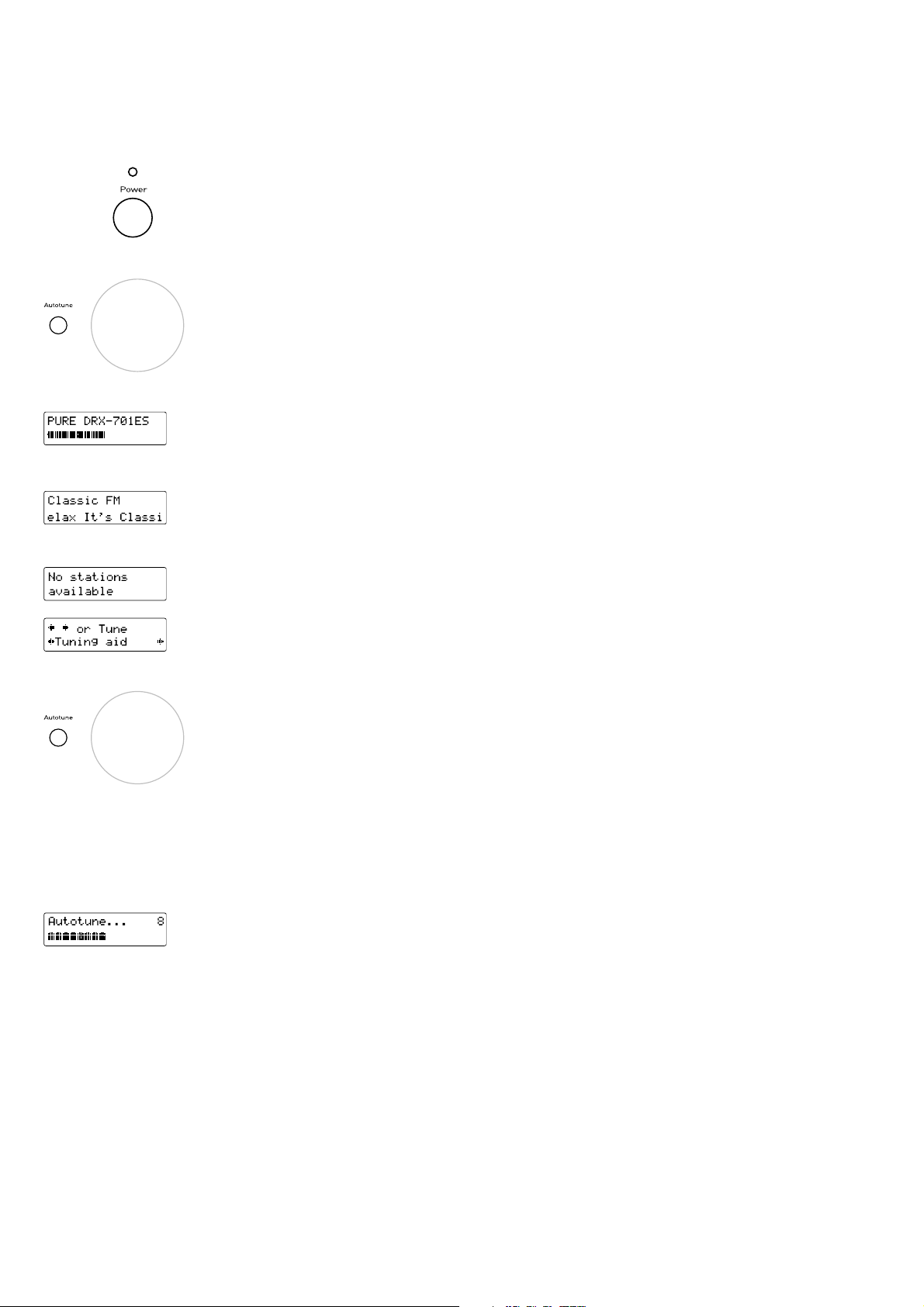

Quick start

This section provides information on how to set up and start using your DRX-701ES. For further details on using y our radio see Using your DRX­701ES, pag e 5.

1. Connect your aerial, amplifier and pow er lead.

2. Plug in to your power supply and switch on at the wall.

3. Push the Power button to switch the unit on. The LCD lights up, the display shows ‘PURE DRX-701ES’ and the bottom line indicates the
progress of an autotune to find the stations available in your area. Stations found are stored in alphanumeric order and the first station on
the list selected. If no stations are found you are presented with the option to retry the tuning process or attempt to improve reception by
adjusting your aerial position, see Tuning for the first time, page 5.

4. Adjust the Volume control on your remote control or amplifier if necessary to hear the station.

5. Turn the large tuning knob to see all the stations available and push to select and listen to another station, see Selecting a station, pag e 6.

2

Controls and connectors

This section provides information on the controls and connectors available on the front and rear panels of your DRX-701ES .
For information on the remote control, see page 8.

Front panel

Power button switches the unit on or returns it to standby. Indicator LED shows when the unit is switched on.
Phones socket for connection to headphones
Stereo LED indicates when a stereo station is being received, see Selecting a station, page 6
Secondary LED indicates when a secondary service is selected or is available, see Selecting a station, page 6
Remote LED indicates remote control activity
Remote sensor picks up the infrared signal from the remote
Backlit LCD display
Standby LED indicates that the unit is in standby mode with power connected
Brightness button changes the display brightness
Setup button enables access to advanced setup options, see page 7
Display button changes the main display mode, see Changing the display mode, page 6
Autotune button enables an automatic scan to find and store all stations available in your area
Tuning knob, turn to scroll through and push to select stations and menu options, see pages 6 and 7

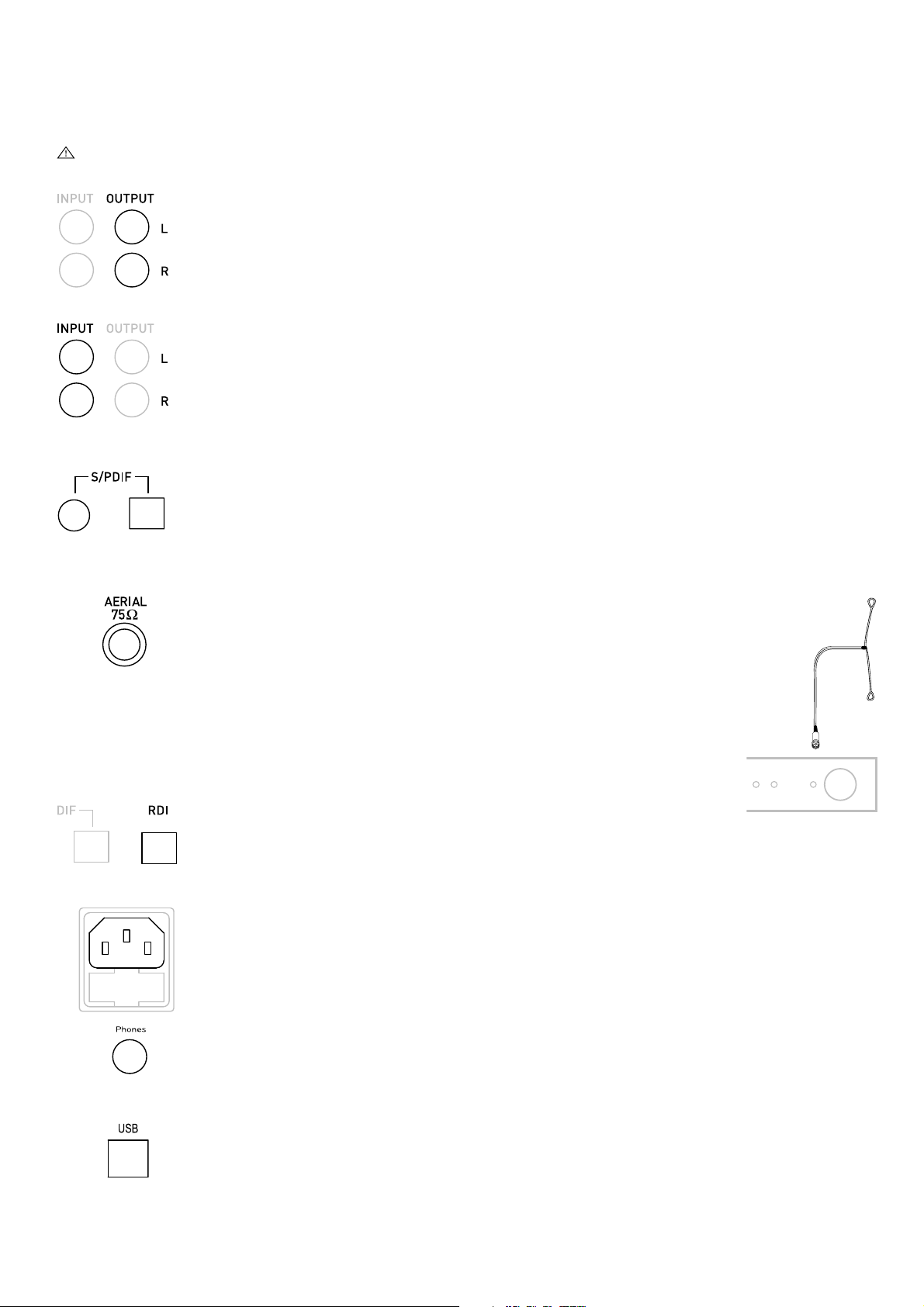

Rear panel

AERIAL connector
USB port enables software upgrades, see Connecting to a USB device, page 4
S/PDIF co-axial digital output, see Connecting to digital devices, page 4
S/PDIF optical digital output, see Connecting to digital devices, page 4
RDI (Receiver Data Interface) socket, see Connecting to an external decoder, page 4
INPUT loop through input for AM/FM tuner
OUTPUT to amplifier line-level stereo (analogue)
Power socket and fuse drawer for connecting to power lead, see Connecting to the power supply, page 4

3
