Cisco USB BLE Beacon Installation Guide

First Published: 2019-04-01

Americas Headquarters

Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA http://www.cisco.com Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version of the UNIX operating system. All rights reserved. Copyright©1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version for the latest version.

Cisco has more than 200 offices worldwide. Addresses and phone numbers are listed on the Cisco website at www.cisco.com/go/offices.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com

go trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any

other company. (1721R)

PREFACE

CHAPTER 1

CHAPTER 2

Preface v

Audience v

Conventions v

Preface

Audience

This document is for network administrators who configure Cisco Connected Mobile Experiences (Cisco CMX) services.

Conventions

This document uses the following conventions:

Table 1: Conventions

• Audience, on page v

• Conventions, on page v

• Related Documentation, on page vi

• Communications, Services, and Additional Information, on page vi

IndicationConvention

Commands and keywords and user-entered text appear in bold font.bold font

italic font

{x | y | z }

[ x | y | z ]

string

Document titles, new or emphasized terms, and arguments for which you supply values are in italic font.

Elements in square brackets are optional.[ ]

Required alternative keywords are grouped in braces and separated by vertical bars.

Optional alternative keywords are grouped in brackets and separated by vertical bars.

A nonquoted set of characters. Do not use quotation marks around the string. Otherwise, the string will include the quotation marks.

Terminal sessions and information the system displays appear in courier font.courier font

Nonprinting characters such as passwords are in angle brackets.<>

Default responses to system prompts are in square brackets.[]

Cisco USB BLE Beacon Installation Guide

Communications, Services, and Additional Information

• To receive timely, relevant information from Cisco, sign up at Cisco Profile Manager.

• To get the business impact you’re looking for with the technologies that matter, visit Cisco Services.

• To submit a service request, visit Cisco Support.

• To discover and browse secure, validated enterprise-class apps, products, solutions and services, visit

Cisco Marketplace.

• To obtain general networking, training, and certification titles, visit Cisco Press.

• To find warranty information for a specific product or product family, access Cisco Warranty Finder.

Cisco USB BLE Beacon Installation Guide

Preface

Cisco Bug Search Tool

Cisco Bug Search Tool (BST) is a web-based tool that acts as a gateway to the Cisco bug tracking system

that maintains a comprehensive list of defects and vulnerabilities in Cisco products and software. BST provides you with detailed defect information about your products and software.

Cisco USB BLE Beacon Installation Guide

vii

Preface

viii

Cisco USB BLE Beacon Installation Guide

CHAPTER 1

Overview of Cisco USB BLE Beacon

Cisco USB Bluetooth Low-Energy (BLE) Beacon is a USB-compatible device for use with the Cisco Aironet 1830/1850/2800/3800 Series Access Points (APs) and provides the BLE beacon functionality. Cisco USB BLE Beacon expands the Cisco Aironet 1800, 2800, and 3800 Series Wave 2 11ac AP platforms to add BLE radio capability.

Cisco USB BLE Beacon offers an end-to-end BLE solution for APs that do not have the BLE capability, and is a cost-effective way of adding this capacity to the AP network. The addition of a BLE radio enables the AP with additional functionalities, including the ability to transmit a BLE Beacon for Proximity Messaging and Wayfinding and the ability to receive a BLE Beacon for asset-tracking applications.

Cisco USB BLE Beacon is managed by Cisco Digital Network Architecture (DNA) Spaces and supported as part of the Cisco DNA Spaces ACT license. The Cisco DNA Spaces-BLE Manager application allows you to control both the receiving and transmitting capabilities of the Cisco USB BLE Beacon. As a transmitter, the Cisco USB BLE Beacon provides the capability to transmit in an iBeacon, Eddystone URL, or Eddystone UID format. Similarly, as a receiver, the Cisco USB BLE Beacon can receive packets in iBeacon, Eddystone URL, or Eddystone UID format.

Cisco USB BLE Beacon has a MAC address, with the QR code representing the MAC address printed or labeled on the outer casing.

• Product Information, on page 1

• Software Requirement, on page 2

• Cisco USB BLE Beacon as a Solution, on page 2

Product Information

Cisco USB BLE Beacon can be ordered in pack of 10 or pack of 50.

Figure 1: Cisco USB BLE Beacon

Cisco USB BLE Beacon Installation Guide

Software Requirement

Overview of Cisco USB BLE Beacon

DescriptionPart Number

Cisco USB BLE Beacon 10 PackAIR-BLE-USB-10

AIR-BLE-USB-50

Platform Support

Cisco USB BLE Beacon can be added to Cisco APs that have a USB slot and support the correct software.

Table 2: Platform Support

Software Requirement

Cisco USB BLE Beacon is suppported in the USB slot of Cisco AP 1830/1850/2800/3800 Series. Cisco USB BLE Beacon identifies and authenticates with the connected AP. The connected host AP provides Cisco USB BLE Beacon adequate power to turn on and communicate with the host AP. Cisco USB BLE Beacon relies on the AP for power and data communication path. Cisco USB BLE Beacon can pass relevant telemetry data back to the AP or the controller for managing purpose.

Cisco USB BLE Beacon 5 x 10 Pack = Total QTY = 50

Cisco IOS SoftwarePlatforms SupportedProduct Family

1830 and 1850 SeriesCisco Aironet 1800 Series

All modelsCisco Aironet 2800 Series

All modelsCisco Aironet 3800 Series

Cisco Wireless Controller 8.8MR2 or later

Cisco USB BLE Beacon as a Solution

A cloud-managed and integrated Cisco USB BLE Beacon provides enterprise customers with a set of superior BLE capabilities. An AP-based BLE beacon provides all the native capabilities of BLE, including the capability to invoke applications that subscribe to the iBeacon and to be used to aid indoor navigation without the burden of using battery power.

The advantages of cloud-managed AP-powered BLE beacons are:

• Ease of configuration at scale—Manage thousands of BLE beacons at scale just as easily as you can manage APs at scale

• AP powered—Since the USB BLE beacon takes power from the AP, there are no issues related to power management on the beacons

• Reduced chance of theft or movement of the beacon—Because the beacon is a part of the wireless AP infrastructure, there is a much smaller chance of the beacon being lost or removed

Cisco USB BLE Beacon Installation Guide

CHAPTER 2

Installation and Initial Setup

• Prerequisites for Cisco USB BLE Beacon Installation, on page 3

• Supported Hardware, on page 3

• Installation Guidelines, on page 4

• Installing the Cisco USB BLE Beacon, on page 4

• Importing Maps from Cisco Prime Infrastructure, on page 4

• Managing Cisco CMX for Cisco USB BLE Beacon Configurations, on page 5

• Establishing the Connection Between Cisco CMX and Cisco DNA Spaces BLE Manager, on page 6

• Configuring a Cisco USB BLE Beacon Profile, on page 6

Prerequisites for Cisco USB BLE Beacon Installation

• A Cisco Wireless Controller should be deployed in your network, and APs should be added to the controller.

• A Cisco CMX device should be deployed and installed with Cisco CMX Release 10.6, and shpould be reachable from the cloud.

• Cisco CMX should have maps imported from Cisco Prime Infrastructure 3.6.

• Cisco DNA Spaces BLE Manager should be deployed.

Note

Cisco DNA Spaces BLE Manager solution deployment is similar to the Hyperlocation feature deployment. For more information, see the Hyperlocation

Deployment Guide.

Supported Hardware

The following table lists the hardware guidelines for Cisco USB BLE Beacon installation.

Cisco USB BLE Beacon Installation Guide

Installation Guidelines

Installation and Initial Setup

Table 3: Hardware Support

VersionDevice Supported

8.8 MR2 released buildCisco Wireless Controller 3504, 5520, 8540

10.6 or laterCisco CMX

Cisco Prime Infrastructure

3.6 or later

Note

Cloud ServiceCisco DNA Spaces BLE Manager

Use Cisco PI to export maps.

Installation Guidelines

The following is a list of installation guidelines pertaining to Cisco USB BLE Beacon:

• It is compatible with AP 1830/1850/2800/3800 USB port.

• It can be plugged into an AP's USB port without removing the AP from the ceiling.

• It does not restrict access to the mGig and other available ports on the AP 3800 when mounted.

• It generates omni-directional antenna pattern or coverage when plugged into an AP.

Installing the Cisco USB BLE Beacon

Step 1 Power off the corresponding AP and disable the Power over Ethernet (PoE).

Step 2 Plug the Cisco USB BLE Beacon into the USB port of the AP.

Step 3 Power on the AP and enable the PoE. Note that you must wait until the AP has re-established the connection with the

controller until you proceed to next step.

Step 4 Log in to the controller GUI.

Step 5 Choose Wireless > Access Points > All APs.

Step 6 Select the AP with the Cisco USB BLE Beacon installed.

Step 7 Click the Inventory tab.

Step 8 In the USB Module Inventory area, verify the USB module details. (We recommend that you perform the USB module

verification for all the APs with Cisco USB BLE Beacons.)

Importing Maps from Cisco Prime Infrastructure

Cisco CMX relies on maps from Cisco Prime Infrastructure for AP information. Cisco Prime Infrastructure

3.6 is required for supporting Cisco USB BLE Beacon configuration.

Cisco USB BLE Beacon Installation Guide

Installation and Initial Setup

Managing Cisco CMX for Cisco USB BLE Beacon Configurations

To obtain maps for Cisco CMX, you have to export maps from Cisco Prime Infrastructure. Cisco CMX needs the heatmaps of the Cisco USB BLE Beacon antennas for managing the beacons.

Ensure that the controller managing the APs with Cisco USB BLE Beacon is up-do-date with the AP and antenna names.

Step 1 Log in to Cisco Prime Infrastructure.

Step 2 Choose Monitor > Managed Elements > Network Devices.

Step 3 In the Device Groups area, choose Device Type > Wireless Controller.

Step 4 Select the controller that manages the AP installed with the Cisco USB BLE Beacon.

Step 5 Click the Sync tab to synchronize and update the AP information.

Step 6 Choose Maps > Wireless Maps > Site Maps (New).

Step 7 Select the floor (with the APs) in which you added the Cisco USB BLE Beacon.

Step 8 Select the AP on the map and verify in the BLE tab to see if Antenna Name displays the Cisco USB BLE Beacon

details.

Step 9 Export the maps as map archive. For more information, see the "Export Maps Archive" section in the Cisco Prime

Infrastructure 3.5 User Guide.

Step 10 Import the maps into Cisco CMX. For more information, see the "Importing Maps" section in the Cisco CMX

Configuration Guide.

ManagingCisco CMX for CiscoUSB BLEBeaconConfigurations

After you install a Cisco USB BLE Beacon into an AP, you need to perform specific tasks to complete the software configuration.

Before you begin

For a Cisco USB BLE Beacon to work with Cisco CMX, you should enable Hyperlocation on Cisco CMX. For more information, see the Hyperlocation Deployment Guide.

Step 1 Log in to Cisco Connected Mobile Experiences (Cisco CMX).

Step 2 Choose System > Dashboard.

The System at a Glance window is displayed.

Step 3 Click Settings at the top-right corner of the window. The SETTINGS window is displayed.

Note

Step 4 To enable tracking for BLE tags, click BLE Tags.

Note

Step 5 Click Save.

By default, the Tracking Parameters tab is displayed.

Besides acting as iBeacon or Eddystone, BLE radio can track BLE tags and beacons too. However, this capability is at an early stage and accuracy might not be good.

Cisco USB BLE Beacon Installation Guide

Installation and Initial Setup

Establishing the Connection Between Cisco CMX and Cisco DNA Spaces BLE Manager

Step 6 Click the DETECT & LOCATE tab.

Step 7 Using the left pane of the Activity Map window, navigate to the corresponding building and floor.

Step 8 Click the Access Points icon to show or hide all the APs that have been deployed on a specific floor.

Step 9 Select the AP with the Cisco USB BLE Beacon installed and then view the AP details.

Step 10 Verify if the Antenna Device Type displays the Cisco USB BLE Beacon details.

If the Cisco USB BLE Beacon information is not displayed, we recommend that you power off and power on the AP and wait until the AP rejoins the controller.

Establishing the Connection Between Cisco CMX and Cisco DNA Spaces BLE Manager

Cisco DNA Spaces BLE Manager is a cloud-based service provided with the purchase of Cisco APs. Cisco DNA Spaces BLE Manager works in conjunction with Cisco CMX and the controllers that are deployed in your network.

Cisco CMX connects with Cisco DNA Spaces BLE Manager using HTTPS.

Cisco DNA Spaces BLE Manager requires the HTTP_PROXY. You must set the NO_PROXY environment variable to point to 127.0.0.1 or localhost. For more information, see the Cisco DNA Spaces-BLE Manager guide at:

https://www.cisco.com/c/en/us/support/wireless/dna-spaces/ products-installation-and-configuration-guides-list.html.

Step 1 Log in to Cisco DNA Spaces BLE Manager.

Step 2 On the Cisco DNA Spaces BLE Manager dashboard, click Setup.

Step 3 Click the key icon to generate a token.

Step 4 Copy and save the token. (Note that the Gateway status at this point, is Down.)

Step 5 Log in to Cisco CMX.

Step 6 Choose MANAGE > Cloud Apps.

Step 7 Click Enable to enable Cisco DNA Spaces BLE Manager.

Step 8 In the dialog box that is displayed, enter the token that was generated, to enable Cisco DNA Spaces BLE Manager.

Step 9 Verify if the connection between Cisco CMX and Cisco DNA Spaces BLE Manager has been established. On the Cisco

DNA Spaces BLE Manager dashboard, IP address is shown as Active, and the Notification status and Gateway status are shows as UP.

Configuring a Cisco USB BLE Beacon Profile

Cisco USB BLE Beacon adds a BLE RX/TX radio to the Cisco Aironet 1830/1850/2800/3800 Series Access Points.

Cisco USB BLE Beacon Installation Guide

Installation and Initial Setup

Cisco USB BLE Beacon firmware supports different profiles. Profiles are the different bluetooth signals in approved formats.

Note

Only one profile can be active at a time.

The supported beacon profiles for an AP’s BLE firmware are:

Configuring a Cisco USB BLE Beacon Profile

• iBeacon

• Eddystone UID

• Eddystone URL

• Location (viBeacon)

For more information about profiles, see the Cisco DNA Spaces-BLE Manager configuration guide at:

https://www.cisco.com/c/en/us/support/wireless/dna-spaces/ products-installation-and-configuration-guides-list.html

Step 1 Log in to Cisco DNA Spaces BLE Manager.

Step 2 Choose Physical Beacons > AP Beacons.

The AP Beacons window displays the Beacon Status, MAC Address, Beacon ID, Profile Type, and Location details. Hover your cursor over the Profile Type information icon to view a message that an AP can broadcast only as iBeacon, Eddystone_URL, Eddystone_UID, or viBeacon.

Step 3 Select the AP with the Cisco USB BLE Beacon installed and click MAC address.

The Overview tab displays the beacon details.

Step 4 Click the Edit tab.

Step 5 Select the beacon profile from the AP Beacon drop-down list.

a) To configure the Cisco USB BLE Beacon as iBeacon, select iBeacon from the drop-down list and enter the required

information.

b) To configure the Cisco USB BLE Beacon as Eddystone UID or URL, select the corresponding profile from the

drop-down list and enter the required information.

Step 6 Click Save.

Cisco USB BLE Beacon Installation Guide

Configuring a Cisco USB BLE Beacon Profile

Installation and Initial Setup

Cisco USB BLE Beacon Installation Guide

Technical Specifications

This chapter contains information about the technical specifications of the Cisco USB BLE Beacon.

• AIR-BLE-USB Technical Specifications, on page 9

• Performance and Scale Requirements, on page 10

AIR-BLE-USB Technical Specifications

Table 4: Technical Specifications

4.2BLE Standard

5 dBmMaximum Transmit power

-20° to +50°C (-4° to 122°F)Operating Temperature

10% to 90% (noncondensing)Operating Humidity

-30° to 70°C (-22° to 158°F)Non-Operation Temperature

CHAPTER 3

3000 meters (9850 ft)Operation Altitude

0.085 WSystem Power

0.68 x 0.36 x 2.2 inches (17.2 x 9.0 x 55.8 mm)Dimensions (H x W x L)

Note

Cisco USB BLE Beacon can be ordered in pack of 10 or pack of 50. You must have Cisco DNA Spaces ACT license to manage Cisco BLE USB Beacon from the Cisco DNA Spaces BLE Manager GUI.

If you already have Cisco DNA Spaces ACT license, no additional licensing is required. However, if you do not have a Cisco DNA Spaces ACT license for the AP that a Cisco USB BLE Beacon will be placed in, a license is required.

Cisco USB BLE Beacon Installation Guide

Performance and Scale Requirements

We recommend that you deploy a Cisco USB BLE Beacon at every 2500 sq.ft. A Cisco USB BLE Beacon can accommodate at least 100 users in the specific coverage area. Each client can have a unique location accuracy experience without any degradation in location-accuracy or latency.

A Cisco USB BLE Beacon (operating in 2.4 GHz) is expected to have a low impact on 2.4-GHz WLAN because of the low-energy technology that is in use.

Technical Specifications

Cisco USB BLE Beacon Installation Guide

CHAPTER 4

Declarations of Conformity and Regulatory Information

This chapter provides declarations of conformity and regulatory information for the Cisco USB BLE Beacon. You can find additional information at this location.

• Manufacturers Federal Communication Commission Declaration of Conformity Statement, on page 11

• VCCI Statement for Japan, on page 12

• Guidelines for Operating Cisco USB BLE Beacon in Japan, on page 13

• Canadian Compliance Statement, on page 13

• Industry Canada, on page 15

• This Device Meets FCC and International Guidelines for Exposure to Radio Waves, on page 15

• This Device Meets the Industry Canada Guidelines for Exposure to Radio Waves, on page 15

• Cet appareil est conforme aux directives internationales en matière d'exposition aux fréquences

radioélectriques, on page 16

• Additional Information on RF Exposure, on page 16

• Declaration of Conformity Statements, on page 17

ManufacturersFederalCommunicationCommissionDeclaration of Conformity Statement

Table 5: Cisco USB BLE Beacon Models and Certification Numbers

Certification NumberCisco USB BLE Beacon Models

LDKCSPUD1977Cisco AIR-BLE-USB

Manufacturer:

Cisco Systems, Inc.

Cisco USB BLE Beacon Installation Guide

VCCI Statement for Japan

Declarations of Conformity and Regulatory Information

170 West Tasman Drive San Jose, CA 95134-1706 USA

This device complies with Part 15 rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Cisco may void the user’s authority to operate the equipment

Caution

The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency when using the integrated antennas. Any changes or modification to the product not expressly approved by Cisco could void the user’s authority to operate this device.

VCCI Statement for Japan

Caution

This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

Cisco USB BLE Beacon Installation Guide

Declarations of Conformity and Regulatory Information

Guidelines for Operating Cisco USB BLE Beacon in Japan

This section provides guidelines for avoiding interference when operating Cisco USB BLE Beacon in Japan. These guidelines are provided in both Japanese and English.

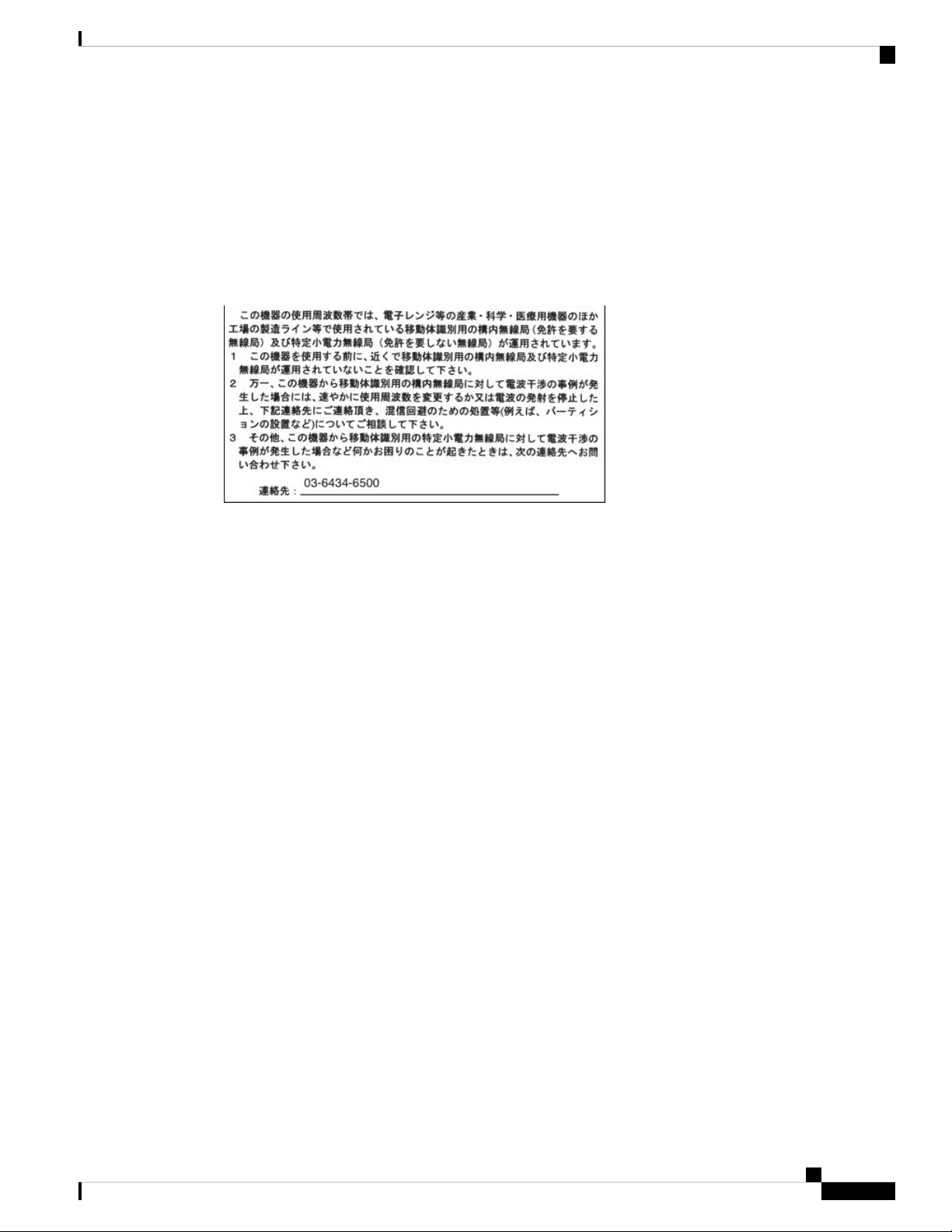

Japanese Translation

English Translation

This equipment operates in the same frequency bandwidth as industrial, scientific, and medical devices such as microwave ovens and mobile object identification (RF-ID) systems (licensed premises radio stations and unlicensed specified low-power radio stations) used in factory production lines.

1. Before using this equipment, make sure that no premises radio stations or specified low-power radio stations of RF-ID are used in the vicinity.

2. If this equipment causes RF interference to a premises radio station of RF-ID, promptly change the frequency or stop using the device; contact the number below and ask for recommendations on avoiding radio interference, such as setting partitions.

3. If this equipment causes RF interference to a specified low-power radio station of RF-ID, contact the number below.

Contact Number: 03-6434-6500

Canadian Compliance Statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Cisco USB BLE Beacon Installation Guide

Canadian Compliance Statement

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance.

Table 6: Antenna Specifications for Module

Declarations of Conformity and Regulatory Information

DescriptionItem

Embedded Antenna with Omni PatterAntenna

2.4~2.5GHzFrequency Band

LinearPolarization

1.9 dBiAntenna Peak Gain

48.6%Antenna Peak Efficiency

50 ohmsAntenna Impedance

Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise.

Table 7: Spécifications d'antenne pour module

La descriptionDétails de l'antenne

Embedded Antenna with Omni PatterAntenna

2.4~2.5GHzFrequency Band

LinearPolarization

1.9 dBiAntenna Peak Gain

48.6%Antenna Peak Efficiency

50 ohmsAntenna Impedance

Cisco USB BLE Beacon Installation Guide

Declarations of Conformity and Regulatory Information

Industry Canada

Table 8: Cisco USB BLE Beacon Models and Certification Numbers

Certification NumberCisco USB BLE Beacon Models

2461N-CSPUD1977AIR-BLE-USB

This Device Meets FCC and International Guidelines for Exposure to Radio Waves

Cisco USB BLE Beacon includes a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to ensure the safety of all persons, regardless of age and health.

As such the systems are designed to be operated as to avoid contact with the antennas by the end user. It is recommended to set the system in a location where the antennas can remain at least a minimum distance as specified from the user in accordance to the regulatory guidelines which are designed to reduce the overall exposure of the user or operator.

Table 9: Separation Distance

LimitDistanceMPE

1 mW/cm²20 cm (7.87 inches)0.00078 mW/cm²

The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of wireless devices. They recommend that if you are interested in further reducing your exposure then you can easily do so by reorienting antennas away from the user or placing he antennas at a greater separation distance then recommended.

This Device Meetsthe Industry CanadaGuidelines for Exposure to Radio Waves

The Cisco USB BLE Beacon includes a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) as referenced in Health Canada Safety Code 6. The guidelines include a substantial safety margin designed into the limit to ensure the safety of all persons, regardless of age and health.

Cisco USB BLE Beacon Installation Guide

Declarations of Conformity and Regulatory Information

Cet appareil est conforme aux directives internationales en matière d'exposition aux fréquences radioélectriques

Table 10: Separation Distance

LimitDistanceMPEFrequency

5.35 W/m²20 cm (7.87 inches)0.008 W/m²2402 MHz

Health Canada states that present scientific information does not indicate the need for any special precautions for the use of wireless devices. They recommend that if you are interested in further reducing your exposure you can easily do so by reorienting antennas away from the user, placing the antennas at a greater separation distance than recommended, or lowering the transmitter power output.

Cet appareil est conforme aux directives internationales en matière d'exposition aux fréquences radioélectriques

Cet appareil de la gamme Cisco USB BLE Beacon comprend un émetteur-récepteur radio. Il a été conçu de manière à respecter les limites en matière d'exposition aux fréquences radioélectriques (champs électromagnétiques de fréquence radio), recommandées dans le code de sécurité 6 de Santé Canada. Ces directives intègrent une marge de sécurité importante destinée à assurer la sécurité de tous, indépendamment de l'âge et de la santé.

Par conséquent, les systèmes sont conçus pour être exploités en évitant que l'utilisateur n'entre en contact avec les antennes. Il est recommandé de poser le système là où les antennes sont à une distance minimale telle que précisée par l'utilisateur conformément aux directives réglementaires qui sont conçues pour réduire l'exposition générale de l'utilisateur ou de l'opérateur.

Table 11: Distance d'éloignement

Santé Canada affirme que la littérature scientifique actuelle n'indique pas qu'il faille prendre des précautions particulières lors de l'utilisation d'un appareil sans fil. Si vous voulez réduire votre exposition encore davantage, selon l'agence, vous pouvez facilement le faire en réorientant les antennes afin qu'elles soient dirigées à l'écart de l'utilisateur, en les plaçant à une distance d'éloignement supérieure à celle recommandée ou en réduisant la puissance de sortie de l'émetteur.

Additional Information on RF Exposure

You can find additional information on the subject at the following links:

• FCC Bulletin 56: Questions and Answers about Biological Effects and Potential Hazards of Radio Frequency Electromagnetic Fields.

LimiteDistanceMPEFréquence

5.35 W/m²20 cm (7.87 inches)0.008 W/m²2402 MHz

• FCC Bulletin 65: Evaluating Compliance with the FCC guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.

• You can obtain additional information from the following organizations.

• World Health Organization Internal Commission on Non-Ionizing Radiation Protection at this location.

Cisco USB BLE Beacon Installation Guide

Declarations of Conformity and Regulatory Information

• United Kingdom, National Radiological Protection Board at this location.

• Cellular Telecommunications Association at this location.

• The Mobile Manufacturers Forum at this location.

Declaration of Conformity Statements

All the Declaration of Conformity statements related to this product can be found at this location

Declaration of Conformity Statements

Cisco USB BLE Beacon Installation Guide

Declaration of Conformity Statements

Declarations of Conformity and Regulatory Information

Cisco USB BLE Beacon Installation Guide

Cisco Systems CSPUD1977 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Cisco USB BLE Beacon Installation Guide

CONTENTS

Preface

Audience

Conventions

Related Documentation

Communications, Services, and Additional Information

Overview of Cisco USB BLE Beacon

Product Information

Software Requirement

Cisco USB BLE Beacon as a Solution

Installation and Initial Setup

Prerequisites for Cisco USB BLE Beacon Installation

Supported Hardware

Installation Guidelines

Installing the Cisco USB BLE Beacon

Importing Maps from Cisco Prime Infrastructure

Managing Cisco CMX for Cisco USB BLE Beacon Configurations

Establishing the Connection Between Cisco CMX and Cisco DNA Spaces BLE Manager

Configuring a Cisco USB BLE Beacon Profile

Technical Specifications

AIR-BLE-USB Technical Specifications

Performance and Scale Requirements

Declarations of Conformity and Regulatory Information

ManufacturersFederalCommunicationCommissionDeclaration of Conformity Statement

VCCI Statement for Japan

Guidelines for Operating Cisco USB BLE Beacon in Japan

Japanese Translation

English Translation

Canadian Compliance Statement

Industry Canada

This Device Meets FCC and International Guidelines for Exposure to Radio Waves

This Device Meetsthe Industry CanadaGuidelines for Exposure to Radio Waves

Cet appareil est conforme aux directives internationales en matière d'exposition aux fréquences radioélectriques

Additional Information on RF Exposure

Declaration of Conformity Statements
