A broad range of industry-compliant SFP+ modules for 10 Gigabit Ethernet deployments
in diverse networking environments.
Product overview
The Cisco® 10GBASE SFP+ modules (Figure 1) give you a wide variety of 10 Gigabit Ethernet connectivity
options for data center, enterprise wiring closet, and service provider transport applications.
Figure 1.
Cisco 10GBASE SFP+ modules
Features and benefits
Cisco SFP+ modules offer the following features and benefits.
●
Industry’s smallest 10G form factor for greatest density per chassis
●
Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch (no need to
power down if installing or replacing)
●
Supports “pay-as-you-populate” model for investment protection and ease of technology migration
●
Digital optical monitoring capability for strong diagnostic capabilities
●
Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same
link
●
Cisco quality Identification (ID) feature enables a Cisco platform to identify whether the module is
certified and tested by Cisco
© 2021 Cisco and/or its affiliates. All rights reserved. Page 3 of 21
Cisco PIDs
Speeds
Cable Type
Distance
Max. Power Consumption (W)
SFP-10G-T-X
10Gbps
Cat6A/Cat7 or better
Up to 30 meters
2.5W
SFP-10G-T-X
100M/1Gbps
Cat5e/Cat6A/Cat7 or better
Up to 100 meters
1.0W
Cisco SFP-10G-T-X module
The Cisco 10GBASE-T module (Figure 2) offers connectivity options at the following data rates:
100M/1G/10Gbps. It has the SFP+ form factor and an RJ-45 interface so that CAT5e/CAT6A/CAT7 cables can
be used to connect to end points with embedded 10GBASE-T ports. They are suitable for distances up to 30
meters and offers a cost-effective way to connect within racks and across adjacent racks.
Figure 2.
Cisco SFP+ 10GBASE-T module with RJ-45 connector
Table 1, details the specifications for the SFP-10G-T-X module, including cable type, distance, and data rates
supported.
Table 1. SFP-10G-T-X cabling specifications
Cisco SFP-10G-SR-S module (S-Class)
The Cisco 10GBASE-SR module supports a link length of 26 meters on standard Fiber Distributed Data
Interface (FDDI)-grade Multimode Fiber (MMF). Using 2000 MHz*km MMF (OM3), up to 300-meter link lengths
are possible. Using 4700 MHz*km MMF (OM4), up to 400 meter link lengths are possible. SFP-10G-SR-S does
not support FCoE.
Cisco SFP-10G-SR module
The Cisco 10GBASE-SR Module supports a link length of 26m on standard Fiber Distributed Data Interface
(FDDI)-grade Multimode Fiber (MMF). Using 2000MHz*km MMF (OM3), up to 300m link lengths are possible.
Using 4700MHz*km MMF (OM4), up to 400m link lengths are possible.
© 2021 Cisco and/or its affiliates. All rights reserved. Page 4 of 21
Cisco SFP-10G-SR-X module
The Cisco SFP-10G-SR-X is a multirate* 10GBASE-SR, 10GBASE-SW and OTU2/OTU2e module for extended
operating temperature range. It supports a link length of 26m on standard Fiber Distributed Data Interface
(FDDI)-grade Multimode Fiber (MMF). Using 2000MHz*km MMF (OM3), up to 300m link lengths are possible.
Using 4700MHz*km MMF (OM4), up to 400m link lengths are possible.
*
Except for version 1, which supports only 10GBASE-SR.
Cisco SFP-10G-LRM module
The Cisco 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface
(FDDI) grade Multimode Fiber (MMF). To make sure that specifications are met over FDDI-grade, OM1 and OM2
fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch
cord is required for applications over OM3 or OM4. For additional information on mode conditioning patch cord
requirements please see:
https://www.cisco.com/en/US/prod/collateral/modules/ps5455/product_bulletin_c25-530836.html.
The Cisco 10GBASE-LRM Module also supports link lengths of 300m on standard Single-Mode Fiber
(SMF, G.652).
Cisco FET-10G module
The Cisco FET-10G Fabric Extender Transceiver supports link lengths up to 100m on laser-optimized OM3 or
OM4 multimode fiber. It is supported on fabric links from a Nexus 2000 to a Cisco parent switch only. Note this
product is not orderable individually. For more information refer to Nexus 2000 datasheet:
https://www.cisco.com/en/US/prod/collateral/switches/ps9441/ps10110/data_sheet_c78-507093.html.
Cisco SFP-10G-LR-S module (S-Class)
The Cisco 10GBASE-LR module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF)
(G.652). SFP-10G-LR-S does not support FCoE.
Cisco SFP-10G-LR module
The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber
(SMF, G.652).
Cisco SFP-10G-LR-X module
The Cisco SFP-10G-LR-X is a multirate 10GBASE-LR, 10GBASE-LW, and OTU2/OTU2e module for extended
operating temperature range. It supports a link length of 10 kilometers on standard Single-Mode Fiber
(SMF, G.652).
© 2021 Cisco and/or its affiliates. All rights reserved. Page 5 of 21
Cisco SFP-10G-LR10-I module
The Cisco SFP-10G-LR10-I supports a link length of 10 kilometers on standard Single-Mode Fiber
(SMF, G.652). The SFP-10G-LR10-I is for industrial operating temperature range. The SFP-10G-LR10-I also
supports CPRI datrates options 3, 4, 5, 6, 7, 7a, 8.
Cisco SFP-10G-BXD-I and SFP-10G-BXU-I for 10Km (single-fiber bidirectional
applications)
The Cisco SFP-10G-BXD-I and SFP-10G-BXU-I SFPs operate on a single strand of standard SMF.
A SFP-10G-BXD-I device is always connected to a SFP-10G-BXU-I device with a single strand of standard
SMF with an operating transmission range up to 10 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the
two devices, as depicted in Figure 3. SFP-10G-BXD-I transmits a 1330-nm channel and receives a 1270-nm
signal, whereas SFP-10G-BXU-I transmits at a 1270-nm wavelength and receives a 1330-nm signal. Note in
Figure 3 the presence of a Wavelength-Division Multiplexing (WDM) splitter integrated into the SFP to split the
1270-nm and 1330-nm light paths.
Figure 3.
Bidirectional transmission of a single strand of SMF
The SFP-10G-BXD-I and SFP-10G-BXU-I SFPs also support Digital Optical Monitoring (DOM) functions
according to the industry-standard SFF-8472 Multisource Agreement (MSA). This feature gives the end user
the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power,
temperature, laser bias current, and transceiver supply voltage.
Cisco SFP-10G-ER-S module (S-Class)
The Cisco 10GBASE-ER module supports a link length of up to 40 kilometers on SMF (G.652). SFP-10G-ER-S
does not support FCoE.
Cisco SFP-10G-ER module
The Cisco 10GBASE-ER Module supports a link length of up to 40 kilometers on standard Single-Mode Fiber
(SMF, G.652).
© 2021 Cisco and/or its affiliates. All rights reserved. Page 6 of 21
Cisco SFP-10G-ER-I module
The Cisco 10GBASE-ER Industrial Temperature Module supports a link length of up to 40 kilometers on
standard Single-Mode Fiber (SMF, G.652). The SFP-10G-ER-I for Industrial Operating Temperature Range is a
multirate 10GBASE-ER, 10GBASE-EW and OTU2/2e module.
Cisco SFP-10G-BX40D-I and SFP-10G-BX40U-I (for 40Km single-fiber bidirectional
applications)
The Cisco SFP-10G-BX40D-I and SFP-10G-BX40U-I SFPs operate on a single strand of standard SMF.
A SFP-10G-BX40D-I device is always connected to a SFP-10G-BX40U-I device with a single strand of
standard SMF with an operating transmission range up to 40 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the
two devices. SFP-10G-BX40D-I transmits a 1330-nm channel and receives a 1270-nm signal. The SFP-10GBX40U-I transmits at a 1270-nm wavelength and receives a 1330-nm signal.
The SFP-10G-BX40D-I and SFP-10G-BX40U-I SFPs support Digital Optical Monitoring (DOM) functions
according to the industry-standard SFF-8472 Multisource Agreement (MSA). This feature gives the end user
the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power,
temperature, laser bias current, and transceiver supply voltage.
Cisco SFP-10G-ZR-S module (S-Class)
The Cisco 10GBASE-ZR module supports link lengths of up to about 80 kilometers on standard SMF (G.652).
This interface is not specified as part of the 10 Gigabit Ethernet standards and is, instead, built according to
Cisco specifications. SFP-10G-ZR-S does not support FCoE.
Cisco SFP-10G-ZR module
The Cisco SFP-10G-ZR is a multirate 10GBASE-ZR, 10GBASE-ZW, and OTU2/OTU2e module. It supports link
lengths of up to about 80 kilometers on standard Single-Mode Fiber (SMF, G.652). This interface is not
specified as part of the 10 Gigabit Ethernet standard and is instead built according to Cisco specifications.
© 2021 Cisco and/or its affiliates. All rights reserved. Page 7 of 21
Cisco SFP+ Twinax copper cables
Cisco SFP+ Copper Twinax (Figure 4) direct-attach cables are suitable for very short distances and offer a
cost-effective way to connect within racks and across adjacent racks. Cisco offers passive Twinax cables in
lengths of 1, 1.5, 2, 2.5, 3, 4 and 5 meters, and active Twinax cables in lengths of 7 and 10 meters.

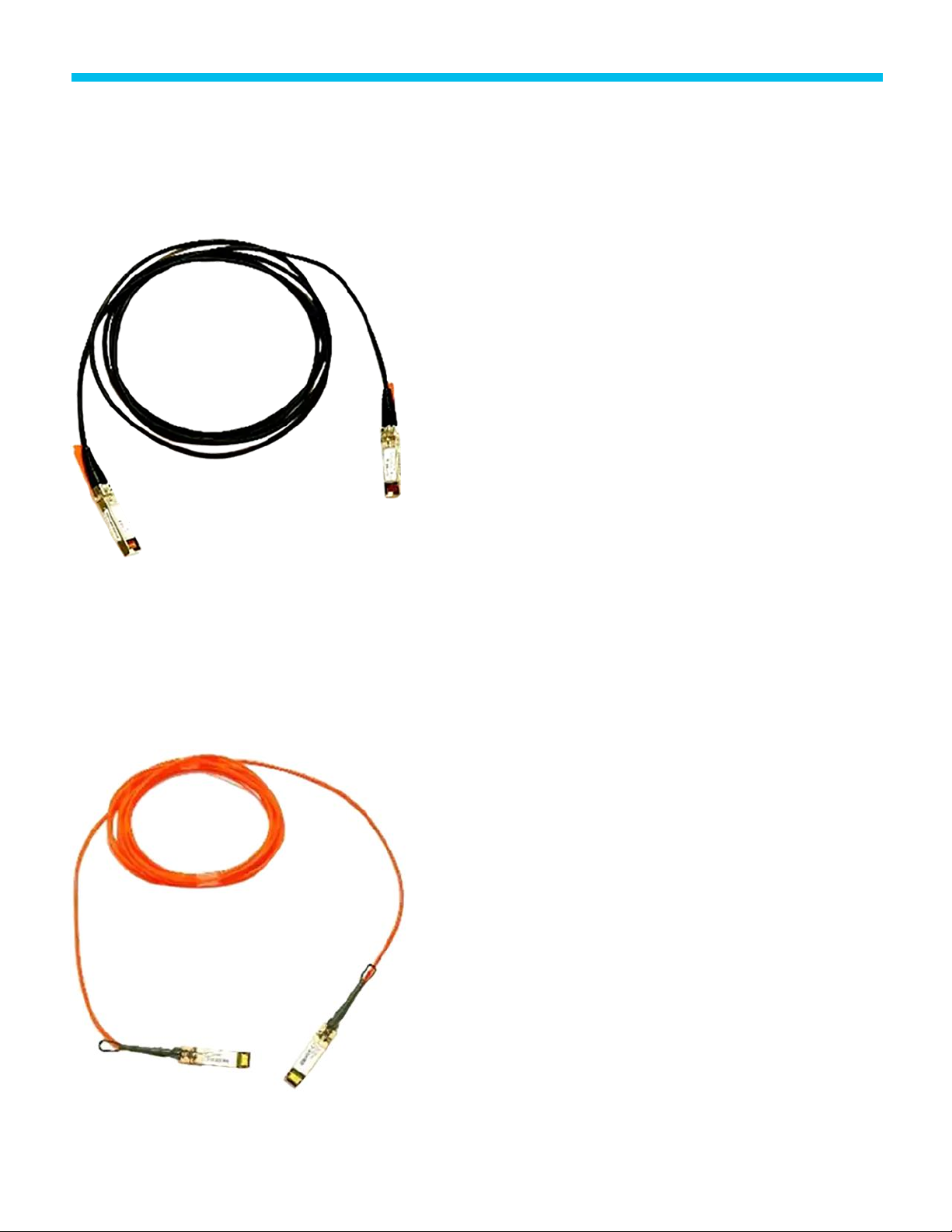

Figure 4.
Cisco direct-attach twinax copper cable assembly with SFP+ connectors
Cisco SFP+ Active optical cables
Cisco SFP+ Active Optical Cables (Figure 5) are direct-attach fiber assemblies with SFP+ connectors. They are
suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent
racks. Cisco offers Active Optical Cables in lengths of 1, 2, 3, 5, 7, and 10 meters.
Figure 5.
Cisco direct-attach active optical cables with SFP+ connectors
© 2021 Cisco and/or its affiliates. All rights reserved. Page 8 of 21
● 7600 Series Router
● ASR 901
● ASR 903
● ASR 1000 Series Router
● ASR 9000 Series Router
● ASR 9000v Series Router
● Catalyst 2350 and 2360 Series Switches
● Catalyst 2960-S, 2960-X, and 2960-XR Series Switches
● Catalyst 3100 Blade Switches
● Catalyst 3560, 3560-E, and 3560-X Series Switches
● Catalyst 3750, 3750-E, and 3750-X Series Switches
● Catalyst 3850 Series Switches
● Catalyst 4500 and 4500-X Series Switches
● CRS Router
● MDS 9000
● ME 4500
● ME 4900NCS 6000 Series Router
● Nexus 2000, 3000, and 4000 Series Switches
● Nexus 9000 and 9500 (modular) Series Switches
● RF Gateway Series
● SCE 8000
● Shared Port Adapter (SPA)
● Unified Computing System (UCS) Switches
Cisco SFP+
Wavelength (nm)
Cable Type
Core Size
(Microns)
Modal Bandwidth
(MHz*km)*3
Cable
Distance*1
Cisco SFP-10G-SR-Sa
Cisco SFP-10G-SR
Cisco SFP-10G-SR-X
850
MMF
62.5
62.5
50.0
50.0
50.0
50.0
50.0
160 (FDDI)
200 (OM1)
400
500 (OM2)
2000 (OM3)
4700 (OM4)
4700 (OM5)
26m
33m
66m
82m
300m
400m
400m
Platform support
Cisco SFP+ modules are supported on a wide range of Cisco switches and routers*:
*
Not all devices listed support every module. For details about which modules run in which devices and other compatibility information,
refer to the document “Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix”:
https://www.cisco.com/en/US/docs/interfaces_modules/transceiver_modules/compatibility/matrix/OL_6974.html.
Additional platforms may continually be added; please check the compatibility matrix for the latest information
and for the Cisco compatible operating system for each platform.
Connectors: Dual LC/PC connector (-SR, -LRM, -LR, -ER, -ZR and FET-10G).
Note: Only connections with patch cords with PC or UPC connectors are supported. Patch cords with
APC connectors are not supported. All cables and cable assemblies used must be compliant with the
standards specified in the standards section.
Product specifications
Table 2 provides cabling specifications for the Cisco SFP+ modules.
Table 2. SFP+ port cabling specifications
© 2021 Cisco and/or its affiliates. All rights reserved. Page 9 of 21
Cisco SFP+
Wavelength (nm)
Cable Type
Core Size
(Microns)
Modal Bandwidth
(MHz*km)*3
Cable
Distance*1
Cisco SFP-10G-LRM
1310
MMF
SMF
62.5
50.0
50.0
G.652
500
400
500
-
220m
100m
220m
300m
Cisco FET-10G
850
MMF
50.0
50.0
50.0
50.0
500 (OM2)
2000 (OM3)
4700 (OM4)
4700 (OM5)
25m
100m
100m
100m
Cisco SFP-10G-LR-Sa
Cisco SFP-10G-LR
Cisco SFP-10G-LR-X
Cisco SFP-10G-LR10-Ib
1310
SMF
G.652
-
10km
Cisco SFP-10G-BXD-I
1330
SMF
G.652
-
10kmb
Cisco SFP-10G-BXU-I
1270
SMF
G.652
-
10kmb
Cisco SFP-10G-ER-S
*4a
Cisco SFP-10G-ER
*4
Cisco SFP-10G-ER-I*4
1550
SMF
G.652
-
40km*2
Cisco SFP-10G-BX40D-I*6
1330
SMF
G.652
-
40km
Cisco SFP-10G-BX40U-I*6
1270
SMF
G.652
-
40km
Cisco SFP-10G-ZR-S
*5a
Cisco SFP-10G-ZR*5
1550
SMF
G.652
-
80km
Cisco SFP-H10GB-CU1M
-
Twinax cable,
passive, 30AWG
cable assembly
- - 1m
Cisco SFP-H10GB-CU1-5M
-
Twinax cable,
passive, 30AWG
cable assembly
- - 1.5m
Cisco SFP-H10GB-CU2M
-
Twinax cable,
passive, 30AWG
cable assembly
- - 2m
Cisco SFP-H10GB-CU2-5M
-
Twinax cable,
passive, 30AWG
cable assembly
- - 2.5m
Cisco SFP-H10GB-CU3M
-
Twinax cable,
passive, 30AWG
cable assembly
- - 3m
© 2021 Cisco and/or its affiliates. All rights reserved. Page 10 of 21
Cisco SFP+
Wavelength (nm)
Cable Type
Core Size
(Microns)
Modal Bandwidth
(MHz*km)*3
Cable
Distance*1
Cisco SFP-H10GB-CU4M
-
Twinax cable,
passive, 24AWG
or 26AWG cable
assembly
- - 4m
Cisco SFP-H10GB-CU5M
-
Twinax cable,
passive, 24AWG
or 26AWG cable
assembly
- - 5m
Cisco SFP-H10GB-ACU7M
-
Twinax cable,
active, 30 AWG
cable assembly
- - 7m
Cisco SFP-H10GB-ACU10M
-
Twinax cable,
active, 28 AWG
cable assembly
- - 10m
Cisco SFP-10G-AOC1M
-
Active Optical
Cable assembly
- - 1m
Cisco SFP-10G-AOC2M
-
Active Optical
Cable assembly
- - 2m
Cisco SFP-10G-AOC3M
-
Active Optical
Cable assembly
- - 3m
Cisco SFP-10G-AOC5M
-
Active Optical
Cable assembly
- - 5m
Cisco SFP-10G-AOC7M
-
Active Optical
Cable assembly
- - 7m
Cisco SFP-10G-AOC10M
-
Active Optical
Cable assembly
- - 10m
*
1 Minimum cabling distance for -SR, -LRM, -LR, -ER modules is 2m, according to the IEEE 802.3ae.
*
2 Links longer than 30km are considered engineered links as per IEEE 802.3ae.
*
3 Specified at transmission wavelength.
*
4 Requires 5 dB 1550nm fixed loss attenuator for < 20km. Attenuator is available as a spare. The part number is 15216 ATT LC 5=.
*
5 Requires 15dB attenuator if Link Distance < 5km.
Requires 10dB attenuator if Link Distance is between 5km and 25km.
Requires 5dB attenuator if Link Distance is between 25km and 45km.
*
6 Requires 15dB attenuator if Link Distance < 5km.
Requires 10dB attenuator if Link Distance is between 5km and 15km.
Requires 5dB attenuator if Link Distance is between 15km and 25km.
© 2021 Cisco and/or its affiliates. All rights reserved. Page 11 of 21
Product
Type
Transmit Power (dBm)*
Receive Power (dBm)*
Transmit and
Receive
Wavelength (nm)
Maximum
Minimum
Maximum
Minimum
Cisco SFP-10G-SR-S
Cisco SFP-10G-SR
10GBASE-SR
850nm MMF
-1.2**
-7.3
-1.0
-9.9
840 to 860
Cisco SFP-10G-SR-X
10GBASE-SR,
10GBASE-SW and
OTU2e 850nm
MMF
-1.2**
-7.3
-1.0
-9.9
840 to 860
Cisco SFP-10G-LRM
10GBASE-LRM
1310nm MMF and
SMF
0.5
-6.5
0.5
-8.4 (in
average)
and -6.4 (in
OMA)
***
1260 to 1355
Cisco FET-10G
FET-10G 850nm
MMF
-1.3
-8
-1
-9.9
840 to 860
Cisco SFP-10G-LR-S
Cisco SFP-10G-LR
10GBASE-LR
1310nm SMF
0.5
-8.2
0.5
-14.4
1260 to 1355
Cisco SFP-10G-LR-X
10GBASE-LR,
10GBASE-LW and
OTU2e 1310nm
SMF
0.5
-8.2
0.5
-14.4
1260 to 1355
Cisco SFP-10G-LR10-I
10GBASE-LR,
CPRI 1310 SMF
0.5
-8.2
0.5
-14.4
1260 to 1355
Cisco SFP-10G-BXD-I
10G-SFP
Bidirectional for
10km
0.5
-8.2
0.5
-14.4
1320 to 1340 (Tx)
1260 to 1280 (Rx)
Cisco SFP-10G-BXU-I
10G-SFP
Bidirectional for
10km
0.5
-8.2
0.5
-14.4
1260 to 1280 (Tx)
1320 to 1340 (Rx)
Cisco SFP-10G-ER-S
Cisco SFP-10G-ER
Cisco SFP-10G-ER-I
10GBASE-ER
1550nm SMF
4.0
-4.7
-1
-15.8
1530 to 1565
Attenuator is available as a spare. The part numbers:
●
5dB - 15216 ATT LC 5=
●
10dB - 15216 ATT LC 10=
●
15dB - 15216 ATT LC 15=
a - No FCoE support.
b - Links up to 15 km are supported as engineered links as long as channel insertion loss < 6.2 dB.
Table 3 lists the main optical characteristics for the Cisco SFP+ modules.
Table 3. Optical transmit and receive specifications
© 2021 Cisco and/or its affiliates. All rights reserved. Page 12 of 21
Product
Type
Transmit Power (dBm)*
Receive Power (dBm)*
Transmit and
Receive
Wavelength (nm)
Maximum
Minimum
Maximum
Minimum
Cisco SFP-10G-BX40D-I
10G-SFP
Bidirectional for
40km
4.5
-2.7
-9
-21.2
1320 to 1340 (Tx)
1260 to 1280 (Rx)
Cisco SFP-10G-BX40U-I
10G-SFP
Bidirectional for
40km
4.5
-2.7
-9
-21.2
1260 to 1280 (Tx)
1320 to 1340 (Rx)
Cisco SFP-10G-ZR-S
Cisco SFP-10G-ZR
10GBASE-ZR
1550nm SMF
4.0 0 -7
-24
1530 to 1565
Parameter
Symbol
Minimum
Typical
Maximum
Units
Notes and Conditions
Transmitter
Transmitter wavelength
1530
1565
nm
Side-mode suppression
ratio
SMSR
30
dB Transmitter extinction
ratio
9 dB Transmitter optical
output power
Pout
0 4.0
dBm
Average power coupled into single-mode
fiber
Receiver
Receiver optical input
wavelength
1260
1565
nm
Receiver Sensitivity specified over 15301565nm only, with 3dB degradation
permitted from 1260-1530nm
Receiver damage
threshold
+5
dBm
Receiver Overload
-7
dBm
*
Transmitter and receiver power is in average, unless specified.
**
The launch power shall be the lesser of the class 1 safety limit or the maximum receive power. Class 1 laser requirements are defined by
IEC 60825-1: 2001.
***
Both average and OMA specifications must be met simultaneously.
Table 4 details optical specifications for the Cisco SFP-10G-ZR modules.
Table 4. SFP-10G-ZR optical parameters
© 2021 Cisco and/or its affiliates. All rights reserved. Page 13 of 21
Parameter
Symbol
Minimum
Typical
Maximum
Units
Notes and Conditions
Receiver performance at 10GE LAN and 10GE WAN rates, non-FEC application
Receiver sensitivity
-24
dBm
At BER=1E-12 with PRBS31 and 10GE
frame
Chromatic Dispersion
Penalty@ 1600 ps/nm
3 dB
Receiver performance at OTU2/OTU2e rates, FEC application
Receiver sensitivity
-27
dBm
At Pre-FEC BER=1E-5 for GFEC and PreFEC BER=7E-4 for EFEC with PRBS31 and
OTU2 frame
Chromatic Dispersion
Penalty@ 1300 ps/nm
3 dB
Product
Bail Latch Color
Cisco SFP-10G-T-X
Golden/Yellow
Cisco SFP-10G-SR-S
Cisco SFP-10G-SR
Cisco SFP-10G-SR-X
Beige
Cisco SFP-10G-LRM
Orange
Cisco FET-10G
Brown
Cisco SFP-10G-LR-S
Cisco SFP-10G-LR
Cisco SFP-10G-LR-X
Cisco SFP-10G-LR10-I
Blue
Cisco SFP-10G-BXD-I
Cisco SFP-10G-BXU-I
Blue
Cisco SFP-10G-ER-S
Cisco SFP-10G-ER
Cisco SFP-10G-ER-I
Red
Note: Parameters are specified over temperature and at end of life unless otherwise noted. When shorter
distances of single-mode fiber are used (<40km), an inline optical attenuator must be used to avoid
overloading and damaging the receiver.
Table 5 describes the bail latch color code for each type of optical SFP+ module.
Table 5. SFP+ optical modules color code
© 2021 Cisco and/or its affiliates. All rights reserved. Page 14 of 21
Product
Bail Latch Color
Cisco SFP-10G-BX40D-I
Cisco SFP-10G-BX40U-I
Red
Cisco SFP-10G-ZR-S
Cisco SFP-10G-ZR
Green
Cisco SFP-H10GB-CU1M
Beige
Cisco SFP-H10GB-CU1-5M
Black
Cisco SFP-H10GB-CU2M
Brown
Cisco SFP-H10GB-CU2-5M
Yellow
Cisco SFP-H10GB-CU3M
Orange
Cisco SFP-H10GB-CU4M
Green
Cisco SFP-H10GB-CU5M
Gray
Cisco SFP-H10GB-ACU7M
Blue
Cisco SFP-H10GB-ACU10M
Red
Cisco SFP-10G-AOC1M
Beige
Cisco SFP-10G-AOC2M
Brown
Cisco SFP-10G-AOC3M
Orange
Cisco SFP-10G-AOC5M
Gray
Cisco SFP-10G-AOC7M
Blue
Cisco SFP-10G-AOC10M
Red
Product
Power Consumption (W)
Operating Temperature Range
Cisco SFP-10G-T-X
2.5W
EXT
Cisco SFP-10G-SR-S
Cisco SFP-10G-SR
1
COM
Cisco SFP-10G-SR-X
1
EXT
Cisco SFP-10G-LRM
1
COM
Table 6 provides the maximum power consumption and operating temperature range ratings per Cisco SFP+
module.
Table 6. SFP+ modules power consumption
© 2021 Cisco and/or its affiliates. All rights reserved. Page 15 of 21
Product
Power Consumption (W)
Operating Temperature Range
Cisco FET-10G
1
COM
Cisco SFP-10G-LR-S
Cisco SFP-10G-LR
1
COM
Cisco SFP-10G-LR-X
1
EXT
Cisco SFP-10G-LR10-I
1
IND
Cisco SFP-10G-BXD-I
Cisco SFP-10G-BXU-I
1
IND
Cisco SFP-10G-ER-S
Cisco SFP-10G-ER
1.5
COM
Cisco SFP-10G-ER-I
1.5
IND
Cisco SFP-10G-BX40D-I
Cisco SFP-10G-BX40U-I
1.2
IND
Cisco SFP-10G-ZR-S
Cisco SFP-10G-ZR
1.5
COM
Cisco SFP-H10GB-CU1M
0.1
COM
Cisco SFP-H10GB-CU1-5M
0.1
COM
Cisco SFP-H10GB-CU2M
0.1
COM
Cisco SFP-H10GB-CU2-5M
0.1
COM
Cisco SFP-H10GB-CU3M
0.1
COM
Cisco SFP-H10GB-CU4M
0.1
COM
Cisco SFP-H10GB-CU5M
0.1
COM
Cisco SFP-H10GB-ACU7M
1
COM
Cisco SFP-H10GB-ACU10M
1
COM
Cisco SFP-10G-AOC1M
1
COM
Cisco SFP-10G-AOC2M
1
COM
Cisco SFP-10G-AOC3M
1
COM
Cisco SFP-10G-AOC5M
1
COM
Cisco SFP-10G-AOC7M
1
COM
Cisco SFP-10G-AOC10M
1
COM
© 2021 Cisco and/or its affiliates. All rights reserved. Page 16 of 21
Sustainability
Topic
Reference
General
Information on product-material-content laws and
regulations
Materials
Information on electronic waste laws and regulations,
including our products, batteries and packaging
WEEE Compliance
Information on product takeback and resuse program
Cisco Takeback and Reuse Program
Sustainability Inquiries
Contact: csr_inquiries@cisco.com
Countries and Regions Supported
Regulatory Compliance Page 19
Power
Power (Including Pluggable)
Table 6: Power Consumption
Material
Product packaging weight and materials
Contact: environment@cisco.com
Weight
Dimensions Page 17
Dimensions
Dimensions (H x W x D): 8.5 x 13.4 x 56.5mm. Cisco SFP+ connectors typically weigh 75 grams or less.
Environmental Conditions and Power Requirements
Operating temperature range:
●
Commercial temperature range (COM): 0 to 70°C (32 to 158°F)
●
Extended temperature range (EXT): -5 to 85°C (23 to 185°F)
●
Industrial temperature range (IND): -40 to 85°C (-40 to 185°F)
●
Storage temperature range: -40 to 85°C (-40 to 185°F)
Warranty
●
Standard warranty: 5 years
●
Expedited replacement available via a Cisco SMARTnet® Service support contract
Cisco environmental sustainability
Information about Cisco’s environmental sustainability policies and initiatives for our products, solutions,
operations, and extended operations or supply chain is provided in the “Environment Sustainability” section of
Cisco’s Corporate Social Responsibility (CSR) Report.
Reference links to information about key environmental sustainability topics (mentioned in the “Environment
Sustainability” section of the CSR Report) are provided in the following table:
Cisco makes the packaging data available for informational purposes only. It may not reflect the most current
legal developments, and Cisco does not represent, warrant, or guarantee that it is complete, accurate, or up to
date. This information is subject to change without notice.
© 2021 Cisco and/or its affiliates. All rights reserved. Page 17 of 21
Description
Product Number
Cisco 10GBASE-T SFP+ Module for CAT6A cables (up to 30 meters)
SFP-10G-T-X
Cisco 10GBASE-SR SFP+ Module for MMF S-Class
SFP-10G-SR-S
Cisco 10GBASE-SR SFP+ Module for MMF
SFP-10G-SR
Cisco multirate 10GBASE-SR, 10GBASE-SW and OTU2e SFP+ Module for
MMF, extended temperature range
SFP-10G-SR-X
Cisco 10GBASE-LRM SFP+ Module for MMF and SMF
SFP-10G-LRM
Cisco 10GBASE-LR SFP+ Module for SMF S-Class
SFP-10G-LR-S
Cisco 10GBASE-LR SFP+ Module for SMF
SFP-10G-LR
Cisco multirate 10GBASE-LR, 10GBASE-LW and OTU2e SFP+ Module for SMF,
extended temperature range
SFP-10G-LR-X
Cisco multirate 10GBASE-LR, CPRI 3-8, Industrial Temperature Module
SFP-10G-LR10-I
Cisco 10GBASE-BX10-D Bidirectional for 10km
SFP-10G-BXD-I
Cisco 10GBASE-BX10-U Bidirectional for 10km
SFP-10G-BXU-I
Cisco 10GBASE-ER SFP+ Module for SMF S-Class
SFP-10G-ER-S
Cisco 10GBASE-ER SFP+ Module for SMF
SFP-10G-ER
Cisco multirate 10GBASE-ER, 10GBASE-EW and OTU2e SFP+ Module for SMF,
Industrial Temperature range
SFP-10G-ER-I
Cisco 10GBASE-BX40-D Bidirectional for 40km
SFP-10G-BX40D-I
Cisco 10GBASE-BX40-U Bidirectional for 40km
SFP-10G-BX40U-I
Cisco 10GBASE-ZR SFP+ Module for SMF S-Class
SFP-10G-ZR-S
Cisco multirate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF
SFP-10G-ZR
10GBASE-CU SFP+ Cable 1 Meter, passive
SFP-H10GB-CU1M
10GBASE-CU SFP+ Cable 1.5 Meter, passive
SFP-H10GB-CU1-5M
10GBASE-CU SFP+ Cable 2 Meter, Passive
SFP-H10GB-CU2M
10GBASE-CU SFP+ Cable 2.5 Meter, Passive
SFP-H10GB-CU2-5M
10GBASE-CU SFP+ Cable 3 Meter, passive
SFP-H10GB-CU3M
Ordering information
Table 7 provides the ordering information for Cisco SFP+ modules and related cables.
Table 7. Ordering information
© 2021 Cisco and/or its affiliates. All rights reserved. Page 18 of 21
Description
Product Number
10GBASE-CU SFP+ Cable 4 Meter, passive
SFP-H10GB-CU4M
10GBASE-CU SFP+ Cable 5 Meter, passive
SFP-H10GB-CU5M
10GBASE-CU SFP+ Cable 7 Meter, active
SFP-H10GB-ACU7M
10GBASE-CU SFP+ Cable 10 Meter, active
SFP-H10GB-ACU10M
10GBASE-AOC SFP+ Cable 1 Meter
SFP-10G-AOC1M
10GBASE-AOC SFP+ Cable 2 Meter
SFP-10G-AOC2M
10GBASE-AOC SFP+ Cable 3 Meter
SFP-10G-AOC3M
10GBASE-AOC SFP+ Cable 5 Meter
SFP-10G-AOC5M
10GBASE-AOC SFP+ Cable 7 Meter
SFP-10G-AOC7M
10GBASE-AOC SFP+ Cable 10 Meter
SFP-10G-AOC10M
Regulatory and standards compliance
Standards:
●
GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
●
GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
●
GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
●
IEEE 802.3: 10-Gigabit Ethernet
●
ITU-T G.709: Interfaces for the Optical Transport Network
●
ITU-T G.975: GFEC
●
ITU-T G.975.1: EFEC
●
SFP+ MSA SFF-8431 (Optical Modules, Active Optical Cables, and Passive Twinax cables)
●
SFP+ MSA SFF-8461 (Active Twinax cables)
Safety:
●
Laser Class 1 21CFR-1040 LN#50 7/2001
●
Laser Class 1 IEC60825-1
●
Cable jacket of SFP+ copper modules is UL #E116441 Compliant
●
All length SFP+ copper cables are ELV and RoHS Compliant
© 2021 Cisco and/or its affiliates. All rights reserved. Page 19 of 21
Cisco Capital
Flexible payment solutions to help you achieve your objectives
Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business
transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve
capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you
acquire hardware, software, services and complementary third-party equipment in easy, predictable
payments. Learn more.
Next steps
Learn more about Cisco 10GBASE SFP+ fiber modules or 10GBase SFP+ copper modules (twinax cable) by
contacting your sales representative or visiting https://www.cisco.com/en/US/products/ps6574/index.html.
For S-Class SFP+ 10 Gigabit Modules, refer to the link below:
https://www.cisco.com/c/en/us/products/interfaces-modules/transceiver-modules/datasheet-listing.html.
© 2021 Cisco and/or its affiliates. All rights reserved. Page 20 of 21
New or revised topic
Described in
Date
New PID SFP-10G-LR10-I added
Ordering Information
March 04, 2021
Document history
Printed in USA C78-455693-25 03/21
© 2021 Cisco and/or its affiliates. All rights reserved. Page 21 of 21
Loading...
