Cisco Catalyst 2960-L User Manual

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

First Published: 2016-09-30

Last Modified: --

Americas Headquarters

Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 527-0883

Text Part Number:

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment causes interference to radio or television reception, which can be determined by turning the equipment off and on, users are encouraged to try to correct the interference by using one or more of the following measures:

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

•

Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the product

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright©1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED "AS IS" WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: http://

www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership

relationship between Cisco and any other company. (1110R)

Preface

CHAPTER 1

Preface vii

Document Conventions vii

Preface

Document Conventions, page vii

•

Document Conventions

This document uses the following conventions:

DescriptionConvention

^ or Ctrl

Italic font

...

[x | y]

Both the ^ symbol and Ctrl represent the Control (Ctrl) key on a keyboard. For example, the key combination ^D or Ctrl-D means that you hold down the Control key while you press the D key. (Keys are indicated in capital letters but are not case sensitive.)

Commands and keywords and user-entered text appear in bold font.bold font

Document titles, new or emphasized terms, and arguments for which you supply values are in italic font.

Terminal sessions and information the system displays appear in courier font.Courier font

Bold Courier font indicates text that the user must enter.Bold Courier font

Elements in square brackets are optional.[x]

An ellipsis (three consecutive nonbolded periods without spaces) after a syntax element indicates that the element can be repeated.

A vertical line, called a pipe, indicates a choice within a set of keywords or arguments.

Optional alternative keywords are grouped in brackets and separated by vertical bars.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

vii

Document Conventions

Preface

DescriptionConvention

Note

{x | y}

Required alternative keywords are grouped in braces and separated by vertical bars.

[x {y | z}]

Nested set of square brackets or braces indicate optional or required choices within optional or required elements. Braces and a vertical bar within square brackets indicate a required choice within an optional element.

string

A nonquoted set of characters. Do not use quotation marks around the string or the string will include the quotation marks.

Nonprinting characters such as passwords are in angle brackets.< >

Default responses to system prompts are in square brackets.[ ]

!, #

An exclamation point (!) or a pound sign (#) at the beginning of a line of code indicates a comment line.

Reader Alert Conventions

This document may use the following conventions for reader alerts:

Means reader take note. Notes contain helpful suggestions or references to material not covered in the manual.

Tip

Caution

Timesaver

Warning

Means the following information will help you solve a problem.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of data.

Means the described action saves time. You can save time by performing the action described in the paragraph.

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071

SAVE THESE INSTRUCTIONS

viii

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Preface

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/c/en/us/td/docs/general/whatsnew/whatsnew.html

Subscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS version 2.0.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Obtaining Documentation and Submitting a Service Request

Preface

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

CHAPTER 1

Product Overview

The Cisco Catalyst 2960-L Series switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspace, and out-of-wiring closet applications.

Cisco Catalyst 2960-L Series switches provide support for the following features:

8, 16, 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance

•

Two or four Gigabit Small Form-Factor Pluggable (SFP) uplinks

•

Power over Ethernet Plus (PoE+) support with up to 370W of PoE budget and Persistent PoE

•

Fanless operation with operational temperature up to 45°C for deployment outside the wiring closet

•

Reduced power consumption and advanced energy management

•

RJ-45 and USB Mini-Type B console ports

•

USB Type A port supports file system

•

Switch Models, page 1

•

Front Panel, page 2

•

Rear Panel, page 10

•

Network Configurations, page 12

•

Switch Models

Table 1: Cisco Catalyst 2960-L 8-Port and 16-Port Switch Models and Description

Switch Model

DescriptionSoftware


Lan LiteWS-C2960L-8TS-LL

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

8 10/100/1000 Ethernet ports; 2 1-Gigabit small form-factor pluggable (SFP) module uplink slots.

Front Panel

Product Overview

Front Panel

Switch Model


Lan LiteWS-C2960L-8PS-LL

Lan LiteWS-C2960L-16TS-LL

Lan LiteWS-C2960L-16PS-LL

This section describes the front panel components of a 8-port and 16-port Cisco Catalyst 2960-L switch.

8 or 16 downlink Ethernet ports of one of these types:

•

10/100/1000

◦

10/100/1000 PoE+

◦

DescriptionSoftware

8 10/100/1000 Power over Ethernet plus (PoE+) ports (PoE budget of 67W); 2 1-Gigabit small form-factor pluggable (SFP) module uplink slots.

16 10/100/1000 Ethernet ports; 2 1-Gigabit small form-factor pluggable (SFP) module uplink slots.

16 10/100/1000 Power over Ethernet plus (PoE+) ports (PoE budget of 120W); 2 1-Gigabit small form-factor pluggable (SFP) module uplink slots.

2 SFP module ports

•

RJ-45 console port

•

USB mini-Type B (console) port

•

USB Type A port

•

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Product Overview

LEDs

•

Figure 1: Front Panel of an 8-Port Cisco Catalyst 2960-L PoE Switch

Front Panel

The yellow color marking around the ports indicates that the switch is a PoE switch.Note

System LEDs5Mode button1

8 10/100/1000 PoE+ ports6USB Type A port2

SFP module slots7RJ-45 Console Port3

USB mini-Type B (console) port4

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

PoE Ports

Product Overview

Figure 2: Front Panel of a 16-Port Cisco Catalyst 2960-L PoE Switch

PoE Ports

System LEDs5Mode button1

16 10/100/1000 PoE+ ports6USB Type A port2

SFP module slots7RJ-45 Console Port3

USB mini-Type B (console) port4

The ports provide PoE support for devices compliant with IEEE 802.3af and IEEE 802.3at and also provide PoE support for Cisco IP Phones and Cisco Aironet Access Points. The PoE switch ports are Power Source equipment (PSE) and Power Device (PD) capable and source power to PD devices connected to the downlink ports. A switch can source POE power of up to 30.8W per port.

Depending on the switch model and the number of PoE ports, the maximum switch power output varies between 91.66 W to 150.11 W. On a per-port basis, you can control whether or not a port automatically provides power when an IP phone or an access point is connected.

The PoE ports use RJ-45 connectors with Ethernet pinouts. The 10BASE-T, 100BASE-TX, 1000BASE-T traffic requires Category 5 or Category 5e twisted pair (UTP) cable. The 10BASE-T traffic can use Category 3 or Category 4 UTP cable.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Product Overview

10/100/1000 Ports

The 10/100/1000 ports use RJ-45 connectors with Ethernet pinouts. The maximum cable length is 328 feet (100 meters). The 10BASE-T, 100BASE-TX, 1000BASE-T traffic requires Category 5 or Category 5e twisted pair (UTP) cable. The 10BASE-T traffic can use Category 3 or Category 4 UTP cable.

Console Ports

The console ports connect the switch to a PC running Microsoft Windows or to a terminal server.

If you use the USB mini-Type B console port, the Cisco Windows USB device driver must be installed on any PC connected to the console port (for operation with Microsoft Windows). Mac OS X or Linux do not require special drivers.

The 4-pin mini-Type B connector resembles the 5-pin mini-Type B connectors. They are not compatible. Use only the 5-pin mini-Type B.

This illustration shows a 5-pin mini-Type B USB port.

10/100/1000 Ports

RJ-45 console port (EIA/TIA-232). The RJ-45 console port connection uses an RJ-45-to-DB-9 female

•

cable.

USB mini-Type B console port (5-pin connector).

•

Figure 3: USB Mini-Type B Port

With the Cisco Windows USB device driver, you can connect and disconnect the USB cable from the console port without affecting Windows HyperTerminal operations.

The console output always goes to both the RJ-45 and the USB console connectors, but the console input is active on only one of the console connectors at any one time. The USB console takes precedence over the RJ-45 console. When a cable is connected into the USB console port, the RJ-45 console port becomes inactive. Conversely, when the USB cable is disconnected from the USB console port, the RJ-45 port becomes active.

You can use the command-line interface (CLI) to configure an inactivity timeout which reactivates the RJ-45 console if the USB console has been activated and no input activity has occurred on the USB console for a specified time.

After the USB console deactivates due to inactivity, you cannot use the CLI to reactivate it. Disconnect and reconnect the USB cable to reactivate the USB console. For information on using the CLI to configure the USB console interface, see the software guide.

SFP Module Slots

The switch has two 1-Gigabit SFP module slots. The SFP slots support only the SFP modules.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

LEDs

Product Overview

LEDs

For Cisco SFP modules documentation, including compatibility matrixes, refer to this URL: http://

www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html

You can use the switch system and port LEDs to monitor switch activity and performance.

Figure 4: Switch LEDs

4SYST LED (system)1

PoE LED

Console LED5STAT LED (status)2

Port LEDs6SPEED LED3

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Product Overview

Only on switch models that support PoE.

System LED

LEDs

System StatusColor

System is not powered on.Off

System is operating normally.Green

Amber

Port LEDs and Modes

The port and module slots each has a port LED. As a group or individually, the LEDs display information about the switch and about the individual ports.

Table 2: Port Mode LEDs

System is receiving power but is not operating properly.

POST is in progress.Blinking Green

DescriptionPort ModeLED

The port status. This is the default mode.Port statusSTAT

Port speedSPEED

The port operating speed: 10, 100, or 1000 Mb/s.

The PoE status.PoE port powerPoE

To select or change a mode, press the Mode button until the desired mode is highlighted. When you change port modes, the meanings of the port LED colors also change.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

LEDs

Product Overview

Table 3: Meanings of LED Colors in Different Modes

DescriptionColorPort ModeLED

No link or port is administratively shut down.OffPort statusSTAT

Link is present.Green

Activity. Port is sending or receiving data.Blinking green

PoE

power

Alternating green amber

Amber

Green

OffPoE port

Green

Alternating green amber

Link fault. Error frames can affect connectivity, and errors such as excessive collisions, CRC errors, and alignment errors are monitored for link faults.

Port is blocked by Spanning Tree Protocol (STP) and is not forwarding data. After a port is reconfigured, the port LED is amber for up to 30 seconds as STP searches for loops.

Port is blocked by STP and is not sending data.Blinking amber

Port is operating at 10 Mb/s.OffPort speedSPEED

Port is operating at 100 Mb/s.

Port is operating at 1000 Mb/s.Blinking green

PoE is off. If the powered device is receiving power from an AC power source, the PoE port LED is off even if the powered device is connected to the switch port.

PoE is on. The port LED is green only when the switch port is providing power.

PoE is denied because providing power to the powered device will exceed the switch power capacity.

Applies only to RJ-45 ports.

PoE LED

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

PoE for the port is disabled. By default, PoE is enabled.Amber

PoE is off due to a fault.Blinking Amber

Even if the PoE mode is not selected, the LED shows PoE problems when they are detected. The PoE LED is only on the switches that support PoE.

DescriptionColor

PoE mode is not selected.Off

Product Overview

LEDs

DescriptionColor

PoE mode is selected. Ports are functioning correctly.Green

Console LEDs

Blinking amber

PoE mode is not selected

•

At least one of the 10/100 or 10/100/100 PoE ports has been denied

•

power

At least one of the ports has a PoE fault

•

The console LEDs show which console port is in use.

If you connect a cable to a console port, the switch automatically uses that port for console communication. If you connect two console cables, the USB-mini console port has priority.

DescriptionColorLED

USB-mini console port is active.GreenUSB-mini console port

Off

Port is not active.

RJ-45 console port is active.

Port LEDs

RJ-45 ports and SFP-module slots have port LEDs. These LEDs, as a group or individually, provide information about the switch and about the individual ports.

DescriptionLED Color

No link or port was administratively shut down.Off

Link present but is not sending or receiving data.Green

Blinking green

Activity. Port is sending or receiving data.

Note

Currently this is not supported for SFP ports.

Alternating green-amber

Link fault. Error frames can affect connectivity, and errors such as excessive collisions, CRC errors, and alignment and jabber errors are monitored for link faults.

Note

Currently this is not supported for SFP ports.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Rear Panel

Product Overview

DescriptionLED Color

Rear Panel

Amber

A security slot

•

An AC power connector

•

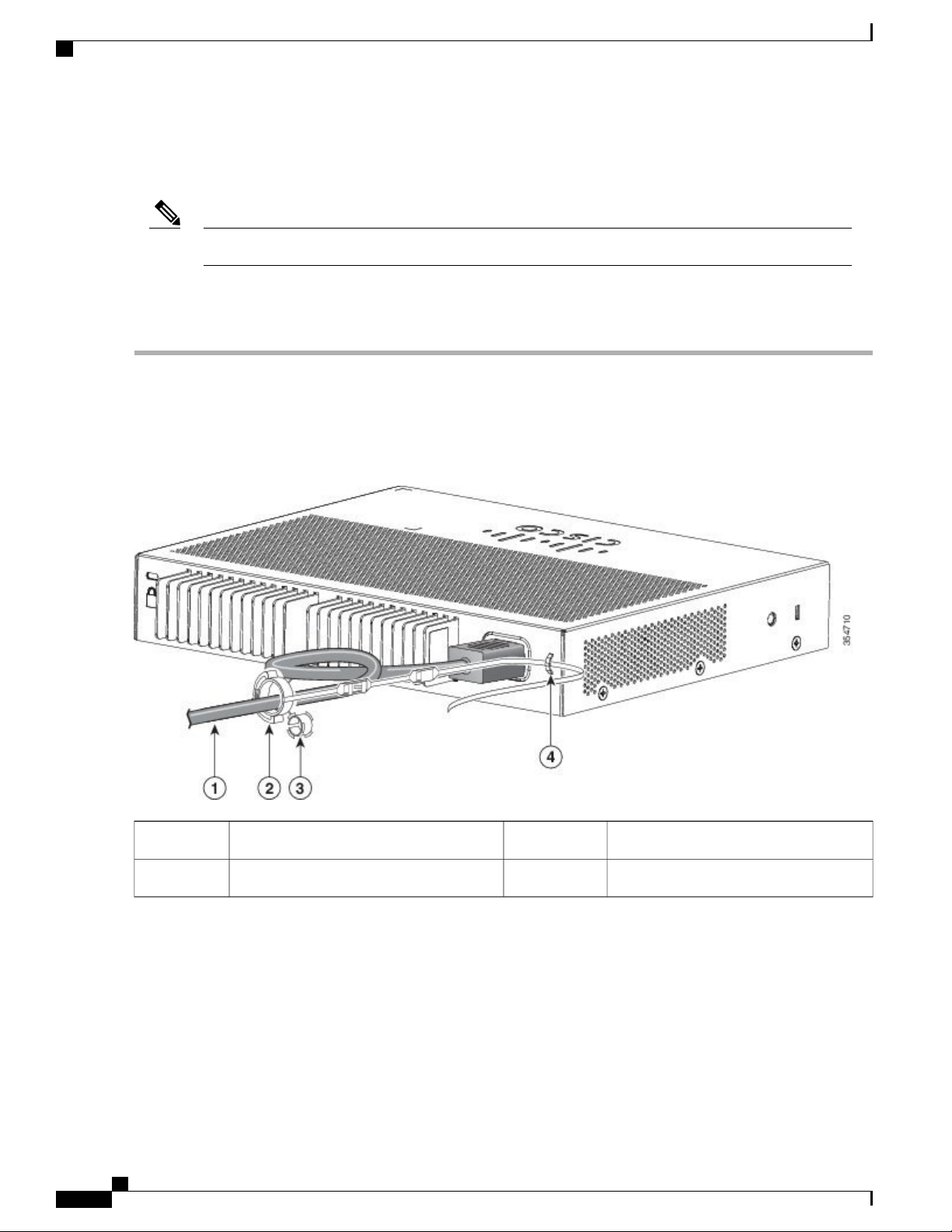

A loop (for the optional power cord retainer)

•

Heat sink fins (PoE models only)

•

Figure 5: Rear Panel of a Non-PoE Switch

Port is blocked by Spanning Tree Protocol (STP) and is not forwarding data. After a port is reconfigured, the port LED is amber for up to 30 seconds as STP searches for loops.

Note

Currently this is not supported for SFP ports.

3Security Slot1

An AC power connector2

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

A loop (for the optional power cord retainer)

Product Overview

Internal Power Supply

Figure 6: Rear Panel of a PoE Switch

Internal Power Supply

All the switches are powered through their internal power supplies. The internal power supply is an autoranging unit that supports input voltages between 100 and 240 VAC (max of 90V to 264V). The AC frequency range of the power supply is 50Hz~60Hz. Plug the AC power cord into the AC power connector and into an AC power outlet.

3Security Slot1

A loop (for the optional power cord retainer)

Heat sink fins4An AC power connector2

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Security Slot

Product Overview

The switches have security slots on the rear panel. You can install an optional cable lock, such as the type that is used to secure a laptop computer, to secure the switch.

Figure 7: Switch Rear Panel

Network Configurations

See the switch software configuration guide on Cisco.com for network configuration concepts and examples of using the switch to create dedicated network segments and interconnecting the segments through Fast Ethernet and Gigabit Ethernet connections.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

CHAPTER 2

Switch Installation

For initial switch setup, assigning the switch IP address, and powering on information, see the switch getting started guide on Cisco.com.

This chapter contains these topics:

Safety Warnings, page 13

•

Box Contents, page 16

•

Tools and Equipment, page 17

•

Installation Guidelines, page 17

•

Verifying Switch Operation, page 18

•

Mounting the Switch, page 18

•

Installing the Power Cord Retainer (Optional), page 36

•

Installing the Cable Guard (Optional), page 39

•

Installing SFP Modules, page 42

•

10/100/1000 PoE and PoE+Port Connections, page 44

•

10/100/1000 Port Connections, page 46

•

Safety Warnings

This section includes the warning statements relating to basic installation. Read this section before you start the installation procedure.

Warning

Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals. Statement 43

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Safety Warnings

Switch Installation

Warning

Do not stack the chassis on any other equipment. If the chassis falls, it can cause severe bodily injury and equipment damage. Statement 48

Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system. Statement 378

Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement

1001

Read the installation instructions before connecting the system to the power source. Statement 1004Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

•

When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the

•

heaviest component at the bottom of the rack.

Warning

If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing

•

the unit in the rack.

Statement 1006

Class 1 laser product. Statement 1008Warning

This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. Statement 1017

The plug-socket combination must be accessible at all times, because it serves as the main disconnecting device. Statement 1019

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

Safety Warnings

Warning

Note

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046

To prevent the system from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of: <113°F (45°C). Statement 1047

The maximum operating temperature is 40°C for Catalyst WS-C2960L-16PS-LL switches and 45°C for all the other switch models.

Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051

Warning

Voltages that present a shock hazard may exist on Power over Ethernet (PoE) circuits if interconnections are made using uninsulated exposed metal contacts, conductors, or terminals. Avoid using such interconnection methods, unless the exposed metal parts are located within a restricted access location and users and service people who are authorized within the restricted access location are made aware of the hazard. A restricted access area can be accessed only through the use of a special tool, lock and key or other means of security. Statement 1072

No user-serviceable parts inside. Do not open. Statement 1073Warning

Installation of the equipment must comply with local and national electrical codes. Statement 1074Warning

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Box Contents

Switch Installation

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 inches (7.6 cm). Statement 1076

Hot surface. Statement 1079Warning

Box Contents

This section lists the contents of the shipping box for an 8-port and 16-port Cisco Catalyst 2960-L switch.

Figure 8: Box Contents of an 8-Port and 16-Port Cisco Catalyst 2960-L Switch

switch

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

(Optional) Console cable or USB cable78-port or 16-port Cisco Catalyst 2960-L

(Optional) Power cord retainer8AC power cord2

(Optional) Magnet tray combo9Four rubber mounting feet (51-0089)3

Switch Installation

Tools and Equipment

(78-100866-01)

Tools and Equipment

Obtain these necessary tools:

A Number-2 Phillips screwdriver to rack-mount the switch

•

Drill with #27 drill bit (0.144-inch [3.7 mm]) for mounting an 8-port and 16-port switch

•

Installation Guidelines

When determining where to install the switch, verify that these guidelines are met:

Clearance to the switch front and rear panel meets these conditions:

•

(Optional) Cable guard10Compliance documentation

(Optional) DIN rail mount11Three number-8 screws (48-1689-01)5

Icon legend label (47-103380-01)12Screw template (47-100996-02)6

Front-panel LEDs can be easily read.

◦

Access to ports is sufficient for unrestricted cabling.

◦

AC power cord can reach from the AC power outlet to the connector on the switch rear panel.

◦

Cabling is away from sources of electrical noise, such as radios, power lines, and fluorescent lighting

•

fixtures. Make sure that the cabling is safely away from other devices that might damage the cables.

Airflow around the switch and through the vents is unrestricted.

•

Temperature around the unit does not exceed 113°F (45°C). If the switch is installed in a closed or

•

multirack assembly, the temperature around it might be greater than normal room temperature.

Note

The Catalyst 2960L-16PS-LL switch has a maximum operating temperature of 40°C. All the other switches have a maximum operating temperature of 45°C.

When using these products with the GLC-T SFP module, the thermal limitations are as follows:

Up to 5000 feet altitude, operating temperature should not exceed 40°C(Catalyst

•

2960L-16PS-LL 35C).

Up to 10000 feet altitude, operating temperature should not exceed 35°C(Catalyst

•

2960L-16PS-LL 30C).

Humidity around the switch does not exceed 90 percent.

•

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Verifying Switch Operation

Altitude at the installation site is not greater than 10,000 feet.

•

For 10/100/1000 fixed ports, the cable length from a switch to a connected device cannot exceed 328

•

feet (100 meters).

Verifying Switch Operation

Before you install the switch in a rack, on a wall, or on a table or shelf, power on the switch and verify that it passes POST.

To power on the switch, plug one end of the AC power cord into the switch AC power connector, and plug the other end into an AC power outlet.

As the switch powers on, it begins the POST, a series of tests that runs automatically to ensure that the switch functions properly. LEDs can blink during the test. When the switch begins POST, the SYST, STAT, and SPEED LEDs turn green. The SYST LED blinks green, and the other LEDs remain solid green.

When the switch completes POST successfully, the SYST LED remains green. The other LEDs turn off and then reflect the switch operating status. If a switch fails POST, the SYST LED turns amber.

POST failures are usually fatal. Call Cisco technical support representative if your switch fails POST.

After a successful POST, unplug the power cord from the switch and install the switch in a rack, on a wall, on a table, or on a shelf.

Switch Installation

Mounting the Switch

Mounting on a Desk or Shelf Without Mounting Screws

Step 1 Step 2

Step 3

Locate the adhesive strip with the rubber feet in the accessory kit.

Remove the four rubber feet from the adhesive strip, and attach them to the recessed areas at the bottom of the unit. This prevents the switch from sliding on the desk or shelf.

Note

Place the switch on the desk or shelf.

We strongly recommend that you attach the rubber feet. Doing so also helps prevent airflow restriction and overheating.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

On a Desk, Shelf, or Wall (with Mounting Screws)

Desk- or Shelf-Mounting

On a Desk, Shelf, or Wall (with Mounting Screws)

Step 1

Step 2

Step 3 Step 4 Step 5

Use the screw template to align the mounting screw holes and also as a guide to make sure that you install the screws into the desk or shelf with proper clearance.

Position the screw template on top of the desk or shelf so that the edge that is marked as CABLE SIDE ENTRY faces the front of the desk or shelf. This ensures that the power cord faces the rear of the desk or shelf after the switch is installed.

Wait before you attach the screw template to the desk or shelf.Note

Peel the adhesive strip off the bottom of the screw template, and attach it to the top of the desk or shelf.

Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2-inch (12.7 mm) hole in the two screw template slots.

Insert two screws in the slots on the screw template, and tighten them until they touch the top of the screw template.

Figure 9: Installing the Mounting Screws on Top of a Desk or a Shelf

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

On a Desk, Shelf, or Wall (with Mounting Screws)

Switch Installation

Step 6 Step 7

Remove the screw template from the desk or shelf.

Place the switch onto the mounting screws, and slide it forward until it locks in place.

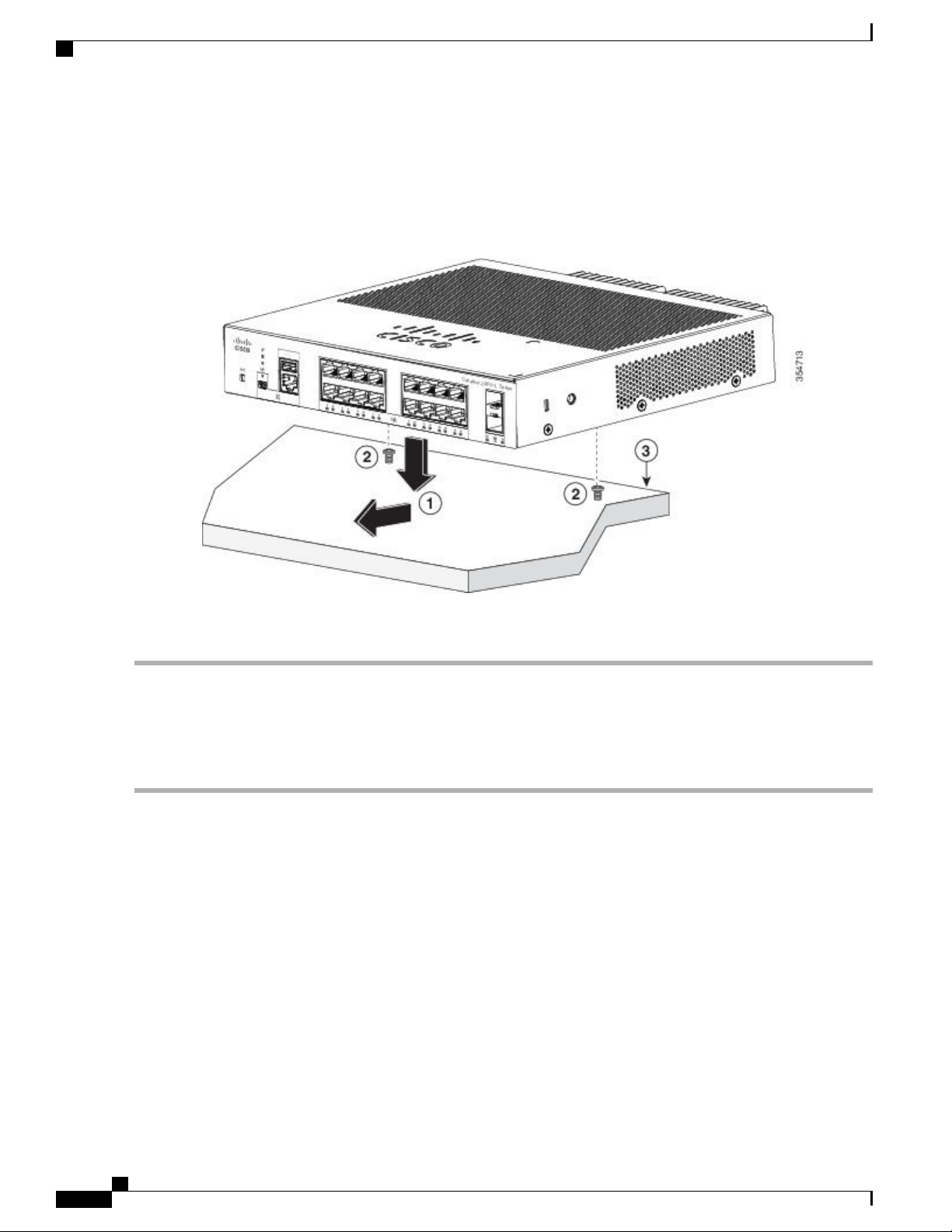

Figure 10: Mounting the Switch on Top of a Desk or Shelf

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in. (7.6 cm) Statement 1076

Under a Desk- or Shelf-Mounting

Step 1

Step 2

Use the screw template to align the mounting screw holes and also as a guide to make sure that you install the screws under the desk or shelf with proper clearance.

Wait before you attach the screw template to the desk or shelf.Note

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

On a Desk, Shelf, or Wall (with Mounting Screws)

Step 3 Step 4 Step 5

Peel the adhesive strip off the bottom of the screw template, and attach it to the top of the desk or shelf.

Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2-inch (12.7 mm) hole in the two screw template slots.

Insert two screws in the slots on the screw template, and tighten them until they touch the top of the screw template.

Figure 11: Installing the Mounting Screws Under a Desk or Shelf

Step 6 Step 7

Remove the screw template from underneath the desk or shelf.

Place the switch upside down onto the mounting screws, and slide it forward until it locks in place.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

On a Desk, Shelf, or Wall (with Mounting Screws)

Switch Installation

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in. (7.6 cm) Statement 1076

Figure 12: Mounting the Switch Under a Desk or Shelf

Wall-Mounting

Warning

Caution

Step 1 Step 2

Locate the screw template. The template is used to align the mounting screw holes.

Position the screw template so that the edge that is marked as CABLE SIDE ENTRY faces toward the floor.

Note

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Do not wall-mount the switch with its front panel facing up. Following safety regulations, wall-mount the switch with its front panel facing down or to the side to prevent airflow restriction and to provide easier access to the cables

For the best support of the switch and cables, make sure that you attach the switch securely to a wall stud or to a firmly attached plywood mounting backboard

Switch Installation

On a Desk, Shelf, or Wall (with Mounting Screws)

Step 3 Step 4 Step 5 Step 6

Peel the adhesive strip off the bottom of the screw template.

Attach the screw template to the wall.

Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2-inch (12.7 mm) hole in the two screw template slots.

Insert two screws in the slots on the screw template, and tighten them until they touch the top of the screw template.

Figure 13: Installing the Mounting Screws on the Wall

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

With a Mounting Tray

Switch Installation

Step 7 Step 8

Remove the screw template from the wall.

Place the switch onto the mounting screws, and slide it down until it locks in place.

Figure 14: Installing the Switch on a Wall

With a Mounting Tray

The mounting kit (part number CMPCT-MGNT-TRAY=) is optional. You can order it when you order your switch, or you can order it later from your Cisco representative.

The mounting kit ships contents:

Two number-10 Phillips pan-head screws

•

Three number-8 Phillips pan-head screws

•

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

Mounting tray

•

Magnet

•

You can use the mounting tray by itself with mounting screws, or with a magnet.

Mounting Tray with Screws

You can use the mounting tray to secure the switch:

On a desk or shelf

•

Under a desk or shelf

•

On a wall

•

With a Mounting Tray

Step 1 Step 2 Step 3

Caution

Do not wall-mount the switch with its front panel facing up. Following safety regulations, wall-mount the switch with its front panel facing down or to the side, to allow sufficient airflow and to provide easier access to the cables.

This example shows you how to mount the switch on a desk or shelf. You can use a similar procedure to mount the switch under a desk or on a wall.

Place the mounting tray on the desk.

Use a 0.144-in. (3.7 mm) or a #27 drill bit to drill three 1/2-in. (12.7 mm) holes in the desk.

Insert the three number-8 Phillips pan-head screws in the slots on the mounting tray, and tighten them.

Figure 15: Attaching the Tray to the Desk or Shelf

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

With a Mounting Tray

Switch Installation

Step 4

Place the switch onto the mounting screws, and slide the switch until it locks into place.

Figure 16: Installing the Switch on the Mounting Tray

Step 5

Use the two number-10 Phillips pan-head screws to secure the switch to the mounting tray.

Figure 17: Securing the Switch to the Mounting Tray

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

With a Mounting Tray

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in. (7.6 cm) Statement 1076

Mounting Tray with a Magnet

You can use a magnet with the mounting tray to mount the switch on a metal surface.

Do not use the magnet without a mounting trayCaution

This example shows you how to mount the switch on a metal wall. You can use a similar procedure to mount the switch on, or under, a metal desk.

Step 1

Place the switch on the mounting tray.

Figure 18: Placing the Switch on the Mounting Tray

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

With a Mounting Tray

Switch Installation

Step 2

Step 3

Use the two number-10 Phillips pan-head screws to secure the mounting tray to the switch.

Figure 19: Securing the Mounting Tray to the Switch

Place one side of the magnet against the bottom of the mounting tray. Mount the magnet and switch on a metal wall.

Warning

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

In a Rack

Caution

Figure 20: Wall-Mounting with a Magnet

Warning

In a Rack

To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in. (7.6 cm) Statement 1076

Installing the switch in a rack requires an optional bracket kit that is not included with the switch. You can order these kits from your Cisco representative:

19-inch rack-mounting brackets (RCKMNT-19-CMPCT=)

•

23- and 24-inch rack-mounting brackets (RCKMNT-23-CMPCT=)

•

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

In a Rack

Switch Installation

Warning

This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

•

When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the

•

heaviest component at the bottom of the rack.

If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing

•

the unit in the rack.

Statement 1006

Attach a bracket to one side of the switch. Follow the same steps to attach the second bracket to the opposite side. The following figure show how to attach the 19-inch rack-mounting bracket and the 23-inch rack-mounting bracket.

Figure 21: Attaching the 19-inch and 23-inch Brackets for Rack-Mounting

Insert the switch into the rack and align the bracket in the rack. Use either the number-12 or number-10 Phillips machine screws to secure the switch in the rack.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

On a DIN Rail

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in. (7.6 cm) Statement 1076

Figure 22: Mounting the Switch in a Rack

On a DIN Rail

The DIN-mount kit (part number CMPCT-DIN-MNT=) is optional. You can order it when you order your switch, or you can order it later from your Cisco representative.

The DIN-mount kit contains:

Two number-10 Phillips pan-head screws

•

DIN rail mount

•

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

On a DIN Rail

To install the switch on a DIN rail, follow the instructions described in these sections:

Attaching the DIN-Mount Tray to the Switch

Switch Installation

Step 1

Place the switch on the DIN rail mount.

Figure 23: Placing the Switch on the DIN-Mount Tray

DIN rail mount2Switch1

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

On a DIN Rail

Step 2

Use the two number-10 Phillips pan-head screws to secure the DIN rail mount to the switch.

Figure 24: Securing the DIN-Mount Tray to the Switch

Number-10 Phillips pan-head screws2Switch1

Mounting the Switch on a DIN Rail

Caution

Do not install the switch with its front panel facing up. Following safety regulations, install the switch with its front panel facing down, to allow sufficient airflow and to provide easier access to the cables.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

On a DIN Rail

Switch Installation

Step 1

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in. (7.6 cm) Statement 1076

Position the switch directly in front of the DIN rail, making sure that the top of the DIN rail mount clip hooks over the top of the DIN rail.

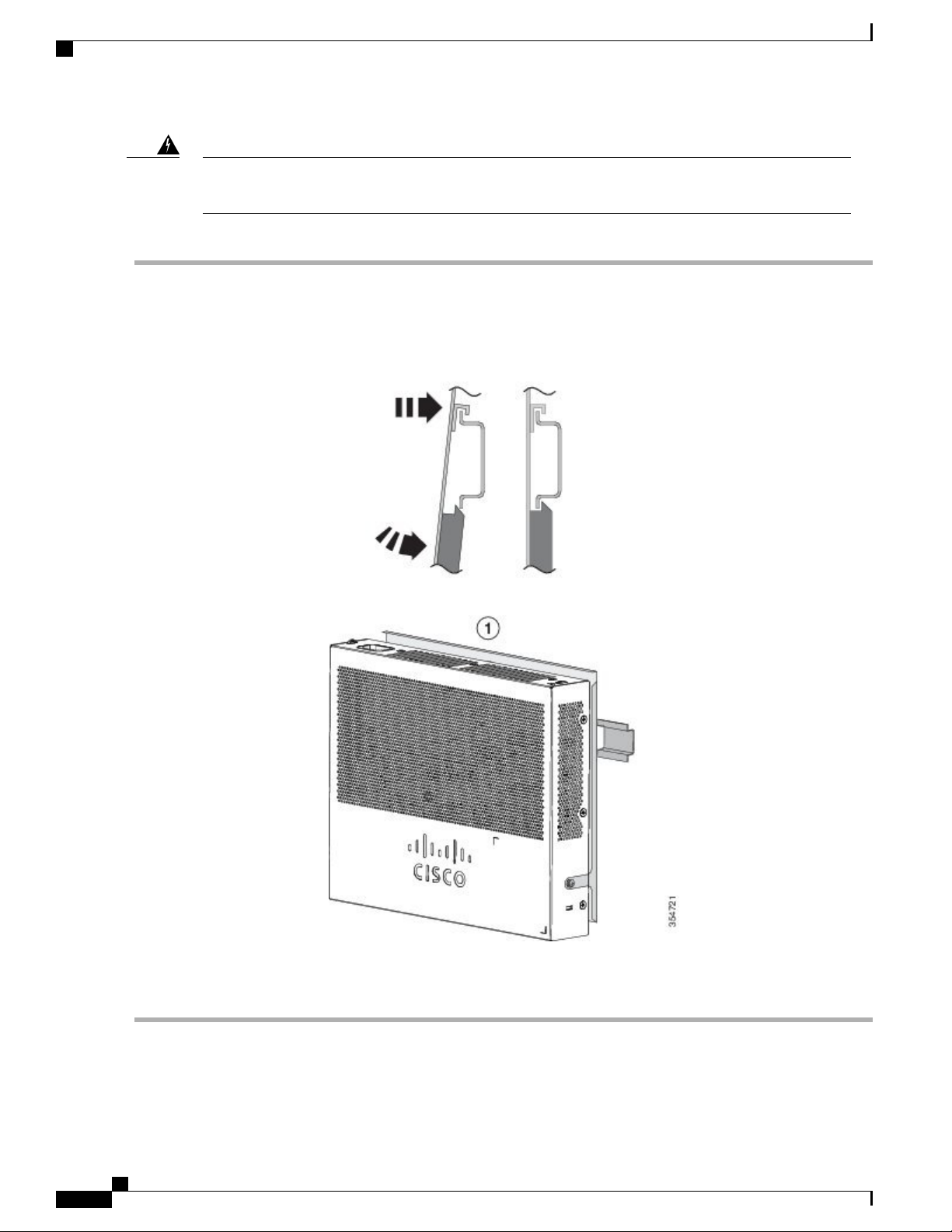

Figure 25: Mounting the Switch on a DIN Rail

Step 2 Step 3

Rotate the switch down toward the DIN rail until the release tabs on the DIN rail mount clicks.

Lift lightly on the bottom of the switch to ensure that it is firmly locked in place.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

Removing the Switch from a DIN Rail

On a DIN Rail

Step 1

Step 2

Ensure that power is removed from the switch, and disconnect all cables and connectors from the front panel of the switch.

Pull down on the DIN rail mount release tabs. As the clips release, lift the bottom of the switch.

Figure 26: Switch Removal

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Installing the Power Cord Retainer (Optional)

This section applies to switches with an AC power connector.Note

The power cord retainer part number (PWR-CLP=) is optional. You can order it when you order your switch, or you can order it later from your Cisco representative.

Switch Installation

Step 1

Step 2

Choose the sleeve size of the power cord retainer based on the thickness of the cord. The smaller sleeve can be snapped off and used for thin cords.

Slide the retainer around the AC power cord, and pass it around the loop on the switch.

Figure 27: Inserting the Retainer through the Lanced Loop

Sleeve for thinner power cords3AC power cord1

Loop4Power cord retainer2

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

Installing the Power Cord Retainer (Optional)

Step 3

Slide the retainer through the first latch.

Figure 28: Sliding the Retainer Through the Latch

Latch3AC power cord1

Step 4

Smaller sleeve for thin power cords2

Slide the retainer through the other latches to lock it.

Figure 29: Locking the Retainer

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Installing the Power Cord Retainer (Optional)

Smaller sleeve for thin power cords2

Switch Installation

Latches3AC power cord1

Step 5

Step 6

(Optional) Use the small sleeve for thin power cords. Use the small sleeve to provide greater stability for thin cords. Detach the sleeve, and slide it over the power cord.

Figure 30: Sleeve Around the Power Cord

AC power cord2Smaller sleeve for thin power cords1

Secure the AC power cord by pressing on the retainer.

Figure 31: Securing the Power Cord in the Retainer

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

Installing the Cable Guard (Optional)

The cable guard prevents tampering with the cables after the cables are installed. The cable guard (CMPCT-CBLE-GRD=) is not included with the switch, but you can order it from your Cisco representative.

You can use the cable guard when the switch is mounted on a desk, under a desk, or on a wall.Note

The cable guard is shipped with these items:

Two 0.5 in. (12.7 mm) number-8 Phillips wood screws

•

Two number-10 Phillips pan-head screws

•

Two washers

•

Installing the Cable Guard (Optional)

Step 1

(Optional) Attach the supplied washers before you install the cable guard.

This is only required if you are not installing the wall-mount brackets.Note

Figure 32: Using the Washer

Washer1

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Installing the Cable Guard (Optional)

Switch Installation

Step 2

Step 3

Use the supplied number-10 pan-head screws to attach the cable guard to the switch.

Figure 33: Attaching the Cable Guard to the Switch

Two number-10 Phillips pan-head screws3Switch1

Cable Guard2

Loosen the number-10 Phillips pan-head screws, slide the cable guide out, and pivot it upwards so that you can install the cables.

Figure 34: Pivoting the Cable Guard Upwards

Pivot direction for cable guard pivots2Cable guard1

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

Installing the Cable Guard (Optional)

Step 4

Attach the cables to the switch.

Figure 35: Attaching the Cables to the Switch

Pivot direction for cable guard pivots2Cables1

Step 5

Guide the connected cables through the slots in the front of the cable guard. Slide the cable guide in as shown in the following figure. Tighten the screws

Figure 36: Guiding the Cables through the Guard

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Installing SFP Modules

Switch Installation

Step 6

(Optional) To attach the cable guard to the desk or wall, use a 0.144-inch (3.7 mm) or a #27 drill bit to drill 1/2-inch (12.7 mm) holes at each of the two mounting locations. Insert the supplied 0.5 in. (12.7 mm) number-8 Phillips wood screws and tighten them.

Figure 37: Securing the Cable Guard to the Desk

Installing SFP Modules

See the switch release notes on Cisco.com for the list of supported SFP modules. Use only Cisco SFP modules on the switch. Each Cisco module has an internal serial EEPROM that is encoded with security information. This encoding provides a way for Cisco to identify and validate that the module meets the requirements for the switch.

For information about installing, removing, cabling, and troubleshooting SFP modules, see the module documentation that shipped with your device.

Installing an SFP Module

Before You Begin

When installing SFP modules, observe these guidelines:

Desk or shelf2Number-8 Phillips wood screws1

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

Installing an SFP Module

Do not remove the dust plugs from the modules or the rubber caps from the fiber-optic cable until you

•

are ready to connect the cable. The plugs and caps protect the module ports and cables from contamination and ambient light.

To prevent ESD damage, follow your normal board and component handling procedures when connecting

•

cables to the switch and other devices.

SUMMARY STEPS

DETAILED STEPS

Step 1 Step 2

Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.

Find the send (TX) and receive (RX) markings on the module top. On some SFP modules, the send and receive (TX and RX) markings might be replaced by arrows that show the direction of the connection.

Caution

Removing and installing an SFP module can shorten its useful life. Do not remove and insert any module more often than is absolutely necessary.

Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.

Find the send (TX) and receive (RX) markings on the module top.

If the module has a bale-clasp latch, move it to the open, unlocked position.

Align the module in front of the slot opening, and push until you feel the connector snap into place.

If the module has a bale-clasp latch, close it.

For fiber-optic SFP modules, remove the dust plugs and save.

Connect the SFP cables.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Removing an SFP Module

Switch Installation

Step 3 Step 4 Step 5 Step 6 Step 7

If the module has a bale-clasp latch, move it to the open, unlocked position.

Align the module in front of the slot opening, and push until you feel the connector snap into place.

If the module has a bale-clasp latch, close it.

For fiber-optic SFP modules, remove the dust plugs and save.

Connect the SFP cables.

Figure 38: Installing an SFP Module

Removing an SFP Module

Step 1 Step 2

Step 3 Step 4

Step 5 Step 6

Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.

Disconnect the cable from the SFP module. For reattachment, note which cable connector plug is send (TX) and which is receive (RX).

Insert a dust plug into the optical ports of the SFP module to keep the optical interfaces clean.

If the module has a bale-clasp latch, pull the bale out and down to eject the module. If the latch is obstructed and you cannot use your finger, use a small, flat-blade screwdriver or other long, narrow instrument to open the latch.

Grasp the SFP module, and carefully remove it from the module slot.

Place the module in an antistatic bag or other protective environment.

10/100/1000 PoE and PoE+Port Connections

The ports provide PoE support for devices compliant with IEEE 802.3af and 802.3at (PoE+), and also provide Cisco prestandard PoE support for Cisco IP Phones and Cisco Aironet Access Points.

On a per-port basis, you can control whether or not a port automatically provides power when an IP phone or an access point is connected.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Installation

10/100/1000 PoE and PoE+Port Connections

To access an advanced PoE planning tool, use the Cisco Power Calculator available on Cisco.com at this URL: http://tools.cisco.com/cpc/launch.jsp

You can use this application to calculate the power supply requirements for a specific PoE configuration. The results show output current, output power, and system heat dissipation.

Warning

Caution

SUMMARY STEPS

Category 5e and Category 6 cables can store high levels of static electricity. Always ground the cables to a suitable and safe earth ground before connecting them to the switch or other devices.

Noncompliant cabling or powered devices can cause a PoE port fault. Use only standard-compliant cabling to connect Cisco prestandard IP Phones and wireless access points, IEEE 802.3af, or 802.3at (PoE+)-compliant devices. You must remove any cable or device that causes a PoE fault.

Connect one end of the cable to the switch PoE port.

Connect the other end of the cable to an RJ-45 connector on the other device. The port LED turns on when

both devices have established link.

Reconfigure and reboot the connected device if needed.

Repeat Steps 1 through 3 to connect each device.

DETAILED STEPS

Step 1 Step 2

Connect one end of the cable to the switch PoE port.

Connect the other end of the cable to an RJ-45 connector on the other device. The port LED turns on when both devices have established link. The port LED is amber while STP discovers the topology and searches for loops. This process takes about 30 seconds, and then the port LED turns green. If the LED is off, the other device might not be turned on, there might be a cable problem, or there might be a problem with the adapter in the other device.

Step 3 Step 4

Reconfigure and reboot the connected device if needed.

Repeat Steps 1 through 3 to connect each device.

Note

Many legacy powered devices, including older Cisco IP phones and access points that do not fully support IEEE

802.3af, might not support PoE when connected to the switches by a crossover cable.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

10/100/1000 Port Connections

The switch 10/100/1000 port configuration changes to operate at the speed of the attached device. If the attached ports do not support autonegotiation, you can manually set the speed and duplex parameters. Connecting devices that do not autonegotiate or that have the speed and duplex parameters manually set can reduce performance or result in no linkage.

To maximize performance, choose one of these methods for configuring the Ethernet ports:

Let the ports autonegotiate both speed and duplex.

•

Set the interface speed and duplex parameters on both ends of the connection.

•

Auto-MDIX Connections

The autonegotiation and the auto-MDIX features are enabled by default on the switch.

With autonegotiation, the switch port configurations change to operate at the speed of the attached device. If the attached device does not support autonegotiation, you can manually set the switch interface speed and duplex parameters.

With auto-MDIX, the switch detects the required cable type for copper Ethernet connections and configures the interface accordingly.

If auto-MDIX is disabled, use the guidelines in this table to select the correct cable.

Switch Installation

Table 4: Recommended Ethernet Cables (When Auto-MDIX is Disabled)

Device

100BASE-TX and 1000BASE-T traffic requires twisted four-pair, Category 5, Category 5e, or Category 6 cable. 10BASE-T traffic can use Category 3 or Category 4 cable.

Straight-Through CableCrossover Cable

NoYesSwitch to switch

NoYesSwitch to hub

YesNoSwitch to computer or server

YesNoSwitch to router

YesNoSwitch to IP phone

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Troubleshooting

This chapter contains these topics:

Diagnosing Problems, page 47

•

Finding the Switch Serial Number, page 51

•

Diagnosing Problems

The LEDs on the front panel provide troubleshooting information about the switch. They show POST failures, port-connectivity problems, and overall switch performance. You can also get statistics from Device Manager, from the CLI, or from an SNMP workstation.

Switch POST Results

CHAPTER 3

Note

POST failures are usually fatal. Contact your Cisco technical support representative if your switch does not pass POST.

Switch LEDs

If you have physical access to the switch, look at the port LEDs for troubleshooting information about the switch. See the LED section for a description of the LED colors and their meanings.

Switch Connections

Bad or Damaged Cable

Always examine the cable for marginal damage or failure. A cable might be just good enough to connect at the physical layer, but it could corrupt packets as a result of subtle damage to the wiring or connectors. You

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Connections

can identify this situation because the port has many packet errors or the port constantly flaps (loses and regains link).

Examine or exchange the copper or fiber-optic cable with a known, good cable.

•

Look for broken or missing pins on cable connectors.

•

Rule out any bad patch panel connections or media convertors between the source and the destination.

•

If possible, bypass the patch panel, or eliminate faulty media convertors (fiber-optic-to-copper).

Try the cable in another port or interface, if possible, to see if the problem follows the cable.

•

Ethernet and Fiber-Optic Cables

Make sure that you have the correct cable for the connection.

For Ethernet, use Category 3 copper cable for 10 Mb/s UTP connections. Use either Category 5, Category

•

5e, or Category 6 UTP for 10/100/1000 Mb/s connections.

For fiber-optic cables, verify that you have the correct cable for the distance and port type. Make sure

•

that the connected device ports both match and use the same type encoding, optical frequency, and fiber type.

Troubleshooting

For copper connections, determine if a crossover cable was used when a straight-through was required

•

or the reverse. Enable auto-MDIX on the switch, or replace the cable.

Link Status

Verify that both sides have link. A single broken wire or a shutdown port can cause one side to show link even though the other side does not have link.

A port LED that is on does not guarantee that the cable is fully functional. The cable might have encountered physical stress that causes it to function at a marginal level. If the port LED does not turn on:

Connect the cable from the switch to a known good device.

•

Make sure that both ends of the cable are connected to the correct ports.

•

Verify that both devices have power.

•

Verify that you are using the correct cable type.

•

Look for loose connections. Sometimes a cable appears to be seated, but is not. Disconnect the cable

•

and then reconnect it.

10/100/1000 Port Connections

A port appears to malfunction:

Use the Mode button to show the status for all ports.

•

Use the show interfaces privileged EXEC command to see if the port is error-disabled, disabled, or

•

shutdown. Reenable the port if necessary.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Troubleshooting

10/100/1000 PoE+ Port Connections

A powered device connected to a PoE port does not receive power:

Use the Mode button to show the PoE status for all ports.

•

Use the show interfaces privileged EXEC command to see if the port is in error-disabled, disabled, or

•

shutdown. Reenable the port if necessary.

Verify that the power supply installed in the switch meets the power requirements of your connected

•

devices.

Verify that there is sufficient PoE power budget to provide power to the attached device. Use the show

•

power inline global configuration command to check on the available PoE power budget.

Verify the cable type. Many legacy powered devices, including older Cisco IP phones and access points

•

that do not fully support IEEE 802.3af, might not support PoE when connected to the switch by a crossover cable. Replace the crossover cable with a straight-through cable.

Switch Connections

SFP Module

Use only Cisco SFP modules in the switch. Each Cisco module has an internal serial EEPROM that is encoded with security information. This encoding provides a way for Cisco to identify and validate that the module meets the requirements for the switch.

•

Interface Settings

Verify that the interface is not disabled or powered off. If an interface is manually shut down on either side of the link, it does not come up until you reenable the interface. Use the show interfaces privileged EXEC command to see if the interface is error-disabled, disabled, or shutdown on either side of the connection. If needed, reenable the interface.

Caution

Inspect the SFP module. Exchange the suspect module with a known good module. Verify that the module is supported on this platform. (The switch release notes on Cisco.com list the SFP modules that the switch supports.)

Use the show interfaces privileged EXEC command to see if the port or module is error-disabled, disabled, or shutdown. Reenable the port if needed.

Make sure that all fiber-optic connections are properly cleaned and securely connected.

Noncompliant cabling or powered devices can cause a PoE port fault. Use only standard-compliant cabling to connect Cisco prestandard IP Phones and wireless access points or IEEE 802.3af-compliant devices. You must remove any cable or device that causes a PoE fault.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Switch Performance

Ping End Device

Ping from the directly connected switch first, and then work your way back port by port, interface by interface, trunk by trunk, until you find the source of the connectivity issue. Make sure that each switch can identify the end device MAC address in its Content-Addressable Memory (CAM) table.

Spanning Tree Loops

STP loops can cause serious performance issues that look like port or interface problems.

A unidirectional link can cause loops. It occurs when the traffic sent by the switch is received by its neighbor, but the traffic from the neighbor is not received by the switch. A broken fiber-optic cable, other cabling problems, or a port issue could cause this one-way communication.

You can enable UniDirectional Link Detection (UDLD) on the switch to help identify unidirectional link problems.

Troubleshooting

Switch Performance

Speed, Duplex, and Autonegotiation

If the port statistics show a large amount of alignment errors, frame check sequence (FCS), or late-collisions errors, this might mean a speed or duplex mismatch.

A common issue with speed and duplex occurs when duplex and speed settings are mismatched between two switches, between a switch and a router, or between the switch and a workstation or server. Mismatches can happen when manually setting the speed and duplex or from autonegotiation issues between the two devices.

To maximize switch performance and to ensure a link, follow one of these guidelines when changing the duplex or the speed settings.

Let both ports autonegotiate both speed and duplex.

•

Manually set the speed and duplex parameters for the interfaces on both ends of the connection.

•

If a remote device does not autonegotiate, use the same duplex settings on the two ports. The speed

•

parameter adjusts itself even if the connected port does not autonegotiate.

Autonegotiation and Network Interface Cards

Problems sometimes occur between the switch and third-party network interface cards (NICs). By default, the switch ports and interfaces autonegotiate. Laptops or other devices are commonly set to autonegotiate, yet sometimes autonegotiation issues occur.

To troubleshoot autonegotiation problems, try manually setting both sides of the connection. If this does not solve the problem, there could be a problem with the firmware or software on your NIC. You can resolve this by upgrading the NIC driver to the latest version.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Troubleshooting

Cabling Distance

If the port statistics show excessive FCS, late-collision, or alignment errors, verify that the cable distance from the switch to the connected device meets the recommended guidelines.

Finding the Switch Serial Number

If you contact Cisco Technical Assistance, you need to know the switch serial number. You can also use the show version privileged EXEC command to see the switch serial number.

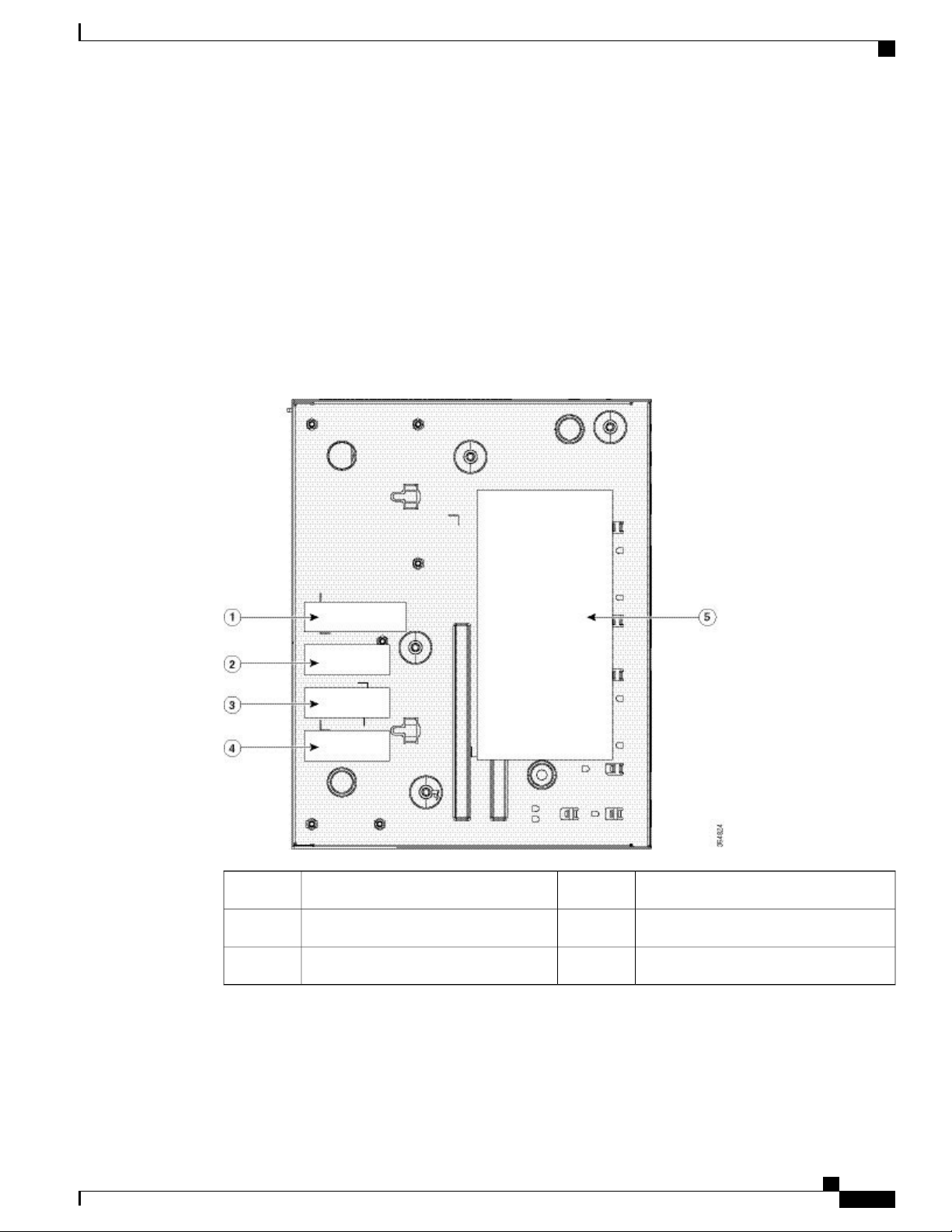

Figure 39: Serial Number Location

Finding the Switch Serial Number

Serial number4PID number1

Product label5MAC address2

CLEI code3

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Finding the Switch Serial Number

Troubleshooting

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Technical Specifications

This appendix contains these topics:

Physical Specifications, page 53

•

Environmental Specifications, page 54

•

Power Requirements, page 54

•

PoE Power Consumption, page 55

•

Physical Specifications

Physical Dimensions

APPENDIX A

Weight

Dimensions (H x D x W)

• 4.45 lbs (2.02 kg) (Cisco Catalyst 2960L-8TS-LL)

• 5.64 lbs (2.56 kg) (Cisco Catalyst 2960L-8PS-LL)

• 4.53 lbs (2.06 kg) (Cisco Catalyst 2960L-16TS-LL)

• 5.73 lbs (2.6 kg) (Cisco Catalyst 2960L-16PS-LL)

1.73 x 8.45 x 10.56 in. (4.4 x 21.5 x 26.8 cm) (Cisco Catalyst 2960L-8TS-LL)

•

1.73 x 9.45 x 10.56 in. (4.4 x 24 x 26.8 cm) (Cisco Catalyst 2960L-8PS-LL)

•

1.73 x 8.45 x 10.56 in. (4.4 x 21.5 x 26.8 cm) (Cisco Catalyst 2960L-16TS-LL)

•

1.73 x 9.45 x 10.56 in. (4.4 x 24 x 26.8 cm) (Cisco Catalyst 2960L-16PS-LL)

•

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Environmental Specifications

Environmental Ranges

Technical Specifications

Operating temperature (except Catalyst WS-C2960L-16PS-LL)

Operating temperature (Catalyst WS-C2960L-16PS-LL)

Minimum ambient temperature for cold start is 32°F (0°C)

Power Requirements

23 to 113°F (–5 to 45°C) up to 5,000 ft (1500 m)

23 to 104°F (–5 to 40°C) up to 10,000 ft (3000 m)

23 to 104°F (–5 to 40°C) up to 5,000 ft (1500 m)

23 to 95°F (–5 to 35°C) up to 10,000 ft (3000 m)

-13º to 158ºF (-25º to 70ºC) up to 15,000 ft (4500 m)Storage temperature

5% to 90% (noncondensing)Operating relative humidity

5% to 95% (noncondensing)Storage relative humidity

Up to 15,000 ft (4500 m)Storage altitude

AC input voltage

Power rating

110 to 220 VAC (autoranging)

• 0.16 to 0.26 A, 50 to 60 Hz (Cisco Catalyst 2960L-8TS-LL)

0.5 to 0.86 A, 50 to 60 Hz (Cisco Catalyst 2960L-8PS-LL)

•

• 0.2 to 0.33 A, 50 to 60 Hz (Cisco Catalyst 2960L-16TS-LL)

0.79 to 1.45 A, 50 to 60 Hz (Cisco Catalyst 2960L-16PS-LL)

•

• 0.04 KVA (Cisco Catalyst 2960L-8TS-LL)

• 0.11 KVA (Cisco Catalyst 2960L-8PS-LL)

• 0.05 KVA (Cisco Catalyst 2960L-16TS-LL)

• 0.19 KVA (Cisco Catalyst 2960L-16PS-LL)

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Technical Specifications

PoE Power Consumption

Switch

2960L-16TS-LL

2960L-16PS-LL

Consumption without PoE

PoE

Available PoEConsumption with

(Maximum Power Wattage for BTU/hr)

15.54NANA15WCisco Catalyst 2960L-8TS-LL

89.0267W93W21WCisco Catalyst 2960L-8PS-LL

18.9NANA19WCisco Catalyst

156.7120W157W26WCisco Catalyst

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

PoE Power Consumption

Technical Specifications

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Connector and Cable Specifications

This appendix contains these topics:

Connector Specifications, page 57

•

Cables and Adapters, page 58

•

Connector Specifications

10/100/1000 Ports (Including PoE)

All 10/100/1000 ports use standard RJ-45 connectors and Ethernet pinouts.

Figure 40: 10/100/1000 Port Pinouts

APPENDIX B

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

SFP Module Connectors

Figure 41: Duplex LC Cable Connector

Figure 42: Simplex LC Cable Connector

Connector and Cable Specifications

Figure 43: Copper SFP Module LC Connector

Cables and Adapters

SFP Module Cables

For cabling specifications, refer to the following notes:

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Connector and Cable Specifications

Cisco SFP Transceiver Module Installation Notes

Each port must match the wave-length specifications on the other end of the cable, and the cable must not exceed the stipulated cable length. Copper 1000BASE-T SFP module transceivers use standard four twisted-pair, Category 5 cable at lengths up to 328 feet (100 meters).

SFP Module Cables

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Cable Pinouts

Connector and Cable Specifications

Figure 44: Four Twisted-Pair Straight-Through Cable Schematic

Figure 45: Four Twisted-Pair Semi-Cross Cable Schematic

Figure 46: Two Twisted-Pair Straight-Through Cable Schematic

Figure 47: Two Twisted-Pair Crossover Cable Schematic

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Connector and Cable Specifications

Identifying a Crossover Cable

To identify a crossover cable, compare the two modular ends of the cable. Hold the cable ends side-by-side, with the tab at the back. The wire connected to the pin on the outside of the left plug should be a different color from the wire connected to the pin on the inside of the right plug.

Figure 48: Identifying a Crossover Cable

Console Port Adapter Pinouts

The RS-232 console port uses an 8-pin RJ-45 connector. Use an RJ-45-to-DB-9 adapter cable to connect the switch console port to a console PC. You need to provide a RJ-45-to-DB-25 female DTE adapter to connect the switch console port to a terminal.

Table 5: Console Port Signaling with a DB-9 Adapter

Console DeviceRJ-45-to-DB-9 Terminal AdapterSwitch Console Port (DTE)

SignalDB-9 PinSignal

CTS8RTS

DSR6DTR

RxD2TxD

GND5GND

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Console Port Adapter Pinouts

Table 6: Console Port Signaling with a DB-25 Adapter

Connector and Cable Specifications

Console DeviceRJ-45-to-DB-9 Terminal AdapterSwitch Console Port (DTE)

SignalDB-9 PinSignal

TxD3RxD

DTR4DSR

RTS7CTS

Console DeviceRJ-45-to-DB-25 Terminal AdapterSwitch Console Port (DTE)

SignalDB-25 PinSignal

CTS5RTS

DSR6DTR

RxD3TxD

GND7GND

TxD2RxD

DTR20DSR

RTS4CTS

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

APPENDIX C

Configuring the Switch

This appendix contains these topics:

Configuring the Switch Using the Configuration Setup Wizard, page 63

•

Configuring the Switch Using the CLI, page 64

•

Configuring the Switch Using the Configuration Setup Wizard

Quick Setup: Accessing the Configuration Setup Wizard

When you first set up the switch, use the Configuration Setup wizard to enter the initial IP information. This enables the switch to connect to local routers and the Internet. You can then access the switch through the IP address for further configuration.

Step 1

Step 2

Step 3

Note

Verify that no devices are connected to the switch. Initially, the switch acts as a DHCP server. If your PC has a static IP address, before you begin, you should change your PC settings to temporarily use DHCP.

Verify that POST has completed by confirming that the STAT LED is solid green. If the switch fails POST, the STAT LED turns amber.

Press and hold the Mode button for 3 seconds. When all of the LEDs above the Mode button turn green, release the Mode button immediately.

Note

If your device supports Bluetooth, it loads with the initial setup tasks preconfigured. Connect your PC to the device using Bluetooth. In your Web browser, enter the IP address 172.16.0.1. Enter the following default credentials: username: cisco, password: cisco and press Enter.

Continuing to hold the Mode button after the LEDs have turned green, exits the Setup mode.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Completing the Configuration Setup Wizard

Configuring the Switch

Step 4

Step 5 Step 6 Step 7

Step 8

Connect a straight-through Category 5 Ethernet cable to a 10/100/1000 Ethernet port on the switch front panel and to the Ethernet port on the PC.

Verify that the LEDs on both Ethernet ports are green.

Wait 30 seconds.

Enter the IP address 10.0.0.1 or 10.0.0.3 in the Web browser, on your PC. On Cisco Catalyst 2960-X and 2960-XR switches, if you have connected to a downlink access port, enter the IP address 10.0.2.1.

Enter the following default credentials: username: cisco, password: cisco and press Enter. The Configuration Setup wizard is displayed.

Completing the Configuration Setup Wizard

Completing the Configuration Setup Wizard enables you to set up your device with the minimum configuration required to enable traffic to pass through the network. To achieve this, you must complete the following setup tasks as you proceed with the Configuration Setup Wizard.

Basic Device Settings

•

Interfaces

•

Layer 3 Settings

•

Advanced Device Settings

•

For more information on the configuration steps involved in completing the Configuration Setup Wizard, see User Guide for Cisco Configuration Professional for Catalyst .

Configuring the Switch Using the CLI

Accessing the CLI Through the Console Port

You can access the CLI on a configured or unconfigured switch by connecting the RJ-45 console port or USB console port of the switch to your PC or workstation and accessing the switch through a terminal emulation program.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Configuring the Switch

Connecting the RJ-45 Console Port

SUMMARY STEPS

Connect the RJ-45-to-DB-9 adapter cable to the 9-pin serial port on the PC. Connect the other end of the

cable to the switch console port.

Start the terminal-emulation program on the PC or the terminal. The program, frequently a PC application

such as HyperTerminal or ProcommPlus, makes communication between the switch and your PC or terminal possible.

Configure the baud rate and character format of the PC or terminal to match the console port default

characteristics:

Power on the switch as described in the switch getting started guide.

The PC or terminal displays the bootloader sequence. Press Enter to display the setup prompt.

DETAILED STEPS

Accessing the CLI Through the Console Port

Step 1

Step 2

Step 3

Step 4 Step 5

Connect the RJ-45-to-DB-9 adapter cable to the 9-pin serial port on the PC. Connect the other end of the cable to the switch console port.

Start the terminal-emulation program on the PC or the terminal. The program, frequently a PC application such as HyperTerminal or ProcommPlus, makes communication between the switch and your PC or terminal possible.

Configure the baud rate and character format of the PC or terminal to match the console port default characteristics:

9600 baud

•

8 data bits

•

1 stop bit

•

No parity

•

None (flow control)

•

Power on the switch as described in the switch getting started guide.

The PC or terminal displays the bootloader sequence. Press Enter to display the setup prompt.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Accessing the CLI Through the Console Port

Connecting the USB Console Port

SUMMARY STEPS

If you are connecting the switch USB console port to a Windows-based PC for the first time, install the

USB driver. See Installing the Cisco Microsoft Windows USB Device Driver, on page 67.

Connect a USB cable to the PC USB port. Connect the other end of the cable to the switch mini-B

(5-pin-connector) USB console port.

Start the terminal-emulation program on the PC or the terminal. The program, frequently a PC application

such as HyperTerminal or ProcommPlus, makes communication between the switch and your PC or terminal possible.

Configure the baud rate and character format of the PC or terminal to match the console port default

characteristics:

Power on the switch as described in the switch getting started guide.

The PC or terminal displays the bootloader sequence. Press Enter to display the setup prompt. Follow the

steps in the Setup program.

Configuring the Switch

DETAILED STEPS

Step 1

If you are connecting the switch USB console port to a Windows-based PC for the first time, install the USB driver. See

Installing the Cisco Microsoft Windows USB Device Driver, on page 67.

Figure 49: Connecting the USB Console Cable to the Switch

Step 2

Connect a USB cable to the PC USB port. Connect the other end of the cable to the switch mini-B (5-pin-connector) USB console port.

Step 3

Step 4

Step 5 Step 6

Configure the baud rate and character format of the PC or terminal to match the console port default characteristics:

Power on the switch as described in the switch getting started guide.

The PC or terminal displays the bootloader sequence. Press Enter to display the setup prompt. Follow the steps in the Setup program.

9600 baud

•

8 data bits

•

1 stop bit

•

No parity

•

None (flow control)

•

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Configuring the Switch

Installing the Cisco Microsoft Windows USB Device Driver

A USB device driver must be installed the first time a Microsoft Windows-based PC is connected to the USB console port on the switch.

Installing the Cisco Microsoft Windows XP USB Driver

•

Installing the Cisco Microsoft Windows 2000 USB Driver

•

Installing the Cisco Microsoft Windows Vista and Windows 7 USB Driver

•

Installing the Cisco Microsoft Windows XP USB Driver

SUMMARY STEPS

Obtain the Cisco USB console driver file from the Cisco.com web site and unzip it.

If using 32-bit Windows XP, double-click the setup.exe file in the Windows_32 folder. If using 64-bit

Windows XP, double-click the setup(x64).exe file in the Windows_64 folder.

The Cisco Virtual Com InstallShield Wizard begins.

The Ready to Install the Program window appears. Click Install.

The InstallShield Wizard Completed window appears. Click Finish.

Connect the USB cable to the PC and the switch console port. The USB console port LED turns green,

and the Found New Hardware Wizard appears. Follow the instructions to complete the driver installation.

DETAILED STEPS

Step 1

Step 2

Step 3 Step 4 Step 5 Step 6

Obtain the Cisco USB console driver file from the Cisco.com web site and unzip it.

If using 32-bit Windows XP, double-click the setup.exe file in the Windows_32 folder. If using 64-bit Windows XP, double-click the setup(x64).exe file in the Windows_64 folder.

The Cisco Virtual Com InstallShield Wizard begins.

The Ready to Install the Program window appears. Click Install.

The InstallShield Wizard Completed window appears. Click Finish.

Connect the USB cable to the PC and the switch console port. The USB console port LED turns green, and the Found New Hardware Wizard appears. Follow the instructions to complete the driver installation.

You can download the driver file from the Cisco.com site for downloading the switch software.Note

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Installing the Cisco Microsoft Windows USB Device Driver

Installing the Cisco Microsoft Windows 2000 USB Driver

SUMMARY STEPS

Obtain the Cisco USB console driver file from the Cisco.com web site and unzip it.

Double-click the setup.exe file.

The Cisco Virtual Com InstallShield Wizard begins. Click Next.

The Ready to Install the Program window appears. Click Install.

The InstallShield Wizard Completed window appears. Click Finish.

Connect the USB cable to the PC and the switch console port. The USB console port LED turns green,

and the Found New Hardware Wizard appears. Follow the instructions to complete the driver installation.

DETAILED STEPS

Configuring the Switch

Step 1

Step 2 Step 3 Step 4 Step 5 Step 6

Obtain the Cisco USB console driver file from the Cisco.com web site and unzip it.

You can download the driver file from the Cisco.com site for downloading the switch software.Note

Double-click the setup.exe file.

The Cisco Virtual Com InstallShield Wizard begins. Click Next.

The Ready to Install the Program window appears. Click Install.

The InstallShield Wizard Completed window appears. Click Finish.

Installing the Cisco Microsoft Windows Vista and Windows 7 USB Driver

SUMMARY STEPS

Obtain the Cisco USB console driver file from the Cisco.com web site and unzip it.

If using 32-bit Windows Vista or Windows 7, double-click the setup.exe file in the Windows_32 folder.

If using 64-bit Windows Vista or Windows 7, double-click the setup(x64).exe file in the Windows_64 folder.

The Cisco Virtual Com InstallShield Wizard begins. Click Next.

The Ready to Install the Program window appears. Click Install.

The InstallShield Wizard Completed window appears. Click Finish.

Connect the USB cable to the PC and the switch console port. The USB console port LED turns green,

and the Found New Hardware Wizard appears. Follow the instructions to complete the driver installation.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Configuring the Switch

DETAILED STEPS

Uninstalling the Cisco Microsoft Windows USB Driver

Step 1

Step 2

Step 3 Step 4

Step 5 Step 6

Obtain the Cisco USB console driver file from the Cisco.com web site and unzip it.

You can download the driver file from the Cisco.com site for downloading the switch software.Note

If using 32-bit Windows Vista or Windows 7, double-click the setup.exe file in the Windows_32 folder. If using 64-bit Windows Vista or Windows 7, double-click the setup(x64).exe file in the Windows_64 folder.

The Cisco Virtual Com InstallShield Wizard begins. Click Next.

The Ready to Install the Program window appears. Click Install.

If a User Account Control warning appears, click Allow - I trust this program to proceed.Note

The InstallShield Wizard Completed window appears. Click Finish.

Uninstalling the Cisco Microsoft Windows USB Driver

Uninstalling the Cisco Microsoft Windows XP and 2000 USB Driver

Use the Windows Add or Remove Programs utility or the setup.exe file.

Using the Setup.exe Program

SUMMARY STEPS

Before You Begin

Disconnect the switch console terminal before uninstalling the driver.

Run setup.exe for Windows 32-bit or setup(x64).exe for Windows-64bit. Click Next.

The InstallShield Wizard for Cisco Virtual Com appears. Click Next.

When the Program Maintenance window appears, select the Remove radio button. Click Next.

When the Remove the Program window appears, click Remove.

When the InstallShield Wizard Completed window appears, click Finish.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Uninstalling the Cisco Microsoft Windows USB Driver

DETAILED STEPS

Configuring the Switch

Step 1 Step 2 Step 3 Step 4 Step 5

Run setup.exe for Windows 32-bit or setup(x64).exe for Windows-64bit. Click Next.

The InstallShield Wizard for Cisco Virtual Com appears. Click Next.

When the Program Maintenance window appears, select the Remove radio button. Click Next.

When the Remove the Program window appears, click Remove.

When the InstallShield Wizard Completed window appears, click Finish.

Using the Add or Remove Programs Utility

Before You Begin

Disconnect the switch console terminal before uninstalling the driver.

SUMMARY STEPS

Click Start > Control Panel > Add or Remove Programs.

Scroll to Cisco Virtual Com and click Remove.

When the Program Maintenance window appears, select the Remove radio button. Click Next.

DETAILED STEPS

Step 1 Step 2 Step 3

Click Start > Control Panel > Add or Remove Programs.

Scroll to Cisco Virtual Com and click Remove.

When the Program Maintenance window appears, select the Remove radio button. Click Next.

Uninstalling the Cisco Microsoft Windows Vista and Windows 7 USB Driver

Before You Begin

Disconnect the switch console terminal before uninstalling the driver.

SUMMARY STEPS

Run setup.exe for Windows 32-bit or setup(x64).exe for Windows-64bit. Click Next.

The InstallShield Wizard for Cisco Virtual Com appears. Click Next.

When the Program Maintenance window appears, select the Remove radio button. Click Next.

When the Remove the Program window appears, click Remove.

When the InstallShield Wizard Completed window appears, click Finish.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Configuring the Switch

DETAILED STEPS

Uninstalling the Cisco Microsoft Windows USB Driver

Step 1 Step 2 Step 3 Step 4

Step 5

Run setup.exe for Windows 32-bit or setup(x64).exe for Windows-64bit. Click Next.

The InstallShield Wizard for Cisco Virtual Com appears. Click Next.

When the Program Maintenance window appears, select the Remove radio button. Click Next.

When the Remove the Program window appears, click Remove.

If a User Account Control warning appears, click Allow - I trust this program to proceed.Note

When the InstallShield Wizard Completed window appears, click Finish.

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Uninstalling the Cisco Microsoft Windows USB Driver

Configuring the Switch

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

Cisco Catalyst 2960-L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide

CONTENTS

Preface

Document Conventions

Related Documentation

Obtaining Documentation and Submitting a Service Request

Product Overview

Switch Models

Front Panel

PoE Ports

10/100/1000 Ports

Console Ports

SFP Module Slots

LEDs

System LED

Port LEDs and Modes

PoE LED

Console LEDs

Port LEDs

Rear Panel

Internal Power Supply

Security Slot

Network Configurations

Switch Installation

Safety Warnings

Box Contents

Tools and Equipment

Installation Guidelines

Verifying Switch Operation

Mounting the Switch

Mounting on a Desk or Shelf Without Mounting Screws

On a Desk, Shelf, or Wall (with Mounting Screws)

Desk- or Shelf-Mounting

Under a Desk- or Shelf-Mounting

Wall-Mounting

With a Mounting Tray

Mounting Tray with Screws

Mounting Tray with a Magnet

In a Rack

On a DIN Rail

Attaching the DIN-Mount Tray to the Switch

Mounting the Switch on a DIN Rail

Removing the Switch from a DIN Rail

Installing the Power Cord Retainer (Optional)

Installing the Cable Guard (Optional)

Installing SFP Modules

Installing an SFP Module

Removing an SFP Module

10/100/1000 PoE and PoE+Port Connections

10/100/1000 Port Connections

Auto-MDIX Connections

Troubleshooting

Diagnosing Problems

Switch POST Results

Switch LEDs

Switch Connections

Bad or Damaged Cable

Ethernet and Fiber-Optic Cables

Link Status

10/100/1000 Port Connections

10/100/1000 PoE+ Port Connections

SFP Module

Interface Settings

Switch Performance

Ping End Device

Spanning Tree Loops

Speed, Duplex, and Autonegotiation

Autonegotiation and Network Interface Cards

Cabling Distance

Finding the Switch Serial Number

Technical Specifications

Physical Specifications

Environmental Specifications

Power Requirements

PoE Power Consumption

Connector and Cable Specifications
