Cisco Aironet 1570 Series Ordering Manual

Cisco Aironet 1570 Series Outdoor

Access Points

Ordering Guide

November 2015

Ordering Guide

Contents

1. Introduction .......................................................................................................................................................... 3

2. Cisco Aironet 1570 Series Outdoor Access Points .......................................................................................... 3

3. Cisco Software Subscription .............................................................................................................................. 4

Cable Modem License .......................................................................................................................................... 4

Software Ordering Options.................................................................................................................................... 5

4. Cisco Aironet 1570 Series Components ............................................................................................................ 5

Antennas ............................................................................................................................................................... 5

GPS ...................................................................................................................................................................... 6

Mounting Brackets ................................................................................................................................................ 6

Power .................................................................................................................................................................... 7

AC Power .............................................................................................................................................................. 7

Power over Ethernet ............................................................................................................................................. 8

DC Power.............................................................................................................................................................. 8

SFP ....................................................................................................................................................................... 8

Accessory Kit and Optional Items ......................................................................................................................... 9

RF Cables and Lightning Arrestors .............................................................................................................. 9

Accessory Kit ...................................................................................................................................................... 10

5. Part Numbers for Ordering ............................................................................................................................... 11

6. Cisco Services ................................................................................................................................................... 16

Cisco Technical Services .................................................................................................................................... 16

Cisco Tools for Quoting and Ordering ................................................................................................................. 16

7. Cisco Capital Financing .................................................................................................................................... 16

Flexible Options .................................................................................................................................................. 16

Model

Antenna Type(s)

Power Option(s)

AP1572EAC

E: External antennas

AC: AC power

AP1572IC

I: Internal antennas

C: Cable backhaul and power-over-cable

AP1572EC

E: External antennas

C: Cable backhaul and power-over-cable

Part Number

Description

AIR-AP1572EAC-x-K9

E: External Antenna, AC Power

AIR-AP1572IC1-x-K9

I: Internal Antenna, C1: Power-over-Cable; NA-DOCSIS 42/ 88 MHz

AIR-AP1572IC2-x-K9

I: Internal Antenna, C2: Power-over-Cable; NA-DOCSIS 85/ 108 MHz

AIR-AP1572IC3-x-K9

I: Internal Antenna, C3: Power-over-Cable; Euro-DOCSIS 65/ 108 MHz

AIR-AP1572IC4-x-K9

I: Internal Antenna, C4: Power-over-Cable; Japan-DOCSIS 65/ 108 MHz

AIR-AP1572EC1-x-K9

E: External Antenna, C1: Power-over-Cable; NA-DOCSIS 42/ 88 MHz

AIR-AP1572EC2-x-K9

E: External Antenna, C2: Power-over-Cable; NA-DOCSIS 85/ 108 MHz

AIR-AP1572EC3-x-K9

E: External Antenna, C3: Power-over-Cable; Euro-DOCSIS 65/ 108 MHz

AIR-AP1572EC4-x-K9

E: External Antenna, C4: Power-over-Cable; Japan-DOCSIS 65/ 108 MHz

1. Introduction

This document describes the Cisco Aironet® 1570 Series Outdoor Access Points listed in Table 1. It also describes the various packaging structures and configurations available for different models. In this document, you’ll also find part numbers and other information necessary to help you choose and order products.

Table 1. Cisco Aironet 1570 Series Access Points

For more detailed information on Aironet 1570 Series access point products, visit:

http://www.cisco.com/c/en/us/products/wireless/aironet-1570-series/index.html.

2. Cisco Aironet 1570 Series Outdoor Access Points

Aironet 1570 Series Outdoor Access Points (APs) are ideal for both enterprise and carrier-class network operators. They are the industry’s highest-performing outdoor APs and support the latest Wi-Fi standard, 802.11ac. The 1570 Series APs provide high throughput over a large area with pervasive coverage. A fully operational system contains the following items:

1. Access point

2. Cable modem right-to-use (RTU) license (1572IC and 1572EC models only)

3. Software

4. External antennas (1572EAC and 1572EC models only)

5. GPS (optional)

6. Mounting brackets

7. Power source

8. Small Form-Factor Pluggable (SFP; optional)

9. Accessories (optional) Table 2 lists the part numbers for 1570 Series access points in a variety of configurations.

Table 2. Cisco Aironet 1570 Series Models

Note 1: “x” is a placeholder for the regulatory domain designator. Please visit http://www.cisco.com/go/aironet/compliance

(Outdoor Access Points) to determine which regulatory domain is used in your country. Note that the regulatory domain used in your country might differ depending on access point model, and that some models are not available for all countries.

AP1572EAC

AP1572IC

AP1572EC

●

Access point

●

Sealant tape for the antenna connections

●

Fitting dome/gland: liquid-tight adapter for sealing the cable ingress connection

●

Grounding lug

●

Antiseizing compound for the mounting brackets

●

DC power connector

●

Access point

●

Grounding lug

●

Antiseizing compound for the mounting brackets

●

Access point

●

Sealant tape for the antenna connections

●

Fitting dome/gland: liquid-tight adapter for sealing the cable ingress connection

●

Grounding lug

●

Antiseizing compound for the mounting brackets

Part Number

Description

LIC-CM1570-08CH

License: Cable Modem (RTU), up to 8 Downstream Channel Bonding

LIC-CM1570-16CH

License: Cable Modem (RTU), up to 16 Downstream Channel Bonding

LIC-CM1570-24CH

License: Cable Modem (RTU), up to 24 Downstream Channel Bonding

Note 2: For the USA only, you must use regulatory domain - B instead of the traditional - A. This is due to the recent FCC rule changes that opened up the 5 GHz UNII-1 band for outdoor usage.

Use Table 2 and the remainder of this guide to identify the items that you need for your deployment. Note that

some components are available as a “configurable” option or as a “spare.”

●

A “configurable” option ships in the same main box as the AP. For example:

AIR-ACCPMK1570-1 is a “configurable” option and, if so ordered, is shipped alongside the AP in the same box.

●

A “spare” option is denoted with an equals (=) sign at the end of the part number. For example:

AIR-ACCPMK1570-1= is a “spare” and, if so ordered, is shipped in separate packaging.

If making a return or trade-in, you might need to remove any option you installed before returning your access point to Cisco. Consult your Cisco representative for additional assistance in ordering mesh and other networking equipment.

Table 3 lists the standard items that could be included with each specific model.

Table 3. Standard Items Included with Each Specific Model

3. Cisco Software Subscription

Cable Modem License

The cable modem (CM) license applies only to the two Aironet 1570 Series models that have built-in cable modems, the AP1572IC and AP1572EC. These two AP models come with CM hardware capable of operating with up to 24x8 channel bonding on the downstream (DS) and upstream (US), respectively. However, there is a right-touse (RTU) license (see Table 4) that must be selected in association with this hardware for the user to have the right to operate these AP models. At a minimum, license option LIC-CM1570-08CH shall be selected in association with AP1572IC and AP1572EC, even if the operator chooses not to use the CM. The RTU authorizes the user to operate the CM hardware with up to 8, 16, or 24 bonded channels on the downstream. This RTU can be selected as a “configurable” option at the time of the AP order, or as a “spare” at a later date. Note, however, that there is no CM RTU upgrade part number available for this RTU license, and thus the user may want to consider purchasing a 16- or 24-channel license at the time of ordering if planning to upgrade the CM operation at a later time.

Table 4. Cisco Aironet 1572IC and 1572EC Cable Modem RTU Software License

Part Number

Minimum Software Release

SW1570-UM01A01-K9

SW Cisco AP1570: Unified Mesh (e.g., 8.0.xxx) + IOS (e.g., 15.2.4-yyy); IOS added when available

SW1570-UL01A01-K9

SW Cisco AP1570: Unified Local (e.g., 8.0.xxx) + IOS (e.g., 15.2.4-yyy); IOS added when available

Software Ordering Options

The 1570 Series requires, at a minimum, AP software release 8.0MR or later (see Table 5). Traditionally, additional functions are available for the AP with more recent releases. Please see the applicable release notes for more information about features available with the latest software releases. You can specify the AP to be loaded and shipped with the default unified software as either “unified mesh” (SW1570-UM01A01-K9) or “unified local” (SW1570-UL01A01-K9) mode during the ordering process.

Table 5. Minimum AP Software Releases

4. Cisco Aironet 1570 Series Components

Antennas

The Aironet 1572IC access point has four internal dual-band (2.4- and 5-GHz) antennas that reside under a sealed random and cannot be accessed or configured by the user.

The Aironet 1572EAC and 1572EC access points are equipped with four separate N-type female connectors that carry dual-band signals or, through software control, can be configured such that the bottom pair of connectors carry only 2.4-GHz signals and the top pair carry only 5-GHz signals. This gives users multiple configuration options, as shown in Figure 1.

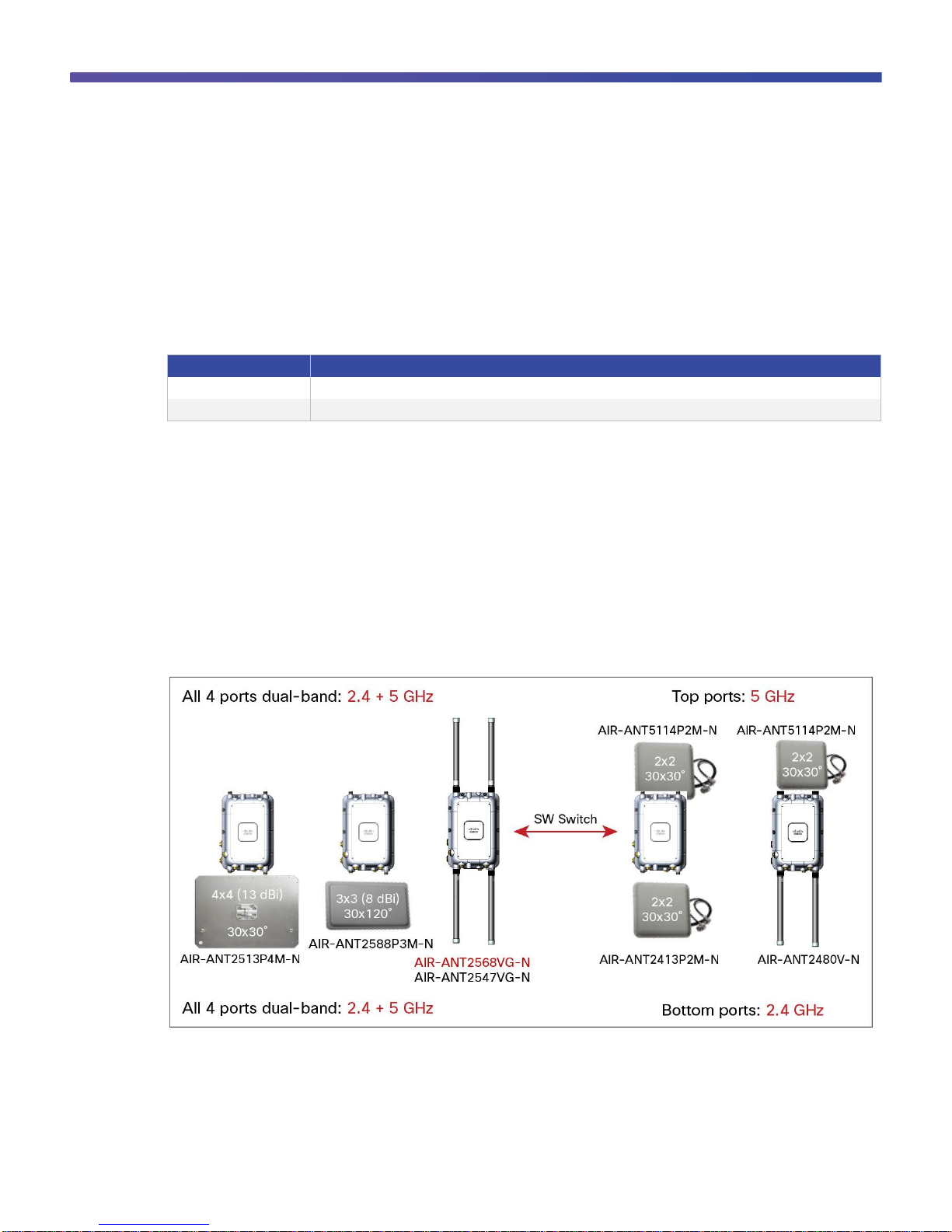

Figure 1. Antenna Configuration Options

Part Number

Frequency Band

Gain

Type

Required Quantity and Note

AIR-ANT2568VG-N

2.4/5 GHz

6/8 dBi

Omnidirectional

4; default recommended for maximum omni performance

AIR-ANT2547VG-N

2.4/5 GHz

4/7 dBi

Omnidirectional

4

AIR-ANT2588P3M-N=

2.4/5 GHz

8/8 dBi

Directional

1; 3x cables and lightning arrestors may be needed

AIR-ANT2513P4M-N=

2.4/5 GHz

13/13 dBi

Directional

1; 4x cables and lightning arrestors may be needed

AIR-ANT2480V-N

2.4 GHz

8 dBi

Omnidirectional

2

AIR-ANT2450V-N

2.4 GHz

5 dBi

Omnidirectional

2

AIR-ANT2413P2M-N=

2.4 GHz

13 dBi

Directional

1; antenna mount kit may be used to attach directly to AP

AIR-ANT5180V-N

5 GHz

8 dBi

Omnidirectional

2

AIR-ANT5114P2M-N=

5 GHz

14 dBi

Directional

1; antenna mount kit may be used to attach directly to AP

Part Number

Description

AIR-ANT-GPS-1

GPS Antenna

Part Number

Description

AP1572EAC

AP1572IC

AP1572EC

AIR-ACCSMK1570-1

Accessory, Strand-Mount Kit 1 (SMK1)

√

AIR-ACCSMK1570-2

Accessory, Strand-Mount Kit 2 (SMK2)

√ √

AIR-ACCSMK1570-3

Accessory, Strand-Mount Kit 3 (SMK3)

√ √

AIR-ACCPMK1570-1

Accessory, Pole-Mount Kit 1 (PMK1)

√ √

AIR-ACCPMK1570-2=

Accessory, Pole/Wall-Mount Kit 2 (PMK2)

√ √

AIR-ACCPMK1570-3=

Accessory, Pole/Wall-Mount Kit 3 (PMK3)

√

AIR-ACCAMK-1=

Accessory, Antenna Mount Kit 1 (AMK1)

√ √

Table 6 describes the antennas available for the Aironet 1572EAC and 1572EC access points. The table lists part numbers for the antennas as well as gain and other details.

Table 6. Antennas for the Cisco Aironet 1572EAC and 1572EC Access Point

*

All the above antennas are compatible with UNII-1 band operation under FCC rules except for (AIR-ANT2568VG-N).

For additional antenna specifications, see the Cisco Aironet Antenna and Accessories Reference Guide. The access points are provided with a sealant tape to protect the antenna connector from weather. Consult the

installation guide for proper installation.

GPS

All Aironet 1570 Series access points have a built-in GPS receiver. To use the GPS functionality, you should order and install a GPS antenna (see Table 7). The GPS antenna can be selected as a “configurable” option at the time of the AP order or as a “spare” at a later date.

Table 7. GPS Antennas for the Cisco Aironet 1570 Series Access Points

Mounting Brackets

Aironet 1570 Series outdoor access points can be mounted on a cable strand, poles, or walls. Table 8 provides the mounting options for each model.

Table 8. Mounting Options for the Cisco Aironet 1570 Series

Part Number

Description

AIR-ACCSMK1570-1

Default SMK. Does not offer any allowance for data cable under the steel strand.

AIR-ACCSMK1570-2

Fixed-height SMK. Offers approximately 1.7 inches of clearance for data cable below steel strand.

AIR-ACCSMK1570-3

Adjustable-height SMK. Offers approximately 2.7 inches of clearance for data cable below steel strand.

AIR-ACCPMK1570-1

Vertical pole only (2 to 6 inches in diameter). Does not require special band-installation tool.

AIR-ACCPMK1570-2=

Wall or pole (2 to 16 inches in diameter) with tilt adjustment. Requires special band-installation tool (AIR-BAND-INST-TL=); one per install crew.

AIR-ACCPMK1570-3=

Wall or pole (2 to16 inches in diameter) with tilt adjustment. Requires special band-installation tool (AIR-BAND-INST-TL=); one per install crew.

AIR-ACCAMK-1=

Attaches certain directional antennas directly to the AP (e.g., AIR-ANT2413P2M-N= or AIR-ANT5114P2M-N=)

Powering Option

AP1572EAC

AP1572IC

AP1572EC

AC (Alternating Current)

√

PoC (power over cable)

√ √

PoE (power over Ethernet)

√

DC (Direct Current)

√ √ √

Part Number

Description

AIR-CORD-R3P-40NA=

AC power cord, 40 ft (12m); North American plug; 1520/1550/1570 Series

AIR-CORD-R3P-40UE=

AC power cord, 40 ft (12m); EU unterminated end; 1520/1550/1570 Series

AIR-ACC15-AC-PLGS=

Accessory, AC-Power Connector Kit, Field-Install, bag of 5 units

AIR-PWR-ST-LT-R3P=

Power cord, 4 ft, Streetlight Tap

Table 9 provides a fuller description of each of the mounting options.

Table 9. Mounting Brackets for the Cisco Aironet 1570 Series

Power

Aironet 1570 Series Outdoor Access Points can be powered by AC, DC, power over cable (PoC), and Power over Ethernet (PoE). Table 10 shows the powering options for each model.

Table 10. Powering Options for the Cisco Aironet 1570 Series

AC Power

To power the AP1572EAC from an AC power source, an AC cable is required. When powering the 1572EAC from streetlight power, note that the maximum voltage is 277 VAC and requires the power adapter and the streetlight tap. The Aironet 1570 Series also offers an option of a field-installable AC power cable connector kit to give the user the option to source the AC cable locally and terminate the AP end with this compatible connector. Check the

hardware installation guide for these options. Table 11 lists the AC cable, tap, and field-installable connector kit

part numbers.

Table 11. AC Cables, Streetlight Tap, and Connector Kit

Part Number

Description

AIR-PWRINJ1500-2=

1520/1550/1570 Series Power Injector; for indoor environments only

Powering Option

Description

AIR-ACC15-SFP-GLD=

Accessory, SFP external Gland/Adapter, bag of 5 units

GLC-LX-SM-RGD=

1000BASE-LX single-mode Rugged SFP

GLC-SX-MM-RGD=

1000BASE-SX multi-mode Rugged SFP

Power over Ethernet

The AP1572EAC can be powered over the Ethernet connection. Power can be sourced directly from an appropriately powered Universal Power over Ethernet (UPoE) switch port or from the inline power injector listed in Table 12.

Table 12. Power Injector for Use with PoE

You must also specify the country type AC power cord for the power injector. The Aironet 1570 Series access points use a standard RJ-45 Ethernet connector. Cisco does not provide an

Ethernet cable for the 1570 Series. You will need to source an outdoor-rated, Category 5 or better Ethernet cable and shielded RJ-45 connectors from a local supplier. A liquid-tight gland is provided with the access point to seal this cable entry point from weather.

DC Power

The Aironet 1570 Series access points support power from an external DC power supply. Check the data sheet for the associated voltage, current range, and power consumption. A DC terminal block is included with the AP1572EAC for this purpose. While not common, the cable-powered AP1572IC and AP1572EC can also use DC power. For that, an accessory kit is available to provide DC terminal block connectors (see the accessories

section/table). Note that these DC connectors are specifically for the Aironet 1570 Series and should not be

interchanged with DC terminal blocks for the previous AP1520, AP1550, or 1530 models. When using DC power, please consult the hardware installation guide for instructions on how to correctly assemble the connector.

SFP

All the Cisco Aironet 1570 Series Outdoor Access Points support fiber backhaul. The SFP is built into the AP, but the mechanical interface is external to the AP. A special SFP adapter/gland kit is needed to interface the fiber cable to the AP. Table 13 lists the SFP and the adapter/gland accessory kit, and Figure 2 illustrates them.

Table 13. SFP Components for use with AP1570

Part Number

Description

AIR-CAB005LL-N=

RF Cable, 5 ft Low-loss, N connectors

AIR-CAB010LL-N=

RF Cable, 10 ft Low-loss, N connectors

AIR-ACC245LA-N=

Accessory, 2.4 and 5 GHz lightning arrestor, N connector

Figure 2. Fitting the Fiber Cable Interface to the AP

Accessory Kit and Optional Items

RF Cables and Lightning Arrestors

For customer convenience, Cisco offers RF cables to remotely attach external antennas to the Cisco Aironet 1572EAC and 1572EC access points. When you use cables between the antenna and these access points, Cisco recommends that you add lightning arrestors to each port, particularly when the deployment is in an area with high lightning activity. The lightning arrestor listed here, when properly grounded, provides robust protection against induced currents in the RF cabling generated by nearby lightning strikes. The lightning arrestor does not protect against direct lightning strikes on the access point. Table 14 lists and describes the RF cables and lightning arrestor parts.

Table 14. RF Cables and Lightning Arrestor

Part Number

Description

AIR-BAND-INST-TL=

Accessory, Band installation tool (used for PMK2 and PMK3. Need one per installation crew)

AIR-ACC15-DC-PLGS=

Accessory, DC-Power terminal plug/connector, bag of 10 units

AIR-ACC15-GLANDS=

Accessory, Metal Cable Glands, bag of 10 units

AIR-ACC15-AC-CAP=

Accessory, Cover-cap for AC-Power connector, bag of 10 units, for AP1572EAC/AP1552E

AIR-ACC15-N-CAP=

Accessory, Cover-cap for N-connector, bag of 10 units, for AP1572EAC/AP1552E

Accessory Kit

A number of additional accessories are provided with the Aironet 1570 Series to facilitate the completeness of certain applications and installation. Table 15 lists the accessory parts and kits.

Table 15. Cisco Aironet 1570 Series Accessories

Product

Description

Access Point

AIR-AP1572EAC-x-K9

AP 1572EAC, E: External Antennas, AC: AC power

Software

SW1570-UM01A01-K9

SW Cisco AP1570: Unified Mesh (8.0.xxx) + IOS(15.2.4-yyy); IOS added when available

SW1570-UL01A01-K9

SW Cisco AP1570: Unified Local(8.0.xxx) + IOS(15.2.4-yyy); IOS added when available

Antennas

AIR-ANT2568VG-N

Antenna, Omni, 2/5GHz, 1-port, 6/8dBi (need 4x/AP1572E)

AIR-ANT2547VG-N

Antenna, Omni, 2/5GHz, 1-port, 4/7dBi (need 4x/AP1572E)

AIR-ANT2588P3M-N=

Antenna, Directional, 2/5GHz, 3-ports, 8/8dBi (need 1x/AP1572E), 3x Separate cables

AIR-ANT2513P4M-N=

Antenna, Directional, 2/5GHz, 4-ports, 13/13dBi (need 1x/AP1572E), 4x Separate cables

AIR-ANT2480V-N=

Antenna, Omni, 2GHz, 1-port, 8dBi (need 2x or 4x/AP1572E)

AIR-ANT2450V-N=

Antenna, Omni, 2GHz, 1-port, 5dBi (need 2x or 4x/AP1572E)

AIR-ANT2413P2M-N=

Antenna, Directional, 2 GHz, 2-ports, 13dBi (need 1x or 2x/AP1572E), cables built-in

AIR-ANT5180V-N=

Antenna, Omni, 5GHz, 1-port, 8dBi (need 2x or 4x/AP1572E)

AIR-ANT5114P2M-N=

Antenna, Directional, 5GHz, 2-ports, 14dBi (need 1x or 2x/AP1572E), cables built-in

AIR-ANT-GPS-1

Antenna, GPS

Mounting Kits

AIR-ACCPMK1570-1

Accessory, Pole-Mount-Kit 1, Basic (2-06 inch pole)

AIR-ACCPMK1570-2=

Accessory, Pole-Mount-Kit 2, Advanced (2-16 inch pole, cobra-arm pole, Wall mount)

AIR-BAND-INST-TL=

Accessory, Band installation tool (used for PMK2. Need 1x/Installation crew)

AIR-ACCAMK-1=

Accessory, Antenna Mounting Kit (AMK); (used for AIR-ANT2413P2M-N= or AIR-ANT5114P2M-N=)

Power

AIR-CORD-R3P-40NA=

AC pwr cord, 40 ft (12m); NA plug, for AP1572EAC/AP1552E

AIR-CORD-R3P-40UE=

AC pwr cord, 40 ft (12m); EU unterminated end, for AP1572EAC/AP1552E

AIR-PWR-ST-LT-R3P=

AC Pwr cord, 4 ft (1m); Street light pwr tap, for AP1572EAC/AP1552E

AIR-PWRINJ1500-2=

PoE-In Power Injector Brick, for AP1572EAC/AP1552E

AIR-ACC15-AC-PLGS=

Accessory, AC-Power plug/connector, Field-Install, Bag of 5, for AP1572EAC/AP1552E

AIR-ACC15-DC-PLGS=

Accessory, DC-Power plug/connector, Bag of 10 units, for AP1572EAC

Fiber-SFP

AIR-ACC15-SFP-GLD=

Accessory, SFP external Gland/Adaptor, Bag of 5 units, for AP1572EAC

GLC-LX-SM-RGD=

1000BaseLX single-mode Rugged SFP, for AP1572EAC/AP1552E

GLC-SX-MM-RGD=

1000BaseSX multimode Rugged SFP, for AP1572EAC/AP1552E

Accessories

AIR-ACC15-GLANDS=

Accessory, Metal Cable Glands, Bag of 10 units, for AP1572EAC/AP1552E

AIR-ACC15-AC-CAP=

Accessory, Cover-cap for AC-Power connector, Bag of 10 units, for AP1572EAC/AP1552E

AIR-ACC15-N-CAP=

Accessory, Cover-cap for N-connector, Bag of 10 units, for AP1572EAC/AP1552E

5. Part Numbers for Ordering

Tables 16, 17, and 18 list the part numbers for the Aironet 1570 Series Outdoor Access Points.

Table 16. AP1572EAC Part Numbers

Product

Description

RF Cables

AIR-CAB005LL-N=

RF Cable, 5 ft Low-loss, w/N connectors for AP1572EAC/AP1552E

AIR-CAB010LL-N=

RF Cable, 10 ft Low-loss, w/N connectors for AP1572EAC/AP1552E

AIR-ACC245LA-N=

Accessory, 2.4 & 5 GHz lightning Arrestor, N-Connector

Notes:

●

For official pricings, check the Ordering Tool on the Cisco Web Site

●

AP PIDs, "x" represents generic Regulatory Domain (RD). For proper RD assoc. w/ a country, visit: http://www.cisco.com/go/aironet/compliance

●

Some accessories can be ordered as an "option" in that they get shipped in the same box package in which the AP is shipped. These items are identified by the absence of an "=" at the end of the PID.

Product

Description

Access Point

AIR-AP1572IC1-x-K9

AP 1572IC1, I: Internal Antennas, C1: Cable Backhaul; NA-DOCSIS 42/88 MHz

AIR-AP1572IC2-x-K9

AP 1572IC2, I: Internal Antennas, C2: Cable Backhaul; NA-DOCSIS 85/108 MHz

AIR-AP1572IC3-x-K9

AP 1572IC3, I: Internal Antennas, C3: Cable Backhaul; Euro-DOCSIS 65/108 MHz

AIR-AP1572IC4-x-K9

AP 1572IC4, I: Internal Antennas, C4: Cable Bachhaul; Japan-DOCSIS 65/108 MHz

Part Number

Description

CM RTU License

LIC-CM1570-08CH

License: Cable Modem Right-to-Use (RTU), up to 8 Downstream Channel Bonding

LIC-CM1570-16CH

License: Cable Modem Right-to-Use (RTU), up to 16 Downstream Channel Bonding

LIC-CM1570-24CH

License: Cable Modem Right-to-Use (RTU), up to 24 Downstream Channel Bonding

Software

SW1570-UM01A01-K9

SW Cisco AP1570: Unified Mesh (8.0.xxx) + IOS(15.2.4-yyy); IOS added when available

SW1570-UL01A01-K9

SW Cisco AP1570: Unified Local (8.0.xxx) + IOS(15.2.4-yyy); IOS added when available

Antennas

AIR-ANT-GPS-1

Antenna, GPS

Mounting Kits

AIR-ACCSMK1570-1 ($0 "option")

Accessory, Strand-Mount-Kit 1, Short, no data-cable clearance, for AP1572IC

AIR-ACCSMK1570-2

Accessory, Strand-Mount-Kit 2, Tall, approx. 1.7" data cable clearance, for AP1572IC

AIR-ACCSMK1570-3

Accessory, Strand-Mount-Kit 3, Adjustable, approx. 2.7" data cable clearance, for AP1572IC

AIR-ACCPMK1570-3=

Accessory, Pole-Mount-Kit 3, Horizontal, 2-16' pole, cobra-arm, Wall mount),for AP1572IC

AIR-BAND-INST-TL=

Band installation tool (used for PMK3. Need 1x/Installation crew)

Fiber-SFP

AIR-ACC15-SFP-GLD=

Accessory, SFP external Gland/Adaptor, Bag of 5 units, for AP1572IC

GLC-LX-SM-RGD=

1000BaseLX single-mode Rugged SFP, for AP1572IC

GLC-SX-MM-RGD=

1000BaseSX multimode Rugged SFP, for AP1572IC

Accessories

AIR-ACC15-GLANDS=

Accessory, Metal Cable Glands, Bag of 10 units, for AP1572IC

AIR-ACC15-DC-PLGS=

Accessory, DC-Power connector, Bag of 10 units, for AP1572IC

Table 17. AP1572IC Part Numbers

Notes:

●

For official pricings, check the Ordering Tool on the Cisco Web Site

●

AP PIDs, "x" represents generic Regulatory Domain (RD). For proper RD assoc. w/ a country, visit: http://www.cisco.com/go/aironet/compliance

●

Some accessories can be ordered as an "option" in that they get shipped in the same box package in which the AP is shipped. These items are identified by the absence of an "=" at the end of the PID.

Product

Description

Access Point

AIR-AP1572EC1-x-K9

AP 1572EC1, E: External Antennas, C1: Cable Backhaul; NA-DOCSIS 42/88 MHz

AIR-AP1572EC2-x-K9

AP 1572EC2, E: External Antennas, C2: Cable Backhaul; NA-DOCSIS 85/108 MHz

AIR-AP1572EC3-x-K9

AP 1572EC3, E: External Antennas, C3: Cable Backhaul; Euro-DOCSIS 65/108 MHz

AIR-AP1572EC4-x-K9

AP 1572EC4, E: External Antennas, C4: Cable Bachhaul; Japan-DOCSIS 65/108 MHz

CM RTU License

LIC-CM1570-08CH

License: Cable Modem Right-to-Use (RTU), up to 8 Downstream Channel Bonding

LIC-CM1570-16CH

License: Cable Modem Right-to-Use (RTU), up to 16 Downstream Channel Bonding

LIC-CM1570-24CH

License: Cable Modem Right-to-Use (RTU), up to 24 Downstream Channel Bonding

Software

SW1570-UM01A01-K9

SW Cisco AP1570: Unified Mesh (8.0.xxx) + IOS(15.2.4-yyy); IOS added when available

SW1570-UL01A01-K9

SW Cisco AP1570: Unified Local(8.0.xxx) + IOS(15.2.4-yyy); IOS added when available

Antennas

AIR-ANT2568VG-N

Antenna, Omni, 2/5GHz, 1-port, 6/8dBi (need 4x/AP1572E)

AIR-ANT2547VG-N

Antenna, Omni, 2/5GHz, 1-port, 4/7dBi (need 4x/AP1572E)

AIR-ANT2588P3M-N=

Antenna, Directional, 2/5GHz, 3-ports, 8/8dBi (need 1x/AP1572E), 3x Separate cables

AIR-ANT2513P4M-N=

Antenna, Directional, 2/5GHz, 4-ports, 13/13dBi (need 1x/AP1572E), 4x Separate cables

AIR-ANT2480V-N=

Antenna, Omni, 2 GHz, 1-port, 8dBi (need 2x or 4x/AP1572E)

AIR-ANT2450V-N=

Antenna, Omni, 2 GHz, 1-port, 5dBi (need 2x or 4x/AP1572E)

AIR-ANT2413P2M-N=

Antenna, Directional, 2 GHz, 2-ports, 13dBi (need 1x or 2x/AP1572E), cables built-in

AIR-ANT5180V-N=

Antenna, Omni, 5GHz, 1-port, 8dBi (need 2x or 4x/AP1572E)

AIR-ANT5140V-N=

Antenna, Omni, 5GHz, 1-port, 4dBi (need 2x or 4x/AP1572E)

AIR-ANT5114P2M-N=

Antenna, Directional, 5GHz, 2-ports, 14dBi (need 1x or 2x/AP1572E), cables built-in

AIR-ANT-GPS-1

Antenna, GPS

Mounting Kits

AIR-ACCSMK1570-2

Accessory, Strand-Mount-Kit 2, Tall, approx. 1.7" data cable clearance, for AP1572EC

AIR-ACCSMK1570-3

Accessory, Strand-Mount-Kit 3, Adjustable, approx. 2.7" data cable clearance, for AP1572EC

AIR-ACCPMK1570-1

Accessory, Pole-Mount-Kit 1, Basic, (2-06 inch pole)

AIR-ACCPMK1570-2=

Accessory, Pole-Mount-Kit 2, Advanced, (2-16 inch pole, cobra-arm pole, Wall mount)

AIR-BAND-INST-TL=

Band installation tool (used for PMK2. Need 1x/Installation crew)

AIR-ACCAMK-1=

Accessory, Antenna Mounting Kit (AMK); (used for AIR-ANT2413P2M-N= or AIR-ANT5114P2M-N=)

Fiber-SFP

AIR-ACC15-SFP-GLD=

Accessory, SFP external Gland/Adaptor, Bag of 5 units, for AP1572EC

GLC-LX-SM-RGD=

1000BaseLX single-mode Rugged SFP, for AP1572EC

GLC-SX-MM-RGD=

1000BaseSX multimode Rugged SFP, for AP1572EC

Accessories

AIR-ACC15-GLANDS=

Accessory, Metal Cable Glands, Bag of 10 units, for AP1572EC

AIR-ACC15-N-CAP=

Accessory, Cover-cap for N-connector, Bag of 10 units, for AP1572EAC/AP1552E

AIR-ACC15-DC-PLGS=

Accessory, DC-Power plug/connector, Bag of 10 units, for AP1572EC

Table 18. AP1572EC Part Numbers

Product

Description

Part Number

Description

RF Cables

AIR-CAB005LL-N=

RF Cable, 5 ft Low-loss, w/N connectors for AP1572EC

AIR-CAB010LL-N=

RF Cable, 10 ft Low-loss, w/N connectors for AP1572EC

AIR-ACC245LA-N=

Accessory, 2.4 & 5 GHz lightning Arrestor, N-Connector

Notes:

●

For official pricings, check the Ordering Tool on the Cisco Web Site

●

AP PIDs, "x" represents generic Regulatory Domain (RD). For proper RD assoc. w/ a country, visit: http://www.cisco.com/go/aironet/compliance

●

Some accessories can be ordered as an "option" in that they get shipped in the same box package in which the AP is shipped. These items are identified by the absence of an "=" at the end of the PID.

Service

Description and Features

Cisco Smart Net Total Care™ Service

●

Next-business-day, 8 x 5 x 4, 24 x 7 x 4, and 24 x 7 x 2 advance hardware replacement1 and onsite parts replacement and installation available

●

Global access to the Cisco Technical Assistance Center (TAC) 24 hours a day

●

Unrestricted access to the extensive Cisco.com resources, communities, and tools

●

Ongoing operating system software updates2 within a software licensed feature set, if any

●

Proactive diagnostics and real-time alerts on Smart Call Home-enabled devices

Cisco Smart Foundation Service

●

Next-business-day advance hardware replacement as available

●

Business-hours access to SMB Cisco TAC (access levels vary by region)

●

Access to Cisco.com SMB knowledge base

●

Online technical resources through Smart Foundation Portal

●

Operating system software bug fixes and patches, if applicable

6. Cisco Services

Cisco Technical Services

Table 19 lists Cisco Technical Services for the Aironet 1570 Series Outdoor Access Points.

Table 19. Cisco Technical Services

1

Advance hardware replacement is available in various service-level combinations. For example, 8 x 5 x next business day (NBD) indicates that shipment will be initiated during the standard 8-hour business day, 5 days a week (the generally accepted business days within the relevant region), with NBD delivery. Where NBD is not available, same-day shipment is provided. Restrictions apply; please review the appropriate Cisco Smart Net Total Care service descriptions for details.

2

Cisco operating system updates include maintenance releases, minor updates, and major updates within the licensed feature set, if applicable.

For more information about Cisco Technical Services, visit http://www.cisco.com/go/ts.

Cisco Tools for Quoting and Ordering

To place an order, visit the Cisco ordering website at http://www.cisco.com/en/US/ordering/index.shtml

7. Cisco Capital Financing

The significant benefits offered by the Aironet 1570 Series Outdoor Access Points make them the natural choice for outdoor Wi-Fi connectivity. As with any technology investment, you have to consider the affordability of the new system. Financing from Cisco Capital® can make this easier. Whether through flexible repayments matching expenditure to benefit, mitigating cash flow issues, or negating capital expenditure with an operating lease, we can give you access to the right technology for your business, when you need it.

Flexible Options

Cisco Capital can usually help remove or reduce barriers preventing you from obtaining the technology that can most benefit your business. Cisco Capital can:

●

Remove cash flow issues, allowing you to spread the cost of your investment over a number of years

●

Offer you flexible repayment terms matching expenditure to benefits, which means that payments can be timed to coincide with business benefits that may be seen later in the project, or deferred to meet your budget cycle

●

Turn capital expenditures into operating expenditures through an operating lease that enables you to benefit from the value of the technology up-front

●

Offer you a sale and lease-back arrangement (where available) that softens the initial costs by taking on

existing commitments that may be attached to legacy equipment

Printed in USA C07-733334-03 11/15

For more information about Cisco Capital Financing, visit:

http://www.cisco.com/cisco/web/UK/products/ciscocapital/why_finance.html#WJwjw1LSGg3CmUrd.97

Cisco Aironet 1570 Series Ordering Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
